Instruction Manual Supplement

D104308X012

4200 Transmitters

October 2017

CSA Hazardous Area Approvals

™

Fisher

Hazardous Area Classifications and Special Instructions for “Safe
Use” and Installations in Hazardous Locations

Certain nameplates may carry more than one approval, and each approval may have unique installation/wiring
requirements and/or conditions of “safe use”. These special instructions for “safe use” are in addition to, and may
override, the standard installation procedures. Special instructions are listed by approval.

Note

This information supplements the nameplate markings affixed to the product and the 4200 Instruction Manual (D200354X012
available from your Emerson sales office

Always refer to the nameplate itself to identify the appropriate certification.

4200 Electronic Position Transmitters

or Local Business Partner, or at www.Fisher.com.

),

WARNING

Failure to follow these conditions of “safe use” could result in personal injury or property damage from fire or explosion, or
area re‐classification.

Intrinsically Safe, Explosion-proof, Dust Ignition-proof

No special conditions for safe use.

Refer to table 1 for approval information.

Table 1. Hazardous Area Classifications—CSA (Canada)

Certification Body Type Certification Obtained Entity Rating Temperature Code

Ui = 30 VDC
Ii = 150 mA
Pi = 1.0 W
Ci = 5 nF
Li = 0 mH

T4 (Tamb ≤ 71°C)

- - - T5 (Tamb ≤ 71°C)

- - - T5 (Tamb ≤ 71°C)

CSA

4211, 4221

4210, 4211, 4212,
4215, 4220, 4221,
4222

4210, 4211, 4212,
4215, 4220, 4221,
4222

Intrinsically Safe
Class I,II,III Division 1 GP A,B,C,D,E,F,G
per drawing GE16020 (see figure 1)

Explosion‐proof
Ex d IIC T5
Class I, Division 1 GP B,C,D T5

Class II Division 1 GP E,F,G T5
Class III

www.Fisher.com

4200 Transmitters

October 2017

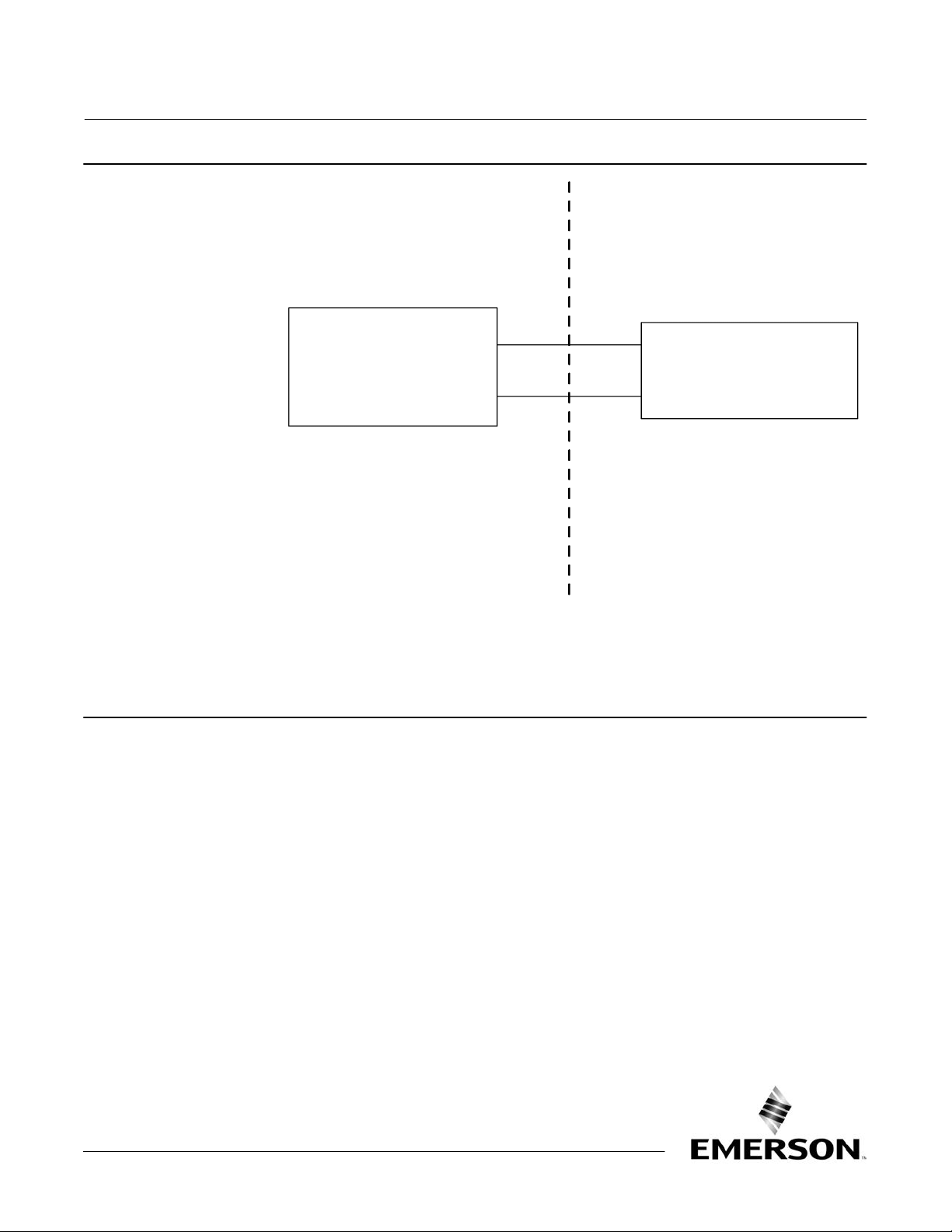

Figure 1. Fisher 4211 and 4221 CSA Schematic (Drawing GE16020)

HAZARDOUS LOCATION NON-HAZARDOUS LOCATION

I.S. CLASS I,II,III DIV 1, GROUPS A,B,C,D,E,F,G

4211, 4221

Vmax = 30 VDC

Imax = 150 mA

Pi = 1.0 W

Ci = 5 nF

Li = 0 mH

Instruction Manual Supplement

D104308X012

CSA APPROVED BARRIER
SEE NOTE 3

NOTES:

1. BARRIERS MUST BE CSA CERTIFIED WITH ENTITY PARAMETERS
 AND ARE TO BE INSTALLED IN ACCORDANCE WITH THE
 MANUFACTURER'S I.S. INSTALLATION INSTRUCTIONS.

2. EQUIPMENT SHALL BE INSTALLED IN ACCORDANCE WITH THE
 CANADIAN ELECTRICAL CODE (CEC) PART I.

3. FOR ENTITY INSTALLATION: Vmax > Voc, Imax > Isc
 Ci + Ccable < Ca, Li + Lcable < La

GE16020
