Introduction
Scope of Manual
This instruction manual includes installation, maintenance, and parts information for NPS 1/2 through 8 Fisher ES
valves, and NPS 1 through 6 EAS valves, through CL600 ratings. Refer to separate manuals for instructions covering the
actuator and accessories.
Do not install, operate, or maintain an ES valve without being fully trained and qualified in valve, actuator, and
accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to
carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you
have any questions about these instructions, contact your Emerson sales office
www.Fisher.com
before proceeding.
ES Valve
February 2020
Table 1. Specifications
Instruction Manual
D100397X012
End Connection Styles
Cast Iron Valves
Flanged: CL125 flat‐face or CL250 raised‐face flanges
per ASME B16.1
Steel and Stainless Steel Valves
Flanged: CL150, 300, and 600 raised‐face or ring‐type
joint flanges per ASME B16.5
Shutoff Classifications
See table 2
Flow Characteristics
Standard Cages: Linear, quick opening, or equal
percentage
Whisper Trim
™
Screwed or Socket Welding: All available ASME B16.11
schedules that are consistent with CL600 per ASME
B16.34
Buttwelding: Consistent with ASME B16.25
Maximum Inlet Pressure
(1)
Cast Iron Valves
Flanged: Consistent with CL125B or 250B
pressure‐temperature ratings per ASME B16.1
Steel and Stainless Steel Valves
Flanged: Consistent with CL150, 300, and 600
(2)
pressure‐temperature ratings per ASME B16.34
Screwed or Welding: Consistent with CL600
pressure‐temperature ratings per ASME B16.34
1. The pressure/temperature limits in this manual and any applicable standard or code limitation for the valve should not be exceeded.
2. Certain bonnet bolting material selections may require a CL600 easy‐e valve assembly to be derated. Contact your Emerson sales office
Flow Directions
Standard Cages: Normally up
Whisper Trim and WhisperFlo Cages: Always up
Approximate Weights
VALVE SIZE, NPS
1/2 and 3/4
1 and 1‐1/4
1‐1/2
2
2‐1/2
3
4
6
8
and WhisperFlo™ Cages: Linear
WEIGHT
kg Pounds
11
14
20
39
45
54
77
459
408
.
25
30
45
67
100
125
170
350
900
Description
These single‐port valves have cage guiding, quick‐change trim, and unbalanced push‐down‐to‐close valve plug action.
Valve configurations are as follows:
ES—Globe style valve (figure 1) with metal‐to‐metal seating as standard for all general applications over a wide range
of pressure drops and temperatures, and metal‐to‐PTFE seating is optional for more stringent shutoff requirements.
EAS—Angle valve version of ES, used to facilitate piping or in applications where a self draining valve body is required.
Specifications
Typical specifications for these valves are shown in table 1.
Installation
WARNING
Always wear protective gloves, clothing, and eyewear when performing any installation operations to avoid personal
injury.
Personal injury or equipment damage caused by sudden release of pressure may result if the valve assembly is installed
where service conditions could exceed the limits given in table 1 or on the appropriate nameplates. To avoid such injury or
damage, provide a relief valve for over‐pressure protection as required by government or accepted industry codes and
good engineering practices.
2
Instruction Manual
D100397X012
Check with your process or safety engineer for any additional measures that must be taken to protect against process
media.
If installing into an existing application, also refer to the WARNING at the beginning of the Maintenance section in this
instruction manual.
ES Valve
February 2020
Table 2. Available Shutoff Classifications per ANSI/FCI 70‐2 and IEC 60534‐4
Seating Shutoff Class
Metal
PTFE VI
IV (standard)
V
CAUTION
When ordered, the valve configuration and construction materials were selected to meet particular pressure, temperature,
pressure drop, and controlled fluid conditions. Since some body/trim material combinations are limited in their pressure
drop and temperature ranges, do not apply any other conditions to the valve without first contacting your Emerson sales
office.
Before installing the valve, inspect the valve and pipelines for any damage and any foreign material which may cause
product damage.
1. Before installing the valve, inspect the valve and associated equipment for any damage and any foreign material.
2. Make certain the valve body interior is clean, that pipelines are free of foreign material, and that the valve is
oriented so that pipeline flow is in the same direction as the arrow on the side of the valve.
3. The control valve assembly may be installed in any orientation unless limited by seismic criteria. However, the
normal method is with the actuator vertical above the valve. Other positions may result in uneven valve plug and
cage wear, and improper operation. With some valves, the actuator may also need to be supported when it is not
vertical. For more information, consult your Emerson sales office.
4. Use accepted piping and welding practices when installing the valve in the line. Internal elastomeric parts may stay
in place during the welding procedure. For flanged valves, use a suitable gasket between the valve and pipeline
flanges.
CAUTION
Depending on valve body materials used, post weld heat treating may be required. If so, damage to internal elastomeric
and plastic parts, as well as internal metal parts is possible. Shrunk‐fit pieces and threaded connections may also loosen. In
general, if post weld heat treating is to be performed, all trim parts should be removed. Contact your Emerson sales office
for additional information.
5. With a leak‐off bonnet construction, remove the pipe plugs (keys 14 and 16, figure 8) to hook up the leak‐off
piping. If continuous operation is required during inspection or maintenance, install a three‐valve bypass around
the control valve assembly.
6. If the actuator and valve are shipped separately, refer to the actuator mounting procedure in the appropriate
actuator instruction manual.
WARNING
Personal injury could result from packing leakage. Valve packing was tightened before shipment; however, the packing
might require some readjustment to meet specific service conditions.
3
ES Valve
February 2020
Instruction Manual
D100397X012
Valves with ENVIRO‐SEAL live‐loaded packing or HIGH‐SEAL Heavy‐Duty live‐loaded packing will not require this initial
re‐adjustment. See the Fisher instruction manuals titled ENVIRO‐SEAL Packing System for Sliding‐Stem Valves or
Heavy‐Duty Live‐Loaded Packing System (as appropriate) for packing instructions. If you wish to convert your present
packing arrangement to ENVIRO‐SEAL packing, refer to the retrofit kits listed in the Parts Kits sub‐section near the end
of this manual.
Maintenance
Valve parts are subject to normal wear and must be inspected and replaced as necessary. Inspection and maintenance
frequency depends on the severity of service conditions. This section includes instructions for packing lubrication,
packing maintenance, trim maintenance, and ENVIRO‐SEAL bellows seal replacement. All maintenance operations
may be performed with the valve in the line.
WARNING
Avoid personal injury or damage to property from sudden release of pressure or uncontrolled process fluid. Before starting
disassembly:
D Do not remove the actuator from the valve while the valve is still pressurized.
D Always wear protective gloves, clothing, and eyewear when performing any maintenance operations to avoid personal
injury.
D Disconnect any operating lines providing air pressure, electric power, or a control signal to the actuator. Be sure the
actuator cannot suddenly open the valve.
D Use bypass valves or completely shut off the process to isolate the valve from process pressure. Relieve process pressure
on both sides of the valve. Drain the process media from both sides of the valve.
D Vent the power actuator loading pressure and relieve any actuator spring compression.
D Use lock‐out procedures to be sure that the above measures stay in effect while you work on the equipment.
D The valve packing box may contain process fluids that are pressurized, even when the valve has been removed from the
pipeline. Process fluids may spray out under pressure when removing the packing hardware or packing rings, or when
loosening the packing box pipe plug.
D Check with your process or safety engineer for any additional measures that must be taken to protect against process
media.
CAUTION
Follow instructions carefully to avoid damaging the product surfaces, which could result in damage to the product.
Note
Whenever a gasket seal is disturbed by removing or shifting gasketed parts, a new gasket should be installed upon reassembly.
This is necessary to ensure a good gasket seal since the used gasket may not seal properly.
Note
If the valve has ENVIRO‐SEAL or HIGH‐SEAL live‐loaded packing installed, refer to instruction manuals ENVIRO‐SEAL Packing
System for Sliding‐Stem Valves (D101642X012
4
), or HIGH‐SEAL Live‐Loaded Packing System (D101453X012), for packing
Instruction Manual
(1
4)
(3)
(2)
D100397X012
ES Valve
February 2020
instructions. Figure 9 shows a typical HIGH‐SEAL Packing system. Figures 10, 11, and 12 show typical ENVIRO‐SEAL packing
systems.
If the valve has an ENVIRO‐SEAL bellows seal bonnet installed, refer to this manual. See the ENVIRO‐SEAL Bellows Seal and Bonnet
section for information on the bellows seal bonnet.
Figure 2. Optional Lubricator and Lubricator/Isolating Valve
10A9421‐A
AJ5428‐D
A0832‐2
LUBRICATOR
LUBRICATOR/ISOLATING VALVE
Table 3. Body‐to‐Bonnet Bolt Torque Guidelines
VALVE SIZE, NPS BOLT TORQUES
ES EAS
1‐1/4 or less 1 129 95 64 47
1‐1/2, 1‐1/2 x 1, 2, or 2 x 1 2 or 2 x 1 96 71 45 33
2‐1/2 or 2‐1/2 x 1‐1/2 3 or 3 x 1‐1/2 129 95 64 47
3, 3 x 2, or 3 x 2‐1/2 4 or 4 x 2 169 125 88 65
4, 4 x 2‐1/2, or 4 x 3 6 or 6 x 2‐1/2 271 200 156 115
6 ‐ ‐ ‐ 549 405 366 270
8 ‐ ‐ ‐ 746 550 529 390
1. Determined from laboratory tests.
2. SA193‐B8M annealed.
3. SA193‐B8M strain hardened.
4. For other materials, contact your Emerson sales office
for torques.
Packing Lubrication
Note
ENVIRO‐SEAL or HIGH‐SEAL packing does not require lubrication.
,
SA193‐B7, SA193‐B8M
NSm LbfSft NSm LbfSft
SA193‐B8M
WARNING
To avoid personal injury or property damage resulting from fire or explosion, do not lubricate packing used in oxygen
service or in processes with temperatures over 260_C (500_F).
If a lubricator or lubricator/isolating valve (figure 2) is provided for PTFE/composition or other packings that require
lubrication, it will be installed in place of the pipe plug (key 14, figure 8). Use a good quality silicon‐base lubricant.
Packing used in oxygen service or in processes with temperatures over 260_C (500_F) should not be lubricated. To
operate the lubricator, simply turn the cap screw clockwise to force the lubricant into the packing box. The
lubricator/isolating valve operates the same way except the isolating valve must first be opened and then closed after
lubrication is completed.
5
ES Valve
February 2020
Instruction Manual
D100397X012
Packing Maintenance
Key numbers refer to figure 3 for PTFE V‐ring packing and to figure 5 for PTFE/composition packing, unless otherwise
indicated.
For spring‐loaded single PTFE V‐ring packing, the spring (key 8, figure 3) maintains a sealing force on the packing. If
leakage is noted around the packing follower (key 13, figure 3), check to be sure the shoulder on the packing follower
is touching the bonnet. If the shoulder is not touching the bonnet, tighten the packing flange nuts (key 5, figure 8)
until the shoulder is against the bonnet. If leakage cannot be stopped in this manner, proceed to the replacing packing
procedure.
If there is undesirable packing leakage with other than spring‐loaded packing, first try to limit the leakage and
establish a stem seal by tightening the packing flange nuts.
If the packing is relatively new and tight on the stem, and if tightening the packing flange nuts does not stop the
leakage, it is possible that the valve stem is worn or nicked so that a seal cannot be made. The surface finish of a new
valve stem is critical for making a good packing seal. If the leakage comes from the outside diameter of the packing, it
is possible that the leakage is caused by nicks or scratches around the packing box wall. If performing any of the
following procedures, inspect the valve stem and packing box wall for nicks and scratches.

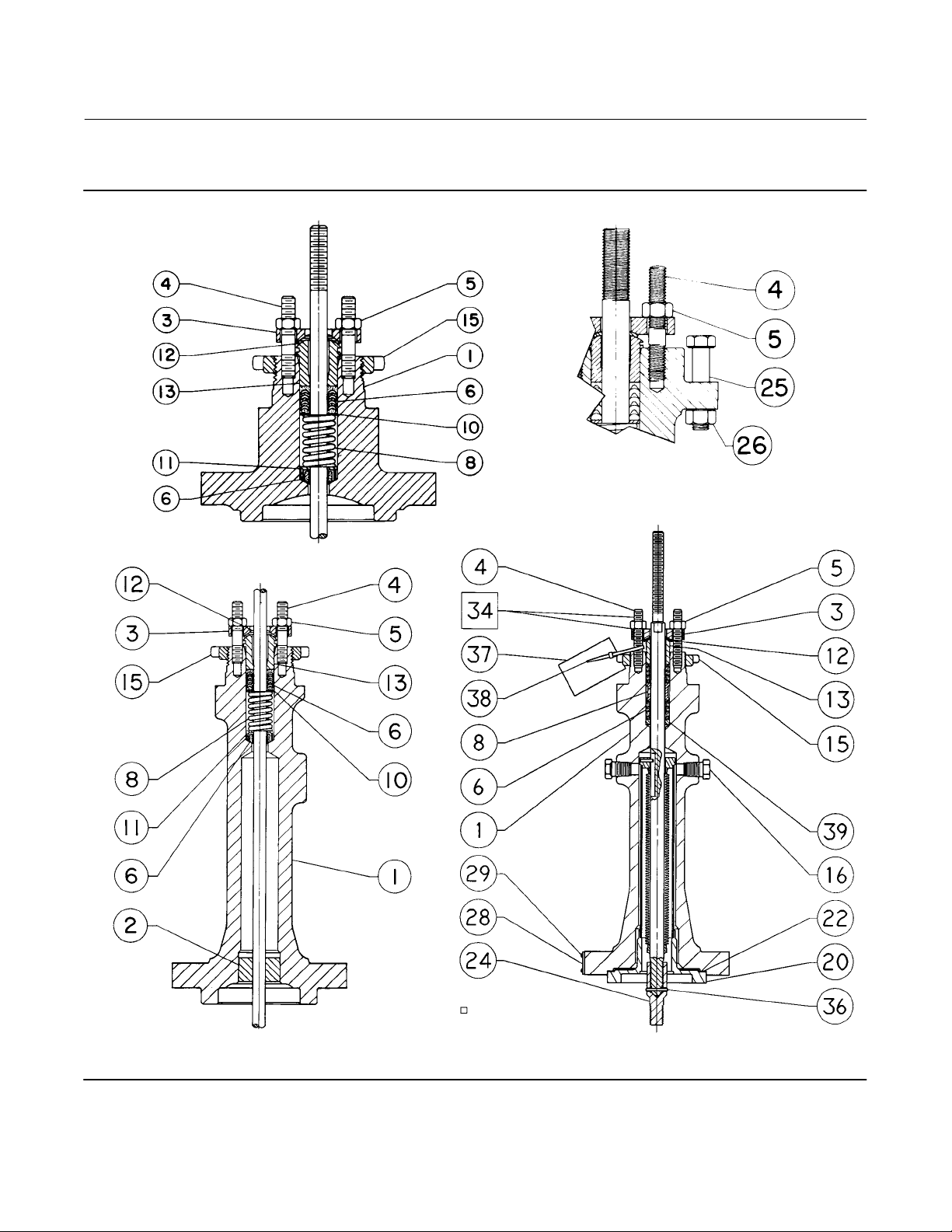

Replacing Packing
WARNING
Refer to the WARNING at the beginning of the Maintenance section in this instruction manual.
1. Isolate the control valve from the line pressure, and release pressure from the valve.
2. Disconnect the operating lines from the actuator and any leak‐off piping from the bonnet. Disconnect the stem
connector, then remove the actuator from the valve by unscrewing the yoke locknut (key 15, figure 8) or the hex
nuts (key 26, figure 8).
WARNING
To avoid personal injury or property damage caused by uncontrolled movement of the bonnet, loosen the bonnet by
following the instructions in the next step. Do not remove a stuck bonnet by pulling on it with equipment that can stretch
or store energy in any other manner. The sudden release of stored energy can cause uncontrolled movement of the bonnet.
If the cage sticks to the bonnet, proceed carefully with bonnet removal.
Note
The following step also helps to provide additional assurance that the valve body fluid pressure has been relieved.
3. Hex nuts (key 5, figure 8) attach the bonnet to the valve. Loosen these nuts or cap screws approximately 3 mm (1/8
inch). Then loosen the body‐to‐bonnet gasketed joint by either rocking the bonnet or prying between the bonnet
and valve body. Work the prying tool around the bonnet until the bonnet loosens.
6
Instruction Manual
D100397X012
Figure 3. PTFE V‐Ring Packing Arrangements for Plain and Extension Bonnets
ES Valve
February 2020
UPPER WIPER
(KEY 12)
PACKING
FOLLOWER
(KEY 13)
WASHER
(KEY 10)
SPRING
(KEY 8)
PACKING BOX
RING (KEY 11)
12A7837−A
FOR S31600 OR S17400
METAL PACKING BOX PARTS
NOTE:
1
PART OF PACKING SET (KEY 6) (SEE TABLE IN PARTS LIST).
B2427
FEMALE
ADAPTOR
PACKING RING
MALE
ADAPTOR
LOWER WIPER
1
1
1
1
SINGLE ARRANGEMENTS
1
FEMALE
ADAPTOR
1
PACKING RING
1
MALE
ADAPTOR
1
LOWER WIPER
FOR ALL OTHER METAL PACKING
BOX PART MATERIALS
UPPER WIPER
(KEY 12)
PACKING
FOLLOWER
(KEY 13)
SPACER
(KEY 8)
PACKING BOX
RING (KEY 11)
UPPER WIPER
(KEY 12)
PACKING
FOLLOWER
(KEY 13)
MALE ADAPTOR
(KEY 31)
PACKING RING
(KEY 7)
FEMALE ADAPTOR
(KEY 32)
LANTERN RING
(KEY 8)
12A8187-D 12A7814-D 12A7839-A
ASSEMBLY 1
(POSITIVE
PRESSURES)
ASSEMBLY 2
(VACUUM)
ASSEMBLY 3
(POSITIVE
PRESSURES
& VACUUM)
ASSEMBLY 1
(POSITIVE
PRESSURES)
ASSEMBLY 2
(VACUUM)
ASSEMBLY 3
(POSITIVE
PRESSURES
& VACUUM)
ASSEMBLY 1
(POSITIVE
PRESSURES)
9.5 mm (3/8 INCH) STEM 12.7 mm (1/2 INCH) STEM
B1428‐3
DOUBLE ARRANGEMENTS
ASSEMBLY 2
(VACUUM)
ASSEMBLY 3
PRESSURES
19.1, 25.4, or 31.8 mm
(3/4, 1, OR 1‐1/4 INCH) STEM
(POSITIVE
& VACUUM)
PACKING BOX
RING (KEY 11)
LOWER WIPER
(KEY 30)
7
ES Valve
February 2020
Figure 4. PTFE Packing Arrangements for Use in ENVIRO‐SEAL Bellows Seal Bonnets
UPPER WIPER
(KEY 12)
BUSHING (KEY 13)
PACKING SET: (KEY 6)
FEMALE ADAPTOR
PACKING RING
MALE ADAPTOR
SPACER
THRUST
(KEY 39)
SPRING
(KEY 8)
THRUST
12B4182-A SHT 1
(KEY 39)
9.5 mm
(3/8 INCH)
STEM
FOR S31600 (316 SST)
PACKING BOX PARTS
BUSHING
(KEY 13)
RING
RING
12B4185-A SHT 1
12.7 mm
(1/2 INCH)
STEM
SINGLE ARRANGEMENTS
BUSHING
(KEY 13)
SPACER
(KEY 8)
12B4182-A SHT 2
9.5 mm
(3/8 INCH)
STEM
MATERIALS EXCEPT S31600
UPPER WIPER
(KEY 12)
BUSHING (KEY 13)
PACKING SET: (KEY 6)
FEMALE ADAPTOR
PACKING RING
MALE ADAPTOR
(KEY 8)
SPACER
(KEY 8)
12B4185-A SHT 2
12.7 mm
(1/2 INCH)
FOR ALL PACKING BOX
STEM
Instruction Manual
D100397X012
SPACER
(KEY 8)
THRUST
12B4183-A 18A0906-D 18A5338-A
9.5 mm
(3/8 INCH)
STEM
RING
(KEY 39)
12.7 mm
(1/2 INCH)
STEM FOR
NPS 2 VALVES
12.7 mm
(1/2 INCH)
STEM FOR
NPS 3 AND 4
VALVES
A5863‐1
DOUBLE ARRANGEMENTS
4. Loosen the packing flange nuts (key 5, figure 8) so that the packing is not tight on the valve stem. Remove any
travel indicator parts from the valve stem threads.
CAUTION
Avoid damage to the seating surface caused by the valve plug and stem assembly dropping from the bonnet after being
lifted part way out. When lifting the bonnet, temporarily install a valve stem locknut on the valve stem. This locknut will
prevent the valve plug and stem assembly from dropping out of the bonnet.
If the cage starts to lift with the bonnet, tap it with a plastic mallet, or other soft material, to be sure it stays in the valve.
5. Completely remove the cap screws (not shown) or hex nuts (key 16; figure 13, 14, or 15) that bolt the bonnet and
valve together and carefully lift the bonnet off.
6. Remove the locknut and separate the valve plug and stem from the bonnet. Set the parts on a protective surface to
prevent damage to gasket or seating surfaces.
8
Instruction Manual
G
G
G
X
G

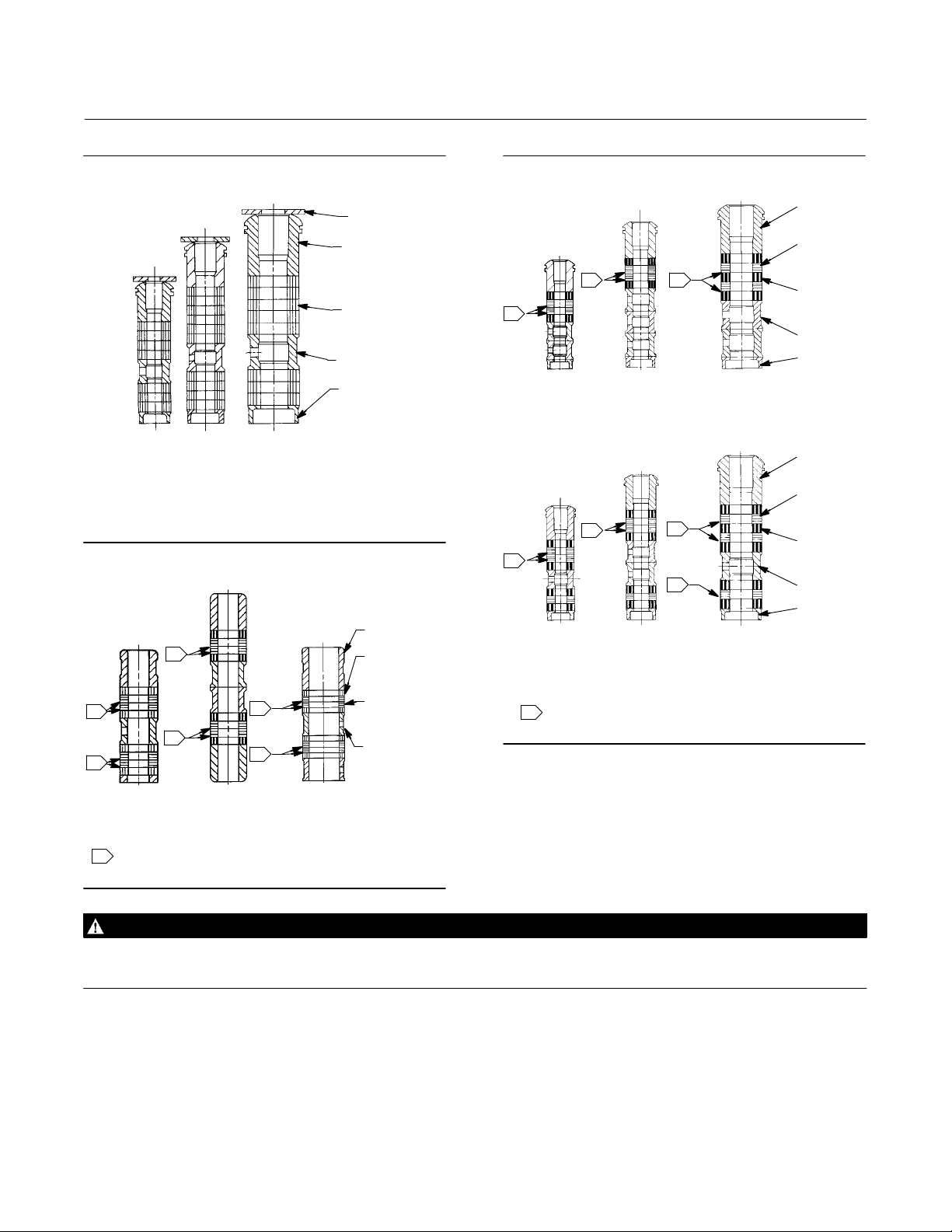

X
D100397X012
ES Valve
February 2020
Figure 5. Detail of PTFE/Composition Packing
Arrangements for Plain and Extension Bonnets
UPPER WIPER
(KEY 12)
PACKING
FOLLOWER (KEY 13)
PACKING RING
(KEY 7)
LANTERN RING
(KEY 8)
PACKING BOX
RING (KEY 11)
12A8188‐A
12A7815‐A
12A8173‐A
A2619‐2
9.5 mm
(3/8 INCH)
STEM
12.7 mm
(1/2 INCH)
STEM
19.1, 25.4, OR
31.8 mm
(3/4, 1, OR
1‐1/4 INCH)
STEM
TYPICAL (DOUBLE) ARRANGEMENTS
Figure 6. Double Graphite Ribbon/Filament Arrange
ments for use in ENVIRO‐SEAL Bellows Seal Bonnets
BUSHING
12.7 mm
(KEY 13)
GRAPHITE
FILAMENT
PACKING RING
(KEY 7)
GRAPHITE
RIBBON
PACKING RING
(KEY 7)
SPACER
(KEY 8)
1
1
1
1
12B4181-A
9.5 mm
(3/8 INCH)
STEM
NOTE:
1
0.102 mm (0.004 INCH) THICK SACRIFICIAL ZINC WASHERS;
USE ONLY ONE BELOW EACH GRAPHITE RIBBON RING.
A5870‐1
18A0909-D
12.7 mm
(1/2 INCH)
STEM FOR
NPS 2 VALVES
1
1
12B6102-A
NPS 3 AND 4 VALVES
(1/2 INCH)
STEM FOR
Figure 7. Detail of Graphite Ribbon/Filament Packing
for Plain and Extension Bonnets
PACKING
FOLLOWER
(KEY 13)
GRAPHITE
RIBBON
PACKING RIN
1
19.1, 25.4, & 31.8 mm
1
14A3411-A
(3/8 INCH)
9.5 mm
STEM
1
13A9775-B
12.7 mm
(1/2 INCH)
STEM
SINGLE ARRANGEMENTS
1
1
19.1, 25.4, & 31.8 mm
1
14A2153-B
9.5 mm
(3/8 INCH)
STEM
1
14A1849-B
(1/2 INCH)
12.7 mm
STEM
DOUBLE ARRANGEMENTS
NOTE:
1
0.102 mm (0.004 INCH) THICK SACRIFICIAL ZINC WASHERS;
USE ONLY ONE BELOW EACH GRAPHITE RIBBON RING.
A5864‐1
13A9776-B
(3/4, 1 & 1‐1/4 INCH)
STEM
14A1780-B
(3/4, 1 & 1‐1/4 INCH)
STEM
(KEY 7)
GRAPHITE
FILAMENT
PACKING RIN
(KEY 7)
LANTERN
RING (KEY 8)
PACKING BO
RING (KEY 11)
PACKING
FOLLOWER
(KEY 13)
GRAPHITE
RIBBON
PACKING RIN
(KEY 7)
GRAPHITE
FILAMENT
PACKING RIN
(KEY 7)
LANTERN
RING (KEY 8)
PACKING BO
RING (KEY 11)
WARNING
To avoid personal injury due to leaking fluid, avoid damaging gasket sealing surfaces. The seating surface of the valve plug
(key 2) is critical for proper shutoff. Protect these surfaces accordingly.
9
ES Valve
February 2020
Instruction Manual
D100397X012
CAUTION
To prevent possible product damage, cover the opening in the valve in the following procedure to prevent foreign material
from getting into the valve body cavity.
7. Remove the bonnet gasket (key 10, figure 13 through 15) and cover the opening in the valve to protect the gasket
surface and prevent foreign material from getting into the valve body cavity.
8. Remove the packing flange nuts, packing flange, upper wiper, and packing follower (keys 5, 3, 12, and 13, figure 8).
Carefully push out all the remaining packing parts from the valve side of the bonnet using a rounded rod or other
tool that will not scratch the packing box wall. Clean the packing box and the metal packing parts.
9. Inspect the valve stem threads and packing box surfaces for any sharp edges which might cut the packing.
Scratches or burrs could cause packing box leakage or damage to the new packing. If the surface condition cannot
be improved by light sanding, replace the damaged parts by following the appropriate steps in the Trim
Maintenance procedure.
10. Remove the covering protecting the valve body cavity and install a new bonnet gasket (key 10, figure 13 through
15), making sure the gasket seating surfaces are clean and smooth. Then slide the bonnet over the stem and onto
the stud bolts (key 15, figure 13, 14, or 15) or onto the valve body cavity if cap screws (not shown) will be used
instead.
Note
Proper performance of the bolting procedures in step 11 compresses the spiral wound gasket (key 12, figure 13 through 15) or
load ring (key 26, figure 14) enough to both load and seal the seat ring gasket (key 13, figure 13, 14, or 15). It also compresses the
outer edge of the bonnet gasket (key 10, figure 13 through 15) enough to seal the body‐to‐bonnet joint.
The proper bolting procedures in step 11 include‐‐but are not limited to‐‐ensuring that bolting threads are clean, and evenly
tightening the cap screws, or the nuts onto the studs, in a crisscross pattern. Because of the boltup characteristics of spiral wound
gaskets, tightening one cap screw or nut may loosen an adjacent cap screw or nut. Repeat the crisscross tightening pattern several
times until each cap screw or nut is tight and the body‐to‐bonnet seal is made.
11. Install bolting, using proper bolting procedures during tightening so that the body‐to‐bonnet joint will withstand
test pressures and application service conditions. The bolt torques in table 3 may be used as guidelines.
12. Install new packing and the metal packing box parts according to the appropriate arrangement in figure 3, 5, or 7.
For split ring packing, alternate the positions of the splits to avoid creating a leak path. Place a smooth‐edged pipe
over the valve stem and gently tap each soft packing part into the packing box, being sure that air is not trapped
between adjacent soft parts.
13. Slide the packing follower, upper wiper, and packing flange (keys 13, 12, and 3, figure 8) into position. Lubricate the
packing flange studs (key 4, figure 8) and the faces of the packing flange nuts (key 5, figure 8). Install the packing
flange nuts.
14. For spring‐loaded PTFE V‐ring packing, tighten the packing flange nuts until the shoulder on the packing follower
(key 13, figure 8) contacts the bonnet.
For ENVIRO‐SEAL or HIGH‐SEAL live‐loaded packing, refer to the note at the beginning of the Maintenance section.
For graphite packing, tighten the packing flange nuts to the maximum recommended torque shown in table 4.
Then, loosen the packing flange nuts, and retighten them to the recommended minimum torque shown in table 4.
For other packing types, tighten the packing flange nuts alternately in small equal increments until one of the nuts
reaches the minimum recommended torque shown in table 4. Then, tighten the remaining flange nuts until the
packing flange is level and at a 90‐degree angle to the valve stem.
10
Instruction Manual
D100397X012
ES Valve
February 2020
15. Mount the actuator on the valve assembly and reconnect the actuator and valve stem according to the procedure
in the appropriate actuator instruction manual.
Trim Maintenance
WARNING
Refer to the WARNING at the beginning of the Maintenance section in this instruction manual.
CAUTION
In the following applicable procedures, to avoid damaging parts, do not grip the bellows shroud or other parts of the
stem/bellows assembly. Grip only the flat areas on the stem where it extends out of the top of the bellows shroud.
Except where indicated, key numbers in this section are referenced in figure 13 for standard NPS 1/2 through 6
constructions, figure 14 for NPS 8 ES valves, figure 15 for Whisper Trim III cage detail, and figure 16 for WhisperFlo
trim.
Disassembly
1. Remove the actuator and the bonnet according to steps 1 through 6 of the Replacing Packing procedure of the
Maintenance section.
Table 4. Recommended Torque for Packing Flange Nuts (Not for Spring‐Loaded Packing)
VALVE STEM DIAMETER
mm Inches NSm LbfSin NSm LbfSin NSm LbfSin NSm LbfSin
9.5 3/8
12.7 1/2
19.1 3/4
25.4 1
31.8 1‐1/4
PRESS‐URE
RATING
CL125,
150
CL250,
300
CL600 5 48 8 72 3 24 4 36
CL125,
150
CL250,
300
CL600 10 84 14 120 5 42 7 60
CL125,
150
CL250,
300
CL600 20 180 30 264 10 90 15 132
CL300 24 216 37 324 12 108 16 144
CL600 34 300 50 444 16 144 24 216
CL300 33 288 49 432 16 144 24 216
CL600 45 396 66 588 22 192 33 288
Minimum Torque Maximum Torque Minimum Torque Maximum Torque
11 96 16 144 5 48 8 72
14 120 20 180 7 60 10 90
GRAPHITE TYPE PACKING PTFE TYPE PACKING
3 24 5 48 1 12 3 24
4 36 7 60 2 18 3 30
5 48 8 72 3 24 4 36
7 60 10 84 3 30 5 42
11
ES Valve
February 2020
Instruction Manual
D100397X012
WARNING
To avoid personal injury due to leaking fluid, avoid damaging gasket sealing surfaces. The surface finish of the valve stem
(key 7) is critical for making a good packing seal. The inside surface of the cage or cage/baffle assembly (key 3), or cage
retainer (key 31), is critical for smooth operation of the valve plug. The seating surfaces of the valve plug (key 2) and seat
ring (key 9) are critical for proper shutoff. Unless inspection reveals otherwise, assume all these parts are in good condition
and protect them accordingly.
2. Packing parts can be removed if desired. Replace these parts as described in the Replacing Packing procedure.
Remove the load ring (key 26) from an NPS 8 ES valve, or the cage adaptor (key 4) from any restricted trim valve,
and wrap it for protection.
3. Lift the valve plug and stem assembly out of the valve and set it on a protective surface. If the valve plug is to be
reused, protect the valve plug seating surface to prevent scratches. On an NPS 6 ES valve with Whisper Trim III cage
or WhisperFlo trim, also remove the bonnet spacer (key 32) and bonnet gasket (key 10) on top of the spacer. Then
on any construction with a cage retainer (key 31), remove the cage retainer and its associated gaskets.
A Whisper Trim III and WhisperFlo trim cage retainer has two 3/8 inch‐16 UNC tappings in which screws or bolts can be
installed for lifting.
4. Remove the cage or cage/baffle assembly (key 3), the associated gaskets (keys 10, 11, and 12), and shim (key 51 for
the ES valve, key 27 for the EAS valve). If the cage is stuck in the valve body, use a rubber mallet to strike the
exposed portion of the cage at several points around its circumference.
5. Remove the seat ring or liner (key 9) or disk seat (key 22), seat ring gasket (key 13), and the seat ring adaptor (key 5)
and adaptor gasket (key 14) where used in a restricted trim seat ring construction. PTFE seat constructions use a
disk (key 23) sandwiched between the disk seat and disk retainer (key 21).
6. Inspect parts for wear or damage which would prevent proper operation of the valve. Replace or repair trim parts
according to the following procedure for lapping metal seats or other valve plug maintenance procedures as
appropriate.
Table 5. Valve Stem Connection Torque and Pin Replacement
VALVE STEM CONNECTION (VSC) BOLT TORQUE, MINIMUM TO MAXIMUM HOLE SIZE
mm Inches NSm LbfSft mm Inch
9.5
12.7
19.1
25.4
31.8
3/8
1/2
3/4
1
1‐1/4
40‐47
81‐115
237‐339
420‐481
827‐908
25‐35
60‐85
175‐250
310‐355
610‐670
2.41 ‐ 2.46
3.20 ‐ 3.25
4.80 ‐ 4.88
6.38 ‐ 6.45
6.38 ‐ 6.45
0.095 ‐ 0.097
0.126 ‐ 0.128
0.189 ‐ 0.192
0.251 ‐ 0.254
0.251 ‐ 0.254
Table 6. Standard Material Designations
Standard Designation Common Name or Trade Name
CoCr‐A Hardfacing Alloy
R30006
S17400 SST
S31600 SST
S41000, S41600, CA15
WCC Carbon Steel Casting
CoCr‐A
Alloy 6 Casting
17‐4PH Stainless Steel
316 Stainless Steel
13Cr 400‐Series SST
WCC
CAUTION
To avoid damaging the ENVIRO‐SEAL bellows seal bonnet assembly, do not attempt to lap the metal seating surfaces. The
design of the assembly prevents rotation of the stem and any forced lapping rotation will damage internal components of
the ENVIRO‐SEAL bellows seal bonnet.
12
Instruction Manual
D100397X012
ES Valve
February 2020
Lapping Metal Seats
A certain amount of leakage should be expected with metal‐to‐metal seating in any valve body. If the leakage
becomes excessive, however, the condition of the seating surfaces of the valve plug and seat ring can be improved by
lapping. (Deep nicks should be machined out rather than ground out.) Use a good quality lapping compound of a
mixture of 280 to 600‐grit. Apply the compound to the bottom of the valve plug.
Assemble the valve to the extent that the cage and the cage retainer and bonnet spacer (if used) are in place and the
bonnet is bolted to the valve body. A simple handle can be made from a piece of strap iron locked to the valve plug
stem with nuts. Rotate the handle alternately in each direction to lap the seats. After lapping, remove the bonnet and
clean the seat surfaces. Completely assemble as described in the assembly portion of the trim maintenance procedure
and test the valve for shutoff. Repeat the lapping procedure if leakage is still excessive.
CAUTION
To avoid weakening the stem or adaptor that may cause failure in service, never reuse an old stem or adaptor with a new
valve plug. Using an old stem or adaptor with a new plug requires drilling a new pin hole in the stem (or adaptor in case an
ENVIRO‐SEAL bellows seal bonnet is being used), which will weaken the stem. However, a used valve plug may be reused
with a new stem or adaptor.
Valve Plug Maintenance
Except where indicated, key numbers are referenced in figure 13 for NPS 1/2 through 6 constructions, figure 14 for
NPS 8 ES valves, figure 15 for Whisper Trim III cage detail, and figure 16 for WhisperFlo trim.
1. Remove the valve plug (key 2) according to the disassembly portion of the trim maintenance procedure.
2. To replace the valve stem (key 7), drive out the pin (key 8). Unscrew the valve plug from the stem or adaptor.
3. To replace the adaptor (key 24, figure 8) on ENVIRO‐SEAL bellows seal bonnets, place the plug stem assembly and
valve plug in a soft‐jaw chuck or other type of vise so that the jaws grip a portion of the valve plug that is not a
seating surface. Drive out or drill out the pin (key 36, figure 8). Reverse the plug stem assembly in the soft‐jaw
chuck or vise. Grip the flat areas on the valve stem just below the threads for the actuator/stem connection.
Unscrew the valve plug/adaptor assembly (key 24, figure 8) from the valve stem assembly (key 20, figure 8).
4. Screw the stem or adaptor into the valve plug. Tighten to the torque value given in table 5. Refer to table 5 to select
the proper hole size. Drill through the stem or adaptor, using the hole in the valve plug as a guide. Remove any
chips or burrs and drive in a new pin to lock the assembly.
5. For ENVIRO‐SEAL bellows seal bonnets, grip the flats of the stem extending out of the top of the bellows shroud
with a soft‐jaw chuck or other type of vise. Screw the valve plug/adaptor assembly onto the valve stem. Tighten as
necessary to align the pin hole in the stem with one of the holes in the adaptor. Secure the adaptor to the stem with
a new pin.
Assembly
Except where indicated, key numbers are referenced in figure 13 for standard NPS 1/2 through 6 constructions, figure
14 for NPS 8 ES valves, figure 15 for Whisper Trim III cage detail, and figure 16 for WhisperFlo trim.
1. With a restricted trim seat ring construction, install the adaptor gasket (key 14) and seat ring adaptor (key 5).
2. Install the seat ring gasket (key 13), seat ring or liner (key 9), or disk seat (key 22). With a PTFE seat construction,
install the disk and disk retainer (keys 21 and 23).
3. Install the cage or cage/baffle assembly (key 3). Any rotational orientation of the cage or assembly with respect to
the valve is acceptable. A Whisper Trim III cage designated by level A3, B3, or C3 may be installed with either end
13
ES Valve
February 2020
Instruction Manual
D100397X012
up. The level D3 cage/baffle assembly, however, must be installed with the hole pattern end next to the seat ring. If
a cage retainer (key 31) is to be used, place it on top of the cage.
4. Slide the valve plug (key 2) and stem assembly, or valve plug and ENVIRO‐SEAL bellows seal assembly, into the cage.
5. Place the gaskets (key 10, or keys 11, 12 and 14, if used) and the shim (key 27 or key 51) on top of the cage or cage
retainer. If there is a cage adaptor (key 4) or a bonnet spacer (key 32), set it on the cage or cage retainer gaskets and
place another flat sheet gasket (key 10) on top of the adaptor or spacer. If there is only a cage retainer, place
another flat sheet gasket on the retainer.
6. With an NPS 8 ES valve, install the load ring (key 26).
CAUTION
To avoid damaging packing with the valve stem threads, use care when installing the bonnet if the packing was not
removed from the bonnet.
Table 7. Recommended Torque for ENVIRO‐SEAL Bellows Seal Packing Flange Nuts
VALVE SIZE VALVE STEM DIAMETER THROUGH PACKING MINIMUM TORQUE MAXIMUM TORQUE
NPS Inch NSm LbfSin NSm LbfSin
1/2 ‐ 2 1/2 3 24 5 48
3 ‐ 4 1 7 60 10 84
7. Mount the bonnet on the valve and complete assembly according to steps 10 through 14 of the Replacing Packing
procedure, omitting steps 11 and 12 if new packing is not being installed, and being sure to observe the note prior
to step 11.
ENVIRO‐SEAL Bellows Seal and Bonnet
Replacing a Plain or Extension Bonnet with an ENVIRO‐SEAL Bellows Seal (Stem/Bellows
Assembly) and Bonnet
1. Remove the actuator and bonnet according to steps 1 through 6 of the Replacing Packing procedure of the
Maintenance section.
2. With care, remove the valve plug and stem assembly from the valve body. If necessary, lift out the cage, also.
CAUTION
To prevent possible product damage, cover the opening in the valve in the following procedure to protect the sealing
surfaces and to prevent foreign material from getting into the valve body cavity.
3. Remove and discard the existing bonnet gasket. Cover the valve body opening to protect sealing surfaces and to
prevent foreign material from entering the valve body cavity.
Note
The ENVIRO‐SEAL stem/bellows assembly for easy‐e valves is available only with a threaded and drilled plug/adaptor/stem
connection. The existing valve plug can be reused with the new stem/bellows assembly or a new plug can be installed.
14
Instruction Manual
D100397X012
ES Valve
February 2020
4. Inspect the existing valve plug. If the plug is in good condition, it can be reused with the new ENVIRO‐SEAL
stem/bellows assembly. To remove the existing valve plug from the stem, first, place the existing plug stem
assembly and valve plug in a soft‐jaw chuck or other type of vise so that the jaws grip a portion of the valve plug that
is not a seating surface. Drive out or drill out the pin (key 8).
5. Then, reverse the plug stem assembly in the soft‐jaw chuck or vise. Grip the valve stem in an appropriate place and
unscrew the existing plug from the valve stem.
CAUTION
When installing a valve plug on the ENVIRO‐SEAL stem/bellows assembly, the valve stem must not be rotated. Damage to
the bellows may result.
To avoid damaging parts, do not grip the bellows shroud or other parts of the stem/bellows assembly. Grip only the flat
areas on the stem where it extends out of the top of the bellows shroud.
Note
The ENVIRO‐SEAL stem/bellows assembly has a one‐piece stem.
6. To attach the valve plug to the stem of the new ENVIRO‐SEAL stem/bellows assembly, it is necessary to first attach
the plug to the adaptor (key 24). Locate the adaptor. Notice that a hole has not been drilled in the threads where
the plug screws onto the adaptor. Secure the valve plug in a soft‐jaw chuck or other type of vise. Do not grip the
plug on any seating surface. Position the plug in the chuck or vise for easy threading of the adaptor. Thread the
adaptor into the valve plug and tighten to the appropriate torque value.
7. Select the proper size of drill bit and drill through the adaptor using the hole in the valve plug as a guide. Remove
any metal chips or burrs and drive in a new pin to lock the plug/adaptor assembly together.
8. Attach the plug/adaptor assembly to the ENVIRO‐SEAL stem/bellows assembly by first securing the stem/bellows
assembly in a soft‐jaw chuck or other type of vise so that the jaws of the chuck or vise grip the flats of the stem
extending out of the top of the bellows shroud. Screw the valve plug/adaptor assembly onto the valve stem.
Tighten as necessary to align the pin hole in the stem with one of the holes in the adaptor. Secure the adaptor to the
stem with a new pin.
9. Inspect the seat ring (key 9) and soft seat parts (keys 21, 22, and 23). Replace, if necessary.
10. Place a new gasket (key 10) into the valve body in place of the bonnet gasket. Install the new stem/bellows
assembly with valve plug/adaptor by placing it into the valve body on top of the new bellows gasket.
11. Place a new gasket (key 22) over the stem/bellows assembly. Place the new ENVIRO‐SEAL bonnet over the
stem/bellows assembly.
Note
Stud(s) and nut(s) should be installed such that the manufacturer's trademark and material grade marking is visible, allowing easy
comparison to the materials selected and documented in the Emerson/Fisher serial card provided with this product.
WARNING
Personal injury or damage to equipment could occur if improper stud and nut materials or parts are used. Do not operate or
assemble this product with stud(s) and nut(s) that are not approved by Emerson/Fisher engineering and/or listed on the
serial card provided with this product. Use of unapproved materials and parts could lead to stresses exceeding the design
or code limits intended for this particular service. Install studs with the material grade and manufacturer's identification
15
ES Valve
February 2020
mark visible. Contact your Emerson representative immediately if a discrepancy between actual parts and approved parts
is suspected.
Instruction Manual
D100397X012
12. Properly lubricate the bonnet stud bolts. Install and tighten the bonnet hex nuts to the proper torque.
13. Install new packing and the metal packing box parts according to the appropriate arrangement in figure 3.
14. Install the packing flange. Properly lubricate the packing flange stud bolts and the faces of the packing flange nuts.
For ENVIRO‐SEAL or HIGH‐SEAL live‐loaded packing, refer to the note at the beginning of the Maintenance section.
For graphite packing, tighten the packing flange nuts to the maximum recommended torque shown in table 7.
Then, loosen the packing flange nuts, and retighten them to the recommended minimum torque shown in table 7.
For other packing types, tighten the packing flange nuts alternately in small equal increments until one of the nuts
reaches the minimum recommended torque shown in table 7. Then, tighten the remaining flange nuts until the
packing flange is level and at a 90‐degree angle to the valve stem.
15. Install travel indicator parts, stem locknuts, and mount the actuator on the valve body according to the procedure
in the appropriate actuator instruction manual.
Replacement of an Installed ENVIRO‐SEAL Bellows Seal (Stem/Bellows Assembly)
1. Remove the actuator and bonnet according to steps 1 through 6 of the Replacing Packing procedure of the
Maintenance section.
CAUTION
To prevent possible product damage, cover the opening in the valve in the following procedure to protect the sealing
surfaces and to prevent foreign material from getting into the valve body cavity.
2. With care, remove the ENVIRO‐SEAL stem/bellows assembly. If necessary, lift out the cage, also. Remove and
discard the existing bonnet gasket and bellows gasket. Cover the valve body opening to protect sealing surfaces
and to prevent foreign material from entering the valve body cavity.
Note
The ENVIRO‐SEAL stem/bellows assembly for easy‐e valves is available only with a threaded and drilled plug/adaptor/stem
connection. The existing valve plug can be reused with the new stem/bellows assembly or a new plug can be installed.
3. Inspect the existing valve plug. If the plug is in good condition, it can be reused with the new stem/bellows
assembly.
CAUTION
When removing/installing a valve plug on the ENVIRO‐SEAL stem/bellows assembly, the valve stem must not be rotated.
Damage to the bellows may result.
To avoid damaging parts, do not grip the bellows shroud or other parts of the stem/bellows assembly. Grip only the flat
areas on the stem where it extends out of the top of the bellows shroud.
16
Instruction Manual
D100397X012
Note
The ENVIRO‐SEAL stem/bellows assembly has a one‐piece stem.
4. To remove the existing valve plug from the stem, first, place the existing plug stem assembly and valve plug in a
soft‐jaw chuck or other type of vise so that the jaws grip a portion of the valve plug that is not a seating surface.
Drive out or drill out the pin.
5. Then, reverse the plug stem assembly in the soft‐jaw chuck or vise. Grip the flat areas on the valve stem just below
the threads for the actuator/stem connection. Unscrew the existing plug from the valve stem.
6. To attach either the existing valve plug or a new one to the stem of the new ENVIRO‐SEAL stem/bellows assembly, it
is necessary to first attach the plug to the adaptor. Locate the adaptor. Notice that a hole has not been drilled in the
threads where the plug screws onto the adaptor. Secure the valve plug in a soft‐jaw chuck or other type of vise. Do
not grip the plug on any seating surface. Position the plug in the chuck or vise for easy threading of the adaptor.
Thread the adaptor into the valve plug and tighten to the appropriate torque value.
7. Complete the installation by following steps 7 through 9 and steps 12 through 15 of the ENVIRO‐SEAL Bellows Seal
and Bonnet installation instructions given above.
ES Valve
February 2020
Purging the ENVIRO‐SEAL Bellows Seal Bonnet
The ENVIRO‐SEAL bellows seal bonnet has been designed so that it can be purged or leak tested. Refer to figure 8 for
an illustration of an ENVIRO‐SEAL bellows seal bonnet, and perform the following steps for purging or leak testing.
1. Remove the two diametrically opposed pipe plugs (key 16).
2. Connect a purging fluid to one of the pipe plug connections.
3. Install appropriate piping or tubing in the other pipe plug connection to pipe away the purging fluid or to make a
connection to an analyzer for leak testing.
4. When purging or leak testing has been completed, remove the piping or tubing and reinstall the pipe plugs (key
16).
Parts Ordering
Each body‐bonnet assembly is assigned a serial number which can be found on the valve. This same number also
appears on the actuator nameplate when the valve is shipped from the factory as part of a control valve assembly.
Refer to the serial number when contacting your Emerson sales office
replacement parts, refer to the serial number and to the eleven‐character part number for each part required from the
following parts kit or parts list information.
Refer to table 6 for standard and common material designations.
for technical assistance. When ordering
WARNING
Use only genuine Fisher replacement parts. Components that are not supplied by Emerson Automation Solutions should
not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the
performance of the valve, and could cause personal injury and property damage.
Parts Kits
Note
Kits do not apply to alloy C (N10276 and CW2M), Alloy 20 (N08020 and CN7M), or alloy 400 (N04400 and M35‐1) trims.
17
ES Valve
February 2020
Instruction Manual
Gasket Kits
Gasket Kits (includes keys 10, 11, 12, 13, and 51); Plus 14 and 20 on Some Restricted Capacity Valves
DESCRIPTION
Full Capacity Valves Part Number Part Number
NPS 1/2, 3/4, 1, and 1‐1/4 (NPS 1 EAS)
NPS 1‐1/2 (NPS 2 EAS)
NPS 2
NPS 2‐1/2 (NPS 3 EAS)
NPS 3 (NPS 4 EAS)
NPS 4 (NPS 6 EAS)
NPS 6
NPS 8
Restricted Capacity Valves
w/ Metal Seating
NPS 1‐1/2 x 1 (NPS 2 x 1 EAS)
NPS 2 x 1
NPS 2‐1/2 x 1‐1/2 (NPS 3 x 1‐1/2 EAS)
NPS 3 x 2 (NPS 4 x 2 EAS)
NPS 4 x 2‐1/2 (NPS 6 x 2‐1/2 EAS)
Standard Trim Cage
Whisper Trim I Cage
-198 to 593_C (-325 to 1100_F) -198 to 593_C (-325 to 1100_F)
RGASKETX162
RGASKETX172
RGASKETX182
RGASKETX192
RGASKETX202
RGASKETX212
RGASKETX222
RGASKETX232
RGASKETX242
RGASKETX252
RGASKETX262
RGASKETX272
RGASKETX282
Whisper Trim III Cage
WhisperFlo Cage
RGASKETX422
RGASKETX432
RGASKETX442
RGASKETX452
RGASKETX462
RGASKETX472
RGASKETX482
10A3265X152
- - -
- - -
- - -
- - -
- - -
D100397X012
Packing Kits
Standard Packing Repair Kits (Non Live‐Loaded)
STEM DIAMETER, mm (INCH)
YOKE BOSS DIAMETER, mm (INCH)
REPAIR KIT MATERIAL
PTFE (Contains keys 6, 8, 10, 11, and 12) RPACKX00012 RPACKX00022 RPACKX00032 RPACKX00342 RPACKX00352
Double PTFE (Contains keys 6, 8, 11, and 12) RPACKX00042 RPACKX00052 RPACKX00062 RPACKX00362 RPACKX00372
PTFE/Composition (Contains keys 7, 8, 11, and 12) RPACKX00072 RPACKX00082 RPACKX00092 - - - - - -
Single Graphite Ribbon/Filament (Contains keys 7 [ribbon ring],
7 [filament ring], 8, and 11)
Single Graphite Ribbon/Filament (Contains keys 7 [ribbon ring],
7 [filament ring], and 11)
Single Graphite Ribbon/Filament (Contains keys 7 [ribbon ring],
7 [filament ring])
Double Graphite Ribbon/Filament (Contains keys 7 [ribbon ring],
7 [filament ring], 8, and 11)
9.5 (3/8)
54 (2‐1/8)
RPACKX00102 RPACKX00112 RPACKX00122 - - - - - -
- - - - - - - - - RPACKX00532 RPACKX00542
RPACKX00132 RPACKX00142 RPACKX00152 - - - - - -
RPACKX00162 RPACKX00172 RPACKX00182 - - - - - -
ENVIRO‐SEAL Packing Retrofit Kits
Retrofit kits include parts to convert valves with existing standard bonnets to the ENVIRO‐SEAL packing box
construction.
Refer to figure 10 for key numbers for PTFE packing, to figure 11 for key numbers for Graphite ULF packing, and to
figure 12 for key numbers for duplex packing.
12.7 (1/2)
71 (2‐13/16)
19.1 (3/4)
90 (3‐9/16)
Part Number
25.4 (1)
127 (5)
31.8 (1-1/4)
127 (5, 5H)
PTFE kits include keys 200, 201, 211, 212, 214, 215, 217, 218, tag, and cable tie. Graphite ULF kits include keys 200,
201, 207, 208, 209, 210, 211, 212, 214, 216, 217, tag, and cable tie. Duplex kits include keys 200, 201, 207, 209, 211,
212, 214, 215, 216, 217, tag, and cable tie.
Stems and packing box constructions that do not meet Fisher stem finish specifications, dimensional tolerances, and
design specifications may adversely alter the performance of this packing kit.
18
Instruction Manual
D100397X012
ES Valve
February 2020
For part numbers of individual components in the ENVIRO‐SEAL packing kits, refer to instruction manual ENVIRO‐SEAL
Packing System for Sliding‐Stem Valves, D101642X012
.
ENVIRO‐SEAL Packing Retrofit Kits
STEM DIAMETER, mm (INCH)
PACKING
MATERIAL
Double PTFE RPACKXRT012 RPACKXRT022 RPACKXRT032 RPACKXRT042 RPACKXRT052
Graphite ULF RPACKXRT262 RPACKXRT272 RPACKXRT282 RPACKXRT292 RPACKXRT302
Duplex RPACKXRT212 RPACKXRT222 RPACKXRT232 RPACKXRT242 RPACKXRT252
9.5 (3/8)
54 (2‐1/8)
12.7 (1/2)
71 (2‐13/16)
YOKE BOSS DIAMETER, mm (INCH)
19.1 (3/4)
90 (3‐9/16)
Part Number
25.4 (1)
127 (5)
31.8 (1‐1/4)
127 (5, 5H)
ENVIRO‐SEAL Packing Repair Kits
Repair kits include parts to replace the “soft” packing materials in valves that already have ENVIRO‐SEAL packing
arrangements installed or in valves that have been upgraded with ENVIRO‐SEAL retrofit kits.
Refer to figure 10 for key numbers for PTFE packing, to figure 11 for key numbers for Graphite ULF packing, and to
figure 12 for key numbers for duplex packing.
PTFE repair kits include keys 214, 215, and 218. Graphite ULF repair kits include keys 207, 208, 209, 210, and 214.
Duplex repair kits include keys 207, 209, 214, and 215.
Stems and packing box constructions that do not meet Fisher stem finish specifications, dimensional tolerances, and
design specifications may adversely alter the performance of this packing kit.
For part numbers of individual components in the ENVIRO‐SEAL packing kits, refer to instruction manual ENVIRO‐SEAL
Packing System for Sliding‐Stem Valves, D101642X012
.
ENVIRO‐SEAL Packing Repair Kits
STEM DIAMETER, mm (INCH)
YOKE BOSS DIAMETER, mm (INCH)
PACKING MATERIAL
Double PTFE (contains keys 214, 215, & 218) RPACKX00192 RPACKX00202 RPACKX00212 RPACKX00222 RPACKX00232
Graphite ULF (contains keys 207, 208, 209, 210, and 214) RPACKX00592 RPACKX00602 RPACKX00612 RPACKX00622 RPACKX00632
Duplex (contains keys 207, 209, 214, and 215) RPACKX00292 RPACKX00302 RPACKX00312 RPACKX00322 RPACKX00332
9.5 (3/8)
54 (2‐1/8)
12.7 (1/2)
71 (2‐13/16)
19.1 (3/4)
90 (3‐9/16)
Part Number
25.4 (1)
127 (5)
31.8 (1‐1/4)
127 (5, 5H)
19
ES Valve
February 2020
Instruction Manual
D100397X012
easy-e Low-e Bonnet Repair Kits
Kit consists of plain bonnet, Graphite / Inconel gasket set, ENVIRO-SEAL packing retro-fit kit, packing flange, packing
flange studs and nuts. New stem is not included.
Bonnet Material Packing Type Valve Size, NPS Stem Size Part Number
0.5-1.25 3/8” RLEPBNTX012
1.5 3/8” RLEPBNTX022
2 1/2” RLEPBNTX032
ENVIRO-SEAL PTFE
(1)
WCC
ENVIRO-SEAL Graphite ULF
ENVIRO-SEAL PTFE
(1)
SST
ENVIRO-SEAL Graphite ULF
WCC ENVIRO-SEAL Duplex
SST ENVIRO-SEAL Duplex
1. Compliant with NACE MR0175-2003 and prior, NACE MR0175 / ISO 15156 (all revisions), and NACE MR0103 (all revisions).
2.5 1/2” RLEPBNTX042
3 1/2” RLEPBNTX052
4 1/2” RLEPBNTX062
6 3/4” RLEPBNTX072
0.5-1.25 3/8” RLEPBNTX152
1.5 3/8” RLEPBNTX162
2 1/2” RLEPBNTX172
2.5 1/2” RLEPBNTX182
3 1/2” RLEPBNTX192
4 1/2” RLEPBNTX202
6 3/4” RLEPBNTX212
0.5-1.25 3/8” RLEPBNTX082
1.5 3/8” RLEPBNTX092
2 1/2” RLEPBNTX102
2.5 1/2” RLEPBNTX112
3 1/2” RLEPBNTX122
4 1/2” RLEPBNTX132
0.5-1.25 3/8” RLEPBNTX222
1.5 3/8” RLEPBNTX232
2 1/2” RLEPBNTX242
2.5 1/2” RLEPBNTX252
3 1/2” RLEPBNTX262
4 1/2” RLEPBNTX272
0.5-1.25 3/8” RLEPBNTX292
1.5 3/8” RLEPBNTX302
2 1/2” RLEPBNTX322
2.5 1/2” RLEPBNTX332
3 1/2” RLEPBNTX342
4 1/2” RLEPBNTX352
6 3/4” RLEPBNTX362
0.5-1.25 3/8” RLEPBNTX372
1.5 3/8” RLEPBNTX392
2 1/2” RLEPBNTX412
2.5 1/2” RLEPBNTX422
3 1/2” RLEPBNTX432
4 3/4” RLEPBNTX442
20
Instruction Manual
D100397X012
Parts List
Note
Contact your Emerson sales office
Bonnet (figures 3‐12)
Key Description
1 Bonnet/ENVIRO‐SEAL bellows seal bonnet
If you need a bonnet or an ENVIRO‐SEAL bellows seal
bonnet as a replacement part, order by valve size and
stem diameter, serial number, and desired material.
2 Extension Bonnet Baffle
3 Packing Flange
3 ENVIRO‐SEAL bellows seal packing flange
4 Packing Flange Stud
4 ENVIRO‐SEAL bellows seal stud bolt
5 Packing Flange Nut
5 ENVIRO‐SEAL bellows seal hex nut
6* Packing set
6* ENVIRO‐SEAL bellows seal packing set
7* Packing ring
7* ENVIRO‐SEAL bellows seal packing ring
8 Spring
8 Lantern ring
8 ENVIRO‐SEAL bellows seal spring
8 ENVIRO‐SEAL bellows seal spacer
for part numbers.
ES Valve
February 2020
Key Description
10 Special washer
11* Packing Box Ring
12* Upper Wiper
12* ENVIRO‐SEAL bellows seal upper wiper
13* Packing Follower
13* ENVIRO‐SEAL bellows seal bushing
13* ENVIRO‐SEAL bellows seal bushing/liner
14 Pipe Plug for 1/4 NPT Tapping in Packing Box
14 Lubricator
14 Lubricator/Isolating Valve
15 Yoke Locknut
15 ENVIRO‐SEAL bellows seal Locknut
16 Pipe Plug for 1/2 NPT Tapped Extension Bonnets
16 ENVIRO‐SEAL bellows seal pipe plug
20* ENVIRO‐SEAL bellows seal stem/bellows assembly
22* ENVIRO‐SEAL bellows seal bonnet gasket
24 ENVIRO‐SEAL bellows seal adaptor
25 Cap Screw for 127 mm (5 inch) yoke boss
26 Hex Nut for 127 mm (5 inch) Yoke Boss
27 Pipe Nipple for Lubricator/Isolating Valve
28 ENVIRO‐SEAL bellows seal nameplate, warning
29 ENVIRO‐SEAL bellows seal drive screw
34 Lubricant, anti‐seize
36 ENVIRO‐SEAL bellows seal pin
37 ENVIRO‐SEAL bellows seal warning tag
38 ENVIRO‐SEAL bellows seal tie
39 ENVIRO‐SEAL bellows seal thrust ring
*Recommended spare parts
21
ES Valve
February 2020
Figure 8. Typical Bonnets
E0201
Instruction Manual
D100397X012
30A9425‐A
DETAIL OF 5‐INCH (127 mm) YOKE
BOSS ACTUATOR BOLTING
PLAIN BONNET
22
CU3911‐D
STYLE 1 OR 2
EXTENSION BONNET
APPLY LUB
42B3947‐A
ENVIRO‐SEAL
BELLOWS SEAL BONNET
Instruction Manual
(
D100397X012
ES Valve
February 2020
Figure 9. Typical HIGH‐SEAL Graphite ULF
Packing System
1. FIND NUMBER 219 NOT REQUIRED WITH 3/8 INCH STEM
39B4153‐A
Figure 11. Typical ENVIRO‐SEAL Packing System with
Graphite ULF Packing
STUD
(KEY 200)
HEX NUT
(KEY 212)
PACKING
FLANGE
(KEY 201)
PACKING
RING
(KEY 209)
PACKING
RING
(KEY 210)
PACKING
BOX RING
KEY 211)
39B4612/A
SPRING
PACK
ASSEMBLY
(KEY 217)
GUIDE
BUSHING
(KEY 207)
PACKING
WASHERS
(KEY 214)
GUIDE
BUSHING
(KEY 208)
Figure 10. Typical ENVIRO‐SEAL Packing System with
PTFE Packing
HEX NUT
(KEY 212)
PACKING
FLANGE
(KEY 201)
ANTI−
EXTRUSION
WASHERS
LOWER
WIPER
(KEY 218)
A6297‐1
STUD
(KEY 200)
SPRING
PACK
ASSEMBLY
(KEY 217)
LANTERN
RINGS
(KEY 216)
PACKING SET
(KEY 215)
PACKING
BOX RING
(KEY 211)
Figure 12. Typical ENVIRO‐SEAL Packing System with
Duplex Packing
200
212
201
215
216
207
209
211
A6722
213
217
207
207
214
207
23
ES Valve
February 2020
Instruction Manual
D100397X012
Valve Body (figures 13‐15)
Key Description
1 Valve Body
If you need a valve body as a replacement part, order by valve
size, serial number, and desired material.
2* Valve plug
3* Cage
4 Trim adaptor
5 Trim adaptor
7* Valve plug stem
8* Pin
9* Liner
9* Seat Ring
10* Bonnet Gasket
11* Cage Gasket
12* Spiral‐Wound Gasket
13* Seat Ring or Liner Gasket
14* Adaptor Gasket
Key Description
22* Disk Seat
23* Disk
26 Load Ring
27* Shim
31* Whisper Trim III Cage Retainer for
Levels A3, B3 & C3 (NPS 6 ES only)
31* Whisper Trim III Cage retainer & Baffle
Ass'y for Level D3 (NPS 6 ES only)
32 Whisper Trim III Bonnet Spacer
51* Shim
53 Nameplate
54 Wire
15 Cap Screw
15 Stud
16 Nut
17 Pipe Plug
18 Flow Direction Arrow
19 Drive Screw
20* Adaptor Gasket
21* Seat Disk Retainer
24
*Recommended spare parts
Instruction Manual
D100397X012
Figure 13. NPS 1/2 through 6 Fisher ES and EAS Valves
STD TRIM
WHISPER TRIM
ES Valve
February 2020
FLOW DIRECTION
CAVITROL TRIM
30A9543‐D
FLOW DIRECTION
STD TRIM
CAVITROL TRIM
DETAIL OF
COMPOSITION
(PTFE) SEAT
CU9974‐E
25
ES Valve
February 2020
Instruction Manual
D100397X012
Figure 14. NPS 8 Fisher ES Valve with Optional Drain Plug
FLOW DIRECTION
CAVITROL TRIM
STD TRIM
WHISPER TRIM
26
40A3288‐C
B1884‐1
METAL SEAT
COMPOSITION (PTFE) SEAT
Instruction Manual
D100397X012
Figure 15. Whisper Trim III Cage Detail with Optional Drain Plug
ES Valve
February 2020
E1137
52A3326‐D
27
ES Valve
February 2020
Figure 16. Fisher ES Valve Assembly with WhisperFlo Cage with Optional Drain Plug
Instruction Manual
D100397X012
19
16
7
32
10
12
8
9
18
15
10
31
53
3
13
28
E1138
1
17
2
Instruction Manual
(9)
(1)(2)
(3)
(1)(2)
(3)
(1)(2)
(3)
(1)(4)
(1)(5)
(1)(2)
(3)
(6)
(3)
(1)(4)
(4)
(6)
(6)
(1)(2)
(3)
(7)
(1)(4)
D100397X012
Gaskets and Shims Parts Kit
Standard Trim Cage
Valve Size, NPS
ET EAT
1/2,
3/4, 1
1 RGASKETX162
or 1‐1/4
1‐1/2 2 RGASKETX172
1‐1/2 x
2 x 1 RGASKETX242
1
2 ‐ ‐ ‐ RGASKETX182
2 x 1 ‐ ‐ ‐ RGASKETX252
2‐1/2 3 RGASKETX192
2‐1/2 x
1‐1/2
3 x
1‐1/2
1. Set number good for both ES and EAS valve
2. Kit includes key 10, 12, 13. 27 or 51
3. Kit includes key 10, qty 2; 12; 13; 51
4. Kit includes key 10, 11, 12, 13, 14, 27 or 51
5. Kit includes key 10, 11, 12, 13, 20, 27 or 51
6. Kit includes key 10, 12, 13, 51
7. Kit includes key 10 and 13
8. Kit includes key 10, qty 2; and 13
9. See table below for gasket descriptions
Whisper Trim I Cage
Cavitrol III - 1 Stage Cage
-198 to 593_C (-325 to 1100_F)
RGASKETX262
Cavitrol III - 2 Stage Cage
Whisper Trim III Cage
VALVE SIZE, NPS
WhisperFlo Cage
Part Number Part Number
RGASKETX422
RGASKETX432
ET EAT
3 4 RGASKETX202
3 x 2 4 x 2 RGASKETX272
Standard Trim Cage
Whisper Trim I Cage
Cavitrol III - 1 Stage Cage
-198 to 593_C (-325 to 1100_F)
Cavitrol III - 2 Stage Cage
- - - 4 6 RGASKETX212
4 x
RGASKETX442
2‐1/2
6 x
2‐1/2
RGASKETX282
- - - 6 ‐ ‐ ‐ RGASKETX222
RGASKETX452
8 ‐ ‐ ‐ RGASKETX232
- - -
ES Valve
February 2020
Whisper Trim III Cage
WhisperFlo Cage
RGASKETX462
- - -
RGASKETX472
- - -
RGASKETX482
Gasket Descriptions
KEY NUMBER DESCRIPTION
-198_ to 593_C (-325_ to 1100_F)
10 Bonnet Gasket
11 Cage Gasket
13 Seat Ring or Liner Gasket
14 or 20 Adapter Gasket
12 Spiral Wound Gasket N06600/Graphite
27 or 51 Shim S31600
MATERIAL
FGM
Graphite/S31600
29
ES Valve
February 2020
Instruction Manual
D100397X012
30
Instruction Manual
D100397X012
ES Valve
February 2020
31
ES Valve
February 2020
Instruction Manual
D100397X012
Neither Emerson, Emerson Automation Solutions, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance
of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
Fisher, easy-e, ENVIRO-SEAL, WhisperFlo, and Whisper Trim are marks owned by one of the companies in the Emerson Automation Solutions business unit
of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other
marks are the property of their respective owners.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
Emerson Automation Solutions
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Cernay 68700 France
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
32
E 1973, 2020 Fisher Controls International LLC. All rights reserved.
Loading...
