Fisher 3253 Installation Manual

16" Swing Spout
3967
3964
14" Swing Spout
3963
12" Swing Spout
3962
10" Swing Spout
3961
8" Swing Spout
3960
6" Swing Spout
8" Adj. Wall Control Valve
2.2 GPM Aerator
3200

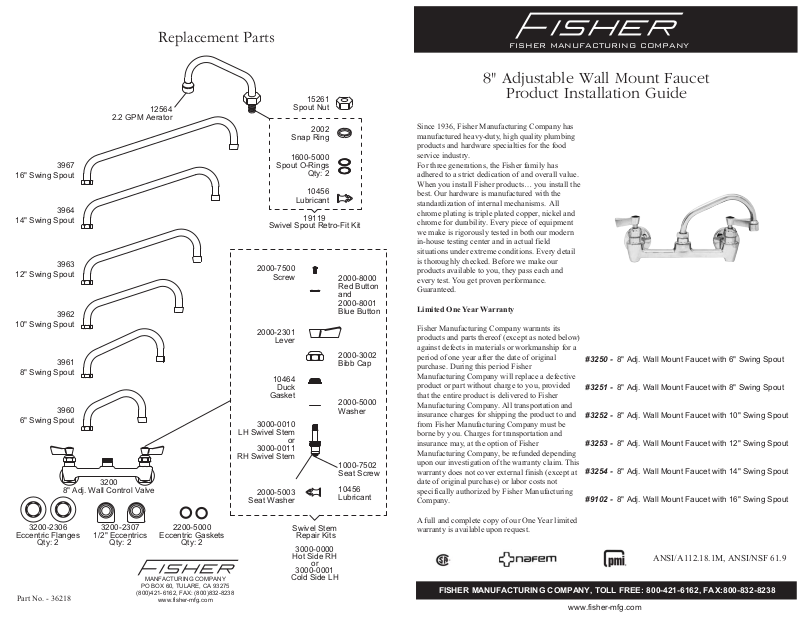

Replacement Parts
12564
LH Swivel Stem
RH Swivel Stem
Seat Washer
15261
Spout Nut
2002
Snap Ring
1600-5000
Spout O-Rings
Swivel Spout Retro-Fit Kit
2000-7500
2000-2301
Lever
10464
Duck
Gasket
3000-0010
3000-0011
2000-5003
Qty: 2
10456
Lubricant
19119
or
2000-8000 Red Button and 2000-8001 Blue Button
2000-3002 Bibb Cap
2000-5000 Washer
1000-7502 Seat Screw
10456 Lubricant
FISHER MANUFACTURING COMPANY
8" Adjustable Wall Mount Faucet
Product Installation Guide
Since 1936, Fisher Manufacturing Company has manufactured heavy-duty, high quality plumbing products and hardware specialties for the food service industry. For three generations, the Fisher family has adhered to a strict dedication of and overall value. When you install Fisher products… you install the best. Our hardware is manufactured with the standardization of internal mechanisms. All chrome plating is triple plated copper, nickel and chrome for durability. Every piece of equipment we make is rigorously tested in both our modern in-house testing center and in actual field situations under extreme conditions. Every detail is thoroughly checked. Before we make our products available to you, they pass each and every test. You get proven performance. Guaranteed.
Limited One Year Warranty
Fisher Manufacturing Company warrants its products and parts thereof (except as noted below) against defects in materials or workmanship for a period of one year after the date of original purchase. During this period Fisher Manufacturing Company will replace a defective product or part without charge to you, provided that the entire product is delivered to Fisher Manufacturing Company. All transportation and insurance charges for shipping the product to and from Fisher Manufacturing Company must be borne by you. Charges for transportation and insurance may, at the option of Fisher Manufacturing Company, be refunded depending upon our investigation of the warranty claim. This warranty does not cover external finish (except at date of original purchase) or labor costs not specifically authorized by Fisher Manufacturing Company.
#3250 - 8" Adj. Wall Mount Faucet with 6" Swing Spout
#3251 - 8" Adj. Wall Mount Faucet with 8" Swing Spout
#3252 - 8" Adj. Wall Mount Faucet with 10" Swing Spout
#3253 - 8" Adj. Wall Mount Faucet with 12" Swing Spout
#3254 - 8" Adj. Wall Mount Faucet with 14" Swing Spout
#9102 - 8" Adj. Wall Mount Faucet with 16" Swing Spout
3200-2306
Eccentric Flanges
Qty: 2
Part No. - 36218
3200-2307
1/2" Eccentrics
Qty: 2
(800)421-6162, FAX: (800)832-8238
2200-5000
Eccentric Gaskets
Qty: 2
MANFACTURING COMPANY
PO BOX 60, TULARE, CA 93275
www.fisher-mfg.com
Swivel Stem
Repair Kits
3000-0000
Hot Side RH
or
3000-0001
Cold Side LH
A full and complete copy of our One Year limited warranty is available upon request.
ANSI/A112.18.1M, ANSI/NSF 61.9
FISHER MANUFACTURING COMPANY, TOLL FREE: 800-421-6162, FAX:800-832-8238
www.fisher-mfg.com
Installation Instructions for Wall Mount Faucet Installation Instructions Continued
BE SURE TO CHECK WITH YOUR LOCAL DEPARTMENT HAVING JURISDICTION REGARDING BACKFLOW PREVENTION.
Installation Notes:
• Be sure water supply is shut-off before beginning.
• Use pipe thread sealant on all threaded joints such as PST or Teflon tape.
• Check the packaging for missing items BEFORE beginning installation. If an items are missing, contact your supplier.
Step 2
Package Contents
The box should contain the following:
Control Valve
Qty: 1
Length determined by model
Qty: 1
Each spout includes one 2002
snap ring and two 1600-5000
O-rings
3200-2306
Eccentric Flanges
Qty: 2
3200-2307
1/2" Eccentrics
Qty: 2
2200-5000
Eccentric Gaskets
Qty: 2
10456
Lube
Qty: 1
Swing Spout
Items needed for Installation
• 1 - Medium Sized Crescent Wrenches
• 1 - Plumbers Tape or Pipe Thread Sealant
Installation Instructions
Step 1.
After unpacking items and checking for missing components, insert and center the gasket into the female swivel inlets of the 8" control valve body. Loosely mount the eccentrics and flange onto the control valve body.
Step 2.
The control valve body is now ready to be mounted to either a wall with male supply nipples, or a backsplash with nipples (not included). Be sure to use pipe thread sealant on the supply nipple threads. Adjust the eccentrics as needed in order to mount the conrtol valve level. Once level. tighten the eccentrics.
Step 3.
Apply o-ring lube to the o-rings on the swing spout Make sure the white snap ring is in place before mounting the swing spout. Mount the swing spout and tighten the swing spout nut onto the add-on faucet spout outlet.
Step 4.
Turn on water supply and check for leaks.
Step 1
Step 3
Step 4
1/2" NPT Supply
Nipples (not included)
7-3/4"-8-1/4"
[196.9mm]-[209.6mm]
Wall or Backsplash
Swing Spout
Apply O-Ring
Lube Here
Gasket
Eccentric
Flange
