Fisher 2003 Parts Manual

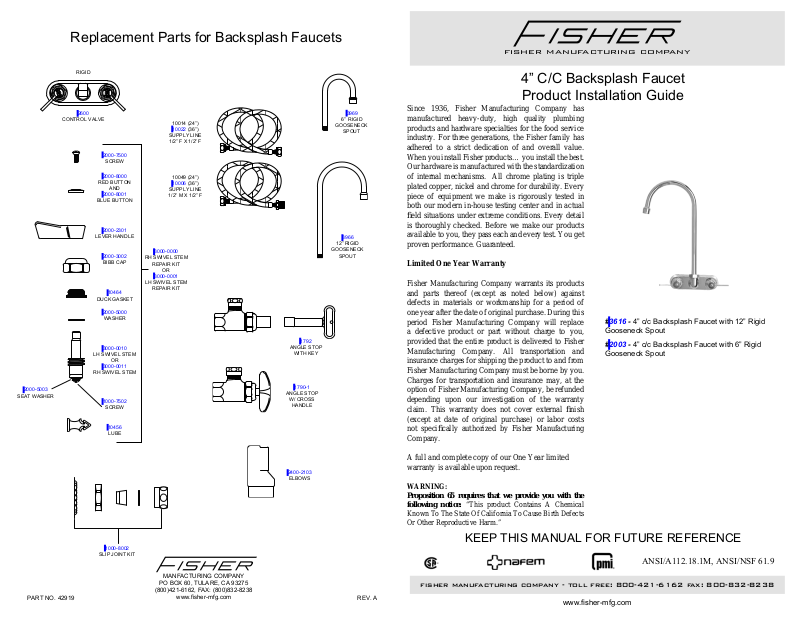

Replacement Parts for Backsplash Faucets
fisher manufacturing company
2000-5003
SEAT WASHER
RIGID
2600
CONTROL VALVE
LEVER HANDLE
LH SWIVEL STEM
RH SWIVEL STEM
2000-7500
SCREW
2000-8000
RED BUTTON
AND
2000-8001
BLUE BUTTON
2000-2301
2000-3002
BIBB CAP
10464
DUCK GASKET
2000-5000
WASHER
3000-0010
OR
3000-0011
1000-7502
SCREW
10456
LUBE
10014 (24”)
10022 (36”)
SUPPLY LINE
1/2” F X 1/2” F
10049 (24”)
10006 (36”)
SUPPLY LINE
1/2” M X 1/2” F
3000-0000
RH SWIVEL STEM
REPAIR KIT
OR
3000-0001
LH SWIVEL STEM
REPAIR KIT
1792
ANGLE STOP
WITH KEY
1790-1
ANGLE STOP
W/ CROSS
HANDLE
3969
6” RIGID
GOOSENECK
SPOUT
3966
12” RIGID
GOOSENECK
SPOUT
4” C/C Backsplash Faucet
Product Installation Guide
Since 1936, Fisher Manufacturing Company has
manufactured heavy-duty, high quality plumbing
products and hardware specialties for the food service
industry. For three generations, the Fisher family has
adhered to a strict dedication of and overall value.
When you install Fisher products… you install the best.
Our hardware is manufactured with the standardization
of internal mechanisms. All chrome plating is triple
plated copper, nickel and chrome for durability. Every
piece of equipment we make is rigorously tested in
both our modern in-house testing center and in actual
fi eld situations under extreme conditions. Every detail
is thoroughly checked. Before we make our products
available to you, they pass each and every test. You get
proven performance. Guaranteed.
Limited One Year Warranty
Fisher Manufacturing Company warrants its products
and parts thereof (except as noted below) against
defects in materials or workmanship for a period of
one year after the date of original purchase. During this
period Fisher Manufacturing Company will replace
a defective product or part without charge to you,
provided that the entire product is delivered to Fisher
Manufacturing Company. All transportation and
insurance charges for shipping the product to and from
Fisher Manufacturing Company must be borne by you.
Charges for transportation and insurance may, at the
option of Fisher Manufacturing Company, be refunded
depending upon our investigation of the warranty
claim. This warranty does not cover external fi nish
(except at date of original purchase) or labor costs
not specifi cally authorized by Fisher Manufacturing
Company.
#3616 - 4” c/c Backsplash Faucet with 12” Rigid
Gooseneck Spout
#2003 - 4” c/c Backsplash Faucet with 6” Rigid
Gooseneck Spout
PART NO. 42919
1000-8002
SLIP JOINT KIT
MANFACTURING COMPANY
PO BOX 60, TULARE, CA 93275
(800)421-6162, FAX: (800)832-8238
www.fisher-mfg.com
2400-2103
ELBOWS
REV. A
A full and complete copy of our One Year limited
warranty is available upon request.
WARNING:
Proposition 65 requires that we provide you with the
following notice: “This product Contains A Chemical
Known To The State Of California To Cause Birth Defects
Or Other Reproductive Harm.”
KEEP THIS MANUAL FOR FUTURE REFERENCE
ANSI/A112.18.1M, ANSI/NSF 61.9
fisher manufacturing company - toll free: 800-421-6162 fax: 800-832-8238
www.fi sher-mfg.com
Installation Instructions for Backsplash Faucets
BE SURE TO CHECK WITH YOUR LOCAL DEPARTMENT HAVING JURISDICTION
REGARDING BACKFLOW PREVENTION
Installation Instructions Continued
Installation Notes:
• Be sure to shut off water supply before beginning.
• Use pipe thread sealant such as PST on all threaded joints.
• Check the packaging for missing items BEFORE beginning installation. If items are missing,
contact your supplier.
Tools Required for Installation
• Medium Sized Crescent Wrench
PST
• Pipe Thread Sealant
Package Contents
The box should contain the following:
Rigid Gooseneck Spout
Control Valve
Qty: 1
Length determined by model
Qty: 1
1000-8002
Slip Joint Kit
Qty: 2
Installation Instructions
1. Mount control valve body to the backsplash by inserting the nipples through the
backsplash and attaching slip joints. Tighten the slip joints until the control valve
is secure. Be sure to use pipe thread sealant on the nipple threads. Attach elbows
and supply lines as needed. (not Included)
2. Apply thread sealant to male threads on rigid spout and insert into control valve.
Tighten until secure.
3. Turn on water supply and check for leaks.
Step 2
Apply Thread
Sealant Here
Step 1
Ø7/8”
Step 3
Slip Joints
Supply Lines
(not included)
4”
[101.6mm]
1/2” Elbows
(not included)
