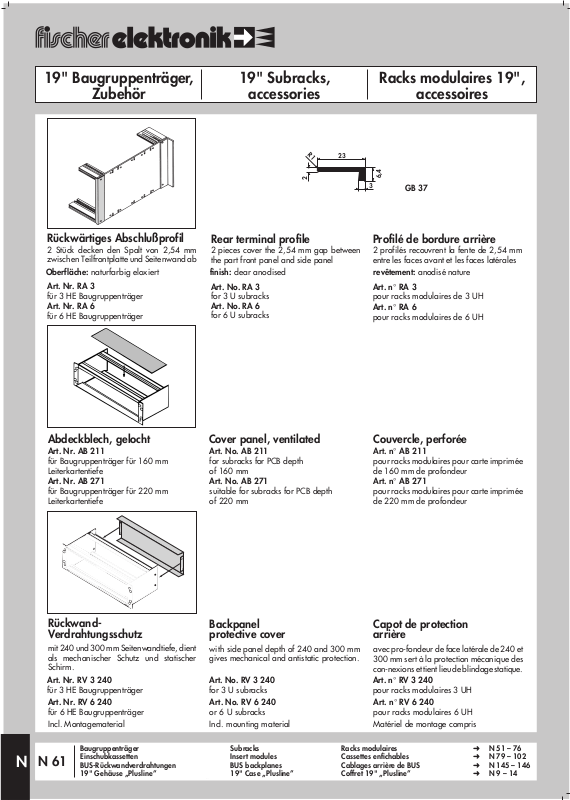

19" Baugruppenträger,
Zubehör
19" Subracks,
accessories
Racks modulaires 19",
accessoires
R
1
2
Rückwärtiges Abschlußprofil
2 Stück decken den Spalt von 2,54 mm
zwischen Teilfrontplatte und Seitenwand ab
Oberfläche: naturfarbig eloxiert finish: clear anodised revêtement: anodisé nature
Art. Nr. RA 3
für 3 HE Baugruppenträger
Art. Nr. RA 6
für 6 HE Baugruppenträger
2 pieces cover the 2,54 mm gap between
the part front panel and side panel
Art. No. RA 3
for 3 U subracks
Art. No. RA 6
for 6 U subracks
23
6,4
3
GB 37
Profilé de bordure arrièreRear terminal profile
2 profilés recouvrent la fente de 2,54 mm
entre les faces avant et les faces latérales
Art. n° RA 3
pour racks modulaires de 3 UH
Art. n° RA 6
pour racks modulaires de 6 UH
Abdeckblech, gelocht
Art. Nr. AB 211
für Baugruppenträger für 160 mm
Leiterkartentiefe
Art. Nr. AB 271
für Baugruppenträger für 220 mm
Leiterkartentiefe
RückwandVerdrahtungsschutz
mit 240 und 300 mm Seitenwandtiefe, dient
als mechanischer Schutz und statischer
Schirm.
Art. Nr. RV 3 240
für 3 HE Baugruppenträger
Art. Nr. RV 6 240
für 6 HE Baugruppenträger
Incl. Montagematerial
Cover panel, ventilated Couvercle, perforée
Art. No. AB 211
for subracks for PCB depth
of 160 mm
Art. No. AB 271
suitable for subracks for PCB depth
of 220 mm
Backpanel
protective cover
with side panel depth of 240 and 300 mm
gives mechanical and antistatic protection.
Art. No. RV 3 240
for 3 U subracks
Art. No. RV 6 240
or 6 U subracks
Incl. mounting material
Art. n° AB 211
pour racks modulaires pour carte imprimée
de 160 mm de profondeur
Art. n° AB 271
pour racks modulaires pour carte imprimée
de 220 mm de profondeur
Capot de protection
arrière
avec pro-fondeur de face latérale de 240 et
300 mm sert à la protection mécanique des
con-nexions et tient lieu de blindage statique.
Art. n° RV 3 240
pour racks modulaires 3 UH
Art. n° RV 6 240
pour racks modulaires 6 UH
Matériel de montage compris
