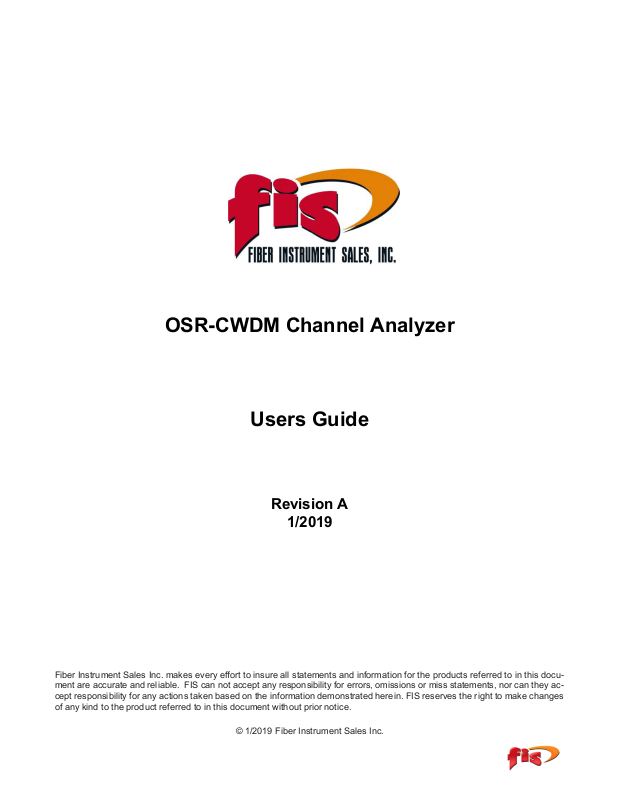

Page 1
OSR-CWDM Channel Analyzer
Users Guide
Revision A
1/2019
Fiber Instrument Sales Inc. makes every eort to insure all statements and information for the products referred to in this document are accurate and reliable. FIS can not accept any responsibility for errors, omissions or miss statements, nor can they accept responsibility for any actions taken based on the information demonstrated herein. FIS reserves the right to make changes
of any kind to the product referred to in this document without prior notice.
© 1/2019 Fiber Instrument Sales Inc.
Page 2
Section PAGE
1. Using This Manual………..…………................................….........…………….......……………………………1
2. Safey………..……………......................................................……….……….......…………………...…………2
3. Quick Start Guide..……………….............................................….….…..........................……….……………4
4. Introduction ………….........…….....................................…..………….………………...……….……………..6
5. Preparation for Use ………....…...............................………….…………………………………………...……7
5.1 Inspection
5.2 Identication and Conguration
5.3 Power Requirements
6. Description……………......……….……….…...................................…….………......….....……..…………….8
Front Panel
Top Plate
7. User Interface................................................ ……..............................….....…..……...……….….......….…..9
7.1 Keypad
7.2 Graph Display
7.3 Menu
Display with Menu Open
Icon Descriptions
Help
Bar Graph View
File Management
Settings
Scope
8. Setting Test Parameters…..…………………………......................................…............…………………..…12

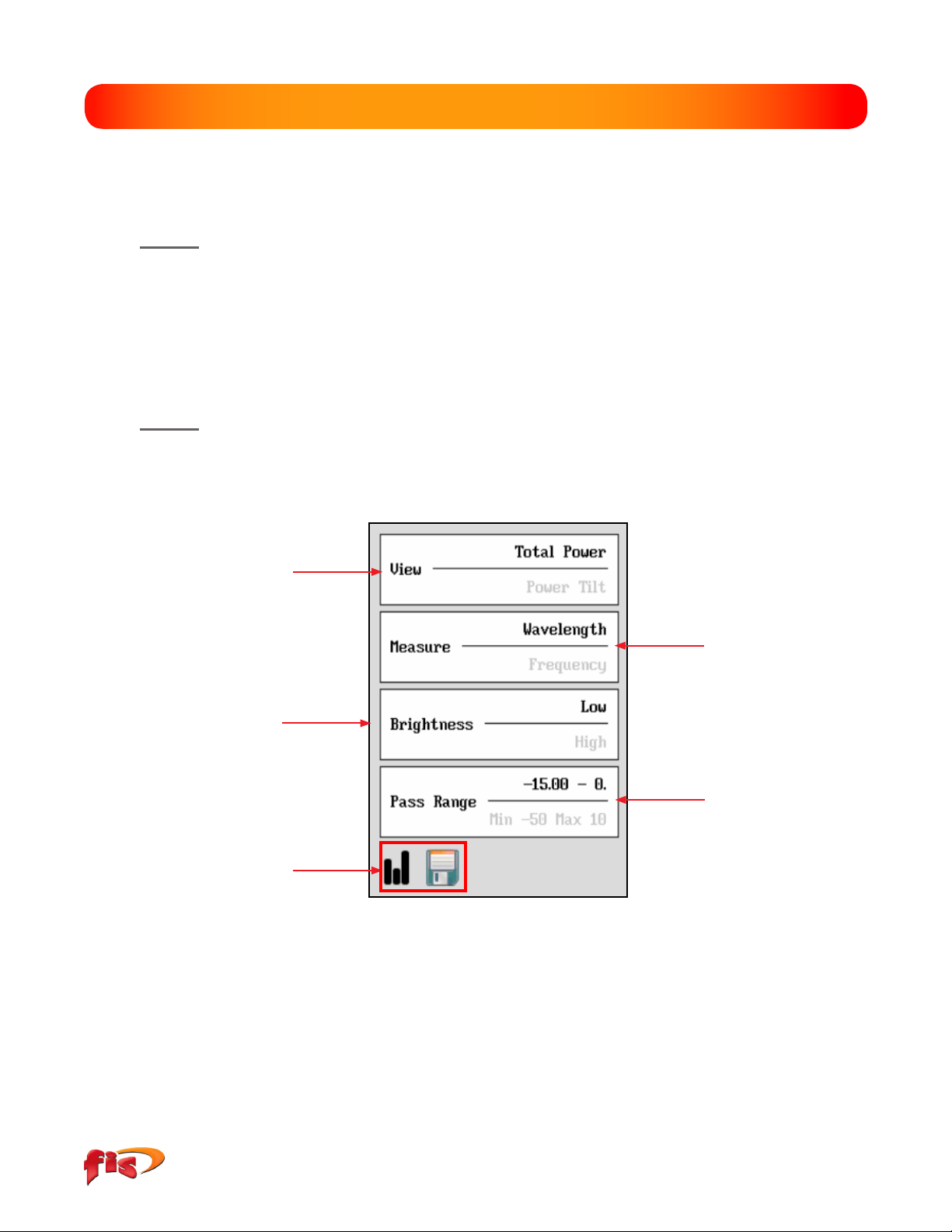

8.1 Parameter Settings Screen
8.2 Setting Parameters
View Setting
Measure
Brightness
Pass Range
Table of Contents
I
Page 3
Section PAGE
9. Operation..............................………………………………………………......………........…………...………14
9.1 Start-Up
9.2 Connecting Fiber
9.3 Taking Scans
Scanning
Using Stored Congurations
9.4 Viewing Scans

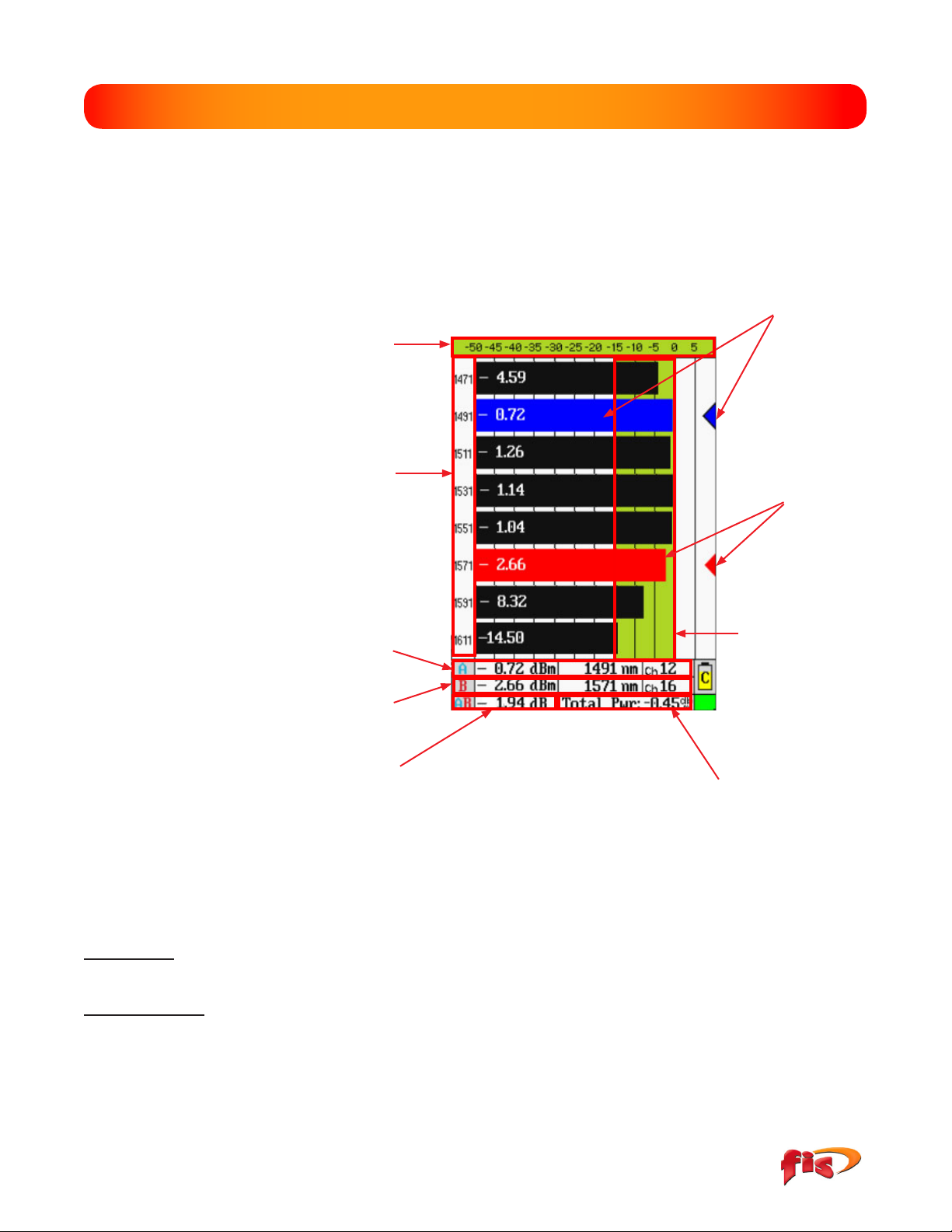

Graph Display
Graph Information
dBm Scale
Channel Scale
Channel Pass Zone
Cursor Data Information
“A” to “B” Cursor Relational Data
Total Power/Tilt Measurements
9.5 Cursor Operation
Set Active Cursor
Cursor Movement
Table of Contents
(Continued)
10. File Management …………….…………………………………………….......……..............………………....17

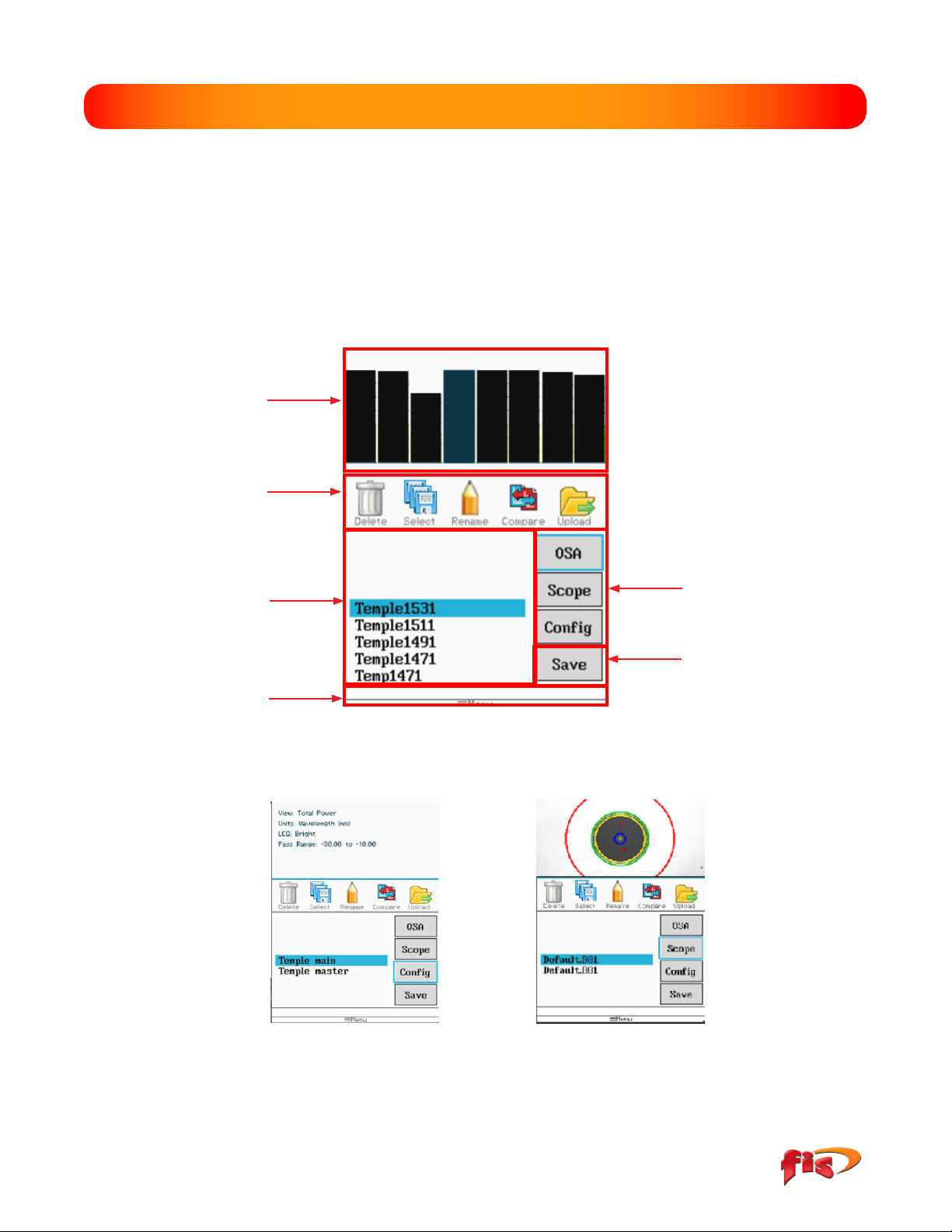

10.1 File Management Display
Main File Management Screen
Conguration and Scope Folder Displays
10.2 Saving Files
Saving Channel Analyzer Files
Saving Scope Files
Saving Congurations
10.3 File Operations
Making Files for Batch Operations
Deleting Files
Rename Files
Compare Files
Upload Files
II
Page 4
Section PAGE
11. Video Scope Operation……................................………………..………....................……………………… 20
11.1 Video Scope Display
11.2 Video Scope File/Help Menu
Home
Quick Save
Quick Load
File Management
Help
11.3 Video Scope Operation Menu
Grading Rings Icon
Pass/Fail Label Icon
Brightness Icon
11.4 Video Scope Operation
Video Probe Tips
Viewing/Focusing a Connector
Centering a Connector Image
Pausing Image Scan
Grading Rings
Pass/Fail
Marking Point of Contamination
Exiting Video Scope Operation
11.5 Pass/Fail Contamination Tables
Table of Contents
(Continued)
12 Maintenance ……………………………………………….………..………....................……………………… 25
12.1 Battery Replacement.
12.2 Calibration and Verication
12.3 Adapter Replacement
13. Specications …………………….………….……………………..….……..….............………………………..26
14. Warranty and Repair……………………….………….………………….........….......................……....……...27
14.1 Warranty Information
14.2 Repair Information
15. Trouble Shooting..……….….…………….…………………………............……..............………....................28
16. Version Control………….….…………….…………………………...........……..............………..….…….…..29
III
Page 5
Section 1 Using This Manual
This Manual contains information for the OSR-CWDM Channel Analyzer. This equipment is touch
screen capable and also has a hard keypad for operation. Note that there are a few operations that
are only accessible with touch screen operation.
This user’s guide is written primarily using the touch screen operation with occasional mention of the
hard key equivalents
There are warnings, cautions and notes as described below displayed throughout this manual. Please
follow all warnings and cautions for your safety and the protection of the equipment.
Warning
A warning alerts to situations that could cause personal injury.
Caution
A caution alerts to situations that may cause damage to the equipment or produce poor testing
conditions resulting in inaccurate test results.
Note
A special annotation that will assist the user with operational features.
OSR-CWDM Users Guide Revision A 1/2019 1
Page 6
Section 2 Safety
Section 3 of this manual is a quick start guide. Prior to using the quick start guide or operating
the equipment in any way, it is highly suggested the user reads all safety information.
This product has been designed and tested in accordance with the Manufacturer’s safety standards, and has
been supplied in a safe condition.
Below are warnings that must be followed by the user to ensure safe operation and to maintain the product in
a safe condition. Failure to follow these safety warnings, can result in damage to the instrument or harm to the
user.
Warning
Personnel should always be aware when working with ber optic test equipment that active
bers may be present and therefore infrared optical energy may be present.
Warning
Never look directly into the end of a connected ber optic cable or ber optic adapter of test
equipment, to do so could expose the user to laser radiation and could result in sever personal
injury.
Warning
To Prevent Fire or Shock Hazard:
Do not install battery types other than those specied by the manufacturer ¾
Do not use the charger without the batteries installed ¾
Do not expose the battery charger to rain or excessive moisture ¾
Do not use the AC adapter when there are signs of damage to the enclosure or cord ¾
Ensure that you are using the correct charger for the local line voltage ¾
Do not use any other charger than the one provided with this instrument. ¾
2 OSR-CWDM Users Guide Revision A 1/2019
Page 7
Section 2 Safety
Failure to follow these cautions may damage the equipment and void the warranty.
Caution
Fiber-optic connectors are easily contaminated or damaged. The connection to the OSRCWDM is a physical contact type of connection and dirty or damaged connectors may impair the
instruments capabilities at minimum and at worst result in the need to return the OSR-CWDM
to the factory for expensive repairs. Prior to making any connection to the unit, ensure that all
proper cleaning procedures have been followed.
Use UPC Finish Connectors Only!
Caution
The OSR-CWDM is designed for maximum power of +5 dBm per channel and a maximum composite power of +23dBm.
3OSR-CWDM Users Guide Revision A 1/2019
Page 8
Section 3 Quick Start Guide
Quick Start Guide
Press to turn on the OSR-CWDM
Menu
To enter menu, either press the button or use the stylus to pull the menu up from the bottom of the
screen.
Available icons:
Help displays an on board explanation of features, functions and operations.
Bar graph, touching this icon returns the user to the bar graph.
File icon, touching this icon will brings the user to the le management menu.
Settings icon, touching this icon brings the user to the OSA and general settings menus.
Scope icon, this will opens the video scope feature.
Note
Most features of the OSR-CWDM are accessible with either the touch screen or the hard
buttons on the keypad. This quick start will primarily focus on the touch screen.
Caution
Fiber-optic connectors are easily contaminated or damaged. The connection to the OSRCWDM is a physical contact type of connection and dirty or damaged connectors may impair the
instruments capabilities at minimum and at worst result in the need to return the OSR-CWDM
to the factory for expensive repairs. Prior to making any connection to the unit, ensure that all
proper cleaning procedures have been followed.
Use UPC Finish Connectors Only!
4 OSR-CWDM Users Guide Revision A 1/2019
Page 9
Section 3 Quick Start Guide
Caution
The OSR-CWDM is designed for maximum power of +5 dBm per channel and a maximum composite power of +23dBm.
Attached the ber to be tested to the optical port.
Scan
Touch the scan indicator or the scan button on the keypad to start the scan.
To stop a scan, touch the scan indicator or press the scan button again.
Cursor Movement/Selection:
To move the cursors touch the screen and the active cursor will snap to that location and moving the stylus up or
down on the display will drag the cursor as desired.
To change the active cursor, touch the red or blue cursor points on the right side of the display. The one outlined
in black is the active cursor. (A/B button on the keypad)
Please review the remainder of this user’s guide for full instructions on
using the OSR-CWDM Channel Analyzer
5OSR-CWDM Users Guide Revision A 1/2019
Page 10
Section 4 Introduction
The Fiber Instrument Sales Inc., OSR-CWDM Channel Analyzer oers full featured analysis of CWDM
systems in a hand held portable package. CWDM optical levels in CWDM Network, wavelengths
1271nm to 1611nm, may be measured with a resolution of 0.01 dB resolution from -50 to +5 dBm. This
unit has super fast acquisition time of two scans per second. There is a pass/fail feature to assist with
quick evaluation of the scan on the 4 inch color TFT Display. The OSR-CWDM is designed with solid
state optics and no fragile or moving parts to keep the unit eld friendly. There is storage for up to 1000
tests and the test may be viewed and printed with the included CertSoft software for fast and easy
reporting. These units are housed in a rugged enclosure with robust protective boot, are designed to
withstand the rigors of eld use and are extremely user friendly.
6 OSR-CWDM Users Guide Revision A 1/2019
Page 11
Section 5 Preparation For Use
5.1 Inspection
Before shipment, this instrument was inspected and found to be in perfect working order and free of defects.
The shipping carton contains the following:
1. Channel Analyzer, with protective boot and Li-ion battery installed
2. Universal AC/DC charger with interchangeable mains
3. USB cable
4. CD with CertSoft software and user’s manual
5. Set of interchangeable adapters, SC and FC
5.2 Identication and Conguration

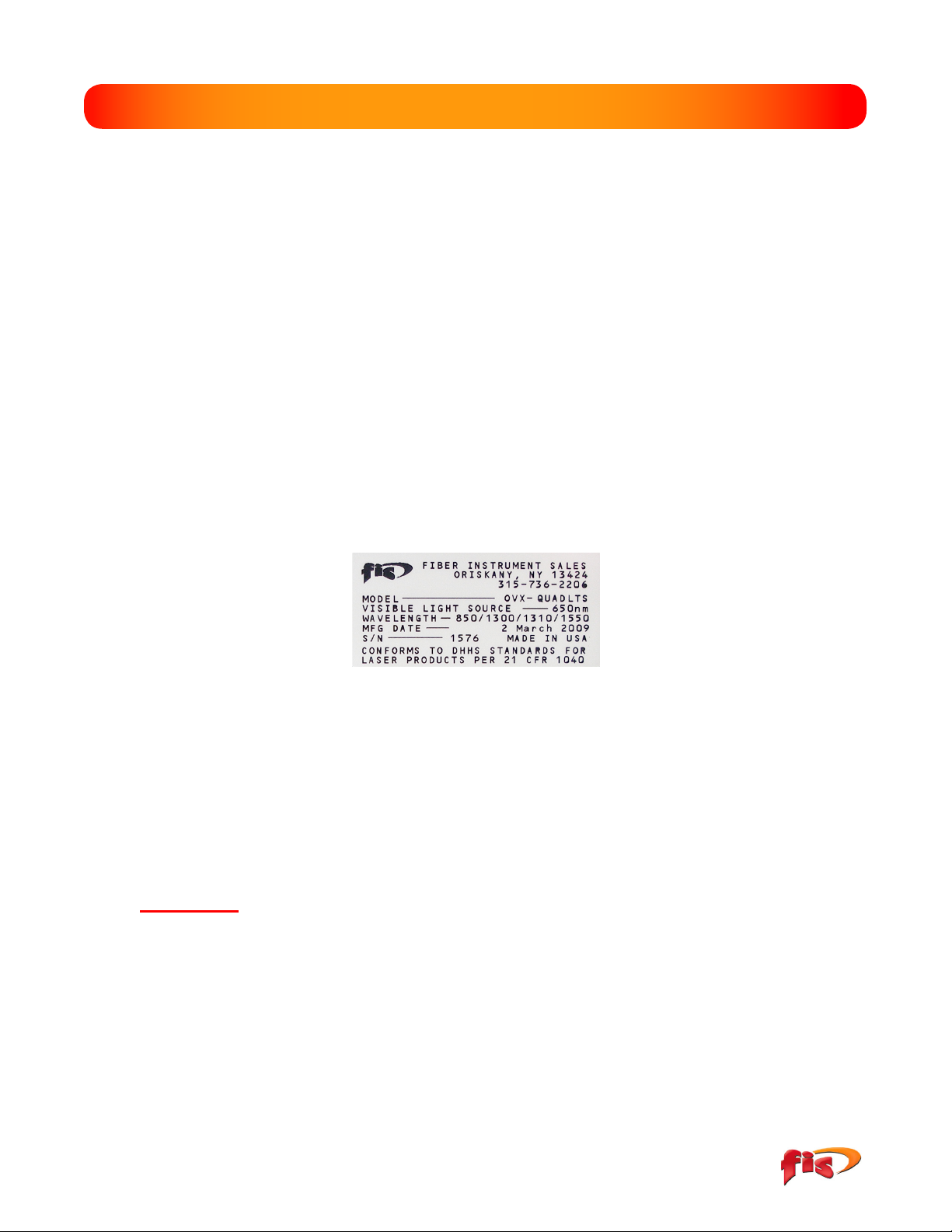

The instrument’s Model/Part Number, Serial Number and Date of Manufacture are indicated on a label located on
the back of the unit. The instrument’s history is led at the factory by model/part number and serial number. The
unit's serial number is also located on the top plate just above the USB Port.
Fig 5.1
5.4 Power Requirements
The OSR-CWDM is equipped with a 100-240V-0.4A input and 15V, 1.28A, center positive output universal AC/DC
battery charger. This charger is supplied with interchangeable mains for US, Great Britain, Europe and Australia.
The unit is shipped with factory installed Li-ion batter installed. Depending on usage, fully charged battery pack
will typically enable approximately 12 hrs. of use. Fully discharged batteries require approx. 2 hours to charge.
Batteries ar not eld replaceable and therefore the unit is to be returned to the factory for battery replaement.
Warning
To Prevent Fire or Shock Hazard:
Do not install battery types other than those specied by the manufacturer ¾
Do not expose the battery charger to rain or excessive moisture ¾
Do not use the AC adapter when there are signs of damage to the enclosure or cord ¾
Ensure that you are using the correct charger for the local line voltage ¾
Do not use any other charger than the one provided with this instrument. ¾
Failure to follow these caution statements may void the warranty of this equipment.
7OSR-CWDM Users Guide Revision A 1/2019
Page 12
Section 6 Physical Description
The Channel Analyzer is packaged in a rugged housing which is further protected with a rubberized boot.
Although the front panel is weather resistant, care must be taken to avoid liquids and contaminants around the
fragile optical and electrical connectors, and the glass display. Use a mild cleaning agent and damp soft cloth to
clean up the panels and the outside case. See the maintenance section for notes to clean the optical connector.
NEVER open the instrument for cleaning. Return to the factory for servicing if necessary.

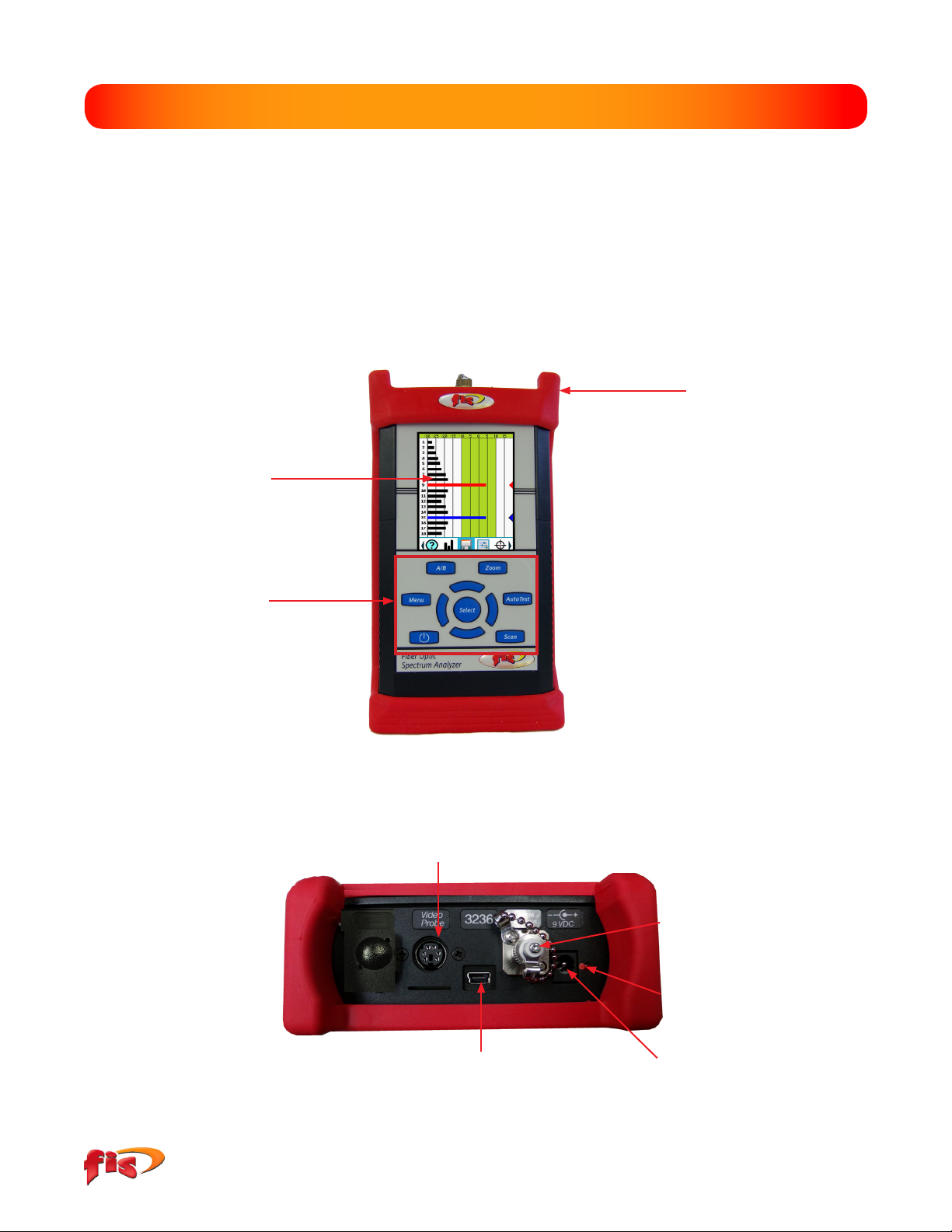

Front Panel
Protective Rubber
Boot
Color Touch
Display
Top Plate
Key Pad
Fig 6.1
Video Probe Port
Optical Port
Charge Indicator
USB PC
Port
External Power Port
Fig 6.2
8 OSR-CWDM Users Guide Revision A 1/2019
Page 13
Section 7 User Interface

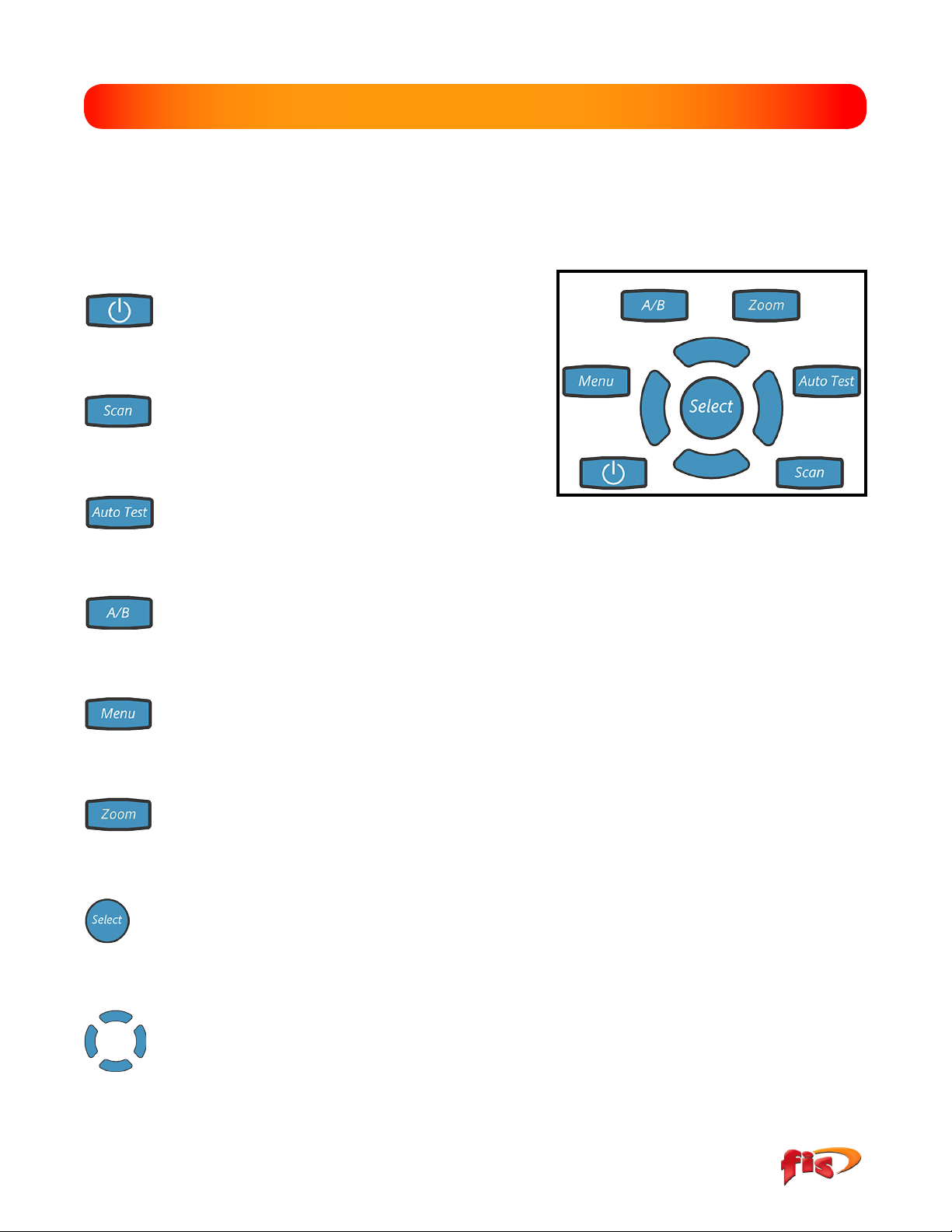

7.1 Keypad
Power button turns the unit On and O.
(Hold for 1 second)
Scan button starts or stops a scan.
Not active
Toggles between “A” and “B” as the active cursors.
Keypad
Fig 7.1
Toggles the menu open and closed on the bottom of the display
Not active
Active in the menu mode. Used to make selections of highlighted items.
LRUD (Left-Right-Up-Down) buttons to are used to move the active cursor in scan mode and move through
menu selections in menu mode.
9OSR-CWDM Users Guide Revision A 1/2019
Page 14
Section 7 User Interface

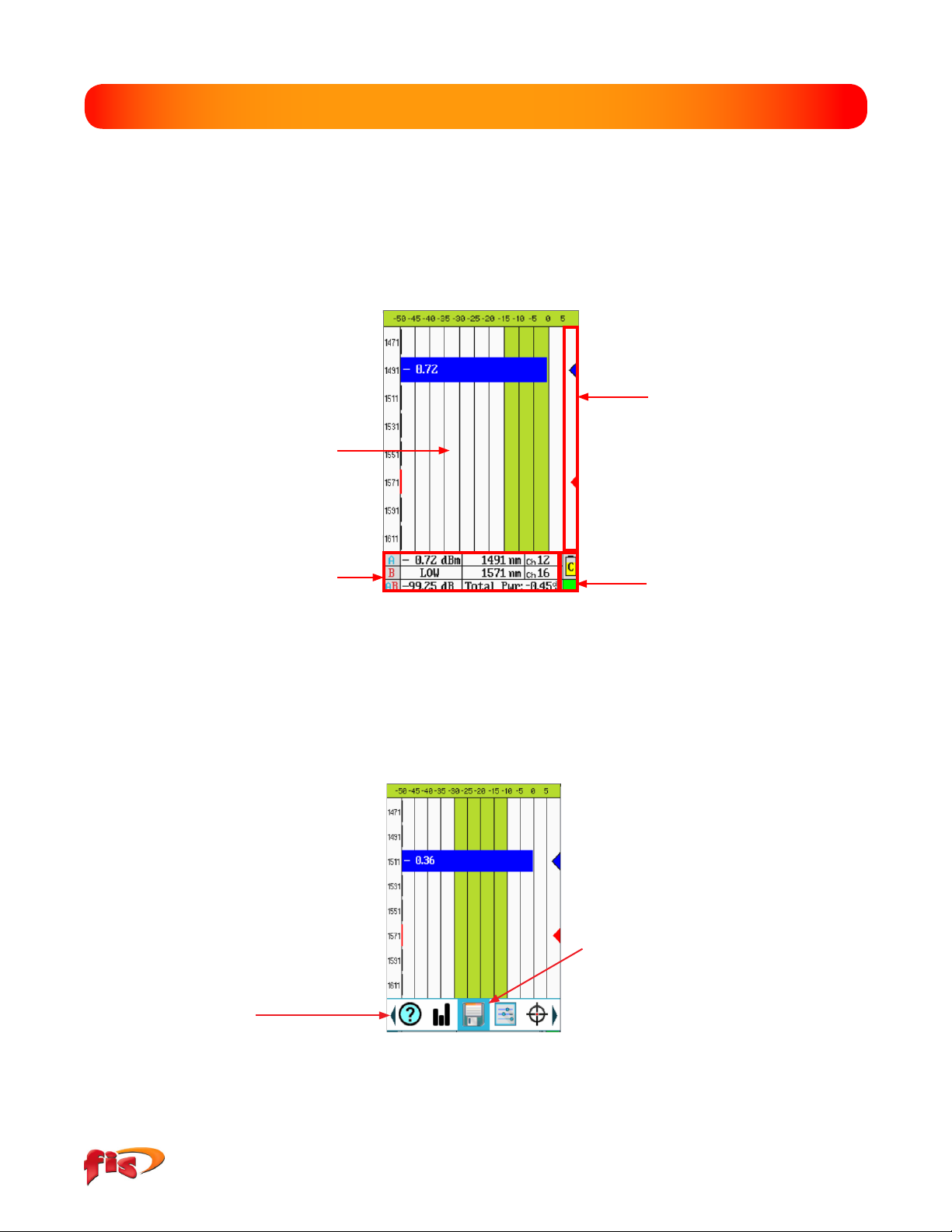

7.2 Graph Display
Touch anywhere in the main
graph area to move the active
cursor
Touch the last column in
the graph to toggles between A and B cursors
Touch anywhere in the bottom
three rows left of the battery
and scan indicators to open
the menu
7.3 Menu
Fig 7.2
The area around the
scan activity indicator
toggles the scan mode
on and o
Highlighted Icon
Menu
Fig 7.3
10 OSR-CWDM Users Guide Revision A 1/2019
Page 15
Section 7 User Interface
Movement between screens and functions is accomplished through a set of icons located in a menu that is
accessed by touching the bottom of the display or pressing menu button. To remove the menu from the bottom of
the display, either select an icon, touch the display above the menu or press the menu button.
To use the Menu, touch to the left or right of the highlighted icon in the center to move the icons left or right. The
left and right key pad buttons may also be used to move the icons. With the desired icon highlighted, touch it or
press the select button.
Icon Descriptions
Below is a list of the icons found in the menu with a brief description of each.
Help Help displays an on board explanation of features, functions and operations.
Bar Graph View Touching this icon returns the user to the bar graph.
File Mgt. File icon, touching this icon will brings the user to the le management menu.
Settings
Scope Scope icon, this will opens the video scope feature.
Settings icon, touching this icon brings the user to the OSA and general settings
menus.
11OSR-CWDM Users Guide Revision A 1/2019
Page 16
Section 8 Setting Test Parameters
Note
The directional buttons and the select button are not operational in the settings screen.
8.1 Parameters Setting Screen
The View, Measure and Brightness settings are toggles and when touched, will switch between options. The
Pass Range setting requires the user to enter a range for the dB Scale.
Note
The value in black is the current value, touching anywhere in the parameter box will change values.
View Select between total
power and power tilt
modes
Measure -
Select between
measurments
displayed in wave-
length (nm) or
Brightness -
Chose either high or low
brightness
Frequency (Tz)
Return to
Scan Mode
or File Manager
Pass Range -
Allows the user
to enter values to
display channels as
passing or failing
Fig 8.1
12 OSR-CWDM Users Guide Revision A 1/2019
Page 17
Section 8 Setting Test Parameters
8.2 Setting Parameters
View Setting
Ther are two power setting that may be diplayed for the scan. Total Power and Power Tilt, to select either of
these setting, simply touch the View setting box on the setting screen to toggle between the options. the black
value is the active value.
Total Power
Total power is the power being introduced to the ber. This value is shown in the bottom right cell of the display.
Power Tilt
Power Tilt, is displayed as a linear regression line overlaid on the graph and as a numeric indicator in the bottom
right of the display. This reading only factors in the channels that are greater than the minimum power level of the
scale. This can be used to assist with balancing the power of CWDM system. The atter (more level) the line, or
the closer to zero the power tilt number the more balanced the power between channels.
Measure
Depending on the system, channels my be listed in wavelength or frequency. The channel may be displayed in
wavelength (nm) or frequency (Tz) in the test date section at the bottom of the display. To change these settings,
pull up the menu and touch the settings icon. Touch the Measure setting to toggle between the two options.
Brightness
Depending on working conditions, a lower level of light may be best for optimal viewing of this equipment. Use
this brightness setting to toggle between low and high settings. To set the brightness level, enter the settings
screen by bringing up the menu and touching the settings icon. Touch the brightness section to toggle between
the two settings.
Pass Range
For a quick indication of passing channels, the pass range may be set to highlight the power level on the display
for a passing channel. Set this range so that channels meeting the passing criteria, fall into the green shaded
area of the dBm scale. To set the pass range, enter the settings screen by bringing up the menu and touching
the settings icon. Touch Pass Range section of the page.
When touched, there will be displayed a message to “Enter Minimum Power” and then the display will switch
to the the on screen QWERTY and the user can enter the desired value for the minimum passing value. Once
entered touch Save and the message “Enter Maximum Power” will be displayed and then switch again to the on
screen QWERTY. Enter the maximum pass/fail value and select save.
13OSR-CWDM Users Guide Revision A 1/2019
Page 18
Section 9 Operation
Continued
9.1 Start-up
Press and hold the power button for one second to start the OSR-CWDM.
9.2 Connecting Fiber
It is suggested that a test cable be used between the ber under test and the OSR-CWDM. This reference
ber should be approximately on meter in length and have minimal loss. The reference cable should be only be
removed from the unit when necessary. Limiting removal and termination of connectors to the unit will extend the
live span of the connector eliminating down time and costly repairs. Only UPC connectors are to be connected
to the OSR-CWDM.
Caution
Fiber-optic connectors are easily contaminated or damaged. The connection to the OSRCWDM is a physical contact type of connection and dirty or damaged connectors may impair the
instruments capabilities at minimum and at worst result in the need to return the OSR-CWDM
to the factory for expensive repairs. Prior to making any connection to the unit, ensure that all
proper cleaning procedures have been followed.
Use UPC Finish Connectors Only!
Caution
The OSR-CWDM is designed for maximum power of +5 dBm per channel and a maximum composite power of +23dBm.
9.3 Taking Scans
Scanning
Once all the parameters have been set, the scan button may be press or the scan indicator may be used on the
touch screen to start a scan. Pressing the scan button or touching the scan indicator a second time will stop the
scan.
Using Stored Congurations
Test congurations are stored in the le management screen. To use a stored congurations, pull up the
menu and select the le management icon. Touch the Cong tab and from the le list, highlight the desired
conguration and press select on the keypad or touch the conguration name while highlighted. Scans will now
use the established parameters from the active conguration.
14 OSR-CWDM Users Guide Revision A 1/2019
Page 19
Section 9 Operation
9.4 Viewing Scans
Graph Display
Wavelength Scale
Continued
“A” Cursor
dBm Scale
“B” Cursor
“A” Cursor Channel Power,
Wavelength/Frequency and Channel Number
“B” Cursor Channel Power,
Wavelength/Frequency and Channel Number
Power and Wavelength/Frequency Deviation
Between “A-B” Channels
Total Power/Tilt Measurements
Channel Pass Zone
Fig 9.1
Graph Information
dBm Scale
The dBm scale at the top of the display indicates -50 to +5 dBm.
Channel Scale
The channel scale displays the wavelength of the channels in the CWDM network. This scale will display the
available channel/wavelengths of the congured unit. The full scale for an 18 channel unit is is 1271-1611.
15OSR-CWDM Users Guide Revision A 1/2019
Page 20
Section 9 Operation
Channel Pass Zone
This green highlighted area of the display assist with quick evaluation of channels for pass/fail
state. Set this scale with the pass range setting on the settings screen.
Cursor Data Information
Channel power, wavelength/frequency and the channel numbers for selected channels are
displayed in the data section at the bottom of the display.
“A” to “B” Cursor Relational Data
The bottom row of the data section indicates the deviation of power between the “A” and “B”
cursors.
Total Power/Tilt Measurements
The total power or tilt information is displayed in the bottom right most cell of the OSA’s measurement table and
graph screen.
9.5 Cursor Operation
The “A” and “B” cursors may be moved with the touch screen or the up and down buttons on the keypad.
Set Active Cursor
The cursor to be moved must be set as the active cursor. This is indicated with a black outline around the cursor point on the right side of the display. To set the active cursor, touch the desired cursor point with the stylus or
press the A/B button on the keypad to toggle between the cursors.
Cursor Movement
To move a cursor, touch anywhere between the channel number column and the cursor point column and the active cursor will snap to the channel selected. To slide the cursor up and down on the display, touch the display and
slide the stylus up and down to drag the cursor to the desired position/channel number. The up and down buttons
on the keypad will move the cursors as well.
16 OSR-CWDM Users Guide Revision A 1/2019
Page 21
Section 10 File Management
File Management is accessed through the menu. To open the le management screen, bring up the menu, highlight the le management icon and press select on the keypad or touch the le icon on the display.
10.1 File Management Display
Main File Management Screen
Scan Preview
File Operation Icons
File List
Return to Menu
Fig 10.1
Conguration and Scope Folder Displays
Folders
Save Button
Conguration Folder Open with
Conguration Preview at the
Top of the Display
Fig 10.2
Scope Folder Open with
Scope Image Preview at
the Top of the Display
17OSR-CWDM Users Guide Revision A 1/2019
Page 22
Section 10 File Management
10.2 Saving les
Saving Channel Analyzer Files
To save a scan, open le management, ensure the OSA tab is highlighted and touch save. The le naming
screen with the onboard keyboard will be displayed. The name of the last le saved during a session will be
the default name and anytime the unit is powered on the default name reverts to “default” Use the onboard
QWERTY keyboard to name the le and touch save.
Saving Scope Files
From within the le management screen, ensure the scope tab is highlighted and touch save. When the onboard
QWERTY is displayed, enter the le name and touch save.
Saving Congurations
At any time the current parameters may be save as a testing conguration. To create a set of parameters, use
the settings screen and set the testing parameters to the desired values. Open the le management screen,
highlight the Cong tab and touch save. Name the conguration as required and touch save.
10.3 File Operations
Marking Files For Batch Operations
Multiple les may be uploaded (copied) to a computer, or deleted at a time. To mark the les for these
operations, highlight a le to be included in the operation and touch the mark (select on some units) icon. The
highlighted lename will now be displayed in red and the next le will be in the highlighted position. Continue
marking (selecting) les by touching the mark (select) icon. To skip les simply move down the le list until the
next le to be marked is highlighted and touch mark (select) again. The mark (select) is a toggle and to unmark a
le, place it in the highlighted position and touch mark (select) again and it will be unmarked. Once the les are
marked (selected) touch the icon for the delete or upload functions.
Note: If les have been marked for batch processing, only the marked les are process not the highlighted le as
in single le processing. (The last le in a list may be marked when in the highlighted position)
18 OSR-CWDM Users Guide Revision A 1/2019
Page 23
Section 10 File Management
Delete Files
To delete a single le, with the le name in the highlighted position, touch the delete icon. To delete a group of
les, mark (select the les as noted in batch processing and touch the delete icon.
Note: Once the delete icon is selected, le are immediately deleted and they may not be recalled.
Rename Files
To rename a le, position the le to the highlighted position and touch the rename icon. Use the QWERTY
keyboard to name the le as desired and touch save.
Compare Files
The compare les feature is used to simply overlay one scan to another. The primary scan is the rst scan on the
graph. This scan will determine the parameters and the data listed will be that of the primary scan. The primary
scan is displayed in black and the secondary scan is displayed in pink.
New scans that have just be acquired but not saved may be used as the primary scan. Once the scan has been
acquired, open le management, with OSA tab highlighted, highlight the le to be used as the secondary le and
touch the compare icon. If the View is set to total power the scans are just in comparison mode with the primary
scan information.
Upload Files
The upload les icon is used to send les to the computer for use with the CertSoft software suite. One or
more les may be uploaded at a time. Use the mark (select) feature to select multiple le or have the le to be
uploaded in the highlighted position. With the channel analyzer connected to the computer with the USB cable,
and the CertSoft software running touch the upload icon and the les will transfer to the selected folder on the
computer.
Note: cong les cannot be transferred to the CertSoft software.
19OSR-CWDM Users Guide Revision A 1/2019
Page 24
Section 11 Video Scope Operation
To operate the video scope, bring up the menu, highlight the scope icon and touch it on the touch screen or press
select.

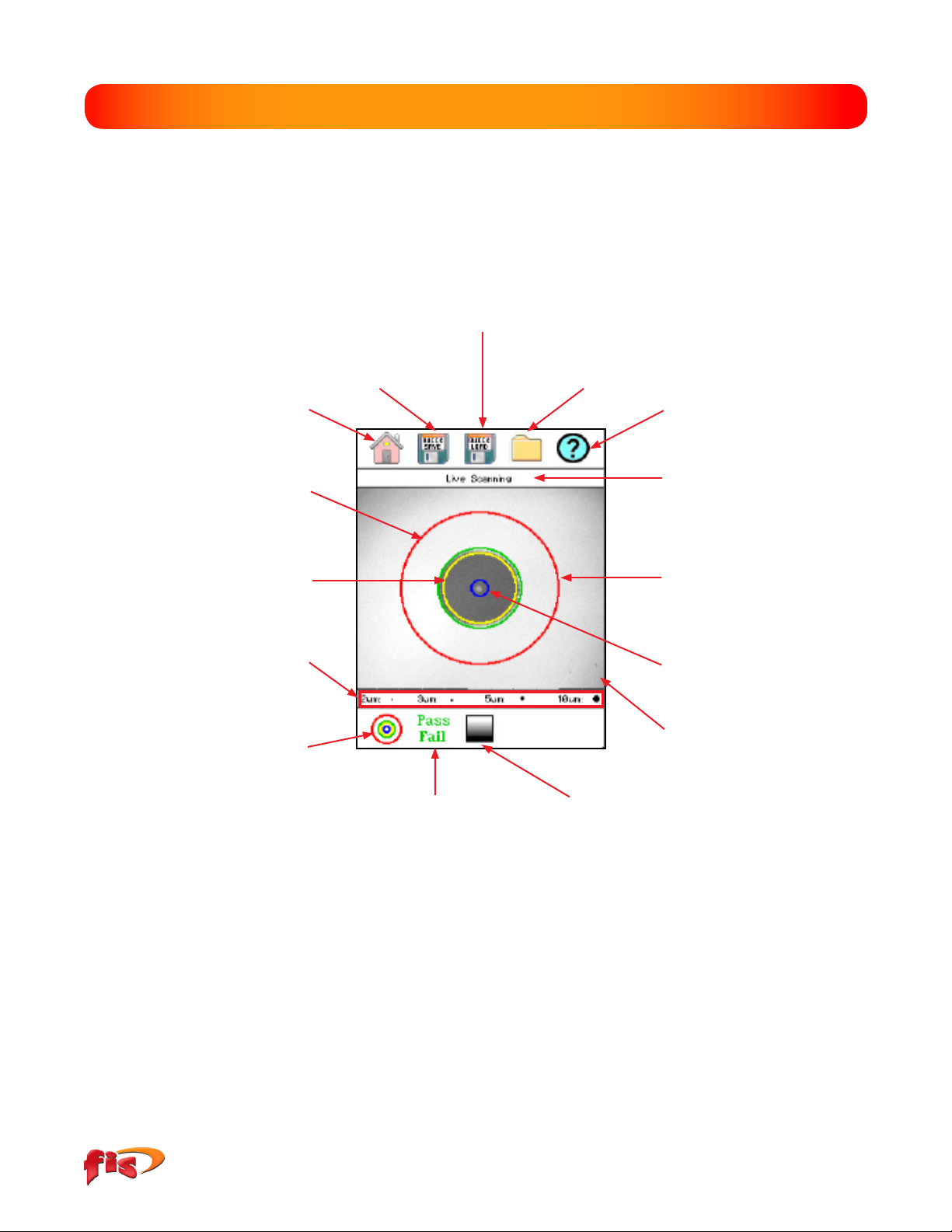

11.1 Video Scope Display
Quick Load
Home Icon
250um Ring
120um Ring
(Yellow)
Contaminant Scale
Pass/Fail Grading
Ring Overlay Icon
Quick Save
Pass/Fail/Auto
Label Icon
File Manager
Help Icon
Live View/Pause View
Indicator
130um Ring
(Green)
25um Ring
Pass/Fail Marker
Brightness
Adjustment Icon
Fig 11.1
Note
Many functions on the video scope are operable by both the touch screen and the keypad.
11.2 Video Scope File/help Menu
The Icons at the top of the display are home, quick save, quick load, le management and Help.
Home
Press the menu button, use the left and right buttons to highlight the home icon and press select or
touch the home icon on the touch screen to return to the home Screen.
20 OSR-CWDM Users Guide Revision A 1/2019
Page 25
Section 11 Video Scope Operation
Quick Save
Press the menu button, use the left or right buttons to highlight the quick save icon and press the select button or
touch the quick save icon to store a le image of the scope screen to the next location.
Quick Load
Press the menu button, use the left or right buttons to highlight the quick load icon and press the select or touch
the quick load icon on the touch screen to load the next stored scope image.
File Management
To open le management, press the menu button, use the left or right buttons to highlight the le management
(Folder) icon and press the select button or touch the le manager icon on the touch screen. This will open the
standard le management screen as described in Section 10 of this User’s guide. Please refer to this section for
information on le processing.
Help
Press the menu button, use the left and right buttons to highlight the help icon and press select or touch the help
icon on the touch screen to view the help information.
11.3 Video Scope Operation Menu
The following functions are only available for use when the video scope is in live scan mode. There are two
modes in the video scope, menu mode and live mode. The menu button toggles between the two modes.
Touching one of the icons will also open the menu mode. When in menu mode there will be a highlight around
one of the icons on the top or the bottom of the display.
Note
Touching icons on the video scope screen will put the unit into menu mode and activate or
toggle the function. To exit menu mode it is necessary to use the menu button on the keypad.
Grading Rings Icon
Used to turn on and o the rings that indicate the IEC61300-3-35 grading zones.
By entering the menu mode with the menu button, use the LRUD buttons to highlight the pass/fail grading rings
overlay icon and press the select button or touch the icon. Exit the menu mode and use the LRUD buttons to
center the image in the rings. Use the appropriate table from Section 11.5 to grade the connector end face. 2, 3,
5 and 10 micron contaminant examples are displayed just below the connect image on the video scope display.
Pass/Fail Label Icon
Used to cycle through pass, fail or no grading (o) of the pass/fail/auto indicator. To set the pass/fail indicator,
press the menu button, use the left or right buttons to highlight the pass/fail icon and press select to cycle through
the pass/fail states, or touch the icon.
21OSR-CWDM Users Guide Revision A 1/2019
Page 26
Section 11 Video Scope Operation
Brightness Icon
Press the menu button, use the left and right buttons to highlight the brightness icon, or touch the brightness
icon to allow adjustment to the brightness level. Use the up and down buttons to adjust the brightness level of the
display or cycle through the brightness levels by pressing the select button.
11.4 Video Scope Operation
To operate the video scope, bring up the menu, highlight the scope icon and press select, or touch the scope icon
on the touch screen. If a probe is not connected already, connect the VIS300 Video Probe to the video probe
port on the top of the unit.

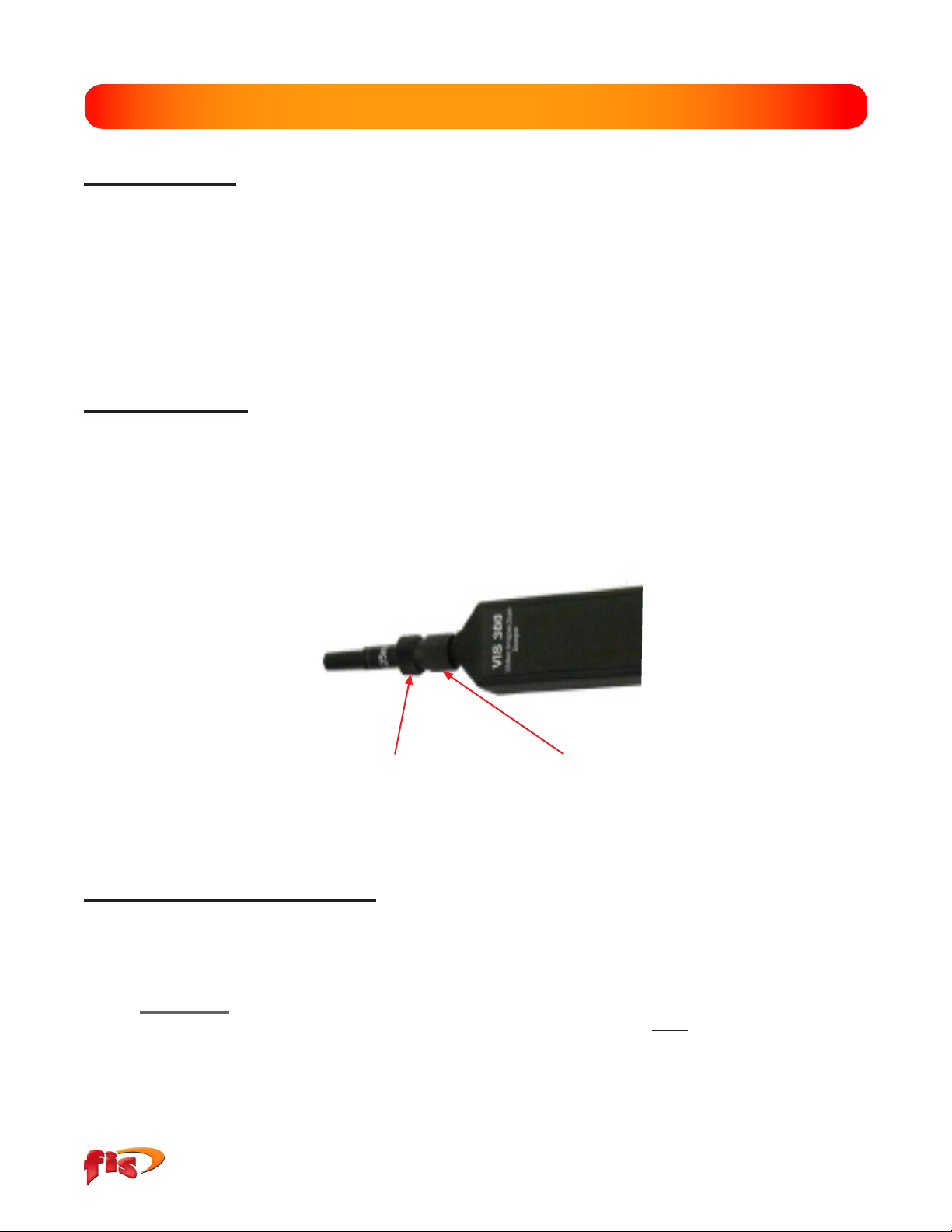

Video Probe Tips
There are a number of video probe tips available. To remove a tip from the probe, grasp the focusing ring and
back the tip retention nut down and pull the tip straight up from the probe. To place a tip on the probe, ensure
the lens is clean, slide the tip on to the end of the probe and tighten the tip retention nut. Do not overtighten the
retention nut.
Tip Retention Nut
Focusing Ring
Fig 11.2
Viewing/Focusing a Connector
With the video scope turned on and the video probe plugged into the unit, insert a connector into universal tip or
insert the panel adapter tip into the appropriate port. Use the focus ring to get the connector image as sharp as
possible.
NOTE:
To make position adjustments with the LRUD buttons, the unit must NOT be in menu mode.
Menu mode is evident when there is a light blue box positioned around one of the icons. When
the touch screen is used to roughly center the connector image, the menu mode is automatically
turned off.
22 OSR-CWDM Users Guide Revision A 1/2019
Page 27
Section 11 Video Scope Operation
Centering a Connector Image
Once the image is stable and focused, use the stylus to touch the approximate center of the connector to snap
the image near the center of the display and the center of the grading rings. Use the LRUD buttons to ne tune
the image to the center of the display.
Pausing Image Scan
To freeze an image in position and focus level for inspection, press the scan button. This will pause the image at
the current position and focus level. Simply press the scan button again to set the operational mode back to live
mode for focus and position adjustments
Grading Rings
Turn on or o the grading rings by pressing menu and using the left or right buttons to highlight the grading ring
icon and press select or touch the icon on the touch screen to toggle the rings on and o.
Pass/Fail
Using the pass/fail criteria tables on the next page, determine if the connector passes the IEC61300-3-35
standard. There is a guide to contamination size located at the bottom of the image. To mark a connector as
Pass or Fail, enter the menu mode, highlight the Pass/Fail Label icon and press select to cycle through pass, fail,
or no grading. The touch screen may also be used to cycle through these settings. Once the pass fail status has
be marked, the scan may be paused with the scan button and the points of contamination that caused a failure
may be marked on the image.
Marking Points of Contamination
To mark the points of contamination the unit must be in paused mode. Pick up the contamination marker by using
the stylus and touching the contamination sample size that is required. Touch the image to place the marker.
The marker may be ne tuned with the stylus to cover the contamination point on the image to be marked. Once
the marker is positioned properly, touch the area just below the image that states, "Place marker, touch here to
apply" to lock the marker in place. Repeat this as necessary to mark all the points that need to be indicated for
the pass/fail status. At this point the image should be save with the quick save icon to record the information.
NOTE:
Marking the points of contamination should be done last, just before saving the image. Once the unit is
returned to live mode the markers are removed.
Exiting Video Scope Operation
Enter the menu mode, use the left or right buttons to highlight the Home icon and press select or touch the home
icon directly on the touch screen.
Note
The majority of function and features in the Video Scope are operable with the touch screen. It
is not necessary to enter the menu mode when using the touch screen. The menu mode needs
to be entered when the focus of the LRUD buttons needs to be taken off the positioning feature
and moved to the icon cursor.
23OSR-CWDM Users Guide Revision A 1/2019
Page 28
Section 11 Video Scope Operation
11.5 Pass/Fail Criteria Tables
Fiber End Face Criteria Table for Angled PC Polished Connectors
Zone Description Diameter Allowable Scratches
(Width)
A Critical Zone
B Cladding Zone
C Adhesive Zone
D Contact Zone
0µm to 25µm ≤ 4µm
25µm to 120µm
120 µm to 13 0µm
130 µm to 250µm
No limit
No limit No limit
No limit
Fiber End Face Criteria Table for Ultra PC Polished Connectors
Zone Description Diameter Allowable Scratches
(Width)
A Critical Zone
B Cladding Zone
0µm to 25µm
25µm to 120µm
None None
No limit ≤ 3µm
None > 3µm
Allowable Defects
(Diameter)
None
No Limit < 2µm
5 from 2µm to 5µm
None > 5µm
None ≥ 10 µm
Allowable Defects
(Diameter)
No Limit < 2µm
5 from 2µm to 5µm
None > 5µm
C Adhesive Zone
D Contact Zone
120 µm to 13 0µm
130 µm to 250µm
No limit No limit
No limit
None ≥ 10 µm
Fiber End Face Criteria Table for SM PC Polished Conn. (Single Mode Fiber, RL≥ 26 dB)
Zone Description Diameter Allowable Scratches
(Width)
A Critical Zone
B Cladding Zone
C Adhesive Zone
D Contact Zone
0µm to 25µm
25µm to 120µm
120 µm to 13 0µm
130 µm to 250µm
24 OSR-CWDM Users Guide Revision A 1/2019
2 ≤ 3µm
None > 3µm
No limit ≤ 3µm
None > 3µm
No limit No limit
No limit
Allowable Defects
(Diameter)
2 ≤ 3µm
None > 3µm
No Limit < 2µm
5 from 2µm to 5µm
None > 5µm
None ≥ 10 µm
Page 29
Section 12 Maintenance
12.1 Battery Replacement
The unit is shipped factory installed Li-ion batter installed. Depending on usage, fully charged battery pack
will typically enable approximately 12 hrs. of use. Fully discharged batteries require approx. 2 hours. to charge.
Batteries ar not le replaceable and therefore the unit is to be returned to the factory for battery replaement.
Warning
To Prevent Fire or Shock Hazard:
Do not install battery types other than those specied by the manufacturer ¾
Do not use the charger without the batteries installed ¾
Do not expose the battery charger to rain or excessive moisture ¾
Do not use the AC adapter when there are signs of damage to the enclosure or cord ¾
Ensure that you are using the correct charger for the local line voltage ¾
Do not use any other charger than the one provided with this instrument. ¾
Failure to follow these caution statements may void the warranty of this equipment.
Note
For maintenance, batteries require a monthly recharge.
12.2 Calibration and Verication
Periodic verication of the OSR-80 is recommended to ensure that your instrument remains within specication.
Although not imperative, we recommend a calibration and verication once a year to make certain the instrument
is functioning properly and performing to its rated specications. Consult the factory for service.
12.3 Adapter Replacement
The FTE8100-CWDM is supplied with two easily interchangeable adapters, SC/FC. To change the adapter, remove the two screws that hold the adapter in place, pull the adapter straight up from ferrule. It is suggested that
you clean the exposed ferrule with appropriate cleanser and lint free wipe anytime you replace the ferrule.
Note
In order to maintain a low loss ber connection, care should be taken to adequately clean the ferrule of
any connector to be connected to the OSA. In the event that the port needs to be cleaned, rst step is
to be certain the instrument is o. We suggest the use of isopropyl alcohol and foam swabs specically
designed for cleaning connectors accepting 2.5mm ferrules.
Note
When replacing the adapter with one that does not have a chained protective cap, use the small screw in
place of the larger screw that retains the end of the chain to the adapter base.
25OSR-CWDM Users Guide Revision A 1/2019
Page 30
Section 13 Specications
OSR-CWDM Specifications
Wavelength Range
Channel Spacing 20nm
Channel Pass Band ±6.5nm
Channel Power Range +5dBm to -50dBm
Absolute Accuracy ±1 dB
Max Composite Power +23dBm
PDL ±0.2dB
Adjacent Channel Isolation 30dB
Measurement Time < 1/2 Second
Readout Resolution 0.01dB
Return Loss >40dB
Optical Interface Universal UPC (FC/SC)
Graphical Display Bar Graph and Table View
Display 4 in Color TFT
Dimensions
Weight 1.6 lbs
18 Channel 1271-1611nm
8 Channel 1471-1611nm
7.62” L x 3.88” W x 1.56” H
(194mm L x 99mm W x 40mm H
Battery Rechargeable Li-Ion - 12 hours operating time
Power 100-240 universal US, GB, EU, AU Mains
Environmental Operation -10°C to 50°C
Universal power supply with mains for US, UK, CE and AU.
Accessories Included
interchangeable FC and SC adapters, certsoft reporting software suite,
USB cable, manual on CD and rubber boot
Specications are subject to change without notice
26 OSR-CWDM Users Guide Revision A 1/2019
Page 31
Section 14 Warranty and Repair
14.1 Warranty Information
This product, including all mechanical, electrical, and optical parts and assemblies are unconditionally warranted
to be free of defects in workmanship and material for a period of one (1) year from the date of delivery.
This warranty does not apply to expendable parts such as batteries or optical panel connectors, nor to any
instrument or component which has been subjected to misuse, alteration, or ber connector damage. It is the
customer’s responsibility to understand all the instructions and specications prior to operating this instrument.
This warranty does not extend to any loss or damage consequent to the failure of the warranted product.
14.2 Repair Information
If repair is required, simply call the factory for return instructions and a return authorization number (RMA).
27OSR-CWDM Users Guide Revision A 1/2019
Page 32
Section 15 Trouble Shooting Guide
Symptom Possible Cause Solution
Power not on Press ON/OFF key
LCD dark
LCD white Power cycled too quickly Turn o wait 10 seconds – turn on
Instrument locked Up Unexpected Operational Mode
Activity indicator does not
change to standby or active
mode
Low or no power being displayed
Batteries require recharging Recharge batteries
Batteries are missing, in backwards
or need replacement
Power cycled too quickly Turn o wait 10 seconds – turn on
Defective cord or dirty connector Replace or clean cord
Fiber Output port requires cleaning Clean and inspect port
Angle polish mated with UPC polish
Check polarity, replace batteries,
or contact factory for servicing
Turn o (hold ON/OFF button in for
1 second) wait 10 seconds – then
depress On/O again button to turn
the unit on.
Examine connector ends for damage.
Use UPC Connectors ONLY!
USB hookup to PC not functioning properly
USB baud rate not set properly or
too quick for computer
PC drivers not set properly
28 OSR-CWDM Users Guide Revision A 1/2019
Set port baud rate properly or de-
crease Baud rate in instrument and
certication software
Un-install & re-install certication
software and drivers
Page 33
Section 16 Version Control
Through a program of continuous improvement, we upgrade the features and performance of the instrument in
an on going process. The instrument rmware version is accessible at “turn-on” on the bottom right-hand corner
of the display. The version changes and approximate release dates are as follows.
OSR-CWDM
V1.0.0.1 – 1/2017 - Original release - Requires version 1.5.4.2 software
29OSR-CWDM Users Guide Revision A 1/2019
Page 34
30 OSR-CWDM Users Guide Revision A 1/2019
Page 35
31OSR-CWDM Users Guide Revision A 1/2019
Loading...
