Page 1
Signamax™ Connectivity Systems
Model 065-7710
8-Port 10/100BaseT/TX +2SFP
Managed Switch
U s e r ’ s G u i d e
Page 2
Page 3
Signamax™ Connectivity Systems
Model 065-7710
8-Port 10/100BaseT/TX + 2SFP
Managed Switch
U s e r ’ s G u i d e
Release 2.02
Release Date: Aug, 2006
Page 4
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Table of Contents
CAUTION--------------------------------------------------------------------------------------VI
ELECTRONIC EMISSION NOTICES---------------------------------------------------------VI
CHAPTER 1. INTRODUCTION--------------------------------------------------------- 2
1-1. OVERVIEW OF 8 FAST ETHERNET + 2 GIGABIT L2 MANAGED SWITCH-------- 2
1-2. CHECKLIST ----------------------------------------------------------------------------- 4
1-3. FEATURES ------------------------------------------------------------------------------ 4
1-4. VIEW OF 8 FAST ETHERNET + 2 GIGABIT L2 MANAGED SWITCH--------------- 6
1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs)----- 6
1-4-2. User Interfaces on the Rear Panel---------------------------------------- 8
1-5. VIEW OF THE OPTIONAL MODULES ------------------------------------------------- 9
CHAPTER
2-1. STARTING 8 FAST ETHERNET + 2 GIGABIT L2 MANAGED SWITCH UP--------10
2-1-1. Hardware and Cable Installation------------------------------------------10
2-1-2. Installing Chassis to a 19-Inch Wiring Closet Rail--------------------12
2-1-3. Cabling Requirements-------------------------------------------------------12
2-1-4. Configuring the Management Agent of 8 Fast Ethernet + 2
Gigabit L2 Managed Switch------------------------------------------------
2-1-5. IP Address Assignment------------------------------------------------------21

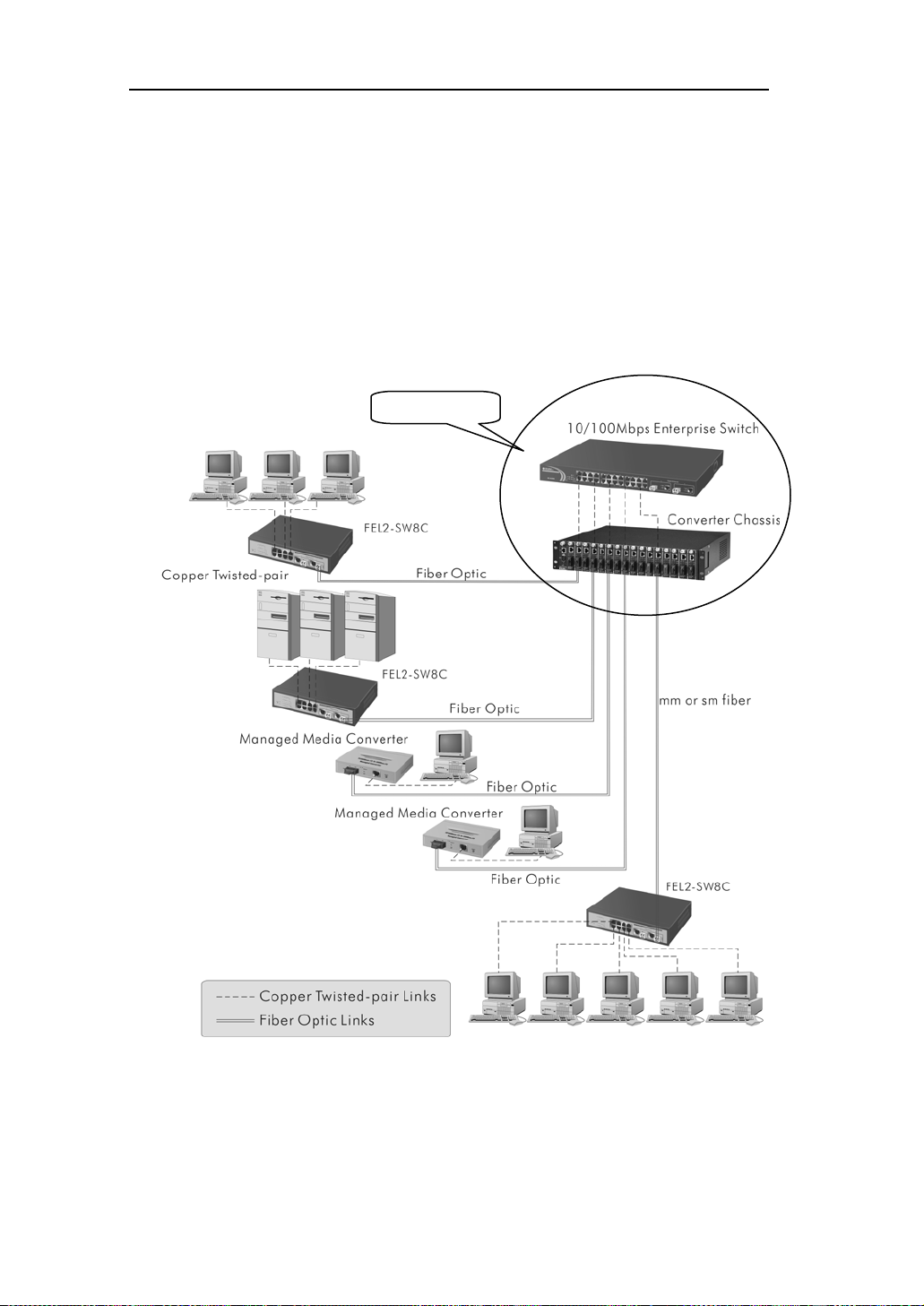

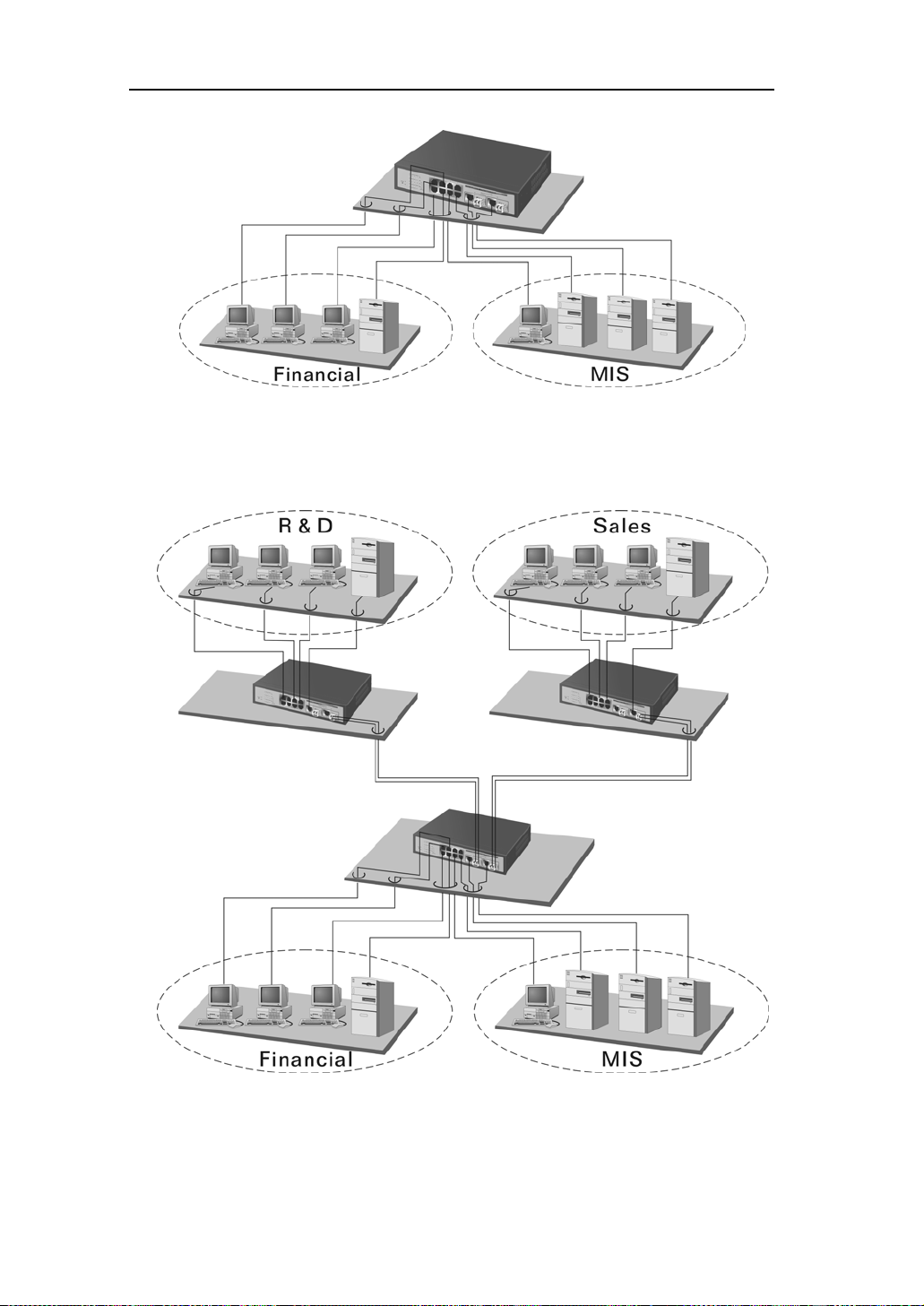

2-2. TYPICAL APPLICATIONS--------------------------------------------------------------26
CHAPTER
3-1. WEB MANAGEMENT HOME OVERVIEW --------------------------------------------30
3-1-1. System Information-----------------------------------------------------------33

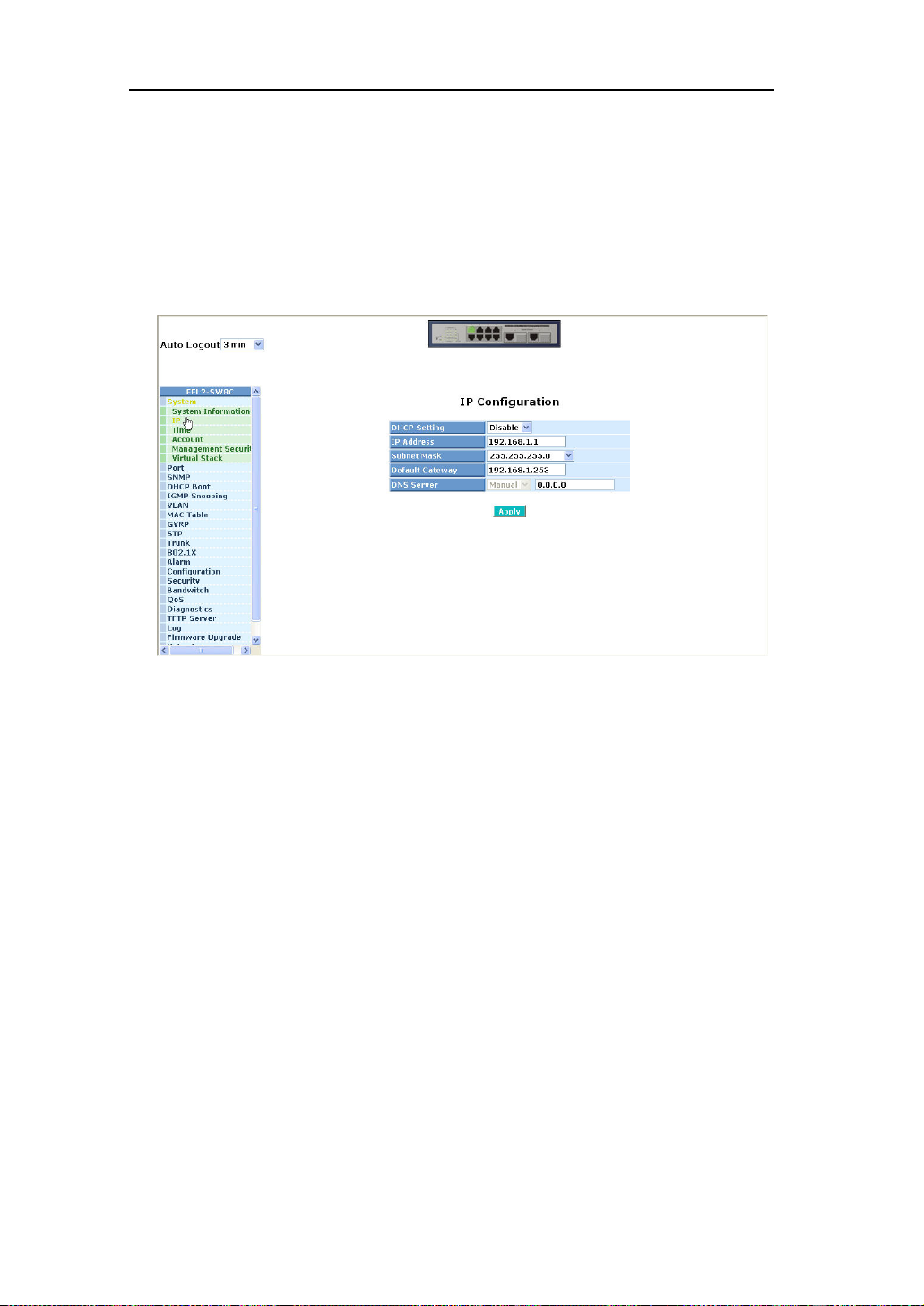

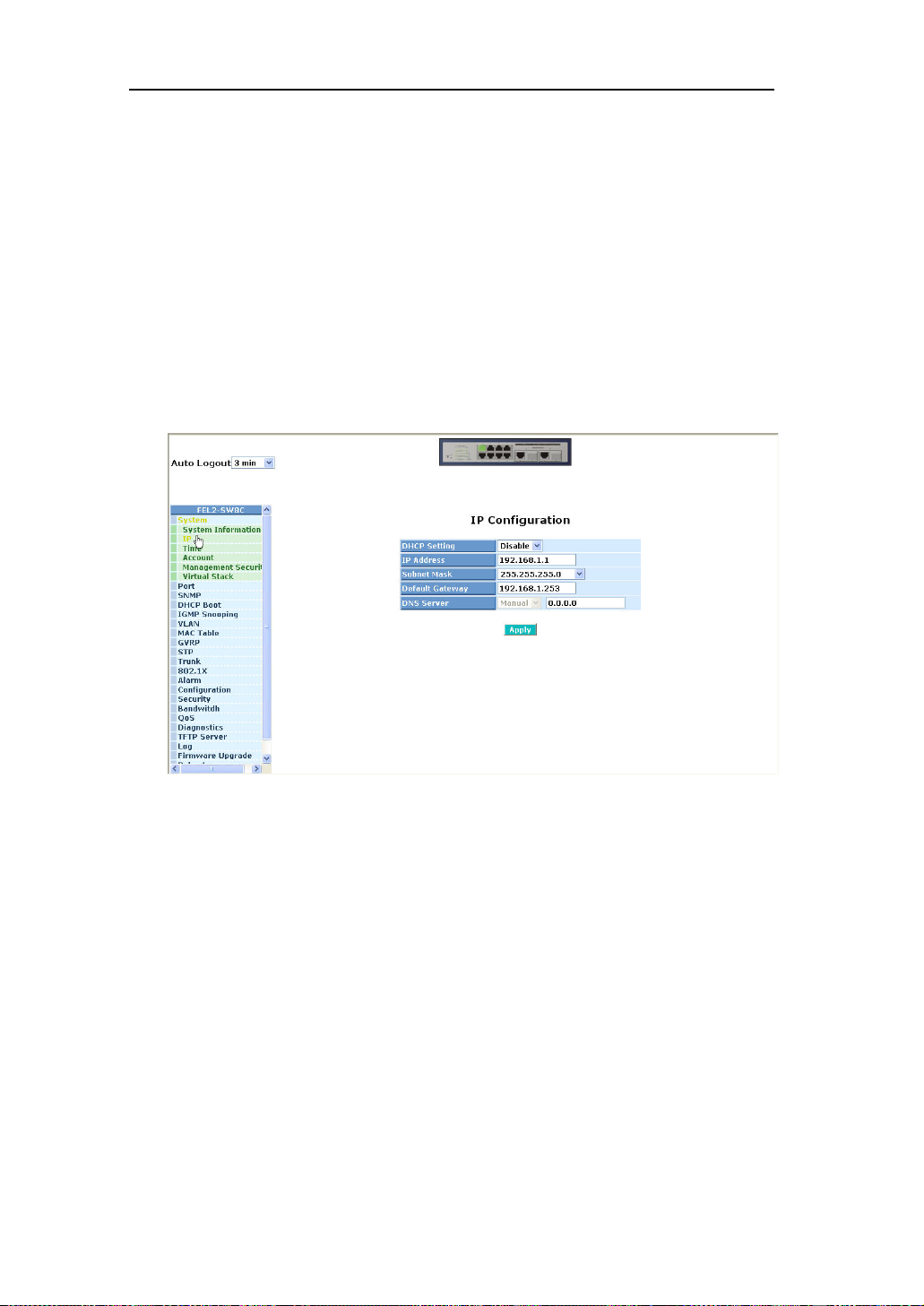

3-1-2. IP Configuration---------------------------------------------------------------35

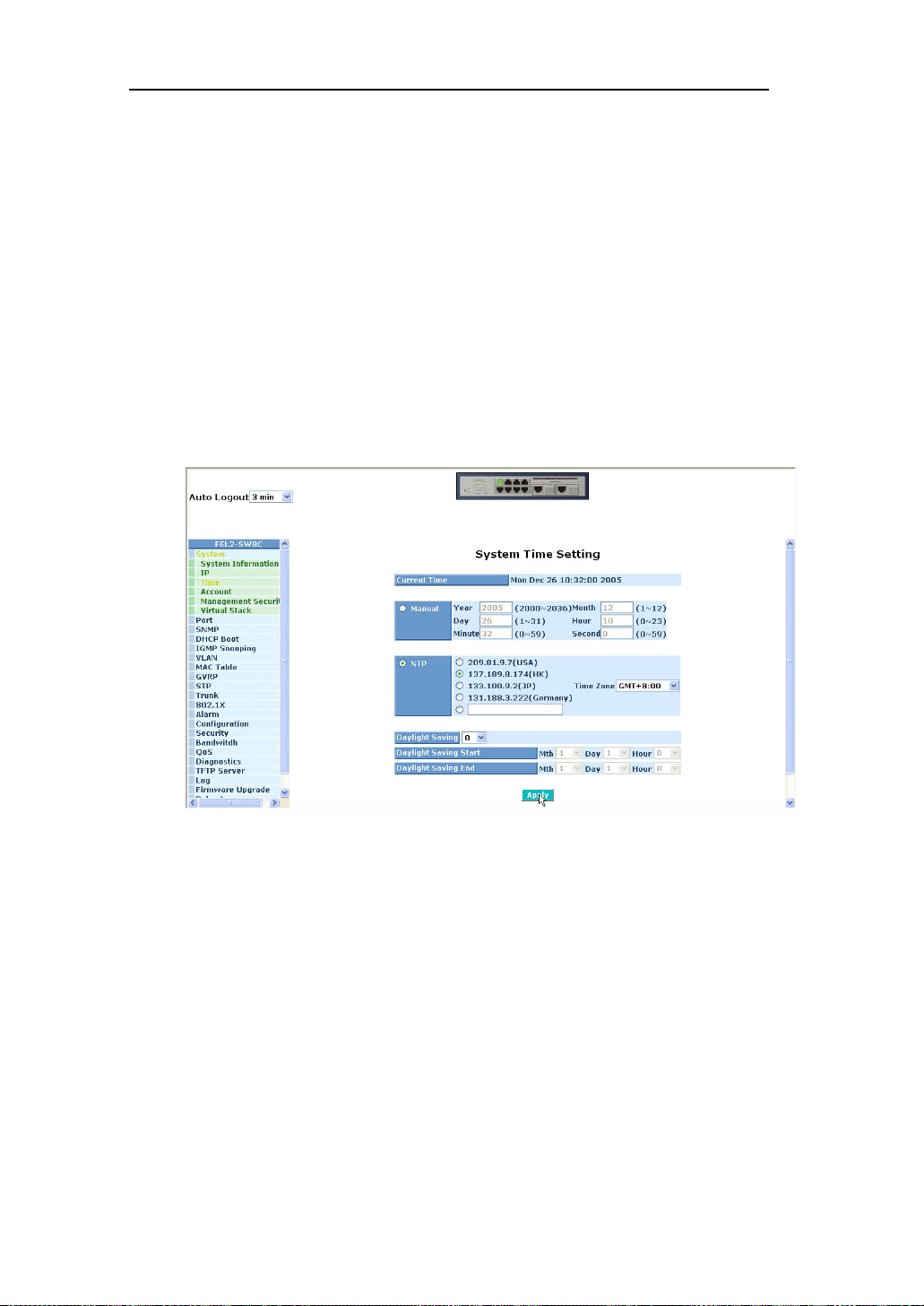

3-1-3. Time Configuration-----------------------------------------------------------38

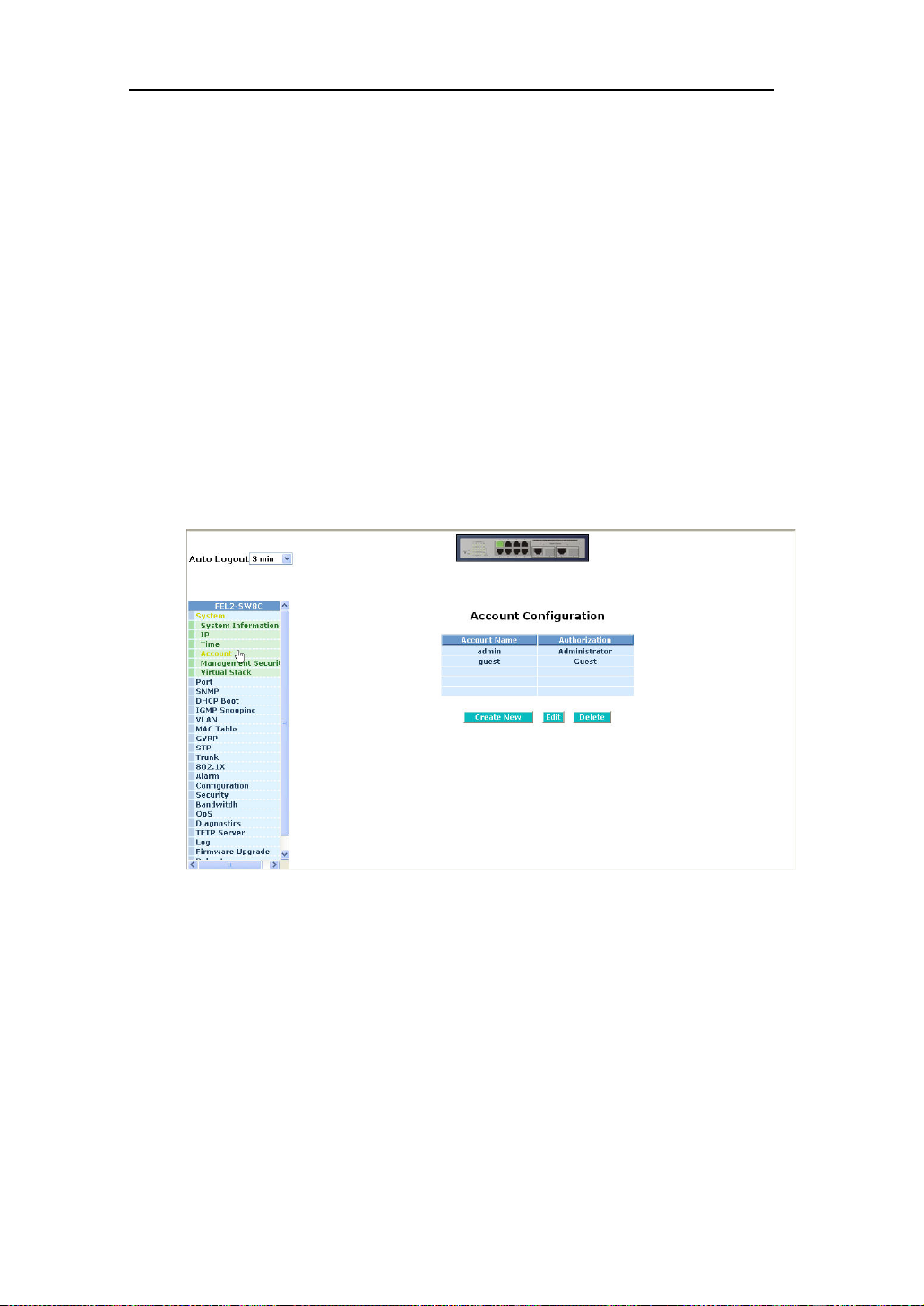

3-1-4. Account Configuration -------------------------------------------------------41

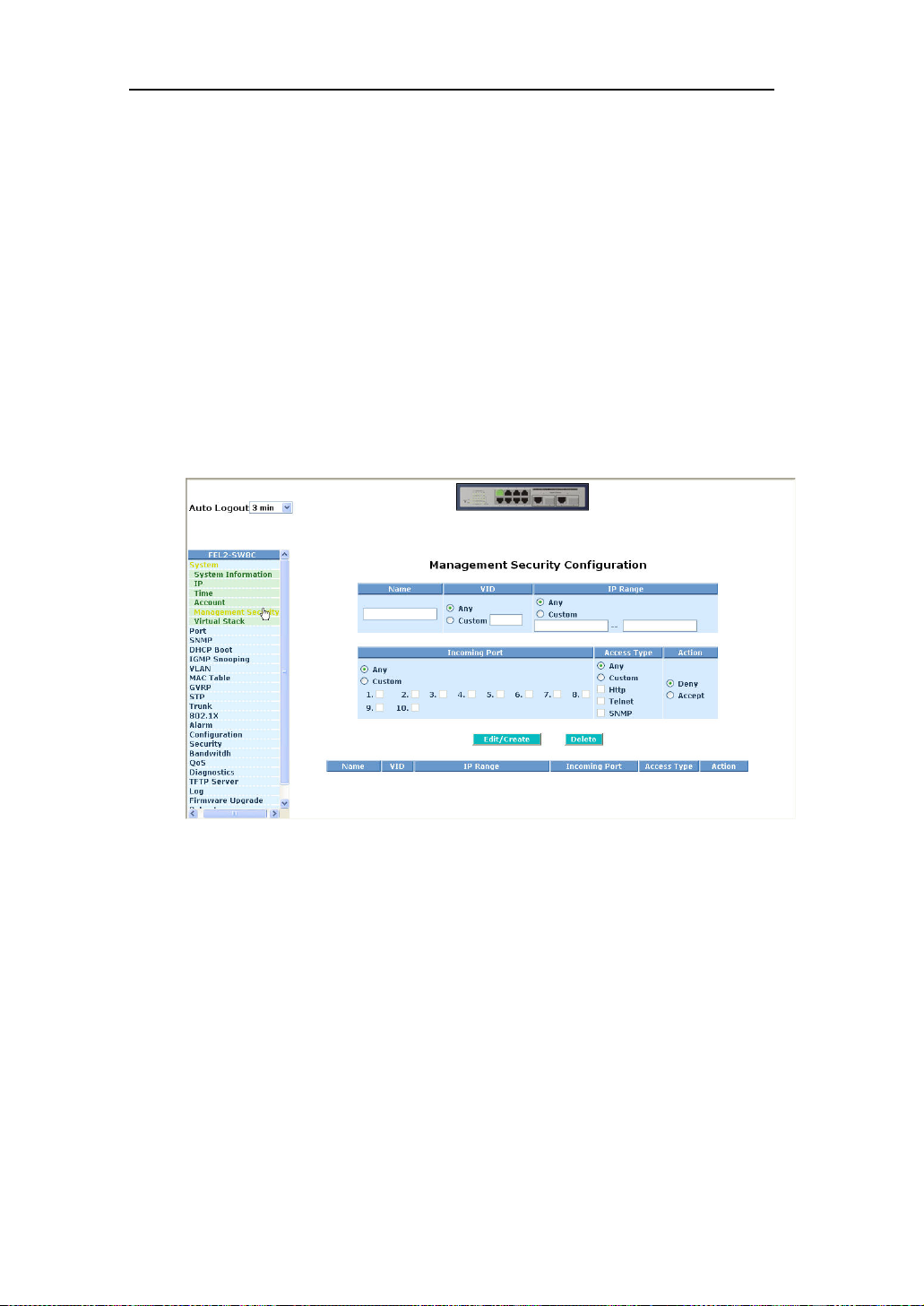

3-1-5. Management Security -------------------------------------------------------42

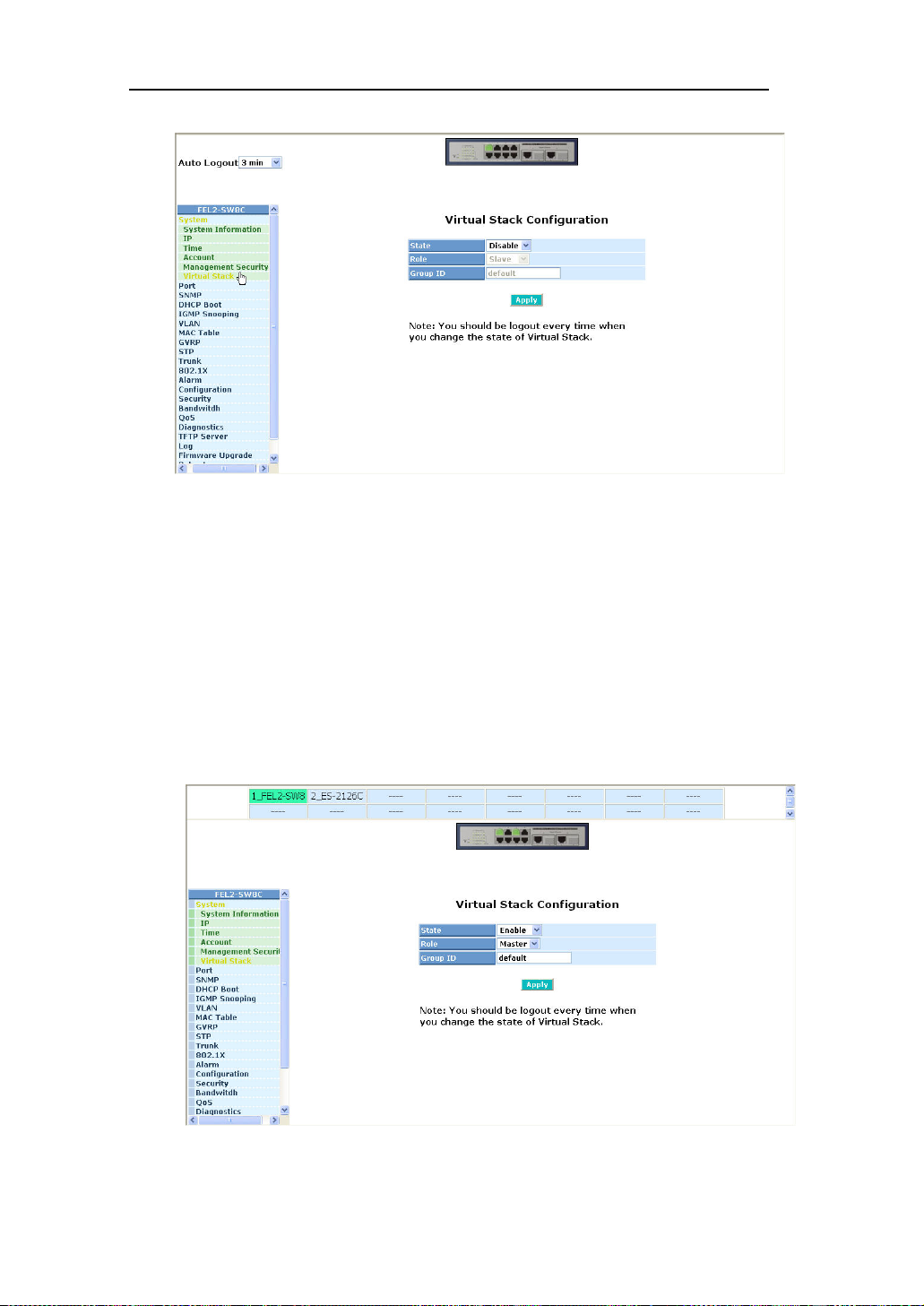

3-1-6. Virtual Stack--------------------------------------------------------------------45
3-2. PORT CONFIGURATION --------------------------------------------------------------47

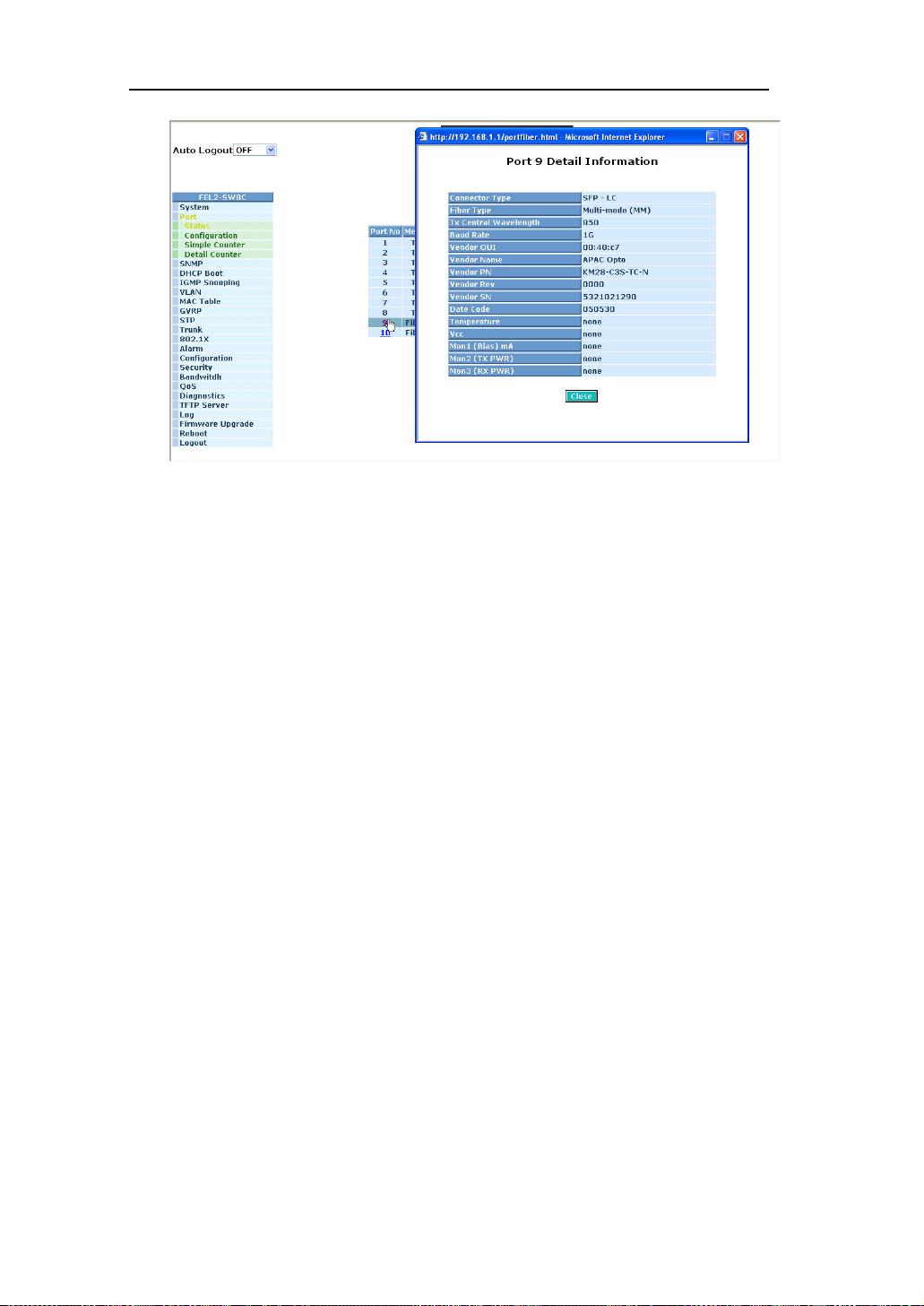

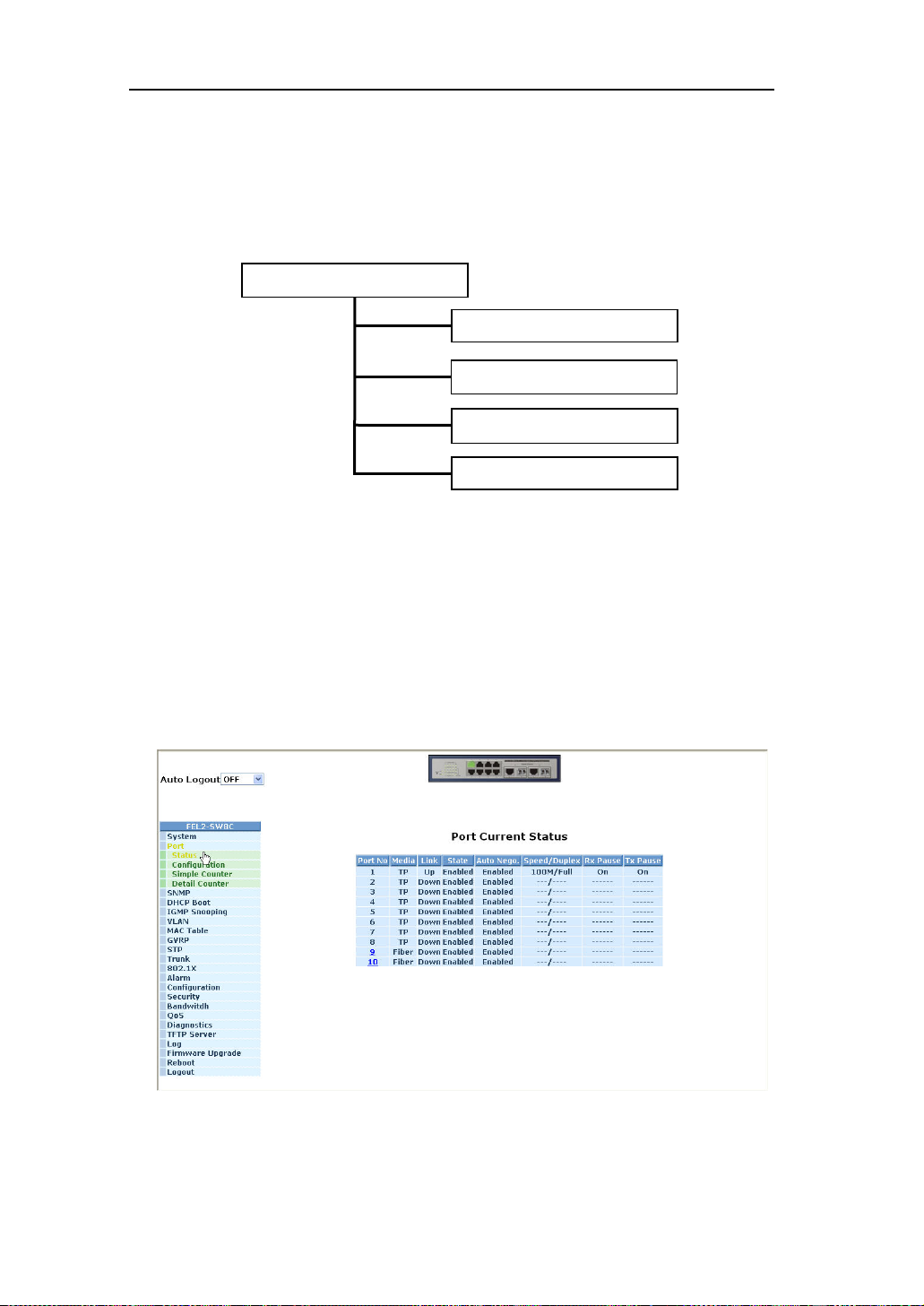

3-2-1.Port Status ----------------------------------------------------------------------47
3-2-2. Port Configuration ------------------------------------------------------------52

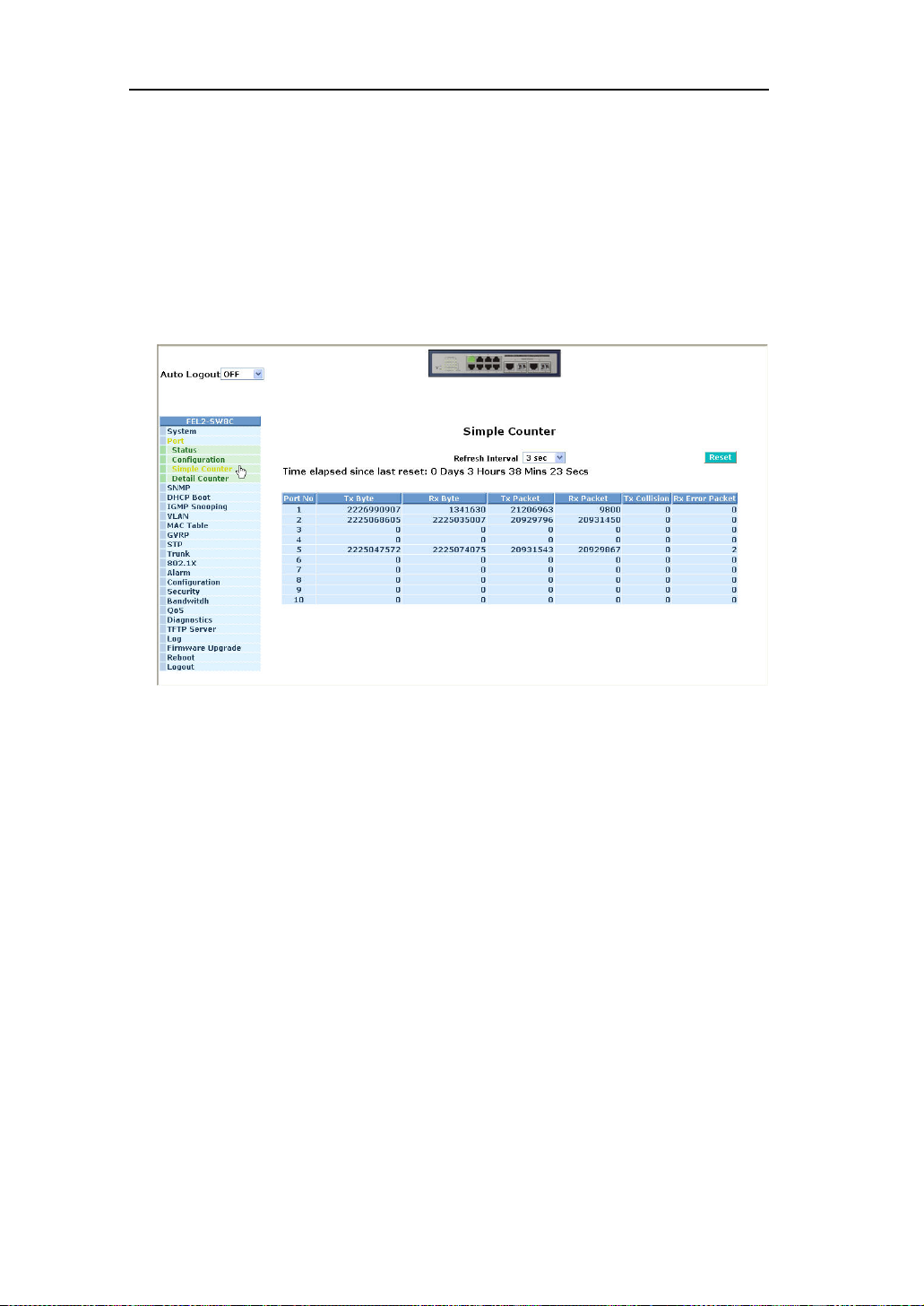

3-2-3. Simple Counter----------------------------------------------------------------54

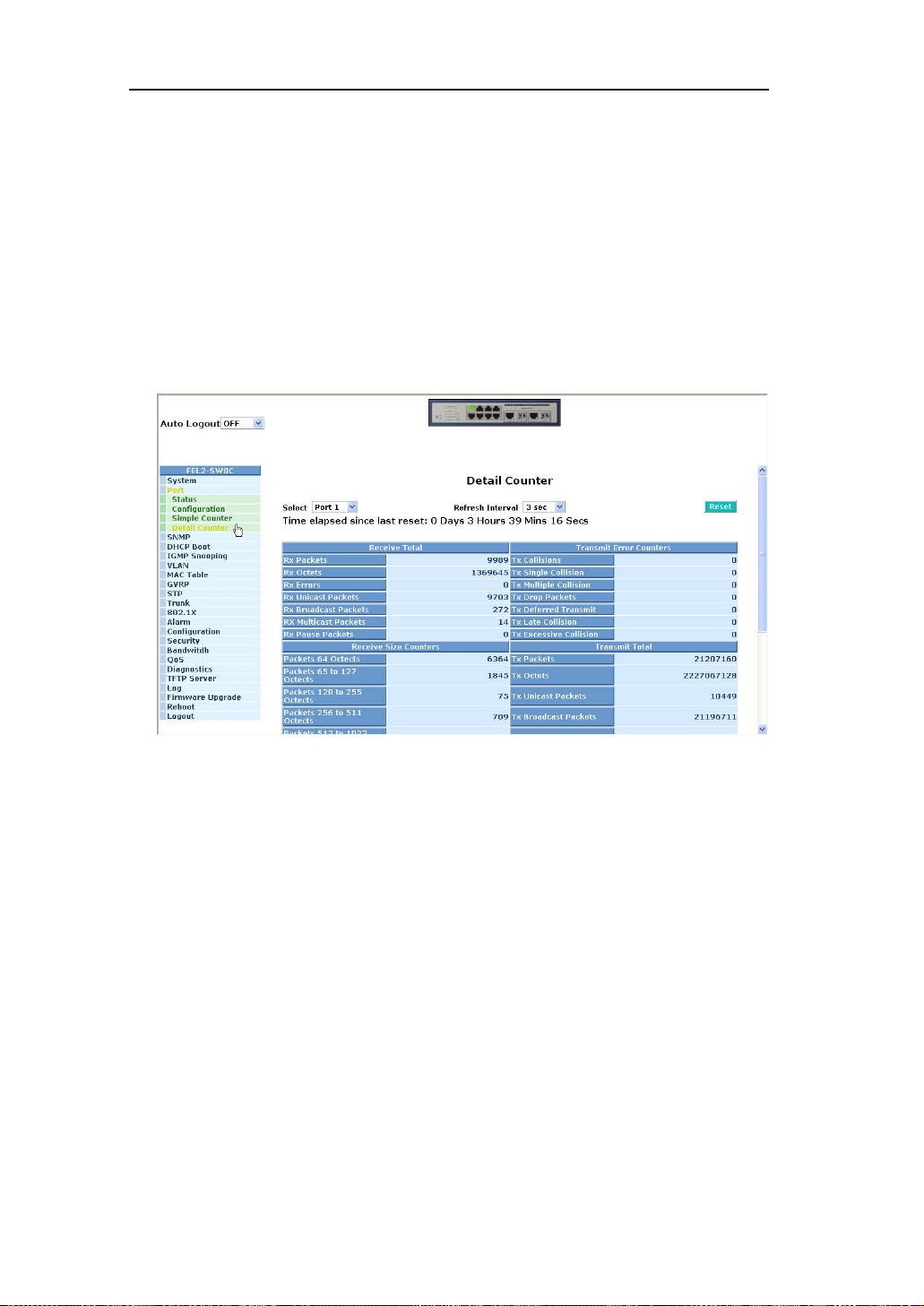

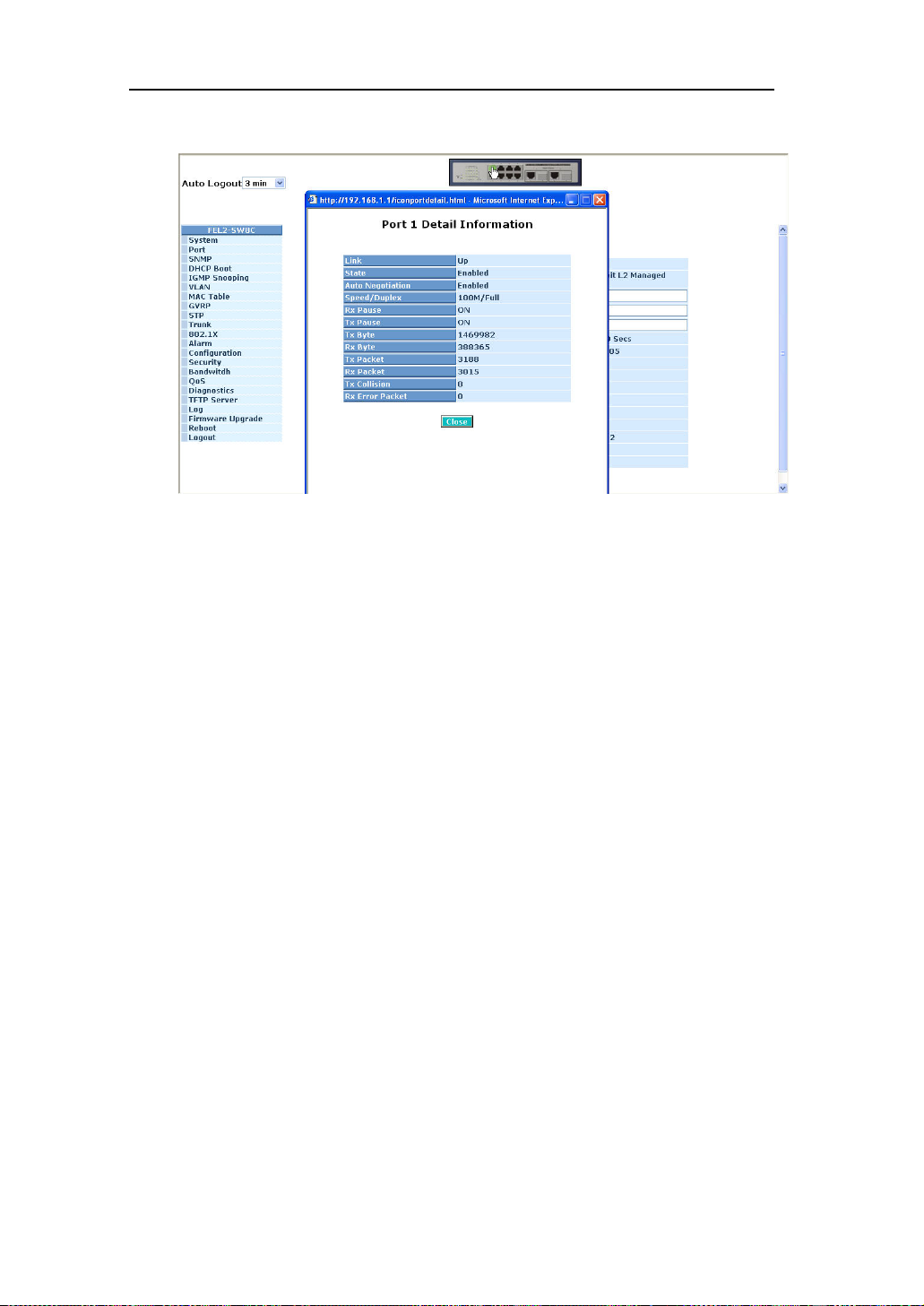

3-2-4. Detail Counter-----------------------------------------------------------------56
2. INSTALLATION---------------------------------------------------------10
2-1-3-1. Cabling Requirements for TP Ports --------------------------------13
2-1-3-2. Cabling Requirements for 1000SX/LX SFP Module------------13
2-1-3-3. Switch Cascading in Topology---------------------------------------14
2-1-4-1. Configuring the Management Agent of 8 Fast Ethernet + 2
Gigabit L2 Managed Switch through the Serial RS-232 Port-------18
2-1-4-2. Configuring the Management Agent of 8 Fast Ethernet + 2
Gigabit L2 Managed Switch through the Ethernet Port--------------20
3. OPERATION OF WEB-BASED MANAGEMENT --------------28
17
ii
Page 5
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch

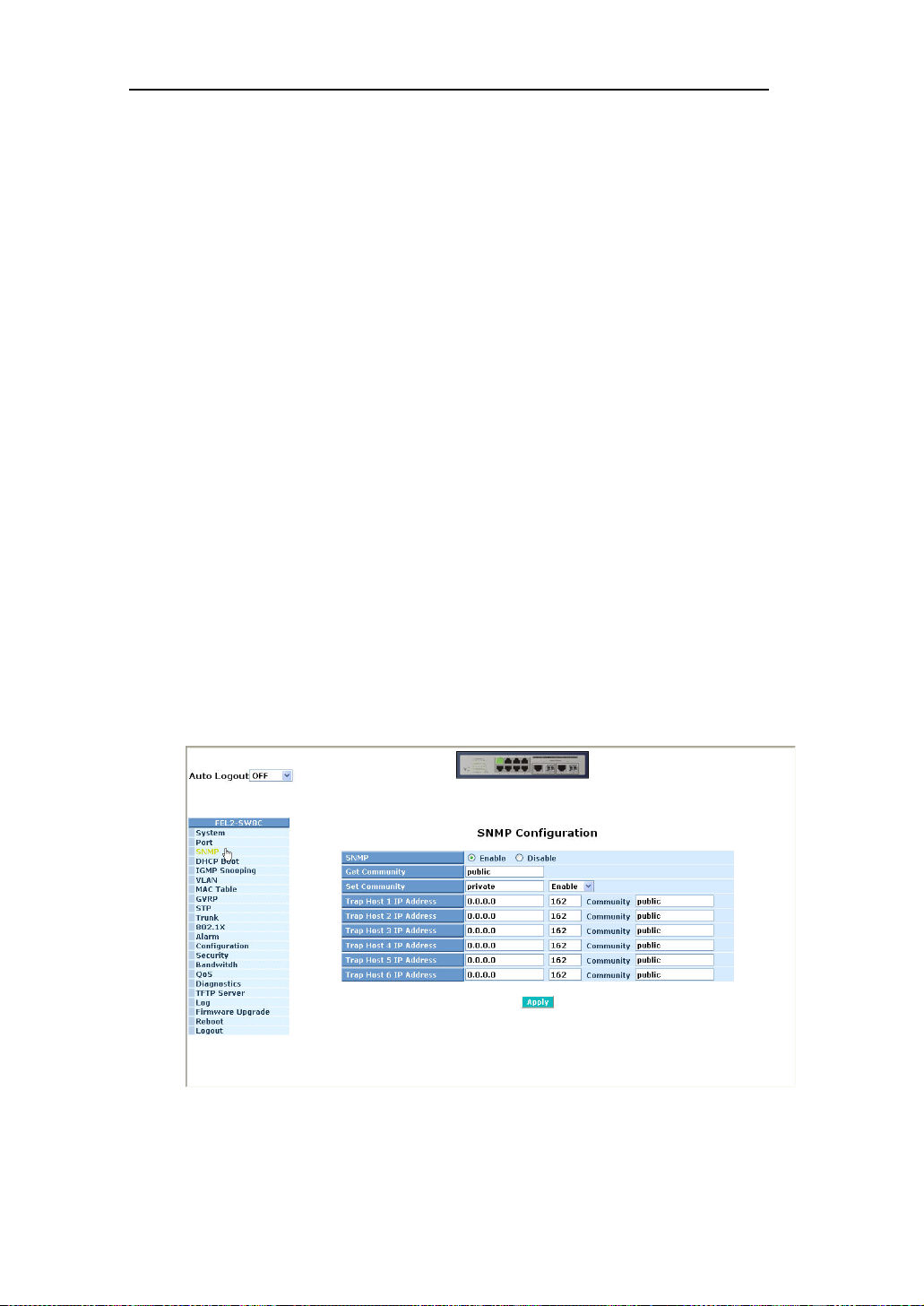

3-3. SNMP CONFIGURATION -------------------------------------------------------------59

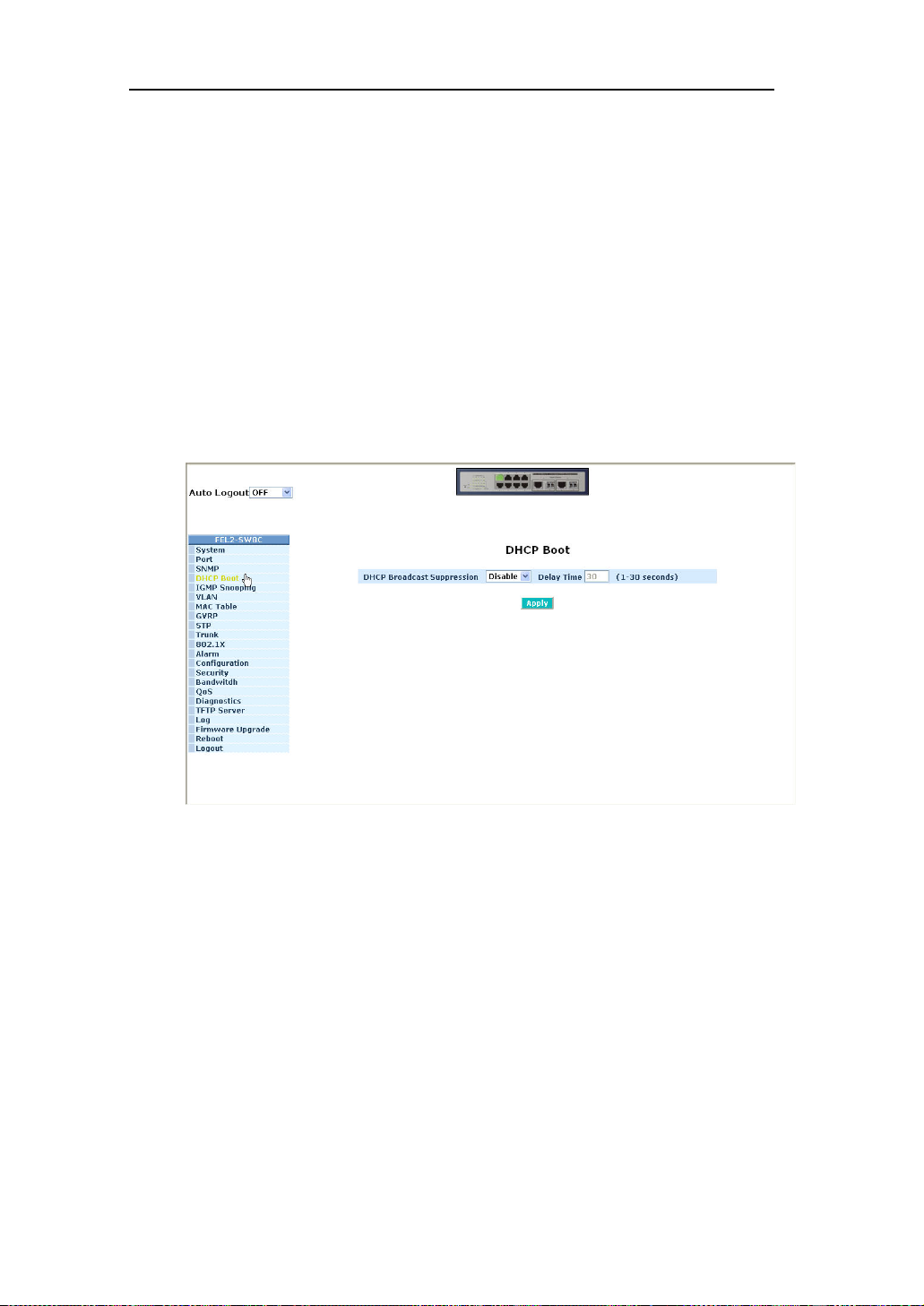

3-4. DHCP BOOT--------------------------------------------------------------------------61
3-5. IGMP SNOOPING---------------------------------------------------------------------62
3-6. VLAN ----------------------------------------------------------------------------------66

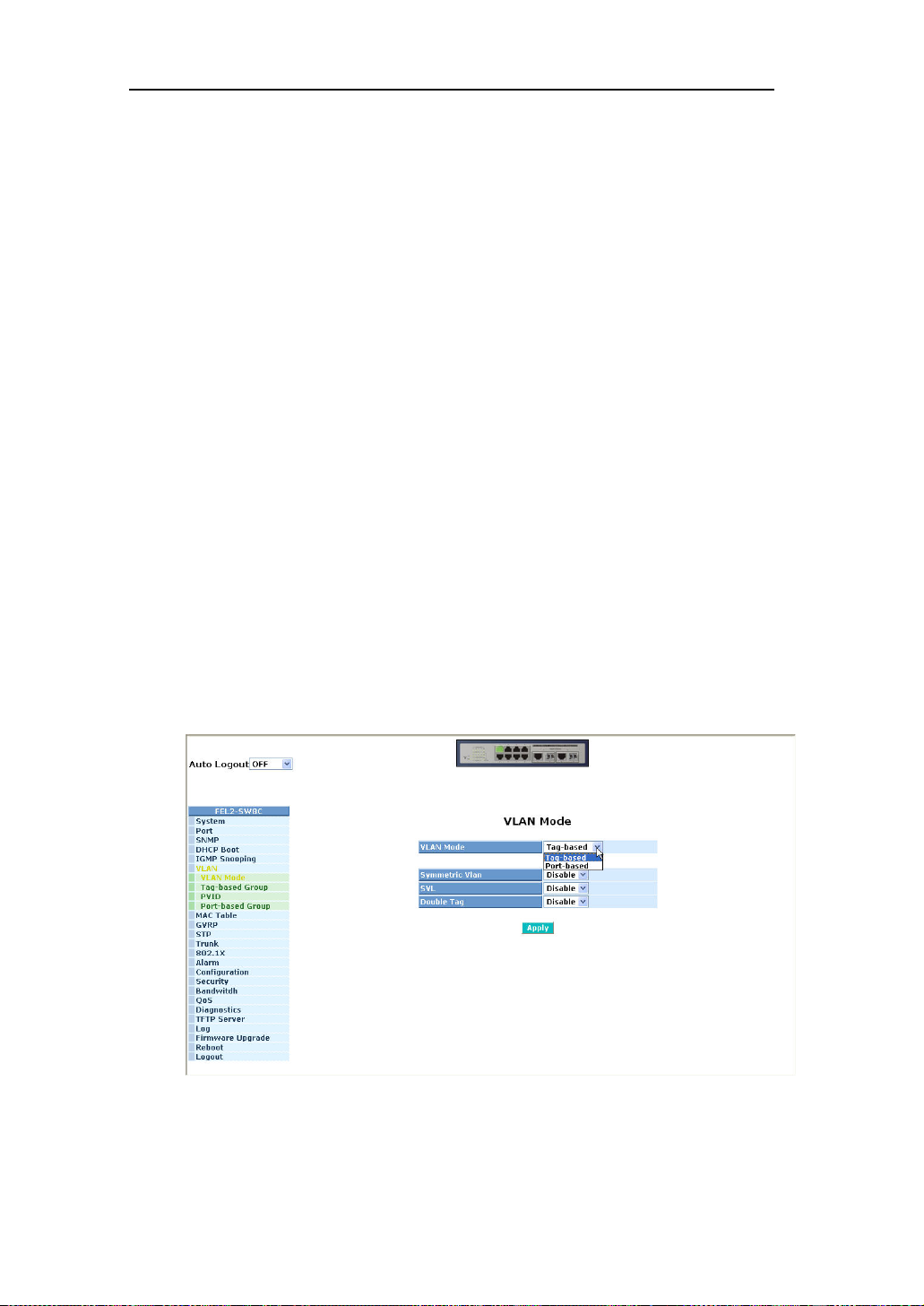

3-6-1. VLAN Mode--------------------------------------------------------------------66

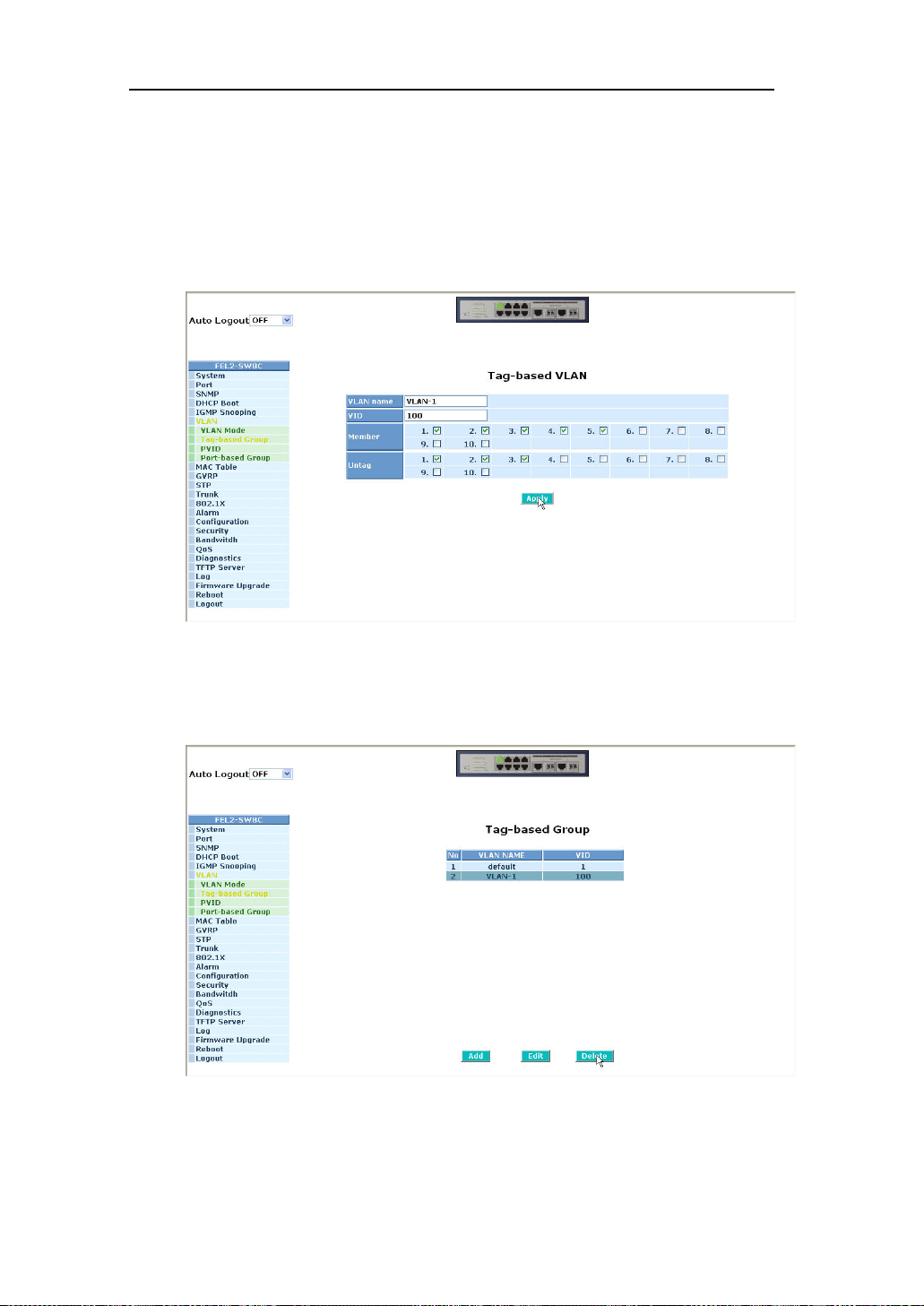

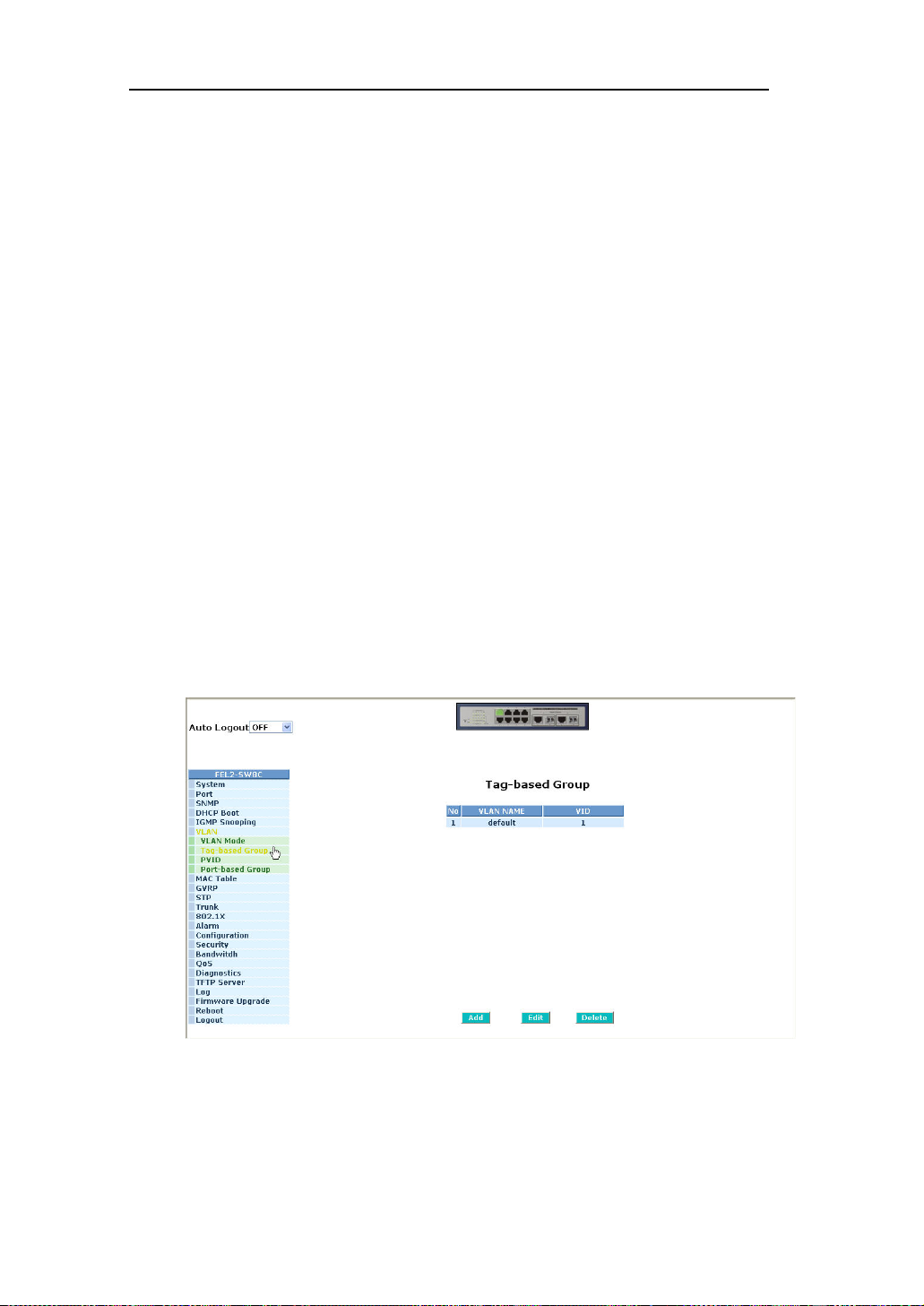

3-6-2. Tag-based Group -------------------------------------------------------------68

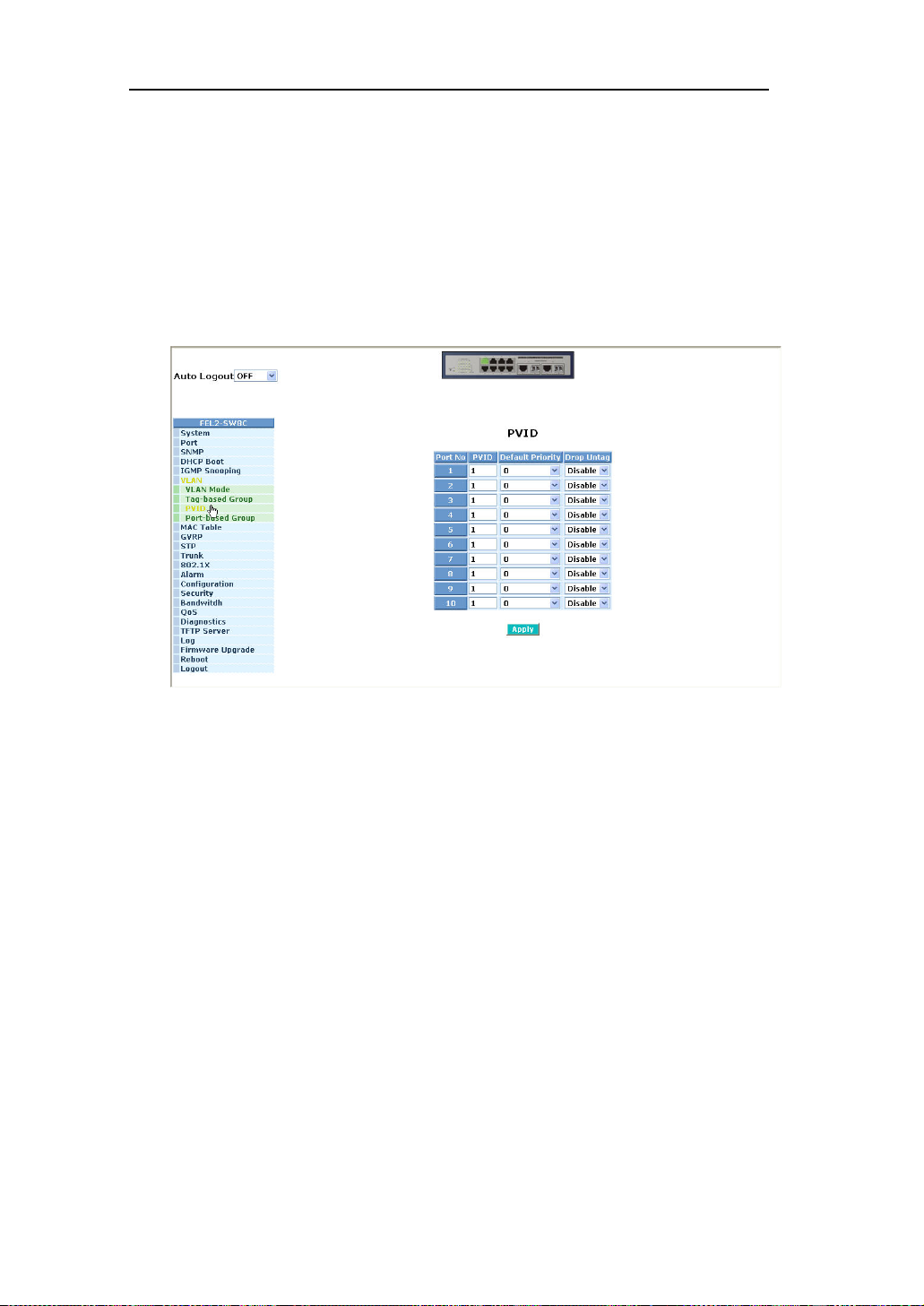

3-6-3. PVID -----------------------------------------------------------------------------70

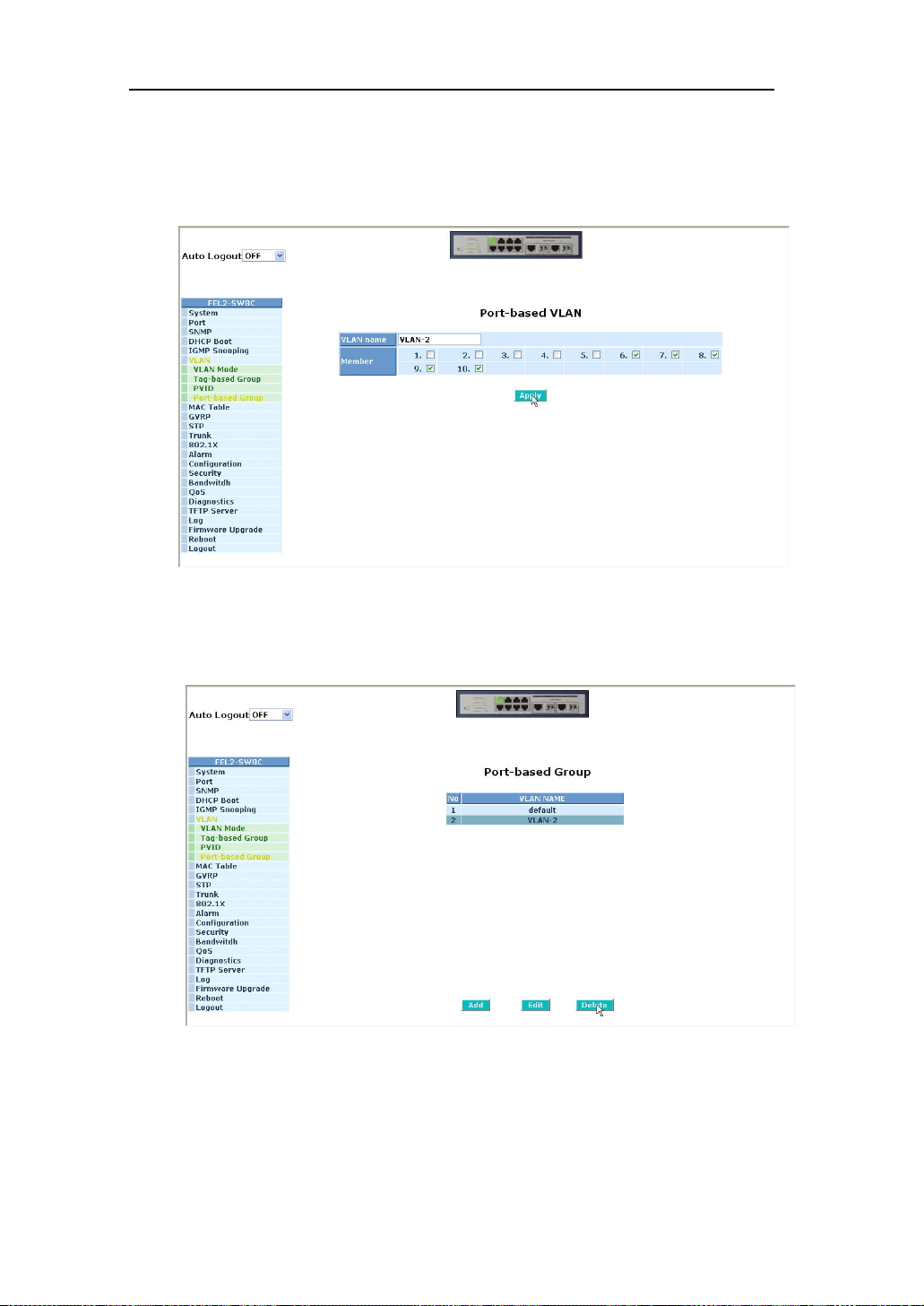

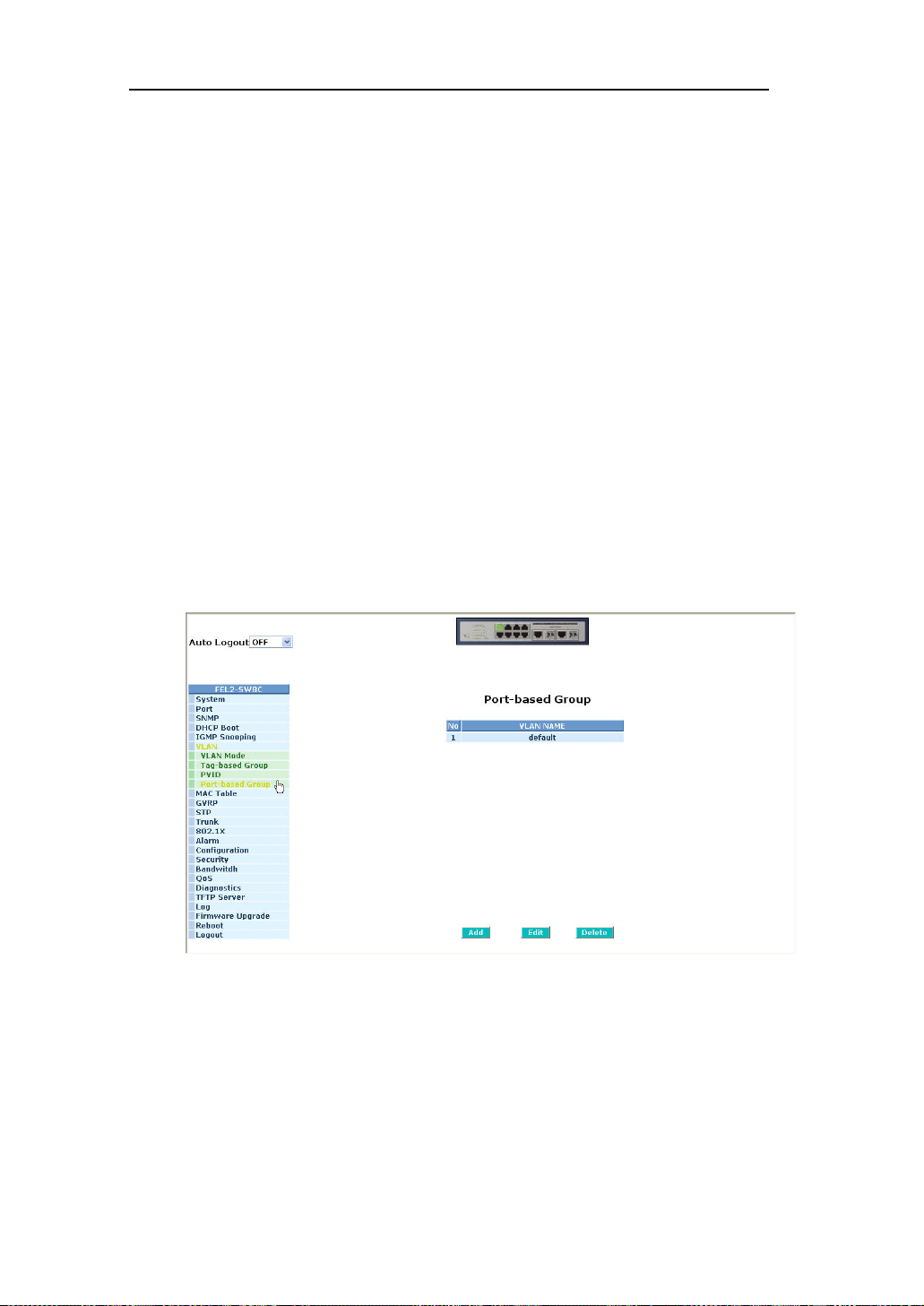

3-6-4. Port-based Group ------------------------------------------------------------72

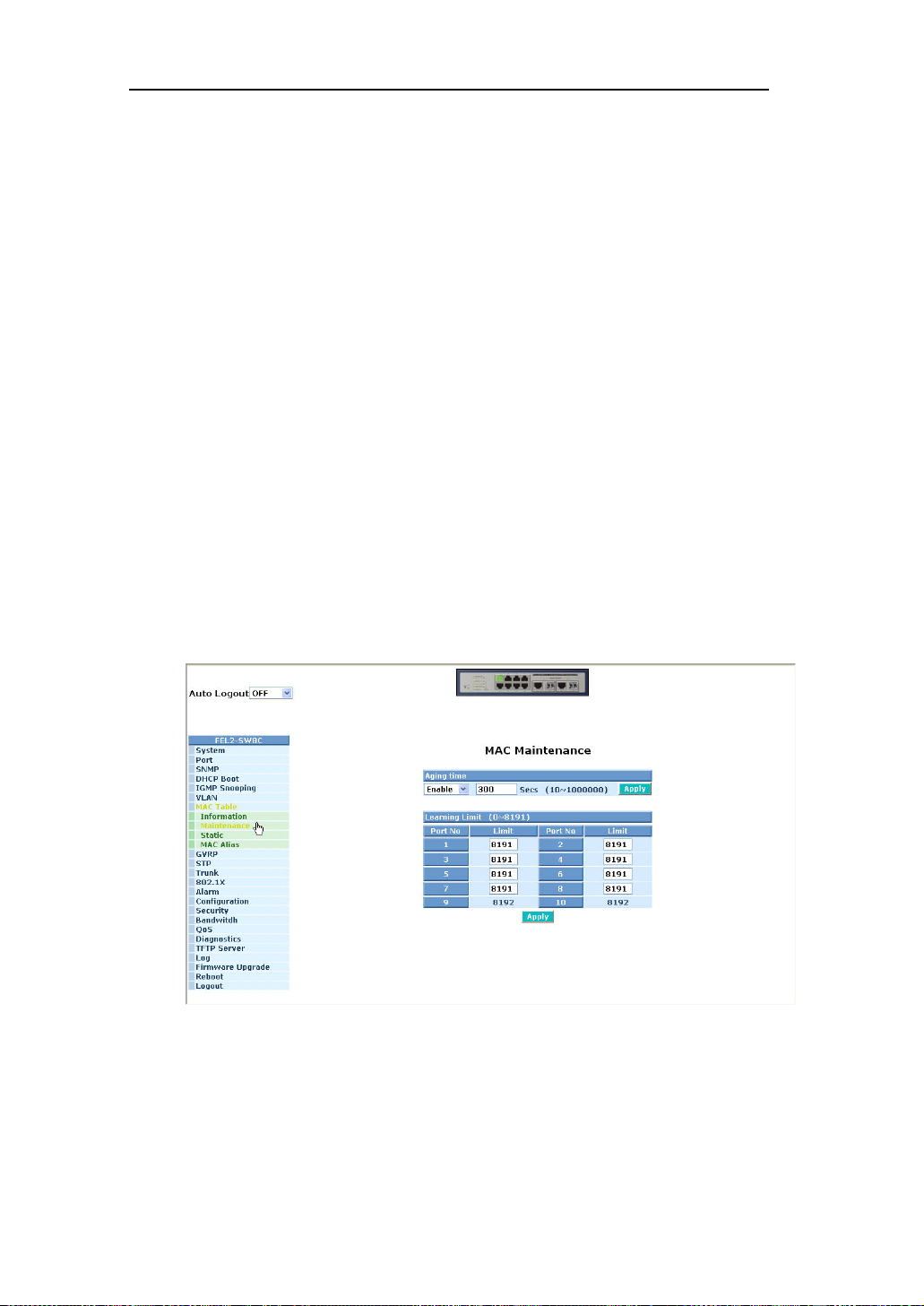

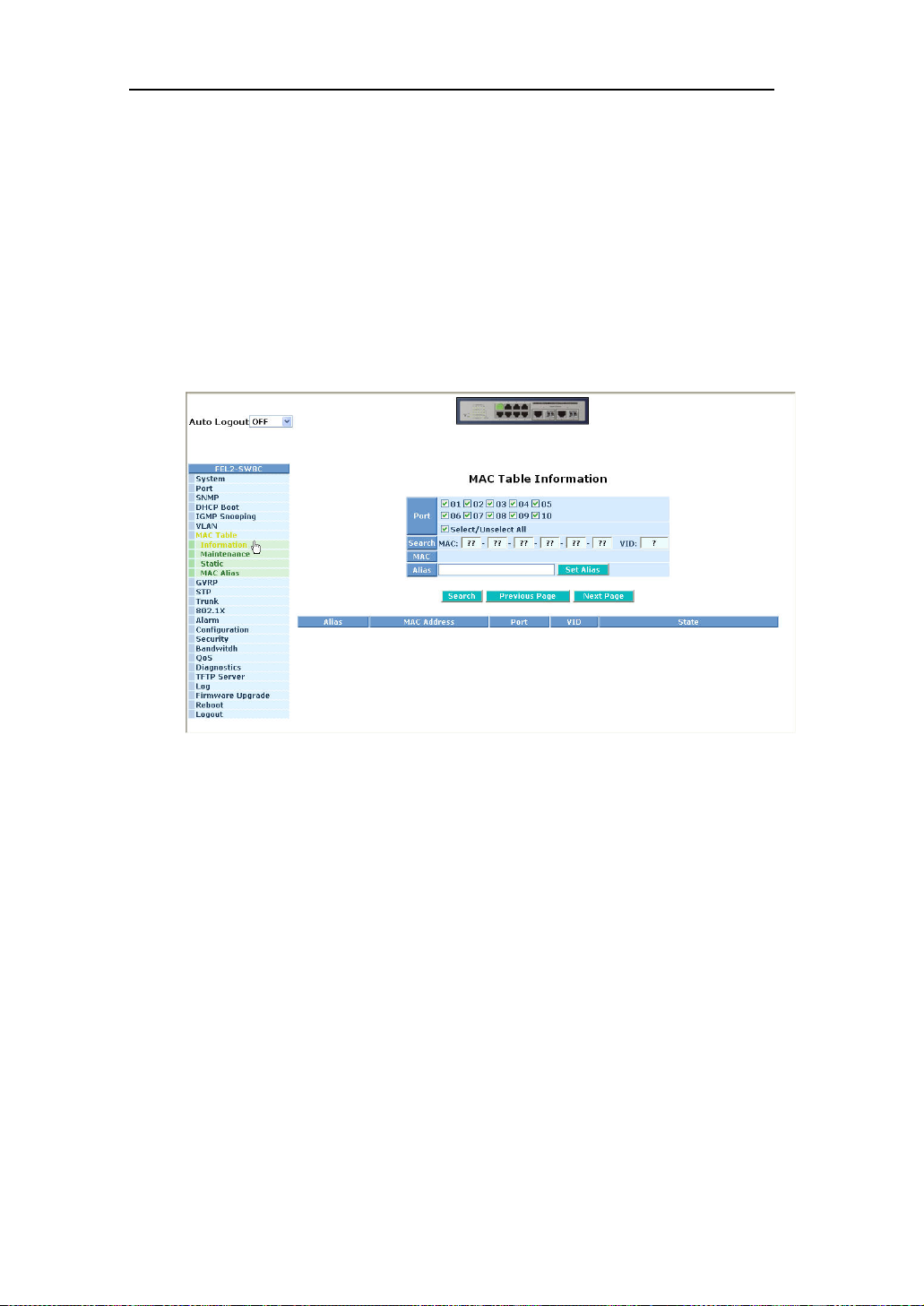

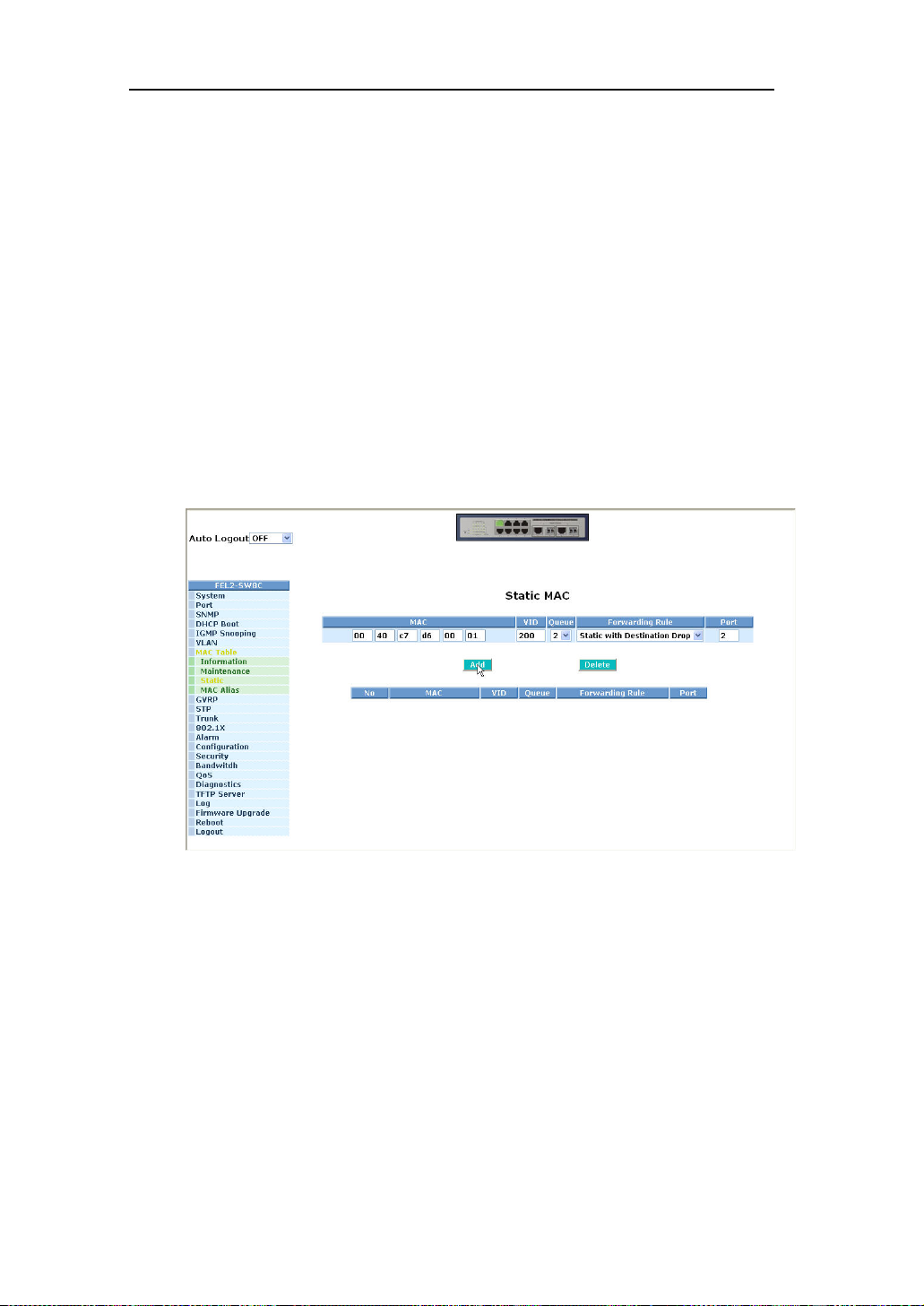

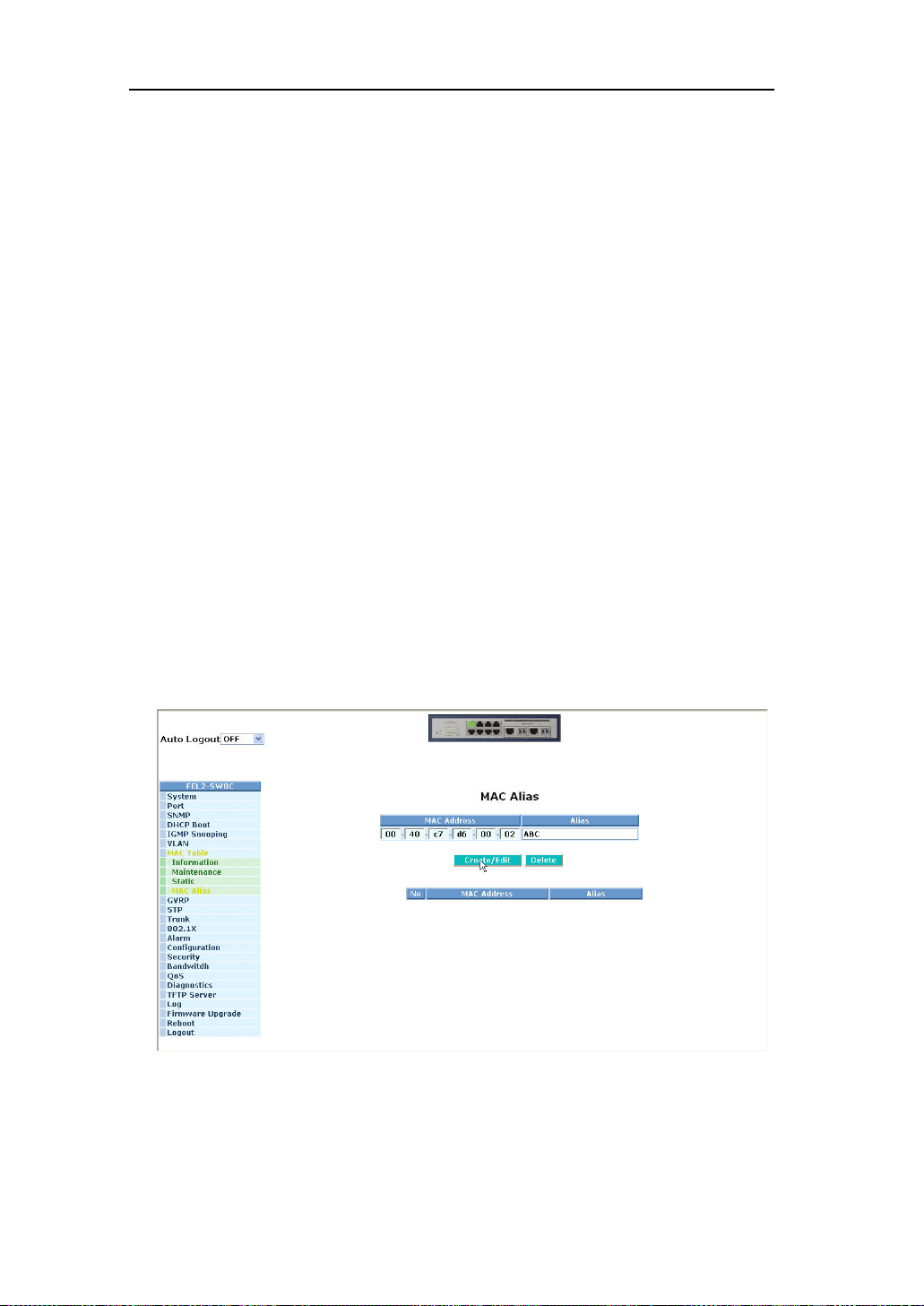

3-7. MAC TABLE ---------------------------------------------------------------------------74

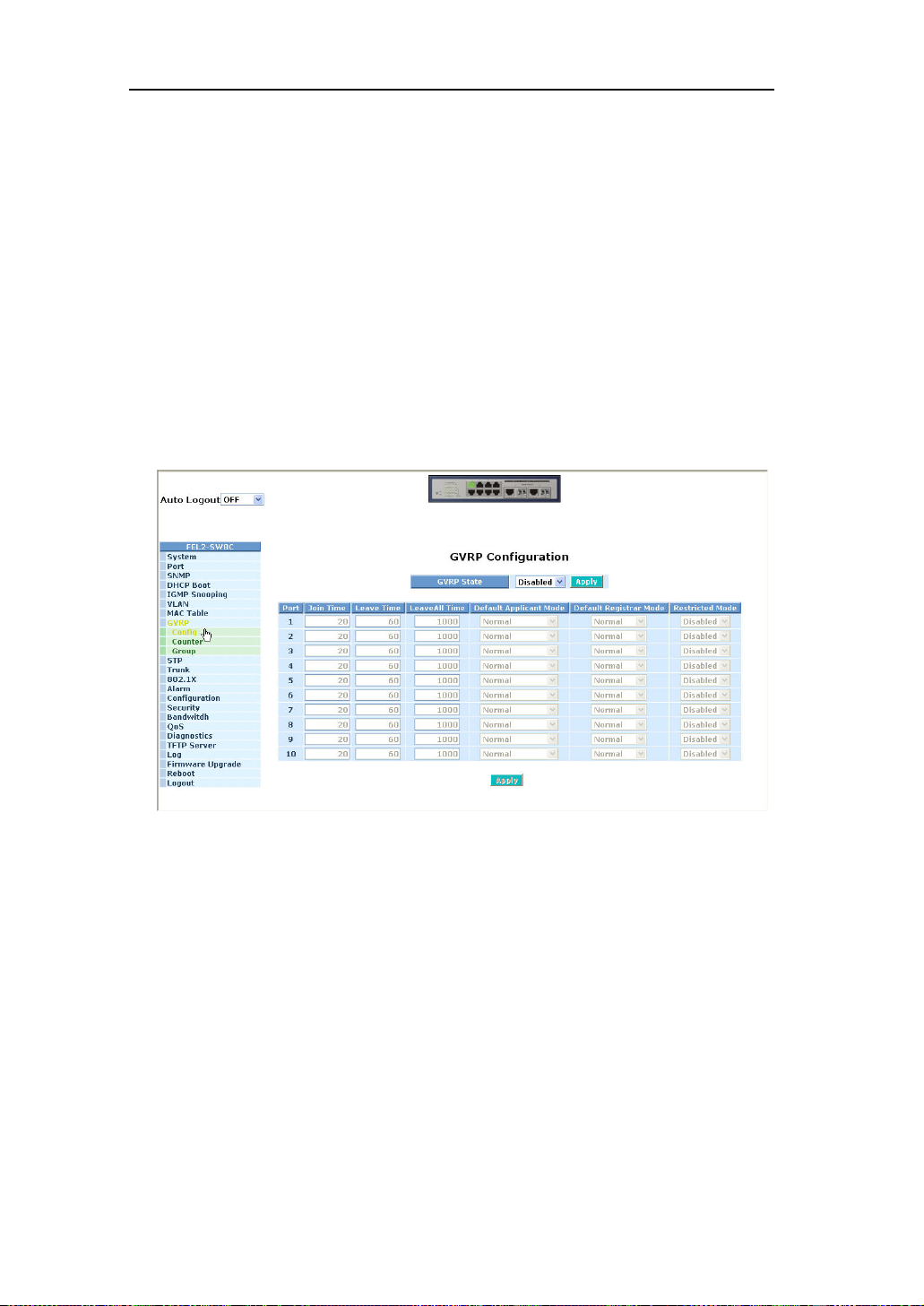

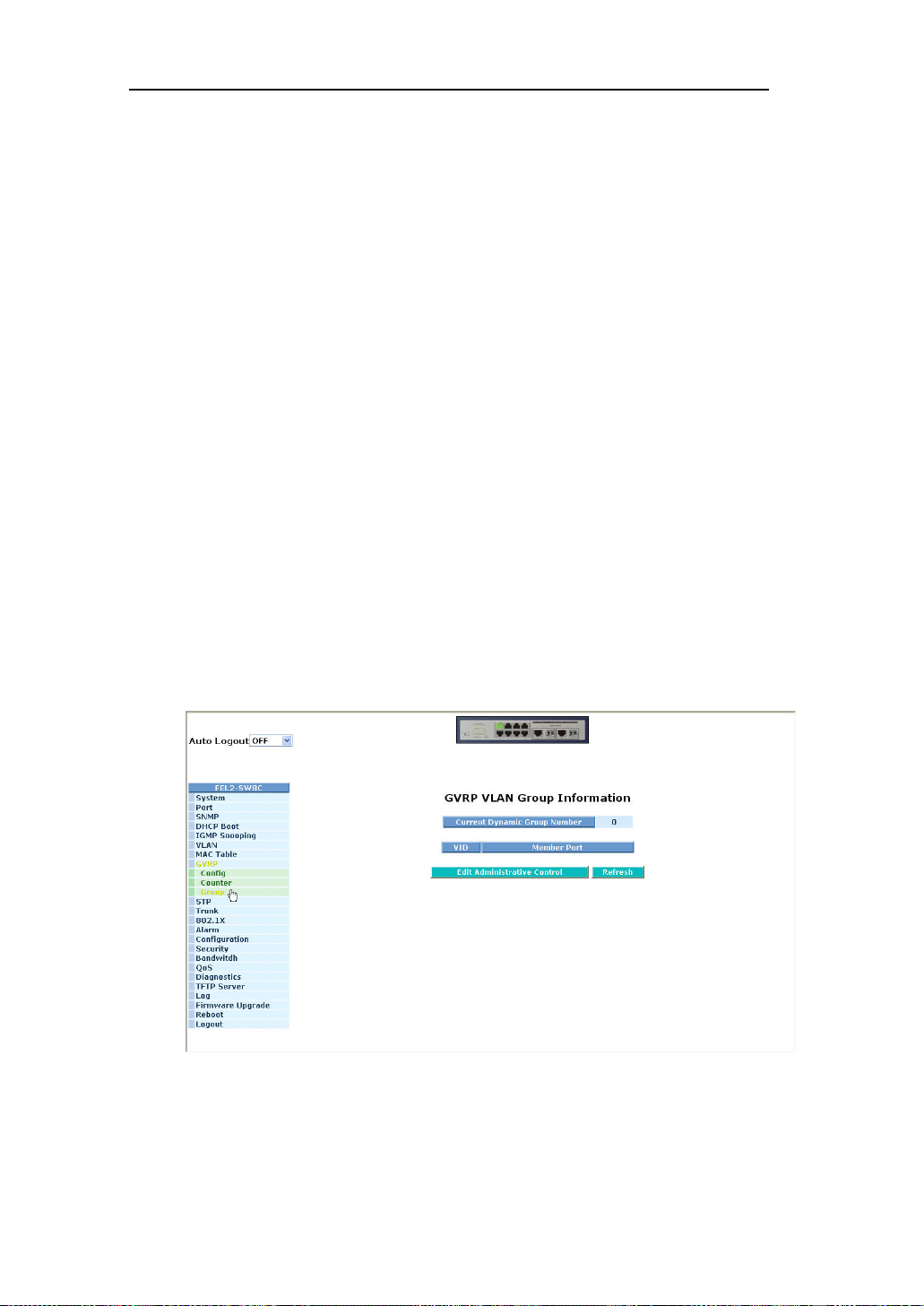

3-8. GVRP CONFIGURATION-------------------------------------------------------------81
3-9. STP CONFIGURATION----------------------------------------------------------------87

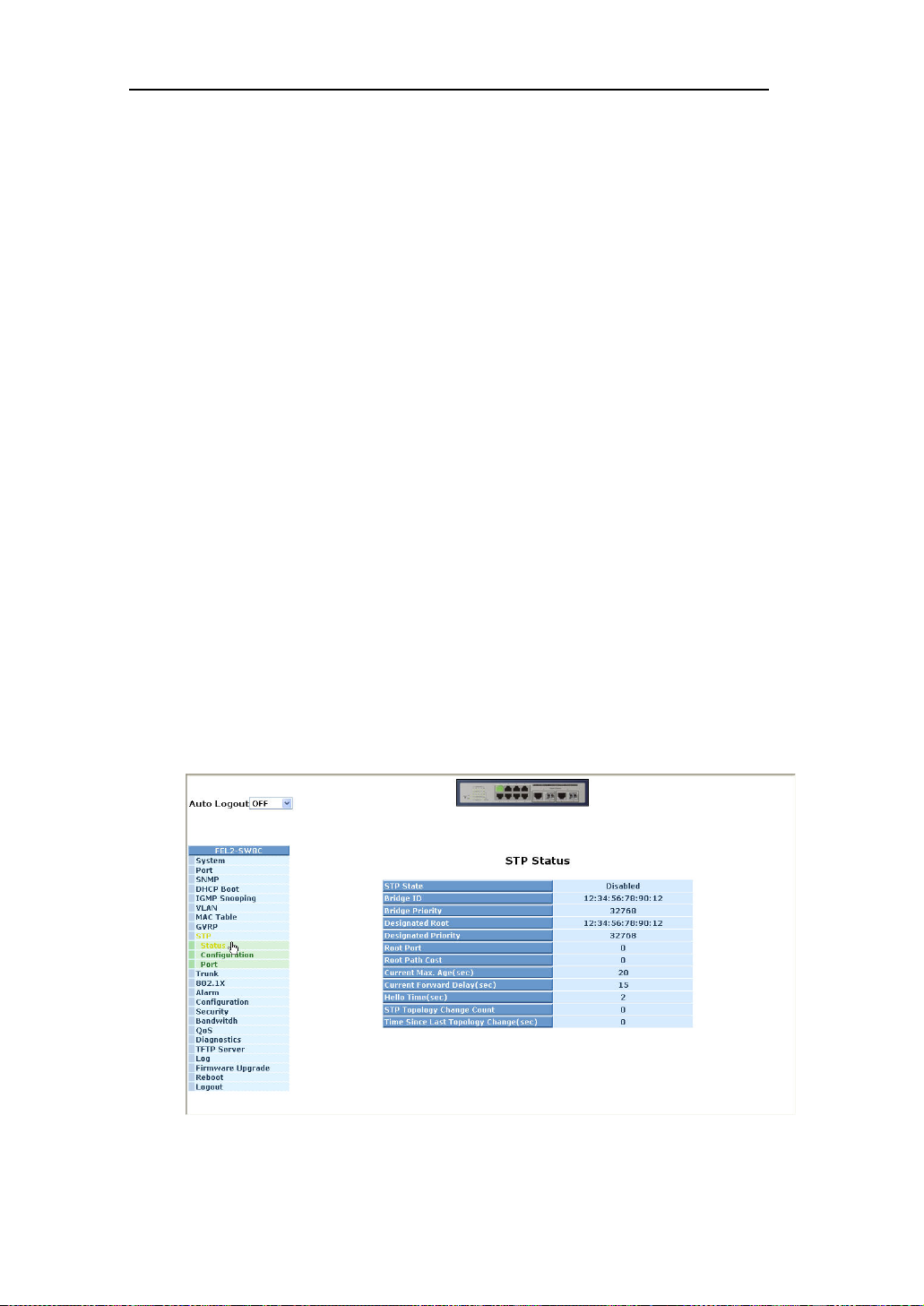

3-9-1. STP Status ---------------------------------------------------------------------87

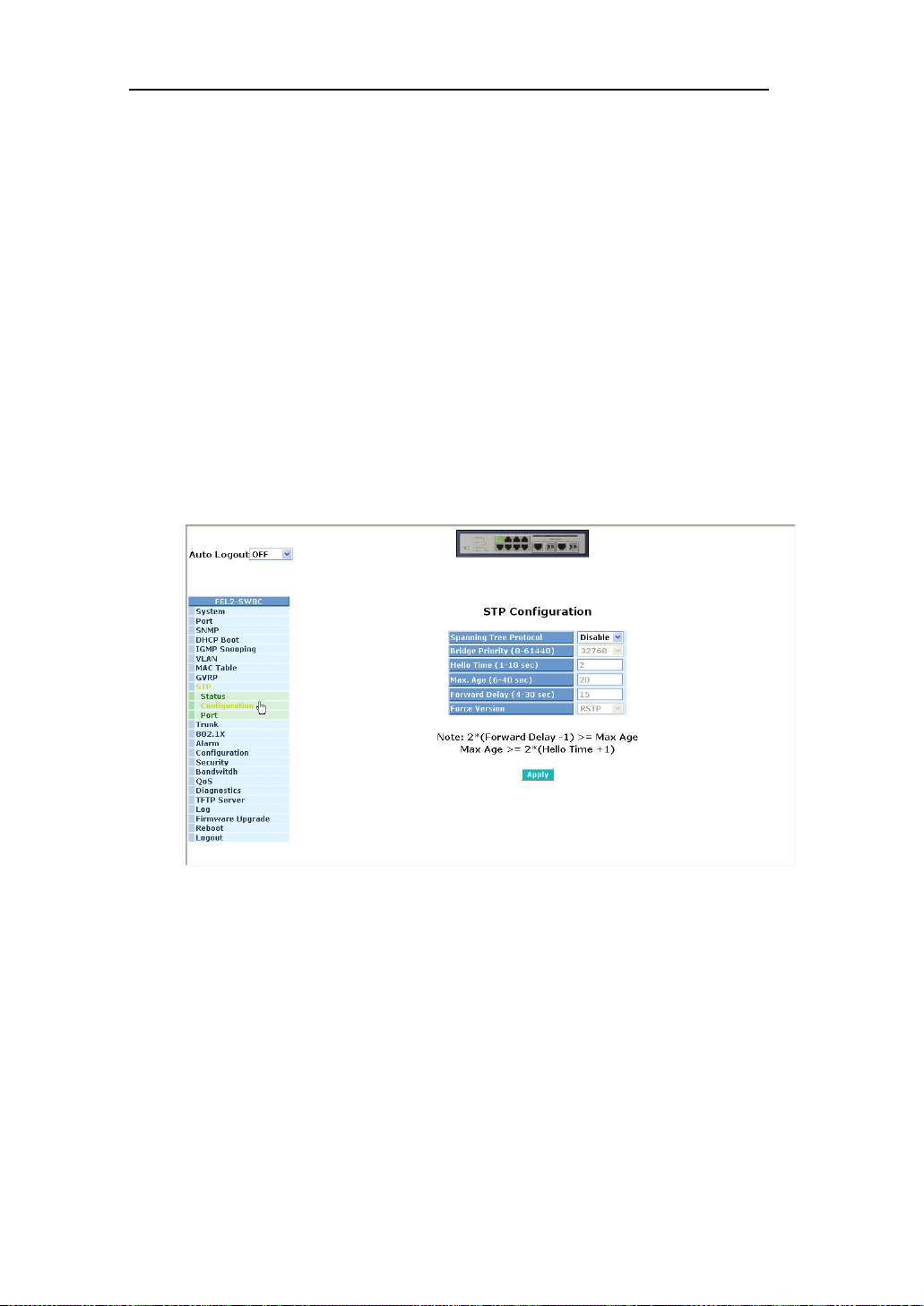

3-9-2. STP Configuration------------------------------------------------------------89
3-9-3. STP Port Configuration------------------------------------------------------91
3-10. TRUNKING CONFIGURATION-------------------------------------------------------94
3-11. 802.1X CONFIGURATION---------------------------------------------------------101
3-12. ALARM CONFIGURATION ----------------------------------------------------------111
3-13. CONFIGURATION ------------------------------------------------------------------ 114
3-13-1. Save/Restore -------------------------------------------------------------- 115
3-13-2. Config File ------------------------------------------------------------------ 118
3-14. SECURITY-------------------------------------------------------------------------- 119
3-15. BANDWIDTH MANAGEMENT------------------------------------------------------122
3-16. QOS(QUALITY OF SERVICE) CONFIGURATION--------------------------------126
3-17. DIAGNOSTICS---------------------------------------------------------------------- 136
3-18. TFTP SERVER --------------------------------------------------------------------139
3-19. LOG ---------------------------------------------------------------------------------140
3-20. FIRMWARE UPGRADE ------------------------------------------------------------142
3-21. REBOOT----------------------------------------------------------------------------143
3-22. LOGOUT ---------------------------------------------------------------------------- 144
CHAPTER 4. OPERATION OF CLI MANAGEMENT-------------------------- 145
4-1. CLI MANAGEMENT -----------------------------------------------------------------145
4-1-1. Login--------------------------------------------------------------------------- 145
4-2. COMMANDS OF CLI ----------------------------------------------------------------147
4-2-1. Global Commands of CLI------------------------------------------------- 148
4-2-2. Local Commands of CLI --------------------------------------------------154
CHAPTER 5. MAINTENANCE-------------------------------------------------------238
5-1. RESOLVING NO LINK CONDITION-------------------------------------------------238
5-2. Q&A----------------------------------------------------------------------------------238
APPENDIX A TECHNICAL SPECIFICATIONS ---------------------------------- 239
APPENDIX B NULL MODEM CABLE SPECIFICATIONS-------------------- 243
iii
Page 6
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Revision History
Release Date Revision
2.02 12/28/2005 A1
2.02 01/11/2006 A1
iv
Page 7
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
v
Page 8
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Caution
Circuit devices are sensitive to static electricity, which can damage their delicate
electronics. Dry weather conditions or walking across a carpeted floor may cause you to
acquire a static electrical charge.
To protect your device, always:
• Touch the metal chassis of your computer to ground the static electrical charge before
you pick up the circuit device.
• Pick up the device by holding it on the left and right edges only.
Electronic Emission Notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class A
computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed to
provide reasonable protection against such interference when operated in a commercial
environment.
European Community (CE) Electromagnetic Compatibility Directive
This equipment has been tested and found to comply with the protection requirements
of European Emission S tandard EN55022/EN60555-2 and the Generic European Immunity
Standard EN50082-1.
EMC:
EN55022(1988)/CISPR-22(1985) class A
EN60555-2(1995) class A
EN60555-3
IEC1000-4-2(1995) 4K V CD, 8KV, AD
IEC1000-4-3(1995) 3V/m
IEC1000-4-4(1995) 1KV – (power line), 0.5KV – (signal line)
vi
Page 9
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
About this user’s manual
In this user’s manual, it will not only tell you how to install and connect your
network system but configure and monitor the 8 Fast Ethernet + 2 Gigabit L2
Managed Switch through the built-in CLI and web by RS-232 serial interface and
Ethernet ports step-by-step. Many explanation in detail of hardware and software
functions are shown as well as the examples of the operation for web-based
interface and command-line interface (CLI).
Overview of this user’s manual
Chapter 1 “Introduction” describes the features of 8 Fast Ethernet + 2 Gigabit
L2 Managed Switch
Chapter 2 “Installation”
Chapter 3 “Operation of Web-based Management”
Chapter 4 “Operation of CLI Management”
Chapter 5 “Maintenance”
Publication date: January, 2006
Revision A1
1
Page 10
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
1. Introduction
1-1. Overview of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch
8 Fast Ethernet + 2 Gigabit L2 Managed Switch, implemented 8 10/100Mbps
TP + 2 Gigabit dual media ports with TP/SFP, is a standard switch that meets all
IEEE 802.3/u/x/z Gigabit, Fast Ethernet and Ethernet specifications. The switch can
be managed through RS-232 serial port via directly connection, or through Ethernet
port using Telnet or Web-based management unit, associated with SNMP agent.
With the SNMP agent, the network administrator can logon the switch to monitor,
configure and control each port’s activity in a friendly way. The overall network
management is enhanced and the network efficiency is also improved to
accommodate high bandwidth applications. In addition, the switch features
comprehensive and useful function such as QoS (Quality of Service), Spanning
Tree, VLAN, Port Trunking, Bandwidth Control, Port Security, SNMP/RMON and
IGMP Snooping capability via the intelligent software. It is suitable for both metroLAN and office application.
• Model Description
Model Port 9, 10 Configurations
8-Port 10/100Base-TX +
2-Port Gigabit TP/SFP L2
Managed Switch
10/100/1000Mbps TP is a standard Ethernet port that meets all IEEE
802.3/u/x/z Gigabit, Fast Ethernet specifications. 1000Mbps SFP Fiber transceiver
is a Gigabit Ethernet port that fully complies with all IEEE 802.3z and 1000BaseSX/LX standards.
1000Mbps Single Fiber WDM (BiDi) transceiver is designed with an optic
Wavelength Division Multiplexing (WDM) technology that transports bi-directional
full duplex signal over a single fiber simultaneously.
For upgrading firmware, please refer to the Section 3-20 or Section 4-2-2 for
more details. The switch will not stop operating while upgrading firmware and after
that, the configuration keeps unchanged.
Two types of media --- TP and SFP Fiber
Publication date: January, 2006
Revision A1
2
Page 11
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Key Features in the Device
•
QoS:
Support Quality of Service by the IEEE 802.1P standard. There are two
priority queue and packet transmission schedule using Weighted Round
Robin (WRR). User-defined weight classification of packet priority can be
based on either VLAN tag on packets or user-defined port priority.
Spanni ng Tree:
Support IEEE 802.1D, IEEE 802.1w (RSTP: Rapid Spanning Tree
Protocol) standards.
VLAN:
Support Port-based VLAN and IEEE802.1Q Tag VLAN. Support 256 active
VLANs and VLAN ID 1~4094.
Port Trunking:
Support static port trunking and port trunking with IEEE 802.3ad LACP.
Bandwidth Control:
Support ingress and egress per port bandwidth control.
Port Security:
Support allowed, denied forwarding and port security with MAC address.
SNMP/RMON:
SNMP agent and RMON MIB. In the device, SNMP agent is a client
software which is operating over SNMP protocol used to receive the
command from SNMP manager (server site) and echo the corresponded
data, i.e. MIB object. Besides, SNMP agent will actively issue TRAP
information when happened.
RMON is the abbreviation of Remote Network Monitoring and is a branch of
the SNMP MIB.
The device supports MIB-2 (RFC 1213), Bridge MIB (RFC 1493), RMON
MIB (RFC 1757)-statistics Group 1,2,3,9, Ethernet-like MIB (RFC 1643) and
so on.
IGMP Snooping:
Support IGMP version 2 (RFC 2236): The function IGMP snooping is used
to establish the multicast groups to forward the multicast packet to the
member ports, and, in nature, avoid wasting the bandwidth while IP
multicast packets are running over the network.
Publication date: January, 2006
Revision A1
3
Page 12
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
1-2. Checklist
Before you start installing the switch, verify that the package contains the
following:
⎯ 8 Fast Ethernet + 2 Gigabit L2 Managed Switch
⎯ Modules (optional)
⎯ This User's Manual in CD-ROM
⎯ AC Power Cord
⎯ RS-232 Cable
Please notify your sales representative immediately if any of the aforementioned
items is missing or damaged.
1-3. Features
The 8 Fast Ethernet + 2 Gigabit L2 Managed Switch, a standalone off-theshelf switch, provides the comprehensive features listed below for users to perform
system network administration and efficiently and securely serve your network.
Hardware
•
• Supports 8-port 10/100M TP ports with Nway and auto MDIX function
• The switch supports 2 Gigabit dual media ports(TP/SFP) and 2 slots for
removable SFP module supporting 1000M SFP fiber module
• Supports on-line pluggable fiber transceiver modules
• Supports 256KB packet buf fer and 128KB control memory
• Supports 8K MAC addresses with automatic learning and a ging
• Maximal packet length can be up to 1536 bytes
• Full-duplex flow control (IEEE802.3x) and half-duplex backpressure
• Extensive front-panel diagnostic LEDs; System: Power, CPURUN, 10/100Mbps
TP Port1-8:LINK/ACT/SPD, FDX/COL, 10/100/1000Mbps/Fibe r port 9, 10:
LINK/ACT/SPD, FDX/COL
• Management
• Supports concisely the status of port and easily port configuration
• Supports per port traffic monitoring counters
• Supports a snapshot of the system Informatio n when you login
• Supports port mirror function
• Supports the static trunk function
Publication date: January, 2006
Revision A1
4
Page 13
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
• Supports 802.1Q VLAN with 256 entries.
• Supports user management and limits three users to login
• Supports DHCP Broadcasting Suppression to avoid network suspended or
crashed
• Supports to send the trap event while monitored events happened
• Supports default configuration which can be restored to overwrite the current
configuration which is working on via web browser and CLI
• Supports on-line plug/unplug SFP/GBIC modules
• Supports 5 kinds of QoS, are as follows, MAC Priority, 802.1p Priority, IP TOS
Priority, and DiffServ DSCP Priority.
• Built-in web-based management and CLI management, providing a more
convenient UI for the user
• Supports port mirror function with ingress/egress traffic
• Supports rapid spanning tree (802.1w RSTP)
• Supports 802.1x port security on a VLAN
• Supports user management and only first login administrator can configure the
device. The rest of users can only view the switch
• SNMP access can be disabled and prevent from illegal SNMP access
• Supports Ingress, Non-unicast and Egress Bandwi dth rating management
• The trap event and alarm message can be transferred via e-mail and mobile
phone short message
• Supports diagnostics to let administrator kn owing the hardware status
• Supports external loopback test to check if the link is ok
• TFTP for firmware upgrade, system log upload and config file import/export
• Supports remote boot the device through user interface and SNMP
• Supports network time synchronization and daylight saving
• Supports 120 event log records in the main memory and display on the local
console
Publication date: January, 2006
Revision A1
5
Page 14
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
L
1-4. View of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch
Fig. 1-1 Full View of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch with SFP Module
1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs)
There are 8 TP Fast Ethernet ports and 2 slots for optional removable
modules on the front panel of the switch. LED display area, locating on the front
panel, contains a CPURUN, Power LED and 1 0 ports working status of the switch.
TP Port Status: Link/ACT/SPD
TP Port Status: FDX/CO
Fiber Port Status Indication LEDs
Power Indication LED
RESET Button:
RESET button is used to
reset the management
system.
Fig. 1-2 Front View of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch with SFP Module
Publication date: January, 2006
Revision A1
Fast Ethernet Port
6
Gigabit Dual Media Port: TP/SFP
Page 15
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
• LED Indicators
LED Color Function
System LED
CPURUN Green Lit when CPU is on and good
POWER Green Lit when AC power is on and good
10/100Mbps Ethernet TP Port 1 to 8 LED
Green Lit when 100Mbps connection with
remote device is good
LNK/ACT/SPD
FDX/COL
10/100/1000Mbps Gigabit TP/Fiber Port 9, 10 LED
LNK/ACT/SPD
SFP LNK Green
Green/
Amber
Amber
(TP Port 1
to 8 LED)
Green/
Amber
Amber Lit when 10Mbps connection with remote
device is good
Blinks when any traffic is present
Off when cable connection is not good
Lit when full-duplex mode is active
Blinks when any collision is present
Green Lit when 1000Mbps connection with
remote device is good
Amber Lit when 100/10Mbps connection with
remote device is good
Blinks when any traffic is present
Off when cable connection is not good
Lit when Fiber port is active
Off when TP port is active
Table1-1
7
Publication date: January, 2006
Revision A1
Page 16
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
1-4-2. User Interfaces on the Rear Panel
One RS-232 DB-9 interface is offered for configuration or management. And
there is one A C po wer input socket for having the switch powered on or off.
AC Line 100-240V 50/60 Hz
RS-232 DB-9 Connector
Fig. 1-3 Rear View of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch
Publication date: January, 2006
Revision A1
8
Page 17
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
1-5. View of the Optional Modules
In the switch, Port 9, 10 includes two types of media --- TP and SFP Fiber
(LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber
with auto-detected function. 1000Mbps SFP Fiber transceiver is used for highspeed connection expansion; the following are optional SFP types provided for the
switch:
⎯ 1000Mbps LC, MM, SFP Fiber transceiver
⎯ 1000Mbps LC, SM 10km, SFP Fiber transceiver
⎯ 1000Mbps LC, SM 30km, SFP Fiber transceiver
⎯ 1000Mbps LC, SM 50km, SFP Fiber transceiver
⎯ 1000Mbps BiDi LC, type 1, SM 20km, SFP Fiber WDM transceiver
⎯ 1000Mbps BiDi LC, type 2, SM 20km, SFP Fiber WDM transceiver
⎯ 1000Mbps LC, SM 10km, SFP Fiber transceiver with DDM
Fig. 1-4 Front View of 1000Base-SX/LX LC, SFP Fiber Transceiver
Fig. 1-5 Front View of 1000Base-LX BiDi LC, SFP Fiber Transceiver
Publication date: January, 2006
Revision A1
9
Page 18
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
r
2. Installation
2-1. Starting 8 Fast Ethernet + 2 Gigabit L2 Managed Switch Up
This section will give users a quick start for:
- Hardware and Cable Installation
- Management Station Installation
- Software booting and configuration
2-1-1. Hardware and Cable Installation
At the beginning, please do first:
⇒ Wear a grounding device to avoid the damage from electrostatic discharge
• Installing Optional SFP Fiber Transceivers to the L2 Managed Switch
Note: If you have no modules, please skip this section.
• Connecting the SFP Module to the Chassis:
The optional SFP modules are hot swappable, so you can plug or unplug it
before or after powering on.
1. Verify that the SFP module is the right model and conforms to the
chassis
2. Slide the module along the slot. Also be sure that the module is properly
seated against the slot socket/connector
Fig. 2-1 Installation of Optional SFP Fiber Transceive
3. Install the media cable for network connection
4. Repeat the above steps, as needed, for each module to be installed into
slot(s)
5. Have the power ON after the above procedures are done
Publication date: January, 2006
Revision A1
10
Page 19
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
•
TP Port and Cable Installation
⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of
cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in
10/100M TP; 1, 2, 3, 4, 5, 6, 7, 8 to 1, 2, 3, 4, 5, 6, 7, 8 in Gigabit TP) and
crossed-over (Cable pi n-outs for RJ -45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.
It means you do not have to tell from them, just plug it.
⇒ Use Cat. 5 grade RJ-45 TP cable to connect to a TP port of the switch and the
other end is connected to a network-aware device such as a workstation or a
server.
⇒ Repeat the above steps, as needed, for each RJ-45 port to be connected to a
Gigabit 10/100/1000 TP device.
Now, you can start having the switch in operation.
• Power On
The switch supports 100-240 VAC, 50-60 Hz power supply. The power
supply will automatically convert the local AC power source to DC power. It does not
matter whether any connection plugged into the switch or not when power on, even
modules as well. After the power is on, all LED indicators will light up immediately
and then all off except the power LED still keeps on. This represents a reset of the
system.
• Firmware Loading
After resetting, the bootloader will load the firmware into the memory. It will
take about 30 seconds, after that, the switch will flash all the LED once and
automatically performs self-test and is in ready state.
11
Publication date: January, 2006
Revision A1
Page 20
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
2-1-2. Installing Chassis to a 19-Inch Wiring Closet Rail
Fig. 2-2
Caution: Allow a proper spacing and proper air ventilation for the cooling fan
at both sides of the chassis.
⇒ Wear a grounding device for electrostatic discharge.
⇒ Screw the mounting accessory to the front side of the switch (See Fig. 2-2).
⇒ Place the Chassis into the 19-inch wiring closet rail and locate it at the proper
position. Then, fix the Chassis by screwing it.
2-1-3. Cabling Requirements
To help ensure a successful installation and keep the network performance
good, please take a care on the cabling requirement. Cables with worse
specification will render the LAN to work poorly.
Publication date: January, 2006
Revision A1
12
Page 21
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
2-1-3-1. Cabling Requirements for TP Ports
⇒ For Fast Ethernet TP network connection
⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of
100 meters.
⇒ Gigabit Ethernet TP network connection
⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of
100 meters. Cat. 5e is recommended.
2-1-3-2. Cabling Requirements for 1000SX/LX SFP Module
It is more complex and comprehensive contrast to TP cabling in the fiber
media. Basically, there are two categories of fiber, multi mode (MM) and single
mode (SM). The later is categorized into several classes by the distance it supports.
They are SX, LX, LHX, XD, and ZX. From the viewpoint of connector type, there
mainly are LC and BiDi LC.
⎯ Gigabit Fiber with multi-mode LC SFP module
⎯ Gigabit Fiber with single-mode LC SFP module
⎯ Gigabit Fiber with BiDi LC 1310nm SFP module
⎯ Gigabit Fiber with BiDi LC 1550nm SFP module
The following table lists the types of fiber that we support and those else not
listed here are available upon request.
Multi-mode Fiber Cable and Modal Bandwidth
IEEE 802.3z
Gigabit Ethernet
1000SX 850nm
1000BaseLX/LHX/XD/ZX
1000Base-LX
Single Fiber
WDM Module
Table2-1
Multi-mode 62.5/125μm Multi-mode 50/125μm
Modal
Bandwidth
160MHz-Km 220m 400MHz-Km 500m
200MHz-Km 275m 500MHz-Km 550m
SFP.0LC.212.10/30/50/70/B0 Km
Single-mode Fiber 9/125μm
Single-mode transceiver 1310nm 10Km
Single-mode transceiver 1550nm 30, 50, 70, 110Km
SFP.0BL.621.202 (or
GBI.ZBS.621.202)
SFP.0BL.621.201 (or
GBI.ZBS.621.201)
Distance
Single-Mode
Single-Mode
Modal
Bandwidth
*20Km
*20Km
Distance
TX(Transmit) 1310nm
RX(Receive) 1550nm
TX(Transmit) 1550nm
RX(Receive) 1310nm
13
Publication date: January, 2006
Revision A1
Page 22
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
2-1-3-3. Switch Cascading in Topology
• Takes the Delay Time into Account
Theoretically, the switch partitions the collision domain for each port in switch
cascading that you may up-link the switches unlimitedly. In practice, the network
extension (cascading levels & overall diameter) must follow the constraint of the
IEEE 802.3/802.3u/802.3z and other 802.1 series protocol specifications, in which
the limitations are the timing requirement from physical signals defined by 802.3
series specification of Media Access Control (MAC) and PHY, and timer from some
OSI layer 2 protocols such as 802.1d, 802.1q, LACP and so on.
The fiber, TP cables and devices’ bit-time delay (round trip) are as follows:
1000Base-X TP, Fiber 100Base-TX TP 100Base-FX Fiber
Round trip Delay: 4096 Round trip Delay: 512
Cat. 5 TP Wire: 11.12/m Cat. 5 TP Wire: 1.12/m Fiber Cable: 1.0/m
Fiber Cable : 10.10/m TP to fiber Converter: 56
Bit Time unit : 1ns (1sec./1000 Mega bit)
Bit Time unit: 0.01μs (1sec./100 Mega bit)
Table 2-2
Sum up all elements’ bit-time delay and the overall bit-time delay of
wires/devices must be within Round Trip Delay (bit times) in a half-duplex network
segment (collision domain). For full-duplex operation, this will not be applied. You
may use the TP-Fiber module to extend the TP node distance over fiber optic and
provide the long haul connection.
• Typical Network Topology in Deployment
A hierarchical network with minimum levels of switch may reduce the timing
delay between server and client station. Basically, with this approach, it will
minimize the number of switches in any one path; will lower the possibility of
network loop and will improve network efficiency. If more than two switches are
connected in the same network, select one switch as Level 1 switch and connect all
other switches to it at Level 2. Server/Host is recommended to connect to the Level
1 switch. This is general if no VLAN or other special requirements are applied.
Publication date: January, 2006
Revision A1
14
Page 23
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Case1: All switch ports are in the same local area network. Every port can access
each other (See Fig. 2-3).
Fig. 2-3 No VLAN Configuration Diagram
If VLAN is enabled and configured, each node in the network that can
communicate each other directly is bounded in the same VLAN area.
Here VLAN area is defined by what VLAN you are using. The switch
supports both port-based VLAN and tag-based VLAN. They are different in practical
deployment, especially in physical location. The following diagram shows how it
works and what the difference they are.
Case2a: Port-based VLAN (See Fig.2-4).
Fig. 2-4 Port-based VLAN Diagram
1. The same VLAN members could not be in different switches.
2. Every VLAN members could not access VLAN members each other.
3. The switch manager has to assign different names for each VLAN groups
at one switch.
Publication date: January, 2006
Revision A1
15
Page 24
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Case 2b: Port-based VLAN (See Fig.2-5).
Fig. 2-5 Port-based VLAN Diagram
1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members.
2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could
access VLAN4 members.
3. VLAN3 members could not access VLAN1, VLAN2 and VLAN4.
4. VLAN4 members could not access VLAN1 and VLAN3 members, but they could
access VLAN2 members.
Case3a: The same VLAN members can be at different switches with the same VID
(See Fig. 2-6).
Fig. 2-6 Attribute-based VLAN Diagram
Publication date: January, 2006
Revision A1
16
Page 25
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
2-1-4. Configuring the Management Agent of 8 Fast Ethernet + 2
Gigabit L2 Managed Switch
We offer you three ways to startup the switch management function. They
are RS-232 console, CLI, and Web. Users can use any one of them to monitor and
configure the switch. You can touch them through the following procedures.
Section 2-1-4-1: Configuring the Management Agent of 8 Fast Ethernet + 2 Gigabit
L2 Managed Switch through the Serial RS-232 Port
Section 2-1-4-2: Configuring the Management Agent of 8 Fast Ethernet + 2 Gigabit
L2 Managed Switch through the Ethernet Port
Note: Please first modify the IP address, Subnet mask, Default gateway and DNS
through RS-232 console, and then do the next.
17
Publication date: January, 2006
Revision A1
Page 26
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
2-1-4-1. Configuring the Management Agent of 8 Fast Ethernet + 2 Gigabit L2
Managed Switch through the Serial RS-232 Port
To perform the configuration through RS-232 console port, the switch’s serial
port must be directly connected to a DCE device, for example, a PC, through
RS-232 cable with DB-9 connector. Next, run a terminal emulator with the default
setting of the switch’s serial port. With this, you can communicate with the switch.
In the switch, RS-232 interface only supports baud rate 57.6k bps with 8 data
bits, 1 stop bit, no parity check and no flow control.
RS-232
Terminal or Terminal Emulator
AC Line 100-240V 50/60 Hz RS-232 DB-9 Connector
8 Fast Ethernet + 2 Gigabit L2 Managed Switch
Default IP Setting:
IP address = 192.168.1.1
Subnet Mask = 255.255.255.0
Default Gateway = 192.168.1.254
RS-232 cable with female
DB-9 connector at both ends
Fig. 2-7
To configure the switch, please follow the procedures below:
1. Find the RS-232 DB-9 cable with female DB-9 connector bundled.
Normally, it just uses pins 2, 3 and 7. See also Appendix B for more
details on Null Modem Cable Specifications.
2. Attaches the DB-9 female cable connector to the male serial RS-232
DB-9 connector on the switch.
3. Attaches the other end of the serial RS-232 DB-9 cable to PC’s serial
port, running a terminal emulator supporting VT100/ANSI terminal with
The switch’s serial port default settings. For example,
Windows98/2000/XP HyperTerminal utility.
Note: The switch’s serial port default settings are listed as follows:
Baud rate 57600
Stop bits 1
Data bits 8
Parity N
Flow control none
4. When you complete the connection, then press <Enter> key. The login
prompt will be shown on the screen. The default username and
password are shown as below:
Username = admin Password = admin
Publication date: January, 2006
Revision A1
18
Page 27
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
• Set IP Add ress, Subnet Mask and Default Gateway IP Address
Please refer to Fig. 2-7 CLI Management for details about the ex-factory
setting. They are default setting of IP address. You can first either configure your PC
IP address or change IP address of the switch, next to change the IP address of
default gateway and subnet mask.
For example, your network address is 10.1.1.0, and subnet mask is
255.255.255.0. You can change the switch’s default IP address 192.168.1.1 to
10.1.1.1 and set the subnet mask to be 255.255.255.0. Then, choose your default
gateway, may be it is 10.1.1.254.
Default Value 8 Fast Ethernet + 2 Gigabit L2
Managed Switch
IP Address
Subnet
Default Gateway
After completing these settings in the switch, it will reboot to have the
configuration taken effect. After this step, you can operate the management through
the network, no matter it is from a web browser or Network Management System
(NMS).
065-7710
192.168.1.1 10.1.1.1
255.255.255.0 255.255.255.0
192.168.1.254 10.1.1.254
Table 2-3
065-7710
Your Network Setting
Fig. 2-8 the Login Screen for CLI
Publication date: January, 2006
Revision A1
19
Page 28
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
2-1-4-2. Configuring the Management Agent of 8 Fast Ethernet + 2 Gigabit L2
Managed Switch through the Ethernet Port
There are three ways to configure and monitor the switch through the
switch’s Ethernet port. They are CLI, Web browser and SNMP manager. The user
interface for the last one is NMS dependent and does not cover here. We just
introduce the first two types of management interface.
8 Fast Ethernet + 2 Gigabit L2 Managed Switch
Default IP Setting:
IP = 192.168.1.1
Subnet Mask = 255.255.255.0
Default Gateway = 192.168.1.254
Ethernet LAN
Assign a reasonable IP address,
For example:
IP = 192.168.1.100
Subnet Mask = 255.255.255.0
Default Gateway = 192.168.1.254
Fig. 2-9
• Managing the 8 Fast Ethernet + 2 Gigabit L2 Managed Switch through
Ethernet Port
Before you communicate with the switch, you have to finish first the
configuration of the IP address or to know the IP address of the switch. Then,
follow the procedures listed below.
1. Set up a physical path between the configured the switch and a PC by a
qualified UTP Cat. 5 cable with RJ-45 connector.
Note: If PC directly connects to the switch, you have to setup the same
subnet mask between them. But, subnet mask may be different for the PC
in the remote site. Please refer to Fig. 2-9 about the switch’s default IP
address information.
2. Run CLI or web browser and follow the menu. Please refer to Chapter 3
and Chapter 4.
Publication date: January, 2006
Revision A1
20
Page 29
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch

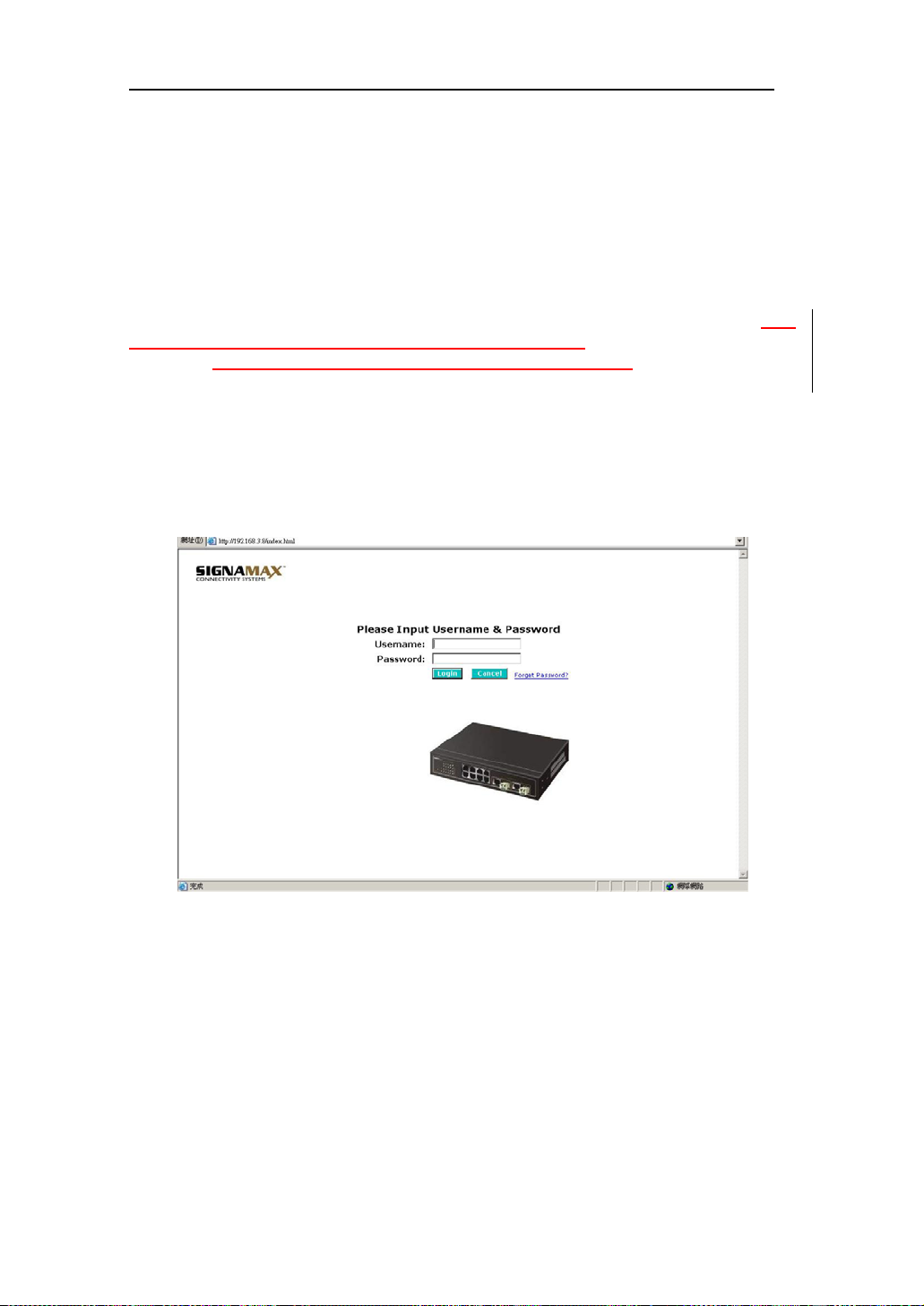

Fig. 2-10 the Login Screen for Web
2-1-5. IP Address Assignment
For IP address configuration, there are three parameters needed to be filled
in. They are IP address, Subnet Mask, Default Gateway and DNS.
IP address:
The address of the network device in the network is used for internetworking
communication. Its address structure looks is shown in the Fig. 2-11. It is “classful”
because it is split into predefined address classes or categories.
Each class has its own network range between the network identifier and
host identifier in the 32 bits address. Each IP address comprises two parts: network
identifier (address) and host identifier (address). The former indicates the network
where the addressed host resides, and the latter indicates the individual host in the
network which the address of host refers to. And the host identifier must be unique
in the same LAN. Here the term of IP address we used is version 4, known as IPv4.
Network identifier Host identifier
Fig. 2-11 IP address structure
32 bits
21
Publication date: January, 2006
Revision A1
Page 30
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
With the classful addressing, it divides IP address into three classes, class A,
class B and class C. The rest of IP addresses are for multicast and broadcast. The
bit length of the network prefix is the same as that of the subnet mask and is
denoted as IP address/X, for example, 192.168.1.0/24. Each class has its address
range described below.
Class A:
Address is less than 126.255.255.255. There are a total of 126 networks can
be defined because the address 0.0.0.0 is reserved for default route and
127.0.0.0/8 is reserved for loopback function.

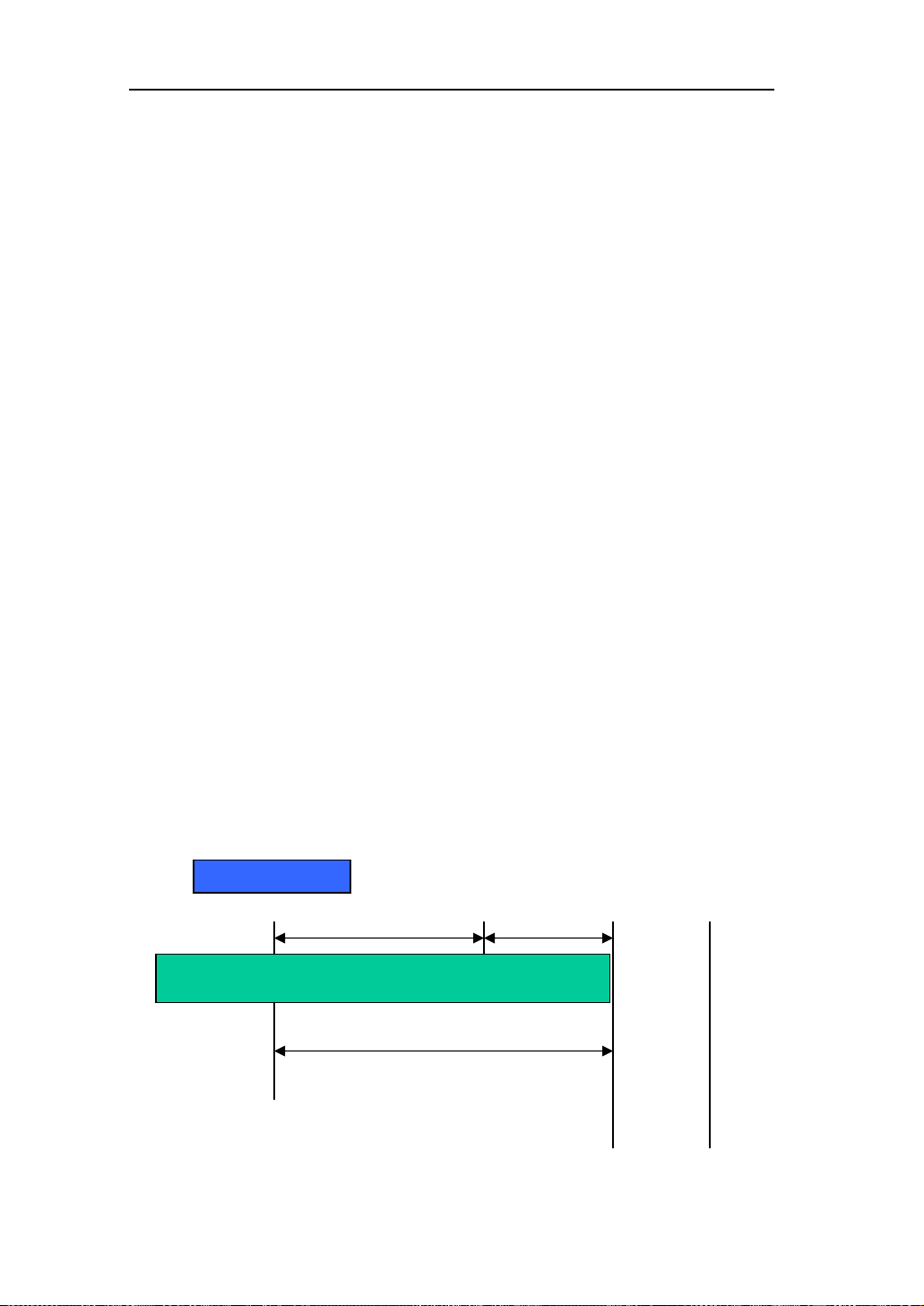

Bit # 0 1 7 8 31
0
Network address Host address
Class B:
IP address range between 128.0.0.0 and 191.255.255.255. Each class B
network has a 16-bit network prefix followed 16-bit host address. There are 16,384
(2^14)/16 networks able to be defined with a maximum of 65534 (2^16 –2) hosts
per network.
Bit # 01 2 15 16 31
10
Network address Host address
Class C:
IP address range between 192.0.0.0 and 223.255.255.255. Each class C
network has a 24-bit network prefix followed 8-bit host address. There are
2,097,152 (2^21)/24 networks able to be defined with a maximum of 254 (2^8 –2)
hosts per network.
Bit # 0 1 2 3 23 24 31
110
Publication date: January, 2006
Revision A1
Network address Host address
22
Page 31
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
t
N
Class D and E:
Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and
is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set
to 1-1-1-1 and is used for IP broadcast.
According to IANA (Internet Assigned Numbers Authority), there are three
specific IP address blocks reserved and able to be used for extending internal
network. We call it Private IP address and list belo w:
Class A 10.0.0.0 --- 10.255.255.255
Class B 172.16.0.0 --- 172.31.255.255
Class C 192.168.0.0 --- 192.168.255.255
Please refer to RFC 1597 and RFC 1466 for more information.
Subnet mask:
It means the sub-division of a class-based network or a CIDR block. The
subnet is used to determine how to split an IP address to the network prefix and the
host address in bitwise basis. It is designed to utilize IP address more efficiently and
ease to manage IP network.
For a class B network, 128.1.2.3, it may have a subnet mask 255.255.0.0 in
default, in which the first two bytes is with all 1s. This means more than 60
thousands of nodes in flat IP address will be at the same network. It’s too large to
manage practically. Now if we divide it into smaller network by extending network
prefix from 16 bits to, say 24 bits, that’s using its third byte to subnet this class B
network. Now it has a subnet mask 255.255.255.0, in which each bit of the first
three bytes is 1. It’s now clear that the first two bytes is used to identify the class B
network, the third byte is used to identify the subnet within this class B network and,
of course, the last byte is the host number .
Not all IP address is available in the sub-netted network. Two special
addresses are reserved. They are the addresses with all zero’s and all one’s host
number. For example, an IP address 128.1.2.128, what IP address reserved will be
looked like? All 0s mean t he network itself, and all 1s mean IP broadcast.
10000000.00000001.00000010.1 0000000
etwork
25 bits
All 0s = 128.1.2.128
All 1s= 128.1.2.255
23
Subne
1 0000000
1 1111111
Publication date: January, 2006
Revision A1
Page 32
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch

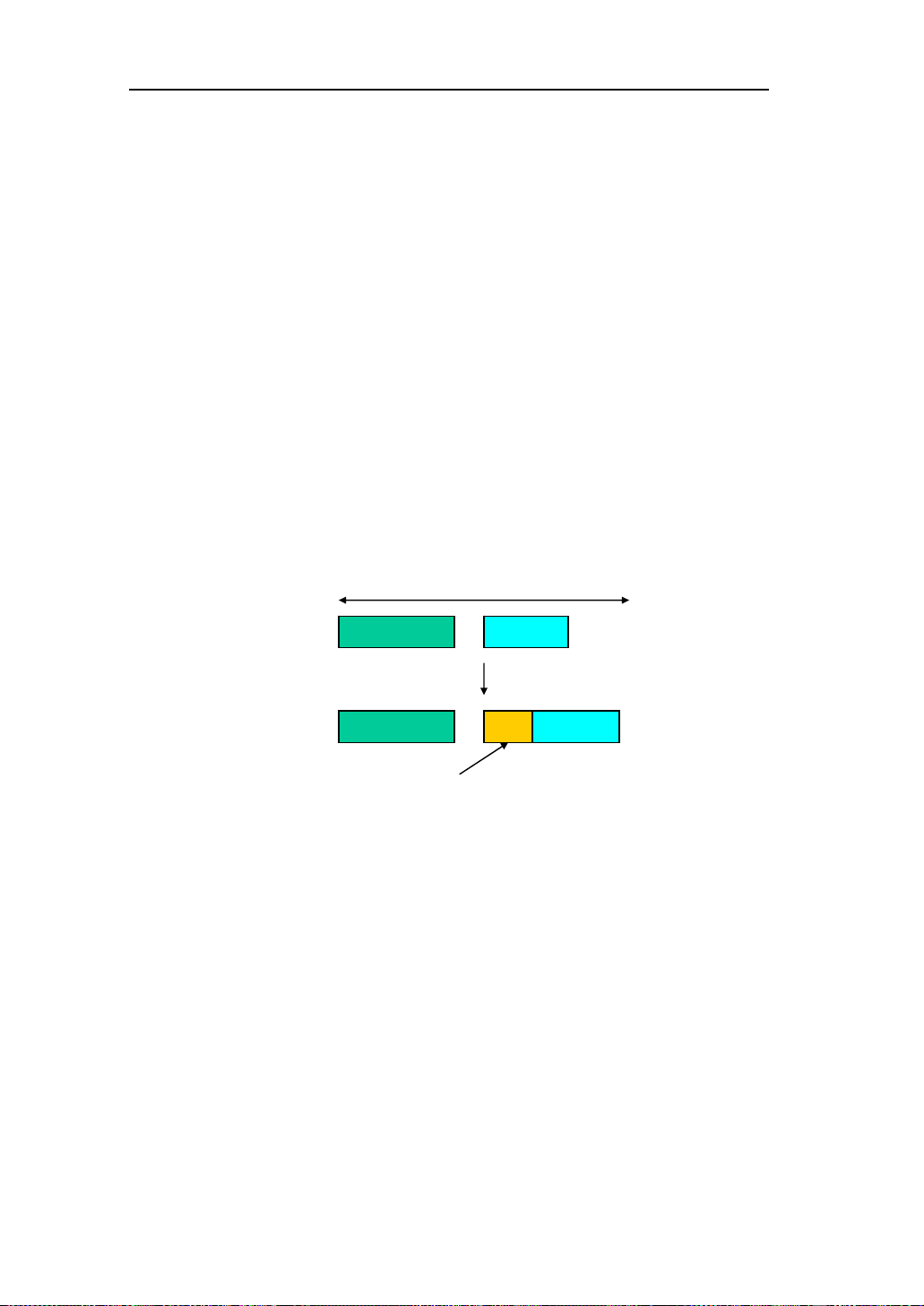

In this diagram, you can see the subnet mask with 25-bit long,
255.255.255.128, contains 126 members in the sub-netted network. Another is that
the length of network prefix equals the number of the bit with 1s in that subnet mask.
With this, you can easily count the number of IP addresses matched. The following
table shows the result.
Prefix Length No. of IP matched No. of Addressable IP
/32 1 /31 2 /30 4 2
/29 8 6
/28 16 14
/27 32 30
/26 64 62
/25 128 126
/24 256 254
/23 512 510
/22 1024 1022
/21 2048 2046
/20 4096 4094
/19 8192 8190
/18 16384 16382
/17 32768 32766
/16 65536 65534
Table 2-4
According to the scheme above, a subnet mask 255.255.255.0 will partition a
network with the class C. It means there will have a maximum of 254 effective
nodes existed in this sub-netted network and is considered a physical network in an
autonomous network. So it owns a network IP address which may looks like
168.1.2.0.
With the subnet mask, a bigger network can be cut into small pieces of
network. If we want to have more than two independent networks in a worknet, a
partition to the network must be performed. In this case, subnet mask must be
applied.
Publication date: January, 2006
Revision A1
24
Page 33
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
For different network applications, the subnet mask may look like
255.255.255.240. This means it is a small network accommodating a maximum of
15 nodes in the network.
Default gateway:
For the routed packet, if the destination is not in the routing table, all the
traffic is put into the device with the designated IP address, known as default router.
Basically, it is a routing policy. The gateway setting is used for Trap Events Host
only in the switch.
For assigning an IP address to the switch, you just have to check what the IP
address of the network will be connected with the switch. Use the same network
address and append your host address to it.
Fig. 2-12
First, IP Address: as shown in the Fig. 2-12, enter “192.168.1.1”, for instance.
For sure, an IP address such as 192.168.1.x must be set on your PC.
Second, Subnet Mask: as shown in the Fig. 2-12, enter “255.255.255.0”. Any
subnet mask such as 255.255.255.x is allowable in this case.
DNS:
The Domain Name Server translates human readable machine name to IP
address. Every machine on the Internet has a unique IP address. A server generally
has a static IP address. To connect to a server, the client needs to know the IP of
the server. However, user generally uses the name to connect to the server. Thus,
the switch DNS client program (such as a browser) will ask the DNS to resolve the
IP address of the named server.
Publication date: January, 2006
Revision A1
25
Page 34
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
2-2. Typical Applications
The 8 Fast Ethernet + 2 Gigabit L2 Managed Switch implements 8 Fast
Ethernet TP ports with auto MDIX and 2 Gigabit dual media ports with SFP for
removable module supported comprehensive fiber types of connection, including LC,
BiDi LC for SFP. For more details on the specification of the switch, please refer to
Appendix A.
The switch is suitable for the following applications.
⎯ Central Site/Remote site application is used in carrier or ISP (See Fig. 2-13)
⎯ Peer-to-peer application is used in two remote offices (See Fig. 2-14)
⎯ Office network(See Fig. 2-15)
Central Site
Fig. 2-13 Network Connection between Remote Site and Central Site
Fig. 2-13 is a system wide basic reference connection diagram. This diagram
demonstrates how the switch connects with other network devices and hosts.
Publication date: January, 2006
Revision A1
26
Page 35
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Fig. 2-14 Peer-to-peer Network Connection
Fig. 2-15 Office Network Connection
Publication date: January, 2006
27
Revision A1
Page 36
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3. Operation of
Web-based Management
This chapter instructs you how to configure and manage the switch through
the web user interface it supports, to access and manage the 8 10/100Mbps TP + 2
Gigabit dual media ports with TP/SFP Fiber management Ethernet switch. With this
facility, you can easily access and monitor through any one port of the switch all the
status of the switch, including MIBs status, each port activity, Spanning tree status,
port aggregation status, multicast traffic, VLAN and priority status, even illegal
access record and so on.
The default values of the managed switch are listed in the table below:
IP Address
Subnet Mask
Default Gateway
Username
Password
192.168.1.1
255.255.255.0
192.168.1.254
admin
admin
Table 3-1
After the managed switch has been finished configuration in the CLI via the
switch’s serial interface, you can browse it. For instance, type
the address row in a browser, it will show the following screen (see Fig.3-1) and ask
you inputting username and password in order to login and access authentication.
The default username and password are both “admin”. For the first time to use,
please enter the default username and password, then click the <Login> button.
The login process now is completed.
Just click the link of “Forget Password” in WebUI (See Fig. 3-1) or input
“Ctrl+Z” in CLI’s login screen (See Fig. 4-1~4-2) in case the user forgets the
manager’s password. Then, the system will display a serial No. for the user. Write
down this serial No. and contact your vendor, the vendor will give you a temporary
password. Use this new password as ID and Password, and it will allow the user to
login the system with manager authority temporarily. Due to the limit of this new
password, the user only can login the system one time, therefore, please modify
your password immediately after you login in the system successfully.
In this login menu, you have to input the complete username and password
respectively, the switch will not give you a shortcut to username automatically. This
looks inconvenient, but safer .
http://192.168.1.1 in
Publication date: January, 2006
Revision A1
28
Page 37
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
In the switch, it supports a simple user management function allowing only
one administrator to configure the system at the same time. If there are two or more
users using administrator’s identity, the switch will allow the only one who logins first
to configure the system. The rest of users, even with administrator’s identity, can
only monitor the system. For those who have no administrator’s identity, can only
monitor the system. There are only a maximum of three users able to login
simultaneously in the switch.
To optimize the display effect, we recommend you use Microsoft IE 6.0
above, Netscape V7.1 above or FireFox V1.00 above and have the resolution
1024x768. The switch supported neutral web bro wser interface.
In Fig. 3-2, for example, left section is the whole function tree with web user
interface and we will travel it through this chapter .
Fig. 3-1
29
Publication date: January, 2006
Revision A1
Page 38
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-1. Web Management Home Overview

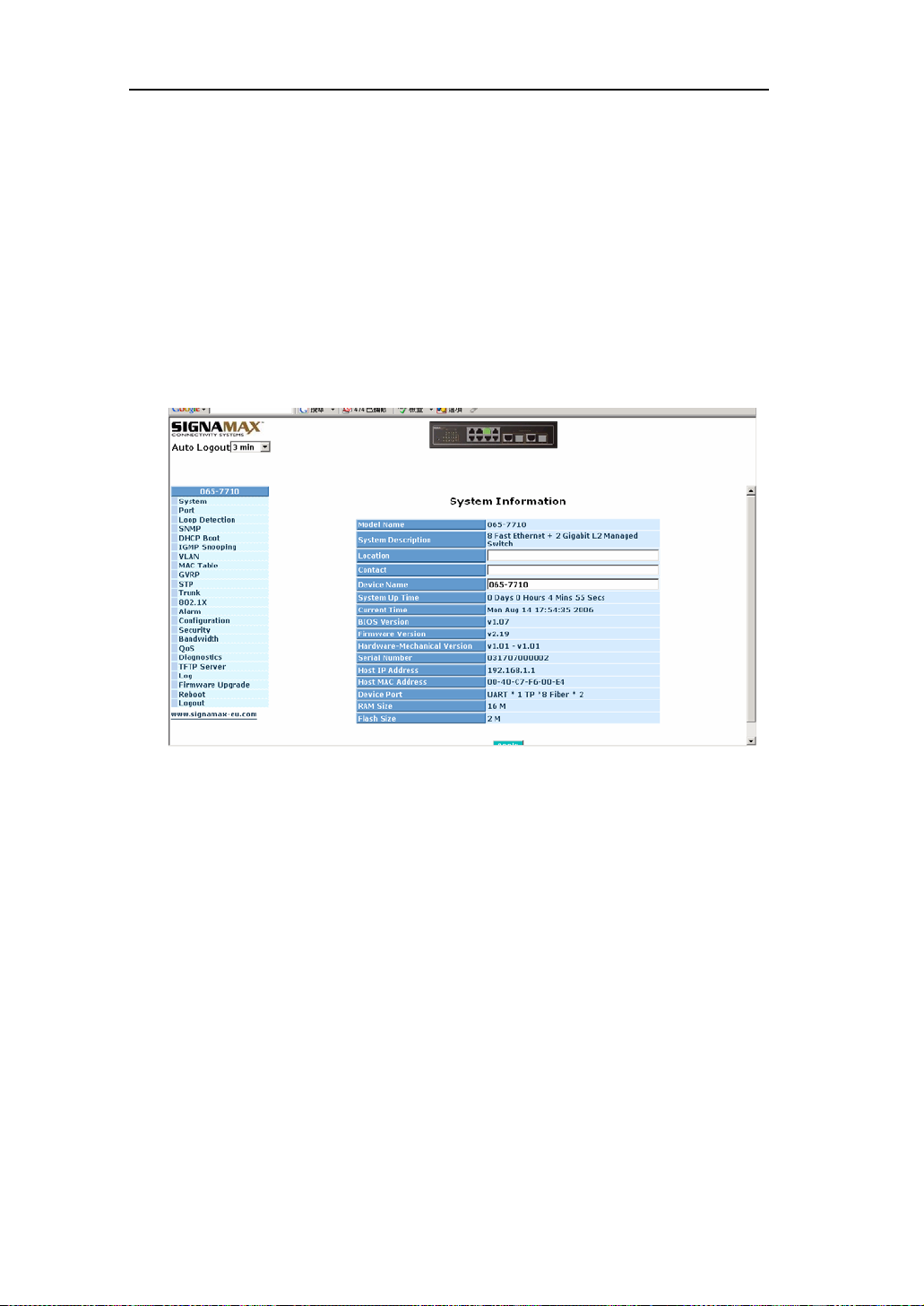

After you login, the switch shows you the system information as Fig. 3-2. This
page is default and tells you the basic information of the system, including “Model
Name”, “System Description”, “Location”, “Contact”, “Device Name”, “System Up
Time”, “Current Time”, “BIOS Version”, “Firmware Version”, “Hardware-Mechanical
Version”, “Serial Number”, “Host IP Address”, “Host MAC Address”, “Device Port”,
“RAM Size” and “Flash Size”. With this information, you will know the software
version used, MAC address, serial number, how many ports good and so on. This is
helpful while malfunctioning.
Fig. 3-2
•
The Information of Page Layout
⎯ On the top side, it shows the front panel of the switch. In the front panel, the
linked ports will display green; as to the ports, which are link off, they will be
dark. For the optional modules, the slot will show only a cover plate if no
module exists and will show a module if a module is present. The image of
module depends on the one you inserted. The same, if disconnected, the port
will show just dark, if linked, green.
In this device, there are clicking functions on the panel provided for the
information of the ports. These are very convenient functions for browsing the
information of a single port. When clicking the port on the front panel, an
information window for the port will be pop out. (See Fig. 3-3)
Publication date: January, 2006
Revision A1
30
Page 39
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Fig. 3-3 port detail information
In Fig. 3-3, it shows the basic information of the clicked port. With this, you’ll
see the information about the port status, traffic status and bandwidth rating for
egress and ingress respectively.
⎯ On the left-top corner, there is a pull-down list for Auto Logout. For the sake of
security, we provide auto-logout function to protect you from illegal user as you
are leaving. If you do not choose any selection in Auto Logout list, it means
you turn on the Auto Logout function and the system will be logged out
automatically when no action on the device 3 minutes later. If OFF is chosen,
the screen will keep as it is. Default is ON.
⎯ On the left side, the main menu tree for web is listed in the page. They are
hierarchical menu. Open the function folder, a sub-menu will be shown. The
functions of each folder are described in its corresponded section respectively.
When clicking it, the function is performed. The following list is the full function
tree for web user interface.
31
Publication date: January, 2006
Revision A1
Page 40
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
g
A
y
Root
System
Port
SNMP
DHCP Boot
IGMP Snoopin
VLAN
MAC Table
GVRP
STP
Trunk
802.1x
larm
Configuration
Bandwidth
Diagnostics
Log
Reboot
Securit
QoS
TFTP Server
Firmware Upgrade
Logout
Publication date: January, 2006
Revision A1
32
Page 41
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-1-1. System Information
Function name:
System Information
Function description:
Show the basic system information.
Parameter description:
Model name:
The model name of this device.
System description:
As it is, this tells what this device is. Here, it is “8 Fast Ethernet + 2
Gigabit L2 Managed Switch”.
Location:
Basically, it is the location where this switch is put. User-defined.
Contact:
For easily managing and maintaining device, you may write down the
contact person and phone here for getting help soon. You can configure
this parameter through the device’s u ser interface or SNMP.
Device name:
The name of the switch. User-defined. Default is 065-7710.
System up time:
The time accumulated since this switch is powered up. Its format is day,
hour, minute, second.
Current time:
Show the system time of the switch. Its format: day of week, month, day,
hours : minutes : seconds, year. For instance, Tue Apr 20 23:25:58 2004
BIOS version:
The version of the BIOS in this switch.
Firmware version:
The firmware version in this switch.
Hardware-Mechanical version:
The version of Hardware and Mechanical. The figure before the hyphen
is the version of electronic hardware; the one after the hyphen is the
version of mechanical.
Serial number:
The serial number is assigned by the manufacturer.
33
Publication date: January, 2006
Revision A1
Page 42
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Host IP address:
The IP address of the switch.
Host MAC address:
It is the Ethernet MAC address of the management agent in this switch.
Device Port:
Show all types and numbers of the port in the switch.
RAM size:
The size of the DRAM in this switch.
Flash size:
The size of the flash memory in this switch.
Publication date: January, 2006
Revision A1
34
Page 43
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-1-2. IP Configuration
IP configuration is one of the most important configurations in the switch.
Without the proper setting, network manager will not be able to manage or view the
device. The switch supports both manual IP address setting and automatic IP
address setting via DHCP server. When IP address is changed, you must reboot the
switch to have the setting taken effect and use the new IP to browse for web
management and CLI management.
Fig. 3-4 IP Address Configuration
Function name:
IP Configuration
Function description:
Set IP address, subnet mask, default gateway and DNS for the switch.
Parameter description:
DHCP Setting:
DHCP is the abbreviation of Dynamic Host Configuration Protocol. Here
DHCP means a switch to turn ON or OFF the function.
The switch supports DHCP client used to get an IP address automatically
if you set this function “Enable”. When enabled, the switch will issue the
request to the DHCP server resided in the network to get an IP address.
If DHCP server is down or does not exist, the switch will issue the
request and show IP address is under requesting, until the DHCP server
is up. Before getting an IP address from DHCP server, the device will not
continue booting procedures. If set this field “Disable”, you’ll have to
input IP address manually. For more details about IP address and DHCP,
please see the Section 2-1-5 “IP Address Assignment” in this manual.
Default: Disable
35
Publication date: January, 2006
Revision A1
Page 44
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
IP address:
Users can configure the IP settings and fill in new values if users set the
DHCP function “Disable”. Then, click <Apply> button to update.
When DHCP is disabled, Default: 192.168.1.1
If DHCP is enabled, this field is filled by DHCP server and will not allow
user manually set it any more.
Subnet mask:
Subnet mask is made for the purpose to get more network address
because any IP device in a network must own its IP address, composed
of Network address and Host address, otherwise can’t communicate with
other devices each other. But unfortunately, the network classes A, B,
and C are all too large to fit for almost all networks, hence, subnet mask
is introduced to solve this problem. Subnet mask uses some bits from
host address and makes an IP address looked Network address, Subnet
mask number and host address. It is shown in the following figure. This
reduces the total IP number of a network able to support, by the amount
of 2 power of the bit number of subnet number (2^(bit number of subnet
number)).
32 bits
Network ID
Host ID
Network ID Host ID
Subnet number
Subnet mask is used to set the subnet mask value, which should be the
same value as that of the other devices resided in the same network it
attaches.
For more information, please also see the Section 2-1-5 “IP Address
Assignment” in this manual.
Default: 255.255.255.0
Default gateway:
Set an IP address for a gateway to handle those packets that do not
meet the routing rules predefined in the device. If a packet does not meet
the criteria for other pre-defined path, it must be forwarded to a default
router on a default path. This means any packet with undefined IP
address in the routing table will be sent to this device unconditionally.
Default: 192.168.1.254
Publication date: January, 2006
Revision A1
36
Page 45
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
DNS:
It is Domain Name Server used to serve the translation between IP
address and name address.
The switch supports DNS client function to re-route the mnemonic name
address to DNS server to get its associated IP address for accessing
Internet. User can specify a DNS IP address for the switch. With this, the
switch can translate a mnemonic name address into an IP address.
There are two ways to specify the IP address of DNS. One is fixed mode,
which manually specifies its IP address, the other is dynamic mode,
which is assigned by DHCP server while DHCP is enabled. DNS can
help you easily remember the mnemonic address name with the
meaningful words in it. Default is no assignment of DNS address.
Default: 0.0.0.0
37
Publication date: January, 2006
Revision A1
Page 46
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-1-3. Time Configuration
The switch provides manual and automatic ways to set the system time via
NTP. Manual setting is simple and you just input “Year”, “Month”, “Day”, “Hour”,
“Minute” and “Second” within the valid value range indicated in each item. If you
input an invalid value, for example, 61 in minute, the switch will clamp the figure to
59.
NTP is a well-known protocol used to synchronize the clock of the switch
system time over a network. NTP, an internet draft standard formalized in
has been adopted on the system is version 3 protocol. The switch provides four
built-in NTP server IP addresses resided in the Internet and an user-defined NTP
server IP address. The time zone is Greenwich-centered which uses the expression
form of GMT+/- xx hours.
Function name:
Time
Function description:
Set the system time by manual input or set it by syncing from Time servers.
The function also supports daylight saving for different area’s time adjustment.
Parameter description:
Current Time:
RFC 1305,
Show the current time of the system.
Manual:
This is the function to adjust the time manually. Filling the valid figures in
the fields of Year, Month, Day, Hour, Minute and Second respectively and
press <Apply> button, time is adjusted. The valid figures for the
parameter Year, Month, Day, Hour, Minute and Second are >=2000, 1-12,
1-31, 0-23, 0-59 and 0-59 respectively. Input the wrong figure and press
<Apply> button, the device will reject the time adjustment request. There
is no time zone setting in Manual mode.
Default: Year = 2000, Month = 1, Day = 1
Hour = 0, Minute = 0, Second = 0
Publication date: January, 2006
Revision A1
38
Page 47
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
NTP:
NTP is Network Time Protocol and is used to sync the network time
based Greenwich Mean Time (GMT). If use the NTP mode and select a
built-in NTP time server or manually specify an user-defined NTP server
as well as Time Zone, the switch will sync the time in a short after
pressing <Apply> button. Though it synchronizes the time automatically,
NTP does not update the time periodically without user’s processing.
Time Zone is an offset time off GMT. You have to select the time zone
first and then perform time sync via NTP because the switch will combine
this time zone offset and updated NTP time to come out the local time,
otherwise, you will not able to get the correct time. The switch supports
configurable time zone from –12 to +13 step 1 hour.
Default Time zone: +8 Hrs.
Daylight Saving:
Daylight saving is adopted in some countries. If set, it will adjust the time
lag or in advance in unit of hours, according to the starting date and the
ending date. For example, if you set the day light saving to be 1 hour.
When the time passes over the starting time, the system time will be
increased one hour after one minute at the time since it passed over. And
when the time passes over the ending time, the system time will be
decreased one hour after one minute at the time since it passed over.
The switch supports valid configurable day light saving time is –5 ~ +5
step one hour. The zero for this parameter means it need not have to
adjust current time, equivalent to in-act daylight saving. You don’t have to
set the starting/ending date as well. If you set daylight saving to be nonzero, you have to set the starting/ending date as well; otherwise, the
daylight saving function will not be activated.
Default for Daylight Saving: 0.
The following parameters are configurable for the function Daylight
Saving and described in detail.
Day Light Saving St art :
This is used to set when to start performing the day light saving time.
Mth:
Range is 1 ~ 12.
Default: 1
Day:
Range is 1 ~ 31.
Default: 1
Hour:
Range is 0 ~ 23.
Default: 0
Publication date: January, 2006
Revision A1
39
Page 48
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Day Light Saving End :
This is used to set when to stop performing the daylight saving time.
Mth:
Range is 1 ~ 12.
Default: 1
Day:
Range is 1 ~ 31.
Default: 1
Hour:
Range is 0 ~ 23.
Default: 0
Publication date: January, 2006
Revision A1
Fig. 3-5
40
Page 49
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-1-4. Account Configuration
In this function, only administrator can create, modify or delete the username
and password. Administrator can modify other guest identities’ password without
confirming the password but it is necessary to modify the administrator-equivalent
identity. Guest-equivalent identity can modify his password only. Please note that
you must confirm administrator/guest identity in the field of Authorization in advance
before configuring the username and password. Only one administrator is allowed
to exist and unable to be deleted. In addition, up to 4 guest accounts can be created.
The default setting for user account is:
Username : admin
Password : admin
The default setting for guest user account is:
Username : guest
Password : guest
Fig. 3-6
41
Publication date: January, 2006
Revision A1
Page 50
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-1-5. Management Security
Through the management security configuration, the manager can do the
strict setup to control the switch and limit the user to access this switch.
The following rules are offered for the manager to manage the switch:
Rule 1) : When no lists exists, then it will accept all connections.
Accept
-----------------------------------------------------------------------
Rule 2) : When only “accept lists” exist, then it will deny all connections,
excluding the connection inside of the accepting range.
Accept Deny Accept Deny Accept
-----------------------------------------------------------------------
Rule 3) : When only “deny lists” exist, then it will accept all connections,
excluding the connection inside of the denying range.
Deny Accept Deny Accept Deny
-----------------------------------------------------------------------
Rule 4) : When both “accept and deny” lists exist, then it will deny all
connections, excluding the connection inside of the accepting range.
Accept Deny Deny Deny Accept
-----------------------------------------------------------------------
Rule 5) : When both “accept and deny” lists exist, then it will deny all
connections, excluding the connection inside of the accepting range and NOT
inside of the denying range at the same time.
Accept
Deny
Accept
Deny| Acc | Deny | Acc | Deny
----------------------------------------------------------------------
Publication date: January, 2006
Revision A1
42
Page 51
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function name:
Management Security Configuration
Function description:
The switch offers Management Security Configuration function. With this
function, the manager can easily control the mode that the user connects to
the switch. According to the mode, users can be classified into two types:
Those who are able to connect to the switch (Accept) and those who are
unable to connect to the switch (Deny). Some restrictions also can be placed
on the mode that the user connect to the switch, for example, we can decide
that which VLAN VID is able to be accepted or denied by the switch, the IP
range of the user could be accepted or denied by the switch, the port that the
user is allowed or not allowed to connect with the switch, or the way of
controlling and connecting to the switch via Http, Telnet or SNMP.
Parameter description:
Name:
A name is co mposed of any letter (A-Z, a-z) and digit (0-9) with maximal
8 characters.
VID:
The switch supports two kinds of options for managed valid VLAN VID,
including “Any” and “Custom”. Default is “Any”. When you choose
“Custom”, you can fill in VID number. The valid VID range is 1~4094.
Fig. 3-7
Publication date: January, 2006
Revision A1
43
Page 52
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
IP Range:
The switch supports two kinds of options for managed valid IP Range,
including “Any” and “Custom”. Default is “Any”. In case that” Custom”
had been chosen, you can assigned effective IP range. The valid range
is 0.0.0.0~255.255.255.255.
Incoming Port:
The switch supports two kinds of options for managed valid Port Range,
including “Any” and “Custom”. Default is “Any”. You can select the ports
that you would like them to be worked and restricted in the management
security configuration if ”Custom” had been chosen.
Access T ype:
The switch supports two kinds of options for managed valid Access Type,
including “Any” and “Custom”. Default is “Any”. “Http”, “Telnet” and
“SNMP” are three ways for the access and managing the switch in case
that” Custom” had been chosen.
Action:
The switch supports two kinds of options for managed valid Action Type,
including “Deny” and “Accept”. Default is “Deny”. When you choose
“Deny” action, you will be restricted and refused to manage the swtich
due to the “Access Type” you choose. However, while you select
“Accept” action, you will have the authority to manage t
he switch.
Edit/Create:
A new entry of Management Security Configuration can be created after
the parameters as mentioned above had been setup and then press
<Edit/Create> button. Of course, the existed entry also can be modified
by pressing this button.
Delete:
Remove the existed entry of Management Security Configuration from
the management security table.
Publication date: January, 2006
Revision A1
44
Page 53
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-1-6. Virtual Stack
Function name:
Virtual Stack
Function description:
Virtual Stack Management(VSM) is the group management function. Through
the proper configuration of this function, switches in the same LAN will be
grouped automatically. And among these switch, one switch will be a master
machine, and the others in this group will become the slave devices.
VSM offers a simple centralized management function. It is not necessary to
remember the address of all devices, manager is capable of managing the
network with knowing the address of the Master machine. Instead of SNMP or
Telnet UI, VSM is only available in Web UI. While one switch become the
Master, two rows of buttons for group device will appear on the top of its Web
UI. By pressing these buttons, user will be allowed to connect the Web UI of
the devices of the group in the same window without the login of these device.
The most top-left button is only for Master device(See Fig.3-9). The
background color of the button you press will be changed to represent that the
device is under your management.
Note: It will remove the grouping temporarily in case that you login the switch
via the console.
The device of the group will be shown as station address ( the last number of
IP Address) + device name on the button (e.g. 196_065-7710), otherwise it
will show ” ---- “ if no corresponding device exists.
Once the devices join the group successfully, then they are merely able to be
managed via Master device, and user will fail to manage them via
telnet/console/web individually.
Up to 16 devices can be grouped for VSM, however, only one Master is
allowed to exist in each group. For Master redundancy, user may configure
more than two devices as Master device, however, the Master device with the
smaller MAC value will be the Master one. All of these 16 devices can
become Master device and back up with each other .
45
Publication date: January, 2006
Revision A1
Page 54
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Parameter description:
State:
It is used for the activation or de-activation of VSM. Default is Enable.
Role:
The role that the switch would like to play in virtual stack. Two types of
roles, including master and slave are offered for option. Default is Master.
Group ID:
It is the group identifier (GID) which signs for VSM. Valid letters are A-Z,
a-z, 0-9, “
- “ and “_” characters. The maximal length is 15 characters.
Fig. 3-8
Publication date: January, 2006
Revision A1
Fig. 3-9
46
Page 55
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-2. Port Configuration
Four functions, including Port Status, Port Configuration, Simple Counter and
Detail Counter are contained in this function folder for port monitor and
management. Each of them will be described in detail orderly in the following
sections.
Port Configuration
Status
Configuration
Simple Counter
Detail Counter
3-2-1.Port Status
The function Port Status gathers the information of all ports’ current status
and reports it by the order of port number, media, link status, port state, AutoNegotiation status, speed/duplex, Rx Pause and Tx Pause. An extra media type
information for the module ports 9 and 10 is also offered (See Fig. 3-11).
Fig. 3-10
47
Publication date: January, 2006
Revision A1
Page 56
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function name:
Port Status
Function Description:
Report the latest updated status of all ports in this switch. When any one of the
ports in the switch changes its parameter displayed in the page, it will be
automatically refreshed the port current status about every 5 seconds.
Parameter Description:
Port No:
Display the port number. The number is 1 – 10. Both port 9 and 10 are
optional modules.
Media:
Show the media type adopted in all ports. The Port 9 and Port 10 are
optional modules, which support either fiber or UTP media with either
Gigabit Ethernet (1000Mbps) or 10/100Mbps Fast Ethernet port. They
may have different media types and speed. Especially, fiber port has
comprehensive types of connector, distance, fiber mode and so on. The
switch describes the module ports with the followi ng page.
Link:
Show that if the link on the port is active or not. If the link is connected to
a working-well device, the Link will show the link “Up”; otherwise, it will
show “Down”. This is determined by the hardware on both devices of the
connection.
No default value.
State:
Show that the communication function of the port is “Enabled” or
“Disabled”. When it is enabled, traffic can be transmitted and received via
this port. When it is disabled, no traffic can be transferred through this
port. Port State is configured by user.
Default: Enabled.
Auto Nego.:
Show the exchange mode of Ethernet MAC. There are two modes
supported in the switch. They are auto-negotiation mode “Enabled” and
forced mode “Disabled”. When in “Enabled” mode, this function will
automatically negotiate by hardware itself and exchange each other the
capability of speed and duplex mode with other site which is linked, and
comes out the best communication way. When in “Disabled” mode, both
parties must have the same setting of speed and duplex, otherwise, both
of them will not be linked. In this case, the link result is “Down”.
Default: Enabled
Publication date: January, 2006
Revision A1
48
Page 57
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Speed / Duplex :
Display the speed and duplex of all port. There are three speeds 10Mbps,
100Mbps and 1000Mbps supported for TP media, and the duplex
supported is half duplex and full duplex. If the media is 1Gbps fiber, it is
1000Mbps supported only. The status of speed/duplex mode is
determined by 1) the negotiation of both local port and link partner in
“Auto Speed” mode or 2) user setting in “Force” mode. The local port has
to be preset its capability.
In port 1 – 8, they are supported Fast Ethernet with TP media only, so
the result will show 100M/Full or 100M/Half, 10M/Full and 10M/Half
duplex.
In port 9 and port 10, if the media is 1000Mbps with TP media, it will
show the combinations of 10/100M and Full/Half duplex, 1000Mbps and
Full duplex only. If the media is 1000Mbps with fiber media, it will show
only 1000M/Full duplex.
Default: None, depends on the result of the negotiation.
Rx Pause:
The way that the port adopts to process the PAUSE frame. If it shows
“on”, the port will care the PAUSE frame; otherwise, the port will ignore
the PAUSE frame.
Default: None
Tx Pause:
It decides that whether the port transmits the PAUSE frame or not. If it
shows “on”, the port will send PAUSE frame; otherwise, the port will not
send the PAUSE frame.
Default: None
49
Publication date: January, 2006
Revision A1
Page 58
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Fig. 3-11
Parameter description of Port 9 and Port 10:
Connector Type:
Display the connector type, for instance, UTP, SC, ST, LC and so
on.
Fiber Type:
Display the fiber mode, for instance, Multi-Mode, Single-Mode.
Tx Central Wavelength:
Display the fiber optical transmitting central wavelength, for
instance, 850nm, 1310nm, 1550nm and so on.
Baud Rate:
Display the maximum baud rate of the fiber module supported, for
instance, 10M, 100M, 1G and so on.
Vendor OUI:
Display the Manufacturer's OUI code which is assigned by IEEE.
Vendor Name:
Display the company name of the module manufacturer.
Vendor P/N:
Display the product name of the naming by module manufacturer.
Vendor Rev (Revisi on):
Display the module revision.
Publication date: January, 2006
Revision A1
50
Page 59
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Vendor SN (Serial Number):
Show the serial number assigned by the manufacturer.
Date Code:
Show the date this module was made.
Temperature:
Show the current temperature of module.
Vcc:
Show the working DC voltage of module.
Mon1(Bias) mA:
Show the Bias current of module.
Mon2(TX PWR):
Show the transmit power of module.
Mon3(RX PWR):
Show the receiver power of module.
51
Publication date: January, 2006
Revision A1
Page 60
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-2-2. Port Configuration
Port Configuration is applied to change the setting of each port. In this
configuration function, you can set/reset the following functions. All of them are
described in detail below.
Fig. 3-12
Function name:
Port Configuration
Function description:
It is used to set each port’s operation mode. The switch supports 3 parameters
for each port. They are State, S peed/Duplex and Flow Control.
Parameter description:
State:
Set the communication capability of the port is Enabled or Disabled.
When enabled, traffic can be transmitted and received via this port.
When disabled, the port is blocked and no traffic can be transferred
through this port. Port State is configurable by the user. There are only
two states “Enable” and “Disable” able to choose. If you set a port’s state
“Disable”, then that port is prohibited to pass any traffic, even it looks
Link up.
Default: Enable.
Publication date: January, 2006
Revision A1
52
Page 61
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Speed/Duplex:
Set the speed and duplex of the port. In speed, 10/100Mbps baud rate is
available for Fast Ethernet, Gigabit module in port 9, 10. If the media is
1Gbps fiber, it is always 1000Mbps and the duplex is full only. If the
media is TP, the Speed/Duplex is comprised of the combination of speed
mode, 10/100/1000Mbps, and duplex mode, full duplex and half duplex.
The following table summarized the function the media supports.
Media type NWay Speed Duplex
100M TP ON/OFF 10/100M Full/Half
1000M TP ON/OFF 10/100/1000M Full for all, Half for 10/100
1000M Fiber ON/OFF 1000M Full
In Auto-negotiation mode, no default value. In Forced mode, default
value depends on your setting.
Flow Control:
There are two modes to choose in flow control, including Symmetric and
Asymmetric. If flow control is set Symmetric, both parties can send
PAUSE frame to the transmitting device(s) if the receiving port is too
busy to handle. When it is set Asymmetric, this will let the receiving port
care the PAUSE frame from transmitting device(s), but it doesn’t send
PAUSE frame. This is one-way flow control.
Default: Symmetric.
53
Publication date: January, 2006
Revision A1
Page 62
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-2-3. Simple Counter
The function of Simple Counter collects any information and provides the
counting about the traffic of the port, no matter the packet is good or bad.
In the Fig. 3-13, the window can show all ports’ counter information at the
same time. Each data field has 20-digit long. If the counting is overflow, the counter
will be reset and restart counting. The data is updated every time interval defined by
the user. The valid range is 3 to 10 seconds. The Refresh Interval is used to set the
update frequency. Default update time is 3 seconds.
Fig. 3-13
Function name:
Simple Counter
Function description:
Display the summary counting of each port’s traffic, including Tx Byte, Rx Byte,
Tx Packet, Rx Packet, Tx Collision and Rx Error Packet.
Parameters description:
Tx Byte:
Total transmitted bytes.
Rx Byte:
Total received bytes.
Tx Packet:
The counting number of the packet transmitted.
Publication date: January, 2006
Revision A1
54
Page 63
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Rx Packet:
The counting number of the packet received.
Tx Collision:
Number of collisions transmitting frames experienced.
Rx Error Packet:
Number of bad packets received.
55
Publication date: January, 2006
Revision A1
Page 64
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-2-4. Detail Counter
The function of Detail Counter collects any information and provides the
counting about the traffic of the port, no matter the packet is good or bad.
In the Fig. 3-14, the window can show only one port counter information at
the same time. To see another port’s counter, you have to pull down the list of
Select, then you will see the figures displayed about the port you had chosen.
Each data field has 20-digit long. If the counting is overflow, the counter will
be reset and restart counting. The data is updated every time interval defined by the
user. The valid range is 3 to 10 seconds. The Refresh Interval is used to set the
update frequency. Default update time is 3 seconds.
Fig. 3-14
Function name:
Detail Counter
Function description:
Display the detailed counting number of each port’s traffic. In the Fig. 3-14, the
window can show all counter information of each port at one time.
Parameter description:
Rx Packets:
The counting number of the packet received.
Rx Octets:
Total received bytes.
Rx Errors:
Number of bad packets received.
Publication date: January, 2006
Revision A1
56
Page 65
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Rx Unicast Packets:
Show the counting number of the received unicast packet.
Rx Broadcast Packets:
Show the counting number of the received broadcast packet.
Rx Multicast Packets:
Show the counting number of the received multicast packet.
Rx Pause Packets:
Show the counting number of the received pause packet.
Tx Collisions:
Number of collisions transmitting frames experienced.
Tx Single Collision:
Number of frames transmitted that experienced exactly one collision.
Tx Multiple Collision:
Number of frames transmitted that experienced more than one collision.
Tx Drop Packets:
Number of frames dropped due to excessive collision, late collision, or
frame aging.
Tx Deferred Transmit:
Number of frames delayed to transmission due to the medium is busy.
Tx Late Collision:
Number of times that a collision is detected later than 512 bit-times into
the transmission of a frame.
Tx Excessive Collision:
Number of frames that are not transmitted because the frame
experienced 16 transmission attempts.
Packets 64 Octets:
Number of 64-byte frames in good and bad packets received.
Packets 65-127 Octets:
Number of 65 ~ 127-byte frames in good and bad packets received.
Packets 128-255 Octets:
Number of 128 ~ 255-byte frames in good and bad packets received.
Packets 256-511 Octets:
Number of 256 ~ 511-byte frames in good and bad packets received.
57
Publication date: January, 2006
Revision A1
Page 66
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Packets 512-1023 Octets:
Number of 512 ~ 1023-byte frames in good and bad packets recei v ed.
Packets 1024-1522 Octets:
Number of 1024-1522-byte frames in good and bad packets received.
Tx Packets:
The counting number of the packet transmitted.
TX Octets:
Total transmitted bytes.
Tx Unicast Packets:
Show the counting number of the transmitted unicast packet.
Tx Broadcast Packets:
Show the counting number of the transmitted broadcast packet.
Tx Multicast Packets:
Show the counting number of the transmitted multicast packet.
Tx Pause Packets:
Show the counting number of the transmitted pause packet.
Rx FCS Errors:
Number of bad FSC packets received.
Rx Alignment Errors:
Number of Alignment errors packets received.
Rx Fragments:
Number of short frames (< 64 bytes) with invalid CRC.
Rx Jabbers:
Number of long frames(according tomax_length register) with invalid
CRC.
Rx Drop Packets:
Frames dropped due to the lack of receiving buffer.
Rx Undersize Packets:
Number of short frames (<64 Bytes) with valid CRC.
Rx Oversize Packets:
Number of long frames(according to max_length register) with valid CRC.
Publication date: January, 2006
Revision A1
58
Page 67
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-3. SNMP Configuration
Any Network Management System (NMS) running the Simple Network
Management Protocol (SNMP) can manage the Managed devices equipped with
SNMP agent, provided that the Management Information Base (MIB) is installed
correctly on the managed devices. The SNMP is a protocol that is used to govern
the transfer of information between SNMP manager and agent and traverses the
Object Identity (OID) of the management Information Base (MIB), described in the
form of SMI syntax. SNMP agent is running on the switch to response the request
issued by SNMP manager.
Basically, it is passive except issuing the trap information. The switch
supports a switch to turn on or off the SNMP agent. If you set the field SNMP
“Enable”, SNMP agent will be started up. All supported MIB OIDs, including RMON
MIB, can be accessed via SNMP manager. If the field SNMP is set “Disable”, SNMP
agent will be de-activated, the related Community Name, Trap Host IP Address,
Trap and all MIB counters will be ignored.
Function name:
SNMP Configuration
Function description:
This function is used to configure SNMP settings, community name, trap host
and public traps as well as the throttle of SNMP. A SNMP manager must pass the
authentication by identifying both community names, then it can access the MIB
information of the target device. So, both parties must have the same community
name. Once completing the setting, click <Apply> button, the setting takes effect.
Parameters description:
SNMP:
The term SNMP here is used for the activation or de-activation of SNMP.
Default is Enable.
Get/Set/Trap Community:
Community name is used as password for authenticating if the
requesting network management unit belongs to the same community
group. If they both don’t have the same community name, they don’t
belong to the same group. Hence, the requesting network management
unit can not access the device with different community name via SNMP
protocol; If they both have the same community name, they can talk each
other.
Community name is user-definable with a maximum length of 15
characters and is case sensitive. There is not allowed to put any blank in
the community name string. Any printable character is allowable.
The community name for each function works independently. Each
function has its own community name. Say, the community name for
GET only works for GET function and can’t be applied to other function
such as SET and Trap.
Publication date: January, 2006
Revision A1
59
Page 68
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Default SNMP function : Enable
Default community name for GET: public
Default community name for SET: private
Default community name for Tra p: public
Default Set function : Enable
Default trap host IP address: 0.0.0.0
Default port number :162
Trap:
In the switch, there are 6 trap hosts supported. Each of them has its own
community name and IP address; is user-definable. To set up a trap host
means to create a trap manager by assigning an IP address to host the
trap message. In other words, the trap host is a network management
unit with SNMP manager receiving the trap message from the managed
switch with SNMP agent issuing the trap message. 6 trap hosts can
prevent the important trap message from losing.
For each public trap, the switch supports the trap event Cold Start, Warm
Start, Link Down, Link Up and Authentication Failure Trap. They can be
enabled or disabled individually. When enabled, the corresponded trap
will actively send a trap message to the trap host when a trap happens. If
all public traps are disabled, no public trap message will be sent. As to
the Enterprise (no. 6) trap is classified as private trap, which are listed in
the Trap Alarm Configuration function folder.
Default for all public traps: Enable.
Fig. 3-15 Community and trap host setting
Publication date: January, 2006
Revision A1
60
Page 69
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-4. DHCP Boot
The DHCP Boot function is used to spread the request broadcast packet into
a bigger time frame to prevent the traffic congestion due to broadcast packets from
many network devices which may seek its NMS, boot server, DHCP server and
many connections predefined when the whole building or block lose the power and
then reboot and recover. At this moment, a bunch of switch or other network device
on the LAN will try its best to find the server to get the services or try to set up the
predefined links, they will issue many broadcast packets in the network.
The switch supports a random delay time for DHCP and boot delay for each
device. This suppresses the broadcast storm while all devices are at booting stage
in the same time. The maximum user-defined delay time is 30 sec. If DHCP
Broadcasting Suppression function is enabled, the delay time is set randomly,
ranging from 0 to 30 seconds, because the exactly delay time is computed by the
switch itself. The default is “Disable”.
Fig. 3-16
61
Publication date: January, 2006
Revision A1
Page 70
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-5. IGMP Snooping
The function, IGMP Snooping, is used to establish the multicast groups to
forward the multicast packet to the member ports, and, in nature, avoids wasting the
bandwidth while IP multicast packets are running over the network. This is because
a switch that does not support IGMP or IGMP Snooping can not tell the multicast
packet from the broadcast packet, so it can only treat them all as the broadcast
packet. Without IGMP Snooping, the multicast packet forwarding function is plain
and nothing is different from broadcast packet.
A switch supported IGMP Snooping with the functions of query, report and
leave, a type of packet exchanged between IP Multicast Router/Switch and IP
Multicast Host, can update the information of the Multicast table when a member
(port) joins or leaves an IP Multicast Destination Address. With this function, once a
switch receives an IP multicast packet, it will forward the packet to the members
who joined in a specified IP multicast group before.
The packets will be discarded by the IGMP Snooping if the user transmits
multicast packets to the multicast group that had not been built up in advance.
Fig. 3-17
Function name:
IGMP Snooping Status
Function description:
IGMP is used to snoop the status of IP multicast groups and display its
associated information in both tagged VLAN and non-tagged VLAN networks.
Enabling IGMP with either passive or active mode, you can monitor the IGMP
snooping information, which contains the multicast member list with the
multicast groups, VID and member port.
Publication date: January, 2006
Revision A1
62
Page 71
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Parameter description:
IGMP snooping mode selection:
The switch supports three kinds of IGMP Snooping status, including
“Passive”, “Active” and “Disable”.
Disable:
Set “Disable” mode to disable IGMP Snooping function.
Default: Disable
Active:
In Active mode, IGMP snooping switch will periodically issue the
Membership Query message to all hosts attached to it and
gather the Membership report message to update the database
of the Multicast table. By the way, this also reduces the
unnecessary multicast traffic.
Passive:
In Passive Snooping mode, the IGMP snooping will not
periodically poll the hosts in the groups. The switch will send a
Membership Query message to all hosts only when it has
received a Membership Query message from a router.
IP Address:
Show all multicast groups IP addresses that are registered on this device.
VLAN ID:
Show VLAN ID for each multicast group.
Member Port:
Show member ports that join each multicast group. Member port may be
only or more than one.
63
Publication date: January, 2006
Revision A1
Page 72
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function name:
Allowed Group
Function description:
The Allowed Group function allows the IGMP Snooping to set up the IP
multicast table based on user’s specific conditions. IGMP report packets that
meet the items you set up will be joined or formed the multicast group.

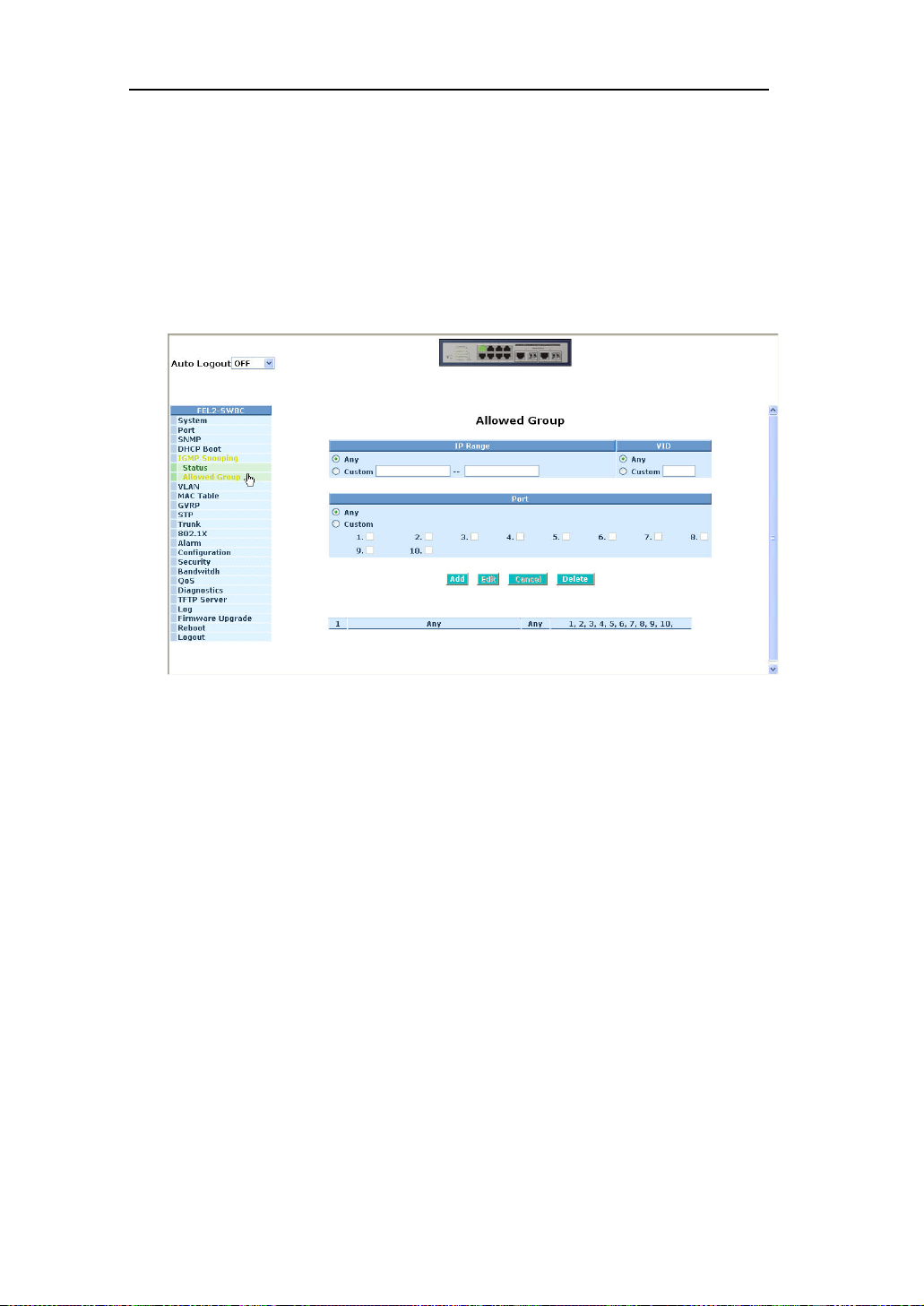

Fig. 3-18
Parameter description:
IP Range:
The switch supports two kinds of options for managed valid IP range,
including “Any” and “Custom”. Default is “Any”. In case that” Custom”
had been chosen, you can assigned effective IP range. The valid range
is 224.0.0.0~239.255.255.255.
VID:
The switch supports two kinds of options for managed valid VLAN VID,
including “Any” and “Custom”. Default is “Any”. When you choose
“Custom”, you can fill in VID number. The valid VID range is 1~4094.
Port:
The switch supports two kinds of options for managed valid port range,
including “Any” and “Custom”. Default is “Any”. You can select the ports
that you would like them to be worked and restricted in the allowed group
configuration if ”Custom” had been chosen.
Publication date: January, 2006
Revision A1
64
Page 73
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Add:
A new entry of
parameters as mentioned above had been setup and then press <Add>
button.
Edit:
The existed entry also can be modified after pressing <Edit> button.
Delete:
Remove the existed entry of allowed group configuration from the
allowed group.
allowed group configuration can be created after the
65
Publication date: January, 2006
Revision A1
Page 74
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-6. VLAN
The switch supports Tag-based VLAN (802.1q) and Port-based VLAN.
Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to
partition your LAN into small ones as your demand. Properly configuring it, you can
gain not only improving security and increasing performance but greatly reducing
VLAN management.
3-6-1. VLAN Mode
Function name:
VLAN Mode Setting
Function description:
The VLAN Mode Selection function includes two modes: Port-based and Tagbased, you can choose one of them by pulling down list and pressing the
<Downward> arrow key. Then, click <Apply> button, the settings will take
effect immediately.
Parameter description:
VLAN Mode:
Tag-based:
This is the default setting.
Tag-based VLAN identifies its member by VID. This is quite
different from port-based VLAN. If there are any more rules in
ingress filtering list or egress filtering list, the packet will be
screened with more filtering criteria to determine if it can be
forwarded. The switch supports supplement of 802.1q..
Each tag-based VLAN you built up must be assigned VLAN name
and VLAN ID. Valid VLAN ID is 1-4094. User can create total up to
256 Tag VLAN groups.
Port-based:
Port-based VLAN is defined by port. Any packet coming in or
outgoing from any one port of a port-based VLAN will be accepted.
No filtering criterion applies in port-based VLAN. The only criterion
is the physical port you connect to. For example, for a port-based
VLAN named PVLAN-1 contains port members Port 1&2&3&4. If
you are on the port 1, you can communicate with port 2&3&4. If you
are on the port 5, then you cannot talk to them. Each port-based
VLAN you built up must be assigned a group name. This switch can
support up to maximal 26 port-based VLAN groups.
Publication date: January, 2006
Revision A1
66
Page 75
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Symmetric Vlan:
This is a Ingress Rule (Rule 1, The Ingress Filtering Rule 1 is “forward
only packets with VID matching this port’s configured VID”.). For example,
if port 1 receives a tagged packet with VID=100 (VLAN name=VLAN100),
and if Symmetric-Vlan function is enabled, the switch will check if port 1
is a member of VLAN100. If yes, the received packet is forwarded;
otherwise, the received packet is dropped.
Note: If Symmetric is enabled and port 1, for example, receives an untagged packet,
the switch will apply the PVID of port 1 to tag this packet, the packet then will
be forwarded. But if the PVID of port 1 is not 100, the packet will be dropped.
SVL:
While SVL is enable, all VLANs use the same filtering database storing
the membership information of the VLAN to learn or look up the
membership information of the VLAN. While SVL is disable, it means
learning mode is IVL. In this mode, different VLAN uses different filtering
database storing the membership information of the VLAN to learn or
look up the information of a VLAN member.
Double Tag:
Double-tag mode belongs to the tag-based mode, however, it would treat
all frames as the untagged ones, which means that tag with PVID will be
added into all packets. Then, these packets will be forwarded as Tagbased VLAN. So, the incoming packets with tag will become the doubletag ones.
Fig. 3-19
Publication date: January, 2006
Revision A1
67
Page 76
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-6-2. Tag-based Group
Function name:
Tag-based Group Configuration
Function description:
It shows the information of existed Tag-based VLAN Groups. You can also
easily create, edit and delete a Tag-based VLAN group by pressing <Add>,
<Edit> and <Delete> function buttons. User can add a new VLAN group by
inputting a new VLAN name and VLAN ID after pressing <Add> button.
Parameter description:
VLAN Name:
The name defined by administrator is associated with a VLAN group.
Valid letters are A-Z, a-z, 0-9, “
length is 15 characters.
VID:
VLAN identifier. Each tag-based VLAN group has a unique VID. It
appears only in tag-based and Double-tag mode.
Member:
- “ and “_” characters. The maximal
This is used to enable or disable if a port is a member of the new added
VLAN, “Enable” means it is a member of the VLAN. Just tick the check
box beside the port x to enable it.
Fig. 3-20
Publication date: January, 2006
Revision A1
68
Page 77
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Add Group:
Input the VLAN name, VID and then choose the member by ticking the
check box beside the port No. to create a new Tag-based VLAN. As to
the parameter of Untag, it stands for an egress rule of the port. If you tick
the check box beside the port No., packets with this VID outgoing from
this port will be untagged. Finally, press the <Apply> button to have the
setting taken effect.
Fig. 3-21
Delete Group:
Just press the <Delete> button to remove the selected group entry from
the Tag-based group table.
Fig. 3-22
Edit a group:
Just select a group entry and press the <Edit> button, then you can
modify a group’s description, member and untag settings.
Publication date: January, 2006
Revision A1
69
Page 78
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-6-3. PVID
Function name:
PVID
Function description:
In PVID Setting, user can input VID number to each port. The range of VID
number is from 1 to 4094. User also can choose ingress filtering rule (Rule 2)
to each port. The Ingress Filtering Rule 2 is “drop untagged frame”. While Rule
2 is enabled, the port will discard all Untagged-frames.
Fig. 3-23
Parameter description:
Port 1-10:
Port number.
PVID:
This PVID range will be 1-4094. Before you set a number x as PVID, you
have to create a Tag-based VLAN with VID x. For example, if port x
receives an untagged packet, the switch will apply the PVID (assume as
VID y) of port x to tag this packet, the packet then will be forwarded as
the tagged packet with VID y.
Default Priority:
It bases on 802.1p QoS and affects untagged packets. When the packets
enter the switch, it would get the priority precedence according to your
Default Priority setting and map to 802.1p priority setting in QoS function.
For example, while you set Default Priority of port 2 with 2 and transmit
untagged packets to port 2, these packets will own priority 2 precedence
due to your default 802.1p Priority Mapping setting in QoS function and
be put into Queue 1.
Publication date: January, 2006
Revision A1
70
Page 79
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Drop Untag:
Drop untagged frame. You can configure a given port to accept all frames
(Tagged and Untagged) or just receive tagged frame. If the former is the
case, then the packets with tagged or untagged will be processed. If the
later is the case, only the packets carrying VLAN tag will be processed,
the rest packets will be discarded.
71
Publication date: January, 2006
Revision A1
Page 80
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-6-4. Port-based Group
Function name:
Port-based Group Configuration
Function description:
It shows the information of the existed Port-based VLAN Groups. You can
easily create, edit and delete a Port-based VLAN group by pressing <Add>,
<Edit> and <Delete> function buttons. User can add a new VLAN group by
inputting a new VLAN name.
Parameter description:
VLAN Name:
The name defined by administrator is associated with a VLAN group.
Valid letters are A-Z, a-z, 0-9, “
length is 15 characters.
Member:
This is used to enable or disable if a port is a member of the new added
VLAN, “Enable” means it is a member of the VLAN. Just tick the check
box beside the port x to enable it.
- “ and “_” characters. The maximal
Publication date: January, 2006
Revision A1
Fig. 3-24
72
Page 81
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Add Group:
Create a new Port-based VLAN. Input the VLAN name and choose the
member by ticking the check box beside the port No., then, press the
<Apply> button to have the setting taken effect.
Fig. 3-25
Delete Group:
Edit a group:
Just press the <Delete> button to remove the selected group entry from
the Port-based group table.
Fig. 3-26
Just select a group entry and press the <Edit> button, then you can
modify a group‘s description and member set.
73
Publication date: January, 2006
Revision A1
Page 82
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-7. MAC Table
MAC Table Configuration gathers many functions, including MAC Table
Information, MAC Table Maintenance, Static and MAC Alias, which cannot be
categorized to some function type. They are described below.
Function name:
MAC Table Information
Function Description:
Display the static or dynamic learning MAC entry and the state for the selected
port.
Parameter description:
Port:
Select the port you would like to inquire.
Search:
Set up the MAC entry you would like to inquire.
The default is ??-??-??-??-??-??
MAC:
Display the MAC address of one entry you selected from the searched
MAC entries table.
Alias:
Set up the Alias for the sel ected MAC entry.
Set Alias:
Save the Alias of MAC entry you set up.
Search:
Find the entry that meets your setup.
Previous Page:
Move to the previous page.
Next Page:
Move to the next page.
Alias:
The Alias of the searched entry.
MAC Address:
The MAC address of the searched entry.
Publication date: January, 2006
Revision A1
74
Page 83
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Port:
The port that exists in the searched MAC Entry.
VID:
VLAN Group that MAC Entry exists.
State:
Display the method that this MAC Entry is built. It may show “Dynamic
MAC” or “Static MAC”.
Fig. 3-27
75
Publication date: January, 2006
Revision A1
Page 84
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function Name:
MAC Table Maintenance
Function Description:
This function can allow the user to set up the processing mechanism of MAC
Table. An idle MAC address exceeding MAC Address Age-out Time will be
removed from the MAC Table. The range of Age-out Time is 10-1000000
seconds, and the setup of this time will have no effect on static MAC
addresses.
In addition, the learning limit of MAC maintenance is able to limit the amount
of MAC that each port can learn.
Parameter description:
Aging Time:
Delete a MAC address idling for a period of time from the MAC Table,
which will not affect static MAC address. Range of MAC Address Aging
Time is 10-1000000 seco nds. The default Aging Time is 300 seconds.
Learning Limit:
To set up the maximum amount of MAC that each port can learn. Valid
value of learning limit for port 1~8 ranges from 0-8191. As to port 9~port
10, only the fixed value “8192” is assigned to these two ports and user
cannot configure this value.
Publication date: January, 2006
Revision A1
Fig. 3-28
76
Page 85
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function Name:
Static Setting
Function Description:
The function of Static is used to configure MAC’s real manners inside of the
switch. Three kinds of manners including static, static with destination drop
and static with source drop are contained in this function .
As “static” is chosen, assign a MAC address to a specific port, all of the
switch’s traffics sent to this MAC address will be forwarded to this port.
As “static with destination drop” is chosen, the packet will be dropped if its DA
is equal to the value you set up. Due to this setting belongs to the global one,
so, it may affect all ports’ transmission of the packets.
As “static with source drop” is chosen, the packet will be dropped if its SA is
equal to the value you set up. Due to this setting belongs to the global one, so,
it may affect all ports’ transmission of the packets.
Parameter description:
MAC:
It is a six-byte long Ethernet hardware address and usually expressed by
hex and separated by hyphens. For example,
00 – 40 - C7 - D6 – 00 - 01
VID:
VLAN identifier. This will be filled only when tagged VLAN is applied.
Valid range is 1 ~ 4094.
Fig. 3-29
Publication date: January, 2006
Revision A1
77
Page 86
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Queue (Priority):
Set up the priority( 0~3) for the MAC.
Forwarding Rule(Drop Policy):
Static:
A MAC address is assigned to a specific port, all of the switch’s
traffics sent to this MAC address will be forwarded to this port.
Static with Destination Drop:
While the DA of the incoming packets meets the value you set up,
these packets will be dropped.
Static with Source Drop:
While the SA of the incoming packets meets the value you set up,
these packets will be dropped.
Port :
Select the port No. you would like to do setup in the switch. It is 1 ~10.
Publication date: January, 2006
Revision A1
78
Page 87
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function name:
MAC Alias
Function description:
MAC Alias function is used to let you assign MAC address a plain English
name. This will help you tell which MAC address belongs to which user in the
illegal access report. At the initial time, it shows all pairs of the existed alias
name and MAC address.
There are three MAC alias functions in this function folder, including MAC Alias
Add, MAC Alias Edit and MAC Alias Delete. You can click <Create/Edit>
button to add/modify a new or an existed alias name for a specified MAC
address, or mark an existed entry to delete it. Alias name must be composed
of A-Z, a-z and 0-9 only an d has a maximal length of 15 characters.
Function name:
MAC Alias Create/Edit or Delete
Function description:
In the MAC Alias function, MAC Alias Add/Edit function is used to let you add
or modify an association between MAC address and a plain English name.
User can click <Create/Edit> button to add a new record with name.
As to MAC Alias Delete function is used to let you remove an alias name to a
MAC address. You can select an existed MAC address or alias name to
remove.
Fig. 3-30
79
Publication date: January, 2006
Revision A1
Page 88
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Parameter description:
MAC Address:
It is a six-byte long Ethernet hardware address and usually expressed by
hex and separated by hyphens. For example,
00 – 40 - C7 - D6 – 00 - 02
Alias:
MAC alias name you assign.
Note: If there are too many MAC addresses learned in the table, we recommend
you inputting the MAC address and alias name directly.
Publication date: January, 2006
Revision A1
80
Page 89
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-8. GVRP Configuration
GVRP is an application based on Generic Attribute Registration Protocol
(GARP), mainly used to automatically and dynamically maintain the group
membership information of the VLANs. The GVRP offers the function providing the
VLAN registration service through a GARP application. It makes use of GARP
Information Declaration (GID) to maintain the ports associated with their attribute
database and GARP Information Propagation (GIP) to communicate among
switches and end stations. With GID information and GIP, GVRP state machine
maintain the contents of Dynamic VLAN Registration Entries for each VLAN and
propagate these information to other GVRP-aware devices to setup and update
their knowledge database, the set of VLANs associated with currently active
members, and through which ports these members can be reached.
In GVRP Configuration function folder, there are three functions supported,
including GVRP Config, GVRP Counter and GVRP Group explained below.
Fig. 3-31
81
Publication date: January, 2006
Revision A1
Page 90
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function name:
GVRP Config
Function description:
In the function of GVRP Config, it is used to configure each port’s GVRP
operation mode, in which there are seven parameters needed to be configured
described below.
Parameter description:
GVRP State Setting:
This function is simply to let you enable or disable GVRP function. You
can pull down the list and click the <Downward> arrow key to choose
“Enable” or “Disable”. Then, click the <Apply> button, the system will
take effect immediately.
Join Time:
Used to declare the Join Time in unit of centisecond. Valid time range:
20 –100 centisecond, Default: 20 centisecond.
Leave Time:
Used to declare the Leave Time in unit of centisecond. Valid time range:
60 –300 centisecond, Default: 60 centisecond.
Leave All Time:
A time period for announcement that all registered device is going to be
de-registered. If someone still issues a new join, then a registration will
be kept in the switch. Valid range: 1000-5000 unit time, Default: 1000 unit
time.
Default Applicant Mode:
The mode here means the type of participant. There are two modes,
normal participant and non-participant, provided for the user’s choice.
Normal:
It is Normal Participant. In this mode, the switch participates
normally in GARP protocol exchanges. The default setting is
Normal.
Non-Participant:
It is Non-Participant. In this mode, the switch does not send or
reply any GARP messages. It just listens messages and
reacts for the received GVRP BPDU.
Default Registrar Mode:
The mode here means the type of Registrar. There are three types of
parameters for registrar administrative control value, normal registrar,
fixed registrar and forbidden registrar, provided for the user’s choice.
Publication date: January, 2006
Revision A1
82
Page 91
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Normal:
It is Normal Registration. The Registrar responds normally to
incoming GARP messages. The default setting is Normal.
Fixed:
It is Registration Fixed. The Registrar ignores all GARP
messages, and all members remain in the registered (IN)
state.
Forbidden:
It is Registration Forbidden. The Registrar ignore s all GARP
messages, and all members remain in the unregistered
(EMPTY) state.
Restricted Mode:
This function is used to restrict dynamic VLAN be created when this port
received GVRP PDU. There are two modes, disable and enable,
provided for the user’s choice.
Disabled:
In this mode, the switch dynamic VLAN will be created when
this port received GVRP PDU. The default setting is Normal.
Enabled:
In this mode, the switch does not create dynamic VLAN when
this port received GVRP PDU. Except received dynamic
VLAN message of the GVRP PDU is an existed static VLAN in
the switch, this port will be added into the static VLAN
members dynamically.
83
Publication date: January, 2006
Revision A1
Page 92
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function name:
GVRP Counter
Function description:
All GVRP counters are mainly divided into Received and Transmitted two
categories to let you monitor the GVRP actions. Actually, they are GARP
packets.
Fig. 3-32
Parameter description:
Received:
Total GVRP Packets:
Total GVRP BPDU is received by the GVRP application.
Invalid GVRP Packets:
Number of invalid GARP BPDU is received by the GARP
application.
LeaveAll Message Packets:
Number of GARP BPDU with Leave All message is received by the
GARP application.
JoinEmpty Message Packets:
Number of GARP BPDU with Join Empty message is received by
the GARP application.
JoinIn Message Packets:
Number of GARP BPDU with Join In message is received by the
GARP application.
Publication date: January, 2006
Revision A1
84
Page 93
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
LeaveEmpty Message Packets:
Number of GARP BPDU with Leave Empty message is received by
the GARP application.
Empty Message Packets:
Number of GARP BPDU with Empty message is received by the
GARP application.
Transmitted:
Total GVRP Packets:
Total GARP BPDU is transmitted by the GVRP application.
Invalid GVRP Packets:
Number of invalid GARP BPDU is transmitted by the GVRP
application.
LeaveAll Message Packets:
Number of GARP BPDU with Leave All message is transmitted
by the GARP application.
JoinEmpty Message Packets:
Number of GARP BPDU with Join Empty message is transmitted by
the GARP application.
JoinIn Message Packets:
Number of GARP BPDU with Join In message is transmitted by the
GARP application.
LeaveEmpty Message Packets:
Number of GARP BPDU with Leave Empty message is transmitted
by the GARP application.
Empty Message Packets:
Number of GARP BPDU with Empty message is transmitted by the
GARP application.
85
Publication date: January, 2006
Revision A1
Page 94
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Function name:
GVRP Group Information
Function description:
To show the dynamic group member and their information.
Parameter description:
Current Dynamic Group Number:
The number of GVRP group that are created currently.
VID:
VLAN identifier. When GVRP group creates, each dynamic VLAN group
owns its VID. Valid range is 1 ~ 4094.
Member Port:
Those are the members belonging to the same dynamic VLAN group.
Edit Administrative Control:
When you create GVRP group, you can use Administrative Control
function to change Applicant Mode and Registrar Mode of GVRP group
member.
Refresh:
Refresh function can help you to see current GVRP g roup status.
Fig. 3-33
Publication date: January, 2006
Revision A1
86
Page 95
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-9. STP Configuration
The Spanning Tree Protocol (STP) is a standardized method (IEEE 802.1D)
for avoiding loops in switched networks. When STP is enabled, ensure that only
one path is active between any two nodes on the network at a time. User can
enable Spanning Tree Protocol on switch’s web management and then set up other
advanced items. We recommend that you enable STP on all switches to ensure a
single active path on the network.
3-9-1. STP Status
Function name:
STP Status
Function description:
In the Spanning Tree Status, user can read 12 parameters to know STP
current status. The 12 parameters’ description is listed in the following table.
Parameter description:
STP S tate:
Show the current STP Enabled / Disabled status. Default is “Disabled”.
Bridge ID:
Show switch’s bridge ID which stands for the MAC addres s of this switch.
Bridge Priority:
Show this switch’s current bridge priority setting. Default is 3276 8.
Designated Root:
Show root bridge ID of this network segment. If this switch is a root
bridge, the “Designated Root” will show this switch’s bridge ID.
Designated Priority:
Show the current root bridge priority.
Root Port:
Show port number connected to root bridge with the lowest path cost.
Root Path Cost:
Show the path cost between the root port and the designated port of the
root bridge.
Current Max. Age:
Show the current root bridge maximum age time. Maximum age time is
used to monitor if STP topology needs to change. When a bridge does
not receive a hello message from root bridge until the maximum age time
is counted down to 0, the bridge will treat the root bridge malfunctioned
and issue a Topology Change Notification (TCN) BPDU to all other
bridges.
Publication date: January, 2006
Revision A1
87
Page 96
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
All bridges in the LAN will re-learn and determine which the root bridge is.
Maximum Age time is assigned by root bridge in unit of seconds. Default
is 20 seconds.
Current Forward Delay:
Show the current root bridge forward delay time. The value of Forward
Delay time is set by root. The Forward Delay time is defined as the time
spent from Listening state moved to Learning state or from Learning
state moved to Forwarding state of a port in bridge.
Hello Time:
Show the current hello time of the root bridge. Hello time is a time
interval specified by root bridge, used to request all other bridges
periodically sending hello message every “hello time” seconds to the
bridge attached to its designated port.
STP Topology Change Count:
STP Topology Change Count expresses the time spent in unit of seconds
since the beginning of the Spanning Tree Topology Change to the end of
the STP convergence. Once the STP change is converged, the Topology
Change count will be reset to 0. The figures showing in the screen may
not be the exact time it spent but very close to, because the time is
eclipsing.
Time Since Last Topology Change:
Time Since Last Topology Change is the accumulated time in unit of
seconds the STP has been since the last STP Topology Change was
made. When Topology Change is initiated again, this counter will be
reset to 0. And it will also count again once STP topology Change is
completed.
Fig. 3-34
Publication date: January, 2006
Revision A1
88
Page 97
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-9-2. STP Configuration
The STP, Spanning Tree Protocol, actually includes RSTP. In the Spanning
Tree Configuration, there are six parameters open for the user to configure as
user’s idea. Each parameter description is listed below.
Function name:
STP Configuration
Function description:
User can set the following Spanning Tree parameters to control STP function
enable/disable, select mode RSTP/STP and affect STP state machine
behavior to send BPDU in this switch. The default setting of Spanning Tree
Protocol is “Disable”.
Parameter description:
Spanni ng Tree Protocol:
Set 802.1W Rapid STP function Enable / Disable. Default is “Disable”
Bridge Priority:
The lower the bridge priority is, the higher priority it has. Usually, the
bridge with the highest bridge priority is the root. If you want to have the
065-7710 as root bridge, you can set this value lower than that of bridge
in the LAN. The valid value is 0 ~ 61440. The default is 32768.
Hello Time:
Hello Time is used to determine the periodic time to send normal BPDU
from designated ports among bridges. It decides how long a bridge
should send this message to other bridge to tell I am alive. When the
065-7710 is the root bridge of the LAN, for example, all other bridges will
use the hello time assigned by this switch to communicate with each
other. The valid value is 1 ~ 10 in unit of second.
Default is 2 seconds.
Max. Age:
When the 065-7710 is the root bridge, the whole LAN will apply this
figure set by this switch as their maximum age time. When a bridge
received a BPDU originated from the root bridge and if the message age
conveyed in the BPDU exceeds the Max. Age of the root bridge, the
bridge will treat the root bridge malfunctioned and issue a Topology
Change Notification (TCN) BPDU to all other bridges. All bridges in the
LAN will re-calculate and determine who the root bridge is. The valid
value of Max. Age is 6 ~ 40 seconds. Default is 20 seconds.
89
Publication date: January, 2006
Revision A1
Page 98
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
Forward Delay:
You can set the root bridge forward delay time. This figure is set by root
bridge only. The forward delay time is defined as the time spent from
Listening state moved to Learning state and also from Learning state
moved to Forwarding state of a port in bridge. The forward delay time
contains two states, Listening state to Learning state and Learning state
to Forwarding state. It assumes that forward delay time is 15 seconds,
then total forward delay time will be 30 seconds. This has much to do
with the STP convergent time which will be more than 30 seconds
because some other factors.
The valid value is 4 ~ 30 seconds, default is 15 seconds.
Force Version:
Two options are offered for the user’s choosing STP algorithm. One is
RSTP and the other is STP. If STP is chosen, RSTP will run as a legacy
STP. The switch supports RSTP (802.1w) which is backward compatible
with STP (802.1d).
Publication date: January, 2006
Revision A1
Fig. 3-35
90
Page 99
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
3-9-3. STP Port Configuration
Function name:
STP Port Setting
Function description:
In the STP Port Setting, one item selection and five parameters settings are
offered for user’s setup. User can disable and enable each port by selecting
each Port Status item. User also can set “Path Cost” and “Priority” of each port
by filling in the desired value and set “Admin Edge Port” and “Admin Point To
Point” by selecting the desired item.
Parameter description:
Port Status:
It displays the current state of a port. We cannot manually set it because
it displays the status only. There are three possible states. ( according to
802.1w specification)
DISCARDING state indicates that this port can neither forward p ackets
nor contribute learning knowledge.
Notice: Three other states (Disable state, BLOCKING state and LISTENING
state) defined in the 802.1d specification are now all represented as
DISCARDING state.
LEARNING state indicates this port can now contrib ute its learning
knowledge but cannot forward packets still.
FORWARDING state indicates this port can both contribute its learning
knowledge and forward packets norma lly.
Path Cost Status:
It is the contribution value of the path through this port to Root Bridge.
STP algorithm determines a best path to Root Bridge by calculating the
sum of path cost contributed by all ports on this path. A port with a
smaller path cost value would become the Root Port more possibly.
Configured Path Cost:
The range is 0 – 200,000,000. In the switch, if path cost is set to be zero,
the STP will get the recommended value resulted from auto-negotiation
of the link accordingly and display this value in the field of Path Cost
Status. Otherwise, it may show the value that the administrator set up in
Configured Path Cost and Path Cost Status.
91
Publication date: January, 2006
Revision A1
Page 100
Signamax™ 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch
802.1w RSTP recommended value: (Valid range: 1 – 200,000,000)
10 Mbps : 2,000,000
100 Mbps : 200,000
1 Gbps : 20,000
Default: 0
Priority:
Priority here means Port Priority. Port Priority and Port Number are
mixed to form the Port ID. Port IDs are often compared in order to
determine which port of a bridge would become the Root Port. The range
is 0 – 240.
Default is 128.
Admin Edge Port:
If user selects “Yes”, this port will be an edge port. An Edge Port is a port
connected to a device that knows nothing about STP or RSTP. Usually,
the connected device is an end station. Edge Ports will immediately
transit to forwarding state and skip the listening and learning state
because the edge ports cannot create bridging loops in the network. This
will expedite the convergence. When the link on the edge port toggles,
the STP topology keeps unchanged. Unlike the designate port or root
port though, an edge port will transit to a normal spanning-tree port
immediately if it receives a BPDU.
Default: No
Admin Point To Point:
We say a port is a point-to-point link, from RSTP’s view, if it is in fullduplex mode but is shared link if it is in half-duplex mode. RSTP fast
convergence can only happen on point-to-point links and on edge ports.
This can expedite the convergence because this will have the port fast
transited to forwarding state.
There are three parameters, Auto, True and False, used to configure the
type of the point-to-point link. If configure this parameter to be Auto, it
means RSTP will use the duplex mode resulted from the auto-negotiation.
In today’s switched networks, most links are running in full-duplex mode.
For sure, the result may be half-duplex, in this case, the port will not fast
transit to Forwarding state. If it is set as True, the port is treated as pointto-point link by RSTP and unconditionally transited to Forwarding state. If
it is set as False, fast transition to Forwarding state will not happen on
this port.
Default: Auto
Publication date: January, 2006
Revision A1
92
Loading...
