First Strike T8.1 User manual

Download
Page 1
T8.1
OWNERS MANUAL
™
Page 2
TABLE OF CONTENTS WARNINGS
T8.1 Diagram ..............................................................................................................................................................................................5
Setting Velocity .......................................................................................................................................................................................11
Cleaning & Maintenance ......................................................................................................................................................................12
Warranty & Repairs ................................................................................................................................................................................13
Assembly Guide.......................................................................................................................................................................................14
Gun Body Assembly ...............................................................................................................................................................................15
Engine & Firing Bolt Assembly .............................................................................................................................................................16
Trigger Group Assembly .......................................................................................................................................................................17
Regulator Assembly ...............................................................................................................................................................................18
Magazine Assembly ...............................................................................................................................................................................19
CO2 Valve Assembly ................................................................................................................................................................................20
Troubleshooting .......................................................................................................................................................................................21
Registration Card ....................................................................................................................................................................................23
WARNING/LIABILITY STATEMENT
This marker is not a toy and is surrendered by UTS, with the understanding that the purchaser assumes all liability from unsafe handling or any action that constitutes a violation of any applicable laws or regulations. UTS, shall not be liable for personal injury, loss of property or life resulting from the use of this product under any circumstances, including any intentional, reckless, negligent or accidental discharges.
All information contained in this manual is subject to change without notice. UTS, reserves the right to make changes and improvements to products without incurring any obligation to incorporate such improvements in products previously sold.
If you, as a user, do not accept liability, UTS, requests that you do not use a UTS marker. By using this UTS marker you release UTS, of any and all liability associated with its use.
WARNING:
- Careless use or misuse may result in serious bodily injury or death!
- Eye protection designed for paintball must be worn by the user and all persons within range.
- Must be 18 years of age or older to operate or handle any paintball gun and paintball gun accessories without adult or parental supervision.
- Read and understand all cautions, warnings, and operating manuals before using any paintball gun or paintball gun accessory.
- Do not aim paintball gun at eyes or head of people or at animals.
- Paintball guns are to be used with paintballs only.
- To prevent fire or shock hazard, do not expose unit to rain or moisture.
- To prevent fire or shock hazard, do not immerse unit in liquids.
- To prevent fire or shock hazard, do not disassemble any electronic paintball device.
- The disposal of the battery if used to power this product may be regulated in your area.
- Please conform to all local or state regulations with regard to battery disposal.
- Use common sense and have fun.
Any tampering with the unit voids your warranty. There are no consumer serviceable parts inside this unit. The use of non factory authorized components within this product may cause a fire or shock hazard.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFFECIVE PRODUCT OR THE USE OF ANY PRODUCT.
WARNING: This product may contain chemicals known to the state of California to cause cancer and/or defects or other reproductive harm. Wash hands afer handling.
You must be at least 18 years of age to purchase this product. This product may be mistaken for a firearm by law enforcement officers or others. Altering the color of the product or brandishing the product in public may be dangerous and may be considered a crime.
PAINTBALL GUNS AND PAINTBALL GUN ACCESSORIES ARE NOT TOYS!
2 | T8.1
™
3
Page 3
QUICK START GUIDE
Thank you for purchasing the First Strike 8.1 Pistol. Like any paintball marker, it is important that safety is on the forefront of your mind at all times when using this product. Never operate the 8.1 without ASTM compliant goggles or aim at anyone that is not wearing proper goggles intended for the game of Paintball. The First Strike T8.1 is an advanced system that is suitable for all levels of play and will provide years of service if the following steps are meticulously followed.
1. Before airing up, place 3 drops of First Strike approved oil at the top of the CO2 Air Cavity.
2. Insert the barrel into the front of the T8.1, and twist into locked position by inserting your finger into the barrel and twisting.
3. Insert 12gram CO2 cartridge into Magazine by placing in CO2 Cavity.
4. Engage the air source by twisting flip-knob base screw.
5. Insert magazine into grip firmly
6. Dry fire 3-4 times to distribute oil evenly through the marker.
7. Also chrono your T8.1 prior to use.
CATCH TECH TIPS AND INFO ON:

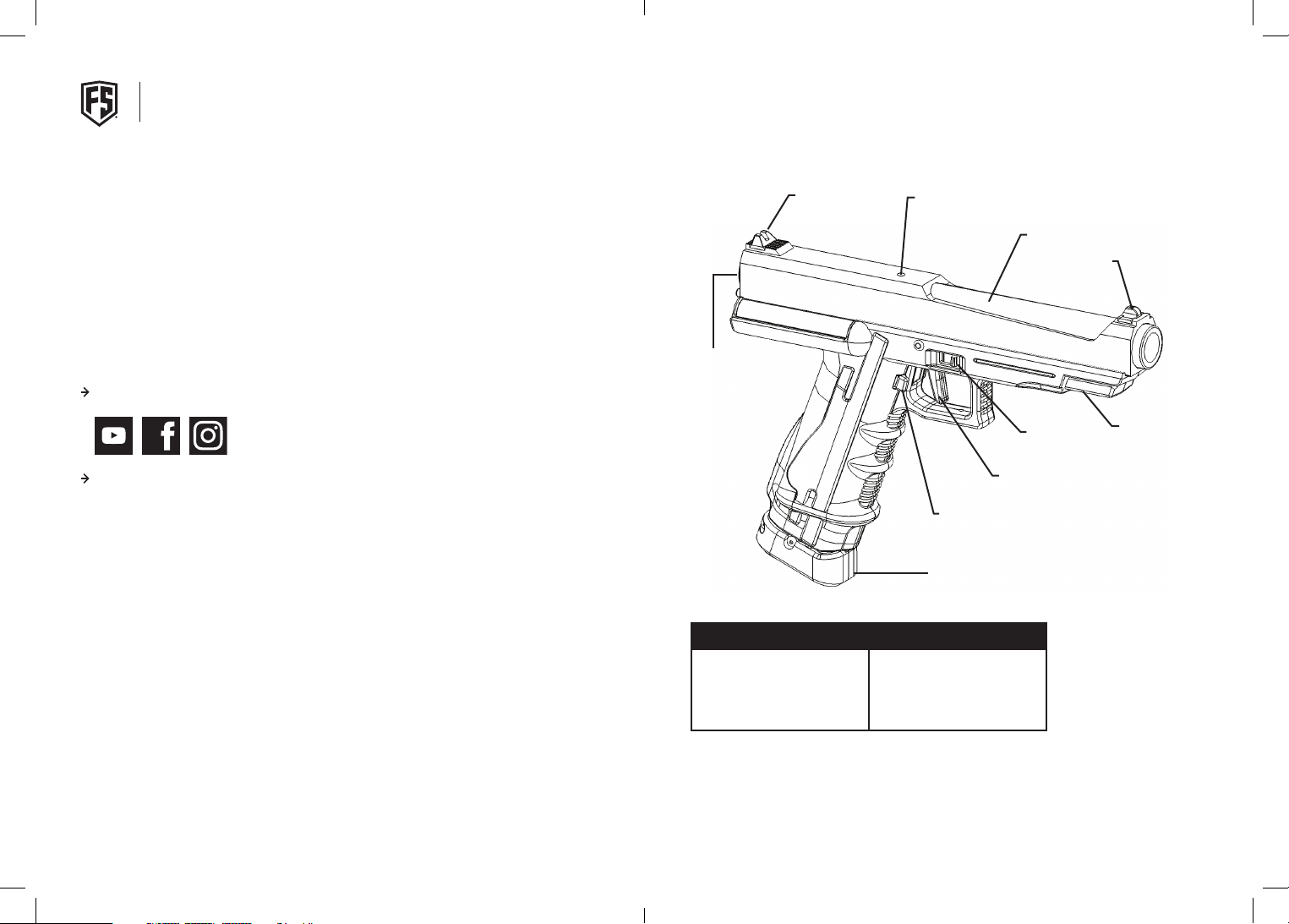

T8.1 DIAGRAM
VELOCITY ADJUSTER
REAR SIGHT
PROJECTILE VIEWPORT
BARREL
FRONT SIGHT
DON’T FORGET TO REGISTER!
Register your T8.1 at www.first-strike.com
™
4 | T8.1
CALIBER
ACTION
POWER
LENGTH
MODEL SPECIFICATIONS
.68
SEMI-AUTO
CO
2
11”
HEIGHT
BARREL LENGTH
WEIGHT
MAGAZINE
MAGAZINE RELEASE BUTTON
MAGAZINE
8”
4”
2.7 LBS
8 ROUNDS
TRIGGER
SAFETY
FRONT RAIL MOUNT
5
Page 4

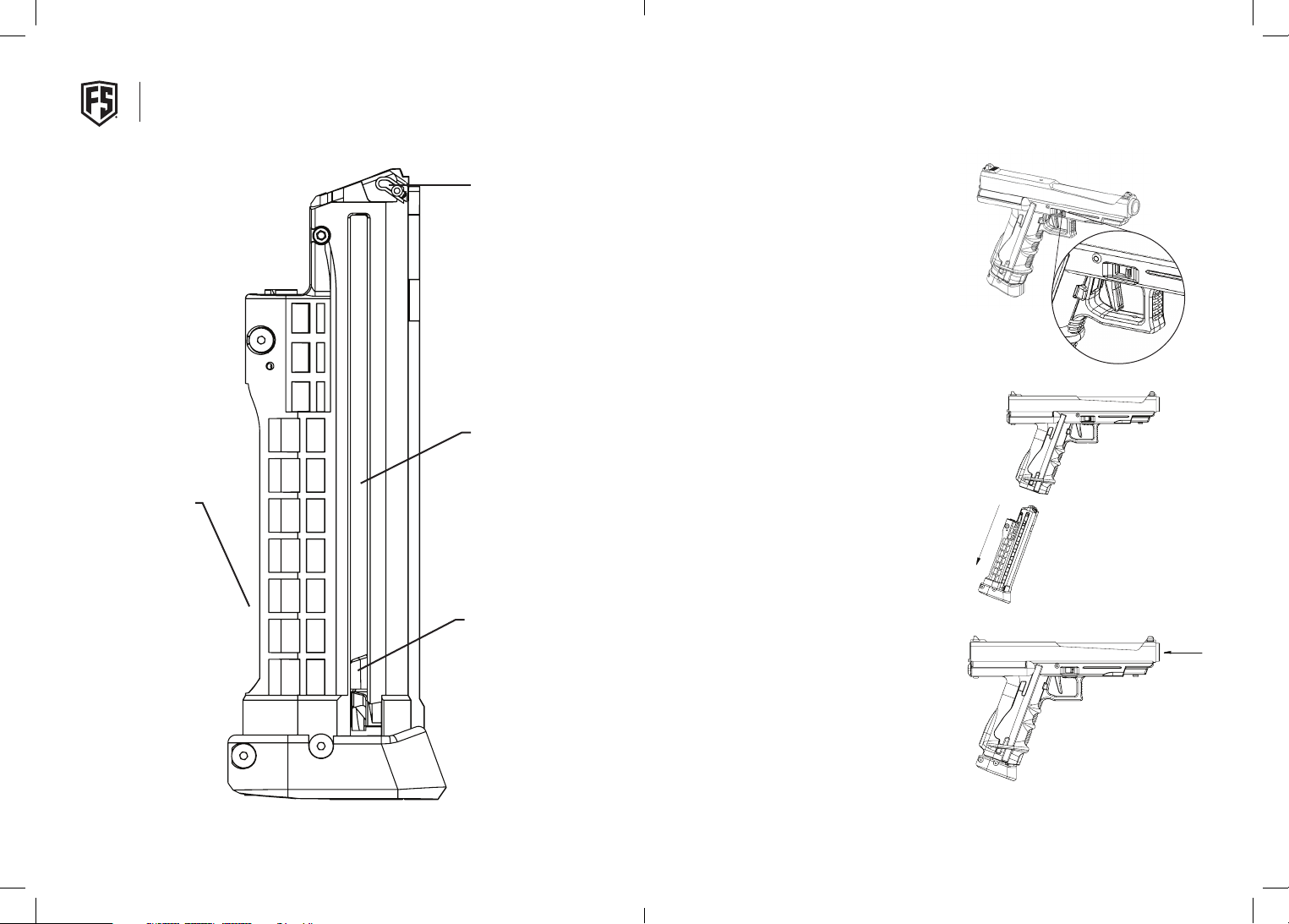

T8.1 MAGAZINE DIAGRAM
CO2 CAVITY
PROJECTILE RETAINER PIN
PROJECTILE FOLLOWER TRACK
OPERATIONAL INSTRUCTIONS
GETTING STARTED
Read this entire manual before using this launcher. Keep your launcher pointed in a safe direction at all times.
1. SAFETY - Place the T8.1 in safe position by moving safety so no red is visible. The safety is ambidextrous and can be operated from either side of the T8.1.
* Visible red indicates that launcher
will discharge.
2. UNLOADING MAGAZINE - Ensure that there are no projectiles in your marker by placing your hand under the magazine, pressing the magazine release, and pulling the magazine free from the T8.1.
6 | T8.1
PROJECTILE FOLLOWER
3. REMOVING THE BARREL - Ensure that there are no
projectiles remaining in the marker by removing the magazine and looking through the grip into the breach. Then you can remove the barrel by pressing on the end of the barrel and rotating it counterclockwise. Note the channel in the barrel and the barrel lock in the receiver as it slides free. To reattach the barrel, line up the channel with the barrel lock, slide the barrel back in the receiver, push on the end of the barrel, and turn clockwise until the barrel locks into place. Pull on the end of the barrel to ensure it is properly seated.
™
7
Page 5
OPERATIONAL INSTRUCTIONS
OPERATIONAL INSTRUCTIONS

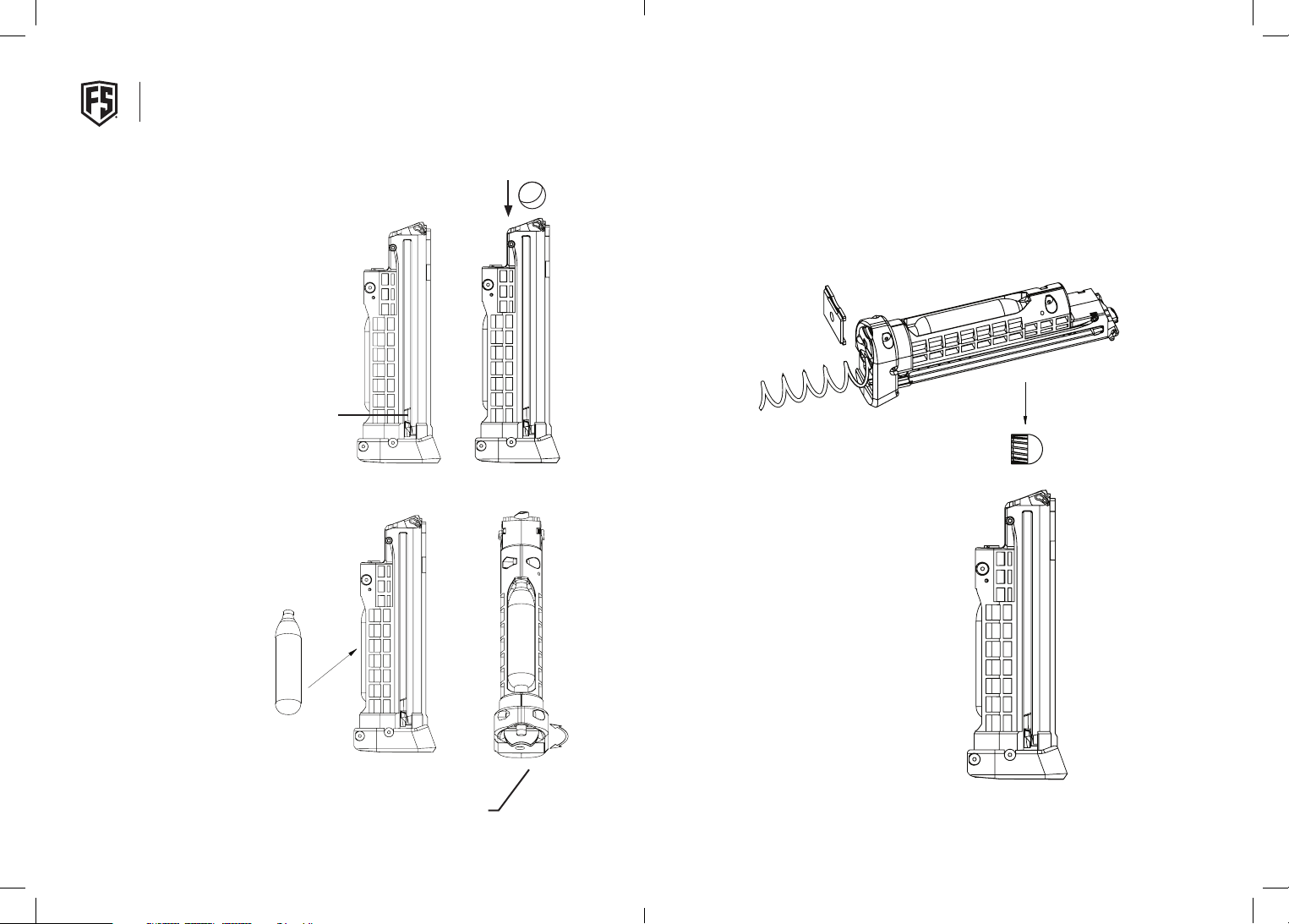

4. LOAD PROJECTILES - Place 8 projectiles into the
magazine from the top. The projectiles will be held in place automatically by the projectile retainer pin. You can also lock the ball pusher in the down position by pulling down on the ball pusher ears and locking them at the bottom of the ball pusher track.
NOTE: FOR INSTRUCTIONS ON FIRST STRIKE ROUNDS, PLEASE REFERENCE PAGE 9.
FOLLOWER EARS
5. LOADING C02 CARTRIDGE - Obtain a 12 gram CO2
cartridge. Insert the CO2 cartridge into the CO2 slot of the magazine with the small end of the CO2 cartridge pointing up and into the puncture pin of the magazine. Next, rotate the flip knob base screw clockwise quickly until the cartridge has sealed.
LOAD PROJECTILE
RED SPRING/SILVER SPRING
When using First Strike™ projectiles, make sure the red magazine spring is installed. The silver spring is designed for use with traditional .68 caliber paintballs. While the red spring can be used with traditional .68 caliber paintballs, its higher tension increases the risk of the paintballs deforming over time.
LOADING FIRST STRIKE
Always load First Strike projectiles so rounded nose exits barrel first. Always chronograph with First Strike before use to ensure velocity is below 300 fps.
8 | T8.1
FLIP KNOB BASE SCREW
™
9
Page 6
OPERATIONAL INSTRUCTIONS OPERATIONAL INSTRUCTIONS
FIRING THE T8.1
1. If the CO2 cartridge has been punctured by the puncture pin and the magazine has
been inserted into the gun, then the T8.1 is now ready to fire. Point the T8.1 in a safe direction, rotate the safety so red is visible, and pull the trigger.
NOTE: Extra magazines can be carried for quick reloads in the field.
UNLOADING THE T8.1
1. Place T8.1 in the safe mode and point in a safe direction. If all projectiles have been
fired, place hand under magazine and press magazine release with other hand. Catch magazine so it does not fall on ground. Visually inspect the magazine well to ensure all projectiles are clear from the T8.1. Visually inspect the projectile view port to ensure all projectiles are clear.
2. If all projectiles have not been fired, follow above procedures but ensure that
you turn the T8.1 on its side while removing the magazine. The projectile that is in
8. LOAD MAGAZINE - Place the magazine in the grip of the T8.1 marker with the projectiles closest to the end of the barrel. Once the mag has started into the grip, seat it completely until has been secured by the magazine release.
NOTE: If magazine does not lock on first insertion, remove it completely and reinsert.
the chamber will be free and can fall on the ground if the T8.1 is kept in a vertical position. Place your hand under the magazine well and capture the loose projectile as you turn the T8.1 vertically.
3. Pull back on the projectile retainer pin to remove the projectiles from the magazine and turn the flip knob base screw counterclockwise to free the CO2 cartridge from the magazine.
4. Your T8.1 should now be free of any projectiles. Verify the T8.1 is on safe and store in a safe and secure location.

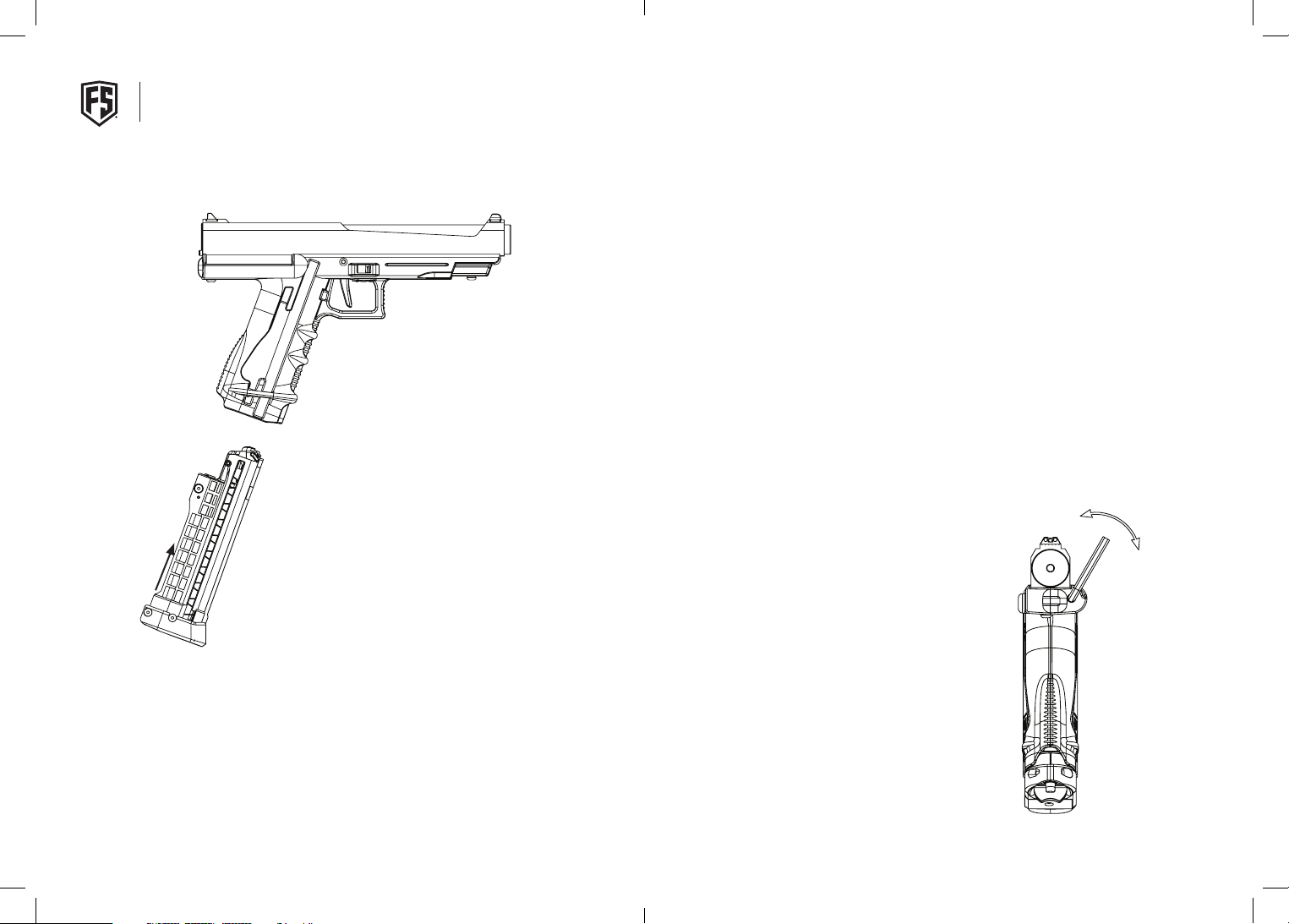

SET VELOCITY
1. Insert provided 3/16” Allen wrench as depicted.
2. To increase velocity, tum clockwise. To decrease velocity
turn counter-clockwise.
3. Fire once to clear chamber after each adjustment, then
measure velocity of the second shot.
SAFETY TIP: Always measure marker’s velocity before playing paintball. Never shoot at velocities in excess of 300 ft/s (91 .44 mls). Recommended velocity is 270 ft/s.
10 | T8.1
™
11
Page 7
T8.1 CLEANING & MAINTENANCE
WARRANTY & REPAIRS
CLEANING
• Never perform maintenance on a loaded or pressurized T8.1 marker.
• Remove all projectiles and CO2 cartridges from the magazine and marker prior to doing any cleaning or maintenance.
• Never use petroleum based cleaning solvents or lubricants.
• Do not use cleaning solvents that come in aerosol cans.
• To clean the T8.1 marker, remove the barrel as described in the “Operational Instructions”. Use a .68 caliber soft nylon brush or 12 gauge patch tip with a soft cotton cloth to clean the barrel. Do not place lubricant or water in the barrel of the T8.1. It is designed to be used with the barrel completely dry.
• Keep the barrel of the T8.1 dry.
• Wipe off any dirt or grime from the outside of the T8.1 with a dry cloth.
OILING THE MARKER
IMPORTANT: Before performing any of the following instructions, remove magazine. Point marker in safe direction and discharge until degassed.
FOR OPTIMUM PERFORMANCE, DO THE FOLLOWING MONTHLY:
1. Place one drop of oil between trigger release and trigger rotator. (See Page 17)
2. Remove the regulator spring pad (See page 18) and oil the regulator spring pad O-Ring.
3. Remove the engine assembly (See page 16) and lightly grease the AC Cap O-Ring.
4. Place one drop of oil on CO2 O-Ring found at top of CO2 Valve and Magazine (See page 20).
OPERATIONAL CONSIDERATIONS
• The operational temperature range for the T8.1 Pistol is 37° F to 120°F.
• If the CO2 cartridge is punctured in a magazine, it should be replaced if the T 8.1 is not used for 24 hours.
First Strike® warranties to the original customer purchaser or current owner that this product is free from defects in material and workmanship under normal use and service for a period of 12 months from the original date of purchase by the initial owner/purchaser.
For warranty to be effective, customer must return the First Strike® Warranty Registration card that came with the product within thirty days of purchase or complete the online warranty form. First Strike® agrees to repair or replace (at its discretion) any product within a reasonable period of time. This warranty does not cover o-rings, scratches, nicks, normal wear and tear of parts, any modifications or normal fading of anodizing or damage caused by dropping or hitting of products. This warranty shall not apply if it is shown by First Strike® that the consumer caused the defect or malfunction because of misuse. This warranty only covers original factory parts. Any modifications or tampering of original factory parts will not be covered by this warranty. Any damage caused by water will not be covered by this warranty.
If your paintball product requires repair, please package it carefully and send together with your name, address, phone number, and a brief description of the malfunction to:
First Strike Warranty Support 2717 Ferguson Rd Fort Wayne, IN 46809
Phone Free: 260-478-2500 9:00am-4:00pm Eastern / Mon-Fri
Note: Always remove the air source or degas the marker while not in use.
12 | T8.1
™
13
Page 8

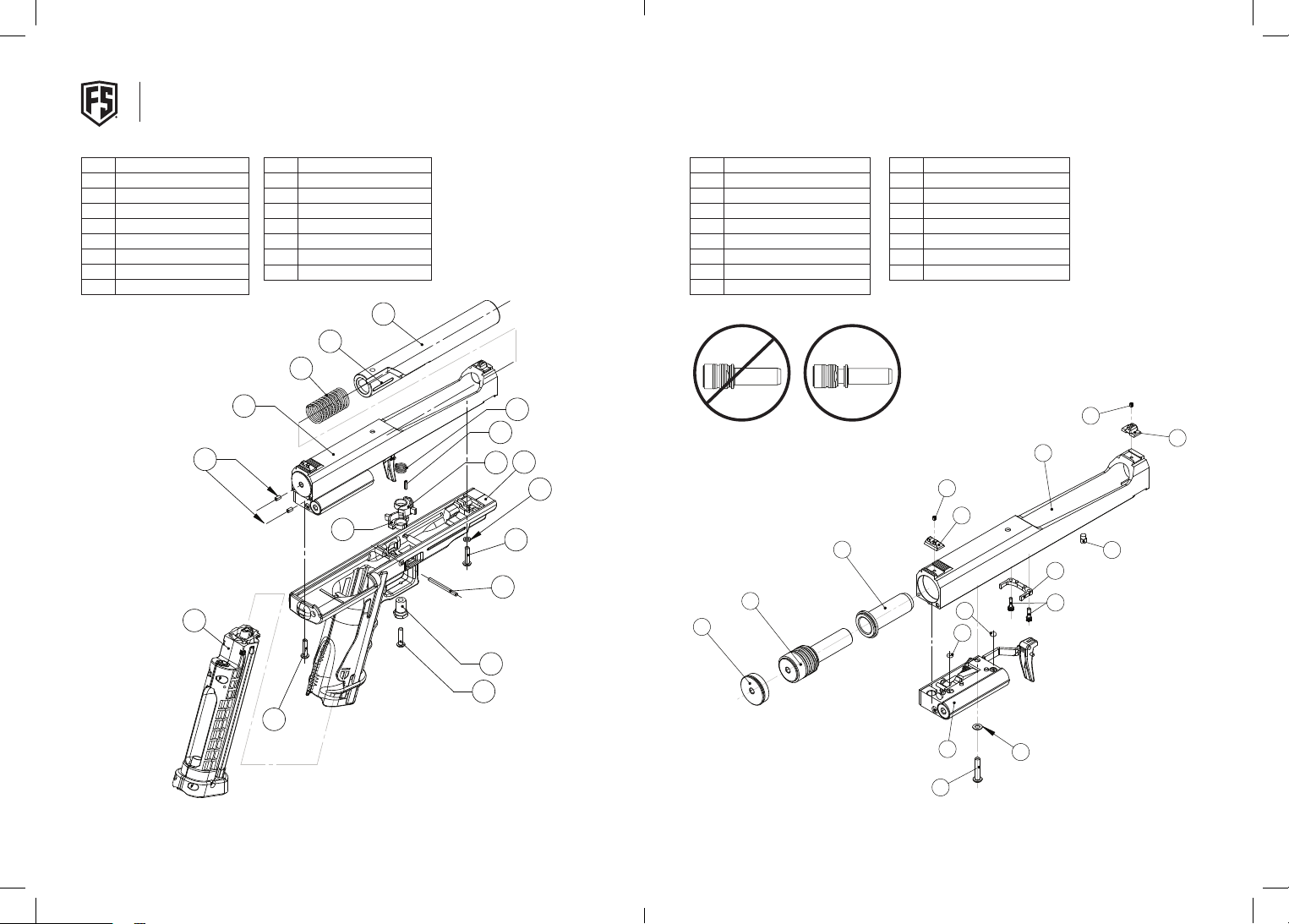

T8.1 ASSEMBLY DIAGRAM GUN BODY ASSEMBLY
1
11
6
11
5
2
8
4
7
9
10
12
3
13
14
15
11
5
ITEM NO. NAME
1 Gun Body Assembly 2 Handle 3 Trigger Pin 4 Handle Screw-Front 5 Firing Bolt Spring 6 T8.1 FS Barrel 7 Magazine Assembly 8 Safety Bushing
ITEM NO. NAME
9 Safety-Left 10 Safety-Right 11 Safety Spring 12 Safety Pin
13 Front Handle Screw Washer
14 Remote Plug Set Screw
15 Rubber Nubbin
ITEM NO. NAME
1 Engine Assembly 2 8.1 Gun Body 3 Firing Bolt Assembly 4 Regulator/Trigger Assembly 5 Front Sight 6 Rear Sight 7 Ammo Release Fork 8 Barrel Lock
ITEM NO. NAME
9 Release Fork Screw 10 Reg Body Screw 11 SIGHT Set Screw 12 Reg Body Internal Tooth Washer
13 Reg Sealing/Reg Body O-RIng
14 Gun Body Cap
15 Reg Body Plug
6
15
5
1
14
11
12
2
10
NOTE: Be sure to install the engine, and push the bolt forward towards nose of gun. It is critical that this is done before reattaching the regulator assembly.
13
9
7
4
4
3
8
4
14 | T8.1
™
15
Page 9
C
B
A
8
7
6
5
4
4
1
6
2

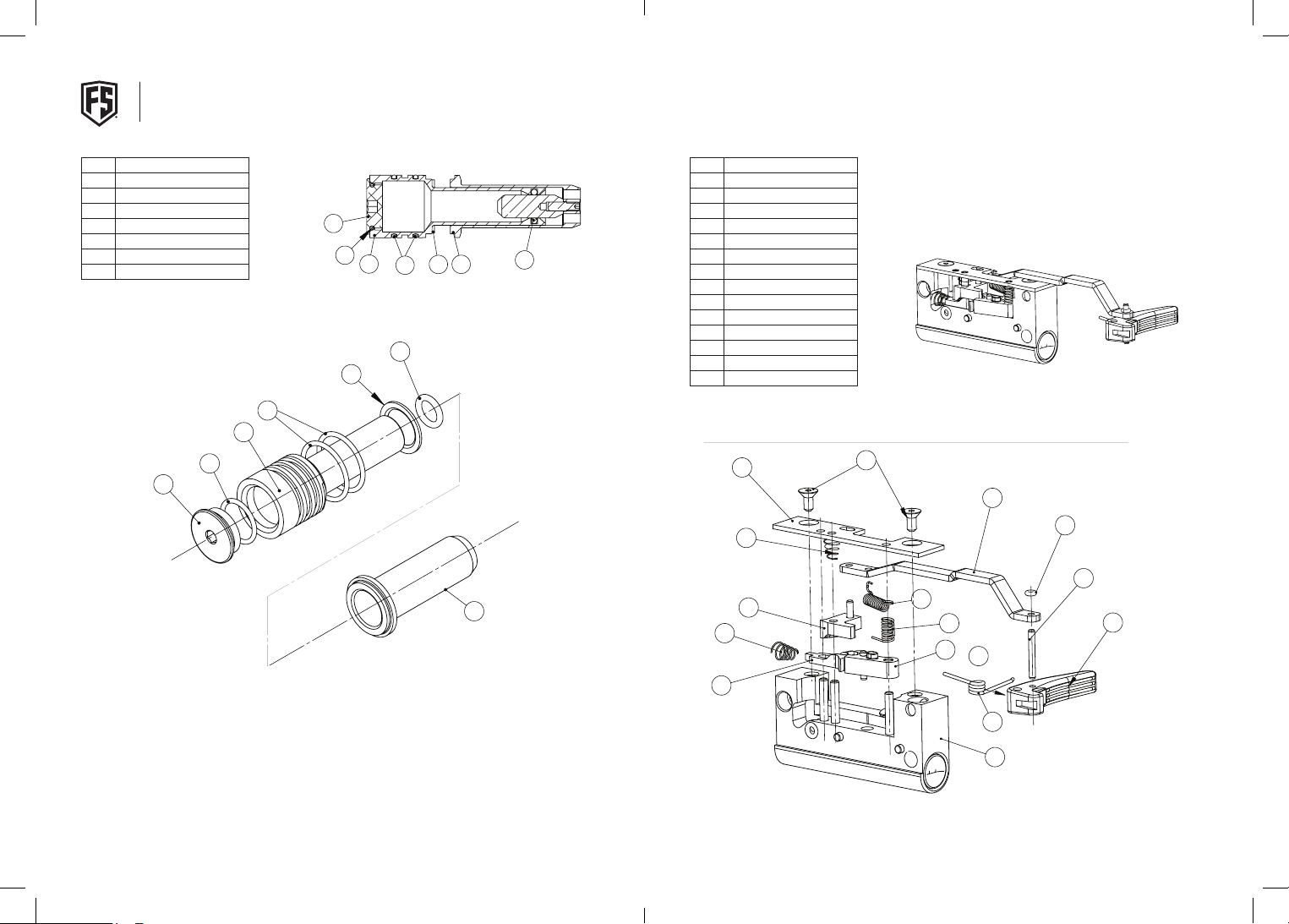

ENGINE & FIRING BOLT ASSEMBLY TRIGGER GROUP
ITEM NO. NAME
1 Air Chamber Plug 2 Air Chamber 3 AC Shock Absorber 4 AC Cap O-Ring 5 First Strike Firing Bolt 6 AC Plug O-Ring 7 AC OD O-Ring
NOTE: Do not attempt to disassemble bolt and firing pin (Item
5). The alignment is set by factory fixtures and cannot be
reassembled outside the factory.
6
1
ITEM NO. NAME
1 Trigger 2 Sear
1
6
2
7
5
3
4
3 Rotator 4 Release 5 Push Rod 6 Regulator Body 7 Trigger Spring Pin 8 Sear Spring 9 Rotator Return Spring 10 Release/Rotator Spring 11 Trigger Cover
4
3
7
2
5
12 Push Rod O-Ring 13 Trigger Cover Screw 14 Trigger Return Spring
11
10
3
10
13
5
12
7
9
8
2
12
1
16 | T8.1
4
14
™
6
17
Page 10

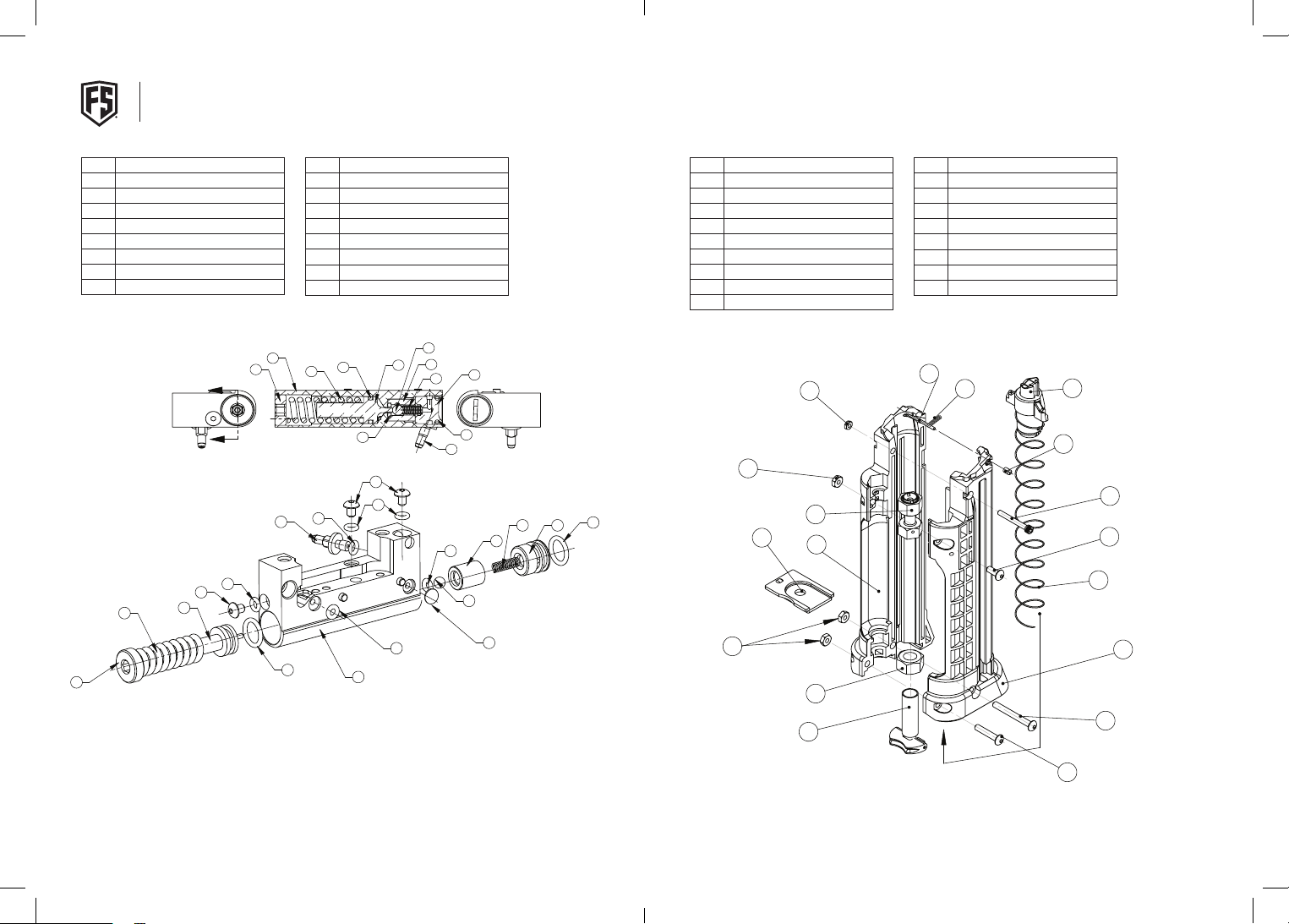

REGULATOR
2
3
9
1
7
16
15
11
14
13
10
12
MAGAZINE
ITEM NO. NAME
1 Regulator Body 2 Regulator Adjuster 3 Stem 4 Regulator Sealing Screw 5 Reg Sealing/Reg Body O-Ring 6 Reg Body Plug 7 Regulator Spring Pad O-Ring 8 C02 Stem O-Ring
4
9
2
16
ITEM NO. NAME
9 Regulator Spring 10 Regulator End Screw 11 Regulator Valve Sleeve 12 Regulator Valve O-Ring
13 Regulator End Screw O-Ring
14 Regulator Valve Spring
15 Regulator Valve Ball
16 Regulator Spring Pad
ITEM NO. NAME
1 Base Screw 2 CO2 Valve Housing Assembly 3 8.1 Magazine Spring 4 Retainer Pin Cap 5 Magazine Retainer Spring 6 Mag Ball Retainer Pin 7 Magazine Body Nut 8 Magazine UC Nut
ITEM NO. NAME
10 Magazine Screw-UC 11 Magazine Screw-UR 12 CO2 Base Screw Nut
13 Magazine Screw-LR
14 Ball Pusher Assembly
15 Magazine Slide Base
16 Main Magazine Body-L
17 Main Magazine Body-R
9 Magazine Screw-LC
1
2
3
5
7
7
9
12
8
1
NOTE: O-Ring #12 is the same size and color as O-Ring #5 on Page 20. This O-Ring is harder than the O-Ring on Page 20.
Relief valve is preset at the factory and is not user serviceable. Consult factory or authorized service center for assistance.
15
11
16
4
5
5
10
14
13
3
7
14
11
12
15
6
13
10
7
8
2
15
16
12
1
6
5
14
4
10
11
3
17
9
13
18 | T8.1
™
19
Page 11

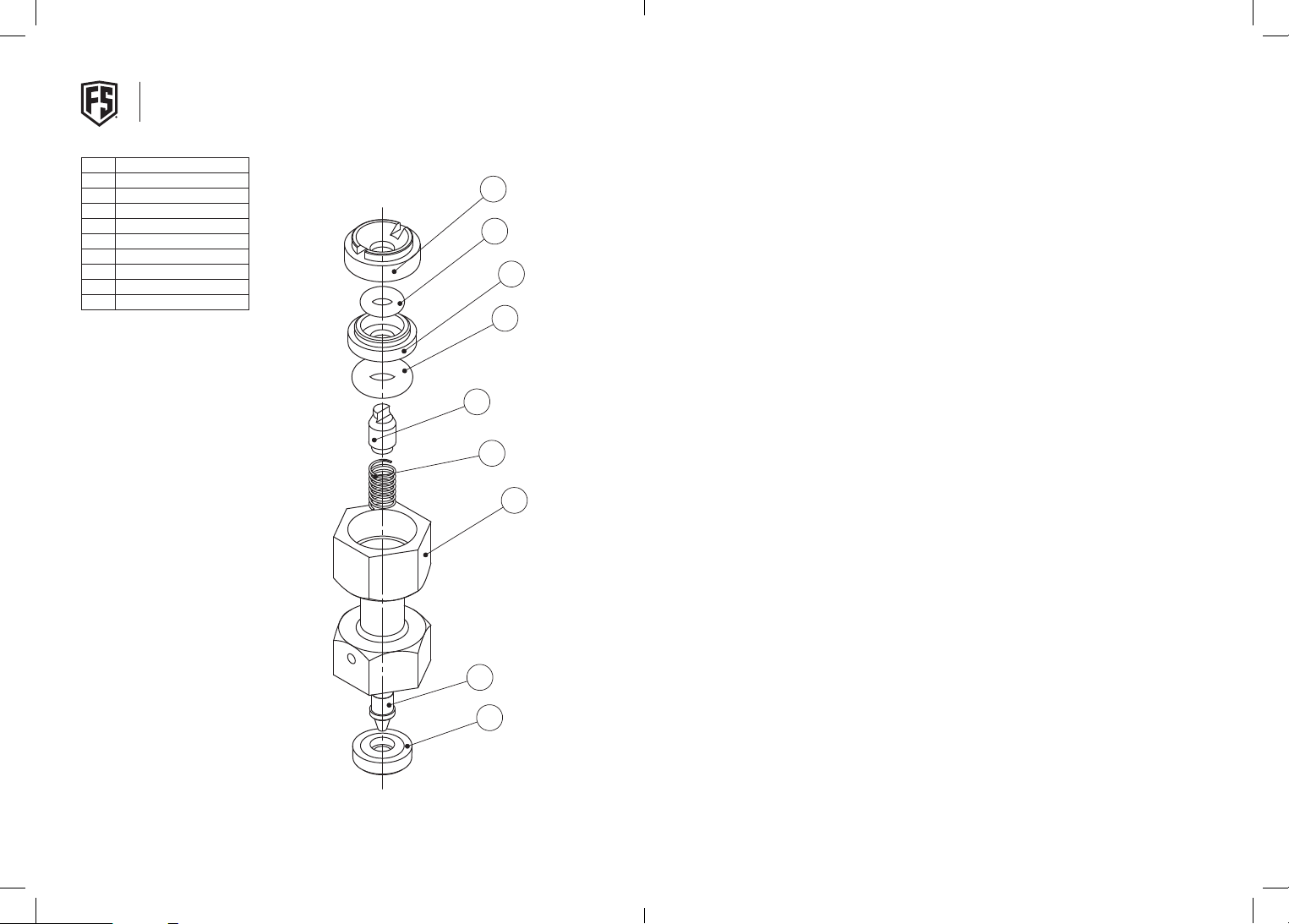

CO2 VALVE HOUSING
TROUBLESHOOTING
ITEM NO. NAME
1 C02 Valve Body 2 C02 Puncture Tip 3 C02 Valve Spring 4 Housing O-Ring 5 C02 Valve Spacer O-Ring 6 C02 Valve Cap 7 C02 Seal 8 C02 Drum Valve 9 Valve Spacer
NOTE: O-Ring #5 is the same size and color as O-Ring #12 on Page 18. This O-Ring is softer than the O-Ring on Page 18.
PAINT BREAKAGE
6
5
9
4
If you experience more than a small number of broken paintballs, check the following:
1. First, be sure that the marker is free of broken paintballs and other debris.
2. Second, make sure that the barrel is locked in its correct position, and that both detents are installed so that they catch a projectile as it enters the breach.
3. Third, make sure the maker is set to a reasonable velocity (never over 300 ft. per sec.)
4. Check bolt assembly. Remove bolt from upper receiver and check for bad o-rings or debris
5. Check magazine for debris.
6. Load rounds in magazine (without CO2 cartridge installed) and engage PROJECTILE RETAINER PIN - confirm that rounds can be ejected from the magazine without issue.
MY T8.1 HAS LOW VELOCITY OR DOES NOT FIRE!
1. If running a remote, make sure your output pressure is above 800psi and is
8
3
1
functioning properly.
2. Remove bolt from upper receiver, and re-install. The T8.1 is designed to not function
if the bolt is installed incorrectly.
20 | T8.1
2
7
™
21
Page 12
NOTES
T8.1 WARRANTY REGISTRATION CARD:
NAME:
ADDRESS:
DATE OF PURCHASE:
SERIAL NUMBER:
Please detach from product manual,
place in stamped envelope and send to:
22 | T8.1
First Strike Paintball Warranty Support
2717 Ferguson Rd.
Fort Wayne, IN 46809
"
™
23
Page 13
FIRST STRIKE®
Headquarters:
28101 Ballard Dr. Ste. F Lake Forest, IL 60045
Manufacturing/Warranty
2717 Ferguson Rd Fort Wayne, IN 46809
1-260-478-2500
service@first-strike.com
FIRST-STRIKE.COM
© 2017 United Tactical Systems. All rights reserved. This United Tactical Systems product is protected by United States and International Patents. United Tactical Systems Trademarks, Designs and Copyrights are protected by United States and International Law. For more information contact United Tactical Systems at [email protected]
Patent Info here: www.first-strike.com/patents
17/6/13
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
