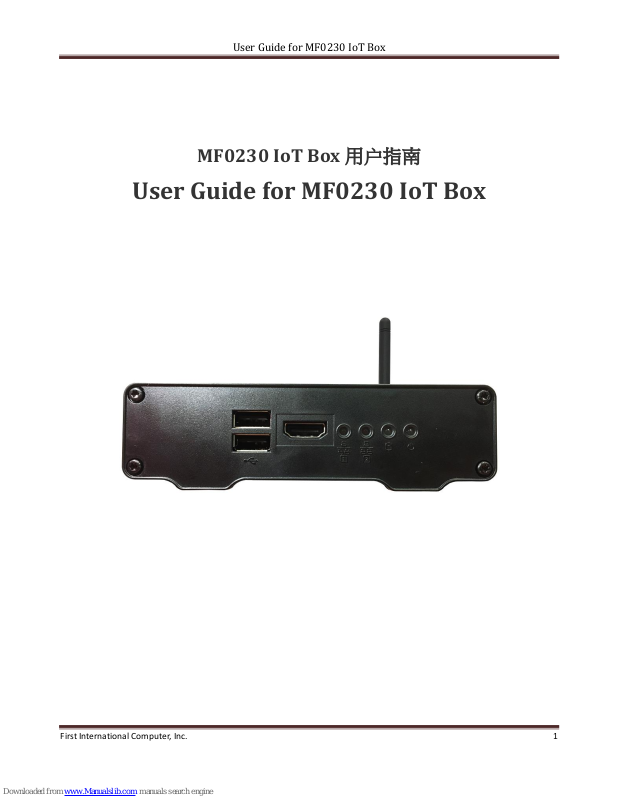

First International Computer, Inc. MF0230 IoT Box User Manual

User Guide for MF0230 IoT Box

First International Computer, Inc. 1

MF0230 IoT Box 用户指南

User Guide for MF0230 IoT Box

User Guide for MF0230 IoT Box

First International Computer, Inc. 2

Copyright and patent notice

This manual guides you in setting up and using your MF0230 IoT Box. Information in this manual has been carefully

checked for accuracy and is subject to change without notice.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,

electronic, mechanical, photocopy, recording, or otherwise, without prior written permission.

Copyright© 2018 First International Computer, Inc. All Rights Reserved

MF0230 User Guide- Printed in Taiwan

Original Issue: 2018/02

Trademarks

Product names used herein are for identification purposes only and may be the

trademarks of their respective companies.

NXP® is trademarks of Microsoft Corporation.

BACnet is registered trademarks of American Society of Heating, Refrigerating and Air-Conditioning Engineers.

Tridium, JACE, Niagara Framework, NiagaraAX Framework, and Workbench, WorkPlaceAX and AXSupervisor are

trademarks of Tridium Inc. All other brands or product names mentioned in this manual are trademarks or registered

trademarks of their respective companies.

FCC Statement

FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction guide, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one of
the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

User Guide for MF0230 IoT Box

First International Computer, Inc. 3

FCC Caution: Any change or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate this equipment. (Example-use only shielded interface cables when

connecting to computer or peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The antennas used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.

BATTERY CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with same
or equivalent type recommended by the manufacturer. Do not discard used batteries in to regular
trash. These batteries need to be recycled according to the manufacturer's instructions.

User Guide for MF0230 IoT Box

First International Computer, Inc. 4

目录 Table of Contents:

1. 简介 Introduction to MF0230 IoT Box

1.1 IoT Box Specification 规格

1.2 Front View of IoT Box Device 正视图

1.3 Rear View of IoT Box Device 后视图

1.4 LED Indicator 指示灯

2. Getting Started 入门指南

2.1 Power up 通电

2.2 Connect the IoT Box with Network 网络连接

2.2.1 Wired 有线网络

2.2.2 Wireless 无线网络

3. VESA Mount 75mm * 75 Information VESA 75mm*75mm 标准的悬挂架信息

4. Contact Us 联系我们

User Guide for MF0230 IoT Box

First International Computer, Inc. 5

1. 简介 Introduction to MF0230 IoT Box

The MF0230 IoT Box is a compact, high-performance computer which is powered by NXP® i.MX6

Quad-core and embedded Niagara Framework® -based controller and server platform for connecting

diverse devices or sub-systems.

MF0230 IoT Box streams data and graphical displays to a standard Web browser via an Ethernet or

wireless LAN, or remotely over the Internet.

It provides integrated control, data logging, scheduling, supervision, and network management along

with graphical displays Web-serving capability.

MF0230 IoT Box是一款紧凑型高性能计算机，采用恩智浦i.MX6四核以及基于 Niagara Framework®
嵌入式控制器和服务器平台，可连接不同的设备或子系统。

MF0230物联网盒通过以太网或无线局域网将数据和图形显示流式传输到标准网络浏览器，或通过互
联网远程传输。

它提供集成控制，数据记录，调度，监督和网络管理以及图形显示Web服务功能。

User Guide for MF0230 IoT Box

First International Computer, Inc. 6

1.1 IoT Box Specification 规格

Following chart shows specification of the IoT Box device.
下图显示了IoT Box设备的规格。

User Guide for MF0230 IoT Box

First International Computer, Inc. 7

1.2 Front view of MF0230 IoT Box Device 正视图

1

USB Ports

2

HDMI-Out port

3

LED: Ethernet 1 activity indicator

4

LED: Ethernet 2 activity indicator

5

LED: Storage activity indicator (reserved)

6

LED: System Power On/Off

7

WiFi Antenna

User Guide for MF0230 IoT Box

First International Computer, Inc. 8

1.3 Rear view of MF0230 IoT Box Device 后视图

1

RS485

2

FR : Factory Reset

3

UART (DB9)

4

Ethernet 1 port

5

Ethernet 2 port

6

Power On/Off Switch

7

Power Supply

User Guide for MF0230 IoT Box

First International Computer, Inc. 9

1.4 MF0230 IoT LED Indicator 指示灯

Following chart shows how the LED light indicate the operations being performed on the IoT Box

device.

下图显示了 LED 灯如何指示正在 IoT Box 设备上执行的操作。

No.

LED indicator

指示灯

Color-Status

颜色状态

Description

描述

1

LAN Link/ACT
网络连接/动作

Green: Steady Green
稳定的绿色

Linked to the network
链接到网络

Green: Flashing Green
闪烁的绿色

Linked to the network with activity
链接到活动网络

OFF 关闭

No connection 无连接

2

Storage (Reserved)
存储（預設）

TBD 待定义

TBD 待定义

3

System Power
系统电源

Green: Steady Green
稳定的绿色

Power ON 打开电源
OFF 关闭

Power OFF 关闭电源

User Guide for MF0230 IoT Box

First International Computer, Inc. 10

2. Getting Started 入门指南

2.1 Power up 通电

1. Attach the provided antenna to the IoT Box device. Screw on antenna to

the provided socket on the gateway. The antenna can be rotated and
angled so it can be aligned in any installation position.

将提供的天线连接到 IoT Box 设备。 将天线拧到网关上提供的插座上。 天线可以
旋转和倾斜，因此可以在任何安装位置对齐。

2. Attach the LAN wire to the IoT Box device for the wired connection.

将 LAN 线连接到 IoT Box 设备以进行有线连接。

3. Connect the provided power adaptor to the IoT Box.

将提供的电源适配器连接到 IoT Box。

4. Turn the power switch on, and then wait for about one minute to allow

the IoT Box to fully boot itself.

打开电源开关，然后等待大约一分钟，让 IoT Box 自行完全启动。

2.2 Connect the IoT Box with Network 网络连接

IoT Box device can be connected through both wireless and wired networks.

IoT Box 设备可以通过无线和有线网络连接

2.2.1 有线网络 Wired: DHCP and Static

2.2.2 无线网络 Wireless: DHCP

User Guide for MF0230 IoT Box

First International Computer, Inc. 11

2. VESA Mount 75mm*75mm Information

VESA 75mm*75mm 标准的悬挂架信息

4. Contact Us 联系我们

Taipei Headquarters 台北总部
大众电脑股份有限公司

First International Computer, Inc.
台北市内湖区阳光街 300 号 8 楼

No. 300, Yang Guang St.,NeiHu, Taipei, Taiwan, 114
电话 TEL: +(886)2-87518751

Region- America : [e-mail]

Region-CALA: : [e-mail]

Region-EMEA : [e-mail]

Region-APAC : [e-mail]

Region-Greater China : [e-mail]
