first international computer TY640 Schematics

5

hexainf@hotmail.com

4

3

2

1

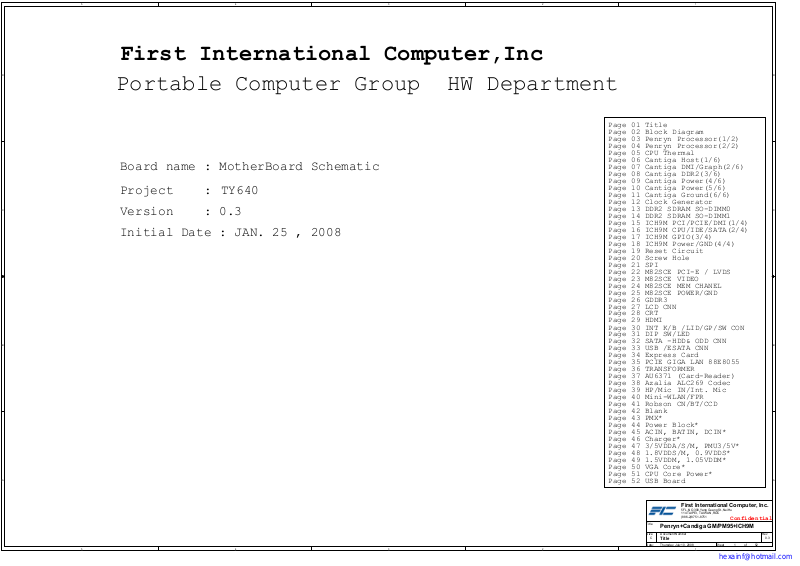

First International Computer,Inc

D D

Portable Computer Group HW Department

Page 01 Title Page 02 Block Diagram Page 03 Penryn Processor(1/2) Page 04 Penryn Processor(2/2) Page 05 CPU Thermal Page 06 Cantiga Host(1/6)

Board name : MotherBoard Schematic

Project :

C C

Version : 0.3

TY640

Initial Date : JAN. 25 , 2008

B B

A A

Page 07 Cantiga DMI/Graph(2/6) Page 08 Cantiga DDR2(3/6) Page 09 Cantiga Power(4/6) Page 10 Cantiga Power(5/6) Page 11 Cantiga Ground(6/6) Page 12 Clock Generator Page 13 DDR2 SDRAM SO-DIMM0 Page 14 DDR2 SDRAM SO-DIMM1 Page 15 ICH9M PCI/PCIE/DMI(1/4) Page 16 ICH9M CPU/IDE/SATA(2/4) Page 17 ICH9M GPIO(3/4) Page 18 ICH9M Power/GND(4/4) Page 19 Reset Circuit Page 20 Screw Hole Page 21 SPI Page 22 M82SCE PCI-E / LVDS Page 23 M82SCE VIDEO Page 24 M82SCE MEM CHANEL Page 25 M82SCE POWER/GND Page 26 GDDR3 Page 27 LCD CNN Page 28 CRT Page 29 HDMI Page 30 INT K/B /LID/GP/SW CON Page 31 DIP SW/LED Page 32 SATA -HDD& ODD CNN Page 33 USB /ESATA CNN Page 34 Express Card Page 35 PCIE GIGA LAN 88E8055 Page 36 TRANSFORMER Page 37 AU6371 (Card-Reader) Page 38 Azalia ALC269 Codec Page 39 HP/Mic IN/Int. Mic Page 40 Mini-WLAN/FPR Page 41 Robson CN/BT/CCD Page 42 Blank Page 43 PMX* Page 44 Power Block* Page 45 ACIN, BATIN, DCIN* Page 46 Charger* Page 47 3/5VDDA/S/M, PMU3/5V* Page 48 1.8VDDS/M, 0.9VDDS* Page 49 1.5VDDM, 1.05VDDM* Page 50 VGA Core* Page 51 CPU Core Power* Page 52 USB Board

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

5

4

3

2

Date: Sheet of

(886-2)875 1-8751

Penryn+Candiga GM/PM95+ICH9M

Title

1

Confidential

1 52Thursday, July 10, 2008

0.3

8

7

3. Block Diagram :

6

5

4

3

2

1

D D

Thermal Sensor

P05

Intel

CPU

CORE

P51

Penryn

CPU

VCCP

P49

LCD

P27

VRAM DDR3 256MB

P26

Processor

(667/800/1066 MHz)

FSB

P3,4

CLK SLG8SP533V

Reset Circuit

P12

P19

RTC Bat

Fan CNN

Lid Switch

LED

P16

P05

NEW CARD/B

P30

DDR2 800/667 MHz

CRT

P28

HDMI

P37

P29

P45

ALCORCardReader AU6371

P37

PMU3V/5V

C C

3 in 1

ACIN / DCIN

3VDDA/5VDDA

B B

3VDDM/5VDDM

DDRII Power

1.5VDDM/1.05VDDM

P47

DCIN+

Battery Voltage Sense

A A

Battery Charger

Battery CON

8

P45

P43

P46

P45

GPU ATI M82SCE

CCD

P41

P47

P48

P49

7

B/T

P22~P25

P41

USB 3

E-SATA

CDROM

HDD

P33

P32

PCIE x 16

USB 2.0

USB 0,1,2

USB/B

P33

SATA BUS

6

P33

Flash ROM BIOS

Intel NB

Cantiga (G)MCH

DMI

(x4)

Intel SB

ICH9M

P15~18

SPI

LPC BUS

P21

5

P6~11

Azalia

PMX MB90F372

Mem_A Bus

Mem_B Bus

PCIE_3

PCIE_2

PCIE_6

PCIE_1

USB 2.0

P30

DDRII SODIMM0 (A)

P13

DDR2 800/667 MHz

DDRII SODIMM1 (B)

P14

Mini Card (WLAN)

Mini Card (Robson)

P40

P41

Daughter board (Robson)

LAN 10/100/1000M

88E8055

P35,36

RJ-45

P36

Express Card

P33

Azalia Codec

ALC269

P43

Glide PadInt. KB

P30

4

Mic In

P39

3

P38

HP/SPDIF

Speaker

P39

2

MAIN SW CNN/DIP SW

P38

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2) 8751 -8751

Penryn+Candiga GM/PM95+ICH9M

Block Diagram

P29

Confidential

2 52Thursday, July 10, 2008

1

0.3

A

hexainf@hotmail.com

H_A20M#(16)

H_FERR#(16)

H_IGNNE#(16)

H_INTR(16)

H_NMI(16)

H_SMI#(16)

1.05VDDM

R125

H_A#[35..3]

H_REQ#[4..0]

H_A#[35..3]

51Ω 5% 1/16W SMT0402 LR(NU)

For Q.C CPU

Install R377

TP4 TP5

TP7

R179

H_A#3 H_A#4 H_A#5 H_A#6 H_A#7 H_A#8 H_A#9 H_A#10 H_A#11 H_A#12 H_A#13 H_A#14 H_A#15 H_A#16

H_REQ#0 H_REQ#1 H_REQ#2 H_REQ#3 H_REQ#4

H_A#17 H_A#18 H_A#19 H_A#20 H_A#21 H_A#22 H_A#23 H_A#24 H_A#25

H_A#27 H_A#28 H_A#29 H_A#30 H_A#31 H_A#32 H_A#33 H_A#34 H_A#35

H_QCBPM1

1

H_QCBPM0

1

H_QCBPM2

1

H_GTLREF2

TP6

TDO_M

1

TDI_M

Rev0.2

A#[32-39], APM#[0-1]:Leave escape routing on for future functionality

H_D#[63..0](6)

H_DSTBN#0(6)

H_DSTBP#0(6)

H_DINV#0(6)

H_D#[63..0](6)

H_DSTBN#1(6)

H_DSTBP#1(6)

H_DINV#1(6)

H_D#[63..0]

R210 1KΩ 5% 1/16W SMT0402 LR(NU) R188 1KΩ 5% 1/16W SMT0402 LR(NU)

CPU_BSEL0(12) CPU_BSEL1(12)

C139

0.1uF 10V 10% SMT0402 X5R LR(N U)

Place C181 close to the CPU_TE ST4 pin.

Make sure CPU_TEST4 routing is reference to GND and away from other nossy signale.

U33A

J4

ADDR GROUP

0

A[3]#

L5

A[4]#

L4

A[5]#

K5

A[6]#

M3

A[7]#

N2

A[8]#

J1

A[9]#

N3

A[10]#

P5

A[11]#

P2

A[12]#

L2

A[13]#

P4

A[14]#

P1

A[15]#

R1

A[16]#

M1

ADSTB[0]#

K3

REQ[0]#

H2

REQ[1]#

K2

REQ[2]#

J3

REQ[3]#

L1

REQ[4]#

Y2

A[17]#

U5

A[18]#

R3

ADDR GROUP

1

A[19]#

W6

A[20]#

U4

A[21]#

Y5

A[22]#

U1

A[23]#

R4

A[24]#

T5

A[25]#

T3

A[26]#

W2

A[27]#

W5

A[28]#

Y4

A[29]#

U2

A[30]#

V4

A[31]#

W3

A[32]#

AA4

A[33]#

AB2

A[34]#

AA3

A[35]#

V1

ADSTB[1]#

A6

ICH

A20M#

A5

FERR#

THERMTRIP#

C4

IGNNE#

D5

STPCLK#

C6

LINT0

B4

LINT1

A3

SMI#

M4

RSVD[01]

N5

RSVD[02]

T2

RSVD[03]

V3

RSVD[04]

B2

RSVD[05]

C3

RSVD[06]

D2

RSVD[07]

D22

RSVD[08]

D3

RSVD[09]

F6

RSVD[10]

Penryn Ball-out Rev 1a

Rout to TP via and place gnd via w/in 100mils

H_D#0

E22

H_D#1

F24

H_D#2

E26

H_D#3

G22

H_D#4

F23

H_D#5

G25

H_D#6

E25

H_D#7

E23

H_D#8

K24

H_D#9

G24

H_D#10

J24

H_D#11

J23

H_D#12

H22

H_D#13

F26

H_D#14

K22

H_D#15

H23 J26 H26 H25

H_D#16

N22

H_D#17

K25

H_D#18

P26

H_D#19

R23

H_D#20

L23

H_D#21

M24

H_D#22

L22

H_D#23

M23

H_D#24

P25

H_D#25

P23

H_D#26

P22

H_D#27

T24

H_D#28

R24

H_D#29

L25

H_D#30

T25

H_D#31

N25 L26 M26

TEST3

TEST5

AD26

AF26

N24

C23 D25 C24

AF1 A26

B22 B23 C21

H_GTLREF

H_A#[35..3](6)

4 4

Zo=55ohm, 0.5" max for GTLREF, Space any other switch signals away from GTLREF with a minimum of 25mils.

Don't allow the GTLREF routing to create splits or discontinuities in the reference planes of the FSB signals

3 3

R186 1KΩ 1% 1/16W SMT0402 LR(NU)

1.05VDDM

0Ω 5% 1/16W SMT0402 LR

For Dual Core CPU

R187=0Ω, R186= NU

For Quad Core CPU

R187=1.74KΩ 1%, R186=1KΩ 1%(0.63Vtt)

2 2

Zo=55ohm, 0.5" max for GTLREF, Space any other switch signals away from GTLREF with a minimum of 25mils.

Don't allow the GTLREF routing to create splits or discontinuities in the reference planes of the FSB signals

1.05VDDM

1 1

For Dual Core CPU

R125=2KΩ 1%

For Quad Core CPU

R125=1.74KΩ 1%(0.63Vtt)

H_ADSTB#0(6)

H_REQ#[4..0](6)

H_A#[35..3](6)

H_ADSTB#1(6)

H_STPCLK#(16)

H_QCTHERMDA(5)

H_QCTHERMDC(5)

R187

R132 1KΩ 1% 1/16W SMT0402 LR R168 RES 27.4Ω 1% 1/16W SMT 0402 LR

2KΩ 1% 1/16W SMT0402 LR

A

ADS# BNR#

BPRI#

DEFER#

DRDY# DBSY#

BR0#

IERR#

INIT#

LOCK#

CONTROL

RESET#

RS[0]# RS[1]# RS[2]# TRDY#

HIT#

HITM#

BPM[0]# BPM[1]# BPM[2]# BPM[3]#

PRDY# PREQ#

TCK

TDI TDO TMS

TRST#

XDP/ITP SIGNALS

DBR#

THERMAL

PROCHOT#

THERMDA THERMDC

H CLK

BCLK[0] BCLK[1]

RESERVED

U33B

D[0]# D[1]# D[2]# D[3]# D[4]# D[5]# D[6]# D[7]# D[8]# D[9]# D[10]# D[11]# D[12]# D[13]# D[14]# D[15]# DSTBN[0]# DSTBP[0]# DINV[0]#

D[16]# D[17]# D[18]# D[19]# D[20]# D[21]# D[22]# D[23]# D[24]# D[25]# D[26]# D[27]# D[28]# D[29]# D[30]# D[31]# DSTBN[1]# DSTBP[1]# DINV[1]#

GTLREF

MISC

TEST1 TEST2 TEST3 TEST4 TEST5 TEST6

BSEL[0] BSEL[1] BSEL[2]

Penryn Ball-out Rev 1a

B

H1 E2 G5

H5 F21 E1

F1

H_IERR#

D20 B3

H4

C1 F3 F4 G3 G2

G6 E4

H_BPM0

AD4

H_BPM1

AD3

H_BPM2

AD1

H_BPM3

AC4 AC2

XDP_BPM#5

AC1

XDP_TCK

AC5

XDP_TDIH_A#26

AA6 AB3

XDP_TMS

AB5

XDP_TRST#

AB6

XDP_DBRES ET#

C20

D21 A24 B25

C7

A22 A21

R614 100Ω 1% 1/16W SMT0402 LR(NU)

Install R614

For Quad Core CPU

Y22

D[32]#

AB24

D[33]#

V24

D[34]#

V26

DATA GRP 0

D[35]#

V23

D[36]#

T22

D[37]#

U25

D[38]#

U23

D[39]#

Y25

D[40]#

W22

D[41]#

Y23

D[42]#

W24

D[43]#

W25

D[44]#

AA23

D[45]#

AA24

D[46]#

DATA GRP 2DATA GRP 3

AB25

D[47]#

Y26

DSTBN[2]#

AA26

DSTBP[2]#

U22

DINV[2]#

AE24

D[48]#

AD24

D[49]#

AA21

D[50]#

AB22

D[51]# D[52]# D[53]# D[54]# D[55]# D[56]# D[57]# D[58]# D[59]# D[60]# D[61]# D[62]#

D[63]# DSTBN[3]# DSTBP[3]#

DINV[3]#

COMP[0] COMP[1] COMP[2] COMP[3]

DPRSTP#

DPSLP# DPWR#

PWRGOOD

SLP#

PSI#

H_PWRGD rise time : Max : 15ns

B

AB21 AC26 AD20 AE22 AF23 AC25 AE21 AD21 AC22 AD23 AF22 AC23 AE25 AF24 AC20

R26 U26 AA1 Y1

E5 B5 D24 D6 D7 AE6

DATA GRP 1

H_ADS# (6) H_BNR# (6) H_BPRI# (6)

H_DEFER# (6) H_DRDY# (6) H_DBSY# (6)

H_BREQ# (6)

H_INIT# (16)

H_LOCK# (6)

H_RS#0 (6) H_RS#1 (6) H_RS#2 (6) H_TRDY# (6)

H_HIT# (6) H_HITM# (6)

TP8

1

TP2

1

TP9

1 1

Rev0.2

TP3

H_THERMDA (5) H_THERMDC (5) HOT_DOWN# (5,43)

PM_THRMTRIP# (7,16)

CLK_CPU_BCLK (12) CLK_CPU_BCLK# (12 )

Rev0.2

H_D#[63..0]

H_D#32 H_D#33 H_D#34 H_D#35 H_D#36 H_D#37 H_D#38 H_D#39 H_D#40 H_D#41 H_D#42 H_D#43 H_D#44 H_D#45 H_D#46 H_D#47

H_D#[63..0]

H_D#48 H_D#49 H_D#50 H_D#51 H_D#52 H_D#53 H_D#54 H_D#55 H_D#56 H_D#57 H_D#58 H_D#59 H_D#60 H_D#61 H_D#62 H_D#63

COMP0

R167 54.9Ω 1% 1/16W SMT0402 LR Sn

COMP1

R145 RES 27.4Ω 1% 1/16W SMT 0402 LR

COMP2

R155 54.9Ω 1% 1/16W SMT0402 LR Sn

COMP3

H_DPRSTP# (7,16,51) H_DPSLP# (16) H_DPWR# (6)

H_CPUSLP# (6) PSI# (51)CPU_BSEL2(12)

C

Topology : FERR#

For Dual Core CPU

R196=56Ω 5%

R196

RES 56Ω 5% 1/16W SMT0402 L R

1.05VDDM

R200 RES 56Ω 5% 1/16W SMT0402 L R

0'' ~ 3''

R204 0Ω 5% 1/16W SMT0402 LR(NU)

1.05VDDM

H_CPURST# (6)

C277

0.1uF 10V 10% SMT0402 X5R LR(NU )

H_PROCHOT#

Topology : PWRGOOD

Topology : INTR , NMI , A20M# , DPSLP# , IGNNE# , INIT# , SMI# , STPCLK#

Topology : THERMTRIP#

Should be connect to ICH8M and Crestline without T-ing(no stub)

XDP P/U & P/D

XDP_DBRES ET#

XDP_TMS XDP_TDI XDP_BPM#5

XDP_TCK

XDP_TRST#

R218 1KΩ 5% 1/16W SMT0402 LR(NU)

R144 54.9Ω 1% 1/16W SMT0402 LR Sn R156 54.9Ω 1% 1/16W SMT0402 LR Sn R138 54.9Ω 1% 1/16W SMT0402 LR Sn

R127 54.9Ω 1% 1/16W SMT0402 LR Sn

R126 54.9Ω 1% 1/16W SMT0402 LR Sn

H_D#[63..0] (6)

H_DSTBN#2 (6) H_DSTBP#2 (6) H_DINV#2 (6) H_D#[63..0] (6)

Comp0,2 connect with Zo=27.4ohm, make trace length shorter than 0.5" and width is 18mils.

Comp1,3 connect with Zo=55ohm, make trace length shorter than 0.5" and width is 5mils

H_DSTBN#3 (6) H_DSTBP#3 (6) H_DINV#3 (6)

For Dual Core CPU

H_PWRGD (16)

5/27 add

C867

0.1uF 10V 10% SMT0402 X5R LR(NU )

R168, R145=27.4Ω 1%

R167, R155=54.9Ω 1%

For Quad Core CPU

R168, R145=25Ω 1%

R167, R155=50Ω 1%

C

3VDDM

1.05VDDM

D

VCCP=1.05VDDM

ICH8MCPU

VCCP

CPU IMVP6

Rtt

L4

CPU

ICH8M

L1

GMCHL2CPU ICH7m

FSB Common Clock Signal Layout Guide :

ADS# , BNR# , BPRI# , BR0# , DBSY# , DEFER# , DPWR# , DRDY# , HIT# , HITM# , LOCK# , RS[2..0]# , TRDY# , RESET#.

Transmission Line Type Total Trace Length Normal Impedance Spacing (mils)

Strip-line(Int. Layer)

Micro-strip(Ext. Layer)

FSB So urce S ynchro nous Da ta Le ngth Variation and Strobe Matching Requirements :

Signals Name

DATA#[15..0] , DINV0#

DATA#[31..16] , DINV1# +/- 100 mils

DATA#[47..32] , DINV2#

DATA#[63..48] , DINV3#

FSB Source Synchronous Data Signal Routing Topology#1 :

Signal Name

DINV#[3..0]

DATA#[63..0]

DSTBN#[3..0]

DSTBP#[3..0]

FSB So urce S ynchro nous Ad dress Length Variation and Strobe Matching Requirements :

A#[16..3] , REQ#[4..0]

*** No length matching requirements exist between ADSTB0# and ADSTB1#

FSB Source Synchronous Address Signal Routing :

Signal Name

Address#[31..3]

REQ#[4..0]

ADSTB#[1..0]

VCCP L1

Rtt

L2

VCCP

L2+L1 L3 Strip-line

L1

0.5" - 12"

0.5" - 12" Strip-line

L1CPU ICH8M

0.5" - 12" Micro-strip

0.5" - 12"

L3

RttL1 L4

1.0 ~ 6.5 inch 55+/-15%

Signals Matching

+/- 100 mils

Transmission Line Type

Strip-line

Signals MatchingSignals Name

+/- 200 mils

Transmission Line Type

Strip-line

D

L2

Rtt Transmission Line

0" - 3.0" Microstrip0.5" - 12"

56 +/-5%

L3 L4

0" - 3.0"

Stripline

0" - 3.0"

Rtt Transmission LineL2L1

Micro-strip75 +/-5%0.5" - 6.5"

75 +/-5%0.5" - 6.5"

0.5" - 12"L1

0" - 3.0"

Rtt

0.5" - 6.5"

Topology : CPUSLP#

Transmission Line

Micro-strip

GMCH

L1

Topology : RESET#

Transmission Line

Strip-line

VCCP

L1 L2

1" - 12"

Rtt

1" - 6" 0" - 3.0"

1" - 12" 1" - 6"

Proces sor ITP Signal Default Strapping When ITP-XDP & ITP700FLEX Dedbug Port Not Used.

Signal Resistor Value Connect To Resistor Placement

TDI

TMS

TRST#

TCK

TDO

Strobes associated with the group Strobe-to-Strobe Complement Matching

DSTBP0#,DSTBN0#

DSTBP1#,DSTBN1#

DSTBP2#,DSTBN2#

DSTBP3#,DSTBN3#

Total Trace Length

0.5 ~ 5.5 inch

Strobes associated with the group

ADSTB0#+/- 200 mils

ADSTB1#A#[31..17]

Total Trace Length Normal Impedance

0.5 ~ 6.5 inch

1.05VDDM(4,6,7,9,10,12,15,16,18,49)

3VDDM(5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,5 0,51)

GMCH

L3

L1+L3

0" - 3.0"

1" - 12"

0" - 3.0"

1" - 12"

54.9 OHM +/-5%

649 OHM +/-5%

54.9 OHM +/-5%

OPEN

4 & 8 mils

5 & 10 mils

Normal Impedance

55+/-15%

55+/-15%Strip-line

1.05VDDM

3VDDM

L1

Rss

24 +/-5%

24 +/-5% 56 +/-5%

VCCP

GND

NC

+/- 25 mils+/- 100 mils

+/- 25 mils

Width & Spacing (mils)

Data-to-Data,Strobe-to-strobe Strobe-to-Data

4 & 8 mils

4 & 12 mils

Strobe to Assoc. Address Signal Matching

+/- 200 mils

Width & Spacing (mils)

4 & 8 mils

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

Penryn Processor (1/2)

Date: Sheet of

E

Transmission Line

L1CPU

0.5" - 12"

Micro-strip

0.5" - 12"

Strip-line

L1

Transmission LineCPU

1" - 6"

Micro-strip

1" - 6"

Strip-line

Rtt

Transmission LineL4

56 +/-5%

Micro-strip

Strip-line0" - 3.0"

Within 2.0" of the CPU

N/A

4 & 12 mils

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)875 1-8751

E

Confidential

3 52Thursday, July 10, 2008

0.3

A

B

C

D

E

Place these inside socket cavity on L8 (North side secondary)

VCORE_CPU

4 4

HFM ICC=41A

3 3

2 2

C128 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C123 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C169 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

Place these inside socket cavity on L1 (North side Primary)

C637 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C636 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C635 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

North side secondary

1 1

C173 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C170 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C171 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C634 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C633 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C175 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C176 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C174 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C172 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C632 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

South side secondary

Place these inside socket cavity on L8 (South side secondary)

C242 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C240 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C238 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C239 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

Place these inside socket cavity on L1 (South side Primary)

C654 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C655 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C243 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C241 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C651 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C650 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C653 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C652 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C699 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C700 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C244 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C245 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

U33C

A7

VCC[001]

A9

VCC[002]

A10

VCC[003]

A12

VCC[004]

A13

VCC[005]

A15

VCC[006]

A17

VCC[007]

A18

VCC[008]

A20

VCC[009]

B7

VCC[010]

B9

VCC[011]

B10

VCC[012]

B12

VCC[013]

B14

VCC[014]

B15

VCC[015]

B17

VCC[016]

B18

VCC[017]

B20

VCC[018]

C9

VCC[019]

C10

VCC[020]

C12

VCC[021]

C13

VCC[022]

C15

VCC[023]

C17

VCC[024]

C18

VCC[025]

D9

VCC[026]

D10

VCC[027]

D12

VCC[028]

D14

VCC[029]

D15

VCC[030]

D17

VCC[031]

D18

VCC[032]

E7

VCC[033]

E9

VCC[034]

E10

VCC[035]

E12

VCC[036]

E13

VCC[037]

E15

VCC[038]

E17

VCC[039]

E18

VCC[040]

E20

VCC[041]

F7

VCC[042]

F9

VCC[043]

F10

VCC[044]

F12

VCC[045]

F14

VCC[046]

F15

VCC[047]

F17

VCC[048]

F18

VCC[049]

F20

VCC[050]

AA7

VCC[051]

AA9

VCC[052]

AA10

VCC[053]

AA12

VCC[054]

AA13

VCC[055]

AA15

VCC[056]

AA17

VCC[057]

AA18

VCC[058]

AA20

VCC[059]

AB9

VCC[060]

AC10

VCC[061]

AB10

VCC[062]

AB12

VCC[063]

AB14

VCC[064]

AB15

VCC[065]

AB17

VCC[066]

AB18

VCC[067]

Penryn Ball-out Rev 1a

VCC[068] VCC[069] VCC[070] VCC[071] VCC[072] VCC[073] VCC[074] VCC[075] VCC[076] VCC[077] VCC[078] VCC[079] VCC[080] VCC[081] VCC[082] VCC[083] VCC[084] VCC[085] VCC[086] VCC[087] VCC[088] VCC[089] VCC[090] VCC[091] VCC[092] VCC[093] VCC[094] VCC[095] VCC[096] VCC[097] VCC[098] VCC[099] VCC[100]

VCCP[01] VCCP[02] VCCP[03] VCCP[04] VCCP[05] VCCP[06] VCCP[07] VCCP[08] VCCP[09] VCCP[10] VCCP[11] VCCP[12] VCCP[13] VCCP[14] VCCP[15] VCCP[16]

VCCA[01] VCCA[02]

VID[0] VID[1] VID[2] VID[3] VID[4] VID[5] VID[6]

VCCSENSE

VSSSENSE

AB20 AB7 AC7 AC9 AC12 AC13 AC15 AC17 AC18 AD7 AD9 AD10 AD12 AD14 AD15 AD17 AD18 AE9 AE10 AE12 AE13 AE15 AE17 AE18 AE20 AF9 AF10 AF12 AF14 AF15 AF17 AF18 AF20

G21 V6 J6 K6 M6 J21 K21 M21 N21 N6 R21 R6 T21 T6 V21 W21

B26 C26

AD6 AF5 AE5 AF4 AE3 AF3 AE2

AF7

AE7

C210 0.1uF 16V ±10% SMD0603 X7R LR

H_VID0 (51) H_VID1 (51) H_VID2 (51) H_VID3 (51) H_VID4 (51) H_VID5 (51) H_VID6 (51)

C209 0.1uF 16V ±10% SMD0603 X7R LR

C192 0.1uF 16V ±10% SMD0603 X7R LR

C203 0.1uF 16V ±10% SMD0603 X7R LR

C214 0.1uF 16V ±10% SMD0603 X7R LR

C202 0.1uF 16V ±10% SMD0603 X7R LR

Place C? Close To pin B26

VCORE_CPU

R120 100Ω 1% 1/16W SMT0402 LR

R122 100Ω 1% 1/16W SMT0402 LR

1.05VDDM

ICCP=4.5A,180mils

1/29 EMI

C188

+

T100uF 2V ±20% ESR=18mΩ SMT7343 EEFCD0D101ER PANASONIC LR

Place these inside socket cavity on L8 (North side secondary)

1.5VDDM

ICCA=130mA, 20mils

C289 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C282

TDK

0.01uF 16V 10% SMT0402 X7R LR

Rev0.2

For Dual Core CPU

R193 and R123=0Ω

For Quad Core CPU

R193 and R123 NU

VCCSENSE (51)

VSSSENSE (51)

R193 0Ω 5% 1/16W SMT0402 LR

U33D

A4

VSS[082]

VSS[001]

A8

VSS[002]

A11 A14 A16 A19 A23 AF2

B11 B13 B16 B19 B21 B24

C11 C14 C16 C19

C22 C25

D11 D13 D16 D19 D23 D26

E11 E14 E16 E19 E21 E24

F11 F13 F16 F19

F22 F25

G23 G26

H21 H24

J22 J25

K23 K26

L21 L24

M22 M25

N23 N26

VSS[083]

VSS[003]

VSS[084]

VSS[004]

VSS[085]

VSS[005]

VSS[086]

VSS[006]

VSS[087]

VSS[007]

VSS[088]

VSS[008]

VSS[089]

B6

VSS[009]

VSS[090]

B8

VSS[010]

VSS[091]

VSS[011]

VSS[092]

VSS[012]

VSS[093]

VSS[013]

VSS[094]

VSS[014]

VSS[095]

VSS[015]

VSS[096]

VSS[016]

VSS[097]

C5

VSS[017]

VSS[098]

C8

VSS[018]

VSS[099]

VSS[019]

VSS[100]

VSS[020]

VSS[101]

VSS[021]

VSS[102]

VSS[022]

VSS[103]

C2

VSS[023]

VSS[104]

VSS[024]

VSS[105]

VSS[025]

VSS[106]

D1

VSS[026]

VSS[107]

D4

VSS[027]

VSS[108]

D8

VSS[028]

VSS[109]

VSS[029]

VSS[110]

VSS[030]

VSS[111]

VSS[031]

VSS[112]

VSS[032]

VSS[113]

VSS[033]

VSS[114]

VSS[034]

VSS[115]

E3

VSS[035]

VSS[116]

E6

VSS[036]

VSS[117]

E8

VSS[037]

VSS[118]

VSS[038]

VSS[119]

VSS[039]

VSS[120]

VSS[040]

VSS[121]

VSS[041]

VSS[122]

VSS[042]

VSS[123]

VSS[043]

VSS[124]

F5

VSS[044]

VSS[125]

F8

VSS[045]

VSS[126]

VSS[046]

VSS[127]

VSS[047]

VSS[128]

VSS[048]

VSS[129]

VSS[049]

VSS[130]

F2

VSS[050]

VSS[131]

VSS[051]

VSS[132]

VSS[052]

VSS[133]

G4

VSS[053]

VSS[134]

G1

VSS[054]

VSS[135]

VSS[055]

VSS[136]

VSS[056]

VSS[137]

H3

VSS[057]

VSS[138]

H6

VSS[058]

VSS[139]

VSS[059]

VSS[140]

VSS[060]

VSS[141]

J2

VSS[061]

VSS[142]

J5

VSS[062]

VSS[143]

VSS[063]

VSS[144]

VSS[064]

VSS[145]

K1

VSS[065]

VSS[146]

K4

VSS[066]

VSS[147] VSS[148]

VSS[067] VSS[068]

VSS[149]

L3

VSS[069]

VSS[150]

L6

VSS[070]

VSS[151]

VSS[071]

VSS[152]

VSS[072]

VSS[153]

M2

VSS[073]

VSS[154]

M5

VSS[074]

VSS[155]

VSS[075]

VSS[156]

VSS[076]

VSS[157]

N1

VSS[077]

VSS[158]

N4

VSS[078]

VSS[159]

VSS[079]

VSS[160]

VSS[080]

VSS[161]

P3 A25

VSS[081] VSS[162]

VSS[163]

Penryn Ball-out Rev 1a

P6 P21 P24 R2 R5 R22 R25 T1 T4 T23 T26 U3 U6 U21 U24 V2 V5 V22 V25 W1 W4 W23 W26 Y3 Y6 Y21 Y24 AA2 AA5 AA8 AA11 AA14 AA16 AA19 AA22 AA25 AB1 AB4 AB8 AB11 AB13 AB16 AB19 AB23 AB26 AC3 AC6 AC8 AC11 AC14 AC16 AC19 AC21 AC24 AD2 AD5

R123

AD8

0Ω 5% 1/16W SMT0402 LR

AD11 AD13 AD16 AD19 AD22 AD25 AE1 AE4 AE8 AE11 AE14 AE16 AE19 AE23 AE26 A2 AF6 AF8 AF11 AF13 AF16 AF19 AF21

AF25

VCORE_CPU(51)

1.05VDDM(3,6,7,9,10,12,15,16,18,49)

1.5VDDM(9,10,15,16,18,34,40,41,49)

VCORE_CPU

1.05VDDM

1.5VDDM

Route VCCSENSE and VSSSENSE traces at 27.4 ohms with 50mil spacing. Place PU and PD within 1 inch of CPU

A

B

C

D

Title

Size Document Number Rev

C

Date: Sheet of

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

Penryn Processor (2/2)

E

4 52Thursday, July 10, 2008

0.3

8

hexainf@hotmail.com

7

6

5

4

3

2

1

Quad Core THERMAL SENSOR

V0.3

Rev0.2

D D

QSMCLK_PMU

QSMDAT_PMU

C C

10mil 10mil

LNR-IC Temperature Sensor G780P81U 3.0-5.5V MSOP-8 8PIN GMT LR(NU)

Dual Core THERMAL SENSOR

U6

8

SCLK

7

SDATA

6

ALRT#

1

VCC

2

D+

3

D-

45

THM#GND

3VDDM

10KΩ 5% SMT1010 1/16W 4P2R LR(NU)

RP32

QSMCLK_PMU

QSMDAT_PMU

4

1

C369

3

0.1uF 25V 80-20% SMT0603 Y5V L R

2

10mil 10mil

LNR-IC Temperature Sensor G780P81U 3.0-5.5V MSOP-8 8PIN GMT LR

U8

8

SCLK

7

SDATA

6

ALRT#

VCC

D+

D-

THM#GND

20mil

THRM_VCC

C198

0.1uF 16V 80-20% SMT0402 Y5V LR(NU)

2200pF 50V 10% SMT0402 X7R LR (NU)

C190

HOT_DOWN#

20mil

THRM_VCC

1

2200pF 50V 10% SMT0402 X7R LR

2

3

45

C336

HOT_DOWN#(3,43)

R172

100Ω 5% 1/16W SMT0402 LR(NU )

H_QCTHERMDA

H_QCTHERMDC

EMI 5/27

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 T AI-TECH LR R252

C350

0.1uF 16V 80-20% SMT0402 Y5V L R

HOT_DOWN#

5VDDM

H_QCTHERMDA (3)

H_QCTHERMDC (3)

5VDDM

H_THERMDA

H_THERMDC

10KΩ 5% 1/16W SMT0402 LR

R259

H_THERMDA (3)

H_THERMDC (3)

3VDDA

10 mil

Minimum

10 mil

Minimum

10 mil

GND

THERMDA

THERMDC

GND

THERMDA

THERMDC

GND

5VDDM

1000pF 50V 10% SMT0402 X7R LR (NU)

C98

FAN_PWM(43)

DIODE ZENER GLZ6.2B 6.2V 20mA MINI-MELF 2PIN PSI LR

Q7

TRANS M-FET-P APM2301AAC-TRL -20V -3A SOT23 3PIN ANPEC LR

DS

G

R72

1KΩ 5% 1/16W SMT0402 LR

R73 0Ω 5% 1/16W SMT0402 LR

Q14

B

NPN PDTC144EU SOT-323 PHILIPS LR

E C

FAN1

D12

30mil

FAN_SPEED(43)

P N

0Ω 5% 1/10W SMT0603 LR

CN18

1 2 345

CON ACES SMT TYPE 85205-03001 WIRE 1.25P 3PIN LR DO'NT CARE

20-24197-20

R541

B B

R199 0Ω 5% 1/16W SMT0402 LR

SMCLK_PMU(30,43,45)

A A

5VDDM

SMDAT_PMU(30,43,45)

R176

2.2KΩ 5% 1/16W SMT0402 LR(NU)

8

D S

Q16 TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR(NU)

G

Q15 TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR(NU)

D S

R198 0Ω 5% 1/16W SMT0402 LR

QSMCLK_PMU

QSMDAT_PMU

7

3VDDM

3VDDM(3,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,5 0,51)

3VDDA

3VDDA(12,15,16,17,18,19,21,27,30,34,35,38,40,41,43,45,47,48 ,49)

5VDDM

5VDDM(18,28,29,30,32,38,39,47,49,50,5 1)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

6

5

4

3

Date: Sheet of

2

(886-2)875 1-8751

Penryn+Candiga GM/PM95+ICH9M

CPU Thermal

Confidential

5 52Thursday, July 10, 2008

1

0.3

10

9

8

7

6

5

4

3

2

1

H H

G G

H_D#[63..0](3)

1.05VDDM

R600=100Ω for Dual core CPU

R600=75Ω for Quad core CPU

Checklist 1.1

F F

R606 RES 221Ω 1% 1/16W SMT0402 RR0510S-2210-FN CYNTEC LR

H_SWING

R605 100Ω 1% 1/16W SMT0402 LR

H_RCOMP

R592 RES 24.9Ω 1% 1/16W SMT0402 LR

C702

0.1uF 10V 10% SMT0402 X5R LR

E E

R589=24.9Ω for Dual core CPU

R589=16.9Ω for Quad core CPU

Checklist 1.1

D D

C C

H_CPURST#(3)

1.05VDDM

H_D#[63..0]

H_CPUSLP#(3)

C296

0.1uF 10V 10% SMT0402 X5R LR(NU)

H_D#0 H_D#1 H_D#2 H_D#3 H_D#4 H_D#5 H_D#6 H_D#7 H_D#8 H_D#9 H_D#10 H_D#11 H_D#12 H_D#13 H_D#14 H_D#15 H_D#16 H_D#17 H_D#18 H_D#19 H_D#20 H_D#21 H_D#22 H_D#23 H_D#24 H_D#25 H_D#26 H_D#27 H_D#28 H_D#29 H_D#30 H_D#31 H_D#32 H_D#33 H_D#34 H_D#35 H_D#36 H_D#37 H_D#38 H_D#39 H_D#40 H_D#41 H_D#42 H_D#43 H_D#44 H_D#45 H_D#46 H_D#47 H_D#48 H_D#49 H_D#50 H_D#51 H_D#52 H_D#53 H_D#54 H_D#55 H_D#56 H_D#57 H_D#58 H_D#59 H_D#60 H_D#61 H_D#62 H_D#63

H_SWING H_RCOMP

U34A

F2

H_D#_0

G8

H_D#_1

F8

H_D#_2

E6

H_D#_3

G2

H_D#_4

H6

H_D#_5

H2

H_D#_6

F6

H_D#_7

D4

H_D#_8

H3

H_D#_9

M9

H_D#_10

M11

H_D#_11

J1

H_D#_12

J2

H_D#_13

N12

H_D#_14

J6

H_D#_15

P2

H_D#_16

L2

H_D#_17

R2

H_D#_18

N9

H_D#_19

L6

H_D#_20

M5

H_D#_21

J3

H_D#_22

N2

H_D#_23

R1

H_D#_24

N5

H_D#_25

N6

H_D#_26

P13

H_D#_27

N8

H_D#_28

L7

H_D#_29

N10

H_D#_30

M3

H_D#_31

Y3

H_D#_32

AD14

H_D#_33

Y6

H_D#_34

Y10

H_D#_35

Y12

H_D#_36

Y14

H_D#_37

Y7

H_D#_38

W2

H_D#_39

AA8

H_D#_40

Y9

H_D#_41

AA13

H_D#_42

AA9

H_D#_43

AA11

H_D#_44

AD11

H_D#_45

AD10

H_D#_46

AD13

H_D#_47

AE12

H_D#_48

AE9

H_D#_49

AA2

H_D#_50

AD8

H_D#_51

AA3

H_D#_52

AD3

H_D#_53

AD7

H_D#_54

AE14

H_D#_55

AF3

H_D#_56

AC1

H_D#_57

AE3

H_D#_58

AC3

H_D#_59

AE11

H_D#_60

AE8

H_D#_61

AG2

H_D#_62

AD6

H_D#_63

C5

H_SWING

E3

H_RCOMP

C12

H_CPURST#

E11

H_CPUSLP#

A11

H_AVREF

B11

H_DVREF

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

HOST

H_A#_3 H_A#_4 H_A#_5 H_A#_6 H_A#_7 H_A#_8

H_A#_9 H_A#_10 H_A#_11 H_A#_12 H_A#_13 H_A#_14 H_A#_15 H_A#_16 H_A#_17 H_A#_18 H_A#_19 H_A#_20 H_A#_21 H_A#_22 H_A#_23 H_A#_24 H_A#_25 H_A#_26 H_A#_27 H_A#_28 H_A#_29 H_A#_30 H_A#_31 H_A#_32 H_A#_33 H_A#_34 H_A#_35

H_ADS# H_ADSTB#_0 H_ADSTB#_1

H_BNR#

H_BPRI#

H_BREQ#

H_DEFER#

H_DBSY#

HPLL_CLK

HPLL_CLK#

H_DPWR#

H_DRDY#

H_HIT#

H_HITM# H_LOCK# H_TRDY#

H_DINV#_0 H_DINV#_1 H_DINV#_2 H_DINV#_3

H_DSTBN#_0 H_DSTBN#_1 H_DSTBN#_2 H_DSTBN#_3

H_DSTBP#_0 H_DSTBP#_1 H_DSTBP#_2 H_DSTBP#_3

H_REQ#_0 H_REQ#_1

H_REQ#_2 H_REQ#_3

H_REQ#_4

H_RS#_0

H_RS#_1

H_RS#_2

H_A#3

A14

H_A#4

C15

H_A#5

F16

H_A#6

H13

H_A#7

C18

H_A#8

M16

H_A#9

J13

H_A#10

P16

H_A#11

R16

H_A#12

N17

H_A#13

M13

H_A#14

E17

H_A#15

P17

H_A#16

F17

H_A#17

G20

H_A#18

B19

H_A#19

J16

H_A#20

E20

H_A#21

H16

H_A#22

J20

H_A#23

L17

H_A#24

A17

H_A#25

B17

H_A#26

L16

H_A#27

C21

H_A#28

J17

H_A#29

H20

H_A#30

B18

H_A#31

K17

H_A#32

B20

H_A#33

F21

H_A#34

K21

H_A#35

L20

H12 B16 G17 A9 F11 G12 E9 B10 AH7 AH6 J11 F9 H9 E12 H11 C9

J8 L3 Y13 Y1

L10 M7 AA5 AE6

L9 M8 AA6 AE5

H_REQ#0

B15

H_REQ#1

K13

H_REQ#2

F13

H_REQ#3

B13

H_REQ#4

B14

B6 F12 C8

H_A#[35..3]

H_REQ#[4..0]

H_A#[35..3] (3)

H_ADS# (3) H_ADSTB#0 (3) H_ADSTB#1 (3) H_BNR# (3)

H_BPRI# (3)

H_BREQ# (3)

H_DEFER# (3)

H_DBSY# (3)

H_DPWR# (3) H_DRDY# (3) H_HIT# (3)

H_HITM# (3) H_LOCK# (3) H_TRDY# (3)

H_DINV#0 (3)

H_DINV#1 (3)

H_DINV#2 (3)

H_DINV#3 (3)

H_DSTBN#0 (3)

H_DSTBN#1 (3)

H_DSTBN#2 (3)

H_DSTBN#3 (3)

H_DSTBP#0 (3)

H_DSTBP#1 (3)

H_DSTBP#2 (3)

H_DSTBP#3 (3)

H_REQ#[4..0] (3)

H_RS#0 (3) H_RS#1 (3) H_RS#2 (3)

CLK_MCH_BCLK (12)

CLK_MCH_BCLK# (12)

R609 1KΩ 1% 1/16W SMT0402 LR

H_AVREF

B B

R600 SPWR 0 5% 1/16W 0402

R610

RES 2KΩ 1% 1/16W SMT 0402 LR

A A

10

9

8

C697

0.1uF 10V 10% SMT0402 X5R LR(NU)

7

H_DVREF

1.05VDDM

1.05VDDM(3,4,7,9,10,12,15,16,18,49)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

6

5

4

3

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Candiga Host (1/6)

2

Confidential

6 52Thursday, July 10, 2008

0.3

1

10

hexainf@hotmail.com

1.8VDDS

H H

SM_RCOMP_VOH

SM_RCOMP_VOL

C119

C129

2.2uF 6.3V 80-20% SMT0603 Y5V LR

0.01uF 16V 10% SMT0402 X7R LR

C145

C132

2.2uF 6.3V 80-20% SMT0603 Y5V LR

0.01uF 16V 10% SMT0402 X7R LR

G G

F F

E E

PM_BMBUSY#(17)

D D

PCIExpress only CFG 9 SDVO_CTRLDATA CFG 20

H L L

C C

SDVO(HDMI) Only CFG 9

H L

MCH_CFG_19 MCH_CFG_20

MCH_CFG_5

B B

MCH_CFG_6

MCH_CFG_9

MCH_CFG_12 MCH_CFG_13 MCH_CFG_16

DDPC_CTRL_CLK DDPC_CTRL_DATA SDVO_CTRL_CLK

A A

SDVO_CTRL_DATA

DDPC_CTRL_DATA SDVO_CTRL_DATA

H_DPRSTP#(3,16,51) PM_EXTTS#0(13) PM_EXTTS#1(14)

DELAY_VR_PWRGOOD(19,51)

PLT_RST#(15,22) PM_THRMTRIP#(3,16) PM_DPRSLPVR(17,50,51)

H

R253 4.02KΩ 1% 1/10W SMT0603 LR R254 4.02KΩ 1% 1/10W SMT0603 LR(NU)

R214 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU) R213 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU)

R212 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU)

R226 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU) R225 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU) R211 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU)

R813 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU) R814 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU) R815 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU) R816 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU)

R817 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU) R206 RES 2.2KΩ 1% 1/16W SMT0402 LR(NU)

10

9

R107 1KΩ 1% 1/16W SMT0402 LR

R117

3.01K 1% 1/10W 0603 LR

R124 1KΩ 1% 1/16W SMT0402 LR

MCH_BSEL0(12) MCH_BSEL1(12) MCH_BSEL2(12)

R625 100Ω 5% 1/16W SMT0402 LR

CFG 20SDVO_CTRLDATA

9

TP1

MCH_CFG_5 MCH_CFG_6

MCH_CFG_9

MCH_CFG_12 MCH_CFG_13

MCH_CFG_16

MCH_CFG_19 MCH_CFG_20

PM_EXTTS#0 PM_EXTTS#1

RST_IN#_MCH

3VDDM

8

U34B

M36

RSVD1

N36

RSVD2

R33

RSVD3

T33

RSVD4

AH9

RSVD5

AH10

RSVD6

AH12

RSVD7

AH13

RSVD8

K12

RSVD9

AL34

RSVD10

AK34

RSVD11

AN35

RSVD12

AM35

RSVD13

T24

RSVD14

B31

RSVD15

B2

RSVD16

M1

RSVD17

1

AY21

RSVD20

BG23

RSVD22

BF23

RSVD23

BH18

RSVD24

BF18

RSVD25

T25

CFG_0

R25

CFG_1

P25

CFG_2

P20

CFG_3

P24

CFG_4

C25

CFG_5

N24

CFG_6

M24

CFG_7

E21

CFG_8

C23

CFG_9

C24

CFG_10

N21

CFG_11

P21

CFG_12

T21

CFG_13

R20

CFG_14

M20

CFG_15

L21

CFG_16

H21

CFG_17

P29

CFG_18

R28

CFG_19

T28

CFG_20

R29

PM_SYNC#

B7

PM_DPRSTP#

N33

PM_EXT_TS#_0

P32

PM_EXT_TS#_1

AT40

PWROK

AT11

RSTIN#

T20

THERMTRIP#

R32

DPRSLPVR

BG48

NC_1

BF48

NC_2

BD48

NC_3

BC48

NC_4

BH47

NC_5

BG47

NC_6

BE47

NC_7

BH46

NC_8

BF46

NC_9

BG45

NC_10

BH44

NC_11

BH43

NC_12

BH6

NC_13

BH5

NC_14

BG4

NC_15

BH3

NC_16

BF3

NC_17

BH2

NC_18

BG2

NC_19

BE2

NC_20

BG1

NC_21

BF1

NC_22

BD1

NC_23

BC1

NC_24

F1

NC_25

A47

NC_26

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

RSVD

NC

DDR CLK/ CONTROL/COMPENSATIONCLK

DPLL_REF_SSCLK

DPLL_REF_SSCLK#

CFG

DMI

PM

GRAPHICS VIDMEHDA

DDPC_CTRLDATA

SDVO_CTRLDATA

MISC

SA_CK_0 SA_CK_1 SB_CK_0 SB_CK_1

SA_CK#_0 SA_CK#_1 SB_CK#_0 SB_CK#_1

SA_CKE_0 SA_CKE_1 SB_CKE_0 SB_CKE_1

SA_CS#_0 SA_CS#_1 SB_CS#_0 SB_CS#_1

SA_ODT_0 SA_ODT_1 SB_ODT_0 SB_ODT_1

SM_RCOMP

SM_RCOMP#

SM_RCOMP_VOH

SM_RCOMP_VOL

SM_VREF

SM_PWROK

SM_REXT

SM_DRAMRST#

DPLL_REF_CLK

DPLL_REF_CLK#

PEG_CLK

PEG_CLK#

DMI_RXN_0 DMI_RXN_1 DMI_RXN_2 DMI_RXN_3

DMI_RXP_0 DMI_RXP_1 DMI_RXP_2 DMI_RXP_3

DMI_TXN_0 DMI_TXN_1 DMI_TXN_2 DMI_TXN_3

DMI_TXP_0 DMI_TXP_1 DMI_TXP_2 DMI_TXP_3

GFX_VID_0 GFX_VID_1 GFX_VID_2 GFX_VID_3 GFX_VID_4

GFX_VR_EN

CL_CLK

CL_DATA

CL_PWROK

CL_RST#

CL_VREF

DDPC_CTRLCLK

SDVO_CTRLCLK

CLKREQ#

ICH_SYNC#

TSATN#

HDA_BCLK HDA_RST#

HDA_SDI

HDA_SDO

HDA_SYNC

GMCH Strapping Requirements

CFG [2:0]

CFG5

CFG6 0 = ITPM is enabled

CFG9

CFG [12:13]

8

000=FSB1066

010=FSB800

0 = DMI * 2

1 = DMI * 4 ( Default )

1 = ITPM is disabled ( Default )

0 = Lane Reverse

1 = Normal Operation ( Default )

00 = Clock Gating Disable

01 = XOR Mode Enabled

10 = All Z Mode Enable

11 = Normal Operation ( Default )

7

AP24 AT21 AV24 AU20

AR24 AR21 AU24 AV20

BC28 AY28 AY36 BB36

BA17 AY16 AV16 AR13

BD17 AY17 BF15 AY13

SM_RCOMP

BG22

SM_RCOMP#

BH21

SM_RCOMP_VOH

BF28

SM_RCOMP_VOL

BH28

AV42 AR36 BF17 BC36

SM_DRAMRST#

B38 A38 E41 F41

F43 E43

DMI_TXP3

AE41

DMI_TXP2

AE37

DMI_TXP1

AE47

DMI_TXP0

AH39

DMI_TXN3

AE40

DMI_TXN2

AE38

DMI_TXN1

AE48

DMI_TXN0

AH40

DMI_RXP3

AE35

DMI_RXP2

AE43

DMI_RXP1

AE46

DMI_RXP0

AH42

DMI_RXN3

AD35

DMI_RXN2

AE44

DMI_RXN1

AF46

DMI_RXN0

AH43

DFGT_VID_0

B33

DFGT_VID_1

B32

DFGT_VID_2

G33

DFGT_VID_3

F33

DFGT_VID_4

E33

C34

R602 100KΩ 1% 1/16W SMT0402 LR(NU)

AH37 AH36 AN36 AJ35 AH34

0.1uF 10V 10% SMT0402 X5R LR

DDPC_CTRL_CLK

N28

DDPC_CTRL_DATA

M28

SDVO_CTRL_CLK

G36

SDVO_CTRL_DATA

E36

CLK_MCH_OE#

K36 H36

B12

B28 B30 B29 C29 A28

011=FSB667

7

6

M_CLK_DDR0 (13) M_CLK_DDR1 (13) M_CLK_DDR3 (14) M_CLK_DDR4 (14)

M_CLK_DDR#0 (13) M_CLK_DDR#1 (13) M_CLK_DDR#3 (14) M_CLK_DDR#4 (14)

M_CKE0 (13) M_CKE1 (13) M_CKE3 (14) M_CKE4 (14)

M_CS#0 (13) M_CS#1 (13) M_CS#2 (14) M_CS#3 (14)

M_ODT0 (13) M_ODT1 (13) M_ODT2 (14) M_ODT3 (14)

R562 RES 80.6Ω 1% 1/10W SMT 0603 LR R563 RES 80.6Ω 1% 1/10W SMT 0603 LR

20miles

R115 10KΩ 1% 1/16W SMT0402 LR(NU) R116 0Ω 5% 1/16W SMT0402 LR R147 10KΩ 1% 1/16W SMT0402 LR(NU)

R113

R209 RES 56Ω 5% 1/16W SMT0402 LR

R163

499Ω 1% 1/16W SMT0402 LR

DREFCLK (12) DREFCLK# (12) DREFSSCLK (12) DREFSSCLK# (12)

CLK_PCIE_3GPLL (12) CLK_PCIE_3GPLL# (12)

DMI_TXP3 (15) DMI_TXP2 (15) DMI_TXP1 (15) DMI_TXP0 (15)

DMI_TXN3 (15) DMI_TXN2 (15) DMI_TXN1 (15) DMI_TXN0 (15)

DMI_RXP3 (15) DMI_RXP2 (15) DMI_RXP1 (15) DMI_RXP0 (15)

DMI_RXN3 (15) DMI_RXN2 (15) DMI_RXN1 (15) DMI_RXN0 (15)

for ATI

DFGT_VID_0 (50) DFGT_VID_1 (50) DFGT_VID_2 (50) DFGT_VID_3 (50) DFGT_VID_4 (50)

DFGT_VR_EN (50)

CL_CLK0 (17) CL_DATA0 (17)

MPWROK (17,43)

CL_RST#0 (17)

C196

SDVO_CTRL_CLK SDVO_CTRL_DATA

CLK_MCH_OE# (12) MCH_ICH_SYNC# (17)

BIT_CLK_NB (16) NB_RST# (16)

NB_SDATAIN3 (16) NB_SDATAOUT (16) NB_SYNC (16)

?

1.05VDDM

CL_REFCL_REF

0.35V

CFG7

CFG10

CFG16

(PCIE)

CFG19

CFG20

6

3/28 confirm

LCD_BRIGHTNESS(27,43)

1.8VDDS

SM_PWROK

?

10KΩ 1% 1/16W SMT0402 LR

for ATI

R169

1KΩ 1% 1/16W SMT0402 LR

R171

499Ω 1% 1/16W SMT0402 LR

5

10KΩ 5% 1/16W SMT0402 LR(NU)

for ATI

R189 0Ω 5% 1/16W SMT0402 LR(NU)

LVDS_DDC_CLKU(27)

LVDS_DDC_DATAU(27)

LVDS_ENALCDU(27)

LVDS_TXCLK_LNU(27) LVDS_TXCLK_LPU(27)

LVDS_TXOUT_L0PU(27) LVDS_TXOUT_L1PU(27) LVDS_TXOUT_L2PU(27)

BLUEU(28)

GREENU(28)

REDU(28)

Q_VECLKU(28)

Q_VEDATU(28)

HSYNCU(28) VSYNCU(28)

R227

for ATI

RES 2.4KΩ 1% 1/16W SMT0402 LR(NU)

LVDS_ENABKL(22,23,43)

1.8VDDS

M_VREF

LVDS_TXOUT_L0NU(27) LVDS_TXOUT_L1NU(27) LVDS_TXOUT_L2NU(27)

for ATI

R201 0Ω 5% 1/16W SMT0402 LR R190 0Ω 5% 1/16W SMT0402 LR

R191 0Ω 5% 1/16W SMT0402 LR R203 0Ω 5% 1/16W SMT0402 LR R208 0Ω 5% 1/16W SMT0402 LR

for ATI

0Ω 5% 1/16W SMT0402 LR(NU)

For checklist v1.2

R603

for ATI

R626

R228100KΩ 5% 1/16W SMT0402 LR(NU)

TV_DCONSEL0 TV_DCONSEL1

4

3VDDM

1.05VDDM

For checklist v1.2

HDMI function

0 = Isolators are bypassed

1= Isolators are active (Default)

0 = PCIE loopback enable

1= PCIE loopback disable(Default)

0 = Dynamic ODT Disabled

1 = DMI Lane Reversal Enabled ( Default )

0 = Normal ( Default )

1 = Lanes Reversed

0 = Only SDVO or PCIE X1 is operationl ( default )

1 = SDVO or PCIE X1 are operatingsimulaneously via the PEG port.

5

(DMI lane)

4

3

1.05VDDM_PEG

6/7

R627 10KΩ 5% 1/16W SMT0402 LR(NU)

U34C

L32

L_BKLT_CTRL

G32

L_BKLT_EN

M32

L_CTRL_CLK

M33

L_CTRL_DATA

K33

L_DDC_CLK

J33

L_DDC_DATA

M29

L_VDD_EN

C44

LVDS_IBG

B43

LVDS_VBG

E37

LVDS_VREFH

E38

LVDS_VREFL

C41

LVDSA_CLK#

C40

LVDSA_CLK

B37

LVDSB_CLK#

A37

LVDSB_CLK

H47

LVDSA_DATA#_0

E46

LVDSA_DATA#_1

G40

LVDSA_DATA#_2

A40

LVDSA_DATA#_3

H48

LVDSA_DATA_0

D45

LVDSA_DATA_1

F40

LVDSA_DATA_2

B40

LVDSA_DATA_3

A41

LVDSB_DATA#_0

H38

LVDSB_DATA#_1

G37

LVDSB_DATA#_2

J37

LVDSB_DATA#_3

B42

LVDSB_DATA_0

G38

LVDSB_DATA_1

F37

LVDSB_DATA_2

K37

LVDSB_DATA_3

F25

TVA_DAC

H25

TVB_DAC

K25

TVC_DAC

H24

TV_RTN

C31

TV_DCONSEL_0

E32

TV_DCONSEL_1

E28

CRT_BLUE

G28

CRT_GREEN

J28

CRT_RED

G29

CRT_IRTN

H32

CRT_DDC_CLK

J32

CRT_DDC_DATA

J29

CRT_HSYNC

E29

CRT_TVO_IREF

L29

CRT_VSYNC

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

R604

0Ω 5% 1/16W SMT0402 LR

5/30 remove

LVDS

TV

PCI-EXPRESS GRAPHICS

VGA

PEG_COMPI

PEG_COMPO

PEG_RX#_0 PEG_RX#_1 PEG_RX#_2 PEG_RX#_3 PEG_RX#_4 PEG_RX#_5 PEG_RX#_6 PEG_RX#_7 PEG_RX#_8

PEG_RX#_9 PEG_RX#_10 PEG_RX#_11 PEG_RX#_12 PEG_RX#_13 PEG_RX#_14 PEG_RX#_15

PEG_RX_0 PEG_RX_1 PEG_RX_2 PEG_RX_3 PEG_RX_4 PEG_RX_5 PEG_RX_6 PEG_RX_7 PEG_RX_8

PEG_RX_9 PEG_RX_10 PEG_RX_11 PEG_RX_12 PEG_RX_13 PEG_RX_14 PEG_RX_15

PEG_TX#_0 PEG_TX#_1 PEG_TX#_2 PEG_TX#_3 PEG_TX#_4 PEG_TX#_5 PEG_TX#_6 PEG_TX#_7 PEG_TX#_8 PEG_TX#_9

PEG_TX#_10 PEG_TX#_11 PEG_TX#_12 PEG_TX#_13 PEG_TX#_14 PEG_TX#_15

PEG_TX_0

PEG_TX_1

PEG_TX_2

PEG_TX_3

PEG_TX_4

PEG_TX_5

PEG_TX_6

PEG_TX_7

PEG_TX_8

PEG_TX_9 PEG_TX_10 PEG_TX_11 PEG_TX_12 PEG_TX_13 PEG_TX_14 PEG_TX_15

TV_DCONSEL0 TV_DCONSEL1

PM_EXTTS#0 PM_EXTTS#1

CLK_MCH_OE#

TV_DCONSEL0

TV_DCONSEL1 HSYNCU VSYNCU

T37 T36

H44 J46 L44 L40 N41 P48 N44 T43 U43 Y43 Y48 Y36 AA43 AD37 AC47 AD39

H43 J44 L43 L41 N40 P47 N43 T42 U42 Y42 W47 Y37

NB_PEG_RXP12

AA42 AD36 AC48 AD40

J41 M46 M47 M40 M42 R48 N38 T40 U37 U40 Y40 AA46 AA37 AA40 AD43 AC46

J42 L46 M48 M39 M43 R47 N37 T39 U36 U39 Y39 Y46 AA36 AA39 AD42 AD46

R608 2.2KΩ 5% 1/16W SMT0402 LR(NU) R607 2.2KΩ 5% 1/16W SMT0402 LR(NU)

124

R229 10KΩ 5% 1/16W SMT0402 LR

R616 0Ω 5% 1/16W SMT0402 LR R615 0Ω 5% 1/16W SMT0402 LR R220 0Ω 5% 1/16W SMT0402 LR(NU) R216 0Ω 5% 1/16W SMT0402 LR(NU)

Install it if GMCH disable.

Title

Size Document Number Rev

C

3

Date: Sheet of

2

6/2

R178 RES 49.9Ω 1% 1/16W SMT0402

PEG_COMP

C703

PEG_TX#_0

C694

PEG_TX#_1

C692R207 0Ω 5% 1/16W SMT0402 LR

PEG_TX#_2

C690

PEG_TX#_3

C688

PEG_TX#_4

C686

PEG_TX#_5

C684

PEG_TX#_6

C682

PEG_TX#_7

C680

PEG_TX#_8

C677

PEG_TX#_9

C673

PEG_TX#_10

C671

PEG_TX#_11

C667

PEG_TX#_12

C662

PEG_TX#_13

C659

PEG_TX#_14

C656

PEG_TX#_15

C707

PEG_TX_0

C701

PEG_TX_1

C693

PEG_TX_2

C691

PEG_TX_3

C689

PEG_TX_4

C687

PEG_TX_5

C685

PEG_TX_6

C683

PEG_TX_7

C681

PEG_TX_8

C679

PEG_TX_9

C676

PEG_TX_10

C672

PEG_TX_11

C670

PEG_TX_12

C666

PEG_TX_13

C661

PEG_TX_14

C658

PEG_TX_15

0.1uF 10V 10% SMT0402 X5R LR

ATI

NB_PEG_RXN0 (22) NB_PEG_RXN1 (22) NB_PEG_RXN2 (22) NB_PEG_RXN3 (22) NB_PEG_RXN4 (22) NB_PEG_RXN5 (22) NB_PEG_RXN6 (22) NB_PEG_RXN7 (22) NB_PEG_RXN8 (22) NB_PEG_RXN9 (22) NB_PEG_RXN10 (22) NB_PEG_RXN11 (22) NB_PEG_RXN12 (22) NB_PEG_RXN13 (22) NB_PEG_RXN14 (22) NB_PEG_RXN15 (22)

NB_PEG_RXP0 (22) NB_PEG_RXP1 (22) NB_PEG_RXP2 (22) NB_PEG_RXP3 (22) NB_PEG_RXP4 (22) NB_PEG_RXP5 (22) NB_PEG_RXP6 (22) NB_PEG_RXP7 (22) NB_PEG_RXP8 (22) NB_PEG_RXP9 (22) NB_PEG_RXP10 (22) NB_PEG_RXP11 (22) NB_PEG_RXP12 (22) NB_PEG_RXP13 (22) NB_PEG_RXP14 (22) NB_PEG_RXP15 (22)

Place caps close to GMCH

1

VGA_PEG_RXN0 (22) VGA_PEG_RXN1 (22) VGA_PEG_RXN2 (22) VGA_PEG_RXN3 (22) VGA_PEG_RXN4 (22) VGA_PEG_RXN5 (22) VGA_PEG_RXN6 (22) VGA_PEG_RXN7 (22) VGA_PEG_RXN8 (22) VGA_PEG_RXN9 (22) VGA_PEG_RXN10 (22) VGA_PEG_RXN11 (22) VGA_PEG_RXN12 (22) VGA_PEG_RXN13 (22) VGA_PEG_RXN14 (22) VGA_PEG_RXN15 (22)

VGA_PEG_RXP0 (22) VGA_PEG_RXP1 (22) VGA_PEG_RXP2 (22) VGA_PEG_RXP3 (22) VGA_PEG_RXP4 (22) VGA_PEG_RXP5 (22) VGA_PEG_RXP6 (22) VGA_PEG_RXP7 (22) VGA_PEG_RXP8 (22) VGA_PEG_RXP9 (22) VGA_PEG_RXP10 (22) VGA_PEG_RXP11 (22) VGA_PEG_RXP12 (22) VGA_PEG_RXP13 (22) VGA_PEG_RXP14 (22) VGA_PEG_RXP15 (22)

3VDDM

RP13

3

10KΩ 5% SMT1010 1/16W 4P2R LR

M_VREF(13,14,48)

1.8VDDS(9,10,13,14,48)

3VDDM(3,5,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

Confidential

1.05VDDM_PEG

M_VREF

1.05VDDM

1.8VDDS

3VDDM

1.05VDDM_PEG(10)

1.05VDDM(3,4,6,9,10,12,15,16,18,49)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Candiga DMI/Graphic (2/6)

2

7 52Thursday, July 10, 2008

1

0.3

10

9

8

7

6

5

4

3

2

1

H H

G G

M_A_DQ[63..0](13) M_B_DQ[63..0](14)

F F

E E

D D

M_A_DQ[63..0]

M_A_DQ0 M_A_DQ1 M_A_DQ2 M_A_DQ3 M_A_DQ4 M_A_DQ5 M_A_DQ6 M_A_DQ7 M_A_DQ8 M_A_DQ9 M_A_DQ10 M_A_DQ11 M_A_DQ12 M_A_DQ13 M_A_DQ14 M_A_DQ15 M_A_DQ16 M_A_DQ17 M_A_DQ18 M_A_DQ19 M_A_DQ20 M_A_DQ21 M_A_DQ22 M_A_DQ23 M_A_DQ24 M_A_DQ25 M_A_DQ26 M_A_DQ27 M_A_DQ28 M_A_DQ29 M_A_DQ30 M_A_DQ31 M_A_DQ32 M_A_DQ33 M_A_DQ34 M_A_DQ35 M_A_DQ36 M_A_DQ37 M_A_DQ38 M_A_DQ39 M_A_DQ40 M_A_DQ41 M_A_DQ42 M_A_DQ43 M_A_DQ44 M_A_DQ45 M_A_DQ46 M_A_DQ47 M_A_DQ48 M_A_DQ49 M_A_DQ50 M_A_DQ51 M_A_DQ52 M_A_DQ53 M_A_DQ54 M_A_DQ55 M_A_DQ56 M_A_DQ57 M_A_DQ58 M_A_DQ59 M_A_DQ60 M_A_DQ61 M_A_DQ62 M_A_DQ63

U34D

AJ38

SA_DQ_0

AJ41

SA_DQ_1

AN38

SA_DQ_2

AM38

SA_DQ_3

AJ36

SA_DQ_4

AJ40

SA_DQ_5

AM44

SA_DQ_6

AM42

SA_DQ_7

AN43

SA_DQ_8

AN44

SA_DQ_9

AU40

SA_DQ_10

AT38

SA_DQ_11

AN41

SA_DQ_12

AN39

SA_DQ_13

AU44

SA_DQ_14

AU42

SA_DQ_15

AV39

SA_DQ_16

AY44

SA_DQ_17

BA40

SA_DQ_18

BD43

SA_DQ_19

AV41

SA_DQ_20

AY43

SA_DQ_21

BB41

SA_DQ_22

BC40

SA_DQ_23

AY37

SA_DQ_24

BD38

SA_DQ_25

AV37

SA_DQ_26

AT36

SA_DQ_27

AY38

SA_DQ_28

BB38

SA_DQ_29

AV36

SA_DQ_30

AW36

SA_DQ_31

BD13

SA_DQ_32

AU11

SA_DQ_33

BC11

SA_DQ_34

BA12

SA_DQ_35

AU13

SA_DQ_36

AV13

SA_DQ_37

BD12

SA_DQ_38

BC12

SA_DQ_39

BB9

SA_DQ_40

BA9

SA_DQ_41

AU10

SA_DQ_42

AV9

SA_DQ_43

BA11

SA_DQ_44

BD9

SA_DQ_45

AY8

SA_DQ_46

BA6

SA_DQ_47

AV5

SA_DQ_48

AV7

SA_DQ_49

AT9

SA_DQ_50

AN8

SA_DQ_51

AU5

SA_DQ_52

AU6

SA_DQ_53

AT5

SA_DQ_54

AN10

SA_DQ_55

AM11

SA_DQ_56

AM5

SA_DQ_57

AJ9

SA_DQ_58

AJ8

SA_DQ_59

AN12

SA_DQ_60

AM13

SA_DQ_61

AJ11

SA_DQ_62

AJ12

SA_DQ_63

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

DDR SYSTEM MEMORY A

SA_BS_0 SA_BS_1 SA_BS_2

SA_RAS# SA_CAS#

SA_WE#

SA_DM_0 SA_DM_1 SA_DM_2 SA_DM_3 SA_DM_4 SA_DM_5 SA_DM_6 SA_DM_7

SA_DQS_0 SA_DQS_1 SA_DQS_2 SA_DQS_3 SA_DQS_4 SA_DQS_5 SA_DQS_6

SA_DQS_7 SA_DQS#_0 SA_DQS#_1 SA_DQS#_2 SA_DQS#_3 SA_DQS#_4 SA_DQS#_5 SA_DQS#_6 SA_DQS#_7

SA_MA_0 SA_MA_1 SA_MA_2 SA_MA_3 SA_MA_4 SA_MA_5 SA_MA_6 SA_MA_7 SA_MA_8

SA_MA_9 SA_MA_10 SA_MA_11 SA_MA_12 SA_MA_13 SA_MA_14

BD21 BG18 AT25

BB20 BD20 AY20

M_A_DM0M_A_DM0

AM37

M_A_DM1M_A_DM1

AT41

M_A_DM2M_A_DM2

AY41

M_A_DM3M_A_DM3

AU39

M_A_DM4M_A_DM4

BB12

M_A_DM5M_A_DM5

AY6

M_A_DM6M_A_DM6

AT7

M_A_DM7M_A_DM7

AJ5

M_A_DQS0M_A_DQS0

AJ44

M_A_DQS1M_A_DQS1

AT44

M_A_DQS2M_A_DQS2

BA43

M_A_DQS3M_A_DQS3

BC37

M_A_DQS4M_A_DQS4

AW12

M_A_DQS5

BC8

M_A_DQS6M_A_DQS6

AU8

M_A_DQS7M_A_DQS7

AM7

M_A_DQS#0M_A_D QS#0

AJ43

M_A_DQS#1M_A_D QS#1

AT43

M_A_DQS#2M_A_D QS#2

BA44

M_A_DQS#3M_A_D QS#3

BD37

M_A_DQS#4M_A_D QS#4

AY12

M_A_DQS#5M_A_D QS#5

BD8

M_A_DQS#6M_A_D QS#6

AU9

M_A_DQS#7M_A_D QS#7

AM8

M_A_A0M_A_A0

BA21

M_A_A1M_A_A1

BC24

M_A_A2M_A_A2

BG24

M_A_A3

BH24

M_A_A4

BG25

M_A_A5M_A_A5

BA24

M_A_A6M_A_A6

BD24

M_A_A7

BG27

M_A_A8M_A_A8

BF25

M_A_A9

AW24

M_A_A10

BC21

M_A_A11

BG26

M_A_A12

BH26

M_A_A13

BH17

M_A_A14 M_B_A13

AY25

M_A_DM[7..0]

M_A_DQS[7..0]

M_A_DQS#[7..0]

M_A_A[14..0]

M_A_BS0 (13) M_A_BS1 (13) M_A_BS2 (13)

M_A_RAS# (13) M_A_CAS# (13) M_A_WE# (13)

M_A_DM[7..0] (13)

M_A_DQS[7..0] (13)

M_A_DQS#[7..0] (13)

M_A_A[14..0] (13)

M_B_DQ[63..0]

M_B_DQ0 M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ4 M_B_DQ5 M_B_DQ6 M_B_DQ7 M_B_DQ8 M_B_DQ9 M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ16 M_B_DQ17 M_B_DQ18 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ24 M_B_DQ25 M_B_DQ26 M_B_DQ27 M_B_DQ28 M_B_DQ29 M_B_DQ30 M_B_DQ31 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35 M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ41 M_B_DQ42 M_B_DQ43 M_B_DQ44 M_B_DQ45 M_B_DQ46 M_B_DQ47 M_B_DQ48 M_B_DQ49 M_B_DQ50 M_B_DQ51 M_B_DQ52 M_B_DQ53 M_B_DQ54 M_B_DQ55 M_B_DQ56 M_B_DQ57 M_B_DQ58 M_B_DQ59 M_B_DQ60 M_B_DQ61 M_B_DQ62 M_B_DQ63

U34E

AK47

SB_DQ_0

AH46

SB_DQ_1

AP47

SB_DQ_2

AP46

SB_DQ_3

AJ46

SB_DQ_4

AJ48

SB_DQ_5

AM48

SB_DQ_6

AP48

SB_DQ_7

AU47

SB_DQ_8

AU46

SB_DQ_9

BA48

SB_DQ_10

AY48

SB_DQ_11

AT47

SB_DQ_12

AR47

SB_DQ_13

BA47

SB_DQ_14

BC47

SB_DQ_15

BC46

SB_DQ_16

BC44

SB_DQ_17

BG43

SB_DQ_18

BF43

SB_DQ_19

BE45

SB_DQ_20

BC41

SB_DQ_21

BF40

SB_DQ_22

BF41

SB_DQ_23

BG38

SB_DQ_24

BF38

SB_DQ_25

BH35

SB_DQ_26

BG35

SB_DQ_27

BH40

SB_DQ_28

BG39

SB_DQ_29

BG34

SB_DQ_30

BH34

SB_DQ_31

BH14

SB_DQ_32

BG12

SB_DQ_33

BH11

SB_DQ_34

BG8

SB_DQ_35

BH12

SB_DQ_36

BF11

SB_DQ_37

BF8

SB_DQ_38

BG7

SB_DQ_39

BC5

SB_DQ_40

BC6

SB_DQ_41

AY3

SB_DQ_42

AY1

SB_DQ_43

BF6

SB_DQ_44

BF5

SB_DQ_45

BA1

SB_DQ_46

BD3

SB_DQ_47

AV2

SB_DQ_48

AU3

SB_DQ_49

AR3

SB_DQ_50

AN2

SB_DQ_51

AY2

SB_DQ_52

AV1

SB_DQ_53

AP3

SB_DQ_54

AR1

SB_DQ_55

AL1

SB_DQ_56

AL2

SB_DQ_57

AJ1

SB_DQ_58

AH1

SB_DQ_59

AM2

SB_DQ_60

AM3

SB_DQ_61

AH3

SB_DQ_62

AJ3

SB_DQ_63

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

DDR SYSTEM MEMORY B

SB_BS_0 SB_BS_1 SB_BS_2

SB_RAS# SB_CAS#

SB_WE#

SB_DM_0 SB_DM_1 SB_DM_2 SB_DM_3 SB_DM_4 SB_DM_5 SB_DM_6 SB_DM_7

SB_DQS_0 SB_DQS_1 SB_DQS_2 SB_DQS_3 SB_DQS_4 SB_DQS_5 SB_DQS_6

SB_DQS_7 SB_DQS#_0 SB_DQS#_1 SB_DQS#_2 SB_DQS#_3 SB_DQS#_4 SB_DQS#_5 SB_DQS#_6 SB_DQS#_7

SB_MA_0 SB_MA_1 SB_MA_2 SB_MA_3 SB_MA_4 SB_MA_5 SB_MA_6 SB_MA_7 SB_MA_8

SB_MA_9 SB_MA_10 SB_MA_11 SB_MA_12 SB_MA_13 SB_MA_14

BC16 BB17 BB33

AU17 BG16 BF14

AM47 AY47 BD40 BF35 BG11 BA3 AP1 AK2

AL47 AV48 BG41 BG37 BH9 BB2 AU1 AN6 AL46 AV47 BH41 BH37 BG9 BC2 AT2 AN5

AV17 BA25 BC25 AU25 AW25 BB28 AU28 AW28 AT33 BD33 BB16 AW33 AY33 BH15 AU33

M_B_DM0 M_B_DM1 M_B_DM2 M_B_DM3 M_B_DM4 M_B_DM5 M_B_DM6 M_B_DM7

M_B_DQS0 M_B_DQS1 M_B_DQS2 M_B_DQS3 M_B_DQS4 M_B_DQS5 M_B_DQS6 M_B_DQS7 M_B_DQS#0 M_B_DQS#1 M_B_DQS#2 M_B_DQS#3 M_B_DQS#4 M_B_DQS#5 M_B_DQS#6 M_B_DQS#7

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12

M_B_A14

M_B_DM[7..0]

M_B_DQS[7..0]

M_B_DQS#[7..0]

M_B_A[14..0]

M_B_BS0 (14) M_B_BS1 (14) M_B_BS2 (14)

M_B_RAS# (14) M_B_CAS# (14) M_B_WE# (14)

M_B_DM[7..0] (14)

M_B_DQS[7..0] (14)

M_B_DQS#[7..0] (14)

M_B_A[14..0 ] (14)

C C

TV DAC Routing Guideline

1. The minimum spacing between each RGB is 40-mils while 50-mils is preferred

2. RGB signals should be routed on the same layer, have a similar number of bends, same number of vias

3. All routing should be done with ground referencing as well

4. TV DAC route lengths should be lenght match to within 200 mils

Filter

0.5"

Mini DIN7

B B

GMCH

0.5"

0.2"

12"

TV DAC

150ohm

TV IRTN

Zo=37.5

Zo=50

A A

10

9

8

7

6

5

Zo=75

Title

Size Document Number Rev

C

4

3

Date: Sheet of

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

Candiga DDR2 (3/6)

2

8 52Thursday, July 10, 2008

1

0.3

10

hexainf@hotmail.com

9

8

7

6

5

4

3

2

1

H H

Install 0 ohm

AN33 BH32 BG32 BF32 BD32 BC32 BB32 BA32 AY32

AW32

AV32 AU32 AT32 AR32 AP32 AN32 BH31 BG31 BF31 BG30 BH29 BG29 BF29 BD29 BC29 BB29 BA29 AY29

AW29

AV29 AU29 AT29 AR29 AP29

BA36 BB24 BD16

BB21 AW16 AW13

AT13

AE25

AB25

AA25

AE24

AC24

AA24

AE23

AC23

AB23

AA23

AG21

AE21

AC21

AA21

AH20

AF20

AE20

AC20

AB20

AA20

AM15

AL15

AE15

AH15

AG15

AF15

AB15

AA15

AN14 AM14

AH14

Y26

Y24

AJ21

Y21

T17 T16

AJ15

Y15 V15 U15

U14

T14

AJ14

U34G

VCC_SM_2 VCC_SM_3 VCC_SM_4 VCC_SM_5 VCC_SM_6 VCC_SM_7 VCC_SM_8 VCC_SM_9 VCC_SM_10 VCC_SM_11 VCC_SM_12 VCC_SM_13 VCC_SM_14 VCC_SM_15 VCC_SM_16 VCC_SM_17 VCC_SM_18 VCC_SM_19 VCC_SM_20 VCC_SM_21 VCC_SM_22 VCC_SM_23 VCC_SM_24 VCC_SM_25 VCC_SM_26 VCC_SM_27 VCC_SM_28 VCC_SM_29 VCC_SM_30 VCC_SM_31 VCC_SM_32 VCC_SM_33 VCC_SM_34 VCC_SM_35

VCC_SM_36/NC VCC_SM_37/NC VCC_SM_38/NC VCC_SM_39/NC VCC_SM_40/NC VCC_SM_41/NC VCC_SM_42/NC

VCC_AXG_1 VCC_AXG_2 VCC_AXG_3 VCC_AXG_4 VCC_AXG_5 VCC_AXG_6 VCC_AXG_7 VCC_AXG_8 VCC_AXG_9 VCC_AXG_10 VCC_AXG_11 VCC_AXG_12 VCC_AXG_13 VCC_AXG_14 VCC_AXG_15 VCC_AXG_16 VCC_AXG_17 VCC_AXG_18 VCC_AXG_19 VCC_AXG_20 VCC_AXG_21 VCC_AXG_22 VCC_AXG_23 VCC_AXG_24 VCC_AXG_25 VCC_AXG_26 VCC_AXG_27 VCC_AXG_28 VCC_AXG_29 VCC_AXG_30 VCC_AXG_31 VCC_AXG_32 VCC_AXG_33 VCC_AXG_34 VCC_AXG_35 VCC_AXG_36 VCC_AXG_37 VCC_AXG_38 VCC_AXG_39 VCC_AXG_40 VCC_AXG_41 VCC_AXG_42

VCC_AXG_SENSE VSS_AXG_SENSE

VCC SMVCC GFX

VCC_AXG_NCTF_10 VCC_AXG_NCTF_11 VCC_AXG_NCTF_12 VCC_AXG_NCTF_13 VCC_AXG_NCTF_14 VCC_AXG_NCTF_15 VCC_AXG_NCTF_16 VCC_AXG_NCTF_17 VCC_AXG_NCTF_18 VCC_AXG_NCTF_19 VCC_AXG_NCTF_20 VCC_AXG_NCTF_21 VCC_AXG_NCTF_22

POWER

VCC_AXG_NCTF_23 VCC_AXG_NCTF_24 VCC_AXG_NCTF_25 VCC_AXG_NCTF_26 VCC_AXG_NCTF_27 VCC_AXG_NCTF_28 VCC_AXG_NCTF_29 VCC_AXG_NCTF_30 VCC_AXG_NCTF_31 VCC_AXG_NCTF_32 VCC_AXG_NCTF_33 VCC_AXG_NCTF_34 VCC_AXG_NCTF_35 VCC_AXG_NCTF_36 VCC_AXG_NCTF_37 VCC_AXG_NCTF_38 VCC_AXG_NCTF_39 VCC_AXG_NCTF_40 VCC_AXG_NCTF_41 VCC_AXG_NCTF_42 VCC_AXG_NCTF_43 VCC_AXG_NCTF_44 VCC_AXG_NCTF_45 VCC_AXG_NCTF_46 VCC_AXG_NCTF_47 VCC_AXG_NCTF_48 VCC_AXG_NCTF_49 VCC_AXG_NCTF_50 VCC_AXG_NCTF_51 VCC_AXG_NCTF_52 VCC_AXG_NCTF_53 VCC_AXG_NCTF_54 VCC_AXG_NCTF_55 VCC_AXG_NCTF_56

VCC GFX NCTF

VCC_AXG_NCTF_57 VCC_AXG_NCTF_58 VCC_AXG_NCTF_59 VCC_AXG_NCTF_60

VCC_AXG_NCTF_1VCC_SM_1 VCC_AXG_NCTF_2 VCC_AXG_NCTF_3 VCC_AXG_NCTF_4 VCC_AXG_NCTF_5 VCC_AXG_NCTF_6 VCC_AXG_NCTF_7 VCC_AXG_NCTF_8 VCC_AXG_NCTF_9

VCC_SM_LF1 VCC_SM_LF2 VCC_SM_LF3 VCC_SM_LF4 VCC_SM_LF5 VCC_SM_LF6 VCC_SM_LF7

VCC SM LF

1.8VDDS

C116

C621 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C624 0.1uF 10V 10% SMT0402 X5R LR

C622 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

1/29 EMI

+

T100uF 2V ±20% ESR=18mΩ SMT7343 EEFCD0D101ER PANASONIC LR

10/2 MODIFY

G G

F F

VGA_VDD

VIA=7700mA / 320mils

E E

D D

C C

VCC_AXG_S ENSE(50) VSS_AXG_SENSE(50)

VIA=2400mA / 100mils

W28AP33 V28 W26 V26 W25 V25 W24 V24 W23 V23 AM21 AL21 AK21 W21 V21 U21 AM20 AK20 W20 U20 AM19 AL19 AK19 AJ19 AH19 AG19 AF19 AE19 AB19 AA19 Y19 W19 V19 U19 AM17 AK17 AH17 AG17 AF17 AE17 AC17 AB17 Y17 W17 V17 AM16 AL16 AK16 AJ16 AH16 AG16 AF16 AE16 AC16 AB16 AA16 Y16 W16 V16 U16

AV44 BA37 AM40 AV21 AY5 AM10 BB13

resistor when use GM45

VCCSM_LF1 VCCSM_LF2 VCCSM_LF3 VCCSM_LF4 VCCSM_LF5 VCCSM_LF6 VCCSM_LF7

for ATI

VGA_VDD

C185 10uF 10V +80-20% SMT0805 Y5V LR(NU)

C207 0.47uF 10V ±10% SMD0603 X5R LR(NU)

C191 1uF 10V +80-20% 0603 Y5V LR(NU)

C201 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C208 0.1uF 10V 10% SMT0402 X5R LR(NU)

C205 0Ω 5% 1/10W SMT0603 LR

C189 0.1uF 10V 10% SMT0402 X5R LR

C184 0.47uF 10V ±10% SMD0603 X5R LR

C153 0.1uF 10V 10% SMT0402 X5R LR

C156 0.22uF 10V 10% SMT0603 X7R LR

C134 1uF 10V +80-20% SMT0603 Y5V LMK107F105ZA-T TAIYO LR

C142 1uF 10V +80-20% SMT0603 Y5V LMK107F105ZA-T TAIYO LR

C160 0.22uF 10V 10% SMT0603 X7R LR

12

+

C222 220uF 2V ±20% 15mΩ 7343 PANA LR(NU)

C206 0.1uF 16V ±10% SMD0603 X7R LR(NU)

C195 0.1uF 16V ±10% SMD0603 X7R LR(NU)

C187 0.1uF 10V 10% SMT0402 X5R LR(NU)

1.05VDDM

C265 220uF 2V ±20% 15mΩ 7343 PANA LR(NU)

+

308mils

C204 0.1uF 10V 10% SMT0402 X5R LR

C223 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C230 0.22uF 10V 10% SMT0603 X7R LR

C193 0.22uF 10V 10% SMT0603 X7R LR

0Ω 5% 1/4W SMT1206 LR

R258

U34F

AG34

VCC_1

AC34

VCC_2

AB34

VCC_3

AA34

VCC_4

Y34

VCC_5

V34

VCC_6

U34

VCC_7

AM33

VCC_8

AK33

VCC_9

AJ33

VCC_10

AG33

VCC_11

AF33

VCC_12

AE33

VCC_13

AC33

VCC_14

AA33

VCC_15

Y33

VCC_16

W33

VCC_17

V33

VCC_18

U33

VCC_19

AH28

VCC_20

AF28 AC28 AA28

AJ26 AG26 AE26 AC26 AH25 AG25 AF25 AG24

AJ23 AH23 AF23

T32

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

1.5VDDM

20mils

VCC_21 VCC_22 VCC_23 VCC_24 VCC_25 VCC_26 VCC_27 VCC_28 VCC_29 VCC_30 VCC_31 VCC_32 VCC_33 VCC_34

VCC_35

R265

RES 10Ω 5% 1/16W SMT0402 L R

VCC CORE

POWER

VCC_NCTF_1 VCC_NCTF_2 VCC_NCTF_3 VCC_NCTF_4 VCC_NCTF_5 VCC_NCTF_6 VCC_NCTF_7 VCC_NCTF_8

VCC_NCTF_9 VCC_NCTF_10 VCC_NCTF_11 VCC_NCTF_12 VCC_NCTF_13 VCC_NCTF_14 VCC_NCTF_15 VCC_NCTF_16 VCC_NCTF_17 VCC_NCTF_18 VCC_NCTF_19 VCC_NCTF_20 VCC_NCTF_21 VCC_NCTF_22 VCC_NCTF_23 VCC_NCTF_24 VCC_NCTF_25 VCC_NCTF_26 VCC_NCTF_27 VCC_NCTF_28 VCC_NCTF_29 VCC_NCTF_30 VCC_NCTF_31

VCC NCTF

VCC_NCTF_32 VCC_NCTF_33 VCC_NCTF_34 VCC_NCTF_35 VCC_NCTF_36 VCC_NCTF_37 VCC_NCTF_38 VCC_NCTF_39 VCC_NCTF_40 VCC_NCTF_41 VCC_NCTF_42 VCC_NCTF_43 VCC_NCTF_44

AM32 AL32 AK32 AJ32 AH32 AG32 AE32 AC32 AA32 Y32 W32 U32 AM30 AL30 AK30 AH30 AG30 AF30 AE30 AC30 AB30 AA30 Y30 W30 V30 U30 AL29 AK29 AJ29 AH29 AG29 AE29 AC29 AA29 Y29 W29 V29 AL28 AK28 AL26 AK26 AK25 AK24 AK23

D18

N P

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR

1.05VDDM

B B

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

VGA_VDD

VGA_VDD(50)

1.05VDDM

1.05VDDM(3,4,6,7,10,12,15,16,18,49)

1.5VDDM

1.5VDDM(4,10,15,16,18,34,40,41,49 )

1.8VDDS

1.8VDDS(7,10,13,14,48)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu

A A

Title

Size Document Number Rev

C

10

9

8

7

6

5

4

3

Date: Sheet of

114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

Candiga Power (4/6)

2

9 52Thursday, July 10, 2008

1

0.3

10

9

8

7

6

5

4

3

2

1

H H

G G

F F

for ATI

0.022uF 16V 10% SMT0402 X7R LR

E E

D D

9/14 modified remove UMA parts

C C

B B

A A

1.05VDDM

20mils

L26 0Ω 5% 1/10W SMT0603 LR(NU)

L23 0Ω 5% 1/10W SMT0603 LR(NU)

for ATI

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A106KT T DK LR(NU) C297

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A106KT T DK LR(NU) C254

1.05VDDM

L76 0Ω 5% 1/10W SMT0603 LR

C649 10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A 106KT TDK LR

L72 0Ω 5% 1/10W SMT0603 LR

C705

R586

C638 10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A 106KT TDK LR

C696

0.1uF 10V 10% SMT0402 X 5R LR

Caps used in 1.5VDDM_TVDAC and 1.5VDDM_QTVDAC should be within 250mils of edge

1Ω 1% 1/10W SMT0603 LR

3VDDM

L79

0Ω 5% 1/10W SMT0603 LR(NU)

VCCA_TVDAC

C706

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A 106KT TDK LR

1.5VDDM

R230 0Ω 5% 1/16W SMT0402 LR

(24mA)

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR(NU)

1.05VDDM

0Ω 5% 1/16W SMT0402 LR

(24mA)

10

9

0.1uf caps in 1.5VDDM_xPLL need to be located as edge caps within 200mils

C291

0Ω 5% 1/16W SMT0402 LR

VIA=80mA / 10mils

C256

0Ω 5% 1/16W SMT0402 LR

C646

0.1uF 10V 10% SMT0402 X 5R LR

C639

0.1uF 10V 10% SMT0402 X 5R LR

L29

for ATI

C252

SPWR 0 5% 1/16W 060 3

L21

R175

1Ω 1% 1/10W SMT0603 LR

C217 10uF 10V +80-20% SMT0805 Y5V LR

1.8VDDS

VIA=80mA / 10mils

1.05VDDM_DPLLA

1.05VDDM_DPLLB

3VDDM

VIA=50mA / 10mils

1.05VDDM_HPLL

0.1uF 10V 10% SMT0402 X 5R LR

VIA=150mA / 10mils

1.05VDDM_MPLL

1.8VDDS_TXLVDS

3VDDM_TVDACA

1.05VDDM

0Ω 5% 1/10W SMT0603 LR

1.5VDDM

0.1uF 10V 10% SMT0402 X 5R LR

1.05VDDM

R173 0Ω 5% 1/10W SMT0603 LR

R166

C168

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A106KT TDK LR

10mils

C251

C314

0.022uF 16V 10% SMT0402 X7R LR

C304

0.022uF 16V 10% SMT0402 X7R LR

1.05VDDM

1.05VDDM_PEGPLL

1.05VDDM_PEG PLL

C216

0.1uF 10V 10% SMT0402 X5 R LR

R197 0Ω 5% 1/16W SMT0402 LR(NU)

for ATI

8

C253 0Ω 5% 1/16W SMT0402 LR

Caps used in 2.5VDDM_CRTDAC should be within 250mils of edge

R223 0Ω 5% 1/10W SMT0603 LR(NU)

C293

VCCA_TVDAC

C695

0Ω 5% 1/16W SMT0402 LR

R202 0Ω 5% 1/16W SMT0402 LR

R170 0Ω 5% 1/10W SMT0603 LR

C200

C199

0.1uF 10V 10% SMT0402 X5 R LR

1.05VDDM_PEGPLL

C194

C178

C150

T100uF 2V ±20% ESR=18mΩ SMT7343 EEFCD0D101ER PANASONIC LR

+

0.1uF 10V 10% SMT0402 X5R LR

C186

C167

4.7uF 6.3V ±10% SMT0805 X5R C2012X5R0J475KT TDK LR

1uF 10V +80-20% SMT0603 Y5V LMK107F105ZA-T TAIYO LR

10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

VIA=250mA / 10mils

VIA=100mA / 10mils

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A106KT TDK LR

C197

C322

C215

C260

0.022uF 16V 10% SMT0402 X7R LR

0.1uF 10V 10% SMT0402 X5R LR

7

for ATI

C305

0Ω 5% 1/16W SMT0402 LR

1.05VDDM_DPLLA

1.05VDDM_DPLLB

1.05VDDM_HPLL

1.05VDDM_MPLL

C279

0.1uF 10V 10% SMT0402 X 5R LR

VIA=5mA / 10mils

VIA=100mA / 10mils

500mA

VIA=200mA / 10mils

3VDDM_TVDACA

0Ω 5% 1/16W SMT0402 LR

150mA

20mils

U34H

10mA

80mA

B27

VCCA_CRT_DAC_1

A26

10mA

VCCA_CRT_DAC_2

A25

VCCA_DAC_BG

B25

VSSA_DAC_BG

F47

VCCA_DPLLA

L48

VCCA_DPLLB

AD1

VCCA_HPLL

AE1

VCCA_MPLL

J48

VCCA_LVDS

J47

VSSA_LVDS

AD48

VCCA_PEG_BG

AA48

VCCA_PEG_PLL

AR20

VCCA_SM_1

AP20

VCCA_SM_2

AN20

VCCA_SM_3

AR17

VCCA_SM_4

AP17

VCCA_SM_5

AN17

VCCA_SM_6

AT16

VCCA_SM_7

AR16

VCCA_SM_8

AP16

VCCA_SM_9

AP28

VCCA_SM_CK_1

AN28

VCCA_SM_CK_2

AP25

VCCA_SM_CK_3

AN25

VCCA_SM_CK_4

AN24

VCCA_SM_CK_5

AM28

VCCA_SM_CK_NCTF_1

AM26

VCCA_SM_CK_NCTF_2

AM25

VCCA_SM_CK_NCTF_3

AL25

VCCA_SM_CK_NCTF_4

AM24

VCCA_SM_CK_NCTF_5

AL24

VCCA_SM_CK_NCTF_6

AM23

VCCA_SM_CK_NCTF_7

AL23

VCCA_SM_CK_NCTF_8

B24

VCCA_TV_DAC_1

A24

VCCA_TV_DAC_2

A32

VCC_HDA

M25

VCCD_TVDAC

L28

VCCD_QDAC

AF1

VCCD_HPLL

AA47

VCCD_PEG_PLL

M38

VCCD_LVDS_1

L37

VCCD_LVDS_2

CRTPLLA PEGA SM

A LVDS

POWER

A CK

TV

HDA

D TV/CRT

40mA

for ATI

R224

100mA

5mA

80mA

50mA

150mA

LVDS

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

3VDDM

R619 RES 10Ω 5% 1/16W SMT0402 LR

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR

R613 0Ω 5% 1/16W SMT0402 LR

6

N P

VTT_1 VTT_2 VTT_3 VTT_4 VTT_5 VTT_6 VTT_7 VTT_8

VTT_9 VTT_10 VTT_11 VTT_12 VTT_13 VTT_14 VTT_15

VTT

VTT_16 VTT_17 VTT_18 VTT_19 VTT_20 VTT_21 VTT_22 VTT_23 VTT_24 VTT_25

VCC_AXF_1 VCC_AXF_2 VCC_AXF_3

AXF

VCC_SM_CK_1 VCC_SM_CK_2 VCC_SM_CK_3 VCC_SM_CK_4

SM CK

VCC_TX_LVDS

VCC_HV_1 VCC_HV_2 VCC_HV_3

HV

VCC_PEG_1 VCC_PEG_2 VCC_PEG_3 VCC_PEG_4 VCC_PEG_5

PEG

VCC_DMI_1 VCC_DMI_2 VCC_DMI_3 VCC_DMI_4

DMI

VTTLF1 VTTLF2 VTTLF3

VTTLF

DN1

20mils

3VDDM_HV

C709

0.1uF 10V 10% SMT0402 X5 R LR

5

1.05VDDM

U13 T13 U12 T12 U11 T11 U10 T10 U9 T9 U8 T8 U7 T7 U6 T6 U5 T5 V3 U3 V2 U2 T2 V1 U1

B22 B21 A21

BF21 BH20 BG20 BF20

K47

C35 B35 A35

VIA=100mA / 10mils

V48 U48 V47 U47 U46

AH48

250mA

AF48 AH47 AG47

VTT_LF1

A8

VTT_LF2

L1

VTT_LF3

AB2

(70mA)

3VDDM_HV

VIA=850mA / 40mils

C674

C664

C675

2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225 KT TDK LR

4.7uF 6.3V ±10% SMT0805 X5R C2012X5R0J475K T TDK LR

4.7uF 6.3V ±10% SMT0805 X5R C2012X5R0J475KT TDK LR

R618 0Ω 5% 1/10W SMT0603 LR

C698

C708 10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A 106KT TDK LR

1uF 10V +80-20% SMT0603 Y5V LMK107F105ZA-T TAIYO LR

C625

1.8VDDS_TXLVDS

3VDDM_HV

1.05VDDM_PEG

1.05VDDM_PE G

R588

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1 A106KT TDK LR

0Ω 5% 1/10W SMT0603 LR

1.05VDDM_DMI

12

C261

C660

0.47uF 10V ±10% SMD0603 X5R LR

0.1uF 10V 10% SMT0402 X 5R LR

for ATI

C280

0Ω 5% 1/16W SMT0402 LR

C668

C631

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A106KT T DK LR(NU)

12

C704

0.47uF 10V ±10% SMD0603 X5R LR

4

C663

12

C710

+

T100uF 2V ±20% ESR=18mΩ SMT7343 EEFCD0D101ER PANASONIC LR

0.47uF 10V ±10% SMD0603 X5R LR

VIA=350mA / 20mils

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 T AI-TECH LR R561

RES 1Ω 1% 1/16W SMT 0402 LR

C623

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A 106KT TDK LR

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1 A106KT TDK LR

C266

1.05VDDM

L70

VIA=200mA / 20mils

for ATI

R205 0Ω 5% 1/4W SMT1206 LR(NU)

R584 0Ω 5% 1/10W SMT0603 LR

R583 0Ω 5% 1/10W SMT0603 LR(NU)

VIA=1200mA / 60mils

3

1.8VDDS

C620 10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1A 106KT TDK LR

1.8VDDS

check

1.05VDDM

VIA=250mA / 10mils

1.05VDDM

1.05VDDM(3,4,6,7,9,12,15,16,18,49)

1.5VDDM(4,9,15,16,18,34,40,41,49)

1.8VDDS(7,9,13,14,48)

3VDDM(3,5,7,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50 ,51)

Confidential

10 52Thursday, July 10, 2008

1

1.05VDDM_P EG

1.5VDDM

1.8VDDS

3VDDM

1.05VDDM_PE G(7)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

Custom

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Candiga Power (5/6)

2

0.3

8

hexainf@hotmail.com

7

6

5

4

3

2

1

DMI Routing Guideline

U34I

AU48

VSS_1

AR48

D D

C C

B B

VSS_2

AL48

VSS_3

BB47

VSS_4

AW47

VSS_5

AN47

VSS_6

AJ47

VSS_7

AF47

VSS_8

AD47

VSS_9

AB47

VSS_10

Y47

VSS_11

T47

VSS_12

N47

VSS_13

L47

VSS_14

G47

VSS_15

BD46

VSS_16

BA46

VSS_17

AY46

VSS_18

AV46

VSS_19

AR46

VSS_20

AM46

VSS_21

V46

VSS_22

R46

VSS_23

P46

VSS_24

H46

VSS_25

F46

VSS_26

BF44

VSS_27

AH44

VSS_28

AD44

VSS_29

AA44

VSS_30

Y44

VSS_31

U44

VSS_32

T44

VSS_33

AM43

BG42

AM41

BG40

AM39

AW37

BG36

BC43 AV43 AU43

AY42 AT42 AN42

AE42

BD41 AU41

AH41 AD41 AA41

BB40 AV40 AN40

AT39

AE39

BH38 BC38 BA38 AU38 AH38 AD38 AA38

BF37 BB37

AT37 AN37

BD36 AK15 AU36

M44

F44

J43

C43

AJ42

N42

L42

Y41

U41

T41 M41 G41 B41

H40 E40

AJ39

N39

L39 B39

Y38 U38

T38

J38

F38 C38

AJ37

H37 C37

VSS

VSS_34 VSS_35 VSS_36 VSS_37 VSS_38 VSS_39 VSS_40 VSS_41 VSS_42 VSS_43 VSS_44 VSS_45 VSS_46 VSS_47 VSS_48 VSS_49 VSS_50 VSS_51 VSS_52 VSS_53 VSS_54 VSS_55 VSS_56 VSS_57 VSS_58 VSS_59 VSS_60 VSS_61 VSS_62 VSS_63 VSS_64 VSS_65 VSS_66 VSS_67 VSS_68 VSS_69 VSS_70 VSS_71 VSS_72 VSS_73 VSS_74 VSS_75 VSS_76 VSS_77 VSS_78 VSS_79 VSS_80 VSS_81 VSS_82 VSS_83 VSS_84 VSS_85 VSS_86 VSS_87 VSS_88 VSS_89 VSS_90 VSS_91 VSS_92 VSS_93 VSS_94 VSS_95 VSS_96 VSS_97 VSS_98 VSS_99

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

VSS_100 VSS_101 VSS_102 VSS_103 VSS_104 VSS_105 VSS_106 VSS_107 VSS_108 VSS_109 VSS_110 VSS_111 VSS_112 VSS_113 VSS_114 VSS_115 VSS_116 VSS_117 VSS_118 VSS_119 VSS_120 VSS_121 VSS_122 VSS_123 VSS_124 VSS_125 VSS_126 VSS_127 VSS_128 VSS_129 VSS_130 VSS_131 VSS_132 VSS_133 VSS_134 VSS_135 VSS_136 VSS_137 VSS_138 VSS_139 VSS_140 VSS_141 VSS_142 VSS_143 VSS_144 VSS_145 VSS_146 VSS_147 VSS_148 VSS_149 VSS_150 VSS_151 VSS_152 VSS_153 VSS_154 VSS_155 VSS_156 VSS_157 VSS_158 VSS_159 VSS_160 VSS_161 VSS_162 VSS_163 VSS_164 VSS_165 VSS_166 VSS_167 VSS_168 VSS_169 VSS_170 VSS_171 VSS_172 VSS_173 VSS_174 VSS_175 VSS_176 VSS_177 VSS_178 VSS_179 VSS_180 VSS_181 VSS_182 VSS_183 VSS_184 VSS_185 VSS_186 VSS_187 VSS_188 VSS_189 VSS_190 VSS_191 VSS_192 VSS_193 VSS_194 VSS_195 VSS_196 VSS_197 VSS_198 VSS_199

AM36 AE36 P36 L36 J36 F36 B36 AH35 AA35 Y35 U35 T35 BF34 AM34 AJ34 AF34 AE34 W34 B34 A34 BG33 BC33 BA33 AV33 AR33 AL33 AH33 AB33 P33 L33 H33 N32 K32 F32 C32 A31 AN29 T29 N29 K29 H29 F29 A29 BG28 BD28 BA28 AV28 AT28 AR28 AJ28 AG28 AE28 AB28 Y28 P28 K28 H28 F28 C28 BF26 AH26 AF26 AB26 AA26 C26 B26 BH25 BD25 BB25 AV25 AR25 AJ25 AC25 Y25 N25 L25 J25 G25 E25 BF24 AD12 AY24 AT24 AJ24 AH24 AF24 AB24 R24 L24 K24 J24 G24 F24 E24 BH23 AG23 Y23 B23 A23 AJ6

U34J

BG21

VSS_199

L12

VSS_200

AW21

VSS_201

AU21

VSS_202

AP21

VSS_203

AN21

VSS_204

AH21

VSS_205

AF21

VSS_206

AB21

VSS_207

R21

VSS_208

M21

VSS_209

J21

VSS_210

G21

VSS_211

BC20

VSS_212

BA20

VSS_213

AW20

VSS_214

AT20

VSS_215

AJ20

VSS_216

AG20

VSS_217

Y20

VSS_218

N20

VSS_219

K20

VSS_220

F20

VSS_221

C20

VSS_222

A20

VSS_223

BG19

VSS_224

A18

VSS_225

BG17

VSS_226

BC17

VSS_227

AW17

VSS_228

AT17

VSS_229

AM12

BA16

AU16 AN16

BG15 AC15

BG14 AA14

BG13 BC13 BA13

AN13

AE13

BF12 AV12 AT12

AA12

BD11 BB11 AY11 AN11 AH11

BG10 AV10 AT10

AE10 AA10

R17 M17 H17 C17

N16 K16 G16 E16

W15

A15

C14

AJ13

N13

L13 G13 E13

J12 A12

Y11 N11 G11 C11

AJ10

M10 BF9 BC9 AN9 AM9 AD9

BH8 BB8 AV8 AT8

VSS

VSS_230 VSS_231 VSS_232 VSS_233

VSS_235

VSS_237 VSS_238 VSS_239 VSS_240 VSS_241 VSS_242 VSS_243 VSS_244 VSS_245 VSS_246 VSS_247 VSS_248 VSS_249 VSS_250 VSS_251 VSS_252

VSS_255 VSS_256 VSS_257 VSS_258 VSS_259 VSS_260 VSS_261 VSS_262 VSS_263 VSS_264 VSS_265 VSS_266 VSS_267 VSS_268 VSS_269 VSS_270 VSS_271 VSS_272 VSS_273

VSS_275 VSS_276 VSS_277 VSS_278 VSS_279 VSS_280 VSS_281 VSS_282 VSS_283 VSS_284 VSS_285 VSS_286 VSS_287 VSS_288 VSS_289 VSS_290

G9

VSS_291

B9

VSS_292 VSS_293 VSS_294 VSS_295 VSS_296

ASIC NB Cantiga PM45 EB88CTPM(892468) QR34 ES2 FCBGA 1329PIN VER:B0 INTEL LR

VSS NCTF

VSS SCB

NC

VSS_297 VSS_298 VSS_299 VSS_300 VSS_301 VSS_302 VSS_303 VSS_304 VSS_305 VSS_306 VSS_307 VSS_308 VSS_309 VSS_310 VSS_311 VSS_312 VSS_313 VSS_314 VSS_315 VSS_316 VSS_317 VSS_318 VSS_319 VSS_320 VSS_321 VSS_322 VSS_323 VSS_324 VSS_325

VSS_327 VSS_328 VSS_329 VSS_330 VSS_331 VSS_332 VSS_333 VSS_334 VSS_335 VSS_336 VSS_337 VSS_338 VSS_339 VSS_340 VSS_341 VSS_342 VSS_343 VSS_344 VSS_345 VSS_346 VSS_347 VSS_348 VSS_349 VSS_350

VSS_351 VSS_352 VSS_353 VSS_354

VSS_NCTF_1 VSS_NCTF_2 VSS_NCTF_3 VSS_NCTF_4 VSS_NCTF_5 VSS_NCTF_6 VSS_NCTF_7 VSS_NCTF_8

VSS_NCTF_9 VSS_NCTF_10 VSS_NCTF_11 VSS_NCTF_12 VSS_NCTF_13 VSS_NCTF_14 VSS_NCTF_15 VSS_NCTF_16

VSS_SCB_1 VSS_SCB_2 VSS_SCB_3 VSS_SCB_4 VSS_SCB_5

NC_26 NC_27 NC_28 NC_29 NC_30 NC_31 NC_32 NC_33 NC_34 NC_35 NC_36 NC_37 NC_38 NC_39 NC_40 NC_41 NC_42

AH8 Y8 L8 E8 B8 AY7 AU7 AN7 AJ7 AE7 AA7 N7 J7 BG6 BD6 AV6 AT6 AM6 M6 C6 BA5 AH5 AD5 Y5 L5 J5 H5 F5 BE4

BC3 AV3 AL3 R3 P3 F3 BA2 AW2 AU2 AR2 AP2 AJ2 AH2 AF2 AE2 AD2 AC2 Y2 M2 K2 AM1 AA1 P1 H1

R183 0Ω 5% 1/16W SMT0402 LR

U24

R174 0Ω 5% 1/16W SMT0402 LR

U28

R184 0Ω 5% 1/16W SMT0402 LR

U25

R182 0Ω 5% 1/16W SMT0402 LR

U29

AF32 AB32 V32 AJ30 AM29 AF29 AB29 U26 U23 AL20 V20 AC19 AL17 AJ17 AA17 U17

BH48 BH1 A48 C1 A3

E1 D2 C3 B4 A5 A6 A43 A44 B45 C46 D47 B47 A46 F48 E48 C48 B48

GMCH

LA

LBTx

LC LD LE

Rx

LZ LXLY LW LV

Breakout/in

Main Route

LA/LZ

LB/LY

Microstrip Same Routing l ayer as LA/LZ

Same R outing laye r as LA/LZ

Microstrip

Same R outing laye r as LA/LZ

Microstrip

Same R outing laye r as LA/LZ

Microstrip

Same R outing laye r as LA/LZ

Stripline

Same R outing laye r as LA/LZ

Stripline

Same R outing laye r as LA/LZ

Stripline

Same R outing laye r as LA/LZ

Stripline

Parameter Breakout Guideline

Unc ouple d Single End Impedan ce

Nominal Trace Width

Pair-to-Pair Pitch

Bus-to-Bus Pitch

Reference Plane

Tra ce Len gth-LA (GM CH Breako ut)

Tra ce Le ngth- LB (GMCH Breakout to Via2)

Trace Length-LC (Via2 to Via3) Max = 5900 mils

Tra ce Lengt h-LD (Via3 t o ICH7m B reakout)

Trace Length-LE (ICH7m Br eakout) Max = 400 mils

Trace Length-LV ( ICH7m Br eakout)

Trace Length-LX (Via2 to Via3)

Tra ce Le ngth- LY (Via3 to GMCH Br eakout) Max = 3600 mils

Tra ce Le ngth-LZ ( GMCH Break out)

Trace Length-L2 (LV+LW+LX+L Y+LZ) Max = 8000 mils

*** When rout ing n ear t he edg e of their refe rence plan e , t race shoul d main tain at least 40 mil s spac e to th e edge of the plane

*** Match the trace leng ths o f the compl ement ary s ignal s wit hin ea ch di fferen tial pair to +/- 5 mi ls

Main Route

LD/LW

Same R outing layer as LE/LV

Main Ro ute Guideline

55 +/- 15%

Inner Layer : 4 mils Outer Layer : 5 mils

Inner Layer : 7 milsNominal Didderenti al Pair-Pitch Outer Layer : 7 mils

Inner Layer : 37 mils Outer Layer : 37 mils

Inner Layer : 22 mils Outer Layer : 20 mils

Ground Ground

No ro uting over plane splitsSplits/Voids No ro uting over voids

Max = 400 mils

Max = 3600 mils

Max = 8000 milsTrace Length-L1 (LA+LB+LC+LD+LE)

Max = 400 mils

Max = 3600 milsTra ce Len gth-LW (IC H7m Breako ut to Via2)

Max = 5900 mils

Max = 400 mils

ICH8M

Rx

Tx

Breakout/in

LE/LV

Microstrip

Stripline

Microstrip

Stripline

Microstrip

Stripline

Microstrip

55 +/- 15%

Inner Layer : 4 mils Outer Layer : 5 mils

Inner Layer : 27 mils Outer Layer : 27 mils

Inner Layer : 15 mils Outer Layer : 12 mils

X O

PCIE Routing Guideline

GMCH

Tx

Rx

Breakout/in

Main Route

LA/LZ

LB/LC/LY

Stripline

Microstrip

Parameter

Unc ouple d Single End Impedan ce

Nominal Trace Width

Nominal Differenti al Trace Sp ace

Pair-to-Pair Pitch

Bus-to-Bus Pitch

Reference Plane

Splits/Voids

Trace Length-LA (ICH7m Br eakout)

Tra ce Length -LB (ICH7 m Breakout to AC cap)

Trace Length-LC (AC cap to PCIe CN)

Trace Length-L1 (LA+LB+LC)

Trace Length-LY (PCIe CN t o ICH7m Breakout)

Trace Length-LZ (ICH7m Bre akout)

*** When rout ing n ear t he edg e of their refe rence plan e , t race shoul d main tain at least 40 mil s spac e to th e edge of the plane

*** Match the trace leng ths o f the compl ement ary s ignal s wit hin ea ch di fferen tial pair to +/- 5 mi ls

LB

LA

LZ

LY

Main Route

LD/LW

Same R outing layer as LE/LV

Main Ro ute Guideline

55 +/- 15%

Inner Layer : 4 mils Outer Layer : 5 mils

Inner Layer : 7 mils Outer Layer : 7 mils

Inner Layer : 37 mils Outer Layer : 37 mils Outer Layer : 27 mils

Inner Layer : 20 mils Outer Layer : 20 mils

Ground

No ro uting over plane splits No ro uting over voids

Max = 400 mils

Max = 10750 mils

Max = 12000 mils

Max = 11950 mils

Max = 400 mils

Max = 12000 milsTrace Length-L2 (LY+LZ)

X O

Express/Mini Card

LC

Breakout Guideline

55 +/- 15%

Inner Layer : 4 mils Outer Layer : 5 mils

Inner Layer : 27 mils

Inner Layer : 15 mils Outer Layer : 12 mils

Ground

>3W

S < 2S

S = Spacing S = Trace Width

Rx

Tx

Breakout/in

LE/LV

Microstrip

A A

>3W

S < 2S

S = Spacing S = Trace Width

8

7

6

5

4

3

Title

Size Document Number Rev

C

Date: Sheet of

2

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)875 1-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

Candiga Ground (6/6)

11 52Thursday, July 10, 2008

1

0.3

5

4

3

2

1

D D

VDDIO_CLK

VDD_CK505

3VDDM

R291

0Ω 5% 1/8W SMT0805 LR

VDD_CK505

C426 0.1uF 10V 10% SMT0402 X5R LR

C382 MO-CAP 4.7uF 10V 10% SMT0603 X5R H=0.8mm LR

C401 0.1uF 10V 10% SMT0402 X5R LR

C390 0.1uF 10V 10% SMT0402 X5R LR

C407 0.1uF 10V 10% SMT0402 X5R LR

C402 0.1uF 10V 10% SMT0402 X5R LR

C393 0.1uF 10V 10% SMT0402 X5R LR

C419 0.1uF 10V 10% SMT0402 X5R LR

1.05VDDM

R290 0Ω 5% 1/10W SMT0603 LR

VDD_CK505

R312 10KΩ 5% 1/16W SMT0402 LR(NU)

C C

Placed within 500 mils of CK410M

1KΩ 5% 1/16W SMT0402 LR(NU)

B B

CPU_BSEL0(3) CPU_BSEL1(3)

CPU_BSEL2(3)

CPU_BSEL0 CPU_BSEL1

CPU_BSEL2

Y3

1 2

FREQ XTL 14.318180MHz SMD-49 2PIN 20pF ±30ppm XSA01431AFK1H-O H.ELE LR

C751 C754 33pF 50V 20% SMT0402 NPO LR

R688

27pF 50V 5% SMT0402 NPO LR

1KΩ 5% 1/16W SMT0402 LR(NU)

R685 R682 1KΩ 5% 1/16W SMT0402 LR(NU)

R669 1KΩ 5% 1/16W SMT0402 LR R663 1KΩ 5% 1/16W SMT0402 LR(NU)

124

1KΩ 5% SMT1010 1/16W 4P2R LR

R662

1KΩ 5% 1/16W SMT0402 LR

RP54

1.05VDDM

3

10mil

CLK_14M_ICH(17)

CLK_SATA_QE#(17)

CLK_PCI_MINI(40)

CLK_PCIF_ICH(15)

RP47

XTAL_OUT

XTAL_IN

FSA

FSC

PCI0_OE#_R

PCI2_TMD

PCIF4

PCIF5 SMB_CLK SMB_DATA

ASIC Spread Spectrum for EMI Reduction PCS3P73U00AG-08-CR TDFN COL(2x2) 8PIN PulseCore LR(NU)

R359

RES 2KΩ 1% 1/16W SMT 0402 LR(NU)

CLK_48M_ICH CPU_BSEL0 CPU_BSEL1

CPU_BSEL2

CLK_14M_ICH

CLK_PCI_MINI

CLK_PCI_EC

CLK_PCI_EC(43)

CLK_PCIF_ICH

MCH_BSEL0 (7) MCH_BSEL1 (7)

MCH_BSEL2 (7)

10mil

R336

2.2KΩ 5% 1/16W SMT0402 LR

R307 10KΩ 5% 1/16W SMT0402 LR

R320 RES 33Ω 5% 1/16W SMT0402 LR

RP 33Ω 5% SMT1010 1/16W 4P2R LR

124

RP52

R316 4.7KΩ 5% 1/16W SMT0402 LR

R684 4.7KΩ 5% 1/16W SMT0402 LR

R676

4.7KΩ 5% 1/16W SMT0402 LR

VDD_CK505

PCIF4

R326

10KΩ 5% 1/16W SMT0402 LR(NU)

TY640 / TY040

R335

0Ω 5% 1/16W SMT0402 LR

R304 33Ω 5% 1/16W SMT0402 LR Sn R313

RES 475Ω 1% 1/16W SMT0402 LR

R315 RES 33Ω 5% 1/16W SMT0402 LR

3

SMB_CLK(13,14,17,34,40)

SMB_DATA(13,14,17,34,40)

RP 2.2KΩ 5% SMT1010 4P2R 1/16W LR

3VDDA 3VDDM

0Ω 5% 1/16W SMT0402 LR R664

R665

0Ω 5% 1/16W SMT0402 LR(NU)

3VDDM

R360 0Ω 5% 1/16W SMT0402 LR(NU)

R358 4.7Ω 5% 1/16W SMT0402 LR(NU)

U11

56

VDD_CPU_I/O

33

VDD_SRC_I/O_1

43

VDD_SRC_I/O_2

52

VDD_SRC_I/O_3

19

VDD_I/O

27

VDD_PLL3_I/O

23

VDD_PLL3

46

VDD_SRC

62

VDD_CPU

9

VDD_PCI

4

VDD_REF

16

VDD_48

2

XTAL_OUT

3

XTAL_IN

17

USB_48MHz/FS_A

64

FS_B/TEST_MODE

5

REF/FS_C/TEST_SEL

8

PCI_0/CLKREQ_A#

10

PCI_1/CLKREQ_B#

11

PCI_2

12

PCI_3

13

^PCI_4/LCDCLK_SEL

14

PCIF_5/ITP_EN

7

SCL

6

SDA

1

VSS_REF

15

VSS_PCI

18

VSS_48

22

VSS_I/O

26

VSS_PLL3

30

VSS_SRC_1

36

VSS_SRC_2

49

VSS_SRC_3

59

VSS_CPU

65

THRM_PAD_1

ASIC CLOCK GENERATOR RTM875N-606-VD-GR QFN 64PIN VER:D REALTEK LR

U13

8

VDD

3

FS

REFOUT/XOUT

6

MR

4 5

GND MODOUT

7

SSXEXTR

SRC_11#/CLKREQ_G#

CLKIN/XIN

SRC_8/CPU_ITP

SRC_8#/CPU_ITP#

SRC_7/CLKREQ_F#

SRC_7#/CLKREQ_E#

SRC_11/CLKREQ_H#

SRC_3#/CLKREQ_D#

SRC_3/CLKREQ_C#

LCDCLK#/27M_SS

SRC_0#/DOT_96#

SRC_0/DOT_96

CKPWRGD/PD#

1

2

PCI_STOP#

CPU_STOP#

CPU_1_MCH

CPU_1_MCH#

CPU_0

CPU_0#

SRC_2#

SRC_2

SRC_4#

SRC_4

SRC_9#

SRC_9

SRC_10#

SRC_10

SRC_6#

SRC_6

LCDCLK/27M

NC

CLK_48M_ICH

R346

0Ω 5% 1/16W SMT0402 LR

CLK_48M_ICHSS

45 44

58 57

61 60

54 53

29 28

51

CLK_MCH_R_OE#

50

40 39

35 34

32 31

38 37

42 41

47 48

24 25

21 20

63

55

CPU1

RP43 0Ω 5% SMT1010 1/16W 4P2R LR

CPU1#

CPU0

RP42 0Ω 5% SMT1010 1/16W 4P2R LR

CPU0#

SRC8

RP44 0Ω 5% SMT1010 1/16W 4P2R LR

SRC8#

SRC2#

RP57 0Ω 5% SMT1010 1/16W 4P2R LR

SRC2

SRC11

RP49 0Ω 5% SMT1010 1/16W 4P2R LR

SRC11#

SRC4#

RP51 0Ω 5% SMT1010 1/16W 4P2R LR

SRC4

RP58 0Ω 5% SMT1010 1/16W 4P2R LR

SRV_9#

RP50 0Ω 5% SMT1010 1/16W 4P2R LR

SRV_9

SRC10#

RP48 0Ω 5% SMT1010 1/16W 4P2R LR

SRC10

SRC6#

RP46 0Ω 5% SMT1010 1/16W 4P2R LR

SRC6

R692 RES 33Ω 5% 1/16W SMT0402 LR

SS_CLK

RP56 0Ω 5% SMT1010 1/16W 4P2R LR(NU)

SS_CLK#

R691 RES 33Ω 5% 1/16W SMT0402 LR(NU)

DOT96#

RP55 0Ω 5% SMT1010 1/16W 4P2R LR(NU)

DOT96

CLK_48M_ICHSS (17)

PM_STPPCI# (17) PM_STPCPU# (17)

124

3

124

3

124

3

124

3

R300 RES 475Ω 1% 1/16W SMT0402 LR R305 RES 475Ω 1% 1/16W SMT0402 LR

124

3

124

3

124

3

124

3

124

3

124

3

124

3

02/06

CLK_PWRGD (17)

CLK_PCI_EC

CLK_PCI_MINI

CLK_PCIF_ICH

CLK_48M_ICH

CLK_14M_ICH

VDDIO_CLK

CLK_MCH_BCLK (6) CLK_MCH_BCLK# (6)

CLK_CPU_BCLK (3) CLK_CPU_BCLK# (3)

CLK_PCIE_EXPCARD (34) CLK_PCIE_EXPCARD# (34)

CLK_PCIE_SATA# (16)

CLKREQ_EX0 (34) CLK_MCH_OE# (7)

C761 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR

C756 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR

C763 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR

C424 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR

C396 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR

CLK_PCIE_SATA (16)

CLK_PCIE_MINICARD (40) CLK_PCIE_MINICARD# (40)

CLK_PCIE_VGA# (22) CLK_PCIE_VGA (22)

CLK_PCIE_LAN# (35) CLK_PCIE_LAN (35)

CLK_PCIE_ROBSON# (41) CLK_PCIE_ROBSON (41)

CLK_PCIE_ICH# (15) CLK_PCIE_ICH (15)

CLK_PCIE_3GPLL# (7) CLK_PCIE_3GPLL (7) CLK_27M (23) DREFSSCLK (7) DREFSSCLK# (7) CLK_27M_SSC (23) DREFCLK# (7) DREFCLK (7)

C392 0.1uF 10V 10% SMT0402 X5R LR

NB

CPU

NB

mini card

VGA

LAN

mini card

SB

NB

C423 0.1uF 10V 10% SMT0402 X5R LR

C404 0.1uF 10V 10% SMT0402 X5R LR

C427 0.1uF 10V 10% SMT0402 X5R LR

VDDIO_CLK

C381 10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm JMK212F106ZG-T TAIYO LR(NU)

C380 10uF 10V +80-20% SMT0805 Y5V TDK LR

C391 0.1uF 10V 10% SMT0402 X5R LR(NU)

C425 0.1uF 10V 10% SMT0402 X5R LR

A A

FSC

0 1

0

5

FSB

CPU_BSEL1

1 2000

FSA

Host Clock

1

Frequency MHz

166

CPU_BSEL0CPU_BSEL2

SS31SS2

0

SS1

0

0 +/- 0.3

0

1

0

1

0

1

0

1

4

SS0

0

1

0

1

0

1

0

1

Spread Mode

DOWN

Spread Amount %

0.8

1.0

1.25

1.5

1.75

2.0

2.51

3.0 1 1

SS3

1

3

SS2

0

1

SS1

0

1

0

1

SS0

0

1

0

1

0

1

0

Spread Mode

Center

Spread Amount %

+/- 0.4

+/- 0.50

+/- 0.6

+/- 0.8

+/- 1.0

+/- 1.25

+/- 1.5

1.05VDDM

1.05VDDM(3,4,6,7,9,10,15,16,18,49)

3VDDM

3VDDM(3,5,7,10,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

3VDDA

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

2

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Clock Generator IC RTM875N-606-VD-GR

3VDDA(5,15,16,17,18,19,21,27,30,34,35,38,40,41,43,45,47,48,49)

Confidential

1

12 52Thursday, July 10, 2008

0.3

5

hexainf@hotmail.com

4

3

2

1

SO-DIMM0

D D

M_CLK_DDR0(7)

M_CLK_DDR#0(7)

M_CLK_DDR1(7)

M_CLK_DDR#1(7)

4

3

RP12 10KΩ 5% SMT1010 1/16W 4P2R LR

1

2

C C

M_A_DQS[7..0](8)

M_A_DQS#[7..0](8)

M_A_A[14..0 ]

M_A_BS2

M_A_BS2(8)

M_A_BS1

M_A_BS1(8)

M_A_BS0

M_A_BS0(8)

M_CS#0

M_CS#0(7)

M_CS#1

M_CS#1(7)

M_CKE0

M_CKE0(7)

M_CKE1

M_CKE1(7)

M_A_CAS#

M_A_CAS#(8)

M_A_RAS#

M_A_RAS#(8)

M_A_WE#

M_A_WE#(8)

SMB_CLK(12,14,17,34,40 )

SMB_DATA(12,14,17,34,40 )

M_ODT0

M_ODT0(7)

M_ODT1

M_ODT1(7)

M_A_DM[7..0]

M_A_DM[7..0](8)

M_A_DQS[7..0]

M_A_DQS#[7..0]

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13 M_A_A14

M_A_DM0 M_A_DM1 M_A_DM2 M_A_DM3 M_A_DM4 M_A_DM5 M_A_DM6 M_A_DM7 M_A_DQS0 M_A_DQS1 M_A_DQS2 M_A_DQS3 M_A_DQS4 M_A_DQS5 M_A_DQS6 M_A_DQS7 M_A_DQS#0 M_A_DQS#1 M_A_DQS#2 M_A_DQS#3 M_A_DQS#4 M_A_DQS#5 M_A_DQS#6 M_A_DQS#7

1.8VDDS

20mil

3VDDM

B B

1.8VDDS M_VREF

R47 1KΩ 1% 1/16W SMT0402 LR(NU) R40 0Ω 5% 1/16W SMT0402 LR R46 1KΩ 1% 1/16W SMT0402 LR(NU)

Other signal

M_VREF

Other signal

20mil

PM_EXTTS#0(7)

C49

0.1uF 16V 80-20% SMT0402 Y5V L R

C80

0.1uF 16V 80-20% SMT0402 Y5V L R

20mil

CN19

102

A0

101

A1

100

A2

99

A3

98

A4

97

A5

94

A6

92

A7

93

A8

91

A9

105

A10/AP

90

A11

89

A12

116

A13

86

A14

84

A15

85

A16_BA2

106

BA1

107

BA0

110

S0#

115

S1#

30

CK0

32

CK0#

164

CK1

166

CK1#

79

CKE0

80

CKE1

113

CAS#

108

RAS#

109

WE#

198

SA0

200

SA1

197

SCL

195

SDA

114

ODT0

119

ODT1

10

DM0

26

DM1

52

DM2

67

DM3

130

DM4

147

DM5

170

DM6

185

DM7

13

DQS0

31

DQS1

51

DQS2

70

DQS3

131

DQS4

148

DQS5

169

DQS6

188

DQS7

11

DQS0#

29

DQS1#

49

DQS2#

68

DQS3#

129

DQS4#

146

DQS5#

167

DQS6#

186

DQS7#

112

VDD1

111

VDD2

117

VDD3

96

VDD4

95

VDD5

118

VDD6

81

VDD7

82

VDD8

87

VDD9

103

VDD10

88

VDD11

104

VDD12

199

VDDSPD

83

NC1

120

NC2

50

NC3

69

NC4

163

NCTEST

1

VREF1

201

GND0

202

GND1

132

VSS42

144

VSS43

156

VSS44

168

VSS45

2

VSS46

3

VSS47

15

VSS48

27

VSS49

39

VSS50

149

VSS51

161

VSS52

28

VSS53

40

VSS54

138

VSS55

150

VSS56

162

VSS57

SCKT FOXCONN SMT DDR2 SO-DIMM H=5.2 REV AS0A421-N2RN-4F LR

REV TYPE

VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41

DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8 VSS9

M_A_DQ0

5

DQ0

M_A_DQ1

7

DQ1

M_A_DQ2

17

DQ2

M_A_DQ3

19

DQ3

M_A_DQ4

4

DQ4

M_A_DQ5

6

DQ5

M_A_DQ6

14

DQ6

M_A_DQ7

16

DQ7

M_A_DQ8

23

DQ8

M_A_DQ9

25

DQ9

M_A_DQ10

35

M_A_DQ11

37

M_A_DQ12

20

M_A_DQ13

22

M_A_DQ14

36

M_A_DQ15

38

M_A_DQ16

43

M_A_DQ17

45

M_A_DQ18

55

M_A_DQ19

57

M_A_DQ20

44

M_A_DQ21

46

M_A_DQ22

56

M_A_DQ23

58

M_A_DQ24

61

M_A_DQ25

63

M_A_DQ26

73

M_A_DQ27

75

M_A_DQ28

62

M_A_DQ29

64

M_A_DQ30

74

M_A_DQ31

76

M_A_DQ32

123

M_A_DQ33

125

M_A_DQ34

135

M_A_DQ35

137

M_A_DQ36

124

M_A_DQ37

126

M_A_DQ38

134

M_A_DQ39

136

M_A_DQ40

141

M_A_DQ41

143

M_A_DQ42

151

M_A_DQ43

153

M_A_DQ44

140

M_A_DQ45

142

M_A_DQ46

152

M_A_DQ47

154

M_A_DQ48

157

M_A_DQ49

159

M_A_DQ50

173

M_A_DQ51

175

M_A_DQ52

158

M_A_DQ53

160

M_A_DQ54

174

M_A_DQ55

176

M_A_DQ56

179

M_A_DQ57

181

M_A_DQ58

189

M_A_DQ59

191

M_A_DQ60

180

M_A_DQ61

182

M_A_DQ62

192

M_A_DQ63

194

47 133 183 77 12 48 184 78 71 72 121 122 196 193 8 18 24 41 53 42 54 59 65 60 66 127 139 128 145 165 171 172 177 187 178 190 9 21 33 155 34

M_A_DQ[63..0]

M_A_DQ[63..0] (8)M_A_A[14..0 ](8)

Place these 2.2uF caps near So-Dimm0

R34

M_A_A7

RES 56Ω 5% 1/16W SMT0402 L R

M_A_A12 M_A_A9 M_A_A5 M_A_A8

M_A_A1 M_A_A3 M_A_A10 M_A_BS0

M_A_WE# M_A_CAS# M_CS#1 M_ODT1

M_CKE0 M_A_BS2

56Ω 5% SMT1010 1/16W 4P2R RS2N-56R0-J2N CYNTEC LR

M_A_A13 M_ODT0 M_CS#0 M_A_RAS#

M_A_BS1 M_A_A0 M_A_A2 M_A_A4

M_A_A6 M_A_A11 M_A_A14 M_CKE1

RP17

1 8 2 7 3 6 4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm L R

RP16

1 8 2 7 3 6 4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm L R

RP15

1 8 2 7 3 6 4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm L R

RP18

124

RP9

1 8 2 7 3 6 4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm L R

RP10

1 8 2 7 3 6 4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm L R

RP11

1 8 2 7 3 6 4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm LR

160mil

1.8VDDS

C571 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

C569 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

C51 T100uF 2V ±20% ESR=18mΩ SMT7343 EEFCD0D101ER PANASONIC LR(NU)

+

3

C567 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

0.9VDDT_DDRII

C35 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

C61 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

Pla ce on e cap close to e very 2 pullu p resistors termin ated to 0.9VDDT_DDRII

40 mils

C40

0.1uF 16V 80-20% SMT0402 Y5V L R

C41

0.1uF 16V 80-20% SMT0402 Y5V L R

C42

0.1uF 16V 80-20% SMT0402 Y5V L R

C43

0.1uF 16V 80-20% SMT0402 Y5V L R

C44

0.1uF 16V 80-20% SMT0402 Y5V L R

C45

0.1uF 16V 80-20% SMT0402 Y5V L R

C59

0.1uF 16V 80-20% SMT0402 Y5V L R

C55

0.1uF 16V 80-20% SMT0402 Y5V L R

C56

0.1uF 16V 80-20% SMT0402 Y5V L R

C57

0.1uF 16V 80-20% SMT0402 Y5V L R

C58

0.1uF 16V 80-20% SMT0402 Y5V L R

C53

0.1uF 16V 80-20% SMT0402 Y5V L R

C54

0.1uF 16V 80-20% SMT0402 Y5V L R

C580 0.1uF 16V 80-20% SMT0402 Y5V LR

C577 0.1uF 16V 80-20% SMT0402 Y5V LR

C579 0.1uF 16V 80-20% SMT0402 Y5V LR

C578 0.1uF 16V 80-20% SMT0402 Y5V LR

C568 1000pF 50V 10% SMT0603 X7R LR

C570 1000pF 50V 10% SMT0603 X7R LR

Place these 0.1uF caps near So-Dimm0 pin79~pin115 area

M_VREF

M_VREF(7,14,48)

A A

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

DDR2 SDRAM SO-DIMM0

5

4

3

2

Date: Sheet of

0.9VDDT_DDRII(14,48)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)875 1-8751

1

1.8VDDS(7,9,10,14,48)

3VDDM(3,5,7,10,12,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,5 0,51)

Confidential

13 52Thursday, July 10, 2008

0.9VDDT_DDRII

1.8VDDS

3VDDM

0.3

5

4

3

2

1

SO-DIMM1

D D

3VDDM

4

RP4 10KΩ 5% SMT1010 1/16W 4P2R LR

C C

B B

1.8VDDS M_VREF

3

1

2

1KΩ 1% 1/16W SMT0402 LR(NU) R27 R24 0Ω 5% 1/16W SMT0402 LR R26 1KΩ 1% 1/16W SMT0402 LR(NU)

20mil

Other signal

M_VREF

Other signal

3VDDM

M_CLK_DDR3(7)

M_CLK_DDR#3(7)

M_CLK_DDR4(7)

M_CLK_DDR#4(7)

SMB_DATA(12,13,17,34,40 )

M_B_DQS[7..0](8)

M_B_DQS#[7..0](8)

M_B_A[14..0 ] M_B_DQ[63..0]

M_B_BS2

M_B_BS2(8)

M_B_BS1

M_B_BS1(8)

M_B_BS0

M_B_BS0(8)

M_CS#2

M_CS#2(7)

M_CS#3

M_CS#3(7)

M_CKE3

M_CKE3(7)

M_CKE4

M_CKE4(7)

M_B_CAS#

M_B_CAS#(8)

M_B_RAS#

M_B_RAS#(8)

M_B_WE#

M_B_WE#(8)

SMB_CLK(12,13,17,34,40 )

M_B_DM[7..0](8)

M_ODT2

M_ODT2(7)

M_ODT3

M_ODT3(7)

M_B_DM[7..0] M_B_DQS[7..0]

M_B_DQS#[7..0]

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12 M_B_A13 M_B_A14

M_B_DM0 M_B_DM1 M_B_DM2 M_B_DM3 M_B_DM4 M_B_DM5 M_B_DM6 M_B_DM7 M_B_DQS0 M_B_DQS1 M_B_DQS2 M_B_DQS3 M_B_DQS4 M_B_DQS5 M_B_DQS6 M_B_DQS7 M_B_DQS#0 M_B_DQS#1 M_B_DQS#2 M_B_DQS#3 M_B_DQS#4 M_B_DQS#5 M_B_DQS#6 M_B_DQS#7

1.8VDDS

20mil

PM_EXTTS#1(7)

C77

0.1uF 16V 80-20% SMT0402 Y5V L R

C48

0.1uF 16V 80-20% SMT0402 Y5V L R

20mil

CN16

102

A0

101

A1

100

A2

99

A3

98

A4

97

A5

94

A6

92

A7

93

A8

91

A9

105

A10/AP

90

A11

89

A12

116

A13

86

A14

84

A15

85

A16_BA2

106

BA1

107

BA0

110

S0#

115

S1#

30

CK0

32

CK0#

164

CK1

166

CK1#

79

CKE0

80

CKE1

113

CAS#

108

RAS#

109

WE#

198

SA0

200

SA1

197

SCL

195

SDA

114

ODT0

119

ODT1

10

DM0

26

DM1

52

DM2

67

DM3

130

DM4

147

DM5

170

DM6

185

DM7

13

DQS0

31

DQS1

51

DQS2

70

DQS3

131

DQS4

148

DQS5

169

DQS6

188

DQS7

11

DQS0#

29

DQS1#

49

DQS2#

68

DQS3#

129

DQS4#

146

DQS5#

167

DQS6#

186

DQS7#

112

VDD1

111

VDD2

117

VDD3

96

VDD4

95

VDD5

118

VDD6

81

VDD7

82

VDD8

87

VDD9

103

VDD10

88

VDD11

104

VDD12

199

VDDSPD

83

NC1

120

NC2

50

NC3

69

NC4

163

NCTEST

1

VREF1

203

GND0

204

GND1

132

VSS42

144

VSS43

156

VSS44

168

VSS45

2

VSS46

3

VSS47

15

VSS48

27

VSS49

39

VSS50

149

VSS51

161

VSS52

28

VSS53

40

VSS54

138

VSS55

150

VSS56

REV TYPE

162

VSS57

SCKT FOXCONN SMT DDR2 SO-DIMM H=9.2 REV AS0A421-MARN-4F LR

DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

VSS1 VSS2 VSS3 VSS4 VSS5 VSS6 VSS7 VSS8

VSS9 VSS10 VSS11 VSS12 VSS13 VSS14 VSS15 VSS16 VSS17 VSS18 VSS19 VSS20 VSS21 VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41

5

DQ0

7

DQ1

17

DQ2

19

DQ3

4

DQ4

6

DQ5

14

DQ6

16

DQ7

23

DQ8

25

DQ9

35 37 20 22 36 38 43 45 55 57 44 46 56 58 61 63 73 75 62 64 74 76 123 125 135 137 124 126 134 136 141 143 151 153 140 142 152 154 157 159 173 175 158 160 174 176 179 181 189 191 180 182 192 194

47 133 183 77 12 48 184 78 71 72 121 122 196 193 8 18 24 41 53 42 54 59 65 60 66 127 139 128 145 165 171 172 177 187 178 190 9 21 33 155 34

M_B_DQ0 M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ4 M_B_DQ5 M_B_DQ6 M_B_DQ7 M_B_DQ8 M_B_DQ9 M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ16 M_B_DQ17 M_B_DQ18 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ24 M_B_DQ25 M_B_DQ26 M_B_DQ27 M_B_DQ28 M_B_DQ29 M_B_DQ30 M_B_DQ31 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35 M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ41 M_B_DQ42 M_B_DQ43 M_B_DQ44 M_B_DQ45 M_B_DQ46 M_B_DQ47 M_B_DQ48 M_B_DQ49 M_B_DQ50 M_B_DQ51 M_B_DQ52 M_B_DQ53 M_B_DQ54 M_B_DQ55 M_B_DQ56 M_B_DQ57 M_B_DQ58 M_B_DQ59 M_B_DQ60 M_B_DQ61 M_B_DQ62 M_B_DQ63

M_B_DQ[63..0] (8)M_B_A[14..0 ](8)

Place these 2.2uF caps near So-Dimm0

1.8VDDS

M_B_A14

R25

RES 56Ω 5% 1/16W SMT0402 L R

M_B_WE#

1 8

M_B_CAS#

2 7

M_CS#3

3 6

M_ODT3

4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm LR

M_B_A3

1 8

M_B_A1

2 7

M_B_A10

3 6

M_B_BS0

4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm LR

M_B_A12

1 8

M_B_A9

2 7

M_B_A8

3 6

M_B_A5

4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm LR

M_ODT2

1 8

M_B_A13

2 7

M_CS#2

3 6

M_B_RAS#

4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm LR

M_B_BS1

1 8

M_B_A0

2 7

M_B_A2

3 6

M_B_A4

4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm LR

M_B_A7

1 8

M_B_A6

2 7

M_B_A11

3 6

M_CKE4

4 5

56Ω 5% SMT2010 1/16W 8P4R 0.5mm LR

M_CKE3

124

M_B_BS2

56Ω 5% SMT1010 1/16W 4P2R RS2N-56R0-J2N CYNTEC LR

160mil

C96 T100uF 2V ±20% ESR=18mΩ SMT7343 EEFCD0D101ER PANASONIC LR(NU)

+

0.9VDDT_DDRII

RP5

RP6

RP7

RP1

RP2

RP3

RP8

3

C599 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

C605 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

C606 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

C603 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

C604 2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR

Pla ce on e cap close to e very 2 pullu p resistors termin ated to 0.9VDDT_DDRII

40 mils

C62

0.1uF 16V 80-20% SMT0402 Y5V L R

C63

0.1uF 16V 80-20% SMT0402 Y5V L R

C64

0.1uF 16V 80-20% SMT0402 Y5V L R

C65

0.1uF 16V 80-20% SMT0402 Y5V L R

C66

0.1uF 16V 80-20% SMT0402 Y5V L R

C67

0.1uF 16V 80-20% SMT0402 Y5V L R

C85

0.1uF 16V 80-20% SMT0402 Y5V L R

C86

0.1uF 16V 80-20% SMT0402 Y5V L R

C87

0.1uF 16V 80-20% SMT0402 Y5V L R

C88

0.1uF 16V 80-20% SMT0402 Y5V L R

C83

0.1uF 16V 80-20% SMT0402 Y5V L R

C84

0.1uF 16V 80-20% SMT0402 Y5V L R

C89

0.1uF 16V 80-20% SMT0402 Y5V L R

Place these 0.1uF caps near So-Dimm0 pin79~pin115

C50 0.1uF 16V 80-20% SMT0402 Y5V LR

C69 0.1uF 16V 80-20% SMT0402 Y5V LR

C598 0.1uF 16V 80-20% SMT0402 Y5V LR

area

C600 1000pF 50V 10% SMT0603 X7R LR

C601 1000pF 50V 10% SMT0603 X7R LR

C597 0.1uF 16V 80-20% SMT0402 Y5V LR

M_VREF

M_VREF(7,13,48)

A A

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

DDR2 SDRAM SO-DIMM1

5

4

3

2

Date: Sheet of

0.9VDDT_DDRII(13,48)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)875 1-8751

1

1.8VDDS(7,9,10,13,48)

3VDDM(3,5,7,10,12,13,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,5 0,51)

Confidential

14 52Thursday, July 10, 2008

0.9VDDT_DDRII

1.8VDDS

3VDDM

0.3

10

hexainf@hotmail.com

H H

3VDDM

R694

2.2KΩ 5% 1/16W SMT0402 LR

R690

2.2KΩ 5% 1/16W SMT0402 LR

G

G G

PCI_PME#

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR

3VDDM

F F

R781

RES 20KΩ 5% 1/16W SMT0402 LR(NU)

Q65

SPI_SI

E E

PCI_AD[31..0]

D D

C C

1394

PCMCIA

PCI_IRQA# PCI_IRQB#

9

PCI_Q_PME#

DS

10KΩ 5% SMT2010 1/16W 8P4R LR

10KΩ 5% SMT1010 1/16W 4P2R LR

PCI_AD[31..0]

Express Card

MINI CARD (Robson)

MINI CARD (WIRELESS)

1.05VDDM

3VDDA

PCI_AD0 PCI_AD1 PCI_AD2 PCI_AD3 PCI_AD4 PCI_AD5 PCI_AD6 PCI_AD7 PCI_AD8 PCI_AD9 PCI_AD10 PCI_AD11 PCI_AD12 PCI_AD13 PCI_AD14 PCI_AD15 PCI_AD16 PCI_AD17 PCI_AD18 PCI_AD19 PCI_AD20 PCI_AD21 PCI_AD22 PCI_AD23 PCI_AD24 PCI_AD25 PCI_AD26 PCI_AD27 PCI_AD28 PCI_AD29 PCI_AD30 PCI_AD31

PCI_IRQA#

PCI_IRQB# PCI_IRQC# PCI_IRQD#

8

PCIE AC coupling caps need to be within 250mils of the driver

SB_PCIE_RX N1(34)

SB_PCIE_ RXP1(34)

PCIE_TXN1(34)

PCIE_TXP1(34)

PCIE_RXN2(41)

PCIE_RXP2(41) PCIE_TXN2(41)

PCIE_TXP2(41)

PCIE_RXN3(40)

PCIE_RXP3(40) PCIE_TXN3(40)

PCIE_TXP3(40)

GLAN_RXN(35)

PCI

OC11# OC2# OC8# OC6# OC0# OC1# OC5# OC9# OC4# OC7#

OC3#

OC10#

SPI_CLK(21)

SPI_CS#0(21)

REQ0#

GNT0# REQ1#/GPIO50 GNT1#/GPIO51 REQ2#/GPIO52 GNT2#/GPIO53 REQ3#/GPIO54 GNT3#/GPIO55

C/BE0# C/BE1# C/BE2# C/BE3#

IRDY#

PCIRST#

DEVSEL#

PERR#

PLOCK#

SERR# STOP#

TRDY#

FRAME#

PLTRST#

PCICLK

PME#

PIRQE#/GPIO2 PIRQF#/GPIO3

PIRQG#/GPIO4

GLAN_RXP(35) GLAN_TXN(35)

GLAN_TXP(35)

15Ω 5% SMT1010 1/16W 4P2R RS2N-22R0-J2N CYNTEC LR

SPI_SI(21)

SPI_SO(21)

F1 G4 B6 A7 F13 F12 E6 F6

D8 B4 D6 A5

D3 E3

PAR

R1 C6 E4 C2 J4 A4 F5 D7

C14 D4 R2

H4 K6 F2

LAN

R369

10KΩ 5% 1/16W SMT040 2 LR

RP59

RP6110KΩ 5% SMT1010 1/16W 4P2R LR

RP6010KΩ 5% SMT2010 1/16W 8P4R LR

RP53

8

1

7

2

6

3

54

124

3 8

1

7

2

6

3

54

124

3

U39B

D11

AD0

C8

AD1

D9

AD2

E12

AD3

E9

AD4

C9

AD5

E10

AD6

B7

AD7

C7

AD8

C5

AD9

G11

AD10

F8

AD11

F11

AD12

E7

AD13

A3

AD14

D2

AD15

F10

AD16

D5

AD17

D10

AD18

B3

AD19

F7

AD20

C3

AD21

F3

AD22

F4

AD23

C1

AD24

G7

AD25

H7

AD26

D1

AD27

G5

AD28

H6

AD29

G1

AD30

H3

AD31

Interrupt I/F

J5

PIRQA#

E1

PIRQB#

J6

PIRQC#

C4 G2

PIRQD# PIRQH#/GPIO5

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A2 INTEL LR

7

C435 C436

C438 0.1uF 10V 10% SMT0402 X5 R LR C440 0.1uF 10V 10% SMT0402 X5 R LR

C442 0.1uF 10V 10% SMT0402 X5 R LR C443 0.1uF 10V 10% SMT0402 X5 R LR

C460 0.1uF 10V 10% SMT0402 X5 R LR C458 0.1uF 10V 10% SMT0402 X5 R LR

RP67

SB_PCIE_ TXN1 SB_PCIE_TXP1

0.1uF 10V 10% SMT0402 X 5R LR

124

3

PCI_REQ#0 PCI_GNT#0 PCI_REQ#1 PCI_GNT#1 PCI_REQ#2 PCI_GNT#2 PCI_REQ#3 PCI_GNT#3

PCI_IRDY#

PCI_DEVSEL# PCI_PERR# PCI_LOCK# PCI_SERR# PCI_STOP# PCI_TRDY# PCI_FRAME#

PLT_RST#

PCI_Q_PM E#

PCI_IRQE# PCI_IRQF# PCI_IRQG# PCI_IRQH#

USB_RBIAS_PN

6

U39D

N29

PERN1

N28

PERP1

P27

PETN1

P26

PETP1

L29

PERN2

L28

PERP2

M27

PETN2

M26

PETP2

J29

PERN3

J28

PERP3

K27

PETN3

K26

PETP3

G29

PERN4

G28

PERP4

H27

PETN4

H26

PETP4

E29

PERN5

E28

PERP5

F27

PETN5

F26

PETP5

C29

PERN6/GLAN_RXN

C28

PERP6/GLAN_RXP

D27

PETN6/GLAN_TXN

D26

PETP6/GLAN_TXP

D23

SPI_CLK

D24

SPI_CS0#

F23

SPI_CS1#/GPIO58/CLGPIO6

D25

SPI_MOSI

E23

SPI_MISO

OC0#

N4

OC0#/GPIO59

OC1#

N5

OC1#/GPIO40

OC2#

N6

OC2#/GPIO41

OC3#

P6

OC3#/GPIO42

OC4#

M1

OC4#/GPIO43

OC5#

N2

OC5#/GPIO29

OC6#

M4

OC6#/GPIO30

OC7#

M3

OC7#/GPIO31

OC8#

N3

OC8#/GPIO44

OC9#

N1

OC9#/GPIO45

OC10#

P5

OC10#/GPIO46

OC11#

P3

OC11#/GPIO47

AG2

USBRBIAS

AG1

USBRBIAS#

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A2 INTEL LR

R666 RES 22.6Ω 1% 1/16W SMT0402 L R

Place within 500mils of ICH 5/5 mils spacing on microstrip

PCI_REQ#1 PCI_GNT#1 PCI_REQ#2 PCI_GNT#2

PCI_C/BE#0 PCI_C/BE#1 PCI_C/BE#2 PCI_C/BE#3

PCI_IRDY# PCI_PAR PCI_RST# (43) PCI_DEVSEL # PCI_PERR# PCI_LOCK# PCI_SERR# PCI_STOP# PCI_TRDY# PCI_FRAME#

PLT_RST# (7,22) CLK_PCIF_ICH (12) PCI_Q_PME#

PCI_GNT#0

DMI0RXN

DMI0RXP DMI0TXN DMI0TXP

DMI1RXN

DMI1RXP DMI1TXN DMI1TXP

DMI2RXN

DMI2RXP DMI2TXN DMI2TXP

DMI3RXN

DMI3RXP DMI3TXN DMI3TXP

DMI_CLKN

PCI-Express

DMI_CLKP

Direct Media Interface

DMI_ZCOMP

DMI_IRCOMP

USBP0N

USBP0P

USBP1N

USBP1P

USBP2N

USBP2P

USBP3N

USBP3P

USBP4N

USBP4P

USBP5N

SPI

USBP5P

USBP6N

USB

USBP6P

USBP7N

USBP7P

USBP8N

USBP8P

USBP9N

USBP9P USBP10N USBP10P USBP11N USBP11P

1394

PCMCIA

R387 1KΩ 5% 1/16W SMT0402 LR

V27 V26 U29 U28

Y27 Y26 W29 W28

AB27 AB26 AA29 AA28

AD27 AD26 AC29 AC28

T26 T25

AF29 AF28

AC5 AC4 AD3 AD2 AC1 AC2 AA5 AA4 AB2 AB3 AA1 AA2 W5 W4 Y3 Y2 W1 W2 V2 V3 U5 U4 U1 U2

5

DMI_RXN0 (7) DMI_RXP0 (7) DMI_TXN0 (7) DMI_TXP0 (7)

DMI_RXN1 (7) DMI_RXP1 (7) DMI_TXN1 (7) DMI_TXP1 (7)

DMI_RXN2 (7) DMI_RXP2 (7) DMI_TXN2 (7) DMI_TXP2 (7)

DMI_RXN3 (7) DMI_RXP3 (7) DMI_TXN3 (7) DMI_TXP3 (7)

CLK_PCIE_ICH# (12) CLK_PCIE_ICH (12)

4

USB_PN0 (33) USB_PP0 (33) USB_PN1 (33) USB_PP1 (33) USB_PN2 (33) USB_PP2 (33) USB_PN3 (37) USB_PP3 (37) USB_PN4 (41) USB_PP4 (41) USB_PN5 USB_PP5 USB_PN6 (41) USB_PP6 (41) USB_PN7 (40) USB_PP7 (40) USB_PN8 (41) USB_PP8 (41) USB_PN9 (34) USB_PP9 (34)

1.5VDDM

R314 RES 24.9Ω 1% 1/16W SMT0402 L R

ESATA

M/B IO PORT

CARD READER

CCD

NU

BLUE TOOTH

MINI CARD (WIRELESS)

MINI CARD (ROBSON)

Express Card

3

2

1

Place within 500mils of ICH

PCI Pull up

3VDDM

PCI_PERR# PCI_IRQB# PCI_IRQE# PCI_REQ#0

PCI_REQ#2 PCI_IRQA# PCI_REQ#3 PCI_FRAME#

PCI_DEVSEL# PCI_REQ#1 PCI_TRDY# PCI_IRQD#

PCI_IRQG# PCI_IRQH# PCI_SERR# PCI_IRQF#

PCI_STOP# PCI_IRQC# PCI_LOCK# PCI_IRDY#

1 8 2 7 3 6 4 5

RP63

8.2KΩ 5% SMT2010 1/16W 8P4R LR

RP66

8.2KΩ 5% SMT2010 1/16W 8P4R LR

RP65

8.2KΩ 5% SMT2010 1/16W 8P4R LR

RP62

8.2KΩ 5% SMT2010 1/16W 8P4R LR

RP64

8.2KΩ 5% SMT2010 1/16W 8P4R LR

B B

C478

U19

0.1uF 16V 80-20% SMT0402 Y5V L R

PLT_RST#

A A

10

Buffer to reduce loading on PLT_RST#

9

53

1

4

2

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR

8

SB/LAN/CD-ROM/EXPRESS CARD/Mini Card

BUF_PLT_RST# (17,30,34,35,40,41 )

R407 100KΩ 5% 1/16W SMT040 2 LR

7

Boot BIOS Strap

PCI_GNT#0

PCI_GNT#3

A16 swap override Strap

PCI_GNT#3

SPI_CS#1 Boot BIOS Location

0 1

1 0

1 1

R388 1KΩ 5% 1/16W SMT0402 LR(NU)

Low = A16 swap override e nabled High = Default

6

SPI

PCI

LPC( Default)

5

1.05VDDM

1.05VDDM(3,4,6,7,9,10,12,16,18,49)

1.5VDDM

1.5VDDM(4,9,10,16,18,34,40,41,49 )

3VDDM

3VDDM(3,5,7,10,12,13,14,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,5 0,51)

3VDDA

3VDDA(5,12,16,17,18,19,21,27,30,34,35,38,40,41,43,45,47,48, 49)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

4

3

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

ICH9M PCI/PCIE/DMI (1/4)

2

Confidential

15 52Thursday, July 10, 2008

1

3VDDM

0.3

8

7

6

5

CMOS_CLEAR # (31)

4

3

2

1

3VDDA_RTC

D D

20mil

RTC Circuit

100Ω 5% 1/16W SMT0402 LR

N

PMU3V

C C

B B

GPIO56

R754 10KΩ 5% 1/16W SMT0402 LR

CARD_RST#

R295 10KΩ 5% 1/16W SMT0402 LR

20mil

0.1uF 16V 80-20% SMT0402 Y5V L R

C798

BIT_CLK_MDC

C379

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

ICH8-M internal VR enable strap

INTVRMEN

P

10KΩ 5% 1/16W SMT040 2 LR

SATA_LED#(31)

3VDDA

3VDDM

Enable Disable

01(Default)

1. RC delay time should be in the range of 18~25ms

2. It is recommended that this larger capacitor and small resistor value in order to reduce the likelihood of glitching of RTCRST#

C811

1uF 10V +80-20% 0603 Y5V LR

R738

D47 DIODE STKY BAS40C 40V 200mA SOT-23 3PIN PSI LR

20mil

PP

R726 1KΩ 5% 1/16W SMT0402 LR

CN27

1

2

CON ACES 85204-02001 WIRE DIP 2PIN P=1.25 LR

20-20294-20

3VDDM

R294

6 mils

R742 20KΩ 1% 1/16W SMT0402 LR

R735

R739

20KΩ 1% 1/16W SMT0402 LR

RES 1MΩ 1% 1/16W SMT 0402 L R

C803

6/7

1uF 10V +80-20% 0603 Y5V LR

BIT_CLK_NB(7) BIT_CLK_MDC(41)

BIT_CLK_CODEC(38)

NB_SYNC(7) MDC_SYNC(41) HDA_SYNC(38)

NB_RST#(7) MDC_RST#(41) HDA_RST#(38)

HDA_SDATAIN0(38) MDC_SDATAIN1(41)

NB_SDATAIN3(7)

NB_SDATAOUT(7) MDC_SDATAOUT(41) HDA_SDATAOUT(38)

SATA_RXN0(32) SATA_RXP0(32) SATA_TXN0(32) SATA_TXP0(32)

SATA_RXN1(32) SATA_RXP1(32) SATA_TXN1(32) SATA_TXP1(32)

C814

1uF 10V +80-20% 0603 Y5V LR

1.5VDDM

5/27 modify

RP45 22Ω 5% SMT1010 1/16W 4P2R RS2N-22R0-J2N CYNTEC LR

RP36 22Ω 5% SMT1010 1/16W 4P2R RS2N-22R0-J2N CYNTEC LR

3VDDA_RTC

R767 332K 1% 1/16W 0603 L R

ICH_INTVRMEN

R744 0Ω 5% 1/16W SMT0402 LR(NU)

R778

10MΩ 1% 1/10W SMT06 03 LR

R371 RES 24.9Ω 1% 1/16W SMT0402 L R

R285 22Ω 1% 1/16W SMT0402 LR R826 22Ω 1% 1/16W SMT0402 LR R827 22Ω 1% 1/16W SMT0402 LR

R272 22Ω 1% 1/16W SMT0402 LR R828 22Ω 1% 1/16W SMT0402 LR R829 22Ω 1% 1/16W SMT0402 LR

R292 22Ω 1% 1/16W SMT0402 LR

124

3

R279 22Ω 1% 1/16W SMT0402 LR

124

3

C733 0.01uF 16V 10% SMT0603 X 7R LR C732 0.01uF 16V 10% SMT0603 X 7R LR C376 0.01uF 16V 10% SMT0603 X 7R LR C377 0.01uF 16V 10% SMT0603 X 7R LR

C736 0.01uF 16V 10% SMT0603 X 7R LR C735 0.01uF 16V 10% SMT0603 X 7R LR C375 0.01uF 16V 10% SMT0603 X 7R LR C374 0.01uF 16V 10% SMT0603 X 7R LR

5mils

RTC_X1 RTC_X2

RTC_RST#

SM_INTRUDER#

ICH_INTVRMEN LAN100_ SLP

CARD_RST#

1. The ICH8M requires a length less than 1 inch on each branch ( from crystal's terminal to RTCXn ball)

2. Routing the RTC circuit should be kept simple to simplify the trace length measurement and increase accuracy on calculating trace capacitances

3. On FR-4, a 5-mils trace has approximately 2pF per inch

4. Trace signal coupling must limited as much as possible by avoiding the routing of adjacent PCI signals close to RTCX1 and RTCX2

5. Ground guard plane is highly recommended

C836 10pF 50V ±0.5pF SMT0402 NPO LR

Y4

12

3

GND

FREQ XTL 32.768KHz 12.5pF ±10ppm DT-26 KDS LR

C829 10pF 50V ±0.5pF SMT0402 NPO LR

V0.3

U39A

C23

RTCX1

C24

RTCX2

A25

RTCRST#

F20

SRTCRST#

C22

INTRUDER#

B22

INTVRMEN

A22

LAN100_SLP

E25

GLAN_CLK

C13

LAN_RSTSYNC

F14

LAN_RXD0

G13

LAN_RXD1

D14

LAN_RXD2

D13

LAN_TXD0

D12

LAN_TXD1

E13

LAN_TXD2

GPIO56

B10

GLAN_DOCK#/GPIO56

B28

GLAN_COMPI

B27

GLAN_COMPO

AF6

HDA_BIT_CLK

AH4

HDA_SYNC

AE7

HDA_RST#

AF4

HDA_SDIN0

AG4

HDA_SDIN1

AH3

HDA_SDIN2

AE5

HDA_SDIN3

AG5

HDA_SDOUT

AG7

HDA_DOCK_EN#/GPIO33

AE8

HDA_DOCK_RST#/GPIO34

AG8

SATALED#

AJ16

SATA0RXN

AH16

SATA0RXP

AF17

SATA0TXN

AG17

SATA0TXP

AH13

SATA1RXN

AJ13

SATA1RXP

AG14

SATA1TXN

AF14

SATA1TXP

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A2 INTEL LR

RTCLAN / GLANIHDASATA

LPCCPU

FWH4/LFRAME#

LDRQ1#/GPIO23

FWH0/LAD0 FWH1/LAD1 FWH2/LAD2 FWH3/LAD3

LDRQ0#

A20GATE

A20M#

DPRSTP#

DPSLP#

FERR#

CPUPWRGD

IGNNE#

INIT# INTR

RCIN#

SMI#

STPCLK#

THRMTRIP#

SATA4RXN SATA4RXP SATA4TXN SATA4TXP

SATA5RXN SATA5RXP SATA5TXN SATA5TXP

SATA_CLKN

SATA_CLKP

SATARBIAS#

SATARBIAS

NMI

TP8

K5 K4 L6 K2

K3

J3 J1

N7 AJ27

AJ25 AE23

AJ26

AD22

AF25

AE22 AG25 L3

AF23 AF24

AH27

AG26

AG27

AH11 AJ11 AG12 AF12

AH9 AJ9 AE10 AF10

AH18 AJ18

SATA_RBIAS_P N

AJ7 AH7

H_A20GATE

R659 RES 56Ω 5% 1/16W SMT0402 L R

H_RCIN#

R302 54.9Ω 1% 1/16W SMT0402 LR Sn

TP8

T9

1

R657 RES 24.9Ω 1% 1/16W SMT0402 L R

LPC_AD0 (40,43) LPC_AD1 (40,43) LPC_AD2 (40,43) LPC_AD3 (40,43)

LPC_FRAME# (40,43)

H_A20GATE (43) H_A20M# (3)

H_DPRSTP# (3,7,51) H_DPSLP# (3)

H_PWRGD (3)

H_IGNNE# (3)

H_INTR (3) H_RCIN# (43)

H_NMI (3) H_SMI# (3)

H_STPCLK# (3)

ESATA_RXN0 (33) ESATA_RXP0 (33)

ESATA_TXN0 (33) ESATA_TXP0 (33)

CLK_PCIE_SAT A# (12) CLK_PCIE_SA TA (12)

Placed within 500mils of ICH8M ball

TPM/MINI CARD/PMX

1.05VDDM

R289 SHW 0 5% 1/16W 0402

for dual core

R651 RES 56Ω 5% 1/16W SMT0402 L R

Needs to be placed within 2" of ICH7m

H_INIT#_R

H_FERR# (3)

H_INIT# (3)

?

1.05VDDM

R299

RES 56Ω 5% 1/16W SMT0402 LR

for dual core

PM_THRMTRIP# (3,7)

3VDDA_RTC

R768

A A

8

ICH8-M LAN100 SLP Strap

Internal VR for VccLAN1_05 and VccCL1_05)

LAN100_SLP

Low = Internal VR Disabled

High = Internal VR Enabled (Default)

7

6

332K 1% 1/16W 0603 L R

LAN100_ SLP

R745 0Ω 5% 1/16W SMT0402 LR(NU)

3VDDA_RTC(18)

1.05VDDM(3,4,6,7,9,10,12,15,18,49)

1.5VDDM(4,9,10,15,18,34,40,41,49 )

5

4

3

3VDDM(3,5,7,10,12,13,14,15,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,5 0,51)

3VDDA_RTC

PMU3V

PMU3V(43,45,47 )

1.05VDDM

Title

1.5VDDM

3VDDA

3VDDA(5,12,15,17,18,19,21,27,30,34,35,38,40,41,43,45,47,48, 49)

Size Document Number Rev

3VDDM

C

Date: Sheet of

2

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)875 1-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

ICH9M CPU/IDE/SATA (2/4)

16 52Thursday, July 10, 2008

1

0.3

8

hexainf@hotmail.com

7

6

5

4

3

2

1

3VDDM

SMB_CLK SMB_DATA CL_RST#1 SMB_CLK_ME SMB_DATA_ME

PM_RI#

SMB_ALERT#

PM_CLKRUN#

PCIE_WAKE# INT_SERIRQ PM_THRM#

T14

EC_SCI#

?

RF_ON CCD_ON CLK_SATA_QE#

CR_PWR#

ACZ_SPKR

T13

PM_STPPCI#

PM_STPCPU#

TP7

1

GPIO12 GPIO13 PLATFORM1 GP_ON/OFF

PLATFORM2

GPIO57

TP3

1

U39C

G16

SMBCLK

A13

SMBDATA

E17

LINKALERT#/GPIO60/CLGPIO4

C17

SMLINK0

B18

SMLINK1

F19

RI#

R4

SUS_STAT#/LPCPD#

G19

SYS_RESET#

M6

PMSYNC#/GPIO0

A17

SMBALERT#/GPIO11

A14

STP_PCI#

E19

STP_CPU#

L4

CLKRUN#

E20

WAKE#

M5

SERIRQ

AJ23

THRM#

D21

VRMPWRGD

A20

TP12

AG19

GPIO1

AH21

GPIO6

AG21

GPIO7

A21

GPIO8

C12

LAN_PHY_PWR_CTRL/GPIO12

C21

ENERGY_DETECT/GPIO13

AE18

GPIO17

K1

GPIO18

AF8

GPIO20

AJ22

SCLOCK/GPIO22

A9

GPIO27

D19

GPIO28

L1

SATACLKREQ#/GPIO35

AE19

SLOAD/GPIO38

AG22

SDATAOUT0/GPIO39

AF21

SDATAOUT1/GPIO48

A8

GPIO57/CLGPIO5

M7

SPKR

AJ24

MCH_SYNC#

B21

TP3

AH20

TP9

AJ20

TP10

AJ21

TP11

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A2 INTEL LR

SATA0GP/GPIO21 SATA1GP/GPIO19 SATA4GP/GPIO36 SATA5GP/GPIO37

SATA

GPIO

SMBSYS GPIO

Clocks

S4_STATE#/GPIO26

DPRSLPVR/GPIO16

Power MGTController Link

GPIO

MEM_LED/GPIO24

GPIO10/SUS_PWR_ACK

GPIO14/AC_PRESENT

WOL_EN/GPIO9

MISC

CLK14 CLK48

SUSCLK

SLP_S3# SLP_S4# SLP_S5#

PWROK

BATLOW#

PWRBTN#

LAN_RST#

RSMRST#

CK_PWRGD

CLPWROK

SLP_M#

CL_CLK0 CL_CLK1

CL_DATA0 CL_DATA1

CL_VREF0 CL_VREF1

CL_RST0# CL_RST1#GPIO49

3VDDM

SUSCLK duty cycle can be between 30% and 70%

?

3VDDM

R652 10KΩ 5% 1/16W SMT0402 LR

AH23

R286 10KΩ 5% 1/16W SMT0402 LR

AF19

R288 10KΩ 5% 1/16W SMT0402 LR

AE21

R323 10KΩ 5% 1/16W SMT0402 LR

AD20

H1 AF3

P1

R391 100Ω 5% 1/16W SMT0402 LR

C16

R392 100Ω 5% 1/16W SMT0402 LR

E16 G17

C10

G20

R701

M2

499Ω 1% 1/16W SMT0402 LR

B13

R3

D20

D22

R5

R6

B16

F24 B19

F22 C19

C25 A19

F21 D18AH24

A16 C18 C11 C20

PM_RSMRST#_R

CL_VREF0_ICH CL_VREF1_ICH

GPIO10 KBCSWI#

GPIO9

R396

100Ω 5% 1/16W SMT0402 LR

KBCSWI# (43)

PM_ICH_PWROK

PM_BATLOW#

PM_RSMRST#

R404

100KΩ 5% 1/16W SMT0402 LR

SUSCLK

PM_SLP_S3# (19,34,43,47,48,49,50) PM_SLP_S4# (34,35,43,48)

PM_S4_STATE#

PM_ICH_PWROK (19,43)

PM_DPRSLPVR (7,50,51)

PM_BATLOW# (43)

ICH_MAINSW# (45)

PM_RSMRST# (19,43)

CLK_PWRGD (12)

MPWROK (7,43)

PM_SLP_M#

CL_CLK0 (7) CL_CLK1 (40)

CL_DATA0 (7) CL_DATA1 (40)

CL_RST#0 (7) CL_RST#1 (40)

BT_ON (41)

LAN_WOL_EN

?

PMX/3V//5V/1.5/1.8/VGA CORE

PMX/1.8VDDS/0.9VDDS

?

R393 0Ω 5% 1/16W SMT0402 LR(NU) R394 0Ω 5% 1/16W SMT0402 LR

?

C752

C451

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

3VDDM

BUF_PLT_RST# (15,30,34,35,40,41)

R398

RES 3.24KΩ 1% 1/16W SMT0402 LR

R397

453Ω 1% 1/16W SMT0402 LR

C469

0.1uF 10V 10% SMT0402 X5R LR

3VDDM

R747 RES 3.24KΩ 1% 1/16W SMT0402 LR(NU)

R746

C824

453Ω 1% 1/16W SMT0402 LR(NU)

0.1uF 10V 10% SMT0402 X5R LR(NU)

CLK_14M_ICH (12) CLK_48M_ICHSS (12)

R751 10KΩ 5% 1/16W SMT0402 LR(NU)

R390 10KΩ 5% 1/16W SMT0402 LR(NU)

D D

SMB_CLK(12,13,14,34,40)

CLK generator/DIMM/Mini card

3VDDA

4.7KΩ 5% 1/16W SMT0402 LR

C C

VR_PWRGD_CLKEN#(51)

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

R366 10KΩ 5% 1/16W SMT0402 LR

3VDDM

R376

VR_PWRGD_CLKEN

E C

100KΩ 5% 1/16W SMT0402 LR R372

Q24

B

SMB_DATA(12,13,14,34,40)

PM_RI#(43)

?

LPC_PD#

PM_BMBUSY#(7)

KBCSMI#(43) CRISIS#(31) KBCSCI#(43)

EC_SCI#(43)

RF_ON(30,40) CCD_ON(41)

KBSEL1(31) KBSEL2(31)

R750 SHW 0 5% 1/16W 0402 R389 SHW 0 5% 1/16W 0402

PM_STPPCI#(12)

PM_STPCPU#(12)

PCI_CLKRUN#(43)

PCIE_WAKE#(34,35,40)

PCI_SERIRQ(43)

BLIGHT_EN(43)

CLK_SATA_QE#(12)

CR_PWR#(37)

ACZ_SPKR(38)

MCH_ICH_SYNC#(7)

3VDDM

B B

ACZ_SPKR

No stuff : by default Stuff : For NO reboot

R329 1KΩ 5% 1/16W SMT0402 LR(NU)

ICH8-M Pullups

GPIO57

R758 10KΩ 5% 1/16W SMT0402 LR

PM_RI#

CL_RST#1 SMB_CLK_ME SMB_DATA_ME

BT_ON

SMB_ALERT#

PCIE_WAKE#

PM_BATLOW#

GPIO12

A A

8

GPIO13

KBCSWI#

GPIO9

GPIO10

R365 10KΩ 5% 1/16W SMT0402 LR

R401 10KΩ 5% 1/16W SMT0402 LR R399 10KΩ 5% 1/16W SMT0402 LR R400 10KΩ 5% 1/16W SMT0402 LR

R749 10KΩ 5% 1/16W SMT0402 LR

R748 10KΩ 5% 1/16W SMT0402 LR

R375 10KΩ 5% 1/16W SMT0402 LR

R752 RES 8.2KΩ 5% 1/16W SMT0402 LR

R753 10KΩ 5% 1/16W SMT0402 LR

R377 10KΩ 5% 1/16W SMT0402 LR

R755 10KΩ 5% 1/16W SMT0402 LR

R403 10KΩ 5% 1/16W SMT0402 LR

R402 10KΩ 5% 1/16W SMT0402 LR

7

3VDDA

PLATFORM1

PLATFORM2

PM_BMBUSY#

CLK_SATA_QE#

PM_THRM#

INT_SERIRQ

PM_CLKRUN#

CR_PWR#

PM_ICH_PWROK

KBCSCI#

CR_PWR#

PM_RSMRST#

GP_ON/OFF

PM_ICH_PWROK

GPIO57

PLATFORM1

PLATFORM2

RF_ON

CCD_ON

6

R321 10KΩ 5% 1/16W SMT0402 LR(NU)

R655 10KΩ 5% 1/16W SMT0402 LR(NU)

R330 10KΩ 5% 1/16W SMT0402 LR(NU)

R711 10KΩ 5% 1/16W SMT0402 LR

R653 RES 8.2KΩ 5% 1/16W SMT0402 LR

R338 RES 8.2KΩ 5% 1/16W SMT0402 LR

R334 RES 8.2KΩ 5% 1/16W SMT0402 LR

R287 10KΩ 5% 1/16W SMT0402 LR

R368 1KΩ 5% 1/16W SMT0402 LR(NU)

R656 10KΩ 5% 1/16W SMT0402 LR

C378 MO-CAP 1000pF 16V 10% SMT0402 X7R LR(NU)

R395 10KΩ 5% 1/16W SMT0402 LR

R714 10KΩ 5% 1/16W SMT0402 LR

R367 10KΩ 5% 1/16W SMT0402 LR

R757 100KΩ 5% 1/16W SMT0402 LR(NU)

R322 10KΩ 5% 1/16W SMT0402 LR

R654 10KΩ 5% 1/16W SMT0402 LR

R756 10KΩ 5% 1/16W SMT0402 LR

R383 10KΩ 5% 1/16W SMT0402 LR

0304 MODIFY

5

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

3VDDA

3VDDA(5,12,15,16,18,19,21,27,30,34,35,38,40,41,43,45,47,48,49)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

4

3

Date: Sheet of

2

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

ICH9M GPIO (3/4)

Confidential

17 52Thursday, July 10, 2008

1

0.3

5

4

3

2

1

3VDDA_RTC

1uF 6.3V 10% SMT0402 X5R LR

5VDDM

D D

100Ω 1% 1/16W SMT0402 LR

20 mils

R759

5VDDA

20 mils

10Ω 1% 1/16W SMT0402 LR

Place within 100mils of ICH on the bottom side or 140mils on the top near F27,P27,AB27

R667

D48

N P

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR

0.1uF 10V 10% SMT0402 X5R LR

D41

N P

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR

0.1uF 10V 10% SMT0402 X5R LR

1.5VDDM

C467

3VDDM

C825

3VDDA

C755

1.5VDDM_PCIE_ICH

80 mils 80 mils

+

C C

T100uF 2V ±20% ESR=18mΩ SMT7343 EEFCD0D101ER PANASONIC LR

C433

1.5VDDM

R647 SHW 0 5% 1/16W 0402

C729 10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

1.5VDDM

B B

1.5VDDM

10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

3VDDM

1.5VDDM

A A

0.1uF 10V 10% SMT0402 X5R LR(NU)

2.2uF 10V ±10% SMT0603 X5R C1608X5R1A225KT TDK LR(NU)

C822

5

1.5VDDM

C406 0.1uF 10V 10% SMT0402 X5R LR

C431 0.1uF 10V 10% SMT0402 X5R LR

C450 0.1uF 10V 10% SMT0402 X5R LR

C740

MO-CAP 1uF 6.3V 10% SMT 0603 X5R C1608X5R0J105K TDK LR

C734

1uF 10V +80-20% 0603 Y5V LR

C737

1uF 10V +80-20% 0603 Y5V LR

C731

C412

0.1uF 10V 10% SMT0402 X5R LR

C465

3VDDM

C791

4.7uF 10V +80-20% 0805 Y5V LR(NU)

20 mils

C468

0.1uF 16V 80-20% SMT0402 Y5V LR

C414

0.1uF 10V 10% SMT0402 X5R LR

C416

0.1uF 10V 10% SMT0402 X5R LR

C738

0.1uF 10V 10% SMT0402 X5R LR

C464

0.1uF 10V 10% SMT0402 X5R LR

4

U39F

A23

VCCRTC

A6

V5REF

AE1

V5REF_SUS

AA24

VCC1_5_B[01]

AA25

VCC1_5_B[02]

AB24

VCC1_5_B[03]

AB25

VCC1_5_B[04]

AC24

VCC1_5_B[05]

AC25

VCC1_5_B[06]

AD24

VCC1_5_B[07]

AD25

VCC1_5_B[08]

AE25

VCC1_5_B[09]

AE26

VCC1_5_B[10]

AE27

VCC1_5_B[11]

AE28

VCC1_5_B[12]

AE29

VCC1_5_B[13]

F25

VCC1_5_B[14]

G25

VCC1_5_B[15]

H24

VCC1_5_B[16]

H25

VCC1_5_B[17]

J24

VCC1_5_B[18]

J25

VCC1_5_B[19]

K24

VCC1_5_B[20]

K25

VCC1_5_B[21]

L23

VCC1_5_B[22]

L24

VCC1_5_B[23]

L25

VCC1_5_B[24]

M24

VCC1_5_B[25]

M25

VCC1_5_B[26]

N23

VCC1_5_B[27]

N24

VCC1_5_B[28]

N25

VCC1_5_B[29]

P24

VCC1_5_B[30]

P25

VCC1_5_B[31]

R24

VCC1_5_B[32]

R25

VCC1_5_B[33]

R26

VCC1_5_B[34]

R27

VCC1_5_B[35]

T24

VCC1_5_B[36]

T27

VCC1_5_B[37]

T28

VCC1_5_B[38]

T29

VCC1_5_B[39]

U24

VCC1_5_B[40]

U25

VCC1_5_B[41]

V24

VCC1_5_B[42]

V25

VCC1_5_B[43]

U23

VCC1_5_B[44]

W24

VCC1_5_B[45]

W25

VCC1_5_B[46]

K23

VCC1_5_B[47]

Y24

VCC1_5_B[48]

Y25

VCC1_5_B[49]

AJ19

VCCSATAPLL

AC16

VCC1_5_A[01]

AD15

VCC1_5_A[02]

AD16

VCC1_5_A[03]

AE15

VCC1_5_A[04]

AF15

VCC1_5_A[05]

AG15

VCC1_5_A[06]

AH15

VCC1_5_A[07]

AJ15

VCC1_5_A[08]

AC11

VCC1_5_A[09]

AD11

VCC1_5_A[10]

AE11

VCC1_5_A[11]

AF11

VCC1_5_A[12]

AG10

VCC1_5_A[13]

AG11

VCC1_5_A[14]

AH10

VCC1_5_A[15]

AJ10

VCC1_5_A[16]

AC9

VCC1_5_A[17]

AC18

VCC1_5_A[18]

AC19

VCC1_5_A[19]

AC21

VCC1_5_A[20]

G10

VCC1_5_A[21]

G9

VCC1_5_A[22]

AC12

VCC1_5_A[23]

AC13

VCC1_5_A[24]

AC14

VCC1_5_A[25]

AJ5

VCCUSBPLL

AA7

VCC1_5_A[26]

AB6

VCC1_5_A[27]

AB7

VCC1_5_A[28]

AC6

VCC1_5_A[29]

AC7

VCC1_5_A[30]

A10

VCCLAN1_05[1]

A11

VCCLAN1_05[2]

A12

VCCLAN3_3[1]

B12

VCCLAN3_3[2]

A27

VCCGLANPLL

D28

VCCGLAN1_5[1]

D29

VCCGLAN1_5[2]

E26

VCCGLAN1_5[3]

E27

VCCGLAN1_5[4]

A26

VCCGLAN3_3

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A2 INTEL LR

CORE

VCCA3GP ATXARX USB CORE

VCCPSUSVCCPUSB

GLAN POWER

VCCP_CORE

PCI

VCCSUS1_05[1] VCCSUS1_05[2]

VCCSUS3_3[01] VCCSUS3_3[02] VCCSUS3_3[03] VCCSUS3_3[04]

VCCSUS3_3[05]

VCCSUS3_3[06] VCCSUS3_3[07] VCCSUS3_3[08] VCCSUS3_3[09] VCCSUS3_3[10] VCCSUS3_3[11] VCCSUS3_3[12] VCCSUS3_3[13] VCCSUS3_3[14] VCCSUS3_3[15] VCCSUS3_3[16] VCCSUS3_3[17] VCCSUS3_3[18] VCCSUS3_3[19] VCCSUS3_3[20]

VCC1_05[01] VCC1_05[02] VCC1_05[03] VCC1_05[04] VCC1_05[05] VCC1_05[06] VCC1_05[07] VCC1_05[08] VCC1_05[09] VCC1_05[10] VCC1_05[11] VCC1_05[12] VCC1_05[13] VCC1_05[14] VCC1_05[15] VCC1_05[16] VCC1_05[17] VCC1_05[18] VCC1_05[19] VCC1_05[20] VCC1_05[21] VCC1_05[22] VCC1_05[23] VCC1_05[24] VCC1_05[25] VCC1_05[26]

VCCDMIPLL

VCC_DMI[1] VCC_DMI[2]

V_CPU_IO[1] V_CPU_IO[2]

VCC3_3[01]

VCC3_3[02]

VCC3_3[07]

VCC3_3[03] VCC3_3[04] VCC3_3[05] VCC3_3[06]

VCC3_3[08] VCC3_3[09] VCC3_3[10] VCC3_3[11] VCC3_3[12] VCC3_3[13] VCC3_3[14]

VCCHDA

VCCSUSHDA

VCCSUS1_5[1]

VCCSUS1_5[2]

VCCCL1_05

VCCCL1_5

VCCCL3_3[1] VCCCL3_3[2]

A15 B15 C15 D15 E15 F15 L11 L12 L14 L16 L17 L18 M11 M18 P11 P18 T11 T18 U11 U18 V11 V12 V14 V16 V17 V18

R29

W23 Y23

AB23 AC23

AG29

AJ6

AC10

3VDDM_ICH_VCCPCORE

AD19 AF20 AG24 AC20

3VDDM_ICH_PCI

B9 F9 G3 G6 J2 J7 K7

AJ4

AJ3

TP VCCSUS1.05_ICH_1

AC8

TP VCCSUS1.05_ICH_2

F17

TP VCCSUS1.5_ICH_1

AD8

TP VCCSUS1.5_ICH_INT

F18

A18 D16 D17 E22

AF1

T1 T2 T3 T4 T5 T6 U6 U7 V6 V7 W6 W7 Y6 Y7 T7

G22

G23

A24 B24

3

160 mils

1.5VDDM_VCCDMIPLL

1.05VDDM_ICH_DMI

1.05VDDM_ICH_IO

3VDDM_ICH_DMI

3VDDM_ICH_SATA

C413

0.1uF 10V 10% SMT0402 X5R LR

C444

0.1uF 10V 10% SMT0402 X5R LR

3VDDM_ICH_HDA_IO

C446

0.1uF 16V 80-20% SMT0402 Y5V LR

C462

0.1uF 10V 10% SMT0402 X5R LR

C417

0.1uF 10V 10% SMT0402 X5R LR

C449

0.1uF 10V 10% SMT0402 X5R LR C448 1uF 6.3V 10% SMT0402 X5R LR(NU)

0.1uF 10V 10% SMT0402 X5R LR

C415

C445

0.1uF 10V 10% SMT0402 X5R LR

R342 0Ω 5% 1/10W SMT0603 LR

C434

0.01uF 16V 10% SMT0402 X7R LR

C418 10uF 10V +80-20% SMT0805 Y5V TDK LR

C411

C408

0.1uF 10V 10% SMT0402 X5R LR

3VDDM

C403

0.1uF 10V 10% SMT0402 X5R LR

3VDDM

C388

0.1uF 10V 10% SMT0402 X5R LR

3VDDA

C739

0.1uF 10V 10% SMT0402 X5R LR

C430

0.1uF 10V 10% SMT0402 X5R LR

4.7uF 10V +80-20% 0805 Y5V LR

C447

0.1uF 10V 10% SMT0402 X5R LR

C454

0.1uF 10V 10% SMT0402 X5R LR

0.1uF 10V 10% SMT0402 X5R LR C386

3VDDA

C767

3VDDM

Place in ICH8M cavity

C432

+

T100uF 2V ±20% ESR=18mΩ SMT7343 EEFCD0D101ER PANASONIC LR

20 mils

1.05VDDM

C453

0.1uF 10V 10% SMT0402 X5R LR

C385

C387

0.1uF 10V 10% SMT0402 X5R LR

3VDDA

2

1.05VDDM

3VDDM

20 mils

3VDDM

U39E

AA26

VSS[001]

AA27

VSS[002]

AA3

VSS[003]

AA6

VSS[004]

AB1

VSS[005]

AA23

VSS[006]

AB28

VSS[007]

AB29

VSS[008]

AB4

VSS[009]

AB5

1.5VDDM

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A2 INTEL LR

AC17 AC26 AC27

AD10 AD12 AD13 AD14 AD17 AD18 AD21 AD28 AD29

AE12 AE13 AE14 AE16 AE17

AE20 AE24

AF13 AF16 AF18 AF22 AH26 AF26 AF27

AG13 AG16 AG18 AG20 AG23

AH12 AH14 AH17 AH19

AH22 AH25 AH28

AJ12 AJ14 AJ17

VSS[010] VSS[011] VSS[012] VSS[013]

AC3

VSS[014]

AD1

VSS[015] VSS[016] VSS[017] VSS[018] VSS[019] VSS[020] VSS[021] VSS[022] VSS[023] VSS[024]

AD4

VSS[025]

AD5

VSS[026]

AD6

VSS[027]

AD7

VSS[028]

AD9

VSS[029] VSS[030] VSS[031] VSS[032] VSS[033] VSS[034]

AE2

VSS[035] VSS[036] VSS[037]

AE3

VSS[038]

AE4

VSS[039]

AE6

VSS[040]

AE9

VSS[041] VSS[042] VSS[043] VSS[044] VSS[045] VSS[046] VSS[047] VSS[048]

AF5

VSS[049]

AF7

VSS[050]

AF9

VSS[051] VSS[052] VSS[053] VSS[054] VSS[055] VSS[056]

AG3

VSS[057]

AG6

VSS[058]

AG9

VSS[059] VSS[060] VSS[061] VSS[062] VSS[063]

AH2

VSS[064] VSS[065] VSS[066] VSS[067]

AH5

VSS[068]

AH8

VSS[069] VSS[070] VSS[071] VSS[072]

AJ8

VSS[073]

B11

VSS[074]

B14

VSS[075]

B17

VSS[076]

B2

VSS[077]

B20

VSS[078]

B23

VSS[079]

B5

VSS[080]

B8

VSS[081]

C26

VSS[082]

C27

VSS[083]

E11

VSS[084]

E14

VSS[085]

E18

VSS[086]

E2

VSS[087]

E21

VSS[088]

E24

VSS[089]

E5

VSS[090]

E8

VSS[091]

F16

VSS[092]

F28

VSS[093]

F29

VSS[094]

G12

VSS[095]

G14

VSS[096]

G18

VSS[097]

G21

VSS[098]

G24

VSS[099]

G26

VSS[100]

G27

VSS[101]

G8

VSS[102]

H2

VSS[103]

H23

VSS[104]

H28

VSS[105]

H29

VSS[106]

VSS[107] VSS[108] VSS[109] VSS[110] VSS[111] VSS[112] VSS[113] VSS[114] VSS[115] VSS[116] VSS[117] VSS[118] VSS[119] VSS[120] VSS[121] VSS[122] VSS[123] VSS[124] VSS[125] VSS[126] VSS[127] VSS[128] VSS[129] VSS[130] VSS[131] VSS[132] VSS[133] VSS[134] VSS[135] VSS[136] VSS[137] VSS[138] VSS[139] VSS[140] VSS[141] VSS[142] VSS[143] VSS[144] VSS[145] VSS[146] VSS[147] VSS[148] VSS[149] VSS[150] VSS[151] VSS[152] VSS[153] VSS[154] VSS[155] VSS[156] VSS[157] VSS[158] VSS[159] VSS[160] VSS[161] VSS[162] VSS[163] VSS[164] VSS[165] VSS[166] VSS[167] VSS[168] VSS[169] VSS[170] VSS[171] VSS[172] VSS[173] VSS[174] VSS[175] VSS[176] VSS[177] VSS[178] VSS[179] VSS[180] VSS[181] VSS[182] VSS[183] VSS[184] VSS[185] VSS[186] VSS[187] VSS[188] VSS[189] VSS[190] VSS[191] VSS[192] VSS[193] VSS[194] VSS[195] VSS[196] VSS[197] VSS[198]

VSS_NCTF[01] VSS_NCTF[02] VSS_NCTF[03] VSS_NCTF[04] VSS_NCTF[05] VSS_NCTF[06] VSS_NCTF[07] VSS_NCTF[08] VSS_NCTF[09] VSS_NCTF[10] VSS_NCTF[11] VSS_NCTF[12]

H5 J23 J26 J27 AC22 K28 K29 L13 L15 L2 L26 L27 L5 L7 M12 M13 M14 M15 M16 M17 M23 M28 M29 N11 N12 N13 N14 N15 N16 N17 N18 N26 N27 P12 P13 P14 P15 P16 P17 P2 P23 P28 P29 P4 P7 R11 R12 R13 R14 R15 R16 R17 R18 R28 T12 T13 T14 T15 T16 T17 T23 B26 U12 U13 U14 U15 U16 U17 AD23 U26 U27 U3 V1 V13 V15 V23 V28 V29 V4 V5 W26 W27 W3 Y1 Y28 Y29 Y4 Y5 AG28 AH6 AF2 B25

A1 A2 A28 A29 AH1 AH29 AJ1 AJ2 AJ28 AJ29 B1 B29

Add Test Point

1.05VDDM

1.05VDDM(3,4,6,7,9,10,12,15,16,49)

1.5VDDM

1.5VDDM(4,9,10,15,16,34,40,41,49)

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

3VDDA

3VDDA(5,12,15,16,17,19,21,27,30,34,35,38,40,41,43,45,47,48,49)

3VDDA_RTC(16)

5VDDM(5,28,29,30,32,38,39,47,49,50,51)

5VDDA(31,33,41,47,48)

Title

3VDDA_RTC

5VDDM

Size Document Number Rev

5VDDA

C

Date: Sheet of

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

ICH9M Power/GND (4/4)

1

18 52Thursday, July 10, 2008

0.3

8

hexainf@hotmail.com

D D

7

RESUME RESET

6

3VDDA

R384

1KΩ 5% 1/16W SMT0402 LR(NU)

10mil

5

3VDDA

U17

5 1

2 3

C471 1000pF 50V 10% SMT0402 X7R LR(NU)

4

OUT

VCC TC

SUB GND

LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR(NU)

R381 1KΩ 5% 1/16W SMT0402 LR

4

PM_RSMRST# should go high no sooner than 10ms after both Vccsus3_3 and Vccsus1_5 have reached their nominal voltage

Rise edge : 1~2us ICH7m Spec : less 50us

3

PM_RSMRST# (17,43)

2

1

D21

DCON(43,47)

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR(NU)

C C

NAPA Platfoem Power Good Circuit

N P

EC

Q25 PNP RT1P441M-T111-1 -50V -100mA SC-70 3PIN IDC LR(NU)

B

0.3

3VDDM

3VDDA

R370

10KΩ 5% 1/16W SMT0402 LR

D20A

DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR

1.5VDDM_PWRGD(49)

1.05VDDM_PWRGD(49)

DDRII_PWRGD(48)

61

D20B

DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR

52

D20C

DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR

43

1

2

U14

53

4

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR

ALL_SYS_PWRGD (43,50)

Delay 99ms

R374

4

10KΩ 5% 1/16W SMT0402 LR(NU)

IMVP_VRON (43,51)

B B

R380 SHW 0 5% 1/16W 0402(NU)

PM_SLP_S3#(17,34,43,47,48,49,50)

U16

5

OUT

VCC

1

TC

2

SUB

3

GND

LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR(NU)

C461

0.01uF 16V 10% SMT0402 X7R LR(NU)

3VDDA

3VDDM

C456

A A

8

7

RES 2KΩ 1% 1/16W SMT 0402 LR(NU)

DELAY_VR_PWRGOOD(7,51)

ALL_SYS_PWRGD(43,50)

6

R379 10KΩ 5% 1/16W SMT0402 LR

5

U15 DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR

53

1

4

2

0.1uF 10V 10% SMT0402 X5R LRR373

PM_ICH_PWROK

4

PM_ICH_PWROK (17,43)

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

3VDDA

3VDDA(5,12,15,16,17,18,21,27,30,34,35,38,40,41,43,45,47,48,49)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

3

Date: Sheet of

2

(886-2)8751-8751

Reset Circuit

Confidential

19 52Thursday, July 10, 2008

1

0.3

8

3/27 modify

7

6

5

4

3

2

1

NUT-P7_0B1_5D0_9

D D

C C

M15

NUT-P8_0B6_0D4_0

M17

1

NUT-P7_0B1_5D0_9

M16

1

NUT-P8_0B6_0D4_0

M20

HOLE-P10_0D2_8

M1

NUT-P8_0B6_0D4_0

1

HOLE-P8_0D2_7

M5

1

M19

1

NUT-P6_0B2_0D1_1

M18

1

HOLE-P8_0D2_7

M9

1

HOLE-P7_0B3_7D2_7

M8

1

HOLE-P8_0B7_0D2_7

M21

1

NUT-P7_0B1_5D0_9

M14

1

HOLE-P8_0D2_7

M4

1

12132

1

13

2

12

3 4 5

AUDIO_GND(38,39)

4

3

5

3

4

5

2

678

1

678

12132

13

12

11

10

9

M10 SCREW HOLE

11

10

9

M7 SCREW HOLE

11 10 9

12132

1

13

2

12

3 4 5

11

3

11

10

4

10

9

5

9

678

M2 SCREW HOLE

1

12132

1

13

2

12

3 4 5

4

3

5

678

11

10

9

M12 SCREW HOLE

3/14

12132

1

13

2

12

3 4 5

11

3

11

10

4

10

9

5

9

678

M3 SCREW HOLE

1

12132

1

13

2

12

3 4 5

4

3

5

678

11

10

9

M13 SCREW HOLE

12132

1

13

2

12

3 4 5

678

11

10

9

M6 SCREW HOLE

2

3

4

5

678

1

678

13

12132

12

11

10

9

M11 SCREW HOLE

COUPON 4X2

FMK12 FMASK

FMK4 FMASK

FMK14 FMASK

1

FMASK

FMK10 FMASK

1

FMK13 FMASK

1

FMK5

FMK3

FMASK

1

FMK11

MJP2

1 2 3 4 5

COUPON5X2

10

9 8 7 6

B B

FMK15 FMASK_OB

1

FMK7 FMASK_OB

1

FMK9 FMASK_OB

1

FMK1 FMASK_OB

1

FMK16 FMASK_OB

1

FMK6 FMASK_OB

1

FMK2 FMASK_OB

1

FMK8 FMASK_OB

1

MJP1

1 2 3 4 5

COUPON5X2

10

9 8 7 6

M_GND_POWER

A A

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

8

7

6

5

4

3

Date: Sheet of

2

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Screw Hole

Confidential

20 52Thursday, July 10, 2008

1

0.3

10

hexainf@hotmail.com

9

8

7

6

5

4

3

2

1

H H

G G

F F

0.1uF 16V 80-20% SMT0402 Y5V LR

3VDDA

E E

C483

10 mils

R791

3.3KΩ 5% 1/16W SMT0402 LR

SPI0_HOLD#

R792

3.3KΩ 5% 1/16W SMT0402 LR

SPI Interface

U44

8

VDD

3

WP#

7

HOLD#

FLASHROM Serial Flash SPI W25X80VSSI 8Mbit 2.7V~3.6V SOIC(208mil) 8PIN WINBOND LR

SPI_CS#0_SI_R

5

SI

SPI_CS#0_SO_R

2

SO

1

CE#

SPI_CS#0_CLKSPI0_WP#

6

SCK

4

VSS

R780 15Ω 1% 1/16W SMT0402 LR R784 15Ω 1% 1/16W SMT0402 LR

R779 0Ω 5% 1/16W SMT0402 LR

SPI_SI (15) SPI_SO (15) SPI_CS#0 (15) SPI_CLK (15)

C868

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

EMI 5/27

D D

C C

B B

3VDDA

3VDDA(5,12,15,16,17,18,19,27,30,34,35,38,40,41,43,45,47,48,49)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu

A A

10

9

8

7

6

5

4

3

Title

Size Document Number Rev

C

Date: Sheet of

114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

FirmWare Hub

2

21 52Thursday, July 10, 2008

1

0.3

PCI-E LAYOUT GUIDE

Trace Length

L<12"

PCI-E clock must 100 ohms

PCI-E Trace length CONN to ATI chip L<3"

PCI-E differential strobe pair 20:5:7:5:20

PCI-E Clock Layout and Routing Guidelines

D D

PCI-E CLK

PCI_Express Bus Interface

Pin Group

PCI_Express Reference Clocks

PCI_Express Module 0

PCI_Express Module 1

PCI_Express Module 2

C C

PCI_Express Module 3

PCI_Express Calibration Macro

The trace length of TXOUT0- should be equal to TXOUT0+ The trace length of TXOUT1- should be equal to TXOUT1+ The trace length of TXOUT2- should be equal to TXOUT2+ The trace length of TXCLK- should be equal to TXCLK+

B B

Mismatch between TXLCK+/- and TXOUT+/- not exceed 25 mil

20mil

7mil

20mil

20 mil area must clean no any trace and via hole

20mil

7mil

20mil

5

Group Mismatch

<5mil

Clock --> NB&VGA

Space

20:5:7:5:20 (L1,L6)

20:4:7:4:20 (L3,L4)

5 MILPCI-E data & control signals 5:20 5 MIL

5 mils/20 mils

ADDRESS DATA & COMMAND

PWRGD & PWRGD_MASK

PCIE_REFCLKP & PCIE_REFCLKN

PCIE_TX[3:0]P & PCIE_TX[3:0]N

PCIE_RX[3:0]P & PCIE_RX[3:0]N

PCIE_TX[7:4]P & PCIE_TX[7:4]N

PCIE_RX[7:4]P & PCIE_RX[7:4]N

PCIE_TX[11:8]P & PCIE_TX[11:8]N

PCIE_RX[11:8]P & PCIE_RX[11:8]N

PCIE_TX[15:12]P & PCIE_TX[15:12]N

PCIE_RX[15:12]P & PCIE_RX[15:12]N

PCIE_CALRN & PCIE_CALRP & PCIE_CALI

MUST HAVE VIA HOLE

GND

TXOUT0- 4mil

TXOUT0+ 4mil

GND

MUST HAVE VIA HOLE

GND

TXOUT1- 4mil

TXOUT1+ 4mil

GND

MUST HAVE VIA HOLE

OTHER: 20 MIL

BETWEEN: 7 MIL

OTHER: 20 MIL

20:5:5:5:20

CLK_PCIE_VGA(12) CLK_PCIE_VGA#(12)

For EMI

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU) MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

1.8VDDM

A A

5

4

C325

L43

FCM2012KF-601T05 Tai-Tech LR

L44

FCM2012KF-601T05 Tai-Tech LR

4

3

2

1

BBP

PLT_RST#(7,15)

VDD_CORE

PCIE_VDDC

VDDR1

VDDR3

1

2

R271

0Ω 5% 1/16W SMT0402 LR

<20ms

M82S

0.95~1.1VVDD_CORE

1.1VDDM

VDDR1

VDDR3

3VDDM

53

U9

4

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR(NU)

RES 100Ω 5% 1/16W SMT0402 LR

1.2V

1.8V

3.3V

0.1uF 16V 80-20% SMT0402 Y5V LR(NU)

C365

R269

PCIE_RST_BUF#

U35A

VGA_PEG_RXP0(7) VGA_PEG_RXN0(7)

VGA_PEG_RXP1(7) VGA_PEG_RXN1(7)

VGA_PEG_RXP2(7) VGA_PEG_RXN2(7)

VGA_PEG_RXP3(7) VGA_PEG_RXN3(7)

VGA_PEG_RXP4(7) VGA_PEG_RXN4(7)

VGA_PEG_RXP5(7) VGA_PEG_RXN5(7)

VGA_PEG_RXP6(7) VGA_PEG_RXN6(7)

VGA_PEG_RXP7(7) VGA_PEG_RXN7(7)

VGA_PEG_RXP8(7) VGA_PEG_RXN8(7)

VGA_PEG_RXP9(7) VGA_PEG_RXN9(7)

VGA_PEG_RXP10(7) VGA_PEG_RXN10(7)

VGA_PEG_RXP11(7) VGA_PEG_RXN11(7)

VGA_PEG_RXP12(7) VGA_PEG_RXN12(7)

VGA_PEG_RXP13(7) VGA_PEG_RXN13(7)

VGA_PEG_RXP14(7) VGA_PEG_RXN14(7)

VGA_PEG_RXP15(7) VGA_PEG_RXN15(7)

C337

PCIE_RST_BUF#

AC30

PCIE_RX0P

AC31

PCIE_RX0N

AC29

PCIE_RX1P

AB29

PCIE_RX1N

AB31

PCIE_RX2P

AB30

PCIE_RX2N

AA31

PCIE_RX3P

AA30

PCIE_RX3N

W30

PCIE_RX4P

W31

PCIE_RX4N

W29

PCIE_RX5P

V29

PCIE_RX5N

V31

PCIE_RX6P

V30

PCIE_RX6N

U31

PCIE_RX7P

U30

PCIE_RX7N

P30

PCIE_RX8P

P31

PCIE_RX8N

P29

PCIE_RX9P

N29

PCIE_RX9N

N31

PCIE_RX10P

N30

PCIE_RX10N

M31

PCIE_RX11P

M30

PCIE_RX11N

K30

PCIE_RX12P

K31

PCIE_RX12N

K29

PCIE_RX13P

J29

PCIE_RX13N

J31

PCIE_RX14P

J30

PCIE_RX14N

H31

PCIE_RX15P

H30

PCIE_RX15N

AD29

PCIE_REFCLKP

AD30

PCIE_REFCLKN

AC28

NC_SMBCLK

AC27

NC_SMBDATA

AG25

PERSTB

ASIC VGA GPU M82-S 216-0707001-00 BGA 632PIN VER:00 ATI LR

Clock

SM BUS

PART 1 OF 6

P C I

E X P R E S S

I N T E R F A C E

PCIE_TX0P PCIE_TX0N

PCIE_TX1P PCIE_TX1N

PCIE_TX2P PCIE_TX2N

PCIE_TX3P PCIE_TX3N

PCIE_TX4P PCIE_TX4N

PCIE_TX5P PCIE_TX5N

PCIE_TX6P PCIE_TX6N

PCIE_TX7P PCIE_TX7N

PCIE_TX8P PCIE_TX8N

PCIE_TX9P PCIE_TX9N

PCIE_TX10P PCIE_TX10N

PCIE_TX11P PCIE_TX11N

PCIE_TX12P PCIE_TX12N

PCIE_TX13P PCIE_TX13N

PCIE_TX14P PCIE_TX14N

PCIE_TX15P PCIE_TX15N

Calibration

PCIE_CALRN

PCIE_CALRP

VGA_PEG_TXP0

AA28

VGA_PEG_TXN0

AA27

VGA_PEG_TXP1

AA25

VGA_PEG_TXN1

AA24

VGA_PEG_TXP2

Y28

VGA_PEG_TXN2

Y27

VGA_PEG_TXP3

Y25

VGA_PEG_TXN3

Y24

VGA_PEG_TXP4

V28

VGA_PEG_TXN4

V27

VGA_PEG_TXP5

V25

VGA_PEG_TXN5

V24

VGA_PEG_TXP6

T28

VGA_PEG_TXN6

T27

VGA_PEG_TXP7

T25

VGA_PEG_TXN7

T24

VGA_PEG_TXP8

P28

VGA_PEG_TXN8

P27

VGA_PEG_TXP9

P25

VGA_PEG_TXN9

P24

VGA_PEG_TXP10

M28

VGA_PEG_TXN10

M27

VGA_PEG_TXP11

M25

VGA_PEG_TXN11

M24

VGA_PEG_TXP12

L28

VGA_PEG_TXN12

L27

VGA_PEG_TXP13

L25

VGA_PEG_TXN13

L24

VGA_PEG_TXP14

J28

VGA_PEG_TXN14

J27

VGA_PEG_TXP15

G28

VGA_PEG_TXN15

G27

R246 RES 2KΩ 1% 1/16W SMT 0402 LR

AF25

R239 1.27KΩ 1% 1/16W SMT0402 LR

AE25

AE23

NC_1

AH30

NC_2

C323 0.1uF 10V 10% SMT0402 X5R LR C321 0.1uF 10V 10% SMT0402 X5R LR

C319 0.1uF 10V 10% SMT0402 X5R LR C308 0.1uF 10V 10% SMT0402 X5R LR

C307 0.1uF 10V 10% SMT0402 X5R LR C306 0.1uF 10V 10% SMT0402 X5R LR

C303 0.1uF 10V 10% SMT0402 X5R LR C299 0.1uF 10V 10% SMT0402 X5R LR

C298 0.1uF 10V 10% SMT0402 X5R LR C295 0.1uF 10V 10% SMT0402 X5R LR

C292 0.1uF 10V 10% SMT0402 X5R LR C285 0.1uF 10V 10% SMT0402 X5R LR

C284 0.1uF 10V 10% SMT0402 X5R LR C276 0.1uF 10V 10% SMT0402 X5R LR

C275 0.1uF 10V 10% SMT0402 X5R LR C272 0.1uF 10V 10% SMT0402 X5R LR

C271 0.1uF 10V 10% SMT0402 X5R LR C264 0.1uF 10V 10% SMT0402 X5R LR

C263 0.1uF 10V 10% SMT0402 X5R LR C257 0.1uF 10V 10% SMT0402 X5R LR

C255 0.1uF 10V 10% SMT0402 X5R LR C249 0.1uF 10V 10% SMT0402 X5R LR

C248 0.1uF 10V 10% SMT0402 X5R LR C236 0.1uF 10V 10% SMT0402 X5R LR

C233 0.1uF 10V 10% SMT0402 X5R LR C232 0.1uF 10V 10% SMT0402 X5R LR

C231 0.1uF 10V 10% SMT0402 X5R LR C227 0.1uF 10V 10% SMT0402 X5R LR

C226 0.1uF 10V 10% SMT0402 X5R LR C221 0.1uF 10V 10% SMT0402 X5R LR

C219 0.1uF 10V 10% SMT0402 X5R LR C213 0.1uF 10V 10% SMT0402 X5R LR

1.1VDDM

NB_PEG_RXP0 (7) NB_PEG_RXN0 (7)

NB_PEG_RXP1 (7) NB_PEG_RXN1 (7)

NB_PEG_RXP2 (7) NB_PEG_RXN2 (7)

NB_PEG_RXP3 (7) NB_PEG_RXN3 (7)

NB_PEG_RXP4 (7) NB_PEG_RXN4 (7)

NB_PEG_RXP5 (7) NB_PEG_RXN5 (7)

NB_PEG_RXP6 (7) NB_PEG_RXN6 (7)

NB_PEG_RXP7 (7) NB_PEG_RXN7 (7)

NB_PEG_RXP8 (7) NB_PEG_RXN8 (7)

NB_PEG_RXP9 (7) NB_PEG_RXN9 (7)

NB_PEG_RXP10 (7) NB_PEG_RXN10 (7)

NB_PEG_RXP11 (7) NB_PEG_RXN11 (7)

NB_PEG_RXP12 (7) NB_PEG_RXN12 (7)

NB_PEG_RXP13 (7) NB_PEG_RXN13 (7)

NB_PEG_RXP14 (7) NB_PEG_RXN14 (7)

NB_PEG_RXP15 (7) NB_PEG_RXN15 (7)

LVDS Interface

DIGON

0Ω 5% 1/16W SMT0402 LR

R222

AA7

AC6

AD21 AE21 AJ24 AJ23 AK24 AL24 AG21 AH21 AG23 AH23

AL19 AK19 AJ20 AJ19 AK20 AL20 AK21 AL21 AK22 AL22

R221

10KΩ 5% 0402 LR

LVDS_ENALCDD (27)

LVDS_TXCLK_LPD (27) LVDS_TXCLK_LND (27) LVDS_TXOUT_L0PD (27) LVDS_TXOUT_L0ND (27) LVDS_TXOUT_L1PD (27) LVDS_TXOUT_L1ND (27) LVDS_TXOUT_L2PD (27) LVDS_TXOUT_L2ND (27)

LVDS_ENABKL (7,23,43)

2

1.8VDDM

L42

FCM2012KF-601T05 Tai-Tech LR

Title

Size Document Number Rev

Date: Sheet of

LVDDC

70mA20mil

C348 0.1uF 16V 80-20% 0402 Y5V LR

C351 0.1uF 16V 80-20% 0402 Y5V LR

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (883-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

C

M82SCE PCI-E / LVDS IF

1

1.1VDDM

1.1VDDM(23,25,48,49)

1.8VDDM

1.8VDDM(23,24,25,26,48)

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

Confidential

22 52Thursday, July 10, 2008

0.3

U35F

320mA20mil

C331 1uF 6.3V +80-20% SMT0402 Y5V LR

C361 10uF 10V +80-20% 0805 Y5V LR

C330 0.1uF 16V 80-20% 0402 Y5V LR

C338 1uF 6.3V +80-20% SMT0402 Y5V LR

80mA

LVDDC

40mA15mil

LPVDD_25

C339 0.1uF 16V 80-20% 0402 Y5V LR

C362 10uF 10V +80-20% 0805 Y5V LR

PART 6 OF 6

AF20

LVDDR_1

AG20

LVDDR_2

AJ18

LVDDC_1

AH20

LVDDC_2

AF23

LVSSR_1

AF21

LVSSR_2

AL18

LVSSR_3

AJ22

LVSSR_4

AJ25

LVSSR_5

AK18

LVSSR_6

AK23

LVSSR_7

AK25

LVSSR_8

AJ21

LVSSR_9

AL23

LVSSR_10

AL25

LVSSR_11

AG18

LPVDD

AH18

LPVSS

ASIC VGA GPU M82-S 216-0707001-00 BGA 632PIN VER:00 ATI LR

VARY_BL

Control

LVDS channel

TXCLK_UP

TXCLK_UN TXOUT_U0P TXOUT_U0N TXOUT_U1P TXOUT_U1N TXOUT_U2P TXOUT_U2N TXOUT_U3P TXOUT_U3N

TXCLK_LP

TXCLK_LN TXOUT_L0P TXOUT_L0N TXOUT_L1P TXOUT_L1N TXOUT_L2P TXOUT_L2N TXOUT_L3P TXOUT_L3N

3

5

hexainf@hotmail.com

D D

MEM ID[3..0]

GDDR3 SDRAM HYB18H1G321AF-11

0000

(4M*32bit*8banks)Qimonda GDDR3 SDRAM K4J10324QD-HC12

0001

(4M*32bit*8banks) Samsung GDDR3 SDRAM HYB18H512321BF-14

0010

(2M*32Bit*8Banks) Infineon GDDR3 SDRAM HY5RS123235BFP-14

0011

(2M*32Bit*8Banks) Hynix

Transmitter Power Saving

GPIO0

Enable

Transmitter De-emphasis

GPIO1

C C

B B

Enable

Debug access

GPIO4

BIF_GEN2_EN_A

GPIO5

Memory

GPIO

aperture size

[13:11]

VGA

PSYNC

ENABLED

Size of the primary memory apertures

128MB

256MB

0:50% Tx output swing

1:Full Tx output swing

0:Tx de-emphasis disabled

1:Tx de-emphasis enabled

0:off

1:on

0Advertises the PCI-E device as 2.5GT/s capable at power-on

1



Advertises the PCI-E device as5.0GT/s capable at power-on

000:128MB

001:256MB

011:64MB

011:32MB

0:VGA controller enable

1:Device will not be recognized as system's VGA controller.

100:512MB

101:1GB

110:2GB

111:4GB

CONFIG[3:0]

x000

x001

1.8VDDM

VDDR_3

5/27 modify

VDDR_3

5/27 modify

3VDDM

R599 10KΩ 5% 0402 LR(NU) R597 10KΩ 5% 0402 LR

R595 10KΩ 5% 0402 LR(NU) R596 10KΩ 5% 0402 LR

LVDS_ENABKL(7,22,43)

R215 0Ω 5% 1/16W SMT0402 LR(NU) R264 10KΩ 5% 0402 LR R831 10KΩ 5% 0402 LR

R594 10KΩ 5% 0402 LR R593 10KΩ 5% 0402 LR(NU) R591 10KΩ 5% 0402 LR(NU)

POW_SW(50)

R590 10KΩ 5% 1/16W SMT0402 LR(NU)

R818 10KΩ 5% 1/16W SMT0402 LR(NU)

R233 10KΩ 5% 0402 LR R219 1KΩ 5% 1/16W SMT0402 LR

x = don’t care

1.8VDDM

249Ω 1% 1/16W SMT0402 LR

3VDDM

A A

VGA_CTF

R643

RES 47KΩ 5% 1/16W SMT 0402 LR(NU)

R640

10KΩ 5% 0402 LR

5

R639 10KΩ 5% 0402 LR(NU)

Q60

B

TRANS NPN MMBT3904 40V 200mA SOT-23 3PIN PSI LR(NU)

E C

499Ω 1% 1/16W SMT0402 LR

R242

EN_MAX8797 (50)

R241

0.1uF 16V 80-20% SMT0402 Y5V LR

C334

4

5/27 modify

R83010KΩ 5% 0402 LR(NU)

R23510KΩ 5% 0402 LR(NU)

R62010KΩ 5% 0402 LR R61110KΩ 5% 0402 LR R63010KΩ 5% 0402 LR R62310KΩ 5% 0402 LR

MEM_ID0

R61710KΩ 5% 0402 LR(NU)

MEM_ID1

R61210KΩ 5% 0402 LR(NU)

MEM_ID2

R62810KΩ 5% 0402 LR(NU)

MEM_ID3

R62410KΩ 5% 0402 LR(NU)

VGA_GPIO0 VGA_GPIO1

VGA_GPIO4 VGA_GPIO5

VGA_GPIO8

VGA_GPIO11 VGA_GPIO12

PVDD

VGA_GPIO13

CLK_27M_SSC

VGA_CTF

PVSS

POW_SW

POW_SW1

PCIE_PVDD_VGA

MPVDD

VDDPLL

OSC_IN

1KΩ 5% 1/16W SMT0402 LR

R256

CLK_27M_SSC(12)

CLK_27M(12)

Vref clock swing level is 1.8V

4

U35B

AJ4

TXCM_DPA0P

AJ5

TXCP_DPA0N

AL5

TX0M_DPA1P

AK5

TX0P_DPA1N

AL6

TX1M_DPA2P

AK6

TX1P_DPA2N

AK8

TX2M_DPA3P

AL8

TX2P_DPA3N

AD9

DVALID

AE7

PSYNC_NEW

AK4

DVPCNTL_MVP_0

AL3

DVPCNTL_MVP_1

V2

DVPCNTL_0

V1

DVPCNTL_1

W3

DVPCNTL_2

W1

DVPCLK

Y1

DVPDATA_0

Y2

DVPDATA_1

Y3

DVPDATA_2

AA2

DVPDATA_3

AA3

DVPDATA_4

AB1

DVPDATA_5

AB2

DVPDATA_6

AB3

DVPDATA_7

AC1

DVPDATA_8

AC3

DVPDATA_9

AD1

DVPDATA_10

AD2

DVPDATA_11

AD3

DVPDATA_12

AF3

DVPDATA_13

AG3

DVPDATA_14

AH3

DVPDATA_15

AG1

DVPDATA_16

AH2

DVPDATA_17

AH1

DVPDATA_18

AJ3

DVPDATA_19

AJ1

DVPDATA_20

AJ2

DVPDATA_21

AK2

DVPDATA_22

AK3

DVPDATA_23

Y4

GPIO_0

V3

GPIO_1

V4

GPIO_2

V5

GPIO_3

U3

GPIO_4

U2

GPIO_5

T4

GPIO_6

T5

GPIO_7_BLON

T7

GPIO_8_ROMSO

T8

GPIO_9_ROMSI

R1

GPIO_10_ROMSCK

R2

GPIO_11

R3

GPIO_12

P1

GPIO_13

P3

GPIO_14_HPD2

N1

GPIO_15_PWRCNTL0

N2

GPIO_16_SSIN

P4

GPIO_17_THERMAL_INT

P7

GPIO_18_HPD3

P8

GPIO_19_CTFB

P5

GPIO_20_PWRCNTL1

V7

GPIO_21_BB_EN

N3

GPIO_22_ROMCSB

Y5

GPIO_23_CLKREQB

M4

GPIO_24_JMODE

M5

GPIO_25_TDI

M7

GPIO_26_TCK

M8

GPIO_27_TMS

L8

GPIO_28_TDO

Y8

GEN_A

Y7

GEN_B

V8

GEN_C

AH6

GEN_D_HPD4

AG6

GEN_E

AC11

VREFG

AH12

DPLL_PVDD

AG12

DPLL_PVSS

AH31

PCIE_PVDD

A9

MPVDD

B9

MPVSS

AE12

DPLL_VDDC

AJ31

XTALIN

AJ30

XTALOUT

AH26

TESTEN

AD12

PLLTEST

ASIC VGA GPU M82-S 216-0707001-00 BGA 632PIN VER:00 ATI LR

CLK_27M_SSC

PART 2 OF 6

INTEGRATED TMDS/DP PORT

EXT TMDS DVO

DAC1 / CRT

GENERAL PURPOSE I/O

DAC2 (TV/CRT2)

SERIAL

BUSES PLL & XTAL

DDC3DATA_DP3_AUXN

DDC3CLK_DP3_AUXP

DDC4DATA_DP4_AUXN

DDC4CLK_DP4_AUXP

TEST

THERMAL

75Ω 1% 1/16W SMT0402 LR

R257

RES 150Ω 1% 1/16W SMT0402 LR

TXCM_DPB0P TXCP_DPB0N

TX0M_DPB1P

TX0P_DPB1N

TX1M_DPB2P

TX1P_DPB2N

TX2M_DPB3P

TX2P_DPB3N

DPA_PVDD DPA_PVSS

DPB_PVDD DPB_PVSS

DPA_VDDR_1 DPA_VDDR_2

DPB_VDDR_1 DPB_VDDR_2

DPB_VSSR_5 DPB_VSSR_4 DPB_VSSR_3 DPB_VSSR_2 DPB_VSSR_1

DPA_VSSR_5 DPA_VSSR_4 DPA_VSSR_3 DPA_VSSR_2 DPA_VSSR_1

DP_CALR

V2SYNC H2SYNC

A2VDDQ

A2VSSQ

DDC1DATA

DDC1CLK

DDC2DATA

DDC2CLK

TS_FDO

DMINUS

OSC_IN

R249

HPD1

HSYNC VSYNC

RSET

AVDD

AVSSQ

VDD1DI

VSS1DI

COMP

A2VDD

VDD2DI

VSS2DI

R2SET

SDA

DPLUS

3

TXCM_DPB0PLTXCM_DPB0PL

R650

AK9

TXCP_DPB0NL

AL9

TX0M_DPB1PL

R646

AJ9

TX0P_DPB1NL

AJ10

TX1M_DPB2PL

R645

AL10

TX1P_DPB2NL

AK10

TX2M_DPB3PL

R642

AL11

TX2P_DPB3NL

AK11

AL7 AK7

AE11 AF11

AJ12 AJ13

AK13 AL13

AL12 AK12 AJ11 AH9 AH11

AJ8 AF7 AG7 AJ7 AH7

AG11

AA8

AL28

R

AK28

RB

AL27

G

AK27

GB

AL26

B

AK26

BB

AK29 AK30

R255 499Ω 1% 1/16W SMT0402 LR

AJ28

AL29

AVDD_25

AH28

AJ27

AJ26

AL17

R2

AK17

R2B

AL15

G2

AK15

G2B

AL14

B2

AK14

B2B

AJ17

C

AJ15

Y

AJ14

AE16 AF16

AH14

AH16

AG16

AF18

AE18

R232

AG14

AA5

SCL

AA4

AJ29 AH29

AC5 AC4

AF4 AH4

AF9 AG9

AE14

AE5 AE4

3

180 1/16W 5% SMT0402(NU)

C730 C728

C726 C723

C721 C719

C717 C716

TPVDD

TXVDDR

RB, GB and BB should connect to GND

R238 RES 150Ω 1% 1/16W SMT0402 LR

REDD (28)

GREEND (28)

BLUED (28)

39KΩ 1% 1/16W SMT0402 LR

100KΩ 5% 1/16W SMT0402 LR

HSYNCD

VDDDI_25

R2B, G2B and B2B should connect to GND

R638 75Ω 1% 1/16W SMT0402 LR

R637 75Ω 1% 1/16W SMT0402 LR

R245 75Ω 1% 1/16W SMT0402 LR

A2VDD_25

A2VDDQ_18

VDDDI_25

RES 715Ω 1% 1/16W SMT0402 LR

Q_VEDATD (28) Q_VECLKD (28)

LVDS_DDC_DATAD (27) LVDS_DDC_CLKD (27)

DDC4DATA (29)

DDC4CLK (29)

R261RES 150Ω 1% 1/16W SMT0402 LR

R262RES 150Ω 1% 1/16W SMT0402 LR

R263RES 150Ω 1% 1/16W SMT0402 LR

CRT

HDMI

TXCM_DPB0P (29) TXCP_DPB0N (29)

TX0M_DPB1P (29) TX0P_DPB1N (29)

TX1M_DPB2P (29) TX1P_DPB2N (29)

TX2M_DPB3P (29) TX2P_DPB3N (29)

10 MIL 12 MIL 12 MIL 10 MIL

V0.3

R644

R641

HSYNCD

LVDS

2

GND: 10 MIL

R : 10 MIL G : 10 MIL B : 10 MIL

GND: 10 MIL

PS385 SOT-23-3L 3PIN PSI LR(NU)

3

Q90

NC

DIODE ZENER 2.5V LR(NU)

Cathode

D38

P N

HSYNCD (28) VSYNCD (28)

V0.3

R244 10KΩ 5% 0402 LR

2

1

VDDR_3

2

Anode

1.8VDDM

1.1VDDM

1.8VDDM

VDD_CORE

1.8VDDM

5/27 modify

1.1VDDM

L82

FCM2012KF-601T05 Tai-Tech LR

±3%

FCM2012KF-601T05 Tai-Tech LR

±3%

L37

FCM2012KF-601T05 Tai-Tech LR

L45

FCM2012KF-601T05 Tai-Tech LR

HPD (29)

L33

FCM2012KF-601T05 Tai-Tech LR

±3%

L75

FCM2012KF-601T05 Tai-Tech LR

1.8VDDM

FCM2012KF-601T05 Tai-Tech LR

VDDR_3

L47

FCM2012KF-601T05 Tai-Tech LR

L35

FCM2012KF-601T05 Tai-Tech LR

1

TPVDD

20mil

L83

20mil

40mA

C722 10uF 6.3V 10% 0805 X5R TDK LR

C713 0.1uF 16V 80-20% 0402 Y5V LR

C715 1000pF 50V 10% 0402 X7R LR

TXVDDR

400mA

C718 10uF 10V +80-20% 0805 Y5V LR

C714 1000pF 50V 10% 0402 X7R LR

AVDD_25

100mA

C358 0.1uF 16V 80-20% 0402 Y5V LR

C356 1000pF 50V 10% 0402 X7R LR

VDDDI_25

45mA

C363 10uF 6.3V 10% 0805 X5R TDK LR

C329 1000pF 50V 10% 0402 X7R LR

PVDD

120mA

10uF 10V +80-20% 0805 Y5V LR C347

C341 1uF 6.3V +80-20% SMT0402 Y5V LR

MPVDD

230mA

C645 10uF 6.3V 10% 0805 X5R TDK LR

C643 0.1uF 16V 80-20% 0402 Y5V LR

PCIE_PVDD_VGA

90mA

L32

L46

20mil

22uF 6.3V ±20% SMT0805 X5R JMK212BJ226MG-T TAYIO LR

C343 0.1uF 16V 80-20% SMT0402 Y5V LR

C346 1uF 6.3V +80-20% SMT0402 Y5V LR

C354

A2VDDQ_18

2mA

20mil

C353 0.1uF 16V 80-20% 0402 Y5V LR

C352 1000pF 50V 10% 0402 X7R LR

A2VDD_25

135mA

20mil

C364 10uF 10V +80-20% 0805 Y5V LR

C340 1000pF 50V 10% 0402 X7R LR

VDDPLL

20mil 300mA

VDDPLL

C357 10uF 10V +80-20% 0805 Y5V LR

C317 1uF 6.3V +80-20% SMT0402 Y5V LR

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet

(883-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

M82SCE VIDEO IF

1

SPWR 0 5% 1/16W 0402

PVSS

R250

VDDR_3

VDDR_3(25,28)

VDD_CORE

VDD_CORE(25,48,50)

1.1VDDM(22,25,48,49)

1.8VDDM(22,24,25,26,48)

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

Confidential

23 52Thursday, July 10, 2008

of

1.1VDDM

1.8VDDM

3VDDM

0.3

1

2

3

4

5

6

7

8

VM_A_DQS[7..0]

U35C

E29 E30

E31 D31 C29

B29

B30

A29

E26 D26

E25 D25 G23 G21

E21 D21 C28

B28

B27

A27 C25

A25 C24

B24 C23

B23

A23

B22 C20

B20

A20 C19

G9

G7 G5

G4

G2 G1

F30

F31

Part 3 of 6

DQ_0 DQ_1 DQ_2 DQ_3 DQ_4

MEMORY

DQ_5

INTERFACE

DQ_6 DQ_7 DQ_8 DQ_9 DQ_10 DQ_11 DQ_12 DQ_13 DQ_14 DQ_15 DQ_16 DQ_17 DQ_18 DQ_19 DQ_20 DQ_21 DQ_22 DQ_23 DQ_24 DQ_25 DQ_26 DQ_27 DQ_28 DQ_29 DQ_30 DQ_31

C8

DQ_32

C7

DQ_33

B7

DQ_34

A7

DQ_35

A5

DQ_36

C4

DQ_37

B4

DQ_38

A3

DQ_39 DQ_40

E9

DQ_41

D9

DQ_42 DQ_43 DQ_44

F5

DQ_45 DQ_46

F4

DQ_47

B3

DQ_48

B2

DQ_49

C2

DQ_50

C1

DQ_51

E3

DQ_52

F3

DQ_53

F2

DQ_54

F1

DQ_55 DQ_56 DQ_57

H3

DQ_58

H2

DQ_59

K2

DQ_60

L3

DQ_61

L2

DQ_62

L1

DQ_63

MVREFD MVREFS

L5

TEST_MCLK

L7

TEST_YCLK

J7

MEMTEST

ASIC VGA GPU M82-S 216-0707001-00 BGA 632PIN VER:00 ATI LR

MA_0 MA_1 MA_2 MA_3 MA_4 MA_5 MA_6 MA_7 MA_8

MA_9 MA_10 MA_11

MA_BA0 MA_BA1 MA_A12 MA_BA2

DQMb_0 DQMb_1 DQMb_2 DQMb_3 DQMb_4 DQMb_5 DQMb_6 DQMb_7

QS_0

QS_1

QS_2

QS_3

QS_4

QS_5

QS_6

QS_7

QS_0B QS_1B QS_2B QS_3B QS_4B QS_5B QS_6B

write strobe read strobe

QS_7B

ODT0 ODT1

CLK0

CLK1

CLK0b CLK1b

RAS0b RAS1b

CAS0b CAS1b

CS0b_0 CS0b_1

CS1b_0 CS1b_1

CKE0 CKE1

WE0b WE1b

DRAM_RST

B14 A14 B13 E14 B17 A17 C15 G16 E16 C14 A12 B12 C12 D14 B15 G14

D30 G25 C26 C21 C5 D6 D2 K3

C30 D23 B26 B21 B6 E7 E2 J2

C31 E23 A26 A21 A6 D7 E1 J1

E20 C11

A18 A11

B18 B11

G20 D12

D20 E12

E18 G18

G11 E11

D18 G12

D16 C10

J5

VM_A_CLK0 VM_A_CLK1

VM_A_CLK#0 VM_A_CLK#1

VM_A_A0 VM_A_A1 VM_A_A2 VM_A_A3 VM_A_A4 VM_A_A5 VM_A_A6 VM_A_A7 VM_A_A8 VM_A_A9 VM_A_A10 VM_A_A11 VM_A_BA0 VM_A_BA1 VM_A_A12 VM_A_BA2

VM_A_DM0 VM_A_DM1 VM_A_DM2 VM_A_DM3 VM_A_DM4 VM_A_DM5 VM_A_DM6 VM_A_DM7

VM_A_DQS0 VM_A_DQS1 VM_A_DQS2 VM_A_DQS3 VM_A_DQS4 VM_A_DQS5 VM_A_DQS6 VM_A_DQS7

VM_A_DQS#0 VM_A_DQS#1 VM_A_DQS#2 VM_A_DQS#3 VM_A_DQS#4 VM_A_DQS#5 VM_A_DQS#6 VM_A_DQS#7

R110

4.7KΩ 5% 1/16W SMT0402 LR

VM_A_RAS#0 (26) VM_A_RAS#1 (26)

VM_A_CAS#0 (26) VM_A_CAS#1 (26)

VM_A_CS#0 (26) VM_A_CS#0_1 (26)

VM_A_CS#1 (26) VM_A_CS#1_1 (26)

VM_A_CKE0 (26) VM_A_CKE1 (26)

VM_A_WE#0 (26) VM_A_WE#1 (26)

VM_A_RST (26)

VM_A_CLK0 VM_A_CLK#0

VM_A_CLK1 VM_A_CLK#1

1.8VDDM

VM_A_CLK0 (26) VM_A_CLK#0 (26)

VM_A_CLK1 (26) VM_A_CLK#1 (26)

0.1uF 16V 80-20% SMT0402 Y5V LR

VREF = 0.7 * VDDQ

C250

C237

0.1uF 16V 80-20% SMT0402 Y5V LR

100Ω 1% 1/16W SMT0402 LR

VM_A_DQ[63..0]

15mil 15mil

4.7KΩ 5% 1/16W SMT0402 LR

R194

240Ω 1% 1/16W SMT0402 LR

VM_A_DQ0 VM_A_DQ1 VM_A_DQ2 VM_A_DQ3 VM_A_DQ4 VM_A_DQ5 VM_A_DQ6 VM_A_DQ7 VM_A_DQ8 VM_A_DQ9 VM_A_DQ10 VM_A_DQ11 VM_A_DQ12 VM_A_DQ13 VM_A_DQ14 VM_A_DQ15 VM_A_DQ16 VM_A_DQ17 VM_A_DQ18 VM_A_DQ19 VM_A_DQ20 VM_A_DQ21 VM_A_DQ22 VM_A_DQ23 VM_A_DQ24 VM_A_DQ25 VM_A_DQ26 VM_A_DQ27 VM_A_DQ28 VM_A_DQ29 VM_A_DQ30 VM_A_DQ31 VM_A_DQ32 VM_A_DQ33 VM_A_DQ34 VM_A_DQ35 VM_A_DQ36 VM_A_DQ37 VM_A_DQ38 VM_A_DQ39 VM_A_DQ40 VM_A_DQ41 VM_A_DQ42 VM_A_DQ43 VM_A_DQ44 VM_A_DQ45 VM_A_DQ46 VM_A_DQ47 VM_A_DQ48 VM_A_DQ49 VM_A_DQ50 VM_A_DQ51 VM_A_DQ52 VM_A_DQ53 VM_A_DQ54 VM_A_DQ55 VM_A_DQ56 VM_A_DQ57 VM_A_DQ58 VM_A_DQ59 VM_A_DQ60 VM_A_DQ61 VM_A_DQ62 VM_A_DQ63

R192

R195

VM_A_DQ[63..0](26)

A A

B B

1.8VDDM

R181

R185

R177

R180

RES 40.2Ω 1% 1/16w SMT0402 LR

100Ω 1% 1/16W SMT0402 LR

RES 40.2Ω 1% 1/16w SMT0402 LR

C C

VM_A_DQS#[7..0]

VM_A_A[11..0]

VM_A_DM[7..0]

VM_A_BA0 VM_A_BA1 VM_A_BA2

VM_A_DQS[7..0] (26)

VM_A_DQS#[7..0] (26)

VM_A_A[11..0] (26)

VM_A_DM[7..0] (26)

VM_A_BA0 (26) VM_A_BA1 (26) VM_A_BA2 (26)

Need equal length

OTHER SIGNAL

MEM_MAA0

MEM_MAA1

MEM_MAA2

MEM_MAA3

MEM_MAA4

MEM_MAA5

D D

MEM_MAA6

MEM_MAA7

MEM_MAA8

MEM_MAA9

MEM_MAA10

MEM_MAA11

MEM_MAA12

MEM_MAA13

OTHER SIGNAL

Length<=3000mil+/-50mil

10 mil

1

5 mil

2

Associated CLK

DATA

MD(7:0)

CLK0,CLK0#

MD(15:8)

MD(23:16)

MD(31:24)

CLK1,CLK1#

MD(39:32)

MD(47:40)

MD(55:48)

MD(63:56)

Memory control signal:MEM_CS#,MEM_RAS#,MEM_CAS#,MEM_WE#,MEM_CKE(A/B)

Width:5mil , Space:7mil , Length<=3000mil+/-50mil

3

Mask

DQMA#0

DQMA#1

DQMA#2

DQMA#3

DQMA#4

DQMA#5

DQMA#6

DQMA#7

Strobe

DSA0

DSA1

DSA2

DSA3

DSA4

DSA5

DSA6

DSA7

DQA#0

DQA#1

DQA#2

DQA#3

DQA#4

DQA#5

DQA#6

DQA#7

4

1. Data Group(MD,DQM, QS) Total length>1" ,<3"

2. The group trace lengths should be within +/- 50 mil of their respective strobe, the minimum is +/- 100 mil.

3. The difference in the length of strobe<=

0.5".

4. CLK pair lines, must be routed following the same rules for routing differential signals.

5. CLK lines must be routed to within 0.75".

6. The total line length of address/control lines within 0.5".

Need equal length

Length<=3000mil+/-50mil

GND

QSA

QSA#

GND

5

10 mil

1.8VDDM

1.8VDDM(22,23,25,26,48)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

5 mil

6

Title

Size Document Number Rev

C

Date: Sheet of

7

(883-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

M82SCE Memory IF

24 52Thursday, July 10, 2008

8

0.3

5

hexainf@hotmail.com

4

3

2

1

1.8VDDM

D D

1.8VDDM

3/28 EMI

TRANS M-FET-P APM2301AAC-TRL -20V -3A SOT23 3PIN ANPEC LR

100MHz 120Ω SMT0603 FCM1608KF-121T06 TAI-TECH LR

C C

3VDDM

0.1uF 16V 80-20% SMT0603 Y5V LR

1 2

C359

VDDR3_EN(48)

L25

FCM2012KF-601T05 Tai-Tech LR

G

0Ω 5% 1/16W SMT0402 LR

1.8VDDM

DS

Q17

R231

15mil

VDDR_3

1uF 6.3V 10% 0402 X5R LR

C342

10uF 6.3V 10% 0805 X5R TDK LR

10uF 6.3V 10% 0805 X5R TDK LR(NU)

C274

1000pF 50V 10% 0402 X7R LR

1uF 6.3V 10% 0402 X5R LR

C316

C315

20mil

C327

C335

1uF 6.3V 10% 0402 X5R LR

0.1uF 10V 10% 0402 X5R LR

VDD_CORE

B B

1100mA

C2471uF 6.3V 10% 0402 X5R LR

C2681uF 6.3V 10% 0402 X5R LR

60mil

C2621uF 6.3V 10% 0402 X5R LR

C2671uF 6.3V 10% 0402 X5R LR

C2701uF 6.3V 10% 0402 X5R LR

C2581uF 6.3V 10% 0402 X5R LR C320 10uF 6.3V 10% 0805 X5R TDK LR

C28710uF 6.3V 10% 0805 X5R TDK LR

C25910uF 6.3V 10% 0805 X5R TDK LR

C28810uF 6.3V 10% 0805 X5R TDK LR

110mA

C286

50mA15mil

150mA

VDDRH0_18 VDDRH1_18

80mA

20mil

U35D

A15

VDDR1_1

A22

VDDR1_2

A28

VDDR1_3

A4

VDDR1_4

A8

VDDR1_5

B8

VDDR1_6

C9

VDDR1_7

D1

VDDR1_8

H1

VDDR1_9

H11

VDDR1_10

H12

VDDR1_11

H14

VDDR1_12

H16

VDDR1_13

H18

VDDR1_14

H20

VDDR1_15

H21

VDDR1_16

B31

VDDR1_17

M1

VDDR1_18

AA9

VDD_CT_1

Y9

VDD_CT_2

V9

VDD_CT_3

T9

VDD_CT_4

J11

VDD_CT_5

J20

VDD_CT_6

J21

VDD_CT_7

L9

VDD_CT_8

AC18

VDDR3_1

AC16

VDDR3_2

AC14

VDDR3_3

AC12

VDDR3_4

AF1

VDDR4_1

AF2

VDDR4_2

AE1

VDDR5_1

AE2

VDDR5_2

M2

RSVD_1

M3

RSVD_2

L4

RSVD_3

AD11

RSVD_4

A10

VDDRH_1

A19

VDDRH_2

B10

VSSRH_1

B19

VSSRH_2

V11

BBN_1

U11

BBN_2

120mA

R11

BBP_1

P11

BBP_2

ASIC VGA GPU M82-S 216-0707001-00 BGA 632PIN VER:00 ATI LR

PART 4 OF 6

I/O Internal

Memory

I/O

Clock

P O W E R

PCIE_VDDR_1 PCIE_VDDR_2 PCIE_VDDR_3 PCIE_VDDR_4 PCIE_VDDR_5 PCIE_VDDR_6

Memory I/O

PCIE_VDDR_7 PCIE_VDDR_8

PCIE_VDDC_1 PCIE_VDDC_2 PCIE_VDDC_3 PCIE_VDDC_4 PCIE_VDDC_5 PCIE_VDDC_6 PCIE_VDDC_7 PCIE_VDDC_8

PCIE_VDDC_9 PCIE_VDDC_10 PCIE_VDDC_11 PCIE_VDDC_12

PCI-Express

Core

Back Bias

VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8

VDDC_9 VDDC_10 VDDC_11 VDDC_12 VDDC_13 VDDC_14 VDDC_15 VDDC_16 VDDC_17 VDDC_18 VDDC_19 VDDC_20 VDDC_21 VDDC_22 VDDC_23 VDDC_24 VDDC_25 VDDC_26 VDDC_27 VDDC_28 VDDC_29 VDDC_30 VDDC_31 VDDC_32 VDDC_33

VDDCI_1 VDDCI_2 VDDCI_3 VDDCI_4

AF30 AF31 AF29 AF27 AF28 AG29 AG30 AG31

AA23 AC24 AC25 AE26 AE27 AE28 L23 M23 P23 T23 V23 Y23

L11 L14 L17 L20 M12 M15 M18 M21 AC20 P14 P17 P20 R12 R15 R18 R21 AD20 U14 U17 U20 V12 V15 V18 V21 Y11 Y14 Y17 Y20 AA12 AA15 AA18 AA21 P9

J12 J14 J16 J18

C332 0.1uF 10V 10% 0402 X5R LR

C328 1uF 6.3V 10% 0402 X5R LR

2000mA 80mil

C300 0.1uF 10V 10% 0402 X5R LR L36

C326 1uF 6.3V 10% 0402 X5R LR

C278 1uF 6.3V 10% 0402 X5R LR

C309 1uF 6.3V 10% 0402 X5R LR

C345 10uF 6.3V 10% 0805 X5R TDK LR

15000mA

C301 1uF 6.3V 10% 0402 X5R LR

C281 1uF 6.3V 10% 0402 X5R LR

C310 1uF 6.3V 10% 0402 X5R LRL38

C290 1uF 6.3V 10% 0402 X5R LR

C294 1uF 6.3V 10% 0402 X5R LR

C273 1uF 6.3V 10% 0402 X5R LR

C311 10uF 6.3V 10% 0805 X5R TDK LR

C302 10uF 6.3V 10% 0805 X5R TDK LR

C269 1uF 6.3V 10% 0402 X5R LR

C283 10uF 6.3V 10% 0805 X5R TDK LR

500mA 40mil

L28

FCM2012KF-601T05 Tai-Tech LR

1.8VDDM

1.1VDDM

0Ω 5% 1/8W SMT0805 LR

400mil

Ripple<87.2mV

L24

FCM2012KF-601T05 Tai-Tech LR

VDD_CORE

U35E

AA26 AA29 AC26 AD31 AE29 AE30 AE31

F28 G26 G29 G30 G31 H29

J25

J26

L26

L29

L30

L31 M26 M29

P26 R29 R30 R31

T26 U29

V26

Y26

Y29

Y30

Y31

A13

A2

C18

A24

A30 AA1

AA11 AA14 AA17 AA20

AA6 AC2 AC7 AE3

AL4

AD14 AF12 AF14 AD16 AD18

AE6

AG2

AE9

AH25

AK1

AK31

AJ6

AL2

AL30

B1

C13

CORE GND

ASIC VGA GPU M82-S 216-0707001-00 BGA 632PIN VER:00 ATI LR

PCIE_VSS_1 PCIE_VSS_2 PCIE_VSS_3 PCIE_VSS_4 PCIE_VSS_5 PCIE_VSS_6 PCIE_VSS_7 PCIE_VSS_8 PCIE_VSS_9 PCIE_VSS_10 PCIE_VSS_11 PCIE_VSS_12 PCIE_VSS_13 PCIE_VSS_14 PCIE_VSS_15 PCIE_VSS_16 PCIE_VSS_17 PCIE_VSS_18 PCIE_VSS_19 PCIE_VSS_20 PCIE_VSS_21 PCIE_VSS_22 PCIE_VSS_23 PCIE_VSS_24 PCIE_VSS_25 PCIE_VSS_26 PCIE_VSS_27 PCIE_VSS_28 PCIE_VSS_29 PCIE_VSS_30 PCIE_VSS_31 PCIE_VSS_32

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9 VSS_10 VSS_11 VSS_12 VSS_13 VSS_15 VSS_16 VSS_17 VSS_18 VSS_19 VSS_20 VSS_21 VSS_22 VSS_23 VSS_24 VSS_25 VSS_26 VSS_27 VSS_28 VSS_29 VSS_30 VSS_31 VSS_32

Part 5 of 6

PCI-Express GND

VSS_33 VSS_34 VSS_35 VSS_36 VSS_37 VSS_38 VSS_39 VSS_40 VSS_41 VSS_42 VSS_43 VSS_44 VSS_45 VSS_46 VSS_47 VSS_48 VSS_49 VSS_50 VSS_51 VSS_52 VSS_53 VSS_54 VSS_55 VSS_56 VSS_57 VSS_58 VSS_59 VSS_60 VSS_61 VSS_62 VSS_63 VSS_64 VSS_65 VSS_66 VSS_67 VSS_68 VSS_69 VSS_70 VSS_71 VSS_72 VSS_73 VSS_74 VSS_75 VSS_76 VSS_77 VSS_78 VSS_79 VSS_80 VSS_81 VSS_82 VSS_83 VSS_84 VSS_85 VSS_86 VSS_87 VSS_88 VSS_89 VSS_90 VSS_91 VSS_92 VSS_93 VSS_94 VSS_95 VSS_96 VSS_97 VSS_98

VSS_99 VSS_100 VSS_101 VSS_102

B25 J8 B5 D11 C17 C22 C27 D29 C3 C6 D3 D28 F29 D4 F11 F12 F14 F16 F18 F20 F21 F23 F25 F7 F9 G3 G6 H23 J3 J4 J6 K1 L12 L15 L18 L21 L6 M11 M14 M17 M20 M6 P12 P15 P18 P21 P6 AC21 R14 R17 R20 T6 U1 U12 U15 U18 U21 AE20 V14 V17 V20 P2 V6 W2 Y12 Y15 Y18 Y21 Y6 M9

Confirm ?

1.1VDDMVDD_CORE

1.8VDDM

A A

5

L73

FCM2012KF-601T05 Tai-Tech LR

L74

FCM2012KF-601T05 Tai-Tech LR

4

C647

C642

C641

1uF 6.3V 10% 0402 X5R LR

C648

0.1uF 10V 10% 0402 X5R LR

1uF 6.3V 10% 0402 X5R LR

C640

10uF 6.3V 10% 0805 X5R TDK LR

C644

10uF 6.3V 10% 0805 X5R TDK LR

VDDRH0_18

0.1uF 10V 10% 0402 X5R LR

VDDRH1_18

3

R649

RES 10Ω 5% 1/16W SMT0402 LR

R270

RES 10Ω 5% 1/16W SMT0402 LR

2

D39

PN

DIODE CH651H-40PT 40V 750mA SOD-323 CHENMKO LR

1.8VDDM1.1VDDM

D19

PN

DIODE CH651H-40PT 40V 750mA SOD-323 CHENMKO LR

Title

Size Document Number Rev

C

Date: Sheet

VDDR_3

VDDR_3(23,28)

VDD_CORE

VDD_CORE(23,48,50)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (883-2)8751-8751

1.1VDDM

1.1VDDM(22,23,48,49)

1.8VDDM

1.8VDDM(22,23,24,26,48)

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

Confidential

Penryn+Candiga GM/PM95+ICH9M

M82SCE Power / GND

1

25 52Thursday, July 10, 2008

of

0.3

5

4

3

2

1

Samsung 16Mx32 02-41059-01

02-41060-02Infenion 16Mx32

VM_A_DQ16 VM_A_DQ17 VM_A_DQ18 VM_A_DQ19

D D

C C

B B

VM_A_RST(24)

1.8VDDM 1.8VDDM

RES 2.37KΩ 1% 1/16W SMT0402 LR

R569

VM_A_DQ20 VM_A_DQ21 VM_A_DQ23 VM_A_DQ22 VM_A_DQ28 VM_A_DQ30 VM_A_DQ29 VM_A_DQ31 VM_A_DQ24 VM_A_DQ26 VM_A_DQ25 VM_A_DQ27 VM_A_DQ8 VM_A_DQ9 VM_A_DQ11 VM_A_DQ10 VM_A_DQ12 VM_A_DQ13 VM_A_DQ15 VM_A_DQ14 VM_A_DQ0 VM_A_DQ1 VM_A_DQ2 VM_A_DQ3 VM_A_DQ5 VM_A_DQ6 VM_A_DQ7 VM_A_DQ4

VM_A_BA2 VM_A_BA1 VM_A_BA0

VM_A_A11 VM_A_A10 VM_A_A9 VM_A_A8 VM_A_A7 VM_A_A6 VM_A_A5 VM_A_A4 VM_A_A3 VM_A_A2 VM_A_A1 VM_A_A0

VM_A_CS#0

VM_A_WE#0

VM_A_RAS#0

VM_A_CAS#0

VM_A_CKE0

VM_A_CLK#0 VM_A_CLK0

VM_A_DQS2 VM_A_DQS3 VM_A_DQS1 VM_A_DQS0

VM_A_DQS#2 VM_A_DQS#3 VM_A_DQS#1 VM_A_DQS#0

VM_A_DM2 VM_A_DM3 VM_A_DM1 VM_A_DM0

VM_A_RST

R587

240Ω 1% 1/16W SMT0402 LR

RES 2.37KΩ 1% 1/16W SMT0402 LR

R159

U32

T3

DQ31 | DQ23

T2

DQ30 | DQ22

R3

DQ29 | DQ21

R2

DQ28 | DQ20

M3

DQ27 | DQ19

N2

DQ26 | DQ18

L3

DQ25 | DQ17

M2

DQ24 | DQ16

T10

DQ23 | DQ31

T11

DQ22 | DQ30

R10

DQ21 | DQ29

R11

DQ20 | DQ28

M10

DQ19 | DQ27

N11

DQ18 | DQ26

L10

DQ17 | DQ25

M11

DQ16 | DQ24

G10

DQ15 | DQ7

F11

DQ14 | DQ6

F10

DQ13 | DQ5

E11

DQ12 | DQ4

C10

DQ11 | DQ3

C11

DQ10 | DQ2

B10

DQ9 | DQ1

B11

DQ8 | DQ0

G3

DQ7 | DQ15

F2

DQ6 | DQ14

F3

DQ5 | DQ13

E2

DQ4 | DQ12

C3

DQ3 | DQ11

C2

DQ2 | DQ10

B3

DQ1 | DQ9

B2

DQ0 | DQ8

H10

BA2 | RAS

G9

BA1 | BA0

G4

BA0 | BA1

L4

A11 | A7

K2

A10 | A8

M9

A9 | A3

K11

A8/AP | A10

L9

A7 | A11

K10

A6 | A2

H11

A5 | A1

K9

A4 | A0

M4

A3 | A9

K3

A2 | A6

H2

A1 | A5

K4

A0 | A4

F9

CS | CAS

H9

WE | CKE

H3

RAS | BA2

F4

CAS | CS

H4

CKE | WE

J10

CK

J11

CK

P3

RDQS3 | RDQS2

P10

RDQS2 | RDQS3

D10

RDQS1 | RDQS0

D3

RDQS0 | RDQS1

P2

WDQS3 | WDQS2

P11

WDQS2 | WDQS3

D11

WDQS1 | WDQS0

D2

WDQS0 | WDQS1

N3

DM3 | DM2

N10

DM2 | DM3

E10

DM1 | DM0

E3

DM0 | DM1

V9

RESET

A4

ZQ

H1

VREF

H12

VREF#H12

GDDR3 SDRAM HYB18H1G321AF-11 1Gbit(4M*32bit*8banks) 1.8V PG-TFBGA 136PIN QIMONDA LR

VDDQ

VDDQ#A12

VDDQ#C1 VDDQ#C4 VDDQ#C9

VDDQ#C12

VDDQ#E1 VDDQ#E4 VDDQ#E9

VDDQ#E12

VDDQ#J4

VDDQ#J9 VDDQ#N1 VDDQ#N4 VDDQ#N9

VDDQ#N12

VDDQ#R1 VDDQ#R4 VDDQ#R9

VDDQ#R12

VDDQ#V1

VDDQ#V12

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ VSSQ#B4 VSSQ#B9

VSSQ#B12

VSSQ#D1 VSSQ#D4 VSSQ#D9

VSSQ#D12

VSSQ#G2

VSSQ#G11

VSSQ#L2

VSSQ#L11

VSSQ#P1 VSSQ#P4 VSSQ#P9

VSSQ#P12

VSSQ#T1 VSSQ#T4 VSSQ#T9

VSSQ#T12

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VDDA

VDDA#K12

VSSA#J12

VSSA

RFU2

RFU1

RFU0

GND | VDD

A1 A12 C1 C4 C9 C12 E1 E4 E9 E12 J4 J9 N1 N4 N9 N12 R1 R4 R9 R12 V1 V12

A2

VDD

A11 F1 F12 M1 M12 V2 V11

B1 B4 B9 B12 D1 D4 D9 D12 G2 G11 L2 L11 P1 P4 P9 P12 T1 T4 T9 T12 A3

VSS

A10 G1 G12 L1 L12 V3 V10

K1 K12

J12 J1

J3

J2

V4

R165 0Ω 5% 1/16W SMT0402 LR

A9

MF

50mil

1000mA

1.8VDDM

L14

L71

SBY100505T-121Y-N CHILISIN LR

C154

C629

0.1uF 10V 10% SMT0402 X5R LR

PULL high for mirror mode

1.8VDDM 1.8VDDM

R129

RES 2.37KΩ 1% 1/16W SMT0402 LR

VM_A_DQ54 VM_A_DQ55 VM_A_DQ53 VM_A_DQ52 VM_A_DQ51 VM_A_DQ50 VM_A_DQ49 VM_A_DQ48 VM_A_DQ63 VM_A_DQ62 VM_A_DQ61 VM_A_DQ60 VM_A_DQ59 VM_A_DQ58 VM_A_DQ57 VM_A_DQ56 VM_A_DQ41 VM_A_DQ40 VM_A_DQ42 VM_A_DQ43 VM_A_DQ44 VM_A_DQ46 VM_A_DQ45 VM_A_DQ47 VM_A_DQ32 VM_A_DQ35 VM_A_DQ34 VM_A_DQ33 VM_A_DQ39 VM_A_DQ38 VM_A_DQ37 VM_A_DQ36

VM_A_BA2 VM_A_BA1 VM_A_BA0

VM_A_A11 VM_A_A10 VM_A_A9 VM_A_A8 VM_A_A7 VM_A_A6 VM_A_A5 VM_A_A4 VM_A_A3 VM_A_A2 VM_A_A1 VM_A_A0

VM_A_CS#1

VM_A_WE#1

VM_A_RAS#1

VM_A_CAS#1

VM_A_CKE1

VM_A_CLK#1 VM_A_CLK1

VM_A_DQS6 VM_A_DQS7 VM_A_DQS5 VM_A_DQS4

VM_A_DQS#6 VM_A_DQS#7 VM_A_DQS#5 VM_A_DQS#4

VM_A_DM6 VM_A_DM7 VM_A_DM5 VM_A_DM4

VM_A_RST

R585

240Ω 1% 1/16W SMT0402 LR

R158

RES 2.37KΩ 1% 1/16W SMT0402 LR

U31

T3

DQ31 | DQ23

T2

DQ30 | DQ22

R3

DQ29 | DQ21

R2

DQ28 | DQ20

M3

DQ27 | DQ19

N2

DQ26 | DQ18

L3

DQ25 | DQ17

M2

DQ24 | DQ16

T10

DQ23 | DQ31

T11

DQ22 | DQ30

R10

DQ21 | DQ29

R11

DQ20 | DQ28

M10

DQ19 | DQ27

N11

DQ18 | DQ26

L10

DQ17 | DQ25

M11

DQ16 | DQ24

G10

DQ15 | DQ7

F11

DQ14 | DQ6

F10

DQ13 | DQ5

E11

DQ12 | DQ4

C10

DQ11 | DQ3

C11

DQ10 | DQ2

B10

DQ9 | DQ1

B11

DQ8 | DQ0

G3

DQ7 | DQ15

F2

DQ6 | DQ14

F3

DQ5 | DQ13

E2

DQ4 | DQ12

C3

DQ3 | DQ11

C2

DQ2 | DQ10

B3

DQ1 | DQ9

B2

DQ0 | DQ8

H10

BA2 | RAS

G9

BA1 | BA0

G4

BA0 | BA1

L4

A11 | A7

K2

A10 | A8

M9

A9 | A3

K11

A8/AP | A10

L9

A7 | A11

K10

A6 | A2

H11

A5 | A1

K9

A4 | A0

M4

A3 | A9

K3

A2 | A6

H2

A1 | A5

K4

A0 | A4

F9

CS | CAS

H9

WE | CKE

H3

RAS | BA2

F4

CAS | CS

H4

CKE | WE

J10

CK

J11

CK

P3

RDQS3 | RDQS2

P10

RDQS2 | RDQS3

D10

RDQS1 | RDQS0

D3

RDQS0 | RDQS1

P2

WDQS3 | WDQS2

P11

WDQS2 | WDQS3

D11

WDQS1 | WDQS0

D2

WDQS0 | WDQS1

N3

DM3 | DM2

N10

DM2 | DM3

E10

DM1 | DM0

E3

DM0 | DM1

V9

RESET

A4

ZQ

H1

VREF

H12

VREF#H12

GDDR3 SDRAM HYB18H1G321AF-11 1Gbit(4M*32bit*8banks) 1.8V PG-TFBGA 136PIN QIMONDA LR

VDDQ

VDDQ#A12

VDDQ#C1 VDDQ#C4 VDDQ#C9

VDDQ#C12

VDDQ#E1 VDDQ#E4 VDDQ#E9

VDDQ#E12

VDDQ#J4 VDDQ#J9 VDDQ#N1 VDDQ#N4 VDDQ#N9

VDDQ#N12

VDDQ#R1 VDDQ#R4 VDDQ#R9

VDDQ#R12

VDDQ#V1

VDDQ#V12

VDD#A11

VDD#F1

VDD#F12

VDD#M1

VDD#M12

VDD#V2

VDD#V11

VSSQ VSSQ#B4 VSSQ#B9

VSSQ#B12

VSSQ#D1 VSSQ#D4 VSSQ#D9

VSSQ#D12

VSSQ#G2

VSSQ#G11

VSSQ#L2

VSSQ#L11

VSSQ#P1 VSSQ#P4 VSSQ#P9

VSSQ#P12

VSSQ#T1 VSSQ#T4 VSSQ#T9

VSSQ#T12

VSS#A10

VSS#G1

VSS#G12

VSS#L1

VSS#L12

VSS#V3

VSS#V10

VDDA

VDDA#K12

VSSA#J12

VSSA

RFU2

RFU1

RFU0

GND | VDD

A1 A12 C1 C4 C9 C12 E1 E4 E9 E12 J4 J9 N1 N4 N9 N12 R1 R4 R9 R12 V1 V12

A2

VDD

A11 F1 F12 M1 M12 V2 V11

B1 B4 B9 B12 D1 D4 D9 D12 G2 G11 L2 L11 P1 P4 P9 P12 T1 T4 T9 T12 A3

VSS

A10 G1 G12 L1 L12 V3 V10

K1 K12

J12 J1

VM_A_CS#1_1VM_A_CS#0_1

J3

J2

V4

R164 0Ω 5% 1/16W SMT0402 LR

A9

MF

50mil

1000mA

1.8VDDM

L19

L15

SBY100505T-121Y-N CHILISIN LR

C157

0.1uF 10V 10% SMT0402 X5R LR

C155

0.1uF 10V 10% SMT0402 X5R LR

PULL high for mirror mode

VM_A_DQ[63..0]

VM_A_A[11..0]

VM_A_DQS#[7..0]

VM_A_DQS[7..0]

VM_A_DM[7..0]

VM_A_BA0 VM_A_BA1 VM_A_BA2

VM_A_DQ[63..0] (24)

VM_A_A[11..0] (24)

VM_A_DQS#[7..0] (24)

VM_A_DQS[7..0] (24)

VM_A_DM[7..0] (24)

VM_A_BA0 (24) VM_A_BA1 (24) VM_A_BA2 (24)

1.8VDDM

R149 RES 121Ω 1% 1/16W SMT 0402 LR

R139 RES 121Ω 1% 1/16W SMT 0402 LR

R157 RES 121Ω 1% 1/16W SMT 0402 LR

R152 RES 121Ω 1% 1/16W SMT 0402 LR

R143 RES 121Ω 1% 1/16W SMT 0402 LR

R153 RES 121Ω 1% 1/16W SMT 0402 LR

R128 RES 121Ω 1% 1/16W SMT 0402 LR R151 RES 121Ω 1% 1/16W SMT 0402 LR

R146 RES 121Ω 1% 1/16W SMT 0402 LR R142 RES 121Ω 1% 1/16W SMT 0402 LR

R141 RES 121Ω 1% 1/16W SMT 0402 LR

R162 RES 121Ω 1% 1/16W SMT 0402 LR

R135

RES 60.4Ω 1% 1/16W SMT0402 RR0510S-60R4-FN CYNTEC LR

R134

RES 60.4Ω 1% 1/16W SMT0402 RR0510S-60R4-FN CYNTEC LR

R137

RES 60.4Ω 1% 1/16W SMT0402 RR0510S-60R4-FN CYNTEC LR

R136

RES 60.4Ω 1% 1/16W SMT0402 RR0510S-60R4-FN CYNTEC LR

VM_A_RAS#0 (24)

VM_A_RAS#1 (24)

VM_A_CAS#0 (24)

VM_A_CAS#1 (24)

VM_A_WE#0 (24)

VM_A_WE#1 (24)

VM_A_CS#0_1 (24) VM_A_CS#0 (24)

VM_A_CS#1 (24) VM_A_CS#1_1 (24)

VM_A_CKE0 (24)

VM_A_CKE1 (24)

VM_A_CLK0 (24)

VM_A_CLK#0 (24)

VM_A_CLK1 (24)

VM_A_CLK#1 (24)

C630

0.1uF 10V 10% SMT0402 X5R LR

R150

C158

RES 5.49KΩ 1% 1/16W SMT0402 RTT025491FTH RALEC LR

Vref=0.72*VDDQ Vref=0.72*VDDQ

0.1uF 10V 10% SMT0402 X5R LR

R133

RES 5.49KΩ 1% 1/16W SMT0402 RTT025491FTH RALEC LR

R580

RES 5.49KΩ 1% 1/16W SMT0402 RTT025491FTH RALEC LR

1.8VDDM

C125 10uF 10V +80-20% SMT0805 Y5V LR

C122 10uF 10V +80-20% SMT0805 Y5V LR

C628 1uF 6.3V +80-20% SMT0402 Y5V LR

A A

C143 1uF 6.3V +80-20% SMT0402 Y5V LR

C138 1uF 6.3V +80-20% SMT0402 Y5V LR

C140 1uF 6.3V +80-20% SMT0402 Y5V LR

C144 0.1uF 10V 10% SMT0402 X5R LR

C131 0.1uF 10V 10% SMT0402 X5R LR

C181 0.1uF 10V 10% SMT0402 X5R LR

C179 0.01uF 16V 10% SMT0402 X7R LR

C135 0.01uF 16V 10% SMT0402 X7R LR

Close to DDR3 IC

5

4

C165

R148

C166

RES 5.49KΩ 1% 1/16W SMT0402 RTT025491FTH RALEC LR

0.1uF 10V 10% SMT0402 X5R LR

1.8VDDM

C136 10uF 10V +80-20% SMT0805 Y5V LR

C180 10uF 10V +80-20% SMT0805 Y5V LR

C130 1uF 6.3V +80-20% SMT0402 Y5V LR

C146 1uF 6.3V +80-20% SMT0402 Y5V LR

C127 1uF 6.3V +80-20% SMT0402 Y5V LR

C147 1uF 6.3V +80-20% SMT0402 Y5V LR

C137 0.1uF 10V 10% SMT0402 X5R LR

C151 0.1uF 10V 10% SMT0402 X5R LR

C182 0.1uF 10V 10% SMT0402 X5R LR

C148 0.01uF 16V 10% SMT0402 X7R LR

C183 0.01uF 16V 10% SMT0402 X7R LR

Close to DDR3 IC

3

2

Title

Size Document Number Rev

C

Date: Sheet of

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

VRAM GDDR3

1

1.8VDDM

1.8VDDM(22,23,24,25,48)

Confidential

26 52Thursday, July 10, 2008

0.3

10

hexainf@hotmail.com

9

8

7

6

5

4

3

2

1

LVDS Signal Group Routing Guideline

GMCH

TL1

H H

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

Min : 80 MIL or Power Plane

C9 10uF 10V +80-20% SMT0805 Y5V LR

C6 0.1uF 16V 80-20% SMT0402 Y5V LR

3VDDM

3132

CN1

1

2

1

2

3

4

3

4

GNDGND

5

6

5

6

7

8

7

8

9

10

9

10

11

12

11

12

13

14

13

14

15

16

15

16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

20-25244-00

20mil

L58 SPWR 0 5% 1/16W 0603

C516 1000pF 50V 10% SMT0402 X7R LR

INVENA

R456 SPWR 0 5% 1/4W 1206

C538

12

0.1uF 50V 80-20% 0603 Y5V LR C537 10uF 25V ±10% SMT1210 X7R C3225X7R1E106KT TDK LR(NU)

V0.2

3VDDA

G G

LVDS_ENALCDU(7)

F F

LVDS_ENALCDD(22)

R622 0Ω 5% 1/16W SMT0402 LR(NU)

R621 0Ω 5% 1/16W SMT0402 LR

2.2uF 6.3V 80-20% SMT0603 Y5V LR

(80mil) (80mil) (80mil)

C491

100KΩ 1% 1/16W SMT0402 LR

LVDS_ENALCD

R420

100KΩ 5% 1/16W SMT0402 LR

E E

D D

TRANS M-FET-P APM2679CC-TRL -20V -4A SOT-23-6 6PIN ANPEC LR

Q30

6

4

5 2

S

1

R1

G

3

B

E C

D

10KΩ 5% 1/16W SMT0402 LR

R421

G

Q28

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

R426 SPWR 0 5% 1/4W 1206

Please close to LCD CONN

R423 100 5% 1/8W SMT0805 LR(NU)

DS

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR(NU)

Q29

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

C21

C17

C24

C23

C25

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

C12

C11

LVDS_TXCLK_LN LVDS_TXCLK_LP BRIGHTNESS

LVDS_TXOUT_L2N LVDS_TXOUT_L2P

LVDS_TXOUT_L1N LVDS_TXOUT_L1P

LVDS_TXOUT_L0N LVDS_TXOUT_L0P

C22

CON HR A1001WV-S-2X15P-G SMD LVDS/LCD POWER 30 PIN P=1.0 () LR

P1

Topology

Reference Plane

Differ ential Mode Impedance

Nominal Trace Width

Nomina l Pair S pacing (Edge to edge)

Minimum Pair-to-Pair Spacing

Minimum Serpentine Spacing

Minimum Spacing to Other LVDS

Minimum Isolation Spac ing to non-LVDS

Maximim Via Count

Packa ge Length Range - P1

Total MB Length - TL1

Length Matching with Pair

Clock to Data Length Matching (Total Length)

Clock A to Clo ck B Lengt h Matching

Bre akout Ex ceptions (R educe geome tries for G MCH break-out region)

***Cable Length must be less than 16"

RP68

RP 2.2KΩ 5% SMT1010 4P2R 1/16W LR

INVENA (43)

C514

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR

80mil

LVDS CN

Differential Pair Point-to-Point

Ground

100 +/- 20%

4 mils

7 mils

20 mils

2 (per line)

750 mils +/- 250 mils

Max = 10"

Matching to within +/- 20mils

Matching Data to Clock within +/- 20mils

Match Clock A to B within +/- 20mils

4/4 mils spacing allowed and 10 mils Pair-to-Pair spacing allowed Max. breakout length is 500 mils

3VDDM

LVDS_DDC_DATA

LVDS_DDC_CLK

C507

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR

DCIN

LCD brightness control from N.B.

C C

LCD_BRIGHTNESS(7,43)

B B

A A

10

9

3VDDM 3VDDM

G

R455

100KΩ 5% 1/16W SMT0402 LR(NU)

R453

0Ω 5% 1/16W SMT0402 LR

R447

Q34

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR(NU)

DS

2.2KΩ 5% 1/16W SMT0402 LR(NU)

8

BRIGHTNESS

7

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

LVDS_TXCLK_LNU(7) LVDS_TXCLK_LPU(7)

LVDS_TXOUT_L2NU(7)

LVDS_TXOUT_L2PU(7)

LVDS_TXOUT_L1NU(7) LVDS_TXOUT_L1PU(7)

LVDS_TXOUT_L0NU(7) LVDS_TXOUT_L0PU(7)

LVDS_DDC_DATAU(7) LVDS_DDC_CLKU(7)

6

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

RP75 0 5% 0402*2 1/16W 4P2R(NU)

124

3

RP80 0 5% 0402*2 1/16W 4P2R

LVDS_TXCLK_LND(22) LVDS_TXCLK_LPD(22)

LVDS_TXOUT_L2ND(22) LVDS_TXOUT_L2PD(22)

LVDS_TXOUT_L1ND(22) LVDS_TXOUT_L1PD(22)

LVDS_TXOUT_L0ND(22) LVDS_TXOUT_L0PD(22)

LVDS_DDC_DATAD(23) LVDS_DDC_CLKD(23)

3

124

RP72 0 5% 0402*2 1/16W 4P2R(NU)

124

3

RP77 0 5% 0402*2 1/16W 4P2R

3

124

RP73 0 5% 0402*2 1/16W 4P2R(NU)

124

3

RP78 0 5% 0402*2 1/16W 4P2R

3

124

RP74 0 5% 0402*2 1/16W 4P2R(NU)

124

3

RP79 0 5% 0402*2 1/16W 4P2R

3

124

RP71 0 5% 0402*2 1/16W 4P2R(NU)

124

3

RP76 0 5% 0402*2 1/16W 4P2R

3

124

5

4

LVDS_TXCLK_LN LVDS_TXCLK_LP

LVDS_TXOUT_L2N LVDS_TXOUT_L2P

LVDS_TXOUT_L1N LVDS_TXOUT_L1P

LVDS_TXOUT_L0N LVDS_TXOUT_L0P

LVDS_DDC_DATA

LVDS_DDC_CLK

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

3VDDA

3VDDA(5,12,15,16,17,18,19,21,30,34,35,38,40,41,43,45,47,48,49)

DCIN

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

3

Date: Sheet of

(886-2)8751-8751

LCD CNN

2

DCIN(45,48,49,50,51)

Confidential

27 52Thursday, July 10, 2008

1

0.3

10

3VDDM

H H

G G

Otrher Signal

20 mil

RED

20 mil

GREEN

20 mil

BLUE

20 mil

Other Signal

F F

9

DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)

D30A

6 1

DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU) D29A

6 1

D30B

DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)

5 2

D29B

DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)

5 2

VEDAT_CONN

VECLK_CONN

HSYNC

8

D30C

DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)

4 3

D29C

DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)

4 3

RED

GREEN

BLUE

R430 SHW 0 5% 1/16W 0402

R427 SHW 0 5% 1/16W 0402

U23

4

125 3

DL-IC NC7SZ126P5X_NL SC-70 5PIN FAIRCHILD LR

7

Layout Note:

RGB SIGNAL

Place 150 Ohm resistor near connector.

Use 37.5 Ohm traces from GMCH to 150 Ohm resistors

LENGTH MAX= 0.5" MATCHING = +/- 200mils

For VESA SPEC , R/G/B should be 665mV ~ 770mV

WIDTH=5 MILS Z0=50 ohms WIDTH= 8 MILS Z0=75 ohms

LENGTH MAX= 0.5" MATCHING = +/- 200mils

R444 RES 150Ω 1% 1/16W SMT0402 LR

C529 10pF 50V ±0.5pF SMT0603 NPO LR(NU)

R443 RES 150Ω 1% 1/16W SMT0402 LR

C528 10pF 50V ±0.5pF SMT0603 NPO LR(NU)

WIDTH=4 MILS Z0=55 ohms

C530 10pF 50V ±0.5pF SMT0603 NPO LR(NU)

R445 RES 150Ω 1% 1/16W SMT0402 LR

6

20mil

5VDDM

1.5A 6V SMT1812 miniSMDC150F-A RAYCHEM LR

R440 RES 10Ω 5% 1/16W SMT0402 LR

R439 RES 10Ω 5% 1/16W SMT0402 LR L56 68nH±5% 300mA SMT0805 HCI2012F-68NJ TAI-TECH LR

R438 RES 10Ω 5% 1/16W SMT0402 LR

R429 RES 30Ω 5% 1/16W SMT0402 LR

R428 RES 30Ω 5% 1/16W SMT0402 LR

C518 330pF 16V 5% SMT0402 X7R LR(NU)

C517 330pF 16V 5% SMT0402 X7R LR(NU)

5

F1

1 2

L57 68nH±5% 300mA SMT0805 HCI2012F-68NJ TAI-TECH LR

L55 68nH±5% 300mA SMT0805 HCI2012F-68NJ TAI-TECH LR

C521 33pF 50V 20% SMT0402 NPO LR(NU)

C522 33pF 50V 20% SMT0402 NPO LR(NU)

C520 33pF 50V 20% SMT0402 NPO LR(NU)

D1

P N

DIODE STKY SS1040 40V 1A SOD-123 2PIN PSI LR

C502 15pF 50V 5% SMT0402 NPO LR

C504 15pF 50V 5% SMT0402 NPO LR

C506 15pF 50V 5% SMT0402 NPO LR

R5

0Ω 5% 1/4W SMT1206 LR

4

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR L1

WIDTH= 8 MILS Z0=75 ohms

20mil

CRT5VS

3

C1

0.1uF 16V 80-20% SMT0402 Y5V LR

CNN_RED

CNN_GREEN

CNN_BLUE

CNN_HSYNC

CNN_VSYNC

C501 100pF 50V 5% SMT0402 NPO LR(NU)

C505 220pF 50V 10% SMT0402 X7R LR(NU)

C500 220pF 50V 10% SMT0402 X7R LR(NU)

C503 100pF 50V 5% SMT0402 NPO LR(NU)

CON SUYIN DIP D-sub 15PIN reserved 070546FR015S211CU Lead-free & RoHS

2

CN13

1 9 2

10

16

3

17

11

4

12

5

13

6

14

7

15

8

20-25071-00

1

3VDDM

E E

VSYNC

RP23 0Ω 5% SMT1010 1/16W 4P2R LR(NU)

BLUEU(7)

D D

C C

B B

A A

REDU(7)

GREENU(7)

VSYNCU(7) HSYNCU(7)

Q_VEDATU(7) Q_VECLKU(7)

5/27 modify

3VDDM

VDDR_3

R467, R468 use

2.2K for intel VGA, 10K for ATi VGA

10KΩ 5% 1/16W SMT0402 LR

R433 0Ω 5% 1/16W SMT0402 LR

5/27 modify

R834 0Ω 5% 1/10W SMT0603 LR(NU)

3VDDM

R835 0Ω 5% 1/10W SMT0603 LR

VDDR_3

10KΩ 5% 1/16W SMT0402 LR

Q_VEDAT

R451 0Ω 5% 1/16W SMT0402 LR

REDD(23)

BLUED(23)

GREEND(23)

HSYNCD(23) VSYNCD(23)

Q_VECLKD(23) Q_VEDATD(23)

R832 0Ω 5% 1/10W SMT0603 LR(NU)

R833 0Ω 5% 1/10W SMT0603 LR

10

124

RP29 0Ω 5% SMT1010 1/16W 4P2R LR

RP24 0Ω 5% SMT1010 1/16W 4P2R LR(NU)

RP27 RP 33Ω 5% SMT1010 1/16W 4P2R LR

RP25 0Ω 5% SMT1010 1/16W 4P2R LR(NU)

RP28 0Ω 5% SMT1010 1/16W 4P2R LR

R434

R450

3

124

3

R237 0Ω 5% 1/16W SMT0402 LR(NU) R251 0Ω 5% 1/16W SMT0402 LR

124

3

124

3

124

3

124

3

CRT5VS

R435

2.2KΩ 5% 1/16W SMT0402 LR

G

VECLK_CONNQ_VECLK

DS

Q31

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR

G

DS

Q33

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR

9

CRT5VS

R452

2.2KΩ 5% 1/16W SMT0402 LR

VEDAT_CONN

1253

U22

WIDTH=4 MILS Z0=55 ohms

4

DL-IC NC7SZ126P5X_NL SC-70 5PIN FAIRCHILD LR

Place 150 Ohm resistor near connector.

Use 37.5 Ohm traces from GMCH to 150 Ohm resistors

BLUE RED

GREEN

VSYNC HSYNC

Q_VEDAT Q_VECLK

8

CRTGND

VDDR_3

VDDR_3(23,25)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

7

6

5

4

3

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

CRT port

2

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,29,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

5VDDM

5VDDM(5,18,29,30,32,38,39,47,49,50,51)

Confidential

28 52Thursday, July 10, 2008

1

0.3

10

hexainf@hotmail.com

H H

9

8

7

6

5

4

3

2

1

TMDA_CLOCK-

TMDA_DATA0+

TMDA_DATA0-

TMDA_DATA1+

TMDA_DATA1-

R576

499Ω 1% 1/16W SMT0402 LR

TMDA_CLOCK+

R572

499Ω 1% 1/16W SMT0402 LR

R579

GND2 GND3 GND4

499Ω 1% 1/16W SMT0402 LR

R564

499Ω 1% 1/16W SMT0402 LR

ATI

DS

Q59

G

?

TMDA_DATA1+

TMDA_DATA1-

TMDA_CLOCK+

TMDA_CLOCK-

HDMID_DDC

HDMI5VS

21 22 23

5VDDM

R565

499Ω 1% 1/16W SMT0402 LR

R571

499Ω 1% 1/16W SMT0402 LR

R568

499Ω 1% 1/16W SMT0402 LR

R574

TXCP_DPB0N(23)

G G

0Ω 5% 1/16W SMT0402 LR(NU)

F F

RES 316Ω 1% 1/10W SMT0603 LR

R296 2.2KΩ 5% 1/16W SMT0402 LR

DSCL1

DSDA1

R661 2.2KΩ 5% 1/16W SMT0402 LR

E E

D D

C C

5VDDM

DDC4CLK(23)

F4

1.5A 6V SMT1812 miniSMDC150F-A RAYCHEM LR

R281

20mil

1 2

2.2KΩ 5% 1/16W SMT0402 LR

DSCL1

R283

R284 0Ω 5% 1/16W SMT0402 LR

R282

RES 316Ω 1% 1/10W SMT0603 LR

R298

R297

1KΩ 1% 1/16W SMT0402 LR(NU)

L31 600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR

R278

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR

G

Q18

DS

ATi 5V 2.2K

5VDDM

3VDDM

Intel 2.5V 2.2K

2.2KΩ 5% 1/16W SMT0402 LR R268

R273

2.2KΩ 5% 1/16W SMT0402 LR

HDMIC_DDC

HDMI5VS

V0.2

TXCM_DPB0P(23)

TX0P_DPB1N(23)

TX0M_DPB1P(23)

TX1P_DPB2N(23)

TX1M_DPB2P(23)

TX2P_DPB3N(23)

TX2M_DPB3P(23)

TMDA_DATA2+

TMDA_DATA2-

TMDA_DATA0+

TMDA_DATA0-

HDMIC_DDC

HPD(23)

HDMI_HPDET#

V0.3

L10

0Ω 5% 1/16W SMT0402 LR

L9

0Ω 5% 1/16W SMT0402 LR

L12

0Ω 5% 1/16W SMT0402 LR

L11

0Ω 5% 1/16W SMT0402 LR

L16

0Ω 5% 1/16W SMT0402 LR

L13

0Ω 5% 1/16W SMT0402 LR

L18

0Ω 5% 1/16W SMT0402 LR

L17

0Ω 5% 1/16W SMT0402 LR

R102 RES 47KΩ 5% 1/16W SMT 0402 LR(NU)

TMDA_DATA2+

TMDA_DATA2-

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR

CN21

1 2

TMDA Data2+ TMDA Data2 Shield

3 4

TMDA Data2- TMDA Data1+

5 6

TMDA Data1 Shield TMDA Data1-

7 8

TMDA Data0+ TMDA Data0 Shield

9 10

TMDA Data0- TMDA Clock+

11 12

TMDA TMDA Clock Shield TMDA Clock-

13 14

CEC Reserved

15 16

SCL SDA

17 18

DDC/CEC Ground +5V Power

19 20

HPDET GND1

CON WPI 100042MR019S153ZL SMD 19PIN HDMI WS LR

20-25627-00

G

Q20

DDC4DATA(23)

B B

A A

10

DSDA1

9

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR

DS

8

HDMID_DDC

7

1.8VDDM

1.8VDDM(22,23,24,25,26,48)

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,30,31,34,35,37,38,39,40,41,43,47,49,50,51)

5VDDM

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

6

5

4

3

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

HDMI port

2

5VDDM(5,18,28,30,32,38,39,47,49,50,51)

Confidential

29 52Thursday, July 10, 2008

1

3/24

0.3

8

7

6

5

4

3

2

1

Same as CTx projects

D D

C C

Y[0..7]

Y[0..7](43)

X0 X1 X2 Y0 Y1 Y2 Y3 X3 X4 Y4 Y5 Y6 Y7 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15

X[0..15]

X[0..15](43)

SWITCH BOARD CONNECTOR

INT KB CNN

CN6

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

26 16 17

27 18 19 20 21 22 23 24 25

CON ACES 88513-2501 SMD K/B 25PIN P=1.0 EASY-ON FFC LR

PDCLK

PDCLK(43)

PDDAT

PDDAT(43)

PW_POWSW#

POWSW#(45)

3VDDA

B B

R31 100Ω 5% 1/16W SMT0402 LR

LID#(43)

PMX_GPIO_A2(43)

WLAN_LED#(40)

RF_ON(17,40)

A A

3/25 modify

8

Q79

10KΩ 5% 1/16W SMT0402 LR

3VDDA

MMB_SMDAT_PMU MMB_SMCLK_PMU

3VDDM

B

E C

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

SMCLK_PMU(5,43,45)

V0.2 Modify ,MOS mount

5VDDM

R820

2.2KΩ 5% 1/16W SMT0402 LR

SMDAT_PMU(5,43,45)

R29

CON ACES 88512-1001 SMD 10PIN P=0.5 EASY ON FFC LR

20-25600-00

CN5

1

2

MMBRST

C52

C68

0.1uF 16V 80-20% SMT0402 Y5V LR

3/28 EMI

R819 0Ω 5% 1/16W SMT0402 LR(NU)

D S

R821

0Ω 5% 1/16W SMT0402 LR(NU)

7

2

3

4

5

6

7

8

9

10

Q86

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR

G

Q87

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR

11

GND

12

GND

MMB_SMCLK_PMU

RP93

3 4

10KΩ 5% SMT1010 1/16W 4P2R LR

MMB_SMDAT_PMU

R19

3VDDM

BUF_PLT_RST#(15,17,34,35,40,41)

2 1

3VDDA

6

MMBRST

10KΩ 5% 1/16W SMT0402 LR

R21 0Ω 5% 1/16W SMT0402 LR(NU)

B

Q2 TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

E C

5

GLIDE PAD CONNECTOR

5VDDM

L52

FCM2012KF-601T05 Tai-Tech LR

L50 100MHz 600Ω SMT0603 FCM1608KF-601T02 TAI-TECH LR L51 100MHz 600Ω SMT0603 FCM1608KF-601T02 TAI-TECH LR

C452 47pF 50V 5% SMT0402 NPO LR(NU)

C455 47pF 50V 5% SMT0402 NPO LR(NU)

SW2

A C

B D

SWITCH TEMC SMT 4PIN NTC004-AA1G-B160T LR

SW1

A C

B D

SWITCH TEMC SMT 4PIN NTC004-AA1G-B160T LR

3VDDA

0304 MODIFY

3/14

4

3

RIGHT LEFT

GP_PDCLK GP_PDDAT GP_5V

C457

0.1uF 16V 80-20% SMT0402 Y5V LR

LEFT

SWITCH TEMC SMT 4PIN NTC004-AA1G-B160T LR

R12

RES 75Ω 5% 1/16W SMT 0402 LR

LED_G(43)

SW3

A C

B D

4/2 modify ( inverse )

CN8

12 11 10 9 8 7 6 5 4 3 2 1

CON ACES SMT FFC 0.5P 12PIN R/A Top contact 87151-1207L Lead-free & RoHS

20-25579-00

RIGHT

A C

B D

LED BLUE λp=470nm SMT0603 HT-191NB5 HARVATEK LR

D2

-+

LED_G

Title

Size Document Number Rev

Date: Sheet of

2

Q32

B

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

E C

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

C

INT K/B /GP/SW CNN

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,31,34,35,37,38,39,40,41,43,47,49,50,51)

3VDDA

3VDDA(5,12,15,16,17,18,19,21,27,34,35,38,40,41,43,45,47,48,49)

5VDDM

5VDDM(5,18,28,29,32,38,39,47,49,50,51)

5VDDA

5VDDA(18,31,33,41,47,48)

Confidential

30 52Thursday, July 10, 2008

1

0.3

8

hexainf@hotmail.com

LED indicator control logic

D D

3/27 modify

SATA_LED#(16)

C C

330Ω 5% 1/16W SMT0402 LR

7

D24

NUM#(43)

CAPS#(43)

SRLL#(43)

- +

LED BLUE λp=470nm SMT0603 HT-191NB5 HARVATEK LR

D25

- +

LED BLUE λp=470nm SMT0603 HT-191NB5 HARVATEK LR

D26

- +

LED BLUE λp=470nm SMT0603 HT-191NB5 HARVATEK LR

D27

- +

LED BLUE λp=470nm SMT0603 HT-191NB5 HARVATEK LR

PMU5V

5VDDA

R415

R416 330Ω 5% 1/16W SMT0402 LR

6

3VDDM

R411

100Ω 1% 1/16W SMT0402 LR

R412

100Ω 1% 1/16W SMT0402 LR

R413

100Ω 1% 1/16W SMT0402 LR

R414 51Ω 5% 1/16W SMT0402 LR

5

4

DIP SWITCH

3

2

KBSEL1

KBSEL2

ON

OFF

UK Keyboard

Reserved

JP Keyboard

US Keyboard

1

3VDDM

CRISIS mode

ON

OFF

NormalOFF

Reset RTC

NONE

R629 1KΩ 5% 1/16W SMT0402 LR

10KΩ 5% 1/16W SMT0402 LR

SW4

1

8

2

7

3

6

4

5

SW 1.27mm 8PIN CHS-04TB(02) COPAL LR

21-10326-02

R635

4

3

RP85

10KΩ 5% SMT1010 1/16W 4P2R LR

1

2

KBSEL1 (17) KBSEL2 (17) CRISIS# (17) CMOS_CLEAR# (16)

trace 5mil , space 5mil

CRISIS#

CMOS_CLEAR#

43

D28

LED Amber/Blue SMT0603 λp=609/468nm HT-297UD/CB HARVATEK LR

1 2

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

CHGLED(43) LED_A (43)

B B

B

Q76

B

Q75

E C

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

Left Right

3/27 Change

A A

8

D25D24 D26

NUM

D27

7

D28

BATHDDCAP SCR

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,34,35,37,38,39,40,41,43,47,49,50,51)

5VDDA

5VDDA(18,33,41,47,48)

PMU5V

PMU5V(43,47)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

6

5

4

3

Date: Sheet of

2

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

DIP SW/ LED

Confidential

31 52Thursday, July 10, 2008

1

0.3

8

7

6

5

4

3

2

1

NOTE

SATA differential stripline 20:5:6:5:20 SATA differential mircostripline 20:6:6:6:20

󰒏

GROUND

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

SATA Layout Note:

D D

C C

MS or SL:

* Zdif = 100 Ohm +/- 10%. TX & RX should refer GND.No via & stubs.The Best layer is Top.

* TX/RX trace length < 2 inchs.

* TX+/- need matching trace ±10 mils length.

* RX+/- need matching trace ±10 mils length.

* SATA Pair to Pair Trace matching trace ±10 mils length.

20mils

6mils

6mils 6mils

20mils 20mils

TX

6mils

RX

SATA_TXP0(16)

SATA_TXN0(16)

SATA_RXN0(16)

SATA_RXP0(16)

CHOKE 120Ω 100MHz 0.22Ω 0.37A ACM2012-121-2P-T TDK LR(NU)

L67 SPWR 0 5% 1/8W 0805

5VDDM

L66 SPWR 0 5% 1/8W 0805

L64

1

4

2

3

1

4

2

3

L65

C584

C583

60MILS

C586

C587

CN17

1 2 3 4 5 6 7

8 9 10 11 12

C595 0.1uF 16V 80-20% SMT0402 Y5V LR

C596 10uF 10V +80-20% SMT0805 Y5V LR

13 14 15 16 17 18 19 20 21 22

23

24

CON OCTEK SAT-22ED1G SMD 22PIN H=2.05mm HDD SATA LR

CD-ROM CNN

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

B B

SATA_TXP1(16)

SATA_TXN1(16)

SATA_RXN1(16)

SATA_RXP1(16)

A A

8

7

CHOKE 120Ω 100MHz 0.22Ω 0.37A ACM2012-121-2P-T TDK LR(NU)

L87 SPWR 0 5% 1/8W 0805

5VDDM

L88 SPWR 0 5% 1/8W 0805

6

L92

1

2

1

2

L89

4

3

4

3

120MILS

C779 10uF 10V +80-20% SMT0805 Y5V LR

C778 1uF 10V +80-20% 0603 Y5V LR

C806

C777 0.1uF 16V 80-20% SMT0402 Y5V LR

5

C801

C796

R716

1KΩ 5% 1/16W SMT0402 LR

C784

CN26

S1 S2 S3

14 S4 S5 S6 S7

P1 P2 P3 P4

15 P5 P6

CON OCTEK SLS-13SJ1G SMD 13PIN H=2.05mm ODD SATA LR

4

5VDDM

5VDDM(5,18,28,29,30,38,39,47,49,50,51)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

3

Date: Sheet of

2

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

S-ATA HDD/ODD

Confidential

32 52Thursday, July 10, 2008

1

0.3

8

hexainf@hotmail.com

7

6

5

4

3

2

1

D D

5VDDA

USB_PN1(15) USB_PP1(15)

USB_PN2(15) USB_PP2(15)

C C

1 2

1.5A 6V SMT1812 miniSMDC150F-A RAYCHEM LR

USB Board

F6

C818

0.1uF 25V 80-20% SMT0603 Y5V LR

80mil / 2A

USB_VCC

USB cable connector

CN9

1 2 3 4 5 6 7 8 9 10

CON SUYIN BATTERY CONN 200275MR010G134ZL

E-SATA

B B

Close to connector

CHOKE 120Ω 100MHz 0.22Ω 0.37A ACM2012-121-2P-T TDK LR(NU)

USB_PP0(15)

USB_PN0(15)

F3

1 2

6

C6780.01uF 16V 10% SMT0402 X7R LR

C6690.01uF 16V 10% SMT0402 X7R LR

C6650.01uF 16V 10% SMT0402 X7R LR

C6570.01uF 16V 10% SMT0402 X7R LR

80mil / 2A

ESATA_TXP0(16)

ESATA_TXN0(16)

ESATA_RXN0(16)

ESATA_RXP0(16)

CHOKE COMMON-MODE 90Ω @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK LR(NU)

5VDDA

1.5A 6V SMT1812 miniSMDC150F-A RAYCHEM LR

A A

8

7

L78

1

4

2

1

2

L77

4

3

L20 SPWR 0 5% 1/8W 0805

3

4

3

C228

10pF 50V 5% SMT0402 NPO LR(NU)

C211

+

100uF 6.3V ±20% 35mΩ 3528 6TPE100MAZB SANYO LR

5

CHOKE 120Ω 100MHz 0.22Ω 0.37A ACM2012-121-2P-T TDK LR(NU)

L22

1

2

C246

10pF 50V 5% SMT0402 NPO LR(NU)

ESATA_GND

CN22

1214

5

6

7

8

9

10

11

4

3

2

1

R589 SPWR 0 5% 1/16W 0402

4

1315

GNDGND

20-25605-00

CON TYCO 1909508-1 DIP 4+7PIN ESATA+USB LR

5VDDA

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

3

Date: Sheet of

2

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

E-SATA / USB CNN

5VDDA(18,31,41,47,48)

Confidential

33 52Thursday, July 10, 2008

1

0.3

8

7

6

5

4

3

2

1

PERST# CPPE# CPUSB#

40mil

3VDDM 3VDDM_NC

1.5VDDM_NC

1.5VDDM

3VDDM_NC

1.5VDDM_NC

3VDDS_NC

0304 MODIFY

40mil

3VDDM

1.5VDDM

D D

3VDDA

C793

C810

C820

0.1uF 16V 80-20% SMT0402 Y5V LR

BUF_PLT_RST#(15,17,30,35,40,41)

PM_SLP_S4#(17,35,43,48)

PM_SLP_S3#(17,19,43,47,48,49,50)

R734 SHW 0 5% 1/16W 0402 R723 SHW 0 5% 1/16W 0402

U40

2

AVCC_PCI

12

AVCC_L

17 7

AVCC_AUX AVSS

6

SYSRSTZ

1

STBYZ

19 5

OCZ NC

18

RCLKEN

LNR-IC POWER SWITCH P2231NF E2 QFN 20PIN VER:E2 ENE LR

VOUT_PCI

VOUT_L

VOUT_AUX

PERSTZ

CPPE#

CPUSB#SHDNZ

3

11

15

8 10 920

4

NC

13

NC

14

NC

16

NC

3VDDM

R717

C C

3VDDM

3VDDM_NC 1.5VDDM_NC

C792

0.1uF 16V 80-20% SMT0402 Y5V LR

C790 10uF 10V +80-20% SMT0805 Y5V LR

B B

3VDDS_NC

C827

4.7uF 10V +80-20% 0805 Y5V LR

C819

0.1uF 16V 80-20% SMT0402 Y5V LR C826 10uF 10V +80-20% SMT0805 Y5V LR

C821

0.1uF 16V 80-20% SMT0402 Y5V LR

40mil

3VDDM_NC

1.5VDDM_NC

3VDDS_NC

PCIE_WAKE#(17,35,40)

This signal may cause leakage current issue.

CPPE# CPUSB# PERST#

10KΩ 5% 1/16W SMT0402 LR

CN7

15

3.3V

14

3.3V#2

10

1.5V

9

1.5V#2

12

3.3VAUX

26

GND1

23

GND2

20

GND3

1

GND4

6

RSVD#2

5

RSVD#3

17

CPPE#

4

CPUSB#

13

PERST#

11

WAKE#

NEW CARD

GND5

GND6

GND7

GND8

272831

30

CLKREQ#

REFCLK+ REFCLK-

USB_D+

SMB_DAT SMB_CLK

R712

16 19 18

25

PETp0

24

PETn0

PCIE_RXP1

22

PERp0

PCIE_RXN1

21

PERn0

3 2

USB_D-

8 7

CON TAITWUN PXPXCE-000LBS2ZZ4N0 SMD NEW CARD 26 PIN P=1.0 HEAD H=2.2mm () LR

C439 MO- CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

CLK_PCIE_EXPCARD (12) CLK_PCIE_EXPCARD# (12)

R345 0Ω 5% 1/16W SMT0402 LR R348 0Ω 5% 1/16W SMT0402 LR

C870 MO- CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

C441 MO- CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

C869 MO- CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

4.7KΩ 5% 1/16W SMT0402 LR(NU)

PCIE_DET

PCIE_TXP1 (15) PCIE_TXN1 (15)

SB_PCIE_RXP1 (15) SB_PCIE_RXN1 (15)

USB_PP9 (15) USB_PN9 (15)

?

Q66

B

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR(NU)

E C

R708 0Ω 5% 1/16W SMT0402 LR(NU)

R733 SHW 0 5% 1/16W 0402 R736 SHW 0 5% 1/16W 0402

C807 MO- CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

C804 MO- CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

CLKREQ_EX0 (12)

SMB_DATA (12,13,14,17,40) SMB_CLK (12,13,14,17,40)

EMI 5/27

3VDDA

A A

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

8

7

6

5

4

3

Date: Sheet of

2

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Express card

3VDDA(5,12,15,16,17,18,19,21,27,30,35,38,40,41,43,45,47,48,49)

1.5VDDM

1.5VDDM(4,9,10,15,16,18,40,41,49)

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,35,37,38,39,40,41,43,47,49,50,51)

Confidential

34 52Thursday, July 10, 2008

1

3VDDM

0.3

5

hexainf@hotmail.com

4

3

2

1

3VDDA_LAN

L60 0Ω 5% 1/10W SMT0603 LR

C545

R460

D D

R459

CTRL25

0Ω 5% 1/16W SMT0402 LR

PLACE PNP TO CHIP ACAP CTRL25 PIN TRACE IS 25MIL

4.7KΩ 5% 1/16W SMT0402 LR

EC

Q36 TR PNP 2SB1188 -32V -2A MPT3 3PIN ROHM Lead-Free

B

C544

0.1uF 16V 80-20% SMT0402 Y5V LR

C546

0.1uF 16V 80-20% SMT0402 Y5V LR

C543

22uF 6.3V ±20% SMT0805 X5R JMK212BJ226MG-T TAYIO LR

10uF 10V +80-20% SMT0805 Y5V TDK LR

AVDD_LAN

AVDD = 1.8V for 88E8055 AVDD = 2.5V for 88E8039

3VDDA 3VDDA_LAN

PM_SLP_S4#(17,34,43,48)

MO-CAP 0.22uF 10V +80-20% SMT0402 Y5V LR

3VDDA_LAN

Q1

DS

100KΩ 5% 1/16W SMT0402 LR

C26

G

R13

R14

10KΩ 5% 1/16W SMT0402 LR

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

B

Q39

E C

5/29 for LAN8040 reserve

R836

0Ω 5% 1/16W SMT0402 LR(NU)

VPD_DATA

VPD_CLK

VPD_DATA VPD_CLK

C48 close to pin 39

L59 0Ω 5% 1/10W SMT0603 LR

C542

R458

C C

R457

CTRL12

0Ω 5% 1/16W SMT0402 LR

PLACE PNP TO CHIP ACAP CTRL12 PIN TRACE IS 25MIL

4.7KΩ 5% 1/16W SMT0402 LR

EC

Q35

B

TR PNP 2SB1188 -32V -2A MPT3 3PIN ROHM Lead-Free

C539

C540

0.1uF 16V 80-20% SMT0402 Y5V LR

AVDD_LAN

C515

0.1uF 16V 80-20% SMT0402 Y5V LR

B B

C510

C497

C13

0.1uF 16V 80-20% SMT0402 Y5V LR

C7

0.1uF 16V 80-20% SMT0402 Y5V LR

C496

0.1uF 16V 80-20% SMT0402 Y5V LR

C541

10uF 10V +80-20% SMT0805 Y5V TDK LR

0.1uF 16V 80-20% SMT0402 Y5V LR

VDD1.2_LAN

22uF 6.3V ±20% SMT0805 X5R JMK212BJ226MG-T TAYIO LR

VDD1.2_LAN

C5

C535

C519

0.1uF 16V 80-20% SMT0402 Y5V LR

C533

0.1uF 16V 80-20% SMT0402 Y5V LR

GLAN_RXP(15)

GLAN_RXN(15)

3VDDA_LAN

C2

C536

C16

0.1uF 16V 80-20% SMT0402 Y5V LR

C4

C15

C524

0.1uF 16V 80-20% SMT0402 Y5V LR

GLAN_TXN(15)

CLK_PCIE_LAN(12)

CLK_PCIE_LAN#(12)

C499 0.1uF 10V 10% SMT0402 X5R LR

C508 0.1uF 10V 10% SMT0402 X5R LR

C64 close to pin 39

Layout Guide

1.The Lan Chip should be placed as close as possible to the transfer.

2. The resistor connected to RSET pin should be placed near to the Lan Chip,and away from signal traces(ex:MDI0+/-) and clock signals as far as possible.

3. The transfer should be placed as close as possible to the RJ45 connector.

4. The crystal should be placed far away from I/O ports and high frequency signal.

A A

5. The termination resistors and capacitors should be placed closely to the Lan Chip.

6. The decoupling capacitors should be placed as close as posslble to the power pins,such that the distance from IC power pin to the capacitor is within 200mils.

7. Traces routed from the Lan Chip to the transfer,and to the RJ45 connector should be as short as possible.

8. The 10-12cm maximum lenghth between Lan Chip and transfer is achievable only when there's no interferences around.

9. All 4 pairs of the differential resister(49.9k) must close to Lan Chip,and make them(4pairs) as same as distant.

10.PLACE GND PLANE AS LARGE AS POSSIBLE

11.If power pins are next to each other and there is not much room to accommodate multipe capacitors,then the power pins can share the same capacitors.

12.It's important to separate digital signals from analog signals.If it is unavoidable to cross digtal signals with analong power do it at 90 degree angle.

13. The digital power plane should be separated from analog areas.

14. All analog decoupling capacitors should be placed as close to the IC as possible and the traces should be short.

15.The Lan Chip pin 1 facing the transformer,then you can make the signal shorter.

5

4

R4 0Ω 5% 1/16W SMT0402 LR

3VDDM

AVDD_LAN

3VDDA_LAN

MO-CAP 4.7uF 10V 10% SMT0603 X5R H=0.8mm LR

C531

BUF_PLT_RST#(15,17,30,34,40,41)

PCIE_WAKE#(17,34,40)

3

VDD1.2_LAN

CTRL12

CTRL25

49

TX_P

50

TX_N

51

AVDDL

52

AVDDL

53

RX_N

54

RX_P

55

REFCLKP

56

REFCLKN

57

AVDDL

58

VDD

59

LED_LNK/ACTn

60

LED_LINK10/100n

61

VDDO_TTL

62

LED_LINK1000n

63

LED_LINKn

64

VDD25

65

EPAD-VSS

3VDDA_LAN

48

U20

VDD

SMCLK

SMDATA

VDDO_TTL

TESTMODE

VMAIN_AVAL

VDDO_TTL

VPD_DATA

88E8055

VDDO_TTL

VDD

CTRL12

CTRL25

PERSTn

WAKEn

VDD

VDDO_TTL_MAIN

123456789101112131415

R454 4.7KΩ 5% 1/16W SMT0402 LR

SWITCH_VAUX

C494

MO-CAP 4.7uF 10V 10% SMT0603 X5R H=0.8mm LR

333435363738394041424344454647

VDD

SPI_CLK

VPD_CLK

LOM_DISABLEn

SWITCH_VCC

VAUX_AVLBL

C534

0.1uF 16V 80-20% SMT0402 Y5V LR 12pF 50V 5% SMT0402 NPO LR

2

VDD

SPI_DI

SPI_CS

SPI_DO

MDIN[3]

MDIP[3]

MDIN[2]

MDIP[2]

HSDACN

HSDACP

MDIN[1]

MDIP[1]

MDIN[0]

MDIP[0]

VDD

XTALO

XTALI

RSET

16

ASIC PCI Express Gigabit Ethernet Controller 88E8055-B0-NNC1C000 QFN 64PIN MARVELL LR

Rc

R448

RES 4.87KΩ 1% 1/10W SMT0603 LR

4.87K for 88E8055 2K for 88E8039

C10

AVDD_LAN

32

AVDDL

31

30

29

TSTPT

28

AVDDL

27

26

25

24

23

AVDD

22

AVDDL

21

20

19

AVDDL

18

17

Y1

25.000MHz SMD 12pF ±30ppm X8A025000FC1H HARMONY LR

for 88E8055

3VDDA_LAN

R3

R2

4.7KΩ 5% 1/16W SMT0402 LR

EEPROM AT24C08AN-10SU-1.8 8KBit(1024*8) 5ms 1.8V~5.5V SOIC 8PIN ATMEL LR

LAN_MDI3N (36)

LAN_MDI3P (36)

LAN_MDI2N (36)GLAN_TXP(15)

LAN_MDI2P (36)

LAN_MDI1N (36)

LAN_MDI1P (36)

LAN_MDI0N (36)

LAN_MDI0P (36)

C8 15pF 50V 5% SMT0402 NPO LR

Title

Penryn+Candiga GM/PM95+ICH9M

Document Number

Size

C

PCIE GIGA LAN PHY 88E8055

Thursday, July 10, 2008

for 88E8040

2K(11-14267-00)4.87K(11-14675-00)Rc

C3

0.1uF 16V 80-20% SMT0402 Y5V LR

U1

45

GNDSDA

6 7 8

3

A2

SCL

2

A1

WP

1

A0

VCC

9/26 modified

3VDDA_LAN

AVDD_LAN(36)

First International Computer,Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Sheet

1

3VDDA_LAN

AVDD_LAN

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,37,38,39,40,41,43,47,49,50,51)

3VDDA

3VDDA(5,12,15,16,17,18,19,21,27,30,34,38,40,41,43,45,47,48,49)

Confidential

35

ofDate:

52

Rev

0.3

5

TX

100 ohm ---> trace 4 mil , space 10 mil

RX

E

D D

8

0

5

C C

50 mil space from other signals

Total Tace Length no more thans 4.8"

2 Differential pairs must have the same length

GND

TX+

LESS THAN 0.1"

TX-

RX+ RX-

GND

LESS THAN 0.1"

Transformer

GND

GND PLANE

Isolated GND

4

R

J

4

3

2

1

Xa: Transformer use LFE9248(12-01904-01) Pa: Transformer use LFE8450(12-01905-01)

5

AVDD_LAN

L5 0Ω 5% 1/10W SMT0603 LR

LAN_MDI0P(35)

LAN_MDI0N(35)

LAN_MDI1P(35)

LAN_MDI1N(35)

LAN_MDI2P(35)

LAN_MDI2N(35)

LAN_MDI3P(35)

LAN_MDI3N(35)

0Ω 5% 1/16W SMT0402 LR

R449

U21

1

TCT1

2

TD1+

3

TD1-

4

TCT2

5

TD2+

6

TD2-

7

TCT3

8

TD3+

9

TD3-

10

TCT4

11

TD4+

12

TD4-

MCT1

MX1+

MX1-

MCT2

MX2+

MX2-

MCT3

MX3+

MX3-

MCT4

MX4+

MX4-

L TRANSFOMER HPL-5001-3 24P LR.Normal

R10 75Ω 1% 1/16W SMT0402 LR

24

LAN_TXD0+

23

LAN_TXD0-

22

R9 75Ω 1% 1/16W SMT0402 LR

21

LAN_TXD1+

20

LAN_TXD1-

19

R8 75Ω 1% 1/16W SMT0402 LR

18

LAN_TXD2+

17

LAN_TXD2-

16

R7 75Ω 1% 1/16W SMT0402 LR

15

LAN_TXD3+

14

LAN_TXD3-

13

PLACE RC NETWORKS CLOSE TO PHY CHIP

R424

C18

C19

0.1uF 16V 80-20% SMT0402 Y5V LR

R425

R431

49.9Ω 1% 1/16W SMT0402 LR

Rc

C509

Rc

0.01uF 16V 10% SMT0402 X7R LR

Rc

C513

0.01uF 16V 10% SMT0402 X7R LR

R432

R436

R437

49.9Ω 1% 1/16W SMT0402 LR

C523

0.01uF 16V 10% SMT0402 X7R LR

R446

R442

49.9Ω 1% 1/16W SMT0402 LR

C527

0.01uF 16V 10% SMT0402 X7R LR

L_GNDL_GNDL_GNDL_GND

0.1uF 16V 80-20% SMT0402 Y5V LR

L_GND

C532

C20

0.1uF 16V 80-20% SMT0402 Y5V LR

C14

1500pF 2KV ±10% SMT1206 X7R 1206B152K202LT WALSIN LR

L_GND

These 3 capacitors across the CHASSIS_GND to GND

split, are located below the magnetics module. Place as

close as possible to the magnetics module.

Can NU for 8040

B B

4

for 88E8039

NU

LAN_L_TXD0+LAN_TXD1LAN_L_TXD0LAN_L_TXD1+ LAN_L_TXD1-

LAN_L_TXD2+ LAN_L_TXD2LAN_L_TXD3+ LAN_L_TXD3-

3

L_GND

CN12

9

1

11

1

2

3

4

5

6

7

8

81112

10

CON OCTEK PJS-A8JF3G SMD RJ45 8 PIN P=1.0 () LR

20-25351-00

2

L_GND

12

R11 0Ω 5% 1/10W SMT0603 LR

10

R422 0Ω 5% 1/10W SMT0603 LR(NU)

C493

0.1uF 16V 80-20% SMT0603 Y5V LR(NU)

First International Computer,Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size

C

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Document Number

TRANSFORMER

Thursday, July 10, 2008

AVDD_LAN

AVDD_LAN(35)

Confidential

Rev

0.3

52

36

Sheet

1

ofDate:

for 88E8055

Rc

STUFF

La

COMMON-MODE CHOKE 180Ω 25% 100MHz 400mA SMT1012 8PIN YCM1012V4SF-181T04 YOSONIC LR

LAN_TXD1+

L2

4

LAN_TXD0-

A A

5

LAN_TXD0+

COMMON-MODE CHOKE 180Ω 25% 100MHz 400mA SMT1012 8PIN YCM1012V4SF-181T04 YOSONIC LR

LAN_TXD3LAN_TXD3+ LAN_TXD2LAN_TXD2+

3 6 2 1

L3

4 3 6 2 1

La

LAN_L_TXD1+

5

LAN_L_TXD1LAN_L_TXD0-

7

LAN_L_TXD0+

8

LAN_L_TXD3-

5

LAN_L_TXD3+ LAN_L_TXD2-

7

LAN_L_TXD2+

8

hexainf@hotmail.com

7

6

5

4

3

2

1

Pa: Stuff Xa: No Stuff

D D

CPWR_V33

R720

10KΩ 5% 1/16W SMT0402 LR

CN28

21

CARDDATA2

CPWR_V33

30 mil 2VIA

C799

0.1uF 16V 80-20% SMT0402 Y5V LR

C C

30 mil 2VIA

C780 10uF 10V +80-20% SMT0805 Y5V LR

CARDDATA5 CARDDATA4

CNTRLOUT0

CARDDATA0 CARDDATA7 CARDDATA6 SDCDN

CNTRLOUT0 CARDDATA1 CARDDATA0 CARDDATA2 MSINS CARDDATA3 CNTRLOUT1

CON PROCONN MXP019-A0-6030 SMD CARD READER 22PIN 4IN1 PUSH-PUSH LR

22 19 18 17 14 11

9 6 3 1

20

16 15 13 12 10

8 7 5 4 2

SD_GND SD_WP_SW SD_DAT1 SD_DAT0 SD_GND1 SD_CLK SD_VCC SD_GND2 SD_CMD SD_DAT3 SD_DAT2 SD_CD_SW

MS_GND1 MS_BS MS_DAT1 MS_DAT0 MS_DAT2 MS_INS MS_DAT3 MS_SCLK MS_VCC MS_GND2

23

GND1

SD&MMC

24

GND2

Memory Stick

20-25635-00

R765 301KΩ 1% 1/16W SMT0402 LR

3VDDM

4.7uF 10V +80-20% 0805 Y5V LR C837

CARD_1.8V

C833

L94

USB_PN3

1uF 6.3V 10% SMT0402 X5R LR

R782

330Ω 1% 1/10W SMT0603 LR

C834 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

C835 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

CARD_1.8V

7

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR

B B

1.C516,C904,U22 need put the same plane and close to chip for eye-patten test.

2.Pin assignment change .

A A

8

XO

4.7uF 10V +80-20% 0805 Y5V LR C838

CARD_1.8V

3VDDM

0.1uF 10V 10% SMT0402 X5R LR C817

U43

1

VDD

2

REXT

3

VD33P

4

DP

5

DM VSS33P

7

XI

8

XO

9

GNDU

10

VDDU

11

NC

12

NC

47

GND

V18

13

C823

0.1uF 10V 10% SMT0402 X5R LR

1uF 6.3V 10% SMT0402 X5R LR

6

45648

44

CHIPRESETN

CARDDATA15

CARDDATA14

READER_EN

VSSH

VDDH

CF_V33 CFWTN

161714

15 46181920212223

RES 47KΩ 5% 1/16W SMT 0402 LRC815 R740

CARDDATA7

ASIC USB2.0 CARD READER CONTROLLER AU6371 LQFP 48PIN VER:B51 ALCOR MICRO LR

37383940414243

CARDDATA7

CARDDATA8

CARDDATA9

CARDDATA10

CARDDATA11

CARDDATA12

CARDDATA13

CARDDATA6 CARDDATA5 CARDDATA4 CARDDATA3 CARDDATA2 CARDDATA1 CARDDATA0

GPON6 CONTROLOUT0 CONTROLOUT1 CONTROLOUT2 CONTROLOUT3

MSINS

SMCDN

CFCDN

SDCDN

XDCDN

CONTROLOUT5

CONTROLOUT4

24

SDCDN

MSINS

CARDDATA6

36

CARDDATA5

35

CARDDATA4

34

CARDDATA3USB_PP3

33

CARDDATA2

32

CARDDATA1

31

CARDDATA0XI

30

SBY100505T-121Y-N CHILISIN LR

29

L90

28

L91

27

SBY100505T-121Y-N CHILISIN LR

26 25

R737

0Ω 5% 1/16W SMT0402 LR

CR_PWR# (17)

3VDDM

CPWR_V33

3VDDM

C786

4.7uF 10V +80-20% 0805 Y5V LR

5

C788

0.1uF 10V 10% SMT0402 X5R LR(NU)

CPWR_V33

C789

0.1uF 10V 10% SMT0402 X5R LR(NU)

CNTRLOUT0 CNTRLOUT1

RES 1MΩ 1% 1/16W SMT 0402 LR

4

INTERFACE

USB_PP3(15) USB_PN3(15)

XI

R783

XO

USB_PP3 USB_PN3

C842 18pF 50V 5% SMT0402 NPO LR

Y5

FREQ XTL 12.000MHz SMD 16pF ±30ppm X8A012000FG1H HARMONY LR

21-41002-02

1 2

C843 18pF 50V 5% SMT0402 NPO LR

3

2

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,38,39,40,41,43,47,49,50,51)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

AU6371 Card Reader

Confidential

37 52Thursday, July 10, 2008

1

0.3

10

9

8

7

6

5

4

3

2

1

A_GND

10mil

H H

10mil

14MCLK_AC97

GND_POWER

AC97/HDA CODEC DUAL LAYOUT

AC97 USE VIA VT1708

LINE_OUT_LGND_POWER

A_GND

LINE_OUT_R

A_GND

10mil

HD Audio-ACZ_SDOUT/ACZ_SYNC/ACZ_BITCLK/ACZ_RESET#

HD

HP_OUT_L(39)

HP_OUT_R(39)

G G

F F

5VDDM_AUDIO

AUDIO_GND(20,39)

0.1uF 16V 80-20% SMT0402 Y5V L R

C845

0.1uF 16V 80-20% SMT0402 Y5V L R

E E

5VDDM_AUDIO

SPDIFO(39)

C846

0.1uF 16V 80-20% SMT0402 Y5V L R

D D

EMI 5/30

RES 80.6Ω 1% 1/16W SMT0402 RR0510S-80R6-FN CYNTEC LR

AMP_MUTE#(43)

C C

R809 0Ω 5% 1/16W SMT0402 LR(NU)

3VDDA

R810 0Ω 5% 1/16W SMT0402 LR

3VDDM

HDA_RST#

AMP_MUTE#

B B

3VDDM

L54

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TA I-TECH LR

A A

10

R405 0Ω 5% 1/16W SMT0402 LR

R406 0Ω 5% 1/16W SMT0402 LR

AUDIO_GND(20,39)

SPKOUTL+

SPKOUTL-

SPKOUTR-

SPKOUTR+

C841

DMIC_DATA(39)

DMIC_CLK(39)

AMP_MUTE#

37

AVSS2

AVDD

38

AVDD2

39

PVDD1

40

SPK-L+

41

SPK-L-

42

PVSS1

43

PVSS2

44

SPK-R-

45

SPK-R+

46

EAPD

3VDDM_AUDIO

PVDD2

47

SPDIFO2/EAPD

48

SPDIFO

49

AGND

R837 0Ω 5% 1/16W SMT0402 LR

R795

R799

0Ω 5% 1/16W SMT0402 LR(NU)

L Mute Enable

22pF 50V 5% SMT0402 NPO LR(NU)

C862

0.1uF 16V 80-20% SMT0402 Y5V L R

U46 DL-IC NC7SZ32P5X_NL SC-70 5PIN FAIRCHILD LR

53

1

2

Please close to CODEC CHIP

MUTE#

4

20 mils

3VDDM_AUDIO

C489

C488

0.1uF 16V 80-20% SMT0402 Y5V L R

10uF 10V +80-20% SMT0805 Y5V LR

9

AUDIO_GND(20,39)

C476

C482

2.2uF 10V 0603 X5R LR

36

CBP

CBN

CPVEE

CPVREF

HP-OUT-L

HP-OUT-R

MIC2-VREFO

MIC1-VREFO-R

DVDD1

GPIO0/DMIC-DATA

GPIO1/DMIC-CLK

PD#

SDATA-OUT

BIT-CLK

DVSS2

1234567891011

MUTE#

C857

SDATA-IN

C858

22pF 50V 5% SMT0402 NPO LR

3VDDM_AUDIO

8

MIC1_VREFO_R (39)

MIC1_VREFO_L (39)

Place next to pin27

AUDIO_GND(20,39)

C481

C480

0.1uF 16V 0402 Y5V LR

10uF 10V +80-20% SMT0805 Y5V LR

AVDD

2526272829303132333435

U45

VREF

AVSS1

AVDD1

LINE1-R

MIC1-VREFO-L

LINE1-L

MIC1-R

MIC1-L

MONO-OUT

JDREF

Sense-B

MIC2-R

MIC2-L

LINE2-R

LINE2-L

Sense A

DVDD-IO

SYNC

RESET#

PCBEEP

12

ASIC AUDIO CODEC ALC269Q-GR QFN 48PIN REALTEK LR

R804 0Ω 5% 1/16W SMT0402 LR

R803 0Ω 5% 1/16W SMT0402 LR

R802 22Ω 1% 1/16W SMT0402 LR

R805 22Ω 5% 1/10W SMT0603 LR

R801 0Ω 5% 1/16W SMT0402 LR

5VDDM

AUDIO_GND(20,39)

24

23

22

21

20

R785 20KΩ 1% 0402 LR

19

18

17

16

15

14

SENSEA

13

P/N : 05-23926-01 ALC269QSRS

C860 MO-CAP 1uF 10V 10% SMT0603 X5R LR

3VDDM_AUDIO

100MHz 300Ω 25% SMT0603 HCB1608 KF-301T20 TAI-TE CH LR

10uF 10V +80-20% SMT0805 Y5V TDK LR(NU)

C855

C854

0.1uF 16V 80-20% SMT0402 Y5V LR(NU)

AVDDS

L53

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 T AI-TECH LR

C479

C840

0.1uF 16V 80-20% SMT0402 Y5V L R

10uF 10V +80-20% SMT0805 Y5V LR

Please close to CODEC CHIP

MIC_B_R (39)

MIC_B_L (39)

?

MONO

AUDIO_GND (20,39)

R786 39.2KΩ 1% 1/10W 0603 LR

20KΩ 1% 1/16W SMT040 2 LRR790

HDA_RST#

HDA_SYNC (16)

HDA_SDATAIN0 (16)

BIT_CLK_CODEC (16)

HDA_SDATAOUT (16)

HDA_RST# (16)

C490

100pF 50V 5% SMT0402 NPO LR

Please close to CODEC CHIP

5VDDM_AUDIO

L96

7

C849

C847

0.1uF 16V 0402 Y5V LR

10uF 10V +80-20% SMT0805 Y5V LR

R787

SPWR 0 5% 1/16W 060 3

6

HPDET (39,43)

MIC1IN_JD (39)

R418

RES 47KΩ 5% 1/16W SMT 0402 L R

R417

4.7KΩ 5% 1/16W SMT0402 LR

SPKOUTLSPKOUTL+ SPKOUTRSPKOUTR+

L100 100MHz 300Ω 25% SMT0603 HCB1608 KF-301T20 TAI-T ECH LR L99 100MHz 300Ω 25% SMT0603 HCB1608 KF-301T20 TAI-T ECH LR L98 100MHz 300Ω 25% SMT0603 HCB1608 KF-301T20 TAI-T ECH LR L97 100MHz 300Ω 25% SMT0603 HCB1608 KF-301T20 TAI-T ECH LR

5VDDM

0.1uF 16V 80-20% SMT0402 Y5V L R

C472

1000pF 50V 10% SMT0402 X7R LR

5

ACZ_SPKR (17)

C470

ICH7m

L1L2L2

Trace Impedance Routing Requirement Trace Length

55 +/- 15%

*** L3 c an be exten ed up to 1 5" if HD A udio docking is not us ed

4 on 7(stripline) 5 on 7(microstrip)

HD Audio-ACZ_SDIN

ICH7m

Trace Impedance

trace 20mil

C865 10pF 50V 5% SMT0402 NPO LR(NU)

C864

C863

10pF 50V 5% SMT0402 NPO LR(NU)

AUDIO_GND (20,39)

0.3

R840 SPWR 0 5% 1/16W 060 3

R217 SPWR 0 5% 1/16W 0603

60 mils

R410 SPWR 0 5% 1/16W 060 3

R293 SPWR 0 5% 1/16W 060 3

CODEC POWER:

AVDD1

AVDD2

DVDD

DVDD I/O

PVDD1

PVDD2

U18 LNR-IC LDO G924-475T1Uf 4.75V SOT23-5 5PIN GMT LR

5

VIN

3

BYP

1

0.1uF 16V 80-20% SMT0402 Y5V LR

C466

SHDN

2

GND

4

VOUT

4

CN10

4

3

2

1

CON ACES SMT 85204-04001 WIRE 1.25P 4PIN LR

20-25087-00

C866 10pF 50V 5% SMT0402 NPO LR(NU)

60 mils

5V or

3.3V

5V or

3.3V

3.3V or

1.5V

5V

3

55 +/- 15%

*** Brea kout can b e rou ted 4 on 4 up to 500 mils

AUDIO_GND (20,39)

Analog power for mixer and amplifer

Analog power for DACs and ADCs

Digital core power for core logic

Digital I/O power for HDA link.

Power supply for full-bridge left channel

Power supply for full-bridge right channel

(40mil)(40mil)

C474

10uF 10V ±10% SMT0805 X5R T=1.25mm C2012X5R1 A106KT TDK LR

AUDIO_GND (20,39)

3VDDA

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,40,41,43,45,47,48, 49)

5VDDM

5VDDM(5,18,28,29,30,32,39,47,49,50,51 )

AVDDS

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,39,40,41,43,47,49,50 ,51)

39ohm

Routing Requirement 4 on 7(stripline) 5 on 7(microstrip)

AVDDS

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

ALC269 CODEC

Date: Sheet of

2

L3

39ohm

Audio

L3

L2L1

39ohm

HD Audio

MDC CONN

L1 = 0.5"~2.5" L2 <= 0.1" L3 = 1"~8"

Trace Length L1 = 0.1"~15" L2 <= 0.5"

AUDIO_GND

EP PIN

Connect the exposed thermal pad to AUDIO_GND

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Confidential

38 52Thursday, July 10, 2008

1

0.3

10

hexainf@hotmail.com

H H

G G

CON SUYIN 01064FR006G189JL DIP MIC 6PIN LR

100MHz 600Ω SMT0603 FCM1608KF-601T02 TAI-TECH LR

F F

E E

Mic-In Jack

PIN9..11=Z4501

CN25

5VDDM

SPDIFO(38)

5

4

3

6

2

1

10

SHELL

8

SHELL

R236

SHW 0 5% 1/16W 0402

R243

SHW 0 5% 1/16W 0402

10mil

9

L40 0Ω 5% 1/10W SMT0603 LR

R275

100MHz 600Ω SMT0603 FCM1608KF-601T02 TAI-TECH LR

L49

20mil

SPDIFO_AUD

AUDIO_GND(20,38)

SPDIF_VCC

8

2.2KΩ 5% 1/16W SMT0402 LR

100MHz 600Ω SMT0603 FCM1608KF-601T02 TAI-TECH LR

C360 100pF 50V 5% SMT0402 NPO LR

AUDIO_GND(20,38)AUDIO_GND(20,38)

AUDIO_GND(20,38)

R267

L41

L39

C373 100pF 50V 5% SMT0402 NPO LR

7

MIC1_VREFO_L (38)

MIC1_VREFO_R (38)

R280

2.2KΩ 5% 1/16W SMT0402 LR

MIC1IN_JD (38)

MO-CAP 4.7uF 10V 10% SMT0805 X5R LR

C371

C367

MO-CAP 4.7uF 10V 10% SMT0805 X5R LR

6

NOTE

MIC1IN,MIC2IN,INTERNAL_MIC

󰒏

AGROUND

MIC_B_R (38)

MIC_B_L (38)

5

4

3

2

1

Internal Micphone

CON ACES SMT 85204-04001 WIRE 1.25P 4PIN LR

20-25087-00

CN2

1

2

3

4

C33

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

3VDDM

DMIC_CLK(38)

DMIC_DATA(38)

0Ω 5% 1/10W SMT0603 LR

R15

DMIC_CLK

DMIC_DATA

0.1uF 16V 80-20% SMT0402 Y5V LR

C31

C29

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

D D

MO-CAP 1000pF 16V 10% SMT0402 X7R LR(NU)

Head-Phone Jack

HPDET(38,43)

10 mils

HP_OUT_L(38)

C C

HP_OUT_R(38)

B B

R633 RES 75Ω 5% 1/16W SMT 0402 LR

R598 RES 75Ω 5% 1/16W SMT 0402 LR

R631

R601

1KΩ 5% 1/16W SMT0402 LR(NU)

AUDIO_GND(20,38)

SPDIF_VCC

SPDIFO_AUD

Close to HP-JACK

Internal pull-H

L34

0Ω 5% 1/10W SMT0603 LR

L27

0Ω 5% 1/10W SMT0603 LR

C333 0.1uF 16V 80-20% SMT0402 Y5V LR

C344 MO-CAP 1000pF 50V 10% SMT0603 X7R LR(NU)

C349 MO-CAP 1000pF 50V 10% SMT0603 X7R LR

C324

CN24

A_HP_JACK_GND

L30

0Ω 5% 1/10W SMT0603 LR

C318 100pF 50V 5% SMT0402 NPO LR

C355 100pF 50V 5% SMT0402 NPO LR

5O

5B

ME

4

1

5A

A B C

CON ZJ001T-9-7H-3 DIP SPDIF 6PIN LR

R247 0Ω 5% 1/16W SMT0402 LR

10 mils

AUDIO_GND(20,38)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

HP OUT & MIC IN

2

39 52Thursday, July 10, 2008

1

10

R266 SPWR 0 5% 1/16W 0603

10 mils

9

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,40,41,43,47,49,50,51)

PMU3V(16,43,45,47)

AVDDS(38)

8

7

6

5

4

5VDDM(5,18,28,29,30,32,38,47,49,50,51)

3

Title

PMU3V

AVDDS

Size Document Number Rev

C

5VDDM

Date: Sheet of

A A

AUDIO_GND(20,38)

0.3

10

9

8

7

6

5

4

3

2

1

H H

G G

F F

E E

D D

PCIE Mini Card for Wireless Lan

PCIE_WAKE#(17,34,35)

CLK_PCIE_MINICARD#(12)

CLK_PCIE_MINICARD(12)

C110

C113

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

PCIE_RXN3(15)

PCIE_RXP3(15)

PCIE_TXN3(15)

PCIE_TXP3(15)

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

CL_CLK1(17) CL_DATA1(17) CL_RST#1(17)

BUF_PLT_RST#(15,17,30,34,35,41)

CLK_PCI_MINI(12)

R566 SHW 0 5% 1/16W 0402

R567 SHW 0 5% 1/16W 0402

C627

R91

0Ω 5% 1/16W SMT0402 LR(NU)

R5730Ω 5% 1/16W SMT0402 LR(NU) R5750Ω 5% 1/16W SMT0402 LR(NU) R5780Ω 5% 1/16W SMT0402 LR(NU)

Please close to mini card each pin

C613

0.1uF 16V 80-20% SMT0402 Y5V LR

CN20

1 2

WAKE# +3.3V_1

3 4

RSVD1 GND7

5 6

RSVD2 +1.5V_1

7 8

CLKREQ# RSVD13

9 10

GND1 RSVD14

11 12

REFCLK- RSVD15

13 14

REFCLK+ RSVD16

15 16

GND2 RSVD17

KEY

17

RSVD3

19

RSVD4

21

GND3

23

PER_N0

25

PER_P0

27

GND4

29

GND5

31

PET_N0

33

PET_P0

35

GND6

37

RSVD5

39

RSVD6

41

RSVD7

43

RSVD8

45

RSVD9

47

RSVD10

49

RSVD11

51

RSVD12

53

GNDM1

CON CONCRAFT 0710A0BA52C SMD MINI CARD 52PIN H=5.2 TAPE&REEL LR

GND8 RSVD18 PERST#

+3.3V_AUX

GND9

+1.5V_2

SMB_CLK

SMB_DATA

GND10

USB_D-

USB_D+

GND11

LED_WWAN#

LED_WLAN# LED_WPAN#

+1.5V_3

GND12

+3.3V_2

GNDM2

18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52

54

20-25320-10

D36

NN

DIODE SWITCHING BAW56W 75V 150mA SOT-323 3PIN PSI LR(NU)

3VDDM

R796

4.7KΩ 5% 1/16W SMT0402 LR(NU)

C610 10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

C618

0.1uF 16V 80-20% SMT0402 Y5V LR

C615

0.1uF 16V 80-20% SMT0402 Y5V LR

C619

0.1uF 16V 80-20% SMT0402 Y5V LR

LPC_FRAME# (16,43)

LPC_AD3 (16,43) LPC_AD2 (16,43) LPC_AD1 (16,43) LPC_AD0 (16,43)

R546 0Ω 5% 1/16W SMT0402 LR R70 0Ω 5% 1/16W SMT0402 LR

PN

WLAN_LED# (30)

R532

4.7KΩ 5% 1/16W SMT0402 LR(NU)

3VDDM

R80

1KΩ 5% 1/16W SMT0402 LR(NU)

R71 0Ω 5% 1/16W SMT0402 LR(NU)

C612

0.1uF 16V 80-20% SMT0402 Y5V LR

10mil

C611 10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

USB_PN7 (15) USB_PP7 (15)

C871 MO- CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

C872 MO- CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

EMI 5/27

R77 1KΩ 5% 1/16W SMT0402 LR(NU)

U3

4

R539

SPWR 0 5% 1/16W 0603

5

OUT

VCC

1

TC

2

SUB

3

GND

LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR(NU)

1.5VDDM

RF_ON (17,30) BUF_PLT_RST# (15,17,30,34,35,41)

SMB_CLK (12,13,14,17,34) SMB_DATA (12,13,14,17,34)

C617 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

C616 MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

R5350Ω 5% 1/10W SMT0603 LR(NU)

R5290Ω 5% 1/10W SMT0603 LR

PNP RT1P441M-T111-1 -50V -100mA SC-70 3PIN IDC LR(NU)

EC

Q13

C95 2200pF 50V 10% SMT0402 X7R LR(NU)

3VDDM

3VDDA

D13

B

NP

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR(NU)

RF_ON (17,30)

Q77

R798

B

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR(NU)

E C

6

3VDDA

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,38,41,43,45,47,48,49)

5VDDM

5VDDM(5,18,28,29,30,32,38,39,47,49,50,51)

1.5VDDM

1.5VDDM(4,9,10,15,16,18,34,41,49)

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,41,43,47,49,50,51)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

5

4

3

Date: Sheet of

(886-2)8751-8751

PCIE Mini / W-LAN

2

Confidential

40 52Thursday, July 10, 2008

1

0.3

BT_LED(41)

C C

B B

A A

10

9

8

100KΩ 1% 1/16W SMT0402 LR(NU)

7

10

hexainf@hotmail.com

H H

9

8

7

6

5

4

3

2

1

Robson board CNN

CLK_PCIE_ROBSON#(12)

CLK_PCIE_ROBSON(12)

PCIE_TXP2(15) PCIE_TXN2(15) PCIE_RXP2(15)

G G

F F

E E

BUF_PLT_RST#(15,17,30,34,35,40)

USB_PN8(15) USB_PP8(15)

1.5VDDM

MDC_SDATAOUT(16)

BIT_CLK_MDC(16)

MDC_SDATAIN1(16)

PCIE_RXN2(15)

3VDDM

3VDDA

MDC_SYNC(16)

MDC_RST#(16)

CN4

1 2 3 4 5 6 7 8 9

21 10 11

22 12 13 14 15 16 17 18 19 20

CON ACES 88512-2001 SMD 20PIN P=0.5 EASY ON FFC LR

Q41 TRANS M-FET-P APM2301AAC-TRL -20V -3A SOT23 3PIN ANPEC LR

5VDDA

MO-CAP 0.22uF 10V +80-20% SMT0402 Y5V LR

C547

R461

G

100KΩ 5% 1/16W SMT0402 LR

10KΩ 5% 1/16W SMT0402 LR

DS

C557

R483 0Ω 5% 1/10W SMT0603 LR

U26 LNR-IC G916T1Uf ADJ SOT23-5 5PIN GMT LR(NU)

1 5

IN OUT

3

SHDN

1uF 6.3V 10% SMT0402 X5R LR(NU)

2

4

ADJ

GND

CCD Module CN

R476 100KΩ 1% 1/16W SMT0402 LR(NU)

R474 RES 51KΩ 1% 1/16W SMT0402 LR(NU)

C553 1uF 6.3V 10% SMT0402 X5R LR

C556

0.1uF 16V 80-20% SMT0402 Y5V LR

R462

Q40

D D

CCD_ON(17)

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

USI Bluetooh USB Module CN

C C

3VDDA

B B

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

A A

10

TRANS M-FET-P APM2301AAC-TRL -20V -3A SOT23 3PIN ANPEC LR

MO-CAP 0.22uF 10V +80-20% SMT0402 Y5V LR

R808

100KΩ 5% 1/16W SMT0402 LR

C856

B

BT_ON(17)

USB_PN6(15) USB_PP6(15)

C852

15pF 50V 0402 NPO LR

9

R811

DS

Q78

G

10KΩ 5% 1/16W SMT0402 LR

Q83

E C

BT_LED(40)

C850

15pF 50V 0402 NPO LR

C848

0.1uF 16V 80-20% SMT0402 Y5V LR

CON ACES SMT WIRE 1.25P 6PIN R/A 85204-0600L Lead-free & RoHS

8

20-25062-00

CN11

1 2 3 4 5 6

?

R419

0Ω 5% 1/16W SMT0402 LR

7

6

B

E C

USB_PN4(15)

USB_PP4(15)

5

4

L62 INDUCTOR 18nH 10% 200mA SMT0402 HFI-100505-18NK MAG.LAYERS LR

L63 INDUCTOR 18nH 10% 200mA SMT0402 HFI-100505-18NK MAG.LAYERS LR

C575

C573

MO-CAP 5pF 50V ±0.5pF SMT0402 NPO LR(NU)

Title

Size Document Number Rev

C

3

Date: Sheet of

CON ACES SMT 85204-04001 WIRE 1.25P 4PIN LR

20-25087-00

CN3

1

2

3

4

1.5VDDM(4,9,10,15,16,18,34,40,49)

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,43,47,49,50,51)

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,38,40,43,45,47,48,49)

DCIN(27,45,48,49,50,51)

5VDDA(18,31,33,47,48)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

Robson CNN / Bluetooh / CCD

2

41 52Thursday, July 10, 2008

1

1.5VDDM

3VDDM

3VDDA

DCIN

5VDDA

0.3

5

D D

C C

4

3

2

1

B B

A A

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

5

4

3

2

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Blank

1

Confidential

42 52Thursday, July 10, 2008

0.3

5

hexainf@hotmail.com

SYSTEM POWER OVP

6mil

VDDS#

D D

HOT_DOWN#(3,5)

C C

B B

A A

R538

RES 47KΩ 5% 1/16W SMT 0402 LR

PMU3V

R540

SPWR 0 5% 1/16W 0603

REF33

REF33(45)

VBATT1

INOM(45)

TH1(45)

R37

PMU3V

6.2KΩ 0.5% 1/10W 0603 LR

LVDS_ENABKL(7,22,23)

BLIGHT_EN(17)

R525 100KΩ 1% 1/16W SMT0402 LR

R528

100KΩ 5% 1/16W SMT0402 LR

R518

100KΩ 5% 1/16W SMT0402 LR

R537

100KΩ 5% 1/16W SMT0402 LR

4700pF 25V 10% SMT0402 X7R LR

Q54

B

TRANS NPN MMBT3904 40V 200mA SOT-23 3PIN PSI LR

E C

C609 0.1uF 16V 80-20% SMT0402 Y5V LR

C602 0.1uF 16V 80-20% SMT0402 Y5V LR

C608 0.1uF 16V 80-20% SMT0402 Y5V LR

C102 0.1uF 16V 80-20% SMT0402 Y5V LR

C81 1uF 10V +80-20% 0603 Y5V LR

R41 100Ω 1% 1/16W SMT0402 LR R36 1KΩ 1% 1/16W SMT0402 LR

0Ω 5% 1/16W SMT0402 LR R531

3VDDM

53

1

4

2

LIGHT_SENSOR

INOM2

GPI_AD0

PMX_HPDET

PMU5V

10mils

PMU3V

RES 470KΩ 5% 1/16W SMT 0402 LR

10mils

C94

5

U30

U28 LNR-IC LDO Regulator APL5151-33BC-TRL 3.3V 150mA SOT-23-5 5PIN ANPEC LR

1

VIN

3

SHDN

2

GND

C594

0.1uF 16V 80-20% SMT0402 Y5V LR

R536

U29 PST8428NR 2.8V SOT-25A MISTUMI LR

2

VDD

5

CD

4

NC

3

GND

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR(NU)

R510 1KΩ 5% 1/16W SMT0402 LR

PMX_VCC

VOUT

20mils

BP

OUT

5

4

1

CIRCLK CIRDAT

PDCLK(30) PDDAT(30)

PCI_CLKRUN#(17)

PCI_SERIRQ(17) H_A20GATE(16)

LPC_FRAME#(16,40)

PCI_RST#(15)

CLK_PCI_EC(12)

LPC_AD0(16,40) LPC_AD1(16,40) LPC_AD2(16,40) LPC_AD3(16,40)

SRLL#(31)

NUM#(31)

CAPS#(31)

INVENA(27)

HPDET(38,39)

PM_SLP_S3#(17,19,34,47,48,49,50)

LATCH(45)

H_RCIN#(16)

BSEL1(45)

BIN1(45)

PCMRI#

PMU3V

PM_BATLOW#(17)

ADPIN#(46)

LIGHT_SENSOR

C82 0.1uF 16V 80-20% SMT0402 Y5V LR

R57 0Ω 5% 1/16W SMT0402 LR

POWER_MONITER(51)

C79 0.1uF 16V 80-20% SMT0402 Y5V LR

C75 0.1uF 16V 80-20% SMT0402 Y5V LR

R533

0Ω 5% 1/16W SMT0402 LR(NU)

R55 10KΩ 5% 1/16W SMT0402 LR

R56

0Ω 5% 1/16W SMT0402 LR

PMU3V

REF33

C593

0.1uF 16V 80-20% SMT0402 Y5V LR

VOR#

C607

0.1uF 16V 80-20% SMT0402 Y5V LR(NU)

4

PMU3V

3VDDA

3VDDM

RP21

10KΩ 5% SMT1010 1/16W 4P2R LR(NU)

4

3

1

2

VOR#

R66 0Ω 5% 1/16W SMT0402 LR R64 0Ω 5% 1/16W SMT0402 LR(NU)

VDDS#

RES 47KΩ 5% 1/16W SMT 0402 LR

ADPIN#

chipset platform ID

T1

1

PM_RSMRST#(17,19)

MPWROK(7,17)

IMVP_VRON(19,51)

MAINSW#_VIA

VRON_VCCP

R515 RES 1.1KΩ 1% 1/16W SMT0402 LR R514 RES 1.1KΩ 1% 1/16W SMT0402 LR

PMU3V

T4

1

4

RP22

10KΩ 5% SMT1010 1/16W 4P2R LR(NU)

4

3

1

2

R48

RP19

MD2

MD1

3

MD0

124

10KΩ 5% SMT1010 1/16W 4P2R LR

10KΩ 1% 1/16W SMT0402 LR(NU) R53

REM

R517 0Ω 5% 1/16W SMT0402 LR R44 0Ω 5% 1/16W SMT0402 LR R43 0Ω 5% 1/16W SMT0402 LR R52 0Ω 5% 1/16W SMT0402 LR(NU)

SMCLK_PMU(5,30,45) SMDAT_PMU(5,30,45)

R51 0Ω 5% 1/16W SMT0402 LR(NU) R50 15KΩ 5% 1/16W SMT0402 LR

T12 T11 T2 T3 T5 T8 T7 T6

1

T10

4

RP14 10KΩ 5% SMT1010 1/16W 4P2R LR

3

2

3VDDA

3

2

1

3VDDM

3VDDA

R49 10KΩ 5% 1/16W SMT0402 LR

R530 10K Ω 5% 1/16W SMT0402 LR

RP20 10K Ω 5% SMT1010 1/16W 4P2R LR

R78 RES 8.2KΩ 5% 1/16W SMT0402 LR

4

3

1

2

R101

PMU3V

R104 10K Ω 5% 1/16W SMT0402 LR

R111 10KΩ 1% 1/16W SMT0402 LR

R109 10KΩ 1% 1/16W SMT0402 LR(NU)

R114 10K Ω 5% 1/16W SMT0402 LR

R119 10K Ω 5% 1/16W SMT0402 LR

R108 10KΩ 1% 1/16W SMT0402 LR

R92 10K Ω 1% 1/16W SMT0402 LR(NU)

10KΩ 1% 1/16W SMT0402 LR

PMX

U4

PCEN GPIO A7 GPIO A4

KBC_SWI#

DJRUN

SUSC

CRYSTAL_X1 CRYSTAL_X0

FAN_PWM

GPIO A5

KBC_SCI# KBC_SMI#

CHGINH

DCIN_ON

DCON

GPIO C0 GPIO C1

FAN_FEEDBACK

MainSW# SUSTAT#

BRIG_PWM

GPIO A0

CHGVSET

GPIO A2 F_CHG1 GPIO C2

LED_A

LED_G GPIO C3 GPIO A3

WAKE#

DJON

T_CHG1

PM_ICH_PWROK/SYSPWRGD

Q_CHG1

ALL_SYS_PG/VCORE_PG

SCI#/SMI#

SMBALERT#NC

3

144 143

MAINSW0_LATCH

142 141 140 139

NC

138

NC

137

X15

136

X15

X14

135

X14

X13

134

X13

X12

133

X12

X11

132

X11

X10

131

X10

X9

130

X9

129 128 127

VSS

126

VCC

X8

125

X8

X7

124

X7

X6

123

X6

X5

122

X5

X4

121

X4

X3

120

X3

X2

119

X2

X1

118

X1

X0

117

X0

116

Y7

115

Y6

114

Y5

113

Y4

112

Y3

111

Y2

110

Y1

109

Y0

108 107 106 105 104 103 102 101

UI1

100

UO1

99

UCK1

98

TEST

97 96 95 94 93 92 91

VSS

90

VCC

89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 7372

Y7 Y6 Y5 Y4 Y3

Y2 P01 Y1 P00 Y0

PRSTMSK# UO3

UI1 UO1 UCK1 INT5

R74

R543 0Ω 5% 1/16W SMT0402 LR

R526 0Ω 5% 1/16W SMT0402 LR(NU)

SMBALERT#

R89

0Ω 5% 1/16W SMT0402 LR

DCIN_ON

R81 0Ω 5% 1/16W SMT0402 LR(NU)

R79 0Ω 5% 1/16W SMT0402 LR(NU)

EJECT#1 EJECT#2 EJECT# MAINSW#

0Ω 5% 1/16W SMT0402 LR

AMP_MUTE#

R527 0Ω 5% 1/16W SMT0402 LR(NU)

D11

DIODE SWITCHING PS355NS 80V 100mA SMT0805 2PIN PSI LR

R61 4.7KΩ 5% 1/16W 0402 LR

3VDDA

BATTERY VOLTAGE SENSE

20mil

BAT+

BIN1(45)

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

Close to PMX

KBCSWI# (17)

PM_SLP_S4# (17,34,35,48) X15 (30) X14 (30) X13 (30) X12 (30) X11 (30) X10 (30) X9 (30)

X8 (30) X7 (30) X6 (30) X5 (30) X4 (30) X3 (30) X2 (30) X1 (30) X0 (30) Y7 (30) Y6 (30) Y5 (30) Y4 (30) Y3 (30) Y2 (30) Y1 (30) Y0 (30) FAN_PWM (5) PRSTMSK#

DCIN_ON (45)

FAN_SPEED (5)

MAINSW# (45) PM_SLP_S3# (17,19,34,47,48,49,50) LCD_BRIGHTNESS (7,27)

PN

C109 22pF 50V 5% SMT0402 NPO LR

Y2

C106 22pF 50V 5% SMT0402 NPO LR

1 2

X'TAL 4MHz SMD-49 SMT11*4.9*4.5mm 2PIN 20pF 30ppm XSA004000FK1H-O H.ELE LR

R76

0Ω 5% 1/16W SMT0402 LR(NU)

R534 10KΩ 5% 1/16W SMT0402 LR

KBCSCI# (17)

LID# (30) CHGVSET (46) PMX_GPIO_A2 (30) FCHGON1 (46) CHGLED (31) LED_A (31) LED_G (30)

AMP_MUTE# (38)

DJON TRICHGON1 (46) PM_ICH_PWROK (17,19)

PMU3V

R69

AMP_MUTE#

10KΩ 5% 1/16W SMT0402 LR

20060322A

Q52

TR M-FET-P APM2307AC-TRL -30V -3A SOT-23 3PIN ANPEC LR

DS

R501 RES 51.1KΩ 1% 1/10W SMT0603 LR

G

R509 100KΩ 5% 1/16W SMT0402 LR

B

Q53

E C

R502 RES 2.8KΩ 1% 1/10W SMT0603 LR

R503 RES 2.2KΩ 1% 1/10W SMT 0603 LR

R504

8.2KΩ 1% 1/10W 0603 LR

PMX_VCC

PMX_4M

KBCSMI# (17) ADPOV1

R88 10KΩ 5% 1/16W SMT0402 LR

3VDDM

DCON (19,47)

C_GSEL

PMX_VCC

C103

0.1uF 16V 80-20% SMT0402 Y5V LR

DIODE SWITCHING PS355NS 80V 100mA SMT0805 2PIN PSI LR

D37

AMP_MUTE# (38)

PN

3/24

R5190Ω 5% 1/16W SMT0402 LR R5240Ω 5% 1/16W SMT0402 LR(NU)

VBATT1

QCHGON1 (46) ALL_SYS_PWRGD (19,50)

3VDDM

EC_SCI# (17)

PM_RI# (17)

20mil

2

C120

0.1uF 16V 80-20% SMT0402 Y5V LR

PRSTMSK#

UI1 UO1 UCK1 INT5

EJECT#1 EJECT#2 DCIN_ON

MAINSW#

PM_RI# EC_SCI#

EJECT#

MPWROK

IMVP_VRON

3VDDM

RP70

Y7

8

Y6 Y5 Y4

Y0 Y1 Y2 Y3

1

7

2

6

3

5 4

10KΩ 5% 2010 1/16W 8P4R LR

RP69

8

1

7

2

6

3

5 4

10KΩ 5% 2010 1/16W 8P4R LR

PMU3V

R90 10KΩ 5% 1/16W SMT0402 LR

R558 10KΩ 5% 1/16W SMT0402 LR R548 10KΩ 5% 1/16W SMT0402 LR R549 10KΩ 5% 1/16W SMT0402 LR R555 10KΩ 5% 1/16W SMT0402 LR

R551 10KΩ 5% 1/16W SMT0402 LR R550 10KΩ 5% 1/16W SMT0402 LR R544 10KΩ 5% 1/16W SMT0402 LR(NU)

R547 4.7KΩ 5% 1/16W 0402 LR

R542 10KΩ 5% 1/16W SMT0402 LR R68 10KΩ 5% 1/16W SMT0402 LR

3VDDA

3VDDM

R545 10KΩ 5% 1/16W SMT0402 LR

R35 1KΩ 5% 1/16W SMT0402 LR

R42 1KΩ 5% 1/16W SMT0402 LR

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,47,49,50,51)

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,38,40,41,45,47,48,49)

PMU3V(16,45,47)

PMU5V(31,47)

BAT+(45,46)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Custom

PMX

1

Confidential

43 52Thursday, July 10, 2008

3VDDM

3VDDA

PMU3V

PMU5V

BAT+

0.3

PMX_HPDET

1 1 1 1 1 1 1 1

INOM2

GPI_AD0

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71

R54 1KΩ 5% 1/16W SMT0402 LR

P00 P01 MD0 MD2 VOR# UI1 UO1 UCK1

EXKBCLK EXKBDAT EXMOUCLK EXMOUDAT PDCLK PDDAT CLKRUN# SERIRQ KBC_A20GATE LFRAME# LRESET# LCLK AD0 AD1 AD2 AD3 RESET# VCC VSS X0A X1A SRLL0_LED NUM0_LED CAPS0_LED INVENA GPIO A1 SUSA LATCH CVCC CVRH1 CVRH2 CVRL CVSS VDDS# CPU_RCIN0 BSEL1 BIN1 GPIO A6 DJSW LOWBAT# ADPIN# AVCC VREF AVSS V BATT1 ISUS_1 INOM_1 T BATT1 LIGHT_SENSOR ENBKL NC POWER_ON_SEQUENCE_ID GPI-AD0 VCC VSS MD2 MD1 MD0 WIRELESS_RFON FWH_WP0 FWH_TBL0 CHG_CURR BAT_REM NC RSMRST# MPWROK IMVP_VRON/CPU_PWRGOOD MAINSW#_VIA SCL(BATT1 CLK1) SDA(BATT1 DAT1) VRON_VCCP

5

4

3

2

1

D D

Adapter Jack

Battery

C C

ADPOUT

ADPOUT+

DCIN

DCIN+

B B

S

LATCH BSEL1 POWSW0

TY040&TY640 Power Block

ADPIN 5VDDS

B

F

MB39A132

QCHGON1 TRICHGON1

F

B

SP

MM1380A

MAX8744A

INOM

PMU5V

PMU3V

D

ADPOUT

PCHGOUT

APL5151

PST8428

D

REF33

VOR0

DCIN+

S

DCON

DCIN

SP

MAX8744A

SP

TPS51117

PM_SLP_S4#

SP

MAX8717

SP

PMU5V

LDO5V

PMU3V

1.8VDDS

LVDS_ENALCD

G2998

PM_SLP_S3#

VDD-CORE

1.05VDDM

PM_SLP_S3#

1.5VDDM

VGA_PG & PM_SLP_S3#

S

PM_SLP_S3#

S

DCON

S

DCON

S

PM_SLP_S3#

S

1.8VDDM

S

APL5912

5VDDM

5VDDA

3VDDA

3VDDM

LCDVDD

0.9VDDT_DDRII

1.1VDDM

S

PM_SLP_S4#

VGA_VDD, VDD_CORE

SP

MAX8797

SP

PM_SLP_S3#

VCORE_CPU

SP

MAX8770

A A

S

5

4

3

IMVP_VRON

Inverter

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

Power Block

2

Date: Sheet of

Signal

Power Path

LDO

B

Bead

D

Diode

F

Fuse

S

Switch

Switching

SP

Power Converter

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

1

Confidential

44 52Thursday, July 10, 2008

0.3

(2

hexainf@hotmail.com

via)

5

4

3

2

1

ADPIN, BATIN, DCIN, ADPOUT+

4 4

3 3

300 mil (15 via)

PCCOUT

2 2

REF33

PMU3V

10 mil (1 via)

CN14 CON SINGATRON 2DC-S028-B02 DIP DC-IN 5Pin H=0.9 LR

20-25451-00

R18

6.5mΩ 1% 1W 2512 LR

BAT_CS-

R485

1KΩ 1% 0402 LR

C38 MO-CAP 0.022uF 25V 10% SMT 0603 X7R LR

C39 MO-CAP 0.022uF 25V 10% SMT 0603 X7R LR

R482 20KΩ 1% 0402 LR

R475 RES 11.3KΩ 1% 1/16W SMT 0402 LR

C555 0.1uF 10V 0402 X5R LR

R17 SHW 0 5% 0402

C34 0.1uF 10V 0402 X5R LR

ADP+

1

ADP-

3

2

4

5

BAT_CS+

8 mil (1 via)

R484 1KΩ 1% 0402 LR

C495

0.1uF 50V 0603 Y5V LR

(2 via)

200 mil (10 via)

C498

0.1uF 50V 0603 Y5V LR

C512

0.1uF 50V 0603 Y5V LR

C526

C511

0.1uF 50V 0603 Y5V LR

(2 via)

300 mil (15 via)

1

3

2

5

8

7

ADPIN

COMMON-MODE CHOKE 33Ω 100MHz 10A SMT5.7*6.7*2.8mm 4PIN SMB-455625-2P-E MGA.LAYERS LR

L4

3

4

2

1

200 mil (10 via)

(2 via)

F5

FUSE 7A 125V SMT R451007.MRL LITTELFUSE LR

R441

C525

RES 20KΩ 5% 1/10W SMT 0603 LR(NU)

0.1uF 50V 0603 Y5V LR

200 mil (10 via)

BATIN

L6

120Ω±25% 100MHz 6000mA SMT1206 UPB321611T-121Y-N CHILISIN LR

1 2

L7

PMU3V

U27 MM1380AWBE MITSUMI LR

6

ISEL

OUT

IN+

IN-

COM

GSEL

4

GND

VCC

(1 via)

120Ω±25% 100MHz 6000mA SMT1206 UPB321611T-121Y-N CHILISIN LR

1 2

SMCLK_PMU(5,30,43) SMDAT_PMU(5,30,43)

8 mil (1 via)

R16

5.11KΩ 1% 0402 LR

INOM (43)

Noise Sensitivity

8 mil (1 via)

TH1(43)

BAT+(43,46)

BIN1(43)

10 mil (1 via)

300 mil (15 via)

C551

ADPIN

F2

FUSE 10A 125V SMT R451010.MRL LITTELFUSE LR

C28

C549

C27

150pF 50V 5% SMT0402 NPO LR(NU)

1000pF 50V 10% 0402 X7R LR

150pF 50V 5% SMT0402 NPO LR(NU)

(1 via)

R467 0Ω 5% 0402 LR R468 0Ω 5% 0402 LR

C550

150pF 50V 5% SMT0402 NPO LR(NU)

(1 via)

300 mil (15 via)

ADPOUT

PCCOUT

DCIN+5V

ADPOUT

RES 47Ω 5% 1/16W SMT0402 LR

R466

910

CN15

1

910

1

2

3

4

5

6

7

8

(15 via)

200 mil (10 via)

DIODE STKY SS34A 40V 3A DO-214AC(SMA) 2PIN PSI LR

20 mil (1 via)

PMU3V

300 mil (15 via)

R490

RES 47KΩ 5% 1/16W SMT 0402 LR

R488

301KΩ 1% 1/16W SMT0402 LR

8 mil (1 via)

75KΩ 1% 1/16W SMT0402 LR

DIODE SKTY SS84B 40V 8A DO-214AA(SMB) 2PIN PSI LR

G

R489

(1 via)

100 mil (6 via)

ADPOUT

40 mil (2 via)

DCIN

100 mil (6 via)

DCIN+

DIODE SWITCHING BAV70W 75V 150mA SOT-323 3PIN PSI LR

LATCH(43)

BSEL1(43)

DCIN

D5

DCIN+

NP

D4

P N

3

S

2

4

DS

Q44

D

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

D7

DIODE ZENER BZT52C12S 12V 5mA SOD-323 2PIN PSI LR

Q3

8

P N

7

AO4468L 30V 11.6A SO8 AOS LR

61 5

ADPOUT+

R23

C47

100KΩ 5% 0402 LR

0.1uF 25V 0603 Y5V LR

D10

8 mil (1 via)

PPPN

8 mil (1 via)

RT1N441M 50V 100mA SC-70 IDC LR

Q5

Q4

300 mil (15 via)

C46

R32

1uF 25V 0603 Y5V LR

4.7KΩ 5% 0402 LR

DCIN_ON(43)

D8 SS34A 40V 3A SMA PSI LR

D32 DIODE STKY SS1040 40V 1A SOD-123 2PIN PSI LR(NU)

P N

Q48

M-FET-P AO4411 -30V -8A SOIC-8 8PIN AOS LR

8

3

7

2

6

1

S

5

D

G

4

R28 10KΩ 5% 0402 LR

D9A

61

B

DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR

E C

(1 via)

AO4407 -30V -12A SO-8 AOS LR

3 2 1

Q47

R30

3904 40V 0.2A SOT-23 PSI LR

100KΩ 5% 0402 LR

B

E C

B

R494

RES 47KΩ 5% 1/16W SMT 0402 LR

(1 via)

R33

RES 8.2KΩ 5% 1/16W SMT0402 LR

D9B

D9C

52

43

DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR

S

G

4

R493 10KΩ 5% 0402 LR

TRANS NPN MMST3904 40V 200mA SC-70(SOT-323) 3PIN PSI LR

E C

100 mil (2 via)

10 mil (1 via)

8 mil (1 via)

10 mil (1 via)

D

Q51

8 7 6 5

POWSW# (30)

300 mil (15 via)

C60 1000pF 50V 0402 X7R LR

EMI 5/27

ADPOUT+

3VDDA

ICH_MAINSW# (17)

MAINSW# (43)

DCIN

ADPIN

ADPIN(46)

ADPOUT

ADPOUT(46)

PCCOUT

PCCOUT(46)

DCIN+5V

1 1

5

4

3

DCIN+5V(47)

DCIN

DCIN(27,48,49,50,51)

PMU3V

PMU3V(16,43,47)

REF33

REF33(43)

ADPOUT+

ADPOUT+(47)

3VDDA

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,38,40,41,43,47,48,49)

2

Title

Size Document Number Rev

C

Date: Sheet

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (883-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

ACIN, BATIN, DCIN, ADPOUT+

1

45 52Thursday, July 10, 2008

of

0.3

5

4

3

2

1

D D

IC

ACIN < VREF !!!

AC Adapter Detection, Vth = 1.25V

ADJ1 (Total Power) 85W(20V) ---> 68K / 20K 60W(20V) ---> 51K / 10K

C C

Current setting: 15V

ADJ1 < 3.5V !!!

System Current = (ADJ1(V) - 0.075) / ( 25 * Rcs )

Current setting: 60W(20V)

ADPOUT

ZENER RLZ24B 22.61-23.77V 5mA 500mW LLDS ROHM LR

CHGAGND

IC

MB39A132_REF

3 4

2 1

5

CHGVSET(43)

6

IMD2AT110 50V 30mA SC-74 ROHM LR

0.4V < ADJ2 < 4.4V !!!

Charge Current: = (ADJ2(V) - 0.075) / ( 25 * Rcs )

B B

Current setting: FCHG = 2.52A QCHG = 1.71A TCHG = 0.29A

Q49

G

R492 10KΩ 5% 0402 LR

CHGAGND CHGAGND

CHGAGND

DS

Q46 2N7002 SOT-23 PSI LR

CHGAGND

MB39A132_REF

G

R491 10KΩ 5% 0402 LR

R499 0Ω 5% 0603 LR

0.1uF 25V 10% 0603 X7R LR

40 mil (2 via)

C70

(2 via)

CHG_EN

MB39A132_VIN

MB39A132_REF

ADPIN#(43)

VREF = 5.0V

MB39A132_REF

R496 0Ω 5% 0402 LR

R58 0Ω 5% 0402 LR

R520 10KΩ 1% 1/16W SMT0402 LR

R523 18.2K 1% 1/16W 0402 LR

R521 14KΩ 1% 1/16W SMT0402 LR

R522 1KΩ 1% 1/16W SMT0402 LR

DS

Q45 2N7002 SOT-23 PSI LR

MB39A132_VIN

D34

R500 0Ω 5% 0402 LR

R508 100KΩ 1% 0402 LR R507

9.1KΩ 1% 0402 LR

R513 51KΩ 1% 0402 LR R512 10KΩ 1% 0402 LR

R38 0Ω 5% 0402 LR

20 mil (1 via)

1uF 6.3V 0402 X5R LR

R505

0 5% 0603

(2 via)

Battery Cells: 3 cells, CELLS = OPEN 4 cells, CELLS = VREF

Charge Voltage:

4.20V / Cell, ADJ3 = VREF

CHG_EN

D35

U2 MB39A132 27V 60mA QFN 32PIN FUJITSU LR

24

VIN

32

CTL2

4

ACIN

7

ADJ1

5

ACOK#

9

-INE1

10

OUTC1

11

OUTC2

21

VREF

C73

22

AGND

(2 via)

CHGAGND

25

CELLS

18

ADJ3

14

ADJ2

23

CTL1

R506

RB751V-40 0.2A SOD-323 PSI LR

10KΩ 5% 1/16W SMT0402 LR

TP

33

(4 via)

CHGAGND

+INC1

-INC1

OUT1

OUT2

PGND

+INC2

-INC2

BATT

-INE3

COMP3

COMP2

COMP1

VCC

VB

CB

LX

RT

CS

Charger

0.1uF 25V 0603 Y5V LR C72

3

2

C71

0.1uF 25V 0603 Y5V LR

R498 0Ω 5% 0402 LR

1

C590 1uF 6.3V 10% SMT0402 X5R LR

28

RB751V-40 0.2A SOD-323 PSI LR D33

R497

31

0Ω 0402 LR

30

29

27

26

12

13

17

6

16

15

8

20

19

HG_CHG

PH_CHG

LG_CHG

(2 via)

0.1uF 25V 0603 Y5V LR C592

C591

0.1uF 25V 0603 Y5V LR

R516 0Ω 5% 0402 LR

120pF 50V 5% 0402 NPO LR C74

1000pF 16V 10% 0402 X7R LR C93

1000pF 16V 10% 0402 X7R LR(NU) C91

10KΩ 1% 0402 LR R59

10KΩ 1% 0402 LR R45

R511 33KΩ 1% 0402 LR

C76

0.22uF 10V 10% SMT0603 X7R LR

CHGAGND

40 mil (2 via) 40 mil (2 via)

C589

0.22uF 10V 0603 X7R LR

40 mil (2 via)

CHGAGND

10 mil (1 via)

R39 1KΩ 1% 0402 LR

R60 22KΩ 1% 0402 LR

1000pF 16V 10% 0402 X7R LR C90

1000pF 16V 10% 0402 X7R LR C78

CS+_ADP

CS-_ADP

MB39A132_VIN

CS+_CHG

CS-_CHG

BAT+ (43,45)

CHGAGND

Frequency (KHz) = 17000 / RT (KΩ)

CHGAGND

Current setting: 515KHz

CHGAGND

8 mil (1 via)

Noise Sensitivity

IC

R20

200 mil (10 via)

HG_CHG

PH_CHG

LG_CHG

10mΩ 1% 3720 LR

CS+_ADP CS-_ADP

40 mil (2 via)

120 mil (6 via)

8 mil (1 via)

152

D

3

S

4

(6 via)

200 mil (10 via)

C585 10uF 25V 1206 X5R TDK LR

R495

2.2Ω 5% 0805 LR(NU)

40 mil (2 via)

R22

L8

INDUCTOR 4.7uH±20% 5.5A SMT7.3*6.6*3.0mm PCMC063T-4R7MN CYNTEC LR

50mΩ 2% 1W 3720 LR

CS+_CHG CS-_CHG

6 78

Q50

APM4906 30V 7A SO8 ANPEC LR

(4 via)

C588 470pF 50V 0402 X7R LR(NU)

(6 via)

8 mil (1 via)

Noise Sensitivity

C582

(2 via)

C581

10uF 25V 1206 X5R TDK LR

ADPOUTADPIN

MO-CAP 1000pF 16V 10% SMT0402 X7R LR(NU) C574

D3

120 mil (6 via)

P N

DIODE SCD34-LF 40V 3A SMD2010 SECOS LR

D6

P N

DIODE SCD34-LF 40V 3A SMD2010 SECOS LR

C37

1000pF 50V 10% SMT0402 X7R LR

PCCOUT

FCHGON1(43)

QCHGON1(43) ADPIN(45)

TRICHGON1(43)

A A

5

4

3

2

ADPIN

ADPOUT

ADPOUT(45)

PCCOUT

PCCOUT(45)

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

Charger Circuit

1

Confidential

46 52Thursday, July 10, 2008

0.3

5

hexainf@hotmail.com

4

3

2

1

PMU5V/3V, 5VDDA/S/M, 3VDDA/S/M

ADPOUT+

ADPOUT+(45)

PMU5V

PMU5V(31,43)

ADPOUT+

DCIN+5V

PMU5V

NP

R807

PMU3V

15V_LS

E C

5

(6 via)

C851

0.1uF 50V 0805 Y5V LR

20 mil (1 via)

R800 1KΩ 5% 0805 LR

20 mil (1 via)

C859 1000pF 50V 0402 X7R LR(NU)

(2 via)

200 mil (10 via)

C485

C487

470pF 50V 0402 X7R LR

(6 via)

Noise Sensitivity

200 mil (10 via)

R409

12KΩ 1% 1/10W SMT0603 LR

B

E C

Q68

200 mil (10 via)

20 mil (1 via)

D D

200 mil (10 via)

PMU5V

C C

B B

R741

PMU5V

100KΩ 5% 0402 LR

1SS355 80V 100mA SOD-323 2PIN PSI LR

D22

DCON(19,43)

LAN_DIS

D23

1SS355 80V 100mA SOD-323 2PIN PSI LR(NU)

A A

RT1N441M 50V 0.1A SC-70 IDC LR

3/25 modify

PMU5V

15V_LS

10KΩ 1% 1/10W SMT0603 LR

R806

PMU5V

100KΩ 5% 0402 LR

DCON(19,43)

RT1N441M 50V 0.1A SC-70 IDC LR

Q84

DCON#

B

R386 0Ω 5% 1/4W SMT1206 LR

160 mil (8 via)

D51 DIODE SWITCHING BAV99 75V 150mA SOT-23 3PIN PSI LR

0.1uF 50V 0805 Y5V LR

N NP

P

R797

2.2Ω 5% 0805 LR(NU)

40 mil (2 via) 40 mil (2 via)

INDUCTOR 4.7uH±20% 5.5A SMT7.3*6.6*3.0mm PCMC063T-4R7MN CYNTEC LR

DCR = 27mΩ(MAX)

L95

4.02KΩ 1% SMT0402 LR

+

220uF 6.3V 25mΩ 7343 SANYO LR

R774

1.65KΩ 1% SMT0402 LR

10uF 6.3V 0805 X5R TDK LR

3VDDA

Q73 AO4468L 30V 11.6A SO8 AOS LR

3

8

2

7

S

D

6 1 5

1uF 16V +80-20% SMT0603 Y5V TDK LR

4

20 mil (1 via)

DS

Q69

C839

2N7002 SOT-23 PSI LR

G

(2 via)

Q82 AO4468L 30V 11.6A SO8 AOS LR

3

8

2

7

S

D

6 1 5

1uF 16V +80-20% SMT0603 Y5V TDK LR

4

DS

C861

2N7002 SOT-23 PSI LR

G

(2 via)

DCIN_3V5V

C8324.7uF 25V 1206 X5R TDK LR

C8304.7uF 25V 1206 X5R TDK LR

C844470pF 50V 0402 X7R LR

C853

20 mil (1 via)

D

6

R775

7 8

RDS(ON)=19.6mΩ

4

(10 via)

Current setting: 5.08V(Vo)

LDO5V

C809

R822

10Ω 5% 1/8w SMT0805 LR

DS

G

200 mil (10 via)

G

100 mil (5 via)

Q72

152

AO4932 30V 9A SO-8 AOS LR

3

S

40 mil (2 via)

8 mil (1 via) 8 mil (1 via)

8 mil (1 via)

AGND_3V5V

REF_MAX8744

AGND_3V5V

200 mil (10 via)

Q88 2N7002 SOT-23 PSI LR

R823

10Ω 5% 1/8w SMT0805 LR

DS

Q89 2N7002 SOT-23 PSI LR

IC

HG_5V

PH_5V

LG_5V

CS+_5V CS-_5V

R732

10.5KΩ 1% 1/16W SMT0402 LR

R731

10KΩ 1% 1/16W SMT0402 LR

40 mil (2 via)

C816

0.22uF 10V 0603 X7R LR

0.1uF 16V ±10% SMD0603 X7R LR

R773 15.4KΩ 1% 0402 LR R772 10KΩ 1% 0402 LR

40 mil (2 via)

ILIM_MAX8744

REF_MAX8744

IC

VREF(MAX8744) = 2.0V DCR Current Sense 5VDDA OCP = 7.63A(20V), 7.99A(9V) 3VDDA OCP = 7.86A(20V), 8.02A(9V)

3VDDA

PMU3V

15V_LS

12KΩ 1% 1/10W SMT0603 LR

5VDDA

4

C805

0.1uF 25V 0603 Y5V LR

32 31

15

16

17

18

C831

12 13

11

VFB = 2V

20

C813

0.1uF 10V 0402 X5R LR

AGND_3V5V

200 mil (10 via)

R794

SUSTAT_B

PMU5V

15V_LS

10KΩ 1% 1/10W SMT0603 LRQ85

PMU5V

PM_SLP_S3#(17,19,34,43,48,49,50)

RT1N441M 50V 0.1A SC-70 IDC LR

SUSTAT_B

All Trace => 8mil

R378 1KΩ 5% 0402 LR

U41

MAX8744ETJ+ QFN32 LR

4

SHDN

2

DRVA OUTA FBA

BST5

DH5

LX5

DL5

CSH5 CSL5

FB5

LDO5

3

ILIM

9

FSEL

7

REF

8

AGND

(4 via)

3VDDM

Q71

AO4468L 30V 11.6A SO8 AOS LR

8 7

D

6 1 5

20 mil (1 via)

DS

Q81

2N7002 SOT-23 PSI LR

G

R408

R789 100KΩ 5% 0402 LR

Q26

TP

33

AGND_3V5V

S

1uF 16V +80-20% SMT0603 Y5V TDK LR

4

(2 via)

200 mil (10 via)

SUSTAT_B

B

21

VIN

19

PGND

26

BST3

C800

0.22uF 10V 0603 X7R LR

25

DH3

24

LX3

23

DL3

0.22uF 10V 10% SMT0603 X7R LR

29

CSH3

28

CSL3

30

FB3

VFB = 2V

10

SKIP

5

ON3

6

ON5

1

ONA

14

POK5

27

POK3

22

POKA

3

10Ω 5% 1/8w SMT0805 LR

2

C486

DS

G

20 mil (1 via)

G

E C

R385 0 5% 0603

0.22uF 25V 0603 X5R LR C463

R382 0 5% 0603

(2 via)

R722 6.8KΩ 1% 0402 LR R721 10KΩ 1% 0402 LR

SKIP_MAX8744

EN3_MAX8744 EN5_MAX8744

R725 100KΩ 5% 0402 LR

R793

Q80 2N7002 SOT-23 PSI LR

5VDDM

Q27 AO4468L 30V 11.6A SO8 AOS LR

8 7 6 1 5

DS

Q70

2N7002 SOT-23 PSI LR

3

AGND_3V5V

40 mil (2 via)

C787

R770 1KΩ 5% 0402 LR

R777

4.7KΩ 5% 0402 LR

200 mil (10 via)

C873 MO-CAP 1000pF 16V 10% SMT0402 X7R LR

EMI 5/27

10Ω 5% 1/8w SMT0805 LR

3 2

S

D

1uF 16V +80-20% SMT0603 Y5V C1608Y5V1C105Z TDK LR

4

C484

G

(2 via)

ADPOUT+

IC

40 mil (2 via)

HG_3V

40 mil (2 via)

PH_3V

40 mil (2 via)

LG_3V

8 mil (1 via)

CS+_3V

8 mil (1 via)

CS-_3V

8 mil (1 via)

Current setting: 3.36V(Vo)

AGND_3V5V

R743 RES 20KΩ 5% 1/16W SMT0402 LR

REF_MAX8744

R771 RES 20KΩ 5% 1/16W SMT0402 LR(NU)

R769 10KΩ 5% 0402 LR

C812

0.22uF 10V 0603 X7R LR

R788

DS

Q74 2N7002 SOT-23 PSI LR

R776

C808

4.7KΩ 5% 0402 LR

0.22uF 10V 0603 X7R LR

200 mil (10 via)

C874 MO-CAP 1000pF 16V 10% SMT0402 X7R LR

EMI 5/27

C473 4.7uF 25V 1206 X5R TDK LR

C477 4.7uF 25V 1206 X5R TDK LR

80 mil (4 via)

Q67 AO4932 30V 9A SO-8 AOS LR

R724

2.2Ω 5% 0805 LR

40 mil (2 via)

152

D

6 78 RDS(ON)=19.6mΩ

3

S

4

(10 via)

D50 BAW56 75V 0.15A SOT-23 PSI LR(NU)

D49 BAW56 75V 0.15A SOT-23 PSI LR

5VDDM

C782 1000pF 50V 0402 X7R LR

DCR = 27mΩ(MAX)

L93

7.0uH 4.8A 10*10*3.8 DELTA LR

R718

2.43KΩ 1% SMT0402 LR

R719

2.32KΩ 1% SMT0402 LR

DCON (19,43)

LDO5V3VDDM

LG_3V

2

200 mil (10 via)

0.47uF 16V 0603 Y5V LR

C475

+

Noise Sensitivity

C783

20 mil (1

via)

C797

(6 via)

(2 via)

200 mil (10 via)

PMU3V

C802

220uF 6.3V 25mΩ 7343 SANYO LR

470pF 50V 0402 X7R LR

(6 via)

10V_Load Switch

D45 DIODE SWITCHING BAV99 75V 150mA SOT-23 3PIN PSI LR

20 mil (1 via)

P

NNP

D46 DIODE SWITCHING BAV99 75V 150mA SOT-23 3PIN PSI LR

20 mil (1 via)

P

NNP

(1 via)

PMU5V

0.47uF 16V 0603 Y5V LR C785

20 mil (1 via)

C459

0.47uF 16V 0603 Y5V LR

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

C

3/5VDDA/S/M, PMU3/5V, 1.5VDDA

Date: Sheet of

(1 via)

15V_LS

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

1

PMU3V(16,43,45)

DCIN(27,45,48,49,50,51)

5VDDA(18,31,33,41,48)

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,38,40,41,43,45,48,49)

DCIN+5V(45)

15V_LS(48)

5VDDM(5,18,28,29,30,32,38,39,49,50,51)

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,49,50,51)

Confidential

47 52Thursday, July 10, 2008

PMU3V

DCIN

5VDDA

3VDDA

DCIN+5V

15V_LS

5VDDM

3VDDM

0.3

5

4

3

2

1

1.8VDDS/M, 0.9VDDT_DDRII

D D

Q37 TRANS M-FET-P APM2301AAC-TRL -20V -3A SOT23 3PIN ANPEC LR

40mil 40mil

5VDDA 5VDDS

100KΩ 5% 1/16W SMT0402 LR

C C

R465

PM_SLP_S4#(17,34,35,43)

B

DS

G

Q38 TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

E C

Force PWM, EN_PSV = 5V, 3.3V Skip, EN_PSV = Open

Valley Current Limit = R_trip * 10uA / MOSFET_RDS(ON)

Current setting: 11.98A(OCP)

IC

MO-CAP 1uF 6.3V 10% SMT 0603 X5R C1608X5R0J105K TDK LR

PM_SLP_S4#(17,34,35,43)

AGND_DDR

40mil

5VDDS

(2 via)

MO-CAP 1uF 6.3V 10% SMT 0603 X5R C1608X5R0J105K TDK LR

5VDDS

(2 via)

DDRII_PWRGD(19)

3VDDA

C30

40mil

C560 0.1uF 10V 0402 X5R LR(NU)

R479 0Ω 5% 0402 LR

R473 20KΩ 1% 1/16W SMT0402 LR

R477 300Ω 5% 0402 LR

R463 SPWR 0 5% 0603

R464 10KΩ 5% 0402 LR

VCC_TPS51117

C554

(4 via)

1.8VDDS

U24

TPS51117 TSSOP-14 TI LR

10

V5DRV

4

V5FILT

7

GND

AGND_DDR

1

EN_PSV

11

TRIP

TP

15

AGND_DDR

TON

DRVH

VBST

LL

DRVL

PGND

VOUT

VFBPGOOD

IC

R480

2

301KΩ 1% 1/16W SMT0402 LR

40 mil (2 via)

13

R478 0Ω 0402 LR

14

12

9

8

(2 via)

3

R471 68KΩ 1% 0402 LR

56

RES 47KΩ 1% 1/16W SMT 0402 LR R469

80 mil (4 via)

DCIN

HG_DDR

C558

0.22uF 10V 0603 X7R LR

PH_DDR

LG_DDR

R472 0Ω 5% 0402 LR

Current setting: 1.835V(Vo)

AGND_DDR

8 mil (1 via)

40 mil (2 via)

40 mil (1 via)

8 mil (1 via)

DCIN_DDR

C565 4.7uF 25V 1206 X5R TDK LR

C564 4.7uF 25V 1206 X5R TDK LR

C563 4.7uF 25V 1206 X5R TDK LR

80 mil (4

via)

C562 0.1uF 25V 0603 Y5V LR

61

5

7

D

4

S

2

61

5

7

D

4

S

2

(16 via)

(9 via)

Q43 AO4468L 30V 11.6A SO8 AOS LR

8

3

Q42

8

AO4468L 30V 11.6A SO8 AOS LR

RDS(ON)=22mΩ

3

R470

2.2Ω 5% 0805 LR

40 mil (2 via)

D31 SS14 40V 1A SMA PSI LR

C548 1000pF 50V 0402 X7R LR

DCR = 8.1mΩ(MAX)

L61 INDUCTOR 2.2uH 20% 8A SMT7.4*6.5*3mm MMD-06CZ-2R2M-V1 MAG.LAYERS LR

Noise Sensitivity

(2 via)

320 mil (16 via) 320 mil (16 via)

C36

C32

220uF 2V 15mΩ 7343 PANA LR(NU)

220uF 2V 15mΩ 7343 PANA LR

+

via)(6via)

(6

C566

0.1uF 10V 10% SMT0402 X5R LR

3/28 EMI

1.8VDDS

B B

C561

1uF 6.3V 0402 X5R LR

(1 via)

20mil (1 via)

5VDDS

1.8VDDS 120mil (6 via)

(4 via)

C552

10uF 6.3V 0603 X5R TAIYO LR

PM_SLP_S3#(17,19,34,43,47,49,50)

A A

5

0.9VDDT_DDRII 1.8VDDM

200 mil (10 via)

DCIN

5VDDA

3VDDA

1.8VDDS

0.9VDDT_DDRII

M_VREF

15V_LS

1.8VDDM

VDD_CORE

1.1VDDM

1.8VDDS

15V_LS

5VDDS

10KΩ 5% 1/10W SMT0603 LR(NU)

PM_SLP_S3#(17,19,34,43,47,49,50)

VDD_CORE

15 mil (1 via)

10KΩ 5% 1/10W SMT0603 LR

R62

10 mil (1 via)

10KΩ 5% 0402 LR

R824

R63

4.7KΩ 5% 0402 LR

C92

0.1uF 10V 0402 X5R LR(NU)

R67

B

120mil (6 via)

(4 via)

8

VTT

7

VTT_IN

6

VCC

5

VDDQ

U25 G2998 SO8 GMT LR

R486 0Ω 5% 0402 LR(NU)

R487 0Ω 5% 0402 LR

0.9VDDT_DDRII

10mil (1 via)

C576

C572

10uF 6.3V 0603 X5R TAIYO LR

9

1

GND

TP

2

EN

3

VTTS

4

VREF

4

10uF 6.3V 0603 X5R TAIYO LR

10mil (1 via)

R481 0Ω 5% 0402 LR

C559

0.1uF 10V 0402 X5R LR

(6 via)

M_VREF

DCIN(27,45,49,50,51)

5VDDA(18,31,33,41,47)

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,38,40,41,43,45,47,49)

1.8VDDS(7,9,10,13,14)

0.9VDDT_DDRII(13,14)

M_VREF(7,13,14)

15V_LS(47)

1.8VDDM(22,23,24,25,26)

VDD_CORE(23,25,50)

1.1VDDM(22,23,25,49)

3

Q9 AO4456 30V 20A SO8 AOS LR

DS

G

Q6 3904 40V 0.2A SOT-23 PSI LR

E C

8 7

D

6 1 5

4

Q8

2N7002 60V 115mA SOT-23 PSI LR

(2 via)

2

3 2

S

C99 1uF 16V 0603 Y5V TDK LR

200 mil (10 via)

12

C117

+

T220uF 2.5V ±20% 35mΩ SMT3528 LOW ESR T520B227M2R5ATE035 KEMET LR

(6 via)

G

1.8VDDM

R75

10Ω 5% 1/8w SMT0805 LR

DS

Q12 2N7002 SOT-23 PSI LR

(2 via)

Title

Size Document Number Rev

C

Date: Sheet of

R260 10KΩ 5% 0402 LR

5VDDS

R274

1.1VDDM

4.7KΩ 5% 0402 LR

C370

0.1uF 10V 0402 X5R LR(NU)

B

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (883-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

1.8VDDS/M, 0.9VDDT_DDRII

1

VDDR3_EN (25)

Q19 3904 40V 0.2A SOT-23 PSI LR

E C

Confidential

48 52Thursday, July 10, 2008

0.3

5

hexainf@hotmail.com

4

3

2

1

1.5VDDM / 1.05VDDM / 1.1VDDM

1uF 50V 80-20% SMT0805 Y5V 0805F105Z500CT WALSIN LR C368

D D

IC

R695

40 mil (2 via) 40 mil (2 via)

5VDDM

MO-CAP 1uF 10V 10% SMT0603 X5R LR

IC

AGND_1.5V

REF_MAX8717

VREF(MAX8717) = 2V DCR Current Sense Current setting: CH1=9.67A (OCP) CH2=15.10A (OCP)

C C

check leakage

B B

A A

5

REF_MAX8717

AGND_1.5V

REF_MAX8717

AGND_1.5V

3VDDM

1.5VDDM_PWRGD(19)

1.05VDDM_PWRGD(19)

PM_SLP_S3#(17,19,34,43,47,48,50)

10KΩ 1% 1/16W SMT0402 LR

(4 via)

1.5VDDM 5VDDM

(2 via)

5VDDM

R303 RES 47KΩ 5% 1/16W SMT 0402 LR

PG_1.1VDDM

5VDDM

R306

RES 47KΩ 5% 1/16W SMT 0402 LR

RT2N05M 0.1A SOT-353 IDC LR

20Ω 1% 0402 LR

C771

C7690.22uF 6.3V 0402 X5R LR

REF_MAX8717

20 mil (1 via)

R693 0Ω 0402 LR

R689 0Ω 0402 LR

R707 120KΩ 1% 0402 LR

R706 82KΩ 1% 0402 LR

R674 51KΩ 1% 0402 LR R673

34.8KΩ 1% 1/16W SMT0402 LR

R705 100KΩ 5% 0402 LR

R672 100KΩ 5% 0402 LR

R686 10KΩ 1% 1/16W SMT0402 LR

R683

C405 10uF 6.3V 0805 X5R TDK LR

120 mil (4 via)

40 mil (2 via)

C389 1uF 6.3V 0402 X5R LR

1

3

Q22

2

3VDDA

U37

53

4

1

2

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR

1

19

(2 via)

3

5

2

4

28

8

27

9

6

7

C764

C766

0.1uF 10V 0402 X5R LR

AGND_1.5V

1.1VDDM

6 7 8

1.5VDDM

5

4

U38 MAX8717 QFN28 MAXIM LR

VCC

AGND

REF

FSEL

SKIP1

SKIP2

ILIM1

ILIM2

PGOOD1

PGOOD2

ON1

ON2

U10 APL5912 5A SO8 ANPEC LR

VCNTL POK EN

VDD

PGND

BST1

DH1

LX1

DL1

CSH1 CSL1

FB1

BST2

DH2

LX2

DL2

CSH2 CSL2

FB2

TP

29

(4 via)

45

VOUTVIN

3

VOUT

2

FB

1

GND

TP

9

VGA_PG (50)

PM_SLP_S3# (17,19,34,43,47,48,50)

4

(2 via)

160 mil (8 via) 160 mil (8 via)

DCIN

17

C768

MO-CAP 1uF 10V 10% SMT0603 X5R LR

18

R337

(4 via)

0Ω 0603

0Ω 0402 LR R702

23

22

21

20

C776

24

0.1uF 16V 0402 X5R LR

25

Current setting: 1.517V(Vo)

R703

26

VFB = 1V

3KΩ 1% 0402 LR R704

5.6KΩ 1% 0402 LR

0Ω 0402 LR R675

13

14

15

16

C757

12

0.1uF 16V 0402 X5R LR

11

Current setting: 1.056V(Vo)

R670

10

VFB = 1V

560Ω 1% 0402 LR R671 10KΩ 1% 0402 LR

for Discrete VGA

120 mil (4 via)

33pF 50V 0402 NPO LR C397

R301 39KΩ 1% 0402 LR

R309 100KΩ 1% 0402 LR

Current setting: 1.112V(Vo)

5VDDM

(2 via)

AGND_1.5VAGND_1.5V

RB751V-40 0.2A SOD-323 PSI LR D44

RB751V-40 0.2A SOD-323 PSI LR D42

40 mil (2 via)

0.22uF 10V 0603 X7R LR C770

R715 200Ω 1% 0402 LR

40 mil (2 via)

0.22uF 10V 0603 X7R LR C762

R668 0Ω 0402 LR

C395

C394

10uF 6.3V 0805 X5R TDK LR

via)(3via)

5VDDM

(3

DCIN_1.5V

IC

HG_1.5V

40 mil (2 via)

PH_1.5V

40 mil (2 via)

LG_1.5V

8 mil (1 via)

CS+_1.5V

8 mil (1 via)

CS-_1.5V

8 mil (1 via)

VS_1.5V

AGND_1.5V

IC

40 mil (2 via)

HG_1.05V

PH_1.05V

40 mil (2 via)

LG_1.05V

40 mil (2 via)

CS+_1.05V

8 mil (1 via) 8 mil (1 via)

CS-_1.05V

8 mil (1 via)

VS_1.05V

AGND_1.5V

1.1VDDM

C383

0.1uF 10V 10% SMT0402 X5R LR

3/28 EMI

3

HG_1.5V

PH_1.5V

LG_1.5V

HG_1.05V

PH_1.05V

LG_1.05V

40 mil (2 via)

DCIN_1.5V

1.5VDDM

60 mil (3 via)

C775 4.7uF 25V 1206 X5R TDK LR

C774 4.7uF 25V 1206 X5R TDK LR

C773 0.1uF 25V 0603 Y5V LR

Q64 AO4932 30V 9A SO-8 AOS LR

R713

2.2Ω 5% 0805 LR

40 mil (2 via)

152

D

RES 5.1KΩ 1% 1/16W SMT0402 LR

6 78 RDS(ON)=19.6mΩ

3

S

4

12KΩ 1% 1/16W SMT0402 LR

(12 via)

8 mil (1 via)

CS+_1.5V

8 mil (1 via)

CS-_1.5V

8 mil (1 via)

VS_1.5V

1.05VDDM

120 mil (6 via)

C398 4.7uF 25V 1206 X5R TDK LR

C399 4.7uF 25V 1206 X5R TDK LR

C400 4.7uF 25V 1206 X5R TDK LR

Q21 AO4468 30V 11.6A SO8 AOS LR

61

5

7

8

R658

2.2Ω 5% 0805 LR

D

4

S

2

3

61

5

7

8

Q61

D40

AO4456 30V 20A SO8 AOS LR

RDS(ON)=5.6mΩ

D

S

2

3

CS+_1.05V CS-_1.05V

VS_1.05V

SS14 40V 1A SMA PSI LR

8 mil (1 via) 8 mil (1 via)

8 mil (1 via)

2

4

(28 via)

(6 via)

C781 1000pF 50V 0402 X7R LR

DCR = 10mΩ(MAX)

L86

4.7uH±30% 5.7A 13mΩ SMT10*10.1*3.8mm SIL104R-4R7PF DELTA LR

R710

R709

L48

INDUCTOR 1uH 20% 12.5A SMT7.3(Max)*6.5*3mm(Max) MMD-0603D-1R0M MAG.LAYERS LR

RES 2KΩ 1% 1/16W SMT 0402 LR

R276

R277

RES 2KΩ 1% 1/16W SMT 0402 LR

(2 via)

P-CAP 220uF 6.3V 20% SMTφ6.3 H=5.7mm ESR=13mΩ PXC6.3VC220MF60 NCC LR

C753

+

C742 1000pF 50V 0402 X7R LR

DCR =10mΩ(MAX)40 mil (2 via)

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,38,40,41,43,45,47,48)

DCIN(27,45,48,50,51)

5VDDM(5,18,28,29,30,32,38,39,47,50,51)

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,50,51)

1.5VDDM(4,9,10,15,16,18,34,40,41)

1.05VDDM(3,4,6,7,9,10,12,15,16,18)

1.1VDDM(22,23,25,48)

C750

220uF 2V 15mΩ 7343 PANA LR(NU)

+

(2 via)

C384

220uF 2V 15mΩ 7343 PANA LR

+

Noise Sensitivity

3VDDA

DCIN

5VDDM

3VDDM

1.5VDDM

1.05VDDM

1.1VDDM

240 mil (12 via)

C772

0.1uF 10V 0402 X5R LR

(12 via)

Noise Sensitivity

(6 via)

C366

0.1uF 10V 0402 X5R LR

(12 via)

Title

Size Document Number Rev

Date: Sheet

1.5VDDM

560 mil (28 via)

1.05VDDM

C372

220uF 2V 15mΩ 7343 PANA LR

+

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (883-2)8751-8751

Penryn+Candiga GM/PM95+ICH9M

C

1.5VDDM, 1.05VDDM, 1.1VDDM

1

Confidential

49 52Thursday, July 10, 2008

of

0.3

5

4

3

2

1

VGA Core (Cantiga VGA, ATI M82-S)

D D

IC

27

VCC

9

PWRGD

15

D4

14

D3

13

D2

12

D1

11

D0

10

SHDN

16

STDBY

6

DPRSLPVR

28

CCV

25

TIME

26

ILIM

23

GND

29

EP

7

THRM

24

VRHOT

1

POUT

U12 MAX8797 TQFN28 MAXIM LR

40 mil (2 via)40 mil (2 via)

C428 1uF 6.3V 0402 X5R LR

19

VDD

RTON

BST

LX

DH

DL

PGND

CSP

CSN

FBS

GNDS

(2 via)

R347

8

200KΩ 1% 0402 LR

0Ω 0402 LR R331

20

21

22

18

17

(2 via)

5

C429

0.1uF 16V 0402 X5R LR

4

R333 0Ω 5% 0402 LR

3

Load line setting: Cantiga VGA = 11.75KΩ Discrete VGA = 0Ω

Current setting: Discrete VGA

2

5VDDM

10 mil (1 via)

40 mil (2 via)

0.22uF 10V 0603 X7R LR C420

IC

R332 0Ω 5% 0402 LR

DCIN_VGA

PH_VGA

HG_VGA

LG_VGA

CS+_VGA

CS-_VGA

4700pF 25V 0402 X7R LR C421

R327 10Ω 1% 0402 LR

R328 10Ω 1% 0402 LR

C422 4700pF 25V 0402 X7R LR

(2 via)

EN_MAX8797

R317

VCC_MAX8797

C410 1uF 6.3V 0402 X5R LR

D4

D3

D2

D1

D0

AGND_GPU

RES 10Ω 5% 1/16W SMT0402 LR

5VDDM

AGND_GPU

3VDDM

VGA_PG(49)

DFGT_VID_4(7)

DFGT_VID_3(7)

C C

EN_MAX8797(23)

ALL_SYS_PWRGD(19,43)

IC

GFX_SLEWRATE=10mV/us

B B

DFGT_VID_2(7)

DFGT_VID_1(7)

DFGT_VID_0(7)

0Ω 5% 1/16W SMT0402 LR(NU)

DFGT_VR_EN(7)

PM_SLP_S3#(17,19,34,43,47,48,49)

PM_DPRSLPVR(7,17,51)

AGND_GPU

VCC_MAX8797

VT_MAX8797

R353 10KΩ 5% 0402 LR

R344 0Ω 5% 0402 LR(NU)

R357 0Ω 5% 0402 LR(NU)

R356 0Ω 5% 0402 LR(NU)

R355 0Ω 5% 0402 LR(NU)

R354 0Ω 5% 0402 LR(NU)

0.1uF 10V 0402 X5R LR(NU)

R698

3VDDM

EN_MAX8797

R678

86.6KΩ 1% 0402 LR

R681 0Ω 5% 0402 LR R680 0Ω 5% 0402 LR(NU)

C437

R697

4.7KΩ 5% 0402 LR R699

4.7KΩ 5% 0402 LR(NU) R700

4.7KΩ 5% 0402 LR(NU)

R696 0Ω 5% 0402 LR

R339 499Ω 1% 1/16W SMT0402 LR

C409 100pF 50V 0402 NPO LR

VT_MAX8797

(2 via) (4 via)

VCC_MAX8797

R343 SHW 0Ω 5% 0402

R679

2.74KΩ 1% 0402 LR

R687 0Ω 0603

80 mil (4 via) 80 mil (4 via)

DCIN

IC

40 mil (2 via)

8 mil (1 via)

AGND_GPU

DCIN_VGA

HG_VGA

PH_VGA

LG_VGA

Current setting: Discrete VGA voltage sense

R318 10Ω 1% 0402 LR

R319 10Ω 1% 0402 LR

R324 0Ω 5% 0402 LR(NU)

R325 0Ω 5% 0402 LR(NU)

8 mil (1 via)

40 mil (2 via)

80 mil (4 via)

DCIN_VGA

4

Local voltage sense

VS_VGA

Cantiga VGA voltage sense

VCC_AXG_SENSE (9)

VSS_AXG_SENSE (9)

Noise Sensitivity

C760 4.7uF 25V 1206 X5R TDK LR

C759 4.7uF 25V 1206 X5R TDK LR

C758 4.7uF 25V 1206 X5R TDK LR

C741 0.1uF 25V 0603 Y5V LR

Q62 AOL1426 30V 46A USO8 AOS LR

R677

567

8

2.2Ω 5% 0805 LR

D

S

40 mil (2 via)

152

3

Q63

61

5

7

8

D43

AO4456 30V 20A SO8 AOS LR

RDS(ON)=5.6mΩ

SS14 40V 1A SMA PSI LR

D

S

2

3

(24 via)

8 mil (1 via)

CS+_VGA

8 mi (1 via)

CS-_VGA

8 mil (1 via)

VS_VGA

(9 via)

C765 1000pF 50V 0402 X7R LR

L85

INDUCTOR 1uH 20% 12.5A SMT7.3(Max)*6.5*3mm(Max) MMD-0603D-1R0M MAG.LAYERS LR

1 2

R311 10KΩ 1% 0402 LR

R310

1.1KΩ 1% 0402 LR

(2 via)

DCR = 10mΩ(MAX)

R308 0Ω 5% 0402 LR

480 mil (24 via) 480 mil (24 via)

C749

C748

C746

0.1uF 10V 0402 X5R LR

(12 via)

R660 1mΩ 5% 7520 LR(NU)

220uF 2V 9mΩ 7343 PANA LR

+

Noise Sensitivity

220uF 2V 9mΩ 7343 PANA LR

+

for ATI

350 mil (18 via)

Dicrete VGA

VDD_CORE

Cantiga VGA

VGA_VDD

POW_SW

0 1.00425V 1 1

R340 RES 47KΩ 5% 1/16W SMT 0402 LR

PM_SLP_S3#(17,19,34,43,47,48,49)

A A

R341

3VDDM

POW_SW(23)

10KΩ 5% 0402 LR(NU) R839 0Ω 5% 1/16W SMT0402 LR(NU)

5

1

3

R352 RES 47KΩ 5% 1/16W SMT 0402 LR R364 RES 47KΩ 5% 1/16W SMT 0402 LR(NU)

R351 RES 47KΩ 5% 1/16W SMT 0402 LR R363 RES 47KΩ 5% 1/16W SMT 0402 LR(NU)

R350 RES 47KΩ 5% 1/16W SMT 0402 LR R362 RES 47KΩ 5% 1/16W SMT 0402 LR(NU)

R349 RES 47KΩ 5% 1/16W SMT 0402 LR R361 RES 47KΩ 5% 1/16W SMT 0402 LR(NU)

0Ω 5% 1/16W SMT0402 LR R838

5

4

Q23 NPN UMG2NTR 50V 30mA UMT5(SC-88A) 5PIN ROHM LR

2

D4

D3

D2

D1

D0

D3

D2

4

Current setting: ATI M82-S(Vo)

D4

Voltage

1.10725V

Voltage

1.05575V

Current setting: Cantiga-VGA(Vo)

*R351->NU,R363->STUFF *R350->NU,R362->STUFF

D1D3 1 1

0

1

0

D1

D20D3D2D0

D4 0

1

0

D0

1

VDD_CORE

VDD_CORE(23,25,48)

VGA_VDD

VGA_VDD(9)

3

2

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,51)

5VDDM

5VDDM(5,18,28,29,30,32,38,39,47,49,51)

DCIN(27,45,48,49,51)

3VDDA(5,12,15,16,17,18,19,21,27,30,34,35,38,40,41,43,45,47,48,49)

Title

DCIN

Size Document Number Rev

3VDDA

C

Date: Sheet of

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (883-2)8751-8751

Confidential

Penryn+Candiga GM/PM95+ICH9M

VDD CORE

1

50 52Thursday, July 10, 2008

0.3

5

hexainf@hotmail.com

4

3

2

1

DCIN

D D

200 mil (10 via)200 mil (10 via)

40 mil (2 via)

CPU Core Power

(2 via)

IC

R154

SGND_CPU

(4 via)

MAX8770VCC

C159

18

GND

2

PWRGD

1

CLKEN

31

D0

32

D1

33

D2

34

D3

35

D4

36

D5

37

D6

3

PSI

38

SHDN

40

DPRSTP

39

DPRSLPVR

9

CCV

7

TIME

11

REF

6

THRM

5

VRHOT

4

POUT

41

EP

U5 MAX8770 QFN40 MAXIM LR

C133

2.2uF 10V 0603 X5R TDK LR

19

25

TON

VCC

VDD

BST1

DH1

LX1

DL1

PGND1

CCI

GNDS

CSP1 CSN1

CSP2 CSN2

BST2

DH2

LX2

DL2

PGND2

R121 200KΩ 1% 0402 LR

R106

8

0Ω 0402 LR

30

29

28

26

27

(2 via)

R140

12

FB

RES 3KΩ 1% 1/16W SMT0402 LR

C149 470pF 50V 0402 X7R LR

10

13

17 16

MO-CAP 0.1uF 16V 10% SMT0402 X5R LR

14 15

MO-CAP 0.1uF 16V 10% SMT0402 X5R LR

R131 0Ω 0402 LR

20

21

22

24

23

(2 via)

40 mil (2 via)

C164

C163

40 mil (2 via)

10 mil (1 via)

C121

0.22uF 10V 0603 X7R LR

1000pF 16V 0402 X7R LR C177

R160 100Ω 1% 0402 LR

R130 20KΩ 1% 0402 LR

1000pF 16V 0402 X7R LR C162

R581 100Ω 1% 0402 LR

CS1+_CPU CS1-_CPU

CS2+_CPU CS2-_CPU

C152

0.22uF 10V 0603 X7R LR

IC

DCIN_CPU

HG1_CPU

PH1_CPU

LG1_CPU

8 mil (1 via) 8 mil (1 via)

HG2_CPU

PH2_CPU

LG2_CPU

5VDDM 5VDDM

RES 10Ω 5% 1/16W SMT0402 LR

2.2uF 10V 0603 X5R TDK LR

RES 2KΩ 5% 1/16W SMT0402 LR

3VDDM

DELAY_VR_PWRGOOD(7,19)

VR_PWRGD_CLKEN#(17)

SGND_CPU

POWER_MONITER(43)

H_VID0(4) H_VID1(4) H_VID2(4) H_VID3(4) H_VID4(4) H_VID5(4) H_VID6(4)

PSI#(3)

IMVP_VRON(19,43)

H_DPRSTP#(3,7,16)

C C

B B

R93 R82 10KΩ 5% 0402 LR

R94 0 5% 0402

R95 0 5% 0402

R100 0 5% 0402 R87 0 5% 0402 R99 0 5% 0402 R86 0 5% 0402 R98 0 5% 0402 R85 0 5% 0402 R97 0 5% 0402

R103 0 5% 0402

R84 0 5% 0402

R83 0 5% 0402

R96 499Ω 1% 1/16W SMT0402 LR

C141 470pF 50V 0402 X7R LR

R118 75KΩ 1% 0402 LR

C161

0.22uF 6.3V 0402 X5R LR

MAX8770VCC

R112 0 5% 0402

R105 10KΩ 5% 0402 LR

C118

0.1uF 10V 0402 X5R LR

(2 via)

R577 0 5% 0603

SGND_CPU

DCIN_CPU

CN23

1

2

near CPU input capacitor.

CON ACES 85204-02001 WIRE DIP 2PIN P=1.25 LR

20-20294-20

DCIN_CPU

(12 via)

IC

40 mil (2 via)

60 mil (2 via)

SGND_CPU

40 mil (2 via)

60 mil (2 via)

R161 10Ω 1% 0402 LR

R582 10Ω 1% 0402 LR

Noise Sensitivity

DCIN_CPU VCORE_CPU

(12 via)

Noise Sensitivity

near CPU socket

VCORE_CPU

VCCSENSE (4) VSSSENSE (4)PM_DPRSLPVR(7,17,50)

200 mil (10 via)

HG1_CPU

PH1_CPU

LG1_CPU

18mil 7mil 18mil

HG2_CPU

PH2_CPU

LG2_CPU

C1004.7uF 25V 1206 X5R TDK LR

C1044.7uF 25V 1206 X5R TDK LR

C1054.7uF 25V 1206 X5R TDK LR

C1014.7uF 25V 1206 X5R TDK LR

C970.1uF 25V 0603 Y5V LR

40 mil (2 via)

60 mil (2 via)

C1114.7uF 25V 1206 X5R TDK LR

C1074.7uF 25V 1206 X5R TDK LR

C1124.7uF 25V 1206 X5R TDK LR

C1084.7uF 25V 1206 X5R TDK LR

40 mil (2 via)

60 mil (2 via)

Q10 AOL1426 30V 46A Ultra SO-8 AOS LR

8

3

7

2

S

D

6

1

5

4

Q11 AOL1426 30V 46A Ultra SO-8 AOS LR

8

3

7

2

S

D

6

1

5

4

R552

2.2Ω 5% 0805 LR

40 mil (2 via)

61

5

7

8

61

5

7

8

Q57

AO4456 30V 20A SO8 AOS LR

D

4

S

2

3

(40 via)

61

5

7

8

Q58

AO4456 30V 20A SO8 AOS LR

D

4

S

2

3

(40 via)

D14

Q55

AO4456 30V 20A SO8 AOS LR

D

S

2

3

Noise Sensitivity

R570

2.2Ω 5% 0805 LR

40 mil (2 via)

61

5

7

8

Q56

D15

AO4456 30V 20A SO8 AOS LR

D

S

2

3

C614 1000pF 50V 0402 X7R LR

L69

INDUCTOR 0.36uH ±20% 24A SMT11.5*10*4mm(Max) MMD-1004C-R36M MAG.LAYERS LR

R554

SS34A 40V 3A SMA PSI LR

4.7KΩ 1% 1/10W SMT0603 LR

R557

10KΩ 1% 1/10W SMT0603 LR

CS1+_CPU CS1-_CPU

C626 1000pF 50V 0402 X7R LR

L68

INDUCTOR 0.36uH ±20% 24A SMT11.5*10*4mm(Max) MMD-1004C-R36M MAG.LAYERS LR

R553

SS34A 40V 3A SMA PSI LR

4.7KΩ 1% 1/10W SMT0603 LR

R556

10KΩ 1% 1/10W SMT0603 LR

DCR = 1.1mΩ±5%

R560

8 mil (1 via)

DCR = 1.1mΩ±5%

R559

8 mil (1 via)

(2 via)

THERMO-RES 10KΩ 5% B25/50=4250K±2% B25/85=4300K SMT0603 PAN LR

(2 via)

THERMO-RES 10KΩ 5% B25/50=4250K±2% B25/85=4300K SMT0603 PAN LR

800 mil (40 via)

C313

+

P-CAP 220uF 2V 20% ESR=9mΩ SMT7343 H=1.9mm EEFSX0D221ER PANASONIC LR

(6

via)

800 mil (40 via)

C114

+

P-CAP 220uF 2V 20% ESR=9mΩ SMT7343 H=1.9mm EEFSX0D221ER PANASONIC LR

(6

via)

C312

C126

C124

+

P-CAP 220uF 2V 20% ESR=9mΩ SMT7343 H=1.9mm EEFSX0D221ER PANASONIC LR

(6

via)(6via)

C115

+

P-CAP 220uF 2V 20% ESR=9mΩ SMT7343 H=1.9mm EEFSX0D221ER PANASONIC LR

P-CAP 220uF 2V 20% ESR=9mΩ SMT7343 H=1.9mm EEFSX0D221ER PANASONIC LR(NU)

(6

via)

(6

via)

VCORE_CPU

CS2+_CPU CS2-_CPU

Noise Sensitivity

A A

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu

Rev0.2

5

4

3

2

5VDDM

5VDDM(5,18,28,29,30,32,38,39,47,49,50)

3VDDM

3VDDM(3,5,7,10,12,13,14,15,16,17,18,19,22,23,25,27,28,29,30,31,34,35,37,38,39,40,41,43,47,49,50)

VCORE_CPU

VCORE_CPU(4)

Title

Size Document Number Rev

C

Date: Sheet

DCIN

DCIN(27,45,48,49,50)

114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

CPU Core Power

1

Confidential

51 52Thursday, July 10, 2008

of

0.3

5

4

3

2

1

USB Board

D D

CN Aces 87213-1000G SMD 10pin P=1.0 wire R/A H=2.9 LR

10

C C

CHOKE COMMON-MODE 90Ω @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK LR

USB_PN3_D

USB_PP3_D

B B

80mil / 2A

1 2 3 4 5 6 7 8 9

DAGND

DAL2

2

1

3

4

600Ω±25% 100MHz 2000mA SMT0805 HCB2012KF-601T20 TAI-TECH LRDACN1

DAL3

USB_PN2_D

USB_PP2_D

USB_PN3_D USB_PP3_D

USB_VCC1_D

2

DAL1

1

CHOKE COMMON-MODE 90Ω @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK LR

3

4

100uF 6.3V ±20% 35mΩ 3528 6TPE100MAZB SANYO LR

DAC1

10pF 50V 5% SMT0402 NPO LR(NU)

DAGND

DAC2

10pF 50V 5% SMT0402 NPO LR(NU)

DAGND

DAC5

+

DAGND

80mil / 2A

USB_VCC1_D

10pF 50V 5% SMT0402 NPO LR(NU)

DAC3

DAC4

DAGNDDAGND

DACN5

1 2 3 4

CON ALLTOP C10786-104A3-L SMD USB 4PIN LR

20-25123-00

DAGND DAGND

5

6

DACN4

1 2 3 4

CON ALLTOP C10786-104A3-L SMD USB 4PIN LR

20-25123-00

5

6

DAGND

1

13

2

3

4

5

678

DFMK1 FMASK

1

HOLE-P8_0D2_7

DM3

12132

12

11

10

9

DM2 SCREW HOLE

DFMK2 FMASK

1

12132

1

13

2 3 4

5

678

12

11

10

9

DM1 SCREW HOLE

3 4 5

DAGNDDAGND

80mil / 2A

1

For MDC modem

CON ACES 85204-02001 WIRE DIP 2PIN P=1.25 LR

20-20294-20

DACN2

2

A A

5

1

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR DAL4

2

DAL5

1

600Ω±25% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR

4

DACN3

1

2

CON PHONE JACK RJ11 SMT 6P2C H=8.6 C10105-10204 ALLTOP

20-21319-03

8

GND

4

GND

1

2

3

GND

7

GND

DAGND

3

DAGND

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu 114 TAIPEI, TAIWAN ,ROC (886-2)8751-8751

Title

Penryn+Candiga GM/PM95+ICH9M

Size Document Number Rev

B

2

Date: Sheet of

TY640 USB Board

Confidential

52 52Thursday, July 10, 2008

1

0.3

first international computer TY640 Schematics

Specifications and Main Features

Frequently Asked Questions

User Manual
