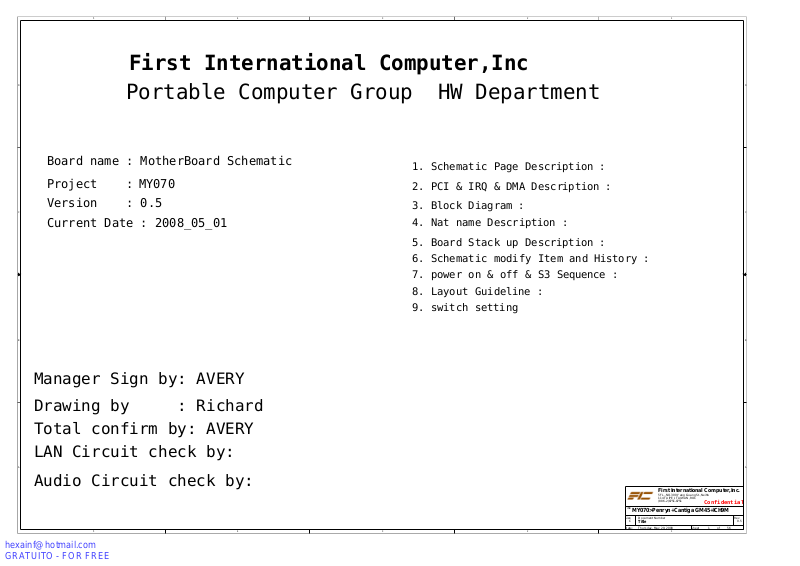

first international computer MY070 Schematics

5

[e-mail]
GRATUITO - FOR FREE

4

3

2

1

First International Computer,Inc

D D

Portable Computer Group HW Department

Board name : MotherBoard Schematic
Project :

C C

Version : 0.5

MY070

Current Date : 2008_05_01

1. Schematic Page Description :

2. PCI & IRQ & DMA Description :

3. Block Diagram :

4. Nat name Description :

5. Board Stack up Description :

6. Schematic modify Item and History :

7. power on & off & S3 Sequence :

8. Layout Guideline :

9. switch setting

B B

Manager Sign by: AVERY
Drawing by : Richard

Total confirm by: AVERY
LAN Circuit check by:

A A

Audio Circuit check by:

5

Title

Size Document Number Rev

C

4

3

2

Date: Sheet of

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Title

1

Confidential

1 56Thursday, May 29, 2008

0.5

8

7

6

1. Schematic Page Description :

MY070 Schematic Ver : 0.1

5

4

3

2

1

D D

C C

B B

1. Title

2. Schematic Page Description

3. Block Diagram

4. ANNOTATIONS

5. Timing Diagram

6. Penryn Processor(1/2)

7. Penryn Processor(2/2)

08. CPU Thermal 25. DVI Level Shifter

09. Cantiga Host(1/6)

10. Cantiga DMI/Graphic(2/6)

11. Cantiga DDR2(3/6)

12. Cantiga Power(4/6)

13. Cantiga Power(5/6)

14. Cantiga GND(6/6)

15. Clock Generator 49. NB_VGA_VDD

16. DDR2 SDRAM SO-DIMM0

17. DDR2 SDRAM SO-DIMM1

18. ICH9M PCI/PCIE/DMI(1/4)

19. ICH9M CPU/IDE/SATA(2/4)

20. ICH9M GPIO(3/4)

21. ICH9M Power/GND(4/4)

22. Reset Circuit

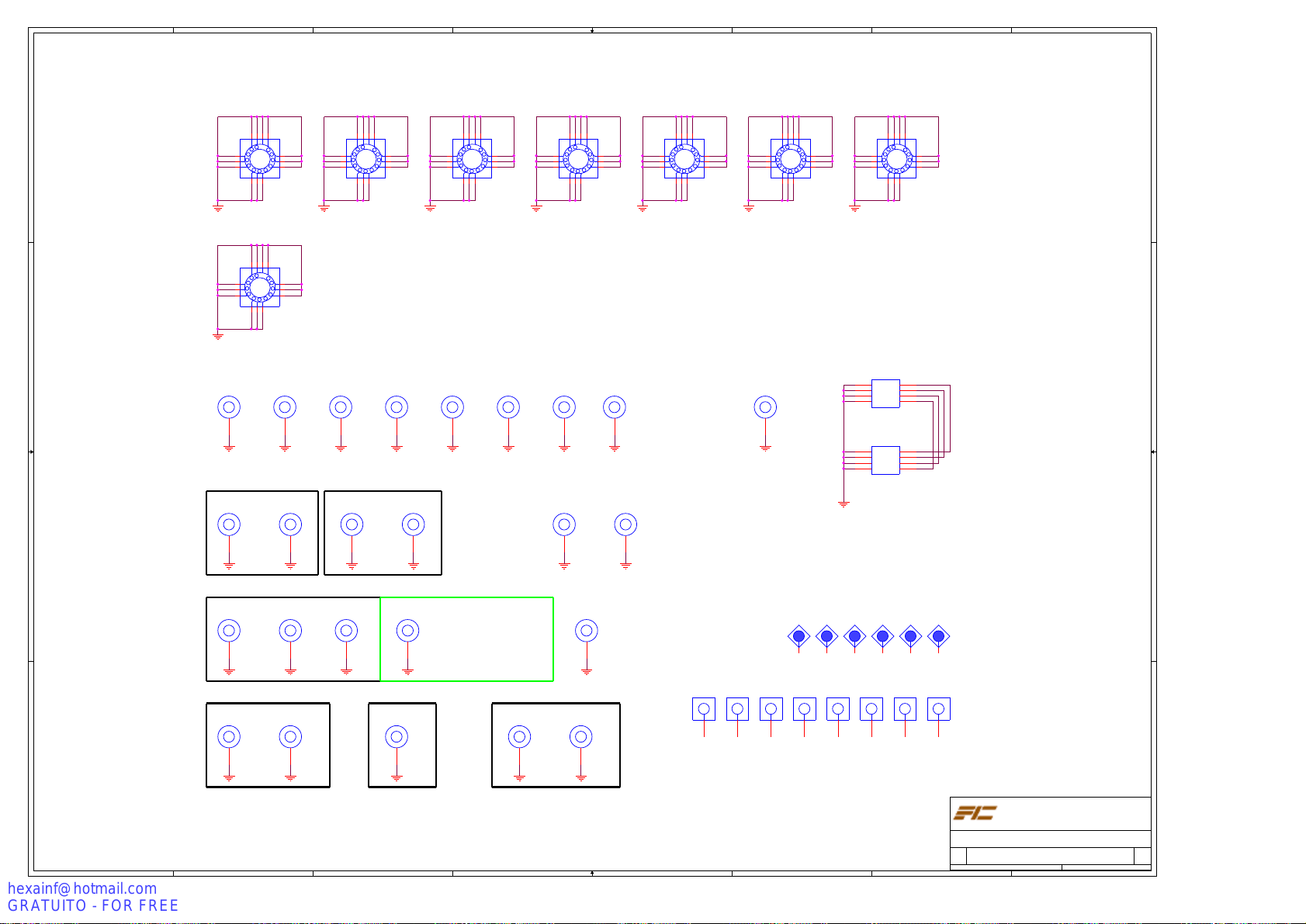

23. Screw Hole

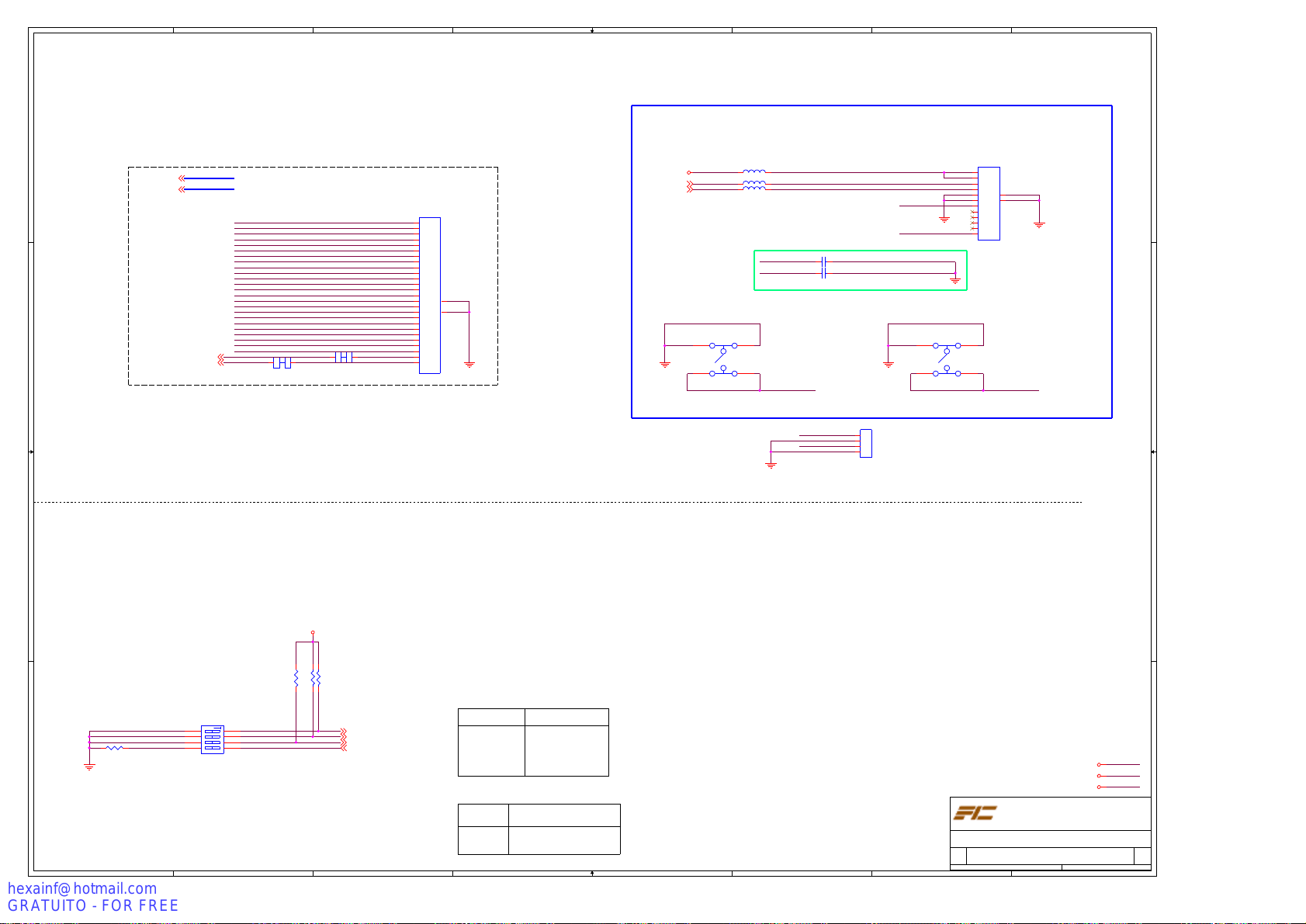

24. LVDS LCD CNN

26. DVI-I(CRT) CNN

27. New Card(Express card)

28. Mini Card WLAN/Robson

29. PCIE GIGA LAN PHY 82567

30. LAN TRANSFORMER

31. E-SATA/MB_USB/EX_USB

32. SATA HDD/ODD CNN

33. Azalia ALC888S-GR(VC)

34. SP/HP AMP APA2068KAI

35. Audio CNN/A-MIC/BUZZER

36. Card-Reader RTS5158-E

37. K/B /GP/DIP

38. Webcam/ LID

39. PWR/SW/LED CN

40. PMX

41. Power Block

42. ACIN, BATIN, DCIN

43. Charger

44. 3/5VDDA/S/M, 1.5VDDA

45. 1.8VDDS/M, 0.9VDDS

46. 1.05VDDM, Cantiga VGA

47. 1.5VDDM

48. CPU Core Power

2. PCI & IRQ & DMA Description :

50. Audio board

51. Hot Key switch board

52. LED Board

53. Power Board

54. USB board

IDSEL
AD17

AD27
AD29

BUSMASTER

REQ
REQ0 / GNT0
REQ1 / GNT1

A A

REQ2 / GNT2
REQ3 / GNT3
REQ4 / GNT4

CHIP CHIPPCIINT

Mini PCI (Wireless LAN)
X
X

CHIP
X
X
X
X
X

8

7

IRQ0
IRQ1
IRQ2
IRQ3
IRQ4
IRQ5
IRQ6
IRQ7
IRQ8
IRQ9
IRQ10
IRQ11
IRQ12
IRQ13
IRQ14
IRQ15

System timer
Keyboard
(Casacde)
LAN / MODEM
Serial Port
AUDIO / VGA / USB
FLOPPY DISK
LPT
RTC
ACPI

(Disable by default)

FIR
Cardbus
PS/2 mouse
FPU
HDD
CDROM

6

(MODEM/LAN)

5

DMA Channel
DMA0 FIR
DMA1
DMA2
DMA3
DMA4
DMA5
DMA6
DMA7

DeviceIRQ Channel Desciption
ECP

FLOPPY DISK
AUDIO
(Cascade)
Unused
Unused
Unused

4

(disable by default)

(MODEM / LAN)

3

IRQA
IRQB
IRQC
IRQD

IRQE / GPIO3
IRQE / GPIO4
IRQE / GPIO5

IEEE1394 (VIA VT6311S)
LAN (Realtek RTL8101L)

X
X

LAN (Realtek RTL8101L)IRQE / GPIO2

X
PASS0
CRISIS

2

20051228A

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2) 8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Schematic Page Description

2 56Thursday, May 29, 2008

1

0.5

8

[e-mail]
GRATUITO - FOR FREE

7

6

5

4

3

2

1

3. Block Diagram :

MY070

DVI Port

LCD

P27

P44

P44

P45

P49

Thermal
Sensor G780

P25~P26

P24

CCD

P38

P47/46

P15

USBx1(M/B)

P31

eSATA

CDROM

HDD

USB 2.0

USBx2(EXT)

P31

P32

P32

(667/800/1G Hz)

DMI

(x2/x4)

P31

Intel SB

SATA BUS

SATA BUS

SATA BUS

Intel

Penryn
Processor

FSB

Intel NB

Cantiga
(G)MCH

P09~P14

ICH9M

P18~21

LPC BUS

Flash ROM
BIOS

SPI

D D

C C

CardReader
5 in 1

P36

ACIN / DCIN

3VDDA/5VDDA

B B

Realtek
RTS5158E

P42

P36

PMU3V/5V

New Card

3VDDM/5VDDM

DDRII Power

1.5VDDM/1.05VDDM

NB_VGA_VDD

OVP

P6~7

P18

0.5

Mem_A Bus

Mem_B Bus

PCIE_3
PCIE_2

PCIE_6

CPU

CORE

P48

CPU

VCCP

P46

DDR2 800/667 MHz

DDRII SODIMM0 (A)

DDR2 800/667 MHz

DDRII SODIMM1 (B)

Mini Card (WLAN)
Mini Card (Robson)

LAN 10/100/1000M
82567

Azalia

Azalia Codec

ALC888S-VC-GR

P35

Line In

P35

Mic In

P16

P17

P28

P28

P29

P33

Audio AMP

APA 2068KAI

CLK
ICS9LPRS365BKLFT

Reset Circuit

Brightness Control

RJ-45

P30

P34

P08

P22

P24

RTC Bat

Fan CNN

Lid Switch

LED

MAIN SW CNN/DIP SW

Keyboard/ Glide pad CNN

P19

P15

P38

P39

P37

P37

DCIN+

Battery Voltage Sense

A A

Battery Charger

Battery CON

8

P42

P42

P43

P42

PMX
MB90F372

Int. KB

P37

7

6

P40

Glide Pad

P37

5

Head phone

P34

4

Speaker

P34

3

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

2

(886-2) 8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Block Diagram

1

3 56Thursday, May 29, 2008

0.5

8

7

6

5

4

3

2

1

4. Nat name Description :

Voltage Rails

DCIN
PMU5V 5.0V always on power rail by LATCH or ACIN

D D

PMU3V 3.3V always on power rail by LATCH or ACIN
3VDDA 3.3V always on power rail by DCON

3VDDS 3.3V power rail by PSUSC#
5VDDS 5.0V power rail by PSUSC#
3VDDM

VCC_CORE

1.05VDDM

1.5VDDM

1.8VDDS

0.9VDDT_DDRII

Part Naming Conventions

C

=

Capacitor

CN

C C

D
F
L
Q
R
RP
U
Y

Connector

=

Diode

=

Fuse

=

Inductor

=

Transistor

=

Resistor

=

Resistor Pack

=

Arbitrary Logic Device

=

Crystal and Osc

=

Net Name Suffix

# =

Active Low signal

Primary DC system power supply

5.0V always on power rail by DCON5VDDA

3.3V switched power rail by SUSTAT_B#

5.0V switched power rail by SUSTAT_B#5VDDM
Core Voltage for CPU

1.05V power rail for AGTL+ termination/Core for GMCH by SUSTAT_B#

1.5V power rail for CPU PLL/DMI;PCIE;DDRII DLLs for GMCH/Core;PCIE
for ICH7m by SUSTAT_B#

1.8V power rail for DDRII by PSUSC#

0.9V DDRII Termination Voltage by SUSTAT_B#

5. Board Stack up Description

PCB Layers

Layer 1
Layer 2
Layer 3
Layer 4
Layer 5
Layer 6

Component Side, Microstrip signal Layer
Power Plane
Stripline Layer(High Speed)
Stripline Layer(High Speed)
Ground Plane
Solder Side,Microstrip signal Layer

B B

A A

8

7

6

Layers : 6 Depth 1.2mm Impence 55 ohms +/- 10%

Host Clock
SRC Clock
Host Bus
DDR2 CLK
DDR2 Strobe
DDR2 Bus
DMI Bus
PCIE Bus
SATA
SDVO
LVDS
USB
IEEE1394
Lan

5

Single End Impedance

55 ohm +/- 15%
55 ohm +/- 15%
55 ohm +/- 15%
42 ohm +/- 15%
55 ohm +/- 15%
55 ohm +/- 15%
55 ohm +/- 15%
55 ohm +/- 15%

55 ohm +/- 15%

50 ohm +/- 15%

Differential Impedance for Microstrip

95 ohm +/- 15%
95 ohm +/- 15%

70 ohm +/- 20%

95 ohm +/- 15%
95 ohm +/- 15%
95 ohm +/- 15%
95 ohm +/- 15%
100 ohm +/- 15%
90 ohm +/- 15%
110 ohm +/- 15%

4

Differential Impedance for Stripline

100 ohm +/- 15%
100 ohm +/- 15%

70 ohm +/- 20%
85 ohm +/- 20%

100 ohm +/- 15%
100 ohm +/- 15%
100 ohm +/- 15%
100 ohm +/- 15%
100 ohm +/- 15%
90 ohm +/- 15%
110 ohm +/- 15%

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

3

Date: Sheet of

2

(886-2) 8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Annotations

4 56Thursday, May 29, 2008

1

0.5

5

[e-mail]
GRATUITO - FOR FREE

4

3

2

1

5. power on & off & S3 Sequence :

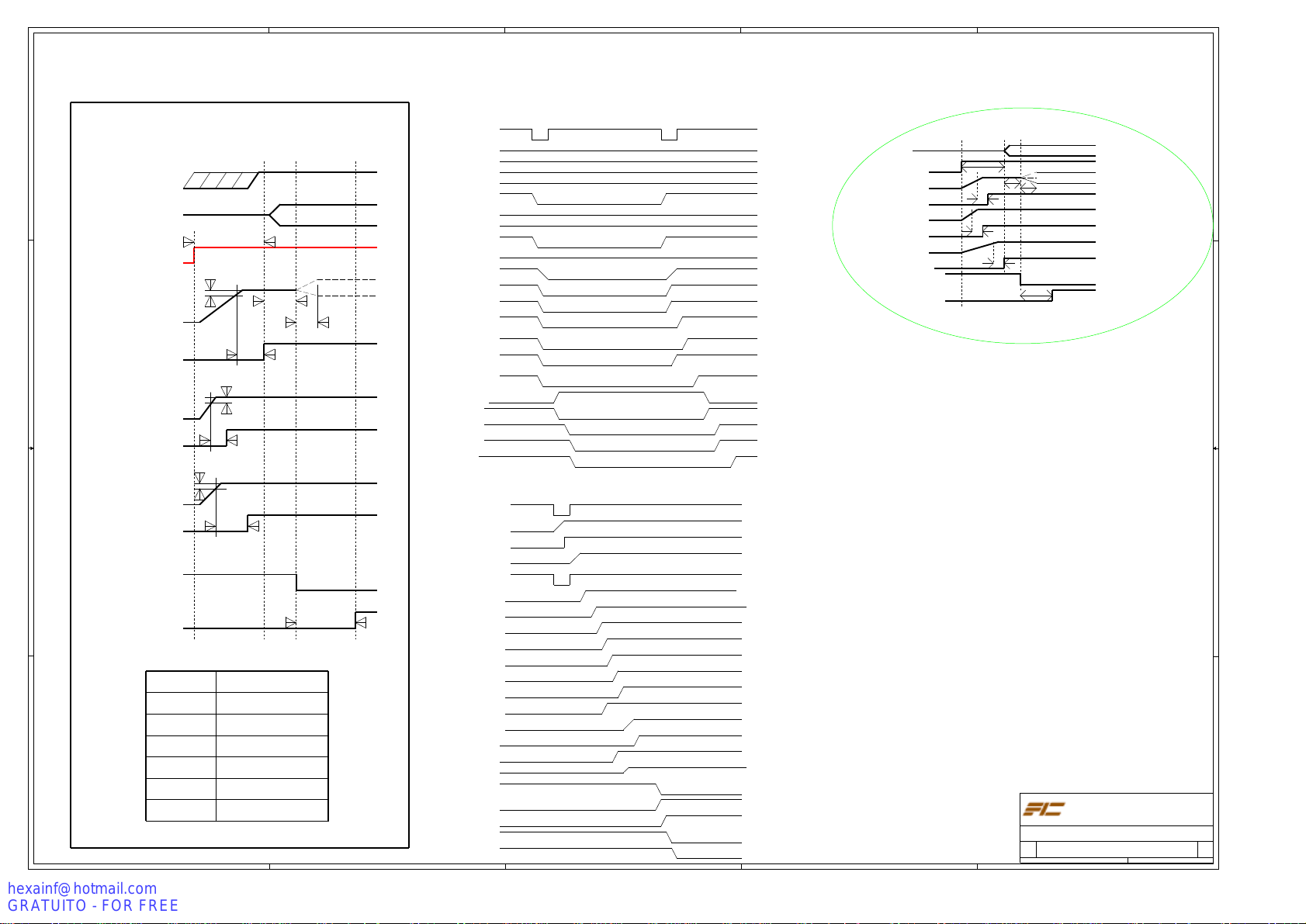

S3 SUSPEND AND RESUME TIMING

Power On Sequencing Timing Diag ram

D D

20060117A - DATA FROM NO.16809

PSI#

VID

t

SFT_START_VCC

VR_ON

-12%

t

-12%

t

Vccp_UP

BOOT

t

BOOT-VID-TR

V

CC-CORE

t

C C

CPU_UP

V

CCP

CPU_UP

Vccp_UP

-12%

V

CC_MCH

MCH_PWRGD

t

B B

MCH-PWRGD

CLK_ENABLE#

IMVP6_PWRGD

t

SFT_START_VCC

t

BOOT

t

BOOT-VID-TR

t

A A

CPU_UP

t

Vccp_UP

t

MCH-PWRGD

t

CPU_PWRGD

5

Max = 3 ms

Min = 10 us , Max = 100 us

Max = 100 us

Min = 10 us , Max = 30 us

Min = 10 us , Max = 30 us

Min = 10 us , Max = 30 us

Min = 3 ms , Max = 20 ms

t

CPU_PWRGD

4

POWSW0

PMU5V/PMU3V

PM_RSMRST0
PM_SLP_S30

PM_SLP_S40/S50

SUSTAT_B0

PM_PWROK
SYS_PWROK

VRON_VCCP

VCCP,1.2VDDM

VCORE_ON

VCORE_CPU

CK408_PWRGD0
PM_VGATE

CPU_PWRGOOD

PCI_RST0

AGTL+_CPURST0

BATTERY ONLY POWER ON TIMING

PMU5V/PMU3V

MAINSW0_ICH

PM_RSTRST0

PM_SLP_S30/S40/S50

SUSTAT_B0

VDDM,VDDS

SYS_PWROK

VRON_VCCP

VCCP/1.2VDDM

VCORE_ON

VCORE_CPU

CK408_PWRGD0

PM_VGATE

CPU_PWRGD

PCI_RST0

AGTL+_CPURST0

DCON
VDDA

PSUSC0

VDDS
VDDM

VR_ON

POWSW0

DCON

VDDA

PSUSC0

PM_PWROK

VR_ON

H
H
H
H

H
H

H

3

To ICH4_M
From ICH4_M

From ICH4_M
From ASIC_B0
From ASIC_B0

1.5VDDS AND
DDR_PWRGD

Generator

To clock
ToICH4 and ODEM

From ICH4 to CPU

To ODEM/other
PCI device
From ODEM to CPU

To ICH4

To ICH4

From ICH4

From ASIC_B0
From ASIC_B0

To clock generator
To ODEM and ICH4

From ICH4 to CPU

To ODEM/other PCI device

From ODEM to CPU

IMVP6 Power On Sequencing Timing Diagram

VID
VR_ON
Vcc-core
CPU_UP
Vccp
Vccp_UP
Vccgmch
GMCHPWRGD
CLK_ENABLE#
IMVP4_PWRGD

2

Tsft_star_vcc(3ms max)

Tboot

Tcpu_up

Tvccp_up

Tgmch_pwrgd

Title

Size Document Number Rev

C

Date: Sheet of

Vid

Vboot
Tboot-vid-tr(100uS max)

Tboot:10-100uS

Tcpu_pwrgd(3~20mS)

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2) 8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Timing Diagram

1

5 56Thursday, May 29, 2008

0.5

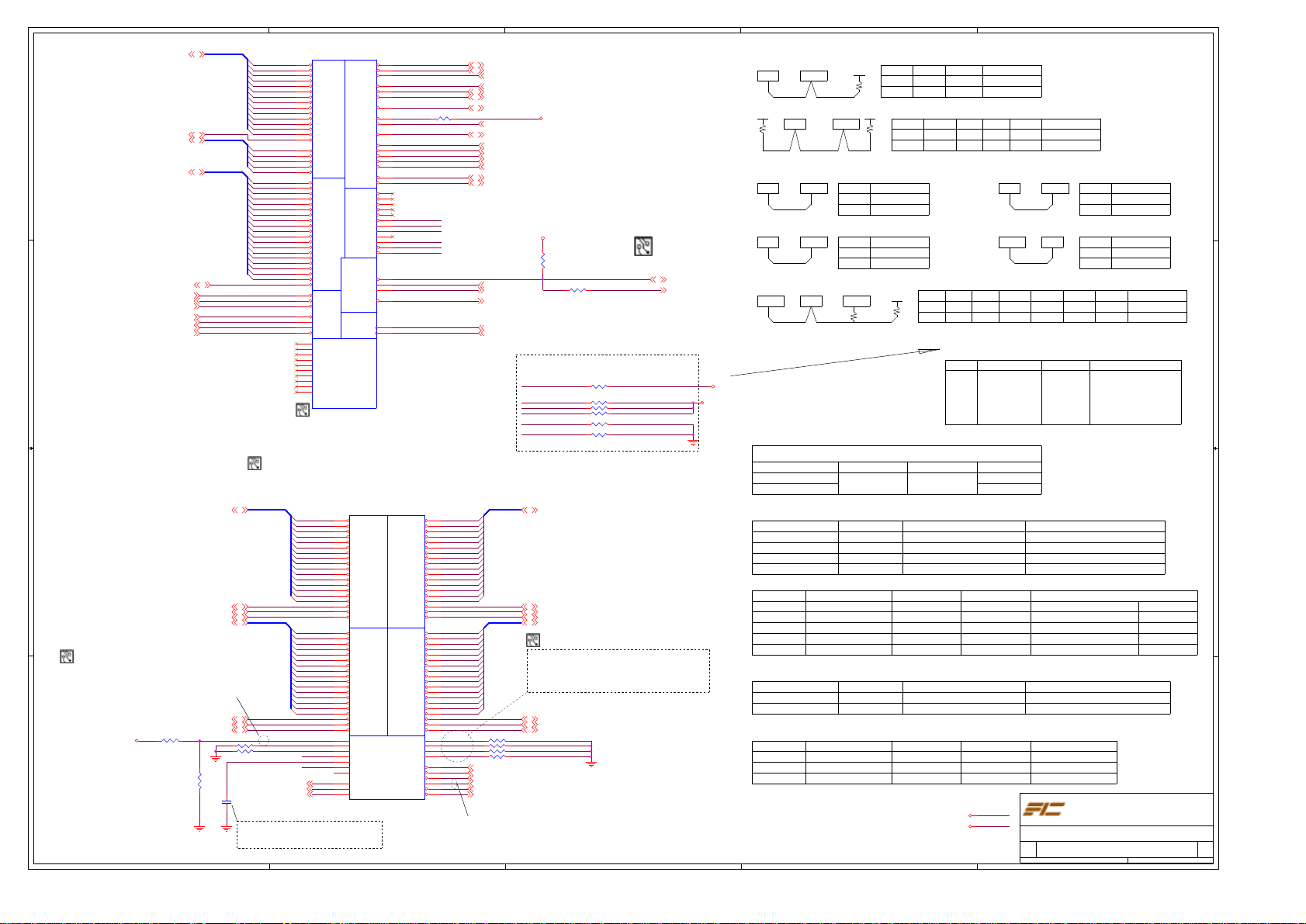

A

H_A#[35..3]<9>

4 4

3 3

H_ADSTB#0<9>

H_REQ#[4..0]<9>

H_A#[35..3]<9>

H_A#[35..3]

H_REQ#[4..0]

H_A#[35..3]

H_ADSTB#1<9>

H_A20M#<19>

H_FERR#<19>

H_IGNNE#<19>

H_STPCLK#<19 >

H_INTR<19>

H_NMI<19>

H_SMI#<19>

H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16

H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4

H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25

H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35

U23A

J4

A[3]#

L5

A[4]#

L4

A[5]#

K5

A[6]#

M3

A[7]#

N2

A[8]#

J1

A[9]#

N3

A[10]#

P5

A[11]#

P2

A[12]#

L2

A[13]#

P4

A[14]#

P1

A[15]#

R1

A[16]#

M1

ADSTB[0]#

K3

REQ[0]#

H2

REQ[1]#

K2

REQ[2]#

J3

REQ[3]#

L1

REQ[4]#

Y2

A[17]#

U5

A[18]#

R3

A[19]#

W6

A[20]#

U4

A[21]#

Y5

A[22]#

U1

A[23]#

R4

A[24]#

T5

A[25]#

T3

A[26]#

W2

A[27]#

W5

A[28]#

Y4

A[29]#

U2

A[30]#

V4

A[31]#

W3

A[32]#

AA4

A[33]#

AB2

A[34]#

AA3

A[35]#

V1

ADSTB[1]#

A6

A20M#

A5

FERR#

C4

IGNNE#

D5

STPCLK#

C6

LINT0

B4

LINT1

A3

SMI#

M4

RSVD[01]

N5

RSVD[02]

T2

RSVD[03]

V3

RSVD[04]

B2

RSVD[05]

C3

RSVD[06]

D2

RSVD[07]

D22

RSVD[08]

D3

RSVD[09]

F6

RSVD[10]

Penryn Ball-out Rev 1a

ADDR GROUP

0

ADDR GROUP

1

ICH

Rout to TP via and place gnd via w/in 100mils

A#[32-39], APM#[0-1]:Leave escape routing on for future functionality

H_D#[63..0]<9>

2 2

H_DSTBN#0<9>

H_DSTBP#0<9>

H_DINV#0<9>

H_D#[63..0]<9>

Zo=55ohm, 0.5" max for GTLREF, Space any other switch
signals away from GTLREF with a minimum of 25mils.

Don't allow the GTLREF routing to create splits or
discontinuities in the reference planes of the FSB
signals

R165 1K 1% 1/16W SMT0402 LR

1.05VDDM

1 1

RES 2K 1% 1/16W SMT 0402 LR

A

H_DSTBN#1<9>

H_DSTBP#1<9>

H_DINV#1<9>

R159

H_D#[63..0]

H_D#[63..0]

R217 1K 5% 1/16W SMT 0402 LR(NU)
R204 1K 5% 1/16W SMT 0402 LR(NU)

C147

0.1uF 10V 10% SMT0402 X5R LR(NU)

Place C181 close to the CPU_TEST4 pin.
Make sure CPU_TEST4 routing is reference to GND

and away from other nossy signale.

CPU_BSEL0<8 >
CPU_BSEL1<8 >

H_GTLREF

TEST3
TEST5

H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15

H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31

E22
F24
E26
G22
F23
G25
E25
E23
K24
G24
J24
J23
H22
F26
K22
H23
J26
H26
H25

N22
K25
P26
R23
L23
M24
L22
M23
P25
P23
P22
T24
R24
L25
T25
N25
L26
M26
N24

AD26

C23
D25
C24

AF26

AF1
A26

B22
B23
C21

ADS#
BNR#

BPRI#

DEFER#

DRDY#
DBSY#

BR0#

IERR#

INIT#

LOCK#

CONTROL

RESET#

RS[0]#
RS[1]#
RS[2]#
TRDY#

HIT#

HITM#

BPM[0]#
BPM[1]#
BPM[2]#
BPM[3]#

PRDY#
PREQ#

TCK

TDI
TDO
TMS

TRST#

XDP/ITP SIGNALS

DBR#

THERMAL

PROCHOT#

THERMDA
THERMDC

THERMTRIP#

H CLK

BCLK[0]
BCLK[1]

RESERVED

U23B

D[0]#
D[1]#
D[2]#
D[3]#
D[4]#
D[5]#
D[6]#
D[7]#
D[8]#
D[9]#
D[10]#
D[11]#
D[12]#
D[13]#
D[14]#
D[15]#
DSTBN[0]#
DSTBP[0]#
DINV[0]#

D[16]#
D[17]#
D[18]#
D[19]#
D[20]#
D[21]#
D[22]#
D[23]#
D[24]#
D[25]#
D[26]#
D[27]#
D[28]#
D[29]#
D[30]#
D[31]#
DSTBN[1]#
DSTBP[1]#
DINV[1]#

GTLREF
TEST1
TEST2
TEST3
TEST4
TEST5
TEST6

BSEL[0]
BSEL[1]
BSEL[2]

Penryn Ball-out Rev 1a

MISC

B

H1
E2
G5

H5
F21
E1

F1

H_IERR#

R206 RES 56 5% 1/16W S MT0402 LR

D20
B3

H4
C1

F3
F4
G3
G2

G6
E4

AD4
AD3
AD1
AC4
AC2

XDP_BPM#5

AC1

XDP_TCK

AC5

XDP_TDIH_A#26

AA6
AB3

XDP_TMS

AB5

XDP_TRST#

AB6

XDP_DBRESET#

C20

D21
A24
B25

C7

A22
A21

D[32]#
D[33]#
D[34]#

DATA GRP 0

D[35]#
D[36]#
D[37]#
D[38]#
D[39]#
D[40]#
D[41]#
D[42]#
D[43]#
D[44]#
D[45]#
D[46]#

DATA GRP 2DATA GRP 3

D[47]#
DSTBN[2]#
DSTBP[2]#

DINV[2]#

D[48]#

D[49]#

D[50]#

D[51]#

DATA GRP 1

D[52]#

D[53]#

D[54]#

D[55]#

D[56]#

D[57]#

D[58]#

D[59]#

D[60]#

D[61]#

D[62]#

D[63]#
DSTBN[3]#
DSTBP[3]#

DINV[3]#
COMP[0]

COMP[1]
COMP[2]
COMP[3]

DPRSTP#

DPSLP#

DPWR#

PWRGOOD

SLP#

PSI#

B

H_D#32

Y22

H_D#33

AB24

H_D#34

V24

H_D#35

V26

H_D#36

V23

H_D#37

T22

H_D#38

U25

H_D#39

U23

H_D#40

Y25

H_D#41

W22

H_D#42

Y23

H_D#43

W24

H_D#44

W25

H_D#45

AA23

H_D#46

AA24

H_D#47

AB25
Y26
AA26
U22

H_D#48

AE24

H_D#49

AD24

H_D#50

AA21

H_D#51

AB22

H_D#52

AB21

H_D#53

AC26

H_D#54

AD20

H_D#55

AE22

H_D#56

AF23

H_D#57

AC25

H_D#58

AE21

H_D#59

AD21

H_D#60

AC22

H_D#61

AD23

H_D#62

AF22

H_D#63

AC23
AE25
AF24
AC20

COMP0

R182 27.4 1% 1/16W S MT 0402 LR

R26

COMP1

R181 54.9 1% 1/16W SM T0402 LR Sn

U26

COMP2

R169 27.4 1% 1/16W S MT 0402 LR

AA1

COMP3

R172 54.9 1% 1/16W SM T0402 LR Sn

Y1
E5

H_DPRSTP# <10,19,48>

B5

H_DPSLP# <19>

D24

H_DPWR# <9>

D6

H_PWRGD <19>

D7

H_CPUSLP# <9>

AE6

PSI# <48>CPU_BSEL2<8 >

H_PWRGD rise time :
Max : 15ns

C

H_ADS# <9>
H_BNR# <9>
H_BPRI# <9>

H_DEFER# <9>
H_DRDY# <9>
H_DBSY# <9>

H_BREQ# <9 >

H_INIT# <19>
H_LOCK# <9>
H_CPURST# <9>

H_RS#0 <9>
H_RS#1 <9>
H_RS#2 <9>
H_TRDY# <9>

H_HIT# <9>
H_HITM# <9>

1.05VDDM

1.05VDDM

R210
68 1% 1/16W SMT0402 LR

0'' ~ 3''

H_THERMDA <15>
H_THERMDC <15> HOT_DOWN# <15,40>

PM_THRMTRIP# <10,19>

CLK_CPU_BCLK <8 >
CLK_CPU_BCLK# <8>

R225 0 5% 1/16W SMT0 402 LR(NU)

H_PROCHOT# <48>

Should be connect to ICH8M and Crestline without T-ing(no stub)

XDP P/U & P/D

H_D#[63..0]

H_D#[63..0]

XDP_DBRESET#

XDP_TMS
XDP_TDI
XDP_BPM#5

XDP_TCK
XDP_TRST#

R224 1K 5% 1/16W SMT 0402 LR(NU)

R168 54.9 1% 1/16W SM T0402 LR Sn
R173 54.9 1% 1/16W SM T0402 LR Sn
R166 54.9 1% 1/16W SM T0402 LR Sn

R162 54.9 1% 1/16W SM T0402 LR Sn
R163 54.9 1% 1/16W SM T0402 LR Sn

H_D#[63..0] <9>

H_DSTBN#2 <9>
H_DSTBP#2 <9>
H_DINV#2 <9>
H_D#[63..0] <9>

Comp0,2 connect with Zo=27.4ohm, make trace
length shorter than 0.5" and width is 18mils.

Comp1,3 connect with Zo=55ohm, make trace
length shorter than 0.5" and width is 5mils

H_DSTBN#3 <9>
H_DSTBP#3 <9>
H_DINV#3 <9>

C

1.05VDDM

D

Topology : FERR#

VCCP

Rtt

L4

Topology : PWRGOOD

CPU

Topology : INTR , NMI , A20M# , DPSLP# , IGNNE# , INIT# , SMI# , STPCLK#

Topology : THERMTRIP#

GMCHL2CPU ICH7m

3VDDM

FSB Common Clock Signal Layout Guide :

ADS# , BNR# , BPRI# , BR0# , DBSY# , DEFER# , DPWR# , DRDY# , HIT# , HITM# , LOCK# ,
RS[2..0]# , TRDY# , RESET#.

Transmission Line Type Total Trace Length Normal Impedance Spacing (mils)

Strip-line(Int. Layer)
Micro-strip(Ext. Layer)

FSB Source Synchronous Data Length Variation and Strobe Matching Requirements :

Signals Name

DATA#[15..0] , DINV0#
DATA#[31..16] , DINV1# +/- 100 mil s
DATA#[47..32] , DINV2#
DATA#[63..48] , DINV3#

FSB Source Synchronous Data Signal Routing Topology#1 :

Signal Name

DINV#[3..0]
DATA#[63..0]
DSTBN#[3..0]
DSTBP#[3..0]

FSB Source Synchronous Address Length Variation and Strobe Matching Requirements :

A#[16..3] , REQ#[4..0]

*** No length matching requirements exist between ADSTB0# and ADSTB1#

FSB Source Synchronous Address Signal Routing :

Signal Name

Address#[31..3]
REQ#[4..0]
ADSTB#[1..0]

VCCP=1.05VDDM

L2

Rtt Transmission Line

0" - 3.0" Microstrip0.5" - 12"

56 +/-5%
56 +/-5%

L3 L4
0" - 3.0"
0" - 3.0"

Stripline

0" - 3.0"
0" - 3.0"

0.5" - 12"L1

0" - 3.0"

Rtt

0.5" - 6.5"

0.5" - 6.5"

Topology : CPUSLP#

Transmission Line
Micro-strip

Topology : RESET#

Transmission Line

Strip-line

VCCP

L1 L2
1" - 12"

Rtt

1" - 12" 1" - 6"

Strobes associated with the group Strobe-to-Strobe Complement Matching

DSTBP0#,DSTBN0#
DSTBP1#,DSTBN1#
DSTBP2#,DSTBN2#
DSTBP3#,DSTBN3#

Total Trace Length

0.5 ~ 5.5 inch

0.5 ~ 5.5 inch

0.5 ~ 5.5 inch

0.5 ~ 5.5 inch

Strobes associated with the group

ADSTB0#+/- 200 mils
ADSTB1#A#[31..17]

Total Trace Length Normal Impedance

0.5 ~ 6.5 inch

0.5 ~ 6.5 inch

0.5 ~ 6.5 inch

L1+L3

1" - 6" 0" - 3.0"

1" - 12"
1" - 12"

Processor ITP Signal Default Strapping When ITP-XDP &
ITP700FLEX Dedbug Port Not Used.

Signal Resistor Value Connect To Resistor Placement
TDI

54.9 OHM +/-5%

TMS

54.9 OHM +/-5%

TRST#

649 OHM +/-5%

TCK

54.9 OHM +/-5%

TDO

4 & 8 mils
5 & 10 mils

Normal Impedance

55+/-15%
55+/-15%
55+/-15%
55+/-15%

55+/-15%
55+/-15%
55+/-15%Strip-line

1.05VDDM

1.05VDDM<7..10,12,13,19,21,46>
3VDDM

3VDDM<8,10,13,15..22,24,25,27,28,33,36..40,44,46..49>

L2

VCCP L1

Rtt

VCCP

ICH8MCPU

CPU IMVP6

L2+L1 L3 Strip-line

L1

ICH8M

L1

L1

0.5" - 12"

0.5" - 12" Strip-line

L1CPU ICH8M

0.5" - 12" Micro-strip

0.5" - 12"

L3

RttL1 L4

1.0 ~ 6.5 inch 55+/-15%

Signals Matching

+/- 100 mils
+/- 100 mils

Transmission Line Type

Strip-line
Strip-line
Strip-line
Strip-line

Signals MatchingSignals Name

+/- 200 mils

Transmission Line Type

Strip-line
Strip-line

D

E

Rtt Transmission LineL2L1

Micro-strip75 +/-5%0.5" - 6.5"

75 +/-5%0.5" - 6.5"

Transmission Line

L1CPU

GMCH

0.5" - 12"

L1

GMCH

L1

L3
0" - 3.0"
0" - 3.0"

OPEN

Title

Size Document Number Rev

Date: Sheet of

Rss
24 +/-5%
24 +/-5% 56 +/-5%

VCCP
VCCP
GND
GND
NC

+/- 25 mils+/- 100 mils
+/- 25 mils
+/- 25 mils
+/- 25 mils

Width & Spacing (mils)
Data-to-Data,Strobe-to-strobe Strobe-to-Data

4 & 8 mils
4 & 8 mils
4 & 12 mils
4 & 12 mils

Strobe to Assoc. Address Signal Matching

+/- 200 mils
+/- 200 mils

Width & Spacing (mils)

4 & 8 mils
4 & 8 mils
4 & 8 mils

MY070>Penryn+Cantiga GM45+ICH9M

C

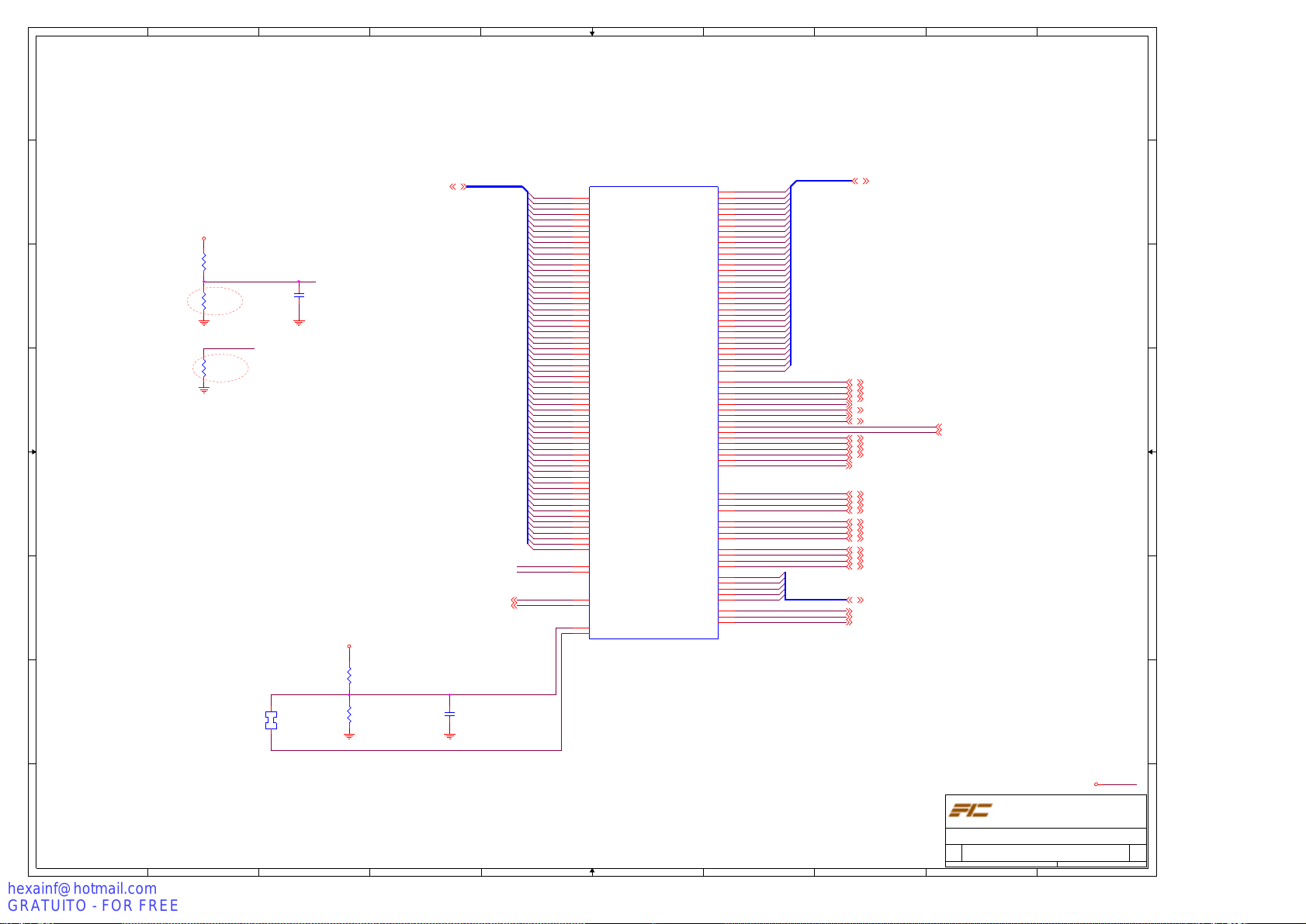

Penryn Processor(1/2)

Micro-strip
Strip-line

0.5" - 12"

Transmission LineCPU

L1

Micro-strip

1" - 6"

Strip-line

1" - 6"

Rtt

Transmission LineL4

56 +/-5%

Micro-strip
Strip-line0" - 3.0"

Within 2.0" of the CPU
Within 2.0" of the CPU
Within 2.0" of the CPU
Within 2.0" of the CPU
N/A

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

E

N/A
N/A
4 & 12 mils
4 & 12 mils

Confidential

6 56Thursday, May 29, 2008

0.5

A

[e-mail]
GRATUITO - FOR FREE

B

C

D

E

Place these inside socket cavity on L8
(North side secondary)

VCORE_CPU

4 4

HFM
ICC=41A

3 3

2 2

1 1

C140 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

Place these inside socket cavity on L1
(North side Primary)

C439 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C440 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

North side secondary

C1 75 10u F 6.3 V 10% SM T0 805 X5 R C20 12 X5R 0J1 06 K T DK LR (N U)

C173 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C174 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C139 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C172 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C4 35 10u F 6.3 V 10% SM T0 805 X5 R C20 12 X5R 0J1 06 K T DK LR

C437 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C438 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C436 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C1 79 10u F 6.3 V 10% SM T0 805 X5 R C20 12 X5R 0J1 06 K T DK LR (N U)

C178 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C176 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C177 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

South side secondary

Place these inside socket cavity on
L8 (South side secondary)

C2 29 10u F 6.3 V 10% SM T0 805 X5 R C20 12 X5R 0J1 06 K T DK LR (N U)

C2 25 10u F 6.3 V 10% SM T0 805 X5 R C20 12 X5R 0J1 06 K T DK LR (N U)

C227 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C226 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C230 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C483 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C224 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C223 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

Place these inside socket cavity on L1
(South side Primary)

C4 50 10u F 6.3 V 10% SM T0 805 X5 R C20 12 X5R 0J1 06 K T DK LR

C451 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C447 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C449 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C448 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C482 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C228 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)

C446 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

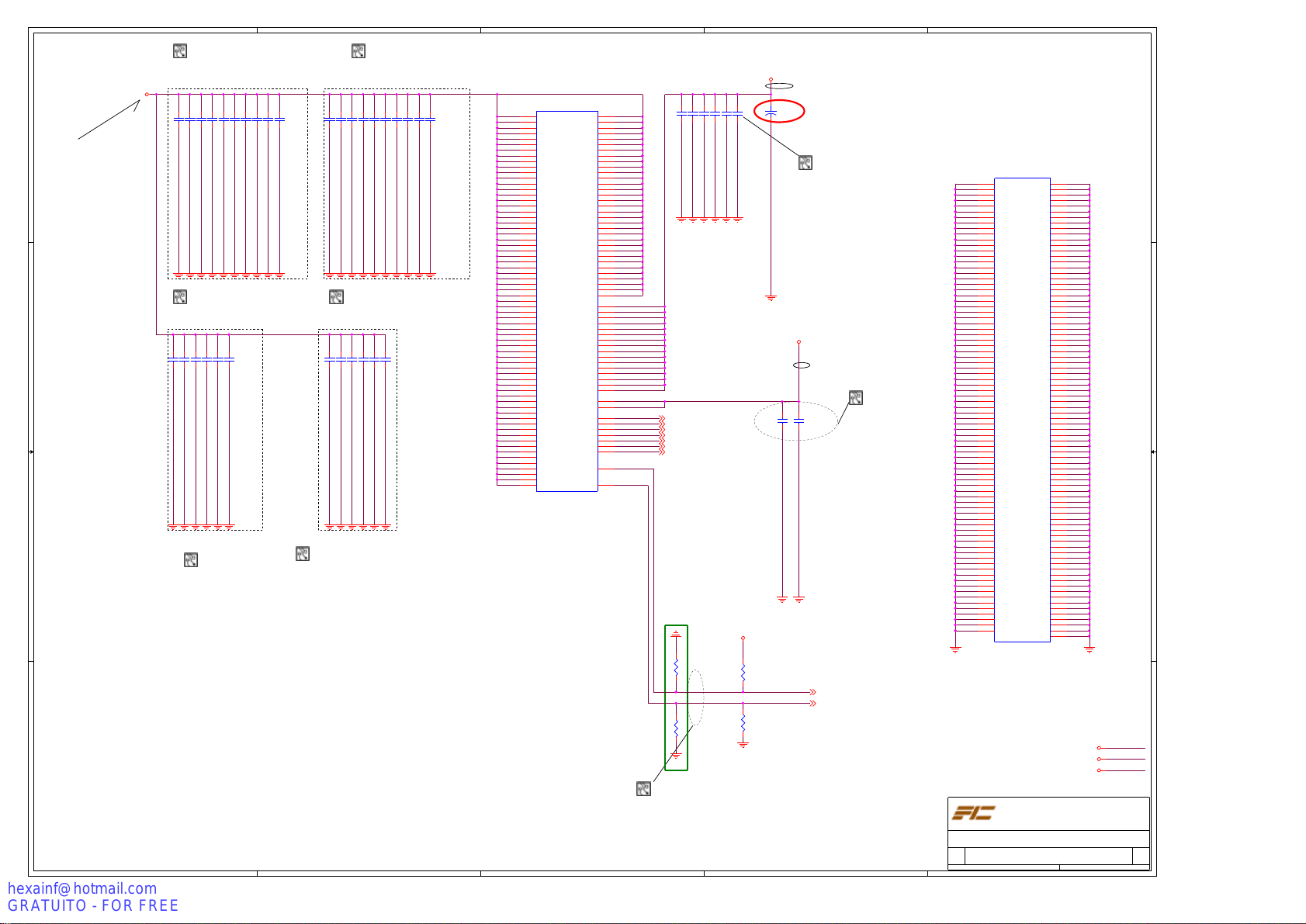

U23C

A7

VCC[001]

A9

VCC[002]

A10

VCC[003]

A12

VCC[004]

A13

VCC[005]

A15

VCC[006]

A17

VCC[007]

A18

VCC[008]

A20

VCC[009]

B7

VCC[010]

B9

VCC[011]

B10

VCC[012]

B12

VCC[013]

B14

VCC[014]

B15

VCC[015]

B17

VCC[016]

B18

VCC[017]

B20

VCC[018]

C9

VCC[019]

C10

VCC[020]

C12

VCC[021]

C13

VCC[022]

C15

VCC[023]

C17

VCC[024]

C18

VCC[025]

D9

VCC[026]

D10

VCC[027]

D12

VCC[028]

D14

VCC[029]

D15

VCC[030]

D17

VCC[031]

D18

VCC[032]

E7

VCC[033]

E9

VCC[034]

E10

VCC[035]

E12

VCC[036]

E13

VCC[037]

E15

VCC[038]

E17

VCC[039]

E18

VCC[040]

E20

VCC[041]

F7

VCC[042]

F9

VCC[043]

F10

VCC[044]

F12

VCC[045]

F14

VCC[046]

F15

VCC[047]

F17

VCC[048]

F18

VCC[049]

F20

VCC[050]

AA7

VCC[051]

AA9

VCC[052]

AA10

VCC[053]

AA12

VCC[054]

AA13

VCC[055]

AA15

VCC[056]

AA17

VCC[057]

AA18

VCC[058]

AA20

VCC[059]

AB9

VCC[060]

AC10

VCC[061]

AB10

VCC[062]

AB12

VCC[063]

AB14

VCC[064]

AB15

VCC[065]

AB17

VCC[066]

AB18

VCC[067]

Penryn Ball-out Rev 1a

VCC[068]
VCC[069]
VCC[070]
VCC[071]
VCC[072]
VCC[073]
VCC[074]
VCC[075]
VCC[076]
VCC[077]
VCC[078]
VCC[079]
VCC[080]
VCC[081]
VCC[082]
VCC[083]
VCC[084]
VCC[085]
VCC[086]
VCC[087]
VCC[088]
VCC[089]
VCC[090]
VCC[091]
VCC[092]
VCC[093]
VCC[094]
VCC[095]
VCC[096]
VCC[097]
VCC[098]
VCC[099]
VCC[100]

VCCP[01]
VCCP[02]
VCCP[03]
VCCP[04]
VCCP[05]
VCCP[06]
VCCP[07]
VCCP[08]
VCCP[09]
VCCP[10]
VCCP[11]
VCCP[12]
VCCP[13]
VCCP[14]
VCCP[15]
VCCP[16]

VCCA[01]
VCCA[02]

VID[0]
VID[1]
VID[2]
VID[3]
VID[4]
VID[5]
VID[6]

VCCSENSE

VSSSENSE

AB20
AB7
AC7
AC9
AC12
AC13
AC15
AC17
AC18
AD7
AD9
AD10
AD12
AD14
AD15
AD17
AD18
AE9
AE10
AE12
AE13
AE15
AE17
AE18
AE20
AF9
AF10
AF12
AF14
AF15
AF17
AF18
AF20

G21
V6
J6
K6
M6
J21
K21
M21
N21
N6
R21
R6
T21
T6
V21
W21

B26
C26

AD6
AF5
AE5
AF4
AE3
AF3
AE2

AF7

AE7

C1 88 0.1uF 16 V 10% SM D06 03 X7 R LR∮

C1 89 0.1uF 16 V 10% SM D06 03 X7 R LR∮

C1 94 0.1uF 16 V 10% SM D06 03 X7 R LR∮

C207 0.1uF 16V 10% SMD0603 X7R LR∮

H_VID0 <48>
H_VID1 <48>
H_VID2 <48>
H_VID3 <48>
H_VID4 <48>
H_VID5 <48>
H_VID6 <48>

POWER 2/5 ADD

RES 27.4 1% 1/16W SMT 0402 LR(NU)

R671

R672

RES 27.4 1% 1/16W SMT 0402 LR(NU)

1.05VDDM

C206 0.1uF 16V 10% SMD0603 X7R LR∮

C215 0.1uF 16V 10% SMD0603 X7R LR∮

VCORE_CPU

R155
100 1% 1/16W SMT0402 LR

R158
100 1% 1/16W SMT0402 LR

ICCP=4.5A,180mils

1/29 EMI

C184

+

220uF 2V 20% 15m 7343 PANA LR

∮

Place these inside socket cavity on L8
(North side secondary)

1.5VDDM

ICCA=130mA, 20mils

C253 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR

C250

0.01uF 16V 10% SMT0402 X7R LR

Place C?
Close To pin
B26

TDK

VCCSENSE <48>
VSSSENSE <48>

U23D

A4

VSS[082]

VSS[001]

A8

VSS[002]

VSS[083]

A11

VSS[003]

VSS[084]

A14

VSS[004]

VSS[085]

A16

VSS[005]

VSS[086]

A19

VSS[006]

VSS[087]

A23

VSS[007]

VSS[088]

AF2

VSS[008]

VSS[089]

B6

VSS[009]

VSS[090]

B8

VSS[010]

VSS[091]

B11

VSS[011]

VSS[092]

B13

VSS[012]

VSS[093]

B16

VSS[013]

VSS[094]

B19

VSS[014]

VSS[095]

B21

VSS[015]

VSS[096]

B24

VSS[016]

VSS[097]

C5

VSS[017]

VSS[098]

C8

VSS[018]

VSS[099]

C11

VSS[019]

VSS[100]

C14

VSS[020]

VSS[101]

C16

VSS[021]

VSS[102]

C19

VSS[022]

VSS[103]

C2

VSS[023]

VSS[104]

C22

VSS[024]

VSS[105]

C25

VSS[025]

VSS[106]

D1

VSS[026]

VSS[107]

D4

VSS[027]

VSS[108]

D8

VSS[028]

VSS[109]

D11

VSS[029]

VSS[110]

D13

VSS[030]

VSS[111]

D16

VSS[031]

VSS[112]

D19

VSS[032]

VSS[113]

D23

VSS[033]

VSS[114]

D26

VSS[034]

VSS[115]

E3

VSS[035]

VSS[116]

E6

VSS[036]

VSS[117]

E8

VSS[037]

VSS[118]

E11

VSS[038]

VSS[119]

E14

VSS[039]

VSS[120]

E16

VSS[040]

VSS[121]

E19

VSS[041]

VSS[122]

E21

VSS[042]

VSS[123]

E24

VSS[043]

VSS[124]

F5

VSS[044]

VSS[125]

F8

VSS[045]

VSS[126]

F11

VSS[046]

VSS[127]

F13

VSS[047]

VSS[128]

F16

VSS[048]

VSS[129]

F19

VSS[049]

VSS[130]

F2

VSS[050]

VSS[131]

F22

VSS[051]

VSS[132]

F25

VSS[052]

VSS[133]

G4

VSS[053]

VSS[134]

G1

VSS[054]

VSS[135]

G23

VSS[055]

VSS[136]

G26

VSS[056]

VSS[137]

H3

VSS[057]

VSS[138]

H6

VSS[058]

VSS[139]

H21

VSS[059]

VSS[140]

H24

VSS[060]

VSS[141]

J2

VSS[061]

VSS[142]

J5

VSS[062]

VSS[143]

J22

VSS[063]

VSS[144]

J25

VSS[064]

VSS[145]

K1

VSS[065]

VSS[146]

K4

VSS[066]

VSS[147]

K23

VSS[148]

VSS[067]

K26

VSS[068]

VSS[149]

L3

VSS[069]

VSS[150]

L6

VSS[070]

VSS[151]

L21

VSS[071]

VSS[152]

L24

VSS[072]

VSS[153]

M2

VSS[073]

VSS[154]

M5

VSS[074]

VSS[155]

M22

VSS[075]

VSS[156]

M25

VSS[076]

VSS[157]

N1

VSS[077]

VSS[158]

N4

VSS[078]

VSS[159]

N23

VSS[079]

VSS[160]

N26

VSS[080]

VSS[161]

P3 A25

VSS[081] VSS[162]

VSS[163]

Penryn Ball-out Rev 1a

P6
P21
P24
R2
R5
R22
R25
T1
T4
T23
T26
U3
U6
U21
U24
V2
V5
V22
V25
W1
W4
W23
W26
Y3
Y6
Y21
Y24
AA2
AA5
AA8
AA11
AA14
AA16
AA19
AA22
AA25
AB1
AB4
AB8
AB11
AB13
AB16
AB19
AB23
AB26
AC3
AC6
AC8
AC11
AC14
AC16
AC19
AC21
AC24
AD2
AD5
AD8
AD11
AD13
AD16
AD19
AD22
AD25
AE1
AE4
AE8
AE11
AE14
AE16
AE19
AE23
AE26
A2
AF6
AF8
AF11
AF13
AF16
AF19
AF21

AF25

VCORE_CPU<48>

VCORE_CPU

1.05VDDM

1.05VDDM<6,8..10,12,13,19,21,46>

1.5VDDM

1.5VDDM<12,13,18,19,21,27,28,47>

A

Route VCCSENSE and VSSSENSE traces
at 27.4 ohms with 50mil spacing.
Place PU and PD within 1 inch of CPU

B

C

D

Title

Size Document Number Rev

C

Date: Sheet of

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

Confidential

MY070>Penryn+Cantiga GM45+ICH9M

Penryn Processor(2/2)

E

7 56Thursday, May 29, 2008

0.5

5

4

3

2

1

D D

VDDIO_CLK

VDDIO_CLK

VDD_CK505

R278

3VDDM

0 5% 1/8W SMT0805 LR

Fine tune CLK_48M_ICH trace

C C

Placed within
500 mils of
CK410M

Y3

FREQ XTL 14.31818MHz SMD 18pF 30ppm X8A01431AFI1H HARMONY LR

C502
27pF 50V 5% SMT0402 NPO LR

the same with CLK_48M_CARD

∮

CLK_48M_ICH<20>

C507
27pF 50V 5% SMT0402 NPO LR

CLK_48M_CARD<36>

CLK_48M_ICH
CPU_BSEL0

CPU_BSEL1
CPU_BSEL2

CLK_14M_ICH<20>

CLK_MCH_OE#<10>

CLK_PCI_MINI<28>

CLK_PCIF_ICH<18>

SMB_CLK<15..17,20,27,28>

SMB_DATA<15..17,20,27,28>

CLK_14M_ICH

CLK_PCI_MINI
CLK_PCI_EC

CLK_PCI_EC<40>

CLK_PCIF_ICH
SMB_CLK

SMB_DATA

1.05VDDM

B B

CPU_BSEL0
CPU_BSEL1

CPU_BSEL1<6>

CPU_BSEL2

CPU_BSEL2<6>

R202

R257

R507

1K 5% 1/16W SMT0402 LR(NU)

1K 5% 1/16W SMT0402 LR(NU)

RES 56 5% 1/16W SMT0402 LR(NU)

RP38

RP 2.2K 5% SMT1010 4P2R 1/16W LR

R255

RES 2.2K 1% 1/16W SMT0402 LR

R518

R250

R258

1K 5% 1/16W SMT0402 LR(NU)

1K 5% 1/16W SMT0402 LR(NU)

1K 5% 1/16W SMT0402 LR(NU)

MCH_BSEL0 <10>CPU_BSEL0<6>
MCH_BSEL1 <10>

MCH_BSEL2 <10>

VDD_CK505

C509 0.1uF 10V 10% SMT0402 X5R LR

C282 10uF 10V +80-20% SMT0805 Y5V LR

C529 0.1uF 10V 10% SMT0402 X5R LR

10mil
10mil

R502 22 1% 1/16W SMT0402 LR
R503 22 1% 1/16W SMT0402 LR
R517 2.2K 5% 1/16W SMT0402 LR

R487 10K 5% 1/16W SMT0402 LR
R488 33 5% 1/16W SMT0402 LR Sn

R478
RES 475 1% 1/16W SMT0402 RR0510S-4750-FN CYNTEC LR

R499 33 5% 1/16W SMT0402 LR Sn

124

RP37 RP 33 5% SMT1010 1/16W 4P2R LR

PCIF2

PCIF4

PCIF5

PCI12 TME SELECT

PCIF5

C523 0.1uF 10V 10% SMT0402 X5R LR

C510 0.1uF 10V 10% SMT0402 X5R LR

C512 0.1uF 10V 10% SMT0402 X5R LR

C560 0.1uF 10V 10% SMT0402 X5R LR

3

R500 10K 5% 1/16W SMT0402 LR
R486 10K 5% 1/16W SMT0402 LR(NU)

R485 10K 5% 1/16W SMT0402 LR(NU)
R498 10K 5% 1/16W SMT0402 LR

R484 10K 5% 1/16W SMT0402 LR(NU)
R483 10K 5% 1/16W SMT0402 LR

0: Overclocking of CPU & SRC Allowed
1: Overclocking of CPU & SRC Not Allowed

0: SRC8/SRC8#
1: ITP/ITP#

C528 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

C550 0.1uF 10V 10% SMT0402 X5R LR

U26

XTAL_OUT
XTAL_IN

FSA

FSC

CLK_MCH_R_OE#

PCIF1
PCIF2

PCIF4
PCIF5

3VDDM

56

VDD_CPU_I/O

33

VDD_SRC_I/O_1

43

VDD_SRC_I/O_2

52

VDD_SRC_I/O_3

19

VDD_I/O

27

VDD_PLL3_I/O

23

VDD_PLL3

46

VDD_SRC

62

VDD_CPU

9

VDD_PCI

4

VDD_REF

16

VDD_48

2

XTAL_OUT

3

XTAL_IN

17

USB_48MHz/FS_A

64

FS_B/TEST_MODE

5

REF/FS_C/TEST_SEL

8

PCI_0/CLKREQ_A#

10

PCI_1/CLKREQ_B#

11

PCI_2

12

PCI_3

13

^PCI_4/LCDCLK_SEL

14

PCIF_5/ITP_EN

7

SCL

6

SDA

1

VSS_REF

15

VSS_PCI

18

VSS_48

22

VSS_I/O

26

VSS_PLL3

30

VSS_SRC_1

36

VSS_SRC_2

49

VSS_SRC_3

59

VSS_CPU

65

THRM_PAD_1

ASIC CLOCK GENERATOR ICS9LPRS365BKLFT MLF 64PIN VER:B ICS LR

SRC_8#/CPU_ITP#

SRC_7/CLKREQ_F#

SRC_7#/CLKREQ_E#
SRC_11/CLKREQ_H#

SRC_11#/CLKREQ_G#

SRC_3#/CLKREQ_D#

SRC_3/CLKREQ_C#

LCDCLK#/27M_SS

SRC_0#/DOT_96#

PCI_STOP#

CPU_STOP#
CPU_1_MCH

CPU_1_MCH#

CPU_0

CPU_0#

SRC_8/CPU_ITP

SRC_2#

SRC_2

SRC_4#

SRC_4

SRC_9#

SRC_9

SRC_10#

SRC_10
SRC_6#

SRC_6

LCDCLK/27M

SRC_0/DOT_96

CKPWRGD/PD#

45
44

58
57

61
60

54
53

29
28

51
50

40
39

35
34

32
31

38
37

42
41

47
48

24
25

21
20

63

55

NC

PM_STPPCI# <20>
PM_STPCPU# <20>

CPU1

RP41 0 5% SMT1010 1/16W 4P2R LR

124

CPU1#
CPU0

RP39 0 5% SMT1010 1/16W 4P2R LR

124

CPU0#
SRC8

RP43 0 5% SMT1010 1/16W 4P2R LR

124

SRC8#
SRC2#

RP44 0 5% SMT1010 1/16W 4P2R LR

124

SRC2

PCI0_OE#_R

R263 475 1% 1/10W SMT0603 LR

SRC11

RP46 0 5% SMT1010 1/16W 4P2R LR

124

SRC11#
SRC4#

SRC4

SRV_9#
SRV_9

SRC10#
SRC10

SRC6#
SRC6

SS_CLK
SS_CLK#

DOT96#
DOT96

1
1

1
1

RP45 0 5% SMT1010 1/16W 4P2R LR

124

RP47 0 5% SMT1010 1/16W 4P2R LR

124

RP48 0 5% SMT1010 1/16W 4P2R LR

124

RP42 0 5% SMT1010 1/16W 4P2R LR

124

RP40 0 5% SMT1010 1/16W 4P2R LR

124

C521 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)
C533 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)
C531 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

3

3

3

3

3

T32
T31

T28
T29

3

3
3

3

3

∮

∮

∮

∮

CLK_MCH_BCLK <9>
CLK_MCH_BCLK# <9>

CLK_CPU_BCLK <6>
CLK_CPU_BCLK# <6>

CLK_PCIE_EXPCARD <27>
CLK_PCIE_EXPCARD# <27>

CLK_PCIE_3GPLL# <10>
CLK_PCIE_3GPLL <10>

CLK_SATA_QE# <20>
CLK_PCIE_MINICARD <28>

CLK_PCIE_MINICARD# <28>

CLK_PCIE_ROBSON# <28>
CLK_PCIE_ROBSON <28>

CLK_PCIE_ICH# <18>
CLK_PCIE_ICH <18>

CLK_PCIE_SATA# <19>
CLK_PCIE_SATA <19>

DREFSSCLK <10>
DREFSSCLK# <10>

DREFCLK# <10>
DREFCLK <10>

CLK_PWRGD <20>

CLK_PCI_EC
CLK_PCI_MINI

CLK_PCIF_ICH
CLK_48M_ICH
CLK_14M_ICH

For EMI

NB

CPU

Express card

NB

mini card

mini card

SB

SB

NB

NB

C499 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR
C500 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR

C498 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR
C508 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR
C501 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR

1.05VDDM

R548
0 5% 1/10W SMT0603 LR

C542 0.1uF 10V 10% SMT0402 X5R LR

∮

∮

∮

∮

∮

VDDIO_CLK

VDDIO_CLK

C535 0.1uF 10V 10% SMT0402 X5R LR

C532 0.1uF 10V 10% SMT0402 X5R LR(NU)

C522 0.1uF 10V 10% SMT0402 X5R LR

C553 10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm JMK212F106ZG-T TAIYO LR(NU)

C559 0.1uF 10V 10% SMT0402 X5R LR

C545 10uF 10V +80-20% SMT0805 Y5V LR

C564 0.1uF 10V 10% SMT0402 X5R LR

SS1
0
0
1
1
0
0

1

SS0
0
1
0
1
0
1
0
1

Spread Mode

DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN

A A

FSC

CPU_BSEL2

FSB

CPU_BSEL1

0

0

0

0

5

FSA

Host Clock

CPU_BSEL0

0

Frequency MHz

1 133

1

01

0

1661

200

2660

SS31SS2

0 +/- 0.3

0
0

0
0
0

0

1

0
0

1

0

1

0

1

4

Spread Amount %

0.8

1.0

1.25

1.5

1.75

2.0

2.51

3.0 1 1

SS3
1
1
1

1
1
1

3

SS2
0
0
0
0
1
1
1
1

SS1
0
0
1
1
0
0
1
1

SS0
0
1
0
1
0
1
0

Spread Mode

Center
Center
Center
Center
Center
Center
Center
Center

Spread Amount %

+/- 0.4
+/- 0.50
+/- 0.6
+/- 0.8
+/- 1.0
+/- 1.25
+/- 1.5

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

2

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

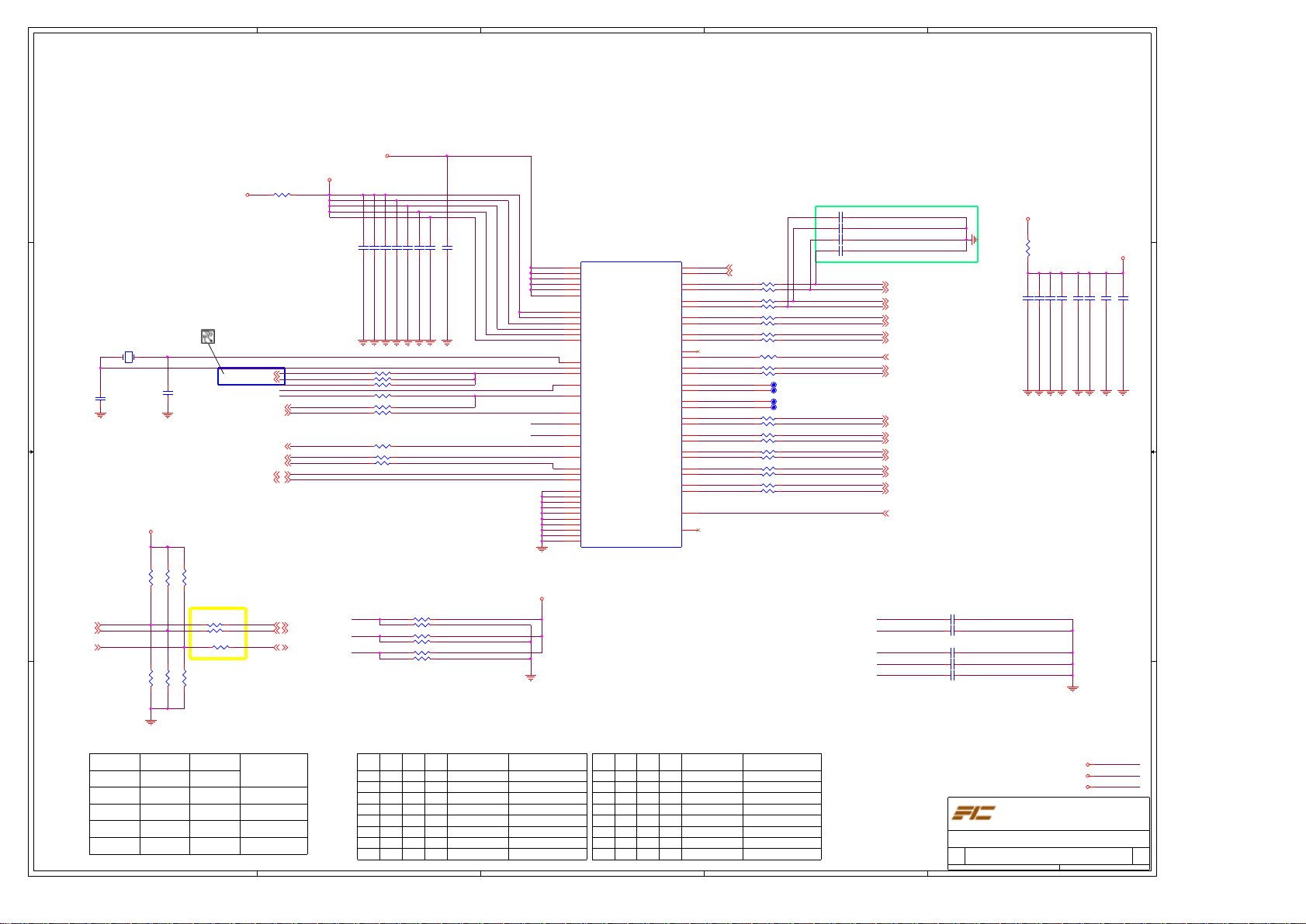

Clock Generator IC ICS9LPRS365BKLFT

1

3VDDM<6,10,13,15..22,24,25,27,28,33,36..40,44,46..49>

1.05VDDM<6,7,9,10,12,13,19,21,46>
3VDDM<6,10,13,15..22,24,25,27,28,33,36..40,44,46..49>

3VDDM

1.05VDDM
3VDDM

Confidential

8 56Thursday, May 29, 2008

0.5

10

[e-mail]
GRATUITO - FOR FREE

9

8

7

6

5

4

3

2

1

H H

G G

H_D#[63..0]<6>

H_D#[63..0]

1.05VDDM

R453
RES 221 1% 1/16W SMT0402 RR0510S-2210-FN CYNTEC LR

R612=100 for Dual core
CPU

R601=75 for Quad core

F F

CPU
Checklist 1.1

R601=24.9 for Dual core
CPU

R601=16.9 for Quad core
CPU

Checklist 1.1

R452
100 1% 1/16W SMT0402 LR

R447
RES 24.9 1% 1/16W SMT0402 LR

H_RCOMP

H_SWING

C479

0.1uF 10V 10% SMT0402 X5R LR

E E

D D

H_SWING
H_RCOMP

H_CPURST#<6>

C C

H_CPUSLP#<6>

1.05VDDM

R455
1K 1% 1/16W SMT0402 LR

H_AVREF

B B

R449
SPWR 0 5% 1/16W 0402

R456
RES 2K 1% 1/16W SMT 0402 LR

C475

0.1uF 10V 10% SMT0402 X5R LR(NU)

U22A

H_D#0

F2

H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63

H_D#_0

G8

H_D#_1

F8

H_D#_2

E6

H_D#_3

G2

H_D#_4

H6

H_D#_5

H2

H_D#_6

F6

H_D#_7

D4

H_D#_8

H3

H_D#_9

M9

H_D#_10

M11

H_D#_11

J1

H_D#_12

J2

H_D#_13

N12

H_D#_14

J6

H_D#_15

P2

H_D#_16

L2

H_D#_17

R2

H_D#_18

N9

H_D#_19

L6

H_D#_20

M5

H_D#_21

J3

H_D#_22

N2

H_D#_23

R1

H_D#_24

N5

H_D#_25

N6

H_D#_26

P13

H_D#_27

N8

H_D#_28

L7

H_D#_29

N10

H_D#_30

M3

H_D#_31

Y3

H_D#_32

AD14

H_D#_33

Y6

H_D#_34

Y10

H_D#_35

Y12

H_D#_36

Y14

H_D#_37

Y7

H_D#_38

W2

H_D#_39

AA8

H_D#_40

Y9

H_D#_41

AA13

H_D#_42

AA9

H_D#_43

AA11

H_D#_44

AD11

H_D#_45

AD10

H_D#_46

AD13

H_D#_47

AE12

H_D#_48

AE9

H_D#_49

AA2

H_D#_50

AD8

H_D#_51

AA3

H_D#_52

AD3

H_D#_53

AD7

H_D#_54

AE14

H_D#_55

AF3

H_D#_56

AC1

H_D#_57

AE3

H_D#_58

AC3

H_D#_59

AE11

H_D#_60

AE8

H_D#_61

AG2

H_D#_62

AD6

H_D#_63

C5

H_SWING

E3

H_RCOMP

C12

H_CPURST#

E11

H_CPUSLP#

A11

H_AVREF

B11

H_DVREF

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

20080428 Want to use MP version so
change PN to -03

H_A#_10
H_A#_11
H_A#_12
H_A#_13
H_A#_14
H_A#_15
H_A#_16
H_A#_17
H_A#_18
H_A#_19
H_A#_20
H_A#_21
H_A#_22
H_A#_23
H_A#_24
H_A#_25
H_A#_26
H_A#_27
H_A#_28
H_A#_29
H_A#_30
H_A#_31
H_A#_32
H_A#_33
H_A#_34
H_A#_35

H_ADSTB#_0
H_ADSTB#_1

H_BPRI#

H_BREQ#

H_DEFER#

H_DBSY#

HPLL_CLK

HPLL_CLK#

H_DPWR#

HOST

H_DRDY#

H_HITM#
H_LOCK#
H_TRDY#

H_DINV#_0
H_DINV#_1
H_DINV#_2
H_DINV#_3

H_DSTBN#_0
H_DSTBN#_1
H_DSTBN#_2
H_DSTBN#_3

H_DSTBP#_0
H_DSTBP#_1
H_DSTBP#_2
H_DSTBP#_3

H_REQ#_0
H_REQ#_1

H_REQ#_2
H_REQ#_3

H_REQ#_4

H_RS#_0

H_RS#_1

H_RS#_2

H_A#_3
H_A#_4
H_A#_5
H_A#_6
H_A#_7
H_A#_8
H_A#_9

H_ADS#

H_BNR#

H_HIT#

H_A#3

A14

H_A#4

C15

H_A#5

F16

H_A#6

H13

H_A#7

C18

H_A#8

M16

H_A#9

J13

H_A#10

P16

H_A#11

R16

H_A#12

N17

H_A#13

M13

H_A#14

E17

H_A#15

P17

H_A#16

F17

H_A#17

G20

H_A#18

B19

H_A#19

J16

H_A#20

E20

H_A#21

H16

H_A#22

J20

H_A#23

L17

H_A#24

A17

H_A#25

B17

H_A#26

L16

H_A#27

C21

H_A#28

J17

H_A#29

H20

H_A#30

B18

H_A#31

K17

H_A#32

B20

H_A#33

F21

H_A#34

K21

H_A#35

L20
H12

B16
G17
A9
F11
G12
E9
B10
AH7
AH6
J11
F9
H9
E12
H11
C9

J8
L3
Y13
Y1

L10
M7
AA5
AE6

L9
M8
AA6
AE5

H_REQ#0

B15

H_REQ#1

K13

H_REQ#2

F13

H_REQ#3

B13

H_REQ#4

B14
B6

F12
C8

H_A#[35..3]

H_REQ#[4..0]

H_A#[35..3] <6>

H_ADS# <6>
H_ADSTB#0 <6>
H_ADSTB#1 <6>
H_BNR# <6>

H_BPRI# <6>

H_BREQ# <6>

H_DEFER# <6>

H_DBSY# <6>

H_DPWR# <6>
H_DRDY# <6>
H_HIT# <6>

H_HITM# <6>
H_LOCK# <6>
H_TRDY# <6>

H_DINV#0 <6>

H_DINV#1 <6>

H_DINV#2 <6>

H_DINV#3 <6>

H_DSTBN#0 <6>

H_DSTBN#1 <6>

H_DSTBN#2 <6>

H_DSTBN#3 <6>

H_DSTBP#0 <6>

H_DSTBP#1 <6>

H_DSTBP#2 <6>

H_DSTBP#3 <6>

H_REQ#[4..0] <6>
H_RS#0 <6 >

H_RS#1 <6 >
H_RS#2 <6 >

CLK_MCH_BCLK <8>

CLK_MCH_BCLK# <8>

H_DVREF

1.05VDDM<6..8,10,12,13,19,21,46>

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu

A A

10

9

8

7

6

5

4

3

Title

Size Document Number Rev

C

Date: Sheet of

114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

Confidential

MY070>Penryn+Cantiga GM45+ICH9M

Cantiga Host(1/6)

2

1.05VDDM

9 56Thursday, May 29, 2008

0.5

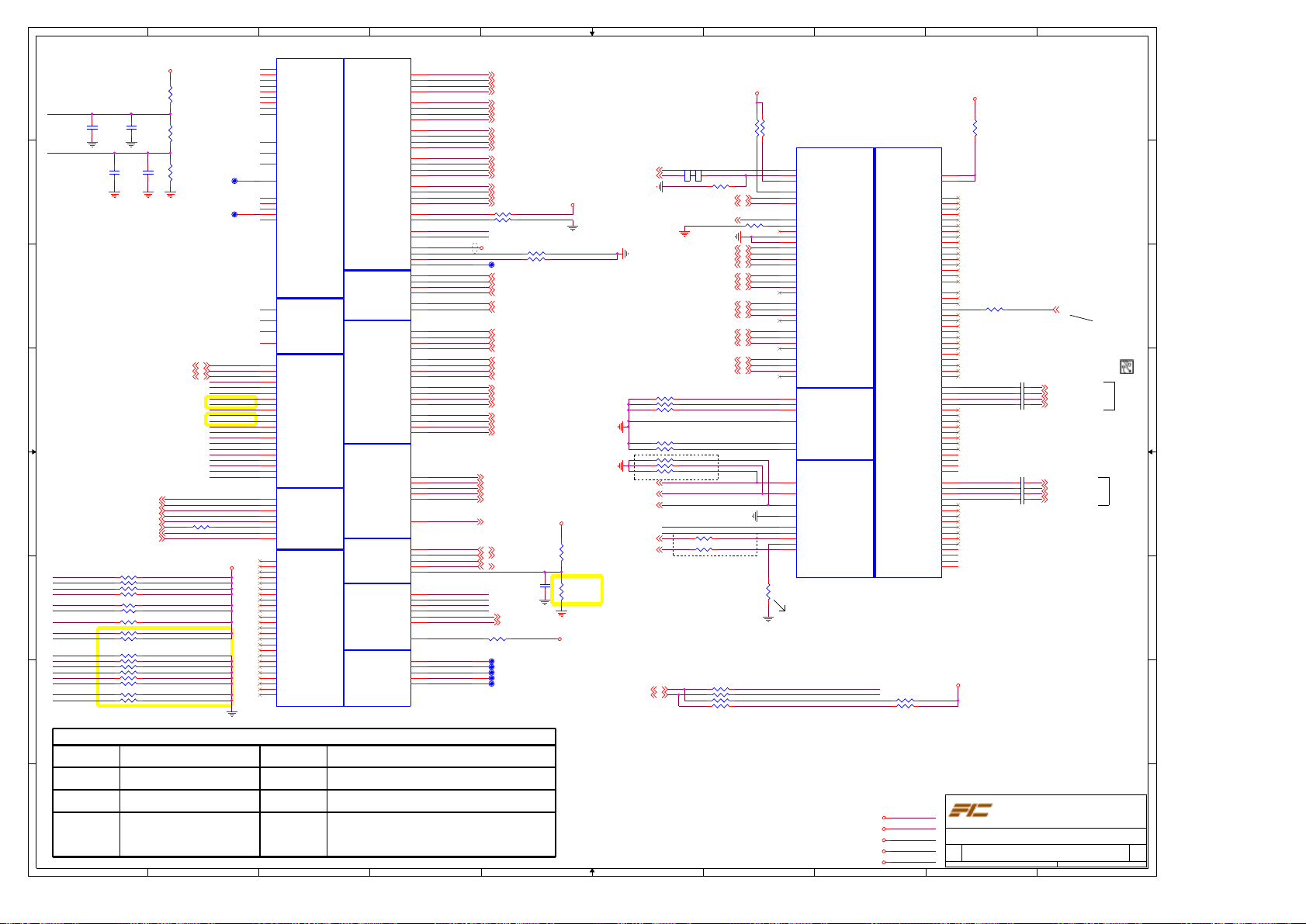

1

10

H H

SM_RCOMP_VOH

C135

C137

2.2uF 6.3V 80-20% SMT0603 Y5V LR

0.01uF 16V 10% SMT0402 X7R LR

SM_RCOMP_VOL

C155

C141

2.2uF 6.3V 80-20% SMT0603 Y5V LR

0.01uF 16V 10% SMT0402 X7R LR

G G

F F

E E

PM_SYNC#<20>

D D

H_DPRSTP#<6,19,48>
PM_EXTTS#0<16,17>
PM_EXTTS#1<15>

DELAY_VR_PWRGOOD<22,48>

PLT_RST#<18>
PM_THRMTRIP#<6,19>
PM_DPRSLPVR<20,48,49>

2008.01.22 Add R665, R666

DDPC_CTRL_CLK
DDPC_CTRL_DATA
SDVO_CTRL_CLK
SDVO_CTRL_DATA

PM_EXTTS#0
PM_EXTTS#1

C C

CLK_MCH_OE#
MCH_CFG_19

MCH_CFG_20

MCH_CFG_5
MCH_CFG_9
MCH_CFG_12
MCH_CFG_13
MCH_CFG_16
MCH_CFG_6

MCH_CFG_7
MCH_CFG_10

B B

GMCH Strapping Requirements

CFG [2:0]

CFG5

CFG9

A A

CFG [12:13]

R684 RES 4.02K 1% 1/16W 0402 LR
R666 RES 4.02K 1% 1/16W 0402 LR
R685 RES 4.02K 1% 1/16W 0402 LR (NU)
R665 RES 4.02K 1% 1/16W 0402 LR (NU)

RP21 10K 5% SMT1010 1/16W 4P2R LR

124

3

R228 10K 5% 1/16W SMT0402 LR
R236 RES 4.02K 1% 1/16W 0402 LR

R237 RES 4.02K 1% 1/16W 0402 LR (NU)

R221 2.2K 1% 1/16W SMT0402 LR(NU)
R219 2.2K 1% 1/16W SMT0402 LR (NU)
R229 2.2K 1% 1/16W SMT0402 LR(NU)
R218 2.2K 1% 1/16W SMT0402 LR(NU)
R230 2.2K 1% 1/16W SMT0402 LR(NU)
R220 2.2K 1% 1/16W SMT0402 LR(NU)

R235 2.2K 1% 1/16W SMT0402 LR(NU)
R234 2.2K 1% 1/16W SMT0402 LR(NU)

TPM

011 = 667 MT/s ( 677MHz ) FSB
001 = 533 MT/s ( 533MHz ) FSB
0 = DMI * 2
1 = DMI * 4 ( Default )
0 = Lane Reverse
1 = Normal Operation ( Default )
00 = Clock Gating Disable
01 = XOR Mode Enabled
10 = All Z Mode Enable
11 = Normal Operation ( Default )

10

9

1.8VDDS_DDR2

R149
1K 1% 1/16W SMT0402 LR

R150

3.01K 1% 1/10W 0603 LR

R157
1K 1% 1/16W SMT0402 LR

MCH_BSEL0<8>
MCH_BSEL1<8>
MCH_BSEL2<8>

R461
RES 100 5% 1/16W SMT0402 LR

9

T8

T6

MCH_CFG_3
MCH_CFG_4
MCH_CFG_5
MCH_CFG_6
MCH_CFG_7
MCH_CFG_8
MCH_CFG_9
MCH_CFG_10
MCH_CFG_11
MCH_CFG_12
MCH_CFG_13
MCH_CFG_14
MCH_CFG_15
MCH_CFG_16
MCH_CFG_17
MCH_CFG_18
MCH_CFG_19
MCH_CFG_20

PM_EXTTS#0
PM_EXTTS#1

RST_IN#_MCH

3VDDM

8

U22B

M36

RSVD1

N36

RSVD2

R33

RSVD3

T33

RSVD4

AH9

RSVD5

AH10

RSVD6

AH12

RSVD7

AH13

RSVD8

K12

RSVD9

T24

RSVD14

B31

RSVD15

M1

RSVD17

1

AY21

RSVD20

B2

RSVD21

BG23

RSVD22

BF23

RSVD23

1

BH18

RSVD24

BF18

RSVD25

AL34

ME_JTAG_TCK

AK34

ME_JTAG_TDI

AN35

ME_JTAG_TDO

AM35

ME_JTAG_TMS

T25

CFG_0

R25

CFG_1

P25

CFG_2

P20

CFG_3

P24

CFG_4

C25

CFG_5

N24

CFG_6

M24

CFG_7

E21

CFG_8

C23

CFG_9

C24

CFG_10

N21

CFG_11

P21

CFG_12

T21

CFG_13

R20

CFG_14

M20

CFG_15

L21

CFG_16

H21

CFG_17

P29

CFG_18

R28

CFG_19

T28

CFG_20

R29

PM_SYNC#

B7

PM_DPRSTP#

N33

PM_EXT_TS#_0

P32

PM_EXT_TS#_1

AT40

PWROK

AT11

RSTIN#

T20

THERMTRIP#

R32

DPRSLPVR

BG48

NC_1

BF48

NC_2

BD48

NC_3

BC48

NC_4

BH47

NC_5

BG47

NC_6

BE47

NC_7

BH46

NC_8

BF46

NC_9

BG45

NC_10

BH44

NC_11

BH43

NC_12

BH6

NC_13

BH5

NC_14

BG4

NC_15

BH3

NC_16

BF3

NC_17

BH2

NC_18

BG2

NC_19

BE2

NC_20

BG1

NC_21

BF1

NC_22

BD1

NC_23

BC1

NC_24

F1

NC_25

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

CFG16

CFG18

(PCIE)

CFG19

CFG20

RSVD

ME JTAG

CFG

PM

NC

0 = Dynamic ODT Disabled
1 = DMI Lane Reversal Enabled ( Default )

0 = VCC->1.05V ( Default )
1 = VCC->1.5V

0 = Normal ( Default )

1 = Lanes Reversed
0 = Only SDVO or PCIE X1 is operationl ( default )
1 = SDVO or PCIE X1 are operatingsimulaneously via the PEG port.

SA_CK#_0
SA_CK#_1
SB_CK#_0
SB_CK#_1

SA_CKE_0
SA_CKE_1
SB_CKE_0
SB_CKE_1

SA_CS#_0
SA_CS#_1
SB_CS#_0
SB_CS#_1

SA_ODT_0
SA_ODT_1
SB_ODT_0
SB_ODT_1

SM_RCOMP

SM_RCOMP#

SM_RCOMP_VOH
SM_RCOMP_VOL

SM_PWROK
SM_DRAMRST#
DPLL_REF_CLK

DDR CLK/ CONTROL/COMPENSATIONCLK

DPLL_REF_CLK#

DPLL_REF_SSCLK

DPLL_REF_SSCLK#

PEG_CLK#

DMI_RXN_0
DMI_RXN_1
DMI_RXN_2
DMI_RXN_3

DMI_RXP_0
DMI_RXP_1
DMI_RXP_2
DMI_RXP_3

DMI_TXN_0
DMI_TXN_1
DMI_TXN_2
DMI_TXN_3

DMI_TXP_0
DMI_TXP_1
DMI_TXP_2

DMI

DMI_TXP_3

GFX_VID_0
GFX_VID_1
GFX_VID_2
GFX_VID_3
GFX_VID_4

GFX_VR_EN

GRAPHICS VIDMEHDA

CL_PWROK

DDPC_CTRLCLK

DDPC_CTRLDATA

SDVO_CTRLCLK

SDVO_CTRLDATA

ICH_SYNC#

MISC

HDA_BCLK
HDA_RST#

HDA_SDO

HDA_SYNC

SA_CK_0
SA_CK_1
SB_CK_0
SB_CK_1

SM_VREF
SM_REXT

PEG_CLK

CL_CLK

CL_DATA
CL_RST#

CL_VREF

CLKREQ#

TSATN#

HDA_SDI

8

AP24
AT21
AV24
AU20

AR24
AR21
AU24
AV20

BC28
AY28
AY36
BB36

BA17
AY16
AV16
AR13

BD17
AY17
BF15
AY13

BG22
BH21

BF28
BH28

AV42
AR36
BF17
BC36

B38
A38
E41
F41

F43
E43

AE41
AE37
AE47
AH39

AE40
AE38
AE48
AH40

AE35
AE43
AE46
AH42

AD35
AE44
AF46
AH43

B33
B32
G33
F33
E33

C34

AH37
AH36
AN36
AJ35
AH34

N28
M28
G36
E36
K36
H36

B12

B28
B30
B29
C29
A28

7

7

6

M_CLK_DDR0 <16>
M_CLK_DDR1 <16>
M_CLK_DDR3 <17>
M_CLK_DDR4 <17>

M_CLK_DDR#0 <16>
M_CLK_DDR#1 <16>
M_CLK_DDR#3 <17>
M_CLK_DDR#4 <17>

M_CKE0 <16>
M_CKE1 <16>
M_CKE3 <17>
M_CKE4 <17>

M_CS#0 <16>
M_CS#1 <16>
M_CS#2 <17>
M_CS#3 <17>

M_ODT0 <16>
M_ODT1 <16>
M_ODT2 <17>

SM_RCOMP
SM_RCOMP#

SM_RCOMP_VOH
SM_RCOMP_VOL

SM_PWROK
SM_DRAMRST#

DMI_TXP3
DMI_TXP2
DMI_TXP1
DMI_TXP0

DMI_TXN3
DMI_TXN2
DMI_TXN1
DMI_TXN0

DMI_RXP3
DMI_RXP2
DMI_RXP1
DMI_RXP0

DMI_RXN3
DMI_RXN2
DMI_RXN1
DMI_RXN0

DFGT_VID_0
DFGT_VID_1
DFGT_VID_2
DFGT_VID_3
DFGT_VID_4

DDPC_CTRL_CLK
DDPC_CTRL_DATA
SDVO_CTRL_CLK
SDVO_CTRL_DATA
CLK_MCH_OE#

MCH_TSATN#

M_ODT3 <17>

R427 RES 80.6 1% 1/16W SMT0402 RR0510S-80R6-FN CYNTEC LR
R428 RES 80.6 1% 1/16W SMT0402 RR0510S-80R6-FN CYNTEC LR

20mil

M_VREF

1

T7

DREFCLK <8>
DREFCLK# <8>
DREFSSCLK <8>
DREFSSCLK# <8>

CLK_PCIE_3GPLL <8>
CLK_PCIE_3GPLL# <8>

DMI_TXP3 <18>
DMI_TXP2 <18>
DMI_TXP1 <18>
DMI_TXP0 <18>

DMI_TXN3 <18>
DMI_TXN2 <18>
DMI_TXN1 <18>
DMI_TXN0 <18>

DMI_RXP3 <18>
DMI_RXP2 <18>
DMI_RXP1 <18>
DMI_RXP0 <18>

DMI_RXN3 <18>
DMI_RXN2 <18>
DMI_RXN1 <18>
DMI_RXN0 <18>

DFGT_VID_0 <49>
DFGT_VID_1 <49>
DFGT_VID_2 <49>
DFGT_VID_3 <49>
DFGT_VID_4 <49>

DFGT_VR_EN <49>

CL_CLK0 <20>
CL_DATA0 <20>

MPWROK <20,22,40>

CL_RST#0 <20>

CL_REF

0.1uF 10V 10% SMT0402 X5R LR

CLK_MCH_OE# <8>
MCH_ICH_SYNC# <20>

R216
RES 56 5% 1/16W SMT0402 LR

1

T25

1

T9

1

T23

1

T24

1

T22

1.8VDDS_DDR2

20mile

R174 10K 1% 1/16W SMT0402 LR
R154 499 1% 1/16W SMT0402 LR

1.05VDDM

CL_REF

C196

1.05VDDM

(DMI lane)

6

NB_BRIGHTNESS<24>

LVDS_ENABKL<40>

R211 75 1% 1/16W SMT0402 LR
R207 75 1% 1/16W SMT0402 LR
R201 75 1% 1/16W SMT0402 LR

R458 0 5% 1/16W SMT0402 LR
R454 0 5% 1/16W SMT0402 LR

R203 RES 150 1% 1/16W SMT0402 LR
R209 RES 150 1% 1/16W SMT0402 LR
R212 RES 150 1% 1/16W SMT0402 LR

Place near to the GMCH

BLUE<26>

GREEN<26>

HSYNC<26>

R180
1K 1% 1/16W SMT0402 LR

0.35V

R186
500 1% 1/16W SMT0402 RALEC LR

VSYNC<26>

VECLK<25>

VEDAT<25>

5

10K 5% 1/16W SMT0402 LR

R223 SHW 0 5% 1/16W 0402

100K 5% 1/16W SMT0402 LR

LVDSA_TXCLK_LN<24>
LVDSA_TXCLK_LP<24>
LVDSB_TXCLK_LN<24>
LVDSB_TXCLK_LP<24>

LVDSA_TXOUT_L0N<24>
LVDSA_TXOUT_L1N<24>
LVDSA_TXOUT_L2N<24>

LVDSA_TXOUT_L0P<24>
LVDSA_TXOUT_L1P<24>
LVDSA_TXOUT_L2P<24>

LVDSB_TXOUT_L0N<24>
LVDSB_TXOUT_L1N<24>
LVDSB_TXOUT_L2N<24>

LVDSB_TXOUT_L0P<24>
LVDSB_TXOUT_L1P<24>
LVDSB_TXOUT_L2P<24>

RED<26>

CRT_DDC_CLK
CRT_DDC_DATA

R214 30 5% 1/16W SMT0402 LR
R215 30 5% 1/16W SMT0402 LR

R462

R222

LVDS_DDC_CLK<24>

LVDS_DDC_DATA<24>

LVDS_ENALCD<24>

RES 2.4K 1% 1/16W SMT0402 LR

Place near to the GMCH

2008.02.12 Add R667~R670

R667 0 5% 1/16W SMT0402 LR
R668 0 5% 1/16W SMT0402 LR
R669 0 5% 1/16W SMT0402 LR (NU)
R670 0 5% 1/16W SMT0402 LR (NU)

5

4

3

3VDDM

R463
10K 5% 1/16W SMT0402 LR

U22C

L32

L_BKLT_CTRL

G32

L_BKLT_EN

M32

L_CTRL_CLK

M33

L_CTRL_DATA

K33

L_DDC_CLK

J33

L_DDC_DATA

M29

L_VDD_EN

R450

C44

LVDS_IBG

B43

LVDS_VBG

E37

LVDS_VREFH

E38

LVDS_VREFL

C41

LVDSA_CLK#

C40

LVDSA_CLK

B37

LVDSB_CLK#

A37

LVDSB_CLK

H47

LVDSA_DATA#_0

E46

LVDSA_DATA#_1

G40

LVDSA_DATA#_2

A40

LVDSA_DATA#_3

H48

LVDSA_DATA_0

D45

LVDSA_DATA_1

F40

LVDSA_DATA_2

B40

LVDSA_DATA_3

A41

LVDSB_DATA#_0

H38

LVDSB_DATA#_1

G37

LVDSB_DATA#_2

J37

LVDSB_DATA#_3

B42

LVDSB_DATA_0

G38

LVDSB_DATA_1

F37

LVDSB_DATA_2

K37

LVDSB_DATA_3

F25

TVA_DAC

H25

TVB_DAC

K25

TVC_DAC

H24

TV_RTN

TV_DCONSEL0

C31

TV_DCONSEL1

TV_DCONSEL_0

E32

TV_DCONSEL_1

E28

CRT_BLUE

G28

CRT_GREEN

J28

CRT_RED

G29

CRT_IRTN

H32

CRT_DDC_CLK

J32

CRT_DDC_DATA

J29

CRT_HSYNC

E29

CRT_TVO_IREF

L29

CRT_VSYNC

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR
R451
1K 1% 1/16W SMT0402 LR

If the total motherboard route length is less than 12〃,
the
recommended reference resistor value is 1 k 1% .
For longer route lengths between 12〃-15.3〃, the
recommended reference resistor value is 976 1%

SDVO_CTRL_CLK
SDVO_CTRL_DATA
CRT_DDC_CLK
CRT_DDC_DATA

1.8VDDS_DDR2<12,13,16,17,45>

1.05VDDM_PEG<13>
M_VREF<16,17,45>

1.05VDDM<6..9,12,13,19,21,46>

4

3VDDM<6,8,13,15..22,24,25,27,28,33,36..40,44,46..49>

PEG_COMPI

PEG_COMPO

PEG_RX#_0
PEG_RX#_1
PEG_RX#_2
PEG_RX#_3
PEG_RX#_4
PEG_RX#_5
PEG_RX#_6
PEG_RX#_7

LVDS

PEG_RX#_8

PEG_RX#_9
PEG_RX#_10
PEG_RX#_11
PEG_RX#_12
PEG_RX#_13
PEG_RX#_14
PEG_RX#_15

PEG_RX_10

PEG_RX_11

PEG_RX_12

PEG_RX_13

PEG_RX_14

PEG_RX_15

PEG_TX#_0

PEG_TX#_1

PEG_TX#_2

PEG_TX#_3

TV

PEG_TX#_4

PEG_TX#_5

PEG_TX#_6

PEG_TX#_7

PEG_TX#_8

PEG_TX#_9

PEG_TX#_10
PEG_TX#_11

PCI-EXPRESS GRAPHICS

PEG_TX#_12
PEG_TX#_13
PEG_TX#_14
PEG_TX#_15

VGA

PEG_TX_10

PEG_TX_11

PEG_TX_12

PEG_TX_13

PEG_TX_14

PEG_TX_15

R686 RES 4.02K 1% 1/16W 0402 LR
R687 RES 4.02K 1% 1/16W 0402 LR

1.8VDDS_DDR2

1.05VDDM_PEG
M_VREF

1.05VDDM
3VDDM

3

2

1.05VDDM_PEG

R197

49.9 1% 1/16W SMT0402 LR

PEG_COMP

T37
T36

H44
J46
L44
L40
N41
P48
N44
T43
U43
Y43
Y48
Y36
AA43
AD37
AC47
AD39

H43

PEG_RX_0

J44

PEG_RX_1

L43

PEG_RX_2
PEG_RX_3
PEG_RX_4
PEG_RX_5
PEG_RX_6
PEG_RX_7
PEG_RX_8
PEG_RX_9

PEG_TX_0
PEG_TX_1
PEG_TX_2
PEG_TX_3
PEG_TX_4
PEG_TX_5
PEG_TX_6
PEG_TX_7
PEG_TX_8
PEG_TX_9

L41

R681

N40

0 5% 1/16W SMT0402 LR

P47
N43
T42
U42
Y42
W47
Y37
AA42
AD36
AC48
AD40

PEG_TX#_0

J41

PEG_TX#_1

M46

PEG_TX#_2

M47

PEG_TX#_3

M40
M42
R48
N38
T40
U37
U40
Y40
AA46
AA37
AA40
AD43
AC46

PEG_TX_0

J42

PEG_TX_1

L46

PEG_TX_2

M48

PEG_TX_3

M39
M43
R47
N37
T39
U36
U39
Y39
Y46
AA36
AA39
AD42
AD46

C456
C466
C461
C454

0.1uF 10V 10% SMT0402 X5R LR

C459
C467
C463
C453

0.1uF 10V 10% SMT0402 X5R LR

TMDS_B_HPD# <25>

TMDS_B_DATA2# <25>
TMDS_B_DATA1# <25>
TMDS_B_DATA0# <25>
TMDS_B_CLK# <25>

TMDS_B_DATA2 <25>
TMDS_B_DATA1 <25>
TMDS_B_DATA0 <25>
TMDS_B_CLK <25>

∮

∮

3VDDM

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Cantiga DMI/Graph(2/6)

2

1

DVI_HPD

DVI

DVI

Confidential

10 56Thursday, May 29, 2008

1

0.5

10

[e-mail]
GRATUITO - FOR FREE

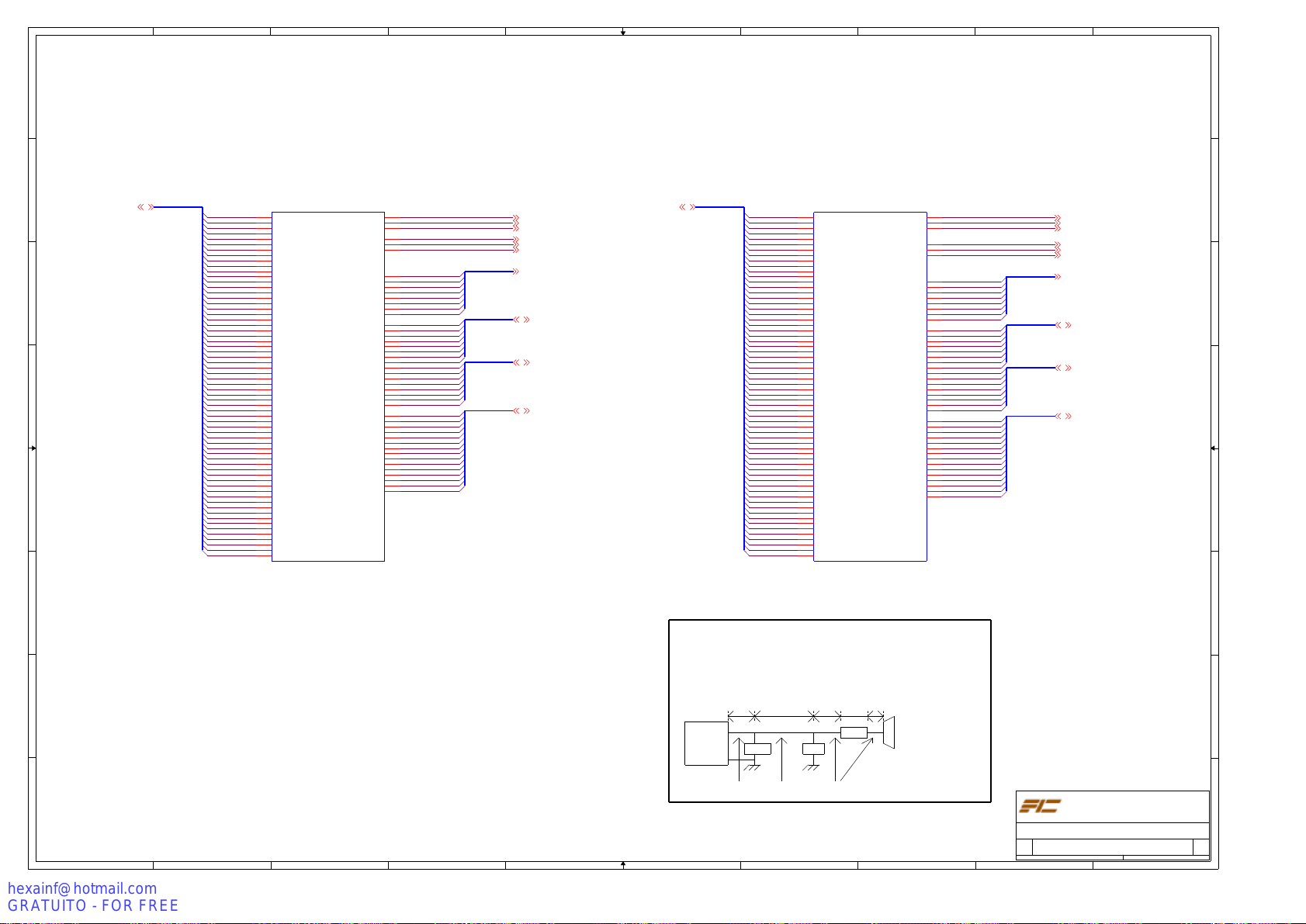

9

8

7

6

5

4

3

2

1

H H

G G

M_A_DQ[63..0]<16> M_B_DQ[63..0]<17>

F F

E E

D D

M_A_DQ[63..0]

M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63

U22D

AJ38

SA_DQ_0

AJ41

SA_DQ_1

AN38

SA_DQ_2

AM38

SA_DQ_3

AJ36

SA_DQ_4

AJ40

SA_DQ_5

AM44

SA_DQ_6

AM42

SA_DQ_7

AN43

SA_DQ_8

AN44

SA_DQ_9

AU40

SA_DQ_10

AT38

SA_DQ_11

AN41

SA_DQ_12

AN39

SA_DQ_13

AU44

SA_DQ_14

AU42

SA_DQ_15

AV39

SA_DQ_16

AY44

SA_DQ_17

BA40

SA_DQ_18

BD43

SA_DQ_19

AV41

SA_DQ_20

AY43

SA_DQ_21

BB41

SA_DQ_22

BC40

SA_DQ_23

AY37

SA_DQ_24

BD38

SA_DQ_25

AV37

SA_DQ_26

AT36

SA_DQ_27

AY38

SA_DQ_28

BB38

SA_DQ_29

AV36

SA_DQ_30

AW36

SA_DQ_31

BD13

SA_DQ_32

AU11

SA_DQ_33

BC11

SA_DQ_34

BA12

SA_DQ_35

AU13

SA_DQ_36

AV13

SA_DQ_37

BD12

SA_DQ_38

BC12

SA_DQ_39

BB9

SA_DQ_40

BA9

SA_DQ_41

AU10

SA_DQ_42

AV9

SA_DQ_43

BA11

SA_DQ_44

BD9

SA_DQ_45

AY8

SA_DQ_46

BA6

SA_DQ_47

AV5

SA_DQ_48

AV7

SA_DQ_49

AT9

SA_DQ_50

AN8

SA_DQ_51

AU5

SA_DQ_52

AU6

SA_DQ_53

AT5

SA_DQ_54

AN10

SA_DQ_55

AM11

SA_DQ_56

AM5

SA_DQ_57

AJ9

SA_DQ_58

AJ8

SA_DQ_59

AN12

SA_DQ_60

AM13

SA_DQ_61

AJ11

SA_DQ_62

AJ12

SA_DQ_63

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

DDR SYSTEM MEMORY A

SA_BS_0
SA_BS_1
SA_BS_2

SA_RAS#
SA_CAS#

SA_WE#

SA_DM_0
SA_DM_1
SA_DM_2
SA_DM_3
SA_DM_4
SA_DM_5
SA_DM_6
SA_DM_7

SA_DQS_0
SA_DQS_1
SA_DQS_2
SA_DQS_3
SA_DQS_4
SA_DQS_5
SA_DQS_6

SA_DQS_7
SA_DQS#_0
SA_DQS#_1
SA_DQS#_2
SA_DQS#_3
SA_DQS#_4
SA_DQS#_5
SA_DQS#_6
SA_DQS#_7

SA_MA_0
SA_MA_1
SA_MA_2
SA_MA_3
SA_MA_4
SA_MA_5
SA_MA_6
SA_MA_7
SA_MA_8

SA_MA_9
SA_MA_10
SA_MA_11
SA_MA_12
SA_MA_13
SA_MA_14

BD21
BG18
AT25

BB20
BD20
AY20

M_A_DM0M_A_DM0

AM37

M_A_DM1M_A_DM1

AT41

M_A_DM2M_A_DM2

AY41

M_A_DM3M_A_DM3

AU39

M_A_DM4M_A_DM4

BB12

M_A_DM5M_A_DM5

AY6

M_A_DM6M_A_DM6

AT7

M_A_DM7M_A_DM7

AJ5

M_A_DQS0M_A_DQS0

AJ44

M_A_DQS1M_A_DQS1

AT44

M_A_DQS2M_A_DQS2

BA43

M_A_DQS3M_A_DQS3

BC37

M_A_DQS4M_A_DQS4

AW12

M_A_DQS5

BC8

M_A_DQS6M_A_DQS6

AU8

M_A_DQS7M_A_DQS7

AM7

M_A_DQS#0M_A_DQS#0

AJ43

M_A_DQS#1M_A_DQS#1

AT43

M_A_DQS#2M_A_DQS#2

BA44

M_A_DQS#3M_A_DQS#3

BD37

M_A_DQS#4M_A_DQS#4

AY12

M_A_DQS#5M_A_DQS#5

BD8

M_A_DQS#6M_A_DQS#6

AU9

M_A_DQS#7M_A_DQS#7

AM8

M_A_A0M_A_A0

BA21

M_A_A1M_A_A1

BC24

M_A_A2M_A_A2

BG24

M_A_A3

BH24

M_A_A4

BG25

M_A_A5M_A_A5

BA24

M_A_A6M_A_A6

BD24

M_A_A7

BG27

M_A_A8M_A_A8

BF25

M_A_A9

AW24

M_A_A10

BC21

M_A_A11

BG26

M_A_A12

BH26

M_A_A13

BH17

M_A_A14 M_B_A13

AY25

M_A_DM[7..0]

M_A_DQS[7..0]

M_A_DQS#[7..0]

M_A_A[14..0]

M_A_BS0 <16>
M_A_BS1 <16>
M_A_BS2 <16>

M_A_RAS# <16 >
M_A_CAS# <16 >
M_A_WE# <16>

M_A_DM[7..0] <16>

M_A_DQS[7..0] <16>

M_A_DQS#[7..0] <16>

M_A_A[14..0] <16>

M_B_DQ[63..0]

M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63

U22E

AK47

SB_DQ_0

AH46

SB_DQ_1

AP47

SB_DQ_2

AP46

SB_DQ_3

AJ46

SB_DQ_4

AJ48

SB_DQ_5

AM48

SB_DQ_6

AP48

SB_DQ_7

AU47

SB_DQ_8

AU46

SB_DQ_9

BA48

SB_DQ_10

AY48

SB_DQ_11

AT47

SB_DQ_12

AR47

SB_DQ_13

BA47

SB_DQ_14

BC47

SB_DQ_15

BC46

SB_DQ_16

BC44

SB_DQ_17

BG43

SB_DQ_18

BF43

SB_DQ_19

BE45

SB_DQ_20

BC41

SB_DQ_21

BF40

SB_DQ_22

BF41

SB_DQ_23

BG38

SB_DQ_24

BF38

SB_DQ_25

BH35

SB_DQ_26

BG35

SB_DQ_27

BH40

SB_DQ_28

BG39

SB_DQ_29

BG34

SB_DQ_30

BH34

SB_DQ_31

BH14

SB_DQ_32

BG12

SB_DQ_33

BH11

SB_DQ_34

BG8

SB_DQ_35

BH12

SB_DQ_36

BF11

SB_DQ_37

BF8

SB_DQ_38

BG7

SB_DQ_39

BC5

SB_DQ_40

BC6

SB_DQ_41

AY3

SB_DQ_42

AY1

SB_DQ_43

BF6

SB_DQ_44

BF5

SB_DQ_45

BA1

SB_DQ_46

BD3

SB_DQ_47

AV2

SB_DQ_48

AU3

SB_DQ_49

AR3

SB_DQ_50

AN2

SB_DQ_51

AY2

SB_DQ_52

AV1

SB_DQ_53

AP3

SB_DQ_54

AR1

SB_DQ_55

AL1

SB_DQ_56

AL2

SB_DQ_57

AJ1

SB_DQ_58

AH1

SB_DQ_59

AM2

SB_DQ_60

AM3

SB_DQ_61

AH3

SB_DQ_62

AJ3

SB_DQ_63

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

DDR SYSTEM MEMORY B

SB_BS_0
SB_BS_1
SB_BS_2

SB_RAS#
SB_CAS#

SB_WE#

SB_DM_0
SB_DM_1
SB_DM_2
SB_DM_3
SB_DM_4
SB_DM_5
SB_DM_6
SB_DM_7

SB_DQS_0
SB_DQS_1
SB_DQS_2
SB_DQS_3
SB_DQS_4
SB_DQS_5
SB_DQS_6

SB_DQS_7
SB_DQS#_0
SB_DQS#_1
SB_DQS#_2
SB_DQS#_3
SB_DQS#_4
SB_DQS#_5
SB_DQS#_6
SB_DQS#_7

SB_MA_0
SB_MA_1
SB_MA_2
SB_MA_3
SB_MA_4
SB_MA_5
SB_MA_6
SB_MA_7
SB_MA_8

SB_MA_9
SB_MA_10
SB_MA_11
SB_MA_12
SB_MA_13
SB_MA_14

BC16
BB17
BB33

AU17
BG16
BF14

AM47
AY47
BD40
BF35
BG11
BA3
AP1
AK2

AL47
AV48
BG41
BG37
BH9
BB2
AU1
AN6
AL46
AV47
BH41
BH37
BG9
BC2
AT2
AN5

AV17
BA25
BC25
AU25
AW25
BB28
AU28
AW28
AT33
BD33
BB16
AW33
AY33
BH15
AU33

M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7

M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7

M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12

M_B_A14

M_B_DM[7..0]

M_B_DQS[7..0]

M_B_DQS#[7..0]

M_B_A[14..0]

M_B_BS0 <17>
M_B_BS1 <17>
M_B_BS2 <17>

M_B_RAS# <17>
M_B_CAS# <17>
M_B_WE# <17>

M_B_DM[7..0] <17>

M_B_DQS[7..0] <17>

M_B_DQS#[7..0] <17>

M_B_A[14..0] <17 >

C C

TV DAC Routing Guideline

1. The minimum spacing between each RGB is 40-mils while 50-mils is preferred

2. RGB signals should be routed on the same layer, have a similar number of bends,
same number of vias

3. All routing should be done with ground referencing as well

4. TV DAC route lengths should be lenght match to within 200 mils

Filter

0.5"

Mini
DIN7

B B

GMCH

0.5"

0.2"

12"

TV DAC

TV IRTN

150ohm

150ohm

Zo=37.5

Zo=50

A A

10

9

8

7

6

5

Zo=75

Title

Size Document Number Rev

C

4

3

Date: Sheet of

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Cantiga DDR2(3/6)

2

Confidential

11 56Thursday, May 29, 2008

1

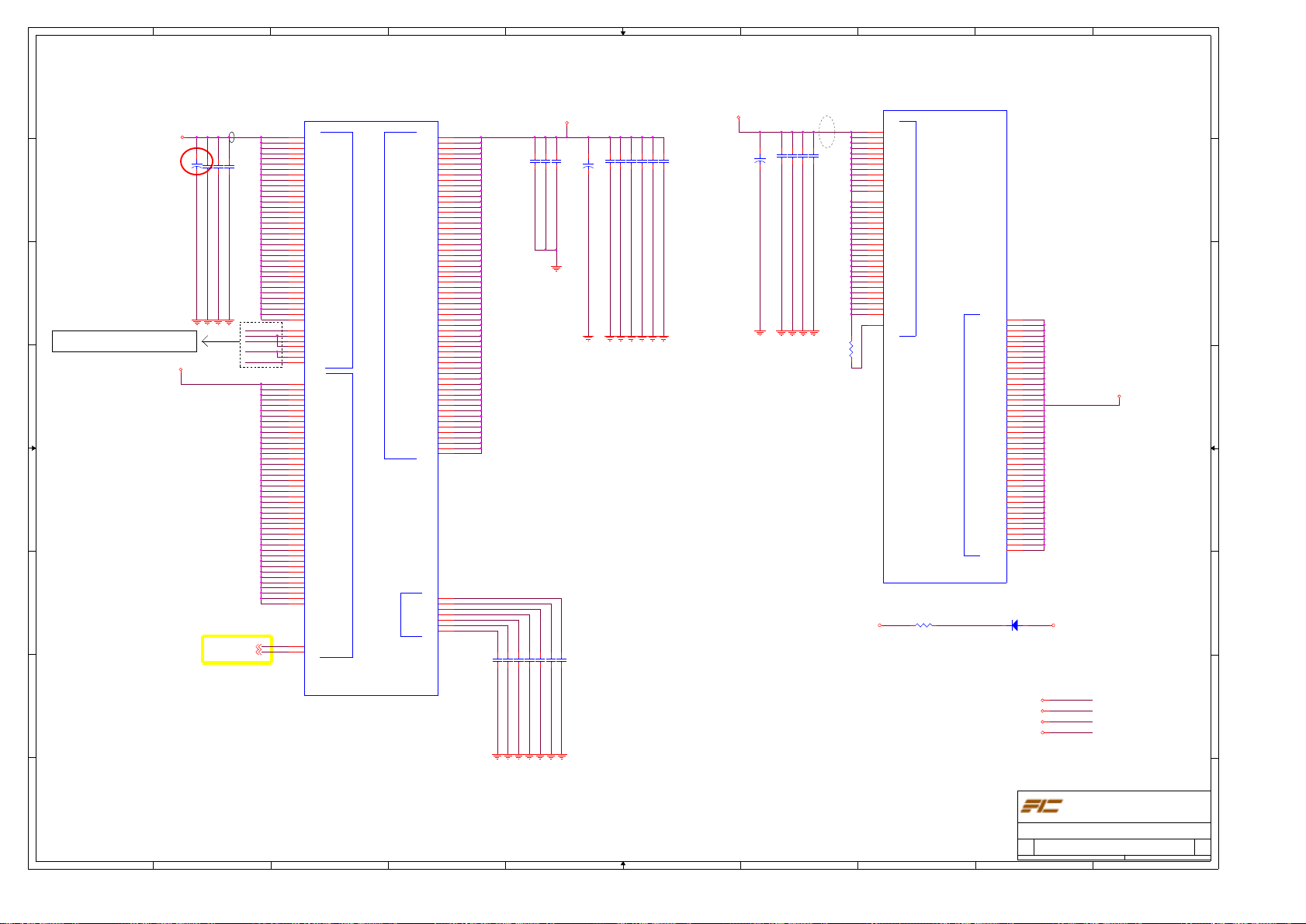

0.5

10

9

8

7

6

5

4

3

2

1

H H

U22F

AG34

VCC_1

AC34

VCC_2

AB34

VCC_3

AA34

VCC_4

Y34

VCC_5

V34

VCC_6

U34

VCC_7

AM33

VCC_8

AK33

VCC_9

AJ33

VCC_10

AG33

VCC_11

AF33

VCC_12

AE33

VCC_13

AC33

VCC_14

AA33

VCC_15

Y33

VCC_16

W33

VCC_17

V33

VCC_18

U33

VCC_19

AH28

VCC_20

VCC CORE

VCC_21
VCC_22
VCC_23
VCC_24
VCC_25
VCC_26
VCC_27
VCC_28
VCC_29
VCC_30
VCC_31
VCC_32
VCC_33
VCC_34

VCC_35

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

R284
RES 10 5% 1/16W SMT0402 LR

VCC_NCTF_1
VCC_NCTF_2
VCC_NCTF_3
VCC_NCTF_4
VCC_NCTF_5

POWER

VCC_NCTF_6
VCC_NCTF_7
VCC_NCTF_8

VCC_NCTF_9
VCC_NCTF_10
VCC_NCTF_11
VCC_NCTF_12
VCC_NCTF_13
VCC_NCTF_14
VCC_NCTF_15
VCC_NCTF_16
VCC_NCTF_17
VCC_NCTF_18
VCC_NCTF_19
VCC_NCTF_20
VCC_NCTF_21
VCC_NCTF_22
VCC_NCTF_23
VCC_NCTF_24
VCC_NCTF_25
VCC_NCTF_26
VCC_NCTF_27
VCC_NCTF_28
VCC_NCTF_29
VCC_NCTF_30
VCC_NCTF_31

VCC NCTF

VCC_NCTF_32
VCC_NCTF_33
VCC_NCTF_34
VCC_NCTF_35
VCC_NCTF_36
VCC_NCTF_37
VCC_NCTF_38
VCC_NCTF_39
VCC_NCTF_40
VCC_NCTF_41
VCC_NCTF_42
VCC_NCTF_43
VCC_NCTF_44

N P

1.5VDDM

20mils

AF28
AC28
AA28

AG26
AE26
AC26
AH25
AG25
AF25
AG24

AH23
AF23

AJ26

AJ23

T32

AM32
AL32
AK32
AJ32
AH32
AG32
AE32
AC32
AA32
Y32
W32
U32
AM30
AL30
AK30
AH30
AG30
AF30
AE30
AC30
AB30
AA30
Y30
W30
V30
U30
AL29
AK29
AJ29
AH29
AG29
AE29
AC29
AA29
Y29
W29
V29
AL28
AK28
AL26
AK26
AK25
AK24
AK23

D21

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR

1.05VDDM

1.05VDDM

C21 7 10 uF 6 .3V 10% SM T08 05 X5R C20 12X 5R0J 106 K T DK LR(NU )

+

308mils

C21 8 0.22 uF 1 0V 1 0% S MT06 03 X 7R LR

C20 2 0. 1uF 10V 10% SM T04 02 X5R LR

C186 0.22uF 10V 10% SM T0603 X7R LR

R196

0 5% 1/4W S MT1206 LR

NB_VGA_VDD

C20 0 10uF 6.3 V 10 % SM T080 5 X5 R C 2012X 5R0J 106K TD K LR( NU)

C18 1 10 uF 1 0V +80- 20% SM T080 5 Y 5V L R(NU)

C20 8 0.1u F 1 6V ∮ 10% S MD060 3 X7R LR

C20 5 0.1u F 1 6V 1 0% SMD 0603 X7 R∮ LR

C19 5 0.1u F 1 6V 1 0% SMD 0603 X7 R∮ LR

C18 0 0. 47uF 10 V 10 % S MD0 603 X5∮ R LR

C19 3 0. 1uF 10V 10% SM T04 02 X5R LR

C14 6 1uF 10 V +8 0-20 % 0 603 Y5V LR

C16 3 0. 22uF 10 V 10 % S MT0 603 X7R LR

C161 0.22uF 10V 10% SMT0603 X7R LR

C154 1uF 1 0V +80-20% 060 3 Y5V LR

12

C20 9 0. 47uF 10 V 10% SMD06 03 X5R LR∮

C21 6 22 0uF 2V 20% 15m 7343 PA∮ N A LR

12

+

C21 0 0. 1uF 10V 10% SMT 0402 X 5R LR (NU)

C18 5 1uF 10 V +8 0-20 % 0 603 Y5V LR(NU )

C18 2 0. 1uF 10V 10% SM T04 02 X5R LR( NU)

BG32

AW32

BG31
BG30
BG29

AW29

AW16
AW13

AG21

AM15

AG15

AM14

AN33
BH32

BF32
BD32
BC32
BB32
BA32
AY32

AV32
AU32
AT32
AR32
AP32
AN32
BH31

BF31
BH29
BF29

BD29
BC29
BB29
BA29
AY29

AV29
AU29
AT29
AR29
AP29

BA36
BB24
BD16
BB21

AT13

Y26
AE25
AB25
AA25
AE24
AC24
AA24

Y24
AE23
AC23
AB23
AA23
AJ21

AE21
AC21
AA21

Y21
AH20
AF20
AE20
AC20
AB20
AA20

T17

T16
AL15

AE15
AJ15
AH15

AF15
AB15
AA15

Y15

V15

U15
AN14

U14

T14

AJ14
AH14

U22G

VCC_SM_2
VCC_SM_3
VCC_SM_4
VCC_SM_5
VCC_SM_6
VCC_SM_7
VCC_SM_8
VCC_SM_9
VCC_SM_10
VCC_SM_11
VCC_SM_12
VCC_SM_13
VCC_SM_14
VCC_SM_15
VCC_SM_16
VCC_SM_17
VCC_SM_18
VCC_SM_19
VCC_SM_20
VCC_SM_21
VCC_SM_22
VCC_SM_23
VCC_SM_24
VCC_SM_25
VCC_SM_26
VCC_SM_27
VCC_SM_28
VCC_SM_29
VCC_SM_30
VCC_SM_31
VCC_SM_32
VCC_SM_33
VCC_SM_34
VCC_SM_35

VCC_SM_36/NC
VCC_SM_37/NC
VCC_SM_38/NC
VCC_SM_39/NC
VCC_SM_40/NC
VCC_SM_41/NC
VCC_SM_42/NC

VCC_AXG_1
VCC_AXG_2
VCC_AXG_3
VCC_AXG_4
VCC_AXG_5
VCC_AXG_6
VCC_AXG_7
VCC_AXG_8
VCC_AXG_9
VCC_AXG_10
VCC_AXG_11
VCC_AXG_12
VCC_AXG_13
VCC_AXG_14
VCC_AXG_15
VCC_AXG_16
VCC_AXG_17
VCC_AXG_18
VCC_AXG_19
VCC_AXG_20
VCC_AXG_21
VCC_AXG_22
VCC_AXG_23
VCC_AXG_24
VCC_AXG_25
VCC_AXG_26
VCC_AXG_27
VCC_AXG_28
VCC_AXG_29
VCC_AXG_30
VCC_AXG_31
VCC_AXG_32
VCC_AXG_33
VCC_AXG_34
VCC_AXG_35
VCC_AXG_36
VCC_AXG_37
VCC_AXG_38
VCC_AXG_39
VCC_AXG_40
VCC_AXG_41
VCC_AXG_42

VCC_AXG_SENSE
VSS_AXG_SENSE

VCC SMVCC GFX

VCC_AXG_NCTF_1VCC_SM_1
VCC_AXG_NCTF_2
VCC_AXG_NCTF_3
VCC_AXG_NCTF_4
VCC_AXG_NCTF_5
VCC_AXG_NCTF_6
VCC_AXG_NCTF_7
VCC_AXG_NCTF_8

VCC_AXG_NCTF_9
VCC_AXG_NCTF_10
VCC_AXG_NCTF_11
VCC_AXG_NCTF_12
VCC_AXG_NCTF_13
VCC_AXG_NCTF_14
VCC_AXG_NCTF_15
VCC_AXG_NCTF_16
VCC_AXG_NCTF_17
VCC_AXG_NCTF_18
VCC_AXG_NCTF_19
VCC_AXG_NCTF_20
VCC_AXG_NCTF_21

POWER

VCC_AXG_NCTF_22
VCC_AXG_NCTF_23
VCC_AXG_NCTF_24
VCC_AXG_NCTF_25
VCC_AXG_NCTF_26
VCC_AXG_NCTF_27
VCC_AXG_NCTF_28
VCC_AXG_NCTF_29
VCC_AXG_NCTF_30
VCC_AXG_NCTF_31
VCC_AXG_NCTF_32
VCC_AXG_NCTF_33
VCC_AXG_NCTF_34
VCC_AXG_NCTF_35
VCC_AXG_NCTF_36
VCC_AXG_NCTF_37
VCC_AXG_NCTF_38
VCC_AXG_NCTF_39
VCC_AXG_NCTF_40
VCC_AXG_NCTF_41
VCC_AXG_NCTF_42
VCC_AXG_NCTF_43
VCC_AXG_NCTF_44
VCC_AXG_NCTF_45
VCC_AXG_NCTF_46
VCC_AXG_NCTF_47
VCC_AXG_NCTF_48
VCC_AXG_NCTF_49
VCC_AXG_NCTF_50
VCC_AXG_NCTF_51
VCC_AXG_NCTF_52
VCC_AXG_NCTF_53
VCC_AXG_NCTF_54
VCC_AXG_NCTF_55

VCC GFX NCTF

VCC_AXG_NCTF_56
VCC_AXG_NCTF_57
VCC_AXG_NCTF_58
VCC_AXG_NCTF_59
VCC_AXG_NCTF_60

VCC_SM_LF1
VCC_SM_LF2
VCC_SM_LF3
VCC_SM_LF4
VCC_SM_LF5
VCC_SM_LF6
VCC_SM_LF7

VCC SM LF

W28AP33
V28
W26
V26
W25
V25
W24
V24
W23
V23
AM21
AL21
AK21
W21
V21
U21
AM20
AK20
W20
U20
AM19
AL19
AK19
AJ19
AH19
AG19
AF19
AE19
AB19
AA19
Y19
W19
V19
U19
AM17
AK17
AH17
AG17
AF17
AE17
AC17
AB17
Y17
W17
V17
AM16
AL16
AK16
AJ16
AH16
AG16
AF16
AE16
AC16
AB16
AA16
Y16
W16
V16
U16

AV44
BA37
AM40
AV21
AY5
AM10
BB13

VCCSM_LF1
VCCSM_LF2
VCCSM_LF3
VCCSM_LF4
VCCSM_LF5
VCCSM_LF6
VCCSM_LF7

C16 2 0.1 uF 10V 10% SMT 040 2 X5 R LR

1.8VDDS_DDR2

1/29 EMI

G G

10/2 MODIFY

VIA=2400mA / 100mils

C41 1 10 uF 6 .3V 10% SM T08 05 X5R C20 12X 5R0J 106 K T DK LR(NU )

C41 5 10 uF 6 .3V 10% SM T08 05 X5R C20 12X 5R0J 106 K T DK LR(NU )

C40 9 22 0uF 2V 20% 15m 7343 PA∮ N A LR

C417 0.1uF 10V 10% SMT0402 X5R LR

+

F F

VCC_SM_36
VCC_SM_37

For DDR2, VCC_SM_36/37/38/40/42 could
be left NC.

NB_VGA_VDD

E E

VIA=7700mA / 320mils

VCC_SM_38
VCC_SM_40
VCC_SM_42

D D

C C

VCC_AXG_SENSE<49>
VSS_AXG_SENSE<49>

1.05VDDM

C22 1 22 0uF 2V 20% 15m 7343 PA NA L∮ R (NU)

B B

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

NB_VGA_VDD<49>

1.8VDDS_DDR2<10,13,16,17,45>

A A

10

9

8

7

6

5

4

3

NB_VGA_VDD

1.05VDDM

1.05VDDM<6..10,13,19,21,46>

1.5VDDM

1.5VDDM<7,13,18,19,21,27,28,47>

1.8VDDS_DDR2

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Cantiga Power(4/6)

2

Confidential

12 56Thursday, May 29, 2008

1

0.5

10

[e-mail]
GRATUITO - FOR FREE

9

8

7

6

5

4

3

2

1

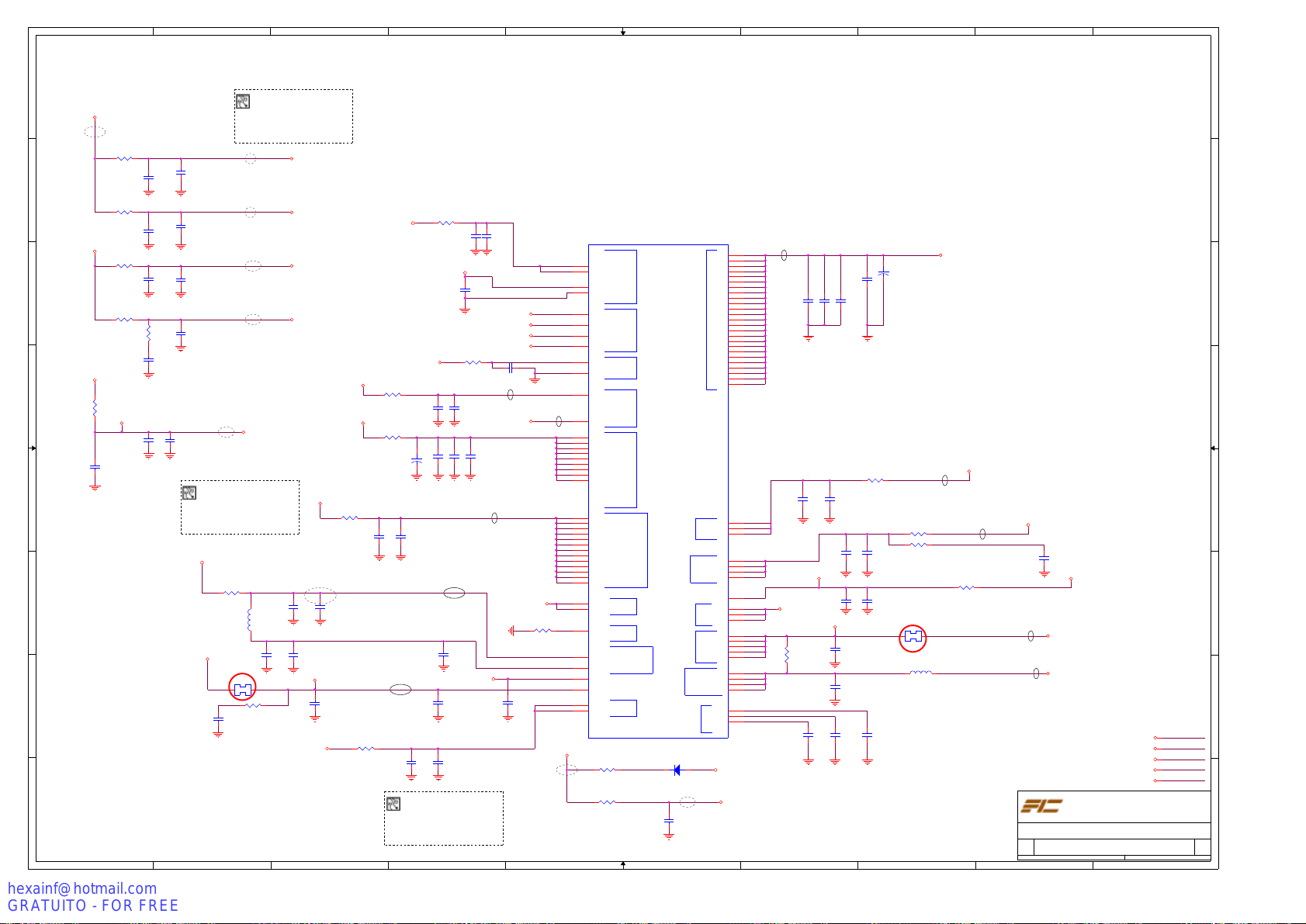

H H

1.05VDDM

20mils

L21 0 5% 1/10W SMT0603 LR

C254

C256

0.1uF 10V 10% SMT0402 X5R LR

∮

SMT0603 LR

∮

R442

C481

10uF 10V 10% SMT0805 X5R

C235

C236

0.1uF 10V 10% SMT0402 X5R LR

∮

10uF 10V 10% SMT0805 X5R

C443

0.1uF 10V 10% SMT0402 X5R LR

C444

∮

10uF 10V 10% SMT0805 X

C434

0.1uF 10V 10% SMT0402 X5R LR

C433
10uF 10V 10% SMT0805 X

∮

06X5R6JTL WALSIN LR

C474
1uF 6.3V 0402 X5R LR

X5R T=1.25mm C2012X5R1A106KT TDK LR

Caps used in 1.5VDDM_TVDAC
and 1.5VDDM_QTVDAC should
be within 250mils of edge

G G

L16 0 5% 1/10W SMT0603 LR

1.05VDDM

L44 0 5% 1/10W SMT0603 LR

F F

L41 0 5% 1/10W SMT0603 LR

1 1% 1/10W

3VDDM

E E

L49
RES 5.6 5% 1/10W SMT0603 WR

VCCA_TVDAC

0.022uF 16V 10% SMT0402 X7R LR

C484

10uF 10V 10% SMT0805

D D

C C

(24mA)

B B

A A

10

0.1uf caps in 1.5VDDM_xPLL
need to be located as edge caps
within 200mils

VIA=80mA / 10mils

T=1.25mm C2012X5R1A106KT TDK LR(NU)

VIA=80mA / 10mils

T=1.25mm C2012X5R1A106KT TDK LR(NU)

VIA=50mA / 10mils

5R T=1.25mm C2012X5R1A106KT TDK LR

VIA=150mA / 10mils

5R T=1.25mm C2012X5R1A106KT TDK LR

1.05VDDM_DPLLA

1.05VDDM_DPLLB

1.05VDDM_HPLL

1.05VDDM_MPLL

3VDDM_TVDACA

10uF 10V 10% SMT0805 ∮X5R T=1.25mm C2012X5R1A106KT TDK LR

1.5VDDM

R231 0 5% 1/16W SMT0402 LR

(24mA)

1.05VDDM

L12

0.1uF 10V 10% SMT0402 X5R LR

L22
100MHz 600 SMT0 603 FCM1608KF-601T02 TAI-TECH LR

C233

1/29 EMI

C214
10uF 10V +80-20% SMT0805 Y5V LR

0.1uF 10V 10% SMT0402 X5R LR

SPWR 0 5% 1/16W 0603

R193

1 1% 1/10W SMT0603 LR

1.8VDDS_DDR2

9

1.5VDDM

0.1uF 10V 10% SMT0402 X5R LR

1.05VDDM

1.05VDDM

R177 0 5% 1/10W SMT0603 LR

0.1uF 10V 10% SMT0402 X5R LR

10mils

C232

0.022uF 16V 10% SMT0402 X7R LR

C261

C259

0.022uF 16V 10% SMT0402 X7R LR

1.05VDDM_PEGPLL

1.05VDDM_PEGPLL

C212

0.1uF 10V 10% SMT0402 X5R LR

R205 0 5% 1/16W SMT0402 LR

8

R226 RES 5.6 5% 1/10W SMT0603 WR 06X5R6JTL WALSIN LR

3VDDM

1uF 6.3V 0402 X5R LR

1.8VDDS_TXLVDS

R183 0 5% 1/10W SMT0603 LR

R184 0 5% 1/10W SMT0603 LR

C168

C198

C190

C187

T100uF 2 V 20% E∮ SR=18m SMT7343 EEFCD0D101ER PANASONIC LR

+

C171

VIA=250mA / 10mils

C262
10uF 10V 10% SMT0805 ∮X5R T=1.25mm C2012X5R1A106KT TDK LR

VIA=100mA / 10mils

C211

0.1uF 10V 10% SMT0402 X5R LR

C234

0.1uF 10V 10% SMT0402 X5R LR

Caps used in 2.5VDDM_CRTDAC
should be within 250mils of
edge

C258

C255

0.022uF 16V 10% SMT0402 X7R LR

VCCA_TVDAC

C473

0.1uF 10V 10% SMT0402 X5R LR

1.05VDDM_DPLLA

1.05VDDM_DPLLB

1.05VDDM_HPLL

1.05VDDM_MPLL

R208 0 5% 1/16W SMT0402 LR

C248 0.1uF 10V 10% SMT0402 X5R LR

VIA=5mA / 10mils

C199

0.1uF 10V 10% SMT0402 X5R LR

1.05VDDM_PEGPLL

500mA

C191

C167

4.7uF 6. 3V 10% SMT080 5 X5R C2012 X5R0J475KT T∮ DK LR

1uF 10V + 80-20% 0603 Y5V LR

10uF 6.3V 10% SMT080 5 X5R C2012 X5R0J106K TD K LR(NU)

VIA=200mA / 10mils

3VDDM_TVDACA

1.05VDDM

0.1uF 10V 10% SMT0402 X5R LR
C192

150mA

C238

0.022uF 16V 10% SMT0402 X7R LR

7

10mA
80mA

5mA

80mA
80mA
50mA
150mA

10mA

VIA=100mA / 10mils

40mA

R227
0 5% 1/16W SMT0402 LR

100mA

3VDDM

20mils

6

U22H

B27

VCCA_CRT_DAC_1

A26

VCCA_CRT_DAC_2

A25

VCCA_DAC_BG

B25

VSSA_DAC_BG

F47

VCCA_DPLLA

L48

VCCA_DPLLB

AD1

VCCA_HPLL

AE1

VCCA_MPLL

J48

VCCA_LVDS

J47

VSSA_LVDS

AD48

VCCA_PEG_BG

AA48

VCCA_PEG_PLL

AR20

VCCA_SM_1

AP20

VCCA_SM_2

AN20

VCCA_SM_3

AR17

VCCA_SM_4

AP17

VCCA_SM_5

AN17

VCCA_SM_6

AT16

VCCA_SM_7

AR16

VCCA_SM_8

AP16

VCCA_SM_9

AP28

VCCA_SM_CK_1

AN28

VCCA_SM_CK_2

AP25

VCCA_SM_CK_3

AN25

VCCA_SM_CK_4

AN24

VCCA_SM_CK_5

AM28

VCCA_SM_CK_NCTF_1

AM26

VCCA_SM_CK_NCTF_2

AM25

VCCA_SM_CK_NCTF_3

AL25

VCCA_SM_CK_NCTF_4

AM24

VCCA_SM_CK_NCTF_5

AL24

VCCA_SM_CK_NCTF_6

AM23

VCCA_SM_CK_NCTF_7

AL23

VCCA_SM_CK_NCTF_8

B24

VCCA_TV_DAC_1

A24

VCCA_TV_DAC_2

A32

VCC_HDA

M25

VCCD_TVDAC

L28

VCCD_QDAC

AF1

VCCD_HPLL

AA47

VCCD_PEG_PLL

M38

VCCD_LVDS_1

L37

VCCD_LVDS_2

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

RES 10 5% 1/16W SMT0402 LR
R460

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR

R457
0 5% 1/16W SMT0402 LR

CRTPLLA PEGA SM

A LVDS

POWER

A CK

TV

HDA

D TV/CRT

LVDS

DN1

N P

C478

0.1uF 10V 10% SMT0402 X5R LR

DMI

20mils

VTT_1
VTT_2
VTT_3
VTT_4
VTT_5
VTT_6
VTT_7
VTT_8

VTT_9
VTT_10
VTT_11
VTT_12
VTT_13
VTT_14

VTT

VTT_15
VTT_16
VTT_17
VTT_18
VTT_19
VTT_20
VTT_21
VTT_22
VTT_23
VTT_24
VTT_25

VCC_AXF_1
VCC_AXF_2
VCC_AXF_3

AXF

VCC_SM_CK_1
VCC_SM_CK_2
VCC_SM_CK_3
VCC_SM_CK_4

SM CK

VCC_TX_LVDS

VCC_HV_1
VCC_HV_2
VCC_HV_3

HV

VCC_PEG_1
VCC_PEG_2
VCC_PEG_3
VCC_PEG_4

PEG

VCC_PEG_5

VCC_DMI_1
VCC_DMI_2
VCC_DMI_3
VCC_DMI_4

VTTLF1
VTTLF2
VTTLF3

VTTLF

(70mA)

U13
T13
U12
T12
U11
T11
U10
T10
U9
T9
U8
T8
U7
T7
U6
T6
U5
T5
V3
U3
V2
U2
T2
V1
U1

B22
B21
A21

BF21
BH20
BG20
BF20

K47
C35

B35
A35

V48
U48
V47
U47
U46

AH48
AF48
AH47
AG47

A8
L1
AB2

1.05VDDM

3VDDM_HV

VIA=100mA / 10mils

250mA

VTT_LF1
VTT_LF2
VTT_LF3

5

VIA=850mA / 40mils

C458

4.7uF 6. 3V 10% SMT∮ 0805 X5R C2012X5R0J475KT TDK LR

1uF 10V +80-20% 0603 Y5V LR

0.1uF 10V 10% SMT0402 X5R LR

1.8VDDS_TXLVDS

0.1uF 10V 10% SMT0402 X5R LR

3VDDM_HV

1.05VDDM_PEG

R443

SMT0603 LR

0 5% 1/10W

1.05VDDM_DMI

4

C455

+

12

C457

∮

0.47uF 10V 10% S
C464

∮

2.2uF 10V 10% SMT060

C465

4.7uF 6.3V 10% SMT080

∮

R459
0 5% 1/10W

C485

C477

∮

10uF 10V 10% SMT0805

C418

C416
10uF 10V 10% SMT0805 ∮X5R T=1.25mm C2012X5R1A106KT TDK LR

C249

C246
10uF 10V 10% SMT0805 ∮X5R T=1.25mm C2012X5R1A106KT TDK LR

1.05VDDM_PEG

C445
10uF 10V 10% SMT0805 ∮X5R T=1.25mm C2012X5R1A106KT TDK LR

C430

∮

10uF 10V 10% SMT0805 X5R

12

C452

0.47uF 10 V 10% SMD060 3 X5∮ R LR

12

12

C480

C239

0.47uF 10 V 10% SMD060 3 X5∮ R LR

0.47uF 10 V 10% SMD060 3 X5∮ R LR

∮

T100uF 2V 20% ESR=18m SMT7343 E
MD0603 X5R LR

3 X5R C1608X5R1A225KT TDK LR

5 X5R C2012X5R0J475KT TDK LR

VIA=350mA / 20mils

SMT0603 LR

X5R T=1.25mm C2012X5R1A106KT TDK LR

L35 0 5% 1/10W SMT0603 LR

R426 1 1% 1/10W SMT0603 LR

10uF 10V 10% SMT0805 ∮X5R T=1.25mm C2012X5R1A106KT TDK LR

1/29 EMI

L42
SPWR 0 5% 1/16W 0603

100MHz 300 25% SMT0603 HC B1608 KF-301T20 TAI-TECH LR(NU)
L39

T=1.25mm C2012X5R1A106KT TDK LR(NU)

3

1.05VDDM

EFCD0D101ER PANASONIC LR

1.05VDDM

VIA=200mA / 20mils

R213 0 5% 1/16W SMT0402 LR

1.8VDDS_DDR2

VIA=1200mA / 60mils

VIA=250mA / 10mils

Title

Size Document Number Rev

Custom

Date: Sheet of

C410

1.8VDDS_DDR2

1.05VDDM

1.05VDDM

1.05VDDM<6..10,12,19,21,46>

1.5VDDM<7,12,18,19,21,27,28,47>

3VDDM<6,8,10,15..22,24,25,27,28,33,36..40,44,46..49>

Confidential

1.8VDDS_DDR2

1.05VDDM

1.05VDDM_PEG

1.5VDDM
3VDDM

1.8VDDS_DDR2<10,12,16,17,45>

1.05VDDM_PEG<10>

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Cantiga Power(5/6)

2

13 56Thursday, May 29, 2008

1

0.5

8

7

6

5

4

3

2

1

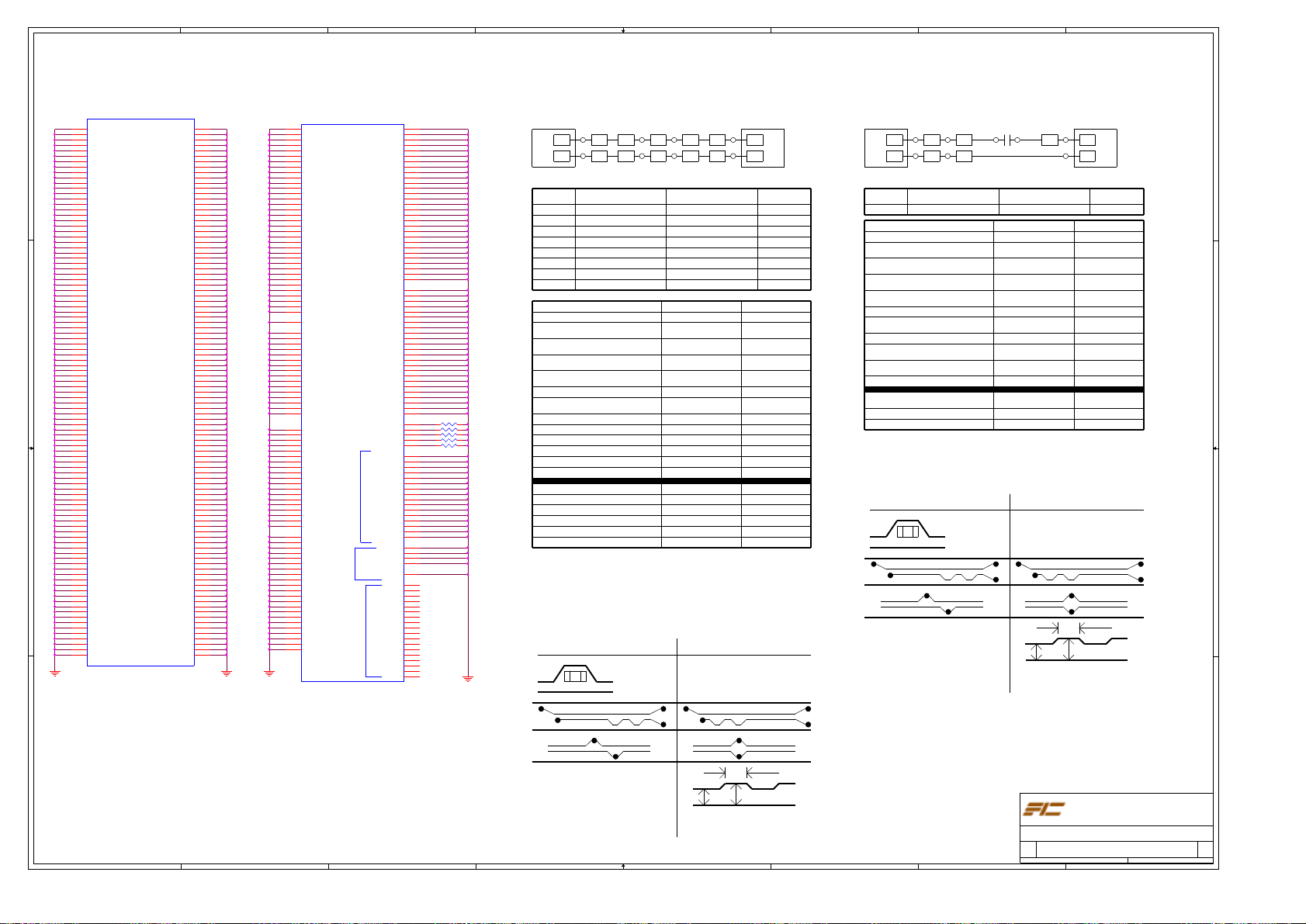

DMI Routing Guideline

U22I

AU48

VSS_1

AR48

VSS_2

AL48

D D

C C

B B

VSS_3

BB47

VSS_4

AW47

VSS_5

AN47

VSS_6

AJ47

VSS_7

AF47

VSS_8

AD47

VSS_9

AB47

VSS_10

Y47

VSS_11

T47

VSS_12

N47

VSS_13

L47

VSS_14

G47

VSS_15

BD46

VSS_16

BA46

VSS_17

AY46

VSS_18

AV46

VSS_19

AR46

VSS_20

AM46

VSS_21

V46

VSS_22

R46

VSS_23

P46

VSS_24

H46

VSS_25

F46

VSS_26

BF44

VSS_27

AH44

VSS_28

AD44

VSS_29

AA44

VSS_30

Y44

VSS_31

U44

VSS_32

T44

VSS_33

AM43

BG42

AM41

BG40

AM39

AW37

BG36

M44

F44
BC43
AV43
AU43

J43

C43
AY42

AT42
AN42
AJ42
AE42

N42

L42
BD41
AU41

AH41
AD41
AA41

Y41

U41

T41

M41

G41

B41
BB40

AV40
AN40

H40

E40
AT39

AJ39
AE39

N39

L39

B39
BH38
BC38
BA38
AU38
AH38
AD38
AA38

Y38

U38

T38

J38

F38

C38
BF37
BB37

AT37
AN37
AJ37

H37

C37
BD36

AK15
AU36

VSS

VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80
VSS_81
VSS_82
VSS_83
VSS_84
VSS_85
VSS_86
VSS_87
VSS_88
VSS_89
VSS_90
VSS_91
VSS_92
VSS_93
VSS_94
VSS_95
VSS_96
VSS_97
VSS_98
VSS_99

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

VSS_100
VSS_101
VSS_102
VSS_103
VSS_104
VSS_105
VSS_106
VSS_107
VSS_108
VSS_109
VSS_110
VSS_111
VSS_112
VSS_113
VSS_114
VSS_115
VSS_116
VSS_117
VSS_118
VSS_119
VSS_120
VSS_121
VSS_122
VSS_123
VSS_124
VSS_125
VSS_126
VSS_127
VSS_128
VSS_129
VSS_130
VSS_131
VSS_132
VSS_133
VSS_134
VSS_135
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198

AM36
AE36
P36
L36
J36
F36
B36
AH35
AA35
Y35
U35
T35
BF34
AM34
AJ34
AF34
AE34
W34
B34
A34
BG33
BC33
BA33
AV33
AR33
AL33
AH33
AB33
P33
L33
H33
N32
K32
F32
C32
A31
AN29
T29
N29
K29
H29
F29
A29
BG28
BD28
BA28
AV28
AT28
AR28
AJ28
AG28
AE28
AB28
Y28
P28
K28
H28
F28
C28
BF26
AH26
AF26
AB26
AA26
C26
B26
BH25
BD25
BB25
AV25
AR25
AJ25
AC25
Y25
N25
L25
J25
G25
E25
BF24
AD12
AY24
AT24
AJ24
AH24
AF24
AB24
R24
L24
K24
J24
G24
F24
E24
BH23
AG23
Y23
B23
A23

U22J

BG21

VSS_199

L12

VSS_200

AW21

VSS_201

AU21

VSS_202

AP21

VSS_203

AN21

VSS_204

AH21

VSS_205

AF21

VSS_206

AB21

VSS_207

R21

VSS_208

M21

VSS_209

J21

VSS_210

G21

VSS_211

BC20

VSS_212

BA20

VSS_213

AW20

VSS_214

AT20

VSS_215

AJ20

VSS_216

AG20

VSS_217

Y20

VSS_218

N20

VSS_219

K20

VSS_220

F20

VSS_221

C20

VSS_222

A20

VSS_223

BG19

VSS_224

A18

VSS_225

BG17

VSS_226

BC17

VSS_227

AW17

VSS_228

AT17

VSS_229

R17

VSS

VSS_230

M17

VSS_231

H17

VSS_232

C17

VSS_233

BA16

VSS_235

AU16

VSS_237

AN16

VSS_238

N16

VSS_239

K16

VSS_240

G16

VSS_241

E16

VSS_242

BG15

VSS_243

AC15

VSS_244

W15

VSS_245

A15

VSS_246

BG14

VSS_247

AA14

VSS_248

C14

VSS_249

BG13

VSS_250

BC13

VSS_251

BA13

VSS_252

AN13

VSS_255

AJ13

VSS_256

AE13

VSS_257

N13

VSS_258

L13

VSS_259

G13

VSS_260

E13

VSS_261

BF12

VSS_262

AV12

VSS_263

AT12

VSS_264

AM12

VSS_265

AA12

VSS_266

J12

VSS_267

A12

VSS_268

BD11

VSS_269

BB11

VSS_270

AY11

VSS_271

AN11

VSS_272

AH11

VSS_273

Y11

VSS_275

N11

VSS_276

G11

VSS_277

C11

VSS_278

BG10

VSS_279

AV10

VSS_280

AT10

VSS_281

AJ10

VSS_282

AE10

VSS_283

AA10

VSS_284

M10

VSS_285

BF9

VSS_286

BC9

VSS_287

AN9

VSS_288

AM9

VSS_289

AD9

VSS_290

G9

VSS_291

B9

VSS_292

BH8

VSS_293

BB8

VSS_294

AV8

VSS_295

AT8

VSS_296

ASIC NB Cantiga GM45 AC82GM45(898200) SLB94 MP FCBGA 1329PIN VER:B3 INTEL LR

VSS NCTF

VSS SCB

NC

VSS_297
VSS_298
VSS_299
VSS_300
VSS_301
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307
VSS_308
VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
VSS_314
VSS_315
VSS_316
VSS_317
VSS_318
VSS_319
VSS_320
VSS_321
VSS_322
VSS_323
VSS_324
VSS_325

VSS_327
VSS_328
VSS_329
VSS_330
VSS_331
VSS_332
VSS_333
VSS_334
VSS_335
VSS_336
VSS_337
VSS_338
VSS_339
VSS_340
VSS_341
VSS_342
VSS_343
VSS_344
VSS_345
VSS_346
VSS_347
VSS_348
VSS_349
VSS_350

VSS_351
VSS_352
VSS_353
VSS_354
VSS_355

VSS_NCTF_1
VSS_NCTF_2
VSS_NCTF_3
VSS_NCTF_4
VSS_NCTF_5
VSS_NCTF_6
VSS_NCTF_7
VSS_NCTF_8

VSS_NCTF_9
VSS_NCTF_10
VSS_NCTF_11
VSS_NCTF_12
VSS_NCTF_13
VSS_NCTF_14
VSS_NCTF_15
VSS_NCTF_16

VSS_SCB_1
VSS_SCB_2
VSS_SCB_3
VSS_SCB_4

VSS_SCB_6

NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_42
NC_43

AH8
Y8
L8
E8
B8
AY7
AU7
AN7
AJ7
AE7
AA7
N7
J7
BG6
BD6
AV6
AT6
AM6
M6
C6
BA5
AH5
AD5
Y5
L5
J5
H5
F5
BE4

BC3
AV3
AL3
R3
P3
F3
BA2
AW2
AU2
AR2
AP2
AJ2
AH2
AF2
AE2
AD2
AC2
Y2
M2
K2
AM1
AA1
P1
H1

R198 0 5% 1/16W SMT0402 LR

U24

R195 0 5% 1/16W SMT0402 LR

U28

R199 0 5% 1/16W SMT0402 LR

U25

R200 0 5% 1/16W SMT0402 LR

U29

R185 0 5% 1/16W SMT0402 LR

AJ6
AF32

AB32
V32
AJ30
AM29
AF29
AB29
U26
U23
AL20
V20
AC19
AL17
AJ17
AA17
U17

BH48
BH1
A48
C1

A3
E1

D2
C3
B4
A5
A6
A43
A44
B45
C46
D47
B47
A46
F48
E48
C48
B48
A47

GMCH

LA

LBTx

LC LD LE

Rx

LZ LXLY LW LV

Breakout/in

Main Route

LA/LZ

LB/LY

Microstrip Same Routing layer as LA/LZ

Same Routing layer as LA/LZ

Microstrip

Same Routing layer as LA/LZ

Microstrip

Same Routing layer as LA/LZ

Microstrip

Same Routing layer as LA/LZ

Stripline

Same Routing layer as LA/LZ

Stripline

Same Routing layer as LA/LZ

Stripline

Same Routing layer as LA/LZ

Stripline

Parameter Breakout Guideline
Uncoupled Single End Impedance
Nominal Trace Width

Pair-to-Pair Pitch
Bus-to-Bus Pitch

Reference Plane

Trace Length-LA (GMCH Breakout)
Trace Length-LB (GMCH Breakout to Via2)
Trace Length-LC (Via2 to Via3) Max = 5900 mils
Trace Length-LD (Via3 to ICH7m Breakout)
Trace Length-LE (ICH7m Breakout ) Max = 400 mils

Trace Length-LV ( ICH7m Breakout)

Trace Length-LX (Via2 to Via3)
Trace Length-LY (Via3 to GMCH Breakout) Max = 3600 mils
Trace Length-LZ (GMCH Breakout)
Trace Length-L2 (LV+LW+LX+LY+LZ) Max = 8000 mils

*** When routing near the edge of their reference plane , trace should maintain at least 40
mils space to the edge of the plane

*** Match the trace lengths of the complementary signals within each differenti al pair to +/- 5 mils

Main Route

LD/LW

Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV

Main Route Guideline
55 +/- 15%
Inner Layer : 4 mils

Outer Layer : 5 mils
Inner Layer : 7 milsNominal Didderential Pair-Pitch

Outer Layer : 7 mils
Inner Layer : 37 mils

Outer Layer : 37 mils
Inner Layer : 22 mils

Outer Layer : 20 mils
Ground Ground
No routing over plane spli tsSplits/Voids

No routing over voids
Max = 400 mils
Max = 3600 mils

Max = 3600 mils

Max = 8000 milsTrace Length-L1 (LA+LB+LC+LD+LE)
Max = 400 mils

Max = 3600 milsTrace Length-LW (ICH7m Breakout to Via2)
Max = 5900 mils

Max = 400 mils

ICH8M

Rx
Tx

Breakout/in

LE/LV

Microstrip
Stripline
Microstrip
Stripline
Stripline
Microstrip
Stripline
Microstrip

55 +/- 15%

Inner Layer : 4 mils
Outer Layer : 5 mils

Inner Layer : 27 mils
Outer Layer : 27 mils

Inner Layer : 15 mils
Outer Layer : 12 mils

X O

PCIE Routing Guideline

GMCH

Tx
Rx

Breakout/in

Main Route

LA/LZ

LB/LC/LY

Stripline

Microstrip

Parameter
Uncoupled Single End Impedance
Nominal Trace Width

Nominal Differential Trace Space
Pair-to-Pair Pitch
Bus-to-Bus Pitch

Reference Plane
Splits/Voids

Trace Length-LA (ICH7m Breakout)
Trace Length-LB (ICH7m Breakout to
AC cap)

Trace Length-LC (AC cap to
PCIe CN)

Trace Length-L1 (LA+LB+LC)

Trace Length-LY (PCIe CN to ICH7m
Breakout)

Trace Length-LZ (ICH7m Breakout)

*** When routing near the edge of their reference plane , trace should maintain at least 40
mils space to the edge of the plane

*** Match the trace lengths of the complementary signals within each different ial pair to +/- 5 mils

LB

LA
LZ

LY

Main Route

LD/LW

Same Routing layer as LE/LV

Main Route Guideline
55 +/- 15%
Inner Layer : 4 mils

Outer Layer : 5 mils
Inner Layer : 7 mils

Outer Layer : 7 mils
Inner Layer : 37 mils

Outer Layer : 37 mils Outer Layer : 27 mils
Inner Layer : 20 mils

Outer Layer : 20 mils
Ground
No routing over plane spli ts

No routing over voids
Max = 400 mils
Max = 10750 mils

Max = 10750 mils
Max = 12000 mils

Max = 11950 mils
Max = 400 mils

Max = 12000 milsTrace Length-L2 (LY+LZ)

X O

Express/Mini Card

LC

Breakout Guideline
55 +/- 15%

Inner Layer : 4 mils
Outer Layer : 5 mils

Inner Layer : 27 mils
Inner Layer : 15 mils

Outer Layer : 12 mils
Ground

>3W

S < 2S

S = Spacing
S = Trace Width

Rx
Tx

Breakout/in

LE/LV

Microstrip

A A

8

7

6

5

>3W

S < 2S

S = Spacing
S = Trace Width

4

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

3

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Cantiga Ground(6/6)

Confidential

14 56Thursday, May 29, 2008

1

0.5

8

[e-mail]
GRATUITO - FOR FREE

7

6

5

4

3

2

1

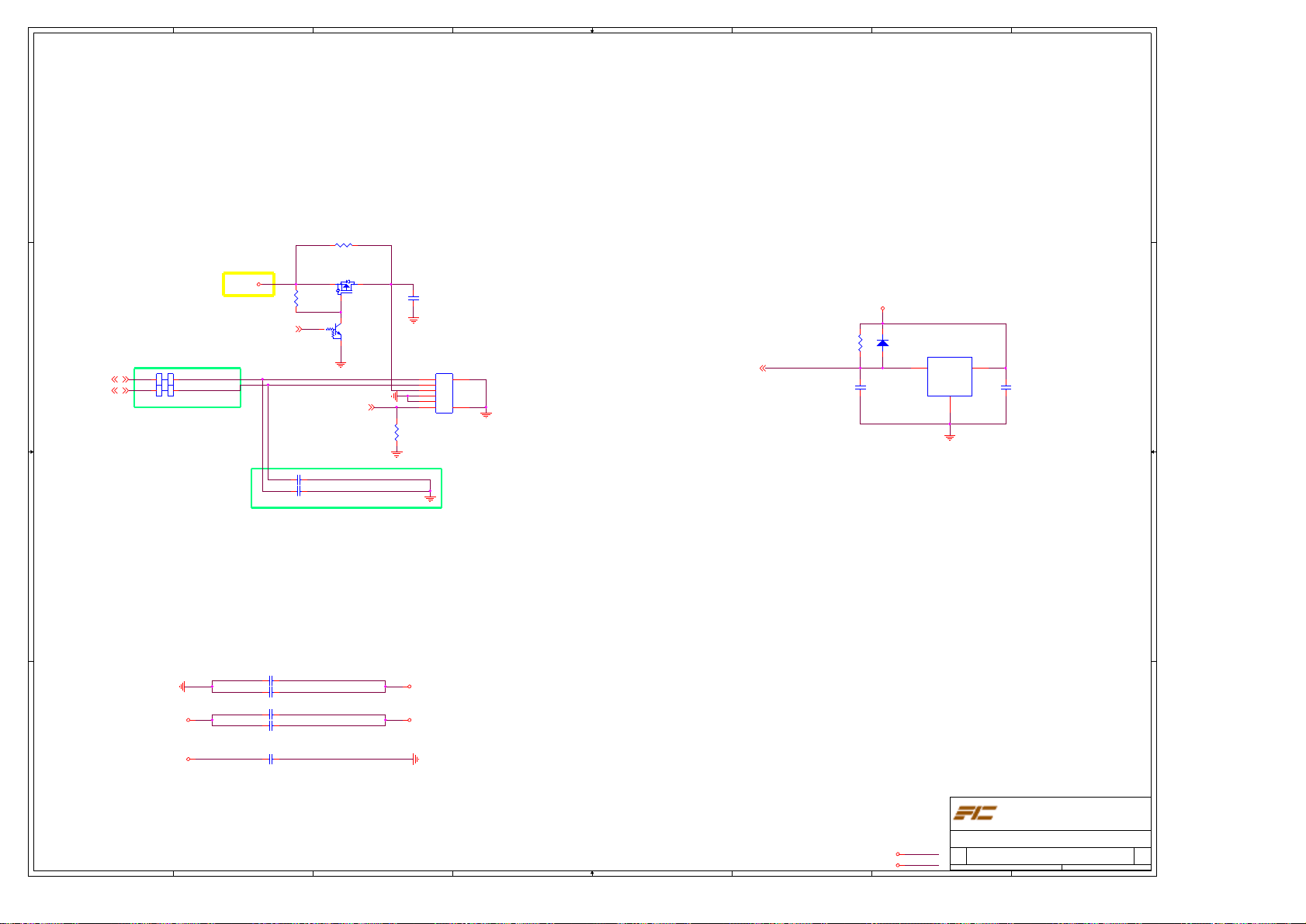

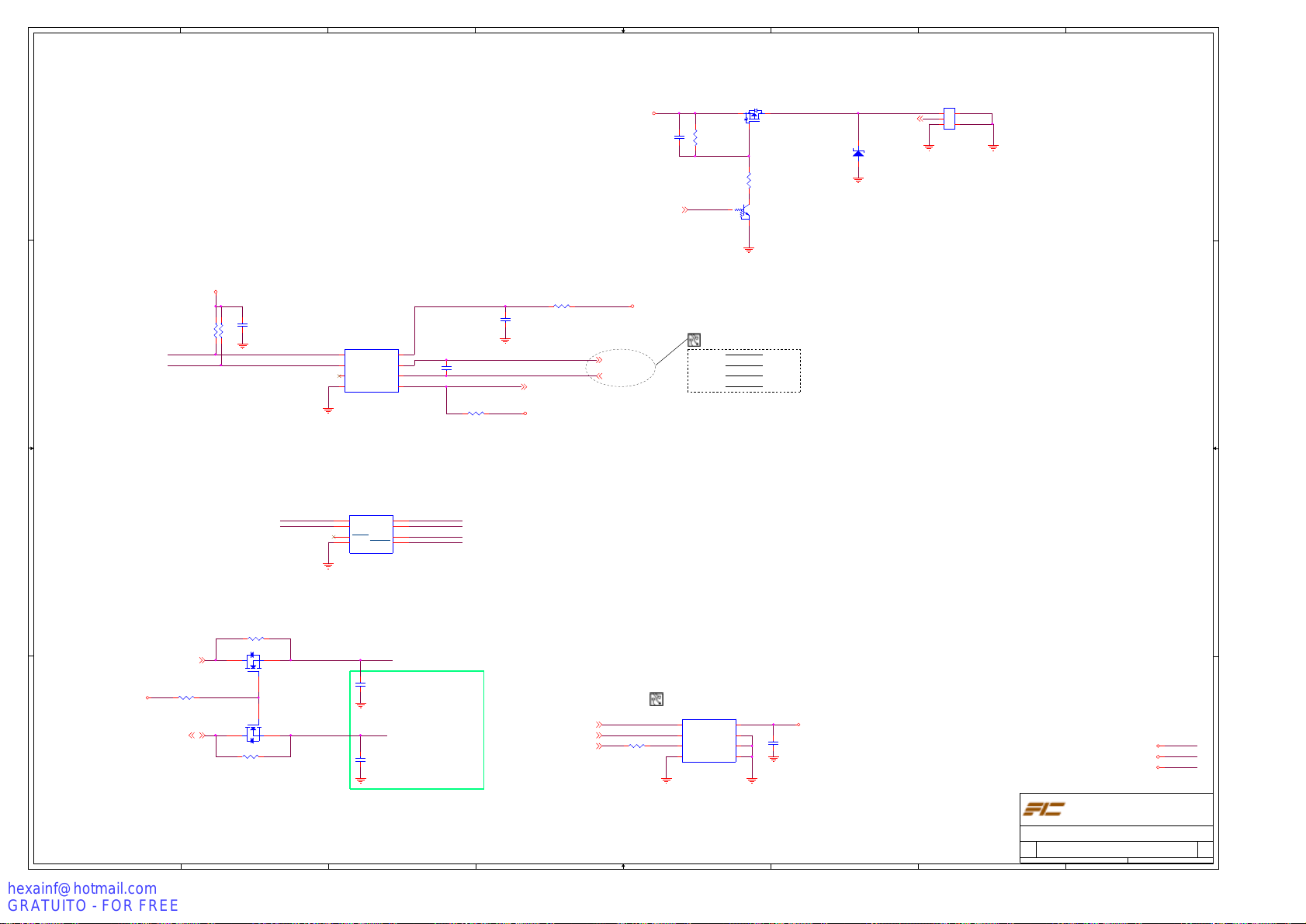

5VDDM

TRANS M-FET-P APM2301AAC-TRL -20V -3A SOT23 3PIN ANPEC LR

R110

5VDDM

C83

1K 5% 1/16W

FAN_PWM<40>

10 mil
10 mil

D D

3VDDM

4

3

C266

0.1uF 16V 80-20% SMT0603 Y5V LR (NU)

1

2

QSMCLK_PMU
QSMDAT_PMU

RP22

4P2R LR (NU)

C C

B B

10K 5% SMT1010 1/16W

CPU Thermal
Sensor

THRM_VCC

C257

C260
2200pF 50V 10% SMT0402 X7R LR

HOT_DOWN#

R232

SMT0402 LR

10K 5% 1/16W

10mil
10mil

Reserve for Material shortage

QSMCLK_PMU

U14

8

SCLK

7

SDATA

6

ALRT#

LNR-IC Temperature Sensor G780P81U 3.0-5.5V MSOP-8 8PIN GMT LR

U13

8

SMBCLK

7

SMBDATA

6

ALERT

OVERT1GND

LNR-IC Temperation Sensor MAX6657MSA+T SOP-8 8PIN MAXIM LR (NU)

1

VCC

2

D+

3

D-

45

THM#GND

1

VCC

2

DXP

3

DXN

45

0.1uF 16V 80-20% SMT0402 Y5V LR

THRM_VCC
H_THERMDAQSMDAT_PMU

H_THERMDC
HOT_DOWN#

20mil

R233

RES 100 5% 1/16W

HOT_DOWN# <6,40>

3VDDA

H_THERMDA

H_THERMDC

1000pF 50V 10% SM T0402 X7R LR(NU)

SMT0402 LR

H_THERMDA <6>

H_THERMDC <6>

Q14

DS

G

SMT0402 LR

R111
0 5% 1/16W

SMT0402 LR

Q12

B

NPN PDTC144EU SOT-323 PHILIPS LR

E C

GND

10 mil

THERMDA

Minimum

THERMDC

10 mil

GND

30mil

FAN1

FAN_SPEED<40>

D16

DIODE ZENER GLZ6.2B 6.2V 20mA MINI-MELF 2PIN PSI LR (NU)

P N

CN24

1
2
345

CON ACES SMT TYPE 85205-03001 WIRE 1.25P 3PIN LR DO'NT CARE

20-24197-20

0 5% 1/16W SMT0402 LR
R445

Q48

SMCLK_PMU<40,42>

R444

5VDDM

2.2K 5% 1/16W SMT04 02 LR (NU)

SMDAT_PMU<40,42>

A A

D S

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR (NU)

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR (NU)

G

G

D S

R446
0 5% 1/16W SMT0402 LR

QSMCLK_PMU

C462
MO-CAP 5pF 50V 0.5pF SM∮T0402 NPO LR(NU)

Q49

QSMDAT_PMU

C471
MO-CAP 5pF 50V 0.5pF SM∮T0402 NPO LR(NU)

DDR THERMAL SENSOR (NU)

CLOSE TO DDR DIMM

U7

SMB_CLK<8,16,17,20,27,28>

SMB_DATA<8,16,17,20,27,28>

PM_EXTTS#1<10>

R378
0 5% 1/16W SMT040 2 LR (NU)

1

SMBDATA

2

SMBCLK

3

O.S.

4 5

GND A2

LNR-IC Temperature Sensor G751-2P8f 3.0-5.5V MSOP-8 8PIN GMT LR (NU)

8

+Vs

7

A0
A1

6

C372

0.1uF 16V 80-20% SMT0402 Y5V LR (NU)

3VDDM

3VDDM<6,8,10,13,16..22,24,25,27,28,33,36..40,44,46..49>
3VDDA<18,20..22,24,27..29,34,38..40,42,44,45>

5VDDM<20,21,26,32..35,37,44,46..49>

For EMI

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

8

7

6

5

4

3

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

CPU/DRAM Thermal

1

3VDDM
3VDDA
5VDDM

Confidential

15 56Thursday, May 29, 2008

0.5

5

4

3

2

1

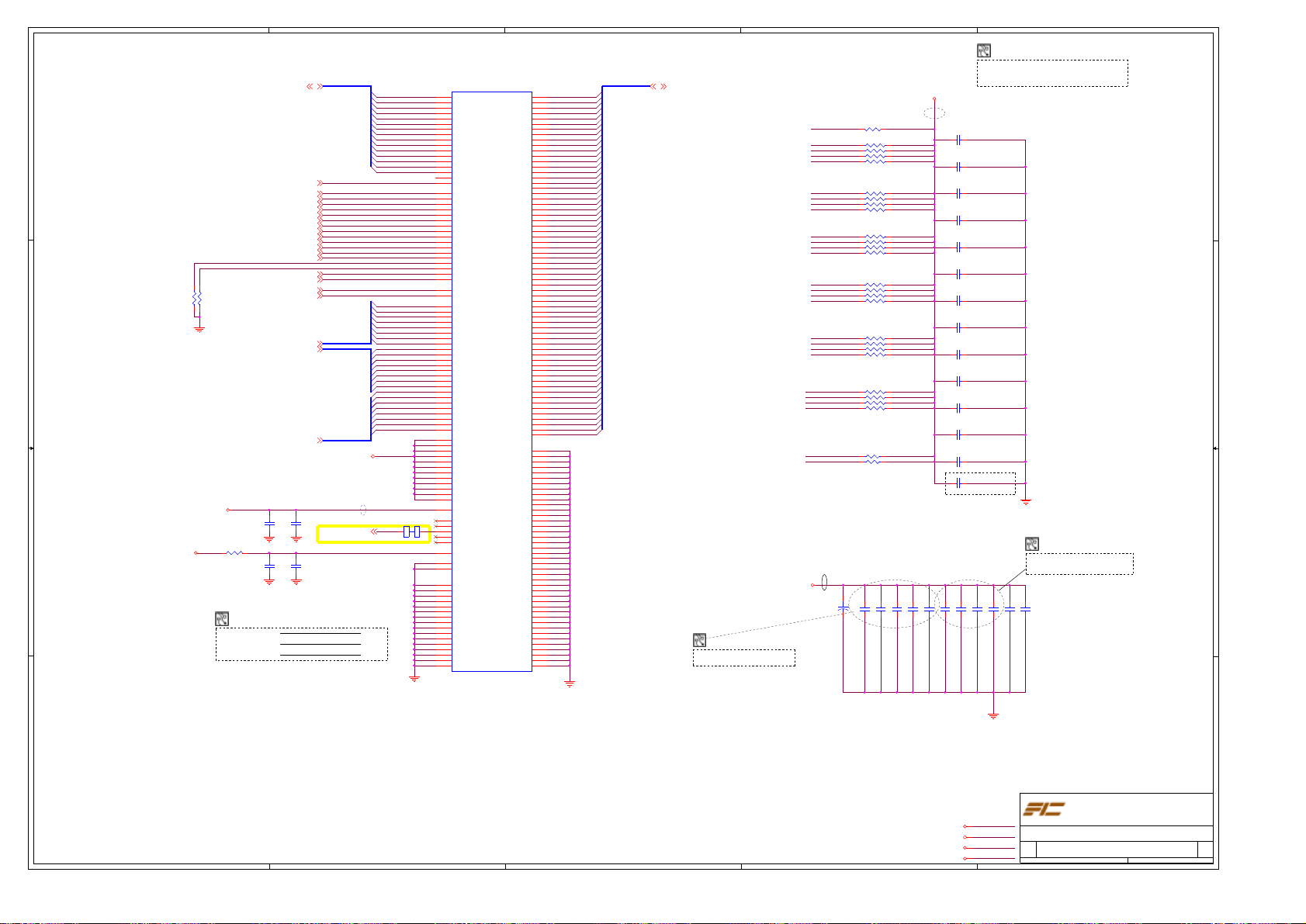

SO-DIMM0

D D

M_CLK_DDR#0<10>
M_CLK_DDR#1<10>

4

3

RP16
10K 5% SMT1010 1/16W 4P2R LR

1

2

C C

3VDDM

2.2uF 10V 10% SMT0603∮ X5R C1608X5R1A225KT TDK LR

R135 0 5% 1/16W SMT0402 LR

B B

M_VREF

2.2uF 10V 10% SMT0603∮ X5R C1608X5R1A225KT TDK LR

Other signal
M_VREF
Other signal

M_A_DQS[7..0]<11>

M_A_DQS#[7..0]<11>

C116

C118

M_A_A[14..0]

M_A_BS2<11>
M_A_BS1<11>

M_A_BS0<11>

M_CS#0<10>
M_CS#1<10>

M_CLK_DDR0<10>
M_CLK_DDR1<10>

M_CKE0<10>

M_CKE1<10>
M_A_CAS#<11>
M_A_RAS#<11>

M_A_WE#<11>

SMB_CLK<8,15,17,20,27,28>

SMB_DATA<8,15,17,20,27,28>

M_ODT0<10>

M_ODT1<10>

M_A_DM[7..0]

M_A_DM[7..0]<11>

M_A_DQS[7..0]

M_A_DQS#[7..0]

1.8VDDS_DDR2

0.1uF 16V 80-20% SMT0402 Y5V LR
C117

C119

0.1uF 16V 80-20% SMT0402 Y5V LR

20mil
20mil

M_A_BS2
M_A_BS1

M_A_BS0
M_CS#0
M_CS#1

M_CKE0
M_CKE1
M_A_CAS#
M_A_RAS#
M_A_WE#

M_ODT0
M_ODT1

PM_EXTTS#0<10,17>

20mil

20mil

M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14

M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7

R132
SHW 0 5% 0402

CN23

102

A0

101

A1

100

A2

99

A3

98

A4

97

A5

94

A6

92

A7

93

A8

91

A9

105

A10/AP

90

A11

89

A12

116

A13

86

A14

84

A15

85

A16_BA2

106

BA1

107

BA0

110

S0#

115

S1#

30

CK0

32

CK0#

164

CK1

166

CK1#

79

CKE0

80

CKE1

113

CAS#

108

RAS#

109

WE#

198

SA0

200

SA1

197

SCL

195

SDA

114

ODT0

119

ODT1

10

DM0

26

DM1

52

DM2

67

DM3

130

DM4

147

DM5

170

DM6

185

DM7

13

DQS0

31

DQS1

51

DQS2

70

DQS3

131

DQS4

148

DQS5

169

DQS6

188

DQS7

11

DQS0#

29

DQS1#

49

DQS2#

68

DQS3#

129

DQS4#

146

DQS5#

167

DQS6#

186

DQS7#

112

VDD1

111

VDD2

117

VDD3

96

VDD4

95

VDD5

118

VDD6

81

VDD7

82

VDD8

87

VDD9

103

VDD10

88

VDD11

104

VDD12

199

VDDSPD

83

NC1

120

NC2

50

NC3

69

NC4

163

NCTEST

1

VREF1

203

GND0

204

GND1

132

VSS42

144

VSS43

156

VSS44

168

VSS45

2

VSS46

3

VSS47

15

VSS48

27

VSS49

39

VSS50

149

VSS51

161

VSS52

28

VSS53

40

VSS54

138

VSS55

150

VSS56

162

STD TYPE

VSS57

CON CONCRAFT 0701A1BA92E SMD DDRII 200PIN P=0.6 H=9.2 STD LR

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8

VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41

M_A_DQ0

5

DQ0

M_A_DQ1

7

DQ1

M_A_DQ2

17

DQ2

M_A_DQ3

19

DQ3

M_A_DQ4

4

DQ4

M_A_DQ5

6

DQ5

M_A_DQ6

14

DQ6

M_A_DQ7

16

DQ7

M_A_DQ8

23

DQ8

M_A_DQ9

25

DQ9

M_A_DQ10

35

M_A_DQ11

37

M_A_DQ12

20

M_A_DQ13

22

M_A_DQ14

36

M_A_DQ15

38

M_A_DQ16

43

M_A_DQ17

45

M_A_DQ18

55

M_A_DQ19

57

M_A_DQ20

44

M_A_DQ21

46

M_A_DQ22

56

M_A_DQ23

58

M_A_DQ24

61

M_A_DQ25

63

M_A_DQ26

73

M_A_DQ27

75

M_A_DQ28

62

M_A_DQ29

64

M_A_DQ30

74

M_A_DQ31

76

M_A_DQ32

123

M_A_DQ33

125

M_A_DQ34

135

M_A_DQ35

137

M_A_DQ36

124

M_A_DQ37

126

M_A_DQ38

134

M_A_DQ39

136

M_A_DQ40

141

M_A_DQ41

143

M_A_DQ42

151

M_A_DQ43

153

M_A_DQ44

140

M_A_DQ45

142

M_A_DQ46

152

M_A_DQ47

154

M_A_DQ48

157

M_A_DQ49

159

M_A_DQ50

173

M_A_DQ51

175

M_A_DQ52

158

M_A_DQ53

160

M_A_DQ54

174

M_A_DQ55

176

M_A_DQ56

179

M_A_DQ57

181

M_A_DQ58

189

M_A_DQ59

191

M_A_DQ60

180

M_A_DQ61

182

M_A_DQ62

192

M_A_DQ63

194

47
133
183
77
12
48
184
78
71
72
121
122
196
193
8
18
24
41
53
42
54
59
65
60
66
127
139
128
145
165
171
172
177
187
178
190
9
21
33
155
34

M_A_DQ[63..0]

M_A_DQ[63..0] <11 >M_A_A[14..0]<11>

Place these 2.2uF caps near
So-Dimm0

M_A_A7

R130 RES 56 5% 1/16W S MT0402 LR

M_A_A12
M_A_A9
M_A_A5
M_A_A8

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_A_A1
M_A_A3
M_A_A10
M_A_BS0

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_A_WE#
M_A_CAS#
M_CS#1
M_ODT1

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_A_A13
M_ODT0
M_CS#0
M_A_RAS#

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_A_BS1
M_A_A0
M_A_A2
M_A_A4

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_A_A6
M_A_A11
M_A_A14
M_CKE1

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_CKE0
M_A_BS2

56 5% SMT1010 1/16W 4P2R RS2N-56R0 -J2N CYNTEC LR

160mil

1.8VDDS_DDR2

C31 T 100 uF 2V 2 0% ESR= 18m SMT 734 3 E EFC D0D 101E R P ANA SON∮ IC L R(NU)

+

RP19

1 8
2 7
3 6
4 5

RP18

1 8
2 7
3 6
4 5

RP17

1 8
2 7
3 6
4 5

RP13

1 8
2 7
3 6
4 5

RP14

1 8
2 7
3 6
4 5

RP15

1 8
2 7
3 6
4 5

RP20

124

C40 1 2. 2uF 10V 10% SM T06 03 X 5R C16 08X5 R1A 225 KT T∮ DK LR

0.9VDDT_DDR2

3

C40 0 2. 2uF 10V 10% SM T06 03 X 5R C16 08X5 R1A 225 KT T∮ DK LR

C13 2 2. 2uF 10V 10% SM T∮ 0603 X5R C 1608X5 R1A22 5KT TD K LR

C39 8 2. 2uF 10V 10% SM T06 03 X 5R C16 08X5 R1A 225 KT T∮ DK LR

C39 9 2. 2uF 10V 10% SM T06 03 X 5R C16 08X5 R1A 225 KT T∮ DK LR

Place one cap close to every 2 pu llup resistors
terminated to 0.9VDDT_DDRII

40 mils

C98

0.1uF 16V 80-20% SMT0402 Y5V LR

C99

0.1uF 16V 80-20% SMT0402 Y5V LR

C100

0.1uF 16V 80-20% SMT0402 Y5V LR

C101

0.1uF 16V 80-20% SMT0402 Y5V LR

C102

0.1uF 16V 80-20% SMT0402 Y5V LR

C103

0.1uF 16V 80-20% SMT0402 Y5V LR

C121

0.1uF 16V 80-20% SMT0402 Y5V LR

C122

0.1uF 16V 80-20% SMT0402 Y5V LR

C123

0.1uF 16V 80-20% SMT0402 Y5V LR

C124

0.1uF 16V 80-20% SMT0402 Y5V LR

C125

0.1uF 16V 80-20% SMT0402 Y5V LR

C126

0.1uF 16V 80-20% SMT0402 Y5V LR

C127

0.1uF 16V 80-20% SMT0402 Y5V LR

C128

0.1uF 16V 80-20% SMT0402 Y5V LR

C13 0 0. 1uF 16V 80- 20% SM T040 2 Y 5V LR

C13 1 0. 1uF 16V 80- 20% SM T040 2 Y 5V LR

C129 0.1uF 16V 80-20% SM T0402 Y5V LR

C3 96 10 00p F 5 0V 10% SM T0 603 X7 R LR

C402 1000pF 50V 10% SMT0603 X7R LR

C39 3 0. 1uF 16V 80- 20% SM T040 2 Y 5V LR

Place these 0.1uF caps near
So-Dimm0 pin79~pin115
area

A A

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

M_VREF

M_VREF<10,17,45>

0.9VDDT_DDR2<17,45>

1.8VDDS_DDR2<10,12,13,17,45>

5

4

3

2

3VDDM<6,8,10,13,15,17..22,24,25,27,28,33,36..40,44,46..49>

Title

0.9VDDT_DDR2

Size Document Number Rev

1.8VDDS_DDR2

3VDDM

C

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

DDR2 SDRAM SO-DIMM0

1

Confidential

16 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

4

3

2

1

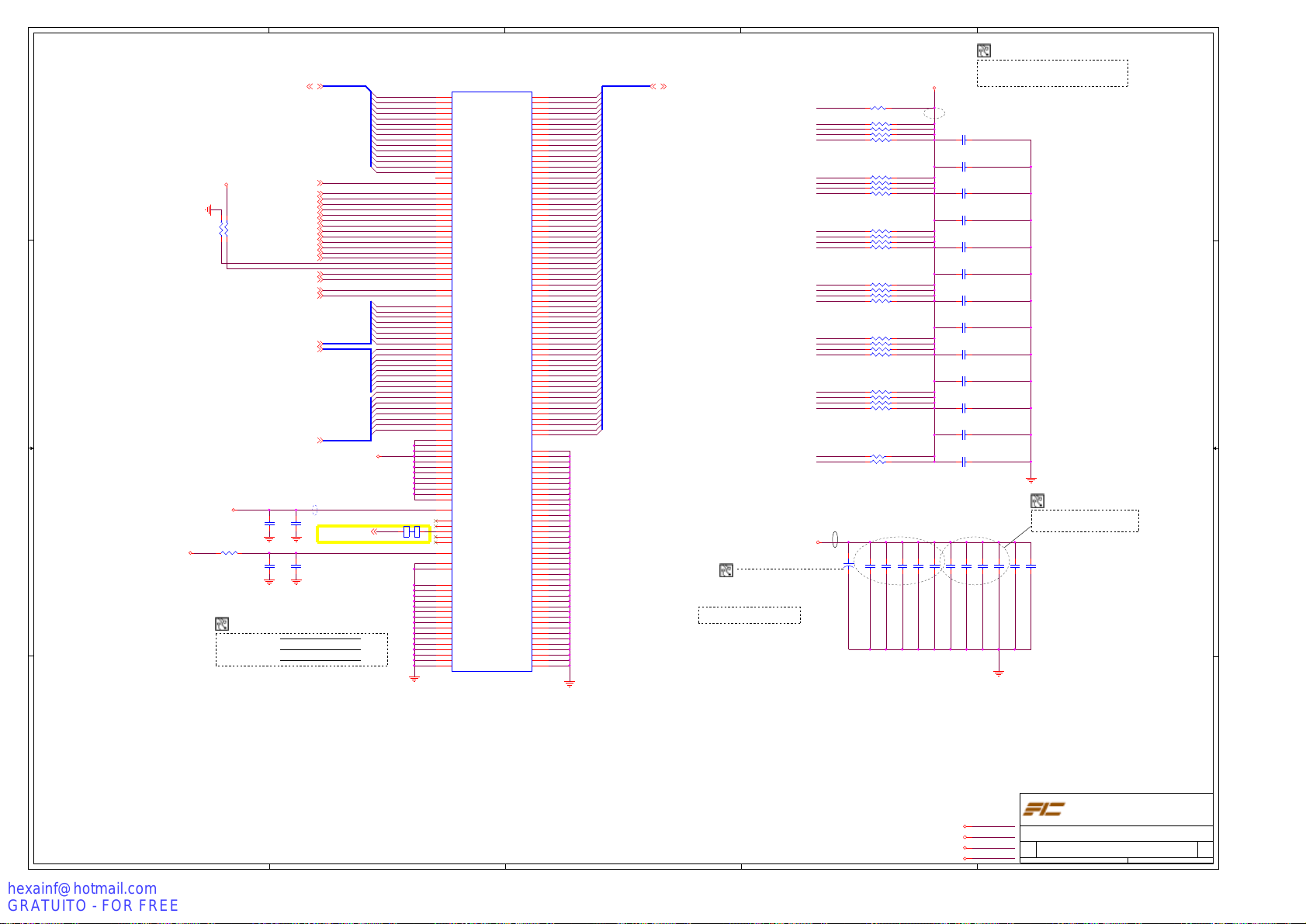

SO-DIMM1

D D

3VDDM

4

RP8
10K 5% SMT1010 1

C C

/16W 4P2R LR

3

1

2

3VDDM

∮

2.2uF 10V 10% SMT0603

B B

2.2uF 10V 10% SMT0603∮ X5R C1608X5R1A225KT TDK LR

X5R C1608X5R1A225KT TDK LR

R117 0 5% 1/16W SMT0402 LR

M_VREF

Other signal
M_VREF
Other signal

M_CLK_DDR#3<10>
M_CLK_DDR#4<10>

M_B_DQS[7..0]<11>

M_B_DQS#[7..0]<11>

C81

C80

M_B_A[14..0] M_B_DQ[63..0]

M_B_BS2

M_B_BS2<11>

M_B_BS1

M_B_BS1<11>

M_B_BS0

M_B_BS0<11>

M_CS#2

M_CS#2<10>

M_CS#3

M_CS#3<10>

M_CLK_DDR3<10>
M_CLK_DDR4<10>

SMB_CLK<8,15,16,20,27,28>

SMB_DATA<8,15,16,20,27,28>

M_B_DM[7..0]<11>

M_CKE3

M_CKE3<10>

M_CKE4

M_CKE4<10>

M_B_CAS#

M_B_CAS#<11>

M_B_RAS#

M_B_RAS#<11>

M_B_WE#

M_B_WE#<11>

M_ODT2

M_ODT2<10>

M_ODT3

M_ODT3<10>

M_B_DM[7..0]
M_B_DQS[7..0]

M_B_DQS#[7..0]

M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14

M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7

1.8VDDS_DDR2

20mil

0.1uF 16V 80-20% SMT0402 Y5V LR
C76

PM_EXTTS#0<10,16>

R98
SHW 0 5% 0402

C77

0.1uF 16V 80-20% SMT0402 Y5V LR

20mil
20mil

20mil

CN22

102

A0

101

A1

100

A2

99

A3

98

A4

97

A5

94

A6

92

A7

93

A8

91

A9

105

A10/AP

90

A11

89

A12

116

A13

86

A14

84

A15

85

A16_BA2

106

BA1

107

BA0

110

S0#

115

S1#

30

CK0

32

CK0#

164

CK1

166

CK1#

79

CKE0

80

CKE1

113

CAS#

108

RAS#

109

WE#

198

SA0

200

SA1

197

SCL

195

SDA

114

ODT0

119

ODT1

10

DM0

26

DM1

52

DM2

67

DM3

130

DM4

147

DM5

170

DM6

185

DM7

13

DQS0

31

DQS1

51

DQS2

70

DQS3

131

DQS4

148

DQS5

169

DQS6

188

DQS7

11

DQS0#

29

DQS1#

49

DQS2#

68

DQS3#

129

DQS4#

146

DQS5#

167

DQS6#

186

DQS7#

112

VDD1

111

VDD2

117

VDD3

96

VDD4

95

VDD5

118

VDD6

81

VDD7

82

VDD8

87

VDD9

103

VDD10

88

VDD11

104

VDD12

199

VDDSPD

83

NC1

120

NC2

50

NC3

69

NC4

163

NCTEST

1

VREF1

203

GND0

204

GND1

132

VSS42

144

VSS43

156

VSS44

168

VSS45

2

VSS46

3

VSS47

15

VSS48

27

VSS49

39

VSS50

149

VSS51

161

VSS52

28

VSS53

40

VSS54

138

VSS55

150

VSS56

162

STD TYPE

VSS57

CON CONCRAFT 0701A1BA52E SMD DDRII 200PIN P=0.6 H=5.2 STD LR

DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8

VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41

5

DQ0

7

DQ1

17

DQ2

19

DQ3

4

DQ4

6

DQ5

14

DQ6

16

DQ7

23

DQ8

25

DQ9

35
37
20
22
36
38
43
45
55
57
44
46
56
58
61
63
73
75
62
64
74
76
123
125
135
137
124
126
134
136
141
143
151
153
140
142
152
154
157
159
173
175
158
160
174
176
179
181
189
191
180
182
192
194

47
133
183
77
12
48
184
78
71
72
121
122
196
193
8
18
24
41
53
42
54
59
65
60
66
127
139
128
145
165
171
172
177
187
178
190
9
21
33
155
34

M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63

M_B_DQ[63..0] <11 >M_B_A[14..0]<11>

Place these 2.2uF caps near
So-Dimm0

M_B_A14

R112 RES 56 5% 1/16W S MT0402 LR

M_B_WE#
M_B_CAS#
M_CS#3
M_ODT3

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_B_A3
M_B_A1
M_B_A10
M_B_BS0

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_B_A12
M_B_A9
M_B_A8
M_B_A5

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_ODT2
M_B_A13
M_CS#2
M_B_RAS#

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_B_BS1
M_B_A0
M_B_A2
M_B_A4

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_B_A7
M_B_A6
M_B_A11
M_CKE4

56 5% SMT2010 1/16W 8P 4R 0.5mm LR

M_CKE3
M_B_BS2

56 5% SMT1010 1/16W 4P2R RS2N-56R 0-J2N CYNTEC LR

160mil

1.8VDDS_DDR2

C56 T 100 uF 2 V 20 % E SR∮ =18m SMT734 3 EEFC D0D10 1ER PA NASONI C LR( NU)

+

1 8
2 7
3 6
4 5

1 8
2 7
3 6
4 5

1 8
2 7
3 6
4 5

1 8
2 7
3 6
4 5

1 8
2 7
3 6
4 5

1 8
2 7
3 6
4 5

124

0.9VDDT_DDR2

RP9

RP10

RP11

RP5

RP6

RP7

RP12

3

C96 2 .2u F 1 0V 1 0% SMT 0603 X5 R C 1608 X5R 1A22 5KT T∮ DK LR

C49 2 .2uF 10 V 10 % SM T∮ 0603 X5R C 1608X5R 1A225K T TDK LR

C51 2 .2u F 1 0V 1 0% SMT 0603 X5 R C 1608 X5R 1A22 5KT T∮ DK LR

C50 2 .2u F 1 0V 1 0% SMT 0603 X5 R C 1608 X5R 1A22 5KT T∮ DK LR

C38 3 2. 2uF 10V 10% SM T06 03 X 5R C16 08X5 R1A 225 KT T∮ DK LR

Place one cap close to every 2 pu llup resistors
terminated to 0.9VDDT_DDRII

40 mils

C59

0.1uF 16V 80-20% SMT0402 Y5V LR

C60

0.1uF 16V 80-20% SMT0402 Y5V LR

C61

0.1uF 16V 80-20% SMT0402 Y5V LR

C62

0.1uF 16V 80-20% SMT0402 Y5V LR

C63

0.1uF 16V 80-20% SMT0402 Y5V LR

C64

0.1uF 16V 80-20% SMT0402 Y5V LR

C84

0.1uF 16V 80-20% SMT0402 Y5V LR

C85

0.1uF 16V 80-20% SMT0402 Y5V LR

C86

0.1uF 16V 80-20% SMT0402 Y5V LR

C87

0.1uF 16V 80-20% SMT0402 Y5V LR

C88

0.1uF 16V 80-20% SMT0402 Y5V LR

C89

0.1uF 16V 80-20% SMT0402 Y5V LR

C90

0.1uF 16V 80-20% SMT0402 Y5V LR

C79 0 .1u F 1 6V 8 0-2 0% S MT0 402 Y5V LR

C38 2 0. 1uF 16V 80- 20% SM T040 2 Y 5V LR

C97 1 000 pF 50V 10% SM T060 3 X 7R LR

C38 1 0. 1uF 16V 80-2 0% SM T0402 Y5V L R

C38 0 0. 1uF 16V 80- 20% SM T040 2 Y 5V LR

Place these 0.1uF caps near
So-Dimm0 pin79~pin115 area

C94 1 000p F 5 0V 1 0% SMT 0603 X7R LR

A A

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

M_VREF

M_VREF<10,16,45>

0.9VDDT_DDR2<16,45>

1.8VDDS_DDR2<10,12,13,16,45>

5

4

3

2

3VDDM<6,8,10,13,15,16,18..22,24,25,27,28,33,36..40,44,46..49>

Title

0.9VDDT_DDR2

Size Document Number Rev

1.8VDDS_DDR2

3VDDM

C

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

DDR2 SDRAM SO-DIMM1

1

Confidential

17 56Thursday, May 29, 2008

0.5

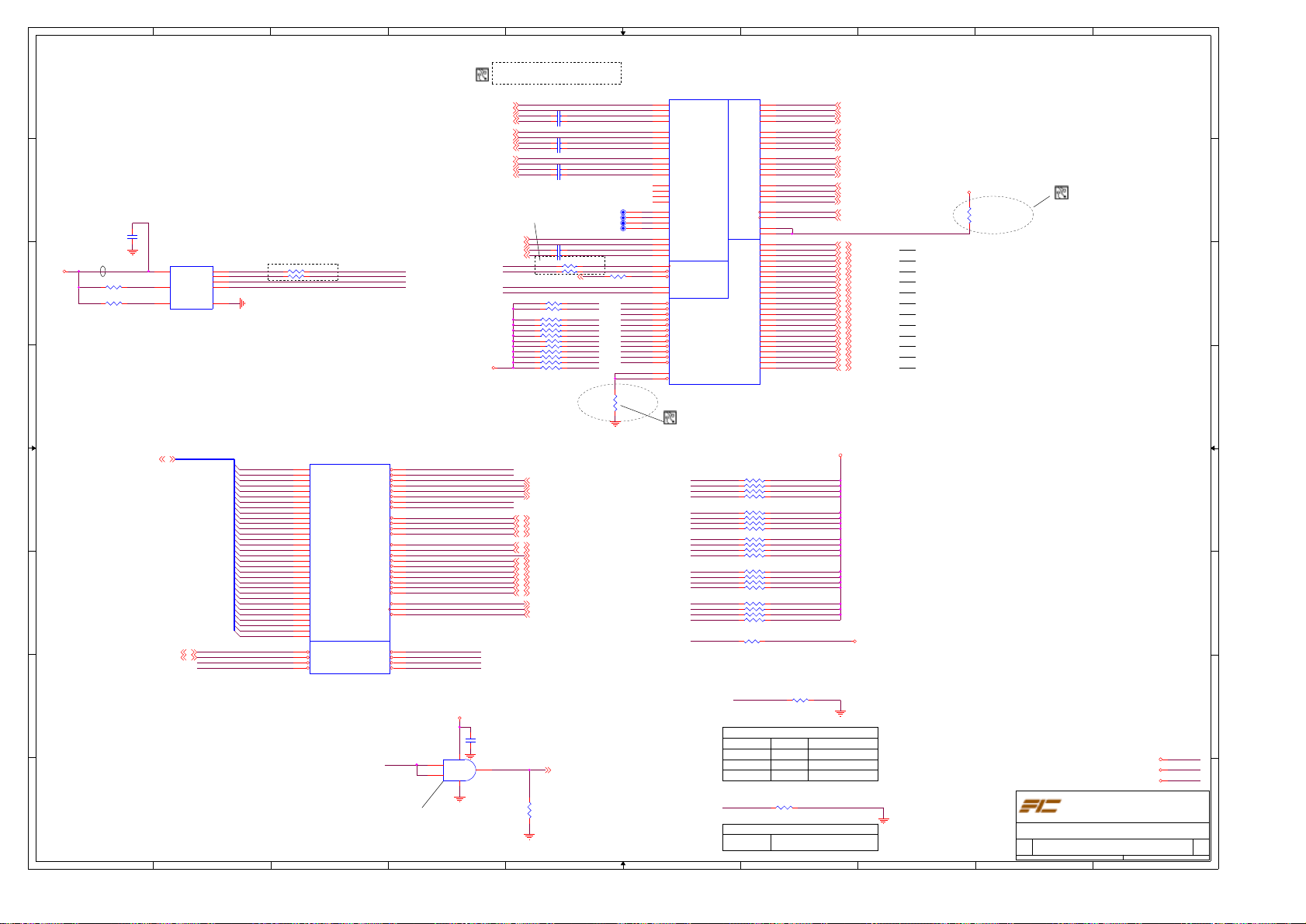

10

H H

G G

C326

0.1uF 16V 80-20% SMT0402 Y5V LR

3VDDA

F F

10 mils

R319

3.3K 5% 1/16W SMT0402 LR
R317

3.3K 5% 1/16W SMT0402 LR

SPI Interface

8

SPI0_WP#

3

SPI0_HOLD#

7

E E

PCI_AD[31..0]

D D

C C

1394

PCMCIA

PCI_IRQA#
PCI_IRQB#

B B

A A

10

9

U15

5

VDD

SI

2

SO

1

CE#

6

WP#

SCK

4

VSS

HOLD#

FLASHROM Serial Flash SPI W25X80VSSI 8Mbit 2.7V~3.6V SOIC(208mil) 8PIN WINBOND LR

PCI_AD[31..0]

Place near to SPI ROM

SPI_CS#0_SI_R

R320 15 1% 1/16W SMT0402 LR

SPI_CS#0_SO_R

R318 15 1% 1/16W SMT0402 LR

SPI_CS#0_CLK

PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31

PCI_IRQA#
PCI_IRQB#
PCI_IRQC#
PCI_IRQD#

8

U32B

D11

AD0

C8

AD1

D9

AD2

E12

AD3

E9

AD4

C9

AD5

E10

AD6

B7

AD7

C7

AD8

C5

AD9

G11

AD10

F8

AD11

F11

AD12

E7

AD13

A3

AD14

D2

AD15

F10

AD16

D5

AD17

D10

AD18

B3

AD19

F7

AD20

C3

AD21

F3

AD22

F4

AD23

C1

AD24

G7

AD25

H7

AD26

D1

AD27

G5

AD28

H6

AD29

G1

AD30

H3

AD31

Interrupt I/F

J5

PIRQA#

E1

PIRQB#

J6

PIRQC#

C4 G2

PIRQD# PIRQH#/GPIO5

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A3 INTEL LR

PCI

REQ0#

GNT0#
REQ1#/GPIO50
GNT1#/GPIO51
REQ2#/GPIO52
GNT2#/GPIO53
REQ3#/GPIO54
GNT3#/GPIO55

C/BE0#

C/BE1#

C/BE2#

C/BE3#

PCIRST#

DEVSEL#

PERR#

PLOCK#

SERR#

STOP#

TRDY#

FRAME#

PLTRST#

PCICLK

PIRQE#/GPIO2
PIRQF#/GPIO3
PIRQG#/GPIO4

Buffer to reduce loading on PLT_RST#

9

8

EXPRESS CARD

MINI CARD (WIRELESS)

MINI CARD (Robson)

SPI_SI
SPI_SO
SPI_CS#0
SPI_CLK

F1
G4
B6
A7
F13
F12
E6
F6

D8
B4
D6
A5

D3

IRDY#

E3

PAR

R1
C6
E4
C2
J4
A4
F5
D7

C14
D4
R2

PME#

H4
K6
F2

PLT_RST#

7

PCIE AC coupling caps need to be
within 250mils of the driver

PCIE_RXN1<27>

PCIE_RXP1<27>
PCIE_TXN1<27>

PCIE_TXP1<27>

PCIE_RXN2<28>

PCIE_RXP2<28>
PCIE_TXN2<28>

PCIE_TXP2<28>

PCIE_RXN3<28> DMI_RXN2 <10>

PCIE_RXP3<28>
PCIE_TXN3<28>

PCIE_TXP3<28>

Place near to ICH9M

GLAN_RXN<29>

LAN

GLAN_RXP<29>
GLAN_TXN<29>

GLAN_TXP<29>

3VDDA

PCI_REQ#0
PCI_GNT#0
PCI_REQ#1
PCI_GNT#1
PCI_REQ#2
PCI_GNT#2
PCI_REQ#3
PCI_GNT#3

PCI_IRDY#

PCI_DEVSEL#
PCI_PERR#
PCI_LOCK#
PCI_SERR#
PCI_STOP#
PCI_TRDY#
PCI_FRAME#

PLT_RST#
PCI_Q_PME#

PCI_IRQE#
PCI_IRQF#
PCI_IRQG#
PCI_IRQH#

3VDDM

C538

U27

0.1uF 16V 80-20% SMT0402 Y5V LR

53

1

4

2

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR

7

6

C596 0.1uF 10V 10% SMT0402 X5R LR
C600 0.1uF 10V 10% SMT0402 X5R LR

C605 0.1uF 10V 10% SMT0402 X5R LR
C609 0.1uF 10V 10% SMT0402 X5R LR

C610 0.1uF 10V 10% SMT0402 X5R LR
C611 0.1uF 10V 10% SMT0402 X5R LR

C313 0.1uF 10V 10% SMT0402 X5R LR
C314 0.1uF 10V 10% SMT0402 X5R LR

SPI_CLK
SPI_CS#0

SPI_SI
SPI_SO

15 5% SMT1010 1/16W 4P2 R CYNTEC LR

RP28

124

3

LAN_PHYPC<20>

0 5% 1/16W SMT0 402 LR(NU)

RP2310K 5% SMT1010 1 /16W 4P2R LR

RP2410K 5% SMT2010 1 /16W 8P4R LR

RP2510K 5% SMT1010 1 /16W 4P2R LR
RP5010K 5% SMT2010 1 /16W 8P4R LR

PCI_REQ#1
PCI_GNT#1
PCI_REQ#2
PCI_GNT#2

PCI_C/BE#0
PCI_C/BE#1
PCI_C/BE#2
PCI_C/BE#3

PCI_IRDY#
PCI_PAR
PCI_RST#
PCI_DEVSEL#
PCI_PERR#
PCI_LOCK#
PCI_SERR#
PCI_STOP#
PCI_TRDY#
PCI_FRAME#

PLT_RST# <10>
CLK_PCIF_ICH <8>
PCI_Q_PME#

OC10#

124

OC11#

3

OC3#

8

1

OC2#

7

2

OC8#

6

3

54

OC0#

124

OC7#

3

OC4#

8

1

OC5#

7

2

OC9#

6

3

OC1#

54

1394
PCMCIA

SB/LAN/CD-ROM/EXPRESS CARD/Mini Card

BUF_PLT_RST# <27,28,40>

R531
100K 5% 1/16W SMT0402 LR

6

N29
N28
P27
P26

L29

L28
M27
M26

J29

J28
K27
K26

G29
G28
H27
H26

1

E29

T34

1

E28

T35

1

F27

T14

1

F26

T15

C29
C28
D27
D26

D23
D24

R291

F23
D25

E23

OC0#

N4

OC1#

N5

OC2#

N6

OC3#

P6

OC4#

M1

OC5#

N2

OC6#OC6#

M4

OC7#

M3

OC8#

N3

OC9#

N1

OC10#

P5

OC11#

P3

AG2

USB_RBIAS_PN

AG1

R551
RES 22.6 1% 1/16W SMT0402 LR

5

U32D

PERN1
PERP1
PETN1
PETP1

PERN2
PERP2
PETN2
PETP2

PERN3
PERP3
PETN3
PETP3

PERN4
PERP4
PETN4
PETP4

PERN5
PERP5
PETN5
PETP5

PERN6/GLAN_RXN
PERP6/GLAN_RXP
PETN6/GLAN_TXN
PETP6/GLAN_TXP

SPI_CLK
SPI_CS0#
SPI_CS1#/GPIO58/CLGPIO6

SPI_MOSI
SPI_MISO

OC0#/GPIO59
OC1#/GPIO40
OC2#/GPIO41
OC3#/GPIO42
OC4#/GPIO43
OC5#/GPIO29
OC6#/GPIO30
OC7#/GPIO31
OC8#/GPIO44
OC9#/GPIO45
OC10#/GPIO46
OC11#/GPIO47

USBRBIAS
USBRBIAS#

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A3 INTEL LR

Place within 500mils of ICH
5/5 mils spacing on microstrip

USB

DMI0RXN
DMI0RXP
DMI0TXN
DMI0TXP

DMI1RXN
DMI1RXP
DMI1TXN
DMI1TXP

DMI2RXN
DMI2RXP
DMI2TXN
DMI2TXP

DMI3RXN
DMI3RXP
DMI3TXN
DMI3TXP

DMI_CLKN

PCI-Express

DMI_CLKP

Direct Media Interface

DMI_ZCOMP

DMI_IRCOMP

USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N

SPI

USBP5P
USBP6N
USBP6P
USBP7N
USBP7P
USBP8N
USBP8P
USBP9N

USBP9P
USBP10N
USBP10P
USBP11N
USBP11P

4

V27
V26
U29
U28

Y27
Y26
W29
W28

AB27
AB26
AA29
AA28

AD27
AD26
AC29
AC28

T26
T25

AF29
AF28

AC5
AC4
AD3
AD2
AC1
AC2
AA5
AA4
AB2
AB3
AA1
AA2
W5
W4
Y3
Y2
W1
W2
V2
V3
U5
U4
U1
U2

DMI_RXN0 <10>
DMI_RXP0 <10>
DMI_TXN0 <10>
DMI_TXP0 <10>

DMI_RXN1 <10>
DMI_RXP1 <10>
DMI_TXN1 <10>
DMI_TXP1 <10>

DMI_RXP2 <10>
DMI_TXN2 <10>
DMI_TXP2 <10>

DMI_RXN3 <10>
DMI_RXP3 <10>
DMI_TXN3 <10>
DMI_TXP3 <10>

CLK_PCIE_ICH# <8>
CLK_PCIE_ICH <8>

3VDDM

PCI_PERR#

1 8

PCI_IRQB#

2 7

PCI_IRQE#

3 6

PCI_REQ#0

4 5

PCI_REQ#2

1 8

PCI_IRQA#

2 7

PCI_REQ#3

3 6

PCI_FRAME#

4 5

PCI_DEVSEL#

1 8

PCI_REQ#1

2 7

PCI_TRDY#

3 6

PCI_IRQD#

4 5

PCI_IRQG#

1 8

PCI_IRQH#

2 7

PCI_SERR#

3 6

PCI_IRQF#

4 5

PCI_STOP#

1 8

PCI_IRQC#

2 7

PCI_LOCK#

3 6

PCI_IRDY#

4 5

PCI_Q_PME#

R581 2.2K 5% 1/16W SMT 0402 LR(NU)

PCI_GNT#0

R289

1K 5% 1/16W SMT0402 LR

Boot BIOS Strap
PCI_GNT#0

PCI_GNT#3

A16 swap override Strap
PCI_GNT#3

5

SPI_CS#1 Boot BIOS Location
0 1
1 0
1 1

R304 1K 5% 1/16W SMT 0402 LR(NU)

SPI
PCI
LPC( Default)

Low = A16 swap override enabled

High = Default

4

USB_PN0 <31>
USB_PP0 <31>
USB_PN1 <31>
USB_PP1 <31>
USB_PN2 <31>
USB_PP2 <31>
USB_PN3 <31>
USB_PP3 <31>
USB_PN4 <36>
USB_PP4 <36>
USB_PN5
USB_PP5
USB_PN6 <27>
USB_PP6 <27>
USB_PN7 <38>
USB_PP7 <38>
USB_PN8 <28>
USB_PP8 <28>
USB_PN9 <28>
USB_PP9 <28>
USB_PN10
USB_PP10
USB_PN11
USB_PP11

PCI Pull up

RP27

8.2K 5% SMT2010 1 /16W 8P4R LR

RP29

8.2K 5% SMT2010 1 /16W 8P4R LR

RP31

8.2K 5% SMT2010 1 /16W 8P4R LR

RP26

8.2K 5% SMT2010 1 /16W 8P4R LR

RP30

8.2K 5% SMT2010 1 /16W 8P4R LR

3VDDA

3

1.5VDDM

R553
RES 24.9 1% 1/16W SMT0402 LR

M/B USB PORT
E-SATA USB PORT
EXT USB PORT
EXT USB PORT
CARD READER
BLUE TOOTH
Express Card
CCD
MINI CARD (WIRELESS)
MINI CARD (Roboson)
TV_Tuner
USB_RF_Bluetooth

3

2

1

Place within 500mils of ICH

1.5VDDM

1.5VDDM<7,12,13,19,21,27,28,47>
3VDDM

3VDDM<6,8,10,13,15..17,19..22,24,25,27,28,33,36..40,44,46..49>

3VDDA

3VDDA<15,20..22,24,27..29,34,38..40,42,44,45>

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

ICH9M PCI/PCIE/DMI(1/4)

2

Confidential

18 56Thursday, May 29, 2008

1

0.5

8

[e-mail]
GRATUITO - FOR FREE

7

6

5

CMOS_CLEAR# <37>

4

3

2

1

3VDDA_RTC

D D

20mil

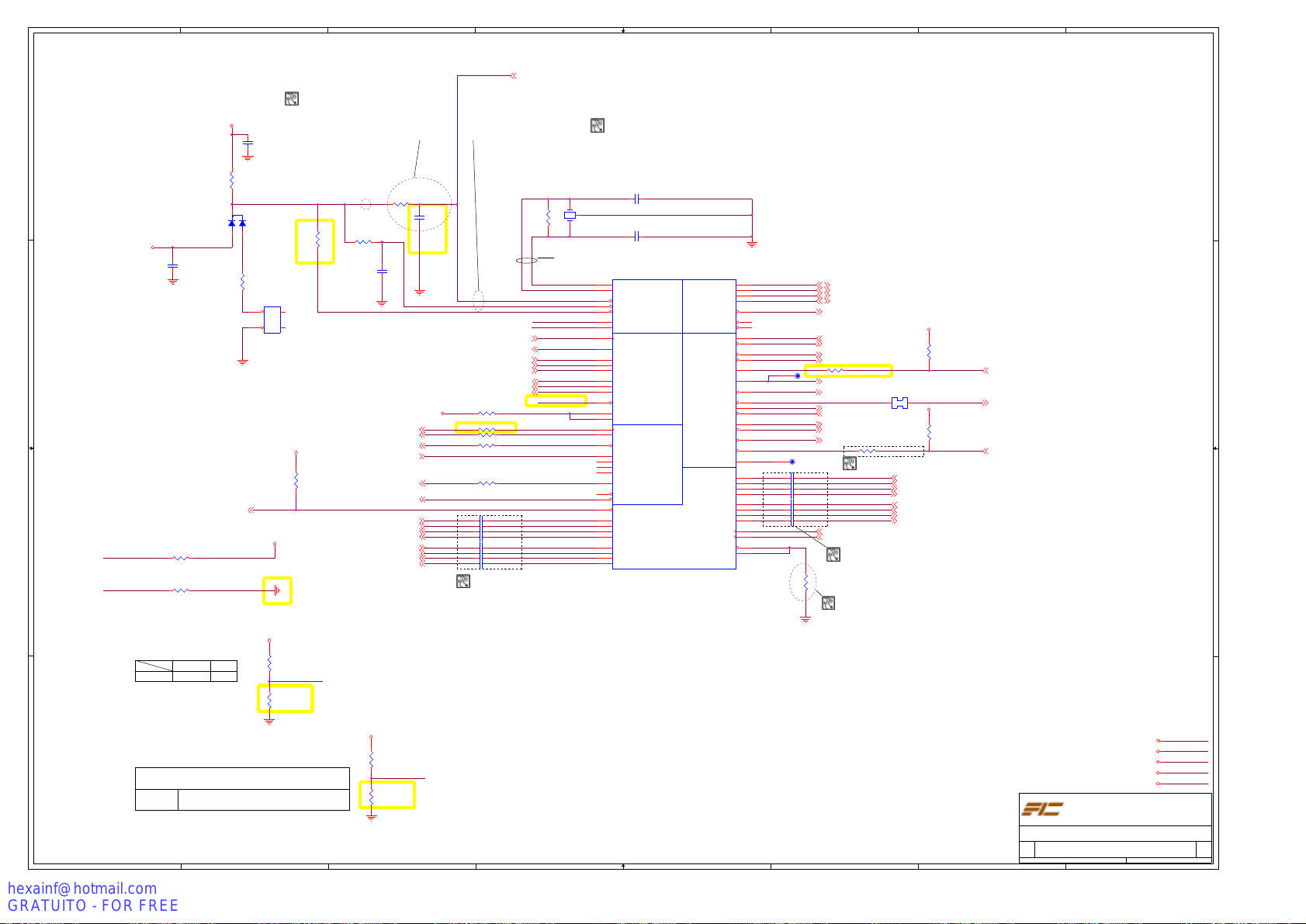

RTC Circuit

R491
RES 100 5% 1/16W

N

DIODE STKY BAS40C 40V 200mA SOT-23 3PIN PSI LR

PMU3V

0.1uF 16V 80-20% SMT0402 Y5V LR

C C

B B

CARD_RST#

R273 10K 5% 1/16W SMT0402 LR

CABLE_DET

R638 10K 5% 1/16W SM T0402 LR(NU)

ICH8-M internal VR enable
strap

INTVRMEN

D37

20mil

C511

SATA_LED#

Enable Disable

01(Default)

P

10K 5% 1/16W

1. RC delay time should be in the range of 18~25ms

2. It is recommended that this larger capacitor and small resistor value
in order to reduce the likelihood of glitching of RTCRST#

C506
1uF 10V +80-20% 0603 Y5V LR

SMT0402 LR

RES 1M 1 % 1/16W SM T 0402 L R

R479

20mil

PP

R497

SMT0402 LR

1K 5% 1/16W

CN30

123

123

4

4

20-25235-00

CON ACES 85205-02001 SMD 2 PIN P=1.25 Wire-Board LR

6 mils

R480
20K 1% 1/16W

R493
20K 1% 1/16

SMT0402 LR

C497

1uF 10V + 80-20% 0603 Y5V LR

W SMT0402 LR

C505

1uF 10V 1 0% SMT0603 X5R C1608X5 R1A105KT TDK LR

1.5VDDM

BIT_CLK_CODEC<33>

HDA_SYNC<33>

HDA_RST#<33>

HDA_SDATAIN0<33>

HDA_SDATAOUT<33 >

CARD_RST#<36>

SATA_RXN0<32>
SATA_RXP0<32>

SATA_TXN0<32>
SATA_TXP0<32>

SATA_RXN1<32>
SATA_RXP1<32>

SATA_TXN1<32>
SATA_TXP1<32>

SMT0402 LR

3VDDM

3VDDM

R274

SATA HDD

SATA HDD

3VDDA_RTC

R642
332K 1% 1/16W 0603 LR

ICH_INTVRMEN

R633
RES 0 1% 1/16W SMT0402 RTT 02000FTH RALEC LR(NU)

R303

10M 1% 1/1 0W SMT0603 LR

5mils

RTC_X1
RTC_X2

RTC_RST#
SM_INTRUDER#
ICH_INTVRMEN

LAN100_SLP

GLAN_CLK<29>

LAN_RSTSYNC<29>

LAN_RXD0<29>
LAN_RXD1<29>
LAN_RXD2<29>

LAN_TXD0<29>
LAN_TXD1<29>
LAN_TXD2<29>

R302 RES 24.9 1% 1/16W SMT0402 LR

R592 SBY100505T-121Y-N CHILISIN LR
R279 RES 33 1% 1/16W SMT 0402 LR

R282 RES 33 1% 1/16W SMT 0402 LR

R280 RES 33 1% 1/16W SMT 0402 LR

CARD_RST#

C589 0.01uF 16V 10% SMT0402 X7R LR
C590 0.01uF 16V 10% SMT0402 X7R LR
C575 0.01uF 16V 10% SMT0402 X7R LR
C574 0.01uF 16V 10% SMT0402 X7R LR

C441 0.01uF 16V 10% SMT0402 X7R LR
C442 0.01uF 16V 10% SMT0402 X7R LR
C432 0.01uF 16V 10% SMT0402 X7R LR
C431 0.01uF 16V 10% SMT0402 X7R LR

CABLE_DET

Clost to conector

1. The ICH8M requires a length less than 1 inch on each branch ( from crystal's terminal to RTCXn ball)

2. Routing the RTC circuit should be kept simple to simplify the trace length measurement and increase accuracy on calculating trace capacitances

3. On FR-4, a 5-mils trace has approximately 2pF per inch

4. Trace signal coupling must limited as much as possible by avoiding the routing of adjacent PCI signals close to RTCX1 and RTCX2

5. Ground guard plane is highly recommended

C322 15pF 50V 5% SMT0402 NPO LR

Y1

12

3

GND

FREQ XTL 32.768KHz 12.5pF ∮10ppm DT-26 KDS LR

C321 15pF 50V 5% SMT0402 NPO LR

U32A

C23

RTCX1

C24

RTCX2

A25

RTCRST#

F20

SRTCRST#

C22

INTRUDER#

B22

INTVRMEN

A22

LAN100_SLP

E25

GLAN_CLK

C13

LAN_RSTSYNC

F14

LAN_RXD0

G13

LAN_RXD1

D14

LAN_RXD2

D13

LAN_TXD0

D12

LAN_TXD1

E13

LAN_TXD2

B10

GPIO56

B28

GLAN_COMPI

B27

GLAN_COMPO

AF6

HDA_BIT_CLK

AH4

HDA_SYNC

AE7

HDA_RST#

AF4

HDA_SDIN0

AG4

HDA_SDIN1

AH3

HDA_SDIN2

AE5

HDA_SDIN3

AG5

HDA_SDOUT

AG7

HDA_DOCK_EN#/GPIO33

AE8

HDA_DOCK_RST#/GPIO34

AG8

SATALED#

AJ16

SATA0RXN

AH16

SATA0RXP

AF17

SATA0TXN

AG17

SATA0TXP

AH13

SATA1RXN

AJ13

SATA1RXP

AG14

SATA1TXN

AF14

SATA1TXP

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A3 INTEL LR

RTCLAN / GLANIHDASATA

LPCCPU

FWH0/LAD0
FWH1/LAD1
FWH2/LAD2
FWH3/LAD3

FWH4/LFRAME#

LDRQ0#

LDRQ1#/GPIO23

A20GATE

A20M#

DPRSTP#

DPSLP#

FERR#

CPUPWRGD

IGNNE#

INIT#

RCIN#

STPCLK#

THRMTRIP#

SATA4RXN
SATA4RXP
SATA4TXN

SATA4TXP

SATA5RXN
SATA5RXP
SATA5TXN

SATA5TXP

SATA_CLKN
SATA_CLKP

SATARBIAS#

SATARBIAS

K5
K4
L6
K2

K3
J3

J1
N7

AJ27
AJ25

AE23
AJ26
AD22
AF25
AE22

AG25

INTR

L3
AF23

NMI

AF24

SMI#

AH27
AG26

TP8

AG27

TP12

C476 0.01uF 16V 10% SMT0402 X7R LR

AH11

C472 0.01uF 16V 10% SMT0402 X7R LR

AJ11

C486 0.01uF 16V 10% SMT0402 X7R LR

AG12

C487 0.01uF 16V 10% SMT0402 X7R LR

AF12

C424 0.01uF 16V 10% SMT0402 X7R LR

AH9

C423 0.01uF 16V 10% SMT0402 X7R LR

AJ9

C426 0.01uF 16V 10% SMT0402 X7R LR

AE10

C427 0.01uF 16V 10% SMT0402 X7R LR

AF10
AH18

AJ18

SATA_RBIAS_PN

AJ7
AH7

LPC_AD0 <28,40>
LPC_AD1 <28,40>
LPC_AD2 <28,40>
LPC_AD3 <28,40>

LPC_FRAME# <28,40>

H_A20GATE

H_RCIN#

H_A20GATE <40>
H_A20M# <6 >

H_DPRSTP# <6,10,48>
H_DPSLP# <6>

R272 RES 56 5% 1/16W SMT0402 LR

1

T11

H_PWRGD <6>
H_IGNNE# <6>

H_INTR <6>
H_RCIN# <40>

H_NMI <6>
H_SMI# <6>

H_STPCLK# <6>

1

T10

CLK_PCIE_SATA# <8>
CLK_PCIE_SATA <8>

R529
RES 24.9 1% 1/16W SMT0402 LR

TPM/MINI CARD/PMX

1.05VDDM

R269 SHW 0 5% 1/16W 0402

R271

54.9 1% 1/16W SM

T0402 LR Sn

Needs to be placed within 2" of ICH9M

SATA_RXN4 <32>
SATA_RXP4 <32>
SATA_TXN4 <32>
SATA_TXP4 <32>

SATA_RXN5 <31>
SATA_RXP5 <31>
SATA_TXN5 <31>
SATA_TXP5 <31>

Clost to conector

Placed within
500mils of
ICH9M ball

R533
RES 56 5% 1/16W S

1.05VDDM

R270
RES 56 5% 1/16W S

SATA ODD

MT0402 LR

H_FERR# <6>

H_INIT# <6>

MT0402 LR

PM_THRMTRIP# <6,10>

3VDDA_RTC

R643

A A

ICH8-M LAN100 SLP Strap

Internal VR for VccLAN1_05 and VccCL1_05)

LAN100_SLP

8

Low = Internal VR Disabled

High = Internal VR Enabled (Default)

7

332K 1% 1/16W 0603 LR

LAN100_SLP

R634
RES 0 1% 1/16W SMT0402 RTT 02000FTH RALEC LR(NU)

6

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

5

4

3

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

ICH9M CPU/IDE/SATA(2/4)

3VDDM<6,8,10,13,15..18,20..22,24,25,27,28,33,36..40,44,46..49>

1.05VDDM<6..10,12,13,21,46>

1.5VDDM<7,12,13,18,21,27,28,47>

3VDDA_RTC<21>

PMU3V<20,22,40,42,44>

1

3VDDM

1.05VDDM

1.5VDDM

3VDDA_RTC

PMU3V

Confidential

19 56Thursday, May 29, 2008

0.5

8

D D

4.7K 5% 1/16W SMT0402 LR

C C

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

VR_PWRGD_CLKEN#<48>

7

3VDDM

R636 10K 5% 1/16W SMT0402 LR(NU)
R309 10K 5% 1/16W SMT0402 LR(NU)

CLK generator/DIMM/Mini card

R294 10K 5% 1/16W SMT0402 LR

3VDDA

3VDDM

R316

VR_PWRGD_CLKEN

100K 5% 1/16W SMT0402 LR

Q32

B

R315

E C

PM_RI#<40>

PM_SYNC#<10>

PM_STPPCI#<8>

PM_STPCPU#<8>

PCI_CLKRUN#<40>

PCIE_WAKE#<27,28>

PCI_SERIRQ<40>

KBCSMI#<40>

CRISIS#<37>

KBCSCI#<40>

EC_SCI#<40>

LAN_PHYPC<18> PM_SLP_M#

BLIGHT_EN<40>

RF_ON#<28,39>
CCD_ON<38>

CLK_SATA_QE#<8>

KBSEL1<37>
KBSEL2<37>

RF_BT_ON#

SPKR_SB<33,35>

MCH_ICH_SYNC#<10>

6

SYS_SMCLK
SYS_SMDATA
CL_RST#1
SMB_CLK_ME
SMB_DATA_ME

PM_RI#

T12

1

SMB_ALERT#

R616 SHW 0 5% 1/16W 0402
R297 SHW 0 5% 1/16W 0402

PM_CLKRUN#
PCIE_WAKE#

INT_SERIRQ
PM_THRM#

TP7

1

T37

LAN_PHYPC
ICH_GPIO13
PLATFORM1
GP_LED

PLATFORM2
RF_ON#
CCD_ON
CLK_SATA_QE#

RF_BT_ON#

1

T27

ICH_GPIO57
ACZ_SPKR

R300

1K 5% 1/16W SMT0402 LR(NU)

5

PM_STPPCI#
PM_STPCPU#

U32C

G16

SMBCLK

A13

SMBDATA

E17

LINKALERT#/GPIO60/CLGPIO4

C17

SMLINK0

B18

SMLINK1

F19

RI#

R4

SUS_STAT#/LPCPD#

G19

SYS_RESET#

M6

PMSYNC#/GPIO0

A17

SMBALERT#/GPIO11

A14

STP_PCI#

E19

STP_CPU#

L4

CLKRUN#

E20

WAKE#

M5

SERIRQ

AJ23

THRM#

D21

VRMPWRGD

A20

TP11

AG19

GPIO1

AH21

GPIO6

AG21

GPIO7

A21

GPIO8

C12

GPIO12

C21

GPIO13

AE18

GPIO17

K1

GPIO18

AF8

GPIO20

AJ22

SCLOCK/GPIO22

A9

GPIO27

D19

GPIO28

L1

SATACLKREQ#/GPIO35

AE19

SLOAD/GPIO38

AG22

SDATAOUT0/GPIO39

AF21

SDATAOUT1/GPIO48

A8

GPIO57/CLGPIO5

M7

SPKR

AJ24

MCH_SYNC#

B21

TP3

AH20

TP8

AJ20

TP9

AJ21

TP10

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A3 INTEL LR

SATA

GPIO

SMBSYS GPIO

Clocks

S4_STATE#/GPIO26

DPRSLPVR/GPIO16

Power MGTController Link

GPIO

GPIO10/SUS_PWR_ACK

GPIO14/AC_PRESENT

MISC

SATA0GP/GPIO21
SATA1GP/GPIO19
SATA4GP/GPIO36
SATA5GP/GPIO37

MEM_LED/GPIO24

WOL_EN/GPIO9

CLK14
CLK48

SUSCLK

SLP_S3#
SLP_S4#
SLP_S5#

PWROK

BATLOW#
PWRBTN#
LAN_RST#

RSMRST#

CK_PWRGD

CLPWROK

SLP_M#

CL_CLK0
CL_CLK1

CL_DATA0
CL_DATA1

CL_VREF0
CL_VREF1

CL_RST0#
CL_RST1#GPIO49

4

SUSCLK duty cycle can be between 30% and 70%

R534 10K 5% 1/16W SMT0402 LR

AH23

R266 10K 5% 1/16W SMT0402 LR

AF19

R262 10K 5% 1/16W SMT0402 LR

AE21

R267 10K 5% 1/16W SMT0402 LR

AD20
H1

AF3

SUSCLK

P1

R295 0 5% 1/16W SMT0402 LR

C16

R293 0 5% 1/16W SMT0402 LR

E16
G17

C10

PM_ICH_PWROK

G20

R584 0 5% 1/16W SMT0402 LR

M2

PM_BATLOW#

B13
R3
D20

PM_RSMRST#_R

D22
R5
R6
B16
F24

B19
F22

C19

CL_VREF0_ICH

C25

CL_VREF1_ICH

A19
F21

D18AH24

BT_ON

A16

ICH_GPIO10

C18
C11

LAN_WOL_EN

C20

1

T13

PM_RSMRST#_RR

R312
0 5% 1/16W SMT0402 LR

1

T36

0 5% 1/16W SMT0402 LR(NU)
R639

R310
100K 5% 1/16W SMT0402 LR(NU)

1

3

PM_RSMRST#_RR

T33

PM_SLP_S3# <22,27,40,44..47,49>
PM_SLP_S4# <27,40,45>

PM_S4_STATE#
PM_ICH_PWROK <22,40>
PM_DPRSLPVR <10,48,49>
PM_BATLOW# <40>
ICH_MAINSW# <42>

CLK_PWRGD <8>
MPWROK <10,22,40>

CL_CLK0 <10>
CL_CLK1 <28>

CL_DATA0 <10>
CL_DATA1 <28>

CL_RST#0 <10>

CL_RST#1 <28>
BT_ON
KBCSWI# <40>

LAN_WOL_EN

PMX/1.8VDDS/0.9VDDS

0 5% 1/16W SMT0402 LR(NU)
R311
R299

0 5% 1/16W SMT0402 LR

C319

0.1uF 10V 80~20% 0402 Y5V LR

2

PM_RSMRST# should go high no sooner than
10ms after both Vccsus3_3 and Vccsus1_5
have reached their nominal voltage

Rise edge : 1~2us

R683

0 5% 1/16W SMT0402 LR (NU)

ICH7m Spec : less 50us

PMU3V

U39

53

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR

1

4

2

PMX/3V//5V/1.5/1.8/VGA CORE

PM_RSMRST#_RR

PM_LAN_ENABLE <29>

PM_RSMRST# <22,40>

CLK_14M_ICH <8>
CLK_48M_ICH <8>

3VDDM

R619

3.24K 1% 1/10W SMT0603 LR

∮

R612
453 1% 1/16W SMT0402 LR

C642

0.1uF 10V 10% SMT0402 X5R LR

3VDDM

R613

3.24K 1% 1/10W SMT0603 LR(NU)

∮

R618
453 1% 1/16W SMT0402 LR(NU)

C645

0.1uF 10V 10% SMT0402 X5R LR(NU)

1

B B

ACZ_SPKR

DS

DS

3VDDA

R641

R640

2.2K 5% 1/16W SMT0402 LR

SYS_SMDATA

SYS_SMCLK

ACZ_SPKR

ICH9-M Pullups

6

3VDDM

2.2K 5% 1/16W SMT0402 LR

RP 2.2K 5% SMT1010 4P2R 1/16W LR

SMB_DATA<8,15..17,27,28>

RP36

Q62
TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

G

5VDDM

G

A A

SMB_CLK<8,15..17,27,28>

8

Q63
TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

7

No stuff : by default
Stuff : For NO reboot

R283 1K 5% 1/16W SMT0402 LR(NU)

BT_ON

R615 10K 5% 1/16W SMT0402 LR

PM_RI#

R308 10K 5% 1/16W SMT0402 LR

CL_RST#1

R306 10K 5% 1/16W SMT0402 LR

SMB_CLK_ME

R307 10K 5% 1/16W SMT0402 LR

SMB_DATA_ME

R614 10K 5% 1/16W SMT0402 LR

SMB_ALERT#

R635 10K 5% 1/16W SMT0402 LR

PCIE_WAKE#

R301 10K 5% 1/16W SMT0402 LR

PM_BATLOW#

R637 8.2K 5% 1/16W SMT0402 LR

LAN_PHYPC

R292 10K 5% 1/16W SMT0402 LR

LAN_WOL_EN

R298 10K 5% 1/16W SMT0402 LR

ICH_GPIO10

R296 10K 5% 1/16W SMT0402 LR

ICH_GPIO13

R314 10K 5% 1/16W SMT0402 LR

ICH_GPIO57

R617 10K 5% 1/16W SMT0402 LR

5

3VDDM

3VDDA

4

RF_BT_ON#
PLATFORM1
PLATFORM2

CLK_SATA_QE#
PM_THRM#
INT_SERIRQ
PM_CLKRUN#
CR_PWR#

PM_ICH_PWROK

CR_PWR#
PM_RSMRST#

PM_ICH_PWROK
GP_LED
PLATFORM1
PLATFORM2

3VDDM

R261 10K 5% 1/16W SMT0402 LR
R260 10K 5% 1/16W SMT0402 LR
R520 10K 5% 1/16W SMT0402 LR
R287 10K 5% 1/16W SMT0402 LR
R535 8.2K 5% 1/16W SMT0402 LR
R285 8.2K 5% 1/16W SMT0402 LR
R286 8.2K 5% 1/16W SMT0402 LR
R563 10K 5% 1/16W SMT0402 LR
R609 1K 5% 1/16W SMT0402 LR(NU)

C582 MO-CAP 1000pF 16V 10% SMT0402 X7R LR(NU)
R532 10K 5% 1/16W SMT0402 LR

R608 10K 5% 1/16W SMT0402 LR
R288 10K 5% 1/16W SMT0402 LR
R265 10K 5% 1/16W SMT0402 LR(NU)
R536 10K 5% 1/16W SMT0402 LR(NU)

3

PMU3V<19,22,40,42,44>
5VDDM<15,21,26,32..35,37,44,46..49>
3VDDM<6,8,10,13,15..19,21,22,24,25,27,28,33,36..40,44,46..49>
3VDDA<15,18,21,22,24,27..29,34,38..40,42,44,45>

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

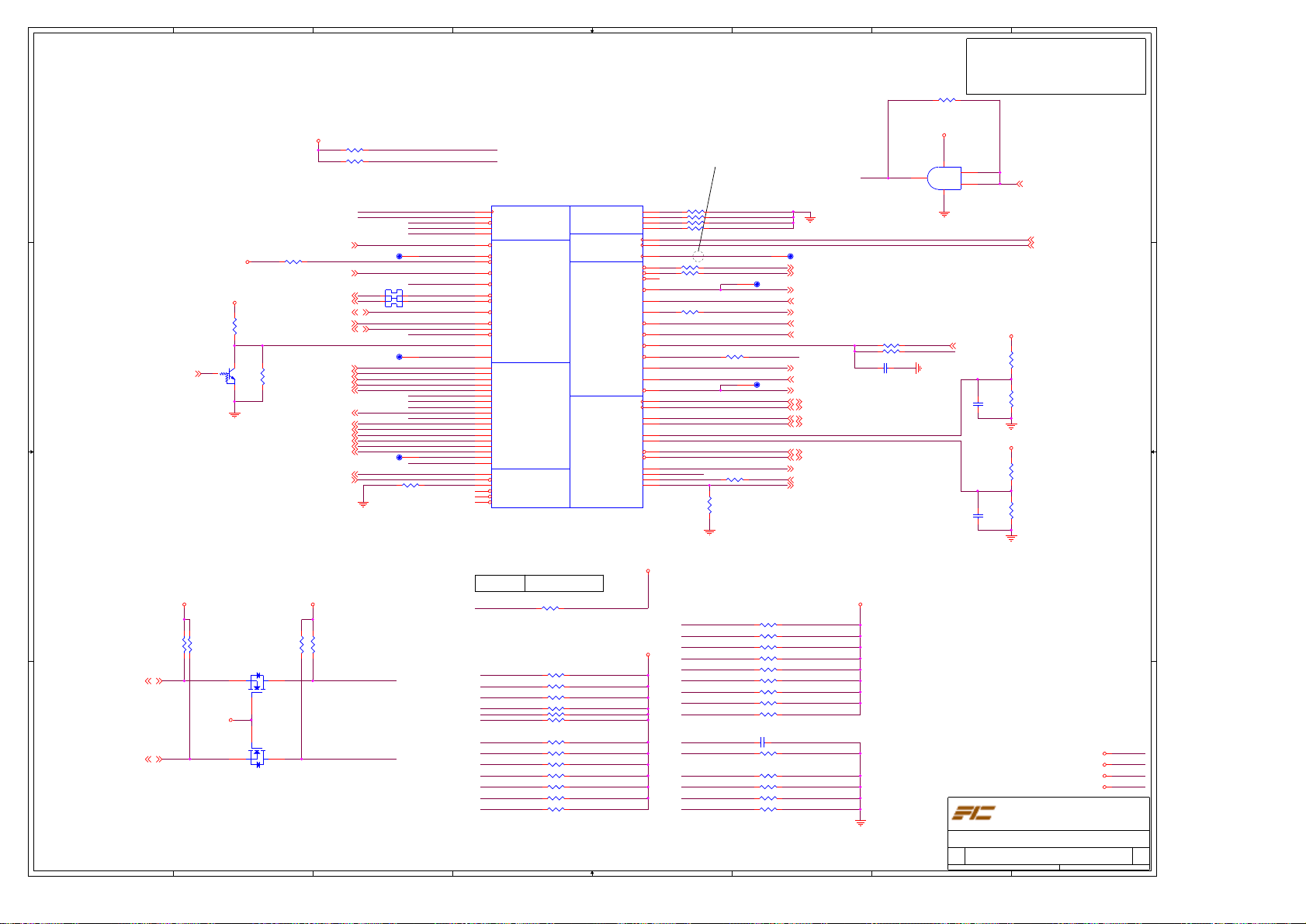

ICH9M GPIO(3/4)

Confidential

20 56Thursday, May 29, 2008

1

PMU3V
5VDDM
3VDDM
3VDDA

0.5

5

[e-mail]
GRATUITO - FOR FREE

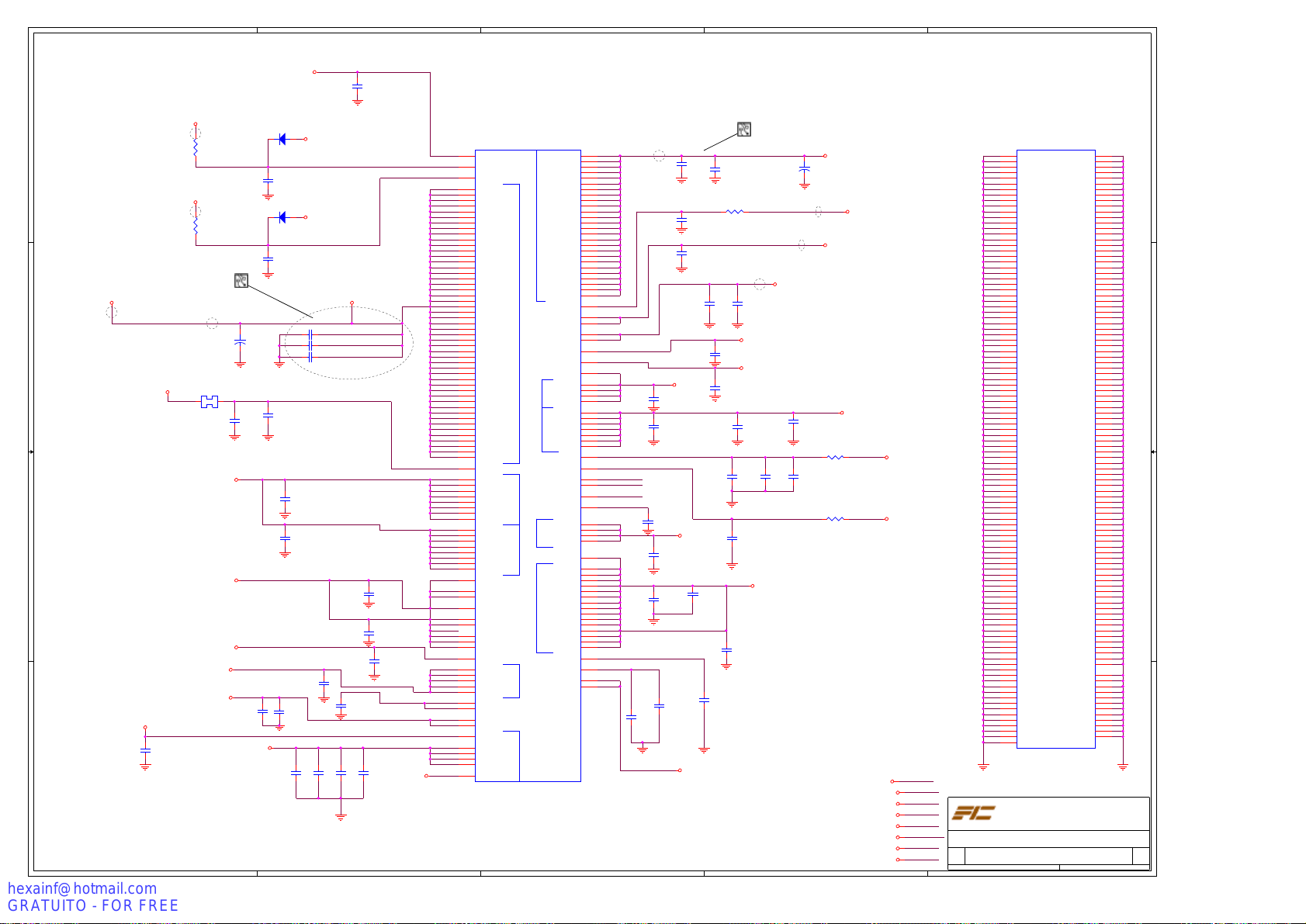

4

3

2

1

3VDDA_RTC

5VDDM

D D

20 mils

100 1% 1/16W SMT0402 LR

R620

5VDDA

20 mils

10 1% 1/16W SMT0402 LR

Place within 100mils of ICH on the bottom side or
140mils on the top near F27,P27,AB27

1.5VDDM

R558

D44

N P

3VDDM

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR

C644

0.1uF 10V 10% SMT0402 X5R LR

D39

N P

3VDDA

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR

C570

0.1uF 10V 10% SMT0402 X5R LR

1.5VDDM_PCIE_ICH

80 mils 80 mils

+

C C

∮

T100uF 2V 20% ESR=18m SMT7343 EEFCD0D101ER PANASONIC LR

C312

1.5VDDM

R537 SHW 0 5% 1/16W 0402

C534
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

1.5VDDM

B B

1.5VDDM

1.5VDDM

1.5VDDM

3VDDA_LAN

0.1uF 10V 10% SMT0402 X5R LR

1.5VDDM

C318

A A

2.2uF 6.3V 80-20% SMT0603 Y5V LR

5

1.5VDDM

C311 0.1uF 10V 10% SMT0402 X5R LR
C309 0.1uF 10V 10% SMT0402 X5R LR
C289 0.1uF 10V 10% SMT0402 X5R LR

C536

∮

1uF 6.3V 10% 0603 X5R LR

C286
1uF 10V +80-20% 0603 Y5V LR

C298
1uF 10V +80-20% 0603 Y5V LR

0.1uF 10V 10% SMT0402 X5R LR

C315

C301

C711

0.1uF 16V 80-20% SMT0402 Y5V LR

C725

2.2uF 6.3V 80-20% 0603 Y5V LR

C726

2.2uF 6.3V 80-20% 0603 Y5V LR

20 mils

C317

0.1uF 16V 80-20% SMT0402 Y5V LR

C288

0.1uF 10V 10% SMT0402 X5R LR

0.1uF 10V 10% SMT0402 X5R LR
C305

0.1uF 10V 10% SMT0402 X5R LR

C281

C643

0.1uF 10V 10% SMT0402 X5R LR

C727

C296

2.2uF 6.3V 80-20% 0603 Y5V LR (NU )

2.2uF 6.3V 80-20% 0603 Y5V LR

3VDDM

4

U32F

A23

VCCRTC

A6

V5REF

AE1

V5REF_SUS

AA24

VCC1_5_B[1]

AA25

VCC1_5_B[2]

AB24

VCC1_5_B[3]

AB25

VCC1_5_B[4]

AC24

VCC1_5_B[5]

AC25

VCC1_5_B[6]

AD24

VCC1_5_B[7]

AD25

VCC1_5_B[8]

AE25

VCC1_5_B[9]

AE26

VCC1_5_B[10]

AE27

VCC1_5_B[11]

AE28

VCC1_5_B[12]

AE29

VCC1_5_B[13]

F25

VCC1_5_B[14]

G25

VCC1_5_B[15]

H24

VCC1_5_B[16]

H25

VCC1_5_B[17]

J24

VCC1_5_B[18]

J25

VCC1_5_B[19]

K24

VCC1_5_B[20]

K25

VCC1_5_B[21]

L23

VCC1_5_B[22]

L24

VCC1_5_B[23]

L25

VCC1_5_B[24]

M24

VCC1_5_B[25]

M25

VCC1_5_B[26]

N23

VCC1_5_B[27]

N24

VCC1_5_B[28]

N25

VCC1_5_B[29]

P24

VCC1_5_B[30]

P25

VCC1_5_B[31]

R24

VCC1_5_B[32]

R25

VCC1_5_B[33]

R26

VCC1_5_B[34]

R27

VCC1_5_B[35]

T24

VCC1_5_B[36]

T27

VCC1_5_B[37]

T28

VCC1_5_B[38]

T29

VCC1_5_B[39]

U24

VCC1_5_B[40]

U25

VCC1_5_B[41]

V24

VCC1_5_B[42]

V25

VCC1_5_B[43]

U23

VCC1_5_B[44]

W24

VCC1_5_B[45]

W25

VCC1_5_B[46]

K23

VCC1_5_B[47]

Y24

VCC1_5_B[48]

Y25

VCC1_5_B[49]

AJ19

VCCSATAPLL

AC16

VCC1_5_A[1]

AD15

VCC1_5_A[2]

AD16

VCC1_5_A[3]

AE15

VCC1_5_A[4]

AF15

VCC1_5_A[5]

AG15

VCC1_5_A[6]

AH15

VCC1_5_A[7]

AJ15

VCC1_5_A[8]

AC11

VCC1_5_A[9]

AD11

VCC1_5_A[10]

AE11

VCC1_5_A[11]

AF11

VCC1_5_A[12]

AG10

VCC1_5_A[13]

AG11

VCC1_5_A[14]

AH10

VCC1_5_A[15]

AJ10

VCC1_5_A[16]

AC9

VCC1_5_A[17]

AC18

VCC1_5_A[18]

AC19

VCC1_5_A[19]

AC21

VCC1_5_A[20]

G10

VCC1_5_A[21]

G9

VCC1_5_A[22]

AC12

VCC1_5_A[23]

AC13

VCC1_5_A[24]

AC14

VCC1_5_A[25]

AJ5

VCCUSBPLL

AA7

VCC1_5_A[26]

AB6

VCC1_5_A[27]

AB7

VCC1_5_A[28]

AC6

VCC1_5_A[29]

AC7

VCC1_5_A[30]

A10

VCCLAN1_05[1]

A11

VCCLAN1_05[2]

A12

VCCLAN3_3[1]

B12

VCCLAN3_3[2]

A27

VCCGLANPLL

D28

VCCGLAN1_5[1]

D29

VCCGLAN1_5[2]

E26

VCCGLAN1_5[3]

E27

VCCGLAN1_5[4]

A26

VCCGLAN3_3

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A3 INTEL LR

CORE

VCCA3GP ATXARX USB CORE

VCCPSUSVCCPUSB

GLAN POWER

VCC1_05[1]
VCC1_05[2]
VCC1_05[3]
VCC1_05[4]
VCC1_05[5]
VCC1_05[6]
VCC1_05[7]
VCC1_05[8]

VCC1_05[9]
VCC1_05[10]
VCC1_05[11]
VCC1_05[12]
VCC1_05[13]
VCC1_05[14]
VCC1_05[15]
VCC1_05[16]
VCC1_05[17]
VCC1_05[18]
VCC1_05[19]
VCC1_05[20]
VCC1_05[21]
VCC1_05[22]
VCC1_05[23]
VCC1_05[24]
VCC1_05[25]
VCC1_05[26]

VCCDMIPLL
VCC_DMI[1]

VCC_DMI[2]

V_CPU_IO[1]
V_CPU_IO[2]

VCC3_3[1]
VCC3_3[2]
VCC3_3[7]
VCC3_3[3]

VCC3_3[4]
VCC3_3[5]
VCC3_3[6]

VCC3_3[8]

VCCP_CORE

VCC3_3[9]
VCC3_3[10]
VCC3_3[11]
VCC3_3[12]
VCC3_3[13]

PCI

VCC3_3[14]

VCCHDA

VCCSUSHDA

VCCSUS1_05[1]
VCCSUS1_05[2]

VCCSUS1_5[1]
VCCSUS1_5[2]

VCCSUS3_3[1]
VCCSUS3_3[2]
VCCSUS3_3[3]
VCCSUS3_3[4]

VCCSUS3_3[5]
VCCSUS3_3[6]

VCCSUS3_3[7]
VCCSUS3_3[8]

VCCSUS3_3[9]
VCCSUS3_3[10]
VCCSUS3_3[11]
VCCSUS3_3[12]
VCCSUS3_3[13]
VCCSUS3_3[14]
VCCSUS3_3[15]
VCCSUS3_3[16]
VCCSUS3_3[17]
VCCSUS3_3[18]
VCCSUS3_3[19]
VCCSUS3_3[20]

VCCCL1_05

VCCCL1_5

VCCCL3_3[1]
VCCCL3_3[2]

A15
B15
C15
D15
E15
F15
L11
L12
L14
L16
L17
L18
M11
M18
P11
P18
T11
T18
U11
U18
V11
V12
V14
V16
V17
V18

R29
W23

Y23
AB23

AC23
AG29
AJ6
AC10

3VDDM_ICH_VCCPCORE

AD19
AF20
AG24
AC20

3VDDM_ICH_PCI

B9
F9
G3
G6
J2
J7
K7

AJ4
AJ3

TP VCCSUS1.05_ICH_1

AC8

TP VCCSUS1.05_ICH_2

F17

TP VCCSUS1.5_ICH_1

AD8

TP VCCSUS1.5_ICH_INT

F18

A18
D16
D17
E22

AF1
T1

T2
T3
T4
T5
T6
U6
U7
V6
V7
W6
W7
Y6
Y7
T7

G22
G23
A24

B24

3

160 mils

C297

0.1uF 10V 10% SMT0402 X5R LR

1.5VDDM_VCCDMIPLL

1.05VDDM_ICH_DMI

1.05VDDM_ICH_IO

3VDDM_ICH_DMI

3VDDM_ICH_SATA

3VDDM

C287

0.1uF 16V 80-20% SMT0402 Y5V LR

C308

0.1uF 10V 10% SMT0402 X5R LR

3VDDM_ICH_HDA_IO

C306

0.1uF 16V 80-20% SMT0402 Y5V LR

3VDDA

C310

0.1uF 10V 10% SMT0402 X5R LR

C295

0.1uF 10V 10% SMT0402 X5R LR

C303

0.1uF 10V 10% SMT0402 X5R LR
C304
1uF 6.3V 10% SMT0402 X5R LR(NU)

3VDDA_LAN

Place in ICH8M cavity

C294

0.1uF 10V 10% SMT0402 X5R LR

R576 0 5% 1/10W SMT0603 LR

C593

0.01uF 16V 10% SMT0402 X7R LR

C291
10uF 10V +80-20% SMT0805 Y5V LR

0.1uF 10V 10% SMT0402 X5R LR

C293

0.1uF 10V 10% SMT0402 X5R LR

C285

C292

0.1uF 10V 10% SMT0402 X5R LR

0.1uF 10V 10% SMT0402 X5R LR

3VDDM

C283

0.1uF 16V 80-20% SMT0402 Y5V LR

3VDDM

C277

0.1uF 16V 80-20% SMT0402 Y5V LR

C316

0.1uF 16V 80-20% SMT0402 Y5V LR

C280

C279

0.1uF 10V 10% SMT0402 X5R LR

C539

0.1uF 10V 10% SMT0402 X5R LR

3VDDA

C586

4.7uF 10V +80-20% 0805 Y5V LR

C302

0.1uF 10V 10% SMT0402 X5R LR

1.05VDDM

C290

+

∮

T100uF 2V 20% ESR=18m SMT7343 EEFCD0D101ER PANASONIC LR

20 mils

1.5VDDM

20 mils

1.05VDDM

1.05VDDM

3VDDM

C307

0.1uF 16V 80-20% SMT0402 Y5V LR

R275
0 5% 1/16W SMT0402 LR

C278 0.1uF 10V 10% SMT0402 X5R LR

R530
0 5% 1/16W SMT0402 LR

2

3VDDM

3VDDA

3VDDA_LAN<29>

1.05VDDM<6..10,12,13,19,46>

1.5VDDM<7,12,13,18,19,27,28,47>
3VDDM<6,8,10,13,15..20,22,24,25,27,28,33,36..40,44,46..49>

3VDDA<15,18,20,22,24,27..29,34,38..40,42,44,45>

3VDDA_RTC<19>

5VDDM<15,20,26,32..35,37,44,46..49>
5VDDA<31,38,39,44,45>

U32E

AA26

VSS[1]

AA27

VSS[2]

AA3

VSS[3]

AA6

VSS[4]

AB1

VSS[5]

AA23

VSS[6]

AB28

VSS[7]

AB29

VSS[8]

AB4

VSS[9]

AB5

VSS[10]

AC17

VSS[11]

AC26

VSS[12]

AC27

VSS[13]

AC3

VSS[14]

AD1

VSS[15]

AD10

VSS[16]

AD12

VSS[17]

AD13

VSS[18]

AD14

VSS[19]

AD17

VSS[20]

AD18

VSS[21]

AD21

VSS[22]

AD28

VSS[23]

AD29

VSS[24]

AD4

VSS[25]

AD5

VSS[26]

AD6

VSS[27]

AD7

VSS[28]

AD9

VSS[29]

AE12

VSS[30]

AE13

VSS[31]

AE14

VSS[32]

AE16

VSS[33]

AE17

VSS[34]

AE2

VSS[35]

AE20

VSS[36]

AE24

VSS[37]

AE3

VSS[38]

AE4

VSS[39]

AE6

VSS[40]

AE9

VSS[41]

AF13

VSS[42]

AF16

VSS[43]

AF18

VSS[44]

AF22

VSS[45]

AH26

VSS[46]

AF26

VSS[47]

AF27

VSS[48]

AF5

VSS[49]

AF7

VSS[50]

AF9

VSS[51]

AG13

VSS[52]

AG16

VSS[53]

AG18

VSS[54]

AG20

VSS[55]

AG23

VSS[56]

AG3

VSS[57]

AG6

VSS[58]

AG9

VSS[59]

AH12

VSS[60]

AH14

VSS[61]

AH17

VSS[62]

AH19

VSS[63]

AH2

VSS[64]

AH22

VSS[65]

AH25

VSS[66]

AH28

VSS[67]

AH5

VSS[68]

AH8

VSS[69]

AJ12

VSS[70]

AJ14

VSS[71]

AJ17

VSS[72]

AJ8

VSS[73]

B11

VSS[74]

B14

VSS[75]

B17

VSS[76]

B2

VSS[77]

B20

VSS[78]

B23

VSS[79]

B5

VSS[80]

B8

VSS[81]

C26

VSS[82]

C27

VSS[83]

E11

VSS[84]

E14

VSS[85]

E18

VSS[86]

E2

VSS[87]

E21

VSS[88]

E24

VSS[89]

E5

VSS[90]

E8

VSS[91]

F16

VSS[92]

F28

VSS[93]

F29

VSS[94]

G12

VSS[95]

G14

VSS[96]

G18

VSS[97]

G21

VSS[98]

G24

VSS[99]

G26

VSS[100]

G27

VSS[101]

G8

VSS[102]

H2

VSS[103]

H23

VSS[104]

H28

VSS[105]

H29

ASIC SB ICH9M NH82801IBM(888758) QP23 ES2 mBGA 676PIN VER:A3 INTEL LR

3VDDA_LAN

1.05VDDM

1.5VDDM
3VDDM
3VDDA

Title

3VDDA_RTC
5VDDM
5VDDA

MY070>Penryn+Cantiga GM45+ICH9M

Size Document Number Rev

C

ICH9M Power/GND(4/4)

Date: Sheet of

VSS[106]

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
VSS[182]
VSS[183]
VSS[184]
VSS[185]
VSS[186]
VSS[187]
VSS[188]
VSS[189]
VSS[190]
VSS[191]
VSS[192]
VSS[193]
VSS[194]
VSS[195]
VSS[196]
VSS[197]
VSS[198]

VSS_NCTF[1]
VSS_NCTF[2]
VSS_NCTF[3]
VSS_NCTF[4]
VSS_NCTF[5]
VSS_NCTF[6]
VSS_NCTF[7]
VSS_NCTF[8]

VSS_NCTF[9]
VSS_NCTF[10]
VSS_NCTF[11]
VSS_NCTF[12]

Add Test Point

1

H5
J23
J26
J27
AC22
K28
K29
L13
L15
L2
L26
L27
L5
L7
M12
M13
M14
M15
M16
M17
M23
M28
M29
N11
N12
N13
N14
N15
N16
N17
N18
N26
N27
P12
P13
P14
P15
P16
P17
P2
P23
P28
P29
P4
P7
R11
R12
R13
R14
R15
R16
R17
R18
R28
T12
T13
T14
T15
T16
T17
T23
B26
U12
U13
U14
U15
U16
U17
AD23
U26
U27
U3
V1
V13
V15
V23
V28
V29
V4
V5
W26
W27
W3
Y1
Y28
Y29
Y4
Y5
AG28
AH6
AF2
B25

A1
A2
A28
A29
AH1
AH29
AJ1
AJ2
AJ28
AJ29
B1
B29

Confidential

21 56Thursday, May 29, 2008

0.5

8

D D

7

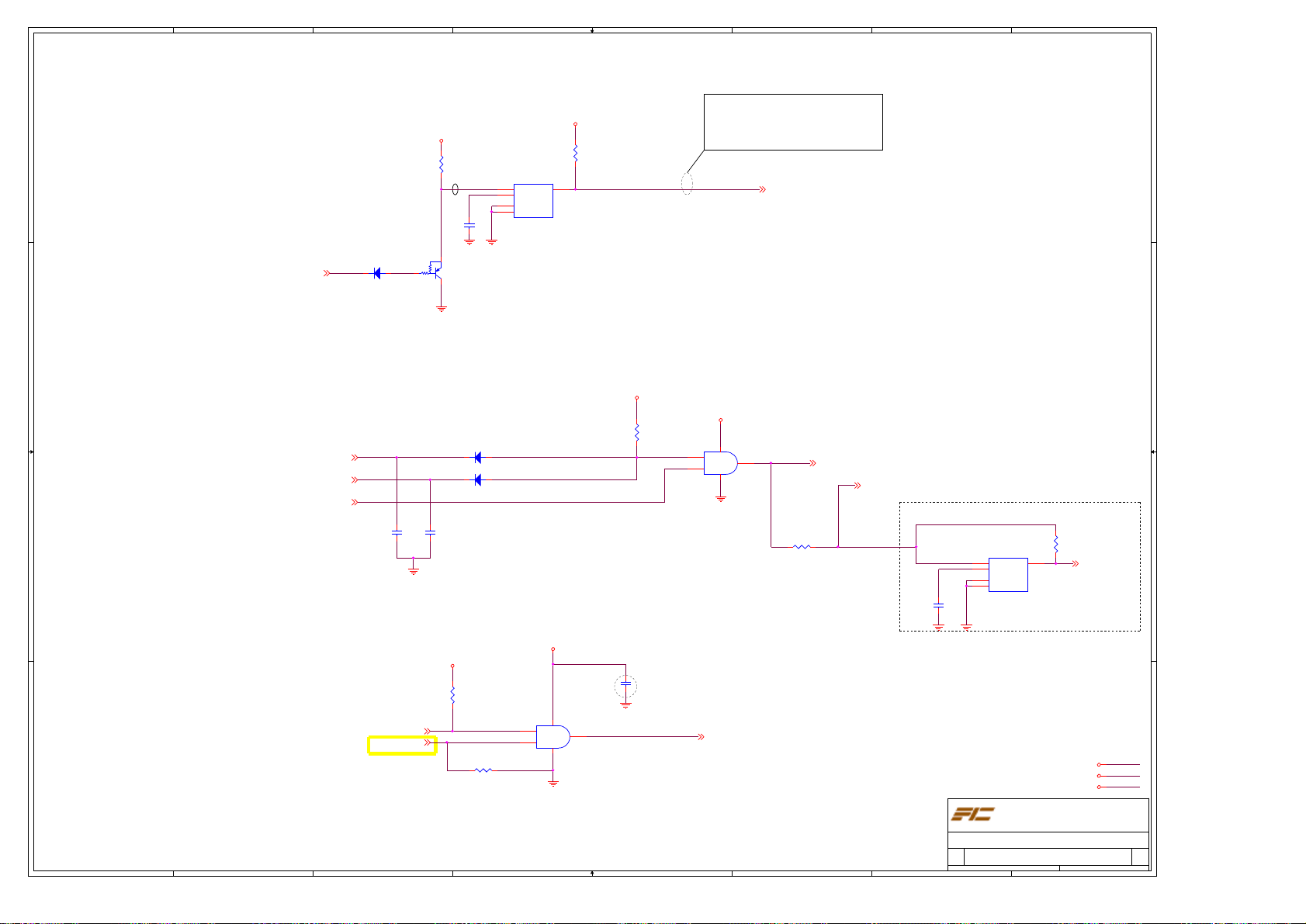

RESUME RESET

DCON<40,44>

DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR(NU)

D9

N P

6

3VDDA

R49
1K 5% 1/16W SMT0402 LR(NU)

10mil

EC

Q4
PNP RT1P441M-T111-1 -50V -100mA SC-70 3PIN IDC LR(NU)

B

5

U3

5
1

2
3

C28
1000pF 50V 10% SMT0402 X7R LR(NU)

4

OUT

VCC
TC

SUB
GND

LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR(NU)

PMU3V

R48
1K 5% 1/16W SMT0402 LR

4

PM_RSMRST# should go high no sooner than
10ms after both Vccsus3_3 and Vccsus1_5
have reached their nominal voltage

Rise edge : 1~2us
ICH7m Spec : less 50us

3

PM_RSMRST# <20,40>

2

1

C C

NAPA Platfoem Power Good Circuit

3VDDM

3VDDA

R24
10K 5% 1/16W SMT0402 LR

D6A

DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR

1.5VDDM_PWRGD<47>

1.05VDDM_PWRGD<46>

PM_SLP_S3#<20,27,40,44..47,49>

C728

0.1uF 16V 80-20% SMT0603 Y5V LR

B B

C729

0.1uF 16V 80-20% SMT0603 Y5V LR

61

D6B

DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR

52

53

U1

1

4

2

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR

ALL_SYS_PWRGD <40>

MPWROK <10,20,40>

R25 0 5% 1/16W SMT0402 LR(NU)

Delay 99ms

U2

5

VCC

1

TC

2

SUB

3

GND

LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR(NU)

C26

0.01uF 16V 10% SMT0402 X7R LR(NU)

R26
10K 5% 1/16W SMT0402 LR(NU)

4

OUT

IMVP_VRON <40,48>

3VDDA

3VDDM

C632

R610
2K 1% 1/16W SMT 0402 LR(NU)

DELAY_VR_PWRGOOD<10,48>

MPWROK<10,20,40>

A A

8

7

6

R611
10K 5% 1/16W SMT0402 LR(NU)

U36
DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR(NU)

53

1

4

2

5

0.1uF 10V 10% SMT0402 X5R LR(NU)

PM_ICH_PWROK

PM_ICH_PWROK <20,40>

4

PMU3V

PMU3V<19,20,40,42,44>

3VDDM

3VDDM<6,8,10,13,15..21,24,25,27,28,33,36..40,44,46..49>

3VDDA

3VDDA<15,18,20,21,24,27..29,34,38..40,42,44,45>

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

MY070>Penryn+Cantiga GM45+ICH9M

Size Document Number Rev

C

3

Date: Sheet of

2

(886-2)8751-8751

Reset Circuit

Confidential

22 56Thursday, May 29, 2008

1

0.5

8

[e-mail]
GRATUITO - FOR FREE

D D

7

1

12132

1

13

2

12

3
4
5

3
4
5

3
4
5

3
4
5

678

678

2

678

678

1

1

13

11

11

10

10

9

9

M2
SCREW HOLE

12132

12

11

11

10

10

9

9

M14
SCREW HOLE

6

1

12132

1

13

2

12

3
4
5

11

3

11

10

4

10

9

5

9

678

678

M4
SCREW HOLE

1

1

13

2

3

3

4

4

5

5

678

678

12132

12

11

11

10

10

9

9

M7
SCREW HOLE

5

1

12132

1

13

2

12

3
4
5

4

3

5

678

678

11

11

10

10

9

9

M13
SCREW HOLE

4

1

12132

1

13

2

12

3
4
5

11

3

11

10

4

10

9

5

9

678

678

M16
SCREW HOLE

3

1

12132

1

13

2

12

3
4
5

11

3

11

10

4

10

9

5

9

678

678

M22
SCREW HOLE

1

1

2

3

3

4

4

5

5

678

678

12132

13

12

11

10

9

M24
SCREW HOLE

2

11
10
9

1

C C

HOLE-P8_0D2_7

M3

1

HOLE-P8_0D2_7

M5

1

HOLE-P8_0D2_7

HOLE-P8_0D2_7

M6

1

HOLE-P8_0D2_7

M10

1

HOLE-P8_0D2_7

M11

1

HOLE-P8_0D2_7

M12

1

HOLE-P8_0D2_7

M15

M25

1

1

HOLE-P8_0D5_7

M1

1

Wireless Audio

NUT-P8_0B4_5D4_0

B B

NUT-P8_0B4_5D4_0

M8

1

NUT-P8_0B4_5D4_0

M9

1

NUT-P8_0B4_5D4_0

M20

1

M21

1

HOLE-P7_0B8_0D2_7

M17

1

HOLE-P7_0B8_0D2_7

M23

1

COUPON 4X2

MJP2

1

8

1

8

2

7

2

7

3

6

3

6

4

5

4

5

COUPON4X2

MJP1

1

8

1

8

2

7

2

7

3

6

3

6

4

5

4

5

COUPON4X2

COUPON_GND

CPU

NUT-P8_0B6_0D4_0

M27

Robson

NUT-P6_5B2_0D1_3

M18

A A

NUT-P8_0B6_0D4_0

1

NUT-P6_5B2_0D1_3

1

NUT-P8_0B6_0D4_0

M26

1

M19

1

M29

1

NUT-P8_0B6_0D4_0

NB

よ

NUT-P6_0B2_0D1_0

M30

M28

20080528
Modify to the

1

same for v06.

Jane add.

HOLE-P8_0B6_0D2_7

M31

1

HOLE-P6_5D2_8

M33

20080528
Add a hole

1

for v06

FMK14

FMK4

FMASK_OB

FMASK_OB

NUT-P6_0B2_0D1_0

M32

1

1

1

1

FMK6
FMASK_OB

1

FMK10
FMASK

FMK2
FMASK_OB

FMK11

1

FMK13
FMASK_OB

1

FMASK

1

FMK3
FMASK_OB

FMK9
FMASK

1

FMK12
FMASK

1

1

1

FMK8
FMASK

FMK1
FMASK_OB

1

FMK7
FMASK

1

1

FMK5
FMASK_OB

1

8

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

7

6

5

4

3

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Screw Hole

Confidential

23 56Thursday, May 29, 2008

1

0.5

5

4

3

2

1

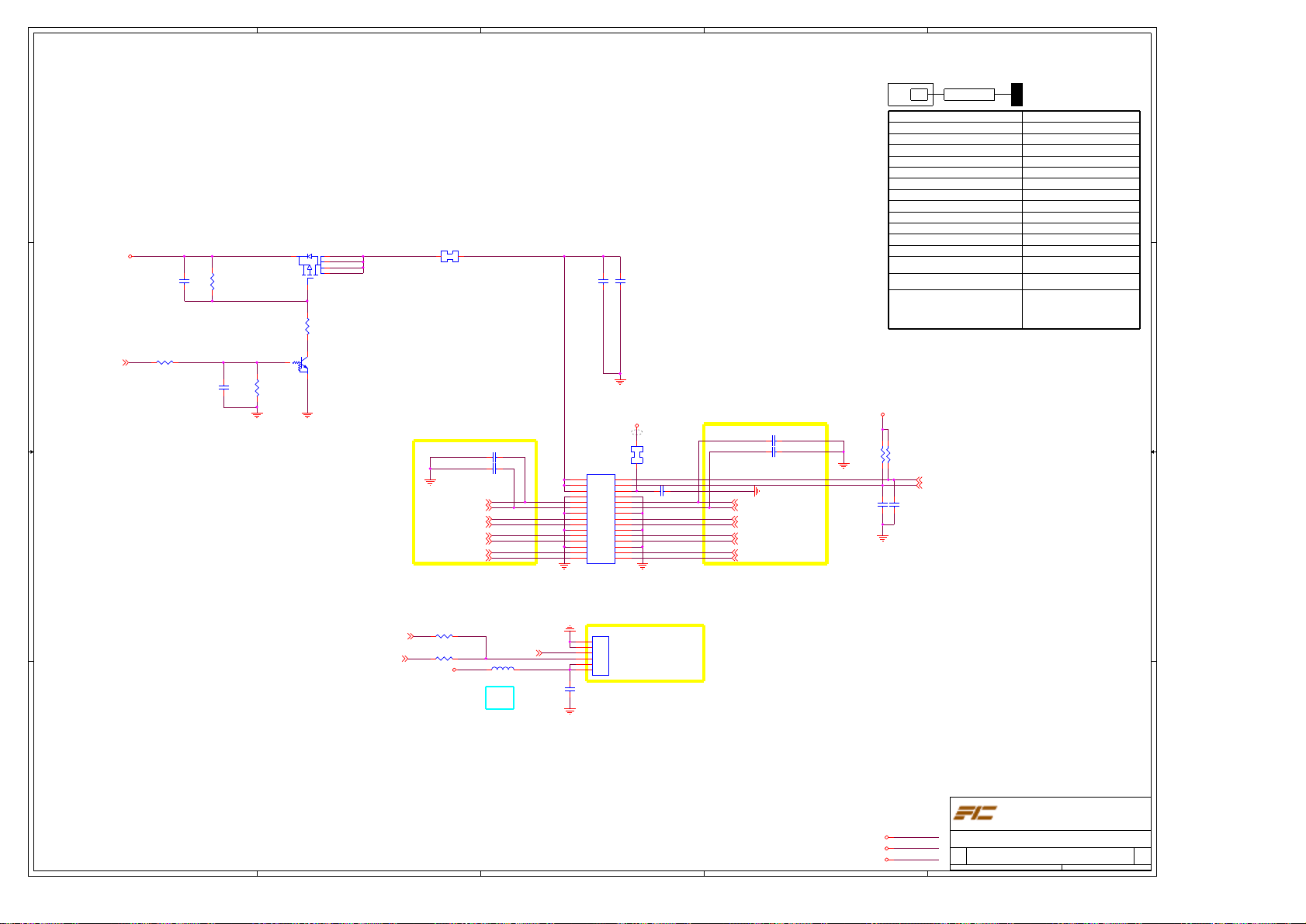

LVDS Signal Group Routing Guideline

GMCH

P1

TL1

Topology
Reference Plane

D D

Min : 80 MIL or

TRANS M-FET-P APM2679CC-TRL -20V -4A SOT-23-6 6PIN ANPEC LR
Q1

6

3VDDA

2.2uF 6.3V 80-20% SMT0603 Y5V LR

C C

NB

LVDS_ENALCD<10>

20080529 remove
the cap.

B B

C17

R8 0 5% 1/16W SMT0402 LR

R6
100K 5% 1/16W SMT0402 LR

10K 5% 1/16W SMT0402 LR

0.22uF 10V +80-20% 0402 Y5V LR (NU)

C736

4

5
2

S

1

D

G

3

R10

100K 5% 1/16W SMT0402 LR

R7

TRANS NPN RT1N441M-T 111-1 50V 100mA SC-70 3PIN IDC LR

B

Q2

E C

(80mil)

R9 SPWR 0 5% 1/4W 1206

Please close to LCD CONN

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

C13
C12

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

LVDSB_TXCLK_LP<10>
LVDSB_TXCLK_LN<10>

LVDSB_TXOUT_L2P<10>

LVDSB_TXOUT_L2N<10>
LVDSB_TXOUT_L1P<10>

LVDSB_TXOUT_L1N<10>
LVDSB_TXOUT_L0P<10>

LVDSB_TXOUT_L0N<10>

Even Odd

Power Plane

(80mil)(80mil)

C14 10uF 10V +80-20 % SMT 0805 Y 5V LR

C15 0.1uF 16V 80-20% SMT0402 Y5V LR

3VDDM

20mil

L30

CN2

1

1

3

3

5

5

7

7

9

9

11

11

13

13

15

15

17

17

19

19

21

21

23

23

25

25

27

27

29

29

20-25244-00

CON ACES 88242-3001 SMD 30PIN LCD M/B SIDE CONN,H=3.9mm LR

SPWR 0 5% 1/16W 0603

2

2

4

4

C349 1000pF 50V 10% SMT0402 X7R LR

6

6

8

8

10

10

12

12

14

14

16

16

18

18

20

20

22

22

24

24

26

26

28

28

30

30

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

C345
C346

MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

LVDSA_TXCLK_LP <10>
LVDSA_TXCLK_LN <10>

LVDSA_TXOUT_L2P <10>
LVDSA_TXOUT_L2N <10>

LVDSA_TXOUT_L1P <10>
LVDSA_TXOUT_L1N <10>

LVDSA_TXOUT_L0P <10>
LVDSA_TXOUT_L0N <10>

Differential Mode Impedance
Nominal Trace Width
Nominal Pair Spacing (Edge to edge)
Minimum Pair-to-Pair Spacing
Minimum Serpentine Spacing
Minimum Spacing to Other LVDS
Minimum Isolation Spacing to no n-LVDS
Maximim Via Count
Package Length Range - P1
Total MB Length - TL1
Length Matching with Pair
Clock to Data Length Matching
(Total Length)

Clock A to Clock B Length Matching

Breakout Exceptions (Reduce geometries
for GMCH break-out region)

***Cable Length must be less than 16"

3VDDM

RP32
RP 2.2K 5% SMT1010 4P2R 1/16W LR

LVDS_DDC_DATA <10>
LVDS_DDC_CLK <10>

C348

C347

MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR∮

MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR∮

LVDS CN

Differential Pair Point-to-Point
Ground
100 +/- 20%
4 mils
7 mils
20 mils
20 mils
20 mils
20 mils
2 (per line)
750 mils +/- 250 mils
Max = 10"
Matching to within +/- 20mils
Matching Data to Clock
within +/- 20mils

Match Clock A to B
within +/- 20mils

4/4 mils spacing allowed
and 10 mils Pair-to-Pair
spacing allowed

Max. breakout length is 500 mils

0 5% 1/16W SMT0402 LR(NU)

NB

PMX

NB_BRIGHTNESS<10>

BRIGHTNESS<40>

R3

0 5% 1/16W SMT0402 LR
R4

L2

DCIN

HCB2012KF-121T30 TAI-TECH LR

Close to LCD CONN

INVENA<40>

80mil

A A

5

4

Mirror vertically to meet pin1

CN1

6

INVENA

5
4
3
2
1

CON ACES WIRE 1.25P R/A 85204-0600L LR

12

C18
10uF 25V 10% SMT1210 X7R C3225X7R1E106KT TDK LR(NU)

∮

3

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

DCIN

DCIN<42,44..49>

3VDDM

3VDDM<6,8,10,13,15..22,25,27,28,33,36..40,44,46..49>

3VDDA

2

3VDDA<15,18,20..22,27..29,34,38..40,42,44,45>

Title

Size Document Number Rev

C

Date: Sheet of

(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M
LVDS LCD CNN

1

24 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

D D

4

3

2

1

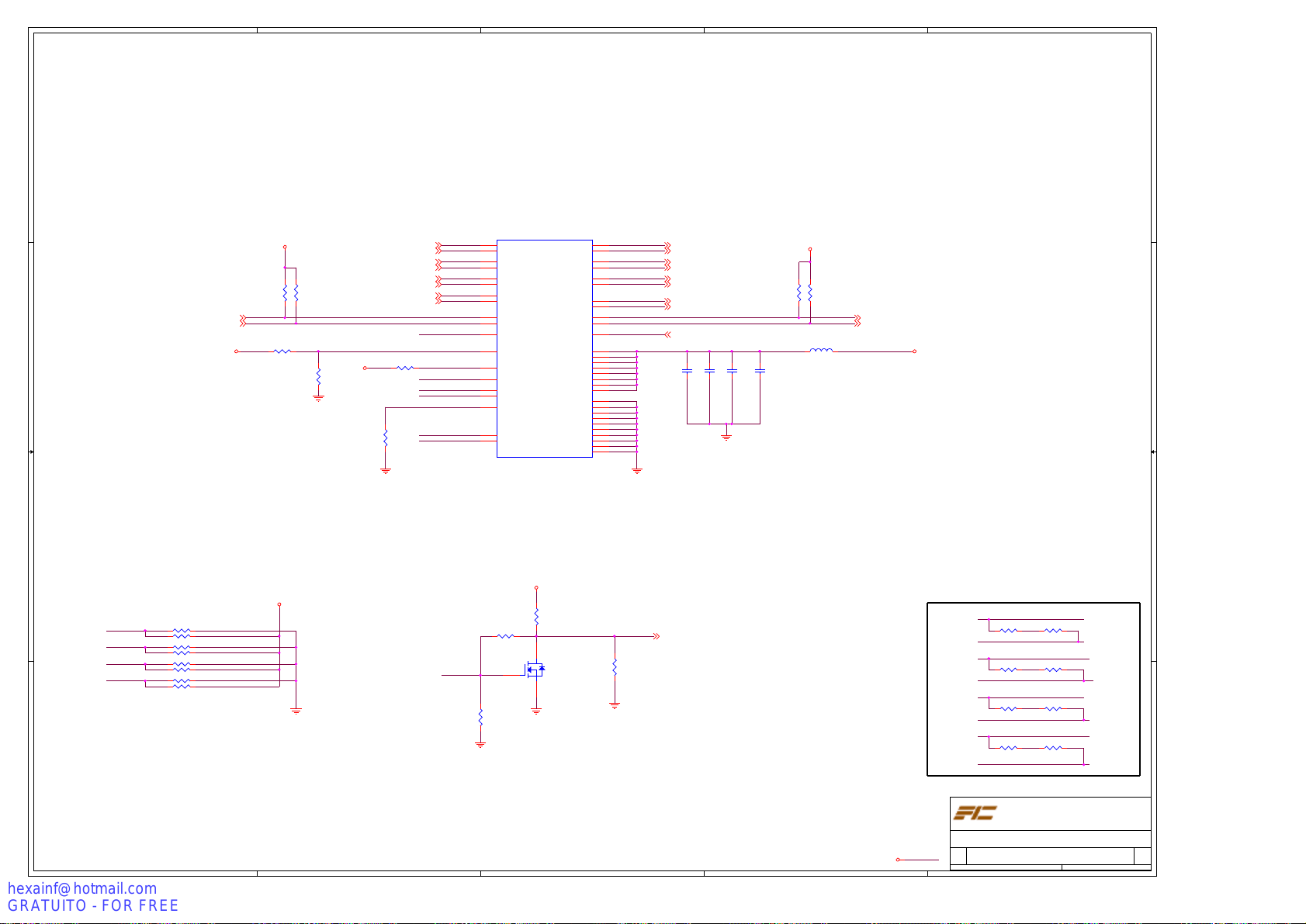

DVI LEVEL SHIFTER

3VDDM

R342

R340

2.2K 5% 1/16W SMT0402 LR

VECLK<10>
VEDAT<10>

C C

B B

R17 4.7K 1% 1/10W SMT0603 LR(NU)

3VDDM

0 5% 1/16W SMT0402 LR

RESERVE

20080212 Modify
for DVI

HDMIB_SPPEN

HDMIB_HPDEN

HDMIB_TRIM

HDMIB_TEST0

A A

R348 10K 5% 1/16W SMT0402 LR (NU)
R21 10K 5% 1/16W SMT0402 LR

R346 10K 5% 1/16W SMT0402 LR (NU)
R20 10K 5% 1/16W SMT0402 LR

R349 10K 5% 1/16W SMT0402 LR
R22 10K 5% 1/16W SMT0402 LR (NU)

R350 10K 5% 1/16W SMT0402 LR
R23 10K 5% 1/16W SMT0402 LR (NU)

20080423 Modify R22,
R23, R350 for DVI vC

20080424 Modify again
for EMI.

2.2K 5% 1/16W SMT0402 LR

R341

RES 604 1% 1/16W SMT0402 LR

3VDDM

3VDDM

TMDS_B_DATA0<10>
TMDS_B_DATA0#<10>

TMDS_B_DATA1<10>
TMDS_B_DATA1#<10>

TMDS_B_DATA2<10>
TMDS_B_DATA2#<10>

TMDS_B_CLK<10>
TMDS_B_CLK#<10>

DVI_DET

R347 0 5% 1/16W SMT0402 LR

HDMIB_RT_EN#
HDMIB_SPPEN

HDMIB_HPDEN

R344

HDMIB_TRIM
HDMIB_TEST0

0 5% 1/16W SMT0402 LR

DVI_DET

U19

39

IN_D1+

38

IN_D1-

42

IN_D2+

41

IN_D2-

45

IN_D3+

44

IN_D3-

48

IN_D4+

47

IN_D4-

9

SCL

8

SDA

7

HPD

25

OE#

32

DDC_EN

10

NC

3

TRIM

4

HPDEN

6

REXT

34

CCT1

35

CCT2

ASIC HDMI Level Shifter CH7318C-BF-TR QFN 48PIN CHRONTEL LR

20080131 Vendor says to use 7318B so
change PN from -01 to -02
20080423 Want to use 7318C so change
PN from -02 to -03

OUT_D1+

OUT_D2+

OUT_D3+

OUT_D4+

SCL_SINK
SDA_SINK

HPD_SINK

OUT_D1-

OUT_D2-

OUT_D3-

OUT_D4-

VCC[1]
VCC[2]
VCC[3]
VCC[4]
VCC[5]
VCC[6]
VCC[7]
VCC[8]

GND[1]
GND[2]
GND[3]
GND[4]
GND[5]
GND[6]
GND[7]
GND[8]
GND[9]

GND[10]

DVI_TXDP0

22

DVI_TXDN0

23

DVI_TXDP1

19

DVI_TXDN1

20

DVI_TXDP2

16

DVI_TXDN2

17

DVI_TXC_P

13

DVI_TXC_N

14
28

29
30

2
11
15
21
26
33
40
46

1
5
12
18
24
31
36
37
43
27

HPD Level Translation Circuit

3VDDM

R18

G

TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR(NU)

R19
20K 5% 1/16W SMT0402 LR(NU)

20080212 Modify
for DVI

R11
20K 5% 1/16W SMT0402 LR

DS

Q3

TMDS_B_HPD# <10>

R12
10K 5% 1/16W SMT0402 LR

DVI_TXDP0 <26>
DVI_TXDN0 <26>

DVI_TXDP1 <26>
DVI_TXDN1 <26>

DVI_TXDP2 <26>
DVI_TXDN2 <26>

DVI_TXC_P <26>
DVI_TXC_N <26>

DVI_DET_A <26>

C352

0.1uF 16V 80-20% SMT0402 Y5V LR

2.2K 5% 1/16W SMT0402 LR

12025% 60mV/100MHz 0.05 2500m SMT0603 HCB1608KF-121T25 TAI-TECH LR

∮

C351

C25

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR

CRT5VS<26>

R345

R343

2.2K 5% 1/16W SMT0402 LR

Q_VECLK <26>
Q_VEDAT <26>

L3

C24

0.1uF 16V 80-20% SMT0402 Y5V LR

3VDDM

DVI_TXDN0

DVI_TXDP0

DVI_TXDN1

DVI_TXDP1

DVI_TXDN2

DVI_TXDP2

DVI_TXC_N

DVI_TXC_P

R14100 1% 1/16W SMT0402 LR

R705 0 5% 1/16W SMT0402 LR

R706 0 5% 1/16W SMT0402 LR

R13100 1% 1/16W SMT0402 LR

R16100 1% 1/16W SMT0402 LR

R15100 1% 1/16W SMT0402 LR

R707 0 5% 1/16W SMT0402 LR

R708 0 5% 1/16W SMT0402 LR

5

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

3VDDM

4

3

2

3VDDM<6,8,10,13,15..22,24,27,28,33,36..40,44,46..49>

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

DVI Level Shift

1

25 56Thursday, May 29, 2008

0.5

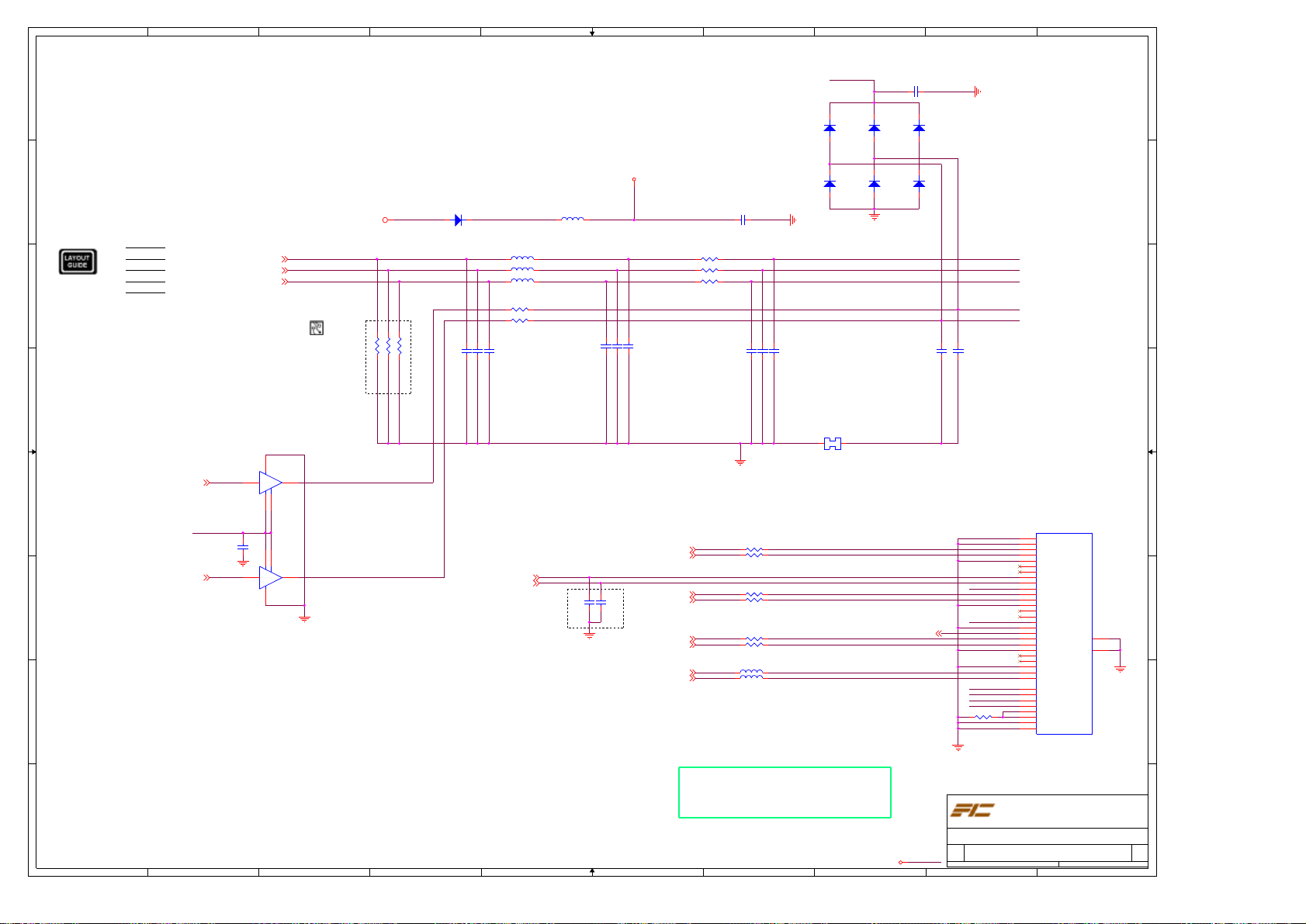

10

H H

G G

20 mil
20 mil

20 mil
20 mil

F F

Otrher Signal
MXM_RED
MXM_GREEN
MXM_BLUE
Other Signal

9

RED<10>

GREEN<10>

BLUE<10>

8

WIDTH=5 MILS Z0=50 ohms
WIDTH=5 MILS Z0=50 ohms
WIDTH=5 MILS Z0=50 ohms

7

DIODE STKY MSCD104 40V 1A SMT0805 2PIN LR

20mil

5VDDM<15,20,21,32..35,37,44,46..49>

D5

P N

6

L1
60025% 100MHz 2000mA SMT0805 HCB2012KF-601T20 TAI-TECH LR

∮

L25 47nH 5% 300mA 0603 HFI-160808-47NJ MAG.L LR

1 2

L27 47nH 5% 300mA 0603 HFI-160808-47NJ MAG.LLR

1 2

L26 47nH 5% 300mA 0603 HFI-160808-47NJ MAG.L LR

1 2

CRT5VS

∮

∮

∮

5

CRT5VS<25>

20mil

4

0.1uF 16V 80-20% SMT0402 Y5V Lead-Free
C339

L65 0 5% 1/10W SMT0603 LR
L66 0 5% 1/10W SMT0603 LR
L67 0 5% 1/10W SMT0603 LR

3

20mil

CRT5VS

D3B

D3A

5 2

6 1
IMN10T108 SC-74 ROHM LR

D2B

D2A

5 2

6 1
IMN10T108 SC-74 ROHM LR

0.1uF 16V 80-20% 0402 Y5V LF(NU)
C338

D3C

4 3

D2C

4 3

2

CNN_RED

CNN_GREEN
CNN_BLUE

1

(10mil)

CNN_HSYNC
CNN_VSYNC

C340 MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR

Place close to
connector

R325 RES 10 1% 1/16W SMT0402 LR

R334 RES 150 1% 1/16W SM T0402 LR

R335 RES 150 1% 1/16W SM T0402 LR

R333 RES 150 1% 1/16W SM T0402 LR

R326 RES 10 1% 1/16W SMT0402 LR

C344 3.3pF 50V 0.25pF 0402 NPO LR∮

C343 3.3pF 50V 0.25pF 0402 NPO LR∮

C342 3.3pF 50V 0.25pF 0402 NPO LR∮

C335 3.3pF 50V 0.25pF 0402 NPO LR∮

C337 3.3pF 50V 0.25pF 0402 NPO LR∮

C336 3.3pF 50V 0.25pF 0402 NPO LR∮

C675 15pF 50V 5% SMT0402 NPO LR

C673 15pF 50V 5% SMT0402 NPO LR

C674 15pF 50V 5% SMT0402 NPO LR

C341 MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR

E E

R324 SPWR 0 5% 1/16W 0603

HSYNC<10>

D D

CRT5VS

0.1uF 16V 80-20% SMT0402 Y5V Lead-Free

C3

VSYNC<10>

4

U17
DL-IC 74AHCT1G126GW SC-88A(SOT353) 5PIN PHILIPS LR

125 3

1253

4

U18
DL-IC 74AHCT1G126GW SC-88A(SOT353) 5PIN PHILIPS LR

C C

B B

A A

10

9

WIDTH=4 MILS Z0=55 ohms

WIDTH=4 MILS Z0=55 ohms

8

DVI CIRCUIT

CN16

25

CASE

26

TMDS_D2­TMDS_D2+

VECLK_CONN
VEDAT_CONN
CNN_VSYNC
TMDS_D1­TMDS_D1+

CRT5VS

DVI_DET_A
TMDS_D0­TMDS_D0+

TMDS_CLK+
TMDS_CLK-

CNN_BLUE
CNN_HSYNC
CNN_RED
CNN_GREEN

R1
0 5% 1/10W SMT0603 LR

Q_VECLK<25>
Q_VEDAT<25>

For EMI

R327 15 1% 1/16W SMT0402 LR

DVI_TXDN2<25>
DVI_TXDP2<25>

C2

C1

33pF 50V 5% SMT0402 NPO LR(NU )

33pF 50V 5% SMT0402 NPO LR(NU )

DVI_TXDN1<25>
DVI_TXDP1<25>

DVI_TXDN0<25>
DVI_TXDP0<25>

DVI_TXC_P<25>
DVI_TXC_N<25>

L28 INDUCTOR 22nH 10% 300mA SMT0402 HCI1005F-22NJ TAI-TECH LR
L29 INDUCTOR 22nH 10% 300mA SMT0402 HCI1005F-22NJ TAI-TECH LR

20080423 Modify to
0 Ohm for DVI vC

20080502 Modify
back 15 Ohm etc. for
DVI vC

2008.04.09 Try for DVI
eyepattern

R328 15 1% 1/16W SMT0402 LR

R329 15 1% 1/16W SMT0402 LR
R330 15 1% 1/16W SMT0402 LR

R331 15 1% 1/16W SMT0402 LR
R332 15 1% 1/16W SMT0402 LR

∮
∮

DVI_DET_A<25>

For EMI

Title

MY070>Penryn+Cantiga GM45+ICH9M

Size Document Number Rev

C

5VDDM

7

6

5

4

5VDDM<15,20,21,32..35,37,44,46..49>

3

DVI-I(CRT) CNN

Date: Sheet of

2

CASE#M3

1

TMDS Data2-

2

TMDS Data2+

3

TMDS Data2/4 Shield

4

TMDS Data4-

5

TMDS Data4+

6

DDC Clock

7

DDC Data

8

Analog VSYNC

9

TMDS Data1-

10

TMDS Data1+

11

TMDS Data1/3 Shield

12

TMDS Data3-

13

TMDS Data3+

14

+5V Power

15

GND (for +5V)

16

Hot Plug Detect

17

TMDS Data0-

18

TMDS Data0+

19

TMDS Data0/5 Shield

20

TMDS Data5-

21

TMDS Data5+

22

TMDS Clock Shield

23

TMDS Clock+

24

TMDS Clock-

C3

Analog Red

C4

Analog Green

C1

Analog Blue

C2

Analog HYNC

C5

Analog GND

C6

Analog GND#C6

27

CASE#M4

28

CASE#M2

CON ALLTOP C16204-12904-Y DIP 29PIN DVI LR

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

30

GND

29

GND

Confidential

26 56Thursday, May 29, 2008

1

0.5

8

[e-mail]
GRATUITO - FOR FREE

7

6

5

4

3

2

1

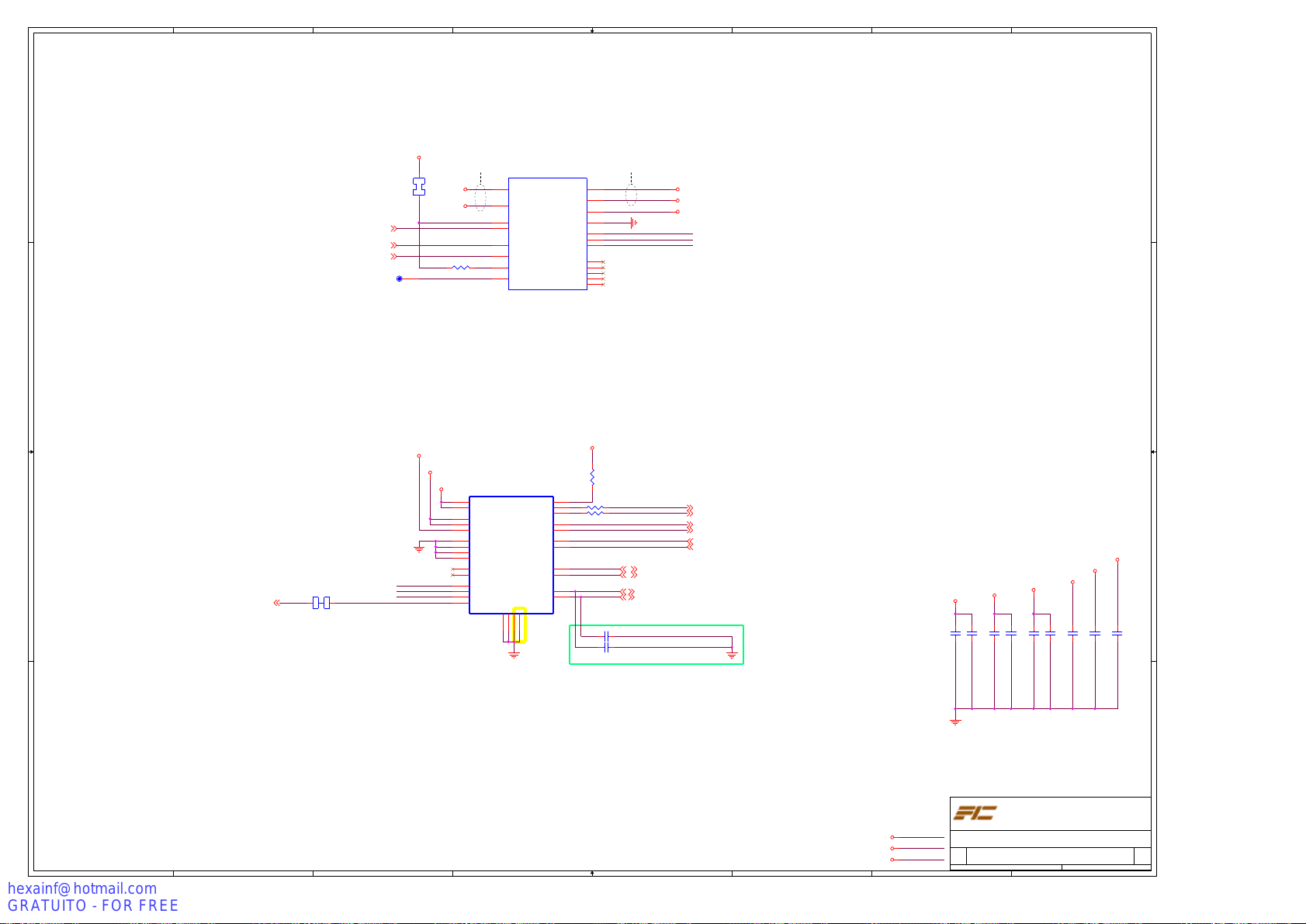

D D

SPWR 0 5% 1/16W 0603

BUF_PLT_RST#<18,28,40>

PM_SLP_S4#<20,40,45>

PM_SLP_S3#<20,22,40,44..47,49>

C C

B B

PCIE_WAKE#<20,28>

R259 SHW 0 5% 1/16W 0402

T26

JP18

3VDDA

1

3VDDA_NC

EX_CPPE#
NC_CPUSB#
NC_PERST#
PE_Q_WAKE#

3VDDM

1.5VDDM

30 mil

R525

10K 1% 1/16W 0402 LR

1.5VDDM_NC

3VDDM_NC

15
14

10

9

12
26

23
20

1
6

5

17

4
13
11

60 mil

U28

2

AVCC_PCI

12

AVCC_L

17 7

AVCC_AUX AVSS

6

SYSRSTZ

1

STBYZ

19 5

OCZ NC

18

RCLKEN

LNR-IC POWER SWITCH P2231NF E2 QFN 20PIN VER:E2 ENE LR

CN11

3.3V

3.3V#2

1.5V

1.5V#2

3.3VAUX
GND1

GND2
GND3

NEW CARD

GND4
RSVD#2

RSVD#3
CPPE#

CPUSB#
PERST#
WAKE#

GND5

GND6

272829

VOUT_PCI

VOUT_L

VOUT_AUX

PERSTZ

CPPE#

CPUSB#SHDNZ

16

CLKREQ#

R276 0 5% 1/16W SMT0402 LR

19

REFCLK+

R277 0 5% 1/16W SMT0402 LR

18

REFCLK-

25

PETp0

24

PETn0

22

PERp0

21

PERn0

3

USB_D+

2

USB_D-

8

SMB_DAT

7

SMB_CLK

GND7

GND8

30

CON HONDA EXP-26LMYG-S1CON1B SMD NEW CARD 26PIN P=1.0 HRADER CONNECTOR LR

Leave
NC

60 mil

3
11
15

8
10
920

4

NC

13

NC

14

NC

16

NC

3VDDM

R549
10K 5% 1/16W SMT0402 LR

C275 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)
C276 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

3VDDM_NC

1.5VDDM_NC
3VDDA_NC

30 mil

NC_PERST#

EX_CPPE#

NC_CPUSB#

CLK_PCIE_EXPCARD <8>
CLK_PCIE_EXPCARD# <8>

PCIE_TXP1 <18>
PCIE_TXN1 <18>

PCIE_RXP1 <18>
PCIE_RXN1 <18>

USB_PP6 <18>
USB_PN6 <18>

SMB_DATA <8,15..17,20,28>
SMB_CLK <8,15..17,20,28>

∮

∮

3VDDM_NC

C566 4.7uF 10V +80-20% 0805 Y5V LR

C563 0.1uF 16V 80-20% SMT0402 Y5V LR

1.5VDDM_NC

C516 4.7uF 10V +80-20% 0805 Y5V LR

3VDDA

1.5VDDM

3VDDM

3VDDA_NC

C517 4.7u F 10V +80-2 0% 080 5 Y5V LR

C520 0.1u F 16V 80-20 % SMT 0402 Y 5V LR

C519 0.1uF 16V 80-20% SMT0402 Y5V LR

C543 0.1uF 16V 80-20% SMT0402 Y5V LR

C562 0.1uF 16V 80-20% SMT0402 Y5V LR

C518 0.1uF 16V 80-20% SMT0402 Y5V LR

For EMI

Header: 20-25615-00
Ejector: 20-25616-00
20080214

A A

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

3VDDM<6,8,10,13,15..22,24,25,28,33,36..40,44,46..49>

8

7

6

5

4

3

3VDDA<15,18,20..22,24,28,29,34,38..40,42,44,45>

Size Document Number Rev

3VDDA

C

Date: Sheet of

2

Title

1.5VDDM

1.5VDDM<7,12,13,18,19,21,28,47>
3VDDM

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

New Card(Express card)

Confidential

1

27 56Thursday, May 29, 2008

0.5

1

2

3

4

5

6

7

8

Please close to mini card
each pin

A A

B B

C C

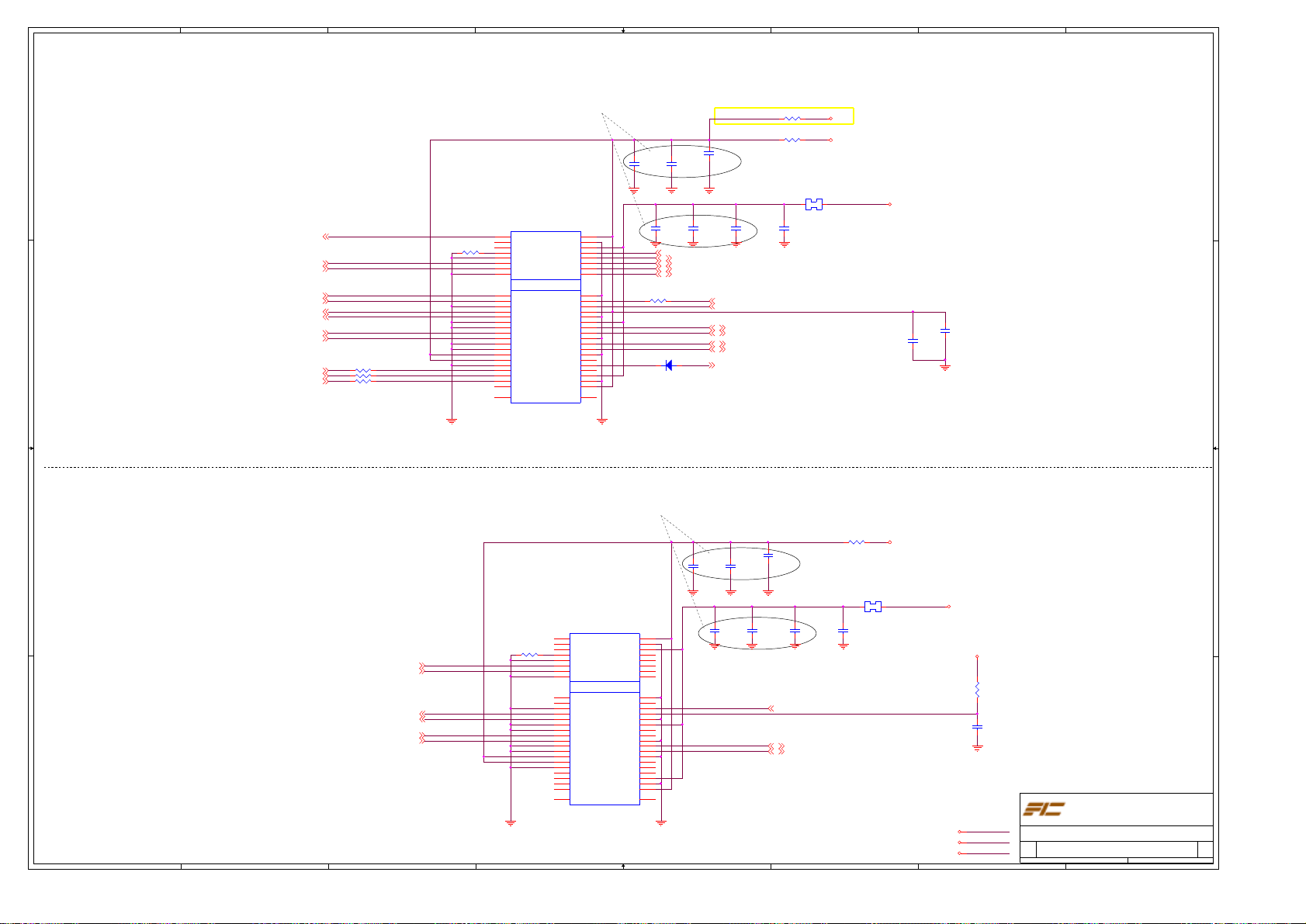

PCIE Mini Card for Wireless Lan

PCIE_WAKE#<20,27>

CLK_PCIE_MINICARD#<8>

CLK_PCIE_MINICARD<8>

BUF_PLT_RST#<18,27,40>

CLK_PCI_MINI<8>

PCIE_RXN2<18>
PCIE_RXP2<18>

PCIE_TXN2<18>

PCIE_TXP2<18>

R188 0 5% 1/16W SMT0402 LR

CL_CLK1<20>

R189 0 5% 1/16W SMT0402 LR

CL_DATA1<20>

R190 0 5% 1/16W SMT0402 LR

CL_RST#1<20>

R187

0 5% 1/16W SMT0 402 LR(NU)

1 2
3 4
5 6
7 8

9 10
11 12
13 14
15 16

17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51

53

PCIE Mini Card for Robson

C151

0.1uF 16V 80-20% SMT0402 Y5V LR

CN7

WAKE# +3.3V_1
RSVD1 GND7
RSVD2 +1.5V_1
CLKREQ# RSVD13
GND1 RSVD14
REFCLK- RSVD15
REFCLK+ RSVD16
GND2 RSVD17

KEY

RSVD3
RSVD4
GND3
PER_N0
PER_P0
GND4
GND5
PET_N0
PET_P0
GND6
RSVD5
RSVD6
RSVD7
RSVD8
RSVD9
RSVD10
RSVD11
RSVD12

GNDM1

CON CONCRAFT 0710A0BA40C SMD MINI CARD 52 PIN H=4.0 Tape & Reel LR

20-25096-10

GND8
RSVD18
PERST#

+3.3V_AUX

GND9
+1.5V_2

SMB_CLK

SMB_DATA

GND10

USB_D-

USB_D+

GND11

LED_WWAN#

LED_WLAN#
LED_WPAN#

+1.5V_3

GND12

+3.3V_2
GNDM2

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

54

Please close to mini card
each pin

C152

0.1uF 16V 80-20% SMT0402 Y5V LR

LPC_FRAME# <19,40>

LPC_AD3 <19,40>
LPC_AD2 <19,40>
LPC_AD1 <19,40>
LPC_AD0 <19,40>

0 5% 1/16W SMT0402 LR
R156

D18
DIODE STKY RB751V-40 40V 200mA SOD-323 2PIN PSI LR(NU)

Reserve for Azureware WLAN

C204
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

C197

0.1uF 16V 80-20% SMT0402 Y5V LR

C150

0.1uF 16V 80-20% SMT0402 Y5V LR

PN

C148

0.1uF 16V 80-20% SMT0402 Y5V LR

RF_ON# <20,39>
BUF_PLT_RST# <18,27,40>

SMB_CLK <8,15..17,20,27>
SMB_DATA <8,15..17,20,27>

USB_PN8 <18>
USB_PP8 <18>

WLAN_LED#

C547

0.1uF 16V 80-20% SMT0402 Y5V LR

C300

0.1uF 16V 80-20% SMT0402 Y5V LR

R1940 5% 1/10W SMT0 603 LR(NU)

3VDDM

R1910 5% 1/10W SMT0603 LR

3VDDA

R164
SPWR 0 5% 1/16W 0603

C164
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

C284
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

R2810 5% 1/10W SMT0603 LR

1.5VDDM

C149

0.1uF 16V 80-20% SMT0402 Y5V LR

3VDDA

C153
10uF 10V +80-20% SMT0805 Y5V LR

R543

C579

0.1uF 16V 80-20% SMT0402 Y5V LR

CN12

1 2

WAKE# +3.3V_1

3 4

RSVD1 GND7

5 6

R290

CLK_PCIE_ROBSON#<8>

CLK_PCIE_ROBSON<8>

PCIE_RXN3<18>

PCIE_RXP3<18>

PCIE_TXN3<18>

PCIE_TXP3<18>

D D

1

2

3

0 5% 1/16W SMT0 402 LR(NU)

RSVD2 +1.5V_1

7 8

CLKREQ# RSVD13

9 10

GND1 RSVD14

11 12

REFCLK- RSVD15

13 14

REFCLK+ RSVD16

15 16

GND2 RSVD17

KEY

17

RSVD3

19

RSVD4

21

GND3

23

PER_N0

25

PER_P0

27

GND4

29

GND5

31

PET_N0

33

PET_P0

35

GND6

37

RSVD5

39

RSVD6

41

RSVD7

43

RSVD8

45

RSVD9

47

RSVD10

49

RSVD11

51

RSVD12

53

GNDM1

CON CONCRAFT 0710A0BA52C SMD MINI CARD 52PIN H=5.2 TAPE&REEL LR

20-25604-00

4

GND8
RSVD18
PERST#

+3.3V_AUX

GND9
+1.5V_2

SMB_CLK

SMB_DATA

GND10

USB_D-

USB_D+

GND11

LED_WWAN#

LED_WLAN#
LED_WPAN#

+1.5V_3

GND12

+3.3V_2

GNDM2

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

54

C557

0.1uF 16V 80-20% SMT0402 Y5V LR

5

C299

0.1uF 16V 80-20% SMT0402 Y5V LR

BUF_PLT_RST# <18,27,40>

USB_PN9 <18>
USB_PP9 <18>

SPWR 0 5% 1/16W 0603

C555
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR

6

1.5VDDM

3VDDA

R574
0 5% 1/10W SMT0603 LR

C584
1uF 10V +80-20% 0603 Y5V LR

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

1.5VDDM

1.5VDDM<7,12,13,18,19,21,27,47>
3VDDA

3VDDA<15,18,20..22,24,27,29,34,38..40,42,44,45>

3VDDM

3VDDM<6,8,10,13,15..22,24,25,27,33,36..40,44,46..49>

Title

Size Document Number Rev

C

Date: Sheet of

7

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Mini Card WLAN/Robson

Confidential

28 56Thursday, May 29, 2008

8

0.5

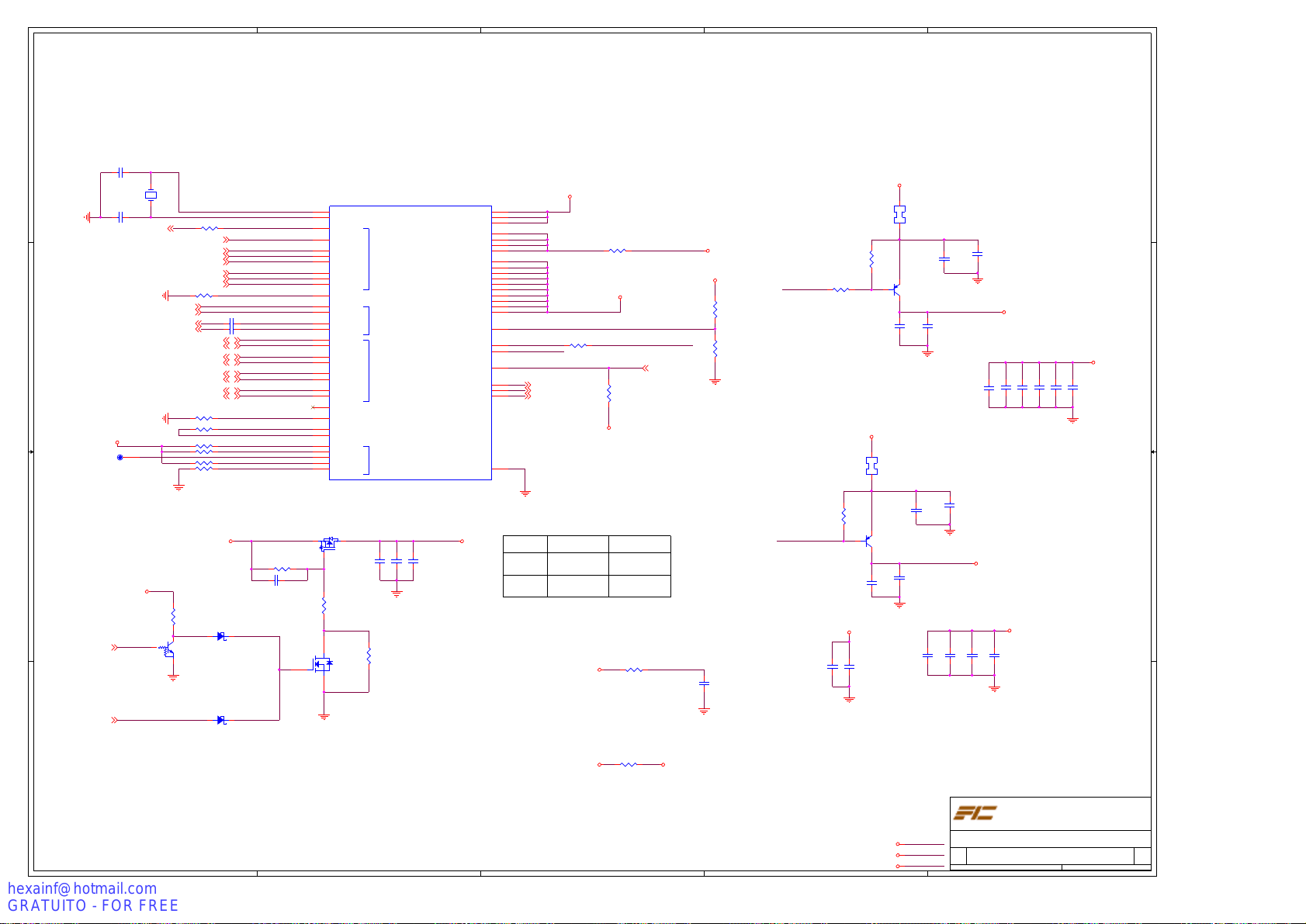

5

[e-mail]
GRATUITO - FOR FREE

D D

4

3

2

1

C552 15pF 50V 5% SMT0402 NPO LR

Y4

C558 15pF 50V 5% SMT0402 NPO LR

C C

25.000MHz SMD 12pF 30ppm X8A025000FC1H HARMONY LR

GLAN_CLK<19>

GLAN_TXP<18>
GLAN_TXN<18>

GLAN_RXP<18>
GLAN_RXN<18>

3VDDA_LAN

T30

1

B B

3VDDA

10K 5% 1/16W SMT0402 LR(NU)

ADPIN#<40,42,43>

TR NPN DTC144EUAT106 50V 100mA UMT3(SC-70) 3PIN ROHM LR(NU)

R587

B

∮

R560 RES 33 1% 1/16W SMT 0402 LR

LAN_RSTSYNC<19>

R538 RES 4.87K 1% 1/10W SMT0603 LR

LAN_MDI0P<30>
LAN_MDI0N<30>

LAN_MDI1P<30>
LAN_MDI1N<30>

LAN_MDI2P<30>
LAN_MDI2N<30>

LAN_MDI3P<30>

LAN_MDI3N<30>

R544 10K 5% 1/16W SMT0402 LR
R539 0 5% 1/16W SMT0402 LR(NU)

R554 200 5% 1/16W SMT 0402 LR(NU)
R567 200 5% 1/16W SMT 0402 LR(NU)

R552 200 5% 1/16W SMT 0402 LR(NU)
R545 200 5% 1/16W SMT 0402 LR(NU)

LAN_TXD0<19>
LAN_TXD1<19>
LAN_TXD2<19>

LAN_RXD0<19>
LAN_RXD1<19>
LAN_RXD2<19>

C578 0.1uF 10V 10% SMT0402 X5R LR
C580 0.1uF 10V 10% SMT0402 X5R LR

TRANS M-FET-P APM2301AAC-TRL -20V -3A SOT23 3PIN ANPEC LR

3VDDA

R559 100K 5% 1/16W SMT0402 LR

C576 0.1uF 10V 10% SMT0402 X5R LR

R570

DIODE SWITCHING PS355NS 80V 100mA SMT0805 2PIN PSI LR(NU)
D41

P N

Q58

E C

10K 5% 1/16W SMT0402 LR

G

U30

10

XTAL1

9

XTAL2

45

JKCLK

50

JRSTSYNC

42

JTXD0

43

JTXD1

44
47

48
49

15
55

56
52

53
27

26
23

22
21

20
17

16
51
36
13

12
40

7

6
39
35

Q53

G

DS

LCI

JTXD2
JRXD0

JRXD1
JRXD2

RESET
GLAN_RXP

GLAN_RXN

GLCI

GLAN_TXP
GLAN_TXN

MDI_PLUS_0
MDI_MINUS_0

MDI_PLUS_1
MDI_MINUS_1

MDI

MDI_PLUS_2
MDI_MINUS_2

MDI_PLUS_3
MDI_MINUS_3

RESERVED_NC
TEST_EN
IEEE_TEST_N

IEEE_TEST_P
JTAG_TCK

JTAG_TDI
JTAG_TDO

JTCA

JTAG_TMS
JTAG_TRST

ASIC Gigabit PHY 82567LF QFN 56PIN VER:B0 INTEL LR

DS

C713

C714

C712

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR

R569

0 5% 1/16W SMT0402 LR(NU)
Q55
TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

VCC3_3_1
VCC3_3_2
VCC3_3_3

VCC1_0_1
VCC1_0_2
VCC1_0_3
VCC1_0_4

VCC1_8_1
VCC1_8_2
VCC1_8_3
VCC1_8_4
VCC1_8_5
VCC1_8_6
VCC1_8_7
VCC1_8_8
VCC1_8_9

VCC1_8_10

DIS_REG1_0

CTRL10
CTRL18

LAN_DISABLE_N#

LED0
LED1
LED2

GND_PAD

3VDDA_LAN

3
46
28

5
8
33
38

11
14
18
19
24
25
30
32
54
41

34

CTRL_10_R

31

CTRL_18

29

37

4
2
1

57

1VRd R8M2R8M3,R8M1,Q9A1

3VDDA_LAN

+V1.0_LAN_M_IN

+V1.8_LAN_M

DIS_REG1P0

R573 0 5% 1/16W SMT0402 LR

LAN_LED_LINK#_ACT
LAN_LED_1000#
LAN_LED_100#

3VDDA_LAN

R8M21VR1

(Default)

3VDDA_LAN

4.7K 5% 1/16W SMT0402 LR

R568

0 5% 1/16W SMT0402 LR

CTRL_10

PM_LAN_ENABLE <20>

R550
10K 1% 1/16W SMT0402 LR

No Stuff1V Source Stuff

R8M3,R8M1,Q9A1

R586

+V1.0_LAN_M

3VDDA_LAN

R546
1K 1% 1/16W SMT0402 LR(NU)

R547
1K 1% 1/16W SMT0402 LR

RES 5.1K 1% 1/16W SMT0402 LR(NU)

PLACE PNP TO CHIP ACAP
CTRL12 PIN TRACE IS
25MIL

C607

0.1uF 16V 80-20% SMT0402 Y5V LR

4.7K 5% 1/16W SMT0402 LR

R582

CTRL_18

0 5% 1/16W SMT0402 LR

R577

CTRL_10

C602

4.7uF 10V 10% 0603 Y5V H=0.9mm LR

PLACE PNP TO CHIP ACAP
CTRL25 PIN TRACE IS
25MIL

3VDDA_LAN

3VDDA_LAN

L56
SPWR 0 5% 1/16W 0603

R583

EC

B

C601

0.1uF 16V 80-20% SMT0402 Y5V LR

Q56

TR PNP 2SB1188 -32V -2A MPT3 3PIN ROHM Lead-Free

C59210uF 10V +80-20% SMT0805 Y5V LR

C588

0.1uF 16V 80-20% SMT0402 Y5V LR

+V1.8_LAN_M

L54

SPWR 0 5% 1/16W 0603

C597

EC

B

C608

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR(NU)

Q54
TR PNP 2SB1188 -32V -2A MPT3 3PIN ROHM Lead-Free(NU)

C598
10uF 10V +80-20% SMT0805 Y5V LR

C581

0.1uF 16V 80-20% SMT0402 Y5V LR

C565

0.1uF 16V 80-20% SMT0402 Y5V LR

C595
10uF 10V +80-20% SMT0805 Y5V LR

+V1.8_LAN

C540

C571

C544

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR

10uF 10V +80-20% SMT0805 Y5V LR

C594
10uF 6.3V 0603 X5R TAIYO LR(NU)

+V1.0_LAN_M

+V1.0_LAN_M_IN

C567

C568

C556

4.7uF 10V 10% 0603 Y5V H=0.9mm LR

4.7uF 10V 10% 0603 Y5V H=0.9mm LR

0.1uF 16V 80-20% SMT0402 Y5V LR

+V1.8_LAN_M

C585

C537

C551

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR

D42

LAN_DIS<40,44>

A A

5

P N

DIODE SWITCHING PS355NS 80V 100mA SMT0805 2PIN PSI LR

+V1.8_LAN

4

R572

0 5% 1/10W SMT0603 LR

3

+V1.8_LAN_M

First International Computer,Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

3VDDA_LAN<21>

+V1.8_LAN_M<30>

2

3VDDA<15,18,20..22,24,27,28,34,38..40,42,44,45>

+V1.8_LAN_M
3VDDA

Size

C

Title

3VDDA_LAN

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Document Number

PCIE GIGA LAN PHY 82567

Thursday, May 29, 2008

Sheet

1

Confidential

Rev

56

29

ofDate:

0.5

5

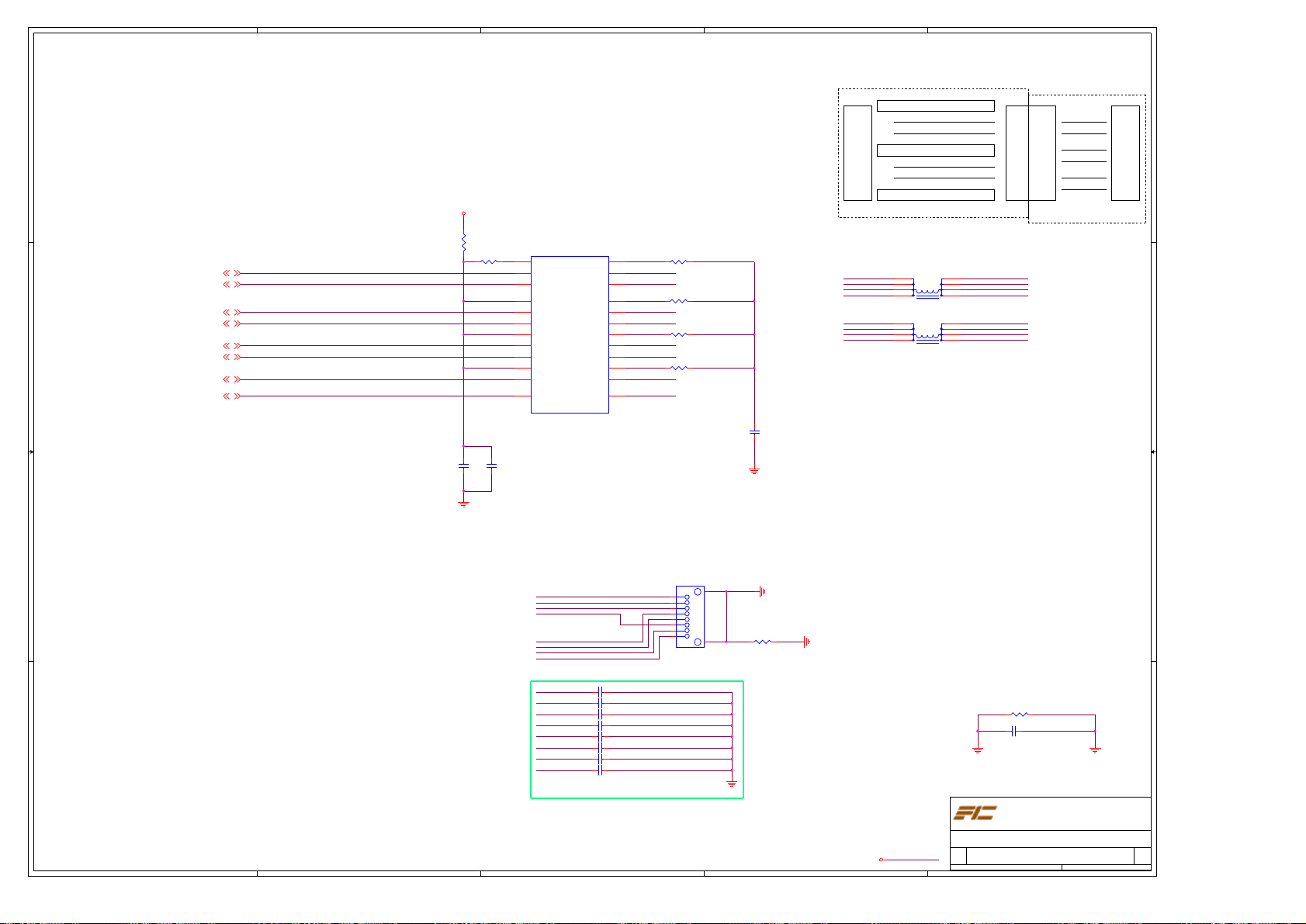

D D

LAN_MDI0P<29>
LAN_MDI0N<29>

LAN_MDI1P<29>
LAN_MDI1N<29>

C C

LAN_MDI2P<29>
LAN_MDI2N<29>

LAN_MDI3P<29>

LAN_MDI3N<29>

4

+V1.8_LAN_M

0 5% 1/10W SMT0603 LR

L52

R494
0 5% 1/16W SMT0402 LR

3

U24

1

TCT1

2

TD1+

3

TD1-

4

TCT2

5

TD2+

6

TD2-

7

TCT3

8

TD3+

9

TD3-

10

TCT4

11

TD4+

12

TD4-

MCT1
MX1+

MX1-

MCT2
MX2+

MX2­MCT3
MX3+

MX3­MCT4
MX4+

MX4-

R464 75 1% 1/16W SMT0402 LR

24

LAN_TXD0+

23

LAN_TXD0-

22

R465 75 1% 1/16W SMT0402 LR

21

LAN_TXD1+

20

LAN_TXD1-

19

R466 75 1% 1/16W SMT0402 LR

18

LAN_TXD2+

17

LAN_TXD2-

16

R467 75 1% 1/16W SMT0402 LR

15

LAN_TXD3+

14

LAN_TXD3-

13

2

TX

100 ohm ---> trace 4 mil , space 10 mil

RX

50 mil space from other signals
Total Tace Length no more thans 4.8"
2 Differential pairs must have the same length

TX+
TX-

RX+
RX-

GND

LESS THAN 0.1"

GND

LESS THAN 0.1"

GND

E
8
0
5
5

Transformer

GND PLANE

LAN_TXD1­LAN_TXD1+
LAN_TXD0­LAN_TXD0+

COMMON-MODE CHOKE 180 25% 100MHz 400mA SMT1012 8PIN YCM1012V4SF-181T04 YOSONIC LR

LAN_TXD3+
LAN_TXD2­LAN_TXD2+

COMMON-MODE CHOKE 180 25% 100MHz 400mA SMT1012 8PIN YCM1012V4SF-181T04 YOSONIC LR

L47

1
2
3 6
4

L46

1
2
3 6
4

LAN_L_TXD1-

8

LAN_L_TXD1+

7

LAN_L_TXD0­LAN_L_TXD0+

5

LAN_L_TXD3-LAN_TXD3-

8

LAN_L_TXD3+

7

LAN_L_TXD2­LAN_L_TXD2+

5

1

R
J
4
5

Isolated GND

TRANSFOMER 350uH 0.1V 8mA 24PIN HPL-5001-3 HWS LR

1500pF 2KV 10% SMT1206 X7R 1206B152K202LT WALSIN LR

C496

C495

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR

C488

∮

L_GND

These 3 capacitors across the CHASSIS_GND to GND

split, are located below the magnetics module. Place as

close as possible to the magnetics module.

B B

CN28

9

LAN_L_TXD0+
LAN_L_TXD0­LAN_L_TXD1+
LAN_L_TXD1-

LAN_L_TXD2+
LAN_L_TXD2­LAN_L_TXD3+
LAN_L_TXD3-

LAN_L_TXD0+

C252 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

LAN_L_TXD0-

C251 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

LAN_L_TXD1+

C247 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

LAN_L_TXD1-

C245 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

LAN_L_TXD2+

C244 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

LAN_L_TXD2-

C237 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

LAN_L_TXD3+

C231 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

A A

LAN_L_TXD3-

C222 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

∮

∮

∮

∮

∮

∮

∮

∮

For EMI

5

4

3

9

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

10

10

20-25351-00

CON Alltop C10001-108A4-L SMD RJ45 8Pin P=1.0 Deep H=8.6 LR

L_GND

L_GND

0 5% 1/10W SMT0603 LR
R192

0 5% 1/10W SMT0603 LR
R677

For EMI

C213

0.1uF 16V 80-20% SMT0603 Y5V LR(NU)

L_GND

First International Computer,Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size

+V1.8_LAN_M<29>

2

+V1.8_LAN_M

C

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Document Number

LAN TRANSFORMER

Thursday, May 29, 2008

1

Confidential

Sheet

Rev

0.5

56

30

ofDate:

5

[e-mail]
GRATUITO - FOR FREE

D D

4

3

2

1

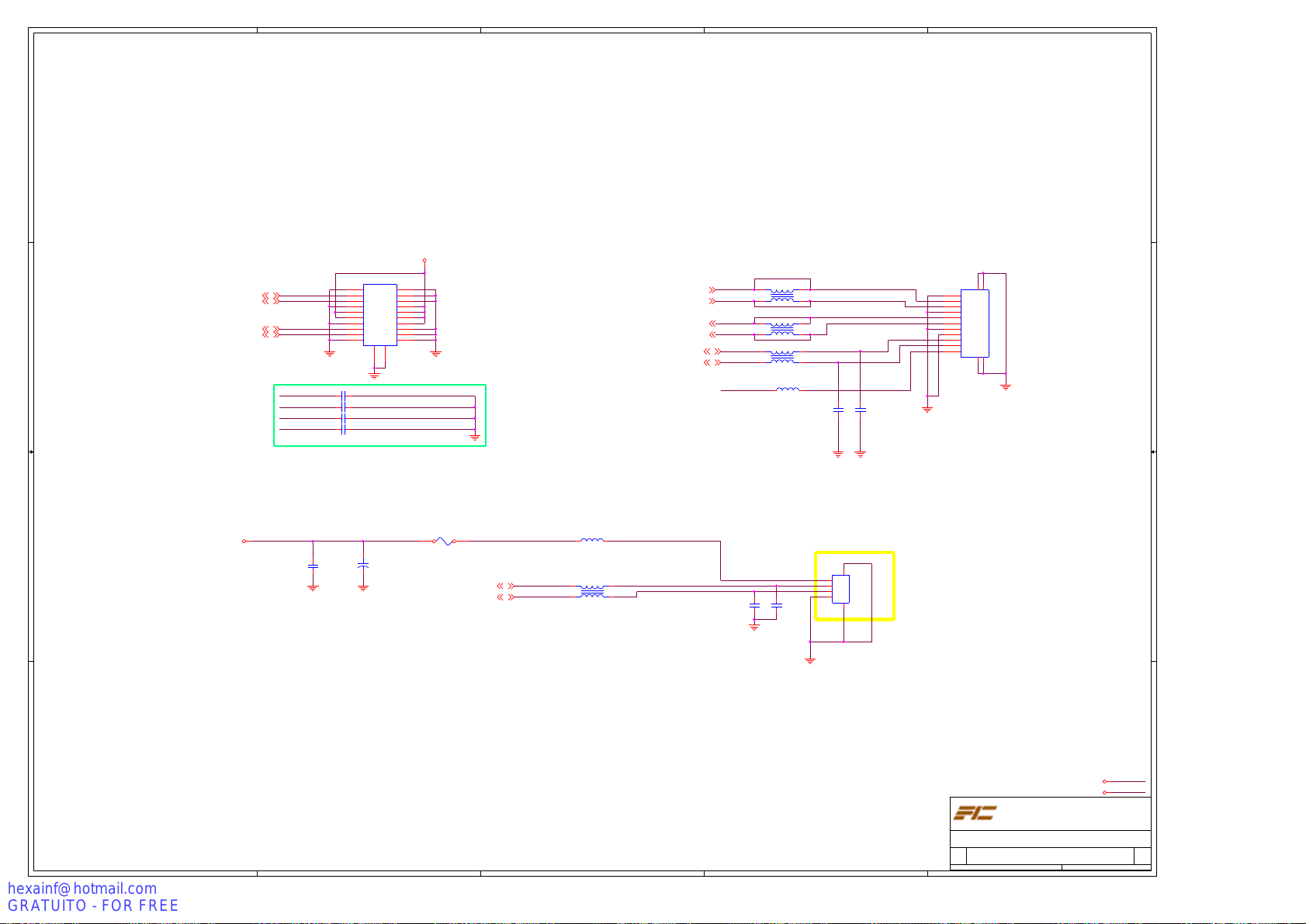

TO USB Board

5VDDA<21,38,39,44,45>

CHOKE 120 100MHz 0.22 0.37A ACM2012-121-2P-T TDK LR (NU)

CN21

1

2

1

EXT USB PORT

EXT USB PORT

C C

USB_PP2<18>

USB_PN2<18>

USB_PN3<18>

USB_PP3<18>

USB_PP2
USB_PN2

USB_PN3
USB_PP3

CON ACES 88107-20001 SMD 20 PIN P=1.0 RIGHT ANGLE LR

USB_PN2

C374 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

USB_PP2

C373 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

USB_PN3

C371 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

USB_PP3

C368 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

2

3

4

3

4

5

6

5

6

7

8

7

8

9

10

9

10

11

12

11

12

13

14

13

14

15

16

15

16

17

18

17

18

19

20

19

20

21

22

21

22

20-25206-00

∮

∮

∮

∮

SATA_TXP5<19>
SATA_TXN5<19>

SATA_RXN5<19>
SATA_RXP5<19>

USB_PP1<18>
USB_PN1<18>

L38

1

4

2

3

CHOKE 120 100MHz 0.22 0.37A ACM2012-121-2P-T TDK LR (NU)

L37

1

4

2

3

L9

1

4

2

CHOKE COMMON-MODE 90 @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK LR

5VDDA_USB

3

L8
HCB2012KF-121T30 TAI-TECH LR

E-SATA Connector

C160

C165

10pF 50V 5% SMT0402 NPO LR(NU )

10pF 50V 5% SMT0402 NPO LR(NU )

1214

1315

CN26

5

5

6

6

GNDGND

GNDGND

7

7

8

8

9

9

10

10

11

11

4

4

3

3

2

2

1

1

20-25605-00

CON TYCO 1909508-1 DIP 4+7PIN ESATA+USB LR

For EMI

C707
10uF 10V +80-20% SMT0805 Y5V LR

100 Mil

C133

+

T100uF 10V 20% SMT7343 ESR=0.7 T491D107M010AT KEMET LR (NU)∮

2A 8V SMT1812 miniSMDC200F RAYCHEM LR

5VDDA<21,38,39,44,45>

B B

F1

1 2

100 Mil

USB_PN0<18>

USB_PP0<18>

5VDDA_USB

L64
HCB2012KF-121T30 TAI-TECH LR

CLOSE TOUSB PORT

L24

1

4

2

CHOKE COMMON-MODE 90 @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK

3

10pF 50V 5% SMT0402 NPO LR(NU)

10pF 50V 5% SMT0402 NPO LR(NU)

50MIL

C6

C7

Mirror vertically

CN17

4

4

3

3

2

2

1

1

5 6

20-25575-00

5 6

CON ALLTOP C10777-104A3-L DIP USB BLACK REV LR

A A

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

5

4

3

2

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

E-SATA/MB_USB/EX_USB

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..40,44,46..49>
5VDDA<21,38,39,44,45>

1

3VDDM
5VDDA

31 56Thursday, May 29, 2008

0.5

8

7

6

5

4

3

2

1

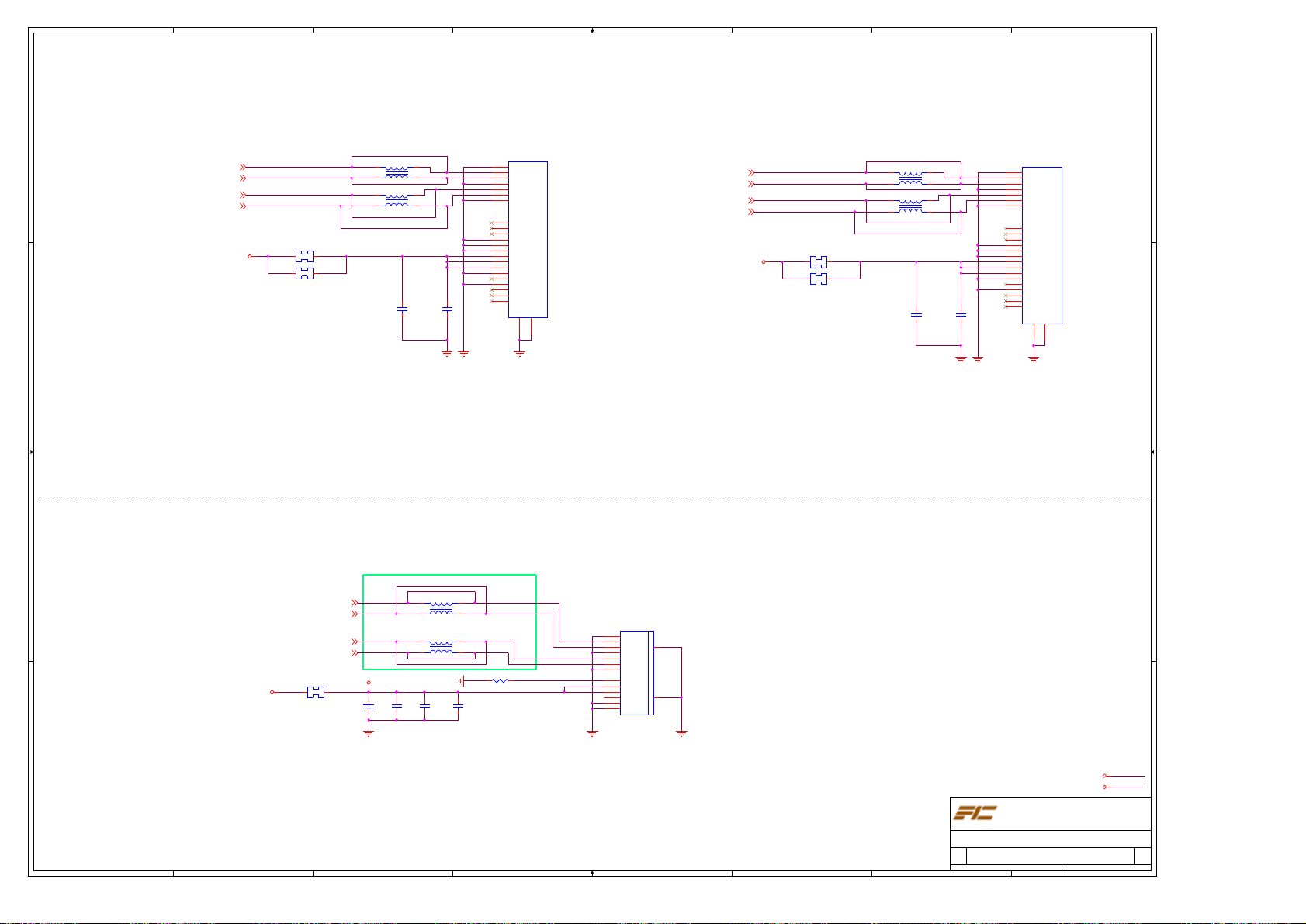

SATA HDD I/F

D D

CHOKE 120 100MHz 0.22 0.37A ACM2012-121-2P-T TDK LR(NU)

L53

1

SATA_TXP0<19>
SATA_TXN0<19>

SATA_RXN0<19>
SATA_RXP0<19>

5VDDM<15,20,21,26,33..35,37,44,46..49>

C C

CHOKE 120 100MHz 0.22 0.37A ACM2012-121-2P-T TDK LR(NU)

60MILS

L60

L61 SPWR 0 5% 1/16W 0603

L55

SPWR 0 5% 1/16W 0603

2

1
2

C640

10uF 10V +80-20% SMT0805 Y5V LR

4
3

4
3

C639

0.1uF 16V 80-20% SMT0603 Y5V LR

CN31

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

24

23

24

CON OCTEK SAT-22RH1G SMD HDD SATA 22PIN LR

CHOKE 120 100MHz 0.22 0.37A ACM2012-121-2P-T TDK LR(NU)

L40

1

SATA_TXP1<19>
SATA_TXN1<19>

SATA_RXN1<19>
SATA_RXP1<19>

5VDDM<15,20,21,26,33..35,37,44,46..49>

CHOKE 120 100MHz 0.22 0.37A ACM2012-121-2P-T TDK LR(NU)

60MILS

L11

L10 SPWR 0 5% 1/16W 0603

L43

SPWR 0 5% 1/16W 0603

2

1
2

C203

10uF 10V +80-20% SMT0805 Y5V LR

4
3

4
3

C201

0.1uF 16V 80-20% SMT0603 Y5V LR

CN27

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

24

23

24

CON OCTEK SAT-22RH1G SMD HDD SATA 22PIN LR

B B

SATA ODD I/F

For EMI

1

SATA_TXP4<19>
SATA_TXN4<19>

SATA_RXN4<19>
SATA_RXP4<19>

5VDDM<15,20,21,26,33..35,37,44,46..49>

A A

8

7

L45

SPWR 0 5% 1/8W 0805

0.1uF 16V 80-20% SMT0402 Y5V LR

L50

CHOKE 120 100MHz 0.22 0.37A ACM2012-121-2P-T TDK LR(NU)

CHOKE 120 100MHz 0.22 0.37A ACM2012-121-2P-T TDK LR(NU)

L48

5V_ODD

120 mils

C460

C470

10uF 6.3V 80~20% 0805 Y5V LR

6

4

2

3

1

4

2

3

R448 1K 5% 1/16W SMT0402 LR

C468

C469

0.1uF 16V 80-20% SMT0402 Y5V LR

0.1uF 16V 80-20% SMT0402 Y5V LR

SATA ODD CN

CN29

S1

1

GND1

2

TXP

3

14

A

TXN

14

4

GND2

5

RXN

6

B

RXP

7

GND3

S7

5

P1

8

DP

9

+5V

10

+5V

11

15

MD

15

12

GND

13

GND

P6

CON ALLTOP C18506-11305 SMD ODD SATA 13PIN H=3.95 REV LR

4

3VDDM

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..40,44,46..49>

5VDDM

5VDDM<15,20,21,26,33..35,37,44,46..49>

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

3

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

SATA HDD/ODD CNN

Confidential

32 56Thursday, May 29, 2008

1

0.5

5

[e-mail]
GRATUITO - FOR FREE

10mil
10mil
10mil

10mil
10mil

D D

10mil

10mil
10mil

10mil
10mil

GND_POWER

AZALIA_PCBEEP

GND_POWER

GND_POWER

AZALIA_BITCLK

GND_POWER

10mil
10mil
10mil

Layout guide :

1. Close to codec.

2. Realtek suggested
that layout trace of
the sense pin should
away form any analog
trace because sensing
current might
distorts the audio
performance (The
bottom lay is best
choice).

C C

HDA_SDATAOUT<19>
BIT_CLK_CODEC<19>
HDA_SYNC<19>
HDA_RST#<19>

3VDDM_AUDIO

AVDDS<35>

B B

C620 22pF 50V 5% SMT0402 NPO LR

(For ALC888S-VC)

100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR
L62

SPWR 0 5% 1/16W 0603

AGND <34,35>

Layout guide :

1. The codec is partitioned into a digital and analog
sections to help isolated noisy digital circuitry form
quiet analog circuitry.

A A

2. The layout separates the analog and digital planes

4

GND_POWER

10mil

14MCLK_AZALIA

10mil

GND_POWER

1uF 10V +80-20% 0603 Y5V LR
C613

100pF 50V 5% SMT0402 NPO LR

Close to codec

LINE_JD<35>

MIC1_JD<35>

10K 1% 1/10W SMT0603 LR
R603

20K 1% 1/16W SMT0402 Lead-Free
R602

HP_OUT_L<34>
HP_OUT_R<34>

GPIO_DePOP<34>

Reserve GPIO for
debugging pop noise

C655 0.1uF 16V 80-20% SMT0402 Y5V Lead-Free

C651 0.1uF 16V 80-20% SMT0402 Y5V Lead-Free(NU)

C654 10uF 10V +80-20% SMT0805 Y5V LR

C650 10uF 10V +80-20% SMT0805 Y5V TDK Lead-Free(NU)

INMIC_L<35>
INMIC_R<35>

MIC1_L<35>
MIC1_R<35>

LINE_L<35>
LINE_R<35>

For VISTA

EAPD<34>

SPDIFO1<35>

(20mil)

U34

12

PCBEEP

13

Sense A

10mil

14

LINE2-L

15

LINE2-R

16

MIC2-L

17

MIC2-R

18

CD_L

20

CD_R

19

CD-GND

21

MIC1-L

22

MIC1-R

23

LINE1-L

24

LINE1-R

45

SIDESURR-L

46

SIDESURR-R

47

EAPD/SPDIFI

48

SPDIFO

2

SPDIFO2

3

GPIO0/DMIC-CLK

5

SDATA_OUT

6

BCLK

10

SYNC

11

RESET#

1

DVDD

9

DVDD_IO

25

AVDD1

38

AVDD2

ASIC AUDIO CODEC ALC888S-VC LQFP 48PIN VER:C2 REALTEK LR

Close to codec

R632

Close to codec

3VDDM

SPWR 0 5% 1/16W 0603

C614 10uF 10V +80-20% SMT0805 Y5V LR

L57

C615 0.1uF 16V 80-20% SMT0402 Y5V Lead-Free

C616 10uF 6.3V 0603 X5R TAIYO LR(NU)

C612

MIC1-VREFO-L

LINE1-VREFO

MIC2-VREFO

MIC1-VREFO-R

LINE2-VREFO

GPIO1/DMIC-DATA

C617 0.1uF 16V 80-20% SMT0402 Y5V Lead-Free

20 mils

R593

SPWR 0 5% 1/16W 0603

3

R589
47K 1% 1/16W SMT 0402 LR

R590

4.7K 5% 1/16W SMT0402 LR

35

FRONT-L

36

FRONT-R

37

PIN37-VO

39

SURR-L

41

SURR-R

27

VREF

28
29

30
32

31

33

Sense C

34

Sense B

43

CEN

8

SDATA_IN

40

JDREF

4
7

DVSS_2

26

AVSS1

42

AVSS2

44

LFE

3VDDM_AUDIO

SPKR_SB <20,35>

10mil

Close to codec

R631

39.2K 1% 1/10W SMT0603 LR

RES 33 1% 1/16W SMT 0402 LR
R591

Close to codec

R607
20K 1% 1/10W SMT0603 Lead-Free

(20mil)

0.1uF 16V 80-20% SMT0402 Y5V Lead-Free

SPK_OUT_L <34>
SPK_OUT_R <34>

MIC1_VREFO_L <35>

INMIC_VREFO <35>
MIC1_VREFO_R <35>

HPDET <35,40>

HDA_SDATAIN0 <19>

CODEC POWER

5VDDM

C646

1000pF 50V 10% 0402 X7R Lead-Free(NU)

2

C652 10uF 10V +80-20% SMT0805 Y5V LR

C653 0.1uF 16V 80-20% SMT0402 Y5V Lead-Free

AGND <34,35>

(20mil)

C647

A_GND

SPK_OUT_R /
HP_OUT_L

A_GND

SPK_OUT_R /
HP_OUT_L

A_GND

REALTEK RECOMMAND

Host
Controller

HD Audio-ACZ_SDOUT/ACZ_SYNC/ACZ_BITCLK/ACZ_RESET#

ICH7m

Trace Impedance

55 +/- 15%

*** L3 can be extened up to 15" if HD Audio docking is not used

HD Audio-ACZ_SDIN

ICH7m

Trace Impedance
55 +/- 15%

*** Breakout can be routed 4 on 4 up to 500 mils

D

U37

1 5

CONTROL Vin

2

GND

3

NB

LNR-IC LDD G924-475T1U 4.75V SOT23-5 5PIN GMT

C648

0.1uF 16V 80-20% SMT0402 Y5V Lead-Free

VOUT

4

200mA
(20mil)

A

0.5-9"

L2

L2L1

Routing Requirement
4 on 7(stripline)

5 on 7(microstrip)

L1

39ohm

Routing Requirement
4 on 7(stripline)
5 on 7(microstrip)

R678
SPWR 0 5% 1/16W 0603

R594

SPWR 0 5% 1/16W 0603

C634
10uF 10V +80-20% SMT0805 Y5V LR

AGND <34,35>

1

1-5"

39ohm

39ohm

L2

HD
Audio

AVDDS <35>

L3

L3

1-3"

-0.5"

HD
Audio

Trace Length
L1 = 0.5"~2.5"
L2 <= 0.1"
L3 = 1"~8"

Trace Length
L1 = 0.1"~15"
L2 <= 0.5"

10mil

10mil
10mil

10mil

10mil

Audio Codec

Modem Codec

MDC CONN

AGND <34,35>

with a 60 to 100 mils gap and connect them at one
point beneath the codec with a 50 mils wide blink.

3. Never route digital traces or digital planes under
the analog ground areas. Analog components should be
located over analog planes (ground and power planes)
and digital components should be located over digital
planes.

5

4

5VDDM

5VDDM<15,20,21,26,32,34,35,37,44,46..49>

3VDDM

3

3VDDM<6,8,10,13,15..22,24,25,27,28,36..40,44,46..49>

2

Title

Size Document Number Rev

C

Date: Sheet of

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

Confidential

MY070>Penryn+Cantiga GM45+ICH9M

Azalia ALC888S-GR(VC)

1

33 56Thursday, May 29, 2008

0.5

5

4

3

2

1

AUDIO_GND

60 mils 60 mils

R601

0 5% 1/8W SMT0805 LR

D D

Speaker AMP

5VDDM_AMP

20080513
Change

RES 13K 1% 1/16W SMT0402 LR

AGND<33,35>

SPK_OUT_L<33>

SPK_OUT_R<33>

C C

C657 1uF 10V +80-20% 0603 Y5V LR
C656 1uF 10V +80-20% 0603 Y5V LR

R714

R713

0 5% 1/16W SMT0402 LR (NU)

0 5% 1/16W SMT0402 LR (NU)

AGND<33,35>

5VDDM_AMP

20080128 change to 10 K Ohm.

AMP_MUTE#<40>

DIODE STKY RB751V-40 40V 200mA SOD-323 2PIN PSI LR

R627

RES 2.2K 1% 1/16W SMT0402 LR
R628

22pF 50V 5% SMT0402 NPO LR (NU)
C735

R626 3.3K 1% 1/16W 0402 LR
R624 0 5% 1/16W SMT0402 LR

R623 0 5% 1/16W SMT0402 LR
R622

10K 5% 1/16W SMT0402 LR

PN

D45

C734

22pF 50V 5% SMT0402 NPO LR (NU)
R625
RES 16K 1% 1/16W SMT0402 LR

AGND <33,35>

15

10

U35

8

VDD

VDD

Volmax

11

L_OUT+

VOL
LIN

RIN
Shutdown

GND
GND
GND

9

L_OUT-

14

R_OUT+

16

R_OUT-

R606 100K 5% 1/16W SMT0402 LR

13

SE/BTL

C649 2.2uF 6.3V 80-20% SMT0603 Y5V LR

4

BYPASS

R621 100K 5% 1/16W SMT0402 LR

1

Mute

7
6

3
2

12

5

17

LNR-IC AUDIO-AMP APA2068KAI-TRL 2.6W SOP-16-P 16PIN ANPEC LR

Low Mute

5VDDM 5VDDM_AMP

C618

C619

0.1uF 16V 80-20% SMT0402 Y5V LR

10uF 10V +80-20% SMT0805 Y5V LR

trace 20mil

L59

SPWR 0 5% 1/4W 1206

AGND <33,35>

(40mil)

SPKOUTL+
SPKOUTL­SPKOUTR+
SPKOUTR-

C630

0.1uF 16V 80-20% SMT0402 Y5V LR
C623
10uF 10V +80-20% SMT0805 Y5V LR

AGND <33,35>

trace 20mil

C243
22pF 50V 5% SMT0402 NPO LR

C242
22pF 50V 5% SMT0402 NPO LR

AGND <33,35>AGND <33,35>

L20 100MHz 300 25% SMT0603 HCB1608 KF-301T20 TAI-TECH LR
L18 100MHz 300 25% SMT0603 HCB1608 KF-301T20 TAI-TECH LR
L17 100MHz 300 25% SMT0603 HCB1608 KF-301T20 TAI-TECH LR
L19 100MHz 300 25% SMT0603 HCB1608 KF-301T20 TAI-TECH LR

C241

C240

22pF 50V 5% SMT0402 NPO LR

22pF 50V 5% SMT0402 NPO LR

AGND <33,35>

4
3
2
1

EP PIN

Connect the exposed
thermal pad to
AUDIO_GND

CN10

4
3
2
1

20-25087-00

CON ACES SMT 85204-04001 WIRE 1.25P 4PIN LR

HeadPhone

Close to codec

T100uF 10V 20% SMT7343 ESR=0.7 T491D107M010AT KEMET LR

∮

+

HP_OUT_L<33>

B B

3VDDA

10K 5% 1/16W SMT0402 LR

10K 5% 1/16W SMT0402 LR
R646

3VDDA

EAPD<33 >

A A

R647

Q64

B

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

E C

AGND <33,35>

3VDDA

10K 5% 1/16W SMT0402 LR
R322

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

DS

Q33

G

AGND <33,35>

HP_OUT_R<33>

1.65V --> 3.3V

EAPD_LEVEL_SHIFT

20080528 Take off all these unless customer
wants it.
Not modify the schematics.

C636

+

C637
T100uF 10V 20% SMT7343 ESR=0.7 T491D107M010AT KEMET LR

∮

0 5% 1/16W SMT0402 LR
R323

GPIO_DePOP<33>
AMP_MUTE#<40>

R321
0 5% 1/16W SMT0402 LR(NU)

DL-IC 2-Input NAND Gate NC7SZ00P5X_NL SC70 5PIN FAIRCHILD LR

AGND<33,35>

3VDDA

0.1uF 16V 80-20% SMT0402 Y5V LR
C676

EMI add.

U16

1
2

3 5

10mil

R650 75 1% 1/10W SMT0603 LR

R651 75 1% 1/10W SMT0603 LR

DS

Q60

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

G

4

AGND<33,35>

DS

Q61

G

AGND <33,35>

R649

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

22K 5% 1/16W 0402 LR(NU)

HP_OUT_L_C <35>

HP_OUT_R_C <35>

R652
22K 5% 1/16W 0402 LR(NU)

AGND <33,35>

Hi Mute

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

3VDDA

3VDDA<15,18,20..22,24,27..29,38..40,42,44,45>

5VDDM

5

4

3

2

5VDDM<15,20,21,26,32,33,35,37,44,46..49>

C

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Seaker AMP APA2068KAI/ HeadPhone

1

Confidential

34 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

D D

5VDDM<15,20,21,26,32..34,37,44,46..49>

10K 0.5% 1/10W SMT0603 LR

SPKR_SB<20,33>

1000pF 25V +80-20% SMT0603 Y5V LR

C C

R657

C660

Q65

B

TRANS NPN MMBT2222A 40V 600mA SOT-23 3PIN Philips LR

E C

R658
47 1% 1/16W SMT 0402 LR

BUZZR

BUZZER 30.04.5 5V KSTG954RP/HA KINGSTATE LR

4

Analog Mic

BU1

1

+

2

-

∮

CN8

IN_MIC_L

1

1

2

2

IN_MIC_R

3

3

4

4

20-24462-10

CON ACES 1.25mm WTB SMT R/A 88266-04001 gold flash 4 PIN H=1.9mm LR

3

INMIC_VREFO<33>

100pF 50V 5% 0402 NPO LR
C698

C699
100pF 50V 5% 0402 NPO LR

AGND <33,34>

AGND <33,34>

D43
DIODE SWITCHING BAW56 75V 150mA SOT-23 3PIN PSI LR

3 1

2

R604

R598

4.7K 5% 1/16W SMT0402 LR

IN_MIC_L

4.7K 5% 1/16W SMT0402 LR

C624

1uF 10V +80-20% 0603 Y5V LR

IN_MIC_R

C629

1uF 10V +80-20% 0603 Y5V LR

R599
10K 1% 1/16W SMT0402 LR

100K 5% 1/16W SMT0402 LR

100K 5% 1/16W SMT0402 LR

R605
10K 1% 1/16W SMT0402 LR

2

R595

R596

AGND <33,34>

AVDDS<33>

3
2

R597
RES 150K 1% 1/16W SMT0402 LR

C622
120pF 50V 5% SMT0402 NPO LR

C621

0.1uF 10V 10% SMT0402 X5R LR

5
6

R600
RES 150K 1% 1/16W SMT0402 LR

C631
120pF 50V 5% SMT0402 NPO LR

NOTE

MIC1IN,MIC2IN,INTERNAL_MIC

叫

AGROUND

U33A
LNR-IC NJM4580V-TE1_PB FREE SSOP8 8PIN JRC LR

+

1

-

4 8

AGND <33,34>

+

-

4 8

C628
1uF 10V +80-20% 0603 Y5V LR

U33B
LNR-IC NJM4580V-TE1_PB FREE SSOP8 8PIN JRC LR

7

C627
1uF 10V +80-20% 0603 Y5V LR

1

INMIC_L <33>

INMIC_R <33>

AUDIO CNN

5VDDM

B B

LINE_L<33>
LINE_R<33>

A A

R18

MIC
CNN

L10

AGND

MAGND

M_CAS EGND

R2

5

4.7uF 10V 10% 0603 Y5V H=0.9mm LR
C638

C641

4.7uF 10V 10% 0603 Y5V H=0.9mm LR

R679
SPWR 0 5% 1/16W 0603

R588
SPWR 0 5% 1/16W 0603

Close to codec

AGND <33,34>

RES 75 5% 1/16W SMT 0402 LR
R653

R654
RES 75 5% 1/16W SMT 0402 LR

4

HPDET<33,40>

HP_OUT_L_C<34>

HP_OUT_R_C<34>

LINE_JD<33>

CN13

1

2

1

2

3

4

3

4

5

6

5

6

7

8

7

8

9

10

9

10

11

12

11

12

13

14

13

14

15

16

15

16

17

18

17

18

19

20

19

20

21

22

21

22

23

24

23

24

20-25283-00

CON ACES 88024-240XX SMD 24PIN P=0.8 BTB LR

AGND <33,34>

2.2K 5% 1/10W SMT0603 Lead-Free

MIC1_JD <33> MIC1_VREFO_R <33>
SPDIFO1 <33>

AGND <33,34>

3

R629
R630

2.2K 5% 1/10W SMT0603 Lead-Free

RES 75 5% 1/16W SMT 0402 LR
R644

R645
RES 75 5% 1/16W SMT 0402 LR

4.7uF 10V 10% 0603 Y5V H=0.9mm LR
C633

C635

4.7uF 10V 10% 0603 Y5V H=0.9mm LR

MIC1_VREFO_L <33>

Close to codec

2

MIC1_L <33>
MIC1_R <33>

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Audio CNN/A-MIC/BUZZER

1

35 56Thursday, May 29, 2008

0.5

8

7

6

5

4

3

2

1

0.1uF 10V 10% SMT0402 X5R LR

C669

RREF
D3V3

GND
D3V3
D3V3
Card_3V3
VREG
D3V3
GND

2
3
4
5
6
7
8

9
10
11
12

XI

Y5

R660

X'TAL 12.000000MHZ 18pF 30PPM 4PIN SMT5.0*3.2*0.8mm X1H012000FI1H-CHX HELE LR (NU)

XO

CLK_48M_CARD<8>

U38

RREF
NC/AV33
DM
DP
GND/AG33
NC/A3V3_OUT
3V3_IN/5V_IN
CARD_3V3
VREG
D3V3_OUT
DGND

D D

1M 5% 1/16W SMT0402 Sn LR(NU)

Mode_Select

C661 1uF 6.3V 80%-20% SMT0402 Y5V LR (NU)

C662 47pF 50V 5% SMT0402 NPO LR(NU)

R659
10K 5% 1/16W SMT0402 LR(NU)

C C

VREG

USB_PN4<18>
USB_PP4<18>

B B

1uF 6.3V 0402 Y5V LR

R664

C670

0 5% 1 /16W SM T0402 LR

R662RES 6.19K 1% 1/10W SMT0603 LR
C6640.1uF 10V 10% SMT0402 X5R LR

C6650.1uF 10V 10% SMT0402 X5R LR

C6580.1uF 10V 10% SMT0402 X5R LR

C663 MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

34

34

1 2

1 2

C667 MO-CAP 6.8pF 50V +/-0.25pF SMT0402 NPO LR(NU)

R663
0 5% 1/16W SMT0402 LR

XI

XO

XTLI

XTLO

XO

SP16

SP19

SP17

SP18

RST5158

Mode_Select

RST#

MODE_SEL

GND/AG_PLL

XD_ALE/CF_D4

XD_CLE/CF_D3

XD_CE#/CF_D11

SD_DAT7/XD_D2/MS_D2/CF_IOWR#

SP14

SP15

SP13

3839404142434445464748

SP14/XD_RDY/CF_D13

SD_DAT3/XD_WE#/CF_D5

SD_DAT2/XD_RE#/CF_D12

SD_CLK/XD_D1/MS_CLK/CF_D7

SD_DAT6/XD_D7/MS_D3/CF_D15

SD_DAT0/XD_D6/MS_D0/CF_RST#

SD_DAT1/XD_D3/MS_D1/CF_IORDY

SD_CMDAV_PLL

SD_DAT5/XD_D0/CF_D14

DGND

NC/CF_CS0#

MS_INS#/CF_IORD#

XD_D5/MS_BS/CF_A2

361
35
34
33

D3V3

32
31
30
29
28
27
26
25

CARD_RST#<19>

0 5% 1/16W SMT0402 LR(NU)

SD_CMD
SP12
SP11
D3V3

0.1uF 10V 10% SMT0402 X5R LR

SP10

SP9
SP8
SP7
SP6
SP5

C666

0 5% 1/16W SMT0402 LR
R305

Support SD, MMC, MS, MSpro ,XD card

D3V3

R656
100K 1% 1/16W SMT0402 LR

R655

RST5158

C659
1uF 6.3V 80%-20% SMT0402 Y5V LR

SD_CLK

MS_CLK

C320

MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

∮

Card_3V3

Card_3V3

30mil

0.1uF 10V 10% SMT0402 X5R LR
C324

SD_CLK
SD_WP

C325

0.1uF 10V 10% SMT0402 X5R LR

30mil

For EMI

Net list for share pin

SP1 XD_CD# CF_D1
SP2 SD_WP SM_W PM# CF_D0
SP3 SD_CD# CF_A0
SP4 XD_D4 CF_A1
SP5 XD_D5 CF_A2MS_BS
SP6 XD_D3 CF_IORDYMS_D1
SP7 SD_DAT0 CF_RST#XD_D6 MS_D0
SP8 XD_D2 CF_IOWR#SD_DAT7 MS_D2
SP9 CF_IORD#MS_INS#
SP10 SD_DAT6 XD_D7 CF_D15MS_D3
SP11 CF_D7XD_D1
SP12 XD_D0 CF_D14SD_DAT5
SP13 XD_WP# CF_D6SD_DAT4
SP14 XD_RDY CF_D13
SP15 SD_DAT3 CF_D5XD_WE#
SP16 XD_RE# CF_D12SD_DAT2
SP17 XD_ALE CF_D4
SP18 XD_CE# CF_D11
SP19 CF_D3XD_CLE

0 5% 1/16W SMT0402 LR(NU)
R313

0 5% 1/16W SMT0402 LR

SP4

R648

SD_CD#
SD_CMD
SD_DAT3
SD_DAT2
SD_DAT1

MS_CLK
MS_D3
MS_D2
MS_D1
MS_D0
MS_INS#
MS_BS

CN14

39

SD_C/D

15

SD-CMD

11

SD_CD/DAT3

9

SD_DAT2

34

SD_DAT1

31

SD_DAT0

21

SD_VDD

25

SD_CLK

41

SD_W/P

29

SD_VSS

19

SD_VSS

40

SD_GND

12

MS-VCC

14

MS-SCLK

16

MS-DATA3

20

MS-DATA2

24

MS-DATA1

22

MS-SDIO/DATA0

18

MS-INS

26

MS-BS

28

MS-VSS

10

MS-VSS

CON PROCONN MXP038-A0-2000 SMD CARD READER 38PIN 4IN1(SD/MMC/MS/XD) LR

Memory Stick SD&MMC

XD_CARD_DETECT

XD_R/- B

XD_-RE

XD_-CE
XD_CLE
XD_ALE
XD_-WE
XD_-WP

XD_D0

xD

XD_D1
XD_D2
XD_D3
XD_D4
XD_D5
XD_D6
XD_D7

XD_VCC

XD_GND
XD_GND

SD_DAT1SP6

XD_CD#

2

XD_RDY

3

XD_RE#

4

XD_CE#

5

XD_CLE

6

XD_ALESD_DAT0

7

XD_WE#

8

XD_WP#

13

XD_D0

23

XD_D1

27

XD_D2

30

XD_D3

32

XD_D4

33

XD_D5

35

XD_D6

36

XD_D7

37
38
1
17

42

GND

43

GND

Card_3V3

0.1uF 10V 10% SMT0402 X5R LR

C323

XTAL_CTR/CF_CD#

GPIO0

EEDO/CF_D10

EECS/CF_D9

EESK/CF_D2

EEDI/CF_D8/SM_CD#

CF_D1/XD_CD#

CF_D0/SM_WPM#/SD_WP

CF_A0/SD_CD#

MS_D4/CF_DMACK#

CF_A1/XD_D4

MS_D5/CF_DMARQ SD_DAT4/XD_WP#/CF_D6

1314151617181920212223

D3V3

R661
0 5% 1/16W SMT0402 LR

Pull high for use system's 48MHz

8025% 100MHz 600mA SMT0603 GBK160808T-800Y-N CHILISIN LR

∮

A A

8

3VDDM

4.7uF 10V 80-20% SMT0805 Y5V C2012Y5V1A475ZT TDK LR

1 2

7

D3V3

L63

C668

SP2

SP1

ASIC USB2.0 Card Reader Controller RTS5158E-GR LQFP 48PIN REALTEK LR

24 37

SP3

SP4

6

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

5

4

3

3VDDM<6,8,10,13,15..22,24,25,27,28,33,37..40,44,46..49>

3VDDM

C

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Card-Reader RTS5158-E

Confidential

36 56Thursday, May 29, 2008

1

0.5

8

[e-mail]
GRATUITO - FOR FREE

7

6

5

4

3

2

1

D D

GLIDE PAD CONNECTOR

60025% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR

∮

X[0..17]<39,40>
Y[0..7]<39,40>

C C

B B

X16<40>
X17<40>

PTT51 USE 24PIN,XTT70 USE 26PIN

INT KB CNN

X3
X4
X6
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0
X1
X2
X5
X7
X8
X9
X10
X12
X13
X14
X15
X0
X11
X16
X17

R134

SHW 0 5% 1/16W 0402

R136

SHW 0 5% 1/16W 0402

CN6

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

28

15

28

16

16

17

27

17

27

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

20-25581-00

CON ACES 85201-2601 SMD 26PIN P=1.0 FFC

钡牟

LR

5VDDM

PDDAT<40>
PDCLK<40>

L15
60025% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR

∮

PDDAT

L14
L13

∮

60025% 100MHz 1000mA SMT0603 HCB1608KF-601T10 TAI-TECH LR

GP1_PDDAT
GP1_PDCLKPDCLK

GP1_PDDAT

C220 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

GP1_PDCLK

C219 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

For EMI

SW2

A C

A C

B D

B D

SWITCH 4 PIN NTC004-AA1G-L160T T-MEC H=7mm (

GPSWR

GPSWR

GPSWL

狾

∮

∮

) LR

CN32

1

1

2

2

3

3

4

4

CON ACES 88502-0441 SMD 4Pin P=1.0 H=2.2 NON LR (NU)

NU_20-25530-00

40 mil

GPSWR

GPSWL

SW1

A C

B D

SWITCH 4 PIN NTC004-AA1G-L160T T-MEC H=7mm (

CN9

1

1

2

2

3

3

4

4

5

5

13

6

6

14

7

7

8

8

9

9

10

10

11

11

12

12

CON ACES 88512-1201 SMD 12PIN P=0.5 FFC LR

20-25579-00

A C

B D

13
14

GPSWL

狾

) LR

DIP SWITCH

3VDDM

4

3

RP49

10K 5% 1/16W SMT0402 LR

SW3

1

8

2

7

3

R565

1K 5% 1/16W SMT0402 LR

A A

8

6

4

5

SW 1.27mm 8PIN CHS-04TB(02) COPAL LR

21-10326-02

R566

10K 5% SMT1010 1/16W 4P2R LR

1

2

KBSEL2

KBSEL1 <20>
KBSEL2 <20>
CRISIS# <20>
CMOS_CLEAR# <19>

trace 5mil , space 5mil

7

6

ON

OFF
OFF

CRISIS#

CMOS_CLEAR#

KBSEL1

ON
OFF

OFF

UK Keyboard
Reserved
JP Keyboard
US Keyboard

CRISIS mode

ON
OFF Normal

Reset RTC

ON

NONE

OFF

5

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36,38..40,44,46..49>

3VDDA<15,18,20..22,24,27..29,34,38..40,42,44,45>
5VDDM<15,20,21,26,32..35,44,46..49>

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

4

3

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

<INT K/B /GP/SW CNN>

1

3VDDM
3VDDA
5VDDM

Confidential

37 56Thursday, May 29, 2008

0.5

8

D D

7

R86 0 5% 1/16W SMT0402 LR(NU)

6

5

4

3

2

1

TRANS M-FET-P APM2301AAC-TRL -20V -3A SOT23 3PIN ANPEC LR

5VDDA

100K 5% 1/16W SMT0402 LR

C C

USB_PP7<18>
USB_PN7<18>

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

R80 SHW 0 5% 1/16W 0603
R81 SHW 0 5% 1/16W 0603

For EMI

R381

CCD_ON<20>

C39 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)
C38 MO-CAP 5pF 50V 0.5pF SMT0402 NPO LR(NU)

Q38

DS

C375

G

Q37

B

E C

CCD_ON<20>

∮

∮

0.1uF 16V 80-20% SMT0402 Y5V LR

Webcam CNN

CN4

1

1

2

2

3

3

4

4

5

5

678

678

20-25583-00

CON ACES 88266-06001-BLK SMD 6PIN P=1.25 wire-board right angle LR

R72
10K 5% 1/16W SMT0402 LR

PLEASE PLACEMENT CLOSE TO DVI/CRT PORT

3VDDA

NP

D4
DIODE SWITCHING 1SS355 80V 100mA SOD-323 2PIN PSI LR(NU)

D1
LNR-IC HALL-EFFECT SWITCH EC2648-BL-F 2.7-3.3V SOT-23 3PIN E-CMOS LR

2 1

OUT VDD

GND

3

C4

0.1uF 10V 10% SMT0402 X5R LR

LID#<40>

TO PMX

100K 5% 1/16W SMT0402 LR(NU)

100pF 50V 5% SMT0402 NPO LR(NU)

R2

C5

For EMI

B B

C700 0.1uF 10V 10% SMT0402 X5R LR
C701 0.1uF 10V 10% SMT0402 X5R LR

5VDDA<21,31,39,44,45>

C702 0.1uF 10V 10% SMT0402 X5R LR
C703 0.1uF 10V 10% SMT0402 X5R LR

5VDDA <21,31,39,44,45>

3VDDM <6,8,10,13,15..22,24,25,27,28,33,36,37,39,40,44,46..49>

A A

8

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36,37,39,40,44,46..49>

C704 0.1uF 10V 10% SMT0402 X5R LR

7

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

5VDDA

5VDDA<21,31,39,44,45>

6

5

4

3

3VDDA<15,18,20..22,24,27..29,34,39,40,42,44,45>

C

3VDDA

Date: Sheet of

2

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Webcam/ LID

Confidential

38 56Thursday, May 29, 2008

1

0.5

5

[e-mail]
GRATUITO - FOR FREE

D D

4

3

2

1

HotKey switch board connector

CN3

Y0<37,40>
Y1<37,40>
Y2<37,40>

X6<37,40>

C C

1

1

2

2

3

3

4

9

4

9

5

10

5

10

6

6

7

7

8

8

20-25586-00

CON ACES 88512-0801 SMD 8PIN P=0.5 FFC LR

LED Board Connector

Power board connector

CN5

3VDDA<15,18,20..22,24,27..29,34,38,40,42,44,45>

LED_G<40>

POWSW#<42>

B B

CHECK POWER LED work
behavior

1

1

2

POWSW#

2

3

3

4

4

CON ACES 88502-0441 SMD 4Pin P=1.0 H=2.2 NON LR

20-25530-00

LED_G

LED_G<40>

CHGLED

CHGLED<40>

LED_A

LED_A<40>

5VDDA<21,31,38,44,45>

C679

C677

0.1uF 16V 80-20% 0402 Y5V LR

C680

C678

47pF 50V 5% SMT0402 NPO LR

47pF 50V 5% SMT0402 NPO LR

47pF 50V 5% SMT0402 NPO LR

3VDDA<15,18,20..22,24,27..29,34,38,40,42,44,45>
PMU5V<40,44>

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..38,40,44,46..49>

RF_ON#<20,28>

EMI add.

CN15

11

GND

1

1

2

2

3

3

4

4

5

5

6

6

7

RF_ON#

7

8

8

9

9

10

10

12

GND

CON ACES 88512-1001 SMD 10PIN P=0.5 EASY ON FFC LR

20-25600-00

A A

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

5

4

3

2

Date: Sheet of

(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Hot Key/ LED / Power board CNN

Confidential

1

39 56Thursday, May 29, 2008

0.5

5

SYSTEM POWER OVP

6mil

VDDS#

D D

C C

POWER MODIFY 3る13

SB(GPIO)

B B

A A

HOT_DOWN#<6,15>

NB

4700pF 25V 10% SMT0402 X7R LR

R89
47K 1% 1/16W SMT 0402 LR

PMU3V

R362

SPWR 0 5% 1/16W 0603

ら

REF33

REF33<42>

VBATT1

INOM<42>

TH1<42>

R51

PMU3V

6.2K 0.5% 1/10W 0603 LR

LVDS_ENABKL<10>
BLIGHT_EN<20>

R365 100K 1% 1/16W SMT0402 LR
R55 100K 5% 1/16W SMT0402 LR
R53 100K 5% 1/16W SMT0402 LR
R84 100K 5% 1/16W SMT0402 LR

5

Q8

B

TRANS NPN MMBT3904 40V 200mA SOT-23 3PIN PSI LR

E C

C362 0.1uF 16V 80-20% SMT0402 Y5V LR

C44 0.1uF 16V 80-20% SMT0402 Y5V LR

C363 0.1uF 16V 80-20% SMT0402 Y5V LR

C45 0.1uF 16V 80-20% SMT0402 Y5V LR

C36 1uF 10V +80-20% 0603 Y5V LR

R64 100 1% 1/16W SMT0402 LR
R57 1K 1% 1/16W SMT0402 LR

R58
0 5% 1/16W SMT0402 LR

3VDDM

53

1

4

2

DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR(NU)

10mils

C52

U6

LIGHT_SENSOR
INOM2
GPI_AD0
PMX_HPDET

PMU3V

R90
RES 470K 5% 1/16W SMT 0402 LR

1

2

OUT

VDD

5

CD

4

NC

3

GND

U9

LNR-IC RESET IC-PST8428NR 2.8V SOT-25A 5PIN MISTUMI LR

PST8428 delay time
Td = 0.69 * 10M * Cd

Current setting =

32.43us (PST9228 ->

23.10 us)

PMX_VCC

20mils

R61 0 5% 1/16W SMT0402 LR

C35 0.1uF 16V 80-20% SMT0402 Y5V LR

POWER MODIFY 3る13

40 mil (2 via)

PMU5V

C708

0.1uF 10V 0402 X5R LR

(2 via)

VOR#

C47

0.1uF 16V 80-20% SMT0402 Y5V LR(NU)

CIRCLK
CIRDAT

PCI_CLKRUN#<20>

PCI_SERIRQ<20>
H_A20GATE<19>

LPC_FRAME#<19,28>

BUF_PLT_RST#<18,27,28>

CLK_PCI_EC<8>

LPC_AD0<19,28>
LPC_AD1<19,28>
LPC_AD2<19,28>
LPC_AD3<19,28>

INVENA<24>

PM_SLP_S3#<20,22,27,44..47,49>

H_RCIN#<19>

PCMRI#

PM_BATLOW#<20>

ADPIN#<29,42,43>

0 5% 1/16W SMT0402 LR(NU)

C34 0.1uF 16V 80-20% SMT0402 Y5V LR

C32 0.1uF 16V 80-20% SMT0402 Y5V LR

R367

R366

0 5% 1/16W SMT0402 LR

REF33

U40
APL5151 3.3V 150mA SOT-23-5 ANPEC LR

1

VIN

3

SHDN

2

GND

4

3VDDM

RP3

10K 5% SMT1010 1/16W 4P2R LR(NU)

PDCLK<37>
PDDAT<37>

VOR#

SRLL#

NUM#

CAPS#

R83 0 5% 1/16W SMT0402 LR
R85 0 5% 1/16W SMT0402 LR(NU)

HPDET<33,35>

LATCH<42>

VDDS#

VDDS#<44>

BSEL1<42>

BIN1<42>

PMU3V

ADPIN#

LIGHT_SENSOR

chipset platform ID

POWER_MONITER<48>

POWER 2/5 ADD

R54
10K 5% 1/16W SMT0402 LR

PM_RSMRST#<20,22>

R353 RES 1.1K 1% 1/16W SMT0402 LR
R352 RES 1.1K 1% 1/16W SMT0402 LR

PMU3V

ら

40 mil (2 via)

5

VOUT

4

BP

C709

0.1uF 10V 0402 X5R LR

(2 via)

T2

4

3VDDM

3VDDA

PMU3V

3VDDA

4

4

3

1

1

2

R74 47K 1% 1/16W SMT 0402 LR

T21

MPWROK<10,20,22>

IMVP_VRON<22,48>

REF33

1uF 10V 10% SMT0603 X5R C1608X5R1A105KT TDK LR

C710

PMU3V

1

T4

RP2 10K 5% SMT1010 1/16W 4P2R LR

4

3

RP35

10K 5% SMT1010 1/16W 4P2R LR(NU)

3

1

2

2

LIGHT_SENSOR

RP1

MD2
MD1

3

MD0

124

10K 5% SMT1010 1/16W 4P2R LR

10K 1% 1/16W SMT0402 LR(NU)

REM

R676

1

R351 0 5% 1/16W SMT0402 LR
R45 0 5% 1/16W SMT0402 LR
R43 0 5% 1/16W SMT0402 LR

SMCLK_PMU<15,42>
SMDAT_PMU<15,42>

R41
15K 5% 1/16W SMT0402 LR

REF33 <42>

T3
T18
T17
T20
T5
T19
T1
T16

1

R75 10K 5% 1/16W SMT0402 LR

RP4 10K 5% SMT1010 1/16W 4P2R LR

R87 8.2K 5% 1/16W SMT0402 LR

4

3

1

2

PMX_HPDET

INOM2
GPI_AD0

1
1
1
1
1
1
1
1

R79 10K 5% 1/16W SMT0402 LR

U4

1

EXKBCLK

2

EXKBDAT

3

EXMOUCLK

4

EXMOUDAT

5

PDCLK

6

PDDAT

7

CLKRUN#

8

SERIRQ

9

KBC_A20GATE

10

LFRAME#

11

LRESET#

12

LCLK

13

AD0

14

AD1

15

AD2

16

AD3

17

RESET#

18

VCC

19

VSS

20

X0A

21

X1A

22

SRLL0_LED

23

NUM0_LED

24

CAPS0_LED

25

INVENA

26

GPIO A1

27

SUSA

28

LATCH

29

CVCC

30

CVRH1

31

CVRH2

32

CVRL

33

CVSS

34

VDDS#

35

CPU_RCIN0

36

BSEL1

37

BIN1

38

GPIO A6

39

DJSW

40

LOWBAT#

41

ADPIN#

42

AVCC

43

VREF

44

AVSS

45

V BATT1

46

ISUS_1

47

INOM_1

48

T BATT1

49

LIGHT_SENSOR

50

ENBKL

51

NC

52

POWER_ON_SEQUENCE_ID

53

GPI-AD0

54

VCC

55

VSS

56

MD2

57

MD1

58

MD0

59

WIRELESS_RFON

60

FWH_WP0

61

FWH_TBL0

62

CHG_CURR

63

BAT_REM

64

NC

65

RSMRST#

66

MPWROK

67

IMVP_VRON/CPU_PWRGOOD

68

MAINSW#_VIA

69

SCL(BATT1 CLK1)

70

SDA(BATT1 DAT1)

71

VRON_VCCP

R47
1K 5% 1/16W SMT0402 LR

CN19

P00

1

1

P01

2

2

MD0

3

3

MD2

4

4

VOR#

5

5

UI1

6

6

UO1

7

7

UCK1

8

8

9

9

10

10

11

11

12

12

CON ACES SMT 1.0P 12PIN 87213-1200G LR(NU)

NU_20-24508-10

13

13

14

14

PMX

2008.04.10
modified the
net name for
layout width
issue.

3

GPIO A7
GPIO A4

KBC_SWI#

DJRUN

CRYSTAL_X1
CRYSTAL_X0

FAN_PWM

GPIO A5

KBC_SCI#

KBC_SMI#

CHGINH

DCIN_ON

DCON

GPIO C0
GPIO C1

FAN_FEEDBACK

MainSW#

SUSTAT#

BRIG_PWM

GPIO A0

CHGVSET

GPIO A2
F_CHG1
GPIO C2

LED_A

LED_G
GPIO C3
GPIO A3

WAKE#
T_CHG1

PM_ICH_PWROK/SYSPWRGD

Q_CHG1

ALL_SYS_PG/VCORE_PG

SCI#/SMI#

SMBALERT#NC

3

PMU3V

R364 10K 1% 1/16W 0402 LR(NU)

R88

10K 1% 1/16W SMT0402 LR

144

PCEN

143

MAINSW0_LATCH

142
141
140
139

NC

138

NC

137

SUSC

UCK1
TEST

DJON

136

X15

135

X14

134

X13

133

X12

132

X11

131

X10

130

X9

129
128
127

VSS

126

VCC

125

X8

124

X7

123

X6

122

X5

121

X4

120

X3

119

X2

118

X1

117

X0

116

Y7

115

Y6

114

Y5

113

Y4

112

Y3

111

Y2

110

Y1

109

Y0

108
107
106
105
104
103
102
101

UI1

100

UO1

99
98
97
96
95
94
93
92
91

VSS

90

VCC

89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
7372

X15
X14
X13
X12
X11
X10
X9

X8
X7
X6
X5
X4
X3
X2
X1
X0

Y7
Y6
Y5
Y4
Y3
Y2

P01 Y1

Y0P00

PRSTMSK#
KBCSCI#
KBCSMI#

DCIN_ON
UI1

UO1
UCK1

R38 0 5% 1/16W SMT0402 LR(NU)

INT5

R29 0 5% 1/16W SMT0402 LR

R33 0 5% 1/16W SMT0402 LR(NU)
R34 0 5% 1/16W SMT0402 LR

SMBALERT#

R39 0 5% 1/16W SMT0402 LR(NU)

X17
X16
EJECT#
MAINSW#

CHGVSET <43>

R77 0 5% 1/16W SMT0402 LR(NU)

D47 DIODE SWITCHING PS355NS 80V 100mA SMT0805 2PIN PSI LR

D7 DIODE SWITCHING PS355NS 80V 100mA SMT0805 2PIN PSI LR

R42 4.7K 5% 1/16W 0402 LR

BATTERY VOLTAGE SENSE

20mil

BAT+

BAT+

R73

BIN1<42>

47K 5% 1/10W 0603 LR

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

Close to PMX

2

3VDDA

PMU3V

R368 10 K 5% 1/16W SMT0402 LR

R373 10 K 5% 1/16W SMT0402 LR

R372 10 K 5% 1/16W SMT0402 LR

R371 10K 1% 1/16W SMT0402 LR

R370 10K 1% 1/16W 0402 LR

R369 10K 1% 1/16W SMT0402 LR

LAN_DIS <29,44>
KBCSWI# <20>

LOM_DIS#

PM_SLP_S4# <20,27,45>
X15 <37>
X14 <37>
X13 <37>
X12 <37>
X11 <37>
X10 <37>
X9 <37>

X8 <37>
X7 <37>
X6 <37,39>
X5 <37>
X4 <37>
X3 <37>
X2 <37>
X1 <37>
X0 <37>
Y7 <37>
Y6 <37>
Y5 <37>
Y4 <37>
Y3 <37>
Y2 <37,39>
Y1 <37,39>
Y0 <37,39>
FAN_PWM <15>
PRSTMSK#
KBCSCI# <20>
KBCSMI# <20>

DCIN_ON <42>
DCON <22,44>

X17 <37>
X16 <37>
FAN_SPEED <15>

MAINSW# <42>
PM_SLP_S3# <20,22,27,44..47,49>

BRIGHTNESS <24>

LID#

AMP_MUTE#

PN

PN

LAN_RST#

C357 22pF 50V 5% SMT0402 NPO LR
X'TAL 4MHz SMD-49 SMT11*4.9*4.5mm 2PIN 20pF 30ppm XSA004000FK1H-O H.ELE LR

Y2

1 2

C358 22pF 50V 5% SMT0402 NPO LR

R37 10K 5% 1/16W SMT0402 LR

LID# <38>

FCHGON1 <43>

CHGLED

CHGLED <39>

LED_A

LED_A <39>

LED_G

LED_G <39>
LAN_DIS <29,44>

AMP_MUTE# <34>
DJON

TRICHGON1 <43>
PM_ICH_PWROK <20,22>

20060322A

Q5
TR M-FET-P APM2307AC-TRL -30V -3A SOT-23 3PIN ANPEC LR

DS

R63
RES 51.1K 1% 1/10W SMT0603 LR

G

R50
100K 5% 1/16W SMT0402 LR

B

R62
RES 2.8K 1% 1/10W SMT0603 LR

R65
RES 2.2K 1% 1/10W SMT 0603 RM06FTN2201 TA-I LR

Q6

E C

R66

8.2K 1% 1/10W 0603 LR

2

1

3VDDM

RP34

Y7

8

1

7

2

6

3

5 4

10K 5% 2010 1/16W 8P4R LR
RP33

8

1

7

2

6

3

5 4

10K 5% 2010 1/16W 8P4R LR

PMX_VCC

C364

0.1uF 16V 80-20% SMT0402 Y5V LR

CHGLED
LED_A
LED_G

Y6
Y5
Y4

Y1
Y0
Y2
Y3

C681 47pF 50V 5% SMT0402 NPO LR
C682 47pF 50V 5% SMT0402 NPO LR
C683 47pF 50V 5% SMT0402 NPO LR

EMI add.

ADPOV1

PMU3V

POWER 2/5 ADD

PMU3V

PMX_VCC

C360

0.1uF 16V 80-20% SMT0402 Y5V LR

PM_RI# <20>

QCHGON1 <43>

R350 5% 1/16W SMT0402 LR

ALL_SYS_PWRGD <22>
EC_SCI# <20>

VBATT1

20mil

C_GSEL

PRSTMSK#

R360 10K 5% 1/16W SMT0402 LR

UI1
UO1
UCK1
INT5

DCIN_ON

MAINSW#

PM_RI#
EC_SCI#
AMP_MUTE#
LID#

EJECT#
MPWROK
IMVP_VRON
KBCSMI#
KBCSCI#

Title

Size Document Number Rev

Custom

Date: Sheet of

R358 10K 5% 1/16W SMT0402 LR
R357 10K 5% 1/16W SMT0402 LR
R356 10K 5% 1/16W SMT0402 LR
R355 10K 5% 1/16W SMT0402 LR

R359 10K 5% 1/16W SMT0402 LR(NU)

R354 4.7K 5% 1/16W 0402 LR

R32 10K 5% 1/16W SMT0402 LR
R40 10K 5% 1/16W SMT0402 LR
R31 10K 5% 1/16W SMT0402 LR
R30 10K 5% 1/16W SMT0402 LR

R28 10K 5% 1/16W SMT0402 LR
R46 1K 5% 1/16W SMT0402 LR
R44 1K 5% 1/16W SMT0402 LR
R36 10K 5% 1/16W SMT0402 LR
R268 10K 5% 1/16W SMT0402 LR

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

PMX

1

PMU3V

3VDDA

3VDDM

ADPINADPIN

ADPIN<42,43>

3VDDM

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..39,44,46..49>

3VDDA

3VDDA<15,18,20..22,24,27..29,34,38,39,42,44,45>

PMU3V

PMU3V<19,20,22,42,44>

PMU5V

PMU5V<39,44>

BAT+

BAT+<42,43>

Confidential

40 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

4

3

2

1

MY070 Power Block

D D

Adapter
Jack

Battery

C C

ADPIN

ADPOUT1

DCIN

DCIN+

B B

A A

S

LATCH
BSEL1
POWSW0

ADPIN

B

F

MB39A132

QCHGON1
TRICHGON1

F

FCHGON1

B

SP

MM1380A

MAX8744
(Internal
LDO)

D

INOM

APL5151

ADPOUT

PCHGOUT

PMU5V

PMU3V

D

D

S

ADPOUT

PST8428

DCIN+

DCIN_ON

VOR0

DCIN

S

S

SP

MAX8744

SP

SP

TPS51117

SP

MAX8792

SP

TPS51117

SP

MAX8797

SP

5VDDA

DCON

3VDDA

1.8VDDS_DDR2

PM_SLP_S4#

1.05VDDM

PM_SLP_S3#

1.5VDDM

PM_SLP_S3#

NB_VGA_VDD

PM_SLP_S3#

VCORE_CPU

PM_SLP_S3#

PM_SLP_S3#

LVDS_ENALCD

S

3VDDM

S

S

G2998

PM_SLP_S3#

5VDDM

LCDVDD

0.9VDDT_DDR2

B

D

F

S

SP

Signal
Power Path

LDO

Amplifier

Bead

Diode

Fuse

Switch

Switching
Power
Converter

SP

5

MAX8770

S

4

3

IMVP_VRON

Inverter

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

2

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Power Block

1

Confidential

41 56Thursday, May 29, 2008

0.5

5

4

3

2

1

ADPIN, PCCOUT, DCIN, ADPOUT+

4 4

COMMON-MODE CHOKE 14.00uH28% 100MHz 580 4A SCI0835-7R0PF Yosonic LR

CN18

ADP+

1

ADP-

2
3

CON ALLTOP C10404-10304-L DIP DC-IN 3PIN LR

3 3

2 2

POWER MODIFY 3る13

20-25563-00

300 mil (15 via)

PCCOUT

1K 1% 0402 LR

C53 0.022uF 25V 10% 0603 X7R LR
C57 0.022uF 25V 10% 0603 X7R LR

10 mil (1 via)

REF33<40>

10 mil (1 via)

PMU3V

R92

6.5m 1% 1W 2512 LR

BAT_CS- BAT_CS+

8 mil (1 via)

R395

R394
1K 1% 0402 LR

ら

R392 20K 1% 0402 LR
R384 11.3K 1% 0402 LR
C377 0.1uF 10V 0402 X5R LR
R93 SHW 0 5% 0402

C55 0.1uF 10V 0402 X5R LR

∮

200 mil (10 via) 200 mil (10 via)

C10

0.1uF 50V 0603 Y5V LR

C16

0.1uF 50V 0603 Y5V LR

C8

C9

C19

0.1uF 50V 0603 Y5V LR

0.1uF 50V 0603 Y5V LR

1uF 50V 80-20% SMT0805 Y5V 0805F105Z500CT WALSIN LR

(2 via)

(2 via)

(2 via)

ADPIN

(2 via)

200 mil (10 via)

C11

0.1uF 50V 0603 Y5V LR

For EPA

7A 125V LITTELFUSE LR

F2

33K 5% 0402 LR(NU)

20K 5% 1/10W SMT 0603 LR(NU)

R5

ADPLED

6.2K 0.5% 0603 LR(NU)

D22
12V 5mA SOD-323 PSI LR(NU)

R338

R336

20K 1% 0402 LR

R339

R337

39K 1% 0402 LR

(1 via)

ADPIN

8 mil (1 via)

Q34
RT1N441M 50V 100mA SC-70 ID C LR

E C

ADPIN# <29,40,43>

B

C350

0.1uF 10V 0402 X5R LR

L31

4

1

3

2

PCCOUT

L4
12025% 100MHz 6A 1206 CHILISIN LR

∮

L5
12025% 100MHz 6A 1206 CHILISIN LR

300 mil (15 via) 300 mil (15 via)

PMU3V

U20
MM1380AWBE MITSUMI LR

1

ISEL

OUT

3

IN+

2

IN-

5

COM

8

GSEL

GND

7

VCC

∮

SMCLK_PMU<15,40>
SMDAT_PMU<15,40>

8 mil (1 via)

6

R91

5.11K 1% 0402 LR

4

(1 via)

INOM <40>

Noise
Sensitivity

TH1<40>

BAT+<40,43>

8 mil (1 via)

BIN1<40>

10 mil (1 via)

300 mil (15 via)

C46

1000pF 50V 10% 0402 X7R LR

(1 via)

C369

C370

150pF 50V 0402 NPO LR(NU)

(1 via)

(1 via)

F3
10A 125V LITTELFUSE LR

1 2

R376 100 1% 1/16W SMT0402 LR
R377 100 1% 1/16W SMT0402 LR

C366

C367

150pF 50V 0402 NPO LR(NU)

150pF 50V 0402 NPO LR(NU)

150pF 50V 0402 NPO LR(NU)

(1 via)

(1 via)

ADPOUT

PCCOUT

DCIN+5V

ADPOUT

For EPA

47 1% 1/16W SMT 0402 LR

(15 via)

PMU3V

CN20

9

9

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

10

10

CON ALLTOP C144M3-108A5-L DIP BATT 8PIN P=2.0 LR

200 mil (10 via)

300 mil (15 via)

R393

20 mil (1 via)

47K 1% 1/16W SMT 0402 LR

R383

8 mil (1 via)

301K 1% 1/16W SMT0402 LR
75K 1% 1/16W SMT0402 LR

D14
SS84BF 40V 8A SMB PSI LR

D13
SS34A 40V 3A SMA PSI LR

S

237

4
DS

G

R382

(1 via)

For EPA

100 mil (6 via)

ADPOUT

40 mil (2 via)

DCIN

100 mil (6 via)

LATCH<40>

BSEL1<40>

DCIN

DCIN+

300 mil (15 via) 300 mil (15 via)

C67

D15

BZT52C12S 12V 5mA SOD-323 PSI LR

Q9

8

D

AO4468L 30V 11.6A SO8 AOS LR

61
5

Q39

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

ADPOUT+

DCIN+

C378

R391

0.1uF 25V 0603 Y5V LR

D12
BAV70W SOT-323 PSI LR

8 mil (1 via)
8 mil (1 via)

RT1N441M 50V 100mA SC-70 IDC LR

Q40

Q13
AO4407 -30V -12A SO-8 AOS LR

3
2
1

S

Q11

R97

1uF 25V 0603 Y5V LR

4.7K 5% 0402 LR

DCIN_ON<40>

D25
SS34A 40V 3A SMA PSI LR

D26
SS1040 40V 1A SOD-123 PSI LRR82

Q41
M-FET-P AO4411 -30V -8A SOIC-8 8PIN AOS LR

3
2
1

S

100K 5% 0402 LR

G

4

B

E C

(1 via)

R96

3904 40V 0.2A SOT-23 PSI LR

100K 5% 0402 LR

B

E C

B

8 mil (1 via)

8
7
6
5

D

R390
10K 5% 0402 LR

R385
10K 5% 0402 LR

D23B

D23A

52

61

43

DIODE RB731U 40V 30mA SMD 6(SC-74) 6PIN ROHM LR

DIODE RB731U 40V 30mA SMD 6(SC-74) 6PIN ROHM LR

8
7
6

C91

5

D

G

4

E C

D23C

DIODE RB731U 40V 30mA SMD 6(SC-74) 6PIN ROHM LR

1000pF 50V 0402 X7R LR(NU)

R95
10K 5% 0402 LR

Q10
RT1N441M 50V 0.1A SC-70 IDC LR

(1 via)

100 mil (6 via)

10 mil (1 via)
8 mil (1 via)
8 mil (1 via)

10 mil (1 via)

POWSW# <39>

ADPOUT+

3VDDA

ICH_MAINSW# <20>
MAINSW# <40>

DCIN

ADPIN

ADPIN<40,43>

ADPOUT

1 1

5

4

3

ADPOUT<43>

PCCOUT

PCCOUT<43>

DCIN+5V

DCIN+5V<44>

DCIN

DCIN<24,44..49>

PMU3V

PMU3V<19,20,22,40,44>

REF33

REF33<40>

ADPOUT+

ADPOUT+<44>

3VDDA

3VDDA<15,18,20..22,24,27..29,34,38..40,44,45>

2

Title

Size Document Number Rev

C

Date: Sheet of

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

ACIN / DCIN

1

42 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

4

3

2

1

D D

IC

ZENER RLZ24B 22.61-23.77V 5mA 500mW LLDS ROHM LR

ACIN < VREF !!!

AC Adapter Detection, Vth = 1.25V

Current setting: 15V

ADJ1 (Total Power)
80W(20V) ---> 64.9K / 18K
60W(20V) ---> 51K / 10K

C C

ADJ1 < 3.5V !!!

System Current
= (ADJ1(V) - 0.075) / ( 25 * Rcs )

Current setting: 60W(20V)

For EPA

CHGAGND

CHGAGND

For EPA

IC

MB39A132_REF

3 4

2
1

5

CHGVSET<40>

6

IMD2AT110 50V 30mA SC-74 ROHM LR

B B

0.4V < ADJ2 < 4.4V !!!

Charge Current:
= (ADJ2(V) - 0.075) / ( 25 * Rcs )

Current setting:
FCHG = 2.51A
QCHG = 1.70A
TCHG = 0.286A

Q42

03/04 POWER MODIFY

G

R419
10K 5% 0402 LR

CHGAGND

CHGAGND

DS

Q44

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

CHGAGND

MB39A132_REF

MB39A132_REF

G

R418
10K 5% 0402 LR

CHGAGND

R403 0 5% 0603 LR

ADPOUT

(2 via)

MB39A132_VIN

MB39A132_VIN

MB39A132_REF

ADPIN#<29,40,42>

R417 0 5% 0402 LR

R414 0 5% 0402 LR

R410 10K 1% 0402 LR
R409 RES 18K 1% 1/16W SMT0402 LR
R420 14K 1% 1/16W SMT0402 LR
R421 1K 1% 0402 LR

DS

0.1uF 25V 10% 0603 X7R LR

40 mil (2 via)

C388

MB39A132_VIN

D28

R404

0 5% 0402 LR(NU)
R400

100K 1% 0402 LR
R399

9.1K 1% 0402 LR

R396

RES 51K 1% 1/16W SMT0402 LR

R397

10K 1% 1/16W SMT0402 LR

R398
0 5% 0402 LR

R407

0 5% 0402 LR

VREF = 5.0V

MB39A132_REF

20 mil (1 via)

C389

1uF 6.3V 0402 X5R LR

R94

0 5% 0603

(2 via)

Battery Cells:
3 cells, CELLS = OPEN
4 cells, CELLS = VREF

Charge Voltage:

4.20V / Cell,
ADJ3 = VREF

Q43
TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

D29A

D29B

D29C

RB731U SC-74 ROHM LR

RB731U SC-74 ROHM LR

6 1

5 2

4 3

CTL

CHGAGND

RB731U SC-74 ROHM LR

Charger

U21
LNR-IC DC/DC Converter MB39A132 27V 60mA QFN 32PIN FUJITSU LR

24

VIN

32

CTL2

4

ACIN

7

ADJ1

5

ACOK#

9

-INE1

10

OUTC1

11

OUTC2

21

VREF

22

AGND

(2 via)

25

CELLS

18

ADJ3

14

ADJ2

CTL

23

CTL1

R416
10K 5% 1/16W SMT0402 LR

For EPA

TP

33

(4 via)

CHGAGND

+INC1

PGND

+INC2

COMP3

COMP2

COMP1

-INC1

OUT1

OUT2

-INC2

BATT

-INE3

VCC

VB

CB

LX

RT

CS

0.1uF 25V 0603 Y5V LR
C66

3
2

C65

0.1uF 25V 0603 Y5V LR

R401 0 5% 0402 LR

1

C385 1uF 6.3V 0402 X5R LR

28

RB751V-40 0.2A SOD-323 PSI LR
D27

R405

31

0 0402 LR

HG_CHG

R406

30

0 0402 LR

29
27
26

12
13

17

6

16

15

8

20

19

PH_CHG
LG_CHG

R408
0 0402 LR

(2 via)

0.1uF 25V 0603 Y5V LR
C68

C69

0.1uF 25V 0603 Y5V LR

R413 0 5% 0402 LR
120pF 50V 5% 0402 NPO LR

C387

1000pF 16V 10% 0402 X7R LR
C386

1000pF 16V 10% 0402 X7R LR(NU)
C390

10K 1% 0402 LR
R99

10K 1% 0402 LR
R402

R100
33K 1% 0402 LR

C70

0.22uF 10V 10% SMT0603 X7R LR

R375
0 5% 0402 LR

CHGAGND
CHGAGND

R374
0 5% 0402 LR

40 mil (2 via)
40 mil (2 via)

40 mil (2 via)
40 mil (2 via)
40 mil (2 via)

R387
0 5% 0402 LR

CHGAGND
CHGAGND

R386
0 5% 0402 LR

R415
1K 1% 0402 LR

1000pF 16V 10% 0402 X7R LR
C71

1000pF 16V 10% 0402 X7R LR
C379

CS+_ADP

CS-_ADP

MB39A132_VIN

C384

0.22uF 10V 0603 X7R LR

CS+_CHG

CS-_CHG

10 mil (1 via)

R411
22K 1% 0402 LR

CHGAGND

CHGAGND

CHGAGND

CHGAGND

8 mil (1 via)

8 mil (1 via)

8 mil (1 via)

8 mil (1 via)

BAT+ <40,42>

Frequency (KHz) = 17000 / RT
(K)

Current setting: 515KHz

Noise
Sensitivity

Noise
Sensitivity

IC

R379
10m 1% 3720 LR

ADPIN

200 mil (10 via)

HG_CHG
PH_CHG

LG_CHG

CS+_ADP
CS-_ADP

40 mil (2 via)
40 mil (2 via)

40 mil (2 via)

120 mil (6 via)

8 mil (1 via)

152

D

3

S

4

(6 via)

200 mil (10 via)

C41 10uF 25V 1206 X5R TDK LR

R76

2.2 5% 0805 LR(NU)

40 mil (2 via)

R380

RES 50m 1% 1W SMT3720 RL3720WT-R050-FN CYNTEC LR

6
78

INDUCTOR 10uH 30% 4.4A SM T10*10.1*3.8 SIL104R-100 DELTA LR∮

L33

Q7

APM4906 30V 7A SO8 ANPEC LR

CS+_CHG
CS-_CHG

(4 via)

C37
470pF 50V 0402 X7R LR(NU)

(2 via)

C48

C40

10uF 25V 1206 X5R TDK LR

(6 via)

8 mil (1 via)

Noise
Sensitivity

D10
SS34A 40V 3A SMA PSI LR

10uF 25V 1206 X5R TDK LR

D11
SS34A 40V 3A SMA PSI LR

120 mil (6 via)

ADPOUT

PCCOUT

FCHGON1<40>
QCHGON1<40>
TRICHGON1<40>

A A

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

5

4

3

2

Date: Sheet of

(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Charger MB39A132

ADPIN<40,42>
ADPOUT<42>
PCCOUT<42>

1

ADPIN
ADPOUT
PCCOUT

43 56Thursday, May 29, 2008

0.5

5

For EPA

ADPOUT+

D D

200 mil (10 via)

PMU5V PMU3V

For EPA For EPA

C C

(6 via) (6 via)

C391

0.1uF 50V 0805 Y5V LR

20 mil (1 via)

DCIN+5V

R422
1K 5% 0805 LR

20 mil (1 via)

C394
1000pF 50V 0402 X7R LR(NU)

200 mil (10 via)

C392

470pF 50V 0402 X7R LR

(6 via)

Noise
Sensitivity

PMU5V, PMU3V, 5VDDA/S/M, 3VDDA/S/M, 1.5VDDA

100 mil (6 via)

R688

0 5% 1/4W SMT1206 LR
0 5% 1/4W SMT1206 LR(NU)

DCIN_3V5V

DCIN

C395

+

P-CAP 220uF 6.3V 20% SMT 6.3 H=5.7mm ESR=13m PXC6.3VC220MF60 NCC LR

R689

200 mil (10 via)200 mil (10 via)

C4044.7uF 25V 1206 X5R TDK LR
C4054.7uF 25V 1206 X5R TDK LR
C406470pF 50V 0402 X7R LR

R144RES 2.4K 1% 1/16W SMT0402 LR

C138

20 mil (1 via)

D

6
7 8

S

4

100 mil (5 via)

152

Q45
AO4932 30V 9A SO-8 AOS LR

D30
BAV99LT1G 70V 215mA SOT-23 ON LR

0.1uF 50V 0805 Y5V LR
C397

R423

2.2 5% 0805 LR(NU)

40 mil (2 via)(2 via)

DCR = 27m(MAX)

LDO5

R145

R692

∮

L34

7.0uH 4.8A 10*10*3.8 DELTA LR

RES 2.2K 1% 1/16W SMT0402 LR

0 5% 1/16W SMT0402 LR

4.7uF 6.3V 10% SMT0805 X5R C2012X5R0J475KT TDK LR

For EPA

3VDDA

Q66

20 mil (1 via)

R701

RT1N441M 50V 0.1A SC-70 ID C LR

G

E C

20 mil (1 via)

R704

G

5

AO4468L 30V 11.6A SO8 AOS LR

3

8

2

7

S

D

6 1
5

4

4/30 POWER ADD

R709
820 1% 1/10W SMT0603 LR

DS

Q67

G

C705

0.1uF 25V 0603 Y5V LR

(2 via)

5VDDA

Q70
AO4468L 30V 11.6A SO8 AOS LR

3

8

2

7

S

D

6 1
5

4

4/30 POWER ADD

R711
820 1% 1/10W SMT0603 LR

DS

Q71

G

C706

0.1uF 25V 0603 Y5V LR

(2 via)

R697

DS

PMU3V 3VDDA

B B

PMU5V

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

DCON<22,40>

R700

BAV70W SOT-323 PSI LR

LAN_DIS

3る12ら MODIFY

0 5% 1/16W SMT0402 LR(NU)

PMU5V 5VDDA

A A

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

10K 5% 0402 LR

PMU5V

RT1N441M 50V 0.1A SC-70 IDC LR

200 mil (10 via)

20K 5% 1/10W SMT 0603 LR
R695

10V_LS

4/11 POWER ADD

820 1% 1/10W SMT0603 LR

R696

10K 5% 0402 LR

B

Q69

D46

200 mil (10 via)

10K 1% 1/10W SMT0603 LR
R698

10V_LS

4/11 POWER ADD

820 1% 1/10W SMT0603 LR

R699

B

DCON<22,40>

Q73

E C

R694

10 5% 0805 LR

DS

Q68
2N7002 SOT-23 PSI LR

10 5% 0805 LR

Q72
2N7002 SOT-23 PSI LR

200 mil (10 via)

200 mil (10 via)

C732
10uF 6.3V 80-20% SMT0805 Y5V H=1.25m m LR

3

AGND_3V5V

REF_MAX8744

C730
10uF 6.3V 80-20% SMT0805 Y5V H=1.25m m LR

C733
10uF 6.3V 80-20% SMT0805 Y5V H=1.25m m LR (NU)

40 mil (2 via)
40 mil (2 via)
40 mil (2 via)

8 mil (1 via)
15 mil (1 via)

C731
10uF 6.3V 80-20% SMT0805 Y5V H=1.25m m LR (NU)

4

0 5% 1/16W SMT0402 LR(NU)

R690

VDDS#<40>

All Trace => 8mil

100K 1% 1/10W SMT0603 LR

AGND_3V5V

IC IC

HG_5V
PH_5V

CS+_5V
CS-_5V

0.22uF 10V 10% SMT0603 X7R LR
R431 15.4K 1% 0402 LR
R432 10K 1% 0402 LR

R441

15.4K 1% 0402 LR

R435

40 mil (2 via) 40 mil (2 via)

C144

0.22uF 10V 0603 X7R LR

C157

40 mil (2 via)

15.4K 1% 0402 LR

REF_MAX8744

C166

R436

0.1uF 10V 0402 X5R LR

AGND_3V5V

IC

VREF(MAX8744) = 2.0V
DCR Current Sense
5VDDA OCP = ?A(20V)
3VDDA OCP = ?A(20V)

200 mil (10 via) 200 mil (10 via)

PMU3V

20K 5% 1/10W SMT 0603 LR
R178

10V_LS

4/11 POWER ADD

820 1% 1/10W SMT0603 LR

SUSTAT_B

200 mil (10 via) 200 mil (10 via)

PMU5V

20K 5% 1/10W SMT 0603 LR

R137

10V_LS

4/11 POWER ADD

R139

PMU5V

10K 5% 0402 LR

PM_SLP_S3#<20,22,27,40,45..47,49>

RT1N441M 50V 0.1A SC-70 IDC LR

SUSTAT_B

4

820 1% 1/10W SMT0603 LR

SUSTAT_B

B

Q23

20 mil (1 via)

G

E C

DIODE ZENER GLZ6.2B 6.2V 20mA MINI-MELF 2PIN PSI LR
R437
1K 5% 0402 LR

4

2
32
31

15
16
17
18

12
13

FB_5V

11
20

3

9

7

8

AGND_3V5V

20 mil (1 via)

R702

G

5VDDM

Q15
AO4468L 30V 11.6A SO8 AOS LR

R703

DS

D35

P N

U12
MAX8744ETJ+ QFN32 LR

SHDN
DRVA

OUTA
FBA

BST5
DH5
LX5
DL5

CSH5
CSL5

FB5
LDO5

ILIM
FSEL
REF

AGND

TP

33

(4 via)

AGND_3V5V

3VDDM

Q47
AO4468L 30V 11.6A SO8 AOS LR

3

8

2

7

S

D

6 1
5

4

4/30 POWER ADD

R710

820 1% 1/10W SMT0603 LR

DS

Q29TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

G

C183

0.22uF 25V 10% SMT0603 X5R LR

(2 via)

3

8

2

7

S

D

6 1
5

4

4/30 POWER ADD

TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

R712

Q22

820 1% 1/10W SMT0603 LR

G

C120

0.1uF 25V 0603 Y5V LR

(2 via)

3

R429
0 5% 0603

40 mil (2 via)

0.22uF 25V 0603 X5R LR

21

VIN

C420

JP_0603_SHORT

1 2

19

PGND

BST3

CSH3
CSL3

POK5
POK3

POKA

DH3

LX3
DL3

FB3

SKIP

ON3
ON5
ONA

PMU5V

R438

(2 via) (2 via)

26

C145

0.22uF 10V 0603 X7R LR

25
24
23

C156

29
28

0.22uF 10V 10% SMT0603 X7R LR

FB_3V

R434 6.8K 1% 0402 LR

30

R433 10K 1% 0402 LR

SKIP_MAX8744

10

EN3_MAX8744

5

EN5_MAX8744

6
1

5VOK

R430

14
27
22

For EPA

R171
1K 5% 0402 LR

R175

R179

10 5% 0805 LR

DS

Q28
TRANS M-FET-N 2N7002LT1G 60V 115mA SOT-23 3PIN ON LR

R138

10 5% 0805 LR

DS

Q24
2N7002 SOT-23 PSI LR

3

AGND_3V5V

R167
10K 5% 0402 LR

10K 5% 0402 LR

C169

C170

0.22uF 10V 0603 X7R LR

4.7K 5% 0402 LR(NU)

ADPOUT+

HG_3V
PH_3V
LG_3VLG_5V

CS+_3V
CS-_3V

R170
10K 5% 0402 LR

0.22uF 10V 0603 X7R LR

3VDDM

5VDDM

0.47uF 16V 0603 Y5V LR

LG_3V

0.47uF 16V 0603 Y5V LR

3

40 mil (2 via)
40 mil (2 via)
40 mil (2 via)

8 mil (1 via)
15 mil (1 via)

AGND_3V5V

POWER 2/5 ADD

0 5% 1/16W SMT0402 LR
R674

0 5% 1/16W SMT0402 LR(NU)
R675

20 mil (1 via)

REF_MAX8744

R693

D19 DIODE STKY RB751V-40 40V 200mA SOD-323 2PIN PSI LR(NU)

R176

4.7K 5% 0402 LR(NU)
D20
BAW56 75V 0.15A SOT-23 PSI LR(NU)

40 mil (2 via)

PMU5V

C136

0.1uF 10V 0402 X5R LR

(2 via)

10V_Load Switch

D33 BAV99LT1G 70V 215mA SOT-23 ON LR

C419

D34 BAV99LT1G 70V 215mA SOT-23 ON LR

C421

(1 via)

2

C403 4.7uF 25V 1206 X5R TDK LR
C412 4.7uF 25V 1206 X5R TDK LR
C413 470pF 50V 0402 X7R LR

100 mil (5 via)

Q46
AO4932 30V 9A SO-8 AOS LR

R148

2.2 5% 0805 LR(NU)

40 mil (2 via)

DCR = 27m(MAX)

L36

152

7.0uH 4.8A 10*10*3.8 DELTA LR

D

6

RES 2.4K 1% 1/16W SMT0402 LR

78

R152

S

0 5% 1/16W SMT0402 LR

R153

4

RES 2.2K 1% 1/16W SMT0402 LR

(10 via)(10 via)

LDO5

PN

LAN_DIS <29,40>
DCON <22,40>

For EPA

PMU3V

U11
APL5151 3.3V 150mA SOT-23-5 ANPEC LR(NU)

1
3
2

20 mil (1 via)

20 mil (1 via)

VIN
SHDN
GND

5

VOUT

4

BP

(2 via)

PMU5V

0.47uF 16V 0603 Y5V LR
C422

20 mil (1 via)

C425

0.47uF 16V 0603 Y5V LR

5VOK

40 mil (2 via)

C159

1uF 10V 10% SMT0603 X5R C1608X5R1A105KT TDK LR

0.1uF 10V 0402 X5R LR

20K 5% 0402 LR

B

(1 via)

2

C134
1000pF 50V 0402 X7R LR(NU)

(2 via)

C428

C429

+

P-CAP 220uF 6.3V 20% SMT 6.3 H=5.7mm ESR=13m PXC6.3VC220MF60 NCC LR

470pF 50V 0402 X7R LR

(6 via)

Noise
Sensitivity

PMU3V

C158

For EPA

(1 via)

Q25
APM2307 -30V -3A SOT-23 ANPEC LR

20 mil (1 via)

DS

R160

G

Q27
RT1N441M 50V 0.1A SC-70 IDC LR

E C

1

200 mil (10 via)200 mil (10 via)

ADPOUT+<42>

PMU5V<39,40>
PMU3V<19,20,22,40,42>
DCIN<24,42,45..49>
5VDDA<21,31,38,39,45>
3VDDA<15,18,20..22,24,27..29,34,38..40,42,45>

DCIN+5V<42>

10V_LS
5VDDM<15,20,21,26,32..35,37,46..49>
3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..40,46..49>

10V_LS

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

3/5VDDA/S/M,PMU3/5V

1

ADPOUT+
PMU5V
PMU3V
DCIN
5VDDA
3VDDA
DCIN+5V
10V_LS
5VDDM
3VDDM

44 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

4

3

2

1

DDR 1.8VDDS, 0.9VDDS

D D

DDR1.8VDDS

80 mil (4 via)

DCIN

VOUT

DRVH

VBST

DRVL

PGND

IC

R67
237K 1% 0402 LR

2

TON

3

13

R52
0 0402 LR

14

12

LL

40 mil (2 via)

9

8

(2 via)

R69
68K 1% 0402 LR

56

VFBPGOOD

R68
47K 1% 0402 LR

HG_DDR

C29

0.22uF 10V 0603 X7R LR

PH_DDR

LG_DDR

R70
0 5% 0402 LR

Current setting: 1.835V(Vo)

AGND_DDR

U5

LNR-IC Single Synchronous Step-down Controller TPS51117RGYR QFN 14PIN TI LR

IC

C C

B B

Force PWM, EN_PSV = 5V, 3.3V
Skip, EN_PSV = Open

Valley Current Limit
= R_trip * 10uA / MOSFET_RDS(ON)

Current setting: 11A(OCP)

C376

1uF 6.3V 0402 X5R LR

(1 via)

20mil (1 via)

5VDDA

1.8VDDS_DDR2
120mil (6 via)

(4 via)

C43

10uF 6.3V 0603 X5R TAIYO LR

PM_SLP_S3#<20,22,27,40,44,46,47,49>
PM_SLP_S4#<20,27,40>

PM_SLP_S4#<20,27,40>

AGND_DDR

0.9VDDT_DDR2

5VDDA

DDRII_PWRGD

3VDDA

120mil (6 via)

8

VTT

7

VTT_IN

6

VCC

5

VDDQ

U8
G2998 SO8 GMT LR

R388
0 5% 0402 LR(NU)

R389
0 5% 0402 LR

R680
0 5% 0402 LR(NU)

(2 via)

(4 via)

9

(2 via)

C30
1uF 6.3V 10% 0603 X5R LR

40mil

R363
300 5% 0402 LR

∮

1uF 6.3V 10% 0603 X5R LR

1 2

R59

JP_0603_SHORT

R56 0 5% 0402 LR(NU)
C33 0.1uF 10V 0402 X5R LR(NU)
R60 0 5% 0402 LR

R361

18.2K 1% 1/16W 0402 LR

R71
10K 5% 0402 LR

1

GND

TP

2

EN

3

VTTS

4

VREF

40mil

5VDDA

∮

VCC_TPS51117-1

C365

(4 via)

10mil (1 via)

C54

C58

10uF 6.3V 0603 X5R TAIYO LR

10mil (1 via)

R78
0 5% 0402 LR

C42

0.1uF 10V 0402 X5R LR

10

4

7

AGND_DDR

1

11

10uF 6.3V 0603 X5R TAIYO LR

(6 via)

V5DRV

V5FILT

GND

EN_PSV

TRIP

TP

15

0.9VDDT_DDR2

M_VREF

8 mil (1 via)

40 mil (2 via)

40 mil (2 via)

40 mil (2 via)

40 mil (2 via)

8 mil (1 via)

DCIN_DDR

C353 4.7uF 25V 1206 X5R TDK LR
C354 4.7uF 25V 1206 X5R TDK LR

80 mil (4

via)

C355 4.7uF 25V 1206 X5R TDK LR
C356 0.1uF 25V 0603 Y5V LR

61

5

7

D

4

S

2

61

5

7

D

4

S

2

(14 via)

Q36
AO4468L 30V 11.6A SO8 AOS LR

8

R27

2.2 5% 0805 LR

40 mil (2 via)

DCR =

L32

3

2.2uH 20% 8A 7*7*3 M.L. LR

8.1m(MAX)

Q35

8

D8

RDS(ON)=22m

AO4468L 30V 11.6A SO8 AOS LR

SS14 40V 1A SMA PSI LR

3

Noise
Sensitivity

C27
1000pF 50V 0402 X7R LR

280 mil (14 via)

C361

C359

+

P-CAP 220uF 6.3V 20% SMT 6.3 H=5.7mm ESR=13m PXC6.3VC220MF60 NCC LR

(6 via)

(6 via)

(9 via)

(2 via)

280 mil (14 via)

220uF 2V 15m 7343 PANA LR(NU)

+

1.8VDDS_DDR2

A A

DCIN

DCIN<24,42,44,46..49>

5VDDA

5VDDA<21,31,38,39,44>

3VDDA

3VDDA<15,18,20..22,24,27..29,34,38..40,42,44>

1.8VDDS_DDR2<10,12,13,16,17>

0.9VDDT_DDR2<16,17>

5

4

3

2

1.8VDDS_DDR2

0.9VDDT_DDR2
M_VREF

M_VREF<10,16,17>

10V_LS

10V_LS<44>

Title

Size Document Number Rev

C

Date: Sheet of

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

DDRII Power / 1.8VDDS, 0.9VDDT

1

45 56Thursday, May 29, 2008

0.5

5

4

3

C573 4.7uF 25V 1206 X5R TDK LR(NU)
C572 4.7uF 25V 1206 X5R TDK LR

2

1

1.05VDDM

C548

R264

(4 via)

20 mil (1 via)

40 mi l ( 2 v i a)

REF=2V

1.05VDDM

U29
MAX8792 DFN14 MAXIM LR

2

VDD

13

VCC

15

GND

1

EN

12

SKIP

11

REF

10

REFIN

14

PGOOD

IC

TON

DH

BST

LX

DL

FB

ILIM

R523
200K 1% 0402 LR

7

40 mil (2 via)

5

R524
0 0402 LR

6

4

3

R522 0 5% 0402 LR

8

9

R527

RES 24K 1% 1/16W SMT0402 LR

R521
100K 1% 0402 LR

Valley Current Limit
= ILIM(V) / 20 / MOSFET_RDS(ON)

Current setting: ?A(OCP)

120 mil (6 via)

DCIN

C530

0.22uF 10V 0603 X7R LR

PH_1.05V

LG_1.05V

60 mil (2 via)

MAX8792REF1

AGND_1.05V

HG_1.05V

10 mil (1 via)

10 mil (1 via)

40 mil (2 via)

40 mil (2 via)

5

4

DCIN_1.05V

61

7

D
S

2

120 mil (6 via)

4

8

Q52

RDS(ON)=5.6m

AO4456 30V 20A SO8 AOS LR(NU)

4

3

C561 4.7uF 25V 1206 X5R TDK LR
C569 4.7uF 25V 1206 X5R TDK LR
C554 0.1uF 25V 0603 Y5V LR
Q50

AOL1426 30V 46A USO8 AOS LR

R490

567

8

2.2 5% 0805 LR

D
S

40 mil (2 via)

152

61

5

(40 via)

L51

3

INDUCTOR 1.5uH 30% 10A SIL104R-1R5 DELTA LR

7

8

Q51

D36

RDS (O N )= 5 .6 m

AO4456 30V 20A SO8 AOS LR

SS14 40V 1A SMA PSI LR

D
S

2

3

Noise
Sensitivity

C490
1000pF 50V 0402 X7R LR

DCR =1.8m(MAX)

800 mil (40 via)

C504

+

P-CAP 220uF 6.3V 20% SMT 6.3 H=5.7mm ESR=13m PXC6.3VC220MF60 NCC LR

(6 vi a )

(12 via)

(2 via)

800 mil (40 via)

C503

+

P-CAP 220uF 6.3V 20% SMT 6.3 H=5.7mm ESR=13m PXC6.3VC220MF60 NCC LR

(6 vi a)

1.05VDDM

D D

C546

2.2uF 10V 0603 X5R TDK LR

40 mil (2 via)

5VDDM

IC

POWER 2/5 ADD

1uF 10V 0603 X5R TDK LR

JP_0603_SHORT

AGND_1.05V

AGND_1.05V

Force PWM, Skip = 5V
Ultrasonic, Skip= open
Pulse skip, Skip = GND

C C

B B

Current setting: 1.053V (Vo)

PM_SLP_S3#<20,22,27,40,44,45,47,49>

AGND_1.05V

AGND_1.05V

AGND_1.05V

RES 2K 1% 1/16W SMT 0402 LR

IC

POWER 2/5 ADD

MAX8792REF1

1.05VDDM_PWRGD<22>

R519

3VDDM

1 2

(2 via)

C549 0.1uF 10V 0402 X5R LR(NU)
R542 0 5% 0402 LR
R540 0 5% 0402 LR
1000pF 16V 0402 X7R LR

MAX8792REF1

C541
R528

180K 1% 0402 LR

R526
200K 1% 0402 LR

POWER 2/5 ADD

R541
10K 5% 0402 LR

POWER 2/5 ADD

5VDDM

5VDDM<15,20,21,26,32..35,37,44,47..49>

3VDDM

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..40,44,47..49>

DCIN

DCIN<24,42,44,45,47..49>

1.05VDDM

1.05VDDM<6..10,12,13,19,21>
10V_LS

10V_LS<44>

A A

5

4

NB_VGA_VDD<12,49>

3

NB_VGA_VDD

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

2

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

VDD CORE

1

Confidential

46 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

D D

4

3

2

1

1.5VDDM

80 mil (4 via)

DCIN

U31

POWER 2/5 ADD

40mil

5VDDM

IC

POWER 2/5 ADD

C C

Force PWM, EN_PSV = 5V, 3.3V
Skip, EN_PSV = Open

PM_SLP_S3#<20,22,27,40,44..46,49>

Valley Current Limit
= R_trip * 10uA / MOSFET_RDS(ON)

Current setting: 9A(OCP)

AGND_1.5VDDM

1.5VDDM_PWRGD<22>

POWER 2/5 ADD

B B

(2 via)

40mil

R571

5VDDM

(2 via)

3VDDM

300 5% 0402 LR

∮

1uF 6.3V 10% 0603 X5R LR

R564

1 2

JP_0603_SHORT
R578 0 5% 0402 LR(NU)
C591 0.1uF 10V 0402 X5R LR(NU)
R579 0 5% 0402 LR

R562

18.2K 1% 1/16W 0402 LR

R556

10K 5% 0402 LR

C577
1uF 6.3V 10% 0603 X5R LR

LNR-IC Single Synchronous Step-down Controller TPS51117RGYR QFN 14PIN TI LR

10

V5DRV

∮

VCC_TPS51117

4

V5FILT

C583

7

GND

AGND_1.5VDDM

(4 via)

1

EN_PSV

11

TRIP

TP

15

IC

R580

2

TON

RES 249K 1% 1/16W SMT0402 RTT022493FTH RALEC LR

3

VOUT

40 mil (2 via)

13

DRVH

14

VBST

12

LL

9

DRVL

8

PGND

56

VFBPGOOD

RES 49.9K 1% 1/16W SMT0402 LR

C587

R575

0.22uF 10V 0603 X7R LR

0 0402 LR

(2 via)

RES 52.3K 1% 1/16W SMT0402 WR04X5232FTL WALSIN LR

R555
0 5% 0402 LR

AGND_1.5VDDM

R557

R561

HG_1.5VDDM

PH_1.5VDDM

LG_1.5VDDM

Current setting: 1.536V(Vo)

8 mil (1 via)

40 mil (2 via)

40 mil (2 via)

40 mil (2 via)

40 mil (2 via)

8 mil (1 via)

DCIN_1.5VDDM

C604 4.7uF 25V 1206 X5R TDK LR

80 mi l ( 4

via )

C603 4.7uF 25V 1206 X5R TDK LR
C606 0.1uF 25V 0603 Y5V LR

61

5

7

D

4

S

2

61

5

7

D

4

S

2

(16 via)

(9 via)

Q59
AO4468L 30V 11.6A SO8 AOS LR

8

3

Q57

8

RDS(ON)=22m

AO4468L 30V 11.6A SO8 AOS LR

3

R585

2.2 5% 0805 LR

C599
1000pF 50V 0402 X7R LR

40 mil (2 via)

L58

∮

INDUCTOR 4.7uH20% 5.5A SMT7.0*6.5*3.0mm FMJ-060302I-4R7 GP TMP LR

D40

SS14 40V 1A SMA PSI LR

Noise
Sensitivity

(2 via)

POWER 2/19 ADD

320 mil (16 via)

C626

C625

220uF 2V 15m 7343 PANA LR(NU)

220uF 2V 15m 7343 PANA LR

+

+

(6 via)

(6 vi a )

POWER 2/19 ADD

320 mil (16 via)

1.5VDDM

5VDDM

5VDDM<15,20,21,26,32..35,37,44,46,48,49>

3VDDM

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..40,44,46,48,49>

DCIN

A A

5

4

DCIN<24,42,44..46,48,49>

1.5VDDM

1.5VDDM<7,12,13,18,19,21,27,28>

Title

Size Document Number Rev

C

3

2

Date: Sheet of

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

1.5VDDM

1

47 56Thursday, May 29, 2008

0.5

5

D D

3VDDM

DELAY_VR_PWRGOOD<10,22>

VR_PWRGD_CLKEN#<20>

PM_DPRSLPVR<10,20,49>

SGND_CPU

H_PROCHOT#<6>

POWER_MONITER<40>

H_VID0<7>
H_VID1<7>
H_VID2<7>
H_VID3<7>
H_VID4<7>
H_VID5<7>
H_VID6<7>

PSI#<6>
IMVP_VRON<22,40>
H_DPRSTP#<6,10,19>

MAX8770VCC

C C

B B

POWER 4/29 MODIFY

CPU Core Power

POWER 2/5 ADD POWER 2/5 ADD

40 mil (2 via) 40 mil (2 via)

5VDDM 5VDDM

R108 2K 1% 1/16W SMT 0402 LR
R116 10K 5% 0402 LR

R113 0 5% 0402
R115 0 5% 0402

R127 0 5% 0402
R128 0 5% 0402
R125 0 5% 0402
R126 0 5% 0402
R123 0 5% 0402
R124 0 5% 0402
R121 0 5% 0402

R107 0 5% 0402
R122 0 5% 0402
R120 0 5% 0402
R119

499 1% 1/16W SMT0402 LR

C74
470pF 50V 0402 X7R LR

R103
75K 1% 0402 LR

C75

0.22uF 6.3V 0402 X5R LR

R105
0 5% 0402

R106
10K 5% 0402 LR

C72

0.1uF 10V 0402 X5R LR(NU)

(2 via)

R104
0 0402 LR(NU)

JP_0603_SHORT

R412

1 2

SGND_CPU

R131 10 5% 0402 LR

2.2uF 10V 0603 X5R TDK LR

SGND_CPU

(2 via) (2 via)

2

PWRGD

1

CLKEN

31

D0

32

D1

33

D2

34

D3

35

D4

36

D5

37

D6

3

PSI

38

SHDN

40

DPRSTP

39

DPRSLPVR

9

CCV

7

TIME

11

REF

6

THRM

5

VRHOT

4

POUT

SGND_CPU

41

EP

(4 via)

U10
MAX8770 QFN40 MAXIM LR

MAX8770VCC

C107

18

GND

IC

19

25

VCC

VDD

4

POWER 2/5 ADD

DCIN

C112

2.2uF 10V 0603 X5R TDK LR

PGND1

PGND2

R102 200K 1% 0402 LR

8

TON

2.2 1% 1/16W SMT0402 LR

30

BST1

29

DH1

28

LX1

26

DL1

27

(2 via)

POWER 2/5 ADD

R109

RES 3K 1% 1/16W SMT0402 LR

12

FB

C73
470pF 50V 0402 X7R LR

10

CCI

13

GNDS

17

CSP1

C104

16

CSN1

0.033uF 25V 10% SMT0603 X7R LR

0.033uF 25V 10% SMT0603 X7R LR

14

CSP2

C92

15

CSN2

C672 1000pF 50V 10% SMT0402 X7R LR(NU)

2.2 1% 1/16W SMT0402 LR

20

BST2

SGND_CPU

21

DH2

22

LX2

24

DL2

23

(2 via)

200 mil (10 via)200 mil (10 via)

40 mil (2 via)

(2 via)

10 mil (1 via)

40 mil (2 via)

R133

C111

0.22uF 10V 0603 X7R LR

POWER 4/29 MODIFY

POWER 4/29 MODIFY

1000pF 16V 0402 X7R LR(NU)
C78

R114 100 1% 0402 LR

R101 20K 1% 0402 LR

POWER 4/29 MODIFY

1000pF 16V 0402 X7R LR(NU)

SGND_CPU

C6711000pF 50V 10% SMT0402 X7R LR(NU)

POWER 4/29 MODIFY

40 mil (2 via)

R129

C82

R118 100 1% 0402 LR

POWER 2/5 ADD

CPU_CS+1

CPU_CS-1

CPU_CS+2
CPU_CS-2

C110

0.22uF 10V 0603 X7R LR

POWER 4/29 MODIFY

IC

DCIN_CPU

8 mil (1 via)
8 mil (1 via)

8 mil (1 via)
8 mil (1 via)

1
2

CPU_HG1
CPU_PH1

CPU_LG1

CPU_HG2
CPU_PH2

CPU_LG2

CN25

1
2

DCIN_CPU

40 mil (2 via)
40 mil (2 via)

60 mil (2 via)

SGND_CPU

SGND_CPU

40 mil (2 via)
40 mil (2 via)

60 mil (2 via)

near CPU input capacitor.

IC

3

C7150.1uF 25V 0603 Y5V LR(NU)
C7160.1uF 25V 0603 Y5V LR(NU)
C7170.1uF 25V 0603 Y5V LR(NU)

POWER 4/9 ADD

C7180.1uF 25V 0603 Y5V LR(NU)
C7190.1uF 25V 0603 Y5V LR(NU)
C7200.1uF 25V 0603 Y5V LR(NU)

C7214.7uF 25V 1206 X5R TDK LR(NU)

(12 via)

DCIN_CPU

(12 via)

VCCSENSE <7>
VSSSENSE <7>

DCIN_CPU VCORE_CPU

(12 via)

200 mil (10 via)

200 mil (10 via)

C7224.7uF 25V 1206 X5R TDK LR(NU)
C7234.7uF 25V 1206 X5R TDK LR(NU) R425
C7244.7uF 25V 1206 X5R TDK LR(NU)

Q16
AOL1426 30V 46A Ultra SO-8 AOS LR

8
7

S

D

6
5

5

C954.7uF 25V 1206 X5R TDK LR
C1064.7uF 25V 1206 X5R TDK LR
C1144.7uF 25V 1206 X5R TDK LR
C1094.7uF 25V 1206 X5R TDK LR
C1150.1uF 25V 0603 Y5V LR

CPU_HG2
CPU_PH2

CPU_LG2

18mil

7mil

18mil

C1134.7uF 25V 1206 X5R TDK LR
C1084.7uF 25V 1206 X5R TDK LR
C1054.7uF 25V 1206 X5R TDK LR
C934.7uF 25V 1206 X5R TDK LR

CPU_HG1
CPU_PH1

CPU_LG1

4

40 mil (2 via)
40 mil (2 via)

60 mil (2 via)

Q17
AOL1426 30V 46A Ultra SO-8 AOS LR

8
7

S

D

6
5

5

4

40 mil (2 via)
40 mil (2 via)

60 mil (2 via)

2

C408

2.2 5% 0805 LR

3
2
1

61

5

7

8

61

5

7

8

Q18
AO4456 30V 20A SO8 AOS LR

D

4

4

S

2

3

3
2
1

61

5

7

8

Q21
AO4456 30V 20A SO8 AOS LR

D

4

4

S

2

3

(40 via)

(40 via)

D31

Q19

AO4456 30V 20A SO8 AOS LR

D
S

2

3

R424

2.2 5% 0805 LR

61

5

7

8

Q20

D32

AO4456 30V 20A SO8 AOS LR

D
S

2

3

1000pF 50V 0402 X7R LR

40 mil (2 via)

INDUCTOR 0.36uH 20% 24A SMT11.5*10*4mm(Max) MMD-1004C-R36M MAG.LAYERS LR

4.7K 1% 1/10W SMT0603 LR

SS34A 40V 3A SMA PSI LR

40 mil (2 via)

INDUCTOR 0.36uH 20% 24A SMT11.5*10*4mm(Max) MMD-1004C-R36M MAG.LAYERS LR

4.7K 1% 1/10W SMT0603 LR

SS34A 40V 3A SMA PSI LR

L7

R140

R141

10K 1% 1/10W SMT0603 LR

CPU_CS+2
CPU_CS-2

C407
1000pF 50V 0402 X7R LR

L6

R142

R146

10K 1% 1/10W SMT0603 LR

DCR = ?

∮

R143
10K 5% 0603 NTC PANA LR

8 mil (1 via)

DCR = ?

∮

R147
10K 5% 0603 NTC PANA LR

8 mil (1 via)

1

(2 via)

POWER 2/5 ADD

800 mil (40 via)

C414

C143

P-CAP (SP-CAP) 220uF 2V -35 to +10% 9m SMT7343 EEFSX0D221EY PANASONIC LR

P-CAP (SP-CAP) 220uF 2V -35 to +10% 9m SMT7343 EEFSX0D221EY PANASONIC LR

+

+

(6 via)

(6 via)

(2 via)

POWER 2/5 ADD

800 mil (40 via)

C264

C263

P-CAP (SP-CAP) 220uF 2V -35 to +10% 9m SMT7343 EEFSX0D221EY PANASONIC LR

P-CAP (SP-CAP) 220uF 2V -35 to +10% 9m SMT7343 EEFSX0D221EY PANASONIC LR

+

+

(6 via)

(6 via)

C142

P-CAP (SP-CAP) 220uF 2V -35 to +10% 9m SMT7343 EEFSX0D221EY PANASONIC LR

+

(6 via)

C265

P-CAP (SP-CAP) 220uF 2V -35 to +10% 9m SMT7343 EEFSX0D221EY PANASONIC LR

+

(6 via)

VCORE_CPU

CPU_CS+1
CPU_CS-1

A A

5VDDM

5VDDM<15,20,21,26,32..35,37,44,46,47,49>

DCIN

DCIN<24,42,44..47,49>

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..40,44,46,47,49>

5

4

3

VCORE_CPU<7>

2

Title

Size Document Number Rev

3VDDM
VCORE_CPU

C

Date: Sheet of

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

CPU Core Power

1

48 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

D0

D4Voltage

D3 D2 D1

0 00Cantiga-VGA 1

0

1.08150V

Cantiga-VGA 0 10

AGND_GPU

D D

C C

IC

B B

PM_SLP_S3#<20,22,27,40,44..47>
AGND_GPU
AGND_GPU

PM_SLP_S3#<20,22,27,40,44..47>
AGND_GPU

DFGT_VID_4<10>
DFGT_VID_3<10>
DFGT_VID_2<10>
DFGT_VID_1<10>
DFGT_VID_0<10>

EN_MAX8797

PM_DPRSLPVR<10,20,48>

GFX_SLEWRATE=10mV/us

AGND_GPU

VCC_MAX8797
VT_MAX8797

1

R256 10K 5% 0402 LR

R254 10K 5% 0402 LR
R253 10K 5% 0402 LR
R252 10K 5% 0402 LR

R248 10K 5% 0402 LR
R251 10K 5% 0402 LR(NU)

POWER 2/5 ADD

3VDDM

VGA_PG

3VDDM

DFGT_VR_EN<10>

PM_SLP_S3#<20,22,27,40,44..47>

EN_MAX8797

AGND_GPU

R492

86.6K 1% 0402 LR

R247
0 5% 0402 LR
R249
0 5% 0402 LR(NU)

VCC_MAX8797

01.05575V

5VDDM

R476 10K 5% 0402 LR

R506 0 5% 0402 LR(NU)
R501 0 5% 0402 LR(NU)
R496 0 5% 0402 LR(NU)
R495 0 5% 0402 LR(NU)
R489 0 5% 0402 LR(NU)

0.1uF 10V 0402 X5R LR(NU)
C493

R481

4.7K 5% 0402 LR
R245

4.7K 5% 0402 LR(NU)
R246

4.7K 5% 0402 LR(NU)
R504 0 5% 0402 LR

R473 499 1% 1/16W SMT0402 LR

C273 100pF 50V 0402 NPO LR

VT_MAX8797

(2 via) (4 via)

R472
SHW 0 5% 0402

D4

D3
D2
D1

D0

RES 10 5% 1/16W SMT0402 LR

AGND_GPU

(2 via)

R482

2.74K 1% 0402 LR

JP_0603_SHORT

1 2

R243

C494
1uF 6.3V 0402 X5R LR

EN_MAX8797

AGND_GPU

R477

VCC_MAX8797

9

PWRGD

D4

15

D4

D3

14

D3

D2

13

D2

D1

12

D1

D0

11

D0

10

SHDN

16

STDBY

6

DPRSLPVR

28

CCV

25

TIME

26

ILIM

23

GND

29

EP

7

THRM

24

VRHOT

1

POUT

U25
MAX8797 TQFN28 MAXIM LR

4

3

NB VGA VDD (Cantiga VGA)

DCIN

For EMI

8

20

BST

21

LX

22

DH

18

DL

17

5

4

3

2

POWER 2/5 ADD

5VDDM

(2 via)

10 mil (1 via)

R475
200K 1% 0402 LR

40 mil (2 via)

0.22uF 10V 0603 X7R LR

0 0402 LR

C513

R505

(2 via)

C489

0.1uF 16V 0402 X5R LR

R474

R244

0 5% 0402 LR

0 5% 0402 LR

Load line setting:
Cantiga VGA = 11.75K
Discrete VGA = 0

Current setting: Discrete VGA

IC

DCIN_VGA

PH_VGA
HG_VGA
LG_VGA

CS+_VGA

CS-_VGA

4700pF 25V 0402 X7R LR
C270

R470
10 1% 0402 LR

R471
10 1% 0402 LR

C269
4700pF 25V 0402 X7R LR

IC

40 mil (2 via)40 mil (2 via)

C514
1uF 6.3V 0402 X5R LR

27

19

VCC

VDD

RTON

PGND

CSP

CSN

FBS

GNDS

80 mil (4 via) 80 mil (4 via)

C685

C686

C684

MO-CAP 0.1uF 25V 10% SMT0603 X7R LR (NU)

MO-CAP 0.1uF 25V 10% SMT0603 X7R LR

MO-CAP 0.1uF 25V 10% SMT0603 X7R LR (NU)

IC

40 mil (2 via)
40 mil (2 via)
40 mil (2 via)

8 mil (1 via)

8 mil (1 via)

AGND_GPU

AGND_GPU

C687

MO-CAP 0.1uF 25V 10% SMT0603 X7R LR

Current setting: Discrete VGA voltage sense

R240 10 1% 0402 LR
R239 10 1% 0402 LR

R468 0 5% 0402 LR(NU)
R469 0 5% 0402 LR(NU)

DCIN_VGA

HG_VGA
PH_VGA

LG_VGA

8 mil (1 via)
8 mil (1 via)

8 mil (1 via)
8 mil (1 via)

40 mil (2 via)
40 mil (2 via)

40 mil (2 via)

80 mil (4 via)

DCIN_VGA

Local voltage sense

VS_VGA

Cantiga VGA voltage sense

VCC_AXG_SENSE <12>
VSS_AXG_SENSE <12>

Noise
Sensitivity

C491 4.7uF 25V 1206 X5R TDK LR
C492 4.7uF 25V 1206 X5R TDK LR
C272 4.7uF 25V 1206 X5R TDK LR
C271 0.1uF 25V 0603 Y5V LR

Q30
AOL1426 30V 46A USO8 AOS LR

R508

567

8

2.2 5% 0805 LR

D

4

S

40 mil (2 via)

152

3

Q31

61

5

7

8

D38

RDS(ON)=5.6m

AO4456 30V 20A SO8 AOS LR

SS14 40V 1A SMA PSI LR

D

4

S

2

3

(24 via)

CS+_VGA

8 mil (1 via)

CS-_VGA

15 mil (1 via)

VS_VGA

8 mil (1 via)

2

(9 via)

C515
1000pF 50V 0402 X7R LR

(2 via)

DCR = 10m(MAX)

L23

INDUCTOR 1uH 20% 12.5A SMT7.3(Max)*6.5*3mm(Max) MMD-0603D-1R0M MAG.LAYERS LR

1 2

R242
10K 1% 0402 LR

R238

1.1K 1% 0402 LR

480 mil (24 via) 480 mil (24 via)

C267

C274

C268

0.1uF 10V 0402 X5R LR

220uF 2V 9m 7343 PANA LR

+

+

R241
0 5% 0402 LR

P-CAP 220uF 6.3V 20% SMT 6.3 H=5.7mm ESR=13m PXC6.3VC220MF60 NCC LR

Noise
Sensitivity

(12 via)

1

For EMI

NB_VGA_VDD

C688

C689

0.1uF 10V 0402 X5R LR

0.1uF 10V 0402 X5R LR

A A

POWER 2/5 ADD

NB_VGA_VDD<12>

5

4

3

2

NB_VGA_VDD

3VDDM

3VDDM<6,8,10,13,15..22,24,25,27,28,33,36..40,44,46..48>

5VDDM

5VDDM<15,20,21,26,32..35,37,44,46..48>
DCIN<24,42,44..48>
3VDDA<15,18,20..22,24,27..29,34,38..40,42,44,45>

Title

DCIN

Size Document Number Rev

3VDDA

C

Date: Sheet of

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(883-2)8751-8751

MY070>Penryn+Candiga GM45+ICH9M

VDD CORE

1

49 56Thursday, May 29, 2008

0.5

5

4

3

2

1

Audio board placement diagram

H/P

MIC-in

A_CN3

D D

Line-in

A_CN1A_CN2

MIC IN

Surround OUT

0 5% 1/10W SMT0603 LR

A_R1

A_CN2

CON SINGATRON 2SJ-S351-015 DIP PHONE JACK 6PIN BLACK LR

FOR AZALIA
2 AND 6 N.C

C C

4 AND 5 N.O

Center OUT

A_CN1

B B

CON SINGATRON 2SJ-S351-015 DIP PHONE JACK 6PIN BLACK LR

9

SHELL

10

SHELL

1

1

2

2

6

6

3

3

4

4

5

5

LINE IN

9

SHELL

10

SHELL

1

1

2

2

6

6

3

3

4

4

5

5

FCM1608K-601T02(NU)

A_L5

A_MIC1_JD

A_R4
0 5% 1/10W SMT0603 LR

A_AGND A_AGND

0 5% 1/10W SMT0603 LR

A_R2

100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR(NU)

A_L1

A_R3
0 5% 1/10W SMT0603 LR

A_AGND A_AGND

A_AGND

Close to LINE-IN-CNN

100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR

A_AGND

A_C4
100pF 50V 5% SMT0402 NPO LR

A_AGND

100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR

A_C3
100pF 50V 5% SMT0402 NPO LR

Close to LINE-IN-CNN

100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR

A_AGND

A_C2
100pF 50V 5% SMT0402 NPO LR(NU)

A_L2
A_L3

100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR

A_C1
100pF 50V 5% SMT0402 NPO LR(NU)

NOTE
MIC1IN,MIC2IN, MIC_JD,

20080212 Change
the order of A_CN*
to meet the spec

A_L4

A_MIC1_L

A_L6

A_MIC1_R
A_MIC1_JD

A_LINE_L
A_LINE_R
A_LINE_JD

叫

AGROUND

HEADPHONE OUT/LINE OUT/SPDIF OUT

Front OUT

A_HPDET

A_AGND

A_HP_OUT_L

A_HP_OUT_R

A_SPDIFO1

NOTE

HP_L,HP_R

A_L9 100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR

A_L10 100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR

SPDIF_VCC

A_L8 100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR

100pF 50V 5% SMT0402 NPO LR(NU)

100pF 50V 5% SMT0402 NPO LR(NU)

叫

AGROUND

A_HPDET
A_HP_OUT_L
A_HP_OUT_R

A_LINE_JD
A_LINE_L
A_LINE_R

A_C8

A_AGND

A_AGND

A_C7

A_C5

0.1uF 10V 10% SMT0402 X5R LR(NU)

A_AGND

AUDIO CNN

A_CN4

1

2

1

2

3

4

3

4

5

6

5

6

7

8

7

8

9

10

9

10

11

12

11

12

13

14

13

14

15

16

15

16

17

18

17

18

19

20

19

20

21

22

21

22

23

24

23

24

CON ACES 88028-24XXX SMD 24PIN P=0.8 BTB LR

20-25284-00

A_CN3

A_R5
0 5% 1/10W SMT0603 LR

CON SINGATRON 2SJ-A373-H01 DIP SPDIF WITH IC 10PIN BLACK LR

1000pF 50V 10% SMT0402 X7R 0402B102K500CT WALSIN Lead-Free(NU)

A_C6

A_L7
100MHz 600 SMT0603 FCM1608KF-601T02 TAI-TECH LR(NU)

A_5VDDM

A_MIC1_JD
A_SPDIFO1

A_MIC1_L
A_MIC1_R

A_AGND

5
4

MS1

MS

3

2
1

A
B

C

A_R6
0 5% 1/10W SMT0603 LR

A_AGND

A_5VDDM SPDIF_VCC

A A

MIC
CNN

5

R18

L10

AGND

MAGND

M_CAS EGND

R2

A_R7

SHW 0 5% 1/16W 0402

SPWR 0 5% 1/8W 0805

A_R8

A_AGND

4

A_M3 HOLE-P8_0D2_8

1

A_M2 HOLE-P8_0D2_8

3

A_M1 HOLE-P8_0D2_7

1

1

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

2

Date: Sheet of

(886-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

HP OUT / MIC IN / LINE IN

1

50 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

4

3

2

1

Hot Key board placement diagram

D D

SW_SW1 SW_SW2 SW_SW3

DVDSilent Internet

Internet SWSILENT SW DVD Play SW

SW_Y1 SW_Y0

C C

SW_SW3

A C

1 3

1 2

G1 G2

B D

2 4

SWITCH REEL SMT 4PIN 1BT002-0120L Foxconn LR

SW_GND_POWER

SW_X6

SW_GND_POWER

SW_SW2

A C

1 3

1 2

G1 G2

B D

2 4

SWITCH REEL SMT 4PIN 1BT002-0120L Foxconn LR

SW_GND_POWER

SW_X6

SW_GND_POWER

SW_SW1

SW_Y2

A C

1 3

1 2

G1 G2

B D

2 4

SWITCH REEL SMT 4PIN 1BT002-0120L Foxconn LR

SW_GND_POWERSW_GND_POWER

SW_X6

HotKey switch board con

SW_CN1

SW_Y0
SW_Y1
SW_Y2
SW_X6

SW_GND_POWER

B B

1

1

2

2

3

3

4

9

4

9

5

10

5

10

6

6

7

7

8

8

CON ACES 88512-0801 SMD 8PIN P=0.5 FFC LR

20-25586-00

SW_GND_POWER

1

12132

1

13

2

12

3
4
5

3

4

5

678

678

11

11

10

10

9

9

S_M2

SCREW-P6_0D2_2

SW_GND_POWER

1

12132

1

13

2

12

3
4
5

3

4

5

678

678

11

11

10

10

9

9

S_M1

SCREW-P6_0D2_2

A A

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

5

4

3

2

Date: Sheet of

(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Hot Key switch board

Confidential

1

51 56Thursday, May 29, 2008

0.5

5

4

3

2

1

LED board placement diagram

D D

Power

L_D3

Battery

L_D2L_D1
WLAN

20080205 change the LED sequence

LED indicator control logic

Power Status LED

C C

L_LED_G

B B

A A

5

L_3VDDA

L_R4
RES 75 5% 1/16W SMT 0402 LR

L_D1

LED BLUE p=470nm SMT0603 HT-191NB5 HARVATEK LR

- +

L_Q2

B

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

E C

L_3VDDA
L_5VDDA
L_PMU5V

L_3VDDM

4

Battery Status LED

RES 100 5% 1/16W SMT0402 LR

L_CHGLED

L_LED_A

LED Board CON

L_LED_G
L_CHGLED

L_LED_A

L_RF_ON#

L_3VDDA

L_PMU5V

L_R3

1 2

B

E C

B

L_CN1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

20-25600-00

CON ACES 88512-1001 SMD 10PIN P=0.5 EASY ON FFC LR

L_R2
RES 100 5% 1/16W SMT0402 LR

direction

43

changed

L_D3

LED Amber/Blue SMT0603 p=609/468nm HT-297UD/CB HARVATEK LR

L_Q4
PDTC144EU SOT-323 PHILIPS LR

L_Q3
PDTC144EU SOT-323 PHILIPS LR

E C

11

GND

12

GND

L_M1 HOLE-P6_0B8_0D2_7

3

1

WLAN Status LED

L_3VDDM

L_R1
RES 100 5% 1/16W SMT0402 LR

L_D2

LED BLUE p=470nm SMT0603 HT-191NB5 HARVATEK LR

- +

L_RF_ON#

2

L_Q1

B

PDTC144EU SOT-323 PHILIPS LR

E C

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

LED Board

1

Confidential

52 56Thursday, May 29, 2008

0.5

5

[e-mail]
GRATUITO - FOR FREE

D D

C C

4

PW_3VDDA

PW_LED_G

PW_POWSW#

3

PW_LED_G

PW_POWSW#

PW_CN1

1

1

2

2

3

3

4

4

20-25530-00

CON ACES 88502-0441 SMD 4Pin P=1.0 H=2.2 NON LR

2

1

PW_POWSW#

PW_POWSW#

PW_SW1

A C

1 3

1 2

G1 G2

B D

2 4

SWITCH REEL SMT 4PIN 1BT002-0120L Foxconn LR

PW_3VDDA

PW_3VDDA

B B

PW_M2 HOLE-P6_0D2_21PW_M1 HOLE-P6_0D2_2

1

A A

5

4

PW_R1

75 1% 1/16W SMT0402 LR

PW_LED_G

PW_R2

75 1% 1/16W SMT0402 LR

PW_LED_G

3

PW_D1

-+

LED WHITE 2PIN SMT1.6*0.8*0.6mm HT-S91BP HARVATEK LR

PW_LED_G

LED WHITE 2PIN SMT1.6*0.8*0.6mm HT-S91BP HARVATEK LR

PW_LED_G

PW_Q1

B

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

E C

PW_D2

-+

PW_Q2

B

TRANS NPN RT1N441M-T111-1 50V 100mA SC-70 3PIN IDC LR

E C

First International Computer, Inc.

3FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

2

Date: Sheet of

(883-2)8751-8751

MY070>Penryn+Cantiga GM45+ICH9M

Power Board

1

Confidential

53 56Thursday, May 29, 2008

0.5

1

A A

2

3

4

5

6

7

8

3
4

100 Mil

U_L4

3
4

11
10

10

9

100 Mil

U_L2

5 MLB-201209-0120P-N2 MAG.LAYERS LR

5 MLB-201209-0120P-N2 MAG.LAYERS LR

1

1

13

2

3

3

4

4

5

5

678

678

10pF 50V 5% SMT0402 NPO LR(NU)

10pF 50V 5% SMT0402 NPO LR(NU)

12132

12

11

11

10

10

9

9

U_M6
SCREW HOLE

50MIL

U_CN2

1

U_C1

U_C2
10pF 50V 5% SMT0402 NPO LR(NU)

1

2

2

3

3

4

4

7 8

5 6

20-25589-00

7 8

5 6

CON OCTEK USB-04RB4G DIP USB 4PIN BLACK LR

50MIL

U_CN3

1

19
17
15
13
11

9
7
5
3
1

20-25206-00

19
17
15
13
11
9
7
5
3
1

U_CN1

1

2

2

3

3

4

4

7 8

5 6

20-25589-00

7 8

5 6

CON OCTEK USB-04RB4G DIP USB 4PIN BLACK LR

U_5VDDA

21

22

20

20

21

22

18

18

16

16

14

14

12

12

10

10

8

8

6

6

4

4

2

2

U_C4

U_C5
10pF 50V 5% SMT0402 NPO LR(NU)

U_USB_PP2

U_USB_PN2

U_USB_PN3

U_USB_PP3

CON ACES 88107-20001 SMD 20 PIN P=1.0 RIGHT ANGLE LR

U_5VDDA

U_USB_PN3

U_USB_PP3

B B

100 Mil

2A 8V SMT1812 miniSMDC200F RAYCHEM LR
U_C6

10uF 10V +80-20% SMT 0805 Y5V LR

+

U_F1

U_5VDDA_USB

1 2

U_C3
T100uF 10V 20% SMT73∮43 ESR=0.7 T491D107M010AT KEMET LR (NU)

CLOSE USB PORT

CHOKE COMMON-MODE 90 @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK

U_5VDDA_USB

12025% 100MHz 3A SMT080

∮

U_L1

2
1

12025% 100MHz 3A SMT080

∮

CLOSE USB PORT

U_L3

U_USB_PN2

U_USB_PP2

C C

HOLE-P8_0D2_7

U_M5

1

HOLE-P8_0D2_7

U_M4

1

NUT-P8_0B4_5D4_0

U_M8

1

NUT-P8_0B4_5D4_0

U_M7

1

HOLE-P8_0D5_7

U_M1

1

CHOKE COMMON-MODE 90 @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK

HOLE-P8_0D2_9

U_M2

1

2
1

1

12132

1

13

2

12

3

3

11

4

4

5

5

9

678

678

U_M3
SCREW HOLE

U_FMK3

U_FMK4

FMASK

D D

1

2

FMASK

1

1

3

U_FMK1
FMASK

U_FMK2
FMASK

1

1

Title

Size Document Number Rev

C

4

5

6

Date: Sheet of

7

First International Computer, Inc.

2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751

Confidential

MY070>Penryn+Cantiga GM45+ICH9M

USB Port CNN

54 56Thursday, May 29, 2008

8

0.5

8

[e-mail]
GRATUITO - FOR FREE

D D

C C

7

GPSWR GPSWL

GPSWR GPSWL

GP_SW1

A C

1 3

1 2

G1 G2

B D

2 4

SWITCH REEL SMT 4PIN 1BT002-0120L Foxconn LR

6

5

GP_SW2

A C

1 3

1 2

G1 G2

B D

2 4

SWITCH REEL SMT 4PIN 1BT002-0120L Foxconn LR

4

GP_CON ACES 88502-0441 SMD 4Pin P=1.0 H=2.2 NON LR

GPSWR
GPSWL

3

GP_CN1

1

1

2

2

3

3

4

4

20-25530-00

2

1

V0.2 Modify for 18"

HOLE-P6_0D2_2

GP_M1

B B

A A

8

7

1

6

HOLE-P6_0D2_2

GP_M2

1

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

5

4

3

Date: Sheet of

2

(886-2)8751-8751

XY670>Penryn+Candiga GM45+ICH9M

<GP CNN/ PW_SW>

1

Confidential

55 56Thursday, May 29, 2008

0.5

8

D D

C C

7

6

5

4

3

2

1

SATA ODD CN

MALE FEMALE

ODD_CN1

S1

1

GND1

14

15

16

B B

HOLE-P8_0D2_7

ODD_M2

1

A A

8

7

2

TXP

14

3

TXN

4

GND2

5

RXN

6

RXP

7

GND3

S7

15

P1

8

DP

9

+5V_1

10

+5V_2

11

MD

12

GND4

16

13

GND5

P6

CON ALLTOP C18601-11305 SMD ODD SATA MALE 13PIN REV LR

HOLE-P8_0D2_7

ODD_M1

1

6

5

ODD_TXP4
ODD_TXN4

ODD_RXN4
ODD_RXP4

ODD_DP
ODD_+5V

ODD_MD

4

SATA ODD CN

ODD_CN2

S1

1

GND1

2

TXP

3

14

TXN

14

4

GND2

5

RXN

6

RXP

7

GND3

S7
P1

8

DP

9

+5V_1

10

+5V_2

11
12
13

15

MD

15
GND4
GND5

P6

CON SERIAL-ATA-F GOLD FLASH DIP H=3.75mm CENTER=2.0mm 7+6 PIN 90 FOR ODD C18565-11305-L ALLTOP LR

3

ODD_+5V

ODD_C1 0.1u_16V_Y5V_0402 /N
ODD_C2 0.1u_16V_Y5V_0402 /N
ODD_C3 0.1u_16V_Y5V_0402 /N
ODD_C4 10u_10V_Y5V_0805 /N
ODD_C5 10u_10V_Y5V_0805 /N

First International Computer, Inc.

5FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC

Title

Size Document Number Rev

C

Date: Sheet of

2

(886-2)8751-8751

XY670>Penryn+Candiga GM45+ICH9M

<SATA ODD connector>

Confidential

56 56Thursday, May 29, 2008

1

0.5
