First International Computer,Inc
D D
Portable Computer Group HW Department
Board name : Mother Board Schematic
Project : MR053+
C C
Version : 0.1
Date : 01-12-2007
1. Schematic Page Description :
2. PCI & IRQ & DMA Description :
3. Block Diagram :
4. Nat name Description :
5. Board Stack up Description :
6. Schematic modify Item and History :
7. power on & off & S3 Sequence :
8. Layout Guideline :
9. switch setting
B B
Manager Sign by : JOE
A A
Drawing by :Tom & Vicky
5
4
Title
Size Document Number Rev
C
3
2
Date: Sheet of
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Title
1
Total confirm by : AVERY
1 54Monday, February 12, 2007
A
8
www.bufanxiu.com
7
6
1. Schematic Page Description :
MR052 Schematic Ver :A
5
4
3
2
1
D D
1. Title
2. Schematic Page DESCR
3. Block Diagram
4. ANNOTATIONS
5. Schematic Modify
6. Timing Diagram

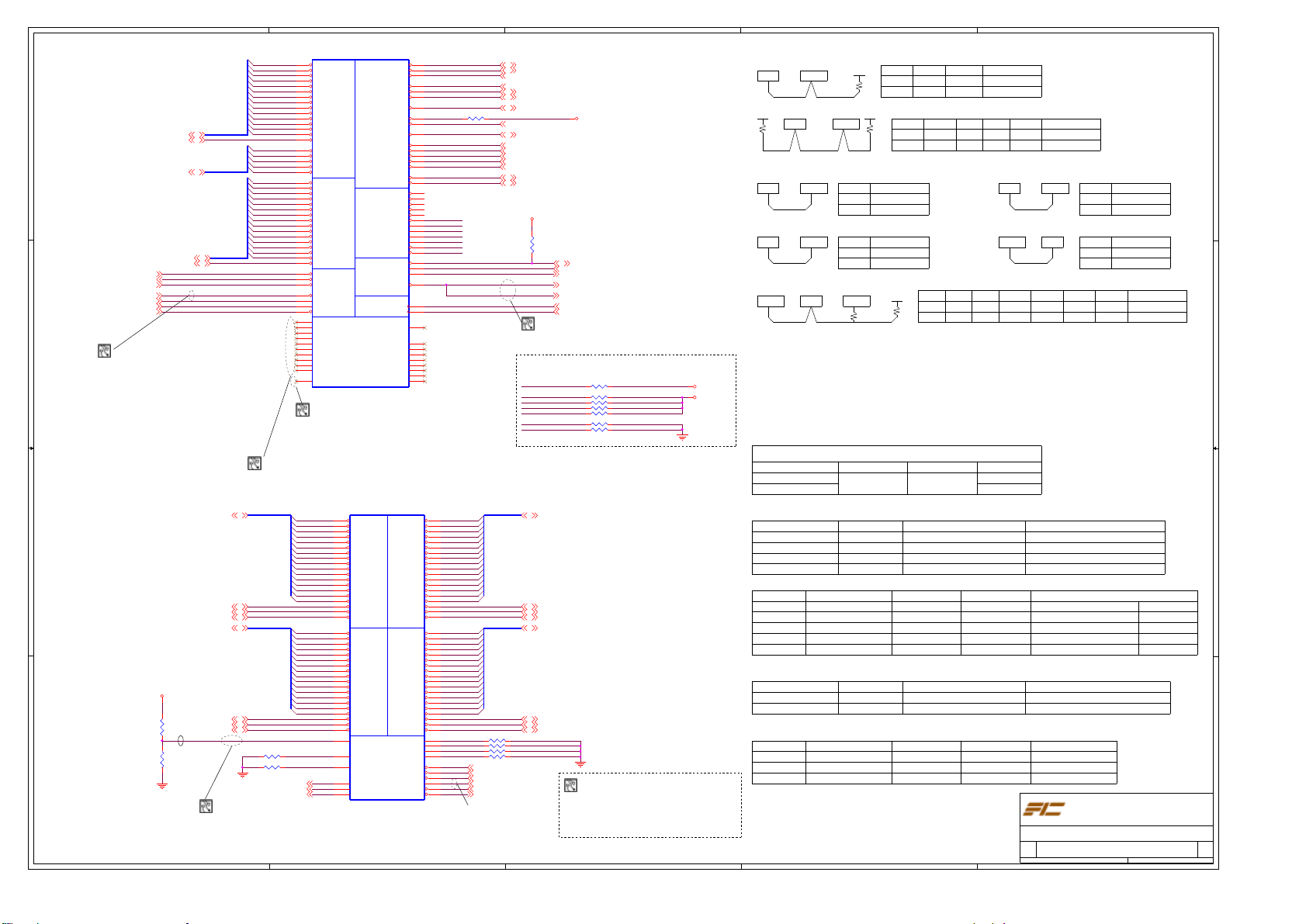

7. DDRII Layout Guideline
8. Yonah Processor(1/2)

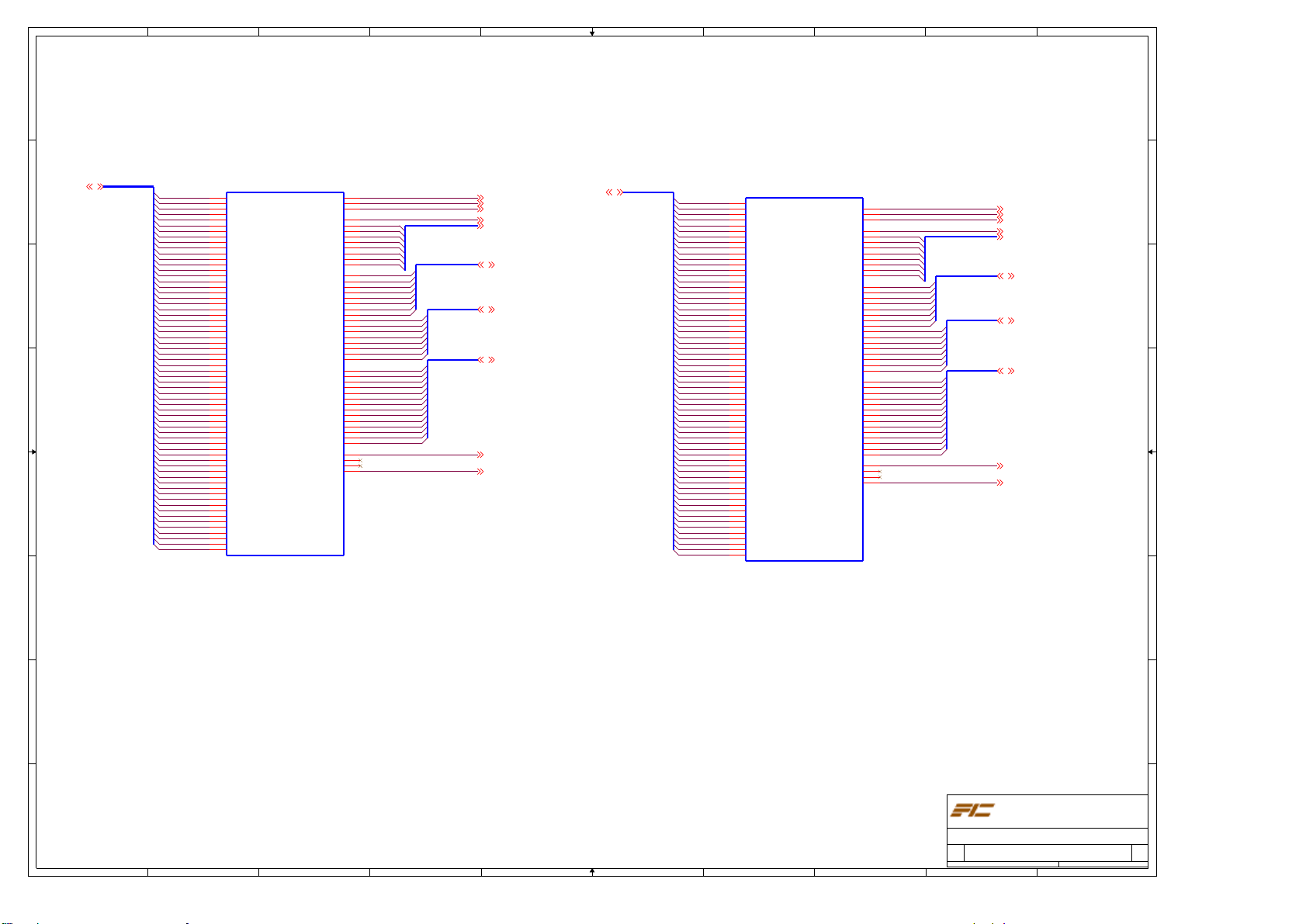

9. Yonah Processor(2/2)
10. CPU Core Power
11. CPU Thermal

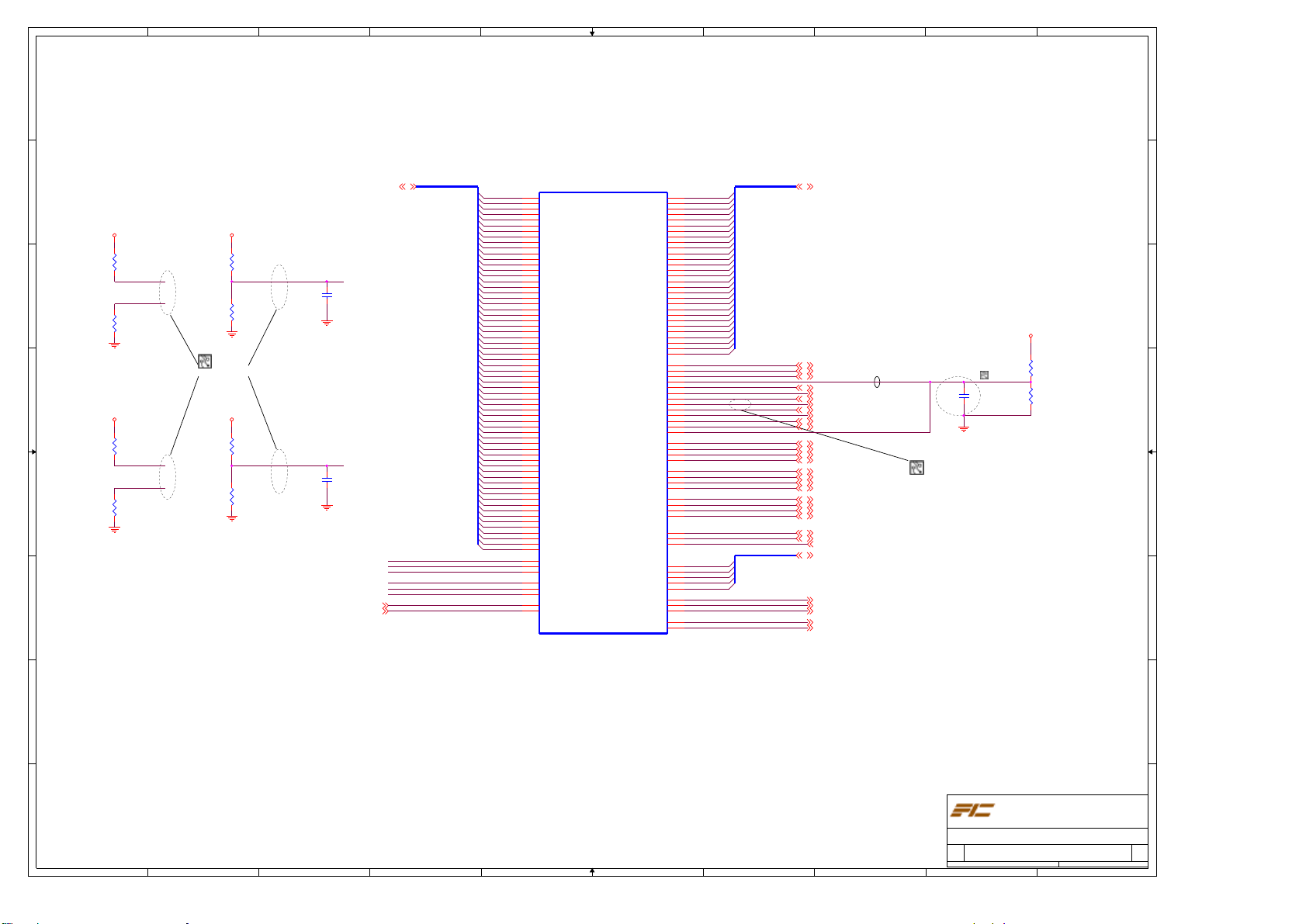

12. Calistoga Host(1/6)
13. Calistoga DMI/Graph(2/6)
C C
14. Calistoga DDRII(3/6)
15. Calistoga Power(4/6)
16. Calistoga Power(5/6)
17. Calistoga Ground(6/6)
18. Clock Generator
19. DDRII SDRAM SO-DIMM0
20. DDRII SDRAM SO-DIMM1
21. ICH7m PCI/PCIE/DMI(1/4)
22. ICH7m CPU/IDE/SATA(2/4)
B B
2. PCI & IRQ & DMA Description :
23. ICH7m GPIO(3/4)
24. ICH7m Power/GND(4/4)
25. MXM_II CNN
26. LCD CNN
27. CRT & TV PORT
28. NEW & PCIE MINI CARD
29. RC832 PCI/Other
30. RC832 1394/CardReader
31.BLANK
32. Azalia CODEC(ALC260)
33. AUDIO AMP & SPEAKER
34. Headphone & SPDIF
35. SATA & CD ROM CNN
36. BCM4401 10/100 LAN
37. USB CNN ON-BRD
38. MDC & LED Indicator
39. Reset Circuit
40. FWH & SMBus
41. KBC KB3882 & GP CN
42. DIP/LID SW; SCREW
43. PMU08
44. BLANK
45. ADIN & DCIN
46. Adaptor in &Battery CNN
47. Power (3VDDS/M,5VDDS/M)
48. NB 1.05VDDM/1.5VDDM
49. DDRII 1.8VDDS

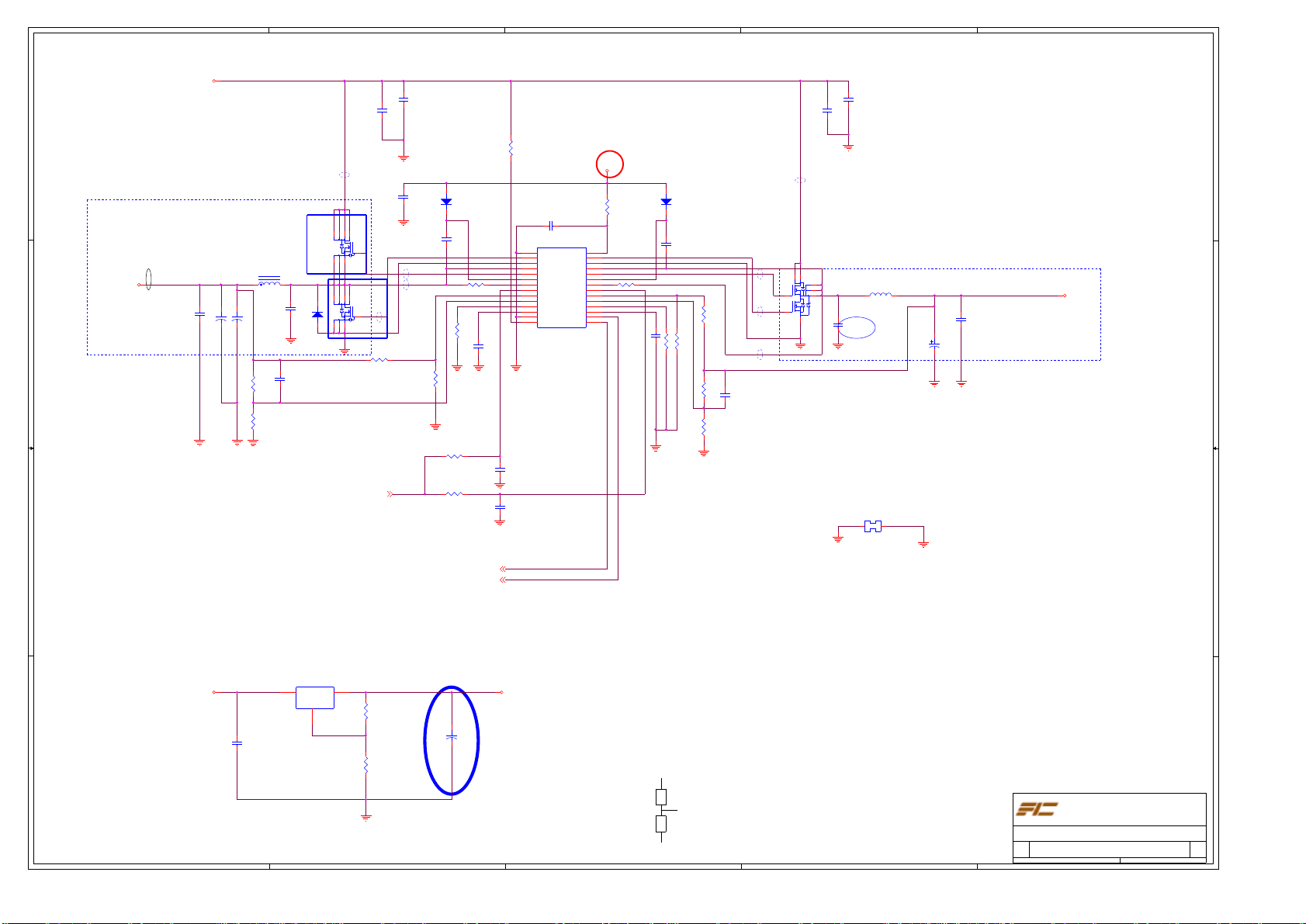

50. Charger Circuit
51. Power (3VDDA/5VDDA)
52. BLANK
53. AUDIO BOARD
54. Switch Xfer board
IDSEL
AD17
AD27 CardBus (RC832)
AD29 Lan (BCM4401)
IRQA
IRQB
IRQC
IRQD
BUSMASTER
A A
REQ
REQ0 / GNT0
REQ1 / GNT1
REQ2 / GNT2
REQ3 / GNT3
REQ4 / GNT4
CHIP
Mini PCI (Wireless LAN)
CHIPPCIINT
CardBus (RC832)/Lan (BCM4401)
CardBus (RC832)/Mini PCI
CardBus (RC832)/Mini PCI
CHIP
Lan (BCM4401)
CardBus (RC832)
Mini PCI (Wireless LAN)
8
DMA Channel
IRQ0
IRQ1
IRQ2
IRQ3
IRQ4
IRQ5
IRQ6
IRQ7
IRQ8
IRQ9
IRQ10
IRQ11
IRQ12
IRQ13
IRQ14
IRQ15
7
System timer
Keyboard
(Casacde)
LAN / MODEM
Serial Port
AUDIO / VGA / USB
FLOPPY DISK
LPT
RTC
ACPI
(Disable by default)
FIR
Cardbus
PS/2 mouse
FPU
HDD
CDROM
6
(MODEM/LAN)
5
DMA0 FIR
DMA1
DMA2
DMA3
DMA4
DMA5
DMA6
DMA7
DeviceIRQ Channel Desciption
(disable by default)
ECP
FLOPPY DISK
AUDIO
(Cascade)
Unused
Unused
Unused
4
(MODEM / LAN)
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
3
Date: Sheet of
2
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Schematic Page DESCR
1
2 54Monday, February 12, 2007
A
8
www.bufanxiu.com
7
3. Block Diagram :
6
5
4
3
2
1
D D
Thermal
Sensor
S-Video
Port
CRT
C C
LCD
ACIN / DCIN
PMU3V/5V
3VDDA/5VDDA
B B
3VDDS/5VDDS
3VDDM/5VDDM
DDRII Power
1.5VDDM/1.05VDDM
OVP
DCIN+
Battery Voltage Sense
A A
Battery Charger
Battery CON
8
P27
P27
P26
P56
P56
P56
P52
P45
USB2,3 USB0,1
P47
P51
P51
P47
P49
P48
P49
7
P37
HDD
P11
USB 2.0
P53
SATA BUS
P35
Lan10/100M
BCM4401
RJ-45
6
P36
P36
Ieee1394/CardReader
Intel
Yonah
Processor
Intel
Calistoga/
945GM
Intel
ICH7m
Cardbus
RC832
Host Bus
P12~P17
DMI
P21~24
32Bit PCI BUS
P29~30
5
P8~9
Mem_A Bus
Mem_B Bus
PATA BUS
PCI-E
Azalia
LPC BUS
Flash ROM
4M
P30
CPU
CORE
CPU
VCCP
DDRII SODIMM0
DDRII SODIMM1
CDROM
KB Controller
P40
KB38827
Int. KB
4
P10
P54
P19
P20
P35
P41
Glide Pad
P41 P41
3
CLK ICS954226
Reset Circuit
Leakage Protect
Brightness Control
NEW CARD
P28
P38
EC PMU08
P43
P18
P43
P44
P26
Mic In
2
RTC Bat
Fan CNN
Lid Switch
Switch Board/LED/DIP SW
MAIN SW CNN
MINI CARD
P28
P22
P11
P42
P54
P28
Azalia CodecMDC CNN
ALC260
P32
Audio AMP
MAX9750
P53
Headphone
SPDIF Out
P37
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
MR052< Yonah+Calistoga+ICH7M>
Block Diagram
P34
1
P33
3 54Monday, February 12, 2007
A
8
www.bufanxiu.com
7
6
5
4
3
2
1
4. Nat name Description :
Voltage Rails
DCIN
PMU5V 5.0V always on power rail by LATCH or ACIN
D D
PMU3V 3.3V always on power rail by LATCH or ACIN
3VDDA 3.3V always on power rail by DCON
3VDDS 3.3V power rail by PSUSC#
5VDDS 5.0V power rail by PSUSC#
3VDDM
VCC_CORE
1.05VDDM
1.5VDDM
1.8VDDS
0.9VDDT_DDRII
Part Naming Conventions
C
=
Capacitor
CN
C C
D
F
L
Q
R
RP
U
Y
Connector
=
Diode
=
Fuse
=
Inductor
=
Transistor
=
Resistor
=
Resistor Pack
=
Arbitrary Logic Device
=
Crystal and Osc
=
Primary DC system power supply
5.0V always on power rail by DCON5VDDA
3.3V switched power rail by SUSTAT_B#
5.0V switched power rail by SUSTAT_B#5VDDM
Core Voltage for CPU
1.05V power rail for AGTL+ termination/Core for GMCH by SUSTAT_B#
1.5V power rail for CPU PLL/DMI;PCIE;DDRII DLLs for GMCH/Core;PCIE
for ICH7m by SUSTAT_B#
1.8V power rail for DDRII by PSUSC#
0.9V DDRII Termination Voltage by SUSTAT_B#
Power Rail
VCC_CORE
1.05VDDM
1.5VDDM
1.8VDDS:
0.9VDDT_DDRII: DDRII Terminator:
2.5VDDM
3VDDM
Net Name Suffix
# =
B B
5. Board Stack up Description
Active Low signal
3VDDS CardBus: TI PCI7411
PCB Layers
L 1
Component Side, Microstrip signal Layer
L 2 Power Plane
L 3
L 4
L 5
L 6
Host Clock
SRC Clock
Host Bus
DDR2 CLK
DDR2 Strobe
A A
DDR2 Bus
DMI Bus
PCIE Bus
SATA
SDVO
LVDS
USB
IEEE1394
Lan
Single End Impedance Differential Impedance for Microstrip Differential Impedance for Stripline
55 ohm +/- 15%
55 ohm +/- 15%
42 ohm +/- 15%
55 ohm +/- 15%
55 ohm +/- 15%
55 ohm +/- 15%
55 ohm +/- 15%
55 ohm +/- 15%
50 ohm +/- 15%
8
Stripline Layer(AGTL,CLOCK,DDR)
Stripline Layer(Analog,LVDS,other)
Ground Plane
Solder Side,Microstrip signal Layer
95 ohm +/- 15% 100 ohm +/- 15%
95 ohm +/- 15% 100 ohm +/- 15%55 ohm +/- 15%
70 ohm +/- 20% 70 ohm +/- 20%
95 ohm +/- 15% 100 ohm +/- 15%
95 ohm +/- 15% 100 ohm +/- 15%
90 ohm +/- 15% 90 ohm +/- 15%
110 ohm +/- 15% 110 ohm +/- 15%
7
85 ohm +/- 20%
100 ohm +/- 15%95 ohm +/- 15%
100 ohm +/- 15%95 ohm +/- 15%
100 ohm +/- 15%100 ohm +/- 15%
6
5
3VDDA
5VDDM Mini PCI:
5VDDS CardBus: Slot voltage
PMU3V
4
Destination
Yonah
HFM:
LFM:
Yonah: AGTL+ termination
945GM: Core
945GM: AGTL+ termination
ICH7m:
Yonah PLL
945GM: PCIE
945GM: LVDS
945GM: TVDAC
945GM: Various PLLS analog supply
945GM: DDR DLLS,DDRII,FSB HSIO 1.885A1.425V~1.5V~1.575V
ICH7m:
ICH7m:
ICH7m:
ICH7m:
Mini Card:
Express Card:
945GM: DDRII System Memory 3.1A
SO-DIMM:
945GM: PCIE analog
945GM: LVDS analog
945GM: LVDS I/O
945GM: CRT DAC
CH7307:
945GM: HV CMOS
945GM: TVDAC analog
ICH7m:
ICH7m:
ICH7m:
ICH7m:
ICH7m:
Mini Card:
Express Card:
CLK Generator: ICS954226 400mA3.135V~3.3V~3.465V
Mini PCI: WirelessLan
KBC: KB3886
Flash ROM: BIOS
Azalia Codec: ALC260
Azalia MDC:
HDD: SATA
CardBus: Slot voltage
Lan: Broadcom BCM4401
Card Reader: SD/MMC/MS
Azalia MDC: For wake up
Mini PCI: For wake up
ICH7m:
ICH7m:
ICH7m:
LCD:
Azalia Codec: ALC260
Azalia MDC:
HDD: SATA
ODD: PATA
Audio AMP: G1420
Woofer AMP: LM499 1
Inverter:
USB: x 4 ports
EC: PMU08
ICH7m: RTC
3
Voltage
1.3319V~1.4375V~1.4591V
0.9221V~0.9625V~0.9739V
0.997V~1.05V~1.102V
1.0V~1.05V~1.1V
0.9475V~1.05V~1.1025V
1.425V~1.5V~1.575V
1.425V~1.5V~1.575V
1.425V~1.5V~1.575V
1.425V~1.5V~1.575V
1.425V~1.5V~1.575V
1.7V~1.8V~1.9V
0.855V~0.9V~0.945V 1.0A
2.32V~2.5V~2.625V
2.375V~2.5V~2.625V
2.375V~2.5V~2.625V
2.32V~2.5V~2.625V
3.135V~3.3V~3.465V
3.135V~3.3V~3.465V
3.0V~3.3V~3.6V
3.0V~3.3V~3.6V
3.0V~3.3V~3.6V 1.0A
3.0V~3.3V~3.6V
4.75V~5.0V~5.25V
4.75V~5.0V~5.25V
5V 2.0A
S0 Current
36A
2.5A
4.6A
1.4A
120mA
1.5A
60mA
24mA
320mA
2mA
10mA
60mA
70mA
40mA
120mA
Max: 1.0A ; R/W: 460mA ; STDBY: 70mA
Max: 1.8A ; R/W: 900mA ; STDBY: 45mA
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
C
Annotations
Date: Sheet of
2
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
4 54Monday, February 12, 2007
1
A
5
www.bufanxiu.com
4
3
2
1
6.Schematic modify Item and History :
1025
D D
R479 change from 150ohm(NU) to 75ohm(NU)
C C
B B
A A
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
5
4
3
2
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Schematic Modify
1
5 54Monday, February 12, 2007
A
5
www.bufanxiu.com
4
3
2
1
7. power on & off & S3 Sequence :
IMVP6 Power On Sequencing Timing Diagram
D D
C C
B B
A A
VID
VR_ON
Vcc-core
CPU_UP
Tsft_star_vcc(3ms max)
Tboot
Tcpu_up
Vid
Vboot
Tboot-vid-tr(100uS max)
Vccp
Vccp_UP
Tvccp_up
Vccgmch
GMCHPWRGD
Tgmch_pwrgd
CLK_ENABLE#
IMVP4_PWRGD
BATTERY ONLY POWER ON TIMING
POWSW0
PMU5V/PMU3V
DCON
VDDA
MAINSW0_ICH
PM_RSTRST0
PM_SLP_S30/S40/S50
PSUSC0
SUSTAT_B0
VDDM,VDDS
PM_PWROK
SYS_PWROK
VRON_VCCP
VCCP/1.2VDDM
VCORE_ON
VR_ON
VCORE_CPU
CK408_PWRGD0
PM_VGATE
CPU_PWRGD
PCI_RST0
AGTL+_CPURST0
Tcpu_pwrgd(3~20mS)
Tboot:10-100uS
To ICH4
To ICH4
From ICH4
From ASIC_B0
From ASIC_B0
To clock generator
To ODEM and ICH4
From ICH4 to CPU
To ODEM/other PCI device
From ODEM to CPU
S3 SUSPEND AND RESUME TIMING
POWSW0
PMU5V/PMU3V
PM_RSMRST0
PM_SLP_S30
PM_SLP_S40/S50
SUSTAT_B0
PM_PWROK
SYS_PWROK
VRON_VCCP
VCCP,1.2VDDM
VCORE_ON
VCORE_CPU
CK408_PWRGD0
PM_VGATE
CPU_PWRGOOD
PCI_RST0
AGTL+_CPURST0
DCON
VDDA
PSUSC0
VDDS
VDDM
VR_ON
H
H
H
H
H
H
H
To ICH4_M
From ICH4_M
From ICH4_M
From ASIC_B0
From ASIC_B0
1.5VDDS AND
DDR_PWRGD
Generator
To clock
ToICH4 and ODEM
From ICH4 to CPU
To ODEM/other
PCI device
From ODEM to CPU
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
5
4
3
2
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Timing Diagram
1
6 54Monday, February 12, 2007
A
5
www.bufanxiu.com
4
3
2
1
8. Layout Guideline :
Calistoga (945GM) DDRII Layout Guidelines
DDRII Signal Groups
Group Signal Name
D D
Data
SA_DQ[63..0]/SB_DQ[63..0]
SA_DM[7..0]/SB_DM[7..0]
SA_DQS[7..0]/SA_DQS#[7..0]
SB_DQS[7..0]/SB_DQS#[7..0]
SA_MA[13..0]/SB_MA[13..0]Address
SA_BS[2..0]/SB_BS[2..0]
SA_RAS#/SB_RAS#
SA_CAS#/SB_CAS#
SA_WE#/SB_WE#
SM_CS#[3..0]Control
SM_CKE[3..0]
SM_ODT[3..0]
Clock SM_CK[3..0]
SM_CK#[3..0]
SA_RCVENOUT#/SB_RCVENOUT#FeedBack
SA_RCVENIN#/SB_RCVENIN#
CLK group : SM_CK[3..0],SM_CK#[3..0]
GMCH
P1P1L0L0L1L1L2L2S1
C C
Topology
Reference Plane
Single Ended Trace Impedance
Differential Mode Impedance
Nominal Trace Width Inner Layer : 7 mils
Nominal CK to CK# Sp acing
(edge to edge)
Minimum Serpentine Spacing Inner Layer : 12 mils
Minimum Spacing to Other DDR2 Inner Layer : 16 mils
Minimum Isolation Spacing to non-DDR2 25 mils
Package Length Range - P1 1000 mils +/- 250 mils
Trace Length Limit - L0 Max = 50 mils (Escape)
Trace Length Limit - L1 Max = 500 mils (Breakout)
Stub Length S1-Stub from via to SO-DIMM Max = 200 mils (Breakin)
MB Length Limits - L0 + L1 + L2 + S1 Min = 500 mils
B B
Maximim Via Count 2 (Per side)
SCK to SCK# Length Matching Match total length to within 5 mils
Clock to Clock Length Match
(Total Length)
Breakout Exceptions (R educe geometries
for GMCH break-out region)
Breakin Exception s (Reduce geometries
for SO-DIMM break-in region)
Feedback group :
SA_RCVENIN#],SA_RCVENOUT#,SB_RCVENIN#],SB_RCVENOUT#
These signals are routed internally on the GMCH package and don't require an y
routing on the MB. As a result, can be left as NC.
A A
4/4/12 7/4/16 8/5/15
Escape
Breakout Breakin
5
SLMS SL MS
Length Matching and Length Formulas
Signal Group Minimum Length Maximum Length
Control-to-Clock
Command-to-Clock
Strobe-to-Clock
Data-to-Strobe
Clock - 1.0"
Clock - 1.0"
Clock - 0.5"
Strobe - 220mils
SO-DIMM
S1
Differential Pair Point-to-Point
Ground
42 +/- 15%
70 +/- 20%
Outer Layer : 8 mils
Inner Layer : 4 mils
Outer Layer : 5 mils
Outer Layer : 15 mils
Outer Layer : 20 mils
Max = 4000 mils
Max = 4500 milsTotal Length - P1 + L0 + L1 + L2 + S1
Total Length for Channel A : X0
Total Length for Channel B : X1
Match Channel A clocks to X0 +/- 20mils
Match Channel A clocks to X1 +/- 20mils
Inner Layer : 4/12 mils to other DDR2
Outer Layer : 5/15 mils to other DDR2
Max. breakout length is 500 m ils
CK to CK# spacing rule waived at
connector spacing of 15 mils to
other DDR2
Max. breakin length is 2 00 mils
Clock - 0.0"
Clock + 1.0"
Clock + 1.0"
Strobe - 180mils
4
Control group : SM_CKE[3..0],SM_CS#[3..0],SM_ODT[3..0]
8/5/15
7/4/16
GMCH
P1
Topology
Reference Plane
Characteristic Trace Impedance
Nominal Trace Width
Minimum CTRL Trace Spac ing
Minimum Spacing to Other DDR2
Minimum Isolation Spacing to non-DDR2
Package Length P1
Trace Length Limit - L0
Trace Length Limit - L1
Stub Length S1-Stub from via to SO-DIMM
MB Length Limits - L0 + L1 + L2 + S1 From GMCH ball to SO-DIMM pad
Total Length - P1 + L0 + L1 + L2 + S1 From GMCH die to SO-DIMM pad
Parallel Termination Resistor 56 +/- 5%
Maximim Via Count
CTRL to SCK/SCK # Length Matching
(Total Length including package)
Breakout Exceptions (Reduce geometries
for GMCH break-out region)
Command group :
SA_MA[13..0],SB_MA[13..0],SA_BS[2..0],SB_BS[2..0],SA_RAS#,
SB_RAS#,SA_CAS#,SB_CAS#,SA_WE#,SB_WE#
GMCH
P1
Topology
Reference Plane
Characteristic Trace Impedance
Nominal Trace Width
Minimum CMD Bus Trace Spacing
Minimum Spacing to Other DDR2
Minimum Isolation Spacing to non-DDR2
Package Length P1
Trace Length Limit - L0
Trace Length Limit - L1
Stub Length S1-Stub from via to SO-DIMM
MB Length Limits - L0 + L1 + L2 + S1 From GMCH ball to SO-DIMM pad
Total Length - P1 + L0 + L1 + L2 + S1 From GMCH die to SO-DIMM pad
Trace Length L3
Parallel Termination Resistor
Maximim Via Count
CTRL to SCK/SCK # Length Matching
(Total Length including package)
for GMCH break-out region)
4/4/12
Escape
L1
L0
Breakout
SL
MS SL/MS
4/4
L1
Breakout
4/6,5/10
SL/MSMS SL
Escape
L0
L2
L3
SL/MS
S1
MS
SO-DIMM
Point-to-Point with parallel termination
Ground
55 +/- 15%
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 8 mils
Outer Layer : 10 mils
Inner Layer : 12 mils
Outer Layer : 15 mils
25 mils
750 mils +/- 200 mils
Max = 50 mils (Escape)
Max = 500 mils (Breakout)
Max = 200 mils (Breakin)
Min = 500 mils
Max = 4500 mils
Max = 5000 mils
Max = 1500 milsTrace Length L3
3
(CLK-1.0") </= CTRL </= (CLK-0.0")
Inner Layer : 4 mils spacing allowe d
Outer Layer : 5 mils spacing allowed
Max. breakout length is 500 m ils
4/6,5/10
L3
L2
SL/MS
S1
MS
SO-DIMM
Point-to-Point with parallel termination
Ground
55 +/- 15%
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 6 mils
Outer Layer : 10 mils
Inner Layer : 12 mils
Outer Layer : 15 mils
25 mils
750 mils +/- 350 mils
Max = 50 mils (Escape)
Max = 500 mils (Breakout)
Max = 200 mils (Breakin)
Min = 500 mils
Max = 4500 mils
Max = 5000 mils
Max = 1500 mils
56 +/- 5%
3
(CLK-1.0") </= CM D </= (CLK+1.0")
Inner Layer : 4 mils spacing allowe dBreakout Exceptions (R educe geometries
Outer Layer : 5 mils spacing allowed
Max. breakout length is 500 m ils
3
Vtt
Vtt
Data group : SA_DQ[63..0],SB_DQ[63..0],SA_DM[7..0],SB_DM[7..0]
4/4
GMCH
Escape
P1 L0
MS SLSL MS
L1
Breakout
4/6
L2
S1
SO-DIMM
Topology
Reference Plane
Characteri stic Trace Impedance
Nominal Trace Width
Minimum DQ Bus Trace Spacing
Minimum Serpentine Spacing Same as DQ-to-DQ r outing
Minimum Spacing to Other DDR2
Minimum Isolation Spacing to non-DDR2
Package Length P1
Trace Length Limit - L0
Trace Length Limit - L1
Stub Length S1-Stub from via to SO-DIMM
MB Length Limits - L0 + L1 + L2 + S1 From GMCH ball to SO-DIMM pad
Total Length - P1 + L0 + L1 + L2 + S1 From GMCH die to SO-DIMM pad
Trace Length L3
Maximim Via Count
DQ/DM to DQS Length Matching
(Total Length including
Breakout Exceptions (R educe geometries
package)
for GMCH break-out region)
Point-to-Point
Ground
55 +/- 15%
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 6 mils
Outer Layer : 8 mils
Inner Layer : 12 mils
Outer Layer : 15 mils
25 mils
750 mils +/- 350 mils
Max = 50 mils (Escape)
Max = 500 mils (Breakout)
Max = 200 mils (Breakin)
Min = 500 mils
Max = 4500 mils
Max = 5000 mils
Max = 1500 mils
2
Match DQ/DM to [SDQS - 200mils]
+/- 20mils, per byte lane
Inner Layer : 4 mils spacing allowed
Outer Layer : 5 mils spacing allowed
Max. breakout length is 500 mi ls
Data Strobe group : SA_DQS[7..0],SA_DQS[7..0]#,SB_DQS[7..0],SB_DQS[7..0]#
SO-DIMM
5/5/10
4/4/12
GMCH
P1
P1
Topology
Reference Plane
Single Ended Trace Impedance
Differential Mode Impedance
Nominal Trace Width
Nominal DQS to DQS# Spacing
(edge to edge)
Minimum Serpentine Spacing
Minimum Spacing to Other DDR2
Minimum Isolation Spacing to non-DDR2
Package Length Range - P1
Trace Length Limit - L0
Trace Length Limit - L1
Stub Length S1-Stub from via to SO-DIMM
MB Length Limits - L0 + L1 + L2 + S1 From GMCH ball to SO-DIMM pad
Total Length - P1 + L0 + L1 + L2 + S1 From GMCH die to SO-DIMM pad
Maximim Via Count
DQS to DQS# Length Matching
Clock to Clock Length Match
(Total Length include package)
Breakout Exceptions (R educe geometries
for GMCH break-out region)
Breakin Exceptions (Reduce geometries
for SO-DIMM break-in region)
Escape
L0
L0
4/4/8
L2
L1
L2
L1
Breakout
SL SL MS
Differential Pair Point-to-Point
Ground
55 +/- 15%
85 +/- 20%
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 12 milsMinimum DQS to DQ Spacin g
Outer Layer : 15 mils
Inner Layer : 8 mils
Outer Layer : 10 mils
Inner Layer : 12 mils
Outer Layer : 15 mils
25 mils
750 mils +/- 350 mils
Max = 50 mils (Escape)
Max = 500 mils (Breakout)
Max = 200 mils (Breakin)
Min = 500 mils
Max = 4500 mils
Max = 5000 mils
2 (Per side)
Match total length to within 5 mils
(CLK-0.5") </= D QS </= (CLK+1.0")
Inner Layer : 8 mils to other DDR2
Outer Layer : 10 mils to other DDR2
Max. breakout length is 500 mi ls
DQS to DQS# spacing rule
waived at connector spacing of
10 mils to other DDR2
Max. breakin length is 2 00 mils
2
S1
S1
Breakin
Title
Size Document Number Rev
Date: Sheet of
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
C
DDRII Layout Guideline
1
7 54Monday, February 12, 2007
A
A
www.bufanxiu.com
B
C
D
E
H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#[31..3]
H_A#16
H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
4 4
3 3
H_A#[31..3]12
H_ADSTB#012
H_REQ#[4..0]12
H_A20M#22
H_FERR#22
H_IGNNE#22
H_STPCLK#22
H_INTR22
H_NMI22
H_SMI#22
H_A#[31..3]
H_REQ#[4..0]
H_A#[31..3]12
H_ADSTB#112
No stub on H_STPCLK test point
U16A
J4
A[3]#
L4
A[4]#
M3
A[5]#
K5
A[6]#
M1
N2
J1
N3
P5
P2
L1
P4
P1
R1
L2
K3
H2
K2
J3
L5
Y2
U5
R3
W6
U4
Y5
U2
R4
T5
T3
W3
W5
Y4
W2
Y1
V4
A6
A5
C4
D5
C6
B4
A3
AA1
AA4
AB2
AA3
M4
N5
T2
V3
B2
C3
B25
ADDR GROUP 0 ADDR GROUP 1
A[7]#
A[8]#
A[9]#
A[10]#
A[11]#
A[12]#
A[13]#
A[14]#
A[15]#
A[16]#
ADSTB[0]#
REQ[0]#
REQ[1]#
REQ[2]#
REQ[3]#
REQ[4]#
A[17]#
A[18]#
A[19]#
A[20]#
A[21]#
A[22]#
A[23]#
A[24]#
A[25]#
A[26]#
A[27]#
A[28]#
A[29]#
A[30]#
A[31]#
ADSTB[1]#
A20M#
FERR#
IGNNE#
STPCLK#
LINT0
LINT1
SMI#
RSVD[01]
RSVD[02]
RSVD[03]
RSVD[04]
RSVD[05]
RSVD[06]
RSVD[07]
RSVD[08]
RSVD[09]
RESERVED
RSVD[10]
RSVD[11]
SCKT Molex ZIF BGA SMT micro-FCPGA478 47170-4787 Yonah CPU 478Pin LR
Micro-FCPGA 478
CONTROLXDP/ITP SIGNALSHCLK THERM
PROCHOT#
THERMTRIP#
ADS#
BNR#
BPRI#
DEFER#
DRDY#
DBSY#
BR0#
IERR#
INIT#
LOCK#
RESET#
RS[0]#
RS[1]#
RS[2]#
TRDY#
HITM#
BPM[0]#
BPM[1]#
BPM[2]#
BPM[3]#
PRDY#
PREQ#
TRST#
DBR#
THERMDA
THERMDC
BCLK[0]
BCLK[1]
RSVD[12]
RSVD[13]
RSVD[14]
RSVD[15]
RSVD[16]
RSVD[17]
RSVD[18]
RSVD[19]
RSVD[20]
H1
E2
G5
H5
F21
E1
F1
H_IERR#
D20
B3
H4
B1
F3
F4
G3
G2
G6
HIT#
E4
AD4
AD3
AD1
AC4
AC2
XDP_BPM#5
AC1
XDP_TCK
AC5
TCK
XDP_TDI
AA6
TDI
XDP_TDO
AB3
TDO
XDP_TMS
AB5
TMS
XDP_TRST#
AB6
XDP_DBRESET#
C20
D21
A24
A25
C7
A22
A21
T22
D2
F6
D3
C1
AF1
D22
C23
C24
Rout to TP via and place gnd via w/in 100mils
R411
56Ω 5% 1/16W SMT0402 LR
H_ADS# 12
H_BNR# 12
H_BPRI# 12
H_DEFER# 12
H_DRDY# 12
H_DBSY# 12
H_BREQ#0 12
H_INIT# 22
H_LOCK# 12
H_CPURST# 12
H_RS#0 12
H_RS#1 12
H_RS#2 12
H_TRDY# 12
H_HIT# 12
H_HITM# 12
1.05VDDM9,12,13,15,16,18,22,24,48
1.05VDDM 9,12,13,15,16,18,22,24,48
R412
75Ω 5% 1/16W SMT0402 LR
H_PROCHOT# 10
H_THERMDA 11
H_THERMDC 11
PM_THRMTRIP# 13,22
PM_THRMTRIP# 13,22
CLK_CPU_BCLK 18
CLK_CPU_BCLK# 18
Should be connect to ICH7 and Calistoga without T-ing(no stub)
XDP P/U & P/D
XDP_DBRESET#
XDP_TDO
XDP_TMS
XDP_TDI
XDP_BPM#5
XDP_TRST#
XDP_TCK
R410 1KΩ 5% 1/16W SMT0402 LR
R355 54.9Ω 1% 1/10W SMT0603 LR(NU)
R357 39Ω 1% 1/10W SMT0603 LR
R354 150Ω 1% 1/10W SMT0603 LR
R356 54.9Ω 1% 1/10W SMT0603 LR(NU)
R358 680Ω 5% 1/10W SMT0603 LR
R359 27Ω 5% 1/10W SMT0603 LR
A#[32-39], APM#[0-1]:Leave escape routing on for future functionality
H_D#[63..0]12
2 2
H_DSTBN#012
H_DSTBP#012
H_DINV#012
H_D#[63..0]12
1.05VDDM9,12,13,15,16,18,22,24,48
1KΩ 1% 1/10W SMT0603 LR
1 1
2KΩ 1% 1/10W SMT0603 LR
R432
R431
A
H_DSTBN#112
H_DSTBP#112
H_DINV#112
10mils
Zo=55ohm, 0.5" max for GTLREF, Space any other switch
signals away from GTLREF with a minimum of 25mils.
Don't allow the GTLREF routing to create splits or
discontinuities in the reference planes of the FSB signals
H_D#[63..0]
H_D#[63..0]
R426
1KΩ 5% 1/16W SMT0402 LR(NU)
R427
51Ω 5% 1/16W SMT0402 LR
CLK_BSEL018
CLK_BSEL118
CLK_BSEL218
U16B
H_D#0
E22
D[0]#
H_D#1
F24
D[1]#
H_D#2
E26
D[2]#
H_D#3
H22
D[3]#
H_D#4
F23
D[4]#
H_D#5
G25
D[5]#
H_D#6
E25
D[6]#
H_D#7
E23
D[7]#
H_D#8
K24
D[8]#
H_D#9
G24
D[9]#
H_D#10
J24
D[10]#
H_D#11
J23
D[11]#
H_D#12
H26
D[12]#
H_D#13
F26
D[13]#
H_D#14
K22
D[14]#
H_D#15
H25
D[15]#
H23
DSTBN[0]#
G22
DSTBP[0]#
J26
DINV[0]#
H_D#16
N22
D[16]#
H_D#17
K25
D[17]#
H_D#18
P26
D[18]#
H_D#19
R23
D[19]#
H_D#20
L25
D[20]#
H_D#21
L22
D[21]#
H_D#22
L23
D[22]#
H_D#23
M23
D[23]#
H_D#24
P25
D[24]#
H_D#25
P22
D[25]#
H_D#26
P23
D[26]#
H_D#27
T24
D[27]#
H_D#28
R24
D[28]#
H_D#29
L26
D[29]#
H_D#30
T25
D[30]#
H_D#31
N24
D[31]#
M24
DSTBN[1]#
N25
DSTBP[1]#
M26
DINV[1]#
GTLREF COMP0
AD26
GTLREF
H_TEST1
H_TEST2
MISC
C26
TEST1
D25
TEST2
B22
BSEL[0]
B23
BSEL[1]
C21
BSEL[2]
SCKT Molex ZIF BGA SMT micro-FCPGA478 47170-4787 Yonah CPU 478Pin LR
Micro-FCPGA 478
DATA GRP 0 DATA GRP 1
B
D[32]#
D[33]#
D[34]#
D[35]#
D[36]#
D[37]#
D[38]#
D[39]#
D[40]#
D[41]#
D[42]#
DATA GRP 2DATA GRP 3
D[43]#
D[44]#
D[45]#
D[46]#
D[47]#
DSTBN[2]#
DSTBP[2]#
DINV[2]#
D[48]#
D[49]#
D[50]#
D[51]#
D[52]#
D[53]#
D[54]#
D[55]#
D[56]#
D[57]#
D[58]#
D[59]#
D[60]#
D[61]#
D[62]#
D[63]#
DSTBN[3]#
DSTBP[3]#
DINV[3]#
COMP[0]
COMP[1]
COMP[2]
COMP[3]
DPRSTP#
DPSLP#
DPWR#
PWRGOOD
AA23
AB24
V24
V26
W25
U23
U25
U22
AB25
W22
Y23
AA26
Y26
Y22
AC26
AA24
W24
Y25
V23
AC22
AC23
AB22
AA21
AB21
AC25
AD20
AE22
AF23
AD24
AE21
AD21
AE25
AF25
AF22
AF26
AD23
AE24
AC20
R26
U26
U1
V1
E5
B5
D24
D6
D7
SLP#
AE6
PSI#
H_D#[63..0]
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#[63..0]
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
R429 27.4Ω 1% 1/10W SMT0603 LR
COMP1
R430 54.9Ω 1% 1/10W SMT0603 LR
COMP2
R352 27.4Ω 1% 1/10W SMT0603 LR
COMP3
R353 54.9Ω 1% 1/10W SMT0603 LR
H_DPRSTP# 10,22
H_DPSLP# 22
H_DPWR# 12
H_PWRGD 22
H_CPUSLP# 12
PSI# 10
H_PWRGD rise time :
Max : 15ns
H_D#[63..0] 12
H_DSTBN#2 12
H_DSTBP#2 12
H_DINV#2 12
H_D#[63..0] 12
H_DSTBN#3 12
H_DSTBP#3 12
H_DINV#3 12
Comp0,2 connect with Zo=27.4ohm, make trace
length shorter than 0.5" and width is 18mils.
Comp1,3 connect with Zo=55ohm, make trace
length shorter than 0.5" and width is 5mils
C
Topology : FERR#
VCCP
L4
CPU IMVP6
Rtt
ICH7mCPU
VCCP L1
Rtt
L2
0.5" - 12"L1
VCCP
Rtt
L2+L1 L3 Strip-line
Topology : PWRGOOD
CPU
L1
ICH7m
L1
Transmission Line
Micro-strip
0.5" - 12"
0.5" - 12" Strip-line
Topology : INTR , NMI , A20M# , DPSLP# , IGNNE# , INIT# , SMI# , STPCLK#
Transmission Line
L1CPU ICH7m
L1
Topology : THERMTRIP#
GMCHL2CPU ICH7m
3VDDM 10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
1.05VDDM 9,12,13,15,16,18,22,24,48
FSB Common Clock Signal Layout Guide :
ADS# , BNR# , BPRI# , BR0# , DBSY# , DEFER# , DPWR# , DRDY# , HIT# , HITM# , LOCK# ,
RS[2..0]# , TRDY# , RESET#.
Transmission Line Type Total Trace Length Normal Impedance Spacing (mils)
Strip-line(Int. Layer)
Micro-strip(Ext. Layer)
FSB Source Synchronous Data Length Variation and Strobe Matching Requirements :
Signals Name
DATA#[15..0] , DINV0#
DATA#[31..16] , DINV1# +/- 100 mil s
DATA#[47..32] , DINV2#
DATA#[63..48] , DINV3#
FSB Source Synchronous Data Signal Routing Topology#1 :
Signal Name
DINV#[3..0]
DATA#[63..0]
DSTBN#[3..0]
DSTBP#[3..0]
FSB Source Synchronous Address Length Variation and Strobe Matching Requirements :
A#[16..3] , REQ#[4..0]
*** No length matching requirements exist between ADSTB0# and ADSTB1#
FSB Source Synchronous Address Signal Routing :
Signal Name
Address#[31..3]
REQ#[4..0]
ADSTB#[1..0]
0.5" - 12" Micro-strip
0.5" - 12"
L3
RttL1 L4
1.0 ~ 6.5 inch 55+/-15%
Signals Matching
+/- 100 mils
+/- 100 mils
Transmission Line Type
Strip-line
Strip-line
Strip-line
Strip-line
Signals MatchingSignals Name
+/- 200 mils
Transmission Line Type
Strip-line
Strip-line
D
Strip-line
VCCP
L2
Rtt Transmission Line
0" - 3.0" Micro-strip0.5" - 12"
56 +/-5%
56 +/-5%
L3 L4
0" - 3.0"
0" - 3.0"
Strip-line
0" - 3.0"
0" - 3.0"
Rtt Transmission LineL2L1
Micro-strip70 +/-5%0.5" - 6.5"
70 +/-5%0.5" - 6.5"
0" - 3.0"
0.5" - 6.5"
0.5" - 6.5"
Topology : CPUSLP#
Transmission Line
L1CPU
GMCH
0.5" - 12"
L1
0.5" - 12"
Micro-strip
Strip-line
Topology : RESET#
Transmission LineCPU
GMCH
L1
L1 L2
1" - 6" 0" - 3.0"
1" - 12"
Rtt
1" - 12" 1" - 6"
Strobes associated with the group Strobe-to-Strobe Complement Matching
DSTBP0#,DSTBN0#
DSTBP1#,DSTBN1#
DSTBP2#,DSTBN2#
DSTBP3#,DSTBN3#
Total Trace Length
0.5 ~ 5.5 inch
0.5 ~ 5.5 inch
0.5 ~ 5.5 inch
0.5 ~ 5.5 inch
Strobes associated with the group
ADSTB0#+/- 200 mils
ADSTB1#A#[31..17]
Total Trace Length Normal Impedance
0.5 ~ 6.5 inch
0.5 ~ 6.5 inch
0.5 ~ 6.5 inch
L3
L1+L3
0" - 3.0"
1" - 12"
0" - 3.0"
1" - 12"
4 & 8 mils
5 & 10 mils
Normal Impedance
55+/-15%
55+/-15%
55+/-15%
55+/-15%
55+/-15%
55+/-15%
55+/-15%Strip-line
+/- 25 mils+/- 100 mils
+/- 25 mils
+/- 25 mils
+/- 25 mils
Width & Spacing (mils)
Data-to-Data,Strobe-to-strobe Strobe-to-Data
4 & 8 mils
4 & 8 mils
4 & 12 mils
4 & 12 mils
Strobe to Assoc. Address Signal Matching
+/- 200 mils
+/- 200 mils
Width & Spacing (mils)
4 & 8 mils
4 & 8 mils
4 & 8 mils
Title
Size Document Number Rev
C
Date: Sheet of
L1
Micro-strip
1" - 6"
Strip-line
1" - 6"
Rtt
Rss
56 +/-5%
24 +/-5%
24 +/-5% 56 +/-5%
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Yonah Processor (1/2)
E
Transmission LineL4
Micro-strip
Strip-line0" - 3.0"
N/A
N/A
4 & 12 mils
4 & 12 mils
8 54Monday, February 12, 2007
A
A
www.bufanxiu.com
B
C
D
E
4 4
VCORE_CPU10,43
3 3
22U --> 10U
16EA
2 2
Place these inside socket cavity on L8
(North side secondary)
C123 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C121 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C119 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C128 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C124 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C122 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
Place these inside socket cavity on L1
(North side Primary)
C442 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C455 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C469 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C464 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C118 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C127 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C117 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C438 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C440 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
Place these inside socket cavity on
L8 (South side secondary)
C94 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C91 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C89 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C88 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C93 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C92 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
Place these inside socket cavity on L1
(South side Primary)
C466 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C472 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C456 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C446 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C96 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C95 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR C437 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR(NU)
C90 10uF 6. 3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C441 10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
U16C
A7
VCC[001]
A9
VCC[002]
A10
VCC[003]
A12
VCC[004]
A13
VCC[005]
A15
VCC[006]
A17
VCC[007]
A18
VCC[008]
A20
VCC[009]
B7
VCC[010]
B9
VCC[011]
B10
VCC[012]
B12
VCC[013]
B14
VCC[014]
B15
VCC[015]
B17
VCC[016]
B18
VCC[017]
B20
VCC[018]
C9
VCC[019]
C10
VCC[020]
C12
VCC[021]
C13
VCC[022]
C15
VCC[023]
C17
VCC[024]
C18
VCC[025]
D9
VCC[026]
D10
VCC[027]
D12
VCC[028]
D14
VCC[029]
D15
VCC[030]
D17
VCC[031]
D18
VCC[032]
E7
VCC[033]
E9
VCC[034]
E10
VCC[035]
E12
VCC[036]
E13
VCC[037]
E15
VCC[038]
E17
VCC[039]
E18
VCC[040]
E20
VCC[041]
F7
VCC[042]
F9
VCC[043]
F10
VCC[044]
F12
VCC[045]
F14
VCC[046]
F15
VCC[047]
F17
VCC[048]
F18
VCC[049]
F20
VCC[050]
AA7
VCC[051]
AA9
VCC[052]
AA10
VCC[053]
AA12
VCC[054]
AA13
VCC[055]
AA15
VCC[056]
AA17
VCC[057]
AA18
VCC[058]
AA20
VCC[059]
AB9
VCC[060]
AC10
VCC[061]
AB10
VCC[062]
AB12
VCC[063]
AB14
VCC[064]
AB15
VCC[065]
AB17
VCC[066]
AB18
VCC[067]
SCKT Molex ZIF BGA SMT micro-FCPGA478 47170-4787 Yonah CPU 478Pin LR
Micro-FCPGA 478
VCC[068]
VCC[069]
VCC[070]
VCC[071]
VCC[072]
VCC[073]
VCC[074]
VCC[075]
VCC[076]
VCC[077]
VCC[078]
VCC[079]
VCC[080]
VCC[081]
VCC[082]
VCC[083]
VCC[084]
VCC[085]
VCC[086]
VCC[087]
VCC[088]
VCC[089]
VCC[090]
VCC[091]
VCC[092]
VCC[093]
VCC[094]
VCC[095]
VCC[096]
VCC[097]
VCC[098]
VCC[099]
VCC[100]
VCCP[01]
VCCP[02]
VCCP[03]
VCCP[04]
VCCP[05]
VCCP[06]
VCCP[07]
VCCP[08]
VCCP[09]
VCCP[10]
VCCP[11]
VCCP[12]
VCCP[13]
VCCP[14]
VCCP[15]
VCCP[16]
VCCA
VID[0]
VID[1]
VID[2]
VID[3]
VID[4]
VID[5]
VID[6]
VCCSENSE
VSSSENSE
AB20
AB7
AC7
AC9
AC12
AC13
AC15
AC17
AC18
AD7
AD9
AD10
AD12
AD14
AD15
AD17
AD18
AE9
AE10
AE12
AE13
AE15
AE17
AE18
AE20
AF9
AF10
AF12
AF14
AF15
AF17
AF18
AF20
V6
G21
J6
K6
M6
J21
K21
M21
N21
N6
R21
R6
T21
T6
V21
W21
B26
AD6
AF5
AE5
AF4
AE3
AF2
AE2
AF7
AE7
H_VID0 10
H_VID1 10
H_VID2 10
H_VID3 10
H_VID4 10
H_VID5 10
H_VID6 10
18mil
7mil space
Route VCCSENSE and VSSSENSE traces
at 27.4 ohms with 50mil spacing.
Place PU and PD within 1 inch of CPU
C116 0.1uF 16V ±10% SMD0603 X7R LR
C106 0.1uF 16V ±10% SMD0603 X7R LR(NU)
C115 0.1uF 16V ±10% SMD0603 X7R LR12C107 0.1uF 16V ±10% SMD0603 X7R LR
C114 0.1uF 16V ±10% SMD0603 X7R LR
12
12
12
12
Close to CPU
pin B26
0.01uF 16V 10% SMT0402 X7R LR
C493
VCCSENSE 10
VSSSENSE 10
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 KEMET LR
Via:2.5A
>100mils
C105 0.1uF 16V ±10% SMD0603 X7R LR(NU)
C152
12
1.05VDDM 8,12,13,15,16,18,22,24,48
Place these inside socket cavity on L8
(North side secondary)
1.5VDDM13,15,16,24,28,48
20mils
10uF 6.3V 10% SMT0805 X5R C2012X5R0J106K TDK LR
C496
U16D
A4
VSS[001]
A8
VSS[002]
A11
VSS[003]
A14
VSS[004]
A16
VSS[005]
A19
VSS[006]
A23
VSS[007]
A26
VSS[008]
B6
VSS[009]
B8
VSS[010]
B11
VSS[011]
B13
VSS[012]
B16
VSS[013]
B19
VSS[014]
B21
VSS[015]
B24
VSS[016]
C5
VSS[017]
C8
VSS[018]
C11
VSS[019]
C14
VSS[020]
C16
VSS[021]
C19
VSS[022]
C2
VSS[023]
C22
VSS[024]
C25
VSS[025]
D1
VSS[026]
D4
VSS[027]
D8
VSS[028]
D11
VSS[029]
D13
VSS[030]
D16
VSS[031]
D19
VSS[032]
D23
VSS[033]
D26
VSS[034]
E3
VSS[035]
E6
VSS[036]
E8
VSS[037]
E11
VSS[038]
E14
VSS[039]
E16
VSS[040]
E19
VSS[041]
E21
VSS[042]
E24
VSS[043]
F5
VSS[044]
F8
VSS[045]
F11
VSS[046]
F13
VSS[047]
F16
VSS[048]
F19
VSS[049]
F2
VSS[050]
F22
VSS[051]
F25
VSS[052]
G4
VSS[053]
G1
VSS[054]
G23
VSS[055]
G26
VSS[056]
H3
VSS[057]
H6
VSS[058]
H21
VSS[059]
H24
VSS[060]
J2
VSS[061]
J5
VSS[062]
J22
VSS[063]
J25
VSS[064]
K1
VSS[065]
K4
VSS[066]
K23
VSS[067]
K26
VSS[068]
L3
VSS[069]
L6
VSS[070]
L21
VSS[071]
L24
VSS[072]
M2
VSS[073]
M5
VSS[074]
M22
VSS[075]
M25
VSS[076]
N1
VSS[077]
N4
VSS[078]
N23
VSS[079]
N26
VSS[080]
P3 AF24
VSS[081] VSS[162]
SCKT Molex ZIF BGA SMT micro-FCPGA478 47170-4787 Yonah CPU 478Pin LR
Micro-FCPGA 478
VSS[082]
VSS[083]
VSS[084]
VSS[085]
VSS[086]
VSS[087]
VSS[088]
VSS[089]
VSS[090]
VSS[091]
VSS[092]
VSS[093]
VSS[094]
VSS[095]
VSS[096]
VSS[097]
VSS[098]
VSS[099]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
P6
P21
P24
R2
R5
R22
R25
T1
T4
T23
T26
U3
U6
U21
U24
V2
V5
V22
V25
W1
W4
W23
W26
Y3
Y6
Y21
Y24
AA2
AA5
AA8
AA11
AA14
AA16
AA19
AA22
AA25
AB1
AB4
AB8
AB11
AB13
AB16
AB19
AB23
AB26
AC3
AC6
AC8
AC11
AC14
AC16
AC19
AC21
AC24
AD2
AD5
AD8
AD11
AD13
AD16
AD19
AD22
AD25
AE1
AE4
AE8
AE11
AE14
AE16
AE19
AE23
AE26
AF3
AF6
AF8
AF11
AF13
AF16
AF19
AF21
1 1
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
A
B
C
D
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Yonah Processor (2/2)
E
9 54Monday, February 12, 2007
A
5
www.bufanxiu.com
4
3
2
1
Rn
=[Rparallel*(Rntc+Rserial)/(Rparallel+Rntc+Rserial)
=[R813*(R815+R811)]/(R813+R815+R811)
=3.4K
Gain factor G=Rn/[RS(eqv)+Rn]=0.57 ----Recommend
RS(eqv)=2.56K
Rfb=[N*Rdroop/(DCR*G)-1]*Rin N:no.
of phase
D D
R357=[2*2.1mV/(1.1m*0.57)-1]*1K=3.96K
Rdroop:Intel spec. -2.1m Ohms
3VDDM8,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
DCIN25,26,45,48,49,50,51
5VDDA24,25,37,38,47,48,49,51
2005.10.19
SGND_CPU
C C
Close L36
PSI#8
1.05VDDM_PWRGD39,48
SGND_CPU
R317 SHW 0 5% 1/16W 0402
SGND_CPU
IMVP_VRON39
DPRSLPVR13,23
H_DPRSTP#8,22
VR_PWRGD_CK410#18
R315
2 VIA
SPWR 0 5% 1/16W 0603
0.01uF 16V 10% SMT0603 X7R LR(NU)
5
1.4KΩ 1% 1/10W SMT0603 LR
61.9KΩ 1% 1/10W SMT0603 LR
H_PROCHOT#8
B B
2 VIA
A A
R311 147KΩ 1% 1/10W SMT0603 LR
THERMO-RES 470KΩ 5% B25/50=4700K± 2% B25/85=4750K SMT0402 NTC ERTJ0EV474J PANASONIC LR
R3064.02KΩ 1% 1/10W SMT0603 LR
C399 0.015uF 16V 10% SMT0402 X7R LR
H_VID09
H_VID19
H_VID29
H_VID39
H_VID49
H_VID59
H_VID69
R308 1.82KΩ 0.5% 1/10W SMT0603 LR
R307
C388
390pF 50V 10% SMT0402 X7R LR
VCCSENSE9 VCORE_CPU 9,43
VSSSENSE9
R109
C400 0.01uF 16V 10% SMT0402 X7R LR
470pF 50V 10% SMT0402 X7R LR
C395
R313
1 2
2KΩ 1% 1/16W SMT0402 LR(NU)
0.033uF 25V 10% SMT0603 X7R LR
R302
C382
R300
4.22KΩ 1% 1/10W SMT0603 LR
C389
47pF 50V 5% SMT0402 NPO LR
0.01uF 16V 10% SMT0603 X7R LR
0.01uF 16V 10% SMT0603 X7R LR
R325
C407
SPWR 0 5% 1/16W 0402
R330
18mil
7mil space
SPWR 0 5% 1/16W 0402
Load line slope : -2.1mV/A
IMVP IV
VCORE_CPU 36A
For Yonah CPU
R305 10Ω 1% 1/10W SMT0603 LR
R344 10Ω 1% 1/10W SMT0603 LR
R345 10Ω 1% 1/10W SMT0603 LR
C418
1uF 10V 10% SMT0603 X5R C1608X5R1A105KT TDK LR
22
20
U31
VIN
VDD
21
VSS
49
GND
2
PSI#
3
PGD_IN
4
RBIAS
5
VR_TT#
6
NTC
7
SOFT
37
VID0
38
VID1
39
VID2
40
VID3
41
VID4
42
VID5
43
VID6
44
VR_ON
45
DPRSLPVR
46
DPRSTP#
47
CLK_EN#
13
VDIFF
12
FB2
11
FB
10
COMP
9
VW
VSEN
RTN
14
15
C408
R333 5.76KΩ 1% 1/10W SMT0603 LR
C409
4
C393
0.1uF 10V 10% SMT0402 X5R LR
C416
0.1uF 50V 10% SMT0805 X7R LR
R304
10KΩ 5% 1/16W SMT0402 LR
LNR-IC ISL6262CRZ-T QFN 48PIN INTERSIL LR
1
48
3V3
PGOOD
35
UGATE1
36
BOOT1
34
PHASE1
32
LGATE1
33
PGND1
24
ISEN1
0.22uF 10V 10% SMT0603 X7R LR
31
PVCC
27
UGATE2
26
BOOT2
28
PHASE2
30
LGATE2
29
PGND2
23
ISEN2
25
NC
SGND_CPU
8
OCSET
19
VSUM
0.33uF 16 V ±1 0% SMT0603 X7 R LR
C414
C412
18
VO
DFB
DROOP
R334
17
16
C410
C402
0.01uF 16V 10% SMT0603 X7R LR
SGND_CPUSGND_CPU
R323 10Ω 1% 1/10W SMT0603 LR
R332 10Ω 1% 1/10W SMT0603 LR
1.8KΩ 1% 1/10W SMT0603 LR
180pF 50V 5% SMT0402 NPO LR
Close Output Cap
10A, 400mils
DCIN25,26,45,48,49,50,51
DELAY_VR_PWRGOOD 13,23
C424
0.22uF 25V 10% SMT0603 X5R LR
R349
C423
0Ω 5% 1/10W SMT0603 LR
C428
0.22uF 25V 10% SMT0603 X5R LR
C422
0.22uF 10V 10% SMT0603 X7R LR
1000pF 50V 10% SMT0402 X7R LR
C397
R312 13.3KΩ 1% 1/10W SMT0603 LR
0.033uF 2 5V 10% SMT060 3 X7R LR
10KΩ 5% 1/10W SMT0603 LR(NU)
R351
C426
4.7uF 10V +80-20% 0805 Y5V LR
R348
10KΩ 5% 1/10W SMT0603 LR(NU)
VSUM
11KΩ 1 % 1/10W SMT 0603 LR
R339
R336
2.61KΩ 1% 1/10W SMT0603 LR
R110
THERMO-RES 10KΩ 5% B25/50=4250K± 2% B25/85=4300K SMT0603 NTC ERTJ1VR103J PANASONIC LR
C411
0.22uF 10V 10% SMT0603 X7R LR
Calculation formula
TR M-FET-N IRFR3707ZPbF 30V 61A TO-252AA(D-Pak) 3PIN IR LR
C102
C99
C139
4.7uF 25V ±10 % SMT1206 X5R C3216X5R1E475 KT TDK LR
4.7uF 25V ±10 % SMT1206 X5R C3216X5R1E475 KT TDK LR
E 470uF 2 5V 20% 105° S MTφ10 H= 10mm Imp=0.1 5Ω MVY 25VC470MJ10E0 NCC LR
+
VSUM
5VDDA 24,25,37,38,47,48,49,51
2005.10.19
Close L36
VSUM
IOC*Rdroop=Roc*10uA
If OCP=55A
R807=Roc=11.5Kohm
3
DCIN25,26,45,48,49,50,51
10A, 400mils
C457
4.7uF 25V ±10 % SMT1206 X5R C3216X5R1E475 KT TDK LR
R362 3.65KΩ 1% 1/10W SMT0603 LR
R363 10KΩ 1% 1/10W SMT0603 LR
R361 1Ω 1% 1/10W SMT0603 LR
Q14
D S
D
S
G
G
R388
21KΩ 1% 1/10W SMT0603 LR
M-FET-N IRFR3709ZPbF 30V 86A TO-252AA(D-PAK) 3PIN IR LR
40mils40mils
R366 3.65KΩ 1% 1/10W SMT0603 LR
R365 10KΩ 1% 1/10W SMT0603 LR
R364 1Ω 1% 1/10W SMT0603 LR
TR M-FET-N IRFR3707ZPbF 30V 61A TO-252AA(D-Pak) 3PIN IR LR
Q12
D S
C447
C134
4.7uF 25V ±10 % SMT1206 X5R C3216X5R1E475KT TDK LR
E 470uF 2 5V 20% 105° S MTφ10 H= 10mm Imp=0.1 5Ω MVY 25VC470MJ10E0 NCC LR
+
D
40mils
20A, 1000mils
DS
G
40mils
S
G
G
R347
21KΩ 1% 1/10W SMT0603 LR
M-FET-N IRFR3709ZPbF 30V 86A TO-252AA(D-PAK) 3PIN IR LR
40mils
Assume R818=Rin=1K Ohm
R819=Rfb=[N*Rdroop/(DCR*G)-1]*Rin=5.69K ~ 5.11K
Rdroop:Intel spec. -2.1m Ohms
L/DCR=[Rn//RS(eqv)]*Cn
C782+C783=Cn=L/DCR/[Rn//RS(eqv)]=0.285uF
2
Boost Voltage 1.2V
Deeper Sleep Voltage 0. 748V
L27
0.36uH±20% 1.1mΩ 20A SMT11.5*10*4mm PCMC104T-R36MN CYNTEC LR
0Ω 5 % 1/ 10W SMT 0603 LR
D26
DIO DE ST KY SM 340A- LF 40 V 3A DO-21 4AC(SM A) 2P IN S ECOS LR
Q13
R11 5
R37 2 SHW 0 5 % 1/16 W 0603
P N
100 0pF 50V 10% SMT 0603 X7R LR
C12 0
20A, 1000mils
D21
DS
Q11
G
P N
C113
0.1uF 10V 10% SMT0402 X5R LR
R371 SHW 0 5% 1/16W 0603
0.36uH±20% 1.1mΩ 20A SMT11.5*10*4mm PCMC104T-R36MN CYNTEC LR
0Ω 5 % 1/ 10W SMT 0603 LR
DIO DE STKY SM3 40A- LF 4 0V 3 A DO -214 AC(S MA) 2PIN SEC OS LR
R10 2
C83
100 0pF 50V 10% SMT 0603 X7R LR
L24
R368 SHW 0 5% 1/16W 0603
R367 S HW 0 5% 1/1 6W 0603
C47 1 T22 0uF 2V - 35 t o +1 0% 9 mΩ SMT7 343 EEFS X0D 221EY PAN ASON IC LR
+
C11 0
0.1 uF 1 0V 1 0% S MT0 402 X5R LR
C11 1 T22 0uF 2V - 35 t o +1 0% 9 mΩ SMT7 343 EEFS X0D 221EY PAN ASON IC LR
+
VCORE_CPU 9,43
C45 0 T22 0uF 2V - 35 t o +1 0% 9m Ω SMT734 3 EEFS X0D221E Y PANA SONIC LR(NU)
C43 9 T22 0uF 2V - 35 t o +1 0% 9 mΩ SMT7 343 EEFS X0D 221EY PAN ASON IC LR
+
+
C108 T220uF 2V -35 to +10% 9mΩ SMT7343 EEFSX0D221EY PANASONIC LR(NU)
C101 T220uF 2V -35 to +10% 9mΩ S MT7343 EEFSX0 D221EY PANASONIC LR
+
+
40mils
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
Custom
Date: Sheet of
(886-2)8751-8751
CPU Core Power
1
10 54Monday, February 12, 2007
0.1
8
www.bufanxiu.com
7
6
5
4
3
2
1
THERMAL SENSOR
Address:1001 110X
C434
10uF 10V +80-20% SMT0805 Y5V LR
RP20
30mil
3VDDS21,23,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
R370
10KΩ 5% 1/16W SMT0402 LR
KBC_FAN_ON41
10mil
10mil
SUSCLK23
1
Test
15
DVCC
10
THERM#
14
SCL
13
SDA
12
ALERT#
11
CLK
C435
22pF 50V 5% SMT0402 NPO LR(NU)
D D
C C
B B
5VDDM16,24,26,27,33,34,35,38,40,41,47,48
3VDDM8,10,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
10KΩ 5% SMT1010 1/16W 4P2R LR
4
3
1
2
HOT_DOWN#43
QSMCLK_PMU25,40
QSMDAT_PMU25,40
DIODE SWITCH 1SS355PT 100V 100mA SOD-323 2PIN CHENMKO LR
30mil 30mil
20mil
16
FAN1
3
FG1
20mil
5
VCC
THERM_SET
DXP1
SGND1
DXP2
SGND2
GND
4
LNR-IC G796S1U SSOP 16PIN GMT LR
2
6
7
8
9
U33
R379
10KΩ 5% 1/16W SMT0402 LR
C449
2200pF 50V 10% SMT0402 X7R LR
D20
NP
R111
10KΩ 5% 1/16W SMT0402 LR
SPWR 0 5% 1/16W 0402
L22
L25
SPWR 0 5% 1/16W 0402
4.7uF 10V +80-20% 0805 Y5V LR(NU)
5VDDM 16,24,26,27,33,34,35,38,40,41,47,48
R382
100Ω 5% 1/10W SMT0603 LR
C448
0.1uF 16V 80-20% SMT0402 Y5V LR
H_THERMDA 8
H_THERMDC 8
CON ACES SMT TYPE 85205-03001 WIRE 1.25P 3PIN LR DO'NT CARE
4.7uF 10V +80-20% 0805 Y5V LR(NU)
For
EMI
C70
5VDDM 16,24,26,27,33,34,35,38,40,41,47,48
C80
10 mil
10 mil
20-24197-20
L-20-24197-20
10 mil
Minimum
10 mil
CN8
1
2
345
GND
THERMDA
THERMDC
GND
A A
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
8
7
6
5
4
3
Date: Sheet of
2
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
CPU Thermal
1
11 54Monday, February 12, 2007
A
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
H H
G G
1.05VDDM8,9,13,15,16,18,22,24,48
R120
54.9Ω 1% 1/10W SMT0603 LR
H_XSCOMP
F F
H_XRCOMP
R119
24.9Ω 1% 1/10W SMT0603 LR
1.05VDDM8,9,13,15,16,18,22,24,48
R121
221Ω 1% 1/10W SMT0603 LR
R122
100Ω 1% 1/10W SMT0603 LR
H_XSWING
H_D#[63..0]8
C136
0.1uF 16V 80-20% SMT0402 Y5V LR
Trace should be 10-mil wide with 20-mil spacing
E E
D D
C C
1.05VDDM8,9,13,15,16,18,22,24,48 1.05VDDM8,9,13,15,16,18,22,24,48
R123
54.9Ω 1% 1/10W SMT0603 LR
H_YSCOMP
H_YRCOMP
R127
24.9Ω 1% 1/10W SMT0603 LR
R124
221Ω 1% 1/10W SMT0603 LR
R125
100Ω 1% 1/10W SMT0603 LR
H_YSWING
C158
0.1uF 16V 80-20% SMT0402 Y5V LR
CLK_MCH_BCLK18
CLK_MCH_BCLK#18
H_XRCOMP
H_XSCOMP
H_XSWING
H_YRCOMP
H_YSCOMP
H_YSWING
H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
U17A
F1
H_D#_0
J1
H_D#_1
H1
H_D#_2
J6
H_D#_3
H3
H_D#_4
K2
H_D#_5
G1
H_D#_6
G2
H_D#_7
K9
H_D#_8
K1
H_D#_9
K7
H_D#_10
J8
H_D#_11
H4
H_D#_12
J3
H_D#_13
K11
H_D#_14
G4
H_D#_15
T10
H_D#_16
W11
H_D#_17
T3
H_D#_18
U7
H_D#_19
U9
H_D#_20
U11
H_D#_21
T11
H_D#_22
W9
H_D#_23
T1
H_D#_24
T8
H_D#_25
T4
H_D#_26
W7
H_D#_27
U5
H_D#_28
T9
H_D#_29
W6
H_D#_30
T5
H_D#_31
AB7
H_D#_32
AA9
H_D#_33
W4
H_D#_34
W3
H_D#_35
Y3
H_D#_36
Y7
H_D#_37
W5
H_D#_38
Y10
H_D#_39
AB8
H_D#_40
W2
H_D#_41
AA4
H_D#_42
AA7
H_D#_43
AA2
H_D#_44
AA6
H_D#_45
AA10
H_D#_46
Y8
H_D#_47
AA1
H_D#_48
AB4
H_D#_49
AC9
H_D#_50
AB11
H_D#_51
AC11
H_D#_52
AB3
H_D#_53
AC2
H_D#_54
AD1
H_D#_55
AD9
H_D#_56
AC1
H_D#_57
AD7
H_D#_58
AC6
H_D#_59
AB5
H_D#_60
AD10
H_D#_61
AD4
H_D#_62
AC8
H_D#_63
E1
H_XRCOMP
E2
H_XSCOMP
E4
H_XSWING
Y1
H_YRCOMP
U1
H_YSCOMP
W1
H_YSWING
AG2
H_CLKIN
AG1
H_CLKIN#
INTEL NB CALISTOGA Rev1.0
FBGA1466
H_A#_3
H_A#_4
H_A#_5
H_A#_6
H_A#_7
H_A#_8
H_A#_9
H_A#_10
H_A#_11
H_A#_12
H_A#_13
H_A#_14
H_A#_15
H_A#_16
H_A#_17
H_A#_18
H_A#_19
H_A#_20
H_A#_21
H_A#_22
H_A#_23
H_A#_24
H_A#_25
H_A#_26
H_A#_27
H_A#_28
H_A#_29
H_A#_30
H_A#_31
H_ADS#
H_ADSTB#_0
H_ADSTB#_1
H_VREF_0
H_BNR#
H_BPRI#
H_BREQ#0
H_CPURST#
H_DBSY#
H_DEFER#
HOST
H_DPWR#
H_DRDY#
H_VREF_1
H_DINV#_0
H_DINV#_1
H_DINV#_2
H_DINV#_3
H_DSTBN#_0
H_DSTBN#_1
H_DSTBN#_2
H_DSTBN#_3
H_DSTBP#_0
H_DSTBP#_1
H_DSTBP#_2
H_DSTBP#_3
H_HIT#
H_HITM#
H_LOCK#
H_REQ#_0
H_REQ#_1
H_REQ#_2
H_REQ#_3
H_REQ#_4
H_RS#_0
H_RS#_1
H_RS#_2
H_SLPCPU#
H_TRDY#
H_A#4
C9
H_A#5
E11
H_A#6
G11
H_A#7
F11
H_A#8
G12
H_A#9
F9
H_A#10
H11
H_A#11
J12
H_A#12
G14
H_A#13
D9
H_A#14
J14
H_A#15
H13
H_A#16
J15
H_A#17
F14
H_A#18
D12
H_A#19
A11
H_A#20
C11
H_A#21
A12
H_A#22
A13
H_A#23
E13
H_A#24
G13
H_A#25
F12
H_A#26
B12
H_A#27
B14
H_A#28
C12
H_A#29
A14
H_A#30
C14
H_A#31
D14
E8
B9
C13
J13
C6
F6
C7
B7
A7
C3
J9
H8
K13
J7
W8
U3
AB10
K4
T7
Y5
AC4
K3
T6
AA5
AC5
D3
D4
B3
H_REQ#0
D8
H_REQ#1
G8
H_REQ#2
B8
H_REQ#3
F8
H_REQ#4
A8
B4
E6
D6
E3
E7
H_A#3
H9
H_A#[31..3]H_D#[63..0]
H_REQ#[4..0]
H_A#[31..3] 8
H_ADS# 8
H_ADSTB#0 8
H_ADSTB#1 8
H_BNR# 8
H_BPRI# 8
H_BREQ#0 8
H_CPURST# 8
H_DBSY# 8
H_DEFER# 8
H_DPWR# 8
H_DRDY# 8
H_DINV#0 8
H_DINV#1 8
H_DINV#2 8
H_DINV#3 8
H_DSTBN#0 8
H_DSTBN#1 8
H_DSTBN#2 8
H_DSTBN#3 8
H_DSTBP#0 8
H_DSTBP#1 8
H_DSTBP#2 8
H_DSTBP#3 8
H_HIT# 8
H_HITM# 8
H_LOCK# 8
H_REQ#[4..0] 8
H_RS#0 8
H_RS#1 8
H_RS#2 8
H_CPUSLP# 8
H_TRDY# 8
Should be placed 100 mils or le ss
from GMCH pin
10mils
H_CPURST# has T topology
1.05VDDM8,9,13,15,16,18,22,24,48
R439
100Ω 1% 1/10W SMT0603 LR
R438
C504
0.1uF 16V 80-20% SMT0402 Y5V LR
200Ω 1% 1/10W SMT0603 LR
H_VREF
B B
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
A A
10
9
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Calistoga Host (1/6)
2
12 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
H H
3VDDM8,10,11,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
R433
4
3
RP56
G G
F F
E E
PM_BMBUSY#23
PM_THRMTRIP#8,22
DELAY_VR_PWRGOOD10,23
PLT_RST#21,23,28,40,41
MCH_ICH_SYNC#21
2.2K 5% 0402X2 1/16W 4P2R LR
1
2
MCH_BSEL018
MCH_BSEL118
MCH_BSEL218
MCH_CFG5
MCH_CFG7
MCH_CFG9
MCH_CFG10
MCH_CFG11
MCH_CFG12
MCH_CFG13
MCH_CFG15
MCH_CFG16
MCH_CFG18
MCH_CFG19
PM_EXTTS#0
PM_EXTTS#1
R448 100Ω 5% 1/16W SMT0402 LR
D D
3VDDM
9,40,42,43,47
C C
B B
A A
R416
10KΩ 5% 1/16W SMT0402 LR
R418
10KΩ 5% 1/16W SMT0402 LR(NU)
MCH_CFG18
MCH_CFG19
MCH_CFG5
MCH_CFG7
MCH_CFG9
MCH_CFG10
MCH_CFG11
MCH_CFG12
MCH_CFG13
MCH_CFG15
MCH_CFG16
PM_EXTTS#0
PM_EXTTS#1
R441 1KΩ 5% 1/16W SMT0402 LR(NU)
R435 1KΩ 5% 1/16W SMT0402 LR(NU)
R402 2.2KΩ 5% 1/16W SMT0402 LR(NU)
R420 2.2KΩ 5% 1/16W SMT0402 LR(NU)
R421 2.2KΩ 5% 1/16W SMT0402 LR(NU)
R400 2.2KΩ 5% 1/16W SMT0402 LR(NU)
R401 2.2KΩ 5% 1/16W SMT0402 LR
R403 2.2KΩ 5% 1/16W SMT0402 LR(NU)
R434 2.2KΩ 5% 1/16W SMT0402 LR(NU)
R428 1KΩ 5% 1/16W SMT0402 LR(NU)
R404 2.2KΩ 5% 1/16W SMT0402 LR(NU)
10
10KΩ 5% 1/16W SMT0402 LR
AG11
AF11
AH33
AH34
BA41
BA40
BA39
AY41
AW41
AW1
R376
0Ω 5% 1/16W SMT0402 LR
9
U17B
H32
RSVD_0
T32
RSVD_1
R32
RSVD_2
F3
RSVD_3
F7
RSVD_4
RSVD_5
RSVD_6
H7
RSVD_7
J19
RSVD_8
K30
RSVD_9
J29
RSVD_10
A41
RSVD_11
A35
RSVD_12
A34
RSVD_13
D28
RSVD_14
D27
RSVD_15
K16
CFG_0
K18
CFG_1
J18
CFG_2
F18
CFG_3
E15
CFG_4
F15
CFG_5
E18
CFG_6
D19
CFG_7
D16
CFG_8
G16
CFG_9
E16
CFG_10
D15
CFG_11
G15
CFG_12
K15
CFG_13
C15
CFG_14
H16
CFG_15
G18
CFG_16
H15
CFG_17
J25
CFG_18
K27
CFG_19
J26
CFG_20
G28
PM_BMBUSY#
F25
PM_EXTTS#_0
H26
PM_EXTTS#_1
G6
PM_THRMTRIP#
PWROK
RSTIN#
H28
SDVO_CTRLCLK
H27
SDVO_CTRLDATA
K28
ICH_SYNC#
D1
NC0
C41
NC1
C1
NC2
NC3
NC4
NC5
BA3
NC6
BA2
NC7
BA1
NC8
B41
NC9
B2
NC10
NC11
AY1
NC12
NC13
NC14
A40
NC15
A4
NC16
A39
NC17
A3
NC18
INTEL NB CALISTOGA Rev1.0
FBGA1466
3VDDM8,10,11,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
CFGRSVD
PM
MISC
NC
DPRSLPVR 10,23
Calistoga (945GM) Strapping:
MCH_CFG5
MCH_CFG6
MCH_CFG7 (CPU Strap)
MCH_CFG9 (PCIE Graphic Lane)
MCH_CFG10 (Host PLL VCO Select)
MCH_CFG11 (PSB 4x CLK Enable)
MCH_CFG15 (ICH Reset Disable)
MCH_CFG16 (FSB Dynamic ODT)
MCH_CFG18 (VCC Select)
MCH_CFG19 (DMI Lane Reversal)
MCH_CFG20
8
SM_CK_0
SM_CK_1
SM_CK_2
SM_CK_3
SM_CK#_0
SM_CK#_1
SM_CK#_2
SM_CK#_3
SM_CKE_0
SM_CKE_1
SM_CKE_2
SM_CKE_3
SM_CS#_0
SM_CS#_1
SM_CS#_2
SM_CS#_3
SM_OCDCOMP_0
SM_OCDCOMP_1
SM_ODT_0
SM_ODT_1
SM_ODT_2
SM_ODT_3
SM_RCOMP#
SM_RCOMP
DDR MUXINGCLKDMI
SM_VREF_0
SM_VREF_1
G_CLKIN#
G_CLKIN
D_REFCLKIN#
D_REFCLKIN
D_REFSSCLKIN#
D_REFSSCLKIN
DMI_RXN_0
DMI_RXN_1
DMI_RXN_2
DMI_RXN_3
DMI_RXP_0
DMI_RXP_1
DMI_RXP_2
DMI_RXP_3
DMI_TXN_0
DMI_TXN_1
DMI_TXN_2
DMI_TXN_3
DMI_TXP_0
DMI_TXP_1
DMI_TXP_2
DMI_TXP_3
5pF 50V ±0.5pF -55 TO +125C SMT0402 NPO LR(NU)
C673
C675
C674
C676
C677
C678
AY35
AR1
AW7
AW40
AW35
AT1
AY7
AY40
AU20
AT20
BA29
AY29
AW13
AW12
AY21
AW21
AL20
AF10
BA13
BA12
AY20
AU21
AV9
AT9
AK1
AK41
AF33
AG33
A27
A26
C40
D41
AE35
AF39
AG35
AH39
AC35
AE39
AF35
AG39
AE37
AF41
AG37
AH41
AC37
AE41
AF37
AG41
M_CKE0 19
M_CKE1 19
M_CKE2 20
M_CKE3 20
M_CS#0 19
M_CS#1 19
M_CS#2 20
M_CS#3 20
Route M_OCDCMOP 0&1 as short as possible
M_ODT0 19
M_ODT1 19
M_ODT2 20
M_ODT3 20
M_RCOMP#
M_RCOMP
M_VREF 19,20,49
DMI_TXN0
DMI_TXN1
DMI_TXN2
DMI_TXN3
DMI_TXP0
DMI_TXP1
DMI_TXP2
DMI_TXP3
DMI_RXN0
DMI_RXN1
DMI_RXN2
DMI_RXN3
DMI_RXP0
DMI_RXP1
DMI_RXP2
DMI_RXP3
1.8VDDS15,19,20,25,49
Low
DMIx2
Moby Dick Calistoga
DT/Transportable CPU
Reverse Lane
Reversed
calistaga
ICH Reset Disable
Dynamic ODT Disable
1.05V
Normal Lanes Reversed
Only SDVO or PCIE x1 is
operation
DMI_TXN0 21
DMI_TXN1 21
DMI_TXN2 21
DMI_TXN3 21
DMI_TXP0 21
DMI_TXP1 21
DMI_TXP2 21
DMI_TXP3 21
DMI_RXN0 21
DMI_RXN1 21
DMI_RXN2 21
DMI_RXN3 21
DMI_RXP0 21
DMI_RXP1 21
DMI_RXP2 21
DMI_RXP3 21
M_RCOMP#
R456
80.6Ω 1% 1/10W SMT0603 LR
M_RCOMP
R459
80.6Ω 1% 1/10W SMT0603 LR
7
C680
C679
M_CLK_DDR0 19
M_CLK_DDR1 19
M_CLK_DDR2 20
M_CLK_DDR3 20
M_CLK_DDR#0 19
M_CLK_DDR#1 19
M_CLK_DDR#2 20
M_CLK_DDR#3 20
M_VREF
0.1uF 16V 80-20% SMT0402 Y5V LR
C171
0.1uF 16V 80-20% SMT0402 Y5V LR
CLK_PCIE_3GPLL# 18
CLK_PCIE_3GPLL 18
DREFCLK# 18
DREFCLK 18
DREFSSCLK# 18
DREFSSCLK 18
High
DMIx4
Mobile CPU
Normal Operation
Mobility
Reserved
Normal Operation
Dynamic ODT Enable
1.5V
Only SDVO or PCIE x1
with PEG port
FOR EMI
R419
1.5KΩ 1% 1/16W SMT0402 LR
C181
R399 150Ω 1% 1/16W SMT0402 LR(NU)
R409 150Ω 1% 1/16W SMT0402 LR(NU)
R407 75Ω 1% 1/16W SMT0402 LR
R395 150Ω 1% 1/16W SMT0402 LR(NU)
R394 150Ω 1% 1/16W SMT0402 LR(NU)
R398 150Ω 1% 1/16W SMT0402 LR(NU)
6
LVDS_BKLTEN25
LVDS_DDC_CLK25
LVDS_DDC_DATA25
L_IBG
LVDS_VDDEN25
LVDS_CHNA_CLKN26
LVDS_CHNA_CLKP26
LVDS_CHNA_DATAN026
LVDS_CHNA_DATAN126
LVDS_CHNA_DATAN226
LVDS_CHNA_DATAP026
LVDS_CHNA_DATAP126
LVDS_CHNA_DATAP226
TV_DAC_B25
TV_DAC_C25
CRT_BLUE25
CRT_GREEN25
CRT_RED25
Place 150ohm termination resistor
close to GMCH
Q_VECLK25
Q_VEDAT25
CRT_HSYNC25
CRT_VSYNC25
RES 4.99KΩ 1% 1/16W SMT0402 LR
R440
R380 39Ω 1% 1/10W SMT0603 LR
R381 39Ω 1% 1/10W SMT0603 LR
RP53
124
0 5% 0402*2 1/16W 4P2R LR(NU)
5
3VDDM8,10,11,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
R417
10KΩ 5% 1/16W SMT0402 LR
NB_D32
TV_DAC_A
TV_IREF
TV_IRTNA
TV_IRTNB
TV_IRTNC
BLUE
BLUE#
GREEN
GREEN#
RED
RED#
REF SET
3
REFSET
R436 0Ω 5% 1/16W SMT0402 LR(NU)
BLUE
R390 0Ω 5% 1/16W SMT0402 LR(NU)
GREEN
R393 0Ω 5% 1/16W SMT0402 LR(NU)
RED
R396 0Ω 5% 1/16W SMT0402 LR(NU)
R391
BLUE#
R392
GREEN#
RED#
SDVO Routing
Guideline at
Page 35
R424
10KΩ 5% 1/16W SMT0402 LR
U17C
D32
L_BKLTCTL
J30
L_BKLTEN
H30
L_CLKCTLA
H29
L_CLKCTLB
G26
L_DDC_CLK
G25
L_DDC_DATA
B38
L_IBG
C35
L_VBG
F32
L_VDDEN
C33
L_VREFH
C32
L_VREFL
A33
LA_CLK#
A32
LA_CLK
E27
LB_CLK#
E26
LB_CLK
C37
LA_DATA#_0
B35
LA_DATA#_1
A37
LA_DATA#_2
B37
LA_DATA_0
B34
LA_DATA_1
A36
LA_DATA_2
G30
LB_DATA#_0
D30
LB_DATA#_1
F29
LB_DATA#_2
F30
LB_DATA_0
D29
LB_DATA_1
F28
LB_DATA_2
A16
TV_DACA_OUT
C18
TV_DACB_OUT
A19
TV_DACC_OUT
J20
TV_IREF
B16
TV_IRTNA
B18
TV_IRTNB
B19
TV_IRTNC
E23
CRT_BLUE
D23
CRT_BLUE#
C22
CRT_GREEN
B22
CRT_GREEN#
A21
CRT_RED
B21
CRT_RED#
C26
CRT_DDC_CLK
C25
CRT_DDC_DATA
G23
CRT_HSYNC
J22
CRT_IREF
H23
CRT_VSYNC
INTEL NB CALISTOGA Rev1.0
FBGA1466
R437
255Ω 1% 1/16W SMT0402 LR Sn
As close as possible to GMCH and Minimum
spacing of 20 mils away from any toggle
signals
When the display is completely white , the RGB voltage is
between 665mV to 770mV by VESA Spec
If meet , CRT_IREF resistor value is optimal
0Ω 5% 1/10W SMT0603 LR(NU)
0Ω 5% 1/10W SMT0603 LR
LVDS
TV
VGA
1.05VDDM8,9,12,15,16,18,22,24,48
4
EXP_A_COMPI
EXP_A_COMPO
EXP_A_RXN_0
EXP_A_RXN_1
EXP_A_RXN_2
EXP_A_RXN_3
EXP_A_RXN_4
EXP_A_RXN_5
EXP_A_RXN_6
EXP_A_RXN_7
EXP_A_RXN_8
EXP_A_RXN_9
EXP_A_RXN_10
EXP_A_RXN_11
EXP_A_RXN_12
EXP_A_RXN_13
EXP_A_RXN_14
EXP_A_RXN_15
EXP_A_RXP_0
EXP_A_RXP_1
EXP_A_RXP_2
EXP_A_RXP_3
EXP_A_RXP_4
EXP_A_RXP_5
EXP_A_RXP_6
EXP_A_RXP_7
EXP_A_RXP_8
EXP_A_RXP_9
EXP_A_RXP_10
EXP_A_RXP_11
EXP_A_RXP_12
EXP_A_RXP_13
EXP_A_RXP_14
EXP_A_RXP_15
EXP_A_TXN_0
EXP_A_TXN_1
EXP_A_TXN_2
EXP_A_TXN_3
EXP_A_TXN_4
EXP_A_TXN_5
EXP_A_TXN_6
EXP_A_TXN_7
EXP_A_TXN_8
EXP_A_TXN_9
EXP_A_TXN_10
EXP_A_TXN_11
EXP_A_TXN_12
PCI-EXPRESS GRAPHICS
EXP_A_TXN_13
EXP_A_TXN_14
EXP_A_TXN_15
EXP_A_TXP_0
EXP_A_TXP_1
EXP_A_TXP_2
EXP_A_TXP_3
EXP_A_TXP_4
EXP_A_TXP_5
EXP_A_TXP_6
EXP_A_TXP_7
EXP_A_TXP_8
EXP_A_TXP_9
EXP_A_TXP_10
EXP_A_TXP_11
EXP_A_TXP_12
EXP_A_TXP_13
EXP_A_TXP_14
EXP_A_TXP_15
3
D40
D38
F34
G38
H34
J38
L34
M38
N34
P38
R34
T38
V34
W38
Y34
AA38
AB34
AC38
D34
F38
G34
H38
J34
L38
M34
N38
P34
R38
T34
V38
W34
Y38
AA34
AB38
EXP_TXN0
F36
EXP_TXN1
G40
EXP_TXN2
H36
EXP_TXN3
J40
EXP_TXN4
L36
EXP_TXN5
M40
EXP_TXN6
N36
EXP_TXN7
P40
EXP_TXN8
R36
EXP_TXN9
T40
EXP_TXN10
V36
EXP_TXN11
W40
EXP_TXN12
Y36
EXP_TXN13
AA40
EXP_TXN14
AB36
EXP_TXN15
AC40
EXP_TXP0
D36
EXP_TXP1
F40
EXP_TXP2
G36
EXP_TXP3
H40
EXP_TXP4
J36
EXP_TXP5
L40
EXP_TXP6
M36
EXP_TXP7
N40
EXP_TXP8
P36
EXP_TXP9
R40
EXP_TXP10
T36
EXP_TXP11
V40
EXP_TXP12
W36
EXP_TXP13
Y40
EXP_TXP14
AA36
EXP_TXP15
AB40
1.5VDDM_PCIE16
R423
24.9Ω 1% 1/10W SMT0603 LR
NB_PEG_RXN0 25
NB_PEG_RXN1 25
NB_PEG_RXN2 25
NB_PEG_RXN3 25
NB_PEG_RXN4 25
NB_PEG_RXN5 25
NB_PEG_RXN6 25
NB_PEG_RXN7 25
NB_PEG_RXN8 25
NB_PEG_RXN9 25
NB_PEG_RXN10 25
NB_PEG_RXN11 25
NB_PEG_RXN12 25
NB_PEG_RXN13 25
NB_PEG_RXN14 25
NB_PEG_RXN15 25
NB_PEG_RXP0 25
NB_PEG_RXP1 25
NB_PEG_RXP2 25
NB_PEG_RXP3 25
NB_PEG_RXP4 25
NB_PEG_RXP5 25
NB_PEG_RXP6 25
NB_PEG_RXP7 25
NB_PEG_RXP8 25
NB_PEG_RXP9 25
NB_PEG_RXP10 25
NB_PEG_RXP11 25
NB_PEG_RXP12 25
NB_PEG_RXP13 25
NB_PEG_RXP14 25
NB_PEG_RXP15 25
C492 0.1uF 16V 80-20% SMT0402X5R LR(NU)
C131
C497
C133
C499
C137
C505
C140
C509
C148
C513
C150
C516
C154
C522
C156
C490
C130
C495
C132
C498
C135
C501
C138
C507
C141
C512
C149
C515
C153
C521
C155
If 945GM:
Unmount all the coupling
capacitor on the PCI-e
bus.
RP55 0 5% 0402X4 1/16W 8P4R LR(NU)
TV_DAC_C
TV_DAC_B
TV_DAC_A
TV_IREF
TV_IRTNA
TV_IRTNB
TV_IRTNC
1
8
2
7
3
6
4
5
R405
0Ω 5% 1/10W SMT0603 LR(NU)
0Ω 5% 1/10W SMT0603 LR
R406
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
MR052< Yonah+Calistoga+ICH7M>
Calistoga DMI/Graphic (2/6)
2
VGA_PEG_RXN0 25
VGA_PEG_RXN1 25
VGA_PEG_RXN2 25
VGA_PEG_RXN3 25
VGA_PEG_RXN4 25
VGA_PEG_RXN5 25
VGA_PEG_RXN6 25
VGA_PEG_RXN7 25
VGA_PEG_RXN8 25
VGA_PEG_RXN9 25
VGA_PEG_RXN10 25
VGA_PEG_RXN11 25
VGA_PEG_RXN12 25
VGA_PEG_RXN13 25
VGA_PEG_RXN14 25
VGA_PEG_RXN15 25
VGA_PEG_RXP0 25
VGA_PEG_RXP1 25
VGA_PEG_RXP2 25
VGA_PEG_RXP3 25
VGA_PEG_RXP4 25
VGA_PEG_RXP5 25
VGA_PEG_RXP6 25
VGA_PEG_RXP7 25
VGA_PEG_RXP8 25
VGA_PEG_RXP9 25
VGA_PEG_RXP10 25
VGA_PEG_RXP11 25
VGA_PEG_RXP12 25
VGA_PEG_RXP13 25
VGA_PEG_RXP14 25
VGA_PEG_RXP15 25
1.5VDDM9,15,16,24,28,48
13 54Monday, February 12, 2007
1
A
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
H H
M_A_DQ[63..0]19
G G
F F
E E
D D
M_A_DQ[63..0]
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
U17D
AJ35
SA_DQ0
AJ34
SA_DQ1
AM31
SA_DQ2
AM33
SA_DQ3
AJ36
SA_DQ4
AK35
SA_DQ5
AJ32
SA_DQ6
AH31
SA_DQ7
AN35
SA_DQ8
AP33
SA_DQ9
AR31
SA_DQ10
AP31
SA_DQ11
AN38
SA_DQ12
AM36
SA_DQ13
AM34
SA_DQ14
AN33
SA_DQ15
AK26
SA_DQ16
AL27
SA_DQ17
AM26
SA_DQ18
AN24
SA_DQ19
AK28
SA_DQ20
AL28
SA_DQ21
AM24
SA_DQ22
AP26
SA_DQ23
AP23
SA_DQ24
AL22
SA_DQ25
AP21
SA_DQ26
AN20
SA_DQ27
AL23
SA_DQ28
AP24
SA_DQ29
AP20
SA_DQ30
AT21
SA_DQ31
AR12
SA_DQ32
AR14
SA_DQ33
AP13
SA_DQ34
AP12
SA_DQ35
AT13
SA_DQ36
AT12
SA_DQ37
AL14
SA_DQ38
AL12
SA_DQ39
AK9
SA_DQ40
AN7
SA_DQ41
AK8
SA_DQ42
AK7
SA_DQ43
AP9
SA_DQ44
AN9
SA_DQ45
AT5
SA_DQ46
AL5
SA_DQ47
AY2
SA_DQ48
AW2
SA_DQ49
AP1
SA_DQ50
AN2
SA_DQ51
AV2
SA_DQ52
AT3
SA_DQ53
AN1
SA_DQ54
AL2
SA_DQ55
AG7
SA_DQ56
AF9
SA_DQ57
AG4
SA_DQ58
AF6
SA_DQ59
AG9
SA_DQ60
AH6
SA_DQ61
AF4
SA_DQ62
AF8
SA_DQ63
INTEL NB CALISTOGA Rev1.0
FBGA1466
DDR SYSTEM MEMORY A
SA_RCVENOUT#
SA_BS_0
SA_BS_1
SA_BS_2
SA_CAS#
SA_DM_0
SA_DM_1
SA_DM_2
SA_DM_3
SA_DM_4
SA_DM_5
SA_DM_6
SA_DM_7
SA_DQS_0
SA_DQS_1
SA_DQS_2
SA_DQS_3
SA_DQS_4
SA_DQS_5
SA_DQS_6
SA_DQS_7
SA_DQS#_0
SA_DQS#_1
SA_DQS#_2
SA_DQS#_3
SA_DQS#_4
SA_DQS#_5
SA_DQS#_6
SA_DQS#_7
SA_MA_0
SA_MA_1
SA_MA_2
SA_MA_3
SA_MA_4
SA_MA_5
SA_MA_6
SA_MA_7
SA_MA_8
SA_MA_9
SA_MA_10
SA_MA_11
SA_MA_12
SA_MA_13
SA_RAS#
SA_RCVENIN#
SA_WE#
AU12
AV14
BA20
AY13
AJ33
AM35
AL26
AN22
AM14
AL9
AR3
AH4
AK33
AT33
AN28
AM22
AN12
AN8
AP3
AG5
AK32
AU33
AN27
AM21
AM12
AL8
AN3
AH5
AY16
AU14
AW16
BA16
BA17
AU16
AV17
AU17
AW17
AT16
AU13
AT17
AV20
AV12
AW14
AK23
AK24
AY14
M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_DM[7..0]
M_A_DQS[7..0]
M_A_DQS#[7..0]
M_A_A[13..0]
M_A_BS0 19
M_A_BS1 19
M_A_BS2 19
M_A_CAS# 19
M_A_DM[7..0] 19
M_A_DQS[7..0] 19
M_A_DQS#[7..0] 19
M_A_A[13..0] 19
M_A_RAS# 19
M_A_WE# 19
M_B_DQ[63..0]20
M_B_DQ[63..0]
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
U17E
AK39
SB_DQ0
AJ37
SB_DQ1
AP39
SB_DQ2
AR41
SB_DQ3
AJ38
SB_DQ4
AK38
SB_DQ5
AN41
SB_DQ6
AP41
SB_DQ7
AT40
SB_DQ8
AV41
SB_DQ9
AU38
SB_DQ10
AV38
SB_DQ11
AP38
SB_DQ12
AR40
SB_DQ13
AW38
SB_DQ14
AY38
SB_DQ15
BA38
SB_DQ16
AV36
SB_DQ17
AR36
SB_DQ18
AP36
SB_DQ19
BA36
SB_DQ20
AU36
SB_DQ21
AP35
SB_DQ22
AP34
SB_DQ23
AY33
SB_DQ24
BA33
SB_DQ25
AT31
SB_DQ26
AU29
SB_DQ27
AU31
SB_DQ28
AW31
SB_DQ29
AV29
SB_DQ30
AW29
SB_DQ31
AM19
SB_DQ32
AL19
SB_DQ33
AP14
SB_DQ34
AN14
SB_DQ35
AN17
SB_DQ36
AM16
SB_DQ37
AP15
SB_DQ38
AL15
SB_DQ39
AJ11
SB_DQ40
AH10
SB_DQ41
AJ9
SB_DQ42
AN10
SB_DQ43
AK13
SB_DQ44
AH11
SB_DQ45
AK10
SB_DQ46
AJ8
SB_DQ47
BA10
SB_DQ48
AW10
SB_DQ49
BA4
SB_DQ50
AW4
SB_DQ51
AY10
SB_DQ52
AY9
SB_DQ53
AW5
SB_DQ54
AY5
SB_DQ55
AV4
SB_DQ56
AR5
SB_DQ57
AK4
SB_DQ58
AK3
SB_DQ59
AT4
SB_DQ60
AK5
SB_DQ61
AJ5
SB_DQ62
AJ3
SB_DQ63
INTEL NB CALISTOGA Rev1.0
FBGA1466
SB_RCVENIN#
DDR SYSTEM MEMORY B
SB_RCVENOUT#
SB_BS_0
SB_BS_1
SB_BS_2
SB_CAS#
SB_DM_0
SB_DM_1
SB_DM_2
SB_DM_3
SB_DM_4
SB_DM_5
SB_DM_6
SB_DM_7
SB_DQS_0
SB_DQS_1
SB_DQS_2
SB_DQS_3
SB_DQS_4
SB_DQS_5
SB_DQS_6
SB_DQS_7
SB_DQS#_0
SB_DQS#_1
SB_DQS#_2
SB_DQS#_3
SB_DQS#_4
SB_DQS#_5
SB_DQS#_6
SB_DQS#_7
SB_MA_0
SB_MA_1
SB_MA_2
SB_MA_3
SB_MA_4
SB_MA_5
SB_MA_6
SB_MA_7
SB_MA_8
SB_MA_9
SB_MA_10
SB_MA_11
SB_MA_12
SB_MA_13
SB_RAS#
SB_WE#
AT24
AV23
AY28
AR24
AK36
AR38
AT36
BA31
AL17
AH8
BA5
AN4
AM39
AT39
AU35
AR29
AR16
AR10
AR7
AN5
AM40
AU39
AT35
AP29
AP16
AT10
AT7
AP5
AY23
AW24
AY24
AR28
AT27
AT28
AU27
AV28
AV27
AW27
AV24
BA27
AY27
AR23
AU23
AK16
AK18
AR27
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_DM[7..0]
M_B_DQS[7..0]
M_B_DQS#[7..0]
M_B_A[13..0]
M_B_BS0 20
M_B_BS1 20
M_B_BS2 20
M_B_CAS# 20
M_B_DM[7..0] 20
M_B_DQS[7..0] 20
M_B_DQS#[7..0] 20
M_B_A[13..0] 20
M_B_RAS# 20
M_B_WE# 20
C C
B B
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
A A
10
9
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Calistoga DDR2 (3/6)
2
14 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
H H
1.05VDDM8,9,12,13,16,18,22,24,48
C159
0.1uF 16V 80-20% SMT0402 Y5V LR
G G
F F
E E
D D
C C
B B
A A
10
Via:5A
200mils
9
9
U17G
AA33
VCC_0
W33
VCC_1
P33
VCC_2
N33
VCC_3
L33
VCC_4
J33
VCC_5
AA32
VCC_6
Y32
VCC_7
W32
VCC_8
V32
VCC_9
P32
VCC_10
N32
VCC_11
M32
VCC_12
L32
VCC_13
J32
VCC_14
AA31
VCC_15
W31
VCC_16
V31
VCC_17
T31
VCC_18
R31
VCC_19
P31
VCC_20
N31
VCC_21
M31
VCC_22
AA30
VCC_23
Y30
VCC_24
W30
VCC_25
V30
VCC_26
U30
VCC_27
T30
VCC_28
R30
VCC_29
P30
VCC_30
N30
VCC_31
M30
VCC_32
L30
VCC_33
AA29
VCC_34
Y29
VCC_35
W29
VCC_36
V29
VCC_37
U29
VCC_38
R29
VCC_39
P29
VCC_40
M29
VCC_41
L29
VCC_42
AB28
VCC_43
AA28
VCC_44
Y28
VCC_45
V28
VCC_46
U28
VCC_47
T28
VCC_48
R28
VCC_49
P28
VCC_50
N28
VCC_51
M28
VCC_52
L28
VCC_53
P27
VCC_54
N27
VCC_55
M27
VCC_56
L27
VCC_57
P26
VCC_58
N26
VCC_59
L26
VCC_60
N25
VCC_61
M25
VCC_62
L25
VCC_63
P24
VCC_64
N24
VCC_65
M24
VCC_66
AB23
VCC_67
AA23
VCC_68
Y23
VCC_69
P23
VCC_70
N23
VCC_71
M23
VCC_72
L23
VCC_73
AC22
VCC_74
AB22
VCC_75
Y22
VCC_76
W22
VCC_77
P22
VCC_78
N22
VCC_79
M22
VCC_80
L22
VCC_81
AC21
VCC_82
AA21
VCC_83
W21
VCC_84
N21
VCC_85
M21
VCC_86
L21
VCC_87
AC20
VCC_88
AB20
VCC_89
Y20
VCC_90
W20
VCC_91
P20
VCC_92
N20
VCC_93
M20
VCC_94
L20
VCC_95
AB19
VCC_96
AA19
VCC_97
Y19
VCC_98
N19
VCC_99
M19
VCC_100
L19
VCC_101
N18
VCC_102
M18
VCC_103
L18
VCC_104
P17
VCC_105
N17
VCC_106
M17
VCC_107
N16
VCC_108
M16
VCC_109
L16
VCC_110
INTEL NB CALISTOGA Rev1.0
FBGA1466
VCC
8
AU41
VCC_SM_0
AT41
VCC_SM_1
AM41
VCC_SM_2
AU40
VCC_SM_3
BA34
VCC_SM_4
AY34
VCC_SM_5
AW34
VCC_SM_6
AV34
VCC_SM_7
AU34
VCC_SM_8
AT34
VCC_SM_9
AR34
VCC_SM_10
BA30
VCC_SM_11
AY30
VCC_SM_12
AW30
VCC_SM_13
AV30
VCC_SM_14
AU30
VCC_SM_15
AT30
VCC_SM_16
AR30
VCC_SM_17
AP30
VCC_SM_18
AN30
VCC_SM_19
AM30
VCC_SM_20
AM29
VCC_SM_21
AL29
VCC_SM_22
AK29
VCC_SM_23
AJ29
VCC_SM_24
AH29
VCC_SM_25
AJ28
VCC_SM_26
AH28
VCC_SM_27
AJ27
VCC_SM_28
AH27
VCC_SM_29
BA26
VCC_SM_30
AY26
VCC_SM_31
AW26
VCC_SM_32
AV26
VCC_SM_33
AU26
VCC_SM_34
AT26
VCC_SM_35
AR26
VCC_SM_36
AJ26
VCC_SM_37
AH26
VCC_SM_38
AJ25
VCC_SM_39
AH25
VCC_SM_40
AJ24
VCC_SM_41
AH24
VCC_SM_42
BA23
VCC_SM_43
AJ23
VCC_SM_44
BA22
VCC_SM_45
AY22
VCC_SM_46
AW22
VCC_SM_47
AV22
VCC_SM_48
AU22
VCC_SM_49
AT22
VCC_SM_50
AR22
VCC_SM_51
AP22
VCC_SM_52
AK22
VCC_SM_53
AJ22
VCC_SM_54
AK21
VCC_SM_55
AK20
VCC_SM_56
BA19
VCC_SM_57
AY19
VCC_SM_58
AW19
VCC_SM_59
AV19
VCC_SM_60
AU19
VCC_SM_61
AT19
VCC_SM_62
AR19
VCC_SM_63
AP19
VCC_SM_64
AK19
VCC_SM_65
AJ19
VCC_SM_66
AJ18
VCC_SM_67
AJ17
VCC_SM_68
AH17
VCC_SM_69
AJ16
VCC_SM_70
AH16
VCC_SM_71
BA15
VCC_SM_72
AY15
VCC_SM_73
AW15
VCC_SM_74
AV15
VCC_SM_75
AU15
VCC_SM_76
AT15
VCC_SM_77
AR15
VCC_SM_78
AJ15
VCC_SM_79
AJ14
VCC_SM_80
AJ13
VCC_SM_81
AH13
VCC_SM_82
AK12
VCC_SM_83
AJ12
VCC_SM_84
AH12
VCC_SM_85
AG12
VCC_SM_86
AK11
VCC_SM_87
BA8
VCC_SM_88
AY8
VCC_SM_89
AW8
VCC_SM_90
AV8
VCC_SM_91
AT8
VCC_SM_92
AR8
VCC_SM_93
AP8
VCC_SM_94
BA6
VCC_SM_95
AY6
VCC_SM_96
AW6
VCC_SM_97
AV6
VCC_SM_98
AT6
VCC_SM_99
AR6
VCC_SM_100
AP6
VCC_SM_101
AN6
VCC_SM_102
AL6
VCC_SM_103
AK6
VCC_SM_104
AJ6
VCC_SM_105
AV1
VCC_SM_106
AJ1
VCC_SM_107
8
7
VSSM_LF5
VSSM_LF4
VSSM_LF2
VSSM_LF1
7
C179
0.47uF 16V +80-20% 0603 Y5V LR
C177
0.47uF 16V +80-20% 0603 Y5V LR
12
C178
0.47uF 16V +80-20% 0603 Y5V LR
Via:3A
120mils
12
C538
0.47uF 16V +80-20% 0603 Y5V LR
12
C180
0.47uF 16V +80-20% 0603 Y5V LR
6
1.8VDDS13,19,20,25,49
C533
6
5
Should be close to ball
BA15
12
C182
0.47uF 16V +80-20% 0603 Y5V LR
C532
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR
5
4
Via:5A
200mils
1.05VDDM8,9,12,13,16,18,22,24,48
C174 T220uF 2V ±20% 15mΩ SMT7343 H=1.9mm EEF CX0D221R PANASONIC LR
C146 10uF 10V 80-20% SMT0805 Y5V H=1.25mm LR
C147 10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR
+
C144 0.22uF 10V 10% SMT0603 X7R LR
C145 1uF 10V +80-20% SMT0603 Y5V LMK107F105ZA-T TAIYO LR
4
3
U17F
AD27
VCC_NCTF0
AC27
VCC_NCTF1
AB27
VCC_NCTF2
C535 T220uF 2V ±20% 15mΩ SMT7343 H=1.9mm EEF CX0D221R PANASONIC LR
+
C143 0.22uF 10V 10% SMT0603 X7R LR
AA27
VCC_NCTF3
Y27
VCC_NCTF4
W27
VCC_NCTF5
V27
VCC_NCTF6
U27
VCC_NCTF7
T27
VCC_NCTF8
R27
VCC_NCTF9
AD26
VCC_NCTF10
AC26
VCC_NCTF11
AB26
VCC_NCTF12
AA26
VCC_NCTF13
Y26
VCC_NCTF14
W26
VCC_NCTF15
V26
VCC_NCTF16
U26
VCC_NCTF17
T26
VCC_NCTF18
R26
VCC_NCTF19
AD25
VCC_NCTF20
AC25
VCC_NCTF21
AB25
VCC_NCTF22
AA25
VCC_NCTF23
Y25
VCC_NCTF24
W25
VCC_NCTF25
V25
VCC_NCTF26
U25
VCC_NCTF27
T25
VCC_NCTF28
R25
VCC_NCTF29
AD24
VCC_NCTF30
AC24
VCC_NCTF31
AB24
VCC_NCTF32
AA24
VCC_NCTF33
Y24
VCC_NCTF34
W24
VCC_NCTF35
V24
VCC_NCTF36
U24
VCC_NCTF37
T24
VCC_NCTF38
R24
VCC_NCTF39
AD23
VCC_NCTF40
V23
VCC_NCTF41
U23
VCC_NCTF42
T23
VCC_NCTF43
R23
VCC_NCTF44
AD22
VCC_NCTF45
V22
VCC_NCTF46
C142 0.22uF 16V 80-20% 0603 Y5V(NU)
U22
VCC_NCTF47
T22
VCC_NCTF48
R22
VCC_NCTF49
AD21
VCC_NCTF50
V21
VCC_NCTF51
U21
VCC_NCTF52
T21
VCC_NCTF53
R21
VCC_NCTF54
AD20
VCC_NCTF55
V20
VCC_NCTF56
U20
VCC_NCTF57
T20
VCC_NCTF58
R20
VCC_NCTF59
AD19
VCC_NCTF60
V19
VCC_NCTF61
U19
VCC_NCTF62
T19
VCC_NCTF63
AD18
VCC_NCTF64
AC18
VCC_NCTF65
AB18
VCC_NCTF66
AA18
VCC_NCTF67
Y18
VCC_NCTF68
W18
VCC_NCTF69
V18
VCC_NCTF70
U18
VCC_NCTF71
T18
VCC_NCTF72
INTEL NB CALISTOGA Rev1.0
FBGA1466
3
2
AE27
VSS_NCTF0
AE26
VSS_NCTF1
AE25
VSS_NCTF2
AE24
VSS_NCTF3
AE23
VSS_NCTF4
AE22
VSS_NCTF5
AE21
VSS_NCTF6
AE20
VSS_NCTF7
AE19
VSS_NCTF8
AE18
VSS_NCTF9
AC17
VSS_NCTF10
Y17
VSS_NCTF11
U17
VSS_NCTF12
AG27
VCCAUX_NCTF0
AF27
VCCAUX_NCTF1
AG26
VCCAUX_NCTF2
AF26
VCCAUX_NCTF3
AG25
VCCAUX_NCTF4
AF25
VCCAUX_NCTF5
AG24
VCCAUX_NCTF6
AF24
VCCAUX_NCTF7
AG23
VCCAUX_NCTF8
AF23
VCCAUX_NCTF9
VCCAUX_NCTF10
VCCAUX_NCTF11
VCCAUX_NCTF12
VCCAUX_NCTF13
VCCAUX_NCTF14
VCCAUX_NCTF15
VCCAUX_NCTF16
VCCAUX_NCTF17
VCCAUX_NCTF18
VCCAUX_NCTF19
VCCAUX_NCTF20
VCCAUX_NCTF21
VCCAUX_NCTF22
VCCAUX_NCTF23
VCCAUX_NCTF24
VCCAUX_NCTF25
VCCAUX_NCTF26
VCCAUX_NCTF27
VCCAUX_NCTF28
VCCAUX_NCTF29
VCCAUX_NCTF30
VCCAUX_NCTF31
NCTF
VCCAUX_NCTF32
VCCAUX_NCTF33
VCCAUX_NCTF34
VCCAUX_NCTF35
VCCAUX_NCTF36
VCCAUX_NCTF37
VCCAUX_NCTF38
VCCAUX_NCTF39
VCCAUX_NCTF40
VCCAUX_NCTF41
VCCAUX_NCTF42
VCCAUX_NCTF43
VCCAUX_NCTF44
VCCAUX_NCTF45
VCCAUX_NCTF46
VCCAUX_NCTF47
VCCAUX_NCTF48
VCCAUX_NCTF49
VCCAUX_NCTF50
VCCAUX_NCTF51
VCCAUX_NCTF52
VCCAUX_NCTF53
VCCAUX_NCTF54
VCCAUX_NCTF55
VCCAUX_NCTF56
VCCAUX_NCTF57
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
C
Calistoga Power (4/6)
Date: Sheet of
2
AG22
AF22
AG21
AF21
AG20
AF20
AG19
AF19
R19
AG18
AF18
R18
AG17
AF17
AE17
AD17
AB17
AA17
W17
V17
T17
R17
AG16
AF16
AE16
AD16
AC16
AB16
AA16
Y16
W16
V16
U16
T16
R16
AG15
AF15
AE15
AD15
AC15
AB15
AA15
Y15
W15
V15
U15
T15
R15
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
1
Via:2A
80mils
C525
0.1uF 16V 80-20% SMT0402 Y5V LR
15 54Monday, February 12, 2007
1
1.5VDDM9,13,16,24,28,48
A
10
www.bufanxiu.com
H H
1.5VDDM9,13,15,24,28,48
30mils
G G
F F
1.5VDDM9,13,15,24,28,48
0.1uf caps in 1.5VDDM_xPLL
need to be located as edge caps
within 200mils
10uH ±5% 98mA NL201614T-100J-PF TDK LR
L48
10uF 10V +80-20% SMT1206 Y5V C3216Y5V1A106M TDK LR
L50
10uH ±5% 98mA NL201614T-100J-PF TDK LR
L31
120Ω±25% 100MHz 2500mA SMT0603 MLB-160808-0120P-N2 MAG.LAYERS LR
L56
120Ω±25% 100MHz 2500mA SMT0603 MLB-160808-0120P-N2 MAG.LAYERS LR
(24mA)
0.1uF 16V 80-20% SMT0402 Y5V LR
E E
5VDDM 11,24,26,27,33,34,35,38,40,41,47,48
20mils
D D
U34
LNR-IC G9131-33T73U LDO 3.3V SOT23 3PIN GMT
C445
1uF 10V +80-20% 0603 Y5V LR
C C
B B
A A
L51
120Ω±25% 100MHz 2500mA SMT0603 MLB-160808-0120P-N2 MAG.LAYERS LR C463
0.1uF 16V 80-20% SMT0402 Y5V LR
R408
0Ω 5% 1/16W SMT0402 LR
23
VOUTVIN
20mils
GND
1
10
9
(40mA)
C465
C470
C478
0.1uF 16V 80-20% SMT0402 Y5V LR
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 LR
(40mA)
C484
C481
C487
10uF 10V +80-20% SMT1206 Y5V C3216Y5V1A106M TDK LR
C170
10uF 10V +80-20% SMT1206 Y5V C3216Y5V1A106M TDK LR
C530
10uF 10V +80-20% SMT1206 Y5V C3216Y5V1A106M TDK LR
0.1uF 16V 80-20% SMT0402 Y5V LR
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 LR
(45mA)
C164
0.1uF 16V 80-20% SMT0402 Y5V LR
(45mA)
C531
0.1uF 16V 80-20% SMT0402 Y5V LR
10mils
C489
C486
0.022uF 16V 10% SMT0402 X7R LR(NU)
10mils
C503
C502
0.022uF 16V 10% SMT0402 X7R LR(NU)
1.5VDDM9,13,15,24,28,48
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR
2.2uF 16V 80-20% SMT080 5 Y5V LR
C453
9
R442
0Ω 5% 1/16W SMT0402 LR(NU)
(120mA)
C458
0.1uF 16V 80-20% SMT0402 Y5V LR
C459
0.1uF 16V 80-20% SMT0402 Y5V LR
C462
0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDM_TVDAC
C443
8
10mils
1.5VDDM_DPLLA
10mils
1.5VDDM_DPLLB
10mils
1.5VDDM_HPLL
10mils
1.5VDDM_MPLL
1.5VDDM_TVDAC 9,13,15,24,28,48
Caps used in 1.5VDDM_TVDAC
1.5VDDM_QTVDAC
0.022uF 16V 10% SMT0402 X7R LR(NU)
and 1.5VDDM_QTVDAC should
be within 250mils of edge
10mils
3VDDM_TVDACA
C460
0.022uF 16V 10% SM T0402 X7R LR(NU)
10mils
10mils
10mils
3VDDM_TVDACB
3VDDM_TVDACC
VCCA_TVDAC
C461
0.022uF 16V 10% SM T0402 X7R LR(NU)
C451
3VDDM_TVDAC should be within
250mils of edge
>60mils
8
7
2.5VDDM25,27,48
R425
0Ω 5% 1/16W SMT0402 LR
1.5VDDM_3GPLL
2.5VDDM_CRTDAC
VCCA_TVDAC
945GM ON 0.1U
945PM ON 0 R
1.5VDDM9,13,15,24,28,48
L30
120Ω±25% 100MHz 3A SMT0805 MLB-201209-0120P-N2 MAG.LAYERS LR
L29
1uH ±5% 245mA NL201614T-1R0J-PF TDK LR
(1500mA)
C162
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR
C524
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 LR(NU)
7
6
3VDDM_TVDAC
10Ω 1% 1/10W SMT0603 LR
2.5VDDM_LVDS
1.5VDDM_PCIE13
C526
C523
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR
0.1uF 16V 80-20% SMT0402 Y5V LR
C494
0.022uF 16V 10% SM T0402 X7R LR(NU)
C491
0.1uF 16V 80-20% SMT0402 X5R LR
C483
0.01uF 50V +80-20% SMT0402 Y5V LR(NU)
C485
0.1uF 16V 80-20% SMT0402 X5R LR
10mils
C452
0.022uF 16V 10% SM T0402 X7R LR(NU)
0.1uF 16V 80-20% SMT0402 X5R LR
R422
0Ω 5% 1/16W SMT0402 LR
Used in 1.5VDDM_PCIE should
be on top layer
>60mils
1.5VDDM_PCIE 13
C165
10uF 6.3V 80-20% SMT0805 Y5V H=1.25mm LR
1.5VDDM_3GPLL
10mils
6
20mils
3VDDM8,10,11,13,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
10uf caps used in
1.5VDDM_3GPLL should be
placed in cavity
5
DN3
30mils
12
DIODE STKY BAT54C 30V 200mA SOT-23 3PIN PHILIPS LR
3
R126
30mils
945GM ON 0.1U
945PM ON 0 R
C500
0Ω 5% 1/16W SMT0402 LR
3VDDM_TVDAC
20mils
>60mils
10mils
1.5VDDM_DPLLA
1.5VDDM_DPLLB
1.5VDDM_HPLL
1.5VDDM_MPLL
3VDDM_TVDACA
3VDDM_TVDACB
3VDDM_TVDACC
1.5VDDM9,13,15,24,28,48
10mils
10mils
10mils
10mils
2.5VDDM25,27,48
20mils
1.5VDDM_TVDAC9,13,15,24,28,48
C47 7 0.1 uF 1 6V 8 0-20% SM T040 2 Y5V LR
C476 10uF 6. 3V 80-20% SMT0805 Y5V H=1.25mm LR
1.5VDDM_QTVDAC
(1885mA)
100mils
1.5VDDM9,13,15,24,28,48
T 1 00uF 10V -20 % 45 mΩ SMT 7343 Low ESR T52 0V10 7M01 0ATE 045 LR (NU)
C51 0
C52 7 0.1 uF 1 6V 8 0-20% S MT0402 Y5V LR
220U --> 100U
2.5VDDM25,27,48
120Ω±25% 100MHz 2500mA SMT0603 MLB-160808-0120P-N2 MAG.LAYERS LR
5
4
1.5VDDM 9,13,15,24,28,48
0.1uf Caps used in 1.5VDDM
and 2.5VDDM should be within
200mils of edge
U17H
H22
VCCSYNC
C30
VCC_TXLVDS0
B30
VCC_TXLVDS1
A30
VCC_TXLVDS2
AJ41
VCC3G0
AB41
VCC3G1
Y41
VCC3G2
V41
VCC3G3
R41
VCC3G4
N41
VCC3G5
L41
VCC3G6
AC33
VCCA_3GPLL
G41
VCCA_3GBG
H41
VSSA_3GBG
F21
VCCA_CRTDAC0
E21
VCCA_CRTDAC1
G21
VSSA_CRTDAC
B26
VCCA_DPLLA
C39
VCCA_DPLLB
AF1
VCCA_HPLL
A38
VCCA_LVDS
B39
VSSA_LVDS
AF2
VCCA_MPLL
H20
VCCA_TVBG
G20
VSSA_TVBG
E19
VCCA_TVDACA0
F19
VCCA_TVDACA1
C20
VCCA_TVDACB0
D20
VCCA_TVDACB1
E20
VCCA_TVDACC0
F20
VCCA_TVDACC1
AH1
VCCD_HMPLL0
AH2
VCCD_HMPLL1
A28
VCCD_LVDS0
B28
VCCD_LVDS1
C28
VCCD_LVDS2
D21
VCCD_TVDAC
A23
VCC_HV0
B23
VCC_HV1
B25
VCC_HV2
H19
VCCD_QTVDAC
AK31
VCCAUX0
AF31
VCCAUX1
AE31
VCCAUX2
AC31
VCCAUX3
AL30
VCCAUX4
AK30
VCCAUX5
AJ30
VCCAUX6
AH30
VCCAUX7
AG30
VCCAUX8
AF30
VCCAUX9
AE30
VCCAUX10
AD30
VCCAUX11
AC30
VCCAUX12
AG29
VCCAUX13
AF29
VCCAUX14
AE29
VCCAUX15
AD29
VCCAUX16
AC29
VCCAUX17
AG28
VCCAUX18
AF28
VCCAUX19
AE28
VCCAUX20
AH22
VCCAUX21
AJ21
VCCAUX22
AH21
VCCAUX23
AJ20
VCCAUX24
AH20
VCCAUX25
AH19
VCCAUX26
P19
VCCAUX27
P16
VCCAUX28
AH15
VCCAUX29
P15
VCCAUX30
AH14
VCCAUX31
AG14
VCCAUX32
AF14
VCCAUX33
AE14
VCCAUX34
Y14
VCCAUX35
AF13
VCCAUX36
AE13
VCCAUX37
AF12
VCCAUX38
AE12
VCCAUX39
AD12
VCCAUX40
INTEL NB CALISTOGA Rev1.0
FBGA1466
20mils
DN5 DIODE STKY BAT54C 30V 200mA SOT-23 3PIN PHILIPS LR
3
R387
10Ω 1% 1/10W SMT0603 LR
L49
4
POWER
12
(70mA)
3
AC14
VTT_0
AB14
VTT_1
W14
VTT_2
V14
VTT_3
T14
VTT_4
R14
VTT_5
P14
VTT_6
N14
VTT_7
M14
VTT_8
L14
VTT_9
AD13
VTT_10
AC13
VTT_11
AB13
VTT_12
AA13
VTT_13
Y13
VTT_14
W13
VTT_15
V13
VTT_16
U13
VTT_17
T13
VTT_18
R13
VTT_19
N13
VTT_20
M13
VTT_21
L13
VTT_22
AB12
VTT_23
AA12
VTT_24
Y12
VTT_25
W12
VTT_26
V12
VTT_27
U12
VTT_28
T12
VTT_29
R12
VTT_30
P12
VTT_31
N12
VTT_32
M12
VTT_33
L12
VTT_34
R11
VTT_35
P11
VTT_36
N11
VTT_37
M11
VTT_38
R10
VTT_39
P10
VTT_40
N10
VTT_41
M10
VTT_42
P9
VTT_43
N9
VTT_44
M9
VTT_45
R8
VTT_46
P8
VTT_47
N8
VTT_48
M8
VTT_49
P7
VTT_50
N7
VTT_51
M7
VTT_52
R6
VTT_53
P6
VTT_54
M6
VTT_55
A6
VTT_56
R5
VTT_57
P5
VTT_58
N5
VTT_59
M5
VTT_60
P4
VTT_61
N4
VTT_62
M4
VTT_63
R3
VTT_64
P3
VTT_65
N3
VTT_66
M3
VTT_67
R2
VTT_68
P2
VTT_69
M2
VTT_70
D2
VTT_71
AB1
VTT_72
R1
VTT_73
P1
VTT_74
N1
VTT_75
M1
VTT_76
Caps used in 2.5VDDM_CRTDAC
should be within 250mils of
edge
R397
0Ω 5% 1/16W SMT0402 LR(NU)
20mils
3
(1400mA)
80mils
C51 9 4 .7uF 10V +80 -20% 080 5 Y5V LR
C51 8 2 .2uF 10V ± 1 0% S MT08 05 Y 5V C 2012 Y5V1 C225 Z TDK LR
VTTLF_CAP3
VTTLF_CAP2
VTTLF_CAP1
12
C161
0.47uF 16V +80-20% 0603 Y5V LR
1.05VDDM 8,9,12,13,15,18,22,24,48
2.5VDDM_CRTDAC
2
2.5VDDM_LVDS
C482 0.1uF 16V 80-20% SMT 0402 Y5V LR
1.05VDDM8,9,12,13,15,18,22,24,48
C53 4 T22 0uF 2V ± 2 0% 1 5mΩ S MT73 43 H =1.9 mm EEFC X0D2 21R PAN ASONI C LR
C506
0.1uF 16V 80-20% SMT0402 Y5V LR
C52 0 0 .22u F 10 V 10 % SM T060 3 X7 R LR
1
C48 8 0.1 uF 1 6V 8 0-20% SM T040 2 Y5V LR
C480
4.7uF 10V +80-20% 0805 Y5V LR
Place on the edge
Place in cavity
12
C125
0.47uF 16V +80-20% 0603 Y5V LR
12
C129
0.47uF 16V +80-20% 0603 Y5V LR
20mils
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Calistoga Power (5/6)
2
16 54Monday, February 12, 2007
1
0.1
8
www.bufanxiu.com
7
6
5
4
3
2
1
U17I
AC41
VSS_0
AA41
VSS_1
W41
VSS_2
T41
VSS_3
P41
VSS_4
M41
VSS_5
J41
VSS_6
F41
VSS_7
AV40
VSS_8
AP40
VSS_9
AN40
VSS_10
AK40
VSS_11
AJ40
VSS_12
D D
C C
B B
AH40
VSS_13
AG40
VSS_14
AF40
VSS_15
AE40
VSS_16
B40
VSS_17
AY39
VSS_18
AW39
VSS_19
AV39
VSS_20
AR39
VSS_21
AN39
VSS_22
AJ39
VSS_23
AC39
VSS_24
AB39
VSS_25
AA39
VSS_26
Y39
VSS_27
W39
VSS_28
V39
VSS_29
T39
VSS_30
R39
VSS_31
P39
VSS_32
N39
VSS_33
M39
VSS_34
L39
VSS_35
J39
VSS_36
H39
VSS_37
G39
VSS_38
F39
VSS_39
D39
VSS_40
AT38
VSS_41
AM38
VSS_42
AH38
VSS_43
AG38
VSS_44
AF38
VSS_45
AE38
VSS_46
C38
VSS_47
AK37
VSS_48
AH37
VSS_49
AB37
VSS_50
AA37
VSS_51
Y37
VSS_52
W37
VSS_53
V37
VSS_54
T37
VSS_55
R37
VSS_56
P37
VSS_57
N37
VSS_58
M37
VSS_59
L37
VSS_60
J37
VSS_61
H37
VSS_62
G37
VSS_63
F37
VSS_64
D37
VSS_65
AY36
VSS_66
AW36
VSS_67
AN36
VSS_68
AH36
VSS_69
AG36
VSS_70
AF36
VSS_71
AE36
VSS_72
AC36
VSS_73
C36
VSS_74
B36
VSS_75
BA35
VSS_76
AV35
VSS_77
AR35
VSS_78
AH35
VSS_79
AB35
VSS_80
AA35
VSS_81
Y35
VSS_82
W35
VSS_83
V35
VSS_84
T35
VSS_85
R35
VSS_86
P35
VSS_87
N35
VSS_88
M35
VSS_89
L35
VSS_90
J35
VSS_91
H35
VSS_92
G35
VSS_93
F35
VSS_94
D35
VSS_95
AN34
VSS_96
INTEL NB CALISTOGA Rev1.0
FBGA1466
VSS
VSS_97
VSS_98
VSS_99
VSS_100
VSS_101
VSS_102
VSS_103
VSS_104
VSS_105
VSS_106
VSS_107
VSS_108
VSS_109
VSS_110
VSS_111
VSS_112
VSS_113
VSS_114
VSS_115
VSS_116
VSS_117
VSS_118
VSS_119
VSS_120
VSS_121
VSS_122
VSS_123
VSS_124
VSS_125
VSS_126
VSS_127
VSS_128
VSS_129
VSS_130
VSS_131
VSS_132
VSS_133
VSS_134
VSS_135
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
AK34
AG34
AF34
AE34
AC34
C34
AW33
AV33
AR33
AE33
AB33
Y33
V33
T33
R33
M33
H33
G33
F33
D33
B33
AH32
AG32
AF32
AE32
AC32
AB32
G32
B32
AY31
AV31
AN31
AJ31
AG31
AB31
Y31
AB30
E30
AT29
AN29
AB29
T29
N29
K29
G29
E29
C29
B29
A29
BA28
AW28
AU28
AP28
AM28
AD28
AC28
W28
J28
E28
AP27
AM27
AK27
J27
G27
F27
C27
B27
AN26
M26
K26
F26
D26
AK25
P25
K25
H25
E25
D25
A25
BA24
AU24
AL24
AW23
X O
U17J
AT23
VSS_180
AN23
VSS_181
AM23
VSS_182
AH23
VSS_183
AC23
VSS_184
W23
VSS_185
K23
VSS_186
J23
VSS_187
F23
VSS_188
C23
VSS_189
AA22
VSS_190
K22
VSS_191
G22
VSS_192
F22
VSS_193
E22
VSS_194
D22
VSS_195
A22
VSS_196
BA21
VSS_197
AV21
VSS_198
AR21
VSS_199
AN21
VSS_200
AL21
VSS_201
AB21
VSS_202
Y21
VSS_203
P21
VSS_204
K21
VSS_205
J21
VSS_206
H21
VSS_207
C21
VSS_208
AW20
VSS_209
AR20
VSS_210
AM20
VSS_211
AA20
VSS_212
K20
VSS_213
B20
VSS_214
A20
VSS_215
AN19
VSS_216
AC19
VSS_217
W19
VSS_218
K19
VSS_219
G19
VSS_220
C19
VSS_221
AH18
VSS_222
P18
VSS_223
H18
VSS_224
D18
VSS_225
A18
VSS_226
AY17
VSS_227
AR17
VSS_228
AP17
VSS_229
AM17
VSS_230
AK17
VSS_231
AV16
VSS_232
AN16
VSS_233
AL16
VSS_234
J16
VSS_235
F16
VSS_236
C16
VSS_237
AN15
VSS_238
AM15
VSS_239
AK15
VSS_240
N15
VSS_241
M15
VSS_242
L15
VSS_243
B15
VSS_244
A15
VSS_245
BA14
VSS_246
AT14
VSS_247
AK14
VSS_248
AD14
VSS_249
AA14
VSS_250
U14
VSS_251
K14
VSS_252
H14
VSS_253
E14
VSS_254
AV13
VSS_255
AR13
VSS_256
AN13
VSS_257
AM13
VSS_258
AL13
VSS_259
AG13
VSS_260
P13
VSS_261
F13
VSS_262
D13
VSS_263
B13
VSS_264
AY12
VSS_265
AC12
VSS_266
K12
VSS_267
H12
VSS_268
E12
VSS_269
AD11
VSS_270
AA11
VSS_271
Y11
VSS_272
INTEL NB CALISTOGA Rev1.0
FBGA1466
VSS
VSS_273
VSS_274
VSS_275
VSS_276
VSS_277
VSS_278
VSS_279
VSS_280
VSS_281
VSS_282
VSS_283
VSS_284
VSS_285
VSS_286
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293
VSS_294
VSS_295
VSS_296
VSS_297
VSS_298
VSS_299
VSS_300
VSS_301
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307
VSS_308
VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
VSS_314
VSS_315
VSS_316
VSS_317
VSS_318
VSS_319
VSS_320
VSS_321
VSS_322
VSS_323
VSS_324
VSS_325
VSS_326
VSS_327
VSS_328
VSS_329
VSS_330
VSS_331
VSS_332
VSS_333
VSS_334
VSS_335
VSS_336
VSS_337
VSS_338
VSS_339
VSS_340
VSS_341
VSS_342
VSS_343
VSS_344
VSS_345
VSS_346
VSS_347
VSS_348
VSS_349
VSS_350
VSS_351
VSS_352
VSS_353
VSS_354
VSS_355
VSS_356
VSS_357
VSS_358
VSS_359
VSS_360
J11
D11
B11
AV10
AP10
AL10
AJ10
AG10
AC10
W10
U10
BA9
AW9
AR9
AH9
AB9
Y9
R9
G9
E9
A9
AG8
AD8
AA8
U8
K8
C8
BA7
AV7
AP7
AL7
AJ7
AH7
AF7
AC7
R7
G7
D7
AG6
AD6
AB6
Y6
U6
N6
K6
H6
B6
AV5
AF5
AD5
AY4
AR4
AP4
AL4
AJ4
Y4
U4
R4
J4
F4
C4
AY3
AW3
AV3
AL3
AH3
AG3
AF3
AD3
AC3
AA3
G3
AT2
AR2
AP2
AK2
AJ2
AD2
AB2
Y2
U2
T2
N2
J2
H2
F2
C2
AL1
DMI Routing Guideline
GMCH
Tx
LA
LZ
Rx
Breakout/in
Main Route
LA/LZ
LB/LY
Microstrip Same Routing layer as LA/LZ
Same Routing layer as LA/LZ
Microstrip
Same Routing layer as LA/LZ
Microstrip
Same Routing layer as LA/LZ
Microstrip
Same Routing layer as LA/LZ
Stripline
Stripline
Same Routing layer as LA/LZ
Stripline
Same Routing layer as LA/LZ
Same Routing layer as LA/LZ
Stripline
Parameter Breakout Guideline
Uncoupled Single End Impedan ce
Nominal Trace Width
Pair-to-Pair Pitch
Bus-to-Bus Pitch
Reference Plane
Trace Length-LA (GMCH Breakout)
Trace Length-LB (GMCH Breakout to Via2)
Trace Length-LC (Via2 to Via3) Max = 5900 mils
Trace Length-LD (Via3 to ICH7m Breakout)
Trace Length-LE (ICH7m Breakout) Max = 400 mils
Trace Length-LV ( IC H7m Breakout)
Trace Length-LX (Via2 to Via3)
Trace Length-LY (Via3 to GMCH Breakout) Max = 3600 mils
Trace Length-LZ (GMCH Break out)
Trace Length-L2 (LV+LW+LX+LY+LZ) Max = 8000 mils
*** When routing near the edge of their reference plane , trace should maintain at least 40
mils space to the edge of the plan e
*** Match the trace lengths of the complementary signals within each differential pair to +/- 5 mils
LC
LB
LX
LY
Main Route Guideline
55 +/- 15%
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 7 milsNominal Didderential Pair-Pitch
Outer Layer : 7 mils
Inner Layer : 37 mils
Outer Layer : 37 mils
Inner Layer : 22 mils
Outer Layer : 20 mils
Ground Ground
No routing over plane splitsSplits/Voids
No routing over voids
Max = 400 mils
Max = 3600 mils
Max = 3600 mils
Max = 8000 milsTrace Length-L1 (LA+LB+LC+LD+LE)
Max = 400 mils
Max = 3600 milsTrace Length-LW (ICH7m Breakout to Via2)
Max = 5900 mils
Max = 400 mils
LD LE
LW LV
Main Route
LD/LW
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
Same Routing layer as LE/LV
ICH7m
Rx
Tx
Breakout/in
LE/LV
Microstrip
Stripline
Microstrip
Stripline
Stripline
Microstrip
Stripline
Microstrip
55 +/- 15%
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 27 mils
Outer Layer : 27 mils
Inner Layer : 15 mils
Outer Layer : 12 mils
PCIE Routing Guideline
GMCH
Tx
LA
LB
LY
LZ
Rx
Main Route
Breakout/in
LB/LC/LY
LA/LZ
Stripline
Microstrip
Parameter
Uncoupled Single End Impedan ce
Nominal Trace Width
Nominal Differential Trace Space
Pair-to-Pair Pitch
Bus-to-Bus Pitch
Reference Plane
Splits/Voids
Trace Length-LA (ICH7m Breakout)
Trace Length-LB (ICH7m Br eakout to
AC cap)
Trace Length-LC (AC cap to
PCIe CN)
Trace Length-L1 (LA+LB+LC)
Trace Length-LY (PCIe CN to ICH7m
Breakout)
Trace Length-LZ (IC H7m Breakout)
*** When routing near the edge of their reference plane , trace should maintain at least 40
mils space to the edge of the plan e
*** Match the trace lengths of the complementary signals within each differential pair to +/- 5 mils
Main Route
LD/LW
Same Routing layer as LE/LV
Main Route Guideline
55 +/- 15%
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 7 mils
Outer Layer : 7 mils
Inner Layer : 37 mils
Outer Layer : 37 mils
Inner Layer : 20 mils
Outer Layer : 20 mils
Ground
No routing over plane splits
No routing over voids
Max = 400 mils
Max = 10750 mils
Max = 10750 mils
Max = 12000 mils
Max = 11950 mils
Max = 400 mils
Max = 12000 milsTrace Length-L2 (LY+LZ)
X
Express/Mini Card
LC
Breakout Guideline
55 +/- 15%
Inner Layer : 4 mils
Outer Layer : 5 mils
Inner Layer : 27 mils
Outer Layer : 27 mils
Inner Layer : 15 mils
Outer Layer : 12 mils
Ground
O
>3W
S
< 2S
S = Spacing
S = Trace Width
Rx
Tx
Breakout/in
LE/LV
Microstrip
A A
>3W
First International Computer, Inc.
S < 2S
S = Spacing
S = Trace Width
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
2
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Calistoga Ground (6/6)
1
17 54Monday, February 12, 2007
A
5
www.bufanxiu.com
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
3VDDM8,10,11,13,16,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
L36
4
20mil
C206 10uF 10 V +80-20% SMT 0805 Y5V LR
C20 5 0.1u F 16 V 80 -20% SMT 0402 Y5V LR
R153 2.2Ω 1% 1/16W SMT0402 LR
R154 1Ω 1% 1/16W SMT0402 LR
C56 4 0.1 uF 1 6V 8 0-20% SM T040 2 Y5V LR
C20 1 1 0uF 10 V +80 -20% SMT08 05 Y5V LR
C552 0.1uF 16V 80-20% SMT 0402 Y5V LR
3
20mil
R150
2.2Ω 1% 1/16W SMT0402 LR
C18 7 10uF 10V +80 -20% SMT 0805 Y5V LR
C189 0.1uF 16V 80-20% SMT 0402 Y5V LR
C56 3 0 .1uF 16V 80-20 % SM T040 2 Y5V LR(NU )
C55 3 0.1 uF 1 6V 8 0-20% SM T040 2 Y5 V LR( NU)
2
L35
C20 3 10u F 10 V +8 0-20% SM T080 5 Y5V LR
C55 4 0.1 uF 1 6V 8 0-20% S MT0402 Y5V LR
C56 2 0.1 uF 1 6V 8 0-20% SM T040 2 Y5V LR
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
20mil20mil
1
3VDDM8,10,11,13,16,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
D D
10mil
10mil
Y4
FREQ XTL 14.31818MHz SMD 18pF ± 30ppm X8A01431AFI1H HARMONY LR
C183
27pF 50V 5% SMT0402 NPO LR
C C
CLK_BSEL28
CLK_BSEL18
CLK_BSEL08
CLK_48M_ICH23
FSA
FSA
FSA
BSEL1
BSEL2
01
11
B B
1KΩ 5% 1/16W SMT0402 LR
CLK_BSEL28
CLK_BSEL18
CLK_BSEL08
Host Clock
BSEL0 Frequency
940
133
0
945
166
0
1.05VDDM8,9,12,13,15,16,22,24,48
R516
1KΩ 5% 1/16W SMT0402 LR(NU)
R517
1KΩ 5% 1/16W SMT0402 LR
1
2
3
4
R518
1K 5% 0402*4 1/16W 8P4R LR
RP34
8
7
6
5
VR_PWRGD_CK410#10
R168 4.7KΩ 5% 1/16W SMT0402 LR
For
EMI
MCH_BSEL2 13
MCH_BSEL1 13
MCH_BSEL0 13
C184
27pF 50V 5% SMT0402 NPO LR
PM_STPPCI#23
PM_STPCPU#23
SMB_DATA19,20,23,28
SMB_CLK19,20,23,28
For
EMI
R147
4.7KΩ 5% 1/16W SMT0402 LR
C219
5pF 50V ±0.5pF -55 TO +125C SMT0402 NPO LR
C551
1uF 10V +80-20% 0603 Y5V LR
10mil
10mil
XTAL_IN
XTAL_OUT
10mil
C548
10pF 50V 5% SMT0402 NPO LR(NU)
C549
10pF 50V 5% SMT0402 NPO LR(NU)
R161
33Ω 1% 1/16W SMT0402 LR
10mil
475 Ω 1 % 1/ 10W SM T0603 LR
R46 0
U18
1
VDD_PCI0
7
VDD_PCI1
11
VDD_48
21
VDD_PCIEX0
28
VDD_PCIEX1
34
VDD_PCIEX2
42
VDDCPU
48
VDDREF
50
XTAL_IN
49
XTAL_OUT
CPU2_ITP/PCIT6
CPU2_ITP/PCIC6
55
PCI_STOP#
PEREQ1#/PCIT5
54
CPU_STOP#
PEREQ2#/PCIC5
10
VTT_PWRGD#/PD
47
SDATA
46
SCLOCK
53
REF1/FSC/TEST_SEL
16
FSB/TEST_MODE
12
USB48/FSA
39
IREF
51
VSSREF
2
VSS_PCI0
6
VSS_PCI1
SEL_LCD#/PCIF1
13
VSS_48
45
29
3VDDM 8,10,11,13,16,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
10KΩ 1% 1/10W SMT0603 RM06FTN1002 TA-I Lead-Free(NU)
R163
R148
10KΩ 1% 1/10W SMT0603 RM06FTN1002 TA-I Lead-Free(NU)
PCIF0/ITP_EN
VSSCPU
VSS_SRC
ASIC ICS954226AGLFT TSSOP 56PIN ICS LR
VDDA
VSSA
CPU0
CPU0#
CPU1
CPU1#
PCIT4
PCIC4
SATAC
STATT
PCIC3
PCIT3
PCIC2
PCIT2
PCIT1
PCIC1
LCD/PCIT0
LCD/PCIC0
DOT96T
DOT96C
PCI/REQ_SEL
REF0
10mil
37
38
44
43
41
40
36
33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
35
33
32
31
30
27
26
25
24
23
22
19
20
17
18
14
15
5
PCI5
4
PCI4
3
PCI3
56
9
8
52
RP22 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
RP23 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
RP25
124
R138 0Ω 5% 1/16W SMT0402 LR(NU)
R145 1KΩ 5% 1/16W SMT0402 LR(NU)
RP24 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
RP28 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
RP33 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
RP32 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
RP31 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR(NU)
124
RP30 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
RP29 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
R166 12.1Ω 1% 1/16W SMT0402 LR
R165 12.1Ω 1% 1/16W SMT0402 LR
RP26 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
R149 33Ω 1% 1/16W SMT0402 LR
RP27 33Ω 5% SMT1010 1/16W 4P2R RS2N-33R0-J2N CYNTEC LR
124
R146 33Ω 1% 1/16W SMT0402 LR
PCIF1 Should be
free-running PCI clock.
R167
10KΩ 5 % 1/16W SMT 0402 LR
3
3
R143 49.9Ω 1% 1/16W SMT0402 LR
3
R144
49.9Ω 1% 1/16W SMT0402 LR
3
3
3
3
3
3
3
3
3
For
EMI
CLK_PCIE_MINICARD 28
CLK_PCIE_MINICARD# 28
PCLKREQ# 28
MXM_CLKREQ# 25
C191 5pF 50V ±0. 5pF -55 TO +1 25C SMT0402 N PO LR
C21 8 5pF 50V ± 0. 5pF -55 TO +125C SM T040 2 NP O LR
C18 6 5pF 50V ± 0.5 pF - 55 TO +125C S MT0402 NPO LR
C21 7 5pF 50V ± 0. 5pF -55 TO +125C SM T040 2 NP O LR
R139 49.9Ω 1% 1/16W SMT0402 LR
R140 49.9Ω 1% 1/16W SMT0402 LR
R141 49.9Ω 1% 1/16W SMT0402 LR
R142 49.9Ω 1% 1/16W SMT0402 LR
945GM ON 49.9
945PM ON 0 R
C214 5pF 50V ±0. 5pF -55 TO +1 25C SMT0402 N PO LR
C21 6 5pF 50V ± 0. 5pF -55 TO +125C SM T040 2 NP O LR
R17 6 4 9.9Ω 1 % 1/ 16W SMT 0402 LR
C21 5 5 pF 5 0V ± 0. 5pF -55 T O +1 25C S MT04 02 N PO LR
C21 3 5 pF 5 0V ± 0. 5pF -55 TO +125C SM T0402 NP O LR
CLK_CPU_BCLK 8
CLK_CPU_BCLK# 8
CLK_MCH_BCLK 12
CLK_MCH_BCLK# 12
CLK_PCIE_3GPLL 13
CLK_PCIE_3GPLL# 13
CLK_PCIE_SATA 22
CLK_PCIE_SATA# 22
CLK_PCIE_ICH 21
CLK_PCIE_ICH# 21
CLK_PCIE_EXPCARD 28
CLK_PCIE_EXPCARD# 28
CLK_PCIE_VGA 25
CLK_PCIE_VGA# 25
DREFSSCLK 13
DREFSSCLK# 13
DREFCLK 13
DREFCLK# 13
CLK_PCI_KBC 41
CLK_PCI_PMU08 43
CLK_PCI_FWH 40
CLK_PCI_LAN 36
CLK_PCI_MINIPCI 28
CLK_PCIF_ICH 21
CLK_PCI_CB 29
CLK_14M_ICH 23
R179 49.9Ω 1% 1/16W SMT0402 LR (NU)
R178 49.9Ω 1% 1/16W SMT0402 LR
R177 49.9Ω 1% 1/16W SMT0402 LR
R17 5 4 9.9Ω 1 % 1/ 16W SMT0 402 LR
R18 3 4 9.9Ω 1% 1 /16W SMT 0402 LR
R18 0 4 9.9Ω 1 % 1/ 16W SM T0402 L R(NU)
R18 4 4 9.9Ω 1% 1 /16W SMT 0402 LR
R17 4 4 9.9Ω 1% 1 /16W SMT 0402 LR
R18 5 49. 9Ω 1 % 1/1 6W SM T0402 LR
R182 49.9Ω 1% 1/16W SMT0402 LR
R13 6 4 9.9Ω 1 % 1/ 16W SMT0 402 LR
R13 7 4 9.9Ω 1% 1 /16W SMT 0402 LR
R18 1 4 9.9Ω 1% 1 /16W SMT 0402 LR
3VDDM8,10,11,13,16,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
A A
VR_PWRGD_CK410#10
5
R171
4.7KΩ 5% 1/16W SMT0402 LR
VR_PWRGD_CK410 23
Q19
B
TR NPN DTC144EUAT106 50V 100mA UMT3(SC-70) 3PIN ROHM LR
E C
4
SS3
SS2
0
0
0
0
0
0
0 1
0
1
1
0
1
0
Spread Mode
SS1
SS0 SS1
0
0
1
0
0
1
DOWN
0
DOWN
1
DOWN
0
DOWN
1
DOWN
00
DOWN
1
DOWN
0
DOWN
1
3
Spread Amount %
0.8
1.0
1.5
1.75
2.0
3.00
SS3
SS2
0
1
0
1
0
1
0
1
1
1
1
1
1
12.51
1
11
Spread Mode
SS0
Center
0
0
0
1
1
0
0
1
1
Center
1
Center
01.25
Center
1
Center
0
Center
1
Center
0
Center
1
2
Spread Amount %
+/- 0.3
+/- 0.4
+/- 0.5
+/- 0.6
+/- 0.8
+/- 1.0
+/- 1.25
+/- 1.5
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
Clock Generator ICS954226
1
18 54Monday, February 12, 2007
A
5
www.bufanxiu.com
4
3
2
1
SO-DIMM0
D D
M_CLK_DDR013
M_CLK_DDR#013
M_CLK_DDR113
M_CLK_DDR#113
4
3
RP67
10KΩ 5% SMT1010 1/16W 4P2R LR
1
M_VREF13,20,49
2
M_A_DQS[7..0]14
M_A_DQS#[7..0]14
3VDDM8,10,11,13,16,18,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
C570
0.1uF 16V 80-20% SMT0402 Y5V LR
20mil
2.2uF 10V ± 10% SMT0805 X5R C2012X5R1A225KT TDK LR(NU)
0.1uF 16V 80-20% SMT0402 Y5V LR
Other signal
M_VREF
Other signal
C572
C C
B B
M_A_A[13..0]
M_A_BS2
M_A_BS214
M_A_BS1
M_A_BS114
M_A_BS0
M_A_BS014
M_CS#0
M_CS#013
M_CS#1
M_CS#113
M_CKE0
M_CKE013
M_CKE1
M_CKE113
M_A_CAS#
M_A_CAS#14
M_A_RAS#
M_A_RAS#14
M_A_WE#
M_A_WE#14
SMB_CLK18,20,23,28
SMB_DATA18,20,23,28
M_ODT0
M_ODT013
M_ODT1
M_ODT113
M_A_DM[7..0]
M_A_DM[7..0]14
M_A_DQS[7..0]
M_A_DQS#[7..0]
1.8VDDS13,15,20,25,49
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_DM0
M_A_DM1
M_A_DM2
M_A_DM3
M_A_DM4
M_A_DM5
M_A_DM6
M_A_DM7
M_A_DQS0
M_A_DQS1
M_A_DQS2
M_A_DQS3
M_A_DQS4
M_A_DQS5
M_A_DQS6
M_A_DQS7
M_A_DQS#0
M_A_DQS#1
M_A_DQS#2
M_A_DQS#3
M_A_DQS#4
M_A_DQS#5
M_A_DQS#6
M_A_DQS#7
20mil
C571
NU
20mil
20mil
20mil
CN17
102
A0
101
A1
100
A2
99
A3
98
A4
97
A5
94
A6
92
A7
93
A8
91
A9
105
A10/AP
90
A11
89
A12
116
A13
86
A14
84
A15
85
A16_BA2
106
BA1
107
BA0
110
S0#
115
S1#
30
CK0
32
CK0#
164
CK1
166
CK1#
79
CKE0
80
CKE1
113
CAS#
108
RAS#
109
WE#
198
SA0
200
SA1
197
SCL
195
SDA
114
ODT0
119
ODT1
10
DM0
26
DM1
52
DM2
67
DM3
130
DM4
147
DM5
170
DM6
185
DM7
13
DQS0
31
DQS1
51
DQS2
70
DQS3
131
DQS4
148
DQS5
169
DQS6
188
DQS7
11
DQS0#
29
DQS1#
49
DQS2#
68
DQS3#
129
DQS4#
146
DQS5#
167
DQS6#
186
DQS7#
112
VDD1
111
VDD2
117
VDD3
96
VDD4
95
VDD5
118
VDD6
81
VDD7
82
VDD8
87
VDD9
103
VDD10
88
VDD11
104
VDD12
199
VDDSPD
83
NC1
120
NC2
50
NC3
69
NC4
163
NCTEST
1
VREF1
203
GND0
204
GND1
132
VSS42
144
VSS43
156
VSS44
168
VSS45
2
VSS46
3
VSS47
15
VSS48
27
VSS49
39
VSS50
149
VSS51
161
VSS52
28
VSS53
40
VSS54
138
VSS55
150
VSS56
162
STD TYPE
VSS57
SCKT FOXCONN SMT DDR2 H=4.0 STD AS0A421-N4SN-4F LR
20-10289-00
L-20-10289-00
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
5
DQ0
7
DQ1
17
DQ2
19
DQ3
4
DQ4
6
DQ5
14
DQ6
16
DQ7
23
DQ8
25
DQ9
35
37
20
22
36
38
43
45
55
57
44
46
56
58
61
63
73
75
62
64
74
76
123
125
135
137
124
126
134
136
141
143
151
153
140
142
152
154
157
159
173
175
158
160
174
176
179
181
189
191
180
182
192
194
47
133
183
77
12
48
184
78
71
72
121
122
196
193
8
18
24
41
53
42
54
59
65
60
66
127
139
128
145
165
171
172
177
187
178
190
9
21
33
155
34
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13M_A_A13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
M_A_DQ[63..0]
M_A_DQ[63..0] 14M_A_A[13..0]14
RP64
56Ω 5% SMT1010 1/16W 4P2R RS2N-56R0-J2N CYNTEC LR
M_CS#1
124
M_ODT1
56 5% 0402X4 1/16W 8P4R LR
RP72
M_A_WE#
1
M_A_A10
2
M_A_BS0
3
M_A_BS1
4
56 5% 0402X4 1/16W 8P4R LR
RP71
M_A_A3
1
M_A_A9
2
M_A_A2
3
M_A_A6
4
56 5% 0402X4 1/16W 8P4R LR
RP69
M_CKE1
1
M_A_A12
2
M_A_BS2
3
M_CKE0
4
56 5% 0402X4 1/16W 8P4R LR
RP73
M_A_A13
1
M_A_CAS#
2
M_CS#0
3
M_ODT0
4
56 5% 0402X4 1/16W 8P4R LR
RP68
M_A_RAS#
1
M_A_A1
2
M_A_A5
3
M_A_A0
4
56 5% 0402X4 1/16W 8P4R LR
RP70
M_A_A4
1
M_A_A8
2
M_A_A11
3
M_A_A7
4
Place these 2.2uF caps near
So-Dimm0
160mil
1.8VDDS13,15,20,25,49
C185
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 LR(NU)
0.9VDDT_DDRII20,49
3
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
C557 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C555 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C190 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
Place one cap close to every 2 pullup resistors
terminated to 0.9VDDT_DDRII
400 mils
DEL 0.1U 6PCS
C609 0.1uF 16V 80-20% SMT0402 Y5V LR
C610 0.1uF 16V 80-20% SMT0402 Y5V LR
C611 0.1uF 16V 80-20% SMT0402 Y5V LR
C585 0.1uF 16V 80-20% SMT0402 Y5V LR
C607 0.1uF 16V 80-20% SMT0402 Y5V LR
C603 0.1uF 16V 80-20% SMT0402 Y5V LR
C613 0.1uF 16V 80-20% SMT0402 Y5V LR
C602 0.1uF 16V 80-20% SMT0402 Y5V LR
C605 0.1uF 16V 80-20% SMT0402 Y5V LR
C604 0.1uF 16V 80-20% SMT0402 Y5V LR
C606 0.1uF 16V 80-20% SMT0402 Y5V LR
C612 0.1uF 16V 80-20% SMT0402 Y5V L)
C608 0.1uF 16V 80-20% SMT0402 Y5V LR
DEL 0.1U 6PCS
Place these 0.1uF caps near
So-Dimm0 pin79~pin115
area
C559 0.1uF 16V 80-20% SMT0402 Y5V LR
C188 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C565 0.1uF 16V 80-20% SMT0402 Y5V LR
C566 0.1uF 16V 80-20% SMT0402 Y5V LR
C556 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C560 0.1uF 16V 80-20% SMT0402 Y5V LR
C558 1000pF 50V 10% SMT0402 X7R LR
C569 1000pF 50V 10% SMT0402 X7R LR
C663 0.1uF 16V 80-20% SMT0402 Y5V LR
C665 0.1uF 16V 80-20% SMT0402 Y5V LR
C664 0.1uF 16V 80-20% SMT0402 Y5V LR
C568 1000pF 50V 10% SMT0402 X7R LR(NU)
C662 0.1uF 16V 80-20% SMT0402 Y5V LR
C600 1000pF 50V 10% SMT0402 X7R LR(NU)
C667 0.1uF 16V 80-20% SMT0402 Y5V LR
C666 0.1uF 16V 80-20% SMT0402 Y5V LR
FOR EMI
A A
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
5
4
3
2
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
DDR2 SDRAM SO-DIMM0
1
19 54Monday, February 12, 2007
A
5
www.bufanxiu.com
4
3
2
1
SO-DIMM1
D D
3VDDM
M_CLK_DDR313
M_CLK_DDR#313
M_CLK_DDR213
M_CLK_DDR#213
10K 5% SMT1010 1/16W 4P2R LR
RP57
124
3
SMB_DATA18,19,23,28
C C
3VDDM8,10,11,13,16,18,19,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
B B
0.1uF 16V 80-20% SMT0402 Y5V LR
20mil
M_VREF13,19,49
2.2uF 16V 80-20% SMT0805 Y5V LR(NU)
0.1uF 16V 80-20% SMT0402 Y5V LR
Other signal
M_VREF
Other signal
M_B_DQS[7..0]14
M_B_DQS#[7..0]14
20mil
C193
C194
M_B_A[13..0] M_B_DQ[63..0]
M_B_BS2
M_B_BS214
M_B_BS1
M_B_BS114
M_B_BS0
M_B_BS014
M_CS#2
M_CS#213
M_CS#3
M_CS#313
M_CKE2
M_CKE213
M_CKE3
M_CKE313
M_B_CAS#
M_B_CAS#14
M_B_RAS#
M_B_RAS#14
M_B_WE#
M_B_WE#14
SMB_CLK18,19,23,28
M_B_DM[7..0]14
1.8VDDS13,15,19,25,49
M_ODT2
M_ODT213
M_ODT3
M_ODT313
M_B_DM[7..0]
M_B_DQS[7..0]
M_B_DQS#[7..0]
C192
20mil
20mil
20mil
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_DM0
M_B_DM1
M_B_DM2
M_B_DM3
M_B_DM4
M_B_DM5
M_B_DM6
M_B_DM7
M_B_DQS0
M_B_DQS1
M_B_DQS2
M_B_DQS3
M_B_DQS4
M_B_DQS5
M_B_DQS6
M_B_DQS7
M_B_DQS#0
M_B_DQS#1
M_B_DQS#2
M_B_DQS#3
M_B_DQS#4
M_B_DQS#5
M_B_DQS#6
M_B_DQS#7
CN14
102
A0
101
A1
100
A2
99
A3
98
A4
97
A5
94
A6
92
A7
93
A8
91
A9
105
A10/AP
90
A11
89
A12
116
A13
86
A14
84
A15
85
A16_BA2
106
BA1
107
BA0
110
S0#
115
S1#
30
CK0
32
CK0#
164
CK1
166
CK1#
79
CKE0
80
CKE1
113
CAS#
108
RAS#
109
WE#
198
SA0
200
SA1
197
SCL
195
SDA
114
ODT0
119
ODT1
10
DM0
26
DM1
52
DM2
67
DM3
130
DM4
147
DM5
170
DM6
185
DM7
13
DQS0
31
DQS1
51
DQS2
70
DQS3
131
DQS4
148
DQS5
169
DQS6
188
DQS7
11
DQS0#
29
DQS1#
49
DQS2#
68
DQS3#
129
DQS4#
146
DQS5#
167
DQS6#
186
DQS7#
112
VDD1
111
VDD2
117
VDD3
96
VDD4
95
VDD5
118
VDD6
81
VDD7
82
VDD8
87
VDD9
103
VDD10
88
VDD11
104
VDD12
199
VDDSPD
83
NC1
120
NC2
50
NC3
69
NC4
163
NCTEST
1
VREF1
203
GND0
204
GND1
132
VSS42
144
VSS43
156
VSS44
168
VSS45
2
VSS46
3
VSS47
15
VSS48
27
VSS49
39
VSS50
149
VSS51
161
VSS52
28
VSS53
40
VSS54
138
VSS55
150
VSS56
162
VSS57
SCKT FOXCONN SMT DDR2 H=6.5 REV AS0A421-M6RN-4F LR
20-10286-00
L-20-10286-00
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
5
DQ0
7
DQ1
17
DQ2
19
DQ3
4
DQ4
6
DQ5
14
DQ6
16
DQ7
23
DQ8
25
DQ9
35
37
20
22
36
38
43
45
55
57
44
46
56
58
61
63
73
75
62
64
74
76
123
125
135
137
124
126
134
136
141
143
151
153
140
142
152
154
157
159
173
175
158
160
174
176
179
181
189
191
180
182
192
194
47
133
183
77
12
48
184
78
71
72
121
122
196
193
8
18
24
41
53
42
54
59
65
60
66
127
139
128
145
165
171
172
177
187
178
190
9
21
33
155
34
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
M_B_DQ[63..0] 14M_B_A[13..0]14
M_ODT3
M_CS#3
M_B_CAS#
M_B_WE#
M_B_BS0
M_B_RAS#
M_B_A13
M_CS#2
M_B_A12
M_B_A9
M_B_A11
M_B_A7
M_CKE3
M_B_A8
M_B_A3
M_B_A10
M_B_BS1
M_B_A0
M_B_A2
M_B_A4
M_B_A6
M_B_A5
M_ODT2
M_B_A1
M_B_BS2
M_CKE2
160mil
1.8VDDS13,15,19,25,49
Place these 2.2uF caps near
So-Dimm1
0.9VDDT_DDRII19,49
4P2R --> 8P4R
56 5% 0402X4 1/16W 8P4R LR
RP66
1
8
2
7
3
6
4
56 5% 0402X4 1/16W 8P4R LR
56 5% 0402X4 1/16W 8P4R LR
56 5% 0402X4 1/16W 8P4R LR
56 5% 0402X4 1/16W 8P4R LR
5
RP65
1
8
2
7
3
6
4
5
RP58
1
8
2
7
3
6
4
5
RP63
56Ω 5% SMT1010 1/16W 4P2R RS2N-56R0-J2N CYNTEC LR
124
3
RP60
1
8
2
7
3
6
4
5
RP59
1
8
2
7
3
6
4
5
56 5% 0402X2 1/16W 4P2R LR
RP61
124
3
124
3
56 5% 0402X2 1/16W 4P2R LR
RP62
C590 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C597 0.1uF 16V 80-20% SMT0402 Y5V LR
C567 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C573 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C589 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C574 2.2uF 10V ±10% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C167
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 LR(NU)
C601 0.1uF 16V 80-20% SMT0402 Y5V LR
Place one cap close to every 2 pullup resistors
terminated to 0.9VDDT_DDRII
400 mils
C578 0.1uF 16V 80-20% SMT0402 Y5V LR
C586 0.1uF 16V 80-20% SMT0402 Y5V LR
C583 0.1uF 16V 80-20% SMT0402 Y5V LR
C582 0.1uF 16V 80-20% SMT0402 Y5V LR
C587 0.1uF 16V 80-20% SMT0402 Y5V LR
C580 0.1uF 16V 80-20% SMT0402 Y5V LR
C579 0.1uF 16V 80-20% SMT0402 Y5V LR
C584 0.1uF 16V 80-20% SMT0402 Y5V LR
C575 0.1uF 16V 80-20% SMT0402 Y5V LR
C577 0.1uF 16V 80-20% SMT0402 Y5V LR
C576 0.1uF 16V 80-20% SMT0402 Y5V LR
C588 0.1uF 16V 80-20% SMT0402 Y5V LR
C581 0.1uF 16V 80-20% SMT0402 Y5V LR
C670 0.1uF 16V 80-20% SMT0402 Y5V LR
C596 0.1uF 16V 80-20% SMT0402 Y5V LR
C668 0.1uF 16V 80-20% SMT0402 Y5V LR
C598 1000pF 50V 10% SMT0402 X7R LR(NU)
C599 0.1uF 16V 80-20% SMT0402 Y5V LR
C669 0.1uF 16V 80-20% SMT0402 Y5V LR
C591 1000pF 50V 10% SMT0402 X7R LR
C592 1000pF 50V 10% SMT0402 X7R LR
C671 0.1uF 16V 80-20% SMT0402 Y5V LR
Place these 0.1uF caps near
So-Dimm1 pin79~pin115
area
C672 0.1uF 16V 80-20% SMT0402 Y5V LR
FOR EMI
A A
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
5
4
3
2
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
DDR2 SDRAM SO-DIMM1
1
20 54Monday, February 12, 2007
A
10
www.bufanxiu.com
H H
G G
F F
9
PCIE AC coupling caps need to be
within 250mils of the driver
PCIE_RXN328
PCIE_RXP328
PCIE_TXN328
PCIE_TXP328
PCIE_RXN428
PCIE_RXP428
PCIE_TXN428
PCIE_TXP428
3VDDA11,23,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
3VDDA11,23,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
C330 0.1uF 16V 80-20% SMT0402 X5R LR
C331 0.1uF 16V 80-20% SMT0402 X5R LR
C45 0.1uF 16V 80-20% SMT0402 X5R LR
C48 0.1uF 16V 80-20% SMT0402 X5R LR
10KΩ 5% SMT2010 1/16W 8P4R LR(NU)
1
2
3
RP45
RP2 10K 5 % 0402X4 1/16W 8P4R LR
8
U11D
F26
PERn1
F25
PERp1
E28
PETn1
E27
PETp1
H26
PERn2
H25
PERp2
G28
PETn2
G27
PETp2
K26
PERn3
K25
PERp3
J28
PETn3
J27
PETp3
M26
PERn4
M25
PERp4
L28
PETn4
L27
PETp4
P26
PERn5
P25
PERp5
N28
PETn5
N27
PETp5
T25
PERn6
T24
PERp6
R28
PETn6
R27
RP46
8
7
6
54
10K 5 % 0402X4 1/16W 8P4R LR
1
8
2
7
3
6
4
5
1
8
2
7
3
6
4
5
R2
P6
P1
P5
P2
D3
D5
C4
D4
E5
A2
B3
C3
ICH7M Rev1.02
mBGA652
PETp6
SPI_CLK
SPI_CS#
SPI_ARB
SPI_MOSI
SPI_MISO
OC0#
OC2#
OC1#
OC3#
OC4#
OC6#/GPIO30
OC7#/GPIO31
OC5#/GPIO29
PCI-Express
SPI
7
DMI_CLKN
DMI_CLKP
Direct Media InterfaceUSB
DMI_ZCOMP
DMI_IRCOMP
USBRBIAS#
USBRBIAS
DMI0RXN
DMI0RXP
DMI0TXN
DMI0TXP
DMI1RXN
DMI1RXP
DMI1TXN
DMI1TXP
DMI2RXN
DMI2RXP
DMI2TXN
DMI2TXP
DMI3RXN
DMI3RXP
DMI3TXN
DMI3TXP
USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N
USBP5P
USBP6N
USBP6P
USBP7N
USBP7P
V26
V25
U28
U27
Y26
Y25
W28
W27
AB26
AB25
AA28
AA27
AD25
AD24
AC28
AC27
AE28
AE27
C25
D25
F1
F2
G4
G3
H1
H2
J4
J3
K1
K2
L4
L5
M1
M2
N4
N3
D2
D1
USB_RBIAS_PN
6
DMI_IRCOMP_R
DMI_RXN0 13
DMI_RXP0 13
DMI_TXN0 13
DMI_TXP0 13
DMI_RXN1 13
DMI_RXP1 13
DMI_TXN1 13
DMI_TXP1 13
DMI_RXN2 13
DMI_RXP2 13
DMI_TXN2 13
DMI_TXP2 13
DMI_RXN3 13
DMI_RXP3 13
DMI_TXN3 13
DMI_TXP3 13
CLK_PCIE_ICH# 18
CLK_PCIE_ICH 18
USB_PN0 37
USB_PP0 37
USB_PN1 37
USB_PP1 37
USB_PN3 37
USB_PP3 37
USB_PN4 37
USB_PP4 37
USB_PN5 28
USB_PP5 28
R42
20 1% 1/16W 0603 LR
10mil
5
1.5VDDM_PCIE_ICH24
R27
24.9Ω 1% 1/10W SMT0603 LR
4
3
2
1
Place within 500mils of ICH
3VDDM8,10,11,13,16,18,19,20,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
PCI Pull up
PCI_DEVSEL#
Place within 500mils of ICH
5/5 mils spacing on microstrip
E E
PCI_AD[31..0]29,36
D D
C C
PCI_IRQA#29,36
PCI_IRQB#29
B B
A A
10
PCI_AD[31..0]
PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
PCI_IRQA#
PCI_IRQB#
PCI_IRQC#
PCI_IRQD#
U11B
E18
AD0
C18
AD1
A16
AD2
F18
AD3
E16
AD4
A18
AD5
E17
AD6
A17
AD7
A15
AD8
C14
AD9
E14
AD10
D14
AD11
B12
AD12
C13
AD13
G15
AD14
G13
AD15
E12
AD16
C11
AD17
D11
AD18
A11
AD19
A10
AD20
F11
AD21
F10
AD22
E9
AD23
D9
AD24
B9
AD25
A8
AD26
A6
AD27
C7
AD28
B6
AD29
E6
AD30
D6
AD31
Interrupt I/F
A3
PIRQA#
B4
PIRQB#
C5
PIRQC#
B5 G7
PIRQD# GPIO5/PIRQH#
AE5
RSVD[1]
AD5
RSVD[2]
AG4
RSVD[3]
AH4
RSVD[4]
AD9 AH20
RSVD[5] MCH_SYNC#
ICH7M Rev1.02
mBGA652
PLT_RST#
Buffer to reduce loading on PLT_RST#
9
REQ0#
PCI
GNT0#
REQ1#
GNT1#
REQ2#
GNT2#
REQ3#
GNT3#
REQ4#/GPIO22
GNT4#/GPIO48
GPIO1/REQ5#
GPIO17/GNT5#
C/BE0#
C/BE1#
C/BE2#
C/BE3#
IRDY#
PAR
PCIRST#
DEVSEL#
PERR#
PLOCK#
SERR#
STOP#
TRDY#
FRAME#
PLTRST#
PCICLK
PME#
GPIO2/PIRQE#
GPIO3/PIRQF#
GPIO4/PIRQG#
MISC
RSVD[6]
RSVD[7]
RSVD[8]
RSVD[9]
3VDDM8,10,11,13,16,18,19,20,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
U7
53
1
4
2
DL-IC NC7ST08P5X_NL SC-70 5PIN FAIRCHILD LR
8
D7
E7
C16
D16
C17
D17
E13
F13
A13
A14
C8
D8
B15
C12
D12
C15
A7
E10
B18
A12
C9
E11
B10
F15
F14
F16
C26
A9
B19
G8
F7
F8
AE9
AG8
AH8
F21
R18
100KΩ 5% 1/16W SMT0402 LR
PCI_REQ#0
PCI_GNT#0
PCI_REQ#1
PCI_GNT#1
PCI_REQ#2
PCI_GNT#2
PCI_REQ#3
PCI_GNT#3
PCI_REQ#4
PCI_GNT#4
PCI_REQ#5
PCI_GNT#5
PCI_IRDY#
PCI_DEVSEL#
PCI_PERR#
PCI_LOCK#
PCI_SERR#
PCI_STOP#
PCI_TRDY#
PCI_FRAME#
PLT_RST#
PCI_IRQE#
PCI_IRQF#
PCI_IRQG#
BUF_PLT_RST# 25,28,35,43
7
PCI_REQ#0 36
PCI_GNT#0 36
PCI_REQ#1 29
PCI_GNT#1 29
PCI_C/BE#0 29,36
PCI_C/BE#1 29,36
PCI_C/BE#2 29,36
PCI_C/BE#3 29,36
PCI_IRDY# 29,36
PCI_PAR 29,36
PCI_RST# 29,36
PCI_DEVSEL# 29,36
PCI_PERR# 29,36
PCI_SERR# 29,36
PCI_STOP# 29,36
PCI_TRDY# 29,36
PCI_FRAME# 29,36
PLT_RST# 13,23,28,40,41
CLK_PCIF_ICH 18
PCI_Q_PME# 36,40
CRISIS 42
RSVD9 22
MCH_ICH_SYNC# 13
6
Check BIOS type
5
4
PCI_SERR#
PCI_PERR#
PCI_REQ#5
PCI_REQ#2
PCI_FRAME#
PCI_STOP#
PCI_TRDY#
PCI_IRQA#
PCI_IRQB#
PCI_IRQC#
PCI_IRQD#
PCI_IRQE#
PCI_IRQF#
PCI_REQ#0
PCI_IRDY#
PCI_IRQG#
PCI_LOCK#
PCI_REQ#3
PCI_REQ#4
PCI_REQ#1
RP41 8.2KΩ 5% SMT2010 8P4R 1/16W RS4N-8201-JN CYNTEC LR
1 8
2 7
3 6
4 5
RP43 8.2KΩ 5% SMT2010 8P4R 1/16W RS4N-8201-JN CYNTEC LR
1 8
2 7
3 6
4 5
RP39 8.2KΩ 5% SMT2010 8P4R 1/16W RS4N-8201-JN CYNTEC LR
1 8
2 7
3 6
4 5
RP42 8.2KΩ 5% SMT2010 8P4R 1/16W RS4N-8201-JN CYNTEC LR
1 8
2 7
3 6
4 5
RP40 8.2KΩ 5% SMT2010 8P4R 1/16W RS4N-8201-JN CYNTEC LR
1 8
2 7
3 6
4 5
R20
8.2KΩ 5% 1/16W SMT0402 LR
PCI_GNT#3
PCI_GNT#4
PCI_GNT#5
3
R232 10KΩ 5% 1/16W SMT0402 LR(NU)
R233 10KΩ 5% 1/16W SMT0402 LR(NU)
R234 10KΩ 5% 1/16W SMT0402 LR(NU)
PCI_GNT#3
PCI_GNT#4 PCI_GNT#5
1 1
0
1
No stuff : by default
Stuff : For A16 swap override
LPC
1
PCI
0
SPI
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
ICH7m PCI/PCIE/DMI (1/4)
2
21 54Monday, February 12, 2007
0.1
1
8
www.bufanxiu.com
7
6
5
4
3
2
1
1. RC delay time should be in the range of 18~25ms
2. It is recommended that this larger capacitor and small resistor value
20mil
3VDDA_RTC24
D D
RTC Circuit
DN2
20mil
PMU3V43,46,50,51
C C
B B
3
1 2
DIODE STKY BAT54C 30V 200mA SOT-23 3PIN PHILIPS LR
SATA_LED#38
in order to reduce the likelihood of glitching of RTCRST#
C72
1uF 10V +80-20% 0603 Y5V LR(NU)
6mil
R83
20KΩ 1% 1/16W SMT0402 LR
20mil
R86
1KΩ 5% 1/16W SMT0402 LR
R82
1MΩ 5% 1/10W SMT0603 LR
CN9
SCKT BAT HOLDER 2PIN H=4.7mm SMT B7410AP2L LOTES
L-20-10160-01
20-10160-01
3VDDA_RTC24
332KΩ 1% 1/10W SMT0603 LR
ICH7m internal VR enable strap
Enable Disable
INTVRMEN
1(Default) 0
5pF 50V ± 0.5pF -55 TO +125C SMT0402 NPO LR(NU)
AC97_RST#32,38
AC97_SYNC32,38
AC97_BITCLK32,38
AC97_SDOUT32,38
3VDDM8,10,11,13,16,18,19,20,21,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
R80
10KΩ 5% 1/16W SMT0402 LR
SATA_RXN035
SATA_RXP035
SATA_TXN035
SATA_TXP035
CLK_PCIE_SATA#18
CLK_PCIE_SATA18
Distance between the ICH7m and cap
on the "P" signal should be identical
distance between the ICH7m and cap
on the "N" signal for same pair
CMOS_CLEAR# 42
C71
1uF 10V +80-20% 0603 Y5V LR
DEL
R54
C41
R56
0Ω 5% 1/16W SMT0402 LR(NU)
Place all series resistors
0.6 to 2.6 inches from
the ICH7
For
EMI
33 5% 0402X4 1/16W 8P4R LR
RP8
1
8
2
7
3
6
4
5
C66 3900pF 50V 10% SMT0603 X7R LR
C65 3900pF 50V 10% SMT0603 X7R LR
C67 3900pF 50V 10% SMT0603 X7R LR
C68 3900pF 50V 10% SMT0603 X7R LR
124
RP47 0 5% 0402*2 1/16W 4P2R LR
3
IDE_PDIOR#35
IDE_PDIOW#35
IDE_PDDACK#35
IDE_IRQ1535
IDE_PDIORDY35
IDE_PDDREQ35
R81
24.9Ω 1% 1/10W SMT0603 LR
AC97_SDIN032
AC97_SDIN138
1. The ICH7m requires a length less than 1 inch on each branch ( from crystal's terminal to RTCXn ball)
2. Routing the RTC circuit should be kept simple to simplify the trace length measurement and increase accuracy on calculating trace capacitances
3. On FR-4, a 5-mils trace has approximately 2pF per inch
4. Trace signal coupling must limited as much as possible by avoiding the routing of adjacent PCI signals close to RTCX1 and RTCX2
5. Ground guard plane is highly recommended
RTC_X1
RTC_X2
AF18
AH10
AG10
AF15
AH15
AF16
AH16
AG16
AE15
AB1
AB2
AA3
Y5
W4
W1
Y1
Y2
W3
V3
U3
U5
V4
T5
U7
V6
V7
R5
R6
U1
T4
T2
T3
T1
AF3
AE3
AG2
AH2
AF7
AE7
AG6
AH6
AF1
AE1
R65
U11A
RTXC1
RTCX2
RTCRST#
INTRUDER#
INTVRMEN
EE_CS
EE_SHCLK
EE_DOUT
EE_DIN
LAN_CLK
LAN_RSTSYNC
LAN_RXD0
LAN_RXD1
LAN_RXD2
LAN_TXD0
LAN_TXD1
LAN_TXD2
ACZ_RST#
ACZ_SYNC
ACZ_BIT_CLK
ACZ_SDOUT
ACZ_SDIN0
ACZ_SDIN1
ACZ_SDIN2
SATALED#
SATA0RXN
SATA0RXP
SATA0TXN
SATA0TXP
SATA2RXN
SATA2RXP
SATA2TXN
SATA2TXP
SATA_CLKN
SATA_CLKP
SATARBIASN
SATARBIASP
DIOR#
DIOW#
DDACK#
IDEIRQ
IORDY
DDREQ
ICH7M Rev1.02
mBGA652
10MΩ 1% 1/10W SMT0603 LR
INTRUDER#
ICH_INTVRMEN
C60 18pF 50V 5% SMT0402 NPO LR
Y2
FREQ XTL 32.768kHz 2.4mm 4PIN 12.5pF ± 10ppm DMX-26S KDS LR
243
1
C56 18pF 50V 5% SMT0402 NPO LR
LPC_AD0
AA6
LAD0
LPC_AD1
AB5
LAD1
LPC_AD2
AC4
LAD2
LPC_AD3
Y6
LAD3
LDRQ0#
LDRQ1#/GPIO23
LFRAME#
A20GATE
A20M#
CPUSLP#
TP1/DPRSTP#
TP2/DPSLP#
FERR#
GPIO49/CPUPWRGD
IGNNE#
INIT3_3V#
INIT#
INTR
RCIN#
SMI#
STPCLK#
THERMTRIP#
DD10
DD11
DD12
DD13
DD14
DD15
DCS1#
DCS3#
SB_AC3
AC3
SB_AA6
AA5
AB3
AE22
AH28
AG27
AF24
AH25
AG26
AG24
AG22
AG21
AF22
AF25
AG23
AH24
NMI
AF23
AH22
AF26
IDE_PDD0
AB15
DD0
DD1
DD2
DD3
DD4
DD5
DD6
DD7
DD8
DD9
DA0
DA1
DA2
AE14
AG13
AF13
AD14
AC13
AD12
AC12
AE12
AF12
AB13
AC14
AF14
AH13
AH14
AC15
AH17
AE17
AF17
AE16
AD16
IDE_PDD1
IDE_PDD2
IDE_PDD3
IDE_PDD4
IDE_PDD5
IDE_PDD6
IDE_PDD7
IDE_PDD8
IDE_PDD9
IDE_PDD10
IDE_PDD11
IDE_PDD12
IDE_PDD13
IDE_PDD14
IDE_PDD15
IDE
LPCCPU
RTCLAN
AC-97/AZALIA
SATA
H_A20GATE
RP48
0 5% 0402*2 1/16W 4P2R LR
124
3
H_RCIN#
R66 24.9Ω 1% 1/10W SMT0603 LR
IDE_PDD[15..0]
LPC_AD0 28,40,41,43
LPC_AD1 28,40,41,43
LPC_AD2 28,40,41,43
LPC_AD3 28,40,41,43
LPC_FRAME# 28,40,41,43
H_A20GATE 40
H_A20M# 8
H_DPRSTP# 8,10
H_DPSLP# 8
H_PWRGD 8
H_IGNNE# 8
FWH_INIT# 40
H_INIT# 8
H_INTR 8
H_RCIN# 40
H_NMI 8
H_SMI# 8
H_STPCLK# 8
Needs to be placed within 2" of ICH7m
IDE_PDD[15..0] 35
IDE_PDA0 35
IDE_PDA1 35
IDE_PDA2 35
IDE_PDCS1# 35
IDE_PDCS3# 35
1.05VDDM8,9,12,13,15,16,18,24,48
R68
56Ω 5% 1/16W SMT0402 LR
1.05VDDM8,9,12,13,15,16,18,24,48
R67
56Ω 5% 1/16W SMT0402 LR
Must be placed within 2" of 24.9 ohm
w/o stub
H_FERR# 8
PM_THRMTRIP# 8,13
Short pins AH10 and AG10 at the
package
Placed within 500mils of ICH7m ball
3VDDM8,10,11,13,16,18,19,20,21,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
R278
7
1KΩ 5% 1/16W SMT0402 LR(NU)
AC97_SDOUT
R252
1KΩ 5% 1/16W SMT0402 LR(NU)
RSVD9 21
6
5
4
ACZ_SDATAOUT strap functionality base on RSVD9 strap
A A
XOR chain entrance (RSVD9 pulled low)
PCIE port config bit 1(RSVD9 not pulle d low)
Stuff for XOR chain testing
8
H_A20GATE
R299 8.2KΩ 5% 1/16W SMT0402 LR
H_RCIN#
R316 10KΩ 5% 1/16W SMT0402 LR
3
3VDDM8,10,11,13,16,18,19,20,21,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
2
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
ICH7m CPU/IDE/SATA (2/4)
1
22 54Monday, February 12, 2007
A
8
www.bufanxiu.com
7
6
3VDDM8,10,11,13,16,18,19,20,21,22,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
5
4
3
2
1
D D
SMB_CLK18,19,20,28
3VDDA11,21,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
C C
SMB_DATA18,19,20,28
PM_RI#43
ICH_SPKR32
PM_SUSTAT#29,41,43
PM_BMBUSY#13
PM_STPPCI#18
PM_STPCPU#18
PCI_CLKRUN#29,36,41,43
PCIE_WAKE#28
PCI_SERIRQ29,41,43
VR_PWRGD_CK41018
Q_SMI#40
1
2
3
4
R26 1KΩ 5% 1/16W SMT0402 LR
3VDDA11,21,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
4
3
2.2K 5% 0402X2 1/16W 4P2R LR
RP44
1
2
8
RP1
7
10K 5 % 0402X4 1/16W 8P4R LR
6
5
PM_RI#
SMB_ALERT#
GPIO26
GPIO27
GPIO28
PM_CLKRUN#
PCIE_WAKE#
PCI_SERIRQ
PM_THRM#
GPIO7
Q_SMI#
U11C
C22
SMBCLK
B22
SMBDATA
A26
LINKALERT#
B25
SMLINK0
A25
SMLINK1
A28
RI#
A19
SPKR
A27
SUS_STAT#
A22
SYS_RST#
AB18
GPIO0/BM_BUSY#
B23
GPIO11/SMBALERT#
AC20
GPIO18/STPPCI#
AF21
GPIO20/STPCPU#
A21
GPIO26
B21
GPIO27
E23
GPIO28
AG18
GPIO32/CLKRUN#
AC19
GPIO33/AZ_DOCK_EN#
U2
GPIO34/AZ_DOCK_RST#
F20
WAKE#
AH21
SERIRQ
AF20
THRM#
AD22
VRMPWRGD
AC21
GPIO6
AC18
GPIO7
E21
GPIO8
ICH7M Rev1.02
mBGA652
DPRSLPVR
PM_RSMRST#
GPIO21/SATA0GP
GPIO19/SATA1GP
GPIO36/SATA2GP
SATA
SMB
GPIO
GPIO37/SATA3GP
CLK14
CLK48
Clock s
SUSCLK
SLP_S3#
SLP_S4#
GPIO16/DPRSLPVR
TP0/BATLOW#
Power MGT
SLP_S5#
PWROK
PWRBTN#
LAN_RST#
RSMRST#
GPIO9
GPIO10
GPIO12
GPIO13
GPIO14
GPIO15
GPIO24
GPIO25
GPIO35
GPIO38
GPIO39
SYS GPIO
GPIO
R290 100KΩ 5% 1/16W SMT0402 LR
R289 1MΩ 5% 1/10W SMT0603 LR
AF19
ICH7_AH18
AH18
ICH7_AH19
AH19
ICH7_AE19
AE19
AC1
B2
C20
B24
D23
SB_F22
F22
PM_ICH_PWROK
AA4
R287
AC22
100Ω 5% 1/16W SMT0402 LR
PM_BATLOW#
C21
C23
R239 SHW 0 5% 1/16W 0402
C19
PM_RSMRST#
Y4
E20
GPIO10
A20
GPIO12
F19
EC_SCI#
E19
GPIO14
R4
GPIO15
E22
GPIO24
R3
D20
AD21
GPIO38
AD20
GPIO39
AE20
ICH7_AE19ICH7_AF19
ICH7_AF19
ICH7_AH19
ICH7_AH18
DPRSLPVR
IDE_PATADET 35
EC_SCI# 43
R294
10KΩ 5% 1/16W SMT0402 LR
SUSCLK duty cycle can be between 30% and 70%
100 5% 3216 1/16W 8P4R LR
RP49
1 8
2 7
3 6
4 5
CLK_14M_ICH 18
CLK_48M_ICH 18
SUSCLK 11
PM_SLP_S3# 39
PM_SLP_S4# 39
DPRSLPVR 10,13
PM_BATLOW# 43
ICH_MAINSW# 45
PLT_RST# 13,21,28,40,41
3VDDM 8,10,11,13,16,18,19,20,21,22,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
PM_RSMRST# 39
C370
100pF 50V 5% SMT0402 NPO LR
DEL
PMU P/U
B B
ACZ_SPKR
ICH_SPKR
GPIO27
No stuff : by default
Stuff : For NO reboot
R21 1KΩ 5% 1/16W SMT0402 LR(NU)
R25 10KΩ 5% 1/16W SMT0402 LR
R24 0Ω 5% 1/16W SMT0402 LR(NU)
Default is 1-X
Add 0ohm for BIOS
Recovery
3VDDM8,10,11,13,16,18,19,20,21,22,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
PM_RI#
R237 10KΩ 5% 1/16W SMT0402 LR(NU)
EC_SCI#
R253 10KΩ 5% 1/16W SMT0402 LR(NU)
R22 8.2KΩ 5% 1/16W SMT0402 LR
PCIE_WAKE#
R254 1KΩ 5% 1/16W SMT0402 LR
SMB_ALERT#
R241 10KΩ 5% 1/16W SMT0402 LR
PM_THRM#
R319 8.2KΩ 5% 1/16W SMT0402 LR
PM_CLKRUN#
R320 8.2KΩ 5% 1/16W SMT0402 LR
3VDDA11,21,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
3VDDM8,10,11,13,16,18,19,20,21,22,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
GPIO P/U & P/DICH7m strap
GPIO39
R322 10KΩ 5% 1/16W SMT0402 LR
GPIO7
R293 10KΩ 5% 1/16W SMT0402 LR
GPIO10PM_BATLOW#
R236 10KΩ 5% 1/16W SMT0402 LR
GPIO14
R274 10KΩ 5% 1/16W SMT0402 LR
GPIO15
R247 10KΩ 5% 1/16W SMT0402 LR
GPIO26
R23 10KΩ 5% 1/16W SMT0402 LR
GPIO38
R292 10KΩ 5% 1/16W SMT0402 LR
PCI_SERIRQ
R318 10KΩ 5% 1/16W SMT0402 LR
GPIO12
R255 10KΩ 5% 1/16W SMT0402 LR
GPIO28
R246 10KΩ 5% 1/16W SMT0402 LR
Q_SMI#
R244 10KΩ 5% 1/16W SMT0402 LR
GPIO24
R270 10KΩ 5% 1/16W SMT0402 LR
3VDDM8,10,11,13,16,18,19,20,21,22,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
DELAY_VR_PWRGOOD10,13
ALL_SYS_PWRGD39
3VDDA11,21,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
R70
10KΩ 5% 1/16W SMT0402 LR
R73
10KΩ 5% 1/16W SMT0402 LR
3VDDM8,10,11,13,16,18,19,20,21,22,24,25,26,27,28,29,32,34,35,38,39,40,42,43,47
DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR
U13
53
1
4
2
R75
10KΩ 5% 1/16W SMT0402 LR
PM_ICH_PWROK
A A
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
8
7
6
5
4
3
Date: Sheet of
2
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
ICH7m GPIO (3/4)
1
23 54Monday, February 12, 2007
A
5
www.bufanxiu.com
DN1
12
DIODE STKY BAT54C 30V 200mA SOT-23 3PIN PHILIPS LR
20mil 20mil
5VDDM11,16,26,27,33,34,35,38,40,41,47,48
D D
5VDDA10,25,37,38,47,48,49,51
1.5VDDM9,13,15,16,28,48
120Ω±25% 100MHz 3A SMT0805 MLB-201209-0120P-N2 MAG.LAYERS LR
L47
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 LR
C C
C58
1.5VDDM9,13,15,16,28,48
20mil
B B
Place within 100mils of ICH on the bottom side or
140mils on the top near AG9
A A
5
R89
100Ω 1% 1/16W SMT0402 LR
20mil 20mil
R276
10Ω 1% 1/16W SMT0402 LR
1.5VDDM_PCIE_ICH21
R76
1Ω 1% 1/10W SMT0603 LR
1.5VDDM9,13,15,16,28,48
1.5VDDM9,13,15,16,28,48
10mil
3
C69
0.1uF 16V 80-20% SMT0402 Y5V LR
DN4
12
DIODE STKY BAT54C 30V 200mA SOT-23 3PIN PHILIPS LR
3
C324
0.1uF 16V 80-20% SMT0402 Y5V LR
C327
0.1uF 16V 80-20% SMT0402 Y5V LR
Place within 100mils of ICH on the bottom side or
140mils on the top near F27,P27,AB27
3VDDM8,10,11,13,16,18,19,20,21,22,23,25,26,27,28,29,32,34,35,38,39,40,42,43,47
C313
0.1uF 16V 80-20% SMT0402 Y5V LR
L21
1uH ±5% 245mA NL201614T-1R0J-PF TDK LR
C64
10uF 10V +80-20% SMT0805 Y5V LR
20mil
C396
0.1uF 16V 80-20% SMT0402 Y5V LR
Place within 100mils of ICH on the bottom side or
140mils on the top near AG5
C384
0.1uF 16V 80-20% SMT0402 Y5V LR
Place within 100mils of ICH on the bottom side or
140mils on the top
3VDDM8,10,11,13,16,18,19,20,21,22,23,25,26,27,28,29,32,34,35,38,39,40,42,43,47
10mil
C392
0.1uF 16V 80-20% SMT0402 Y5V LR
1.5VDDM9,13,15,16,28,48
20mil
C394
1uF 10V +80-20% 0603 Y5V LR
10mil
3VDDA11,21,23,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
R250
SPWR 0 5% 1/16W 0402
4
3VDDM 8,10,11,13,16,18,19,20,21,22,23,25,26,27,28,29,32,34,35,38,39,40,42,43,47
3VDDA 11,21,23,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
80mil80mil
C339
0.1uF 16V 80-20% SMT0402 Y5V LR
C323
0.1uF 16V 80-20% SMT0402 Y5V LR
10mil
C62
0.01uF 50V +80-20% SMT0402 Y5V LR
C325
0.1uF 16V 80-20% SMT0402 Y5V LR
1.5VDDM9,13,15,16,28,48
4
U11F
G10
V5REF[1]
AD17
V5REF[2]
F6
V5REF_Sus
AA22
Vcc1_5_B[1]
AA23
Vcc1_5_B[2]
AB22
Vcc1_5_B[3]
AB23
Vcc1_5_B[4]
AC23
Vcc1_5_B[5]
AC24
Vcc1_5_B[6]
AC25
Vcc1_5_B[7]
AC26
Vcc1_5_B[8]
AD26
Vcc1_5_B[9]
AD27
Vcc1_5_B[10]
AD28
Vcc1_5_B[11]
D26
Vcc1_5_B[12]
D27
Vcc1_5_B[13]
D28
Vcc1_5_B[14]
E24
Vcc1_5_B[15]
E25
Vcc1_5_B[16]
E26
Vcc1_5_B[17]
F23
Vcc1_5_B[18]
F24
Vcc1_5_B[19]
G22
Vcc1_5_B[20]
G23
Vcc1_5_B[21]
H22
Vcc1_5_B[22]
H23
Vcc1_5_B[23]
J22
Vcc1_5_B[24]
J23
Vcc1_5_B[25]
K22
Vcc1_5_B[26]
K23
Vcc1_5_B[27]
L22
Vcc1_5_B[28]
L23
Vcc1_5_B[29]
M22
Vcc1_5_B[30]
M23
Vcc1_5_B[31]
N22
Vcc1_5_B[32]
N23
Vcc1_5_B[33]
P22
Vcc1_5_B[34]
P23
Vcc1_5_B[35]
R22
Vcc1_5_B[36]
R23
Vcc1_5_B[37]
R24
Vcc1_5_B[38]
R25
Vcc1_5_B[39]
R26
Vcc1_5_B[40]
T22
Vcc1_5_B[41]
T23
Vcc1_5_B[42]
T26
Vcc1_5_B[43]
T27
Vcc1_5_B[44]
T28
Vcc1_5_B[45]
U22
Vcc1_5_B[46]
U23
Vcc1_5_B[47]
V22
Vcc1_5_B[48]
V23
Vcc1_5_B[49]
W22
Vcc1_5_B[50]
W23
Vcc1_5_B[51]
Y22
Vcc1_5_B[52]
Y23
Vcc1_5_B[53]
B27
Vcc3_3[1]
AG28
VccDMIPLL
AB7
Vcc1_5_A[1]
AC6
Vcc1_5_A[2]
AC7
Vcc1_5_A[3]
AD6
Vcc1_5_A[4]
AE6
Vcc1_5_A[5]
AF5
Vcc1_5_A[6]
AF6
Vcc1_5_A[7]
AG5
Vcc1_5_A[8]
AH5
Vcc1_5_A[9]
AD2
VccSATAPLL
AH11
Vcc3_3[2]
AB10
Vcc1_5_A[10]
AB9
Vcc1_5_A[11]
AC10
Vcc1_5_A[12]
AD10
Vcc1_5_A[13]
AE10
Vcc1_5_A[14]
AF10
Vcc1_5_A[15]
AF9
Vcc1_5_A[16]
AG9
Vcc1_5_A[17]
AH9
Vcc1_5_A[18]
E3
VccSus3_3[19]
C1
VccUSBPLL
AA2
VccSus1_05/VccLAN1_05[1]
Y7
VccSus1_05/VccLAN1_05[2]
ICH7M Rev1.02
mBGA652
C314
0.1uF 16V 80-20% SMT0402 Y5V LR
Vcc1_05[10]
COR E
Vcc1_05[11]
Vcc1_05[12]
Vcc1_05[13]
Vcc1_05[14]
Vcc1_05[15]
Vcc1_05[16]
Vcc1_05[17]
Vcc1_05[18]
Vcc1_05[19]
VCC PAUX
Vcc1_05[20]
VccSus3_3/VccLAN3_3[1]
VccSus3_3/VccLAN3_3[2]
VccSus3_3/VccLAN3_3[3]
VccSus3_3/VccLAN3_3[4]
Vcc3_3/VccHDA
VccSus3_3/VccSusHDA
V_CPU_IO[1]
V_CPU_IO[2]
VCC A3GP
V_CPU_IO[3]
IDEUSB CORE PCI
VccSus3_3[1]
VccSus3_3[2]
VccSus3_3[3]
VccSus3_3[4]
VccSus3_3[5]
VccSus3_3[6]
VccSus3_3[7]
VccSus3_3[8]
ARX
VccSus3_3[9]
VccSus3_3[10]
VccSus3_3[11]
VccSus3_3[12]
VccSus3_3[13]
VccSus3_3[14]
USB
VccSus3_3[15]
VccSus3_3[16]
VccSus3_3[17]
VccSus3_3[18]
Vcc1_5_A[19]
Vcc1_5_A[20]
Vcc1_5_A[21]
ATX
Vcc1_5_A[22]
Vcc1_5_A[23]
Vcc1_5_A[24]
Vcc1_5_A[25]
VccSus1_05[1]
VccSus1_05[2]
VccSus1_05[3]
Vcc1_5_A[26]
Vcc1_5_A[27]
Vcc1_5_A[28]
Vcc1_5_A[29]
Vcc1_5_A[30]
Vcc1_05[1]
Vcc1_05[2]
Vcc1_05[3]
Vcc1_05[4]
Vcc1_05[5]
Vcc1_05[6]
Vcc1_05[7]
Vcc1_05[8]
Vcc1_05[9]
Vcc3_3[3]
Vcc3_3[4]
Vcc3_3[5]
Vcc3_3[6]
Vcc3_3[7]
Vcc3_3[8]
Vcc3_3[9]
Vcc3_3[10]
Vcc3_3[11]
Vcc3_3[12]
Vcc3_3[13]
Vcc3_3[14]
Vcc3_3[15]
Vcc3_3[16]
Vcc3_3[17]
Vcc3_3[18]
Vcc3_3[19]
Vcc3_3[20]
Vcc3_3[21]
VccRTC
L11
L12
L14
L16
L17
L18
M11
M18
P11
P18
T11
T18
U11
U18
V11
V12
V14
V16
V17
V18
V5
V1
W2
W7
U6
R7
AE23
AE26
AH26
AA7
AB12
AB20
AC16
AD13
AD18
AG12
AG15
AG19
A5
B13
B16
B7
C10
D15
F9
G11
G12
G16
W5
P7
A24
C24
D19
D22
G19
K3
K4
K5
K6
L1
L2
L3
L6
L7
M6
M7
N7
AB17
AC17
T7
F17
G17
AB8
AC8
K7
C28
G20
A1
H6
H7
J6
J7
3
1.05VDDM8,9,12,13,15,16,18,22,48
2
1
Place at ICH7m edge
60mil
C336
0.1uF 16V 80-20% SMT0402 Y5V LR
C342
1uF 10V +80-20% 0603 Y5V LR
C356
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 LR
Place in ICH7m cavity
20mil
C368
0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDM8,10,11,13,16,18,19,20,21,22,23,25,26,27,28,29,32,34,35,38,39,40,42,43,47
C365
0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDA 11,21,23,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
C383
0.1uF 16V 80-20% SMT0402 Y5V LR
Place within 100mils of ICH on the bottom side or
C391
0.1uF 16V 80-20% SMT0402 Y5V LR
140mils on the top near pin
C310
0.1uF 16V 80-20% SMT0402 Y5V LR
20mil
10mil
10mil
3VDDM8,10,11,13,16,18,19,20,21,22,23,25,26,27,28,29,32,34,35,38,39,40,42,43,47
Distribute in PCI section
20mil
C305
0.1uF 16V 80-20% SMT0402 Y5V LR
20mil
C346
0.1uF 16V 80-20% SMT0402 Y5V LR
10mil
20mil
3
1.5VDDM 9,13,15,16,28,48
1.5VDDM 9,13,15,16,28,48
1.5VDDM 9,13,15,16,28,48
1.5VDDM9,13,15,16,28,48
C309
0.1uF 16V 80-20% SMT0402 Y5V LR
Place within 100mils of ICH on the bottom side or
140mils on the top
R280
SPWR 0 5% 1/16W 0402
Place on secondary side under ICH7m
Place within 100mils of ICH on the bottom side or
140mils on the top near pin
3VDDM 8,10,11,13,16,18,19,20,21,22,23,25,26,27,28,29,32,34,35,38,39,40,42,43,47
10mil
C381
0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDM8,10,11,13,16,18,19,20,21,22,23,25,26,27,28,29,32,34,35,38,39,40,42,43,47
20mil
C308
0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDA11,21,23,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
C312
0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDA11,21,23,26,28,29,30,36,38,39,40,41,42,43,45,47,49,51
C344
0.1uF 16V 80-20% SMT0402 Y5V LR
10mil
C55
0.1uF 16V 80-20% SMT0402 Y5V LR
1.5VDDM9,13,15,16,28,48
2
C328
0.1uF 16V 80-20% SMT0402 Y5V LR
10mil
3VDDA_RTC22
0.1uF 16V 80-20% SMT0402 Y5V LR
C379
0.1uF 16V 80-20% SMT0402 Y5V LR
1.05VDDM8,9,12,13,15,16,18,22,48
C374
4.7uF 10V +80-20% 0805 Y5V LR
C380
C53
1uF 10V +80-20% 0603 Y5V LR(NU)
VSS[1]
VSS[2]
VSS[3]
VSS[4]
VSS[5]
VSS[6]
VSS[7]
VSS[8]
VSS[9]
VSS[10]
VSS[11]
VSS[12]
VSS[13]
VSS[14]
VSS[15]
VSS[16]
VSS[17]
VSS[18]
VSS[19]
VSS[20]
VSS[21]
VSS[22]
VSS[23]
VSS[24]
VSS[25]
VSS[26]
VSS[27]
VSS[28]
VSS[29]
VSS[30]
VSS[31]
VSS[32]
VSS[33]
VSS[34]
VSS[35]
VSS[36]
VSS[37]
VSS[38]
VSS[39]
VSS[40]
VSS[41]
VSS[42]
VSS[43]
VSS[44]
VSS[45]
VSS[46]
VSS[47]
VSS[48]
VSS[49]
VSS[50]
VSS[51]
VSS[52]
VSS[53]
VSS[54]
VSS[55]
VSS[56]
VSS[57]
VSS[58]
VSS[59]
VSS[60]
VSS[61]
VSS[62]
VSS[63]
VSS[64]
VSS[65]
VSS[66]
VSS[67]
VSS[68]
VSS[69]
VSS[70]
VSS[71]
VSS[72]
VSS[73]
VSS[74]
VSS[75]
VSS[76]
VSS[77]
VSS[78]
VSS[79]
VSS[80]
VSS[81]
VSS[82]
VSS[83]
VSS[84]
VSS[85]
VSS[86]
VSS[87]
VSS[88]
VSS[89]
VSS[90]
VSS[91]
VSS[92]
VSS[93]
VSS[94]
VSS[95]
VSS[96]
VSS[97]
ICH7M Rev1.02
mBGA652
1
U11E
VSS[98]
VSS[99]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
VSS[182]
VSS[183]
VSS[184]
VSS[185]
VSS[186]
VSS[187]
VSS[188]
VSS[189]
VSS[190]
VSS[191]
VSS[192]
VSS[193]
VSS[194]
P28
R1
R11
R12
R13
R14
R15
R16
R17
R18
T6
T12
T13
T14
T15
T16
T17
U4
U12
U13
U14
U15
U16
U17
U24
U25
U26
V2
V13
V15
V24
V27
V28
W6
W24
W25
W26
Y3
Y24
Y27
Y28
AA1
AA24
AA25
AA26
AB4
AB6
AB11
AB14
AB16
AB19
AB21
AB24
AB27
AB28
AC2
AC5
AC9
AC11
AD1
AD3
AD4
AD7
AD8
AD11
AD15
AD19
AD23
AE2
AE4
AE8
AE11
AE13
AE18
AE21
AE24
AE25
AF2
AF4
AF8
AF11
AF27
AF28
AG1
AG3
AG7
AG11
AG14
AG17
AG20
AG25
AH1
AH3
AH7
AH12
AH23
AH27
24 54Monday, February 12, 2007
A4
A23
B1
B8
B11
B14
B17
B20
B26
B28
C2
C6
C27
D10
D13
D18
D21
D24
E1
E2
E4
E8
E15
F3
F4
F5
F12
F27
F28
G1
G2
G5
G6
G9
G14
G18
G21
G24
G25
G26
H3
H4
H5
H24
H27
H28
J1
J2
J5
J24
J25
J26
K24
K27
K28
L13
L15
L24
L25
L26
M3
M4
M5
M12
M13
M14
M15
M16
M17
M24
M27
M28
N1
N2
N5
N6
N11
N12
N13
N14
N15
N16
N17
N18
N24
N25
N26
P3
P4
P12
P13
P14
P15
P16
P17
P24
P27
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
Custom
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
ICH7m Power/GND (4/4)
A
10
www.bufanxiu.com
PM
CN9, L85, L86, R232, R245, R246 Mount
C205, C555, C560, C566, C561, C206 Mount
C544, C543, C195, C194, C540, C539 Mount
H H
R233, R234, R243, R244 (NU)
GM
CN9, L85, L86, R232, R245, R246 (NU)
C205, C555, C560, C566, C561, C206 (NU)
C544, C543, C195, C194, C540, C539 (NU)
R233, R234, R243, R244
Mount
G G
Q_VECLK13
F F
Q_VEDAT13
E E
D D
C C
B B
CRT_HSYNC13
CRT_VSYNC13
CRT_BLUE13
CRT_GREEN13
CRT_RED13
A A
LVDS_VDDEN13
LVDS_BKLTEN13
10
9
8
7
6
DCIN10,26,45,48,49,50,51
For 945PM stuff
C104 T5.6uF 25V ± 20% ESR=100mΩ SMT3528 25TQC5R6M SANYO LR(NU)
12
C100 0.1uF 50V +80-20% SMT0805 Y5V LR(NU)
C98 0.1uF 50V +80-20% SMT0805 Y5V LR(NU)
5A
200mil
5
For 945PM stuff
CN10
1
PWR_SRC
3
PWR_SRC
5
PWR_SRC
7
PWR_SRC
9
PWR_SRC
11
PWR_SRC
13
PWR_SRC
15
PWR_SRC
17
GND
19
GND
21
GND
23
GND
1V8RUN
1V8RUN
1V8RUN
1V8RUN
1V8RUN
1V8RUN
1V8RUN
RUNPWROK
5VRUN
KEY
NB_PEG_RXN1513
NB_PEG_RXP1513
NB_PEG_RXN1413
NB_PEG_RXP1413
NB_PEG_RXN1313
NB_PEG_RXP1313
NB_PEG_RXN1213
NB_PEG_RXP1213
NB_PEG_RXN1113
NB_PEG_RXP1113
NB_PEG_RXN1013
NB_PEG_RXP1013
NB_PEG_RXN913
NB_PEG_RXP913
NB_PEG_RXN813
NB_PEG_RXP813
NB_PEG_RXN713
NB_PEG_RXP713
NB_PEG_RXN613
NB_PEG_RXP613
NB_PEG_RXN513
NB_PEG_RXP513
NB_PEG_RXN413
NB_PEG_RXP413
NB_PEG_RXN313
NB_PEG_RXP313
NB_PEG_RXN213
NB_PEG_RXP213
NB_PEG_RXN113
NB_PEG_RXP113
NB_PEG_RXN013
NB_PEG_RXP013
R114 0Ω 5% 1/16W SMT0402 LR(NU)
CRT_DDC_CLK
CRT_DDC_DAT
NEW ADD
2.5VDDM16,27,48
3VDDM
CRT_DDC_CLK
R113
0Ω 5% 1/16W SMT0402 LR
RP51
124
2.2K 5% 0402X2 1/16W 4P2R LR
R112
0Ω 5% 1/16W SMT0402 LR
CRT_DDC_DAT
LVDS_DDC_CLK13
LVDS_DDC_DATA13
Q40
DS
VECLK 27
TRANS M-FET-N 2N7002_NL 60V 115mA SOT-23 3PIN FAIRCHILD LR
3
G
G
Q41
TRANS M-FET-N 2N7002_NL 60V 115mA SOT-23 3PIN FAIRCHILD LR
DS
VEDAT 27
CLK_PCIE_VGA#18
CLK_PCIE_VGA18
MXM_CLKREQ#18
BUF_PLT_RST#21,28,35,43
QSMDAT_PMU11,40
QSMCLK_PMU11,40
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,26,27,28,29,32,34,35,38,39,40,42,43,47 1.8VDDS13,15,19,20,49
4
3
RP52
2.2K 5% 0402X2 1/16W 4P2R LR
1
2
RP54
124
3
0Ω 5% SMT1010 1/16W 4P2R LR
MXM_DDC_PCLK 26
MXM_DDC_PDATA 26
MXM_HOT#43
MXM_HSYNC27
MXM_VSYNC27
For 945GM stuff
R373 0Ω 5% 1/16W SMT0402 LR C467
R374 0Ω 5% 1/16W SMT0402 LR
R386 0Ω 5% 1/16W SMT0402 LR
R384 0Ω 5% 1/16W SMT0402 LR
R385 0Ω 5% 1/16W SMT0402 LR
R415 0Ω 5% 1/16W SMT0402 LR
TV_DAC_B13
R414 0Ω 5% 1/16W SMT0402 LR
TV_DAC_C13
R377 0Ω 5% 1/16W SMT0402 LR
R378 0Ω 5% 1/16W SMT0402 LR
9
MXM_HSYNC
MXM_VSYNC
MXM_BLUE
MXM_GREEN
MXM_RED
MXM_TV_Y
MXM_TV_C
MXM_LVDS_ENALCD
MXM_LVDS_ENABKL
8
If 945PM:
Unmount below resistors.
If 945GM:
Mount below resistors.
7
6
25
PEX_RX15#
27
PEX_RX15
29
GND
31
PEX_RX14#
33
PEX_RX14
35
GND
37
PEX_RX13#
39
PEX_RX13
41
GND
43
PEX_RX12#
45
PEX_RX12
47
GND
49
PEX_RX11#
51
PEX_RX11
53
GND
55
PEX_RX10#
57
PEX_RX10
59
GND
61
PEX_RX9#
63
PEX_RX9
65
GND
67
PEX_RX8#
69
PEX_RX8
71
GND
73
PEX_RX7#
75
PEX_RX7
77
GND
79
PEX_RX6#
81
PEX_RX6
83
GND
85
PEX_RX5#
87
PEX_RX5
89
GND
91
PEX_RX4#
93
PEX_RX4
95
GND
97
PEX_RX3#
99
PEX_RX3
101
GND
103
PEX_RX2#
105
PEX_RX2
107
GND
109
PEX_RX1#
111
PEX_RX1
113 114
GND PEX_TX1
115 116
PEX_RX0# GND
117 118
PEX_RX0 PEX_TX0#
119 120
GND PEX_TX0
121 122
PEX_REFCLK# PRSNT1#
123 124
PEX_REFCLK TV_C/HDTV_Pr
125 126
CLK_REQ# GND
127 128
PEX_RST# TV_Y/HDTV_Y/TV_CVBS
129 130
RSVD GND
131 132
RSVD TV_CVBS/HDTV_Pb
133 134
SMB_DAT GND
135 136
SMB_CLK VGA_RED
137 138
THERM# GND
139 140
VGA_HSYNC VGA_GRN
141 142
VGA_VSYNC GND
143 144
DDCA_CLK VGA_BLU
145 146
DDCA_DAT GND
147 148
IGP_UCLK# LVDS_UCLK#
149 150
IGP_UCLK LVDS_UCLK
151 152
GND GND
153 154
RSVD LVDS_UTX3#
155 156
RSVD LVDS_UTX3
157 158
AC/BATT# GND
159 160
IGP_UTX2# LVDS_UTX2#
161 162
IGP_UTX2 LVDS_UTX2
163 164
GND GND
165 166
IGP_UTX1# LVDS_UTX1#
167 168
IGP_UTX1 LVDS_UTX1
169 170
GND GND
171 172
IGP_UTX0# LVDS_UTX0#
173 174
IGP_UTX0 LVDS_UTX0
175 176
GND GND
177 178
IGP_LCLK#/DVI_B_CLK# LVDS_LCLK#
179 180
IGP_LCLK/DVI_B_CLK LVDS_LCLK
181 182
DVI_B_HPD/GND GND
183 184
RSVD LVDS_LTX3#
185 186
RSVD LVDS_LTX3
187 188
GND GND
189 190
IGP_LTX2#/DVI_B_TX2# LVDS_LTX2#
191 192
IGP_LTX2/DVI_B_TX2 LVDS_LTX2
193 194
GND GND
195 196
IGP_LTX1#/DVI_B_TX1# LVDS_LTX1#
197 198
IGP_LTX1/DVI_B_TX1 LVDS_LTX1
199 200
GND GND
201 202
IGP_LTX0#/DVI_B_TX0# LVDS_LTX0#
203 204
IGP_LTX0/DVI_B_TX0 LVDS_LTX0
205 206
DVI_A_HPD GND
207 208
DVI_A_CLK# DDCC_DAT
209 210
DVI_A_CLK DDCC_CLK
211 212
GND LVDS_PPEN
213 214
DVI_A_TX2# LVDS_BL_BRGHT
215 216
DVI_A_TX2 LVDS_BLEN
217 218
GND DDCB_DAT
219 220
DVI_A_TX1# DDCB_CLK
221 222
DVI_A_TX1 2V5RUN
223 224
GND GND
225 226
DVI_A_TX0# 3V3RUN
227 228
DVI_A_TX0 3V3RUN
229 230
GND 3V3RUN
MXM CN 230PIN (NU)
NU_20-10285-00
L-20-10285-00
PRSNT2#
PEX_TX15#
PEX_TX15
PEX_TX14#
PEX_TX14
PEX_TX13#
PEX_TX13
PEX_TX12#
PEX_TX12
PEX_TX11#
PEX_TX11
PEX_TX10#
PEX_TX10
PEX_TX9#
PEX_TX9
PEX_TX8#
PEX_TX8
PEX_TX7#
PEX_TX7
PEX_TX6#
PEX_TX6
PEX_TX5#
PEX_TX5
PEX_TX4#
PEX_TX4
PEX_TX3#
PEX_TX3
PEX_TX2#
PEX_TX2
PEX_TX1#
5
4
2
4
6
8
10
12
14
16
18
20
GND
22
GND
24
GND
26
28
30
32
GND
34
36
38
GND
40
42
44
GND
46
48
50
GND
52
54
56
GND
58
60
62
GND
64
66
68
GND
70
72
74
GND
76
78
80
GND
82
84
86
GND
88
90
92
GND
94
96
98
GND
100
102
104
GND
106
108
110
GND
112
C454
0.1uF 16V 80-20% SMT0402 Y5V LR
3V3_RUN_MXM
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
C444
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
4
3
1KΩ 5% 1/16W SMT0402 LR
R389
R383
SPWR 0 5% 1/16W 0402
VGA_PEG_RXN15 13
VGA_PEG_RXP15 13
VGA_PEG_RXN14 13
VGA_PEG_RXP14 13
VGA_PEG_RXN13 13
VGA_PEG_RXP13 13
VGA_PEG_RXN12 13
VGA_PEG_RXP12 13
VGA_PEG_RXN11 13
VGA_PEG_RXP11 13
VGA_PEG_RXN10 13
VGA_PEG_RXP10 13
VGA_PEG_RXN9 13
VGA_PEG_RXP9 13
VGA_PEG_RXN8 13
VGA_PEG_RXP8 13
VGA_PEG_RXN7 13
VGA_PEG_RXP7 13
VGA_PEG_RXN6 13
VGA_PEG_RXP6 13
VGA_PEG_RXN5 13
VGA_PEG_RXP5 13
VGA_PEG_RXN4 13
VGA_PEG_RXP4 13
VGA_PEG_RXN3 13
VGA_PEG_RXP3 13
VGA_PEG_RXN2 13
VGA_PEG_RXP2 13
VGA_PEG_RXN1 13
VGA_PEG_RXP1 13
VGA_PEG_RXN0 13
VGA_PEG_RXP0 13
MXM_TV_C 27
MXM_TV_Y 27
MXM_RED 27
MXM_GREEN 27
MXM_BLUE 27
MXM_LVDS_TXCLK_LN 26
MXM_LVDS_TXCLK_LP 26
MXM_LVDS_TXOUT_L2N 26
MXM_LVDS_TXOUT_L2P 26
MXM_LVDS_TXOUT_L1N 26
MXM_LVDS_TXOUT_L1P 26
MXM_LVDS_TXOUT_L0N 26
MXM_LVDS_TXOUT_L0P 26
MXM_DDC_PDATA 26
MXM_DDC_PCLK 26
MXM_LVDS_ENALCD 26
MXM_LVDS_ENABKL 26
2.5VDDM 16,27,48
R375
SPWR 0 5% 1/16W 0402
For 945PM stuff
3
2
SUSTAT_B# 28,39,43,47,48,49,51
20mil
5VDDA 10,24,37,38,47,48,49,51
40mil
3VDDM 8,10,11,13,16,18,19,20,21,22,23,24,26,27,28,29,32,34,35,38,39,40,42,43,47
FIC International Computer, Inc.
17FL.,NO266,SEC.1,WENHWA 2nd RD. LINKOU HSIANG,
244 TAIPEI, TAIWAN,ROC
(886-2)2600-8818
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
C
PEG & DD CNN
Date: Sheet of
2
1
25 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
IF 945GM MOUNT L13~L16,L18~L21,
UNMOUNT L132~ L139,
H H
IF 945PM MOUNT L132~L139,
UNMOUNT L13 ~ L16 ,L18~L21
G G
MXM_LVDS_TXCLK_LN25
MXM_LVDS_TXCLK_LP25
MXM_LVDS_TXOUT_L2N25
MXM_LVDS_TXOUT_L2P25
MXM_LVDS_TXOUT_L1N25
MXM_LVDS_TXOUT_L1P25
MXM_LVDS_TXOUT_L0N25
F F
MXM_LVDS_TXOUT_L0P25
LVDS_CHNA_CLKN13
LVDS_CHNA_CLKP13
LVDS_CHNA_DATAN213
E E
LVDS_CHNA_DATAP213
LVDS_CHNA_DATAN113
LVDS_CHNA_DATAP113
LVDS_CHNA_DATAN013
LVDS_CHNA_DATAP013
9
For 945PM stuff
L15
1
2
L13
1
2
L11
1
2
L9
1
2
L16
1
2
L14
1
2
L12
1
2
L10
1
2
CHOKE 90Ω 100MHz 1.75 Ω 100mA TCM1210-900-2P-T TDK LR
LVDS_TXCLK_LN
4
LVDS_TXCLK_LP
3
LVDS_TXOUT_L2N
4
LVDS_TXOUT_L2P
3
LVDS_TXOUT_L1N
4
LVDS_TXOUT_L1P
3
LVDS_TXOUT_L0N
4
LVDS_TXOUT_L0P
3
CHOKE 90Ω 100MHz 1.75 Ω 100mA TCM1210-900-2P-T TDK LR(NU)
LVDS_TXCLK_LN
4
LVDS_TXCLK_LP
3
LVDS_TXOUT_L2N
4
LVDS_TXOUT_L2P
3
LVDS_TXOUT_L1N
4
LVDS_TXOUT_L1P
3
LVDS_TXOUT_L0N
4
LVDS_TXOUT_L0P
3
8
7
3VDDA11,21,23,24,28,29,30,36,38,39,40,41,42,43,45,47,49,51
Min :80mil
ICC_MAX=2A
PATTERN
WIDTH=MIN.
2MM(80MIL)
MXM_LVDS_ENALCD25
6
C275
0.1uF 16V 80-20% SMT0402 Y5V LR
5mil
5
TRANS M-FET-P FDS6875_NL -20V -6.0A SO-8 8PIN FAIRCHILD LR
Q26A
R221
47KΩ 5% 1/16W SMT0402 LR
5mil
B
R220
100KΩ 1% 1/16W SMT0402 LR
71
8
Q26B
2
TRANS M-FET-P FDS6875_NL -20V -6.0A SO-8 8PIN FAIRCHILD LR
53
6
4
R222
4.7KΩ 5% 1/16W SMT0402 LR
Q25
NPN PDTC144EU SOT-323 PHILIPS LR
E C
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,27,28,29,32,34,35,38,39,40,42,43,47
20mil
LVDS_TXCLK_LN
LVDS_TXCLK_LP
LVDS_TXOUT_L2N
LVDS_TXOUT_L2P
LVDS_TXOUT_L1N
LVDS_TXOUT_L1P
LVDS_TXOUT_L0N
LVDS_TXOUT_L0P
4
Min : 80mil
SPWR 0 5% 1/16W 0402
R219
20mil
CN18
1
1
2
3
3
4
5
5
6
7
7
8
9
9
10
11
11
12
13
13
14
15
15
16
17
17
18
19
19
20
21
21
22
23
23
24
25
25
26
27
27
28
29
29
30
CON GGT ACES SMT 30PIN 88313-3002
20-25063-00
L-20-25603-00
3
2
1
Min : 80 MIL or Power Plane
C272 0.1uF 16V 80-20% SMT0402 Y5V LR
C271 10uF 10V +80-20% SMT0805 Y5V LR
C270
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
MXM_DDC_PDATA 25
MXM_DDC_PCLK 25
For 945GM stuff
D D
5VDDM11,16,24,27,33,34,35,38,40,41,47,48
C C
MXM_LVDS_ENABKL25
LCD brightness control
5VDDM11,16,24,27,33,34,35,38,40,41,47,48
10mil
B B
Q_BLADJ40
FROM PMU07
BLADJ label signal
BLADJ: 1.6V - 2.6V
R14
1KΩ 5% 1/16W SMT0402 LR
C26
0.1uF 16V 80-20% SMT0402 Y5V LR
B
E C
VBRIGHTNESS 0.5V - 4.0V
Q1
TR NPN MMBT3904_NL 40V 200mA SOT-23 3PIN FAIRCHILD LR
BRIGHTNESS
R17
4.7KΩ 5% 1/16W SMT0402 LR
BLEN141
10mil
C27
10uF 10V +80-20% SMT0805 Y5V LR
R16
100KΩ 5% 1/16W SMT0402 LR
DCIN10,25,45,48,49,50,51
U5
53
1
4
2
DL-IC NC7ST08P5X_NL SC-70 5PIN FAIRCHILD LR
L17
80mil
600Ω±25% 100MHz 2000mA SMT0805 MLB-201209-0600P-N2 MAG.LAYERS LR
INV_LID#42
DCIN_INVCONN
A A
10
9
8
7
6
5VDDM11,16,24,27,33,34,35,38,40,41,47,48
U6
53
1
4
2
DL-IC NC7ST08P5X_NL SC-70 5PIN FAIRCHILD LR
C29
10uF 25V ± 20% SMT1206 X5R C3216X5R1E106MT TDK LR
5
INVENA
C28
0.1uF 50V +80-20% SMT0805 Y5V LR
C276
10pF 50V 5% SMT0603 NPO LR(NU)
C274
10pF 50V 5% SMT0603 NPO LR(NU)
For
EMI
4
INVERTER CNN
CN20
1
1
2
2
3
3
4
4
5
5
6
6
CON ENTERY SMT 6PIN P=1.25 3801-06
20-25062-00
L-20-25062-00
FIC International Computer, Inc.
17FL.,NO266,SEC.1,WENHWA 2nd RD. LINKOU HSIANG,
244 TAIPEI, TAIWAN,ROC
(886-2)2600-8818
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
C
Panel I/F
3
Date: Sheet of
2
26 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
CRT CIRCUIT
2.5VDDM16,25,48
H H
C25 0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
C24 0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
C23 0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)
6 1
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)
G G
20 mil
20 mil
20 mil
20 mil
Otrher Signal
MXM_RED
MXM_GREEN
MXM_BLUE
Other Signal
6 1
MXM_RED25
MXM_GREEN25
MXM_BLUE25
D9B
D9A
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM L(NU)R
5 2
D6A
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)
5 2
WIDTH=5 MILS Z0=50 ohms
WIDTH=5 MILS Z0=50 ohms
WIDTH=5 MILS Z0=50 ohms
D9C
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)
4 3
D6B
D6C
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)
4 3
WIDTH= 8 MILS Z0=75 ohms
WIDTH= 8 MILS Z0=75 ohms
WIDTH= 8 MILS Z0=75 ohms
LENGTH MAX= 0.5" MATCHING = +/- 200mils
F F
MXM_HSYNC25
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,28,29,32,34,35,38,39,40,42,43,47
CRT5VS
4
3
RP38
2.2K 5% 0402X2 1/16W 4P2R LR
1
E E
VECLK25
VEDAT25
2
VECLK
VEDAT
NU 0.1U
DEL 2.2K
MXM_VSYNC25
0.1uF 16V 80-20% SMT0402 Y5V LR(NU )
C17
4
U1
125 3
DL-IC NC7SZ126P5X_NL SC-70 5PIN FAIRCHILD LR
1253
4
U2
DL-IC NC7SZ126P5X_NL SC-70 5PIN FAIRCHILD LR
CRT_Q_HSYNC
WIDTH=4 MILS Z0=55 ohms
WIDTH=4 MILS Z0=55 ohms
CRT_Q_VSYNC
Layout Note:
RGB SIGNAL
Place 150 Ohm resistor near connector.
Use 37.5 Ohm traces from GMCH to 150 Ohm resistors
LENGTH MAX= 0.5" MATCHING = +/- 200mils
DEL 10P 3PCS & 0R 3PCS
CRT_L_GREEN
CRT_L_BLUE
(10mil)
(10mil)
C14 22pF 50V 5% SMT0402 NPO LR(NU)
R7 75Ω 1% 1/ 16W SMT0402 LR
R6 75Ω 1% 1/ 16W SMT0402 LR
C13 22pF 50V 5% SMT0402 NPO LR(NU)
R5 75Ω 1% 1/ 16W SMT0402 LR
C12 22pF 50V 5% SMT0402 NPO LR(NU)
5VDDM11,16,24,26,33,34,35,38,40,41,47,48
L6
68nH± 5% SMT0805 CLH2012T-68NJ-N CHILISIN LR
1 2
L5
68nH± 5% SMT0805 CLH2012T-68NJ-N CHILISIN LR
1 2
L4 68nH±5% SMT0805 CLH2012T-68NJ-N CHILISIN LR
1 2
R4 22Ω 1% 1/10W SMT0603 LR
R8 22Ω 1% 1/10W SMT0603 LR
C15 3.3pF 50V ±0.25pF SMT0402 NPO LR(NU)
C10 3.3pF 50V ±0.25pF SMT0402 NPO LR(NU)
CRTGND
C3 10pF 50V 5% SMT0402 NPO LR
DIODE STKY SSM24PT 40V 2A SMA CHENMKO LR
D5
NP
CNN_HSYNC
CNN_VSYNC
5pF 50V ± 0.5pF -55 TO +125C SM T0402 NPO LR(NU)
CNN_REDCRT_L_RED
CNN_GREEN
CNN_BLUE
VEDAT
VECLK
>100mil
L8
50Ω±25% 100MHz 4A SMT1206 MLB-321611-0050P-N1 MAG.LAYERS LR
WIDTH= 8 MILS Z0=75 ohms
WIDTH= 8 MILS Z0=75 ohms
WIDTH= 8 MILS Z0=75 ohms
C4 10pF 50V 5% SMT0402 NPO LR
C5 10pF 50V 5% SMT0402 NPO LR
5pF 50V ± 0.5pF -55 TO +125C SM T0402 NPO LR(NU)
C1 27pF 50V 5% SMT0402 NPO LR(NU)
C2 27pF 50V 5% SMT0402 NPO LR(NU)
C267
C266
R1
SPWR 0 5% 1/16W 0402
For
EMI
C16
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
12
0.1uF 16V 80-20% SMT0402 Y5V LR
C11
CRT5VS
20mil
CN1
1
9
2
10
3
11
Pin 16, Pin 17
4
connected to
12
5
power ground
13
6
14
7
15
8
CN 15PIN 070546FR015S211CU SUYIN
20-25071-00
L-20-25071-00
D D
C C
MXM_TV_Y25
TV-Y
B B
Place 150 Ohm resistor near connector.
Use 37.5 Ohm traces from GMCH to 150 Ohm resistors
WIDTH=5 MILS Z0=50 ohms
Signal
MXM_TV_C25
TV-C
Signal
A A
10
9
8
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,28,29,32,34,35,38,39,40,42,43,47
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM L(NU)R
D34B
5 2
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)
D33B
5 2
D34C
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)
4 3
DIODE IMN10T108 80V 25mA SMD6(SC-74) 6PIN ROHM LR(NU)
R224
75Ω 1% 1/16W SMT0402 LR
D33C
4 3
R223
75Ω 1% 1/16W SMT0402 LR
7
TV OUT CIRCUIT
WIDTH= 8 MILS Z0=75 ohms
LENGTH MAX= 0.5"
L42
120Ω±25% 100MHz 2500mA SMT0603 MLB-160808-0120P-N2 MAG.LAYERS LR
C282
5.6pF 25V ± 0.25pF SMT0402 NPO LR
L41
120Ω±25% 100MHz 2500mA SMT0603 MLB-160808-0120P-N2 MAG.LAYERS LR
C273
5.6pF 25V ± 0.25pF SMT0402 NPO LR
6
TV_Y_CONN
C268
5.6pF 25V ± 0.25pF SMT0402 NPO LR
TV_C_CONN
5
C269
5.6pF 25V ± 0.25pF SMT0402 NPO LR
4
CN4
4
4
3
3
2
2
1
1
GND GND
5 6
20-25070-00
L-20-25070-00
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
3
Date: Sheet of
(886-2)8751-8751
MR052< Yonah+Calistoga+ICH7M>
CRT PORT / TV-OUT
2
27 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
H H
G G
NEW Card
F F
E E
9
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,29,32,34,35,38,39,40,42,43,47
1.5VDDM9,13,15,16,24,48
8
3VDDA11,21,23,24,26,29,30,36,38,39,40,41,42,43,45,47,49,51
C617 0.1uF 16V 80-20% SMT0402 Y5V LR
C616 0.1uF 16V 80-20% SMT0402 Y5V LR
C594 0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDS_NC1.5VDDM_NC3VDDM_NC
C620 4.7uF 10V +80-20% 0805 Y5V LR
C618 10uF 10V +80-20% SMT0805 Y5V LR
C595 0.1uF 16V 80-20% SMT0402 Y5V LR
C593 10uF 10V +80-20% SMT0805 Y5V LR
C621 0.1uF 16V 80-20% SMT0402 Y5V LR
C619 0.1uF 16V 80-20% SMT0402 Y5V LR
7
20mil
20mil
PSUSC#36,39,43,49
3VDDA11,21,23,24,26,29,30,36,38,39,40,41,42,43,45,47,49,51
20mil
R464
0Ω 5% 1/16W SMT0402 LR
R462
10KΩ 5% 1/16W SMT0402 LR(NU)
PLT_RST#13,21,23,40,41
SUSTAT_B#25,39,43,47,48,49,51
6
U37
4
3.3VIN
5
3.3VIN
15
1.5VIN
16
1.5VIN
18
AUXIN
1
SYSRST
2
SHDN
3
STBY
20 9
OC NC
19
RCLKEN
ASIC POWER SWITCH TPS2231PWR TSSOP 20PIN TI LR
6
3.3VOUT
7
3.3VOUT
13
1.5VOUT
14
1.5VOUT
17
AUXOUT
8
PERST
12
CPPE
11
CPUSB
10
GND
3VDDM_NC
1.5VDDM_NC
3VDDS_NC
PCIE_WAKE#23
This signal may cause
leakage current
issue.
5
PERST#
CPPE#
CPUSB#
20mil
20mil
20mil
20mil
CPPE#
CPUSB#
PERST#
4
3VDDM_NC
1.5VDDM_NC
3VDDS_NC
CON MOLEX EXPRESS CARD SMT 26PIN 47150-0003 LR
CN29
15
3.3V
14
3.3V#2
10
1.5V
9
1.5V#2
12
3.3VAUX
26
GND1
23
GND2
20
GND3
1
NEW CARD
GND4
6
RSVD#2
5
RSVD#3
17
CPPE#
4
CPUSB#
13
PERST#
11
WAKE#
GND5
GND6
GND7
GND8
20-25120-00
303235
36
CLKREQ#
REFCLK+
REFCLK-
PETp0
PETn0
PERp0
PERn0
USB_D+
USB_D-
SMB_DAT
SMB_CLK
16
19
18
25
24
22
21
3
2
8
7
3
3VDDA11,21,23,24,26,29,30,36,38,39,40,41,42,43,45,47,49,51
R463
10KΩ 5% 1/16W SMT0402 LR(NU)
0 5% 0402*2 1/16W 4P2R LR
PCLKREQ# 18
CLK_PCIE_EXPCARD 18
CLK_PCIE_EXPCARD# 18
PCIE_TXP4 21
PCIE_TXN4 21
PCIE_RXP4 21
PCIE_RXN4 21
USB_PP5 21
USB_PN5 21
RP37
124
3
RSVD for EMI
2
1
SMB_DATA 18,19,20,23
SMB_CLK 18,19,20,23
D D
PCIE Mini Card
0.1uF 16V 80-20% SMT0402 Y5V LR(NU )
0.1uF 16V 80-20% SMT0402 Y5V LR(NU )
C243
C C
PCIE_WAKE#23
CLK_PCIE_MINICARD#18
CLK_PCIE_MINICARD18
B B
A A
5pF 50V ± 0.25pF SMT0603 NPO LR(NU)
10
PCIE_RXN321
PCIE_RXP321
PCIE_TXN321
PCIE_TXP321
12
12
C254
C255
5pF 50V ± 0.25pF SMT0603 NPO LR(NU)
PLT_RST#13,21,23,40,41
CLK_PCI_MINIPCI18
9
1 2
WAKE# +3.3V_1
3 4
RSVD1 GND7
5 6
RSVD2 +1.5V_1
7 8
CLKREQ# RSVD13
9 10
GND1 RSVD14
11 12
REFCLK- RSVD15
13 14
REFCLK+ RSVD16
15 16
GND2 RSVD17
KEY
17
RSVD3
19
RSVD4
21
GND3
23
PER_N0
25
PER_P0
27
GND4
29
GND5
31
PET_N0
33
PET_P0
35
GND6
37
RSVD5
39
RSVD6
41
RSVD7
43
RSVD8
45
RSVD9
47
RSVD10
49
RSVD11
51
RSVD12
53
GNDM1
CON MOLEX 67910-6700 SMD MINI CARD 52 PIN P=0.8 H=6.7mm (板下) LR
20-25320-00
8
GND8
RSVD18
PERST#
+3.3V_AUX
GND9
+1.5V_2
SMB_CLK
SMB_DATA
GND10
USB_D-
USB_D+
GND11
LED_WWAN#
LED_WLAN#
LED_WPAN#
+1.5V_3
GND12
+3.3V_2
GNDM2
7
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
0.1uF 16V 80-20% SMT0402 Y5V LR(NU) C244
CN15
C245
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
LPC_FRAME# 22,40,41,43
10uF 10V +80-20% SMT0805 Y5V LR(NU)
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,29,32,34,35,38,39,40,42,43,47
C247
C246
LPC_AD3 22,40,41,43
LPC_AD2 22,40,41,43
LPC_AD1 22,40,41,43
LPC_AD0 22,40,41,43
D32
DIODE RB751V-40 TE-17 30V 30mA UMD2 ROHM LR
C251
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
10uF 10V +80-20% SMT0805 Y5V LR(NU)
RF_KILL# 43
BUF_PLT_RST# 21,25,35,43
R204
PN
6
WLAN_LED# 38
C249
SMB_CLK 18,19,20,23
SMB_DATA 18,19,20,23
4.7KΩ 5% 1/16W SMT0402 LR
1.5VDDM9,13,15,16,24,48
3VDDA11,21,23,24,26,29,30,36,38,39,40,41,42,43,45,47,49,51
0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDM 8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,29,32,34,35,38,39,40,42,43,47
5
10uF 10V +80-20% SMT0805 Y5V LR(NU)
C252
C253
4
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
3
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
PCIE Mini CARD
2
28 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
H H
9
8
7
6
5
4
3VDDS11,21,23,24,26,28,30,36,38,39,40,41,42,43,45,47,49,51
3
2
1
G G
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,32,34,35,38,39,40,42,43,47
20mil
0.01uF 50V +80-20% SMT0402 Y5V LR
C232
C202
3VDDS
10uF 10V +80-20% SMT0805 Y5V LR
20mil
C197 0.1uF 16V 80-20% SMT0402 Y5V LR
C199 10uF 10V +80-20% SMT0805 Y5V LR
F F
C196 0.01uF 50V +80-20% SMT0402 Y5V LR
E E
D D
C C
B B
C198 0.01uF 50V +80-20% SMT0402 Y5V LR
C230 0.47uF 16V +80-20% 0603 Y5V LR
12
PCI_AD27
20mil
PCI_AD[31..0]21,36
R190
100Ω 5% 1/16W SMT0402 LR
PCI_RST#21,36
PCI_RST#21,36
3VDDS11,21,23,24,26,28,30,36,38,39,40,41,42,43,45,47,49,51
R169
100KΩ 5% 1/16W SMT0402 LR
PCI_AD[31..0]
PCI_PAR21,36
PCI_C/BE#321,36
PCI_C/BE#221,36
PCI_C/BE#121,36
PCI_C/BE#021,36
PCI_REQ#121
PCI_GNT#121
PCI_FRAME#21,36
PCI_IRDY#21,36
PCI_TRDY#21,36
PCI_DEVSEL#21,36
PCI_STOP#21,36
PCI_PERR#21,36
PCI_SERR#21,36
R170
0Ω 5% 1/16W SMT0402 LR(NU)
CLK_PCI_CB18
PCI_PME#40
PCI_CLKRUN#23,36,41,43
D30
N P
DIODE SWITCH 1SS355PT 100V 100mA SOD-323 2PIN CHENMKO LR
PCI_AD31
PCI_AD30
PCI_AD29
PCI_AD28
PCI_AD27
PCI_AD26
PCI_AD25
PCI_AD24
PCI_AD23
PCI_AD22
PCI_AD21
PCI_AD20
PCI_AD19
PCI_AD18
PCI_AD17
PCI_AD16
PCI_AD15
PCI_AD14
PCI_AD13
PCI_AD12
PCI_AD11
PCI_AD10
PCI_AD9
PCI_AD8
PCI_AD7
PCI_AD6
PCI_AD5
PCI_AD4
PCI_AD3
PCI_AD2
PCI_AD1
PCI_AD0
R196
100KΩ 5% 1/16W SMT0402 LR(NU)
C212
1uF 10V +80-20% 0603 Y5V LR
U20B
10
VCC_PCI1
20
VCC_PCI2
27
VCC_PCI3
32
VCC_PCI4
41
VCC_PCI5
128
VCC_PCI6
61
VCC_RIN
16
VCC_ROUT1
34
VCC_ROUT2
64
VCC_ROUT3
114
VCC_ROUT4
120
VCC_ROUT5
125
AD31
126
AD30
127
AD29
1
AD28
2
AD27
3
AD26
5
AD25
6
AD24
9
AD23
11
AD22
12
AD21
14
AD20
15
AD19
17
AD18
18
AD17
19
AD16
36
AD15
37
AD14
38
AD13
39
AD12
40
AD11
42
AD10
43
AD9
44
AD8
46
AD7
47
AD6
48
AD5
49
AD4
50
AD3
51
AD2
52
AD1
53
AD0
33
PAR
7
C/BE3#
21
C/BE2#
35
C/BE1#
45
C/BE0#
8
IDSEL
124
REQ#
123
GNT#
23
FRAME#
24
IRDY#
25
TRDY#
26
DEVSEL#
29
STOP#
30
PERR#
31
SERR#
71
GBRST#
119
PCIRST#
121
PCICLK
70
PME#
117
CLKRUN#
ASIC R5C832-TQFP128P TQFP 128PIN RICOH LR
VCC_MD
HWSPND#
PCI / OTHER
UDIO0/SRIRQ#
VCC_3V
GND1
GND2
GND3
GND4
GND5
GND6
GND7
GND8
GND9
GND10
AGND1
AGND2
AGND3
AGND4
AGND5
MSEN
XDEN
UDIO5
UDIO3
UDIO4
UDIO2
UDIO1
INTA#
INTB#
TEST
20mil
67
86
4
13
22
28
54
62
63
68
118
122
99
102
103
107
111
69
58
55
57
65
59
56
60
72
115
116
66
R164
10KΩ 5% 1/16W SMT0402 LR(NU)
1394_AGND30
R155
10KΩ 5% 1/16W SMT0402 LR
R157
10KΩ 5% 1/16W SMT0402 LR
R156
100KΩ 5% 1/16W SMT0402 LR
R152
100KΩ 5% 1/16W SMT0402 LR
C207
10uF 10V +80-20% SMT0805 Y5V LR
C221
0.01uF 50V +80-20% SMT0402 Y5V LR
3VDDS11,21,23,24,26,28,30,36,38,39,40,41,42,43,45,47,49,51
R160
22Ω 5% 1/16W SMT0402 LR Sn
PCI_SERIRQ 23,41,43
PCI_IRQA# 21,36
PCI_IRQB# 21
PM_SUSTAT# 23,41,43
4
3
RP36
10K 5% SMT1010 1/16W 4P2R LR
1
2
3VDDS11,21,23,24,26,28,30,36,38,39,40,41,42,43,45,47,49,51
10mil
C242
0.01uF 50V +80-20% SMT0402 Y5V LR(NU)
U21
8
7
6
5
1
A0
VCC
2
A1
WP
3
A2
SCL
4
GND
SDA
EEPROM AT24C02BN-10SU-1.8 2Kbit(256*8)5ms 1.8V~5.5V SOIC 8PIN ATMEL LR
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
A A
10
9
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
CardReader R5C832(PCI)
2
29 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
H H
9
8
3VDDS11,21,23,24,26,28,29,36,38,39,40,41,42,43,45,47,49,51
7
L39
600Ω±25% 100MHz 2000mA SMT0805 MLB-201209-0600P-N2 MAG.LAYERS LR
40mil
6
Close to IEEE1394 (40mil)
VCC_1394
C240 10uF 10V +80-20% SMT0805 Y5V LR
5
C237 0.01uF 50V +80-20% SMT0402 Y5V LR
C227 1uF 10V +80-20% 0603 Y5V LR
C231 0.1uF 16V 80-20% SMT0402 Y5V LR
4
56.2Ω 1% 1/16W SMT0402 LR
270pF 50V 10% SMT0402 X7R LR
R193
C235
R192
3
5.11KΩ 1% 1/10W SMT0603 LR
56.2Ω 1% 1/16W SMT0402 LR
R198
2
1
Close to Chip
1394_AGND29
TPB0+
TPB0-
TPA0+
U20A
AVCC_PHY1
G G
15pF 50V 5% SMT0402 NPO LR
C224
Y5 24.576MHz SMD 12pF ±30ppm 40Ω X8A024576FC1H-H HARMONY LR
C233
F F
15pF 50V 5% SMT0402 NPO LR
C229 0.01uF 50V +80-20% SMT0402 Y5V LR
R191 10KΩ 1% 1/16W SMT0402 LR
C228 0.01uF 50V +80-20% SMT0402 Y5V LR
94
XI
95
XO
96
FIL0
101
REXT
100
VREF
AVCC_PHY2
AVCC_PHY3
AVCC_PHY4
TPBIAS0
TPBN0
TPBP0
TPAN0
TPAP0
IEEE1394/SD
VCC_1394
SPWR 0 5% 1/16W 0402
TPB0TPB0+
TPA0TPA0+
R200
Close to IEEE1394 (40mil)
1394_AGND 29
TPA0+
TPA0-
TPB0+
TPB0-
98
106
110
112
TPBIAS0
113
104
105
108
109
TPA0-
TPBIAS0
Close to Connector
L33
1
2
CHOKE 120Ω 100MHz 0.22 Ω 0.37A ACM2012-121-2P-T TDK LR
L32
1
2
CHOKE 120Ω 100MHz 0.22 Ω 0.37A ACM2012-121-2P-T TDK LR
1394_AGND 29
R195
56.2Ω 1% 1/16W SMT0402 LR
R194
56.2Ω 1% 1/16W SMT0402 LR
C234 0.01uF 50V +80-20% SMT0402 Y5V LR
C236 0.33uF 16V 80-20% SMT0603 Y5V LR
4
3
4
3
1394_AGND 29
CN13
4
6
3
7
2
8
1
5
CON CONTEK DIP 1394_IMN2043-G6-2G LR
20-25094-00
L-20-25094-00
E E
D D
C C
97
RSV
ASIC R5C832-TQFP128P TQFP 128PIN RICOH LR
B B
A A
10
9
8
MDIO17
MDIO16
MDIO15
MDIO14
MDIO13
MDIO12
MDIO11
MDIO10
MDIO05
MDIO08
MDIO19
MDIO18
MDIO02
MDIO03
MDIO00
MDIO01
MDIO09
MDIO04
MDIO06
MDIO07
87
92
89
91
MS_DAT3/SD_DAT3/SM_D3
90
MS_DAT2/SD_DAT2/SM_D2
93
MS_DAT1/SD_DAT1/SM_D1
81
MS_SDIO/SD_DAT0/SM_D0
82
75
MS_BS/SD_CMD/SM_WEZ
88
83
85
78
77
80
79
R186
84
22Ω 1% 1/16W SMT0402 LR
76
74
73
7
SD_WP#/SM_CE#
SD_CD#
MS_CD#
CR_PWR
Shield GND
SD_MSCLK
C220
10pF 50V 5% SMT0402 NPO LR(NU)
For EMI
3VDDS11,21,23,24,26,28,29,36,38,39,40,41,42,43,45,47,49,51
30mil 30mil
0.1uF 16V 80-20% SMT0402 Y5V LR
C250
B
Q21
DS
M-FET-P SI2301BDS-T1-E3 -20V -2.0A SOT-23 VISHAY LR
G
R199
10KΩ 5% 1/16W SMT0402 LR
Q20
TR NPN DTC144EUAT106 50V 100mA UMT3(SC-70) 3PIN ROHM LR
E C
6
SD_3VDD
R203
100KΩ 5% 1/16W SMT0402 LR
5
SD_3VDD
30 mil
2VIA
C517 1uF 10V +80-20% 0603 Y5V LR
C248
10uF 10V +80-20% SMT0805 Y5V LR
SD_CD#
MS_DAT2/SD_DAT2/SM_D2
MS_DAT3/SD_DAT3/SM_D3
30 mil
2VIA
30mil
C514 1uF 10V +80-20% 0603 Y5V LR
MS_BS/SD_CMD/SM_WEZ
SD_MSCLK
MS_SDIO/SD_DAT0/SM_D0
MS_DAT1/SD_DAT1/SM_D1
SD_WP#/SM_CE#
SD_MSCLK
MS_DAT3/SD_DAT3/SM_D3
MS_CD#
MS_DAT2/SD_DAT2/SM_D2
MS_SDIO/SD_DAT0/SM_D0
MS_DAT1/SD_DAT1/SM_D1
MS_BS/SD_CMD/SM_WEZ
3
30mil
C508 0.1uF 16V 80-20% SMT0402 Y5V LR
SD_3VDD
C511 0.1uF 16V 80-20% SMT0402 Y5V LR
4
CN11
21
CD_SD
20
DAT2_SD
18
DAT3_SD/CD
15
CMD_SD
SD&MMC
12
VSS_SD
10
VDD_SD
7
CLK_SD
4
VSS_SD
3
DAT0_SD
2
DAT1_SD
1
WP_SD
19
VSS_MS
17
VCC_MS
16
SCLK_MS
14
RESERVED/DATA3_MS
13
INS_MS
11
RESERVED1/DATA2_MS
9
SDIO/DATA0_MS
8
DATA1_MS
6
BS_MS
5
VSS_MS
CON PROCONN CARD READER 3IN1 R009-120-XX
20-25000-01
L-20-25000-01
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
C
R5C832 IEEE1394
Date: Sheet of
2
Memory Stick
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
SD_CD_GND
SD_WP_GND
22
23
30 54Monday, February 12, 2007
1
A
10
www.bufanxiu.com
H H
G G
F F
E E
9
8
7
6
5
4
3
2
1
D D
C C
B B
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
A A
10
9
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
BLANK
2
31 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
10mil
10mil
H H
10mil
10mil
10mil
10mil
G G
ADDR :57C0H bit 15 set:'1'
F F
E E
AVDDS33
10mil
10mil
9
GND_POWER
AC97_PCBEEP
GND_POWER
8
10mil
10mil
10mil
GND_POWER
10mil
AC97_BITCLK
10mil
Please close to CODEC CHIP
L60 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
ICH_SPKR23
10KΩ 5% 1/16W SMT0402 LR
2.2KΩ 5% 1/16W SMT0402 LR
MICIN134
MICIN234
AC97_SDOUT22,38
AC97_BITCLK22,38
AC97_SYNC22,38
AC97_RST#22,38
3VDDM_AUDIO
GND_POWER
R469
R468
C625 1uF 10V +80-20% 0603 Y5V LR
C626 1uF 10V +80-20% 0603 Y5V LR
EAPD
10mil
SPDIFO34
30mil
C628 10uF 10V +80-20% SMT0805 Y5V LR
C652 10uF 10V +80-20% SMT0805 Y5V LR(NU)
C653 0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
C634 0.1uF 16V 80-20% SMT0402 Y5V LR
1uF 10V +80-20% 0603 Y5V LR
C630
C631
1000pF 50V 10% SMT0603 X7R LR
22Ω 5% 1/16W SMT0402 LR Sn
R495
R492
33Ω 1% 1/16W SMT0402 LR
40mil
22pF 50V 5% SMT0402 NPO LR
C643
7
GND_POWER
10mil
14MCLK_AC97
10mil
GND_POWER
12
SENSE_A
PCBEEP
13
Sense A
14
NC
15
NC
16
MIC2-L
17
MIC2-R
18
CD_L
20
CD_R
19
CD_GND
21
MIC1-L
22
MIC1-R
23
LINE1-L
24
LINE1-R
45
NC
46
DMIC_CLK
47
EAPD
48
SPDIFO
2
GPIO0/DMIC-12
3
GPIO3/DMIC34
5
SDATA_OUT
6
BCLK
10
SYNC
11
RESET#
1
DVDD
9
DVDD_IO
25
AVDD1
38
AVDD2
ASIC AUDIO CODEC ALC268-GR LQFP 48PIN REALTEK LR
6
AC97/AZALIA CODEC DUAL LAYOUT
AC97 USE ALC655 / AZALIA(RESERVE)
11/27
U44
10mil
LINE-OUT-L
LINE-OUT-R
MONO_OUT
HP-OUT-L
HP-OUT-R
VREF
MIC1-VREFO-L
LINE1-VREFO
MIC2-VREFO
MIC1-VREFO-R
GPIO1
Sense B
SDATA_IN
JDREF
DVSS_1
DVSS_2
AVSS1
AVSS2
35
36
37
39
41
27
28
29
30
32
31
33
NC
34
43
NC
8
40
4
7
26
42
44
NC
11/27
10mil10mil
R496
20KΩ 1% 1/16W SMT0402 LR
LINE_OUT_L 33
LINE_OUT_R 33
HP_OUT_L 33
HP_OUT_R 33
R214 4.7KΩ 5% 1/16W SMT0402 LR
R216 4.7KΩ 5% 1/16W SMT0402 LR
R494
0Ω 5% 1/16W SMT0402 LR(NU)
5
4
A_GND
LINE_OUT_L
A_GND
A_GND
C640 0.1uF 16V 80-20% SMT0402 Y5V LR
+
C642 T10uF 10V ± 20% SMT3216 ESR=4.0Ω T491A106M010AT KEMET LR
MICIN1
R215
4.7KΩ 5% 1/16W SMT0402 LR(NU)
MICIN2
R47722Ω 5% 1/16W SMT0402 LR Sn
AGND 33,34
AC97_SDIN0 22
10mil
10mil
10mil
10mil
3
10mil
10mil
10mil
10milLINE_OUT_R
2
10mil
HD Audio-ACZ_SDOUT/ACZ_SYNC/ACZ_BITCLK/ACZ_RESET#
AGND 33,34
ICH7m
L1
Trace Impedance
55 +/- 15%
39ohm
39ohm
L3
L3
L2
L2
Routing Requirement
4 on 7(stripline)
5 on 7(microstrip)
HD
Audio
*** L3 can be extened up to 15" if HD Audio docking is not used
HD Audio-ACZ_SDIN
L1
ICH7m
39ohm
Trace Impedance
55 +/- 15%
*** Breakout can be routed 4 on 4 up to 500 mils
HD
L2
Audio
Routing Requirement
4 on 7(stripline)
5 on 7(microstrip)
1
MDC CONN
Trace Length
L1 = 0.5"~2.5"
L2 <= 0.1"
L3 = 1"~8"
Trace Length
L1 = 0.1"~15"
L2 <= 0.5"
D D
AGND 33,34
R472
AGND33,34
C C
B B
AC97 CODEC Layout Guide:
1.The digital and analog gnd should be separated 2-3mm gap
2.All the analog trace routing should be over the analog plane
3.The analog and digital planes should electrically shorted at one place
4.All supply high frequency decoulping ,reference high freguency decoulp and
filter caps must be routed on the same layer as the codec
5.Analog I/O routing should be kept a short as possible
6.Analog I/O routing should be shielding with analog ground traces
7.Use of ground plane fill and the copper fill should be shorted to the analog ground plane
8.The AC-link signal should be as short as possi ble
9.AC-link clock signal should have a series resistor close to the codec
10.The AC-link signal should be shielding with ground
A A
11.Split analog and digital ground planes and 2-3mm
12.Analog signals only over analog ground plane
13.Digital signals only over digital ground plane
14.Locate analog section away from high speed digital circuits
15.Place smallest bypass capacitor closest to IC pin
16.Use metal film resistors and NPO capacitors in analog path
17.The Audio signals trace width is 12mil or more
10
SPWR 0 5% 1/16W 0402
9
600Ω±25% 100MHz 2000mA SMT0805 MLB-201209-0600P-N2 MAG.LAYERS LR
L59
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,34,35,38,39,40,42,43,47
8
C641
C637
0.1uF 16V 80-20% SMT0402 Y5V LR
10uF 10V +80-20% SMT0805 Y5V LR
C648 0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
30mil
R475
SPWR 0 5% 1/16W 0402
7
3VDDM_AUDIO
SENSE_A
R470 20KΩ 1% 1/16W SMT0402 LR(NU)
R502
11/27
39.2KΩ 1% 1/10W SMT0603 LR
6
5
4
MIC1_JD 34
PCHPDET 34
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
3
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
CODEC (ALC260)
2
32 54Monday, February 12, 2007
A
1
8
www.bufanxiu.com
7
6
5
4
3
2
1
D D
GT2W's Speaker,1.5W & 4Ohm
MAX9750A Output power = 2.3W @ RL = 4Ohm.
Headphone mode gain(Max) = 0dB @ GAIN2=0,GAIN1=X.
Speaker Mode gain(Max) = 9dB @ GAIN2=0,GAIN1=0.
C C
B B
10.5dB @ GAIN2=0,GAIN1=1.
LINE_OUT_L32
LINE_OUT_R32
HP_OUT_L32
HP_OUT_R32
5VDDM11,16,24,26,27,34,35,38,40,41,47,48
11/27
AMP_MUTE43
C645 1uF 10V +80-20% 0603 Y5V LR
C649 1uF 10V +80-20% 0603 Y5V LR
C654 1uF 10V +80-20% 0603 Y5V LR
C655 1uF 10V +80-20% 0603 Y5V LR
AMP_POW
C651 0.1uF 16V 80-20% SMT0402 Y5V LR
C647 1uF 10V +80-20% 0603 Y5V LR
AMP_POW
AMP_POW
1
10KΩ 5% 1/16W SMT0402 LR
GAIN1 GAIN2
10KΩ 5% 1/16W SMT0402 LR
11/27
AMP_MUTE#
11/27
AMP_POW
11/27
R509
R511
AMP_MUTE#
SPKR_EN#
GAIN2
GAIN1
C657 0.1uF 16V 80-20% SMT0402 Y5V LR
C658 1uF 10V +80-20% 0603 Y5V LR
0Ω 5% 1/16W SMT0402 LR
AGND 32,34
U46
53
AMP_MUTE#
42
DL-IC NC7S14P5X_NL SC-70 5PIN FAIRCHILD LR
AGND 32,34
R510
10KΩ 5% 1/16W SMT0402 LR
R512
10KΩ 5% 1/16W SMT0402 LR
R483
U41
3
SPKR_INL
2
SPKR_INR
27
HP_INL
26
HP_INR
R50810KΩ 5% 1/16W SMT0402 LR
22
HP_EN
25
MUTE#
23
SPKR_EN#
32
GAIN2
31
GAIN1
30
VDD
8
PVDD
18
PVDD
5
PGND
21
PGND
28
GND
4
LDO_EN
LNR-IC Audio AMP MAX9789AETJ+ 2W QFN-EP 32PIN MAXIM LR
AGND 32,34
6
OUTL+
7
OUTL-
20
OUTR+
19
OUTR-
EP-GND_PAD
24
BIAS
16
HPL
15
HPR
17
HPVDD
9
CPVDD
10
C1P
12
C1N
13
CPVSS
14
PVSS
11
CPGND
291
LDO_OUTLDO_SET
SPKOUTL+
SPKOUTLSPKOUTR+
SPKOUTR-
11/27
C6611uF 10V +80-20% 0603 Y5V LR
11/27
HP_L_OUT 34
HP_R_OUT 34
1uF 10V +80-20% 0603 Y5V LR
C629
10 mil
C627 10uF 10V +80-20% SMT0805 Y5V LR
11/27 11/27
C660
1uF 10V +80-20% 0603 Y5V LR
C659
1uF 10V +80-20% 0603 Y5V LR
AGND 32,34
Please close to AMP CHIP
AMP_POW 5VDDM11,16,24,26,27,34,35,38,40,41,47,48
40mil 40mil
120Ω±25% 100MHz 3A SMT0805 MLB-201209-0120P-N2 MAG.LAYERS LR
C633
+
0.1uF 16V 80-20% SMT0402 Y5V LR
AGND 32,34
C636
T10uF 10V ± 20% SMT3216 ESR=4.0Ω T491A106M010AT KEMET LR
C632
1uF 10V +80-20% 0603 Y5V LR
L58
R466
SPWR 0 5% 1/8W 0805
AGND 32,34
33
trace 40mil
L55 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
L54 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
L53 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
L52 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
AGND 32,34
R473 SHW 0 5% 1/16W 0402
11/27
C639
10uF 10V +80-20% SMT0805 Y5V LR
AGND 32,34
AGND 32,34
AVDDS 32
C624
+
0.1uF 16V 80-20% SMT0402 Y5V LR
Close to
AMP_POW
SPK-CNN
56
CN24
1
56
1
2
2
3
3
4
4
SPEAKER CNN
CON GGT SMT 4PIN 85205-04001 ACES LR
20-25087-00
trace 40mil trace 40mil
30mil
C622
T10uF 10V ± 20% SMT3216 ESR=4.0Ω T491A106M010AT KEMET LR
AGND 32,34
A A
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
C
8
7
6
5
4
3
Date: Sheet of
2
(886-2)8751-8751
AUDDIO AMP&SPEAKER
1
33 54Monday, February 12, 2007
A
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
H H
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
C264
4.7uF 10V +80-20% 0805 Y5V LR(NU)
C263
S/PDIF
0Ω 5% 1/10W SMT0603 LR
R218
20mil
10mil
G G
SPDIFO32
F F
E E
D D
R212
0Ω 5% 1/10W SMT0603 LR
PCHPDET32
5VDDM11,16,24,26,27,33,35,38,40,41,47,48
1uF 10V +80-20% 0603 Y5V LR(NU)
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,35,38,39,40,42,43,47
R211
10KΩ 5% 1/16W SMT0402 LR(NU)
C260
SPDIF_PWR
SPDIF_AUD
MIC1_JD32
HP_L_OUT33
10mil
HP_R_OUT33
MICIN132
MICIN232
10MIL
TO AUDIO/B CNN\
R1971KΩ 5% 1/16W SMT0402 LR
AGND 32,33
CN28
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
10mil
10mil
10mil
10mil
C C
10mil
10mil
10mil
B B
A A
10
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
9
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
AGND
LOUT+
AGND
LOUT-
AGND
AGND
LINE_OUT_L
AGND
AGND
AGND
A_HP_L
AGND
A_HP_R
AGND
10mil
10mil
7
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
AGND
ROUT+
AGND
ROUT-LINE_OUT_R
AGND
GND_POWER
SYS_BEEP0/AC97_PCBEEP
GND_POWER
6
10mil
10mil
10mil10mil
10mil
5
10mil
10mil
10mil
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
4
3
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Headphone / SPDIF
2
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
8
34 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
H H
IDE_PDD822
IDE_PDD922
IDE_PDD1022
IDE_PDD1122
IDE_PDD1222
IDE_PDD1322
G G
80mil
CD5V
IDE_PDD1422
IDE_PDD1522 IDE_PDD1 22
IDE_PDDREQ22
IDE_PDIOR#22
IDE_PDDACK#22
IDE_PATADET23
IDE_PDA222
IDE_PDCS3#22
F F
CD-ROM CNN
CN6
2
2
4
4
6
6
8
8
10
10
12
12
14
14
16
16
18
18
20
20
22
22
24
24
26
26
28
28
30
30
32
32
34
34
36
36
38
38
40
40
42
42
44
44
46
46
48
48
50
50
R269
10KΩ 5% 1/16W SMT0402 LR
20-25069-00
L-20-25069-00
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
52
51
52
CN 50PIN C12474-150A1 ALLTOP
DVDSEL
R30 47Ω 5% 1/10W SMT0603 LR
IDE_PDD7 22
IDE_PDD6 22
IDE_PDD5 22
IDE_PDD4 22
IDE_PDD3 22
IDE_PDD2 22
IDE_PDD0 22
IDE_PDIOW# 22
IDE_PDIORDY 22
IDE_PDA1 22
IDE_PDA0 22
CDROM_LED# 38
CD5V
0.1uF 16V 80-20% SMT040 2 Y5V LR
C43
R134
1KΩ 5% 1/16W SMT0 402 LR
R321
C656
R53
10KΩ 5% 1/10W SMT0603 LR
39pF 50V 5% SMT0402 NPO LR
10uF 10V +80-20% SMT080 5 Y5V LR
C44
BUF_PLT_RST# 21,25,28,43
4.7KΩ 5% 1/10W SMT0603 LR
IDE_IRQ15 22
IDE_PDCS1# 22
3VDDM 8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,38,39,40,42,43,47
4Via4Via
80mil
5VDDM 11,16,24,26,27,33,34,38,40,41,47,48
E E
NOTE (reffer next page)
SATA differential stripline 20:5:6:5:20
SATA differential mircostripline 20:6:6:6:20
請包
GROUND
D D
SATA_TXP0
SATA_TXP022
SATA_TXN022
SATA_RXN022
SATA_RXP022
C C
60mil 60mil
5VDDM11,16,24,26,27,33,34,38,40,41,47,48
4Via
L37 CHOKE 90Ω 100MHz 300mA ACM2012H-900-2P-T00 TDK LR(NU)
SATA_RXN0
L38 CHOKE 90Ω 100MHz 300mA ACM2012H-900-2P-T00 TDK LR(NU)
SATA_RXP0
R201 SPWR 0 5% 1/16W 0402
R202 SPWR 0 5% 1/16W 0402
4
1
3
2
4
1
3
2
60mil
4Via
C241
+
T150uF 6 .3V ± 20% SMT7 343 ESR=45mΩ LOW ESR T520V157M 006ATE045 KEMET LR(NU)
C238 0.1uF 16V 80-20% SMT0603 Y5V LR
C239 10uF 10 V +80-20% SMT 0805 Y5V LR
CN16
1
1
2
2
3
3
4
4
5
5
6
6
7
7
CON ALLTOP SMT C16630-122A4-L 22 PIN H=1.4mm SMT, REV, LR
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
20-25128-00
8
9
L-20-25128-00
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
23
24
B B
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
A A
Title
Size Document Number Rev
Custom
10
9
8
7
6
5
4
3
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga +ICH7M>
SATA HDD/CD-ROM CNN
2
35 54Monday, February 12, 2007
1
A
8
www.bufanxiu.com
LAN_1.8V
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
D D
L44
20mil
10mil
4.7uF 10V +80-20% 0805 Y5V LR
CLK_PCI_LAN18
4.7uF 10V +80-20% 0805 Y5V LR
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
L45
C C
B B
C294
0.1uF 16V 80-20% SMT0402 Y5V LR
C287
C296
0.1uF 16V 80-20% SMT0402 Y5V LR
C286
PCI_AD[31..0]21,29
PCI_AD29
PCI_AD[31..0]
PCI_C/BE#021,29
PCI_C/BE#121,29
PCI_C/BE#221,29
PCI_C/BE#321,29
PCI_REQ#021
PCI_GNT#021
PCI_FRAME#21,29
PCI_IRDY#21,29
PCI_TRDY#21,29
PCI_DEVSEL#21,29
PCI_STOP#21,29
R256 100Ω 5% 1/16W SMT0402 LR
PCI_IRQA#21,29
PCI_PERR#21,29
PCI_SERR#21,29
PCI_Q_PME#21,40
PCI_RST#21,29
PCI_PAR21,29
R258
LAN Layout Guide
1.Each signal trace betwe en the PHY and the RJ45 should have a controlled impedance of 50 ohms.
2.The distance between ea ch pair coming from the same BCM4401E device should be 50 mils minimum.
3.Differential pairs from different BCM4401E devices should have 200 mils spacing between them.
4. Route diffe rential pairs such that the + and - signals are matched in
length.(as short as possible)
5.Place the series termination resistors close to the source.
6.If any two traces must cross each other on different layers,always cross them at or near 90
degree to minimize potential crosstalk.
A A
7.To place the power tran sistors a minimum distance of 1.5 inches away from the BCM4401E device.
8.The BCM4401E clock so urce needs to be placed as close as possible to the BCM4401E device.
9.Locate the resistor as close to the RDAC pin as possible,and keep the trace between them as short as possible.
Avoid routing any high -speed signal traces in this area.
10.Bypass the power pins with low impedance surf ace mount capacitors connected directly into the power plans,
with vias as close as possibl e to the pins to reduce the parasitic inductance in series with the capacitor.
If vias can not be placed next to the pins,then use 20 mils traces.
11.If power pins are next to each other and there is not much room to accommodate multipe capacitors,then
the power pins can share the same capacitors.
12.Place the filtering circuit as close to the pin as possible.
8
LAN_1.8V
40mil
AVDDL
PLLVDD
SHW 0 5% 1/16W 0402
20mil
10mil
4401_M8
4401_M6
PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
7
LAN3V
7
A7B3C5E1E4G1K3L4P2P1G2A1D11
U24
K4
VDDC
J4
VDDC
VDDIO_PCI
K8
VDDC
K7
VDDC
K6
VDDC
K5
VDDC
J10
VDDC
J5
VDDC
G4
VDDC
F10
VDDC
F5
VDDC
E10
VDDC
E9
VDDC
E8
VDDC
E7
VDDC
E6
VDDC
E5
VDDC
B8
VDDC
F13
EPHY_AVDD_4401E/AVDDL
F12
EPHY_AVDD_4401E/AVDDL
G14
PLLVDD_4401E/GPHY_PLLVDD
M8
DC_4401E/PCIE_PLLVDD
M6
DC_4401E/PCIE_SDSVDD
M7
AD00_4401E/NC*
N7
AD01_4401E/NC*
P7
AD02_4401E/NC*
P5
AD03_4401E/NC*
N5
AD04_4401E/NC*
M5
AD05_4401E/NC*
P4
AD06_4401E/NC*
N4
AD07_4401E/NC*
P3
AD08_4401E/NC*
N3
AD09_4401E/NC*
N2
AD10_4401E/NC*
M1
AD11_4401E/NC*
M2
AD12_4401E/NC*
M3
AD13_4401E/NC*
L1
AD14_4401E/NC*
L2
AD15_4401E/NC*
K1
AD16_4401E/NC*
E3
AD17_4401E/NC*
D1
AD18_4401E/NC*
D2
AD19_4401E/NC*
D3
AD20_4401E/NC*
C1
AD21_4401E/NC*
B1
AD22_4401E/NC*
B2
AD23_4401E/NC*
D4
AD24_4401E/NC*
A5
AD25_4401E/NC*
B5
AD26_4401E/NC*
B6
AD27_4401E/NC*
C6
AD28_4401E/NC*
C7
AD29_4401E/NC*
C8
AD30_4401E/NC*
C9
AD31_4401E/NC*
M4
C_BE0#_4401E/DC
L3
C_BE1#_4401E/DC
F3
C_BE2#_4401E/DC
C4
C_BE3#_4401E/DC
C3
REQ#_4401E/DC
J3
GNT#_4401E/DC
F2
FRAME#_4401E/DC
F1
IRDY#_4401E/DC
G3
TRDY#_4401E/DC
H3
DEVSEL#_4401E/DC
H1
STOP#_4401E/DC
J1
PAR_4401E/DC
A3
PCI_CLK_4401E/DC
A4
IDSEL_4401E/DC
H2
INTA#_4401E/PWR_IND#
J2
PERR#_4401E/ATTN_IND#
A2
SERR#_4401E/ATTN_BTTN#
A6
PME#_4401E/WAKE#
C2
PCI_RST#_4401E/PERST#
N6
NC_4401E/PCIE_TXDP
P6
NC_4401E/PCIE_TXDN
P10
DC_4401E/PCIE_RXDP
N10
DC_4401E/PCIE_RXDN
N8
DC_4401E/REFCLK+
P8
DC_4401E/REFCLK-
F4
DC_4401E/REFCLK_SEL
VSS
BCM4401E
B4B7B12E2F6F7F8F9G5G6G7G8G9
6
LAN3V
G11
VDDIO
VDDIO
VESD1
VESD2
VDDIO_PCI
VDDIO_PCI
VDDIO_PCI
VDDIO_PCI
VSS
VSS
VSS
VSS
VESD3
VDDIO_PCI
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
G10H5H6H7H8H9H10J6J7J8J9K2N1N9P9
6
VSS
VSS
VDDIO_PCI
VDDIO_PCI
VDDIO_PCI
VSS
VSS
VSS
BIASVDD
K12
M12
A14
VDDIO
BIASVDD
NC_4401E /DC
DC_4401E/AVDD
DC_4401E/AVDD
EXT_POR_4401E/PTEST
SPROM_DOUT_4401E/DC
SPROM_DIN_4401E/DC
DC_4401E/TRD3DC_4401E/TRD3+
DC_4401E/TRD2DC_4401E/TRD2+
SPD100LED#
COL_LED_4401E/SPD1000LED#
TRAFFICLED#
VREF_4401E/NC
TEST_MODE_4401E/LOW_PWR
DC_4401E/NC
GPIO0_44401E/TEST_CLK
DC_4401E/GPIO2
SPROM_CS#_4401E/EEDATA
SPROM_CLK_4401E/EECLK
EECLK_4401E/SCLK
EEDATA_4401/SI
DC_4401E/SO
DC_4401E/CS#
NC_4401E/WOL_INRSH
NC_4401E/VAUX_ON#
NC_4401E/VMAIN_ON#
VAUXPRSNT
NC_4401E/DC
NC_4401E/DC
NC_4401E/DC
REGSUP18_4401E/REGSUP25
REGSUP18_4401/REGOUT25
DC_4401E/PCIE_TEST
CLKRUN#_4401E/DC
REGSUP18_4401E/REGSUP12
DC_4401E/REGCTL12
REG18OUT_4401E/REGSEN12
NC_4401E/SMB_DATA/NC5789
NC_4401E/SMB_CLK/NC5789
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
DC/VDDP
DC/VDDP
DC/VDDP
XTALVDD
TRD1-
TRD1+
TRD0-
TRD0+
LINKLED#
GPIO1
TRST#
RDAC
XTALO
TCK
TMS
TDO
XTALI
5
10mil
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
A8
D5
P13
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
H14
A13
F14
L5
DC
K9
DC
L11
DC
M11
DC
H11
DC
M9
DC
K10
DC
L8
DC
L9
J11
N13
E14
E13
D14
D13
C14
C13
B14
B13
A11
B11
A12
B10
K13
L6
L7
L12
NC
G12
H13
G13
L10
K11
E11
E12
F11
C12
P14
M13
N14
J12
M10
N11
P11
L14
L13
DC
M14
A9
DC
B9
DC
C10
DC
D8
H4
REGSUP18
K14
J13
J14
D9
D10
D12
H12
TDI
D7
C11
D6
A10
N12
P12
4.7KΩ 5 % 1/16W SMT0402 LR
R242
L46
0.1uF 16V 80-20% SMT0402 Y5V LR
C300
0.1uF 16V 80-20% SMT0402 Y5V LR
XTALVDD
TEST_MODE
R230 10KΩ 5% 1/16W SMT0402 LR
SPROM_CS#
SPROM_CLK
VAUX_PRSNT
REG18OUT
L43
10mil
C285
0.1uF 16V 80-20% SMT0402 Y5V LR
22Ω 5% 1/16W SMT0402 LR Sn(NU)
R235
SPROM_DOUT
SPROM_DIN
R251
0Ω 5% 1/16W SMT0402 LR
R231
4.7KΩ 5% 1/16W SMT0402 LR
10mil
10mil
10mil
20mil
TRST#
BCM4401 : 1.27K 1%
R243
1.27KΩ 1% 1/16W SMT0402 LR
R240
200Ω 1% 1/16W SMT0402 LR
4.7KΩ 5 % 1/16W SMT0402 LR
R238
5
PCI_CLKRUN# 23,29,41,43
C366 10uF 10V +80-20% SMT0805 Y5V LR
C369 0.1uF 16V 80-20% SMT0402 Y5V LR
C311
Y6 25.000MHz SMD 12pF ±30ppm X8A025000FC1H HARMONY LR
C304
1. In addition,it is also important to keep the gap between Chassis GND and System GND to be wider
than 60mils for better Isolation requirement.
2.The an alog GND pins must maintain agood ground return path.
3. All 4 pairs trace width of 4pair is 4mil.It's 10mil between 2
trace(+/-),It's morethan 50mil spacing different differential
pairs.
LAN3V
C302
LAN3V
PSUSC# 28,39,43,49
0.1uF 16V 80-20% SMT0402 Y5V LR
3VDDA11,21,23,24,26,28,29,30,38,39,40,41,42,43,45,47,49,51
3VDDA11,21,23,24,26,28,29,30,38,39,40,41,42,43,45,47,49,51
C288 10uF 10V +80-20% SMT0805 Y5V LR
C291 0.01uF 50V +80-20% SMT0402 Y5V LR
3VDDA11,21,23,24,26,28,29,30,38,39,40,41,42,43,45,47,49,51
C289 10uF 10V +80-20% SMT0805 Y5V LR
C292 0.01uF 50V +80-20% SMT0402 Y5V LR
3VDDA11,21,23,24,26,28,29,30,38,39,40,41,42,43,45,47,49,51
C290 4.7uF 10V +80-20% 0805 Y5V LR
C293 0.1uF 16V 80-20% SMT0402 Y5V LR
LAN_1.8V
15pF 50V 5% SMT0402 NPO LR
12pF 50V 5% SMT0402 NPO LR
4
R227
R228
R226
R229
R 49.9 1% 1/16W 0402 LR .Normal
C284
0.1uF 16V 80-20% SMT0402 Y5V LR
GND_POWER
C6 C7 R12
Transfer
RJ45
LAN_CGND
60 mils wide
4
LAN MDI_1LAN MDI_1+
LAN MDI_0-
LAN MDI_0+
C283
3
CHOKE COMMON-MODE 90Ω @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK LR
LAN_TXD0+
LAN_TXD0LAN_TXD1+
LAN_TXD1-
CHOKE COMMON-MODE 90Ω @100MHZ IDC=200mA SMT0805 4PIN ACM2012-900-2P-T TDK LR
L1
2
3
1
4
2
3
1
4
L7
LAN3V
L40
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
10mil
LAN MDI_1+ LAN_TXD1+
LAN MDI_1-
LAN MDI_0+
LAN MDI_0-
C21
C20
0.1uF 16V 80-20% SMT0402 Y5V LR
0.1uF 16V 80-20% SMT0402 Y5V LR
SPROM_CS#
SPROM_CLK
SPROM_DOUT
SPROM_DIN
2
CON ALLTOP SMT RJ45 low profile H=8.6 REV C10005-108A4-L LR
U3
3
TCO_0
1
TRD0+
2
TRD0-
4
NU1
5
NU2
6
TCO_1
7
TRD1+
8
TRD1-
TRANSFOMER 10/100BASE-TX SMT 12PIN HC-019 TAIMAG LR
3VDDA11,21,23,24,26,28,29,30,38,39,40,41,42,43,45,47,49,51
14
CMT_0
16
TXD0+
15
TXD0-
12
NU3
13
NU4
11
CMT_1
10
TXD1+
9
TXD1-
1500pF 2KV ± 10% SMT1206 X7R 1206B152K202LT WALSIN LR
U25
1
8
CS
VCC
2
7
SK
NC
3
6
DI
NC
4
5
DO
GND
EEPROM AT93C46-10SI-2.7 1Kbit(64*16) SOP 8PIN ATMEL LR
LAN_1.8V
C349 0.01uF 5 0V +80-20% SMT0402 Y5V LR(NU)
C343 0.01uF 5 0V +80-20% SMT0402 Y5V LR
C347 0.01uF 5 0V +80-20% SMT0402 Y5V LR(NU)
SPWR 0 5% 1/16W 0402
R285
40mil
For EMI
4401E
GND_POWER
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
Custom
3
Date: Sheet of
2
CN3
9
9
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
10
10
R2
LAN_TXD1-
75Ω 1% 1/10W SMT0603 LR
R3
LAN_TXD0+
LAN_TXD0-
75Ω 1% 1/10W SMT0603 LR
3VDDA11,21,23,24,26,28,29,30,38,39,40,41,42,43,45,47,49,51
C351
0.1uF 16V 80-20% SMT0402 Y5V LR
40mil
C345 0.01uF 5 0V +80-20% SMT0 402 Y5V LR
C338 0.01uF 5 0V +80-20% SMT0402 Y5V LR
C357 0.01uF 5 0V +80-20% SMT0 402 Y5V LR
LAN3V
40mil
C363 10uF 10 V +80-20% SMT0805 Y5V LR
C364 0.1uF 16 V 80-20% SMT0402 Y5V LR
C334 0.1uF 16 V 80-20% SMT0402 Y5V LR
C376 0.1uF 16 V 80-20% SMT0402 Y5V LR(NU)
C373 0.1uF 16 V 80-20% SMT0402 Y5V LR(NU)
C377 0.1uF 16 V 80-20% SMT0402 Y5V LR
C361 0.1uF 16 V 80-20% SMT0402 Y5V LR
C355 0.1uF 16 V 80-20% SMT0402 Y5V LR
C352 0.01uF 5 0V +80-20% SMT0 402 Y5V LR(NU)
C359 0.01uF 5 0V +80-20% SMT0402 Y5V LR
C354 0.1uF 16 V 80-20% SMT0402 Y5V LR
C360 0.01uF 5 0V +80-20% SMT0402 Y5V LR
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
Lan Broadcom BCM4401
1
C9
C371 10uF 10 V +80-20% SMT0805 Y5V LR
C326 0.1uF 16 V 80-20% SMT0402 Y5V LR
C322 0.1uF 16 V 80-20% SMT0402 Y5V LR(NU)
C353 0.01uF 5 0V +80-20% SMT0 402 Y5V LR(NU)
C320 0.1uF 16 V 80-20% SMT0402 Y5V LR(NU)
A
36 54Monday, February 12, 2007
1
10
www.bufanxiu.com
H H
G G
F F
E E
5 mil
D D
5 mil
5 mil
5 mil
USBP+/- must same length
C C
5 mil
5 mil
B B
5 mil
9
5VDDA10,24,25,38,47,48,49,51
5 mil
5 mil
5 mil
10 mil
5 mil
10 mil
10 mil
5 mil
10 mil
10 mil
5 mil
10 mil
USBP+/- must same length
GND_POWER
USB_PN3
USB_PP3
GND_POWER
GND_POWER
USB_PN45 mil
USB_PP4
GND_POWER
8
F4
1 2
80mil
1.5A 6V SMT1812 miniSMDC150F-A RAYCHEM LR
GND_POWER
USB_PN05 mil
USB_PP0
GND_POWER
USB_PN321
USB_PP321
USB_PN421
USB_PP421
7
C166 0.1uF 16V 80-20% SMT0603 Y5V LR
12
80mil 80mil
5VDDA10,24,25,38,47,48,49,51
5mil
5mil
6
80mil
USB_PN021
USB_PN121
1.5A 6V SMT1812 miniSMDC150F-A RAYCHEM LR
5mil 5mil
F5
1 2
L2
1
4
2
3
CHOKE 120Ω 100MHz 0.22 Ω 0.37A ACM2012-121-2P-T TDK LR
E100uF 6.3V ± 20% ESR=35mΩ SMT3528 H=1.9mm 6TPE100MAZB SANYO LR
L3
1
4
2
3
CHOKE 120Ω 100MHz 0.22 Ω 0.37A ACM2012-121-2P-T TDK LR
USBVCC_CNN
1 2
3 4
5 6
7 8
9 10
11 12
88107-12001 ACES L
20-25135-00
CN12
1 2
3 4
5 6
7 8
9 10
11 12
5
USB_VCC
4
USB_PP0 21
USB_PP1 21
USB_VCC
C7
0.1uF 16V 80-20% SMT0603 Y5V LR
ESD 3.5pF ± 10% 15KV DC=12V SMT0603 MLVS-0603-E10 INPAQ LR
C8
+
C6
0.1uF 16V 80-20% SMT0603 Y5V LR
3
GND_POWER
USB_PP0
GND_POWER
D1
D2
ESD 3.5pF ± 10% 15KV DC=12V SMT0603 MLVS-0603-E10 INPAQ LR
D4
D3
ESD 3.5pF ± 10% 15KV DC=12V SMT0603 MLVS-0603-E10 INPAQ LR
ESD 3.5pF ± 10% 15KV DC=12V SMT0603 MLVS-0603-E10 INPAQ LR
10 mil
5 mil
10 mil
USBP+/- must same length
CN 8PIN UPNA443-11-20 CONTEK
8
7
6
5
4
3
2
1
20-25058-00
CN2
VCC
PP+
GND
VCC
PP+
GND
2
5 mil
5 milUSB_PN0
5 mil
5 mil
12
11
10
1
12
11
10
9
9
USBP+/- must same length
A A
10
9
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
USB CNN 1
2
37 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
H H
9
8
CN26
2
2
1
1
CON ACES 2PIN 85204-02001 LR
20-20294-11
7
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
L61
L62
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
6
5
R452
R453
CN25
1
1
2
2
CON ACES 2PIN 85204-02001 LR
20-20294-11
4
3
2
1
MDC CNN
G G
AC97_SDOUT22,32
AC97_SYNC22,32
AC97_SDIN122
AC97_RST#22,32 AC97_BITCLK 22,32
R461 33Ω 1% 1/16W SMT0402 LR
F F
CN27
1 2
1 2
3 4
3 4
5 6
5 6
7 8
7 8
9 10
9 10
11 12
11 12
CON ACES SMT-F BTB 12PIN P=0.8 MH=3 88018-120G MDC V1.5 LR
20-25100-00
0.1uF 16V 80-20% SMT0402 Y5V LR
C614
C615
22pF 50V 5% SMT0402 NPO LR(NU)
20mil20mil
3VDDS 11,21,23,24,26,28,29,30,36,39,40,41,42,43,45,47,49,51
5VDDA10,24,25,37,47,48,49,51
E E
R486
R487
300Ω 5% 1/10W SMT0603 LR
LED AMBER/GREEN SMT0603 4PIN λp=609/570mm HT-297DQ/GQ-DT HARVATEK LR
Q50
B
D D
LED_G43
NPN PDTC144EU SOT-323 PHILIPS LR
910Ω 1% 1/10W SMT0603 LR
D44
Q51
B
NPN PDTC144EU SOT-323 PHILIPS LR
E C
E C
C C
LED indicator control logic
PMU5V43,51
LED_A 43
5VDDM11,16,24,26,27,33,34,35,40,41,47,48
SRLL#41
LED Ultra Bright Amber 2PIN λp=609nm SMT0805 HT-170UD-DT HARVATEK LR
R497
910Ω 1% 1/10W SMT0603 LR
CHGLED43
LED YELLOW GREEN SMT0805 2PIN λp=574nm HT-170UYG HARATEK LR
R491
300Ω 5% 1/10W SMT0603 LR
4.7KΩ 5% 1/16W SMT0402 LR
R485
NPN UMG2NTR 50V 30mA UMT5(SC-88A) 5PIN ROHM LR
D45
-+
B
Q52
NPN PDTC144EU SOT-323 PHILIPS LR
D49
+ -
1
3
2
E C
5
4
Q46
10KΩ 5% 1/16W SMT0402 LR
SATA_LED#22
R465
CDROM_LED#35
5VDDM11,16,24,26,27,33,34,35,40,41,47,48
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,39,40,42,43,47
5VDDM11,16,24,26,27,33,34,35,40,41,47,48
DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR
U38
53
1
2
LED YELLOW GREEN SMT0805 2PIN λp=574nm HT-170UYG HARATEK LR
4.7KΩ 5% 1/16W SMT0402 LR
HDD_LED#
4
LED YELLOW GREEN SMT0805 2PIN λp=574nm HT-170UYG HARATEK LR
R489
300Ω 5% 1/10W SMT0603 LR
R484
1
NUM#41
3
NPN UMG2NTR 50V 30mA UMT5(SC-88A) 5PIN ROHM LR
D50
+ -
2
Q47
300Ω 5% 1/10W SMT0603 LR
+-
D46
5
4
5VDDM11,16,24,26,27,33,34,35,40,41,47,48
R498
Trace:10mil, Spacing:10mil
B B
LED YELLOW GREEN SMT0805 2PIN λp=574nm HT-170UYG HARATEK LR
5VDDM11,16,24,26,27,33,34,35,40,41,47,48
A A
WLAN_LED#28
10
R493
300Ω 5% 1/10W SMT0603 LR
4.7KΩ 5% 1/16W SMT0402 LR
NPN UMG2NTR 50V 30mA UMT5(SC-88A) 5PIN ROHM LR
9
D47
+ -
R482
5
1
4
3
Q53
2
8
7
6
5VDDM11,16,24,26,27,33,34,35,40,41,47,48
4.7KΩ 5% 1/16W SMT0402 LR
LED YELLOW GREEN SMT0805 2PIN λp=574nm HT-170UYG HARATEK LR
D48
1
3
+ -
5
4
Q48
2
R490
300Ω 5% 1/10W SMT0603 LR
R488
CAPS#41
NPN UMG2NTR 50V 30mA UMT5(SC-88A) 5PIN ROHM LR
5
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
4
3
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
MDC CNN & LED
2
38 54Monday, February 12, 2007
1
A
8
www.bufanxiu.com
D D
7
RESUME RESET
6
3VDDA11,21,23,24,26,28,29,30,36,38,40,41,42,43,45,47,49,51
R38
1KΩ 5% 1/16W SMT0402 LR
10mil
U9
5
OUT
VCC
1
TC
2
SUB
3
GND
LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR
C36
1000pF 50V 10% SMT0402 X7R LR
5
3VDDA11,21,23,24,26,28,29,30,36,38,40,41,42,43,45,47,49,51
4
R36
10KΩ 1% 1/16W SMT0402 LR
PM_RSMRST# 23
4
PM_RSMRST# should go high no sooner than
10ms after both Vccsus3_3 and Vccsus1_5
have reached their nominal voltage
Rise edge : 1~2us
ICH7m Spec : less 50us
3
2
PM_SLP_S4#23
R15
SHW 0 5% 1/16W 0402
PSUSC# 28,36,43,49
1
DCON43,50,51
C C
D10B
DIODE STKY CH731UPT 40V 0.03A SOT-457 6PIN CHENMKO LR
EC
Q2
B
PNP DTA144EUAT106 -50V -30mA UMT3(SC-70) 3PIN ROHM LR
PM_SLP_S3#23
R245
SHW 0 5% 1/16W 0402
SUSTAT_B# 25,28,43,47,48,49,51
NAPA Platfoem Power Good Circuit
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,40,42,43,47
D37A
DIODE RB731U SOT-36 6PIN ROHM
1.5VDDM_PWRGD48
1.05VDDM_PWRGD10,48
DDRII_PWRGD49
B B
10KΩ 1% 1/16W SMT0402 LR
U30
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,40,42,43,47
4700pF 25V 10% SMT0402 X7R LR
5
OUT
VCC
1
TC
2
SUB
3
GND
LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR
C375
D37B
D37C
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,40,42,43,47
4
61
DIODE RB731U SOT-36 6PIN ROHM
52
DIODE RB731U SOT-36 6PIN ROHM
43
R291
PM_PWROK
10KΩ 1% 1/16W SMT0402 LR
R273
53
1
2
DL-IC NC7S08P5X_NL SC70 5PIN FAIRCHILD LR
U26
4
10mil
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,40,42,43,47
0Ω 5% 1/16W SMT0402 LR(NU)
R288
10KΩ 1% 1/16W SMT0402 LR(NU)
ALL_SYS_PWRGD 23
R282
R286
0Ω 5% 1/16W SMT0402 LR
Delay 99ms
U27
5
OUT
VCC
1
TC
2
SUB
3
GND
LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR
C358
0.01uF 50V +80-20% SMT0402 Y5V LR
R283
10KΩ 1% 1/16W SMT0402 LR
4
IMVP_VRON 10
A A
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
8
7
6
5
4
3
Date: Sheet of
2
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Reset Circuit
1
39 54Monday, February 12, 2007
A
10
www.bufanxiu.com
H H
G G
F F
9
FWH_INIT#22
PLT_RST#13,21,23,28,41
CLK_PCI_FWH18
8
R208 100Ω 5% 1/16W SMT0402 LR
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,42,43,47
7
10KΩ 5% 1/16W SMT0402 LR
R209
1
8
2
7
3
6
4
5
R210
10K 5 % 0402X4 1/16W 8P4R LR
6
U42
24
INIT#
2
RST#
31
CLK
30
FGP14
3
FGP13
4
FGP12
5
FGP11
6
FGP10
9
ID3
10
ID2
11
ID1
12
ID0
18
RSVD_1
19
RSVD_2
20
RSVD_3
21
RSVD_4
22
RSVD_5
16
GND_1
26
GND_2
28
GNDA
FWH PLCC 32PIN
03-10262-10 SST EEPROM
20-10161-00 SOCKET
VCC_1
VCC_2
VCCA
FWH4
FWH3
FWH2
FWH1
FWH0
VPP
TBL#
WP#
5
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,42,43,47
C258
10mil
1
25
32
27
8
7
23
17
15
14
13
29
IC
0.01uF 50V +80-20% SMT0402 Y5V LR(NU)
R213
10KΩ 5% 1/16W SMT0402 LR
4
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,42,43,47
C257
0.01uF 50V +80-20% SMT0402 Y5V LR(NU)
R476
10KΩ 5% 1/16W SMT0402 LR(NU)
R480
10KΩ 5% 1/16W SMT0402 LR(NU)
R474 100Ω 5% 1/16W SMT0402 LR
LPC_FRAME# 22,28,41,43
R478 100Ω 5% 1/16W SMT0402 LR
LPC_AD3 22,28,41,43
LPC_AD2 22,28,41,43
LPC_AD1 22,28,41,43
LPC_AD0 22,28,41,43
3
FWH_TBL# 41
FWH_WP# 41
2
1
E E
3VDDA11,21,23,24,26,28,29,30,36,38,39,41,42,43,45,47,49,51
DL-IC NC7SZ14P5X_NL SC70 5PIN FAIRCHILD LR
TP1
3VDDS11,21,23,24,26,28,29,30,36,38,39,41,42,43,45,47,49,51
2.2KΩ 5% 1/16W SMT0402 LR
D D
PCI_PME#29 PCI_Q_PME# 21,36
R206
R205
2.2KΩ 5% 1/16W SMT0402 LR
Q22
G
DS
TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR
2.2KΩ 5% 1/16W SMT0402 LR
Q_SMI#23
C C
Q38 TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR
SMCLK_PMU43,46
5VDDM11,16,24,26,27,33,34,35,38,41,47,48
B B
SMDAT_PMU43,46
D S
G
R369
2.2KΩ 5% 1/16W SMT0402 LR
G
D S
Q39 TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR
QSMCLK_PMU 11,25
add 0.1uF for prevent Nmos
Gate voltage drop by Drain
C436
coupling
0.1uF 16V 80-20% SMT0402 Y5V LR
QSMDAT_PMU 11,25
3VDDA11,21,23,24,26,28,29,30,36,38,39,41,42,43,45,47,49,51
R35
Q4
D S
TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR
R515
0Ω 5% 1/16W SMT0402 LR(NU)
PMU_BLADJ43
A A
10
9
8
7
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,42,43,47
R43
2.2KΩ 5% 1/16W SMT0402 LR(NU)
G
11/27
KBCSMI# 41
11/27
5VDDM11,16,24,26,27,33,34,35,38,41,47,48
Q3
G
D S
TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR
Could be shorted if Bios
disable PMU_BLADJ during
S3-S5
6
Q_BLADJ 26
5
PRSTMSK#43
4.7KΩ 5% 1010 1/16W 4P2R LR
H_A20GATE22
H_RCIN#22
1
4
U47
53
1
42
PLT_RST#13,21,23,28,41
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,42,43,47
R5070Ω 5% 1/16W SMT0402 LR
4
3
RP74
10KΩ 5% 1/16W SMT0402 LR
G
TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR
1
2
Q54
G
TRANS M-FET-N 2N7002 60V 115mA SOT-23 3PIN PSI LR
Q55
U45
DL-IC NC7SZ32P5X_NL SC-70 5PIN FAIRCHILD LR
53
1
4
2
3VDDA11,21,23,24,26,28,29,30,36,38,39,41,42,43,45,47,49,51
R514
R513
DS
DS
8.2KΩ 5% 1/16W SMT0402 LR
3
PLT_RSTKBC# 41
H_A20GATEKBC 41
H_RCINKBC# 41
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
FirmWare Hub / SMBUS SW
2
40 54Monday, February 12, 2007
1
A
10
www.bufanxiu.com
H H
G G
X0
X1
X2
Y0
Y1
Y2
Y3
X3
X4
Y4
Y5
Y6
Y7
X5
X6
X7
X8
X9
X10
X11
X12
X13
X14
X15
85201-2402 ACES
20-25088-00
F F
E E
D D
CN22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
9
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
11/27
R105
10KΩ 5% 1/16W SMT0402 LR
FWH_TBL#40
FWH_WP#40
8
RP19
8
1
7
2
6
3
54
10KΩ 5% SMT2010 1/16W 8P4R LR
RP18
8
1
7
2
6
3
54
10KΩ 5% SMT2010 1/16W 8P4R LR
FOR M3882
STSCLR#
FWH_TBL#
FWH_WP#
Y3
Y2
Y1
Y0
Y7
Y6
Y5
Y4
BLEN126
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
KBCSMI#40
KBC_FAN_ON11
PLT_RSTKBC#40
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
10KΩ 5% 1/16W SMT0402 LR(NU)
R107
10KΩ 5% 1/16W SMT0402 LR
7
KBSEL142
KBSEL242
MB_ID042
LOGOSEL42
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
R108
1KΩ 5% 1/16W SMT0402 LR
R499 0Ω 5% 1/16W SMT0402 LR(NU)
FOR ENE
20mil
R84
FOR ENE
R79 10KΩ 5% 1/16W SMT0402 LR
For
EMI
6
R85 10KΩ 5% 1/16W SMT0402 LR
R88
10KΩ 5% 1/16W SMT0402 LR
RP50
124
C77
1000pF 50V 10% SMT0402 X7R LR
STSCLR#
10K 5% SMT1010 1/16W 4P2R LR
3
C75
C79
10uF 10V +80-20% SMT0805 Y5V LR
0.1uF 16V 80-20% SMT0402 Y5V LR
X0
X1
X2
X3
X4
X5
X6
X7
X8
X9
X10
X11
X12
X13
X14
X15
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
R87
10KΩ 5% 1/16W SMT0402 LR
FOR M3882
5
U15
54
P00
53
P01
52
P02
51
P03
50
P04
49
P05
48
P06
47
P07
46
P10
45
P11
44
P12
43
P13
42
P14
41
P15
40
P16
39
P17/CMPref
62
P30/PWM00
61
P31/PWM10
60
P32
59
P33
58
P34
57
P35
56
P36
55
P37
1
P60/AN0
80
P61/AN1
79
P62/AN2
78
P63/AN3
77
P64/AN4
76
P65/AN5
75
P66/AN6
74
P67/AN7
13
P54/CNTR0
12
P55/CNTR1
38
P20
37
P21
36
P22
35
P23
26
P41/XCIN
27
P40/XOUT
11
P56/PWM01/DA1
10
P57/PWM11/DA2
25
RESET
71
VCC
72
VREF
24
CNVSS
30
VSS
73
AVSS
ASIC LPC KBC M38827G5HP LQFP 80PIN VER:1.05 RENESAS LR
P24/(LED0)
P25/(LED1)
P26/(LED2)
P27/(LED3)
P80/LAD0
P81/LAD1
P82/LAD2
P83/LAD3
P84/LFRAME#
P85/LRESTER#
P86/CLK
P87/SERIRQ
P53/INT40
P52/INT30
P51/INT20
P47/SRDY/CLKRUN#
P50/INT5
P46/SCLK
P45/TXD
P44/RXD
P42/INT0
P43/INT1
P76/SDA
P77/SCL
P74/INT31
P75/INT41
P73/INT21
XOUT
P71
P72
P70
XIN
4
R350 10KΩ 5% 1/16W SMT0402 LR
34
33
32
31
70
69
68
67
66
65
64
63
RP16 10K 5% SMT1010 1/16W 4P2R LR
14
15
16
18
17
19
20
21
23
22
3
2
5
8
4
7
6
9
28
29
124
R78 10KΩ 5% 1/16W SMT0402 LR(NU)
R77 10KΩ 5% 1/16W SMT0402 LR
RP17 10K 5% SMT1010 1/16W 4P2R LR
124
M38827_3
M38827_2
M38827_5
M38827_8
M38827_4
M38827_7
PDCLK
3
CAPS# 38
NUM# 38
SRLL# 38
LPC_AD0 22,28,40,43
LPC_AD1 22,28,40,43
LPC_AD2 22,28,40,43
LPC_AD3 22,28,40,43
LPC_FRAME# 22,28,40,43
PLT_RST# 13,21,23,28,40
CLK_PCI_KBC 18
PCI_SERIRQ 23,29,43
R5000Ω 5% 1/16W SMT0402 LR
FOR M3882
3
3
4.7KΩ 5% SMT2010 1/16W 8P4R LR
M38827_5
M38827_4
M38827_3
M38827_2
PDDAT
M38827_8
M38827_7
PDCLKPDDAT
R95
1MΩ 5% 1/16W SMT0402 Sn LR
FOR M3882
2
3VDDA 11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
KBCSMI# 40
3VDDA 11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
PCI_CLKRUN# 23,29,36,43
R3431KΩ 5% 1/16W SMT0402 LR(NU)
PM_SUSTAT# 23,29,43
3VDDA 11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
H_A20GATEKBC 40
H_RCINKBC# 40
3VDDA 11,21,23,24,26,28,29,30,36,38,39,40,42,43,45,47,49,51
5VDDM11,16,24,26,27,33,34,35,38,40,47,48
RP15
4
5
3
6
2
7
1
8
4.7KΩ 5% SMT2010 1/16W 8P4R LR
RP14
4
5
3
6
2
7
1
8
18pF 50V 5% SMT0402 NPO LR
C76
Y3
FREQ XTL 8.000MHz SMD 16pF ± 30ppm X8A008000FG1H HARMONY LR
1 2
C82
18pF 50V 5% SMT0402 NPO LR
1
For Mitsubish KBC
C C
SW3
A C
A C
B D
SWITCH TEMC SMT 4PIN NTC004-AA1G-B160T LR
B D
RIGHT
5VDDM11,16,24,26,27,33,34,35,38,40,47,48
B B
SW2
A C
A C
B D
SWITCH TEMC SMT 4PIN NTC004-AA1G-B160T LR
B D
LEFT
PDDAT
PDCLK
A A
10
9
8
7
>20 Mils
C473
47pF 50V 5% SMT0402 NPO LR
47pF 50V 5% SMT0402 NPO LR
C474
6
0.1uF 16V 80-20% SMT0402 Y5V LR
C475
40 mil
5VDDM_GPCONN
LEFT
RIGHT
CON Aces 87152-1207G SMD 12pins FFC P=0.5 H=2.0 Bottom contact R/A LR
CN23
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
20-25230-00
5
4
3
GLIDE PAD CONNECTOR
Y1
Y0
POWSW#45
X5
For
EMI
X6
C318 100pF 50V 5% SMT0402 NPO LR(NU)
C317 100pF 50V 5% SMT0402 NPO LR(NU)
C316 100pF 50V 5% SMT0402 NPO LR(NU)
C315 100pF 50V 5% SMT0402 NPO LR(NU)
C319 100pF 50V 5% SMT0402 NPO LR(NU)
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
KBC M38869 / SW CNN
2
SW CNN
CN21
1
2
3
4
5
6
CON SMD-M 6PIN 53780-0690 MOLEX
20-25061-00
L-20-25061-00
41 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
DIP SWITCH
8 8
10KΩ 5% 1/16W SMT0402 LR
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,43,47
876
5
R133
RP21
10K 5 % 0402X4 1/16W 8P4R LR
123
4
KBSEL2
KBSEL1 Reserved
UK Keyboard
ON
ON
OFF OFF
Reserved
OFF
JP Keyboard
OFFOFF
US Keyboard
7 7
SW1
1
12
2
11
3
10
4
9
5
R135
1KΩ 5% 1/16W SMT0402 LR
8
6
7
SMD 1.27mm 12PIN CHS-06TB(20) COPAL LR
6 6
5 5
4 4
1
12132
1
13
2
12
3
4
5
3
4
5
3
4
5
678
678
1
1
2
3
4
5
678
678
11
11
10
10
9
9
M1
SCREW-P8_0D2_7
12132
13
12
11
11
10
10
9
9
M11
SCREW-P8_0D2_7
1
12132
1
13
2
12
3
4
5
3
4
5
3
4
5
678
678
2
3
4
5
678
678
11
10
9
M2
SCREW-P8_0D2_7
1
12132
1
13
12
11
10
9
M15
SCREW-P8_0D2_7
11
10
9
11
10
9
1
1
13
2
3
3
4
4
5
5
678
678
1
1
13
2
3
3
4
4
5
5
678
678
KBSEL1 41
KBSEL2 41
LOGOSEL 41
MB_ID0 41
CRISIS 21
CMOS_CLEAR# 22
10mil
trace 5mil , space 5mil
12132
12
11
11
10
10
9
9
M3
SCREW-P8_0D2_7
12132
12
11
11
10
10
9
9
M23
SCREW-P8_0D2_7
1
1
12132
1
13
2
12
3
4
5
3
4
5
3
4
5
678
678
1
1
2
3
4
5
678
678
11
11
10
10
9
9
M8
SCREW-P8_0D2_7
12132
13
12
11
11
10
10
9
9
M22
SCREW-P8_0D2_7
12132
1
13
2
12
3
4
5
3
4
5
3
4
5
678
678
2
3
4
5
678
678
11
10
9
M17
SCREW-P8_0D2_7
1
12132
1
13
12
11
10
9
M24
SCREW-P8_0D2_7
11
10
9
11
10
9
MB_ID0
LOGSEL
CMOS_CLEAR
ON
OFF
ON
ON Reset RTC
OFF
INV_LID#26
M34
NUT-P8_0D4_0
1
M6
NUT-P7_0D4_0
1
Reserved
Reserved
Reserved
NONE
M36
NUT-P8_0D4_0
M9
3VDDM8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,43,47
1
NUT-P6_5B2_0D1_0
1
R13
LID#43
100Ω 5% 1/10W SMT0603 LR
TO PMU08
R10
10KΩ 5% 1/16W SMT0402 LR
D8
P N
DIODE RB751V-40 TE-17 30V 30mA UMD2 ROHM LR
M26
NUT-P8_0D4_0
1
M10
NUT-P7_0D4_0
1
M29
NUT-P8_0D4_0
M7
NUT-P7_0D4_0
1
1
LID Switch
3VDDS11,21,23,24,26,28,29,30,36,38,39,40,41,43,45,47,49,51
M12
1
1
NUT-P8_0B4_5D3_7
R9
HOLE-P5_0D5_0N
1
10KΩ 5% 1/16W SMT0402 LR
M30
NUT-P8_0D4_0
M18
C19
0.1uF 16V 80-20% SMT0402 Y5V LR
M43
NUT-P6_0B2_0D1_0
1
M19
1
NUT-P8_0B4_5D3_7
N
D7
DIODE CHN202UPT 80V 0.1A SOT-323 3PIN CHENMKO LR
P
PP
1
2
M40
NUT-P6_0B2_0D1_0
1
CN19
1
2
CON ACES 2PIN 85204-02001 LR
20-20294-11
1
2
3
4
COUPON_GND
MJP2
1
1
2
2
3
3
4
4
COUPON4X2
8
8
7
7
6
6
5
5
1
1
12132
1
13
2
3 3
M21
M20
SMD3.5X2.5
SMD3.5X2.5
1
2 2
M39
SMD3.5X2.5
M28
SMD3.5X2.5
1 1
1
M25
SMD3.5X2.5
1
1
M27
SMD3.5X2.5
1
1
10
M38
SMD3.5X2.5
1
M35
SMD3.5X2.5
1
M32
SMD3.5X2.5
1
M42
SMD3.5X2.5
1
M31
SMD3.5X2.5
1
M44
SMD3.5X2.5
1
M41
SMD3.5X2.5
1
M33
SMD3.5X2.5
1
M37
SMD3.5X2.5
1
9
12
3
4
5
3
4
5
678
678
11
11
10
10
9
9
M16
SCREW-P8_0D2_7
EMI Reserved Parts
M13
NUT-P6_0B2_0D1_0
1
8
M14
1
2
3
3
4
4
5
5
678
678
NUT-P6_0B2_0D1_0
1
12132
13
12
11
11
10
10
9
9
M5
SCREW-P8_0D2_7
1
12132
1
13
2
12
3
4
5
7
3
4
5
678
678
11
11
10
10
9
9
M4
SCREW-P8_0D2_7
1
FMK31
FMASK_OB
1
FMK8
FMASK
FMK4
FMASK
1
FMK22
FMASK
1
FMK1
FMASK_OB
1
1
FMK29
FMASK
3
FMK27
FMASK
1
FMK28
FMASK
FMK21
FMASK_OB
1
1
1
FMK23
FMASK
1
FMK30
FMASK
1
FMK17
FMASK
1
FMK2
FMK18
FMASK_OB
1
FMK11
FMASK
1
FMK5
FMASK
1
FMK6
FMASK
1
6
5
FMASK_OB
FMK12
FMASK
1
FMK24
FMASK
FMK7
FMASK
FMK20
FMASK_OB
1
1
FMK15
FMASK
1
FMK10
FMASK
1
1
FMK16
FMASK
1
1
FMK19
FMASK_OB
1
FMK14
FMASK
1
FMK13
FMASK
FMK25
FMASK
FMK32
FMASK_OB
1
FMK26
FMASK
1
FMK9
FMASK
1
1
FMK3
FMASK
1
4
MJP1
8
1
8
7
2
7
6
3
6
5
4
5
COUPON4X2
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
DIP/LID SW; SCREW
2
42 54Monday, February 12, 2007
A
1
5
www.bufanxiu.com
PMU3V22,46,50,51
D D
VBATT1
ISUS46
INOM46,50
PSUSC#28,36,39,49
BIN146
C C
D40
P N
33KΩ 1% 1/10W SMT0603 LR
B B
R314
6.2KΩ 0.5% 1/10W SMT0603 LR
SMCLK_PMU40,46
SMDAT_PMU40,46
SUSTAT_B#25,28,39,47,48,49,51
MAINSW#45
VCORE_CPU9,10
ADPIN 46,50
DIODE ZENER RLZ6.2B 6.2V 20mA LL-34(LLDS) 2PIN ROHM LR
R324
CGDTEN150
PCI_CLKRUN#23,29,36,41
B
C403
0.1uF 50V +80-20% SMT0805 Y5V LR
SYSTEM POWER OVP
HOT_DOWN#11
TR NPN DTC144EUAT106 50V 100mA UMT3(SC-70) 3PIN ROHM LR
A A
B
Q36
E C
5
CLOSE TO PIN 1 OF PMU08
R257
6.2KΩ 0.5% 1/10W SMT0603 LR
R259
TH146
1KΩ 1% 1/16W SMT0402 LR
0.1uF 16V 80-20% SMT0402 Y5V LR
PMUGND
RP7
10K 5% SMT1010 1/16W 4P2R LR
124
3
R44 4.7KΩ 5% 1/16W SMT0402 LR
10mil
C50 0.1uF 16V 80-20% SMT0402 Y5V LR
10KΩ 5% 1/16W SMT0402 LR
PMUGND
Q31
NPN PDTC144EU SOT-323 PHILIPS LR
E C
0.1uF 16V 80-20% SMT0402 Y5V LR
VDDS#
C337
PMUGND
R281
PMU5V38,51
C348
100pF 50V 5% SMT0402 NPO LR
LM4120IM5-3.3 SOT-25 5P NS Lead-Free
C362
PMU3V22,46,50,51
876
123
PMUGND
LNR-IC PST9228NR 2.8V SOT-25 5PIN MITSUMI LR
C40
2200pF 50V 10% SMT0402 X7R LR
4
RP5 10K 5 % 0402X4 1/16W 8P4R LR
R49 10KΩ 5% 1/16W SMT0402 LR
R271 100KΩ 5% 1/16W SMT0402 LR
5
RP6 4.7KΩ 5% SMT2010 1/16W 8P4R LR
4
0.1uF 16V 80-20% SMT0402 Y5V LR
REF3346
U28
4
VIN
VOUT
3
EN
REF
2
GND
1 8
2 7
3 6
PMU3V22,46,50,51
5
1
C350
4.7KΩ 5% 1/16W SMT0402 LR
U10
5
OUT
VCC
1
TC
2
SUB
3
GND
4
R72 47KΩ 5% 1/16W SMT0402 LR
4 5
R71 47KΩ 5% 1/16W SMT0402 LR
PCI_SERIRQ23,29,41
CLK_PCI_PMU0818
BUF_PLT_RST#21,25,28,35
LPC_FRAME#22,28,40,41
10K 5% SMT1010 1/16W 4P2R LR
RP4
RP3
10K 5% SMT1010 1/16W 4P2R LR
C47 0.1uF 16V 80-20% SMT0402 Y5V LR
20mil
R279
4
ATTENTION
IT IS POSSIBLE TO CUT THE
PATTEN OF PIN78 AND
PIN79
LPC_AD322,28,40,41
LPC_AD222,28,40,41
LPC_AD122,28,40,41
LPC_AD022,28,40,41
6mil
VDDS#
124
3
124
3
R275 10KΩ 5% 1/ 16W SMT0402 LR
C51
0.1uF 16V 80-20% SMT0402 Y5V LR
U12
78 31
Vbatt 2 QCHG2
79
TBatt 2
80
Vbatt 1
1
TBatt 1
76
Isus
77
Inom
20
SUSC
56
2ndS1
57
1stS1
63
SERIRQ
64
LCLK
65
LRESET#
66
LFRAME#
67
LAD3
68
LAD2
69
LAD1
70
LAD0
2
SCL
3
SDA
4
SMAlert#
5
SUSTAT#
6
Eject#
7
MainSW#
8
DJSW#
74
GPI-AD0
75
DJRUN#
55
VDDS#
14
PWMLED0
PWMLED1
PMUGND
CGDTEN
15
PWMLED0
18
CLKRUN
16
PWMLED1
17
PWMLED2
23
BBEMP#
26
CHGINH
27
TEST#
58
ADPIN#
73
AVSS
24
CNVSS
25
RESET#
72
VREF
28
XIN
71
VCC
30
VSS
ASIC PMU08A MIT MASK M38857M8-A09HP#U0 LQFP(80P6Q-A) 80PIN MITSUBISHI LR
C46
5pF 50V ± 0.5pF -55 TO +125C SMT0402 NPO LR
R268
SPWR 0 5% 1/8W 0805
3
RP9 10K 5% SMT1010 1/16W 4P2R LR
4
3
1
2
33
TCHG2
32
QCHG1
34
TCHG1
19
ISEL
21
DJON
12
LED G
13
LED A
35
GPIO C3
36
GPIO C2
37
GPIO C1
38
GPIO C0
39
GPIO B7
40
GPIO B6
41
GPIO B5
42
GPIO B4
43
GPIO B3
44
GPIO B2
45
GPIO B1
46
GPIO B0
47
GPIO A7
48
GPIO A6
49
GPIO A5
50
GPIO A4
51
GPIO A3
52
GPIO A2
53
GPIO A1
54
GPIO A0
9
LOWBAT#
59
DCON
10
CHG_CURR
11
BAT_REM
D12
N P
22
SCI#/SMI#
Bsel2
Bsel1
Latch
XOUT
123
Y1
4.19MHz 3PIN 15pF ± 5000ppm CSTCC4M19G53-R0 MURATA LR
3
DIODE SWITCH 1SS355PT 100V 100mA SOD-323 2PIN CHENMKO LR
60
61
62
29
C54
5pF 50V ± 0.5pF -55 TO +125C SMT0402 NPO LR
876
123
2
PMU3V 22,46,50,51
3VDDA 11,21,23,24,26,28,29,30,36,38,39,40,41,42,45,47,49,51
3VDDM 8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,47
RP13 10K 5 % 0402X4 1/16W 8P4R LR
RP10 10K 5 % 0402X4 1/16W 8P4R LR
876
5
5
123
4
4
876
123
RP12 10K 5 % 0402X4 1/16W 8P4R LR
5
4
RP11 10K 5 % 0402X4 1/16W 8P4R LR
876
5
123
4
3VDDS 11,21,23,24,26,28,29,30,36,38,39,40,41,42,45,47,49,51
1
GPIOA0~A7-----INPUT
GPIOB0~B6-----INPUT
GPIOB7--------OUTPUT
GPIOC0~C2-----INPUT
GPIOC2~C3-----OUTPUT
QCHGON1 50
TRICHGON1 50
LED_G 38
LED_A 38
CHGLED 38
PM_RI# 23
PM_SUSTAT# 23,29,41
PRSTMSK# 40
AMP_MUTE 33
RF_KILL# 28
MXM_HOT# 25
LID# 42
PM_BATLOW# 23
DCON 39,50,51
PMU_BLADJ 40
EC_SCI# 23
BSEL1 45
LATCH 45
For abnormal
MAIN BATTERY VOLTAGE SENSE
10mil
BIN146
2
10mil
BAT+46,50
R248
47KΩ 5% 1/10W SMT0603 LR
NPN PDTC144EU SOT-323 PHILIPS LR
Q5
M-FET-P AO3409 -30V -2.6A SOT-23 3PIN AOS LR
DS
R45
G
R249
100KΩ 0.5% 1/10W SMT0603 LR
140KΩ ± 0.5% 1/10W SMT0603 LR
10mil
Q28
B
E C
PMUGND
Title
Size Document Number Rev
C
Date: Sheet of
10mil
R46
140KΩ ± 0.5% 1/10W SMT0603 LR
VBATT1
R272
R261
27KΩ 1% 1/10W SMT0603 LR
C335
1000pF 50V 10% SMT0603 X7R LR
27KΩ 1% 1/10W SMT0603 LR
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
PMU08
1
43 54Monday, February 12, 2007
A
10
www.bufanxiu.com
8 8
7 7
6 6
5 5
9
8
7
6
5
4
3
2
1
4 4
3 3
2 2
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
1 1
10
9
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
BLANK
2
44 54Monday, February 12, 2007
A
1
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
8 8
7 7
30 Mil
DCIN10,25,26,48,49,50,51
ADPOUT50
D15
PPPN
DIODE ARRAY DAN202K 80V 0.1A SOT-346 3PIN ROHM LR
6 6
Q8
DCIN+50 ADPOUT1 51
R295
100KΩ 5% 1/10W SMT0603 LR
C378
0.1uF 50V 10% SMT0805 X7R LR
5 5
D17
DIODE ARRAY DAN202K 80V 0.1A SOT-346 3PIN ROHM LR
LATCH43
BSEL143
POWSW#41
PPPN
NPN PDTC144EU SOT-323 PHILIPS LR
Q32
B
E C
4 4
DS
M-FET-P AO3409 -30V -2.6A SOT-23 3PIN AOS LR
G
R296
33KΩ 5% 1/10W SMD0603 LR
43
D41C
DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR
D41A
61
DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR
D41B
52
DIODE RB731U 40V 30mA SMD6(SC-74) 6PIN ROHM LR
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,41,42,43,47,49,51
R331
10KΩ 5% 1/10W SMT0603 LR
30 Mil30 Mil
ICH_MAINSW# 23
MAINSW# 43
3 3
2 2
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
1 1
Title
Size Document Number Rev
Custom
10
9
8
7
6
5
4
3
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistog a+ICH7M>
ADIN & DCIN
2
45 54Monday, February 12, 2007
1
A
10
www.bufanxiu.com
H H
9
8
7
6
5
4
3
2
1
G G
22-11531-10
(PN on DIP Layer,
Wire DC-In (ACON))
F F
E E
D D
C C
B B
CHR Board BATTERY IN
8A = 320 MIL
0.022uF 25V 10% SMT0603 X7R LR
REF3343
PMU3V22,43,50,51
12A
C298
20mil
20mil
20-24840-00 (CNN on I/O bracket)
CN7
3
2
1
CON SINGRATON DC-JACK 2DC-S315-B07(NU)
SIP3_DC
PCCOUT50
R28
3.25mΩ 1% 2W SMT2512 LR
R31
R41
1KΩ 1% 1/10W SMT0603 LR
C321
0.1uF 16V 80-20% SMT0603 Y5V LR
R29
1KΩ 1% 1/10W SMT0603 LR
C299 0.022uF 25V 10% SMT0603 X7R LR
20KΩ 0.5% 1/10W SMT0603 LR
C35
0.1uF 16V 80-20% SMT0603 Y5V LR
3
2
1
320mil
12A
C303 1000pF 50V 10% SMT0603 X7R LR
U23
1
6
ISEL
OUT
3
IN+
2
IN-
5
COM
8
GSEL
4
GND
7
VCC
LNR-IC MM1380AWBE VSOP-8A 8PIN MITSUMI LR
REF3343
R40
11.3KΩ 1% 1/10W SMT0603 LR
C37
0.1uF 16V 80-20% SMT0603 Y5V LR
R34
20KΩ 0.5% 1/10W SMT0603 LR
C390
0.1uF 50V 10% SMT0805 X7R LR
C398
0.1uF 50V 10% SMT0805 X7R LR
R39
5.11KΩ 1% 1/10W SMT0603 LR
130KΩ 0.5% 1/10W SMT0603 LR
R37
11.3KΩ 1% 1/10W SMT0603 LR
C34
0.1uF 16V 80-20% SMT0603 Y5V LR
R298
10KΩ 5% 1/10W SMT0603 LR
Close to PMU08
1000pF 50V 10% SMT0603 X7R LR
910KΩ 0.5% 1/10W SMT0603 LR
R33
C61 1uF 50V 80-20% SMT0805 Y5V 0805F105Z500CT WALSIN LR
C63 0.1uF 50V 10% SMT0805 X7R LR
C32
R32
52
U8
1
+
4
3
-
LNR-IC OP-AMP G1214T1Uf SOT-23-5 5PIN GMT LR
200mil 200mil
ADPIN_FRAC
INOM1ST++
INOM 43,50
PMU3V 22,43,50,51
120Ω±25% 100MHz 6000mA SMT1206 UPB321611T-121Y-N CHILISIN LR
ISUS
ISUS 43
C38
0.1uF 16V 80-20% SMT0603 Y5V LR
PMU3V22,43,50,51
120Ω±25% 100MHz 6000mA SMT1206 UPB321611T-121Y-N CHILISIN LR
FUSE 7A 125V SMT R451007.MRL LITTELFUSE LR
R74
20KΩ 5% 1/10W SMT0603 LR
R225
47Ω 5% 1/10W SMT0603 LR
8A
1ST++
L19
20mil
BAT+43,50
470pF 50V 5% SMT0603 NPO LR
20mil
L18
1 2
1 2
C31
F3
FUSE 7A 125V SMT R451007.MRL LITTELFUSE LR
SMCLK_PMU40,43
SMDAT_PMU40,43
TH143
BIN143
8A=320
MIL
8A=320 MIL
F2
C278
C281
C277
C30
120pF 50V 5% SMT0603 NPO LR
120pF 50V 5% SMT0603 NPO LR
1000pF 50V 10% SMT0603 X7R LR
1000pF 50V 10% SMT0603 X7R LR
ADPIN 43,50
8A
C279
120pF 50V 5% SMT0603 NPO LR
20mil
CN5
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
C280
120pF 50V 5% SMT0603 NPO LR
C10328-10801
20-25068-00
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
A A
10
9
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
Adaptor in & Battery Voltage Sense
2
46 54Monday, February 12, 2007
A
1
5
www.bufanxiu.com
D D
C C
4
3
2
1
5VDDA10,24,25,37,38,48,49,51
G
C644
0.1uF 10V 10% SMT0402 X5R LR(NU)
C468
0.1uF 10V 10% SMT0402 X5R LR(NU)
B B
3VDDS
Cause system pwrgd always reset System pwrgd OK
200mil
3VDDM/5VDDM
A A
5
1uF 10V ± 10% SMT0805 X5R H=0.85mm C2012X5R1A105KT0J0N TDK LR
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,41,42,43,45,49,51
SUSTAT_B#25,28,39,43,48,49,51
200mil
C479
6.8KΩ 1% 1/10W SMT0603 LR
Q16
5
1
4
3
NPN UMG2NTR 50V 30mA UMT5(SC-88A) 5PIN ROHM LR
2
4
R413
56KΩ 5% 1/10W SMT0603 LR
R117
G
3VDDS
Q15
8
3
7
2
1
TRANS M-FET-P FDS4435_NL -30V -8.8A SO-8 8PIN FAIRCHILD LR
6
S
5
D
G
4
1uF0.1uF
3VDDS11,21,23,24,26,28,29,30,36,38,39,40,41,42,43,45,49,51
Min : 3V2.8V
200mil
C126
0.1uF 16V 80-20% SMT0603 Y5V LR
Q10
8
2.2uF 16V 80-20% SMT0805 Y5V C2012Y5V1C225Z TDK LR
C417
3
7
2
6
1
R340
56KΩ 1% 1/8W SMT0805 LR
S
5
D
G
M-FET-P FDS8433A_NL -20V -5A SO-8 8PIN FAIRCHILD LR
4
200mil
For EMI
0.1uF 16V 80-20% SMT0603 Y5V LR
40mil
R91
R118
2.2KΩ 5% 1/10W SMT0603 LR
3
10Ω 5% 1/8w SMT0805 LR(NU)
DS
Q34
TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR(NU)
G
2
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,41,42,43,45,49,51
R116
2.2KΩ 5% 1/10W SMT0603 LR
5VDDM 11,16,24,26,27,33,34,35,38,40,41,485VDDA10,24,25,37,38,48,49,51
3VDDM 8,10,11,13,16,18,19,20,21,22,23,24,25,26,27,28,29,32,34,35,38,39,40,42,43
C85
For EMI
Title
PA354< Yonah+Calistoga+ICH7M>
Size Document Number Rev
C
Power ( 3VDDS / 5VDDS / 3VDDM / 5VDDM)
Date: Sheet of
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
1
47 54Monday, February 12, 2007
A
5
www.bufanxiu.com
4
3
2
1
200mil
DCIN10,25,26,45,49,50,51
C544
4 4
Q44
7
Trace:
400mil
TR M-FET-N APM4804KC-TRL 30V 8A SOP-8 8PIN ANPEC LR
via: 10A
1.05VDDM8,9,12,13,15,16,18,22,24
3 3
2 2
1uH±20% 9mΩ 11A SMT7.3*6.6*3mm PCMC063T-1R0MN CYNTEC LR
C16 0 0.1u F 10 V 10 % SM T040 2 X5R LR
C17 3 T 220u F 2V ± 2 0% 1 5mΩ S MT73 43 H =1.9 mm EEFC X0D2 21R PAN ASONI C LR
+
+
L28
1 2
C15 1 T 220u F 2V ± 2 0% 1 5mΩ S MT73 43 H =1.9 mm EEFC X0D2 21R PAN ASONI C LR
R445
402Ω 1% 1/16W SMT0402 LR
R443
2KΩ 1% 1/16W SMT0402 LR
NBGND
8
D
S
2
3
DIO DE STKY SM3 40A- LF 4 0V 3 A DO -214 AC(S MA) 2PIN SEC OS LR
C15 7 100 0pF 50V 10% SMT0 402 X7R L R
C529
0.01uF 16V 10% SMT0402 X7R LR
7
8
D27
D
S
2
3
P N
4.7uF 25V ±10% SMT1206 X5R C3216X5R1E475KT TDK LR
120mil
61
5
4
Q43
61
5
TR M-FET-N APM4804KC-TRL 30V 8A SOP-8 8PIN ANPEC LR
4
40mil
R129
0Ω 5% 1/16W SMT0402 LR
SUSTAT_B#25,28,39,43,47,49,51
prevent leakage
200mil
C543
4.7uF 25V ±10% SMT1206 X5R C3216X5R1E475KT TDK LR
via:3A
C176
D28
1uF 10V 10% SMT0603 X5R C1608X5R1A105KT TDK LR
DIODE STKY CH751H-40PT 40V 0.03A SOD-323 2PIN CHENMKO LR
12
C175
0.1uF 16V ±10% SMD0603 X7R LR
40mil
40mil
R128
2KΩ 1% 1/16W SMT0402 LR
R131
61.9KΩ 1% 1/10W SMT0603 LR
NBGNDNBGND
R13 0
0Ω 5% 1/16W SMT0402 LR(NU)
NBGND
R446 1KΩ 5% 1/16W SMT0402 LR
R132 1KΩ 5% 1/16W SMT0402 LR
1.05VDDM_PWRGD10,39
1.5VDDM_PWRGD39
R444
10Ω 5% 1/10W SMT0603 LR
C172
0.01uF 16V 10% SMT0402 X7R LR
NBGND
C528
0.1uF 10V 10% SMT0402 X5R LR(NU)
C542
0.1uF 10V 10% SMT0402 X5R LR(NU)
All Trace > 12mil
5VDDA10,24,25,37,38,47,49,51
R450
C536
1uF 10V 10% SMT0603 X5R C1608X5R1A105KT TDK LR
U35
1
GND
2
LGATE1
LGATE2
3
PGND1
PGND2
4
PHASE1
PHASE2
5
UGATE1
UGATE2
6
BOOT1
BOOT2
7
ISEN1
ISEN2
8
EN1
9
VOUT1
VOUT2
10
VSEN1
VSEN2
11
OCSET1
OCSET2
12
SOFT1
SOFT2
13
DDR
PG2/REF
14 15
VIN PG1
LNR-IC ISL6227CAZ-T SSOP 28PIN INTERSIL LR
10Ω 5% 1/10W SMT0603 LR
28
VCC
27
26
25
24
23
R455 2KΩ 1% 1/16W SMT0402 LR
22
21
EN2
20
19
18
17
16
D42
DIODE STKY CH751H-40PT 40V 0.03A SOD-323 2PIN CHENMKO LR
12
C541
0.1uF 16V ±10% SMD0603 X7R LR
40mil
40mil
R45 1 0 Ω 5 % 1/ 16W SMT 0402 LR( NU)
R44 9 1 00KΩ 0 .5% 1/10 W S MT06 03 L R
R458
0Ω 5% 1/16W SMT0402 LR
R454
1.4KΩ 1% 1/10W SMT0603 LR
C540
0.01uF 16V 10% SMT0402 X7R LR
R457
2KΩ 1% 1/16W SMT0402 LR
NBGND
40mil
C53 7 0.0 1uF 16V 10% SMT0 402 X7R LR
NBGND
C539
4.7uF 25V ±10% SMT1206 X5R C3216X5R1E475KT TDK LR
C546
4.7uF 25V ±10% SMT1206 X5R C3216X5R1E475KT TDK LR
via:3A
120mil
TR M-FET-N AO4912 30V 7A SOI C-8 8PIN AOS LR
152
Q45
D
4.7uH±30% 5.7A 13mΩ SMT10*10.1*3.8mm SIL104R-4R7PF DELTA LR
6
78
3
S
4
C550
1000pF 50V 10% SMT0603 X7R LR
For EMI
SPWR 0 5% 1/16W 0603
NBGND
via:1A
L57
C547
T220uF 2V ±20% 15mΩ SMT7343 H=1.9mm EEFCX0D221R PANASONIC LR
R447
Trace: 240mil
via: 5A
C561
0.1uF 10V 10% SMT0402 X5R LR
1.5VDDM 9,13,15,16,24,28
via:1A
LNR-IC G1117T63UF SOT-223 3PIN GMT LR
>40 mile
5VDDM11,16,24,26,27,33,34,35,38,40,41,47 2.5VDDM 16,25,27
C18
1 1
5
10uF 10V +80-20% SMT0805 Y5V LR
U4
23
VOUTVIN
ADJ
1
2.5VDDM 0.4A
40mil
R11
150Ω 1% 1/8W SMT0805 LR
R12
150Ω 1% 1/8W SMT0805 LR
4
C22
+
T 22uF 10V ±20% SMT3528 ESR=3.0Ω T491B226M010AT KEMET LR
Vout
Vout=Vref(1+R2/R1)+Iadj*R2R1
R1=R2(Vout/Vref-1)
1117 Vref=1.250V,Iadj=55uAFB
R2
GND
3
2
Title
Size Document Number Rev
C
Date: Sheet of
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
NB Core/Vccp
1
48 54Monday, February 12, 2007
A
5
www.bufanxiu.com
DDRII Power
4
3
2
1
D D
C C
B B
DDRII Terminator Power
Trace: 200mil
DCIN10,25,26,45,48,50,51
(Via: 5A)
C208
4.7uF 25V ±10% SMT1206 X5R C3216X5R1E475KT TDK LR
C204
4.7uF 25V ±10% SMT1206 X5R C3216X5R1E475KT TDK LR
Via: 5A
R188 1KΩ 5% 1/10W SMT0603 LR
PSUSC#28,36,39,43
DDRII_PWRGD39
All Trace > 12mil
R189
C226
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
10Ω 1% 1/10W SMT06 03 LR
C225
4.7uF 10V +80-20%SMD0805 Y5V TAIYO LR
10Ω 1% 1/10W SMT0603 LR
R173
C222
1uF 10V 10% SMT0603 X5R C1608X5R1A105KT TDK LR
1.8VGND
1.8VGND
LNR-IC FAN5234QSCX_NL QSOP 16PIN FAIRCHILD LR
11
1
3
C209
7
0.01uF 16V 10% SMT0603 X7R LR
16
8
2
4
R187
75KΩ 1% 1/10W SMT0603 LR
U19
VCC
VIN
EN
SS1
FPWM
AGND
PGOOD
ILIM
Trace: 40mil
5VDDA10,24,25,37,38,47,48,51
D31DIODE SWITCH 1SS355PT 100V 100mA SOD-323 2PIN CHENMKO LR
15
BOOT
14
HDRV
13
SW
10
LDRV
9
PGND
12
ISNS
6
VSEN
5
VOUT
C223
NP
0.1uF 50V 10% SMT0805 X7R LR
R158
2KΩ 1% 1/10W SMT0603 LR
C211
0.015uF 50V 10% SMT0603 X7R LR
R172 1.82KΩ 0.5% 1/10W SMT0603 LR
R162 1.74KΩ 1% 1/10W SMT0603 LR
1.8VGND
2 Vias
1.8VGND
R159
SPWR 0 5% 1/16W 0603
61
5
7
8
Q18
D
TR M-FET-N APM4804KC-TRL 30V 8A SOP-8 8PIN ANPEC LR
4
61
5
4
CHOKE 3.3uH ±20% 6A SMT6.5*6.9*3.0mm PCMC063T-3R3MN CYNTEC LR
S
2
3
7
8
D29
Q17
D
DIODE S TKY SM140A-LF 40V 1A DO-214A C(SMA) 2PIN S ECOS LR
TR M-F ET-N APM 4804 KC-T RL 30V 8A S OP-8 8PI N AN PEC LR
S
P N
2
3
2 Vias
Trace: 300mil
L34
1 2
C195
1000pF 50V 10% SMT0402 X7R LR
Vout
R1
Vout=Vref(1+R1/Rg)
R1=R2(Vout/Vref-1)
FB
FAN5234
Vref=0.9V
R2
GND
(Via: 7A)
T220uF 2 V ±2 0% 15mΩ SM T7343 H=1.9m m EEFCX0D221 R PANASONIC LR
T220uF 2 V ±2 0% 15mΩ SM T7343 H=1.9m m EEFCX0D221 R PANASONIC LR
C169
C168
Trace: 300mil
C163
0.1uF 16V 80-20% SMT0603 Y5V LR
(Via: 7A)
1.8VDDS 13,15,19,20,25
Line Wire:3A
9
U36
8
1.8VDDS13,15,19,20,25
Line Wire:2A
C545
10uF 6.3V 10% SMT0805 Y5V LR
3VDDS11,21,23,24,26,28,29,30,36,38,39,40,41,42,43,45,47,51
A A
SUSTAT_B#25,28,39,43,47,48,51
5
VTT
7
PVIN
6
AVIN
LNR-IC G2996F1UF SOP-8(FD) 8PIN GMT LR
C200
2.2uF 10V ±10% SMT0805 X5R C2012X5R1A225KT TDK LR
R151
10KΩ 5% 1/16W SMT0402 LR(NU)
4
TP
VSENSE
VREFVDDQ
1
GND
2
SD
3
45
400 mils
C210
+
T 100uF 10V -20% 45mΩ SMT7343 Low ESR T520V107M010ATE045 KEMET LR
Trace: 20mil
3
M_VREF 13,19,20
0.9VDDT_DDRII 19,20
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
2
Date: Sheet of
(886-2)8751-8751
PA354<Yonah+Calistoga+ICH7m >
DDRII Power
1
49 54Monday, February 12, 2007
A
10
www.bufanxiu.com
9
8
7
6
5
4
3
2
1
PMU3V22,43,46,51
H H
G G
ADPIN43,46
200mil
5A
F F
R265
34.8KΩ 1% 0603 LR
75KΩ 1% 1/10W SMT0603 LR
C333
E E
D D
R51
C49
1uF 6.3V 10% SMT0402 X 5R LR
R52
3KΩ 1% 1/10W SMT0603 LR
Q7
R50
DS
39KΩ 1 % 1/10W SMT 0603 LR
TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR
0.1uF 50V 10% SMT0805 X7R LR
R266
11KΩ 1 % 0603 LR
BSGND
CV:12.6V(200K) 16.8V(300K)
Charge Current :1.7A R1(up):75K R2(down):39K
Tricker Charge Current:300mA(5.9K) 200mA(3.74Kohm)
Total Power:2.83A/20V(56.6W) R1:75K R2:21K(65W ADP)
Total Power:4.42A/20V(88.4W) R1:75K R2:39K(90W ADP)
CGDTEN Total Power:2.58A(51.6W) R1:75K R2:18.2K(65W ADP)
CGDTEN Total Power:4.17A(83.4W) R1:75K R2:34.8K(90W ADP)
CGDTEN Low Current:280mA R1:68K R2:36K(Inom)
R328 68KΩ 1% 1/10W SMT0603 LR(NU)
34.8KΩ 1% 1/10W SMT0603 LR(NU)
R264
10KΩ 1% 1/10W SMT0603 LR
G
TRICHGON1 43
R327
36KΩ 1% 1/10W SMT0603 LR(NU)
R310
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
R63
20mΩ 1% 1W SMT3720 RL3720WT-R020-FN CYNTEC LR
R58 SHW 0 5% 1/16W 0603
C52
0.47uF 50V +80-20% 0805 Y5V LR(NU)
R267
100KΩ 1% 1/10W SMT0603 LR
6800pF 50V 5% SMT0603 X7R LR
C340
R263
10KΩ 1% 1/10W SMT0603 LR
6800pF 50V 5% SMT0603 X7R LR
R262
100KΩ 1% 1/10W SMT0603 LR
Vref
R1
MB3887 Vref=5V
+INE1
Charge current
= R2/(R1+R2)*5
R2
GND
C405
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
C401
C341
R326
75KΩ 1% 1/10W SMT0603 LR(NU)
100KΩ 5% 1/16W SMT0402 LR(NU)
R62 SHW 0 5% 1/16W 0603
C57
0.47uF 50V +80-20% 0805 Y5V LR(NU)
BSGND
U29
1
-INC2
+INC2
2
OUTC2
3
4
5
6
7
8
9
10
11
12
GND
+INE2
-INE2
VCC(O)
FB2
OUT
VREF
VCC
FB1
-INE1
-INE3
+INE1
OUTC1
FB3
OUTD
CTL
-INC1
+INC1
LNR-IC MB3887PFV-ERE1 SSOP 24PIN FUJITSU LR
C406
LNR-IC LM393A SOP 8PIN TI LR(NU)
R329
R64
10Ω 1% 1/10W SMT0603 LR
C59 0.1uF 25V 10% SMT0805 X7R LR
24
23
C386
2200pF 50V 10% SMT0402 X7R LR
22
CS
21
20
C385
19
1 2
VH
0.1uF 16V ±10% SMD0603 X7R LR
18
R301
17
RT
47KΩ 1% 1/10W SMT0603 LR
16
R303
15
51KΩ 5% 1/10W SMT0603 LR
14
13
C372
C367
0.1uF 50V 10% SMT0805 X7R LR(NU)
0.1uF 50V 10% SMT0805 X7R LR(NU)
BSGND
U14
1
2
3
4
D16
DIODE ZENER RLZ24B 22.61-23.77V 5mA 500mW LL-34(LLDS) ROHM LR
8
VCC
7
+
6
+
GND
C306
10uF 25V ±20% SMT1206 X5R C3216X5R1E106MT TDK LR
PN
BSGND
R61
200KΩ 1% 1/10W SMT0603 LR
R57
100KΩ 1% 1/10W SMT0603 LR
C387
2200pF 50V 10% SMT0603 X7R LR
C404
0.1uF 16V 80-20% SMT0402 Y5V LR(NU)
5
CGDTEN point 115W and
300mA
R59
0Ω 5% 1/10W SMT0603 LR
BAT+ 43,46
M-FET-P AO4411 -30V -8A SOI C-8 8PIN AOS LR
3
2
1
D39
P
PPN
DIODE CHN202KPT 80V 0.1A SOT-346 3PIN CHENMKO LR
Vref
Total power setting
R3
V_+INE2 = Rsys * Isys * 20
+INE2
R4
GND
100KΩ 5% 1/16W SMT0402 LR(NU)
INOM 43,46
200mil
5A
8
7
6
S
5
D
G
Q27
4
QCHGON1 43
TRICHGON1 43
R309
Charge CGDTEN normal H
Over Power L
C33 2
100 0pF 50V 10% SMT 0402 X7R LR
P N
ADPOUT 45
R69
100KΩ 5% 1/16W SMT0402 LR(NU)
G
G
ADPOUT 45
22uH±30% 2.9A SMT10*10.1*3.8mm SIL104R-220PF DELTA LR
L20
D35
DIODE S TKY SM340A-LF 40V 3A DO-214A C(SMA) 2PIN S ECOS LR
R19
50mΩ 2% 1W SMT3720 RL3720WT-R050-GN CYNTEC LR
R60
SHW 0 5% 1/16W 0603
CGDTEN1 43
DS
Q9
TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR(NU)
DS
Q33
TR M-FET-N 2N7002E 60V 190mA SOT-23 SILICONIX LR(NU)
2A
80mil
D11
P N
DIODE STKY SM340A-LF 40V 3A DO-214AC(SMA) 2PIN SECOS LR
C297
R55
SHW 0 5 % 1/16W 0603
BSGND
C295
10uF 25V ±20% SMT1206 X5R C3216X5R1E106MT TDK LR
10uF 25V ±20% SMT1206 X5R C3216X5R1E106M T TDK LR
R297
SPWR 0 5% 1/16W 0603
1000pF 50 V 10% SMT0402 X7R LR
C301
PCCOUT
0422 MODIFY TO
1000P X 3 EMI
C307
1000pF 50 V 10% SMT0402 X7R LR
PCCOUT 46
C39
1000pF 50 V 10% SMT0402 X7R LR
PCCOUT
C33
1000pF 50 V 10% SMT0402 X7R LR
12A
480mil
DCIN+45
C C
PCCOUT46
D14
P N
DIODE STKY SM840B-LF 40V 8A DO-214AA(SMB) 2PIN SECOS LR
D13
132
DIODE STKY SM1040D1-LF 40V 10A D-PACK 3PIN SECOS LR
DCIN+ 45ADPOUT45
B B
DIODE ZENER UDZS10B 10V 5mA SOD-323(UMD2) 2PIN ROHM LR
D38
1SS355PT 100V 100mA SOD-323 2PIN CHENMKO LR
DCON39,43,51
NP
D36
1uF 25V ± 1 0% S MT12 06 X 5R C 3216 X5R 1E105 KT T DK LR
C32 9
R28 4
5.1 1KΩ 1 % 1/ 10W SMT 0603 LR
12
(40mil)
2.5V 150mA
Q30
B
P N
Q29
B
TR NPN DTC144EUAT106 50V 100mA UMT3(SC-70) 3PIN ROHM LR
E C
3
2
TR NPN M MBT39 04_NL 40V 2 00mA SOT-23 3PIN FAIR CHILD LR
1
R260
100KΩ 5% 1/10W SMT0603 LR
E C
Q6
S
D
G
M-FET-P AO4407 -30V -12A SOIC-8 8PIN AOS LR
4
R277
4.7KΩ 5% 1/10W SMT0603 LR
A A
10
9
8
7
6
5
4
3
12A
480mil
8
7
6
5
C42
1000pF 50V 10% SMT0603 X7R LR
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
Custom
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga +ICH7M>
Charger Circuit
2
DCIN 10,25,26,45,48,49,51
R48
4.7KΩ 5% 1/10W SMT0603 LR
R47
4.7KΩ 5% 1/10W SMT0603 LR
50 54Monday, February 12, 2007
1
A
5
www.bufanxiu.com
4
3
2
1
3/5VDDA & PMU3V / 5V
DCIN10,25,26,45,48,49,50
D D
5A
200mil
5VDDA
C C
Vout
Vout=Vref(1+R1/R2)
R1
R1=R2(Vout/Vref-1)
MAX1999 Vref=2.0V
R2
GND
B B
6.4uH± 30% 5.0A SMT10*10.1*3.8mm SIL104R-6R4PF DELTA LR
C109 0.1uF 16V ±10% SMD0603 X7R LR(NU)
C112
+
T220uF 6.3V ± 20% 25mΩ SMT7343 H=1.9mm T520V227M006ATE025 KEMET LR
C97
4.7uF 25V ± 10% SMT1206 X5R C3216X5R1E475KT TDK LR
1 2
L26
R94
15.8KΩ 1% 1/10W SMT0603 LR
C78
0.1uF 10V 10% SMT0402 X5R LR
R92
10KΩ 1% 1/10W SMT0603 LR
MSGND
200mil
C433
4.7uF 25V ± 10% SMT1206 X5R C3216X5R1E475KT TDK LR
120mil
Q37
61
5
7
8
TR M-FET-N APM4804KC-TRL 30V 8A SOP-8 8PIN ANPEC LR
D
4
S
40mil
2
3
C103 1000pF 50V 10% SMT0402 X7R LR
D25 DIODE STKY SM140A-LF 40V 1A DO-214AC(SMA) 2PIN SECOS LR
61
5
7
8
D
4
S
2
3
P N
Q42
TR M-FET-N APM4804KC-TRL 30V 8A SOP-8 8PIN ANPEC LR
PMU5V38,43
MSGND
C413
0.1uF 16V ± 10% SMD0603 X7R LR
20mil
D19
DIODE STKY CH751H-40PT 40V 0.03A SOD-323 2PIN CHENMKO LR
ADPOUT145
1uF 10V 10% SMT0603 X5R C1608X5R1A105KT TDK LR
D18
DIODE STKY CH751H-40PT 40V 0.03A SOD-323 2PIN CHENMKO LR
C73
LDO5
C415
R346
1KΩ 5% 1/10W SMT0603 LR
C419
0.1uF 25V 80-20% SMT0603 Y5V LR
MAX1999_VCC
R335
47Ω 5% 1/10W SMT0603 LR
10uF 6.3V 10% SMT0805 Y5V C2012Y5V TDK LR
R93
20KΩ 5% 1/10W SMT0603 LR
R98
20KΩ 5% 1/10W SMT0603 LR
R90 61.9KΩ 1% 1/10W SMT0603 LR
R106 61.9KΩ 1% 1/10W SMT0603 LR
C86 4700pF 25V 10% SMT0402 X7R LR
D_C1 0.47uF 10V ± 10% SMD0603 X5R LR
C74 4700pF 25V 10% SMT0402 X7R LR
12
R97
100KΩ 5% 1/10W SMT0603 LR
40mil
U32
6
SHDN
1
N.C.
17
VCC
14
BST5
16
DH5
15
LX5
19
DL5
18
LDO5
13
TON
21
OUT5
REF
8
REF
5
ILIM3
11
ILIM5
9
FB5
10
PRO
LNR-IC MAX8734AEEI+ QSOP 28PIN MAXIM LR
R338
0Ω 5% 1/16W SMT0402 LR(NU)
MSGND
BST3
LDO3
GND
OUT3
SKIP
PGOOD
100KΩ 5% 1/10W SMT0603 LR
C425
0.001uF 25V 20% SMT0603 X7R LR
20
V+
28
26
DH3
27
LX3
24
DL3
25
23
22
12
3
ON3
4
ON5
7
FB3
2
R360
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49
R341
SPWR 0 5% 1/8W 0805
D23
DIODE STKY CH751H-40PT 40V 0.03A SOD-323 2PIN CHENMKO LR
C420
0.1uF 25V 10% SMT0805 X7R LR
20mil
0.1uF 16V ± 10% SMD0603 X7R LR
C84
MAX1999_DH3
MAX1999_LX3
MAX1999_DL3
C427
10uF 6.3V 10% SMT0805 Y5V C2012Y5V TDK LR
120mil
LDO5
40mil
PMU3V 22,43,46,50
REF
C431
4.7uF 25V ± 10% SMT1206 X5R C3216X5R1E475KT TDK LR
C432
4.7uF 25V ± 10% SMT1206 X5R C3216X5R1E475KT TDK LR
152
3
S
R342
0Ω 5% 1/16W SMT0402 LR(NU)
6.4uH± 30% 5.0A SMT10*10.1*3.8mm SIL104R-6R4PF DELTA LR
Q35
D
6
TRANS M-FET-N SP8K10SFD5TB 30V 7A/9A SOP8 8PIN ROHM LR
78
4
R337
1KΩ 5% 1/16W SMT0402 LRR100 1KΩ 5% 1/16W SMT0402 LR
L23
1 2
C430
1000pF 50V 10% SMT0402 X7R LR
R96
6.8KΩ 1% 1/10W SMT0603 LR
R101
10KΩ 1% 1/10W SMT0603 LR
MSGND
C87 0.1uF 16V ±10% SMD0603 X7R LR(NU)
C421
+
T220uF 6.3V ± 20% 25mΩ SMT7343 H=1.9mm T520V227M006ATE025 KEMET LR
C81
0.1uF 10V 10% SMT0402 X5R LR
SUSTAT_B# 25,28,39,43,47,48,49
4A
160mil
D24
DIODE MSCD104 40V 1A SMD0805 SECOS(NU)
P N
Vout
Vout=Vref(1+R1/R2)
R1
R1=R2(Vout/Vref-1)
MAX1999 Vref=2.0V
FB
R2
GNDFB
3VDDA11,21,23,24,26,28,29,30,36,38,39,40,41,42,43,45,47,49
Other Trace>12mil
A A
5
DCON39,43,50
DIODE STKY CH751H-40PT 40V 0.03A SOD-323 2PIN CHENMKO LR
4
D22
R104
10KΩ 1% 1/10W SMT0603 LR
R103
4.7KΩ 1% 1/10W SMT0603 LR
3
C429
0.22uF 10V 10% SMT0603 X7R LR
R99 SPWR 0 5% 1/16W 0603
MSGND
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
2
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
3/5VDDA , PMU3V / 5V
1
51 54Monday, February 12, 2007
A
10
www.bufanxiu.com
H H
G G
F F
E E
9
8
7
6
5
4
3
2
1
D D
C C
B B
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
A A
10
9
8
7
6
5
4
3
Title
Size Document Number Rev
C
Date: Sheet of
114 TAIPEI, TAIWAN ,ROC
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
BLANK
2
52 54Monday, February 12, 2007
A
1
5
www.bufanxiu.com
Z4501
A_R1
0Ω 5% 1/10W SMT0603 LR
PIN9..11=Z4501
D D
A_AGND
C C
A_CN1
CON Singatron DIP Phone Jack 6Pin 3.5 Mic with Line-in (701C) 2SJ-S351-001 Lead-free & RoHS
20-25080-00
L-20-25080-00
A_C3 1000pF 50V 10% SMT0402 X7R LR(NU)
A_C1 1000pF 50V 10% SMT0402 X7R LR(NU)
9
10
A_AGND
A_L3
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR(NU)
1
2
6
3
4
5
60MILS
A_5VDDS_USB2 A_5VDDS_USB2
60MILS
A_USB20_P1-
A_USB20_P0-
B B
A A
5
A_SPDIF_PWR
A_SPDIFO_AUD
A_HPDET
A_MIC1_JD
A_HP_L
A_HP_R
A_INTERNAL_MIC
A_MIC1IN
A_MIC2IN
SPWR 0 5% 1/16W 0603
1
1
2
3
3
4
4
5
5
678
678
SCREW-P8_0D2_8
1 2
1 2
3 4
3 4
5 6
5 6
7 8
7 8
9 10
9 10
11 12
11 12
A_R4
A_AGND
A_M1
12132
13
12
11
11
10
10
9
9
4
A_L8 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
A_L2 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
NOTE
MIC1IN,MIC2IN,INTERNAL_MIC
請包
AGROUND
A_AGND
A_S1
SMD3.5X2.5
1
A_AGND
60MILS
A_CN6
1314
GNDGN D
CON ACES SMT 12PIN P1.0 88107-12001 LR
20-25135-00
A_CN5
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
CN 15PIN 88283-15001 ACES LR.Normal
20-25008-10
L-20-25008-10
A_M2
1
12132
1
13
2
12
3
4
5
3
4
5
678
678
SCREW-P8_0D2_8
11
11
10
10
9
9
4
A_USB20_P1+
A_USB20_P0+
A_5VDDS_USB1A_5VDDS_USB1
3
4
5
60MILS
1
1
13
2
12
3
4
5
678
678
SCREW-P8_0D2_8
A_M3
12132
11
11
10
10
9
9
3
A_MIC1IN
A_INTERNAL_MIC
A_MIC2IN
A_MIC1_JD
NOTE
HP_L,HP_R請包AGROUND
A_R6
SPWR 0 5% 1/8W 0805
A_R5
0Ω 5% 1/8W SMT0805 LR(NU)
3
A_5VDDS_USB1
A_USB20_P0A_USB20_P0+
NOTE
USB WIDTH 5MILS,
SPACING 7MILS,
請包
GROUND
A_USB20_P1A_USB20_P1+
A_AGND
A_FMK2
A_FMK5
FMASK
FMASK
1
1
2
A_L11
600Ω±25% 100MHz 2000mA SMT0805 MLB-201209-0600P-N2 MAG.LAYERS LR
A_L9
2
1
CHOKE 120Ω 100MHz 0.22 Ω 0.37A ACM2012-121-2P-T TDK LR
A_L5
2
1
CHOKE 120Ω 100MHz 0.22 Ω 0.37A ACM2012-121-2P-T TDK LR
A_HPDET
A_HP_L
A_HP_R
A_SPDIFO_AUD
A_SPDIF_PWR
A_FMK6
A_FMK4
FMASK
FMASK
1
60mil
3
4
A_D4
A_D3
ESD 3.5pF ± 10% 15KV DC=12V SMT0603 MLVS-0603-E10 INPAQ LR
For ESD.So,Please
close to USB CNN
3
4
ESD 3.5pF ± 10% 15KV DC=12V SMT0603 MLVS-0603-E10 INPAQ LR
For ESD.So,Please
close to USB CNN
A_L7 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
A_L6 600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
A_L4
A_L1
600Ω±25% 100MHz 1000mA SMT0603 MLB-160808-0600P-N2 MAG.LAYERS LR
A_FMK1
FMASK
1
1
ESD 3.5pF ± 10% 15KV DC=12V SMT0603 MLVS-0603-E10 INPAQ LR
A_D1
A_D2
ESD 3.5pF ± 10% 15KV DC=12V SMT0603 MLVS-0603-E10 INPAQ LR
A_FMK3
FMASK
1
2
1
A_CN3
1
1
2
2
3
3
4
4
567
8
CON CONTEK DIP USB 4PIN UGNP043-11-29 LR
20-24981-00
567
A_C6
+
E100uF 6.3V ± 20% ESR=35mΩ SMT3528 H=1.9mm 6TPE100MAZB SANYO LR
A_C8
0.1uF 16V 80-20% SMT0402 Y5V LR
A_5VDDS_USB2
A_L10 600Ω±25% 100MHz 2000mA SMT0805 MLB-201209-0600P-N2 MAG.LAYERS LR
60mil
A_C4
+
E100uF 6.3V ± 20% ESR=35mΩ SMT3528 H=1.9mm 6TPE100MAZB SANYO LR
A_C9
0.1uF 16V 80-20% SMT0402 Y5V LR
A_C2
0.1uF 16V 80-20% SMT0402 Y5V LR
A_C5
A_C7
1000pF 25V +80-20% SMT0603 Y5V LR
1000pF 25V +80-20% SMT0603 Y5V LR
8
L-20-24981-00
A_CN2
1
1
2
2
3
3
CON CONTEK DIP USB 4PIN UGNP043-11-29 LR
4
4
567
8
20-24981-00
L-20-24981-00
567
8
0Ω 5% 1/10W SMT0603 LR
A_R2
A_C10 0.1uF 16V 80-20% SMT0402 Y5V LR
SPWR 0 5% 1/16W 0402
A_R3
0Ω 5% 1/10W SMT0603 LR( NU)
A_CN4
5
4
3
2
1
6
7
8
9
10
CN SINGATRON SMT 2SJ-A373-001 LR
20-24459-90
L-20-24459-90
2005.10.12
A_R7
SPDIF &
HEADPHONE
JACK
A_AGND
2/21 GND
change AGND
2005.10.12
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
AUDIO TRANSFER BOARD
1
53 54Monday, February 12, 2007
A_AGND
A
5
www.bufanxiu.com
D D
4
3
2
1
POWER SW INTERNET SW
SW_SW1
A C
1 3
1 2
C C
G1 G2
B D
2 4
SWITCH SMD 4PIN TC017-PS11B-B T-MEC LR
SW_POWSW0
SW_X6
SW_SW3
A C
1 3
1 2
G1 G2
B D
2 4
SWITCH SMD 4PIN TC017-PS11B-B T-MEC LR
SW_Y0
RF SW SILEN SW
SW_SW2
A C
1 3
1 2
G1 G2
B D
2 4
SWITCH SMD 4PIN TC017-PS11B-B T-MEC LR
B B
SW_Y1 SW_Y1
SW_X5SW_X6
SW_SW4
A C
1 3
1 2
G1 G2
B D
2 4
SWITCH SMD 4PIN TC017-PS11B-B T-MEC LR
SW_X6
SW_X5
SW_POWSW0
SW_Y0
SW_Y1
SW_CN1
1
1
2
2
3
3
4
4
5
5
6
6
CON ACES SMT FFC 1.0P H=2 6pin R/A Top contact 85201-0605L Lead-free & RoHS
20-25061-00
1
3
4
5
1
13
2
3
4
5
678
678
SCREW-P8_0D2_2
12132
12
11
9
SW_M2
11
10
10
9
SW_FMK2
FMASK
1
3
SW_FMK3
FMASK
1
SW_FMK1
FMASK
1
First International Computer, Inc.
2FL.,NO.300,Yang Guang St.,NeiHu
114 TAIPEI, TAIWAN ,ROC
Title
Size Document Number Rev
C
2
Date: Sheet of
(886-2)8751-8751
PA354< Yonah+Calistoga+ICH7M>
SWITCH TRANSFER BOARD
1
1
12132
1
13
2
12
3
4
5
A A
5
3
4
5
678
678
SCREW-P8_0D2_2
11
10
9
SW_M1
11
10
9
4
54 54Monday, February 12, 2007
A
Loading...
