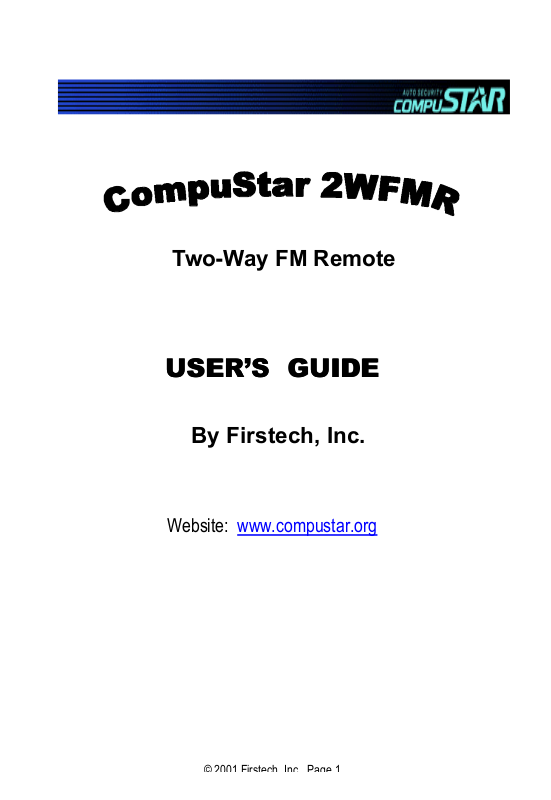

Two-Way FM Remote
USER’S GUIDEUSER’S GUIDE
By Firstech, Inc.
Website: www.compustar.org
TABLE OF CONTENTSTABLE OF CONTENTS
Safety Information………………………………………………………Page 3
Remote-Pager: 2WFMR w/LCD………………………………………………3
CompuGLO color LCD (Liquid Crystal Display)…………………………….4
Remote-Pager Button Functions…………………………………………… 5
Remote-Pager Learn Routine……………………………………………… 6
Alarm Mode…………………………………………………………………….6
Dual Stage Shock Sensor…………………………………………………… 7
Auto-start Function…………………………………………………………… 7
Reservation Mode…………………………………………………………….8
Trunk Release ……………………………………………………………10
Query Function ………………………………………………………………..10
Panic Mode……………………………………………………………………10
Valet Mode ………………………………………………………11
Timer Start Mode………………………………………………………………...11
Safety Shutdown Features…………………………………………………….12
RPS (Remote Paging System)…………………………………………………12
Optional Programmable Features ……………………………………………12
Ignition Lock …………………………………………………………………12
Auto Arming …………………………………………………………………12
Passive Arming……………………………………………………………….13
Turbo Mode…………………………………………………………………13
Optional Installation Features…………………………………………………14
Cold Start Mode ……………………………………………………………14
Optional Auxiliary 1 & Auxiliary 2…………………………………………14
Warranty……………………………………………………………14
Important Information:
This Device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This Device may not
cause harmful interference,, and (2) This Device must accept any
interference received, Including interference that may cause
undesired operation
Caution: Changes or modifications could void the authority of
the user to operate this device.
Safety Information Safety Information
Please take these safety precautions under the following conditions:
1. Servicing the vehicle
When servicing (i.e. changing the oil, washing your car) your automobile, the
CompuStar system should be in Valet Mode. There is a safety shutdown switch
under the hood that deactivates the remote starter function if the hood is open.
However, if the switch has been damaged or the switch has been installed
improperly, the vehicle may start when Button II is pressed for 2 seconds even if
the hood is open.
2. Loaning your vehicle to others
Whenever you loan your vehicle to an individual who is not familiar with
Compustar, please put the vehicle in Valet mode. This will prevent the vehicle
loaner from accidentally activating the CompuStar auto-security system.
3. For manual transmission vehicles
If the Compustar 2WSSR is installed in a manual transmission vehicle, extra
precautions are required because the Compustar does not monitor the gear shift:
Important! Under normal circumstances, Reservation Mode is cancelled when a
door or hatchback opens. Please verify if the opening of any door or hatchback
cancels Reservation Mode. If any of the doors or hatchback is not monitored by
CompuStar because of improper installation or a faulty dome light switch, do not
use the CompuStar and take your vehicle to the dealer immediately for repair.
Do not set Reservation Mode when the window(s) are open or if there is anyone
inside of the vehicle including animals.
RemoteRemote--Pager: 2WFMR w/LCDPager: 2WFMR w/LCD
The model name, 2WFMR, stands for Two Way Frequency Modulation Remote
with Liquid Crystal Display. This transmitter that allows you to activate multiple
functions by pressing a combination of 4 buttons on the unit in order to transmit
signals.
CompuGLO color LCDCompuGLO color LCD
The remote-pager comes with CompuGLO which is a unique color LCD display
that visually tells the vehicle owner the security status of your car at all times.
There are differing icons that will appear on your CompuGLO LCD indicating what
your vehicle is currently doing.
Icon Explanation
Auto N/A
Turbo IndicateS if Turbo Mode is on or off.
Timer Indicates if Timer Start Mode is on or off.
Passive Indicates if Passive Arming Mode is on or off.
Hammer Indicates that the first or second stage shock sensor has been
triggered.
Remote
Vibration
Zzzz Indicates if you are in Valet Mode.
Parking Lights Indicates if your car parking lights are flashing.
Car Siren Indicates that your car siren is turned on or off when you lock or
Phone Indicates that someone is paging you from your vehicle.
Lock/Unlock Displays if your car is armed or disarmed.
Transmitting Indicates if your remote-pager is transmitting signals to the
Battery Displays remaining battery life.
Blinking Battery
while engine
running
Door Displays if your door is open.
Exhaust Fumes Displays if your vehicle has auto-started properly or ignition on.
Trunk Displays if your trunk is open.
Hood Displays if your hood is open.
Indicates that Shock sensor is by-passed or not.
unlock the vehicle.
controller unit.
Displays running time left – each bar represents 25% of the
running time.
Remote-Pager Button Functions
Button Pressed For Function
1. I 1/2 sec Alarm Mode - on/off, RPS – on/off,
Siren Off, Starter Kill (Anti-Grind) –
on/off
2. II 1/2 sec Auxiliary Option 1
3. III 1/2 sec Auxiliary Option 2
4. IV 1/2 sec Query Function
5. I - 2 sec Auto Lock On/Off
6. II - 2 sec Auto-start Function - on/off
7. III - 2 sec Trunk Release – on/off
8. IV - 2 sec Panic, Press I to shut off Siren.
9. (I+II) 1/2 sec Siren Chirps for Lock/Unlock-on/off
10. (I+III) 1/2 sec Valet Mode – on/off
11. (II+III) 1/2 sec Passive Arming – on/off
12. (II+IV) 1/2 sec Timer Start Mode - on/off
13. (III+IV) 1/2 sec Turbo Mode - on/off
14 (I+III) - 2 sec Shock Sensor – on/off
16. (I+II) - 2 sec Programming Menu 1 – Installer Only
17. (I+IV) - 2 sec Programming Menu 2 – Installer Only
Note:
- meand pressing the button for 2 seconds.
( ) means simultaneously pressing the buttons
( ) – means simultaneously pressing the buttons for 2 seconds
RemoteRemote--Pager Learn Routine Pager Learn Routine
If you replace or add additional remotes, you can program up to three remotes,
please perform the following procedure:
Step 1: Activate Valet/Programming mode by manually turning the ignition on and
off five times (between Acc and On) with car key within a 10 second period. The
parking light will flash once with successful completion of this step.
Step 2: Within a 10 second period after cycling the ignition for the 5th time, press
button I. The car parking lights will flash once to confirm that the transmitter has
been programmed. Continue program the additional remotes. The parking lights
will flash two times when the programming mode is expired.
Alarm ModeAlarm Mode
You can arm or disarm alarm mode by pressing Button I for a ½ second.
Press Buttons (I+II) for a ½ second to make your car siren mute when arming or
disarming your vehicle. Keep in mind that your car siren will still activate for all
other modes (i.e. panic, alarm, shock sensor) regardless of whether or not your car
siren is in mute mode. The car siren will be mute only when arming or disarming
your vehicle.
In alarm mode, the starter kill function (this maybe an optional feature provided
by your installer) is activated. This feature disengages the starter mechanism on
your car that prevents you from starting your car even with a manual key when
your vehicle’s alarm mode is activated.
Note: If you lose your remote after you have armed the vehicle, use your key to
open the vehicle. The siren will go off. Turn on and off ignition 5 times with your
key to shut off the siren and turn the system into valet mode. Cancel the valet
mode with remote later. See Valet mode.
Note: (Siren duration is 30 to 60 sec depending on the options set at the time of initial
installation.)
Dual Stage Shock Sensor Dual Stage Shock Sensor
Press Buttons (I+III) for 2 seconds to activate or deactivate the dual stage shock
sensor. The dual stage shock sensor will activate 30 seconds after the CompuStar
alarm mode is armed. When the dual shock sensor is engaged, the remote-pager
security alerts will be triggered by the following:
Light impact to your vehicle will activate the first stage shock sensor
and the car siren will chirp 4 times in addition to the parking lights
flashing 4 times. The remote pager unit will beep and the hammer icon
shows up a couple times
Heavy impact to your vehicle will activate the second stage shock
sensor and the car siren will chirp for 30 to 60 seconds and the parking
lights will flash for 30 to 60 seconds. The remote-pager will be notified
audibly and a hammer icon will blink in the CompuGLO LCD. Press
Button I for a ½ second to turn off the second stage shock sensor sirens
and flashing lights.
AutoAuto--Start FunctionStart Function
Press Button II for 2 seconds to auto-start an automatic transmission engine.
Remember that a manual key in the ignition is required to drive the car. In addition,
the anti-grind circuit (this maybe an optional feature provided by your installer)
prevents you from re-cranking the starter on a remote-started vehicle. Press Button
II for 2 seconds in order to turn off an auto-started car. For manual transmission
vehicles, please use reservation mode.
The engine will run 15 or 25 minutes (25 or 40 min for diesel) depending on preset
options at the time of installation and then shut off. If your remote-pager has a
problem starting the vehicle, CompuStar will try 2 additional times. If the engine
does not start after the third attempt, please call your authorized CompuStar
dealer.
Flashing Battery Icon during remote start. The battery icon flashes while
engine running. Each of the 4 bars of the battery indicates 25% of the
remaining engine running time.
Continuation Mode:
While your vehicle is running with your key, if you press button II for 2 seconds, you
are now in the continuation mode. Your engine will continue running for the preset
time even if you take your key from the ignition. With this mode, the engine will
continue running without key during your quick stop at, for example, a grocery
store.
Diagnosing problems with Auto-Start
If there is a problem in auto-starting your car, you will hear three chirps when you
attempt to auto-start the car. Wait for 2 seconds and the cause for the error will be
indicated by the number of times the car chirps and parking lights flash.
Error Number (# of times the car chirps
& parking lights flash)
1 Engine On
2 Key On
3 Door Open
4 Trunk Open
5 Brake/E-Brake On
6 Hood Open
7 Reservation Off (Manual Transmission Only)
Error Reason
Reservation Mode (manual transmission only)Reservation Mode (manual transmission only)
In order to auto-start your manual transmission car, you must first set the
CompuStar system to Reservation Mode before leaving your vehicle. The purpose
of Reservation Mode is to leave the transmission gear in the neutral position when
you leave your vehicle. Reservation mode is intended for use in MANUAL
TRANSMISSIONS ONLY and NOT FOR AUTOMATIC TRANSMISSIONS.
Reservation Mode must be engaged each and every time you leave your manual
transmission car in order to auto-start the vehicle.
Note: The system is not recommended for vehicles with removable tops.
Important Requirements to activate Reservation Mode
The transmission must be in the NEUTRAL position.
The vehicle windows must be rolled up.
Do not set the reservation mode with people in the vehicle.
Do not auto-start the car with people in the vehicle.
Activating Reservation Mode (MANUAL TRANSMISSION ONLY)
Step 1: After arriving at your destination, and BEFORE TURNING YOUR ENGINE
OFF, place the transmission in the Neutral position.
Step 2: Remove your foot from the foot brake.
Step 3: Activate the parking brake.
Step 4: Remove the key from the ignition. The engine will remain running.
Step 5: Exit the vehicle and close the door within two minutes after activating the
parking brake. The engine will shut off and reservation mode for the remote starter
is now complete.
Your vehicle is now ready for auto-starting. However, the reservation mode will be
cancelled if the door is opened or the CompuStar system is put in Valet mode after
the reservation has been set. Once cancelled, you will have to start the vehicle with
the manual key and repeat the above 5 steps if you want to restore reservation
mode.
Important! If you try to auto-start the vehicle when reservation mode has not been
set or turned on, the auto-start feature will not work. When you press the auto-start
button, the remote beeps three times, the car parking lights will flash five times and
the siren chirps three times. A couple of seconds later, the cause for the error will
be indicated by the number of times the car chirps and parking lights flash. See
Page 11 for error messages.
Canceling Reservation Mode
If you do not want to set reservation mode, shut off the engine before you exit the
vehicle. The engine will shut off for the following reasons:
You did not activate the parking brake or press the foot brake when you
turned the manual key to the off position.
You released the parking brake while the engine was running.
You entered Valet Mode after the Reservation Mode has been
completed.
Error Messages
If there is a problem in auto-starting your car, you will hear three chirps when you
attempt to auto-start the car. Wait for 2 seconds and the cause for the error will be
indicated by the number of times the car chirps and parking lights flash.
Error Number (# of times the
car chirps & parking lights flash)
1 Engine On
2 Key On
3 Door Open
4 Trunk Open
5 Brake On, Emergency Brake Released
6 Hood Open
7 Reservation Off (Manual Transmission
Trunk ReleaseTrunk Release
Press Button III for 2 seconds in order to unlock and release your trunk door. Note
that the trunk release function will not only release the trunk but will unlock all the
doors as well.
Query FunctionQuery Function
Query Function allows the owner to visually monitor the status of your car by
looking at the remote-pager CompuGLO LCD icons. Press Button IV for a ½
second to activate the Query Function.
Panic Modeanic Mode
Press Button IV for 2 seconds to enter Panic Mode. In this mode, the car will arm if
not armed already and the siren will activate and the parking lights will flash. In
order to disengage Panic Mode, press Button I for ½ second. Then, press Button I
for a ½ second to unlock/disarm your vehicle.
Error Reason
Only)
If Anti-Jacking option has been programmed (ask your dealer if you like
to have this option) and the Ignition-Kill has been installed , the Panic
Mode works as Anti-Jacking if the car key in the ignition. In Anti-Jacking
mode is activated while key is in the ignition,
a)Siren will go off for 1.5 minutes, and b) Ignition-Kill will be
activated after the first 30 seconds. That is to give warning to the
hijacker for the first 30 seconds and then to disconnect the ignition
after that to stop the vehicle
Valet Mode Valet Mode
The only feature operating in valet mode is the keyless entry function and optional
auxiliary functions. Valet Mode is very useful when washing your vehicle or having
it serviced.
In order to enter Valet mode, press Buttons (I+III) simultaneously for a ½ second.
In order to manually enter Valet Mode, insert your car key into the ignition and turn
the ignition on and off (between ACC and ON) five times within 10 seconds
You can exit Valet Mode only by pressing Buttons (I+III) simultaneously for a ½
second.
Timer Start Mode Timer Start Mode
In Timer Start Mode, your car automatically starts every 1.5 or 3.0 hours depending
on preset options during the time of installation for a 24-hour period. This mode is
deleted automatically after 24 hours or once you start your car with either your
manual key or remote-pager. In order to enter Timer Start Mode, press Buttons
(II+IV) simultaneously for a ½ second.
Also, note that Timer Start Mode becomes Cold Start Mode once an optional
temperature sensor is installed.
Important! Timer Start Mode should be used only in open areas. Never start and
run the vehicle in an enclosed space such as a garage or carport.
SafeSafety Shut Down Featuresty Shut Down Features
CompuStar 2WSSR system has several shut down safety features. The following
actions will shut down the engine or prevent the car from auto-starting:
Opening of the car engine hood, Pressing of the brake or Valet mode is turned
on.
RPS (Remote Paging System)RPS (Remote Paging System)
The optional RPS is a feature that allows an individual to page the owner of a
vehicle by simply tapping on the front windshield of the car. RPS is automatically
turned on upon activating alarm mode (pressing Button I for a ½ second) on the
CompuStar 2WFMR.
The RPS module can be activated by tapping a manual key producing a highfrequency vibration. This high-frequency vibration is detected and your remotepager will beep and a telephone icon will appear on the CompuGLO LCD indicating
that someone is paging you from your vehicle. Press Button I, II, III or IV for a ½
second to deactivate the RPS visual and audible paging alerts.
OPTIONAL PROGRAMMABLE FEATURESOPTIONAL PROGRAMMABLE FEATURES
These additional programmable features can be programmed to the CompuStar
system by your authorized CompuStar dealer.
Ignition LockIgnition Lock
This programmable option enables your vehicle to automatically lock the doors
when the brake pedal is pressed after starting the vehicle with a key. In addition,
the vehicle will automatically unlock the doors upon pulling the key out from the
ignition. However, if the emergency brake wire was installed, the vehicle will unlock
upon the emergency brake is set if the engine is still running with the key. This
option must be chosen at the time of installation.
Auto Arming Auto Arming ––N/AN/A
Passive ArmingPassive Arming
You can turn this function on or off by pressing Buttons (II+III) for a ½ second.
When set to passive arming, your security system will arm automatically 30
seconds after all the car doors are closed. There are two types of passive arming
that can be programmed by your CompuStar dealership: (1) passive arming with
passive lock and (2) passive arming with active lock.
Passive locking means the door will lock when the system passively arms. In the
default factory setting, the system is armed and locked actively, which means the
system will only arm/lock when the remote-pager is utilized.
Note:
1. If you select both Auto Arming and Passive Arming, Auto
Arming takes priority over Passive Arming.
2. If you select Passive Arming with Active Lock in the
programming option, you are also selecting Auto Arming
without Auto Lock. Consult your installer.
Turbo ModeTurbo Mode
If this optional Turbo Mode has been programmed at the time of installation,
you can turn this feature on and off by pressing Buttons (III+IV) for a ½ second.
Under this mode, engine continues running for 2 minutes after key has been taken
out from the ignition if emergency brake was on when the key is taken out. To
utilize this mode, the emergency brake sensing wire has to be connected to the
emergency brake wire of the vehicle. Consult the authorized dealer for this mode.
OPTIONAL INSTALLATION FEATURESOPTIONAL INSTALLATION FEATURES
The CompuStar 2WSSR remote-pager has additional features and expansion
possibilities that require additional parts and labor.
Cold Start Mode Cold Start Mode
If the optional temperature sensor has been installed, Timer Start Mode
becomes Cold Start Mode. Under this mode, your car automatically starts if the
temperature of the inside of the vehicle goes below the preset temperature. The
minimum interval between the starts will be 1.5 or 3.0 hours depending on preset
options during the time of installation. Cold Start Mode is activated or deactivated
by pressing Buttons (II+IV) for a ½ second.
Optional Auxiliary 1 & Auxiliary 2 Optional Auxiliary 1 & Auxiliary 2
The auxiliary system is an optional car feature that can be tailored for your vehicle
by your local authorized CompuStar dealership. For example, you can customize
your car to have remote power control of your windows, radio, and sunroof in
addition to the rooftop on your convertible car.
Loading...
