Firstech FT820 Installation Manual

Download

Page 1

FT-820 Hyundai/Kia System

MODEL: RF-2W900FM-5PT

Installation Manual

Firstech, LLC. 21911 68th Ave S. Kent, WA 98032 Phone. 888-820-3690 Fax. 206-957-3330

Please visit www.compustar.com/ft820 for additional installation resources

Page 2

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

Ta b l e o f Co n T e n T s fT-820

Wiring Guide 3

Vehicle Compatibility Chart 4 Introduction 4 Kit Contents 5 Connecting and Programming the FT-820 5 Figure 2 6 Figure 3 6 Option Descriptions 7 Option Descriptions Cont. 8 Wire Detail 9 Wire Detail Cont. 10 Post Installation Checklist 11 Remote Programming Routine 12 Common Procedures 13 Option Programming With OP500 14 Option Programming With Remote 15 Frequently Asked Questions 16 Technical Support Contacts 16

Page 2

Page 3

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

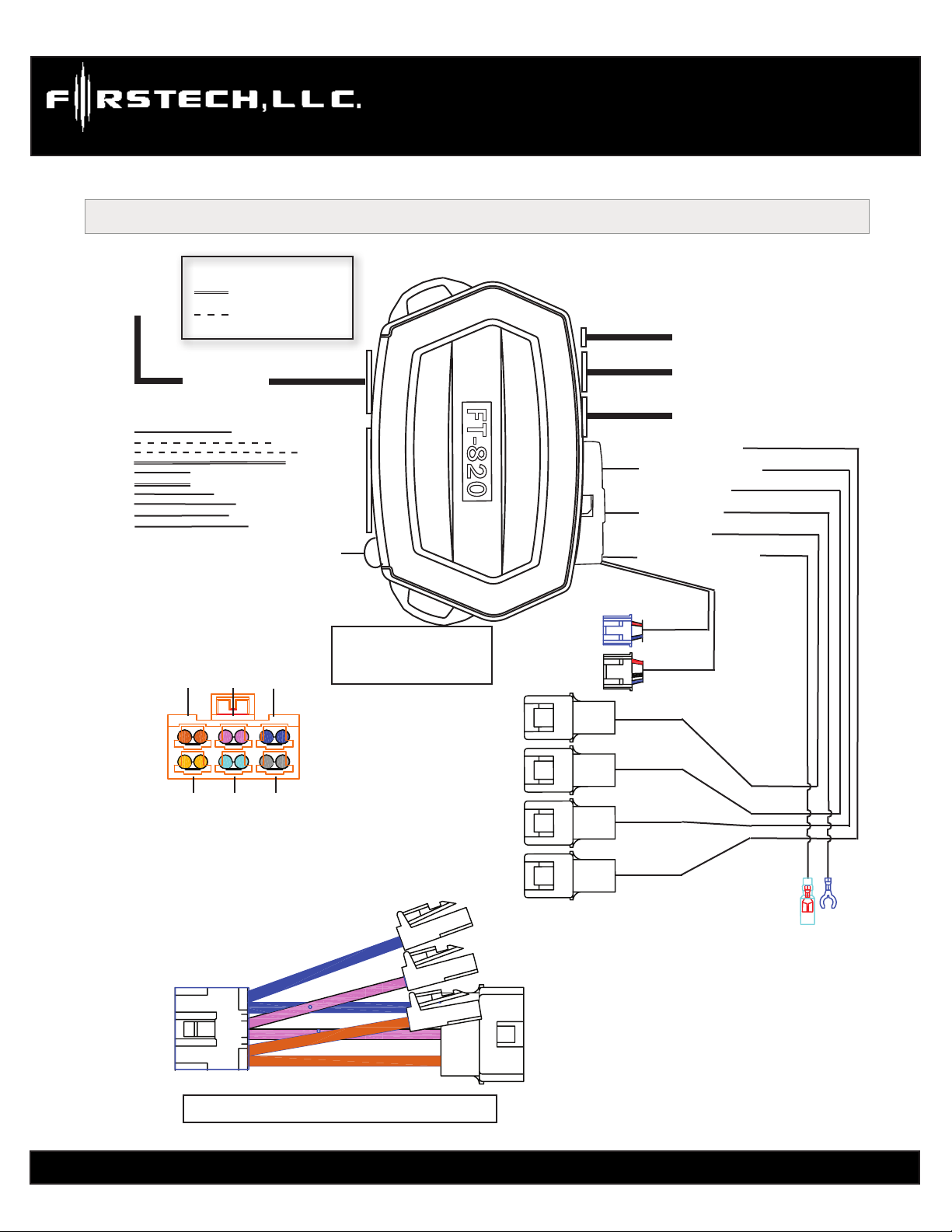

WI R I n G Gu I d e fT-820

Legend

Required for Installation

May be Required for Installation - Check Vehicle Guide for More Information

Thermister Port - 2 Pin

Antenna and Option Programming Port

- 6 Pin

Pink - Negative Start Trigger Input

Grey/Black - CAN High

Grey - CAN Low

Light Blue - Negative Emergency Brake Input

Light Blue/White - Positive Foot Brake Input

Yellow/White - Negative 250mA Rearm

Yellow - Negative 250mA Disarm

Blue - Negative 250mA Starter Kill

- Leave Intact for Manual Transmissions

- Cut for Automatic Transmissions

Orange - ISO9141-2

Brown - Positive Siren Output

Brown - Pin 1

Pink - Pin 2

Blue - Pin 3

These connectors may not be present. In this event connect to Black - Ground, Red - 12V+ and/or Violet - Negative Status Output to power up your bypass module

Wire Side View of FT-820 Y-Adapter

Light Blue - Pin 5

Orange - Pin 4

Grey - Pin 6

Shock Sensor Port - 4 Pin

Remote Paging Sensor - 4 Pin

White - Positive Accessory Output

Yellow - Positive Starter Output

Green - Positive Ignition Output

Black - Ground Input

Red - Positive 12 Volt Input

Violet - Negative Status Output

Connector for FT-RELAY

Connector for ADS-TB HK

To FT-820 Y-Adapter

FT-820 Y-Adapter

Some units have wires that are all black but numbered. See

the side view of the Y-Adapter to correcpond pin number.

Adapter Added In Line With Vehicle’s Ignition Harness

To Optional Anti Grind / Starter Kill

To Chassis Ground

Page 3

Page 4

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

Ve H I C l e Co m p a T I b I l I T y CH a R T fT-820

Features Supported

Vehicle

(Make, Model and Year)

Parking Lights

Door Status

Remote Start Conrmation

Trunk Status

Hood Status

Key Sense

E-Brake Status

Power Lock and Unlock

Driver’s Priority Unlock

Trunk Release

Tach Through Data

Parking Light and Headlight

Azera 2006 - Up ● ● ● ● ● ● ● ● ● ● ● ●

Elantra 2007 - Up ● ● ● ● ● ● ● ● ● ● ●

Hyundai

Kia

Sante Fe 2007 - Up

Sonata 2006 - Up ● ● ● ● ● ● ● ● ● ● ●

Vera Cruz All ● ● ● ● ● ● ● ● ●

Amanti All ● ● ● ● ● ● ● ● ● ● ●

Optima 2006 - Up ● ● ● ● ● ● ● ● ● ● ●

Rondo 2007 - Up ● ● ● ● ● ● ● ● ● ●

Sportage 2005 - Up ● ● ● ● ● ● ● ●

● ● ● ● ● ● ● ● ● ● ●

Monitor

Hyundai Azera vehicles require CAN Low and High connections in addition to the ISO9141 wire.

In T R o d u C T I o n fT-820

Thank you for purchasing this Firstech system for your vehicle. The following installation manual is intended for experienced and authorized Firstech technicians. We highly recommend that you contact your local Firstech dealer and

seek professional installation. Call 888-820-3690 or visit our websites at www.compustar.com or www.rstechllc.com to

locate your nearest dealer.

This installation manual is for the FT-820 control module. This manual is not vehicle specic. Please visit www.

rstechllc.com/ft820 or compustar.com/ft820 for vehicle specic manuals.

Caution: The Manufacture’s warranty will be void if this product is installed by anyone other than an authorized Firstech dealer. Firstech reserves installation support services to authorized dealers only.

Firstech, LLC. is not responsible or liable for any damages whatsoever, including but not limited to, any consequential damages, incidental damages, damages do to improper installation, loss of economic opportunity and the like that may or may not have resulted from the operation and installation of FT-820.

Page 4

Page 5

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

KI T Co n T e n T s fT-820

Firstech FT-820 control modules include the following:

- FT-820 main control module

- FT-820 wiring guide and info sheet

- Main ignition wiring harness with Y-adapter

- Separate starter kill relay

- Wiring harnesses

The following sensors are available but not included with the FT-820 system:

- Thermistor temperature sensor (2 Way remote LCD systems only) P/N: FT-TEMP SENSOR

- Remote pager sensor (RPS-II) (Optional on 2 Way remote LCD systems only) P/N: FT-RPS II

- Firstech dual stage shock sensor P/N: CompuShock

The remote(s) and antenna are available in the RF blister packaging. You have the ability to pair almost any Firstech remote(s) and antenna receiver to the FT-820. This is limited to 5P LCD remotes.

Co n n e C T I n G a n d pR o G R a m m I n G T H e fT-820 fT-820

The FT-820 settings and options must be programmed using the FT-820 software. You must choose the vehicle make and model, options, and whether its on an automatic or manual transmission.

STEP 1: Go to www.compustar.com/ft820 and download the UpdateSetup.exe Double click the icon labeled UpdateSetup V1.3. Follow your on screen instructions to load the FT-820 update program. Update V1.3 icon will appear on your desktop. Double click to open.

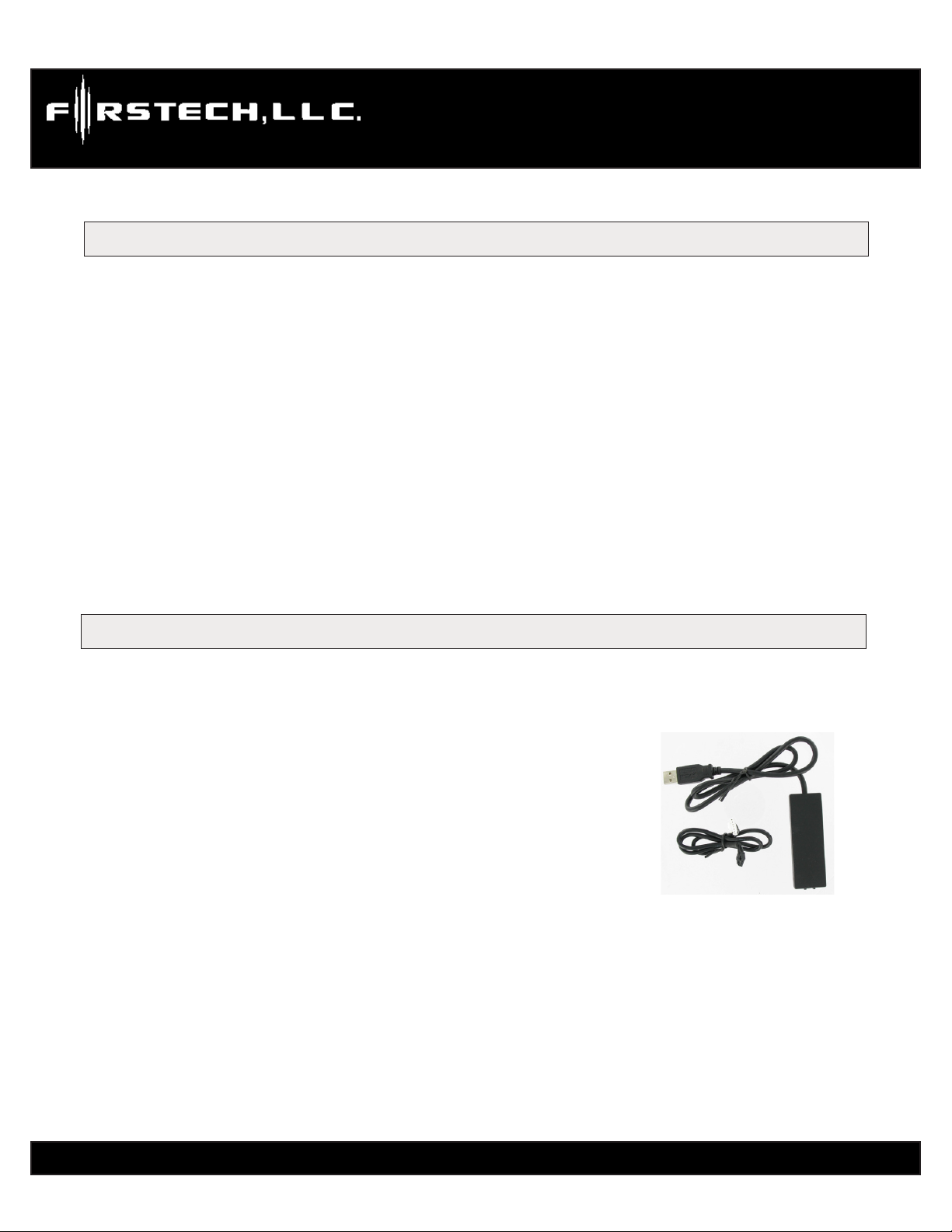

STEP 2: Connect the FT-820 control module to the 6 pin uploader cable shown to the right. The 6 pin connector will connect to the antenna port on the control module.

STEP 3: See Figure 2 on the next page. Click on the drop down menu in the top right corner of the FT-820 software window. This will be to select which vehicle make and model the system is being installed on. You must also select whether it is being installed on a manual or automatic

transmission. Under program version you must select the rmware for the FT-820 which in our sample is called: “MM_FT820_US_TEST_V1.0.ENC” See gure 3 for an example.

The option table will be available on the FT-820 software. Click the check boxes to select the particular option setting.

STEP 4: When nished changing option settings click the UPLOAD DATA button to write the options and nalize

the FT-820 control module for installation.

Page 5

Page 6

fT-820 In s T a l l Gu I d e

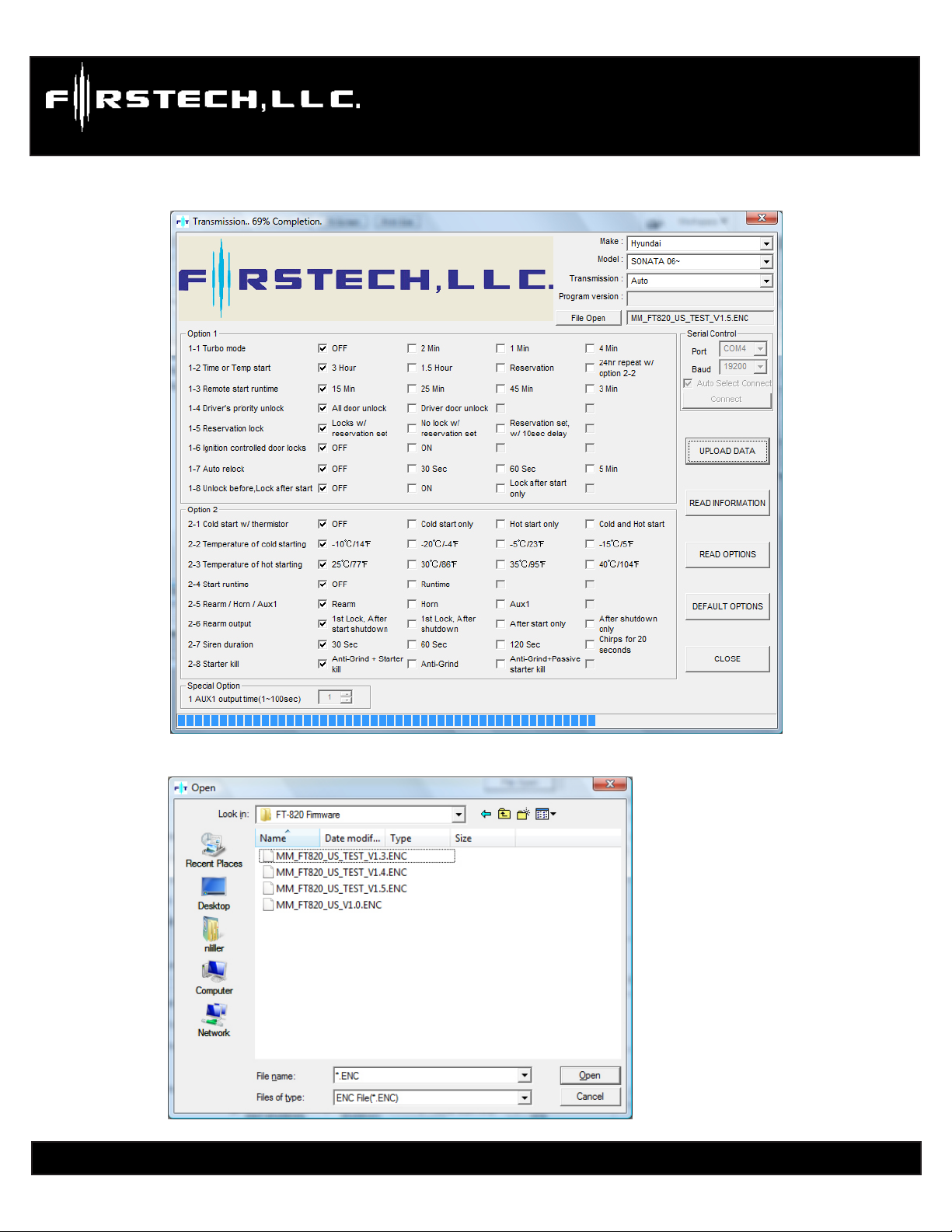

Figure 2 - FT-820 Update Program

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

Figure 3 - Selection of FT-820 Firmware Window

Page 6

Page 7

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

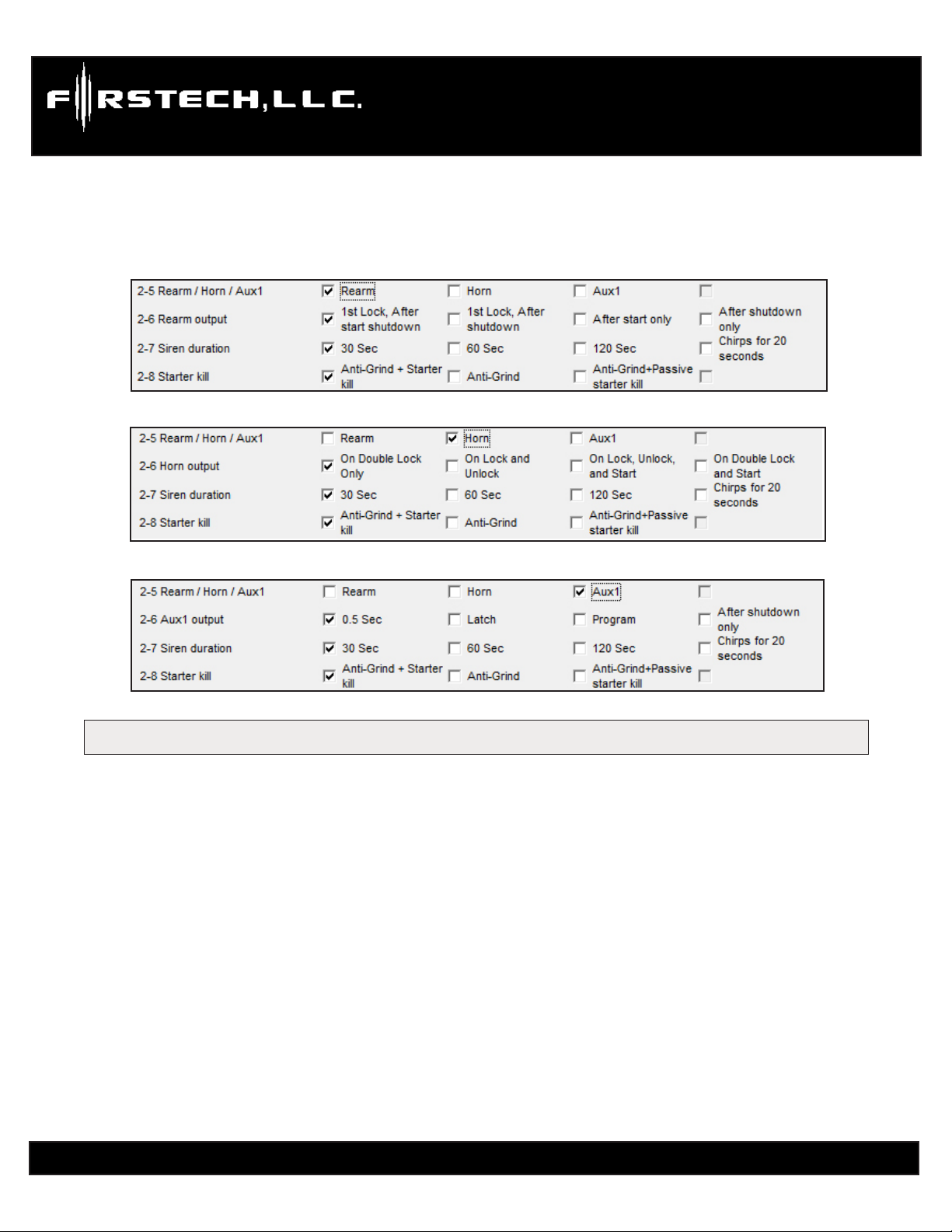

Option 2-5 and 2-6

Option 2-5 and 2-6 affect each other depending on settings. When you change option 2-5 as shown on the three tables below option 2-6 changes from Rearm output to Horn output or Aux1 output.

op T I o n de s C R I p T I o n s fT-820

1-01 Turbo Mode – This option will adjust the run time after Turbo mode has been engaged. The available options are shown in the table above. You must manually arm the vehicle after closing the door. It does not automatically arm. The emergency brake input must be connected and the feature must be turned on through the remote for this feature to work.

1-02 Timer or Temperature Start – This option dictates the time interval when the control module will either re- mote start or check the temperature and remote start.

Default 1: Will start every 3 hours until the vehicle is remote started or started by key and run for 4 minutes. Option 2: Will start every 1.5 hours until the vehicle is remote started or started by key and run for 4 minutes.

Option 3: Will start at the time specied on the 2 Way remote once within 24 hours and run based on Option 1-03.

Option 4: Will start once every 24 hours if the temperature falls below Option settings 2-02 or above Option settings 2-03.

For example, if you want your car to start and run 25 minutes when the temperature falls below 5°F, you need to set up the following options:

1) Option 2-01 (Cold Start) turned on,

2) Option 1-02-IV (24 hr. repeat) turned on,

3) Option 1-03-II (25 min run-time) turned on,

4) Option 2-02-IV (Temp 5°F) turned on, **Turn on Timer Mode of the 2 way LCD remotes (see User’s Guide)

Page 7

Page 8

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

op T I o n de s C R I p T I o n s Co n T . fT-820

1-03 Remote Start Runtime - This option changes the remote start run time of the vehicle from 3, 15, 25, and 45 minutes.

1-04 Driver’s Priority Unlock - The driver’s door must be isolated from the other doors. Use the Orange/Black CN4 as your 2nd Unlock output.

1-05 Reservation Lock - Manual transmission only. Setting III will provide a 10 second delay before the vehicle shuts off after closing the last door to allow for another door to open. Upon a door opening, the user will have 2 minutes to close the last door in order for reservation mode to set.

1-06 Ignition Controlled Door Locks – Setting 2 will lock the doors when the foot brake is pressed and doors closed. Tach sensing mode must be used for setting 3. You must also turn this feature on through the remote by tapping I+IV (2 Way remotes) or Lock+Key (1 Way remotes)

1-07 Auto Relock – This option will automatically relock/rearm after the system has been disarmed and the doors have not been opened.

1-08 Unlock Before, Lock After Starting – This option changes the behavior of the locking/arming and unlocking/ disarming during the remote start process. The last option setting only operates the lock output after remote starting only.

2-01 Cold Start w/thermister – This option turns on the cold/hot starting features. This option works in conjunction with 1-02, 2-02, and 2-03. The thermistor must be plugged into the controller/brain.

2-02 Temperature of cold starting – Works in conjunction with Options 1-02 and 2-03. See option table for available temperatures.

2-03 Temperature of hot starting – Works in conjunction with Options 1-02 and 2-02. See option table for available temperatures.

2-04 Start runtime – Resets remote start and turbo run-time while vehicle is remote started.

2-05 Rearm / Horn / Aux1 – This option determines the behavior of the yellow wire on the 10 pin connector of the FT820. Default the wire will act as a rearm negative pulse. Option 2 changes the wire into a horn trigger wire. Option 3 changes the wire into an Aux 1 output

2-06-A Rearm Output – This setting will determine when the rearm wire will pulse during use of the remote starter. This is the default setting of this system.

2-06-B Horn Output - When 2-05 is set to Horn setting you can change the event that the horn wire pulses. This would be upon double lock, lock and unlock, lock, unlock and start, and double lock and start.

2-06-C Aux 1 Output – This option determines the duration of the Aux 1 output. Setting IV allows the output duration to pulse only upon remote start shutdown.

2-07 Siren Duration – This option determines the duration of the siren during the alarm and panic triggers. The available timing is from 30, 60, 120, and chirps for 20 seconds.

2-08 Starter-Kill – This option determines the mode of the anti-grind/starter-kill relay. You must install and connect a starter kill relay for this feature to work correctly. Default 1: Anti-grind + starter-kill

Option 2: Anti-grind only (no starter-kill) Option 3: Anti-grind + passive starter-kill: starter-kill activates in 60 seconds after ignition is turned off.

Page 8

Page 9

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

WI R e de T a I l fT-820

After programming and setting options on your computer you are now ready to install the FT-820. Here is a more detailed description of the wires of the FT-820.

Connector: 6-Pin (Pre-wired Antenna Cable)

Pin 1 Red - Constant 12V positive (+) output. Pin 2 White - TX output. This wire transmits the signal to remote. Pin 3 Orange - Constant 5V positive (+) output. Pin 4 Yellow - RX input. This wire receives the signal from remote. Pin 5 Black - Negative (-) ground. Pin 6 Blue - (RX/TX) Control

Connector: 10-Pin

Pin 1 Brown - Siren 12V positive (+) output. Connect this wire to the (+) wire located on the siren. To change siren output settings, review Option 2-07.

Pin 2 Blue - 250mA negative (-) output when armed. This wire provides a ground when armed to activate a starter kill relay. Caution: When this wire is being used to trigger aftermarket accessories it must be diode isolated.

Pin 3 Yellow - 250mA negative (-) Disarm output. This wire is used to disarm the factory alarm on some of the vehicles.

Pin 4 Yellow/White - 250mA negative (-) Rearm output. This wire will rearm the factory alarm if connected. It can also be reprogrammed to trigger the factory horn or can be used as an Auxiliary 1 output.

Pin 5 Light Blue/White - Brake 12V positive (+) input. This input must be connected as it provides a shut down for the remote start. The proper wire will test (+) 12V while the foot brake is pressed.

Pin 6 Light Blue - Parking / Emergency brake negative (-) input. This input is required for manual transmission/reservation and turbo-timer mode. The proper wire will provide a (-) trigger when parking / emergency brake is set.

Pin 7 Orange - ISO9141-2 wire. This wire must be connected to the OBD-II connector. This is typically connected to pin 12 (Except for KIA Amanti which is located at pin 7) on the OBD-II connector. Hyundi Azera requires both

CAN High and CAN Low plus the ISO wire connected. Future Hyundai and Kia vehicles will have CAN High and Low wires. Firstech does not recommend using any T-Taps or scotch locks on these wires.

Pin 8 Grey - CAN Low wire. This wire will be connected to the CAN Low wire on newer Hyundai and Kia vehicles. This is strictly a data wire. Firstech recommends not using any T-Taps or scotch locks on these wires.

Pin 9 Grey/Black - CAN High wire. This wire will be connected to the CAN High wire on newer Hyundai and Kia vehicles. This is strictly a data wire. Firstech recommends not using any T-Taps or scotch locks on these wires.

Pin 10 Pink - Start trigger wire. A single ground pulse on this wire will activate the remote start process. This is most commonly used when adding a remote start to a factory keyless entry system.

Page 9

Page 10

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

WI R e de T a I l Co n T . fT-820

Connector: 6-Pin Ignition Harness

Caution: When connecting this harness thoroughly test the wires on the vehicle with a multimeter to assure you are connecting the right output from the FT-820. Even though the colors may be the same, they may not behave the same.

Pin 1 White – Accessory 12V positive (+) output. This wire is has a connector at the end that will connect to the included Y-adapter. This wire must be connected to the vehicle accessory /HVAC blower motor wire. The proper wire will test 0V with the key in the off position, (+) 12V while key is in the on position, 0V while cranking and back to (+) 12V when the key is returned to the on position.

Pin 2 Yellow - Starter 12V positive (+) output. This wire is has a connector at the end that will connect to the included Y-adapter. This wire must be connected for remote start. The proper wire will test 0V with the key in the off position, 0V while the key is in the on position and (+) 12V during crank.

Pin 3 Green – Ignition 12V positive (+) output and input. This wire is has a connector at the end that will connect to the included Y-adapter. This wire must be connected to the vehicles ignition for remote start and valet/programming. The proper wire will test 0V with the key in the off position, 12V (+) while the key is in the on position and 12V (+) during crank.

Pin 4 Black - Ground negative (-) input. This wire must be connected to the vehicles ground. . Pin 5 Red - Constant 12V positive (+) power input. This wire is has a connector at the end that will connect to the included Y-adapter. This wire must be connected. The proper vehicle wire will test (+) 12V at all times - while the key is in the off position, the on position and during crank.

Pin 6 Blue/White – Status/Ground while running 250mA negative (-) output. This is an optional output that will provide a negative (-) output before the ignition cranks and stay on throughout the remote start duration. This wire is most commonly used to trigger bypass / transponder modules.

Connector: 4-Pin (Pre-wired RPS)

Pin 1 Black - Negative (-) ground. Pin 2 White - Negative (-) paging input. Pin 3 Red - 12V positive (+) output. Pin 4 Yellow - 9V positive (+) L.E.D. output.

Connector: 4-Pin (Pre-wired Shock Sensor)

Pin 1 Black - Negative (-) ground. Pin 2 White - 2nd stage negative (-) input. (Instant trigger) Pin 3 Red - 12V positive (+) output. Pin 4 Yellow - 1st stage negative (-) input. (Warn away)

Connector: 2-Pin (Pre-wired Thermistor)

Plug optional thermistor into this connector to monitor the vehicle’s temperature. It used in conjunction with Timer Start features along with displaying temperature on two-way LCD’s. To use Timer Start features review Option Group 2. IMPORTANT: New Thermistor plugs are blue 2 pin connectors on the CM5 series but old white plug Thermistors will still work.

Pin 1 Black - Thermistor Pin 2 Black/White - Thermistor

Page 10

Page 11

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

po s T In s T a l l a T I o n CH e C K l I s T fT-820

If you are new to installing Firstech Series Remote Starts and / or Alarms, we highly recommended that you thor-

oughly review this manual to installing your rst unit.

Key Points to Consider Before Installation:

Options must be set before installation

The options for the FT-820 must be set via your computer. Please load the FT820 software to choose the vehicle make and model, set options, and program your unit before installation.

Please familiarize yourself with the wiring of the FT-820

The FT-820 is designed for quick installation with the use of supplied Y-adapter connector for the vehicle’s main ignition harness. The Y-adapter is designed to connect in line with the factory’s ignition harness. Other harness are plug and play minus the foot brake, e-brake and ISO9141-2 and/or CAN High and Low wires

Green loop must be cut for AUTOMATIC transmission vehicles By default, FT-820 units come in MANUAL transmission mode. You will need to cut the green loop inside the control module if you are installing the unit in a AUTOMATIC transmission.

You must code remotes to this system before anything will function

Program remotes by cycling the ignition ON / OFF ve times within seven seconds and tap button 1 (0.5 seconds) on the rst remote, and then tap button 1 (0.5 seconds) on the second remote.

RPS-II (Remote Paging Sensor)

This unit has an optional RPS that has three main functions; 1. Status LED, 2. Remote notication when triggered, and 3. Auto unlock/alarm disarm when a user specic 4 digit knock code is entered via tapping sensor through the

windshield.

Firstech Shock Sensor

This unit has an optional shock sensor that can be added to the FT-820. The sensor comes with the cable and just has to be plugged in.

Firstech Thermistor

This piece has the ability to monitor temperature in the vehicle using 2 Way LCD remotes only. This is not included with the FT-820.

Page 11

Page 12

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

Re m o T e pR o G R a m m I n G Ro u T I n e fT-820

IMPORTANT: Any and all remotes must be coded to the control module prior to performing any and all operations.

STEP 1: Activate programming mode by manually turning the vehicle’s key

between the Ign On and Off (or the Acc & On positions) ve times within 7 seconds. The vehicle’s parking lights will ash once with the successful completion

of this step. (Note: this step also places the control module into Valet Mode)

STEP 2: Within a 2 second period after the 5th ignition cycle tap Button I on two way remotes or the Lock button on one way remotes for 0.5 seconds. The

parking lights will ash once to conrm the transmitter has been coded. Repeat

for additional remotes, up to three.

Exiting Programming: Programming is a timed sequence. After 2 seconds the

parking lights will ash twice signaling the end of programming mode.

Programming Multiple Remotes: After the conrmation ash given in STEP 2, code additional remotes by tapping Button I on two way remotes or the Lock button on one way remotes. The parking lights will ash once conrming each additional remote. All systems can recognize up to three remotes.

Note: If you program only 1 Way remotes to a 2 Way antenna you will receive 3 parking light ashes and/or siren

chirps when you turn the ignition on. This will be alleviated by programming a 2 Way remote.

Green/White Loop

This loop wire determines the transmission setting. The default position (uncut loop) is for manual transmissions. When the loop is cut, the system will be ready for automatic transmissions. In the default (manual transmission) mode, the system must be set up in Reservation mode prior to the vehicle being able to remote start. IMPORTANT: All warranties or claims are void if a controller with a cut loop is installed on a vehicle with a manual transmission.

RPS-II (Remote Paging Sensor)

The RPS-II sensor is designed to be mounted on the inside of the windshield. Basic RPS functions do not require programming. There is a three position switch on the rear of the RPS-II. This adjusts the sensitivity of the RPS-II. The larger the circle the more sensitive the knock is. To activate the RPS unlock / disarm feature you must perform the following procedures:

STEP 1: Disarm/unlock the alarm. (Remotes must be programmed rst.) STEP 2: Turn ignition key to the “on” position and the leave the driver’s door open. STEP 3: Knock on the windshield in front of the RPS a total of 10 times (each time you knock the LED on

the RPS will ash RED). The LED will begin to ash rapidly in BLUE with successful completion of this

step.

STEP 4: Enter the rst digit of the desired four-digit pass code by knocking on the windshield in front of

the RPS the desired number of times. For example, to enter 3, knock on the sensor 3 times (each time you

knock the LED will ash RED) then wait. STEP 5: The LED on the RPS will conrm your rst number by ashing BLUE slowly. Once the LED begins to ash rapidly in BLUE, enter your second number by repeating step 4.

STEP 6: Repeat steps 4 & 5 to enter all four numbers. STEP 7: Turn the ignition OFF. The RPS disarm/unlock feature is now programmed. Repeat steps 3 – 5 to enter your disarm/unlock code.

Page 12

Page 13

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

Firstech Shock Sensor - Optional

For best results mount the shock sensor by zip tying it to the vehicle’s main ignition harness or other solid harness. There is a small dial on the sensor that ranges from Off to 10. The higher the number on the dial the greater sensitivity

of impact. A small adjustment to the dial can make a signicant difference in sensitivity for both 1st and 2nd stages.

Recommended dial settings for most vehicles is somewhere between 2 & 4.

Siren - Optional

The volume output of the siren can be increased 3 dB by cutting black wire loop located near the base of the siren. To adjust duration time when the alarm has been triggered, change Option 2-07 – the system default is 30 seconds.

Thermistor (Temperature Sensor) Optional

Every 2 Way remote - Firstech system includes an optional thermistor, which must be plugged into the 2 pin port of the control module for use. The use of the thermistor allows the 2 Way remote to display the vehicle’s interior temperature on the remote LCD (Liquid Crystal Display) as well as permitting the vehicle to start with timed Hot or Cold starting; see options 2-01, 2-02 and 2-03. IMPORTANT: New thermistor plugs are blue 2 pin connectors on the CM5 series but old white plug thermistors will still work.

Co m m o n pR o C e d u R e s fT-820

Setting Auxiliary Output

To set auxiliary outputs on the control module you must set these using the boot loader via your computer.

Set menu to Option 2-05 and 2-06 and set the options. You can only set specic time from 1 – 100 seconds on Aux 1.

Please see the Option Table for details.

Tach Sensing

Tach sensing for the FT-820 is done through the vehicle’s data connector or CAN network. There is no manual wire to connect to the vehicle’s engine bay for a proper tachometer signal.

Reservation Mode for Manual Transmissions

To remote start a manual transmission vehicle, the system must rst be set up in reservation mode. Reservation mode is

designed to prevent the vehicle from remote starting while the transmission is in gear.

Installation Requirements

1. The vehicle’s door triggers must be connected to the control module. Prior to making nal connections, test the factory door triggers to ensure that they are functioning properly.

2. The vehicle’s emergency/parking brake wire must be connected to the control module. The proper vehicle wire usually provides a negative (-) trigger while the emergency / parking brake is set.

3. The vehicle’s clutch must be momentarily bypassed while the remote start cranks the engine. This momentary bypass simulates the clutch being depressed. For complete details on how to wire a momentary clutch bypass consult your CompuTech program or contact our technical support department by calling 888-820-3690.

IMPORTANT: Do not install a remote start in manual transmission vehicles with convertible / removable tops and in user’s vehicles that leave their windows down. Firstech nor their authorized dealers will assume responsibility for improper use or install.

Page 13

Page 14

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

Activating Reservation Mode

STEP 1: Start the vehicle with the key. Place the transmission in neutral, remove pressure from the pedal brake, and set the emergency/parking brake.

STEP 2: Remove the key from the vehicle’s ignition. The vehicles engine should remain running even after the key has been removed. If the vehicle does not remain running, check the emergency / parking brake connection.

STEP 3: Exit the vehicle and close the door. The vehicle’s engine should shut off upon closing the door. If the vehicle’s engine does not shut off, check the door trigger connection or wait for the factory dome-light to go out. The Firstech system is in reservation mode and the vehicle is ready to safely remote start.

Additional Notes

Reservation mode will be cancelled if the control module recognizes the vehicles door, hood or trunk opening – or if the alarm is triggered. Each time the end user wants to remote start their manual transmission vehicle, they must set the control module in reservation mode. Reservation mode settings can be programmed with Option 1-05.

Remote Start Error Codes

If the remote start fails to start the vehicle, the parking lights will ash three times immediately. Following those three ashes the parking lights will ash again corresponding to the error table below:

Number of Parking Light Flashes Remote Start Error

2 Key in ignition on position

3 Door open (manual transmission only)

4 Trunk open

6 Hood open

7 Reservation off (manual transmission only)

*Pro 2 Way remotes will display the error number “Strt Er##” on the LCD.

Option Programming Using the OP500 (programmer)

op T I o n pR o G R a m m I n G WI T H op500 fT-820

The OP500 can be used to program any available option. It is required to program options in Special Option Groups 1.

STEP 1: Using the blue connector on the top of the OP500, connect it to the control module via the antenna wire. (Use the included extension cable if necessary.) Once connected, the OP500 will power up as long as the main ignition harness to the controller has been connected properly.

STEP 2: To change the option number you wish to program, use the left and right arrow keys on the OP500. It will scroll through the options available in menu 1 and then move to menu 2, then 3 and 4. Use the up and down arrow buttons on the OP500 to adjust the option settings; “1” is the default setting, and “2”, “3”, and “4” are the optional settings

8 Remote start failure

STEP 3: When nished with the adjustment of the various option settings, press and hold the “W” (write) button

until the OP500 chirps, which is approximately 2.5 seconds. This will write the settings to the control module. Wait until the module displays “Success” before disconnecting it from the antenna cable.

To reset the options, hold the “R” (reset) button and the “W” (write) button for 2.5 seconds. Release then write the reset, hold the “W” button until the OP500 chirps, which is approximately 2.5 seconds.

Page 14

Page 15

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

op T I o n pR o G R a m m I n G WI T H Re m o T e fT-820

Using a remote is a timed process so read this section in its entirety before beginning.

IMPORTANT: Special Option Groups cannot be programmed with a remote – the OP500 must be used.

STEP 1: Select the option menu that contains the desired programming option.

To program options use the following button combinations:

How To Program Options With 2 Way Remotes

Scroll Through

Tap Button 4 Tap Button 1 Tap Button 2 Tap Button 3 Tap Button 4

Select Option 1 Select Option 2 Select Option 3 Select Option 4

Option

Menu 1

Option

Menu 2

With 2 Way Remotes

(1 + 2) for 2.5 seconds then (1 +

2) for 2.5 seconds

(1 + 2) for 2.5 seconds then (1 +

4) for 2.5 seconds

How To Program Options With 1 Way Remotes

Scroll Through

Hold Trunk +

Key/Start for 2.5

seconds

Hold Trunk +

Key/Start for 2.5

seconds

Select Option 1 Select Option 2 Select Option 3 Select Option 4

Tap Lock Button

Tap Unlock

Button

Tap Unlock

Button

Tap Key/Start

Button

Tap Key/Start

Button

Hold Trunk +

Key/Start for 2.5

seconds

Hold Trunk +

Key/Start for 2.5

seconds

Option

Menu 1

Option

Menu 2

With 1 Way Remotes

Lock + Unlock for 2.5 seconds

then Lock + Unlock for 2.5

seconds

Lock + Unlock for 2.5 seconds

then Lock + Key/Start for 2.5

seconds

STEP 2: Scroll through menu allowing for 1 parking light ash and/or siren chirp per step.

STEP 3: Once nished scrolling through the menu wait for the parking lights and/or siren chirp to conrm the option

number. i.e. option 2-04 will ash 4 times. Then use one of the table selections to select the option corresponding to

your desired setting.

Resetting to Factory Defaults: To reset the options in a particular menu group, enter the menu shown in the above tables. To reset options with a 2 Way remote tap button 3 three times. To reset options with a 1 Way remote tap the

Key/Start button 3 times. Wait for the siren to chip and parking lights to ash between each tap. After the third tap,

the option menu will reset and the siren will chirp three times. This must be done for each option group that needs to be reset.

Page 15

Page 16

Hy u n d a I / KI a Re m o T e sT a R T a n d al a R m

www.rstechllc.com /ft820 | www.compustar.com/ft820

fT-820 In s T a l l Gu I d e

Frequently Asked Questions

fR e q u e n T l y as K e d qu e s T I o n s fT-820

I have everything hooked up and the system will not respond.

A: The remotes need to be programmed. Review the “Remote Programming Procedure” above.

What is the green loop wire outside the brain module?

A: This wire determines the transmission mode. With the loop intact, the system is set for manual transmissions. With the loop cut, the system is set for automatic transmission.

The vehicle remote starts when disarmed, but not when armed.

A: The starter kill relay was installed backwards. Check to make sure the yellow/black wire is going to the ignition side of the wire, and that the yellow wire is going to the engine side.

The vehicle starts and shuts down 3 times in a row.

A: This usually means that the engine sensing mode is not working correctly. Also check the transponder bypass for the vehicle as well.

The vehicle will lock and unlock, but will not remote start or ash the parking lights.

A: The system is in valet mode. Tap buttons (I) + (III) for 0.5 seconds while the key is in the on position.

The siren chirps once every 10 seconds after I arm the system.

A: There is a poor connection between the FT820 and the vehicle’s OBDII plug. Recheck your wire(s) connection.

Te C H n I C a l su p p o R T Co n T a C T s fT-820

Firstech technical support is reserved for authorized dealers only.

Monday - Friday 888-820-3690

(7:00 am – 5:00 pm Pacic Coast Time)

Email support@compustar.com

Web http://www.rstechllc.com/ft820

Wi r e Di a g r a m s

Click on the “Installogy Access Client” link found on your

desktop. If you are a qualied dealer and unable to access this

site, call your sales representative or the number above.

Page 16
