Installation Manual

Computrack CT-501-PA

Page 2

Installation Technician Notice

- Do not use test lights. Use digital multimeters to test all wires.

- All outputs must use relays. This is true unless connecting to a Firstech series control module.

- All output circuits must be isolated by wiring through a standard Bosch SPDTstyle relay.

- The CompuTrack may be damaged or operate improperly if relays are not used.

- If you must invert the polarity you must use a relay - do not use a solid state

inverter.

Firstech, LLC. nor Ayantra Inc. will not assume any

responsibility for improper use and/or installation.

Green - Negative Door Lock Wire

DOOR LOCK COMMAND - This is a conventional negative door lock output designed to be connected via a relay to factory or aftermarket door lock actuators. This output can also be connected to Firstech alarm and/or remote starters.

Blue - Negative Door Unlock Wire

DOOR UNLOCK COMMAND – This is a conventional negative door unlock output designed to be connected via a relay to factory or aftermarket door lock actuators.

White - Positive Alarm Sense

THEFT ALARM – Alarm trigger sense input – Alarm sounding devices are powered by 12 volts positive. The CompuTrack GPS unit monitors 12 volt positive and/or negative input. When the Siren sounds for 15 or more seconds it causes the CompuTrack to send an alert message to the owner. To prevent unintended messages from being sent, only one message is sent to the customer per event per 24 hour day.

Violet - Negative Alarm Sense

Yellow - Positive Ignition Input

IGNITION – Ignition ON/OFF sense input - The YELLOW wire detects a positive 12V signal when the ignition is turned ON and a LOW signal when the engine is turned OFF. If the option is enabled, this will allow the unit to send an Engine ON/OFF message to the customer. This wire must be connected.

Firstech, LLC. and Ayantra Inc. requires you not to install the CT-501-PA with a fuel or ignition interrupt. Doing so may result in damage to the vehicle and/or driver.

Page 23

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 2

Page 3

Grey - Negative Car Finder

CAR FINDER HORN/LIGHTS – This pulsating negative output drives relay(s) to sound the vehicle’s horns

and ash its parking lights. For dual circuit parking lights connect a second light relay that is driven off the rst one,

otherwise one relay for lights and one relay for horns. Observe polarities when connecting this wire.

Orange - Negative Starter Interrupt

STARTER INTERRUPT – The ORANGE wire provides a latched ground output signal. When this feature is activated it will send a negative output to a Bosch style relay. This will prevent the vehicle from restarting until another signal is sent to the CompuTrack. This signal removes the ground signal from the ORANGE wire. This wire is designed to interrupt starters, not ignition or fuel pump circuits. Installation of this circuit to interrupt the fuel or ignition circuits places the installing dealer in default of their CompuTrack agreement and makes them fully responsible for any and all actions that may result.

THIS WIRE SHOULD NEVER BE USED TO INTERRUPT THE VEHICLE FUEL PUMP OR IGNITION AS THE LIABILITY OF A VEHICLE LOOSING STEERING OR BRAKING IS SIGNIFICANT.

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Notes

Back-Up Battery

The back-up battery is built into the monitoring unit, and recharges while the engine is running. If the power is cut, the unit will send an Alert Notication message to the vehicle owner, and the backup battery will power the CompuTrack

for up to 2 hours, depending upon usage.

Basic Installation vs. Advanced Installation

The Basic Installation is described in pages 1 through 15. Pages 22 through 23 details additional information including wiring color codes for optional features.

The Basic Installation provides the following features:

- Location Reports

- Speed Alerts

- GeoFence (Theft) Alerts

- Low Battery Alerts

- Maintenance Due

- Reporting via customized Points-of-Interest

Advanced installations include the above features plus the following below may be installed:

- Door Lock / Unlock

- Starter Enable / Disable

- Honk Horn / Flash Lights

- Roll Windows

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 3

Page 22

Page 4

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 4

Information you need before you begin:

Here is an Installation Worksheet. Use it for each new installation.

- The CompuTrack serial number: ___________________________________________________ (This is the 20-digit number on the unit label - write it down!)

- The CompuTrack Mobile Identication Number: ___________________________________________________ (This is the unit’s 10-digit “phone number” listed on the label - write it down!)

- The Vehicle Identication Number (VIN) and its license plate: ___________________________________________________

- The vehicle description: Make, Model, Year, and Color Year: ______________ Make: _______________ Model: ______________

- The customer’s full contact info, including name, address, cell phone number and cellular service provider, and email address: Address: ______________________________________________________ Cellular (Optional): _____________________________________________ Email / Login: __________________________________________________

- Internet access is required to register your newly-installed unit. If you do not have Internet accesse, you can register it BEFORE installing it. Use the Installation Worksheet to ensure that accurate vehicle information is assigned to each unit.

- Your cell phone must be capable of sending and receiving text messages. This is optional as you can use it for testing the CompuTrack.

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Advanced Installation Information

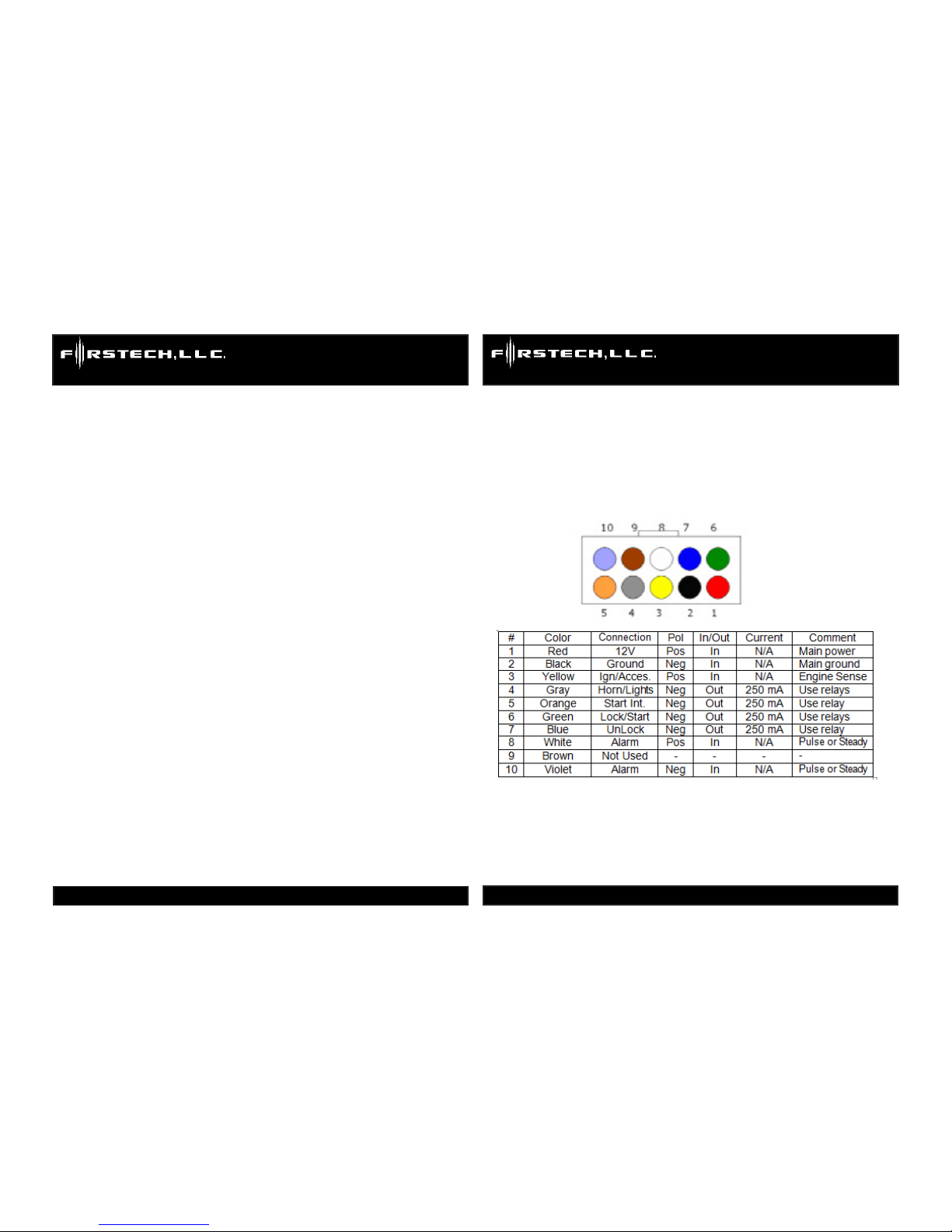

Please review the color codes below before you continue.

Remove wiring harness before you continue.

Page 21

Front View

Page 5

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

delivery delays - allow up to ten minutes to receive the Location Report.

Receipt of the Location Report indicates that the CompuTrack unit is operating properly.

Note: Other commands are also available. The full list of commands and their “command codes” are as follows:

All commands follow the same format: password, followed by a blank space, followed by the command digit.

Please note that the Door Lock, Door Unlock, Starter Disable/Enable, Recover Vehicle, and Honk Horn/Flash Lights commands require an Advanced Installation.

Congratulations! You’ve completed the physical installation, the regis-

tration, and nal test. You are now ready to deliver the system to your

customer.

Page 20

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Table of Contents

Installation Technician Notice ------------------------------------------------- 2

Notes ------------------------------------------------------------------------------ 3

Step 1: Online Registration ---------------------------------------------------- 6

Step 2: Physical Installation --------------------------------------------------- 9 A) Placement --------------------------------------------------------------- 9 B) Signal Strength --------------------------------------------------------- 9 C) Power -------------------------------------------------------------------- 10

Step 3: Final Testing ------------------------------------------------------------ 12

Advanced Installation Information ------------------------------------------- 16

Installation Worksheet ---------------------------------------------------------- 18

Page 5

Locate 1

Door Lock / Remote start 2

Door Unlock 3

Honk Horn / Flash lights 4

Track Vehicle 5

Starter Disable 6

Starter Enable 7

Recover Vehicle 8

Page 6

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 6

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 19

Step 1: Online Registration

Online registration is easy, and can be completed in less than ten minutes. During the registration process, you will congure each new GPS system specically for each new customer. You can also set up a temporary account to send

and receive test messages.

A. Login

Using an Internet browser, go to the CompuTrack GPS website at: www. computracklive.com. Click on Access my CompuTrack, and then click where it says “New Customer Registration:”

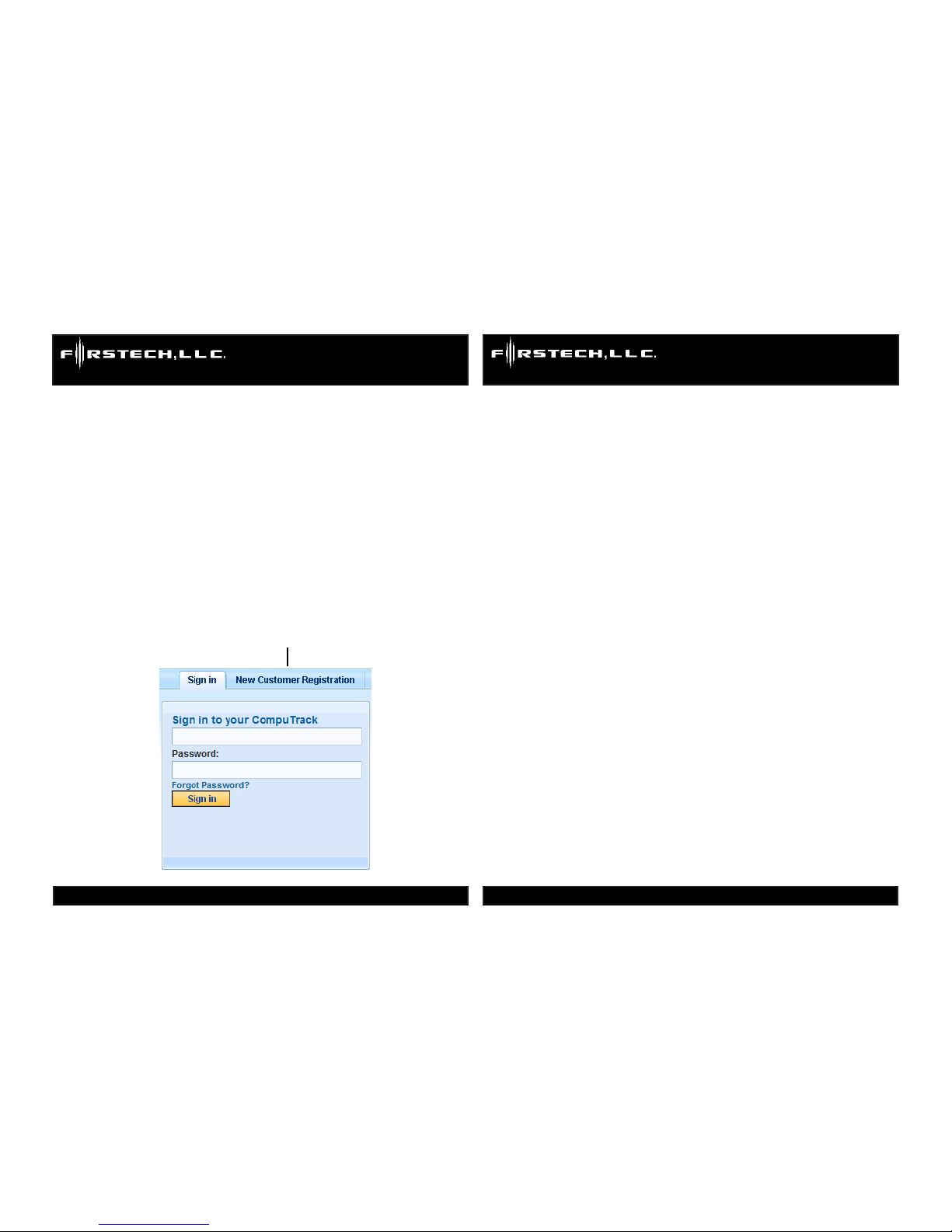

The login page will look something like this:

Conguration: During the online registration process, you must use the Con-

guration Page to specify the cell phone for sending and receiving messages. After the cell phone number has been set on the Conguration Page, you can

use it to send a “Locate Now” command to the CompuTrack unit.

Message Format: The format for the “Locate Now” command consists of the password, followed by a single blank space, followed by the digit 1.

- The password was previously specied on the Conguration Page; for new

customers, the password is always set to 1234

- A single blank space should separate the password from the command

- The command for “Locate Now” is the digit 1. The message format for a new customer sending a “Locate Now” command message from a cell phone is therefore as follows:

1234 1

Phone Number: the text message should be directed to the CompuTrack unit’s

Mobile Identication Number (this is its 10-digit “phone number”).

Using a text-enabled cell phone, send the “Locate Now” command to the CompuTrack unit. Again, the message should consist of the following: 1234 1

You should receive the Location Report message on the cell phone within three

to ve minutes. The message will originate from “Notication1@ayantra.com”

and it will include the vehicle’s location, as well as the date and time of the message. At times, network congestion may cause

Click This Tab

Page 7

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 18

Page 7

box marked “Get Location Now.” The system will inform you that you are

about to send a message to the remote unit, and it will ask you to conrm

your decision. Click “Yes” within approximately one minute. A NEW Location Report will appear. An accurate Location Report will verify that the CompuTrack unit is operating properly and can be delivered to the customer.

Congratulations! You’ve completed the physical installation, the regis-

tration, and nal test. You are now ready to deliver the system to your

customer.

Note: If you submitted any personal information - such as your own cell phone number during the registration process, don’t forget to remove it before

delivering the system to your customer.

If you are already familiar with text-messaging, you can also use a textenabled cell phone to test the CompuTrack GPS unit. The test will consist of using a cell phone to send a “Locate Now” command to the remote CompuTrack unit, and receiving a response from it on a cell phone. Here’s how you

use a cell phone to perform the nal test:

B. Using a Cell Phone to Test the Unit

Note: This guide does not include instructions for creating and sending text messages. This guide assumes that you are already familiar with text messaging. This guide provides the necessary information to enable a reader with text-messaging skills to send commands to a remote monitor-

ing unit and to receive reports from it.

You will nd the section for New Customers in the lower left corner. Click on

the Register Here button.

C. New Customer Registration

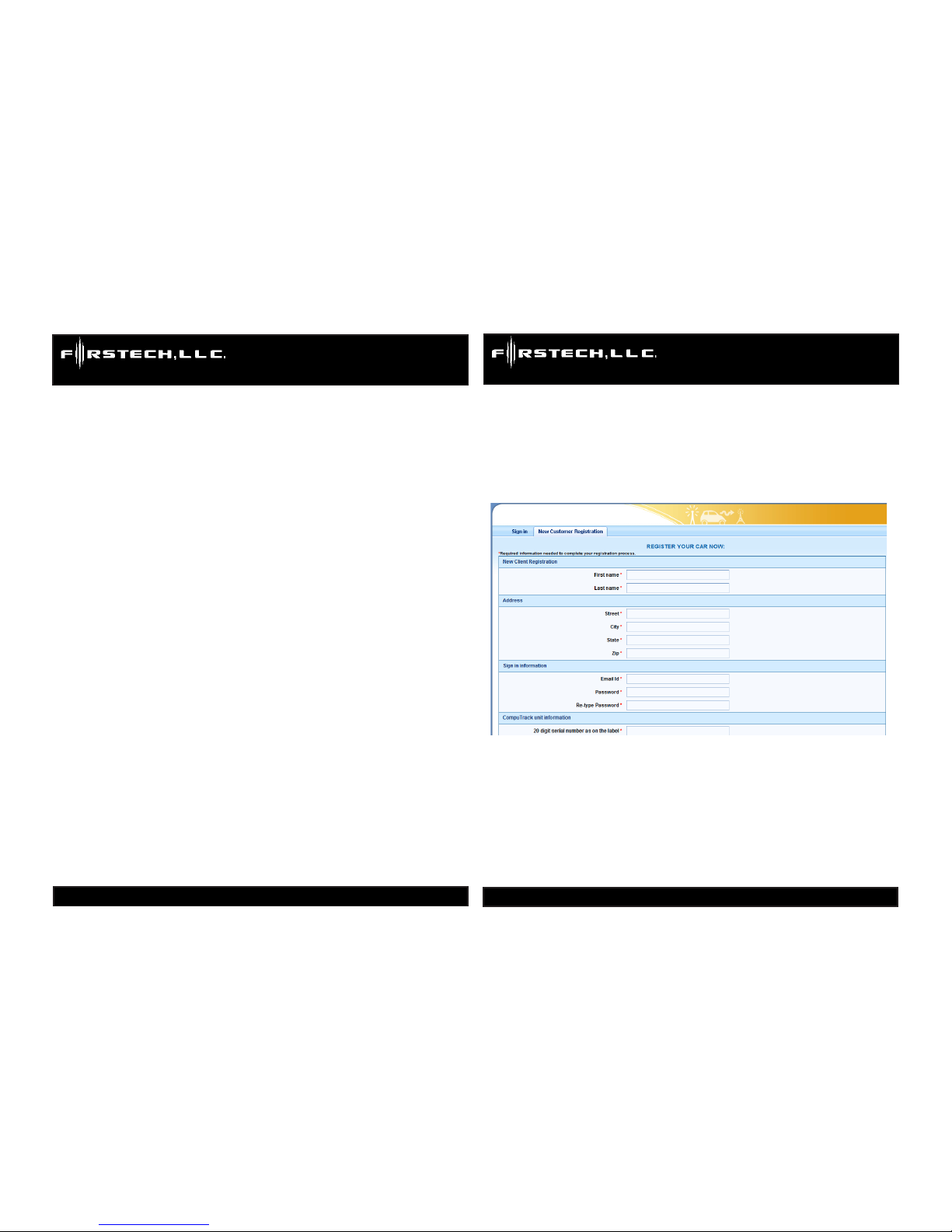

The new Customer Registration page looks something like this:

From the Installation Worksheet, input the customer contact information in the spaces provided.

Note:

If the customer contact information is not available, you can ll the elds

with dummy info and update it later. In other words, for the contact info you can enter “John Doe, 123 Any Street, Any Town, Any State, 00000”,

and for the email address, you can enter anyname@anymail.com. This

information must be updated later.

Page 8

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 8

Page 17

For the Login Information, enter the following password:

1234. Re-type the password as requested. The customer can change his password at any time in the future. New customer registrations should use the password 1234.

Enter the 20-digit Serial Number in the space provided.

Click on the “I Agree” button at the bottom of the page to complete the registration.

C. Conguration

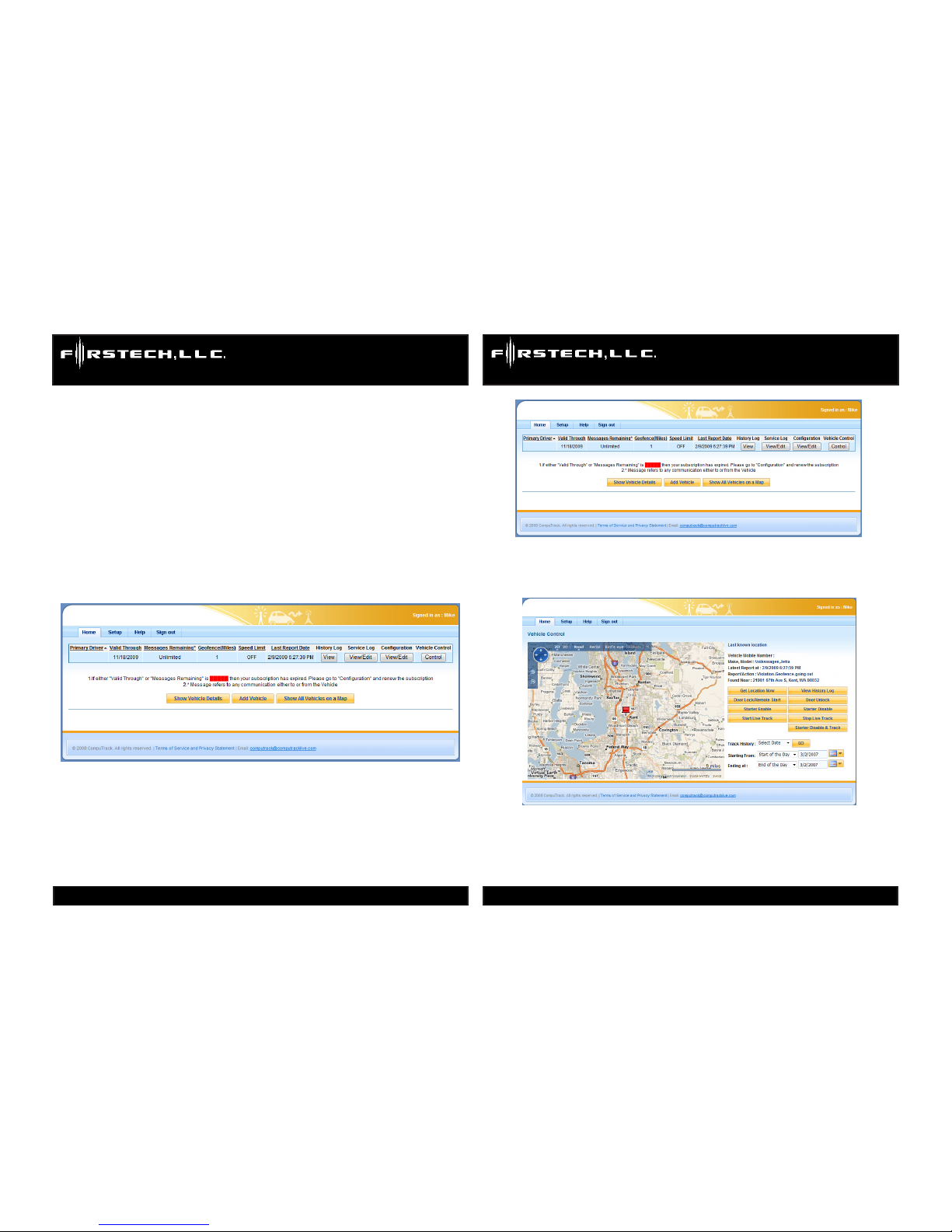

After completing the registration, you will be taken to the customer’s Home

Page, which will look something like this:

Check the information to verify that the vehicle description is accurate. Move the cursor to the far right side of the page to column marked “Vehicle Control,”

and then click on the eld marked “Control.” You will then be taken to the

Vehicle Control Page, which looks much like this:

This page allows users to locate, track, and remotely control their vehicle. The features are easy to use and generally self-explanatory.

The nal test for each newly installed CompuTrack unit is to request its current

location. Simply click on the

Page 9

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 16

Page 9

Move the mouse towards the right side of the page to the column marked Con-

guration, and click on the eld marked “View/Edit”. You will then be taken to the Conguration Page, which looks like this:

The Conguration Page enables you to customize the CompuTrack GPS

system for each new customer. Using the information from the Installation

Worksheet, ll in the elds in the sections marked “Vehicle Data,” Features Installed,” and “Alert Notications will be sent for”.

The section marked “Points of Interest” should be left blank - the customer can enter this information later.

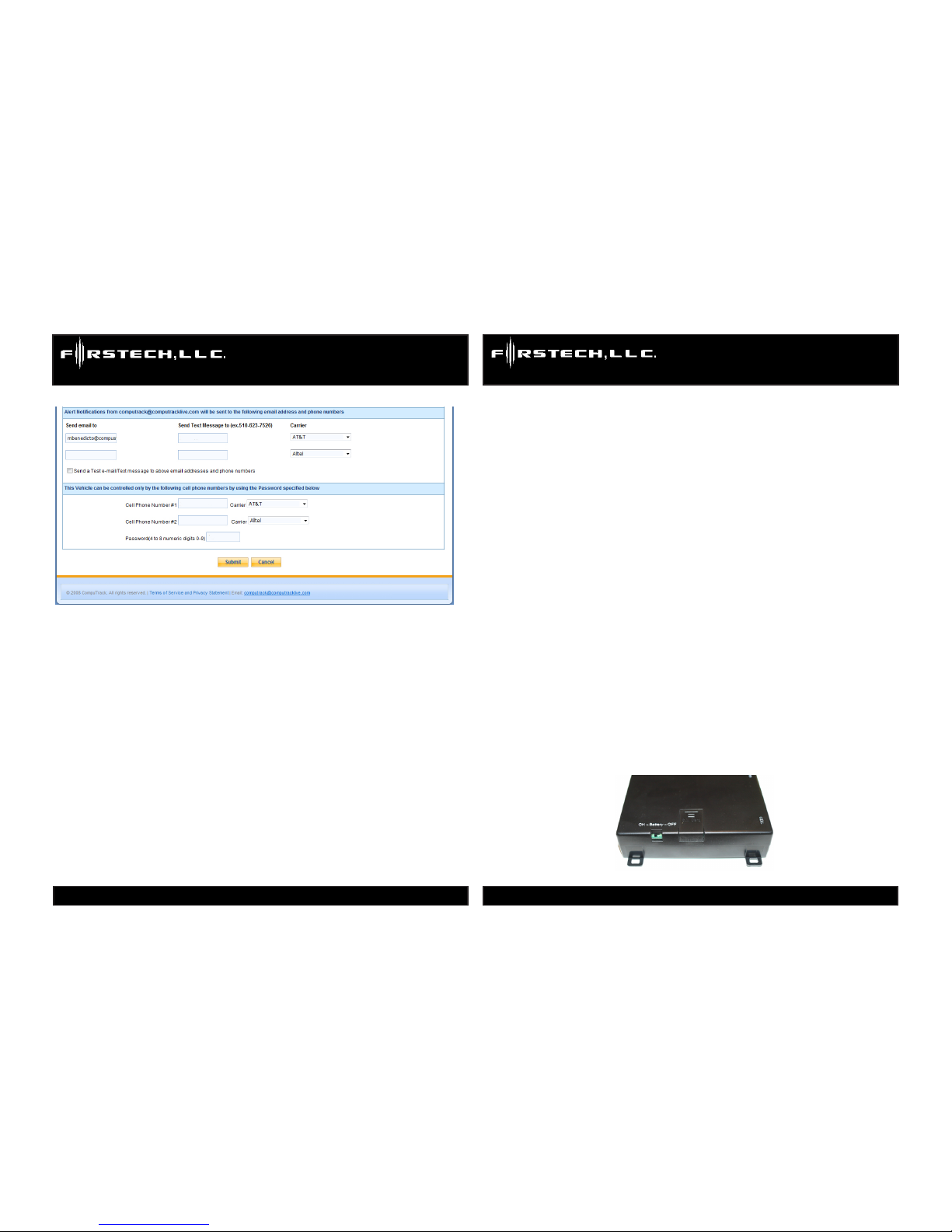

You will nd the section for conguring cell phone services near the bottom of

the page. This section will enable you to specify which cell phones are allowed to send messages to the CompuTrack monitoring unit, and to receive messages from it. That section of the page will look something like this:

3. Final Testing

Each CompuTrack unit should be tested before delivery to the customer. You can test the unit either by using an Internet browser or sending a text message.

Both methods are described below.

A. Using an Internet browser to test the unit

Use your browser to go to the following site: www.computracklive.com. Click on the Access your CompuTrack tab, and then click where it says, click here.

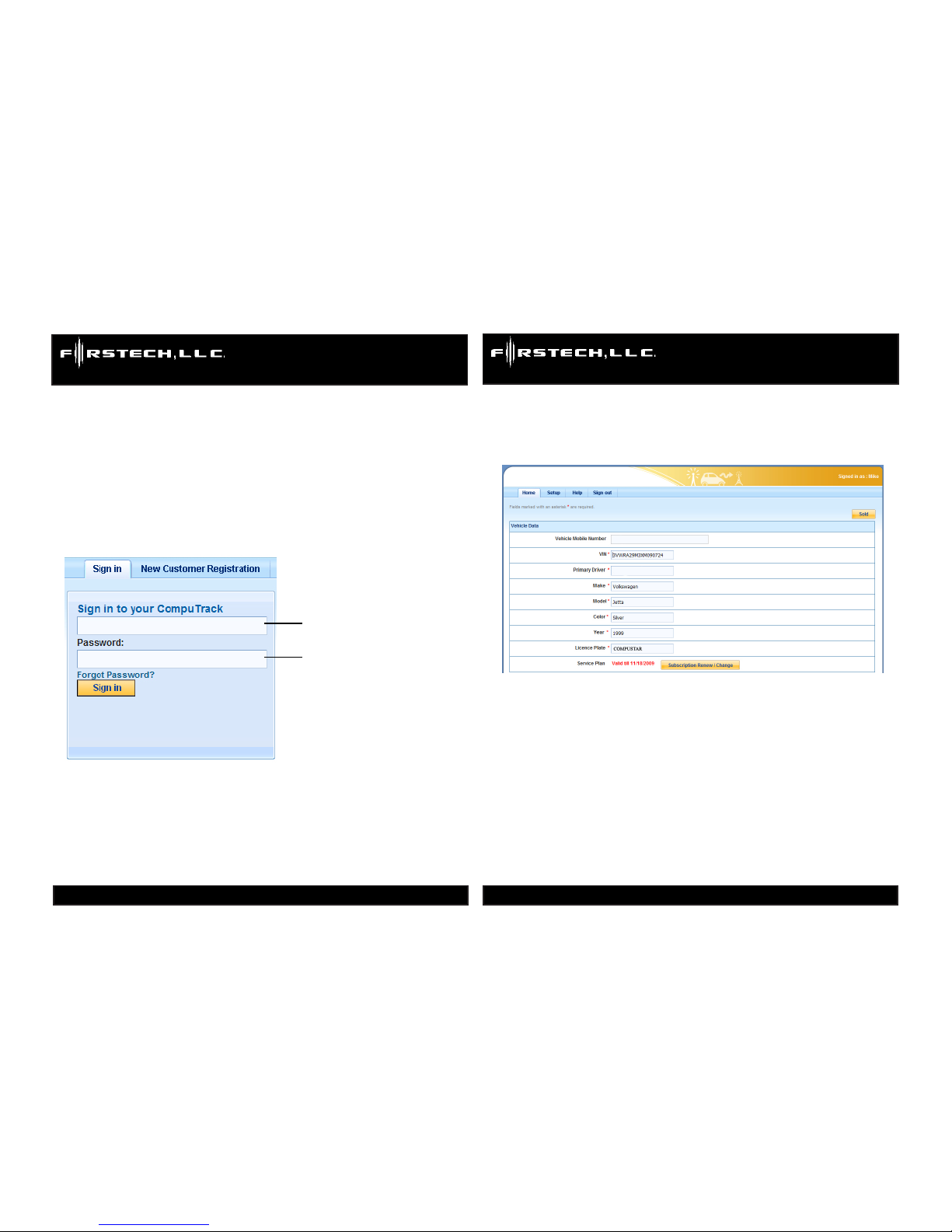

The page will look something like this:

Enter your email address here

Enter your password here

This is the same website that was previously used for registering the new customer. This time you will log in as an Existing Customer. Under the “Existing Customers” section, input the customer’s email address and the password (1234). You will then be taken to the customer’s Home Page. The Home Page will look much like this:

Page 10

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 10

Page 15

- The wiring harness includes a 5-amp fuse on the RED wire, providing Power. The fuse must be installed close to the 12 Volt source. If you connect the RED wire directly to the vehicle’s battery Positive Post, then the fuse MUST be installed within 12 inches of the Positive battery terminal. Optionally, a second 5-amp fuse may also be used at the monitoring unit’s mounting location.

It is now time to power-up the unit. Proceed as follows:

1. Make sure the vehicle is parked outside and away from buildings that may block the GPS signals.

2. Make sure the backup battery switch is in the OFF position.

3. Plug the keyed harness connector into its mating receptacle on the monitoring unit. The receptacle is marked “Input/Output.”

4. The unit should now have power. The LEDs will start ashing. The GREEN LED will stop ashing within a minute or two, as it achieves

signal lock with the AT&T GSM (Global System for Mobile Com

munications) network. The RED LED will stop ashing when it locks

onto its GPS (Global Positioning Satellite) signal, usually within three minutes.

5. Switch the Battery switch to the ON position.

Congratulations! You’ve completed the physical installation. It is now time

for the nal test.

Input the customer’s information in the section marked “Alert Notications from AutoVantage@ayantra.com will be sent to the following email address

and phone numbers”.

You should also input the customer’s information in the section marked “This vehicle can be controlled only by the following cell phone numbers

by using password specied below.”

Note: If you intend to use your own cell phone for testing purposes, you can temporarily submit your own cell phone information. Your cell phone should be capable of sending and receiving text messages if you intend to use it for testing. Remember to return to the Conguration Page to remove your cell phone info when you have completed testing, and before

you deliver the system to your customer.

When you’ve nished inputting the required information, click the “Submit”

button at the bottom of the page.

Page 11

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 14

Page 11

C: Mounting The Unit and Providing Power

After conrming an appropriate location for the CompuTrack GPS monitoring

unit by successfully checking its signal strength, you are now ready to mount the unit in place. Remember, the unit must be positioned horizontally with the label side up.

If the unit is positioned under the seat, you have two options:

- The GPS monitoring unit can be mounted to the oor pan under the seat by

using heavy-duty, double-faced adhesive tape, or by using Velcro®. It can even be covered with carpet. Make sure that the unit is securely mounted in a manner that will not strain its wire harness.

- The GPS monitoring unit can also be mounted underneath the seat frame by using tie strips running through its case holes. Make sure that when someone sits in the seat, the seat structure does not contact the unit, or strain its wire harness.

After the GPS monitoring unit has been mounted, the next step is powering it up. Proceed as follows:

- Disconnect the wiring harness from the GPS monitoring unit. The wiring harness must remain disconnected from the monitoring unit until the last phase of the installation.

- Make sure the battery switch is in the OFF position.

- Connect the BLACK wire from the wiring harness to a known good grounding point. Check with a meter if you are not sure.

- Connect the RED wire from the wiring harness to a known good source of full-time 12-volt positive power. Make sure that the power source has constant

12 volts.

Congratulations! You’ve completed the registration process. You are now ready to install the CompuTrack monitoring unit in the vehicle.

2. Physical Installation

The CompuTrack GPS monitoring unit is extremely easy to install. It does not require an external antenna: both the GPS antenna and the cellular antennas are built-in. Basic Installation requires only three wired connections: RED wire for Power, BLACK wire for Ground and YELLOW for Ignition. The

Basic Installation consists of three simple steps: A: nding a place to position the monitoring unit; B: testing for signal strength; and C: mounting the unit in

place and providing power.

A: Placement

First, nd a location for the GPS monitoring unit. The unit must be placed in

a horizontal position with its label facing up to ensure that the built-in antenna can receive signals. It should not be located directly underneath a metallic

cover; however, plastic, berglass, glass and cloth coverings are acceptable.

There are many places where the GPS monitoring unit can be positioned. Here

are some suggestions:

- Under-the-seat option The GPS monitoring unit was designed to be mounted under either the front or rear seats, limited only by available space. Check under the seat(s) and make sure that the unit can be installed without coming into contact with any seat mechanisms, tracks or motors. Position the unit in place and proceed to Step B to check the signal strength. OR

- Below-the-rear-deck option In many cases, the GPS monitoring unit can also be

Page 12

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

CT-501-PA Us e r s /In s T A l l MA n U A l

Co M P U T r A C k GPs sy s T e M

www.computracklive.com

Page 12

Page 13

installed under the vehicle’s rear shelf, behind the rear passenger seat and above the trunk. Position the unit in place and proceed to Step B to check the signal strength. OR

- On-or-under-the-dash option Another option is to install the CompuTrack GPS monitoring unit on or under the dash (space permitting and provided the dashboard deck is non-metallic.)

Position the unit in place and proceed to Step B to check the signal strength.

B: Check Signal Strength

Make sure the battery switch is in the OFF position (the battery switch is located on top of the unit). The vehicle should be located outdoors and at least twenty feet away from large obstructions that could block GPS signals, such as a tall building. Place the monitoring unit in the desired position, making sure you can see the red and green LEDs.

Provide temporary power to the monitoring unit. There are several ways to provide temporary power to the unit, including:

- Use a cigarette lighter power adaptor equipped with a 5-amp fuse and a 10-pin Molex connector to attach to the CompuTrack GPS monitoring unit.

- Use an A/C transformer equipped with a 5-amp fuse and a 10-pin Molex connector to attach to the CompuTrack GPS monitoring unit.

- Use the wiring harness that is included with the CompuTrack GPS monitoring unit. Simply disconnect the wiring harness from the monitoring unit, making sure the 5-amp fuse is in place and operational. Temporarily connect the BLACK wire from the wiring harness to Ground, and temporarily connect the RED wire from the wiring harness

to 12-volt Positive Power. Now plug the wiring harness into the mating receptacle on the GPS monitoring unit. The unit should then have power.

When the monitoring unit receives power, the LEDs will begin ashing. The GREEN LED will stop ashing after it has locked onto its cellular signal (usually within 1 – 2 minutes); and the RED LED will stop ashing when it locks onto its GPS signal (usually within 2 – 3 minutes). Signal strength is conrmed

when both LEDs stop ashing.

If the LEDs do not stop ashing, the GPS monitoring unit should be re-posi-

tioned in another location. Find another location for the monitoring unit and

conrm that the signal strength is acceptable before proceeding to the next step.

Notes:

Make sure that the vehicle’s windows are not covered with reective metallic lm that could block GPS signals. OEM in-glass defroster grids or anten-

nas do not effect reception.

The windshields and/or windows of certain types of vehicles (including some Mercedes-Benz models and some BMWs) may have coated glass that can prevent radio signals from penetrating the vehicle. If you are not sure

about the windows, use the signal test procedure described above to nd an

acceptable installation position for the CompuTrack GPS monitoring unit.
