CM5200
Installation Manual
16 pgs1.85 Mb0

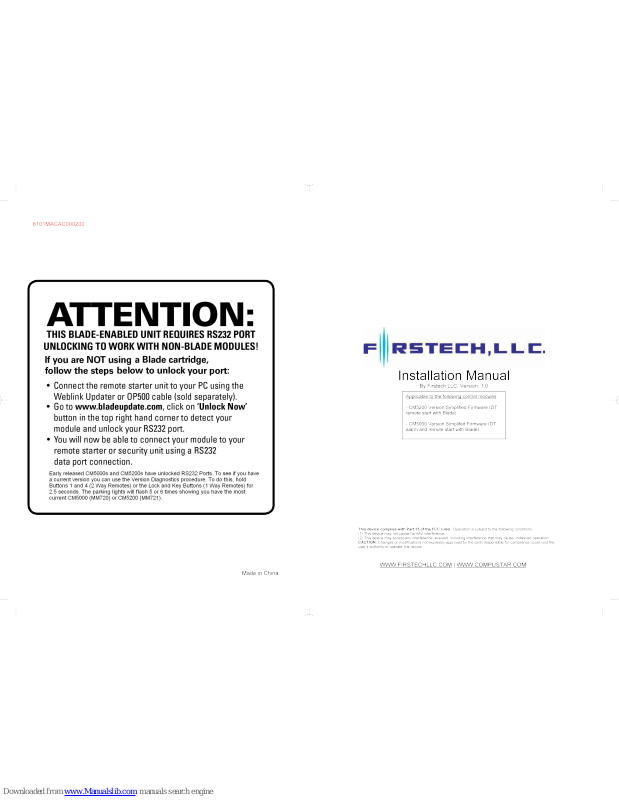

Firstech CM5200, CM5000 Installation Manual

Download
Page 1
Page 2
Page 3
Table of Contents
...............................................................................................................................................3 Introduction
...............................................................................................................................................3 Kit Contents
....................................................................................................................................4 Installation Basics
................................................................................................................5 Remote Programming Routine
........................................................................................................6 Placement and Use of Components
.............................................................................................................6 RPS-II (Remote Paging Sensor)
............................................................................................................................6 Firstech Shock Sensor
........................................................................................................................................................6 Siren
...........................................................................................................6 Thermistor (Temperature Sensor)
.................................................................................................................................................7 Hood Pin
........................................................................................................................................7 Backup Battery
................................................................................................................................7 Common Procedures
......................................................................................................................................7 Jumper Settings
..........................................................................................................................................7 Tach Sensing
...................................................................................................................................8 Alternator Sensing
.................................................................................8 Voltage Sensing – (Automatic Transmission Only)
..........................................................................8 Timed Crank Setting – (Automatic Transmission Only)
...................................................................................................................................8 Green/White Loop
.........................................................................................9 Reservation Mode for Manual Transmissions
.............................................................................................10 ADS Blade Cartridge Slot and Connector
............................................................................................11 CM5200 Wiring Schematic (Remote Start)
.........................................................................12 CM5000 Wiring Schematic (Alarm and Remote Start)
..................................................................................................................19 Option Programming Tables
.....................................................................................................................20 Option Menu Descriptions
..............................................................................................................................22 Option Programming
......................................................................................................................................24 Troubleshooting
..................................................................................................................27 Technical Support Contacts
2
Technical Support Contacts
Firstech technical support is reserved for authorized dealers only. Monday - Friday 888-820-3690
(7:00 am – 5:00 pm Pacific Coast Time)
Email support@compustar.com
Web http://www.compustar.com click on “dealer support”
Wire Diagrams
Click on the “Installogy Access Client” link found on your desktop. If you are a qualified dealer and unable to access this site, call your sales representative or the number above.
27
Page 4
Introduction
Thank you for purchasing this Firstech system for your vehicle. The following installation manual is intended for experienced and authorized Firstech technicians. We highly recommend that you contact your local Firstech dealer and seek professional installation. Call 888-820-3690 or visit our websites at
www.compustar.com or www.firstechllc.com to locate your nearest dealer.
This installation manual is for Version Simplified Firmware (V.SF) of the CM5200 and CM5000 control modules.
Some functions and features are not described in this install manual. Please see the remote’s user manual(s) for detailed descriptions on those features.
Caution: The Manufacture’s warranty will be void if this product is installed by anyone other than an authorized Firstech dealer. Firstech reserves installation support services to authorized dealers only.
Kit Contents
All Firstech CM5200 control modules include the following:
- CM5200 main control module
- Main ignition wiring harness with two relays
- Wiring harnesses
- Hood pin
- Thermistor temperature sensor (2 Way remote LCD systems only)
All Firstech CM5000 control modules include the following:
- CM5000 main control module
- Main ignition wiring harness with two relays
- Wiring harnesses
- Hood pin
- Mountable bright blue LED
- Thermistor temperature sensor (2 Way remote LCD systems only)
- Firstech dual stage shock sensor The following sensor is available but not included with every system:
- Remote pager sensor (RPS-II) (Optional on 2 Way remote LCD systems only)
The remote(s) and antenna are modular and are not specific to the control modules. You have the ability to pair almost any Firstech remote(s) and antenna receiver to the CM5200 or CM5000.
3
Page 5
Technical Support Contacts
Firstech technical support is reserved for authorized dealers only. Monday - Friday 888-820-3690
(7:00 am – 5:00 pm Pacific Coast Time)
Email support@compustar.com
Web http://www.compustar.com click on “dealer support”
Wire Diagrams
Click on the “Installogy Access Client” link found on your desktop. If you are a qualified dealer and unable to access this site, call your sales representative or the number above.
27
Installation Basics
If you are new to installing Firstech Series Remote Starts and / or Alarms, we highly recommended that you thoroughly review this manual to installing your first unit.
Key Points to Consider Before Installation:
You must code remotes to this system before anything will function
Program remotes by cycling the ignition ON / OFF five times within seven seconds and tap button 1 (0.5 seconds) on the first remote, and then tap button 1 (0.5 seconds) on the second remote.
RPS-II (Remote Paging Sensor) All 2 Way units include an optional RPS that has three main functions; 1. Status LED, 2. Remote
notification when triggered, and 3. Auto unlock/alarm disarm when a user specific 4 digit knock code is entered via tapping sensor through the windshield.
Internal green loop must be cut for AUTOMATIC transmission vehicles
By default, CM5 series units come in MANUAL transmission mode. You will need to cut the green loop inside the control module if you are installing the unit in a AUTOMATIC transmission.
Different tach learning procedure
Learn tach by: 1. Starting the vehicle with the key, 2. Pressing and holding the foot brake, and 3. Holding the remote start button on the remote for 2.5 seconds - one chirp and parking light flash indicates that the vehicle tach signal has been successfully learned. Three chirps indicate that the CM4 or CM5 control module failed to see a proper tachometer signal. (These units have the option for Voltage / Tachless and
1.5 second assume cranking).
New Option Menus The option menu is larger than the previous CM3 series control modules. It is important to familiarize
yourself with the new options as it will save time in most applications. For instance, Option 1-04 controls the double pulse unlock feature on all CM5 series control modules.
Option Programmer (OP500) Most options on these units can be programmed with the remote(s), however setting auxiliaries and
Special Option Groups 1 and 2 require the use of the OP500. Please note, the system must be unlocked / disarmed to sync the OP500 with the control module. Otherwise, an “ER 01” message will show on the display of your OP500.
Internet updatable processors
Visit “Dealer Support” at www.compustar.com
All CM4 and CM5 series units are equipped with some of the most powerful processors available today. This flexibility allows for on-demand internet updating capabilities in the event of a version update or change.
4
A: The remotes need to be programmed. Review the “Common Procedure” section of this manual. I have these control modules that say MM720 and MM721. What are they? A: These control modules are the new CM5 series. MM720 = CM5000 and MM721 = CM5200.
I am trying to program the control module with the OP500 Option Programmer and it flashes “ER 01” when I plug it in to the antenna cable. What should I do?
A: Make sure that the system is not locked/armed. The last thing to check is the antenna cable or antenna extension cable – make sure this is not damaged. If you need to, try another cable. When the OP500 is working properly, it will read “success good.” You no longer need to program the remotes before the OP500 will sync.
What is the green loop wire inside the brain module? A: This wire determines the transmission mode. With the loop intact, the system is set for manual
transmissions. With the loop cut, the system is set for automatic transmission. Where do the blue and purple wires off the extra relay go on the CM5000/CM5200? A: This is a pre-wired positive output, negative trigger relay. Use the secondary ignition, starter, and
accessory outputs from CN3 to give a negative trigger to the purple wire. This will determine the12V positive (+) output of the blue wire, which you can then connect to your secondary ignition, starter, or accessory wire.
I need a ground when armed wire, does the control module have one?
A: You can use the starter output on CN1 that goes to the starter kill relay. You must cut this wire and place a diode in line so that when the ignition on the other side of the relay goes to ground, it won’t back feed to your accessory. Install the stripe side of the diode facing the control module.
Are the CM5 series control modules voltage sensing? A: Yes. The CM5000 and CM5200 all have voltage sensing. Review the “Common Procedures” section
of this manual.
On the brain, how do I set the auxiliaries?
A: Aux 1 and 2 are default on this control module. Aux 1 is the small white wire on Connector 3. Aux 2 is the small violet wire in Connector 4.
All my connections are made and remotes programmed, how do I program the tach?
A: Review the “Common Procedures” section of this manual. The vehicle remote starts when disarmed, but not when armed. A: The starter kill relay was installed backwards. Check to make sure the yellow/black wire is going to the
ignition side of the wire, and that the yellow wire is going to the engine side. The vehicle starts and shuts down 3 times in a row.
25
Page 6
Remote Programming Routine
IMPORTANT: Any and all remotes must be coded to the control module prior to performing any and all
operations.
Remotes excluding P2WSSR
STEP 1: Activate programming mode by manually turning the vehicle’s key between the Ign On and Off
(or the Acc & On positions) five times within 7 seconds. The vehicle’s parking lights will flash once with the successful completion of this step. (Note: this step also places the control module into Valet Mode)
th
STEP 2: Within a 2 second period after the 5
ignition cycle tap Button I on two way remotes or the Lock button on one-way remotes for 0.5 seconds. The parking lights will flash once to confirm the transmitter has been coded. Repeat for additional remotes, up to three.
Exiting Programming: Programming is a timed sequence. After 2 seconds the parking lights will flash twice signaling the end of programming mode.
Programming Multiple Remotes: After the confirmation flash given in STEP 2, code additional remotes by tapping Button I on two way remotes or the Lock button on one way remotes. The parking lights
will flash once confirming each additional remote. All systems (except the P2WSSR), can recognize up to three remotes.
Note: If you program only 1 Way remotes to a 2 Way antenna you will receive 3 parking light flashes and/or siren chirps when you turn the ignition on. This will be alleviated by programming a 2 Way remote.
Pro P2WSSR
STEP 1: Remove the AA battery from the remote. STEP 2: Activate programming mode by manually turning the vehicle’s key between the Ign On and Off
(or the Acc & On positions) five times within 7 seconds. The vehicle’s parking lights will flash once with the successful completion of this step. (Note: this step also places the control module into Valet Mode)
th
STEP 3: Within a 2 second period after the 5
ignition cycle, insert the AA battery into the remote. The parking lights will flash once to confirm this step. If you have an additional 1 Way remote tap the Lock button after inserting the AA battery into the 2 Way remote.
STEP 4: Wait several seconds for the parking lights to flash twice and the remote LCD to receive a page back. The transmitter has now been coded.
Programming Multiple Remotes: After the confirmation flash given in step 3, program the optional 1 Way remote by tapping the Lock button for 0.5 seconds. The parking lights will flash once confirming that the 1 Way this remote has been learned. The P2WSSR can recognize (1) 2 Way remote and (1) 1 Way remote.
5
A: This usually means that the engine sensing mode is not working correctly. If you are using a coil, change to an injector or try alternator mode.
The vehicle will lock and unlock, but will not remote start or flash the parking lights. A: The system is in valet mode. Tap buttons (I) + (III) for 0.5 seconds while the key is in the on position. Whenever I try to arm the vehicle, it chirps the siren 3 times and will not arm. A: Check the hood and trunk trigger inputs.
When I turn the ignition on the parking lights flash 3 times and/or siren chirps 3 times. What is the problem?
A: When you program only 1 Way remotes to a 2 Way antenna and no 2 Way remotes the control module reminds you of this situation each time you turn the ignition on. It does not affect the operation of the system but will continue to do so until you program both 2 and 1 Way remotes to the 2 Way antenna.
Do the door locks flip flop in polarity? A: No. You can use the CompuPack (relay pack) for high current positive (+) locks, or the DM600
harness used for low current 600mA positive (+) locks.
What is this cartridge slot on the rear of the CM5000 and CM5200?
A: This is the slot for the Blade cartridge system by ADS. This slot is for the Idatalink Blade remote start bypass modules. For more information on the compatibility and install information please visit
www.idatalink.com/fitguide. Using this system eliminates many connections between your standard
control module and bypass module. IMPORTANT: If you are not using the Blade then you will not have or use the 20 pin connector next to the back up battery port.
26
Introduction
Thank you for purchasing this Firstech system for your vehicle. The following installation manual is intended for experienced and authorized Firstech technicians. We highly recommend that you contact your local Firstech dealer and seek professional installation. Call 888-820-3690 or visit our websites at
www.compustar.com or www.firstechllc.com to locate your nearest dealer.
This installation manual is for Version Simplified Firmware (V.SF) of the CM5200 and CM5000 control modules.
Some functions and features are not described in this install manual. Please see the remote’s user manual(s) for detailed descriptions on those features.
Caution: The Manufacture’s warranty will be void if this product is installed by anyone other than an authorized Firstech dealer. Firstech reserves installation support services to authorized dealers only.
Kit Contents
All Firstech CM5200 control modules include the following:
- CM5200 main control module
- Main ignition wiring harness with two relays
- Wiring harnesses
- Hood pin
- Thermistor temperature sensor (2 Way remote LCD systems only)
All Firstech CM5000 control modules include the following:
- CM5000 main control module
- Main ignition wiring harness with two relays
- Wiring harnesses
- Hood pin
- Mountable bright blue LED
- Thermistor temperature sensor (2 Way remote LCD systems only)
- Firstech dual stage shock sensor The following sensor is available but not included with every system:
- Remote pager sensor (RPS-II) (Optional on 2 Way remote LCD systems only)
The remote(s) and antenna are modular and are not specific to the control modules. You have the ability to pair almost any Firstech remote(s) and antenna receiver to the CM5200 or CM5000.
3
Page 7
A: The remotes need to be programmed. Review the “Common Procedure” section of this manual. I have these control modules that say MM720 and MM721. What are they? A: These control modules are the new CM5 series. MM720 = CM5000 and MM721 = CM5200.
I am trying to program the control module with the OP500 Option Programmer and it flashes “ER 01” when I plug it in to the antenna cable. What should I do?
A: Make sure that the system is not locked/armed. The last thing to check is the antenna cable or antenna extension cable – make sure this is not damaged. If you need to, try another cable. When the OP500 is working properly, it will read “success good.” You no longer need to program the remotes before the OP500 will sync.
What is the green loop wire inside the brain module? A: This wire determines the transmission mode. With the loop intact, the system is set for manual
transmissions. With the loop cut, the system is set for automatic transmission. Where do the blue and purple wires off the extra relay go on the CM5000/CM5200? A: This is a pre-wired positive output, negative trigger relay. Use the secondary ignition, starter, and
accessory outputs from CN3 to give a negative trigger to the purple wire. This will determine the12V positive (+) output of the blue wire, which you can then connect to your secondary ignition, starter, or accessory wire.
I need a ground when armed wire, does the control module have one?
A: You can use the starter output on CN1 that goes to the starter kill relay. You must cut this wire and place a diode in line so that when the ignition on the other side of the relay goes to ground, it won’t back feed to your accessory. Install the stripe side of the diode facing the control module.
Are the CM5 series control modules voltage sensing? A: Yes. The CM5000 and CM5200 all have voltage sensing. Review the “Common Procedures” section
of this manual.
On the brain, how do I set the auxiliaries?
A: Aux 1 and 2 are default on this control module. Aux 1 is the small white wire on Connector 3. Aux 2 is the small violet wire in Connector 4.
All my connections are made and remotes programmed, how do I program the tach?
A: Review the “Common Procedures” section of this manual. The vehicle remote starts when disarmed, but not when armed. A: The starter kill relay was installed backwards. Check to make sure the yellow/black wire is going to the
ignition side of the wire, and that the yellow wire is going to the engine side. The vehicle starts and shuts down 3 times in a row.
25
Placement and Use of Components
IMPORTANT: The placement and use of components are critical to the performance of this system.
Antenna and Cable
Antenna
Firstech antennas are calibrated for horizontal installation at the top of the windshield. The cable that connects the antenna to the control module must be free from any pinches or kinks. Installing the antenna in areas other than the windshield may adversely affect the effective transmitting distance of the remotes.
RPS-II
RPS-II (Remote Paging Sensor)
(CM5000 Only) The RPS-II sensor is designed to be mounted on the inside of the windshield. Basic RPS
functions do not require programming. There is a three position switch on the rear of the RPS-II. This adjusts the sensitivity of the RPS-II. The larger the circle the more sensitive the knock is. To activate the RPS unlock / disarm feature you must perform the following procedures:
STEP 1: Disarm/unlock the alarm. (Remotes must be programmed first.) STEP 2: Turn ignition key to the “on” position and the leave the driver’s door open. STEP 3: Knock on the windshield in front of the RPS a total of 10 times (each time you knock the LED on the RPS will flash
RED). The LED will begin to flash rapidly in BLUE with successful completion of this step. STEP 4: Enter the first digit of the desired four-digit pass code by knocking on the windshield in front of the RPS the desired
number of times. For example, to enter 3, knock on the sensor 3 times (each time you knock the LED will flash RED) then wait. STEP 5: The LED on the RPS will confirm your first number by flashing BLUE slowly. Once the LED begins to flash rapidly in
BLUE, enter your second number by repeating step 4.
STEP 6: Repeat steps 4 & 5 to enter all four numbers. STEP 7: Turn the ignition OFF. The RPS disarm/unlock feature is now programmed. Repeat steps 3 – 5 to enter your
disarm/unlock code.
**The first two digits of the RPS unlock/disarm pass code will be the default pass code for the Secure Valet (you do not need to program them independently).
Firstech Shock Sensor
(CM5000 Only) For best results mount the shock sensor by zip tying it to the vehicle’s main ignition
harness. There is a small dial on the sensor that ranges from Off to 10. The higher the number on the dial the greater sensitivity of impact. A small adjustment to the dial can make a significant difference in sensitivity for both 1
st nd
and 2 stages. Recommended dial settings for most vehicles is somewhere
between 2 & 4.
Siren
(CM5000 Only) The volume output of the siren can be increased 3 dB by cutting black wire loop located
near the base of the siren. To adjust duration time when the alarm has been triggered, change Option 3­07 – the system default is 30 seconds.
Thermistor (Temperature Sensor)
Every 2 Way remote - Firstech system includes an optional thermistor, which must be plugged into the 2 pin port of the control module for use. This plug is blue on the CM5000. The use of the thermistor allows
6
STEP 2: To change the option number you wish to program, use the left and right arrow keys on the OP500. It will scroll through the options available in menu 1 and then move to menu 2, then 3 and 4. Use the up and down arrow buttons on the OP500 to adjust the option settings; “1” is the default setting, and “2”, “3”, and “4” are the optional settings.
At the end of menu 4, if diesel mode or channel expander functions were enabled – or if any of the auxiliary outputs were set to “Program”, the duration of these settings can now be adjusted.
STEP 3: When finished with the adjustment of the various option settings, press and hold the “W” (write) button until the OP500 chirps, which is approximately 2.5 seconds. This will write the settings to the control module. Wait until the module displays “Success” before disconnecting it from the antenna cable.
To reset the options, hold the “R” (reset) button and the “W” (write) button for 2.5 seconds. Release then write the reset, hold the “W” button until the OP500 chirps, which is approximately 2.5 seconds.
Option Programming Using a Remote
Using a remote is a timed process so read this section in its entirety before beginning. IMPORTANT: Special Option Groups cannot be programmed with a remote – the OP500 must be used.
STEP 1: Select the option menu that contains the desired programming option. To program options use the following button combinations:
How To Program Options With 2 Way Remotes
Scroll
Select Select Select Select
With 2 Way Remotes
Through
Menu
Option 1 Option 2 Option 3 Option 4
(1 + 2) for 2.5 seconds then
(1 + 2) for 2.5 seconds
Tap Button 4 Tap Button 1 Tap Button 2 Tap Button 3 Tap Button
4
Option Menu 1
(1 + 2) for 2.5 seconds then Tap Button Tap Button Tap Button Tap Button Tap Button
Option Menu 2
(1 + 4) for 2.5 seconds 4 1 2 3 4
(1 + 4) for 2.5 seconds then
(1 + 2) for 2.5 seconds
Tap Button 4 Tap Button 1 Tap Button 2 Tap Button 3 Tap Button
4
Option Menu 3
(1 + 4) for 2.5 seconds then Tap Button Tap Button Tap Button Tap Button Tap Button
Option Menu 4
(1 + 4) for 2.5 seconds 4 1 2 3 4
How To Program Options With 1 Way Remotes
Scroll
Select Select Select Select
With 1 Way Remotes Through
Menu
Option 1 Option 2 Option 3 Option 4
Hold Trunk + Key/Start
for 2.5
seconds
Hold Trunk + Key/Start
for 2.5
seconds
Tap Unlock Button
Tap
Key/Start
Button
Lock + Unlock for 2.5
seconds then Lock + Unlock
for 2.5 seconds
Tap Lock
Button
Option Menu 1
Hold Trunk Hold Trunk
Lock + Unlock for 2.5 Tap Tap
Tap Lock
Option Menu 2
seconds then Lock +
Key/Start for 2.5 seconds
+ Key/Start + Key/Start
for 2.5
seconds
Button
Unlock Key/Start
for 2.5
Button Button
seconds Hold Trunk + Key/Start
for 2.5
seconds
Hold Trunk + Key/Start
for 2.5
seconds
Tap Unlock Button
Tap
Key/Start
Button
Lock + Key/Start for 2.5
seconds then Lock + Unlock
for 2.5 seconds
Tap Lock
Button
Option Menu 3
Hold Trunk Hold Trunk
Lock + Key/Start for 2.5 Tap Tap
Option Menu 4 seconds then Lock +
Key/Start for 2.5 seconds
+ Key/Start Tap Lock + Key/Start
for 2.5
seconds
Button
Unlock Key/Start
for 2.5
Button Button
seconds
23
Page 8
the 2 Way remote to display the vehicle’s interior temperature on the remote LCD (liquid crystal display). IMPORTANT: New thermistor plugs are blue 2 pin connectors on the CM5 series but old white plug thermistors will still work.
Hood Pin
The hood pin switch triggers the alarm in the event the hood is opened while the alarm is armed. The hood pin also doubles as an important safety feature that prevents the remote start from engaging while the hood is open.
Backup Battery
(CM5000 Only) The backup battery input on the control module / brain is for any optional battery backup
unit (sold separately). The red positive lead (+) acts both as an input and charging output for a 12 Volt battery backup. A backup battery maintains basic alarm functionality when main vehicle power is lost. See the “Wiring Schematics” section(s) for complete details.
Common Procedures
Jumper Settings
Caution: Jumper settings affect the polarity and use of certain outputs. If these jumpers are used
incorrectly, damage to the vehicle and /or control module may occur.
Jumper 1 (Door Trigger Polarity)
Determines the polarity of the door trigger input wire (red/white). In the default position the door trigger registers negative (-) triggers. To change to a positive (+) trigger, move the jumper.
Jumper 2 (Glow Plug or Key Sense Polarity)
Determines the polarity of the glow plug or key sense input wire (brown/white). In the default position it monitors a positive (+) glow plug input. To change to a negative (-) input move the jumper. To change from the glow plug to the key sense setting, you must change Option 4-09.
Jumper 3 (Parking Light to Trunk Output)
Determines the output type (not polarity) of the green/white wire on connector one (CN1). In the default position it provides a positive (+) parking light output. To change to a positive (+) trunk output move the jumper. A negative (-) parking light output is found on connector three (CN3) and a negative (-) trunk output is found on connector four (CN4).
Auxiliary Outputs on Connector 3
This version of the CM5 series comes with default auxiliary wires on pins 15 and 17. The small white wire is Aux 1 and small violet wire is Aux 2. They can be changed with options 4-13 and 4-14.
Tach Sensing
The default engine sensing mode is tach. In cold weather climates we recommend using an injector wire verses a coil wire for tachometer sense. There are new features that adjust tach reading methods on option 2-01. IMPORTANT: The remotes must be coded prior to setting up tach sensing. Firstech recommends using a digital multimeter to test for tach.
STEP 1: Start the vehicle with the key. Allow time for the engine to idle down. STEP 2: Test wire and make connection. At idle the tach wire should test between 1 to 4 Volts AC. As
the vehicle RPM’s increase the voltage on the meter will also increase. Always solder tach connections. 7
STEP 2: Scroll through menu allowing for 1 parking light flash and/or siren chirp per step. STEP 3: Once finished scrolling through the menu wait for the parking lights and/or siren chirp to confirm
the option number. i.e. option 2-04 will flash 4 times. Then use one of the table selections to select the option corresponding to your desired setting.
Resetting to Factory Defaults: To reset the options in a particular menu group, enter the menu shown in the above tables. To reset options with a 2 Way remote tap button 3 three times. To reset options with a 1 Way remote tap the Key/Start button 3 times. Wait for the siren to chip and parking lights to flash between each tap. After the third tap, the option menu will reset and the siren will chirp three times. This must be done for each option group that needs to be reset.
Troubleshooting
Remote Start Error Codes
If the remote start fails to start the vehicle, the parking lights will flash three times immediately. Following those three flashes the parking lights will flash again corresponding to the error table below:
Number of
Parking Light Remote Start Error
Flashes
st
Motor running or must program tach before 1 remote start
1 2 Key in ignition on position
3 Door open (manual transmission only) 4 Trunk open 5 Foot brake on 6 Hood open 7 Reservation off (manual transmission only) 8 Tach or voltage sensing failure
*Pro 2 Way remotes will display the error number “Strt Er##” on the LCD.
Alarm LED Diagnostics (CM5000 Only)
When the alarm is triggered the LED on the RPS (if installed), Secure Valet (if installed) and the LED (if installed) will flash a certain amount of times as shown in the table below. This is intended for users with 1 Way remotes.
Priority Trigger LED Flash Diagnostic
Door/Hood/Trunk/Ign
Triggered
2 flashes, rest, then repeat
1
Frequently Asked Questions
I have everything hooked up and the system will not respond.
2 2nd Shock Triggered 3 flashes, rest, then repeat
nd
2
Auxiliary Input
Triggered
4 flashes, rest, then repeat
3 4 Panic with remote 5 flashes, rest, then repeat
24
Remote Programming Routine
IMPORTANT: Any and all remotes must be coded to the control module prior to performing any and all
operations.
Remotes excluding P2WSSR
STEP 1: Activate programming mode by manually turning the vehicle’s key between the Ign On and Off
(or the Acc & On positions) five times within 7 seconds. The vehicle’s parking lights will flash once with the successful completion of this step. (Note: this step also places the control module into Valet Mode)
th
STEP 2: Within a 2 second period after the 5
ignition cycle tap Button I on two way remotes or the Lock button on one-way remotes for 0.5 seconds. The parking lights will flash once to confirm the transmitter has been coded. Repeat for additional remotes, up to three.
Exiting Programming: Programming is a timed sequence. After 2 seconds the parking lights will flash twice signaling the end of programming mode.
Programming Multiple Remotes: After the confirmation flash given in STEP 2, code additional remotes by tapping Button I on two way remotes or the Lock button on one way remotes. The parking lights
will flash once confirming each additional remote. All systems (except the P2WSSR), can recognize up to three remotes.
Note: If you program only 1 Way remotes to a 2 Way antenna you will receive 3 parking light flashes and/or siren chirps when you turn the ignition on. This will be alleviated by programming a 2 Way remote.
Pro P2WSSR
STEP 1: Remove the AA battery from the remote. STEP 2: Activate programming mode by manually turning the vehicle’s key between the Ign On and Off
(or the Acc & On positions) five times within 7 seconds. The vehicle’s parking lights will flash once with the successful completion of this step. (Note: this step also places the control module into Valet Mode)
th
STEP 3: Within a 2 second period after the 5
ignition cycle, insert the AA battery into the remote. The parking lights will flash once to confirm this step. If you have an additional 1 Way remote tap the Lock button after inserting the AA battery into the 2 Way remote.
STEP 4: Wait several seconds for the parking lights to flash twice and the remote LCD to receive a page back. The transmitter has now been coded.
Programming Multiple Remotes: After the confirmation flash given in step 3, program the optional 1 Way remote by tapping the Lock button for 0.5 seconds. The parking lights will flash once confirming that the 1 Way this remote has been learned. The P2WSSR can recognize (1) 2 Way remote and (1) 1 Way remote.
5
Page 9
STEP 2: To change the option number you wish to program, use the left and right arrow keys on the OP500. It will scroll through the options available in menu 1 and then move to menu 2, then 3 and 4. Use the up and down arrow buttons on the OP500 to adjust the option settings; “1” is the default setting, and “2”, “3”, and “4” are the optional settings.
At the end of menu 4, if diesel mode or channel expander functions were enabled – or if any of the auxiliary outputs were set to “Program”, the duration of these settings can now be adjusted.
STEP 3: When finished with the adjustment of the various option settings, press and hold the “W” (write) button until the OP500 chirps, which is approximately 2.5 seconds. This will write the settings to the control module. Wait until the module displays “Success” before disconnecting it from the antenna cable.
To reset the options, hold the “R” (reset) button and the “W” (write) button for 2.5 seconds. Release then write the reset, hold the “W” button until the OP500 chirps, which is approximately 2.5 seconds.
Option Programming Using a Remote
Using a remote is a timed process so read this section in its entirety before beginning. IMPORTANT: Special Option Groups cannot be programmed with a remote – the OP500 must be used.
STEP 1: Select the option menu that contains the desired programming option. To program options use the following button combinations:
How To Program Options With 2 Way Remotes
Scroll
Select Select Select Select
With 2 Way Remotes
Through
Menu
Option 1 Option 2 Option 3 Option 4
(1 + 2) for 2.5 seconds then
(1 + 2) for 2.5 seconds
Tap Button 4 Tap Button 1 Tap Button 2 Tap Button 3 Tap Button
4
Option Menu 1
(1 + 2) for 2.5 seconds then Tap Button Tap Button Tap Button Tap Button Tap Button
Option Menu 2
(1 + 4) for 2.5 seconds 4 1 2 3 4
(1 + 4) for 2.5 seconds then
(1 + 2) for 2.5 seconds
Tap Button 4 Tap Button 1 Tap Button 2 Tap Button 3 Tap Button
4
Option Menu 3
(1 + 4) for 2.5 seconds then Tap Button Tap Button Tap Button Tap Button Tap Button
Option Menu 4
(1 + 4) for 2.5 seconds 4 1 2 3 4
How To Program Options With 1 Way Remotes
Scroll
Select Select Select Select
With 1 Way Remotes Through
Menu
Option 1 Option 2 Option 3 Option 4
Hold Trunk + Key/Start
for 2.5
seconds
Hold Trunk + Key/Start
for 2.5
seconds
Tap Unlock Button
Tap
Key/Start
Button
Lock + Unlock for 2.5
seconds then Lock + Unlock
for 2.5 seconds
Tap Lock
Button
Option Menu 1
Hold Trunk Hold Trunk
Lock + Unlock for 2.5 Tap Tap
Tap Lock
Option Menu 2
seconds then Lock +
Key/Start for 2.5 seconds
+ Key/Start + Key/Start
for 2.5
seconds
Button
Unlock Key/Start
for 2.5
Button Button
seconds Hold Trunk + Key/Start
for 2.5
seconds
Hold Trunk + Key/Start
for 2.5
seconds
Tap Unlock Button
Tap
Key/Start
Button
Lock + Key/Start for 2.5
seconds then Lock + Unlock
for 2.5 seconds
Tap Lock
Button
Option Menu 3
Hold Trunk Hold Trunk
Lock + Key/Start for 2.5 Tap Tap
Option Menu 4 seconds then Lock +
Key/Start for 2.5 seconds
+ Key/Start Tap Lock + Key/Start
for 2.5
seconds
Button
Unlock Key/Start
for 2.5
Button Button
seconds
23
STEP 3: Learn tach. While the vehicle is at idle, hold the foot brake and press and hold the remote start button on the remote control for 2.5 seconds.
The parking lights will flash once and the siren will chirp once to confirm a good tach signal. The parking lights will flash three times and the siren will chirp three times to indicate the tach did not learn. Two seconds following the three flashes, the number of parking light flashes will indicate the cause of the error:
Number of Parking Light
Tach Error
Flashes
1 Option 2-10 is not in default setting 1 2 Key is in the off position 3 Bad tach signal. Find a different wire.
Alternator Sensing
Alternator sensing is an alternative method the remote start can utilize to determine if the engine is running. This is different than the voltage sensing mode so a connection must be made. IMPORTANT: The remotes must be coded prior to setting up alternator sensing.
STEP 1: Change Option 2-10 to setting 2 - Alternator sensing. STEP 2: Test wire and make connection. The stator wire is found at the vehicle’s alternator. Change
your multimeter to DC voltage before testing for this wire. A. At rest, with the ignition off, the stator wire should test 0V DC. B. Turn the ignition to the run position. The stator wire should now test between 4 – 6V DC. C. Start the vehicle with the key. The stator wire should now test between 12 – 14V DC at idle.
STEP 3: Process complete – no further programming is required.
Voltage Sensing – (Automatic Transmission Only)
Voltage sensing is an alternative engine sensing mode or tachless mode. It monitors variations in voltage to determine if the vehicle started successfully. Voltage sensing does not require a connection to the vehicle other than the main ignition harness and other inputs/outputs. IMPORTANT: The system remotes must be coded prior to setting up voltage sensing.
STEP 1: Change Option 2-10 to setting 3 - Voltage sensing. STEP 2: Process complete – there is no further programming required other than adjusting crank time
when necessary (see below). Adjusting Crank Time: To adjust minimum crank times, refer to Option 2-12. To help ensure successful
starting, the system will automatically add additional crank time to the 2
nd rd
and 3 start attempts. In addition, there is a built in “Smart Resting Voltage Mode”. The lower the resting voltage, the longer the crank time becomes (up to 0.4 seconds). This innovative feature helps compensate for severe temperature variations. Traditional tach sensing is still highly recommended for colder climates.
Timed Crank Setting – (Automatic Transmission Only)
Option 2-10 setting 4 provides a timed 1.5 second crank for the remote start sequence. This option just cranks the vehicle for 1.5 seconds and assumes remote start has completed. This option can be used for GM and other vehicles with built in anti-grind systems.
Green/White Loop
This loop wire determines the transmission setting. The default position (uncut loop) is for manual transmissions. When the loop is cut, the system will be ready for automatic transmissions. In the default
8
Tach Sensing Method2-01 – This option will adjust the method at which tach is read by the module.
At default the current setting will minimize overcrank.
Turbo Mode
2-02
– This option will adjust the run time after Turbo mode has been engaged. The e-brake and door trigger input must be connected and the option must be turned on through the remote for this feature to work.
Diesel Timer
2-03
– Use this option if you can’t find the glow plug wire. You can use setting 2 for a default wait to start of 10 seconds, otherwise, you can adjust the time to 5 or 15 seconds by changing the option.
Trigger Start
2-04
– This option changes the number of times required for a negative (-) start input on Pin 12 of CN3.
Timer Start or Interval Between Cold Start
2-06
- This option dictates the time interval when the
control module will either remote start, either 1.5 or 3 hours.
Default 1: Will start every 3 hours until the vehicle is remote started or started by key and run for 4 minutes. Option 2: Will start every 1.5 hours until the vehicle is remote started or started by key and run for 4 minutes.
Engine Sensing2-10 – The available options are tach, alternator, voltage sensing, and assume crank.
Review the “Common Procedures” section for complete explanations on the three engine sensing modes.
Minimum Crank Time
2-12
– This option changes the crank time during the remote start sequence.
Dome Light Delay
3-03
– This option is used when connecting the door trigger input to the vehicles dome light circuit. It delays the door trigger input to prevent the door open icon displaying on 2 Way remotes upon lock/arm.
Starter-Kill
3-04
– This option determines the mode of the anti-grind/starter-kill relay.
Default 1: Anti-grind + starter-kill Option 2: Anti-grind only (no starter-kill) Option 3: Anti-grind + passive starter-kill: starter-kill activates in 45 seconds after ignition is turned off.
Factory Style Alarm3-06 – With this option on the control module will monitor the door triggers. If the
door is opened while locked/armed then the horn will honk if connected. Only available on the CM5200.
Siren Duration (Upon Alarm Trigger)
3-07
– With this option you can change the siren duration from
30 seconds to 60 seconds.
Horn Output
3-08
– This option will change the behavior of the horn output during lock, unlock, and
remote start. Please see the option table for available options. Only available on the CM5200.
Horn Output When Alarm is Triggered3-09 – This option changes the behavior of the small white wire on connector 3. This output must first be set to Horn output on option 4-03 before you can set this option.
Aux 1 Output
4-01
- This option determines the duration of the Aux 1 output. Setting 3 allows the
output duration to be set for a specific length of time. Aux 2 Output
4-02
- This option determines the duration of the Aux 2 output. Setting 3 allows the
output duration to be set for a specific length of time.
21
Page 10
(manual transmission) mode, the system must be set up in Reservation mode prior to the vehicle being able to remote start. IMPORTANT: All warranties or claims are void if a controller with a cut loop is installed on a vehicle with a manual transmission.
Reservation Mode for Manual Transmissions
To remote start a manual transmission vehicle, the system must first be set up in reservation mode. Reservation mode is designed to prevent the vehicle from remote starting while the transmission is in gear.
Installation Requirements
1. The vehicle’s door triggers must be connected to the control module. Prior to making final connections, test the factory door triggers to ensure that they are functioning properly.
2. The vehicle’s emergency/parking brake wire must be connected to the control module. The proper vehicle wire usually provides a negative (-) trigger while the emergency / parking brake is set.
3. The vehicle’s clutch must be momentarily bypassed while the remote start cranks the engine. This momentary bypass simulates the clutch being depressed. For complete details on how to wire a momentary clutch bypass consult your CompuTech program or contact our technical support department by calling 888-820-3690.
IMPORTANT: Do not install a remote start in manual transmission vehicles with convertible / removable tops and in user’s vehicles that leave their windows down. Firstech nor their authorized dealers will assume responsibility for improper use or install.
Activating Reservation Mode
STEP 1: Start the vehicle with the key. Place the transmission in neutral, remove pressure from the pedal brake, and set the emergency/parking brake.
STEP 2: Remove the key from the vehicle’s ignition. The vehicles engine should remain running even after the key has been removed. If the vehicle does not remain running, check the emergency / parking brake connection.
STEP 3: Exit the vehicle and close the door. The vehicle’s engine should shut off upon closing the door. If the vehicle’s engine does not shut off, check the door trigger connection or wait for the factory dome­light to go out. The Firstech system is in reservation mode and the vehicle is ready to safely remote start.
Additional Notes
Reservation mode will be cancelled if the control module recognizes the vehicles door, hood or trunk opening – or if the alarm is triggered. Each time the end user wants to remote start their manual transmission vehicle, they must set the control module in reservation mode. Reservation mode settings can be programmed with Option 1-06.
9
Aux 1 Output Control4-03 – This option changes the behavior of the default auxiliary wire on Connector 3. This is a small white wire that is marked Horn output. The SF version makes this wire an auxiliary output. With this option you can change the output to Horn or Status output.
Aux 2 Output Control
4-04
– This option changes the behavior of the default auxiliary wire on Connector 3. This is a small violet wire that is marked Dome Light output. The SF version makes this wire an auxiliary output. With this option you can change the output to Dome Light or Defrost output.
Secure Aux Output
4-05
– On the default setting, button 4 on the remote must be pressed first before Aux 1 or Aux 2 can be triggered. This prevents accidental triggering of the outputs. Option setting II turns this feature off.
Auxiliary Input 1
4-06
– This option changes the input of the grey/white wire on the green plug.
Please see the option table for settings.
Auxiliary Input 2
4-07
– This option changes the input of the black/white wire on the green plug.
Please see the option table for settings.
Glow Plug or Key Sense
4-09
– Default setting sets the wire as a glow plug input. Option setting 2 changes the wire to a key sense input. Key sense can be used to prevent reservation mode from setting and the system from passive arming while the key is still in the ignition. Key sense also turns off dome-light supervision when the key is inserted into the ignition.
Bypass Brand Through RS232 Port
4-11
– Default setting allows for compatibility with ADS Idatalink modules. Setting 2 changes compatibility to Fortin bypass modules. This is only available on the CM5000 and CM5200.
nd
2
4-12
Ignition Option – This option changes the behavior of previous POC3 or the green wire on
Connector 3. From negative 2
nd
ignition output you can change to negative 2nd accessory, starter
or a ground when armed (GWA).
nd
2
4-13
Accessory Option – This option changes the behavior of previous POC4 or the white/black
wire on Connector 3. From negative 2
nd nd
accessory output you can change to negative 2
accessory, starter or a horn honk output.
nd
2
4-14
Starter Option – This option changes the behavior of previous POC2 or the red/black
wire on Connector 3. From negative 2
nd nd
starter output you can change to negative 2
ignition, accessory, or a dome light output.
Option Programming
Option Programming Using the OP500
The OP500 can be used to program any available option. STEP 1: Using the blue connector on the top of the OP500, connect it to the control module via the
antenna wire. (Use the included extension cable if necessary.) Once connected, the OP500 will power up as long as the main ignition harness to the controller has been connected properly.
22
the 2 Way remote to display the vehicle’s interior temperature on the remote LCD (liquid crystal display). IMPORTANT: New thermistor plugs are blue 2 pin connectors on the CM5 series but old white plug thermistors will still work.
Hood Pin
The hood pin switch triggers the alarm in the event the hood is opened while the alarm is armed. The hood pin also doubles as an important safety feature that prevents the remote start from engaging while the hood is open.
Backup Battery
(CM5000 Only) The backup battery input on the control module / brain is for any optional battery backup
unit (sold separately). The red positive lead (+) acts both as an input and charging output for a 12 Volt battery backup. A backup battery maintains basic alarm functionality when main vehicle power is lost. See the “Wiring Schematics” section(s) for complete details.
Common Procedures
Jumper Settings
Caution: Jumper settings affect the polarity and use of certain outputs. If these jumpers are used
incorrectly, damage to the vehicle and /or control module may occur.
Jumper 1 (Door Trigger Polarity)
Determines the polarity of the door trigger input wire (red/white). In the default position the door trigger registers negative (-) triggers. To change to a positive (+) trigger, move the jumper.
Jumper 2 (Glow Plug or Key Sense Polarity)
Determines the polarity of the glow plug or key sense input wire (brown/white). In the default position it monitors a positive (+) glow plug input. To change to a negative (-) input move the jumper. To change from the glow plug to the key sense setting, you must change Option 4-09.
Jumper 3 (Parking Light to Trunk Output)
Determines the output type (not polarity) of the green/white wire on connector one (CN1). In the default position it provides a positive (+) parking light output. To change to a positive (+) trunk output move the jumper. A negative (-) parking light output is found on connector three (CN3) and a negative (-) trunk output is found on connector four (CN4).
Auxiliary Outputs on Connector 3
This version of the CM5 series comes with default auxiliary wires on pins 15 and 17. The small white wire is Aux 1 and small violet wire is Aux 2. They can be changed with options 4-13 and 4-14.
Tach Sensing
The default engine sensing mode is tach. In cold weather climates we recommend using an injector wire verses a coil wire for tachometer sense. There are new features that adjust tach reading methods on option 2-01. IMPORTANT: The remotes must be coded prior to setting up tach sensing. Firstech recommends using a digital multimeter to test for tach.
STEP 1: Start the vehicle with the key. Allow time for the engine to idle down. STEP 2: Test wire and make connection. At idle the tach wire should test between 1 to 4 Volts AC. As
the vehicle RPM’s increase the voltage on the meter will also increase. Always solder tach connections. 7
Page 11
Tach Sensing Method2-01 – This option will adjust the method at which tach is read by the module.
At default the current setting will minimize overcrank.
Turbo Mode
2-02
– This option will adjust the run time after Turbo mode has been engaged. The e-brake and door trigger input must be connected and the option must be turned on through the remote for this feature to work.
Diesel Timer
2-03
– Use this option if you can’t find the glow plug wire. You can use setting 2 for a default wait to start of 10 seconds, otherwise, you can adjust the time to 5 or 15 seconds by changing the option.
Trigger Start
2-04
– This option changes the number of times required for a negative (-) start input on Pin 12 of CN3.
Timer Start or Interval Between Cold Start
2-06
- This option dictates the time interval when the
control module will either remote start, either 1.5 or 3 hours.
Default 1: Will start every 3 hours until the vehicle is remote started or started by key and run for 4 minutes. Option 2: Will start every 1.5 hours until the vehicle is remote started or started by key and run for 4 minutes.
Engine Sensing2-10 – The available options are tach, alternator, voltage sensing, and assume crank.
Review the “Common Procedures” section for complete explanations on the three engine sensing modes.
Minimum Crank Time
2-12
– This option changes the crank time during the remote start sequence.
Dome Light Delay
3-03
– This option is used when connecting the door trigger input to the vehicles dome light circuit. It delays the door trigger input to prevent the door open icon displaying on 2 Way remotes upon lock/arm.
Starter-Kill
3-04
– This option determines the mode of the anti-grind/starter-kill relay.
Default 1: Anti-grind + starter-kill Option 2: Anti-grind only (no starter-kill) Option 3: Anti-grind + passive starter-kill: starter-kill activates in 45 seconds after ignition is turned off.
Factory Style Alarm3-06 – With this option on the control module will monitor the door triggers. If the
door is opened while locked/armed then the horn will honk if connected. Only available on the CM5200.
Siren Duration (Upon Alarm Trigger)
3-07
– With this option you can change the siren duration from
30 seconds to 60 seconds.
Horn Output
3-08
– This option will change the behavior of the horn output during lock, unlock, and
remote start. Please see the option table for available options. Only available on the CM5200.
Horn Output When Alarm is Triggered3-09 – This option changes the behavior of the small white wire on connector 3. This output must first be set to Horn output on option 4-03 before you can set this option.
Aux 1 Output
4-01
- This option determines the duration of the Aux 1 output. Setting 3 allows the
output duration to be set for a specific length of time. Aux 2 Output
4-02
- This option determines the duration of the Aux 2 output. Setting 3 allows the
output duration to be set for a specific length of time.
21
ADS Blade Cartridge Slot and Connector
This is the main feature of the CM5000 and CM5200. The slot gives you the ability to use the Blade-AL and Blade-TB modules from Firstech and ADS. With these modules you can virtually eliminate all wire connections between your control module and bypass module. You only need to connect the main ignition harness and your needed wires on the 20 pin Blade connector. For more information on how to program and wire the Blade please visit
www.idatalink.com/compustar for the specific wiring diagram for
that vehicle. Blade system includes:
1. Blade-AL or Blade-TB (NOTE: These modules are blank and must be flashed on your computer.)
2. 20 Pin wiring harness
3. 3 Pin harness used in some installs IMPORTANT: Install diagrams are not included and must be downloaded from
www.idatalink.com/compustar. When flashing the Blade you can use the Y-Cable OP500 end and not
CM4 Series end. ADS and Firstech recommends using the 4 pin RS232 cable to avoid confusion. Cartridge must be removed to flash the control module firmware. NOTE: The ADS-RNG C1, ADS-RNG C2, and ADS-RNG GM3 are not included and must be purchased separately. The 20 pin Blade connector comes only with the Blade cartridge and not the CM5 control modules.
WARNING: Manufacturer or seller will have no responsibility for any injuries and/or damages caused by improper care of the product such as decomposition, conversion, and transform done by a user voluntarily. WARNING: There should be no wiring routed around any pedals which can cause a driving hazard.
10
19
Option Programming Tables
OPTION GROUP 1
Feature Default Setting - I Optional Setting - II Optional Setting - III Optional Setting - IV
1-01 Unlock before, Lock after, starting Off On
Lock After Remote Start
Only
Lock After Shutdown
Only
1-02 Lock / Unlock pulse duration 0.8 sec 2.5 sec 0.125 sec 3.5 sec 1-03 Driver's priority unlock Off On 1-04 Double pulse unlock Off On 1-05 Rearm Output
After Start Shutdown
and First Lock
After Shutdown Only
1-08 Locking while in Passive Arming
Passive locking with
Passive Arming
No Passive Locking with
Passive Arming
1-09 Ignition controlled door locks Off On
1-11 Ignition / Accessory Out Upon Unlock Off
Ignition and Acc Pulse -
same timing as disarm
pulse
1-13 Double Pulse Disarm Input Single Pulse Double Pulse 1-14
Auto Lock Mode (2 Way International
Remotes)
Off On
OPTION GROUP 2
Feature Default Setting - I Optional Setting - II Optional Setting - III Optional Setting - IV
2-01 Tach Sensing Method Optimal Tach Method Previous Tach Method
Low Threshold Tach
Method
2-02 Turbo Timer Off 2 Min 2-03 Diesel Timer Wire 3~99sec (10sec Default) 5 Sec. Delay 15 Sec. Delay 2-04 Trigger Start Off Single Pulse Double Pulse Triple Pulse
2-06
Timer Start, or, Minimum Interval
Between Cold Starts
3 Hour (4 minute
runtime, double for
Diesel)
1.5 Hour(4 minute runtime, double for
Diesel)
2-07 Remote Start Runtime 15 Min 25 Min 45 Min 3 Min
2-10 Engine Sensing Tach Alternator
No Connection – Voltage Sensing
Not for Manual Transmissions
No Connection – 1.5 Second Crank Not for
Manual Transmissions
V.1 or greater
2-12 Crank Time Standard
+0.2 Seconds to Crank
Time
+0.6 Seconds to Crank
Time
(Voltage Sensing Only)
(-)0.2 Second Crank
Time
OPTION GROUP 3
Feature Default Setting - I Optional Setting - II Optional Setting - III Optional Setting - IV
3-03 Dome Light Delay Off Auto 3-04 Starte r-K ill Relay Anti-Grind + Starter Kill Anti-Grind
Anti-Grind +
Passive Starter Kill
3-06 Factory Alarm Option (CM5200 Only) Off On 3-07 Siren Duration (Upon Alarm Trigger) 30 Sec. 60 Sec. 3-08 Horn Output (CM5200 Only) On Double Lock Only On Lock and Unlock
On Lock, Unlock, and
Start
On Double Lock and
Start
3-09 Horn Output When Alarm is Triggered Pulsed Output
Constant Output
(Secondary Siren)
Page 12
11
CM5200 Wiring Schematic (Remote Start)
The CM5200 is the control module for all remote start units. This controller is universal regardless of remote or antenna type.
( - ) Switch 3 Gray 1 Red
2 Green / White
1: ( + ) 12v Constant 2: ( + ) Parking Light
( + ) Led 2 Gray 3 Red/White 4 White
3: ( + ) 12v Constant Red / White
prewired to 2
nd
Relay
4: ( + ) Accessory
( - ) Led 1 Gray/Black
CN9
Plug In
LED/Valet
Switch
(N/A on
V.SF)
5 Violet 6 Yellow
5: ( - ) When Armed prewired to Anti-Grind Relay
6: ( + ) Starter prewired to
Anti-Grind Relay
CN1
7 Green and Red
8 Black
7: ( + ) Ignition Red prewired to Anti-Grind Relay
8: ( - ) Ground
LED ( + ) Black / White LED ( - ) Black
CN5 LED
ADS Blade Connector
(20 Pin Harness)
Please see the installation manual for the Blade module for details.
This harness is not included with the CM5200.
1 Green / White 2 Lt Blue 1: ( - ) Parking Lt. Output 2: ( - ) E-Brake Input
( - ) 4 Black 3 Red / Black
4 Lt. Blue / White
3: ( - ) Starter Output 4: ( + ) Brake Input ( + ) 3 White 5 Green 6 Violet / Black 5: ( - ) Ignition Output 6: ( - ) Trunk Input TX 2 Red 7 White / Black 8 Red / White 7: ( - ) Accessory Output 8: ( - ) Door Input RX 1 Yellow
CN8
Antenna
9 Black
10 Brown / White
9: ( - ) Status Out (GWR)
10: ( - ) Glow Input/Key Sensing
11 Orange 12 Pink 11: ( - ) Rearm Output
12: ( - ) Slave/Closed Loop
Input 13 Orange / White
14 Yellow / Black
13: ( - ) Disarm Output
14: (AC) Tach / Alternator
Input
4 ( - ) 15 White
16 Gray / Black
15: ( - ) Aux 1 Output 16: ( - ) Hood Input
3 ( + )
CN3
17 Violet 18 Brown 17: ( - ) Aux 2 Output 18: ( + ) Siren Output
2 Data 1 Data
CN12
RS232
1 Black / White
CN11
Thermistor
2 Black ( + ) 12v Constant Power
None
( - ) Lock Output 5 Blue / Black ( - ) Unlock
Output
4 Blue
( - ) Second Unlock Output
3 Orange /
Black ( - ) Trunk release output
2 Violet /
White
Green/White Loop
Cut=Auto Trans. Uncut=Manual
Trans.
Every control module has this wire intact and must be cut for automatic
Future use None
CN4
( + ) ( - )
Default
Door Trigger Polarity
( + ) ( - )
Default
Key Sense/Glow Plug Polarity
Jumpers
( + ) Parking
Lights
Trunk Release
Blade Cartridge Slot - Please visit www.idatalink.com/compustar for
compatibility and more information. This
slot is empty and has a plastic cover that
slides off.
IMPORTANT: Manufacturer or seller will have
no responsibility for any injuries and/or
damages caused by improper care of the
product such as decomposition, conversion,
and transform done by a user voluntarily.
Default
Behavior of CN1, Pin 2
OPTION GROUP 4
Feature Default Setting - I Optional Setting - II Optional Setting - III Optional Setting - IV
4-01 Aux 1 output 0.5sec Latch Program 4-02 Aux 2 output 0.5sec Latch Program 4-03 Aux 1 output Control Aux 1 Horn Status 4-04 Aux 2 output Control Aux 2 Dome Light Defrost 4-05 Secure Aux Output (1 and 2 Only) On Off 4-06 Auxiliary Input 1 Prewarn Trigger (-) Disarm 4-07 Auxiliary Input 2 Trigger Prewarn (-) Arm 4-09 Key Sense or Glow Plug input Glow Plug Input Key Sense Input
Bypass Through RS232 Port (Only
Available on CM5000)
4-11 ADS Fortin
nd nd nd nd
4-12 2 Ignition 2 Ignition 2 Accessory 2 Starter Ground When Armed
nd nd nd nd
4-13 2 Accessory 2 Accessory 2 Starter 2 Ignition Horn
nd nd nd nd
4-14 2 Starter 2 Starter 2 Ignition 2 Accessory Dome Light
Option Menu Descriptions
Unlock Before, Lock After Starting
1-01
– This option unlocks the door before remote starting to
disarm the factory alarms.
Lock/Unlock Pulse Duration
1-02
– This option changes the duration that both lock and unlock wires
pulse. Please see the above option table for available options.
Driver’s Priority Unlock
1-03
- The driver’s door must be isolated from the other doors. Use the
Orange/Black CN-4 as your 2
nd
Unlock output.
Double Pulse Unlock1-04 – This feature cannot be used with Option 1-03. This feature provides a double pulse on the blue unlock wire.
Rearm Output
1-05
– Optional event to shut RAP systems off.
Locking while in Passive Arming
1-08
– This option changes the behavior of the lock during Passive
mode. With the optional setting the doors will not lock during Passive arming.
Ignition Controlled Locks
1-09
– This feature locks the doors when you start the vehicle and press the foot brake. You must also turn this feature on through the remote by tapping I+IV (2 Way remotes) or Lock+Key (1 Way remotes)
Ignition / Accessory Upon Unlock
1-11
– This option will pulse the ignition wire, accessory, or both upon unlock/disarm. Most new Chrysler vehicles need the ignition and accessory pulsed to disarm the factory alarm.
Double Pulse Disarm
1-13
– This option changes the behavior of the orange/white wire on Connector
3. At default the wire will pulse once upon disarm. This option will change it to double ground
pulse upon disarm.
1-14
Auto Lock Mode – This option must be set for the Auto Mode on 2 Way international remotes to
function.
20
(manual transmission) mode, the system must be set up in Reservation mode prior to the vehicle being able to remote start. IMPORTANT: All warranties or claims are void if a controller with a cut loop is installed on a vehicle with a manual transmission.
Reservation Mode for Manual Transmissions
To remote start a manual transmission vehicle, the system must first be set up in reservation mode. Reservation mode is designed to prevent the vehicle from remote starting while the transmission is in gear.
Installation Requirements
1. The vehicle’s door triggers must be connected to the control module. Prior to making final connections, test the factory door triggers to ensure that they are functioning properly.
2. The vehicle’s emergency/parking brake wire must be connected to the control module. The proper vehicle wire usually provides a negative (-) trigger while the emergency / parking brake is set.
3. The vehicle’s clutch must be momentarily bypassed while the remote start cranks the engine. This momentary bypass simulates the clutch being depressed. For complete details on how to wire a momentary clutch bypass consult your CompuTech program or contact our technical support department by calling 888-820-3690.
IMPORTANT: Do not install a remote start in manual transmission vehicles with convertible / removable tops and in user’s vehicles that leave their windows down. Firstech nor their authorized dealers will assume responsibility for improper use or install.
Activating Reservation Mode
STEP 1: Start the vehicle with the key. Place the transmission in neutral, remove pressure from the pedal brake, and set the emergency/parking brake.
STEP 2: Remove the key from the vehicle’s ignition. The vehicles engine should remain running even after the key has been removed. If the vehicle does not remain running, check the emergency / parking brake connection.
STEP 3: Exit the vehicle and close the door. The vehicle’s engine should shut off upon closing the door. If the vehicle’s engine does not shut off, check the door trigger connection or wait for the factory dome- light to go out. The Firstech system is in reservation mode and the vehicle is ready to safely remote start.
Additional Notes
Reservation mode will be cancelled if the control module recognizes the vehicles door, hood or trunk opening – or if the alarm is triggered. Each time the end user wants to remote start their manual transmission vehicle, they must set the control module in reservation mode. Reservation mode settings can be programmed with Option 1-06.
9
Page 13
19
Option Programming Tables
OPTION GROUP 1
Feature Default Setting - I Optional Setting - II Optional Setting - III Optional Setting - IV
1-01 Unlock before, Lock after, starting Off On
Lock After Remote Start
Only
Lock After Shutdown
Only
1-02 Lock / Unlock pulse duration 0.8 sec 2.5 sec 0.125 sec 3.5 sec 1-03 Driver's priority unlock Off On 1-04 Double pulse unlock Off On 1-05 Rearm Output
After Start Shutdown
and First Lock
After Shutdown Only
1-08 Locking while in Passive Arming
Passive locking with
Passive Arming
No Passive Locking with
Passive Arming
1-09 Ignition controlled door locks Off On
1-11 Ignition / Accessory Out Upon Unlock Off
Ignition and Acc Pulse -
same timing as disarm
pulse
1-13 Double Pulse Disarm Input Single Pulse Double Pulse 1-14
Auto Lock Mode (2 Way International
Remotes)
Off On
OPTION GROUP 2
Feature Default Setting - I Optional Setting - II Optional Setting - III Optional Setting - IV
2-01 Tach Sensing Method Optimal Tach Method Previous Tach Method
Low Threshold Tach
Method
2-02 Turbo Timer Off 2 Min 2-03 Diesel Timer Wire 3~99sec (10sec Default) 5 Sec. Delay 15 Sec. Delay 2-04 Trigger Start Off Single Pulse Double Pulse Triple Pulse
2-06
Timer Start, or, Minimum Interval
Between Cold Starts
3 Hour (4 minute
runtime, double for
Diesel)
1.5 Hour(4 minute runtime, double for
Diesel)
2-07 Remote Start Runtime 15 Min 25 Min 45 Min 3 Min
2-10 Engine Sensing Tach Alternator
No Connection – Voltage Sensing
Not for Manual Transmissions
No Connection – 1.5 Second Crank Not for Manual Transmissions
V.1 or greater
2-12 Crank Time Standard
+0.2 Seconds to Crank
Time
+0.6 Seconds to Crank
Time
(Voltage Sensing Only)
(-)0.2 Second Crank
Time
OPTION GROUP 3
Feature Default Setting - I Optional Setting - II Optional Setting - III Optional Setting - IV
3-03 Dome Light Delay Off Auto 3-04 Starte r-K ill Relay Anti-Grind + Starter Kill Anti-Grind
Anti-Grind +
Passive Starter Kill
3-06 Factory Alarm Option (CM5200 Only) Off On 3-07 Siren Duration (Upon Alarm Trigger) 30 Sec. 60 Sec. 3-08 Horn Output (CM5200 Only) On Double Lock Only On Lock and Unlock
On Lock, Unlock, and
Start
On Double Lock and
Start
3-09 Horn Output When Alarm is Triggered Pulsed Output
Constant Output
(Secondary Siren)
12
CM5000 Wiring Schematic (Alarm and Remote Start)
The CM5000 is the control module for all alarm and remote start combo units. This controller is universal regardless of remote or antenna type.
( - ) Switch 3 Gray 1 Red 2 Green / White 1: ( + ) 12v Constant 2: ( + ) Parking Light ( + ) Led 2 Gray 3 Red / White 4 White
3: ( + ) 12v Constant (Separate
Red/White prewired to 2
nd
Relay)
4: ( + ) Accessory
( - ) Ground 1 Gray / Black
CN9
Plug In
LED/Valet
Switch (N/A on
V.SF)
5 Violet 6 Yellow
5: ( - ) When Armed prewired to Starter Kill Relay
6: ( + ) Starter (prewired to Starter
Kill Relay)
CN1
7 Green and Red
8 Black
7: ( + ) Ignition and (Separate Red prewired to Starter Kill Relay)
8: ( - ) Ground
LED ( + )
2 Black / White
LED ( - ) 1 Black
CN5 LED
1 Red 1: ( + ) 12v Back Up Battery
CN2
2 Black 2: ( - ) Ground Back Up Battery
LED 4 Yellow ( + ) 3 Red
ADS Blade Connector
(20 Pin Harness)
Please see the installation manual for the Blade module for details.
This harness is not included with the CM5000.
Knock 2 White ( - ) 1 Black
CN7
RPS
Sensor
1 Green / White
2 Lt Blue 1: ( - ) Parking Lt. Output 2: ( - ) E-Brake Input
3 Red / Black
4 Lt. Blue / White
3: ( - ) Starter Output 4: ( + ) Brake Input
5 Green 6 Violet / Black 5: ( - ) Ignition Output 6: ( - ) Trunk Input ( - ) 4 Black 7 White / Black 8 Red / White 7: ( - ) Accessory Output 8: ( - / + ) Door Input ( + ) 3 Red 9 Black
10 Brown / White
9: ( - ) Status Out (GWR) 10: ( - ) Glow Input/Key Sensing TX 2 White 11 Orange 12 Pink 11: ( - ) Rearm Output 12: ( - ) Slave/Closed Loop Input RX 1 Yellow
CN8
Antenna
13 Orange / White
14 Yellow / Black
13: ( - ) Disarm Output 14: (AC) Tach / Alternator Input
15 White 16 Gray / Black 15: ( - ) Aux 1 Output 16: ( - ) Hood Input
CN3
17 Violet 18 Brown 17: ( - ) Aux 2 Output 18: ( + ) Siren Output
1st Stage Shock 4 Yellow ( + ) 3 Red 2nd Stage Shock
2 White
None Future use
( - ) 1 Black
CN6 Shock Sensor
2 Violet / White ( - ) Trunk release output 3 Orange /
Black
( - ) Second Unlock Output
4 Blue ( - ) Unlock Output
1st Stage 4 Grey / White
5 Blue / Black ( - ) Lock Output
( + ) 3 Red
CN4
None ( + ) 12v Constant Power
2nd Stage
2 Black / White
( - ) 1 Black
CN10
Optional
Sensor
Input
1 ( + ) 2 ( - )
2 Black
3 Data
1 Black / White
CN11
Thermistor
CN12
RS232
4 Data
Green/White Loop
Cut=Auto Trans. Uncut=Manual
Trans.
Every control module has this wire intact and must be cut for automatic
( + ) ( - ) Default
Door Trigger Polarity
Blade Cartridge Slot - Please
visit
www.idatalink.com/compustar
for compatibility and more
information. This slot is empty
and has a plastic cover that slides
off.
IMPORTANT: Manufacturer or
seller will have no responsibility for
any injuries and/or damages caused by improper care of the product such as decomposition,
conversion, and transform done by
a user voluntarily
( + ) ( - )
Default
Key Sense/Glow Plug Polarity
Jumpers
( + ) Parking Lights
Trunk Release
Default
Behavior of CN1, Pin 2
Black
Pin 1
- Negative (-) ground.
nd
White
Pin 2
- 2 stage negative (-) input. (Instant trigger)
Red
Pin 3
- 12V positive (+) output.
st
Pin 4
Yellow - 1 stage negative (-) input. (Warn away)
Connector 7 (CN7), 4-Pin (Pre-wired RPS) (CM5000 Only)
Black
Pin 1
- Negative (-) ground.
White
Pin 2
- Negative (-) paging input. Red Pin 3 - 12V positive (+) output. YellowPin 4 - 9V positive (+) L.E.D. output.
Connector 8 (CN8), 4-Pin (Pre-wired Antenna Cable)
Yellow
Pin 1
- RX input. This wire receives the signal from remote.
White
Pin 2
- TX output. This wire transmits the signal to remote. RedPin 3 – Constant 12V positive (+) output.
Pin 4 Black – Negative (-) ground.
Connector 10 (CN10), 4-Pin (Optional Sensor Input)
This connector provides optional sensor inputs. Most commonly used with proximity and tilt sensors.
Black
Pin 1
– Negative (-) ground.
nd
Black/White
Pin 2
- 2 stage negative (-) input. (Instant trigger)
Red
Pin 3
– 12V positive (+) output.
17
Page 14
Connector 1 (CN1), 8-Pin
Pin 1
Red - Constant 12V positive (+) power input. This wire must be connected. The proper vehicle
wire will test (+) 12V at all times - while the key is in the off position, the on position and during crank.
Green/White
Pin 2
– This is a dual-purpose wire that features selectable functionality thru the trunk/light jumper on the control module. It is either a positive (+) parking light output or positive (+) trunk output.
Default - Parking light positive (+) output. The proper vehicle wire will test (+) 12V when the parking light switch is in the on position.
Optional – Trunk release positive (+) output. The proper vehicle wire will test (+) 12V when the trunk release is triggered.
Red/White
Pin 3
- Constant 12V positive (+) power input. This wire must be connected. The proper vehicle wire will test (+) 12V at all times - while the key is in the off position, the on position and during crank. This pin also has a red/white wire that is pre­wired to a relay. The short violet wire on Pin 85 is the trigger input wire that determines the (+) 12V output type of the long blue wire on Pin 30. For example, connecting the negative (-) Ignition output from Connector 3, to the short violet wire coming off of the relay, will provide an additional (+) 12V Ignition output from the long blue wire.
Pin 4
White – Accessory 12V positive (+) output. This wire must be connected to the vehicle accessory
/ HVAC blower motor wire. The proper wire will test 0V with the key in the off position, (+) 12V while key is in the on position, 0V while cranking and back to (+) 12V when the key is returned to the on position. .
Violet
Pin 5
- 250mA negative (-) output when armed and during remote start (while running). This wire is pre-wired to the anti-grind/starter-kill relay. Caution: When this wire is being used to trigger aftermarket accessories it must be diode isolated.
Yellow
Pin 6
- Starter 12V positive (+) output. This wire is pre-wired to Pin 87a of the anti-grind/starter­kill relay. This wire must be connected for remote start. The proper wire will test 0V with the key in the off position, 0V while the key is in the on position and (+) 12V during crank.
There are two wires coming off of the relay; yellow/black and yellow. To utilize the anti-grind or starter-kill features, the vehicles starter wire must be cut in half, otherwise, cut the relay out of the harness and connect the yellow (Pin 6) directly to the vehicles’ starter wire.
13
st
Pin 4 Grey/White - 1 stage negative (-) input. (Warn away)
Connector 11 (CN11), 2-Pin (Pre-wired Thermistor)
Plug optional thermistor into this connector to monitor the vehicles’ temperature. It used display temperature on two way LCD’s. IMPORTANT: New Thermistor plugs are blue 2 pin connectors on the CM5 series but old white plug Thermistors will still work.
Black
Pin 1
- Thermistor
Black/WhitePin 2 - Thermistor
Connector 12 (CN12), 4-Pin (RS 232 Data Port)
This connector is used for updating control modules via www.compustar.com. You must also use this
port to flash ADS Blade bypass modules. This port provides simple connectivity of Fortin and iDataLink
bypass modules.
18
11
CM5200 Wiring Schematic (Remote Start)
The CM5200 is the control module for all remote start units. This controller is universal regardless of remote or antenna type.
( - ) Switch 3 Gray 1 Red
2 Green / White
1: ( + ) 12v Constant 2: ( + ) Parking Light
( + ) Led 2 Gray 3 Red/White 4 White
3: ( + ) 12v Constant Red / White
prewired to 2
nd
Relay
4: ( + ) Accessory
( - ) Led 1 Gray/Black
CN9
Plug In
LED/Valet
Switch
(N/A on
V.SF)
5 Violet 6 Yellow
5: ( - ) When Armed prewired to Anti-Grind Relay
6: ( + ) Starter prewired to
Anti-Grind Relay
CN1
7 Green and Red
8 Black
7: ( + ) Ignition Red prewired to Anti-Grind Relay
8: ( - ) Ground
LED ( + ) Black / White LED ( - ) Black
CN5 LED
ADS Blade Connector
(20 Pin Harness)
Please see the installation manual for the Blade module for details.
This harness is not included with the CM5200.
1 Green / White 2 Lt Blue 1: ( - ) Parking Lt. Output 2: ( - ) E-Brake Input
( - ) 4 Black 3 Red / Black
4 Lt. Blue / White
3: ( - ) Starter Output 4: ( + ) Brake Input ( + ) 3 White 5 Green 6 Violet / Black 5: ( - ) Ignition Output 6: ( - ) Trunk Input TX 2 Red 7 White / Black 8 Red / White 7: ( - ) Accessory Output 8: ( - ) Door Input RX 1 Yellow
CN8
Antenna
9 Black
10 Brown / White
9: ( - ) Status Out (GWR)
10: ( - ) Glow Input/Key Sensing
11 Orange 12 Pink 11: ( - ) Rearm Output
12: ( - ) Slave/Closed Loop
Input 13 Orange / White
14 Yellow / Black
13: ( - ) Disarm Output
14: (AC) Tach / Alternator
Input
4 ( - ) 15 White
16 Gray / Black
15: ( - ) Aux 1 Output 16: ( - ) Hood Input
3 ( + )
CN3
17 Violet 18 Brown 17: ( - ) Aux 2 Output 18: ( + ) Siren Output
2 Data 1 Data
CN12
RS232
1 Black / White
CN11
Thermistor
2 Black ( + ) 12v Constant Power
None
( - ) Lock Output 5 Blue / Black ( - ) Unlock
Output
4 Blue
( - ) Second Unlock Output
3 Orange /
Black ( - ) Trunk release output
2 Violet /
White
Green/White Loop
Cut=Auto Trans. Uncut=Manual
Trans.
Every control module has this wire intact and must be cut for automatic
Future use None
CN4
( + ) ( - )
Default
Door Trigger Polarity
( + ) ( - )
Default
Key Sense/Glow Plug Polarity
Jumpers
( + ) Parking
Lights
Trunk Release
Blade Cartridge Slot - Please visit www.idatalink.com/compustar for
compatibility and more information. This
slot is empty and has a plastic cover that
slides off.
IMPORTANT: Manufacturer or seller will have
no responsibility for any injuries and/or
damages caused by improper care of the
product such as decomposition, conversion,
and transform done by a user voluntarily.
Default
Behavior of CN1, Pin 2
Page 15
Black
Pin 1
- Negative (-) ground.
nd
White
Pin 2
- 2 stage negative (-) input. (Instant trigger)
Red
Pin 3
- 12V positive (+) output.
st
Pin 4
Yellow - 1 stage negative (-) input. (Warn away)
Connector 7 (CN7), 4-Pin (Pre-wired RPS) (CM5000 Only)
Black
Pin 1
- Negative (-) ground.
White
Pin 2
- Negative (-) paging input. Red Pin 3 - 12V positive (+) output. YellowPin 4 - 9V positive (+) L.E.D. output.
Connector 8 (CN8), 4-Pin (Pre-wired Antenna Cable)
Yellow
Pin 1
- RX input. This wire receives the signal from remote.
White
Pin 2
- TX output. This wire transmits the signal to remote. RedPin 3 – Constant 12V positive (+) output.
Pin 4 Black – Negative (-) ground.
Connector 10 (CN10), 4-Pin (Optional Sensor Input)
This connector provides optional sensor inputs. Most commonly used with proximity and tilt sensors.
Black
Pin 1
– Negative (-) ground.
nd
Black/White
Pin 2
- 2 stage negative (-) input. (Instant trigger)
Red
Pin 3
– 12V positive (+) output.
17
IMPORTANT: For anti-grind and starter-kill applications, the
yellow wire goes to the starter side of the vehicles starter wire and the
yellow/black goes to the key side.
GreenPin 7 – Ignition 12V positive (+) output and input. This wire must be connected to the vehicles ignition for remote start and valet/programming. The proper wire will test 0V with the key in the off position, 12V (+) while the key is in the on position and 12V (+) during crank.
Red – Ignition 12V positive (+) output. This
wire does not need to be connected. It is pre-wired to the anti-grind/starter-kill relay to supply it with power.
Black
Pin 8
- Ground negative (-) input. This wire must be connected to the vehicles ground.
Connector 2 (CN2), 2-Pin: Optional Battery Back-up (CM5000 Only)
Red
Pin 1
- Constant 12 V positive (+) input and (+) charging output.
Black
Pin 2
- Ground (-) negative input.
Connector 3 (CN3), 18-Pin: Programmable Output Connector (POC)
IMPORTANT: Odd Pin numbers 3, 5, and 7 are programmable for up to 4 different output types a piece.
Refer to the option tables for complete details.
Green/White
Pin 1
- Parking light 250mA negative (-) output. The proper wire will test (-) when the
parking light switch is in the on position.
Light Blue
Pin 2
– Parking / Emergency brake negative (-) input. This input is required for manual transmission/reservation and turbo-timer mode. The proper wire will provide a (-) trigger when parking / emergency brake is set. IMPORTANT: This wire is required for manual transmission remote starts.
nd
Red/Black
Pin 3
– 2 Starter 250mA negative (-) output. This output can be used to trigger the pre­wired relay located on the main ignition harness. This output can be changed by option 4-14.
14
Light Blue/WhitePin 4 - Brake 12V positive (+) input. This input must be connected as it provides a shut down for the remote start. The proper wire will test (+) 12V while the foot brake is pressed.
nd
Green
Pin 5
- 2 Ignition 250mA negative (-) output. This output can be used to trigger the pre-wired
relay located on the main ignition harness. This output can be changed by option 4-12.
Violet/Black
Pin 6
- Trunk trigger negative (-) input. This is an optional input that will monitor when the
vehicle’s trunk has been opened. The proper wire will provide a (-) trigger while the trunk is open.
White/Black
Pin 7
- 2nd Accessory 250mA negative (-) output. This output can be used to trigger the
pre-wired relay located on the main ignition harness. This output can be changed by option 4-13.
Red/White
Pin 8
- Door trigger input. This wire monitors negative (-) or positive (+) trigger door-pins. The proper wire will provide a (-) trigger or a (+) trigger only when the doors are opened. You will need to test the wire for proper polarity and set door dip switch on the control module for the corresponding polarity. IMPORTANT: This wire is required for manual transmission remote
starts. Black
Pin 9
– Status/Ground while running 250mA negative (-) output. This is an optional output that will provide a negative (-) output before the ignition cranks and stay on throughout the remote start duration. This wire is most commonly used to trigger bypass / transponder modules.
Brown/White
Pin 10
- This is a dual-purpose wire that is selectable through Option 4-09 in the programming table. Select the polarity through the glow/key jumper on the control module. It can be set to accept either a positive (+) or negative (-) wait to start input / key sense.
Default – Glow plug positive (+) or negative (-) input. The proper vehicle wire will show a (+) or (-) trigger while the wait to start light is on. This wire will delay the starter output momentarily to allow the glow plugs to warm up on vehicles equipped with a diesel engine. You can adjust the delay with Option 2-03.
Optional – Key sense positive (+) or negative (-) input. The proper wire will show a (+) or (-) trigger only when the key is in the ignition. The purpose of the key sense is to prevent the system from passively arming or setting reservation mode while the key is still in the ignition.
Orange
Pin 11
- Factory Arm 250mA negative (-) output. This is an optional output that will provide a (-)
pulse during lock, after crank and again after the ignition shuts down.
Pink
Pin 12
– Trigger Start negative (-) input. This wire can receive single, double, or triple pulses to
activate the remote start sequence.
Orange/White
Pin 13
- Factory Disarm 250mA negative (-) output. This is an optional output that will
provide a (-) pulse during unlock and prior to the ignition turning on.
Yellow/Black
Pin 14
- Engine sensing input. This wire is connected to the vehicles’ Tach or Alternator wire and is required if you are not using the voltage sense setting. IMPORTANT: To change
engine-sensing modes, you must change Option 2-10; Default requires a Tach input. White
Pin 15
- Auxiliary 1 250mA negative (-) output. This is an optional output that can be changed to
trigger different devices like window modules or strobe lights. Gray/BlackPin 16 - Hood Pin negative (-) input. This input is a safety shut down and alarm trigger. It
prevents the vehicle from remote starting while the hood is open and triggers the alarm if the
15
Page 16
Light Blue/WhitePin 4 - Brake 12V positive (+) input. This input must be connected as it provides a shut down for the remote start. The proper wire will test (+) 12V while the foot brake is pressed.
nd
Green
Pin 5
- 2 Ignition 250mA negative (-) output. This output can be used to trigger the pre-wired
relay located on the main ignition harness. This output can be changed by option 4-12.
Violet/Black
Pin 6
- Trunk trigger negative (-) input. This is an optional input that will monitor when the
vehicle’s trunk has been opened. The proper wire will provide a (-) trigger while the trunk is open.
White/Black
Pin 7
- 2nd Accessory 250mA negative (-) output. This output can be used to trigger the
pre-wired relay located on the main ignition harness. This output can be changed by option 4-13.
Red/White
Pin 8
- Door trigger input. This wire monitors negative (-) or positive (+) trigger door-pins. The proper wire will provide a (-) trigger or a (+) trigger only when the doors are opened. You will need to test the wire for proper polarity and set door dip switch on the control module for the corresponding polarity. IMPORTANT: This wire is required for manual transmission remote
starts. Black
Pin 9
– Status/Ground while running 250mA negative (-) output. This is an optional output that will provide a negative (-) output before the ignition cranks and stay on throughout the remote start duration. This wire is most commonly used to trigger bypass / transponder modules.
Brown/White
Pin 10
- This is a dual-purpose wire that is selectable through Option 4-09 in the programming table. Select the polarity through the glow/key jumper on the control module. It can be set to accept either a positive (+) or negative (-) wait to start input / key sense.
Default – Glow plug positive (+) or negative (-) input. The proper vehicle wire will show a (+) or (-) trigger while the wait to start light is on. This wire will delay the starter output momentarily to allow the glow plugs to warm up on vehicles equipped with a diesel engine. You can adjust the delay with Option 2-03.
Optional – Key sense positive (+) or negative (-) input. The proper wire will show a (+) or (-) trigger only when the key is in the ignition. The purpose of the key sense is to prevent the system from passively arming or setting reservation mode while the key is still in the ignition.
Orange
Pin 11
- Factory Arm 250mA negative (-) output. This is an optional output that will provide a (-)
pulse during lock, after crank and again after the ignition shuts down.
Pink
Pin 12
– Trigger Start negative (-) input. This wire can receive single, double, or triple pulses to
activate the remote start sequence.
Orange/White
Pin 13
- Factory Disarm 250mA negative (-) output. This is an optional output that will
provide a (-) pulse during unlock and prior to the ignition turning on.
Yellow/Black
Pin 14
- Engine sensing input. This wire is connected to the vehicles’ Tach or Alternator wire and is required if you are not using the voltage sense setting. IMPORTANT: To change
engine-sensing modes, you must change Option 2-10; Default requires a Tach input. White
Pin 15
- Auxiliary 1 250mA negative (-) output. This is an optional output that can be changed to
trigger different devices like window modules or strobe lights. Gray/BlackPin 16 - Hood Pin negative (-) input. This input is a safety shut down and alarm trigger. It
prevents the vehicle from remote starting while the hood is open and triggers the alarm if the
15
hood is opened while the alarm is armed. You can connect this wire to the hood pin supplied with this kit, or to a wire in the vehicle that shows (-) only while the hood is open.
Violet
Pin 17
- Auxiliary 2 250mA negative (-) output. This is an optional output that can be changed to
trigger different devices like window modules or strobe lights.
Brown
Pin 18
- Siren 12V positive (+) output. Connect this wire to the (+) wire located on the siren. To
change siren output settings, review Option 3-07.
Connector 4 (CN4), 6-Pin
Not used
Pin 1
Violet/White
Pin 2
- Trunk release 250mA negative (-) output. This is an optional output that will release the trunk. Use CN1, Pin 2 if the vehicle is equipped with a (+) trunk release. System will unlock doors and disarm alarm prior to trunk release.
nd
Orange/Black
Pin 3
- 2 Unlock 250mA negative (-) output. This is an optional output that will provide
a (-) pulse for driver’s priority door lock. IMPORTANT: You must isolate the driver’s door and
turn on Option 1-3. Blue
Pin 4
- Unlock 250mA negative (-) output. This is an optional output that will provide a (-) pulse for
unlocking doors. System will unlock doors and disarm alarm. IMPORTANT: You must reverse
polarity for (+) trigger door lock systems. For additional lock settings review Option Group 1
Blue/Black
Pin 5
- Lock 250mA (-) negative output. This is an optional output that will provide a (-)
pulse for locking doors. System will lock doors and arm alarm. IMPORTANT: You must reverse
polarity for (+) trigger door lock systems. For additional lock settings review Option Group
1. Not used
Pin 6
Connector 5 (CN5), 2-Pin (Pre-wired LED)
Note: Do not mistake for Thermistor port.
Black
Pin 1
- L.E.D negative (-) ground.
Black/White
Pin 2
- L.E.D. 3V positive (+) output.
Connector 6 (CN6), 4-Pin (Pre-wired Shock Sensor) (CM5000 Only)
16
Connector 1 (CN1), 8-Pin
Pin 1
Red - Constant 12V positive (+) power input. This wire must be connected. The proper vehicle
wire will test (+) 12V at all times - while the key is in the off position, the on position and during crank.
Green/White
Pin 2
– This is a dual-purpose wire that features selectable functionality thru the trunk/light jumper on the control module. It is either a positive (+) parking light output or positive (+) trunk output.
Default - Parking light positive (+) output. The proper vehicle wire will test (+) 12V when the parking light switch is in the on position.
Optional – Trunk release positive (+) output. The proper vehicle wire will test (+) 12V when the trunk release is triggered.
Red/White
Pin 3
- Constant 12V positive (+) power input. This wire must be connected. The proper vehicle wire will test (+) 12V at all times - while the key is in the off position, the on position and during crank. This pin also has a red/white wire that is pre- wired to a relay. The short violet wire on Pin 85 is the trigger input wire that determines the (+) 12V output type of the long blue wire on Pin 30. For example, connecting the negative (-) Ignition output from Connector 3, to the short violet wire coming off of the relay, will provide an additional (+) 12V Ignition output from the long blue wire.
Pin 4
White – Accessory 12V positive (+) output. This wire must be connected to the vehicle accessory
/ HVAC blower motor wire. The proper wire will test 0V with the key in the off position, (+) 12V while key is in the on position, 0V while cranking and back to (+) 12V when the key is returned to the on position. .
Violet
Pin 5
- 250mA negative (-) output when armed and during remote start (while running). This wire is pre-wired to the anti-grind/starter-kill relay. Caution: When this wire is being used to trigger aftermarket accessories it must be diode isolated.
Yellow
Pin 6
- Starter 12V positive (+) output. This wire is pre-wired to Pin 87a of the anti-grind/starter- kill relay. This wire must be connected for remote start. The proper wire will test 0V with the key in the off position, 0V while the key is in the on position and (+) 12V during crank.
There are two wires coming off of the relay; yellow/black and yellow. To utilize the anti-grind or starter-kill features, the vehicles starter wire must be cut in half, otherwise, cut the relay out of the harness and connect the yellow (Pin 6) directly to the vehicles’ starter wire.
13
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
