Firstech, LLC. | 1
8102REUCL000200 // FT-700R Guide REV1

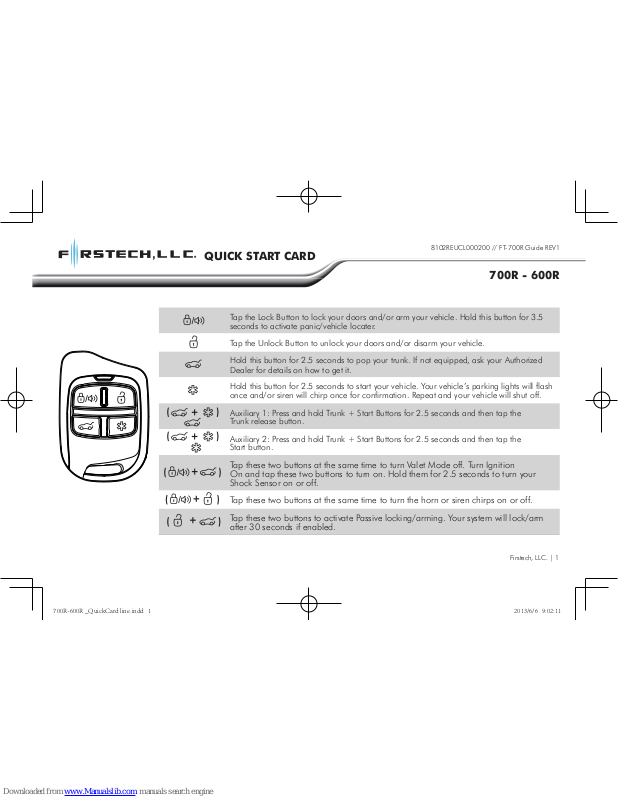

QUICK START CARD
700R - 600R
Tap the Lock Button to lock your doors and/or arm your vehicle. Hold this button for 3.5
seconds to activate panic/vehicle locater.
Tap the Unlock Button to unlock your doors and/or disarm your vehicle.
Hold this button for 2.5 seconds to pop your trunk. If not equipped, ask your Authorized
Dealer for details on how to get it.
Hold this button for 2.5 seconds to start your vehicle. Your vehicle’s parking lights will flash
once and/or siren will chirp once for confirmation. Repeat and your vehicle will shut off.
Auxiliary 1: Press and hold Trunk + Start Buttons for 2.5 seconds and then tap the
Trunk release button.
Auxiliary 2: Press and hold Trunk + Start Buttons for 2.5 seconds and then tap the
Start button.
Tap these two buttons at the same time to turn Valet Mode off. Turn Ignition
On and tap these two buttons to turn on. Hold them for 2.5 seconds to turn your
Shock Sensor on or off.
Tap these two buttons at the same time to turn the horn or siren chirps on or off.
Tap these two buttons to activate Passive locking/arming. Your system will lock/arm
after 30 seconds if enabled.
700R-600R _QuickCard line.indd 1 2013/6/6 9:02:11
ALARM TRIGGER EVENT LED FLASHES
Door, Hood, Trunk, or Ignition On triggered 2, Pause, Then Repeat
Full triggered shock sensor 3, Pause, Then Repeat
Panic Mode 5, Pause, Then Repeat
PARKING LIGHT FLASHES REMOTE START ERROR
3 then 1 1: Motor running
3 then 2 2: Key in ignition on position
3 then 5 5, Foot brake on
3 then 6 6: Hood open
3 then 8 8: Tach or voltage sensing failure
3 then 10 10: System is in Valet Mode
ALARM LED CODES
START ERROR CODES
Firstech, LLC. | 2
QUICK START CARD
700R - 600R
Tap these buttons to activate ignition controlled door locks. Your
doors will lock or unlock when you turn the key on or off. If you have
a remote start, your doors will lock when you press the foot brake.
If you have an alarm and optional LED(s) installed, it will flash once
a second if armed. If your alarm is triggered then the LED(s) will flash
more than once until it is disarmed. See the table below for what
each LED code represents.
Valet Mode: If your remote start is not working, you may be in Valet
Mode. Your parking lights will also not flash. Your doors will still
lock and unlock. To exit Valet Mode, tap the Lock and Trunk buttons
at the same time.
To reprogram your remote first cycle the key in the ignition 5
times within 7 seconds. Parking lights will flash. After that tap
the Lock button on your remote. Repeat for any additional
remotes. If you receive two parking light flashes, your system
has exited remote programming mode and you must retry.
Register online at www.compustar.com within 10 days of
purchase to activate your new remote’s warranty.
Questions/comments? Contact us at 888-820-3690 from 8
AM to 5 PM PST. Also please visit www.compustar.com for a
complete user’s manual.
700R-600R _QuickCard line.indd 2 2013/6/6 9:02:11
