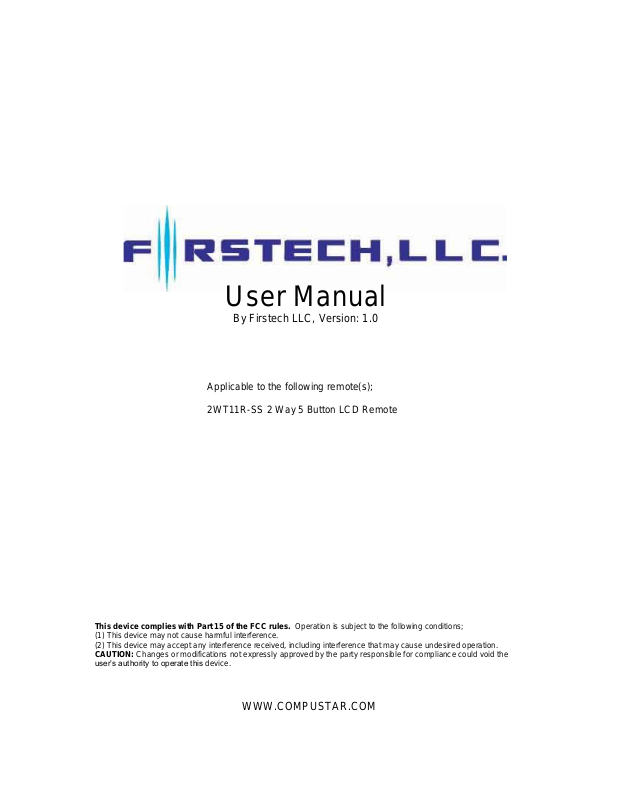

User Manual
By Firstech LLC, Version: 1.0
Applicable to the following remote(s);
2WT11R-SS 2 Way 5 Button LCD Remote
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions;
(1) This device may not cause harmful interference.
(2) This device may accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this device.
WWW.COMPUSTAR.COM
2
Introduction ............................................................................................................................................ 3
Warranty Coverage ................................................................................................................................ 3
Quick Reference..................................................................................................................................... 4
Button Lock .......................................................................................................................................... 4
Valet Mode ................................................................................................ ........................................... 4
Remote Maintenance – Battery Charging ............................................................................................. 4
2WT11R-SS: ......................................................................................................................................... 4
1WG8R-SS: .......................................................................................................................................... 4
Programming the Clock ........................................................................................................................ 4
2 Way Remote Button Functions .......................................................................................................... 5
Function Button Menu .......................................................................................................................... 6
Remote Option Menu Table.................................................................................................................. 6
1 Way Remote Button Functions .......................................................................................................... 7
Remote LCD (liquid crystal display) Diagram and Icons .................................................................... 8
General Features .................................................................................................................................. 11
Sending Commands............................................................................................................................ 11
Receiving Commands ......................................................................................................................... 11
Active Lock/Arm and Unlock/Disarm ................................................................................................... 11
Passive Lock/Arm ............................................................................................................................... 11
Automatic Transmission Remote Start Function ................................................................ ................. 11
Manual Transmission Remote Start Function (Reservation Mode) ..................................................... 12
Activating Reservation Mode ............................................................................................................... 12
Cancelling Reservation Mode ............................................................................................................. 12
Reservation Mode Settings ................................................................................................................. 13
Trunk Release ....................................................................................... Error! Bookmark not defined.
Auxiliary Outputs/Window Roll-Down/Sliding Doors ........................................................................... 13
Temperature and Battery Query ......................................................................................................... 13
Silent Arm/Disarm .............................................................................................................................. 13
Remote Mute/Vibration Mode ............................................................................................................. 14
Shock Sensor On/Off.......................................................................................................................... 14
Advanced Features .............................................................................................................................. 15
Drive Lock/Ignition Controlled Door Locks .......................................................................................... 15
Turbo Timer Mode .............................................................................................................................. 15
2nd Car Mode (Multiple Vehicle Control) .............................................................................................. 15
RPS Touch and RPS (Remote Paging Sensor) .................................................................................. 15
Timer Start Mode ................................................................................................................................ 17
Cold/Hot Start Mode ........................................................................................................................... 18
Remote Coding / Programming Routine ............................................................................................ 18
Programming 2 Way 4 Button Remotes: ............................................................................................ 18
Remote Start Error Diagnostic ............................................................................................................ 19
Alarm Diagnostic ................................................................................................................................. 20
Limited Lifetime Warranty ................................................................................................................... 21
3
Introduction
Thank you for purchasing a Firstech system for your vehicle. Please take a minute to review this entire
manual. Note that this manual applies to the 2 Way 5 Button Liquid Crystal Display Remote (2WT11RSS) whether you purchased the ALARM IT, START IT, or MAX IT system. This manual also supports the
1WG8R-SS remote that is included with your RF Kit. There are certain features listed in this manual that
may not be available for your system. There may also be features listed in this manual that require
additional installation or programming before they are active.
If you have any questions or concerns please contact the original place of purchase. For further
information you may also contact our customer support center at 888-820-3690.
Warranty Coverage
Caution: The Manufacturer’s warranty will be voided if this product is installed by anyone other than an
Authorized Firstech dealer. For complete warranty details visit www.compustar.com or the last page of
this manual. Firstech remotes carry a 1 year warranty from original date of purchase. Compustar Pro
2WT11R-SS remote carries a 3 year warranty.
Warranty registration can be completed online by visiting www.compustar.com. Please complete the
registration form within 10 days of purchase. We do not include a mail in warranty registration card with
each unit – registration must be done online. To verify that an authorized dealer installed your system,
we highly recommend that you keep a copy of the original proof of purchase, such as the dealer invoice
in a safe place.
Remote Image Charge port
4
Quick Reference
Button Lock
The 2WT11R-SS comes equipped with button lock. This requires you to tap any button to wake your
remote up then tap the button for the function you are trying to activate. Button lock can be turned off in
your remote’s option menu.
Valet Mode
When servicing or loaning your vehicle to others, the system should be placed in Valet Mode. Valet
Mode prevents the system from remote starting and disables all alarm functions. IMPORTANT: While in
Valet mode the remote will still control power lock and unlock systems. The parking lights will not flash.
The system can be put into valet one of three ways:

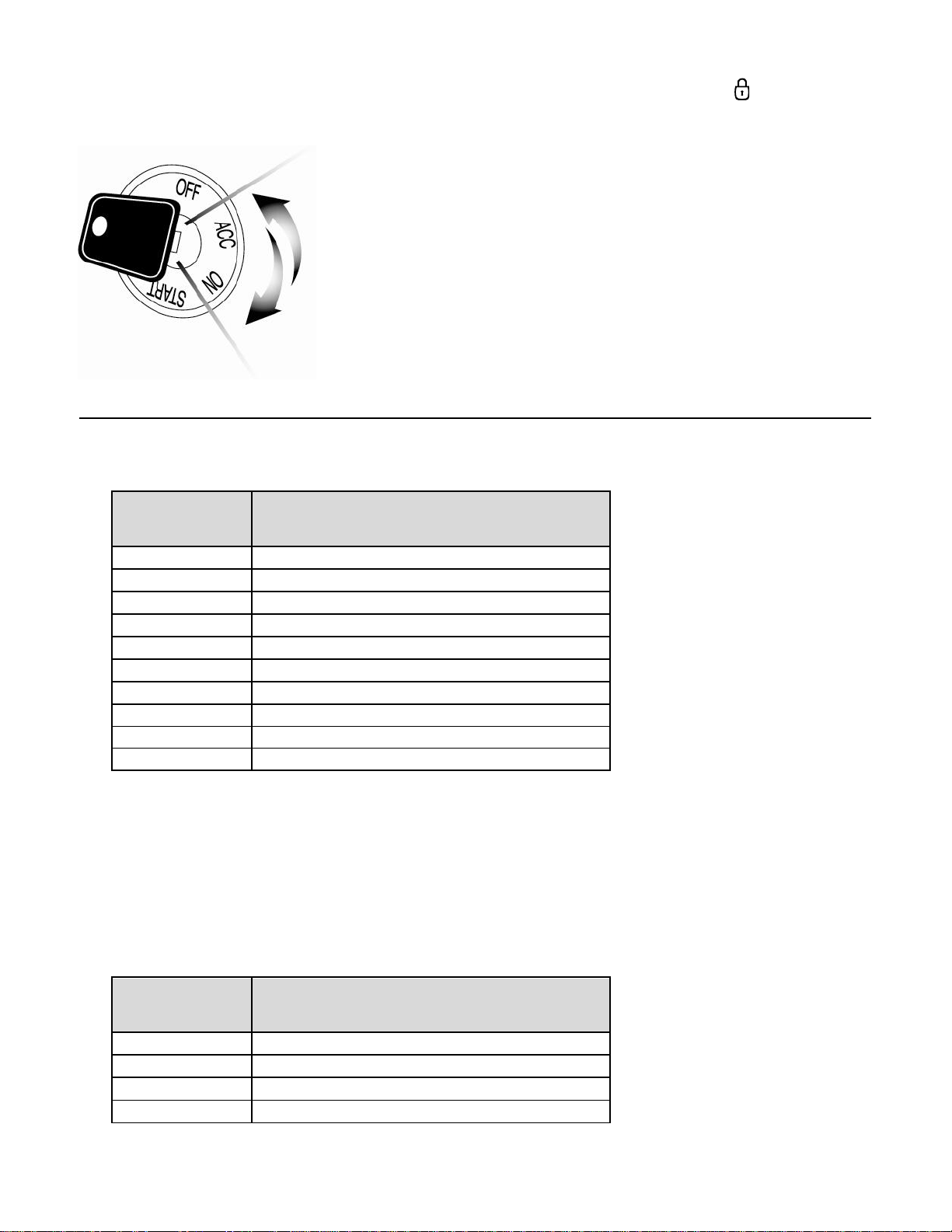

1. While holding the foot brake, cycle the key to the Ignition or ‘On’ position and then
back to the ‘Off’ position 5 times within 10 seconds. The parking lights will flash once
indicating that the system has entered Valet Mode.
2. Turn the vehicle’s key to the ignition “on” position, tap the Function button 3 times, and finally tap
the Lock button. The parking lights will flash once, the remote will read “Valet On” and Z’s will show
on the LCD above the vehicle’s hood to confirm valet mode. Repeat this process to exit valet mode. The
parking lights will flash twice, remote read “Valet Off” and Z’s will disappear confirming valet mode is
disabled.
3. Turn the key to the Ignition or ‘On’ position then using a 4 button remote press and release
the lock and trunk buttons together simultaneously for a half second. The vehicle parking lights
will flash 1 time to indicate the system has successfully entered valet mode.
Remote Maintenance – Battery Charging
The 2WT11R-SS comes with a rechargeable battery. Use the included power adapter and
micro USB cable to charge your remote.
2WT11R-SS:
First, locate the micro USB port on the top of your remote. Connect your micro USB cable to the power
adapter and plug into wall outlet. The LED on the front of the remote will flash red showing that your
remote is charging. The LED will change to solid blue when charging is complete. This should take
approximately 2 hours.
1WG8R-SS:
Locate the small indent on the side of your remote. Use a small flat tip screw driver or flat plastic tool to
pop open your remote. Gently pull the remote apart taking care to not damage the circuit board. Your
battery size will be listed on the back of the remote. Replacements can be purchased from your local
Compustar dealer or an electronics store.
Programming the Clock
STEP 1: Enter remote programming mode by holding the Trunk and Start/Stop buttons for 2.5
seconds. The remote will beep and the LCD read “Remote Menu” to indicate that you have successfully
entered programming mode.
5
STEP 2: After entering programming mode the time icon will flash indicating the current
time. Adjust the time settings by tapping the Lock button to change the hour and
Unlock button to adjust the minute.
STEP 3: Once the time has been set, exit remote programming by holding down the Trunk and
Start/Stop buttons for 2.5 seconds. The remote will beep indicating that you have successfully
exited programming mode.

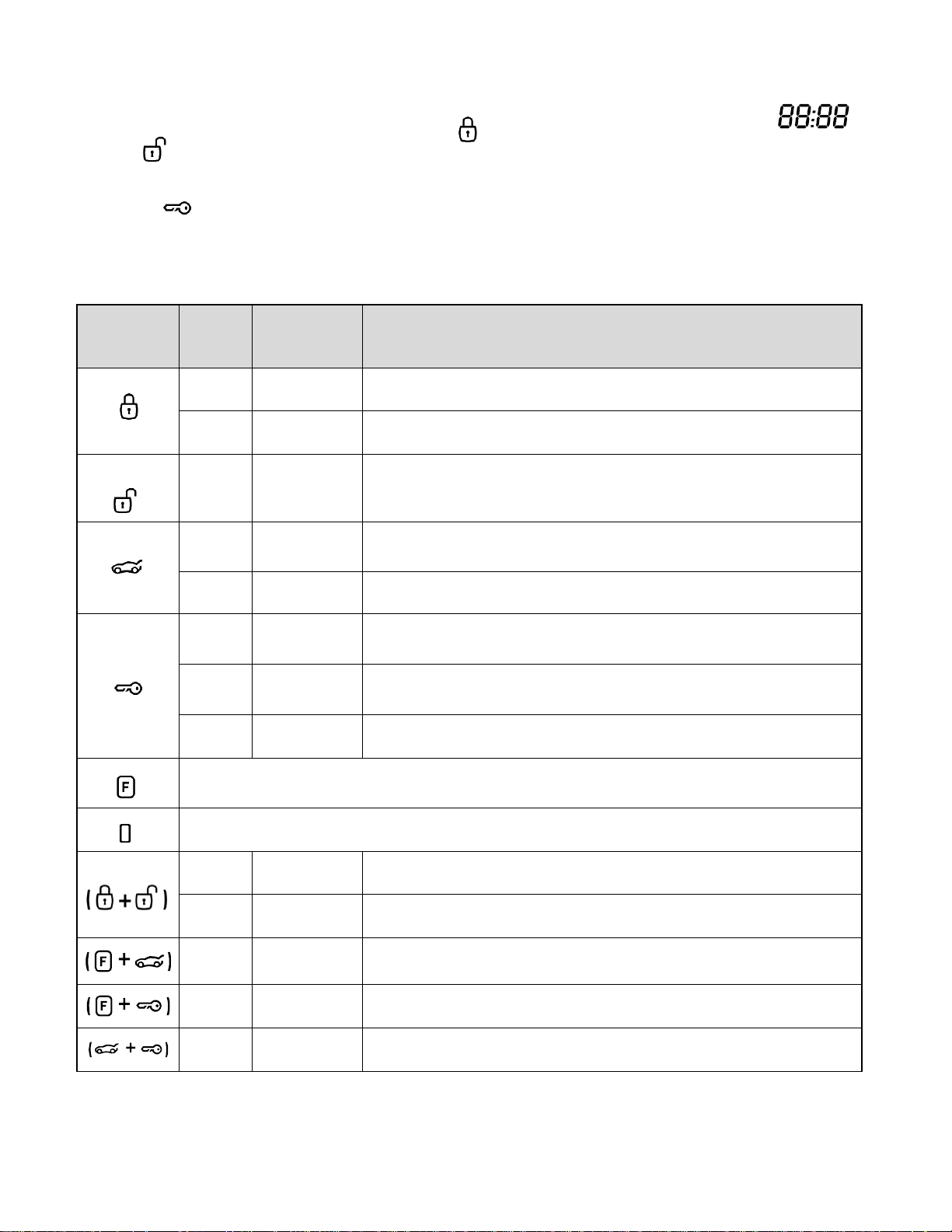

2 Way Remote Button Functions
Button
Duration
LCD Readout
Function / Description
half
second
LOCK ARM
Locks doors and if equipped, arms the alarm.
4
seconds
PANIC
Panic/vehicle locater (flashes vehicle’s parking lights and sounds siren and horn).
half
second
UNLOCK
DISARM
Unlocks doors and if equipped, disarms the alarm.
double
tap
TIME AND
REMOTE
VOLTAGE
Tapping this button twice will show the clock followed by the remote’s battery voltage.
2.5
seconds
TRUNK OPEN
Trunk release. Triggers the trunk release output and opens the vehicle’s trunk.
half
second
TEMPERATURE
AND VEHICLE
VOLTAGE
Car Check (updates vehicle status on remote pager) / Secure Auxiliary / Temperature
Display / Vehicle Voltage Display
double
tap
EXTEND
Run time extender. Resets the run time for Turbo Timer or Remote Start.
2.5
seconds
REMOTE
START
Holding this button will start your vehicle. Repeat and this will shut your vehicle down.
This button activates and deactivates multiple features. See the Function Button Menu table below for complete details.
Tap this button to wake the screen. Hold this button for 2 seconds to mute your remote. Hold for 2 seconds to unmute. If
enabled, tap this button to enable sliding doors via Auxiliary 1 and 2 then double tap Lock or Unlock to activate.
half
second
SIREN ON /
SIREN OFF
Turns siren chirps on/off (Note: With the siren chirps off, it will still sound in the event
the alarm is triggered). This feature must first be programmed by your installer.
2.5
seconds
SHOCK ON /
SHOCK OFF
Turns the shock sensor on/off. (ALARM IT or MAX IT systems only)
2.5
seconds
Option programming menu 1. For use during installation.
2.5
seconds
Option programming menu 2. For use during installation.
2.5
seconds
*See Remote
Option Menu
Table
Accesses Remote Option Menu (clock, reservation time start, vibrate mode, RPS
on/off, etc) See Remote Option Menu Table for details.
6

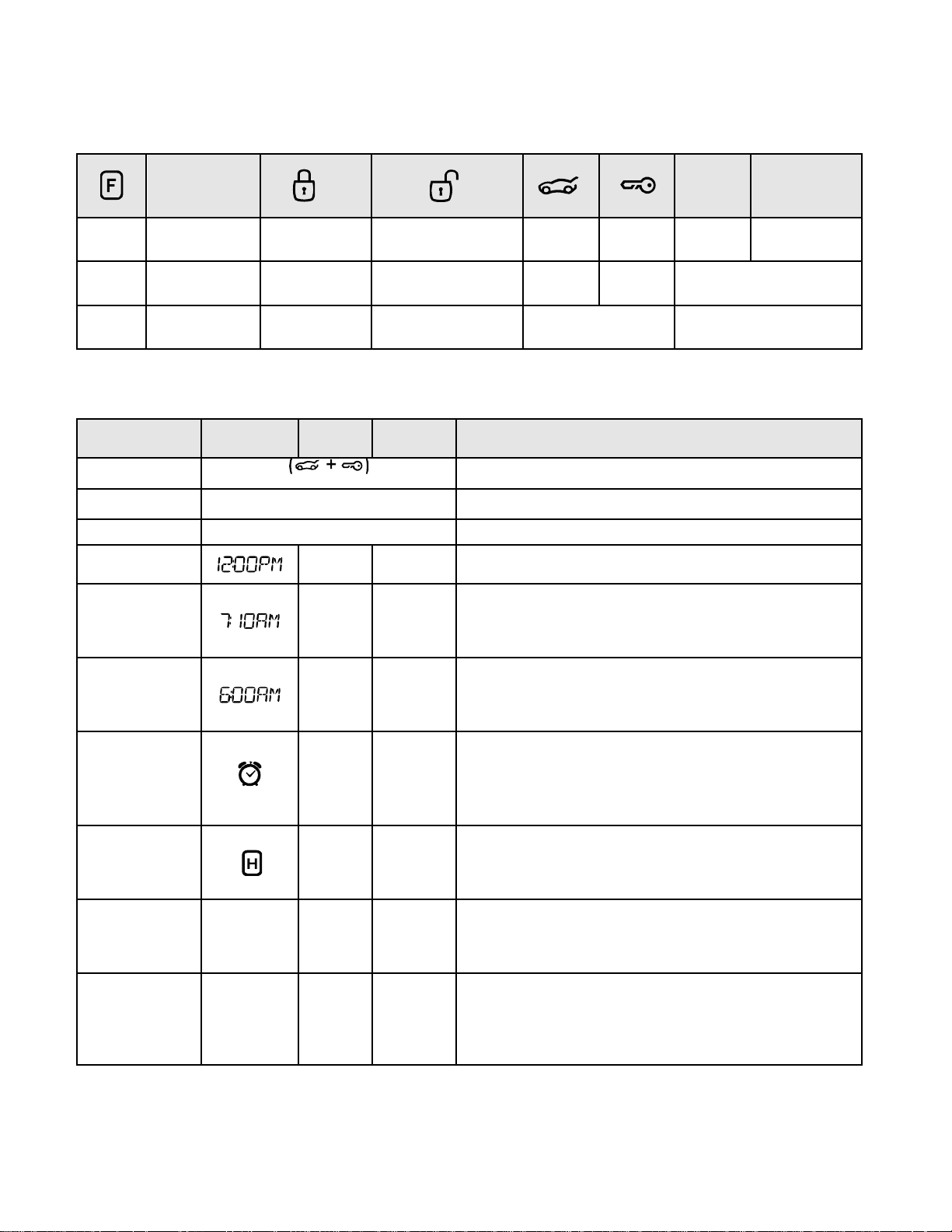

Function Button Menu
Then Press
Hold For
2.5
Seconds
Hold For 2.5
Seconds
1x
Drive Lock
On/Off
Turbo Timer On/Off
Auxiliary 1
Auxiliary 2
Auxiliary 3
Auxiliary 4
2x
2nd Car Mode
On/Off
Timer Start On/Off
Auxiliary 5
Auxiliary 6
Auxiliary 7
3x
Valet Mode
On/Off
Passive Mode On/Off
Remote Option Menu Table
Feature
LCD Readout
Lock
Button
Unlock
Button
Function / Description
Enter Remote
Menu
2.5 Seconds
Enter and Exit the Remote Option Menu
Scroll Through
Menu
Tap the Function Button
Moves down the Remote Option Menu
Scroll Up Menu
Tap the Key/Start Button
Moves back up the Remote Option Menu
Time
Adjusts
Hour
Adjusts
Minute
Sets the time on your remote.
Remote Start Time
Adjusts
Hour
Adjusts
Minute
Sets the time at which you want your vehicle to start every day. Check
with your installer for additional info
Alarm Clock Time
Adjusts
Hour
Adjusts
Minute
Sets the time in which you would like the remote's alarm clock to alert
you.
Alarm On/Off
Turns
Feature
On or Off
This feature turns the alarm clock on or off. It does not affect the time
at which your alarm clock is set for.
Button Lock
Sets
Feature
Auto or
Manual
Turns the automatic button lock feature on or off on your remote. If on
then you must tap a button to wake your remote up. Then hit the
function you would like to trigger.
RPS Call On/Off
Call
Turns
Feature
On or Off
Turns your RPS Touch paging feature on or off.
Silent
Vibrate
Turns
Feature
On or Off
Turns the silent mode on or off.
7
Volume
VOL:
1-3
Adjust the volume of your remote. 1 is the lowest. 3 is the highest.
Temperature
Temp
F or C
Changes the temperature readout from Fahrenheit to Celsius.
Auxiliary
AUX
Turns
Feature
On or Off
Turns your Auxiliary Extender feature on or off.
Sliding Doors
Sliding Door
Turns
Feature
On or Off
Allows you to use the Lock and Unlock buttons for sliding doors via
Aux 1 and 2.
2 Way Paging
Display
Paging
Full of
Half
Sets your remote for Alarm or Starter Only systems. Set to FULL for
ALARM IT and MAX IT features. Set to HALF for START IT ONLY
systems.
Screen Timeout
Screen
Adjusts
screen off
time
Adjusts the time your LCD will stay on after a button is pressed.
Language
English /
Francais /
Espanol
Adjusts
Language
Changes LCD display language from English to French or Spanish.
1 Way Remote Button Functions
Button
Duration
Additional
Programming
Required
Function / Description
Half second
no
Locks doors and/or arms alarm.
3.5 seconds
no
Panic/vehicle locater (flashes vehicle’s parking lights and sounds siren and horn).
Half second
no
Unlocks doors and/or disarms alarm.
Half second
no
Aux 1. Triggers the auxiliary 1 output (most commonly used for rear defrost or window
roll-down).
2.5 seconds
no
Trunk release. Triggers the trunk release output and opens the vehicle’s trunk.
Half second
no
Aux 2. Triggers the auxiliary 2 output (most commonly used for rear defrost or window
roll-down).
2.5 seconds
no
Activates the remote start. Repeat and remote start will shut off.
Half second
no
Turns siren chirps on/off (Note: With the siren chirps off, it will still sound in the event the
alarm is triggered).

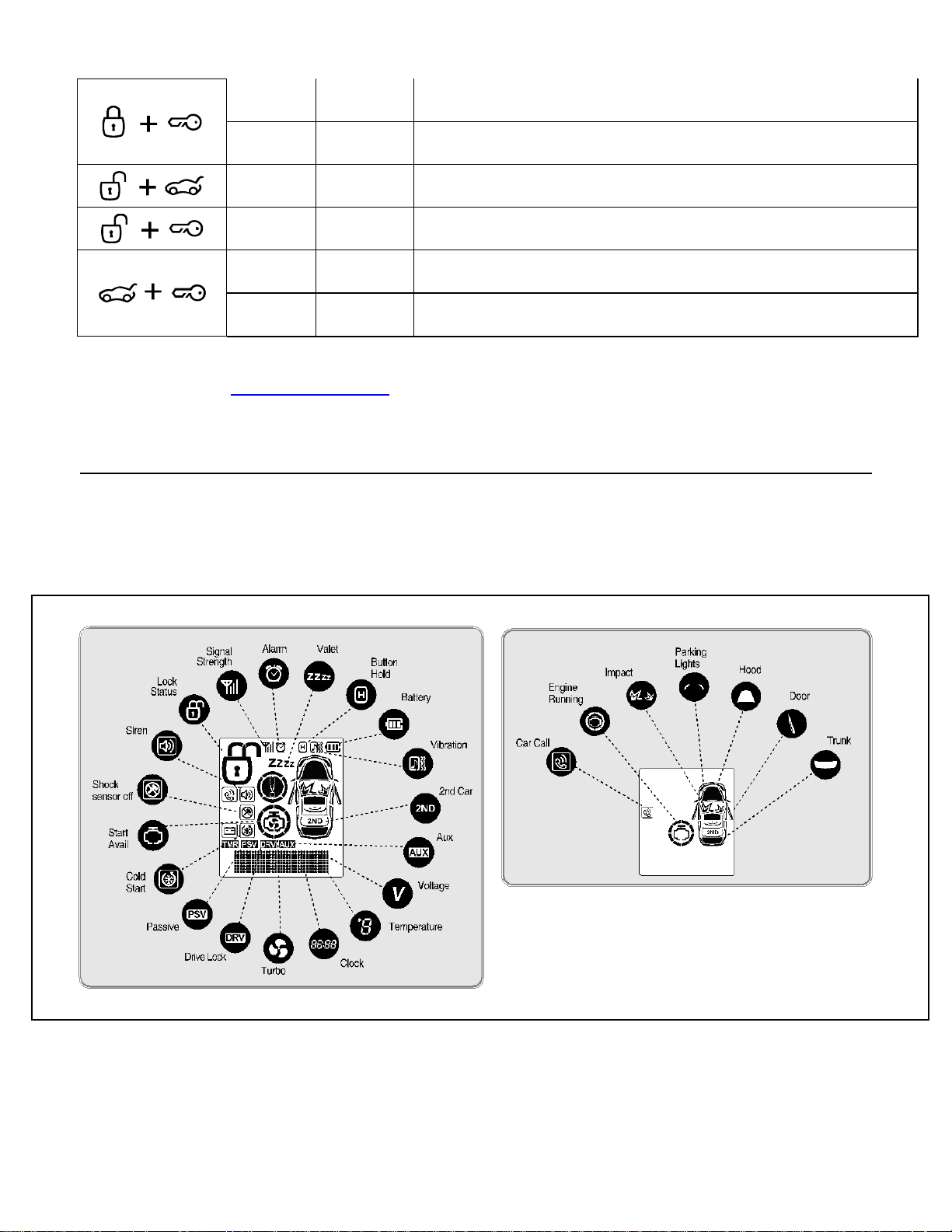

2.5 seconds
no
Option programming menu 1 - Installers Only.
Half second
no
Valet Mode (see Valet Mode Section for details)
2.5 seconds
no
Turns the shock sensor on/off. (Alarm or Alarm/Starter systems only)
Loading...
