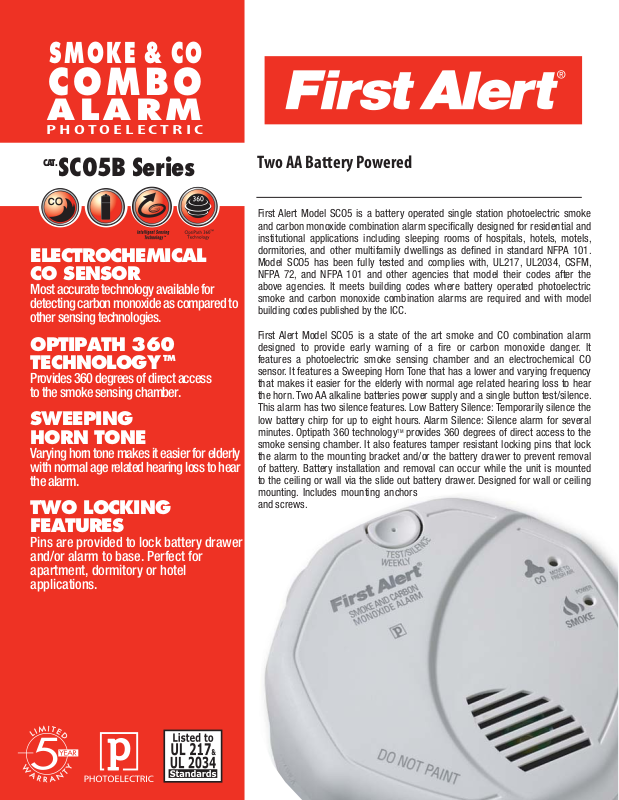

First Alert SC05B User Manual 2

SMOKE & CO

COMBO

ALARM

PHOTOELECTRIC

CAT.

SCO5B Series

ELECTROCHEMICAL CO SENSOR

Most accurate technology available for detecting carbon monoxide as compared to other sensing technologies.

OPTIPATH 360 TECHNOLOGY TM

Provides 360 degrees of direct access to the smoke sensing chamber.

SWEEPING HORN TONE

Varying horn tone makes it easier for elderly with normal age related hearing loss to hear the alarm.

TWO LOCKING

Two AA Battery Powered

First Alert Model SCO5 is a battery operated single station photoelectric smoke and carbon monoxide combination alarm speciﬁcally designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories, and other multifamily dwellings as deﬁned in standard NFPA 101. Model SCO5 has been fully tested and complies with, UL217, UL2034, CSFM, NFPA 72, and NFPA 101 and other agencies that model their codes after the above agencies. It meets building codes where battery operated photoelectric smoke and carbon monoxide combination alarms are required and with model building codes published by the ICC.

First Alert Model SCO5 is a state of the art smoke and CO combination alarm designed to provide early warning of a ﬁre or carbon monoxide danger. It features a photoelectric smoke sensing chamber and an electrochemical CO sensor. It features a Sweeping Horn Tone that has a lower and varying frequency that makes it easier for the elderly with normal age related hearing loss to hear the horn. Two AA alkaline batteries power supply and a single button test/silence. This alarm has two silence features. Low Battery Silence: Temporarily silence the low battery chirp for up to eight hours. Alarm Silence: Silence alarm for several minutes. Optipath 360 technology smoke sensing chamber. It also features tamper resistant locking pins that lock the alarm to the mounting bracket and/or the battery drawer to prevent removal of battery. Battery installation and removal can occur while the unit is mounted to the ceiling or wall via the slide out battery drawer. Designed for wall or ceiling mounting. Includes mounting anchors and screws.

provides 360 degrees of direct access to the

FEATURES

Pins are provided to lock battery drawer and/or alarm to base. Perfect for apartment, dormitory or hotel applications.

CAT.

SCO5B Series

Alarm Dimensions: 5.0” dia x 2.0”H

Weight: 8.4 oz.

MOUNTING

TOP VIEW SIDE VIEW

5.0"

2.0"

BRACKET

ARCHITECTURAL AND ENGINEERING SPEC

The smoke/CO combination alarm shall be a First Alert Model SCO5 and shall provide at a minimum the following features and functions:

1. A Photoelectric smoke sensing chamber and an electrochemical CO sensor.

2. The unit shall have a lower and varying horn frequency to to make it easier for the elderly with normal age related hearing loss to better hear the horn

3. Fully screened smoke sensing chamber to resist entry of small insects thereby reducing the probability of unwanted alarms and be capable of self restoring.

4. Powered by supervised 2 AA alkaline batteries and a solid state piezo horn rated at 85dB at 10 ft.

5. A visual green LED power-on indicator to conﬁrm unit is receiving power. A visual red indicator to show unit is alarm.

6. A full function test button should check all alarm functions by simulating a smoke and CO condition, causing the unit to alarm.

7. Two Silence features - Low Battery Silence: Silence low battery chirp for up to 8 hours. Alarm Silence: Temporarily silence unwanted nuisance alarms.

8. Optipath 360 Technology

- provides 360 degrees of direct access to the

smoke sensing chambers.

9. Two Locking features - tamper resistant locking pins that lock battery drawer and/or alarm to mounting bracket.

10. The unit shall be capable of operating between 40°F (4°C) and 100°F (38°C) and relative humidity between 10% and 95%.

11. The unit shall contain mounting hardware and shall be listed for wall or ceiling mounting.

12. The unit shall at a minimum meet the requirements of UL217, UL2034, CSFM, NFPA 72, NFPA 720, NFPA 101, ICC

INSTALLATION OF ALARM

Installation of this alarm must conform to NFPA 72 and NFPA 720. Always check your local building codes. Follow all instructions for placement as outlined in the user’s manual.

THE PARTS OF THIS SMOKE/CO ALARM

TOP OF ALARM

1. Test/Silence button & remote control sensor

2. Slide-open battery drawer

3. Power/smoke alarm light

4. CO alarm light

Operating Voltage: 2AA Alkaline Battery Powered

Temperature Range: 40°F (4°C) to 100°F (38°C)

Humidity Range: 10% to 95% relative humidity (RH)

Audio Alarm: 85dB at 10 feet

Test/Silence: Electronically simulates smoke and CO conditions, causing the unit to alarm and temporarily silence the alarm

Press and hold test/silence button

Alarm Reset: Automatic when smoke and/or CO clears

Smoke Sensor: Photoelectric CO Sensor: Electrochemical

Indicator Lights/Sounds:

DC Power: Intermittent Red Light

Alarm: Audio Alarm, rapidly ﬂashing red light by corresponding smoke or CO indicator light

Listing: Listed to UL217 and 2034 Standards

Individual Carton Dimensions 5.13 ”L x 2.380”W x 5.13”H

Weight 0.66lbs.

Cube 0.036 ft3

UPC 0 29054 00347 8

Master Carton Dimensions 10.750”L x 7.880”W x 11.06”H

Master Pack 12

Weight 8.4lbs.

Cube 0.542 ft3

I2 of 5 700 29054 00347 7

Pallet Information

Cases per Layer 22

Number of Layers 4

Cases per Pallet 88

Units per Pallet 1,056

Cube 53.9 ft3

Weight 804 lbs.

Remove Pin from

TECHNICAL SPECS

SHIPPING SPECS:

BATTERY DRAWER LOCK

Mounting Bracket

Close Door. Insert Pin in Holes through alarm and Battery Drawer

BOTTOM OF ALARM

1. Mounting bracket

2. Mounting Slots

3. Battery Drawer - Install 2 AA batteries here

4. Turn this way to remove from bracket

5. Turn this way to attach to bracket
