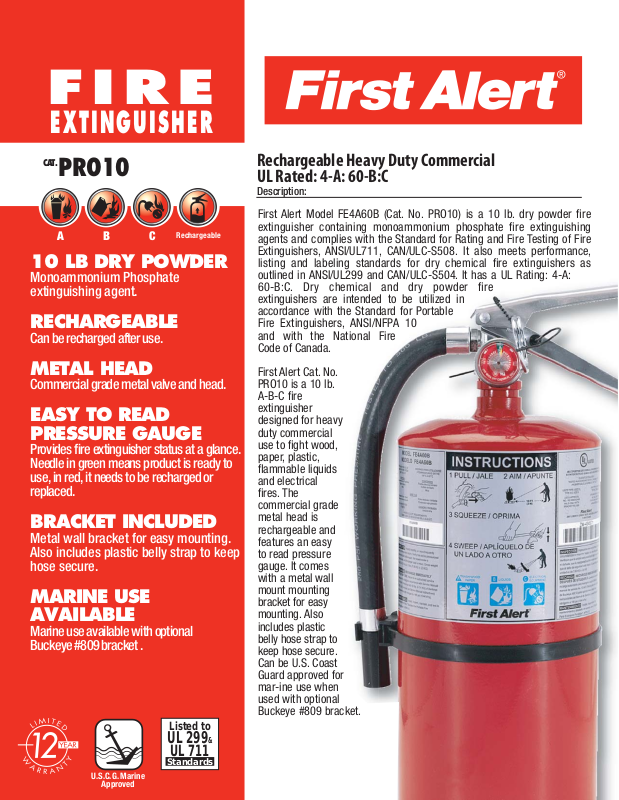

First Alert PRO10 User Manual

FIRE

EXTINGUISHER

CAT.

PRO10

10 LB DRY POWDER

Monoammonium Phosphate extinguishing agent.

RECHARGEABLE

Can be recharged after use.

METAL HEAD

Commercial grade metal valve and head.

EASY TO READ PRESSURE GAUGE

Provides ﬁre extinguisher status at a glance. Needle in green means product is ready to use, in red, it needs to be recharged or replaced.

BRACKET INCLUDED

Metal wall bracket for easy mounting. Also includes plastic belly strap to keep hose secure.

MARINE USE AVAILABLE

Marine use available with optional Buckeye #809 bracket .

U.S.C.G. Marine

Approved

Listed to

UL 299

UL 711

Standards

Rechargeable

Rechargeable Heavy Duty Commercial UL Rated: 4-A: 60-B:C

Description:

First Alert Model FE4A60B (Cat. No. PRO10) is a 10 lb. dry powder ﬁre extinguisher containing monoammonium phosphate ﬁre extinguishing agents and complies with the Standard for Rating and Fire Testing of Fire Extinguishers, ANSI/UL711, CAN/ULC-S508. It also meets performance, listing and labeling standards for dry chemical ﬁre extinguishers as outlined in ANSI/UL299 and CAN/ULC-S504. It has a

60-B:C. Dry chemical and dry powder ﬁre

extinguishers are intended to be utilized in accordance with the Standard for Portable Fire Extinguishers, ANSI/NFPA 10 and with the National Fire Code of Canada.

First Alert Cat. No. PRO10 is a 10 lb. A-B-C ﬁre extinguisher designed for heavy duty commercial use to ﬁght wood, paper, plastic, ﬂammable liquids and electrical ﬁres. The commercial grade metal head is rechargeable and features an easy to read pressure gauge. It comes with a metal wall mount mounting bracket for easy mounting. Also includes plastic belly hose strap to keep hose secure. Can be U.S. Coast Guard approved for mar-ine use when used with optional Buckeye #809 bracket.

UL Rating: 4-A:

CAT.

PRO10

6.0”

Rechargeable

OVERALL DIMENSIONS

16.8”

ARCHITECTURAL AND ENGINEERING SPEC

The ﬁre extinguisher shall be a First Alert Model FE4A60B and shall provide at a minimum the following features and functions:

1. Dry chemical ﬁre extinguisher containing monoammonium phosphate ﬁre extinguishing agent.

2. Rated at 4-A: 60-B:C.

3. A commercial grade metal head that is rechargeable per Buckeye 133401 Service Manual and a red steel can.

4. An easy to read pressure gauge with a needle that visually shows ﬁre extinguisher pressure status via a green section signifying pressure is good and a red section signifying unit needs to be recharged or replaced.

5. A metal wall bracket and plastic belly strap to keep hose secure .

6. U.S. Coast Guard approved for marine use with approved bracket. Marine Type, Type-B:C-Size II. Approval 162.028/EX2480. Valid only with bracket number Buckeye 809.

7. The unit shall be capable of operating between -65°F (-54°C) and 120°F (49°C).

8. Pressurized to 195 psi (1,344 kPa). Meets DOT requirements for cylinders. Tested to 585 psi (4,033 kPa).

9. The unit shall at a minimum be listed to and meet the requirements of UL711, ULC-S508, UL299 and ULC-S504.

TECHNICAL SPECS

Dimensions: 4.6” dia x 16.0”H

Weight: 16.9 lbs.

Temperature Range: -65°F (-54°C) to 120°F (49°C)

Pressurized to: 195 psi (1,344 kPa)

Head/Can Type: Metal/Steel

Rechargeable: Yes, per Buckeye 133401 Service Manual

Rating/MSDS: 4-A: 60-B:C / Buckeye monoammonium phosphate

Listing: Listed to

UL711, ULC-S508, UL299 and ULC-S504

Standards

SHIPPING SPECS:

Individual Carton Dimensions 6.88 ”L x 6.63”W x 18.75”H

Weight 17.9 lbs.

Cube 0.47 ft3

UPC 0 29054 00279 2

Master Carton Dimensions 13.63”L x 6.88”W x 17.75”H

Master Pack 2

Weight 36.6 lbs.

Cube 0.96 ft3

I2 of 5 200 29054 00279 6

Pallet Information

Cases per Layer 15

Number of Layers 2

Cases per Pallet 30

Units per Pallet 60

Cube 45.0 ft3

Weight 1,163 lbs.

FIRE EXTINGUISHER CLASSIFICATIONS

It’s important to understand how ﬁre extinguishers are classiﬁed in order to choose the correct model. BRK Brands, Inc. offers a wide range of residential, marine, commercial, and automotive ﬁre extinguishers to meet the needs of your customers.

This Fire Extinguisher

TRASH–WOOD–PAPER

Fire extinguishers with a Class A rating are effective against ﬁres involving paper, wood, textiles, and plastics. The primary chemical used to ﬁght these ﬁres is monoammonium phosphate, because of its ability to smother ﬁres in these types of materials.

LIQUIDS

Fire extinguishers with a Class B rating are effective against ﬂammable liquid ﬁres. These can be ﬁres where cooking liquids, oil, gasoline, kerosene, or paint have become ignited. Two commonly used chemicals are effective in ﬁghting these types of ﬁres. Monoammonium phosphate effectively smothers the ﬁre, while sodium bicarbonate induces a chemical reaction which extinguishes the ﬁre.

ELECTRICAL EQUIPMENT

Fire extinguishers with a Class C rating are suitable for ﬁres in “live” electrical equipment. Both monoammonium phosphate and sodium bicarbonate are commonly used to ﬁght this type of ﬁre because of their nonconductive properties.

brkelectronics.com
