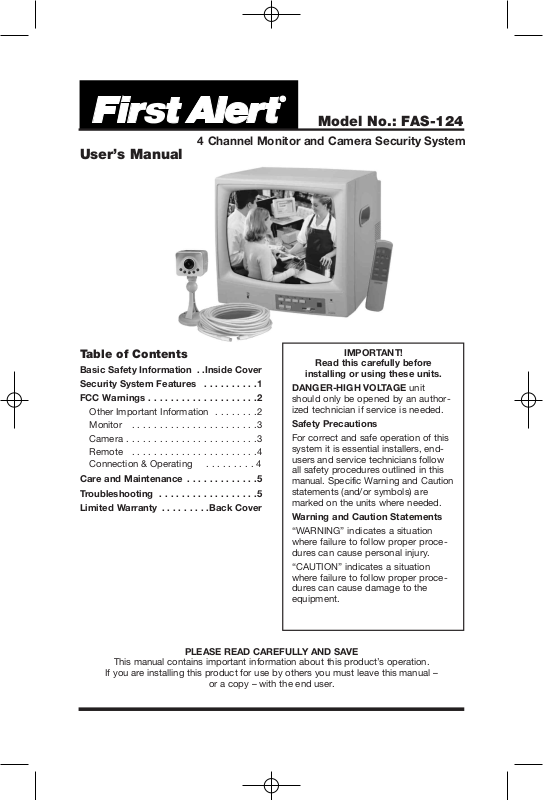

First Alert FAS-124 User Manual
User’s Manual
Model No.: FAS-124
4 Channel Monitor and Camera Security System
Table of Contents
Basic Safety Information . .Inside Cover
Security System Features . . . . . . . . . .1
FCC Warnings . . . . . . . . . . . . . . . . . . . .2
Other Important Information . . . . . . . .2
Monitor . . . . . . . . . . . . . . . . . . . . . . .3
Camera . . . . . . . . . . . . . . . . . . . . . . . .3
Remote . . . . . . . . . . . . . . . . . . . . . . .4
Connection & Operating . . . . . . . . . 4
Care and Maintenance . . . . . . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . . . . .5
Limited Warranty . . . . . . . . .Back Cover
PLEASE READ CAREFULLY AND SAVE
This manual contains important information about this product’s operation.
If you are installing this product for use by others you must leave this manual –
or a copy – with the end user.
installing or using these units.
DANGER-HIGH VOLTAGE unit
should only be opened by an authorized technician if service is needed.
Safety Precautions
For correct and safe operation of this
system it is essential installers, endusers and service technicians follow
all safety procedures outlined in this
manual. Specific Warning and Caution
statements (and/or symbols) are
marked on the units where needed.
Warning and Caution Statements
“WARNING” indicates a situation
where failure to follow proper procedures can cause personal injury.
“CAUTION” indicates a situation
where failure to follow proper procedures can cause damage to the
equipment.
IMPORTANT!
Read this carefully before
Basic Safety Information
Before installing this unit, read all the Cautions and Warnings listed below.
ELECTRICAL SHOCK OR FIRE HAZARDS!
• ELECTRICAL SHOCK HAZARD. DO NOT TRY TO SERVICE THE UNIT YOURSELF. SERVICE SHOULD BE HANDLED BY QUALIFIED TECHNICIANS.
Servicing the monitor or camera yourself will void your warranty.
• Do not use with extension cords or other types of AC adapters. The unit may not
work properly. Use only the AC adapter provided, and always plug the AC adapter
directly into a standard 120 VAC outlet.
• Do not place cords from the AC adapter or the sensors where they can be
pinched or stepped on. Protect the cords by keeping them out of the way of children, pets, and routine household traffic.
• Do not place heavy objects on cords, or cover cords with rugs or carpet.
• NEVER immerse any component in water, and do not spray cleaners or
solvents on the unit. Unplug both components before cleaning. When cleaning,
use a damp, lint-free cloth only.
• Do not expose the monitor or camera to excessive heat, cold, or moisture.
• Connect this unit ONLY to other compatible units. Do not connect it to any
other type of alarm or auxiliary device. Connecting anything else to this unit
may damage it or prevent it from operating properly.
• Do not expose the monitor or camera to excessive heat, cold, or moisture.
• Do not expose the monitor or camera to rain or direct sunlight.
• Make sure all cables are connected properly. Improper cable connections may
damage the camera and monitor.
• Handle the monitor and camera with care. Do not locate units in locations subject to shaking or vibration.
• Do not locate the monitor near radiators, ovens or other heat generating appliances and equipment.
• Leave at least a 2” space between the monitor and walls, cabinets and/or
other objects to allow air circulation around the unit.
• TURN OFF power to the television or monitor and unplug the AC adapter from
the wall outlet when connecting the camera.
• This product is equipped with a polarized AC line plug (one blade wider than
the other). As a safety feature, this plug will only fit into the wall outlet one
way. If you cannot insert the plug fully into an outlet, turn the plug the other
way and try again. If this does not work, DO NOT try to force the plug into the
outlet or attempt to defeat the safety feature on the polarized plug.
• Do not paint over the camera.
Security System Features
Your FAS-124 Kit Contains:
• (Qty 1) 12” B/W 4-Channel Signals
Auto Switching Monitor
• (Qty 1) 1/3” B/W Camera
System Features:
Your Camera and Monitor Security System features:
12” MONITOR:
• High resolution display.
• Four channel Audio/Video input, single channel simultaneous output.
Allows you to connect 4 external cameras, and view them on one monitor.
• AUTO SWITCHING–When more than 2 cameras are connected, the monitor automatically
switches among the camera feeds of the cameras. This keeps you informed of
what is going on in both locations without having to manually switch back and forth
among cameras.
• AUTO-SWITCH TIME SET–You can set the time interval that the monitor automatically switches cameras. This can be set anywhere from 5-20 seconds.
• Built-in power jacks for 4 cameras.
• 50 Hz - 60 Hz switch.
• 120V/60 Hz adapter.
BLACK AND WHITE CAMERA:
• Microphone: Built-in microphone picks up sound at the camera location and transmits it to the television or monitor.
• Camera Port: DIN port for connecting the camera to the television or monitor.
• Wide Angle Lens: Allows view of a wide area.
• (Qty 1) AC/DC Adapter
• (Qty 1) 60-foot
Specifications
MONITOR
Monitor Screen Size: 12” (Diagonal).
Horiz. Resolution: 700 Lines (Center)
500 Lines (Corner)
Frequency: EIA: Horiz.: 15750 (+/-400) Hz
Vertical: 60 Hz
CCIR: Horiz.: 15625 +/-400 Hz
Vertical: 50 Hz
Input Signal: 0.5~2 Vp-p Composite
Video SYNC Negative
Input Impedance: 75 Ohm DIN or RCA
connector
Power Supply: AC/DC Adapter
(18 VDC, 1.5 A)
Power Consumption: Less than 40W
Housing: Plastic construction
Operating Temperature: 15ºF to 104˚F
Dimensions: 16” (395mm) L x 14”
(360mm) W x 14” (350mm) H
Weight: 13 lbs (6 kg)
CAMERA
Integrated Lens: 0.15” (3.6mm)
Resolution: 380 Horizontal TV lines
Power Consumption: 1.3 Watts
Auto Iris Shutter: 1/60-1/100,000
Min. Illumination: 0.05 lux
Infrared LED’s: 6
Dimensions: 2.4” (60 mm) x 3.3” (83mm)
x 2.0” (51 mm)
Weight: 10.5 oz. (300g)
1
