First Alert FA220KP, FA270KP, FA570KP Installation And Setup Manual
K14030V1 9/10 Rev. A
REMOTE KEYPADS
R
FA220KP, FA270KP, FA570KP
INSTALLATION AND SETUP GUIDE
Keypad Features
FA220KP
Fixed-Word
Backlit Display NO YES (See Note 1) YES (See Note 1)
Dedicated Function Keys NO YES YES
Built-in Sounder Piezo-electric Speaker Speaker
First Alert Pro Controls
FA220KP
Fixed-Word
FA130CP**, FA148CP**, FA168C**,
FA168CPS**, FA1220CV**, FA1340C**,
YES
FA2000C*
FA1600C/CA/CB**, FA1660C**,
FA1700C**
✝ The FA570KP must be used to program the FA130CP, FA148CP, FA168C, FA168CPS, FA1220CV, FA1340C, FA1600C/CA/CB, FA1660C,
FA1700C, and FA2000C controls.
* Use the non-addressable mode with this (FA2000C) control (set to address 31).
** Use the addressable mode with these controls (addresses 00-30).
Notes: 1. Display backlighting is supported and timed out (see the control's instructions for details).
ULC
2. The FA570KP is required for certain advanced user functions (see the control's instructions for details).
For ULC installations, the FA1660C Series must be used with the FA570KP keypad.
NO NO YES
GENERAL INFORMATION WIRING AND INSTALLATION
The FA220KP, FA270KP & FA570KP are addressable,
remote keypads and are intended for use with the controls
listed in the table above. Addresses are set via the keypad
keys (no DIP switches). The keypads are also compatible
with older control panels using the non-addressable mode
(address 31).
KEYPAD DISPLAYS AND LEDS
The keypads have the following features of the display:
Model
FA220KP X 2-digit
FA270KP X 3-digit
FA570KP X 3-digit X
Fixed
Word
Display
2-line
Alpha
Display
2, 3-digit
Zone
Identifier
Custom
Zone
Descriptors
The following table shows the LEDs and their functions:
LED Function
Red Lights when the system is armed in any mode
Green Lights when the system is "ready" to be armed.
SPECIAL FUNCTION KEYS
The keypads also feature programmable Special Function
keys. (See table below.) These keys may be programmed for
panic alarms or other special functions. See the control's
instructions for details. The FA220KP uses the panic key
pairs only. Special Function keys must be held down
for at least 2 seconds to activate an alarm.
FA270KP/FA570KP FA220KP
A or (1 & ✱) (1 & ✱)
B or (✱ & # ) (✱ & # )
C or ( 3 & # ) ( 3 & # )
D NONE
The keypads can be surface mounted directly to a drywall, or to
a single- or double-gang electrical box.

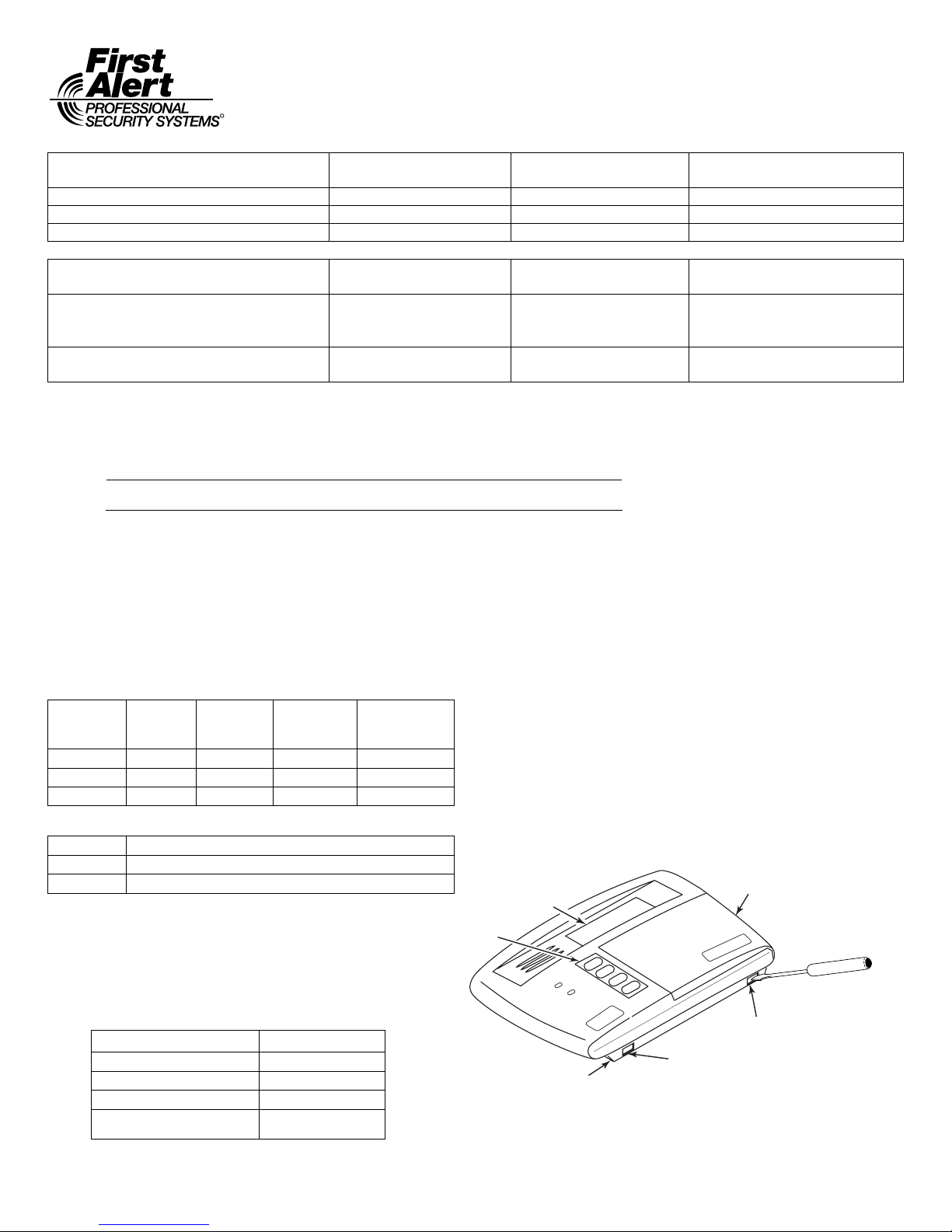

1. To remove the case back, insert a small screwdriver
blade at a downward angle into Slot 1 and twist (the
right side pops up). Insert the screwdriver blade at a
downward angle into Slot 2 and twist (the left side pops
up). Insert the screwdriver blade into right side narrow
Slot 3 and twist. Separate the case back from upper case.
2. Route wiring from the control panel through the large
opening in the case back.
3. Mount the case back to a wall or electrical box.
4. Use the wiring table on the next page when
connecting the keypad. Wire directly from the
keypad’s terminal block to the terminal block on the
control’s PC board. Wire functions are marked next to
terminals. See the control panel’s Installation Instructions
for more complete details.
5. Reattach the keypad to its case back.
Special
Function
Keys
FA270KP (shown) & FA570KP contain four Special Function Keys
(Special Function Keys not available on the FA220KP)
Fixed-Word
Fixed-Word
Display
ARMED
READY
Case Back
FA270KP
FA270KP
YES
A
B
C
FA570KP ✝
2-Line Alpha
FA570KP ✝
2-Line Alpha
See Note 2
Slot 3
D
Slot 1
Slot 2
FA270-001-V2
SETTING THE KEYPAD ADDRESS
The keypad can either be set for an address of 00-30, or to
the non-addressable mode (31). The keypad's default
address is 31.
To change the keypad's address, do the following:
1. Enter address mode: Power up the keypad. Within 60
seconds of power-up, press and hold down the [1] and [3]
keys at the same time for 3 seconds. (If unable to enter
address mode, power up and try again.)
The current keypad address will be displayed, and the
cursor will be under the "tens" digit. If 10 seconds have
passed with no key entry, the keypad automatically
exits address mode. You must power down, power up
and start address mode again.
NOTE: The keypad will not enter address mode if the
panel to which it is connected is in programming mode.
2. Set the current address to "00": Press [0] to clear the
current "tens" digit. The cursor will move to the "ones"
digit position. Press [0] to clear the current "ones" digit.
The cursor will move back to the "tens" digit position.
3. Enter the keypad's address: Enter the proper "tens" digit
of the keypad's address. The cursor will move to the
"ones" digit position. Enter the proper "ones" digit of the
keypad's address. Note that address "31" sets the
keypad to non-addressable mode.
4. Exit address mode:
Press [✱] to save the displayed address and exit address
mode.
VIEWING THE KEYPAD ADDRESS
Press and hold down the [1] and [3] keys at the same time
for about 3 seconds. The current address is displayed. No
key entry is allowed. Press any key to exit or wait 10
seconds to automatically exit viewing mode.
FUNCTION KEY LABELS
A set of adhesive-backed labels with some typical function
symbols (i.e., fire, police, personal emergency, etc.) is
provided. These labels can be placed on or next to the keys
to identify each key's function for the end user (as
determined by the control panel's capability and
programming; see the control's instructions).
REFER TO INSTALLATION INSTRUCTIONS FOR THE CONTROL PANEL WITH WHICH THIS DEVICE IS USED
FOR WARRANTY INFORMATION AND LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
SPECIFICATIONS
Physical:
FA220KP: 6-1/8"W x 4-1/4"H x 1-1/8"D
(155.6mm x 108.0mm x 28.6mm)
FA270KP: 6-5/8"W x 4-7/8"H x 1-1/8"D
(168.3mm x 123.9mm x 28.6mm)
FA570KP: 7-3/4"W x 5-3/8"H x 1-5/16"D
(197mm x 136.5mm x 28.6mm)
WIRING TABLE
Keypad Control Panel Color
▲ G
+
▼ Y
Data Out Data In Green
GND - Aux Power Black
+12VDC + Aux Power Red
Data In Data Out Yellow
Displays:
FA220KP, Fixed-Word LCD
FA270KP: Fixed-Word LCD (backlit).
FA570KP: 2 x 16 alpha-numeric supertwist LCD, backlit.
Sounder:
FA220KP: Piezo-electric (fire alarm is loud, pulsing single
tone; (all Keypads) burglary alarm is loud,
continuous, dual tone).
FA270KP, Speaker
FA570KP: Speaker
Voltage: 12VDC
Current:
FA220KP: 55mA sounder on, 30mA standby, alarm
sounder off.
FA270KP: 100mA (ARMED LED lit, LCD backlight and
sounder on), reduces to 40mA when panel is
operating in standby mode (backlight off).
FA570KP: 150mA (ARMED LED lit, LCD backlight and
sounder on), reduces to 40mA when panel is
operating in standby mode (backlight off).
2 CORPORATE CENTER DRIVE, MELVILLE, NY 11747
ÊK14030V1sŠ
K14030V1 9/10 Rev. A
www.firstalertprofessional.com
Copyright © 2009 Honeywell International Inc.
