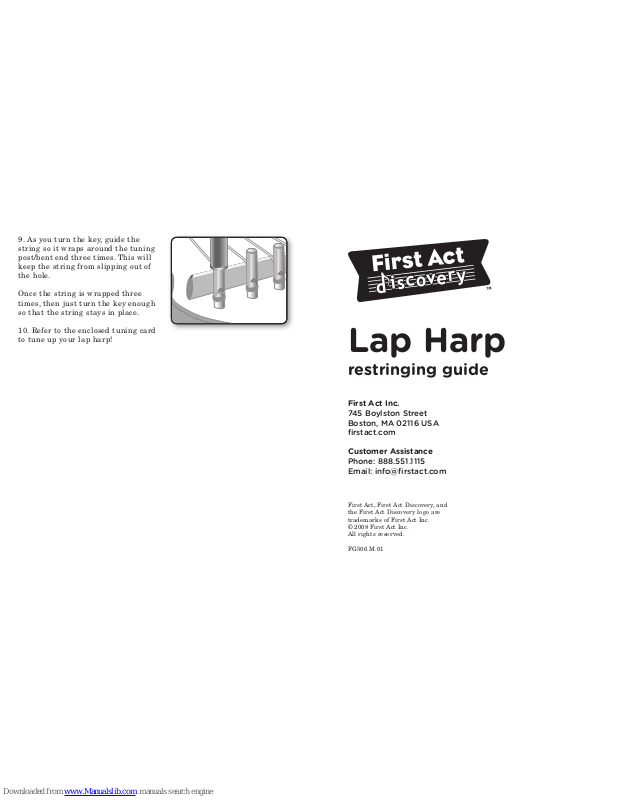

First Act Discovery FG506 Maintenance Manual

Page 1
Lap Harp
restringing guide
First Act Inc.
745 Boylston Street Boston, MA 02116 USA firstact.com
Customer Assistance
Phone: 888.551.1115 Email: info@firstact.com
First Act, First Act Dis cover y, and the First Act Di scove ry l ogo a re trademarks of First Act Inc. © 2008 First Act Inc. All rights reserved.
FG506.M.01
9. As you turn t he key, guide the string so it w raps around the tunin g post/bent end three times. This will keep the string from slipping out of the hole.
Once the string is wrapped three times, then just turn the key enough so that the string stays in place.
10. Refer to the enclosed tuning card to tune up your lap harp!
Page 2
CHANGING STRINGS
Strings should be replaced when they become dirty, discolored, or produce a dull sound. Strings should always be changed by an adult. You can change your strings in these easy steps:
1. Remove the old strings.
2. Take a new string out of the plastic pouch included with this guide. Thread the end of the new string through the hole found on the bridge. Then t hread it through the tuning post hole.
Note: Please us e caution while handling and tuning your strings as string ends ar e sharp. Also, too m uch tensio n can br eak strings and cause injury.
3. Leave 2 1/2 inches of slack beyond the tuning post, and trim the end of the string with a pair of wirecutters.
4. Measure 1/8 inch from the end of the string, and bend it at a right angle with a pair of pliers.
5. Pull the string so that the bent sectio n at the end is resting flat against the tuning post.
6. Make sure th e bent end is pointin g downward.
7. Locate the t uning key, which i s stored on the side of the harp. You will need the turn to latch to get the key out.
8. Pull lightly on the string to cre ate tension. At the same time, to turn the tuning post with the tuning key.
bridge
hole
tuning post
trim/end
