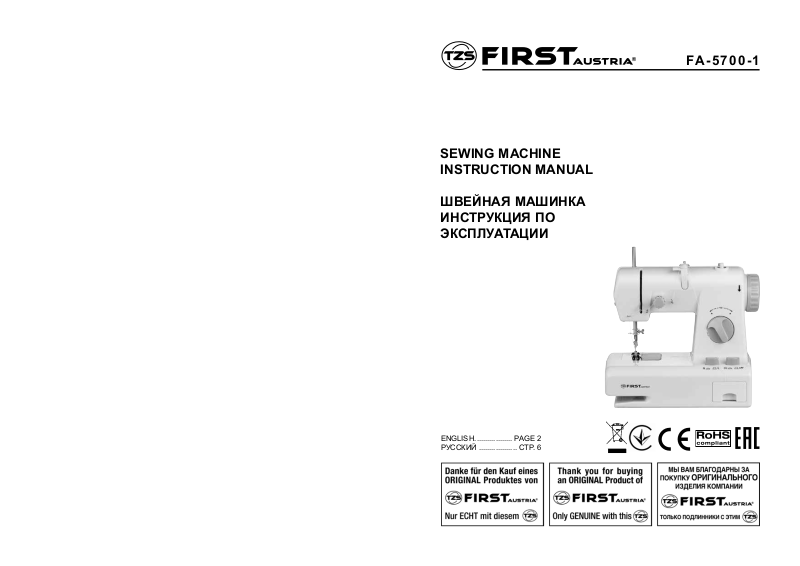

FA-5700-1
SEWING MACHINE
INSTRUCTION MANUAL
ШВЕЙНАЯ МАШИНКА ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
..................ENGLISH |
PAGE 2 |
|
|
|
...................РУССКИЙ |
СТР. 6 |
|
|
|
|
|
|
INTRODUCTION
PARTS & ACCESSORIES
ENGLISH
(Please read the manual carefully before using the unit)
GETTING STARTED
(please refer to illustrations for the locations and configuration of components)
AFTER REMOVING THE MACHINE FROM THE PACKING BOX
1.Make Certain both the the ON/OFF switch is in the Off position (before inserting the batteries)
2.lnsert 4 AA batteries into the battery slot compartment on the bottom of the machine.
3.Push the ON/OFF switch to turn on or off the machine ln the“ON“ Position the switch is in.while in the“OFF“ position the switch is out The machine will start sewing immediately. Be sure the machine is properly threaded and fabric is positioned correctly for sewing before you turn on the machine.
THREADING MAIN UNIT USING THREAD SPINDLE
1.Raise thread spindle
(C)by grasping the exposed top and pulling upward until thread (C) is fully extended.
2.Place thread spool
(E)on the thread spindle (C) as shown.
3.Pull thread from the thread spool (E) on the spindle (C) and put through the thread holder(I)in the direction toward front of machine.
4.Bring thread across to the second thread guide (2).Thread goes over the tension adjusting screw (3) and must be positioned between the two washers behind the tension adjusting screw (Q).This is what provides the lock stick tension to the thread.
5.Pull thread from tension adjusting screw
(Q)guide th rough th read guide (4) in the direction toward front of machine.
6.Pull th read through thread guide(5)on the take-up lever (D) inserting in the direction toward the front of the machine.
7.Pull thread down to thread guide (6) and insert thread from the top downward.
8.Pull thread downward through thread guide
(7)
If necessary lower the needle (R) to reach this thread guide by turning the handwheel
(K)sightly anti-clockwise(in the direction) toward you)to Iower the needle (R)
9.lnsert thread through eye (8) of the needle from the front toward the back of the machine (Use perforator if necessary) If necessary raise the needle (R) to reach the eye by turning the handwheel (K) slightly clockwise (in the direction away from you).
10.Raise the presser foot (F) by lifting up on the lever at the rear of machine(G).
11.Pull about 10 inches of thread through the needle (R) and lay it on the deck under the
presser foot (F) running in the direction away from you.
BOTTOM BOBBIN PLACEMENT
1.Press the release button(H)on the rear of the machine to pop up the cover of the bobbin compartment (1)
2.Remove cover by lifting up where it has popped up at rear.
3.Place the bobbin with th read of your choice in the bobbin holder(J)leaving about 5 inches of th read extended out from the bobbin holder (J).
4.Lower presser foot (F).
5.Turn hand wheel (K)counterclockwise(toward you).Needle(R)will go down; picking up the bobbin thread. Turn handwheel (K) until needle(R)has descended completely and then come up again to its highest raised point.
Stop when need (R) starts to go down again.
6.Raise the presser foot (F) and bring the spool thread around to the front Pull it gently up and you will see it has caught the bobbin thread.
Pull the two threads toward the rear(away from you)and lay them under the presser foot
(F)
7.Snap the bobbin compartment (1)cover down and into place.
Note: It is essential that the threading of both top and bottom is done properly. Check carefully, and do one practice stitch before beginning to sew. Improper threading will damage the lockstitch.
