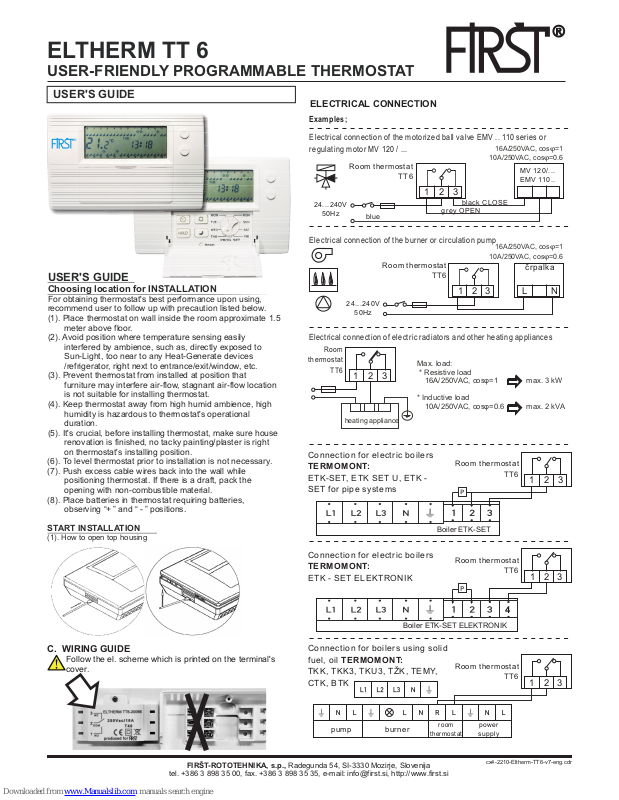

First ELTHERM TT 6 User Manual

FIRŠT-ROTOTEHNIKA, s.p., Radegunda 54, SI-3330 Mozirje, Slovenija

tel. [phone], fax. [phone], e-mail: [e-mail], http://www.first.si

Examples;

1

24...240V
50Hz

L

2

črpalka

3 N

1

blue

black CLOSE

grey OPEN

MV 120/...
EMV 110 ..

24...240V
50Hz

2 3

Electrical connection of the motorized ball valve EMV .. 110 series or
regulating motor MV 120 / ...

Electrical connection of the burner or circulation pump

Electrical connection of electric radiators and other heating appliances

ELECTRICAL CONNECTION

cx4-2210-Eltherm-TT6-v7-eng.cdr

16A/250VAC, cos =1ϕ

10A/250VAC, cos =0.6ϕ

Connection for electric boilers

ETK-SET, ETK SET U, ETK ­SET for pipe systems

TERMOMONT:

Room thermostat

TT6

16A/250VAC, cos =1ϕ

10A/250VAC, cos =0.6ϕ

Room thermostat

TT6

Boiler ETK-SET

1 2

3

Room thermostat

TT6

Connection for boilers using solid
fuel, oil
TKK, TKK3, TKU3, TŽK, TEMY,
CTK, BTK

TERMOMONT:

1 2

3

Room thermostat

TT6

pump burner

room

thermos ta t

power

supply

Connection for electric boilers

ETK - SET ELEKTRONIK

TERMOMONT:

Boiler ETK-SET ELEKTRONIK

1 2

3

Room thermostat

TT6

4

1

2 3

Room

thermostat

TT6

heating appliance

Max. load:

* Resistive load

16A/250VAC, cos =1 max. 3 kWφ

* Inductive load

10A/250VAC, cos =0.6 max. 2 kVAφ

®

ELTHERM TT 6

USER-FRIENDLY PROGRAMMABLE THERMOSTAT

USER'S GUIDE

®

C. WIRING GUIDE

Follow the el. scheme which is printed on the terminal's
cover.

USER'S GUIDE

Choosing location for INSTALLATION

For obtaining thermostat's best performance upon using,
recommend user to follow up with precaution listed below.
(1). Place thermostat on wall inside the room approximate 1.5

meter above floor.

(2). Avoid position where temperature sensing easily

interfered by ambience, such as, directly exposed to
Sun-Light, too near to any Heat-Generate devices
/refrigerator, right next to entrance/exit/window, etc.

(3). Prevent thermostat from installed at position that

furniture may interfere air-flow, stagnant air-flow location
is not suitable for installing thermostat.

(4). Keep thermostat away from high humid ambience, high

humidity is hazardous to thermostat's operational
duration.

(5). It's crucial, before installing thermostat, make sure house

renovation is finished, no tacky painting/plaster is right

on thermostat's installing position.
(6). To level thermostat prior to installation is not necessary.
(7). Push excess cable wires back into the wall while

positioning thermostat. If there is a draft, pack the

opening with non-combustible material.
(8). Place batteries in thermostat requiring batteries,

observing “+ ” and “ - ” positions.

START INSTALLATION

(1). How to open top housing

A. START TO PROGRAM

To set and temperature setting for each
independent time-scale.

-To adjust and Temperature setting.

1.Rotary switch pointed to RUN.

2.Press to enter
temperature setpoint.

3.Press or to adjust temperature.

4.Press to enter temperature setpoint.

5.

6.Wait 5 seconds after temperature adjustment finished, thermostat
shall memorize setting and return to main page.

This thermostat commands heating-system to operate with two
temperatures setting only, each of 7-day is spread into 48
independent time-scale, users can select length of time by own
preference, to coordinate with and temperature setting, for
coziest room temperature.

1.Spin indicator on rotary switch to the desired day of weekand start
setting. (Wednesday chosen for graphic
example)

(MON- ponedeljek, TUE- torek,
WED- sreda, THU- četrtek, FRI- petek,
SAT-sobota, SUN-nedelja)

2. LCD display shall show

3.Press or to alter setting between

and on LCD display.

4.Press or to select each individual time-scale, LCD
display shall also indicate each time-scale by digital number and
flashing, to guide users.

5. After finished setting all 7-day of week, spin rotary switch back to
“RUN”. Thermostat starts to operate its program.

Press or to adjust temperature.

MANUAL

(Temporary Override)

1. Rotary switch pointed to RUN.

2. Press or LCD display shall
indicate current or temperature setting.

3. Press again or to change setting.

4. LCD display shall be flashing for approximate 8 second after temperature
setting finished, and skip to main page of LCD-display after flashing stopped.
Thermostat starts to execute “MANUAL” function.

When setting this MANUAL function at the section of , thermostat shall
maintain executing “MANUAL” until program runs to the section of .
Vice versus. On LCD-display main page, when MANUAL in executing,

or shall disappear from display at the section of time that

**MANUAL.** function is executing.

5. Spin switch away from “RUN” and spin it back to “RUN” can terminate this
“MANUAL” function.

SUN

SAT

FRI

RUN

TUE

WED

THU

MON

C. HOLD (Permanent override)

1.Rotary switch pointed to RUN.

2.Press to enter this permanent
override mode, LCD shall display “Temp
Set”“Hold”.

3.Press or to adjust temperature
setting.

4.LCD display shall be flashing for approximate 8 second after temperature
setting finished, and skip to indicate ambient temperature after flashing
stopped. Thermostat starts to execute Permanent-Override function.

5. Press again , can release this “HOLD” command;
thermostat shall resume its original setting.

MON ~ FRI

1312

983210 7654 1110

1514 2120 23221716 1918

SUN

SAT

FRI

RUN

TUE

WED

THU

MON

PROG.SET

-

+

1312

983210 7654 1110

1514 2120 23221716 1918

+

SUN

SAT

FRI

RUN

TUE

WED

THU

MON

HOLD

-

+

SUN

SAT

FRI

RUN

TUE

WED

THU

MON

PROG.SET

-

+

※

-

HOLD

-

+

FIRŠT-ROTOTEHNIKA, s.p., Radegunda 54, SI-3330 Mozirje, Slovenija

tel. [phone], fax. [phone], e-mail: [e-mail], http://www.first.si

-

+

※

2.

3. Press or to select the day of week.

(MON- monday, TUE- tuesday, WED- wednesday, THU­thursday, FRI- friday, SAT-saturday, SUN-sunday)

4. Press again to enter adjusting hour of day.

5. Press or to adjust.

6. Repeat procedure of pressing and / to
finish adjusting minute of hour.

7. LCD display shall automatically return to main page 5
seconds after clock adjusting completed.

Press to enter clock adjusting.

TO ADJUST CLOCK

1. Rotary switch pointed to “RUN”.

SUN

SAT

FRI

RUN

TUE

WED

THU

MON

-

+

-

+

-

+

LOW BATTERY INDICATION

If on the screen appears "Lo"
is necessary to replace 2 batteries!

We recommend using alkaline
battery 1,5V.LR06

980 7654 1110

SAT

FRI

RUN

TUE

WED

THU

MON

SUN

SAT

FRI

RUN

TUE

WED

THU

MON

PROG.SETPROG.SET

SUN

HEATING INDICATION

Symbol indicates pump, burner, el.
heater operation.

980 7654 1110

18

SAT, SUN

1312

983210 7654 1110

1514 2120 23221716 19

※

Factory preset

(default value)

= 21°C

=16°C
