(FKEP Series)
Conventional Fire Control Panel
(FKEP2, FKEP4, FKEP8)
User Manual
Man-1082EL Issue 01 February 2014
Man-1082EL_FIRETEC_01 Page 2 of 6
Fire alarm condition
General fire indicator lights and zonal fire indicators flash. Buzzer pulses rapidly.
Fault condition
General fault indicator lights and specific fault indicators flash. Buzzer sounds continuously.
Call
maintenance
engineer
Carry out fire
procedure
Man-1082EL_FIRETEC_01 Page 3 of 6

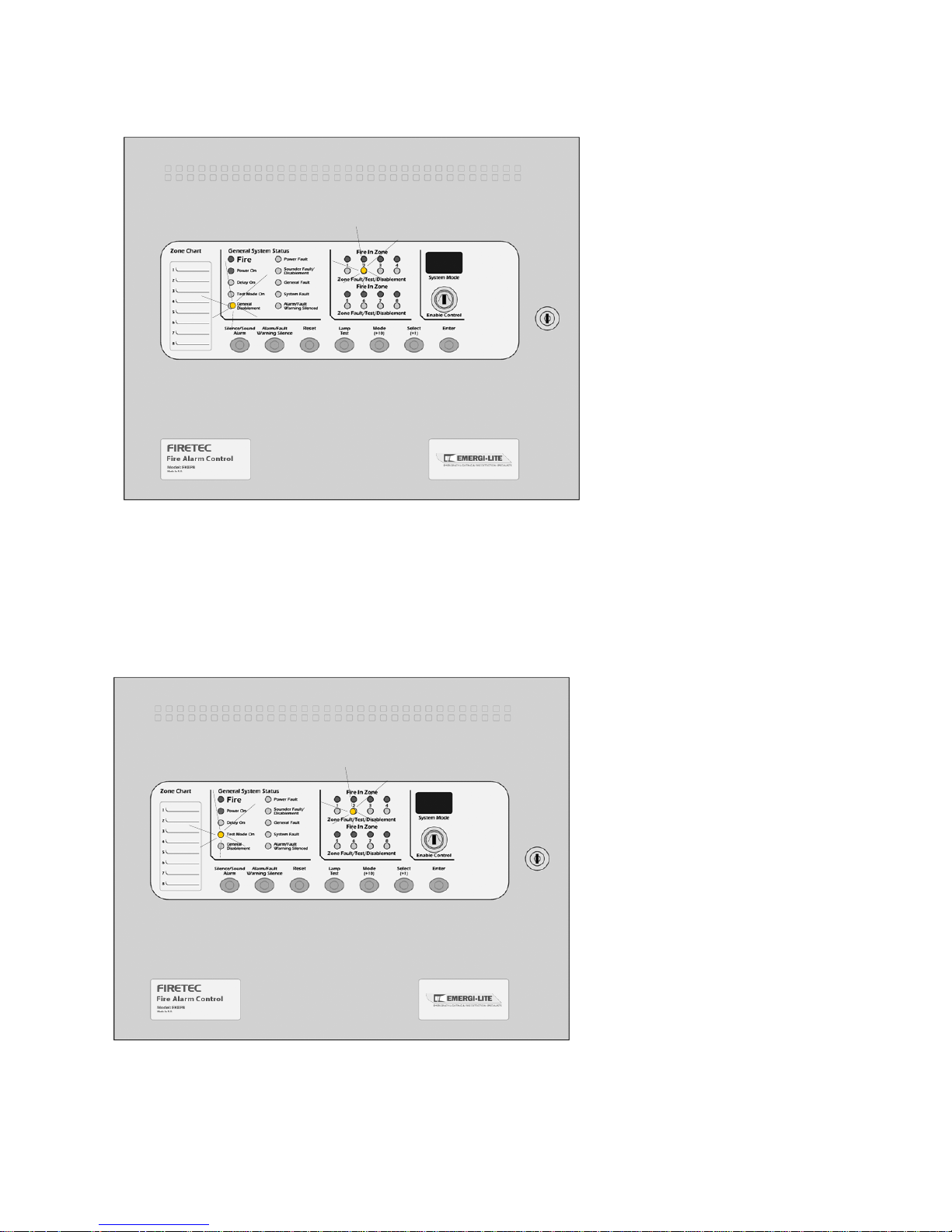

Disabled condition
General disablement indicator and specific fault indicator lit continuously.
Test condition
Test indicator and specific fault indicator lit continuously.
Maintain
vigilance
during
disablement
conditions
Ensure
system is
returned to
normal
when testing
is finished
Man-1082EL_FIRETEC_01 Page 4 of 6
How To Do This Display
Comments
Silence buzzer
Alarm/Fault
Buzzer Silenced
Press button
Test lamps
Lamp
Test
Press button
All lamps on
Buzzer sounds whilst
button is pressed
Enable buttons
(Only Alarm/Fault
warning Silence and
Lamp Test buttons are
operable without
turning enable key)
Enable
Control
Turn key
Buzzer beeps twice
every few seconds
Silence alarms
Silence/Sound
Alarm
Press button
Sound alarms
Silence/Sound
Alarm
Press button
Buzzer pulses rapidly
Reset
Reset
Press button
Ensure source of fire
event is cleared
before resetting

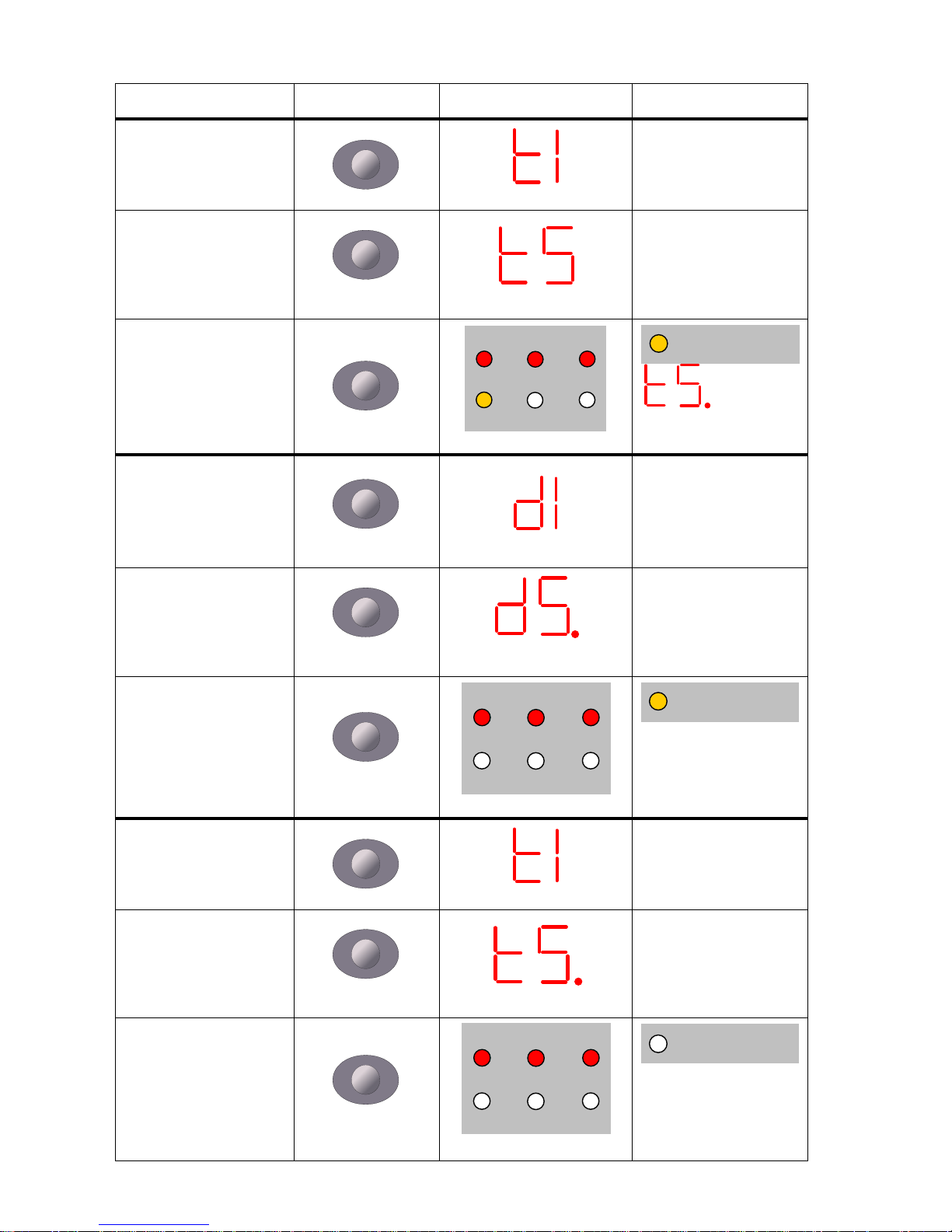

Disable a zone step 1
Mode
Press button
First display
Disable a zone step 2
Select
Press button to
scroll zones
Zone 5
Zone 5 for example
Disable a zone step 3
Enter
Press button
Zone 5 fault LED lit
Dot flashes to indicate
disablement
Fire
A
larm/Fault
Buzzer Silenced
A
larm/Fault
Buzzer Silenced
5 6 7
Fire in Zone
Zone Fault
General
Disablement
Man-1082EL_FIRETEC_01 Page 5 of 6
How To Do This Display
Comments
Put a zone into test
mode step 1
Mode
Press button
First display
Put a zone into test
mode step 2
Select
Press button to
scroll
zone
Zone 5
Zone 5 for example
Put a zone into test
mode step 3
Enter
Press button
Zone 1 fault LED lit
Dot flashes to indicate
test mode
Enable a zone step 1
Mode
Press button to
display disablements
First display
Note: Proceed with
caution if the number
is flashing.
The panel will alarm if
enabled so should be
reset first.
Enable a zone step 2
Select
Press button to
scroll zones
Zone 5
Flashing dot indicates
zone is disabled
Enable a zone step 3
Enter
Press button to
enable zone
Zone 5 LED extinguishes
General disablement
indicator extinguishes
Exit test mode step 1
Mode
Press button
First display
Exit test mode step 2
Select
Press button to
scroll zones
Zone 5
Flashing dot indicates
zone is in test mode
Exit test mode step 3
Enter
Press button to
exit test mode
Zone 1 flt LED extinguishes
Test mode LED
extinguishes
1 2 3
Fire in Zone
Zone Fault
General
Disablement
General
Disablement
5 6 7
Fire in Zone
Zone Fault
T
est Mode On
1 2 3
Fire in Zone
Zone Fault
Man-1082EL_FIRETEC_01 Page 6 of 6
How To Do This Display
Comments

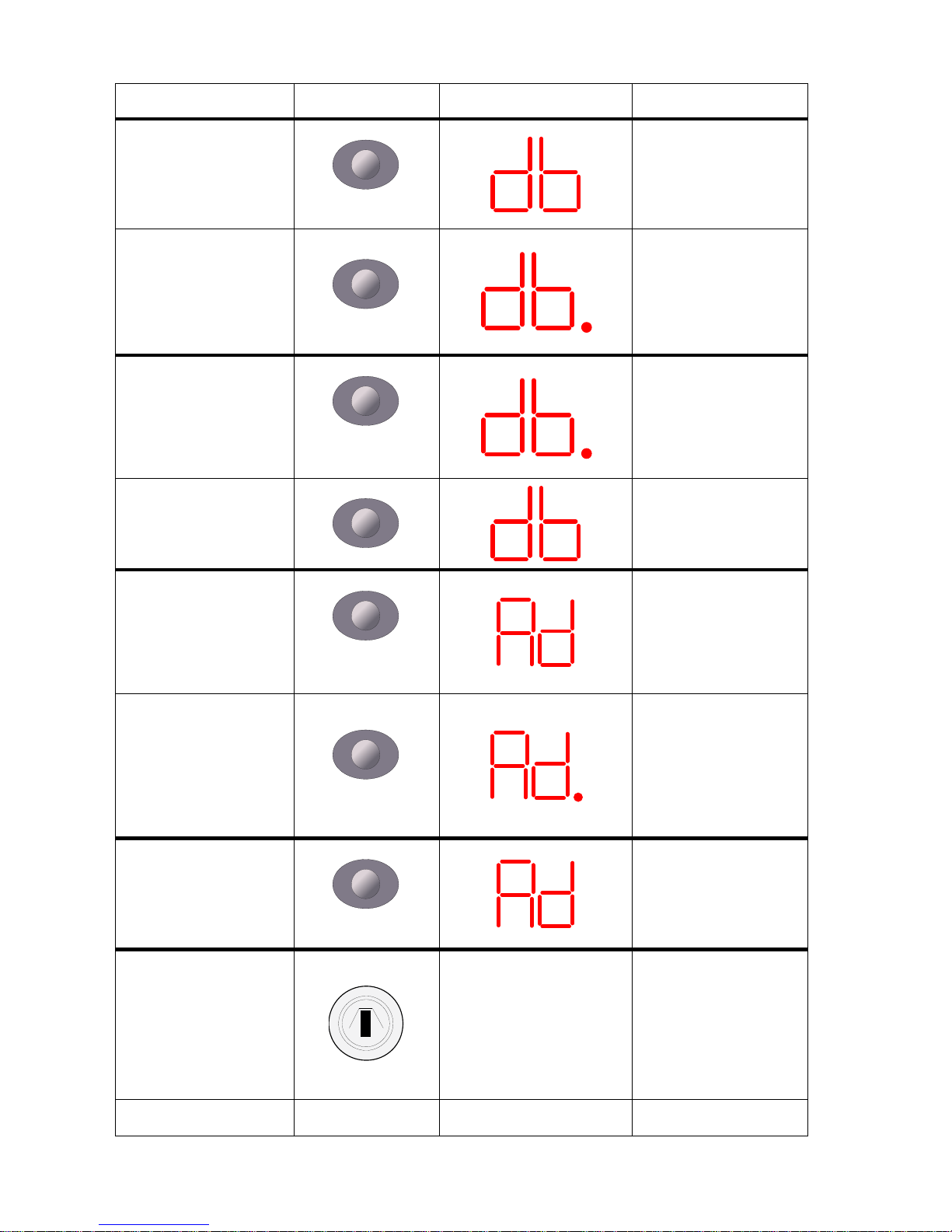

Disable sounders
step 1
Mode
Press button till
db is displayed
Disable sounders
step 2
Enter
Press button
Dot flashes to indicate
bells disabled.
General disablement
and Sounder
Fault/Disablement
indicators lit
Enable sounders
step 1
Mode
Press button till
db is displayed
Flashing dot indicates
bells disabled.
Enable sounders
step 2
Enter
Press button
Dot stops flashing to
indicate sounders are
enabled
Activate zone input
delays step 1
Mode
Press button till
Ad is displayed
Activate zone input
delays step 2
Enter
Press button
Dot flashes to indicate
that delays are active
if they have been set
in engineering mode
(refer to operation and
maintenance manual
configuration table)
De-activate zone
input delays
Mode
Press button till
Ad is displayed
Dot stops flashing to
indicate delays have
been de-activated
Return system to
normal
Enable
Control
Turn key and
remove
Leaves only
Alarm/Fault Warning
Silence and Lamp test
buttons operable
