Important Safeguards
Part List
Save these instructions for future reference. If you
are assembling this unit for someone else, Give this
manual to him or her to read and save for future
reference.
www.firesideescapes.com
Assembly Instruction
WARNING
For your Safety:
1: Improper installation, adjustment,alteration service or
maintenance can cause injury or property damage.
2: Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this
equipment.
3: Failure to follow these instructions could result in fire or
explosion, which could cause property damage, personal
injury or death.
Operating Instructions
Warranty Details

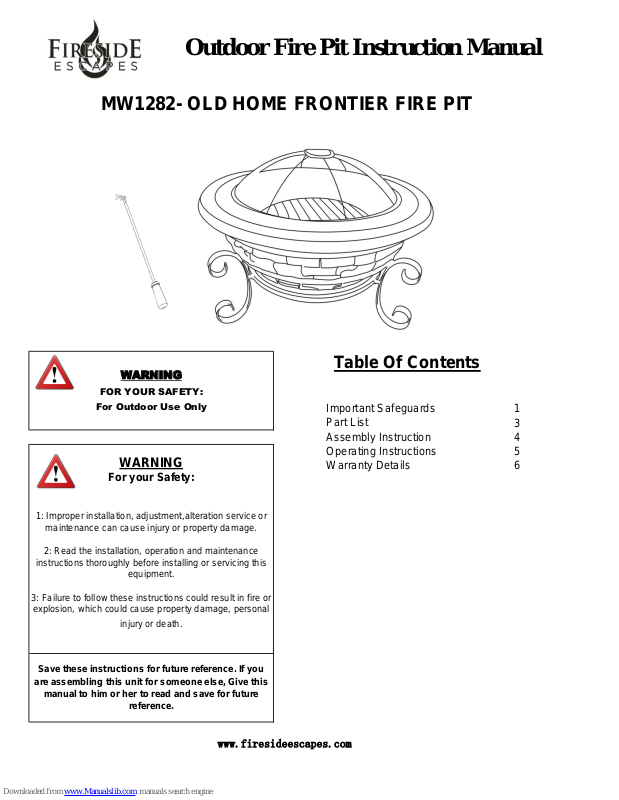

Outdoor Fire Pit Instruction Manual
MW1282- OLD HOME FRONTIER FIRE PIT
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
Table Of Contents
Pg: 1
21. Do NOT wear flammable or loose clothing when operating this outdoor fire pit.
22. Do NOT use in windy conditions.
www.firesideescapes.com
17. Do NOT use in an explosive atmosphere. Keep outdoor fire pit area clear and free from combustible materials,
gasoline and other flammable liquids.
18. Do NOT use this outdoor fire pit under any overhead or near any unprotected combustible constructions. Avoid using
near or under overhanging trees and shrubs.
19. Always use this outdoor fire pit on a hard, level non-combustible surface such a concrete, rock or stone. An asphalt or
blacktop surface may not be acceptable for this purpose. Do NOT use on wooden decks.
20. Always empty this outdoor fire pit before each use. Leave a thin layer of ash to protect the bottom.
13. Do NOT use this outdoor fire pit until it is COMPLETELY assembled and all parts are securely fastened and tightened.
14. Do NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
15. Do NOT store or use an LP gas cylinder within 10 feet (3.05 m) of this outdoor fire pit while it is in operation.
16. Do NOT use this outdoor fire pit near automobiles, trucks, vans or recreational vehicles.
9. Do NOT use this outdoor fire pit without reading the entire “Owner’s Manual”.
10. This outdoor fire pit is for use with dry, seasoned hardwood. It will burn hotter, more completely and create less
smoke.
11. Do NOT burn charcoal briquets, lump charcoal, manufactured logs,driftwood, trash, leaves, paper, cardboard, plywood,
painted or stained or pressure treated wood. Avoid using softwoods such as pine or cedar that can throw sparks.
12. Do NOT alter this outdoor fire pit in any manner.
5. This outdoor fire pit is NOT to be used in or on boats or recreational vehicles.
6. Always use in accordance with all applicable local, state and national codes. Contact your local fire department for
details on outdoor burning.
7. When using this outdoor fire pit, exercise the same precautions you would with any open fire.
8. The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or
safely operate this outdoor fire pit.
1. This appliance is for outdoor use only, and shall NOT be used in a building, garage, or any other enclosed area.
2. Do NOT use this outdoor fire pit for indoor heating.TOXIC carbon monoxide fumes can accumulate and cause
asphyxiation.
3. This outdoor fire pit is NOT for commercial use.
4. This outdoor fire pit is NOT to be operated by children.
WARNING
FOR YOUR SAFETY
Pg: 2
39. Deaths, serious injury or damage to property may occur if the above is not followed exactly.
www.firesideescapes.com
35. Do NOT place a hot spark guard or hot fire pit tools onto combustible surfaces such as grass, wooden deck or
furniture.
36. Avoid breathing smoke from the fire and avoid getting it into your eyes.
37. This outdoor fire pit should be thoroughly inspected and cleaned on a regular basis.
38. After a period of storage and/or non-use, check for signs of damage and creosote build-up. Do NOT operate until
necessary repairs and/or cleanup are executed.
31. Use long, sturdy fire pit tools when adding or moving logs.
32. Do NOT place wood directly into bottom of the outdoor fire pit. Place wood only on the wood grid.
33. Do NOT overload the fire pit. Do not add additional firewood until the fire burns down. NOTICE: If any portion of the
bowl, lid or spark guards of this outdoor fire pit are glowing red it is overloaded.
34. Do NOT lean over this outdoor fire pit when lighting or when in use.
27. Do NOT leave a lit outdoor fire pit unattended, especially around children and pets
28. Do NOT attempt to move or store this outdoor fire pit until all ashes and coals are completely extinguished.
29. Do NOT remove ashes or coals until they are completely and fully extinguished.
30. Use heat-resistant gloves or hot pads when contacting handles.
23. Do NOT use this outdoor fire pit unless spark guards are securely in place.
24. Do NOT use gasoline, kerosene, diesel fuel, lighter fluid or alcohol to light or relight fires.
25. Keep all electrical cords away from a hot fire pit.
26. All surfaces of this outdoor fire pit are hot when in operation. To avoid burns, do NOT touch fire pit until it has
completely cooled unless you are wearing protective gear (Potholders, gloves, BBQ mittens, hot pads & etc.). Never touch
ashes or coals to see if they are hot.
Pg: 3
www.firesideescapes.com
H1Mesh
D
9
Nut
G1Poker
C
3
Bracket
F1Poker
B
1
Below Steel
Tube
E
1
Firebowl
A
1
Top Steel
Tube
Part List
Pg: 4
www.firesideescapes.com
Step V: Place charcoal rack (F) into the fire bowl(E) then
put the assembled mesh lid (H) on top of fire bowl.
Step VI: Your fire pit is complete
Step III: Place the MGO Unit in the metal base.
Step IV: Place the fire fire bowl (E) in the
MGO Unit.
Step I: Assemble the top steel tube (A) and bracket (C)
by using nut(D).
Step II: Assemble the below steel tube (B)
and bracket (C) by using nut(D).
Assembly Instructions
F
H
B
A
C
D
D
C
E
Pg: 5
4. Use a match to light kindling or firestarter.
Storage
Reminders:
1. Check handles to make sure they are secure.
2. Check components for any signs of damage or rust.
3. If damage to any component is detected, do NOT operate
until repairs are executed.
Do NOT attempt to inspect this outdoor fire pit until the fire
is COMPLETELY out.
This outdoor fire pit should be inspected on a regular basis to
ensure product safety and longer product life.
4. Replace spark arrestor by using the fire tool.
Extinguishing
1. Allow fire to burn itself out.
Distributed By:
Fireside Escapes
Torrance, CA
Tel: 310-533-1177
www.firesideescapes.com
2. Do NOT use water to extinguish as this is dangerous and
can cause damage to this outdoor fire pit.
Care and Inspecting
Note: If you do not use a cover, store this outdoor fire
pit in a dry location to maximize product life.
1. Carefully remove spark arrestor by using the fire tool.
2. While using a long handled fireplace tool, shift coals and
logs to allow additional airflow.
3. If additional wood is required, place wood on top coals. Be
careful not to shift ashes.
You may need to shift and/or add logs for an ideal experience.
Do NOT move or store this outdoor fire pit until the fire
is COMPLETELY out.
* Always wear protective gloves or a pot holder when tending
fire.
* Wait until glowing coals have developed before adding any
additional wood.
* Do NOT add gasoline,kerosene, diesel fuel, Lighter fluid or
alcohol to relight or enhance an existing fire.
1. Once the fire is out, coals are cold and outdoor fire
pit is cool to the touch, remove ashes and properly
dispose.
3. Store assembled in a location away from children
and pets.
3. Rinse clean with water.
5. Replace spark arrestor by using the fire tool once the kindling
or firestarter is lit.
4. Remove built-up creosote from components with a
chimney cleaning product.
Tending the Fire
2. Place a layer of dry kindling or a natural firestarter onto the
center of the grate.
1. Wipe exterior surfaces with a mild dishwashing
detergent or baking soda.
3. Place above that a layer of dry seasoned hardwood that is
cut to lengths no more than 3/4 the diameter of the bowl.
2. For stubborn surfaces use a citrus based
degreaser and a nylon scrubbing brush.
Operating Instructions
WARNING
FOR YOUR SAFETY
Before using this outdoor fire pit, make sure you have read,
understand and are following all information provided in the
important safeguards presented on page 1. Failure to follow
those instructions can cause death, serious injury or property
damage.
Cleaning
This outdoor fire pit should be cleaned on a regular
basis to promote safer experiences and longer
product life. Note: After repeated use, a slight
discoloration of the finish may occur.
Do NOT attempt to clean this outdoor fire pit until
the fire is COMPLETELY out.
Do NOT use oven cleaner or abrasive cleaners as
they will damage this product.
Do NOT clean any part of this outdoor fire pit in a
self cleaning oven as it may damage the finish.
Lighting
1. Make sure there is only a small amount of ash in the bottom
of the bowl.
Pg: 6
1 YEAR LIMITED WARRANTY – Customers in the Continental US
***FAILURE TO FOLLOW WARNINGS AND OPERATIONAL INSTRUCTIONS CONTAINED IN THIS
MANUAL CAN RESULT IN SEVERE PROPERTY DAMAGE AND/OR PERSONAL INJURY***
This Limited Warranty is in lieu of all other express warranties. Vendor disclaims all warranties for products that are
purchased from sellers other than authorized retailers or distributors, including the warranty of merchantability or the
warranty of fitness for a particular purpose. VENDOR ALSO DISCLAINS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. VENDOR SHALL HAVE NO LIABILITY TO PURCHASER OR ANY THIRD PARTY FOR ANY
SPECIAL,INDIRECT, PUNITIVE, INCIDENTEAL OR CONSEQUENTIAL DAMAGES. Vendor further disclaims any implied
or express warranty of and assumes no responsibility for, defects in workmanship caused by third parties.
this limited warranty gives the purchaser specific legal rights; apurchaser may have other rights depending upon where he
or she lives. Some jurisdictions do not allow the exclusion or limitation of special, incedental or consequential damages, or
limitations on how long a warranty lasts, so the above exclusion and limitations may not apply to everyone.
Vendor does not authorize any person or company to assume for it any other obligation or liability in connection with the
sale, installation, use,removal, return, or replacement of its equipment and no such representations are binding on vendor.
***IMPORTANT NOTICE***
Do NOT return to place of purchase
For customer service and warranty issues
contact our Customer Service Center at:
(310)- 533- 1177
www.firesideescapes.com
1 Year Limited Warranty TERMS OF YOUR LIMITED WARRANTY: Manufacturer warrants to the original purchaser of
product, and to no other person, that if this product is assembled and operated in accordance with the printed instructions
accompanying it, then for a period of one (1) year from the date of purchase, all parts in such product shall be free from
defects in material and workmanship. Manufacturer may require reasonable proof of your date of purchase. Therefore,
purchaser should retain sales receipt or invoice. This Limited Warranty shall be limited to the repair or replacement of
parts, which prove defective under normal use and service and which Manufacturer shall determine in its reasonable
discretion upon examination to be defective. Before returning any parts, Manufacturer should be contacted. If defective
parts are returned, transportation charges must be prepaid by customer. Manufacturer will return replacement parts to the
original retail purchaser, freight or postage prd. This Limited Warranty does not cover any failures or operating difficulties
due to accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance or service by you
or any third party, or failure to perform normal and routine maintenance on the product as set out in the owner manual. In
addition, the Limited Warranty does not cover the damage to the finish, such as scratches, dents, discoloration, rust or
other weather damage, after purchase.
***THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED ABOVE***
***PURCHASER ASSUMES ALL RISKS IN THE ASSEMBLY AND OPERATION OF THIS UNIT***
Distributed By:
Fireside Escapes
414 Alaska Ave
Torrance, CA 90503
Tel: 310-533-1177
Web: www.firesideescapes.com
