Firesense PH03-S User Manual
.
.
DANGER
TOOLS AND PARTS NEEDED FOR ASSEMBLY
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in a enclosed space
such as a camper, tent, car or home.
WARNING:Improper installation, adjustment,
alteration, services or maintenance can cause
injury, death or property damage.
Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING:
FOR OUTDOOR USE ONLY.
Cylinders to be used must be constructed and
marked in accordance with US DOT
specifications.
Storage indoors is permissible only if the
cylinder is removed.
The unit should be secured or moved indoors
if winds exceed 19.5mph.
Tools needed (NOT included)
Adjustable opening 8’’ long
Philips head screwdriver

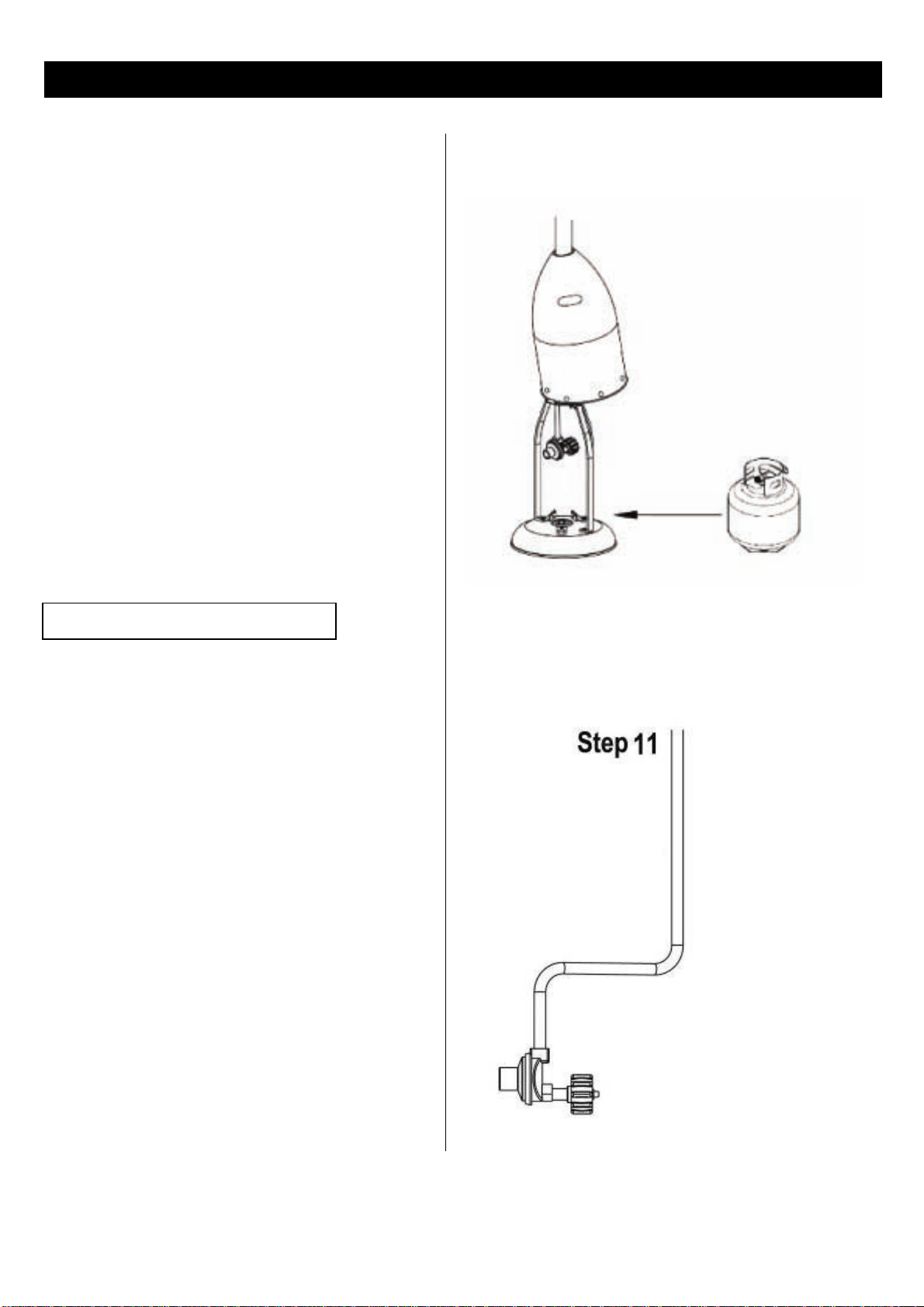

Leak detection solution (instructions on how to
make solution are included in Step 11)
For questions, replacement parts, service
please call Well Traveled
help or other assistance,
Living’s Customer Service Hotline at 1-866-985-7877
(1-866-WTL-SUPP) or email cservice@welltraveled.net.
cservice@welltraveled.net.
wrench
Note:
Use only 20lb. LPG tank (not supplied).
Use only CSA regulator with 1.2m gas
hose (included).
- 2 -
1 Center Reflector Cap
1
●
3 Reflector Pieces
2
●
1 Head Assembly
3
●
1 Gas hose attached to head assembly 3
4
●
1 Upper Post
5
●
1 Lower Post
6
●
1 Cylinder Cover
7
●
3 Post Mounts
8
●
1 Cylinder Base
9
●
1 Post Support
10
●
3 M8 Wing nuts
11
●
6 M8 Washers
12
●
9 M6 Screw Cap
13
●
9 M6x8 Bolts
14
●
4 M5x10 Bolts and 4pcs lock washer
15
●
4 M6x10 Bolts
16
●
6 M6X18 Bolts
17
●
6 M6 Screw Cap
18
●
1 Regulator
19
●
3 M8x90 Double Pointed Bolts
20
●
3 M8X16 Bolts
21
●
6pcs M6x12mm bolts/washers/nuts (pre-assm
22
●
together) for attaching 3 LPG cylinder fixed
parts with M8x25mm bolt to base
for securing the cylinder
Water Box (attached to Base 9)
23
●
Wheels
24
●
PARTS
- 3 -
NOTE: PLEASE READ THE FOLL OWING SAFETY RULES
WARNING:
This appliance must only be used outdoors.
Using this product in an enclosed area may cause
injury, death or property damage.
Read the instructions before use.
This appliance must be installed in
accordance with such regulations as
are in force.
Do not use the heater in an explosive atmosphere.
Keep the heater away from areas where gasoline or other
flammable liquids or vapors are stored.
Prior to use check for damaged parts such as hoses,
regulators, pilot or
Warning: This appliance requires a gas hose and regulator.
Regularly check the gas hose and if necessary
replace the gas hose.
Disconnect LPG cylinder before moving the heater.
Do not attempt to alter unit in any manner (Example:
using the heater without the top canopy
reflector or radiant screen).
Do not shorten the burner post assembly.
The appliance shall not be used in basements or below
ground level.
It must always be placed on a solid and level surface.
Always ensure there is ample fresh air ventilation.
For outdoor use ONLY.
Maintain at least 50’’ top and side clearance to combustible
materials and surfaces.
Never replace or substitute the regulator with any regulator
other than the factory suggested re
Do not clean the heater with cleaners that are combustible
or corrosive.
Do not paint radiant screen, control pa
reflector.
Leak tests should be done with a soapy solution. NEVER
USE AN OPEN FLAME TO CHECK FOR LEAKS.
The LP Gas cylinder should be turned off when the
heater is not in use.
burner.
,
placement.
nel or top canopy
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Check the heater immediately if any of the following
exist:
1. The smell of gas in conjunction with extreme yellow
colored tips of the burner flames.
2. The heater does not reach temperature.
3. The burner makes popping noises during use (a
slight popping noises is normal when the burner is
extinguished afer using).
The propane hose with regulator assembly shall be
located out of pathways where people may trip over it
or in areas where the hose may be subjected to
accidental damage.
Children and adults should be aware of the hazards of
high surface temperature and shall stay away to avoid
clothing burn or ignition.
Young children should be carefully supervised when
they are in the area of the heater.
Clothing or other flammable material should not be
hung from the heater, or placed on or near the heater.
Any guard or other protective device removed for
servicing the heater must be replaced prior to
operation.
Installation and repair should be done by a qualified
service person. The heater should be inspected before
use and cleaning may be required at least once a year
or as necessary. It is imperative that control
compartment, burner and circulating air passageways
of the heater be kept clean.
Keep the appliance area clear of combustible
materials such as gasoline and other flammable
vapors and liquids. Do not obstruct the flow of
combustion and ventilation air.
Keep the ventilation opening of the cylinder enclosure
free and clear of debris.
PRECAUTIONS
Save these instructions! Retain in in a safe place for future reference.
- 4 -
ATTACHING WHEEL ASSEMBLY
Step 1
1-1. Locate Wheel Assembly (24) and 2 nuts/bolts contained in
plastic bag with Wheel Assembly (Fig. 1).
Step 2
ASSEMBLY
Fig. 1
2-1. Turn Base (9) so that holes for attachment of
Wheel Assembly are facing you (Fig. 2).
2-2. Align holes in Wheel Assembly (24) with
holes on Base (9) (Fig. 3).Insert bolts through both sets of holes
and secure nuts on end of bolt (Fig. 4).
Fig. 3 Fig. 4
Step 3
3-1. Wheel Assembly (24) should now be attached to Base (9)
as shown (Fig. 5).
Fig. 2
Fig. 5
- 5 -
ASSEMBLY
WARNING:
Proper assembly is the responsibility of the installer.
Step 1
Attach 3pcs LPG cylinder fixed parts on the base with
6pcs M6x12mm bolts/washers/nuts.
* M8x25mm bolts are already in fixed parts for holding cylinder.
Attach post mounts to cylinder base:
Place the post mounts on the top of cylinder base,
and connect them using 3pcs M8x16 bolts.
STEP 1
