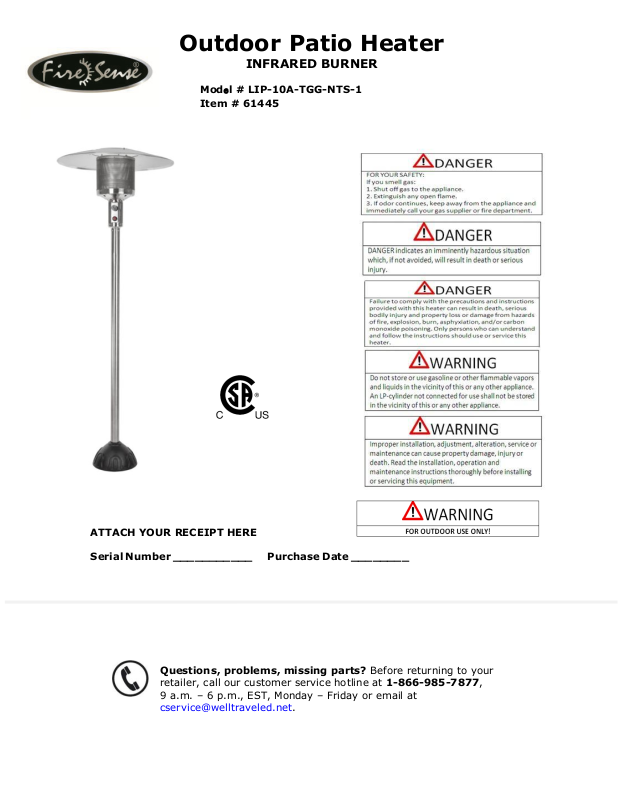

Fire Sense 61445 User Manual
ATTACH YOUR RECEIPT HERE
Serial Number ___________ Purchase Date ________
Questions, problems, missing parts? Before returning to your
retailer, call our customer service hotline at 1-866-985-7877,
9 a.m. – 6 p.m., EST, Monday – Friday or email at
cservice@welltraveled.net.
Outdoor Patio Heater
INFRARED BURNER
Model # LIP-10A-TGG-NTS-1
Item # 61445
TABLE OF CONTENTS
Table of Contents………………………………….....................Page 2
Before You Begin............................................................Page 2
Safety Information.........................................................Page 3-4
Package Contents………………………………….....................Page 5
Hardware Contents..........................................................Page 6
Assembly.........................................................................Page 6-11
Operating Instructions……………......................................Page 11-14
Care and Maintenance……………………..............................Page 14
Troubleshooting……………………………………......................Page 15
Replacement Parts List.....................................................Page 16
Warranty Information…………….....................................…Page 17
BEFORE YOU BEGIN
Please read and understand this entire manual before attempting to assemble, operate or install this appliance.
If you have any questions regarding the product, please call customer service 1-866-985-7877, 9 a.m. –
6 p.m., EST, Monday – Friday.
This manual contains important information about the assembly, operation and maintenance of this patio
heater. General safety information is presented in the first few pages and is also located throughout this manual.
Keep this manual for future reference and to educate new users of this appliance. This manual should be read
in conjunction with the labeling on the appliance. Safety precautions are essential when any mechanical or gas
fueled equipment is involved. These precautions are necessary when using, storing, and servicing. Using this
appliance with the respect and caution demanded will reduce the possibilities of personal injury or property
damage. The following symbols shown below are used extensively throughout this manual. Always heed these
precautions, as they are essential when using any mechanical or gas fueled equipment.
2
SAFETY INFORMATION
3
SAFETY INFORMATION
4
PACKAGE CONTENTS
PART
DESCRIPTION
QTY
A
Reflector Panel
4 pcs (packed
in 2 inner ctns)
B
Reflector Center Cap
1
C
Head Assembly
1 (packed in 1
inner ctn)
D
Main Post
2
E
Gas Hose
1 (attached to
Head
Assembly)
F
Lower Post
1 G Base
1
H
Base Cover
1
5
HARDWARE CONTENTS
ASSEMBLY
PREPARATION
Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package
contents list and hardware contents as listed on pages 5 and 6 of this manual. If any part is missing or damaged,
do not attempt to assemble this product. Contact customer service for replacement parts.
ESTIMATED ASSEMBLY TIME: 60 minutes
Tools Required for Assembly (NOT included):
Philips Head Screwdriver with Medium Blade
Drill and/or large Rubber Mallet (used for fixing base to the ground)
Leak Test Solution
Adjustable wrench (2) (Note: 10mm wrench or socket should fit M6 bolt; 13mm wrench or socket should fit M8
bolt.)
NOTE: This heater has an Electronic Ignition and will require installation of 1 – AAA battery. The battery should be installed
by unscrewing the RED IGNITER BUTTON.
6
