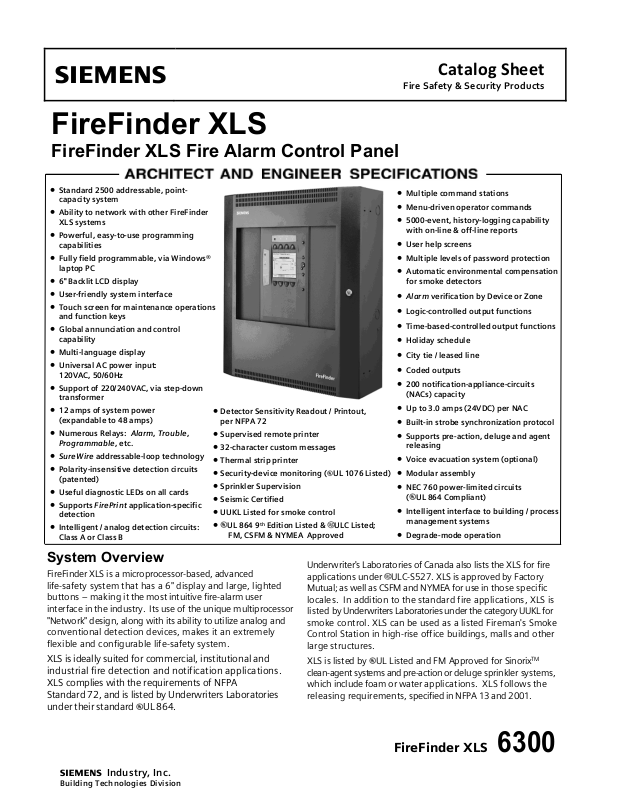

CatalogSheet

FireSafety&SecurityProducts

FireFinder XLS

FireFinder XLS Fire Alarm Control Panel

• Standard 2500 addressable, point-

capacity system

• Ability to network with other FireFinder

XLS systems

• Powerful, easy-to-use programming

capabilities

• Fully field programmable, via Windows®

laptop PC

• 6" Backlit LCD display

• User-friendly system interface

• Touch screen for maintenance operations

and function keys

• Global annunciation and control

capability

• Multi-language display

• Universal AC power input:

120VAC, 50/60Hz

• Support of 220/240VAC, via step-down

transformer

• 12 amps of system power

(expandable to 48 amps)

• Numerous Relays: Alarm, Trouble,

Programmable, etc.

• SureWire addressable-loop technology

• Polarity-insensitive detection circuits

(patented)

• Useful diagnostic LEDs on all cards

• Supports FirePrint application-specific

detection

• Intelligent / analog detection circuits:

Class A or Class B

System Overview

FireFinder XLS is a microprocessor-based, advanced
life-safety system that has a 6" display and large, lighted
buttons – making it the most intuitive fire-alarm user
interface in the industry. Its use of the unique multiprocessor
"Network" design, along with its ability to utilize analog and
conventional detection devices, makes it an extremely
flexible and configurable life-safety system.

XLS is ideally suited for commercial, institutional and
industrial fire detection and notification applications.
XLS complies with the requirements of NFPA
Standard 72, and is listed by Underwriters Laboratories
under their standard

• Detector Sensitivity Readout / Printout,

per NFPA 72

• Supervised remote printer

• 32-character custom messages

• Thermal strip printer

• Security-device monitoring ( UL 1076 Listed)

• Sprinkler Supervision

• Seismic Certified

• UUKL Listed for smoke control

• UL 864 9

FM, CSFM & NYMEA Approved

th

Edition Listed & ULC Listed;

Underwriter's Laboratories of Canada also lists the XLS for fire
applications under
Mutual; as well as CSFM and NYMEA for use in those specific
locales. In addition to the standard fire applications, XLS is
listed by Underwriters Laboratories under the category UUKL for
smoke control. XLS can be used as a listed Fireman's Smoke
Control Station in high-rise office buildings, malls and other
large structures.

XLS is listed by
clean-agent systems and pre-action or deluge sprinkler systems,
which include foam or water applications. XLS follows the
releasing requirements,

UL 864.

UL Listed and FM Approved for SinorixTM

• Multiple command stations

• Menu-driven operator commands

• 5000-event, history-logging capability

with on-line & off-line reports

• User help screens

• Multiple levels of password protection

• Automatic environmental compensation

for smoke detectors

• Alarm verification by Device or Zone

• Logic-controlled output functions

• Time-based-controlled output functions

• Holiday schedule

• City tie / leased line

• Coded outputs

• 200 notification-appliance-circuits

(NACs) capacity

• Up to 3.0 amps (24VDC) per NAC

• Built-in strobe synchronization protocol

• Supports pre-action, deluge and agent

releasing

• Voice evacuation system (optional)

• Modular assembly

• NEC 760 power-limited circuits

(

UL 864 Compliant)

• Intelligent interface to building /

management systems

process

• Degrade-mode operation

ULC-S527. XLS is approved by Factory

specified in NFPA 13 and 2001.

s Industry, Inc.

Building Technologies Division

FireFinder XLS

6300

System Overview ─ (continued)

The FireFinder XLS system has been seismic qualified
in accordance with:

 International Building Code, 2006 Edition
 California Building Code, 2007 Edition
 ASCE Standard 7, 2005 Edition
 OSHPD CAN 2-1708A.5, Rev. 3
 ICC-ES AC 156, Effective 1/1/2007

FireFinder XLS is also OSHPD preapproved under:
OSP-0057-10.

FireFinder XLS Components

The basic XLS control unit consists of the following sub­assemblies: Person Machine Interface (Model PMI); Power
Supply (Model PSC-12); Device Loop Card (Model DLC);
Zone Indicating Card (Model ZIC-4A); Card cage (Model
CC-5); Inner Door Blank Single Plate (Model ID-SP); CAB-1,
CAB-2 or CAB-3 enclosures.

Optional modules that can be installed with the XLS System
include: Card Cage (Model CC-2); Network Interface Card
(Model NIC-C); Zone Indicating Card 8 circuits (Models ZIC­8B / ZIC-2C); Control Relay Card (Model CRC-6); Output
Control Module (Model OCM-16); Switch Control
Module (Model SCM-8); LED Control Module (Model LCM-

8); Fan Control Module (Model FCM-6); Supervised Input
Module (Model SIM-16); Power Supply Extender (Model PSX-

12); Remote Network Interface (Model RNI); Remote
Printer Module (Model RPM); System Status Display
(Model SSD); Multi-Point Digital Alarm Communicator
(Model MDACT); Two-Module Remote Enclosure (Model
REMBOX2); Four-Module Remote Enclosure (Model
REMBOX4).

The XLS panel is compatible with a full line of intelligent
initiating devices, highlighted by the FirePrint application­specified detectors: Models HFP-11 and HFPT-11. XLS is also
compatible with the NCC series of graphics command
centers.

PMI Person Machine Interface

The Person Machine Interface (Model PMI) is the core of the
FireFinder XLS system. Model PMI serves as both
operator interface and central microprocessor for the
FireFinder XLS system. From Model PMI, the end user can
acknowledge events, control the system-notification
appliance circuits and reset the system. Detailed
information about the nature and location of the events can
also be displayed.

Model PMI contains the site-specific program configuration
created in the Zeus system software-programming tool.
The controller in Model PMI provides all system logic and
supervision. Model PMI contains a large, 6" (1/4 VGA)
monochrome LCD display, touch screen and LEDs for
displaying system status. A sound is made when there is
any unacknowledged event from Model PMI. The display
is surrounded by keys that are used to control the
displayed information and to navigate through these
screens. Keys are also provided to obtain and enter "Help"
into the menu features of Model PMI.

The FireFinder system is controlled and operated from
Model PMI. The intuitive person machine interface uses
large, lighted buttons to prompt users as to the next
correct system operation that is available (Acknowledge,
Silence, Unsilence, Audible or Reset).

DLC Device Loop Card

DLC Device Loop Card

The DLC Device Loop Card (Model DLC) is the interface for
connection with FireFinder XLS detectors and initiating
devices

─ including manual stations, control and input

devices. Model DLC plugs into one (1) slot of the CC-2 or CC­5 card cage. Programming Model DLC is accomplished
using the FireFinder XLS Zeus system software-
programming tool. Model DLC takes one (1) address on th e
network, and communicates with two (2) device
circuits for a total of 252 detectors and devices. Model
DLC has 12 LEDs for diagnostic purposes, and provides
ground-fault detection and zone-isolation circuitry.

PMI Person Machine Interface

s Industry, Inc.

Building Technologies Division

ZIC-4A Zone Indicating Card

ZIC-4A Zone Indicating Card

The Zone Indicating Card (Model ZIC-4A) provides four (4)
fully supervised, programmable output circuits for use
on the FireFinder XLS Fire Alarm Control Panel. Model ZIC­4A supplies four (4) Class B (Style Y) or Class A (Style Z) type
output circuits, power limited to 3.0 amps maximum per
circuit.

Each circuit can be independently programmed for use
with listed audible or visual notification appliances, listed
emergency audio speakers, municipal tie boxes, leased
lines, or as releasing circuits. Model ZIC-4A plugs into one
(1) slot in the Model CC-5 or Model CC-2 card cage, and has
on-board LEDs for system status and troubleshooting.
Indication of power, communication, internal operation,
and ground-fault conditions are provided, as well as
indication of circuit activation or trouble conditions.

NIC-C Network Interface Card

NIC-C

The Network Interface Card (Model NIC-C) provides HNET or
XNET network communications between enclosures. In
addition to the HNET or XNET communication, Model NIC-C
provides CAN network communication within an enclosure
or external to the enclosure. HNET or XNET
communication can be wired Style 4 or Style 7, but the
CAN network can be wired Style 4 only.

When Model NIC-C is used for HNET communications, it
provides communication between enclosures on a single
system. When Model NIC-C is used for XNET
communications, Model NIC-C provides communication
between systems. The maximum of XNET Model NIC-C
cards on a single system (single node) is one (1), for a
total of 64 XNET Model NIC-C cards on a peer-to-peer
networked system.

Model NIC-C has diagnostic LEDs that indicate: Card Fail,
CAN Fail, HNET Fail, XNET Fail, Ground Fault, Loop ‘A’ Fail and
Loop ‘B’ Fail. Model NIC-C Card also has LEDs to indicate
Power, Style and Active Networks.

ZIC-8B / ZIC-2C Zone Indicating Cards

ZIC-8B / ZIC-2C

The Zone Indicating Card (Model ZIC-8B) provides eight (8)
fully supervised, programmable output circuits for use on
the FireFinder XLS fire-alarm control panel (FACP). Model
ZIC-8B supplies eight (8) Class B (Style Y) type output
circuits, power limited to 2.0 amps maximum per circuit.
Each circuit can be independently programmed for use
with listed audible or visual notification appliances, or
listed emergency audio speakers. Model ZIC-8B plugs
into one (1) slot in the Model CC-5 or Model CC-2 card
cage, and has on-board LEDs for system status and
troubleshooting.

Model ZIC-2C mounts directly on Model ZIC-8B, and
allows each of the Model ZIC-8B output circuits to be used
for 2-channel voice applications. Indication of power,
communication, internal operation, and ground-fault
conditions are provided, as well as indication of circuit
activation or trouble conditions.

s Industry, Inc.

Building Technologies Division

HLIM Line Isolator Module

HLIM Line Isolator Module

The loop-isolator module (Model HLIM) provides short­circuit protection on FireFinder XLS intelligent device
circuits (see: Model DLC). When Model HLIM detects a
short circuit, Model HLIM is able to isolate the affected
segment of the circuit – allowing the remaining devices to
continue operation. Model HLIM is self-restoring
automatically reconnecting to circuit segment when the
fault is removed. Model HLIM can be wired in either a
Style 4 or Style 6 configuration.

─

Model HLIM does not occupy a device address on the Model
DLC circuit, and does not require programming. Up to 15
Model HLIM modules may be installed on each Model
DLC loop.

HCP Control Point Module

HCP

Model HCP provides an intelligent control point for the
FireFinder XLS Control Panel. Model HCP can be
programmed as an independent, remotely located tele­phone zone, speaker zone or notification appliance circuit.
Model HCP is designed to be used with the Siemens Fire
Safety Notification-Appliance Circuits product line.

Model HCP communicates through the Model DLC analog
loop, and can be wired either Class A (Style Z) or Class B
(Style Y). The 24 VDC power input comes from either the
control panel or from any
auxiliary-power supply.

UL listed power-limited,

SIM-16 Supervised Input Module

SIM-16 Supervised Input Module

The Supervised input Module (Model SIM-16) is a
remotely located, general-purpose input module. Model
SIM-16 provides 16 input circuits for remote system
monitoring. Each input can be individually programmed
as supervised (dry-contact only) or unsupervised (general­purpose input.) Model SIM-16 has two (2) Form C relays.
The relays and inputs are programmed using the Zeus
system software-programming tool.

CRC-6 Controllable Relay Card

CRC-6 Controllable Relay Card

The Controllable Relay Card (Model CRC-6) is used with
the FireFinder XLS FACP. Model CRC-6 is designed to
provide auxiliary control of building functions, such as:
door-holder release, elevator capture, smoke control, lock
release, etc. Model CRC-6 plugs into one (1) slot in the
Model CC-5 or Model CC-2 card cage. Model CRC-6
provides six (6), fully programmable relays. Each relay
contains one (1) set of SPDT contacts rated at 4 Amps 30 VDC
/ 120 VAC resistive and 3.5 amps 120 VAC inductive (0.6
P.F.)

CDC-4 Conventional Detector Card

CDC-4

The Conventional Detector Card (Model CDC-4) is used to
monitor Siemens Fire Safety conventional detectors on the
FireFinder XLS system. Model CDC-4 can be used in
applications where conventional detectors are more suited
than addressable detectors, such as hallways or large
meeting rooms. Also, Model CDC-4 can be used to
upgrade Siemens conventional fire-alarm panels to the
FireFinder XLS system without requiring detector
replacement.

CC-2 Card Cage-2 Slots CC-5 Card Cage-5 Slots

CC-5 / CC-2 Card Cages

The Models CC-5 / CC-2 card cages provide the physical
mounting location and all wiring connection points for all
fire-and-voice system options cards for the FireFinder XLS
system. Model CC-5 has five (5) slots, while Model CC-2
has two (2) slots.

s Industry, Inc.

Building Technologies Division

All cards plugged into the CC-5 / CC-2 card cage
communicate with other FireFinder-XLS modules via a
common data bus. Connectors are provided on the left and
right side of the CC-5 to connect a 60-pin cable for
communications with the FireFinder-XLS' operator interface,
power supplies and amplifiers modules.

Field wiring to devices and circuits terminates on the
Models CC-5 / CC-2 card cages. All cards designed for use
with the Models CC-5 / CC-2 route their field wiring
terminations to the ‘top’ of the Model CC-5 / CC-2 card
cages. These connections are all power limited. Internal
wiring connections distribute 24VDC to cards or high-level
audio signals (depending on application used) connect to
the ‘bottom’ of the Model CC-5 / CC-2 card cages. These
connections are all non-power limited.

All wiring connections to the Model CC-5 / CC-2 card cages
are to removable terminal blocks. Terminal blocks are rated
for use with wire sized 12AWG to 24AWG. Each connector
is numbered to make wiring terminations to the correct
position on the terminal block simple in order to reduce
potential wiring errors.

LCM-8 LED Control Module

LCM-8 LED Control Module

The LED Control Module (Model LCM-8) is a FireFinder
XLS-option module that provides LED annunciation for
FireFinder XLS system activity. Each LCM-8 module
contains eight (8) groups of two (2) LEDs – each of which
can be assigned to desired outputs using the Zeus
system software-programming tool.

Eight (8) LEDs are dual-color capable (RED or GREEN,
flashing or steady). The remaining LEDs are AMBER
flashing or steady. A space is provided for labeling of LED
functions. The label slides behind a clear, protective
membrane. Model LCM-8 dimensions are identical to Model
SCM-8, and Model LCM-8 is mounted on the same hinged
panel, as a part of the FireFinder XLS Command Console
enclosure.

SCM-8 Switch Control Module

SCM-8 Switch Control Module

The Switch Control Module (Model SCM-8) is a FireFinder
XLS-option module that provides manual control to the
Emergency Voice Evacuation System (EVAC) or manual
fire-system control. Each Model SCM-8 module provides
eight (8) momentary push-button switches and 16
light-emitting diodes (LEDs) to indicate their status.

Each switch is assigned two (2) LEDs, as well as a label
to indicate the switch's programmed usage. The label
slides behind a clear protective membrane. One of the
LEDs assigned to each switch is a dual-colored LED,
which is used to indicate what type of signal is active.

Each Model SCM-8 switch is fully programmable, and may
be used to control speaker circuits and a wide range of
general-system functions such as: All Call, All Evac,
Warden's Page, Speaker, etc. Any number of circuits may
be grouped and controlled by a single switch. Switch
usages and zone groupings are assigned using the Zeus
system software-programming software. Model SCM-8
modules are mounted on a hinged panel, as a part of the
FireFinder XLS Command Console enclosure.

FCM-6 Fan, Motor, Dampers
Control Module

FCM-6 Fan, Motor, Dampers Control Module

The Fan, Motor, Dampers Control Module (Model FCM-6) is a
FireFinder XLS command-console option module that
provides manual control of building HVAC system fans,
motors, and dampers. Each Model FCM-6 module provides
six (6) sets of three (3) push-button switches for manual­system control. Each switch has three (3), associated
LEDs to indicate Fan / Damper / Motor status: OFF (Red LED),
ON (Green LED), TROUBLE (Yellow LED).

s Industry, Inc.

Building Technologies Division

PSC-12 Power Supply Charger Module

PSC-12 Power Supply Charger Module

The Power Supply Charger Module (Model PSC-12) is a
high-current power supply that provides the FireFinder
XLS primary-regulated 24VDC power to operate. Model
PSC-12 is rated at 12Amps (Alarm) / 5Amps (Standby), and
has a built-in battery charger, capable of charging up to 100
AH batteries. Model PSC-12 is an addressable-intelligent,
microprocessor-controlled module that communicates its
status to the system-operator interface (PMI). Model PMI is
able to query the status of the power supply to obtain
information regarding system-charging current, terminal­loading information, ground-fault conditions and more.

PTB Power Termination Board

PTB Power Termination Board

The PSC-12 comes packaged with a module called the
Power Termination Board (Model PTB). Model PTB is
required for operation with Model PSC-12. Model PTB filters
the power from the incoming AC mains, and distributes it
to the Model PSC-12 power supply and the optional Model
PSX-12 power-supply extender.

Model PTB has an optional connector that can be used during
system installation, commissioning and service to provide
the technician with a place to plug in their laptop PC, if
required. Model AC-ADPT is an optional accessory cable that
allows connection on one side to Model PTB, via a keyed
connector and on the other end directly into to the laptop's
transformer.

Most laptop-computer external power transformers have
removable AC power cords, which can be replaced by the
optional Model AC-ADPT to temporarily provide an AC
power source for laptop-PC usage during system
installation, service and maintenance calls when needed.

PSX-12 Power Supply Extender

PSX-12 Power Supply Extender

The Power Supply Extender (Model PSX-12) is a high-current,
auxiliary power supply that expands the main Model PSC-12
power supply and battery charger of the FireFinder XLS
system with an additional 24VDC power. Model PSX-12
is rated at 12 Amps.

RNI Remote Network Interface

RNI Remote Network Interface

The Remote Network Interface (Model RNI) provides a
connection point for use with equipment mounted in a
remote-lobby enclosure on the FireFinder XLS FACP. Model
RNI is used to provide additional input, output and control
features to the system remotely, via the main control panel.
These additional features may include control switches and
indicators: (Models SCM-8, LCM-8 and FCM-6), remote­emergency paging microphones or telephones: (Models
LVM, FMT), or controls used in graphic annunciators (Models
SIM16, OCM-16) or system-status display with the ability to
acknowledge alarms, silence audibles and reset the
system (Model SSD-C-REM). Model RNI allows Model
PMI to be mounted in the Model REMBOX2 or Model
REMBOX4 remote lobby enclosure.

RPM Remote Printer Module

RPM Remote Printer Module

The Remote Printer Module (Model RPM) provides a means
of connecting the FireFinder XLS system to a printer, such
as Model PAL-1, for creating a hard copy of system status and
configuration reports. Simultaneously, Model RPM
provides an output port that can be configured to
communicate with external systems.

s Industry, Inc.

Building Technologies Division

System-Status Display

SSD Series System-Status Display

The System Status Display (SSD Series Models) is a remote
LED / LCD display that shows the local status of a FireFinder
XLS system. An LED illuminates when Alarm, Supervisory,
Trouble, and Security events occur on the system. A (4)
four-line liquid-crystal display (LCD) will give details of
the event in alphanumeric form.

The display can be toggled to display additional events.
Optional remote system control capabilities are available.
Models SSD-C, SSD-C-INT, and Model SSD-C-REM have three
(3) additional control buttons to acknowledge events,
silence audible circuits, and reset the system. Models
SSD-C and SSD-C-INT have an integral keyswitch that
enables these control buttons to operate.

Model SSD-C-REM is located within a locked cabinet.
Hence, no additional keyswitch is required for enabling
the control buttons.

MDACT - Multi-Point Digital Alarm

Communicator Transmitter

MDACT - Multi-Point Digital Alarm Communicator

Transmitter

The Multi-Point Digital Alarm Communicator Transmitter
(Model MDACT) is used in FireFinder XLS systems where
point identification of alarm, supervisory, security and
trouble events is required at Central or Remote Receiving
Stations. An intelligent RS-485 communications protocol
transmits all system information to Model MDACT.

The installer selects the specific event or groups of
events that are set to transmit from Model MDACT over
phone lines to listed receiving station equipment. In turn,
Model MDACT can transmit point information, via the
Ademco Contact ID and the SIA protocol. A Mounting Plate
(Model MOM2-XMP), MOM-2 card cage, and an XMI
Interface Card are required for installation.

CAB1 Single Row Enclosure

CAB1 Single Row Enclosure

Model CAB 1, the smallest of the FireFinder XLS enclosures,
can house a single Model CAB-MP cabinet mounting plate
for mounting card cages, power supplies and bulk
amplifiers. Model CAB1 also has four (4) mounting slots
on the inner door for mounting Model PMI and Model ID-MP
switch module brackets.

Model CAB1 comes complete with a black back box; black
inner and outer doors; a single lock and key set on the outer
door; a single CAB-MP cabinet mounting plate (installed),
and a single OD-LP outer door lens plate (installed). A red
version (Model CAB1-R) is also available – approximate
size: 27" (68.6cm.) high, 26" (66cm.) wide, and 8"
(20.3cm.) deep.

s Industry, Inc.

Building Technologies Division

TSP-40A Thermal Strip Printer

TSP-40A Thermal Strip Printer

The thermal strip printer (Model TSP-40A) is designed for
use with the FireFinder XLS system. Model TSP-40A acts
as an event-logging device, providing a permanent history
report of all system activity. Model TSP-40A mounts in
the FireFinder XLS Model CAB 1, Model CAB2 or Model
CAB3 enclosure, and its printout is visible through a
window in the locked-door enclosure. Printouts are
automatically spooled onto a take-up reel for tidy, uniformed
records storage.

CAB2 Two Row Enclosure

CAB2 Two Row Enclosure

The Two Row Enclosure (Model CAB2) is the mid-sized
FireFinder XLS enclosure capable of housing up to two (2)
Model CAB-MP cabinet mounting plates. The inner door
has two (2) rows of four (4) mounting slots. The outer
door has space for mounting two (2) outer door plates
(Models OD-LP, OD-BP or OD-GP). The outer door can be
configured to open from either side. Model CAB2 consists
of the Model CAB2-BB back box, the Model CAB2-BD black
inner and outer door package, and one (1) Model OD-LP lens
plate. The outer door has a single lock and key set installed.
A red version (Model CAB2R) is also available. Approximate
size is 45” (114.3cm.) high, 26” (66cm.) wide, and 8”
(20.3cm.) deep.

Enclosure Trim Kits

Trim kits are available for all system enclosures for semi­flush mounting applications. Model CAB1-TK (for black
enclosures) and the Model CAB1R-TK (for red enclosures)
fit inside the Models CAB1 and CAB1-R enclosures.
Similarly, Models CAB2-TK and CAB-2R-TK fit inside the
Model CAB-2 enclosure, while Models CAB3-TK and CAB3R­TK fit the Model CAB-3 enclosure.

Remote Transponders

The FireFinder XLS system can use remote transponders
for mounting additional modules such as amplifiers
without requiring Model PMI or any control switches.
Special doors are available for systems using Model CAB-2
or Model CAB-3 remote transponders. These doors
(Models CAB2-XBD and CAB3-XBD) omit the unused
inner door, and come complete with ventilation louvers
built into the door.

Model CAB2-XBD fits into Model CAB2-BB, and Model
CAB3-XBD fits into Model CAB3-BB. Model CAB2-XBD and
CAB3-XBD are supplied in black. Red versions (Models
CAB2-XRD and CAB3-XRD) are also available. Complete box
and door kits are available, Models CAB2-X and CAB3-X.

CAB3 Three Row Enclosure

CAB3 Three Row Enclosure

Model CAB3, the single largest FireFinder XLS enclosure
available, can house a maximum three (3) Model CAB-MP
cabinet mounting plates in the enclosure, and three (3)
rows of inner-door mounting slots. The outer door can
be configured to open from either side. Model CAB3
consists of the Model CAB3-BB back box, the Model CAB3­BD black inner and outer door package, and one (1) Model
OD-LP lens plate. The outer door has two (2) locks and key
sets installed. A red version (Model CAB3R) is also available.
Approximate size is 63" (160cm.) high, 26" (160cm.)
wide, and 8" (20.3cm.) deep.

CAB-MP Cabinet Mounting Plate

CAB-MP Cabinet Mounting Plate

The Model CAB-MP cabinet mounting plate provides
mounting for a single row of modules in a FireFinder XLS
cabinet. Four module spaces are available on the CAB-MP.
The CAB-MP is used to mount the CC-5 card cage, the
CC-2 card cage, the PSC-1 2 power supply, the PSX-12
power-supply extender, and the ZAM-80/1 80-zone
amplifiers.

ID-MP Inner Door Mounting Plate

s Industry, Inc.

Building Technologies Division

ID-MP Inner Door Mounting Plate

The Inner Door Mounting Plate (Model ID-MP) is
mounted on the inner door of any given model CAB
enclosure. Model ID-MP plates are used to mount
switch-control modules (Model SCM-8); LED control
modules (Model LCM-8), or fan-control modules (Model
FCM-6).

Four (4) mounting plates are included in each Model ID­MP. Each mounting plate has four (4) spaces for control
modules, and can hold either four (4) Model SCM-8
modules (one [1] control module space for each
module); four (4) LCM-8 (one [1]control module space
for each module), or two (2) Model FCM-6 modules (two
[2] module spaces for each module).

Combinations are also allowed. Blank spaces in Model ID­MP can be covered using the blank-control-module
plate (Model BCM). Up to four (4) Model ID-MP
modules can be mounted in a single row on the inner
door.

OD-LP Outer Door Lens Plate

OD-LP Outer Door Lens Plate

The Model OD-LP is a clear plastic lens plate mounted
on the outer door of a system cabinet. It is used to allow
operators to see the system interface and controls
mounted on the inner door, but restricts access to
unauthorized users. It covers an entire row on the outer
door. A single lens plate is included with each OD-LP.

ID-SP Inner Door Blank Single Plate

ID-SP Inner Door, Blank Single Plate

The Inner Door, Blank Single Plate (Model ID-SP) is used to
cover any single-module blank spaces on the inner door
not used to mount Model PMI or Model ID-MP. Up to
four (4) Model ID-SP modules can be mounted in a
single row on the inner door. Two (2) blank plates are
included in each Model ID-SP.

ID-FP Inner Door Full-Blank Plate

Model ID-FP is a blank plate that covers the full opening of
the row on an inner door, and is used for applications
requiring full, dead-front protection. A single, full blank
plate is included in Model ID-FP.

BCM Blank Control Module Plate

BCM Blank Control-Module Plate

Model BCM plates can be mounted on a single ID-MP.
Four (4) blank module plates are included in each
Model BCM.

OD-BP Outer Door Blank Plate

OD-BP Outer Door Blank Plate

The Model OD-BP is used to cover an entire row on the
outer door of a system cabinet. It is used when there is
no PMI or control modules mounted on the adjacent row of
the inner door. A single, blank plate is included in each OD­BP.

OD-GP Outer Door Grill Plate

OD-GP Outer Door Grill Plate

The Model OD-GP also covers an entire row on the outer
door of a system cabinet, but has four rows of ventilation
louvers on it. The OD-GP is mounted in front of system
bulk amplifiers, card amplifiers, or other modules that
generate heat. Using the OD-GP will permit airflow across
these modules to aid in heat dissipation. A single grill
plate is included with each OG-GP.

s Industry, Inc.

Building Technologies Division

Remote System Enclosures

Models REMBOX2 and REMBOX4 are FireFinder XLS system
enclosures that are used for remotely mounting inner­door modules like the Model PMI interface, switch mod­ules, Model LVM live voice modules, and Model FMT
firefighters master telephone modules. Models
REMBOX2 and REMBOX4 are thinner than the regular CAB
series of enclosures – just 5" (12.7cm.) deep overall, and
are perfect for mounting in places where space is limited
(e.g. – office-complex lobbies or behind a receptionist's
desk). No card cages, power supplies or bulk amplifiers
can be mounted in a given REMBOX because of their
smaller depth. However, Model PMI and modules (e.g. –
the remote network interface module [Model RNI], the
output control module [Model OCM-16], and the
supervised input module [Model SIM-16]) can be mounted
in a given REMBOX.

Due to the depth of the live voice module and the
firefighters’ master telephone, no Model OCM-16 or Model
SIM-16 modules can be used simultaneously with Model
LVM or Model FMT. The REMBOX2 and the REMBOX4 are
designed for flush mounting with no trim kit required. Both
enclosures also come with a clear lens plate on the cover.

REMBOX2 Two Module Remote Enclosures

REMBOX2 Two Module Remote Enclosures

The REMBOX2 has two (2) inner-door module spaces, and
can hold a single Model PMI, up to two (2) switch module
brackets and one (1) Model LVM. Combinations are also
allowed.

The REMBOX2 can also mount a single RNI remote
network interface on a bracket included in the backbox. A
bracket called the REMBOX2-MP can be used to mount up
to four OCM-16 output control modules or SIM-16
supervised input modules. The REMBOX2-MP must be
purchased separately. Approximate size of the REMBOX2
is 14-1/2" (36.8cm.) wide, 18-1/2" (47cm.) high and 5"
(12.7cm.) deep.

REMBOX4 Four Module Remote Enclosures

The REMBOX4 has space for mounting four (4) inner­door modules. Any combination of Model PMI (two­module spaces), switch module brackets, Model LVM
or Model FMT (one-module space each) can be used.
Unused module spaces can be covered with Model ID-SP
blank plates. The REMBOX4 can also mount a single
remote network interface (Model RNI) on a bracket
included in the backbox. A bracket known as Model
REMBOX4-MP can be used to mount up to eight (8)
output control modules (Model OCM-16) or supervised
input modules (SIM-16). The REMBOX4-MP must be
purchased separately. Approximate size of the
REMBOX4 is 24" (61cm.) wide, 18-1/2" (47cm.) high
and 5" (12.7cm.) deep.

NRC Network Ring Card

NRC Network Ring Card

Model NRC (FM approval pending) provides XNET, peer-to­peer communication between FireFinder XLS systems. One
(1) Model NRC is required for each XLS panel, in order to
allow FireFinder XLS nodes to be wired in a Class A, Style 7
ring topology.

NCC-G - Network Color Graphics

NCC-G - Network Color Graphics

NCC-G is a PC-based, color-graphics command center
designed for use with the XNET network, and provides full
control and annunciation for a XNET network for a
maximum 63 XLS, MXL-IQ or MXL systems. The NCC-G is
used to monitor and control alarms, troubles, security,
supervisory and all system events from one of many XLS
systems. The NCC-G maintains an extensive history log of
all system events and has extensive report generation
capabilities. User programmable function buttons allow
site specific control functions. Multiple NCC-Gs may be
connected to XNET network. Each NCC-G ordered
separately.

REMBOX4 Four Module Remote Enclosures

s Industry, Inc.

Building Technologies Division

Temperature and Humidity Range

Products are

UL 864 9th Edition listed for indoor dry
locations within a temperature range of 120+/-3°F
(49+/-2°C) to 32+/-3°F (0+/-2°C) and at a relative
humidity of 93+/-2% at a temperature of 90+/-3°F
(32+/-2°C).

Details for Ordering

s Industry, Inc.

Building Technologies Division

Notice: This marketing catalog sheet is not intended to be used for system design or installation purposes.

For the most up-to-date information, refer to each product’s installation instructions.

s Industry, Inc.

Building Technologies Division

Fire Safety
8 Fernwood Road
Florham Park, NJ 07932
Tel: [phone]
FAX: [phone]

URL: www.SBT.Siemens.com/FIS

(SII‐FS)

Printed in U.S.A.



Fire Safety
2 Kenview Boulevard
Brampton, Ontario
L6T 5E4 / Canada
Tel: [phone]



FAX: [phone]

September 2010

Supersedes sheet dated 7/10

(Rev. 5)
