Firepower TIG 200 AC/DC Operating Manual

A-12707
Firepower TIG 200 AC/DC
115
230
Inverter Arc Welder
Operating Manual
English
Americas Español
Revision: AA Issue Date: November 13, 2014 Manual No.: 0-5370
www.firepoweronline.com
WE APPRECIATE YOUR BUSINESS!
Congratulations on receiving your new Firepower product. We are proud to have you as our customer and will strive to provide you with the best service and support in the industry. This product is backed by our extensive warranty and world-wide service network.
We know you take pride in your work and we feel privileged to provide you with this high performance product that will help you get the job done.
YOU ARE IN GOOD COMPANY!
The Brand of Choice for Contractors and Fabricators Worldwide.
Firepower is a Global Brand of Arc Welding Products for Victor Technologies Inc. We distinguish ourselves from our competition through market-leading innovation and truly dependable products that will stand the test of time.
We strive to enhance your productivity, efficiency and welding performance enabling you to excel in your craft. We design products with the welder in mind delivering- advanced features, durability, ease of use and ergonomic comfort.
Above all, we are committed to a safer working environment within the welding industry. Your satisfaction with this product and its safe operation is our ultimate concern. Please take the time to read the entire manual, especially the Safety Precautions.
If you have any questions or concerns regarding your new Firepower product, please contact our friendly and knowledgeable Customer Service Team at:
1-800-462-2782 (USA) and 1-905-827-4515 (Canada), or visit us on the web at www.Firepoweronline.com
WARNINGS
Read and understand this entire Manual and your employer’s safety practices before installing, operating, or servicing the equipment.
While the information contained in this Manual represents the Manufacturer's best judgement, the Manufacturer assumes no liability for its use.
Welding Power Supply Operating Manual Number 0-5370 for:
Firepower TIG 200 AC/DC, Machine Only Part Number 1442-0033 Firepower TIG 200 AC/DC, System Part Number 1442-0032
Published by: Victor Technologies, Inc. 16052 Swingley Ridge Road, Suite 300 St, Louis, MO 63017 USA
www.firepoweronline.com
Copyright © 2014 by Victor Technologies, Inc.
All rights reserved.
Reproduction of this work, in whole or in part, without written permission of the publisher is prohibited.
The publisher does not assume and hereby disclaims any liability to any party for any loss or damage caused by any error or omission in this Manual, whether such error results from negligence, accident, or any other cause.
Publication Date: November 13, 2014
Record the following information for Warranty purposes:
Where Purchased: ____________________________________
Purchase Date: ____________________________________
Equipment Serial #: ____________________________________
ii
TABLE OF CONTENTS
SECTION 1:
SAFETY INSTRUCTIONS AND WARNINGS ....................................................... 1-1
1.01 Arc Welding Hazards ....................................................................................... 1-1
1.02 General Safety Information for firepower CS Flowmeter/Regulator ................... 1-5
1.03 Principal Safety Standards .............................................................................. 1-7
1.04 Symbol Chart .................................................................................................. 1-8
1.05 Precautions De Securite En Soudage A L’arc .................................................. 1-9
1.06 Dangers relatifs au soudage à l’arc ................................................................. 1-9
1.07 Informations Générales de Sécurité .............................................................. 1-13
1.08 Principales Normes De Securite ................................................................... 1-15
1.09 Graphique de Symbole .................................................................................. 1-16
1.05 Declaration of Conformity ............................................................................. 1-17
SECTION 2:
INTRODUCTION ..................................................................................... 2-1
2.01 How To Use This Manual ................................................................................ 2-1
2.02 Equipment Identification ................................................................................. 2-1
2.03 Receipt of Equipment ...................................................................................... 2-1
2.04 Description ..................................................................................................... 2-1
2.05 User Responsibility ......................................................................................... 2-2
2.06 Transporting Methods ..................................................................................... 2-2
2.07 Packaged Items .............................................................................................. 2-2
2.08 Duty Cycle ....................................................................................................... 2-2
2.09 Specifications ................................................................................................. 2-3
2.10 Optional Accessories ...................................................................................... 2-4

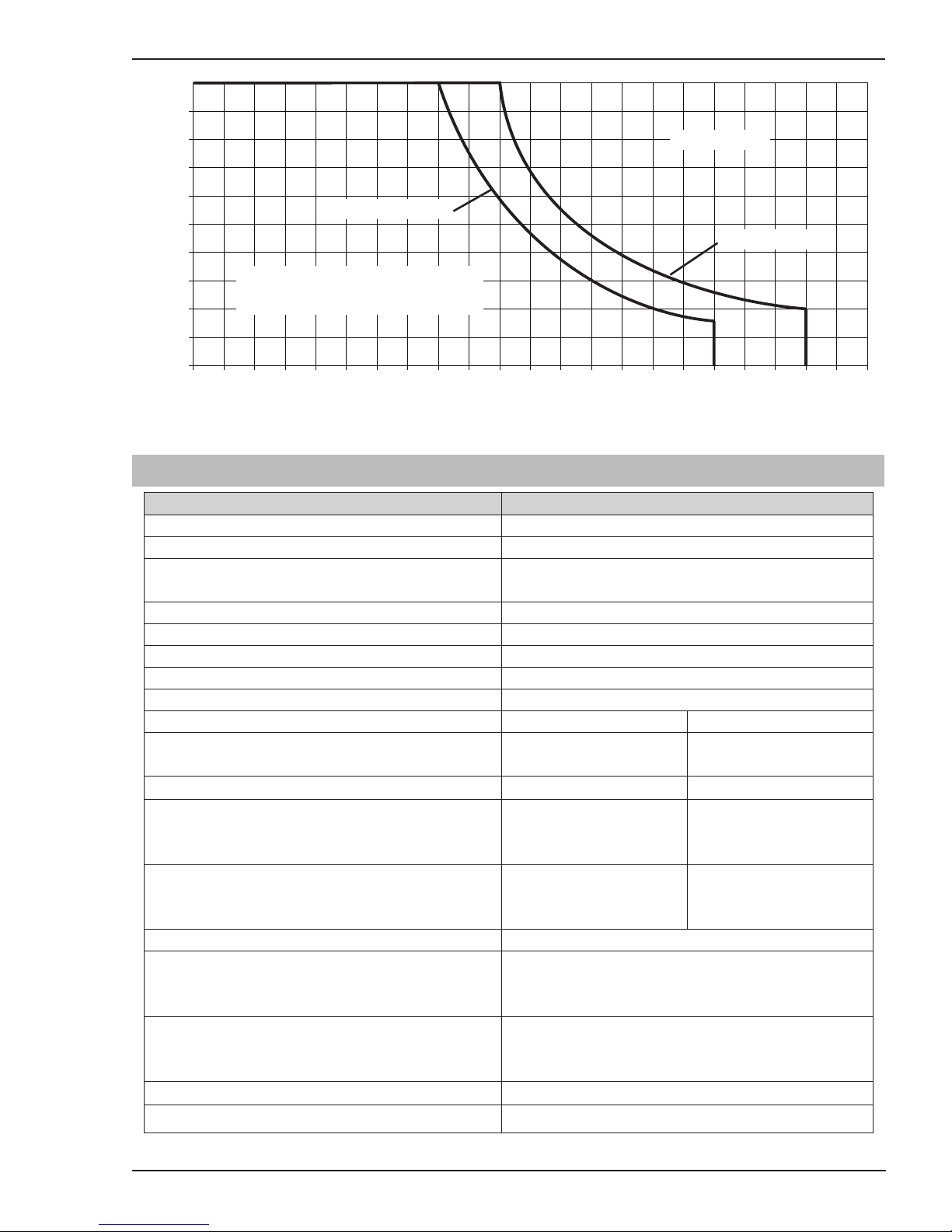

2.11 Volt-Ampere Curves ........................................................................................ 2-4
SECTION 3:
INSTALLATION, OPERATION AND SETUP ........................................................ 3-1
3.01 Environment ................................................................................................... 3-1
3.02 Location .......................................................................................................... 3-1
3.03 Ventilation ....................................................................................................... 3-1
3.04 Mains Supply Voltage Requirements .............................................................. 3-1
3.05 High Frequency Introduction .......................................................................... 3-2
3.06 High Frequency Interference ........................................................................... 3-3
3.07 Electromagnetic Compatibility ........................................................................ 3-3

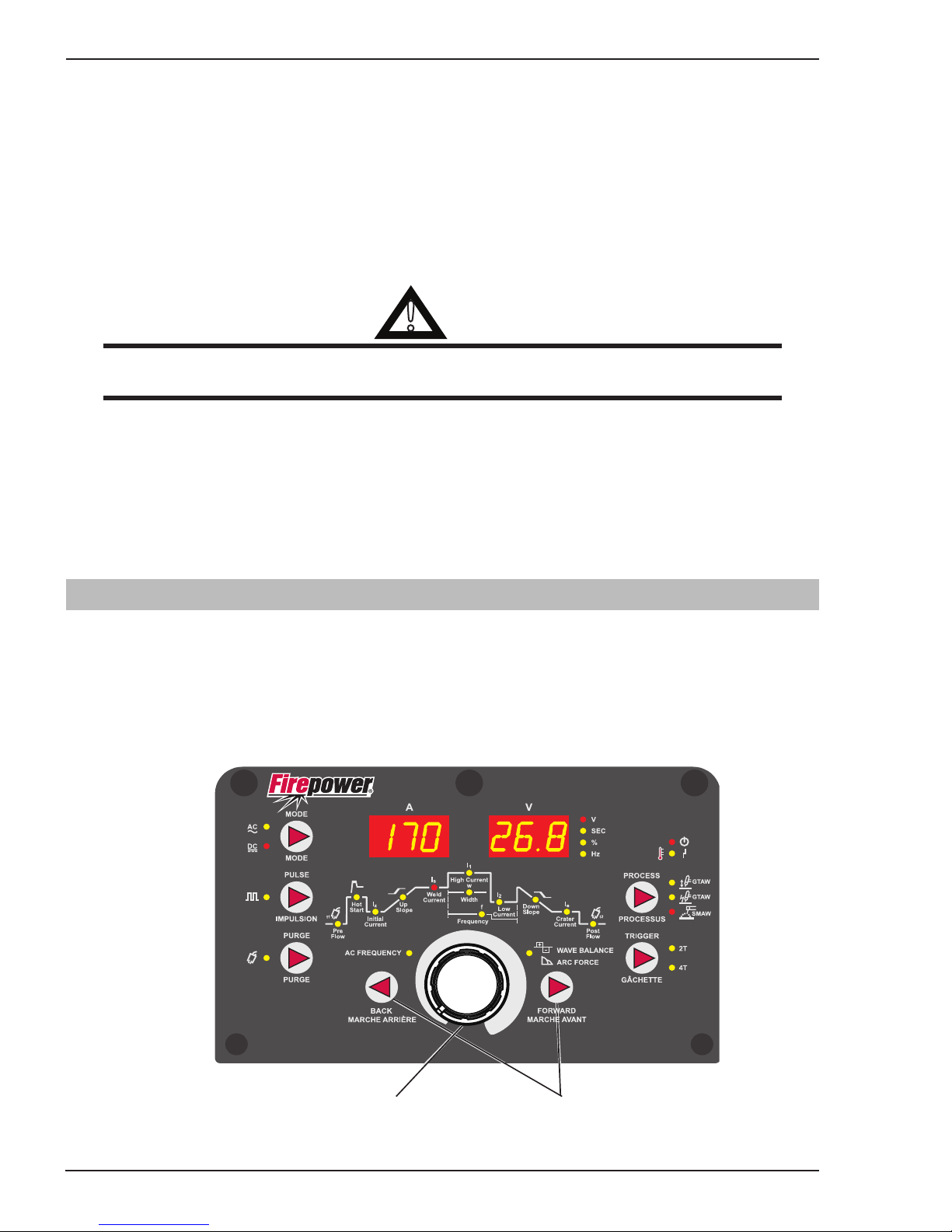

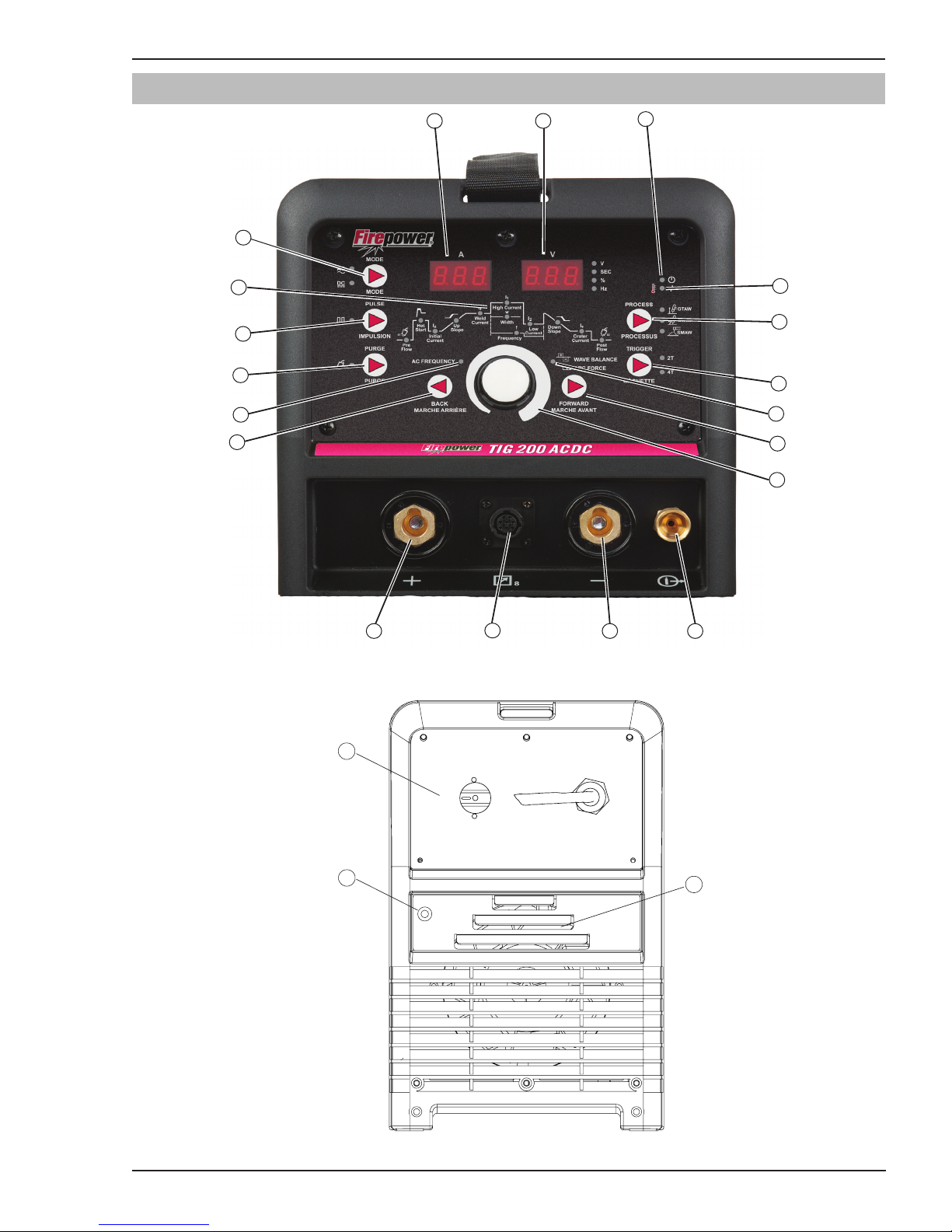

3.08 200 AC/DC Power Source Controls, Indicators and Features .......................... 3-5
3.09 200 AC/DC - STICK Programming Mode ...................................................... 3-10
3.10 200 AC/DC – LIFT TIG and HF TIG Programming Mode .............................. 3-11
3.11 Short Circuit Protection While Welding ......................................................... 3-15

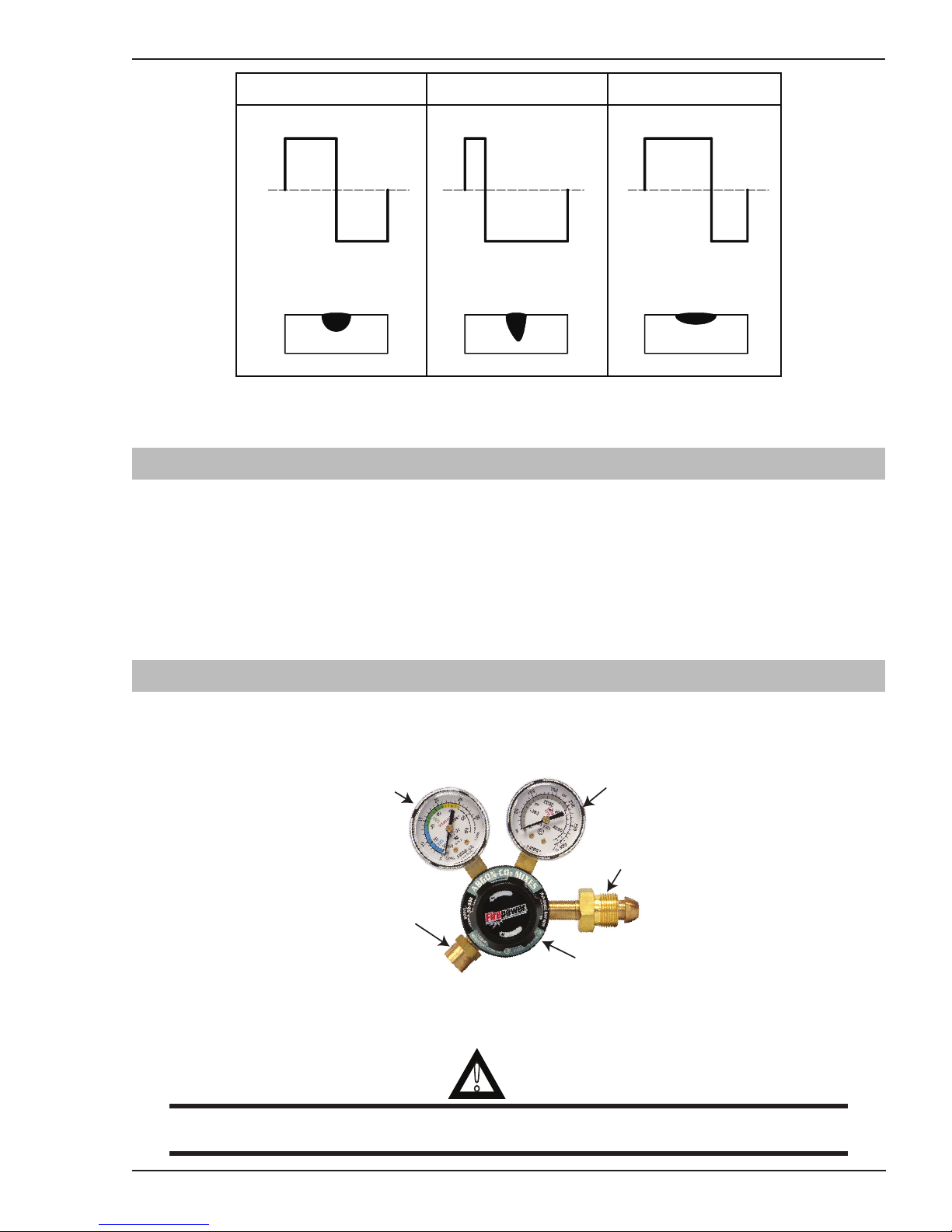

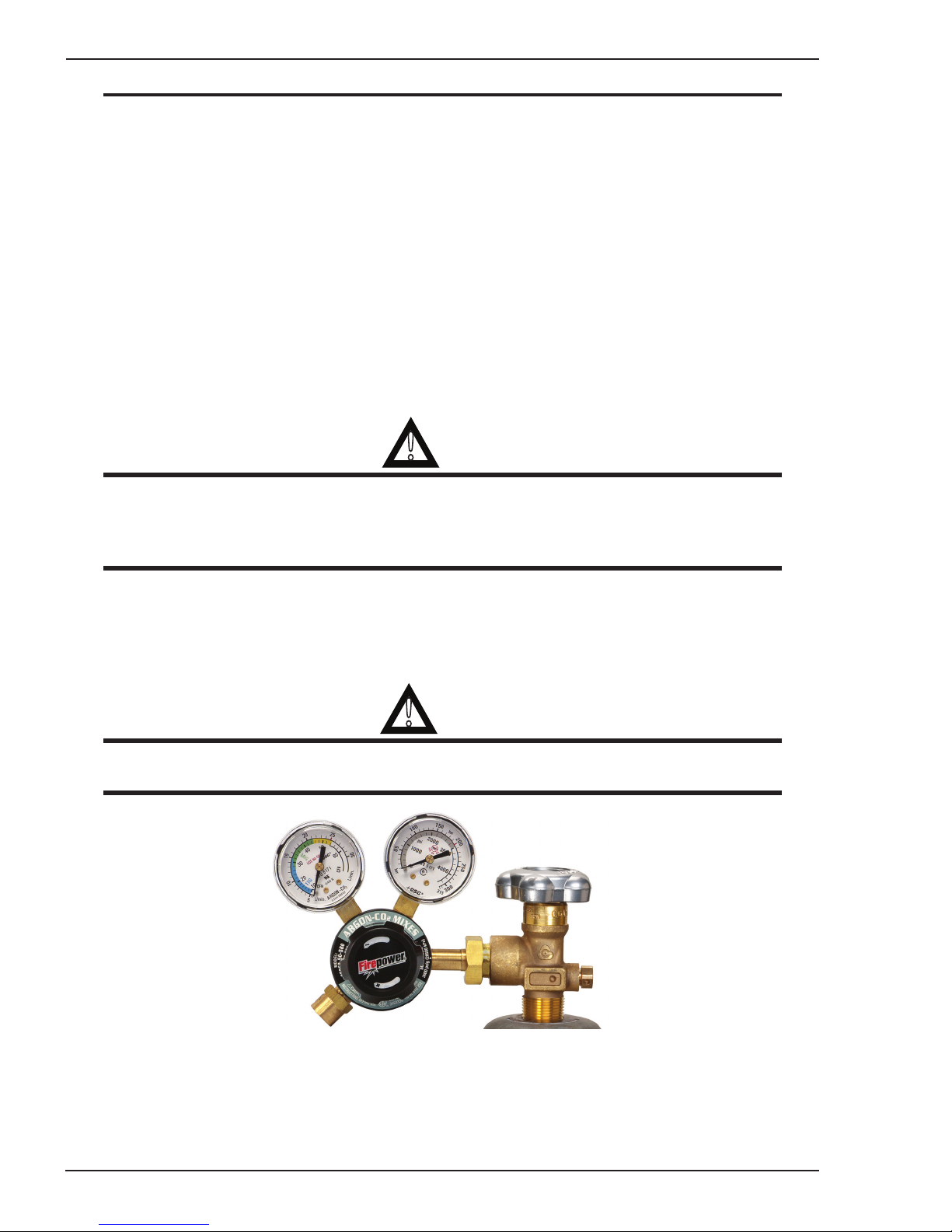

3.12 Firepower Flowmeter/Regulator .................................................................... 3-15

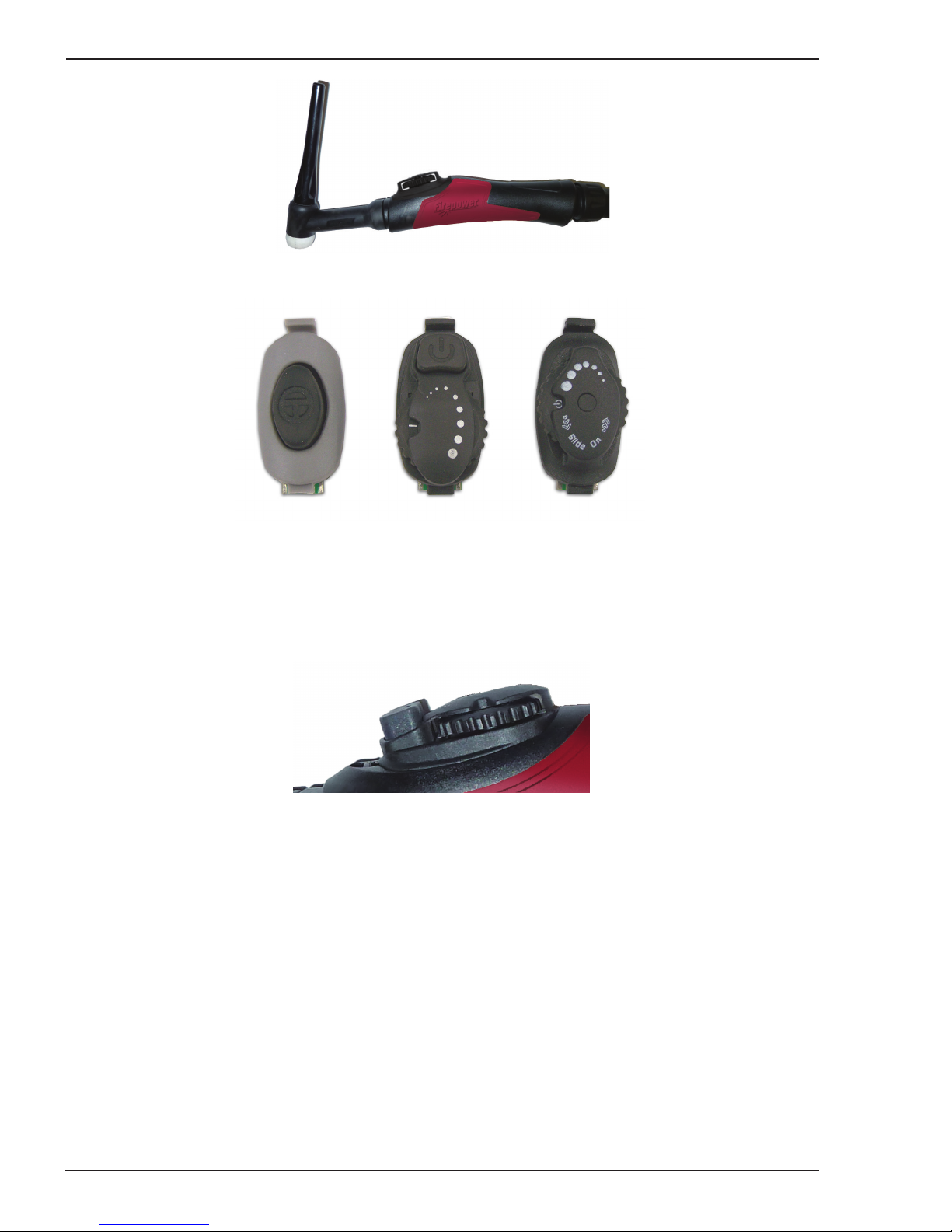

3.13 Specification for TIG Torch ........................................................................... 3-17
3.14 SETUP FOR TIG (GTAW) WELDING .............................................................. 3-19
3.15 Setup for STICK (SMAW) Welding .............................................................. 3-22
TABLE OF CONTENTS
SECTION 4:
BASIC WELDING GUIDE ............................................................................ 4-1

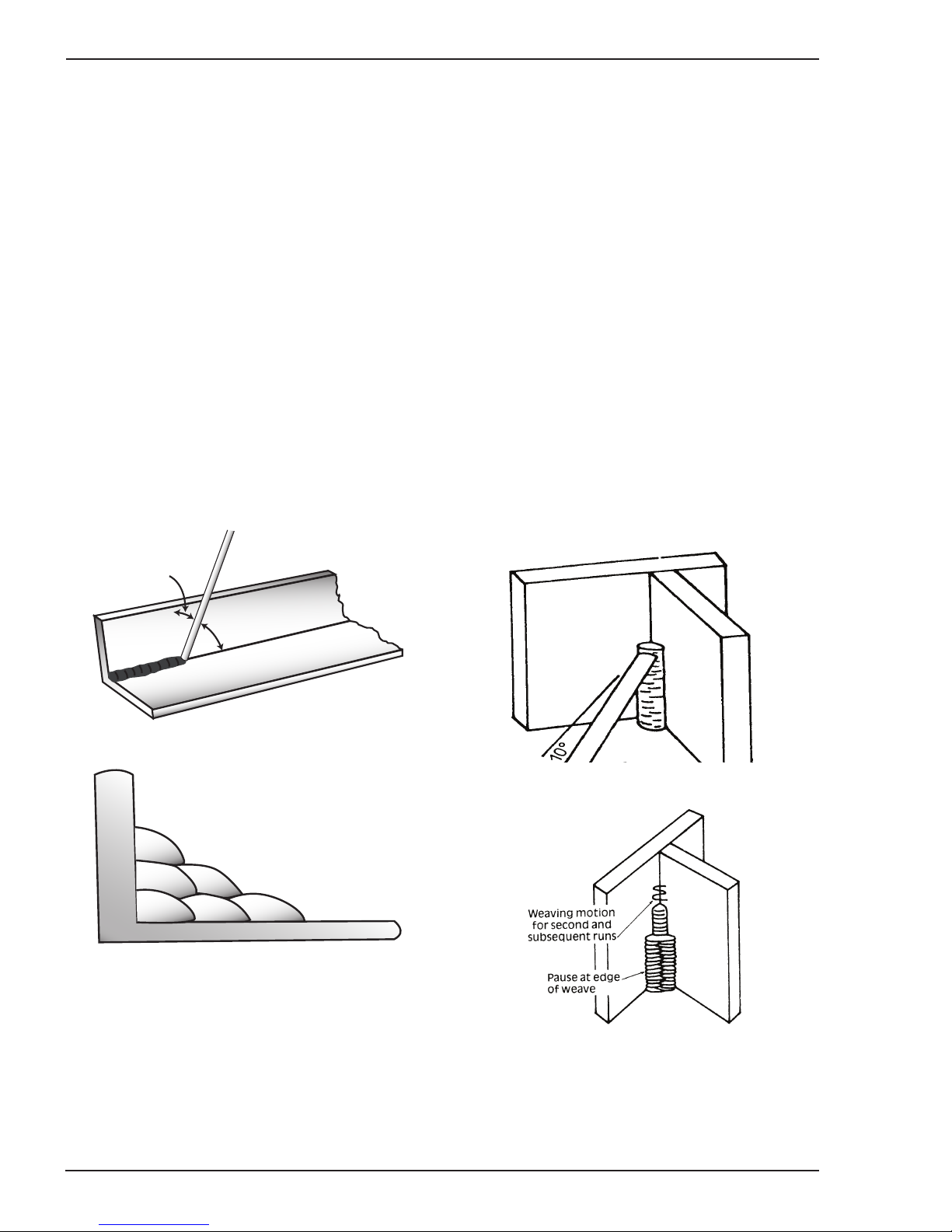

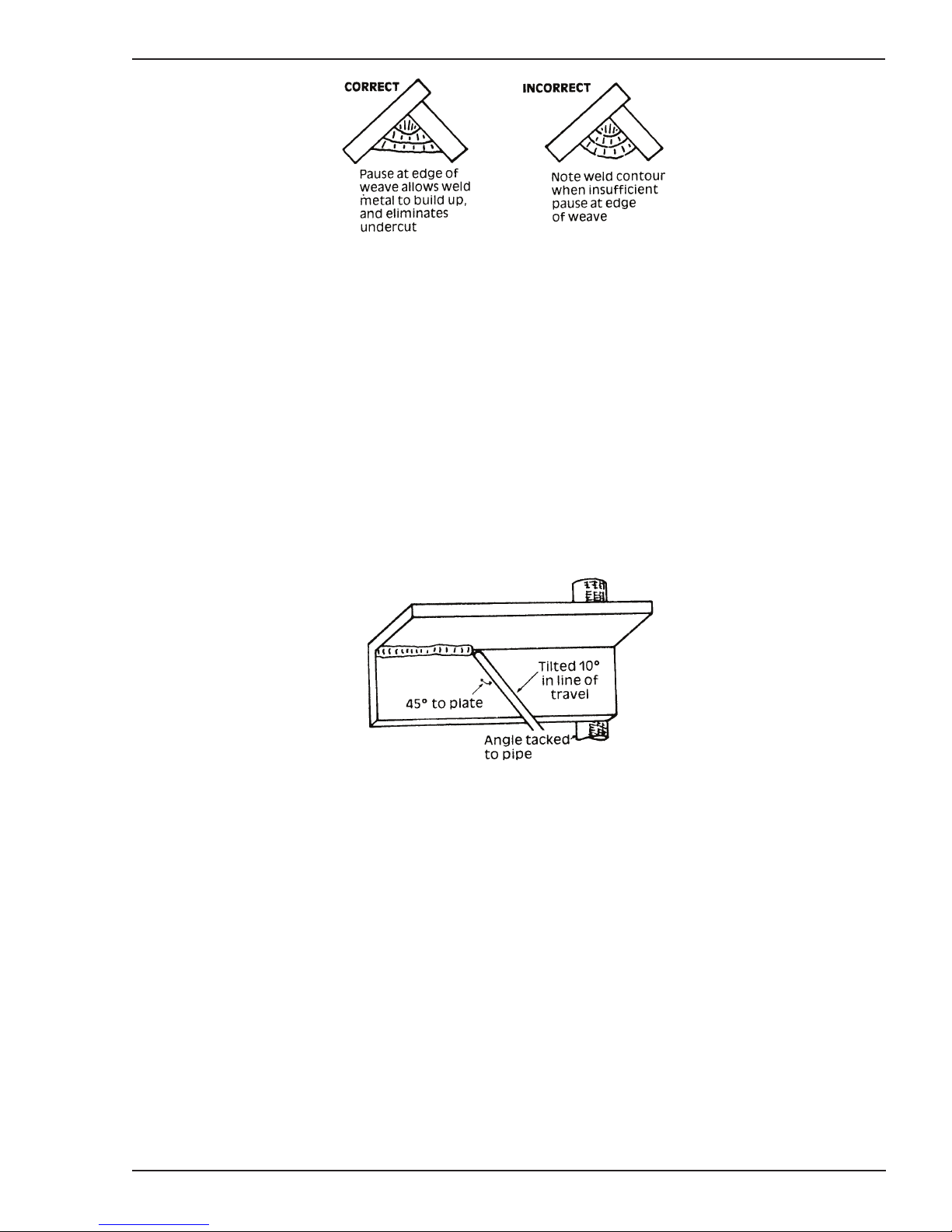

4.01 STICK (SMAW) Basic Welding Technique ....................................................... 4-1

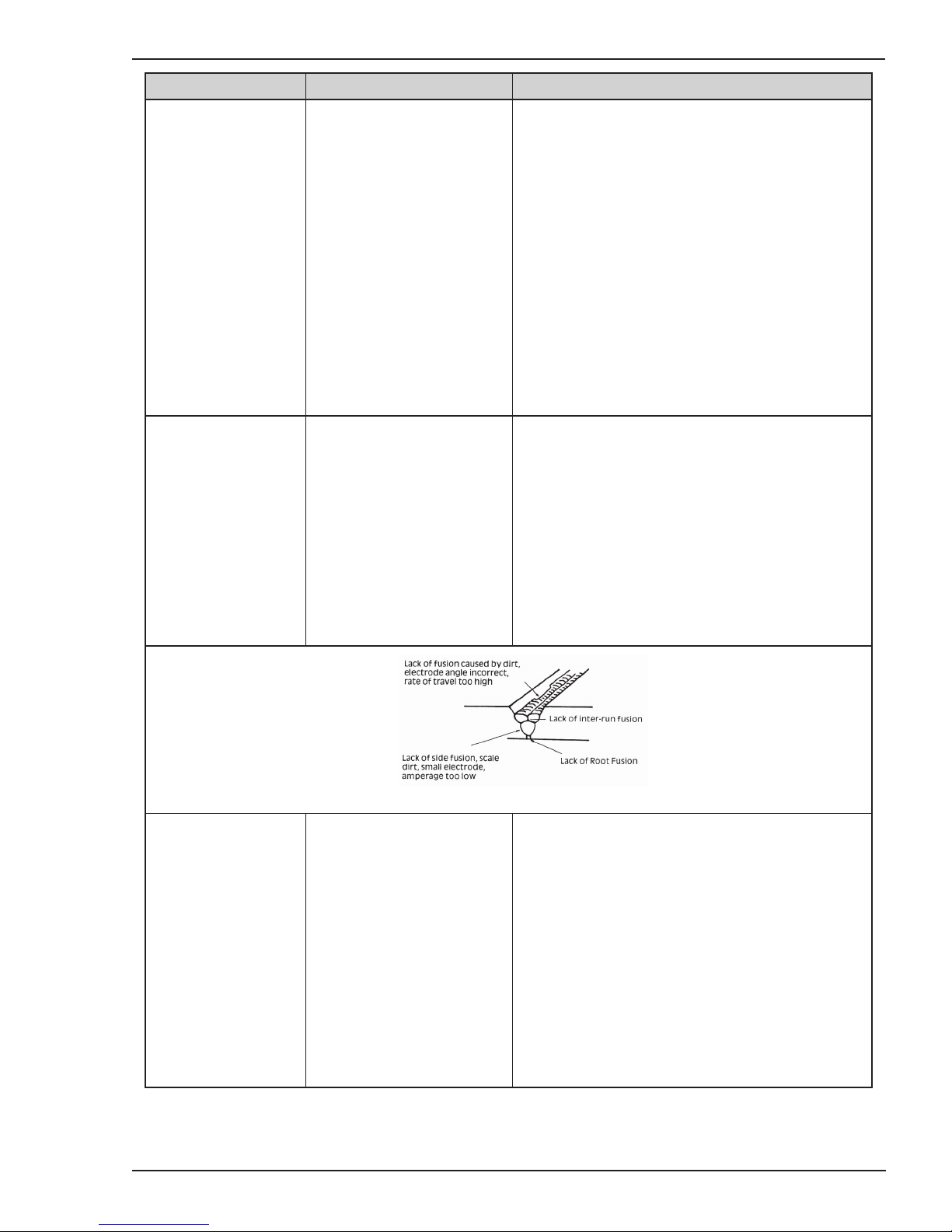

4.02 STICK (SMAW) Welding Troubleshooting ..................................................... 4-10
4.03 TIG (GTAW) Basic Welding Technique .......................................................... 4-12
4.04 TIG (GTAW) Welding Problems ..................................................................... 4-15
SECTION 5: POWER SOURCE PROBLEMS
AND ROUTINE SERVICE REQUIREMENTS ........................................................ 5-1
5.01 Basic Troubleshooting .................................................................................... 5-1
5.02 Power Source Problems ................................................................................. 5-1
5.03 Routine Service and Calibration Requirements ............................................... 5-2
5.04 Cleaning the Welding Power Source ............................................................... 5-4
SECTION 6:
KEY SPARE PARTS ................................................................................... 6-1

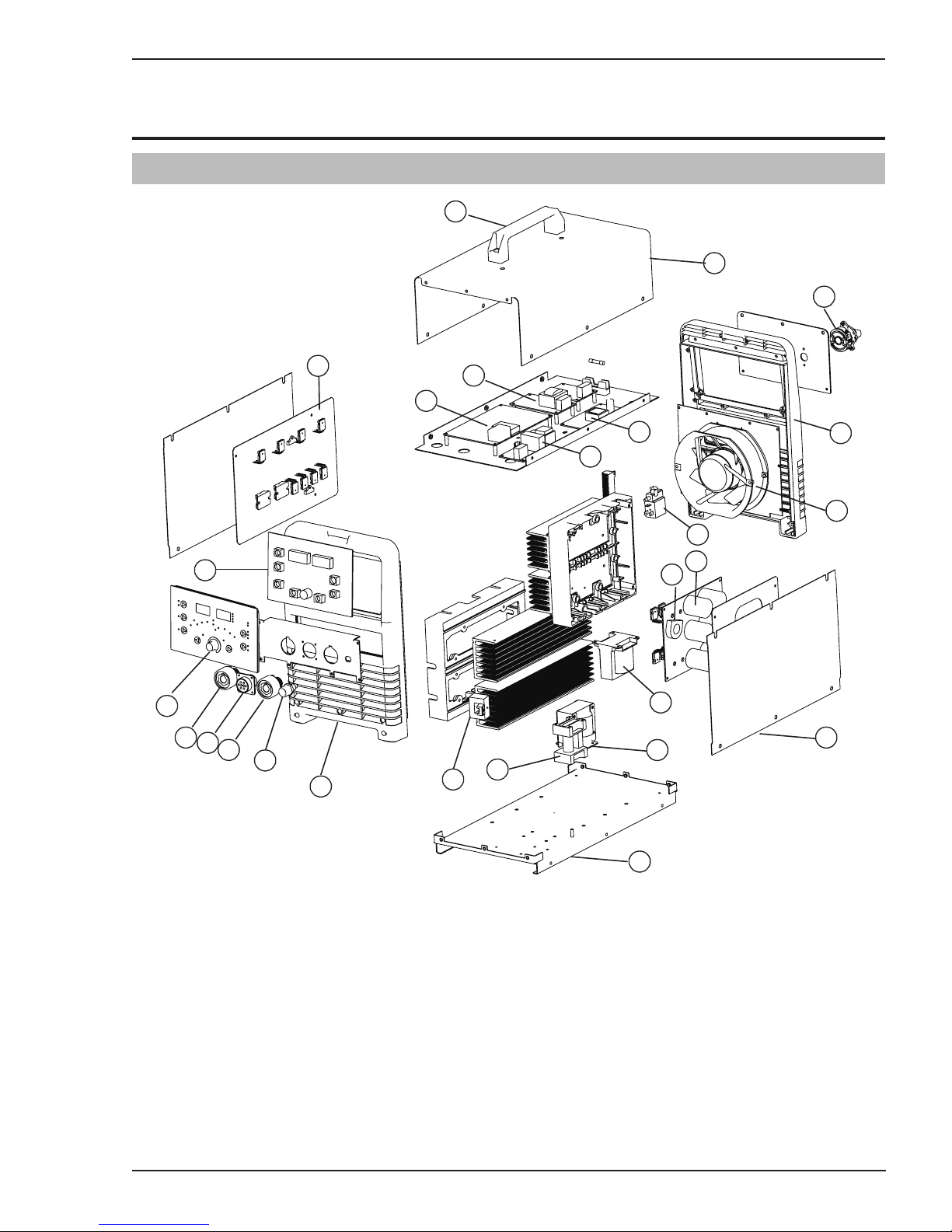

6.01 Power Source ................................................................................................. 6-1

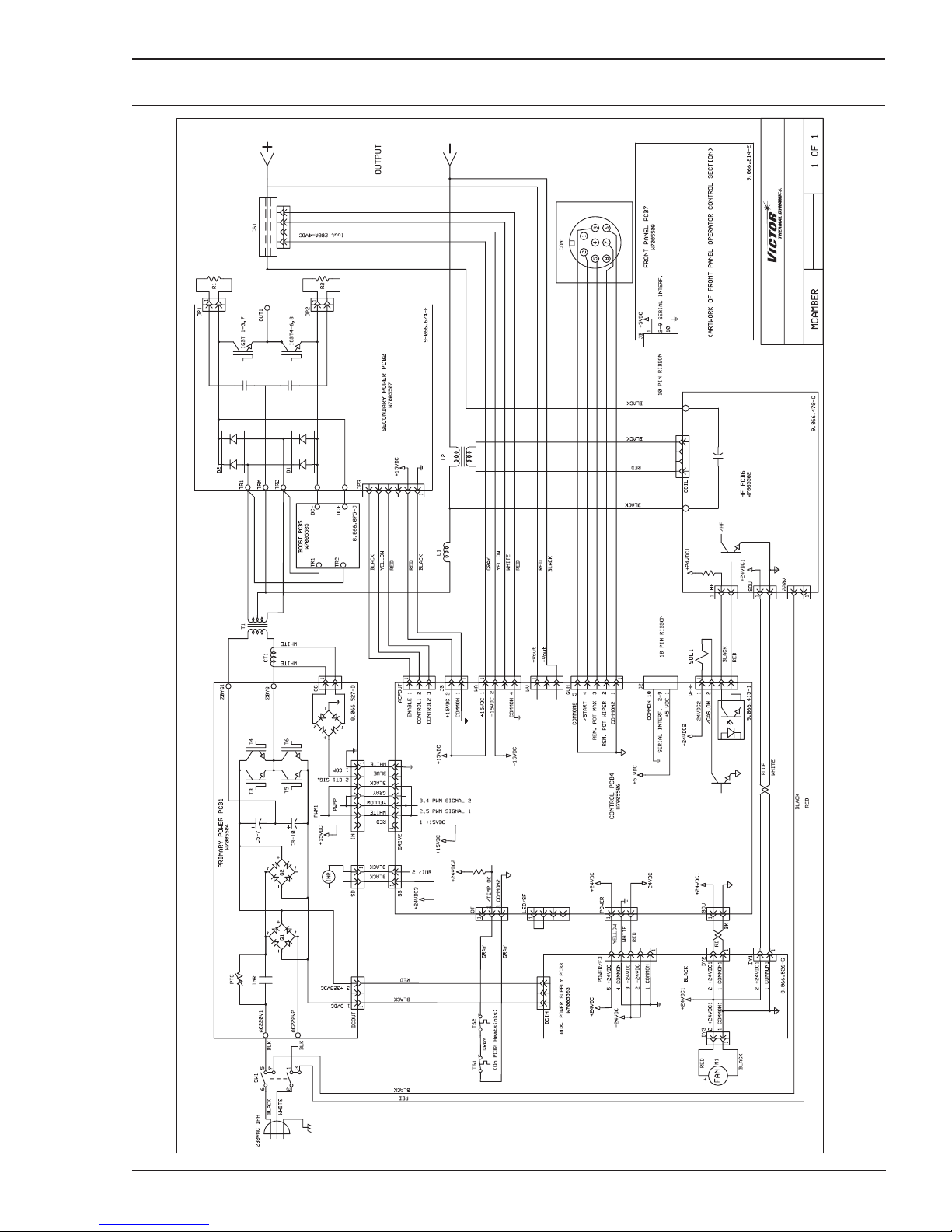

APPENDIX 1 : CIRCUIT DIAGRAM ........................................................................ A-1

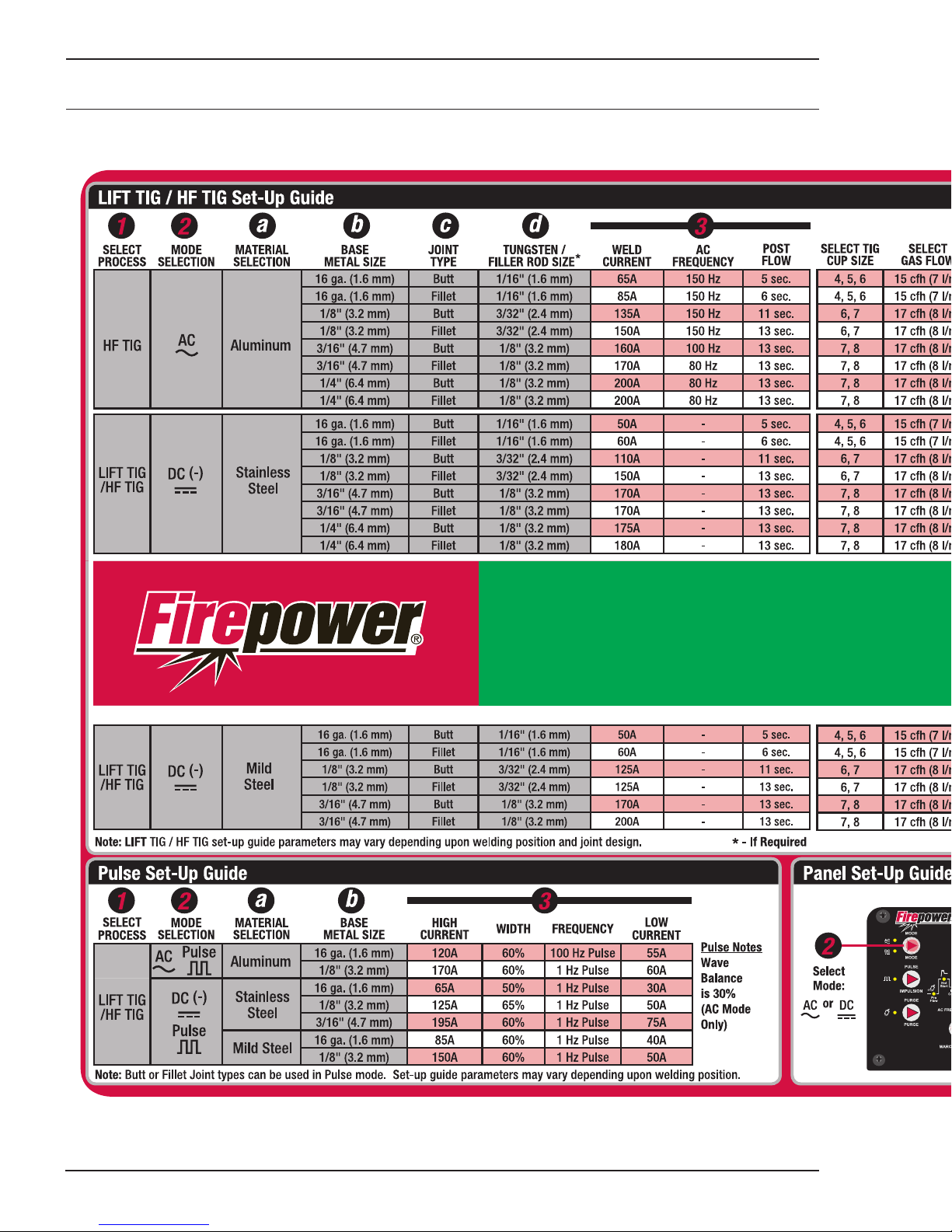

APPENDIX 2 : 200 AC/DC SETUP GUIDE ................................................................ A-2
LIMITED WARRANTY TERMS ....................................................... INSIDE REAR COVER
INTERNATIONAL CONTACT INFORMATION ................................................. REAR COVER
This Page Intentionally Blank
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
!
SECTION 1:
SAFETY INSTRUCTIONS AND WARNINGS
WARNING
PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS KEEP AWAY UNTIL CONSULTING YOUR DOCTOR. DO NOT LOSE THESE INSTRUCTIONS. READ OPERATING/INSTRUCTION MANUAL BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT.
Welding products and welding processes can cause serious injury or death, or damage to other equipment or property, if the operator does not strictly observe all safety rules and take precautionary actions.
Safe practices have developed from past experience in the use of welding and cutting. These practices must be learned through study and training before using this equipment. Some of these practices apply to equipment connected to power lines; other practices apply to engine driven equipment. Anyone not having extensive training in welding and cutting practices should not attempt to weld.
Safe practices are outlined in the American National Standard Z49.1 entitled: SAFETY IN WELDING AND CUTTING. This publication and other guides to what you should learn before operating this equipment are listed at the end of these safety precautions. HAVE ALL INSTALLATION, OPERATION, MAINTENANCE, AND REPAIR WORK
PERFORMED ONLY BY QUALIFIED PEOPLE.
1.01 ARC WELDING HAZARDS
WARNING
ELECTRIC SHOCK can kill.
Touching live electrical parts can cause fatal shocks or severe burns. The electrode and work circuit is electrically live whenever the output is on. The input power circuit and machine internal circuits are also live when power is on. In semi-automatic or automatic wire welding, the wire, wire reel, drive roll housing, and all metal parts touching the welding wire are electrically live. Incorrectly installed or improperly grounded equipment is a hazard.
1. Do not touch live electrical parts.
2. Wear dry, hole-free insulating gloves and body protection.
3. Insulate yourself from work and ground using dry insulating mats or covers.
4. Disconnect input power or stop engine before installing or servicing this equipment. Lock input power disconnect switch open, or remove line fuses so power cannot be turned on accidentally.
5. Properly install and ground this equipment according to its Owner’s Manual and national, state, and local codes.
6. Turn OFF all equipment when not in use. Disconnect power to equipment if it will be left unattended or out of service.
7. Use fully insulated electrode holders. Never dip holder in water to cool it or lay it down on the ground or the work surface. Do not touch holders connected to two welding machines at the same time or touch other people with the holder or electrode.
8. Do not use worn, damaged, undersized, or poorly spliced cables.
9. Do not wrap cables around your body.
10. Ground the workpiece to a good electrical (earth) ground.
11. Do not touch electrode while in contact with the work (ground) circuit.
12. Use only well-maintained equipment. Repair or replace damaged parts at once.
13. In confined spaces or damp locations, do not use a welder with AC output unless it is equipped with a voltage reducer. Use equipment with DC output.
14. Wear a safety harness to prevent falling if working above floor level.
15. Keep all panels and covers securely in place.
Safety Instructions
1-1
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
3. Use protective screens or barriers to protect others from flash and glare; warn others not to watch the
WARNING
ARC RAYS can burn eyes and skin; NOISE can damage hearing. Arc rays from the welding process produce intense heat and strong ultraviolet rays that can burn eyes and skin. Noise from some processes can damage hearing.
arc.
4. Wear protective clothing made from durable, flame-resistant material (wool and leather) and foot protection.
5. Use approved ear plugs or ear muffs if noise level is high.
1. Wear a welding helmet fitted with a proper shade of filter (see ANSI Z49.1 listed in Safety Standards) to protect your face and eyes when welding or watching.
2. Wear approved safety glasses. Side shields recommended.
AWS F2.2:2001 (R2010), Adapted with permission of the American Welding Society (AWS), Miami, Florida
Guide for Shade Numbers
Process
Shielded Metal Arc Welding (SMAW)
Gas Metal Arc Welding (GMAW) and Flux Cored Arc Welding (FCAW)
Gas Tungsten arc Welding (GTAW)
Air Carbon Arc Cutting (CAC-A)
Plasma Arc Welding (PAW)
Electrode Size in.
(mm)
Less than 3/32 (2.4)
3/32-5/32 (2.4-4.0)
5/32-1/4 (4.0-6.4)
More than 1/4 (6.4)
(Light)
(Heavy)
WARNING
FUMES AND GASES can be hazardous to your health.
Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to your health.
Arc Current
(Amperes)
Less than 60
60-160 160-250 250-550
Less than 60
60-160 160-250 250-550
Less than 50
50-150 150-500
Less than
500
500-1000
Less than 20
20-100 100-400 400-800
Minimum
Protective
Shade
7
8 10 11
7 10 10 10
8
8 10
10 11
6
8 10 11
Suggested*
Shade No.
(Comfort)
­10 12 14
­11 12 14
10 12 14
12 14
6 to 8
10 12 14
Plasma Arc Cutting (PAC)
* As a rule of thumb, start with a shade that is too dark to see the weld zone. Then go to a lighter shade which gives sufficient view of the weld zone without going below the minimum. In oxyfuel gas welding, cutting, or brazing where the torch and/or the flux produces a high yellow light, it is desirable to use a filter lens that absorbs the yellow or sodium line of the visible light spectrum.
Manual 0-5370
1-2
Less than 20
20-40 40-60 60-80
80-300 300-400 400-800
10
4 5 6 8 8 9
4 5 6 8
9 12 14
Safety Instructions
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
1. Keep your head out of the fumes. Do not breathe the fumes.
2. If inside, ventilate the area and/or use exhaust at the arc to remove welding fumes and gases.
3. If ventilation is poor, use an approved air-supplied respirator.
4. Read the Material Safety Data Sheets (MSDSs) and the manufacturer’s instruction for metals, consumables, coatings, and cleaners.
5. Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Shielding gases used for welding can displace air causing injury or death. Be sure the breathing air is safe.
6. Do not weld in locations near degreasing, cleaning, or spraying operations. The heat and rays of the arc can react with vapors to form highly toxic and irritating gases.
7. Do not weld on coated metals, such as galvanized, lead, or cadmium plated steel, unless the coating is removed from the weld area, the area is well ventilated, and if necessary, while wearing an air­supplied respirator. The coatings and any metals containing these elements can give off toxic fumes if welded.
7. Do not weld on closed containers such as tanks or drums.
8. Connect work cable to the work as close to the welding area as practical to prevent welding current from travelling long, possibly unknown paths and causing electric shock and fire hazards.
9. Do not use welder to thaw frozen pipes.
10. Remove stick electrode from holder or cut off welding wire at contact tip when not in use.
WARNING
FLYING SPARKS AND HOT METAL can cause injury.
Chipping and grinding cause flying metal. As welds cool, they can throw off slag.
1. Wear approved face shield or safety goggles. Side shields recommended.
2. Wear proper body protection to protect skin.
WARNING
WARNING
WELDING can cause fire or explosion. Sparks and spatter fly off from the welding
arc. The flying sparks and hot metal, weld spatter, hot workpiece, and hot equipment can cause fires and burns. Accidental contact of electrode or welding wire to metal objects can cause sparks, overheating, or fire.
1. Protect yourself and others from flying sparks and hot metal.
2. Do not weld where flying sparks can strike flammable material.
3. Remove all flammables within 35 ft (10.7 m) of the welding arc. If this is not possible, tightly cover them with approved covers.
4. Be alert that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas.
5. Watch for fire, and keep a fire extinguisher nearby.
6. Be aware that welding on a ceiling, floor, bulkhead, or partition can cause fire on the hidden side.

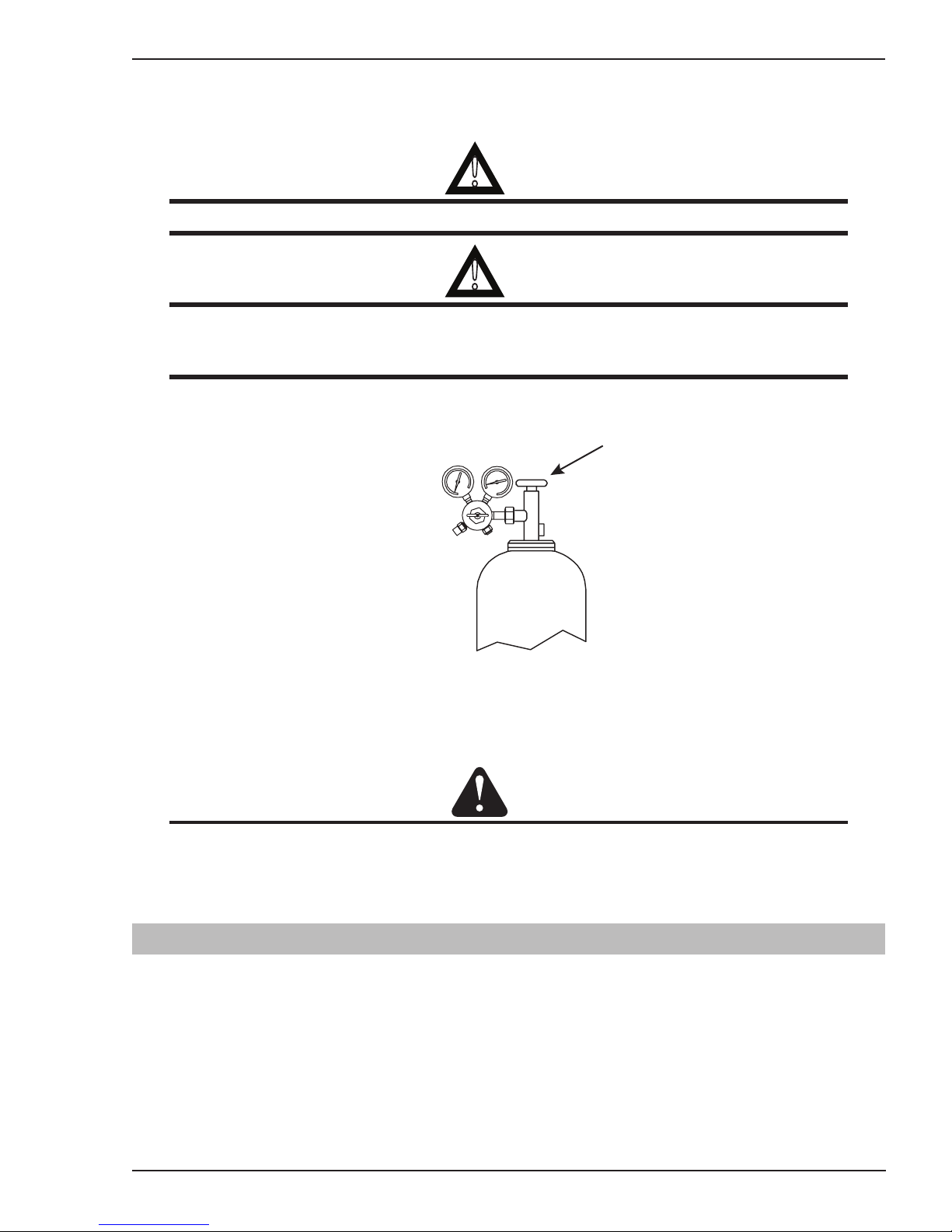

CYLINDERS can explode if damaged. Shielding gas cylinders contain gas under
high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully.
1. Protect compressed gas cylinders from excessive heat, mechanical shocks, and arcs.
2. Install and secure cylinders in an upright position by chaining them to a stationary support or equipment cylinder rack to prevent falling or tipping.
3. Keep cylinders away from any welding or other electrical circuits.
4. Never allow a welding electrode to touch any cylinder.
5. Use only correct shielding gas cylinders, Flowmeter/ Regulators, hoses, and fittings designed for the specific application; maintain them and associated parts in good condition.
6. Turn face away from valve outlet when opening cylinder valve.
7. Keep protective cap in place over valve except when cylinder is in use or connected for use.
Safety Instructions
1-3
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
!
8. Read and follow instructions on compressed gas cylinders, associated equipment, and CGA publication P-1 listed in Safety Standards.
WARNING
Engines can be dangerous.
WARNING
ENGINE EXHAUST GASES can kill.
Engines produce harmful exhaust gases.
1. Use equipment outside in open, well-ventilated areas.
2. If used in a closed area, vent engine exhaust outside and away from any building air intakes.
WARNING
ENGINE FUEL can cause fire or explosion. Engine fuel is highly flammable.
1. Stop engine before checking or adding fuel.
2. Do not add fuel while smoking or if unit is near any sparks or open flames.
3. Allow engine to cool before fuelling. If possible, check and add fuel to cold engine before beginning job.
4. Do not overfill tank — allow room for fuel to expand.
5. Do not spill fuel. If fuel is spilled, clean up before starting engine.
WARNING
MOVING PARTS can cause injury.
Moving parts, such as fans, rotors, and belts can cut fingers and hands and catch loose clothing.
1. Keep all doors, panels, covers, and guards closed and securely in place.
2. Stop engine before installing or connecting unit.
4. To prevent accidental starting during servicing, disconnect negative (-) battery cable from battery.
5. Keep hands, hair, loose clothing, and tools away from moving parts.
6. Reinstall panels or guards and close doors when servicing is finished and before starting engine.
WARNING
SPARKS can cause BATTERY GASES TO EXPLODE; BATTERY ACID can burn eyes and skin.
Batteries contain acid and generate explosive gases.
1. Always wear a face shield when working on a battery.
2. Stop engine before disconnecting or connecting battery cables.
3. Do not allow tools to cause sparks when working on a battery.
4. Do not use welder to charge batteries or jump start vehicles.
5. Observe correct polarity (+ and –) on batteries.
WARNING
STEAM AND PRESSURIZED HOT COOLANT can burn face, eyes, and skin.
The coolant in the radiator can be very hot and under pressure.
1. Do not remove radiator cap when engine is hot. Allow engine to cool.
2. Wear gloves and put a rag over cap area when removing cap.
3. Allow pressure to escape before completely removing cap.
NOTE
Considerations About Welding And The Effects of Low Frequency Electric and Mag­netic Fields
3. Have only qualified people remove guards or covers for maintenance and troubleshooting as necessary.
Manual 0-5370
1-4
Safety Instructions
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
!
!
The following is a quotation from the General Conclu­sions Section of the U.S. Congress, Office of Technology Assessment, Biological Effects of Power Frequency Electric & Magnetic Fields - Background Paper, OTA­BP-E-63 (Washington, DC: U.S. Government Printing Office, May 1989): “...there is now a very large volume of scientific findings based on experiments at the cel­lular level and from studies with animals and people which clearly establish that low frequency magnetic fields interact with, and produce changes in, biologi­cal systems. While most of this work is of very high quality, the results are complex. Current scientific understanding does not yet allow us to interpret the evidence in a single coherent framework. Even more frustrating, it does not yet allow us to draw definite conclusions about questions of possible risk or to offer clear science-based advice on strategies to minimize or avoid potential risks.”
To reduce magnetic fields in the workplace, use the following procedures.
1. Keep cables close together by twisting or taping them.
2. Arrange cables to one side and away from the operator.
1.02 GENERAL SAFETY INFORMATION FOR FIREPOWER CS FLOWMETER/REGULATOR
A. Fire Prevention
Welding and cutting operations use fire or combustion as a basic tool. The process is very useful when properly controlled. However, it can be extremely destructive if not performed cor rectly in the proper environment.
1. The work area must have a fireproof floor.
2. Work benches or tables used during welding or cutting operations must have fireproof tops.
3. Use heat resistant shields or other approved mate­rial to protect nearby walls or unprotected flooring from sparks and hot metal.
4. Keep an approved fire extinguisher of the proper size and type in the work area. Inspect it regu­larly to ensure that it is in proper working order. Know how to use the fire extin guisher.
5. Move combustible materials away from the work site. If you can not move them, protect them with fireproof covers.
3. Do not coil or drape cable around the body.
4. Keep welding Power Source and cables as far away from body as practical.
ABOUT PACEMAKERS:
The above procedures are among those also normally recommended for pacemaker wearers. Consult your doctor for complete information.
WARNING
NEVER perform welding, heating, or cut­ting operations on a container that has held toxic, combustible or flammable liq uids, or vapors. NEVER perform welding, heating, or cutting operations in an area containing combustible vapors, flam mable liquids, or explosive dust.
B. Housekeeping
WARNING
NEVER allow oxygen to contact grease, oil, or
other flam mable substances. Although oxy­gen by itself will not burn, these substances become highly explosive. They can ignite and burn violently in the presence of oxygen.
Keep ALL apparatus clean and free of grease, oil and other flammable substances.
Safety Instructions
1-5
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
!
!
!
!
C. Ventilation
WARNING
Ade quately ventilate welding, heating, and cutting work areas to prevent accumula­tion of explosive or toxic concen trations of gases. Certain combinations of metals, coatings, and gases generate toxic fumes. Use respiratory protection equipment in these circumstances. When welding/brazing, read and understand the Material Safety Data Sheet for the welding/brazing alloy.
D. Personal Protection
Gas flames produce infrared radiation which may have a harm ful effect on the skin and especially on the eyes. Select goggles or a mask with tempered lenses, shaded 4 or darker, to protect your eyes from injury and provide good visibility of the work.
Always wear protective gloves and flame-resistant clothing to protect skin and clothing from sparks and slag. Keep collars, sleeves, and pockets buttoned. DO NOT roll up sleeves or cuff pants.
When working in a non-welding or cutting environment, always wear suitable eye protection or face shield.
Art # A-12127
Figure 1-1: Gas Cylinders
WARNING
Cylinders are highly pressurized. Handle with care. Serious accidents can result from improper handling or mis use of compressed gas cylinders DO NOT drop the cylinder, knock it over, or expose it to excessive heat, flames or sparks. DO NOT strike it against other cylinders. Contact your gas supplier or refer to CGA P-1 “Safe Handling of Com­pressed Gases in Containers” publication.
NOTE
CGA P-1 publication is available by writing the Compressed Gas Association, 4221 Walney Road, 5th Floor, Chantilly,VA 20151­2923
WARNING
Practice the following safety and operation precautions EVERY TIME you use pressure regulation equipment. Deviation from the following safety and operation instructions can result in fire, explosion, damage to equipment, or injury to the operator.
E. Compressed Gas Cylinders
The Department of Transportation (DOT) approves the design and manufacture of cylinders that contain gases used for welding or cutting operations.
1. Place the cylinder (Figure 1-1) where you will use it. Keep the cylinder in a vertical position. Secure it to a cart, wall, work bench, post, etc.
2. Place the valve protection cap on the cylinder whenever mov ing it, placing it in storage, or not using it. Never drag or roll cylinders in any way. Use a suitable hand truck to move cylin ders.
3. Store empty cylinders away from full cylinders. Mark them “EMPTY” and close the cylinder valve.
4. NEVER use compressed gas cylinders without a pressure reducing Flowmeter/Regulator at­tached to the cylinder valve.
5. Inspect the cylinder valve for oil, grease, and damaged parts.
WARNING
DO NOT use the cylinder if you find oil, grease or damaged parts. Inform your gas supplier of this condition immediately.
6. Momentarily open and close (called “cracking”) the cylinder valve to dislodge any dust or dirt that may be present in the valve.
Manual 0-5370
1-6
Safety Instructions
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
CAUTION
Open the cylinder valve slightly. If you open the valve too much, the cylinder could tip over. When crack­ing the cylinder valve, DO NOT stand directly in front of the cylinder valve. Always perform cracking in a well ventilated area. If an acetylene cylinder sprays a mist when cracked, let it stand for 15 minutes. Then, try to crack the cylinder valve again. If this problem persists, contact your gas supplier.
1.03 Principal Safety Standards
Safety in Welding and Cutting, ANSI Standard Z49.1, from American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33126.
Safety and Health Standards, OSHA 29 CFR 1910, from Superintendent of Documents, U.S. Government Printing Office, Washington, D.C. 20402.
Recommended Safe Practices for the Preparation for Welding and Cutting of Containers That Have Held Hazardous Substances, American Welding Society Standard AWS F4.1, from American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33126.
National Electrical Code, NFPA Standard 70, from National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.
Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1, from Compressed Gas Association, 1235 Jefferson Davis Highway, Suite 501, Arlington, VA 22202.
Code for Safety in Welding and Cutting, CSA Standard W117.2, from Canadian Standards Association, Standards Sales, 178 Rexdale Boulevard, Rexdale, Ontario, Canada M9W 1R3.
Safe Practices for Occupation and Educational Eye and Face Protection, ANSI Standard Z87.1, from American National Standards Institute, 1430 Broadway, New York, NY 10018.
Cutting and Welding Processes, NFPA Standard 51B, from National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.
Safety Instructions
1-7
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
1.04 Symbol Chart
Note that only some of these symbols will appear on your model.
On
Off
Dangerous Voltage
Increase/Decrease
Circuit Breaker
AC Auxiliary Power
Fuse
Amperage
Voltage
Hertz (cycles/sec)
Frequency
X
%
Single Phase
Three Phase
Three Phase Static Frequency Converter­Transformer-Rectifier
Remote
Duty Cycle
Percentage
Panel/Local
Shielded Metal Arc Welding (SMAW)
Gas Metal Arc Welding (GMAW)
Gas Tungsten Arc Welding (GTAW)
Air Carbon Arc Cutting (CAC-A)
Wire Feed Function
Wire Feed Towards Workpiece With Output Voltage Off.
Welding Gun
Purging Of Gas
Continuous Weld Mode
Spot Weld Mode
Spot Time
t
t2
Preflow Time
Postflow Time
2 Step Trigger Operation
t1
Press to initiate wirefeed and welding, release to stop.
Negative
Positive
Direct Current (DC)
Protective Earth (Ground)
Line
Line Connection
Auxiliary Power
115V 15A
Note: For environments with increased hazard of electrical shock, Power Supplier bearing the mark conform to EN50192 when used in conjunction with hand torches with exposed tips, if equipped with properly installed standoff guides. Cannot be disposed with household garbage.
Receptacle Rating­Auxiliary Power
Constant Current
Constant Voltage Or Constant Potential
High Temperature
Fault Indication
Arc Force
Touch Start (GTAW)
Variable Inductance
Voltage Input
V
Press and hold for preflow, release to start arc. Press to stop arc, and hold for preflow.
t
IPM
MPM
S
S
4 Step Trigger Operation
Burnback Time
Inches Per Minute
Meters Per Minute
See Note
See Note
Art # A-04130_AB
Manual 0-5370
1-8
Safety Instructions
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
!
1.05 PRECAUTIONS DE SECURITE EN SOUDAGE A L’ARC
MISE EN GARDE
LE SOUDAGE A L’ARC EST DANGEREUX PROTEGEZ-VOUS, AINSI QUE LES AUTRES, CONTRE LES BLESSURES GRAVES POSSIBLES OU LA
MORT. NE LAISSEZ PAS LES ENFANTS S’APPROCHER, NI LES PORTEURS DE STIMULATEUR CARDI­AQUE (A MOINS QU’ILS N’AIENT CONSULTE UN MEDECIN). CONSERVEZ CES INSTRUCTIONS. LISEZ LE MANUEL D’OPERATION OU LES INSTRUCTIONS AVANT D’INSTALLER, UTILISER OU ENTRETENIR CET EQUIPEMENT.
Les produits et procédés de soudage peuvent sauser des blessures graves ou la mort, de même que des dommages au reste du matériel et à la propriété, si l’utilisateur n’adhère pas strictement à toutes les règles de sécurité et ne prend pas les précautions nécessaires.
En soudage et coupage, des pratiques sécuritaires se sont développées suite à l’expérience passée. Ces pratiques doivent être apprises par étude ou entraînement avant d’utiliser l’equipement. Toute personne n’ayant pas suivi un entraînement intensif en soudage et coupage ne devrait pas tenter de souder. Certaines pratiques concernent les équipements raccordés aux lignes d’alimentation alors que d’autres s’adressent aux groupes électrogènes.
La norme Z49.1 de l’American National Standard, intitulée “SAFETY IN WELDING AND CUTTING” présente les pratiques sécuritaires à suivre. Ce document ainsi que d’autres guides que vous devriez connaître avant d’utiliser cet équipement sont présentés à la fin de ces instructions de sécurité.
SEULES DES PERSONNES QUALIFIEES DOIVENT FAIRE DES TRAVAUX D’INSTALLATION, DE REPARATION, D’ENTRETIEN ET D’ESSAI.
1.06 DANGERS RELATIFS AU SOUDAGE À L’ARC
AVERTISSEMENT
L’ELECTROCUTION PEUT ETRE MORTELLE.
Une décharge électrique peut tuer ou brûler gravement. L’électrode et le circuit de soudage sont sous tension dès la mise en circuit. Le circuit d’alimentation et les circuits internes de l’équipement sont aussi sous tension dès la mise en marche. En soudage automatique ou semi-automatique avec fil, ce dernier, le rouleau ou la bobine de fil, le logement des galets d’entrainement et toutes les pièces métalliques en contact avec le fil de soudage sont sous tension. Un équipement inadéquatement installé ou inadéquatement mis à la terre est dangereux.
1. Ne touchez pas à des pièces sous tension.
2. Portez des gants et des vêtements isolants, secs et
non troués.
3 Isolez-vous de la pièce à souder et de la mise à la
terre au moyen de tapis isolants ou autres.
4. Déconnectez la prise d’alimentation de l’équipement ou arrêtez le moteur avant de l’installer ou d’en faire l’entretien. Bloquez le commutateur en circuit ouvert ou enlevez les fusibles de l’alimentation afin d’éviter une mise en marche accidentelle.
5. Veuillez à installer cet équipement et à le mettre à la terre selon le manuel d’utilisation et les codes nationaux, provinciaux et locaux applicables.
6. Arrêtez tout équipement après usage. Coupez l’ali­mentation de l’équipement s’il est hors d’usage ou inutilisé.
7. N’utilisez que des porte-électrodes bien isolés. Ne jamais plonger les porte-électrodes dans l’eau pour les refroidir. Ne jamais les laisser traîner par terre ou sur les pièces à souder. Ne touchez pas aux porte­électrodes raccordés à deux sources de courant en même temps. Ne jamais toucher quelqu’un d’autre avec l’électrode ou le porte-électrode.
8. N’utilisez pas de câbles électriques usés, endom­magés, mal épissés ou de section trop petite.
9. N’enroulez pas de câbles électriques autour de votre corps.
10. N’utilisez qu’une bonne prise de masse pour la mise à la terre de la pièce à souder.
Safety Instructions
1-9
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
11. Ne touchez pas à l’électrode lorsqu’en contact avec le circuit de soudage (terre).
12. N’utilisez que des équipements en bon état. Réparez ou remplacez aussitôt les pièces endommagées.
13. Dans des espaces confinés ou mouillés, n’utilisez pas de source de courant alternatif, à moins qu’il soit muni d’un réducteur de tension. Utilisez plutôt une source de courant continu.
14. Portez un harnais de sécurité si vous travaillez en hauteur.
15. Fermez solidement tous les panneaux et les capots.
LE RAYONNEMENT DE L’ARC PEUT BRÛLER LES YEUX ET LA PEAU; LE BRUIT PEUT ENDOMMAGER L’OUIE.
L’arc de soudage produit une chaleur et des rayons ultraviolets intenses, susceptibles de brûler les yeux et la peau. Le bruit causé par certains procédés peut endommager l’ouïe.
1. Portez une casque de soudeur avec filtre oculaire de nuance appropriée (consultez la norme ANSI Z49 indiquée ci-après) pour vous protéger le visage et les yeux lorsque vous soudez ou que vous observez l’exécution d’une soudure.
AWS F2.2 : 2001 (R2010), Modifié avec l’accord de l’American Welding Society (AWS), Miami, Florida
Guide de teinte des lentilles
AVERTISSEMENT
Procédé
Soudage à l’arc avec électrode enrobée (procédé SMAW)
Soudage à l’arc sous gaz avec fil plein (procédé GMAW) et soudage avec fil fourré (procédé FCAW)
Soudage à l’électrode réfractaire (procédé GTAW)
Coupage à l’arc avec électrode de carbone et jet d’air (procédé AAC)
Soudage à l’arc au plasma (procédé PAW)
Coupage plasma (procédé PAC)
Taille de l’électrode
enmm (po)
Moins de 2,4 (3/32)
3/32-5/32 (2,4-4,0)
5/32-1/4 (4,0-6,4)
Plus de 1/4 (6,4)
(Clair)
(Sombre)
Courant
d’arc
(ampères)
Moins de 60
60-160 160-250 250-550
Moins de 60
60-160 160-250 250-550
Moins de 50
50-150 150-500
Moins de 500 500-
1000
Moins de 20
20-100 100-400 400-800
Moins de 20
20-40 40-60 60-80
80-300 300-400 400-800
Gamme
d’intensité
minimum
7
8 10 11
7 10 10 10
8
8 10
10 11
6
8 10 11
4
5
6
8
8
9 10
Numéro de teinte
recommandée*
(Confort)
­10 12 14
­11 12 14
10 12 14
12 14
6 à 8
10 12 14
4 5 6 8
9 12 14
* En règle générale, commencer avec une teinte plus foncée pour voir la zone de soudage. Réduire ensuite progressivement vers la teinte qui permet de voir la zone de soudage sans dépasser le minimum. Lors dusoudage, du coupage ou du brasage au gaz oxygéné, la torche ou le fondant produit une puissante lumière jaune; il est préférable d’utiliser un filtre qui absorbe cette lumière jaune ou le sodium du spectre de la lumière visible.
Manual 0-5370
Tableau 1-1
1-10
Safety Instructions
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
2. Portez des lunettes de sécurité approuvées. Des écrans latéraux sont recommandés.
3. Entourez l’aire de soudage de rideaux ou de cloisons pour protéger les autres des coups d’arc ou de l’éblouissement; avertissez les observateurs de ne pas regarder l’arc.
4. Portez des vêtements en matériaux ignifuges et dura­bles (laine et cuir) et des chaussures de sécurité.
5. Portez un casque antibruit ou des bouchons d’oreille approuvés lorsque le niveau de bruit est élevé.
AVERTISSEMENT
LES VAPEURS ET LES FUMEES SONT DANGEREUSES POUR LA SANTE.
Le soudage dégage des vapeurs et des fumées dangereuses à respirer.
1. Eloignez la tête des fumées pour éviter de les respi­rer.
2. A l’intérieur, assurez-vous que l’aire de soudage est bien ventilée ou que les fumées et les vapeurs sont aspirées à l’arc.
3. Si la ventilation est inadequate, portez un respirateur à adduction d’air approuvé.
4. Lisez les fiches signalétiques et les consignes du fabricant relatives aux métaux, aux produits consummables, aux revêtements et aux produits nettoyants.
5. Ne travaillez dans un espace confiné que s’il est bien ventilé; sinon, portez un respirateur à adduction d’air. Les gaz protecteurs de soudage peuvent déplacer l’oxygène de l’air et ainsi causer des malaises ou la mort. Assurez-vous que l’air est propre à la respi­ration.
6. Ne soudez pas à proximité d’opérations de dégrais­sage, de nettoyage ou de pulvérisation. La chaleur et les rayons de l’arc peuvent réagir avec des vapeurs et former des gaz hautement toxiques et irritants.
7. Ne soudez des tôles galvanisées ou plaquées au plomb ou au cadmium que si les zones à souder ont été grattées à fond, que si l’espace est bien ventilé; si nécessaire portez un respirateur à adduction d’air. Car ces revêtements et tout métal qui contient ces éléments peuvent dégager des fumées toxiques au moment du soudage.
LE SOUDAGE PEUT CAUSER UN INCENDIE OU UNE EXPLOSION
L’arc produit des étincellies et des pro­jections. Les particules volantes, le métal chaud, les projections de soudure et l’équi­pement surchauffé peuvent causer un incen­die et des brûlures. Le contact accidentel de l’électrode ou du fil-électrode avec un objet métallique peut provoquer des étincelles, un échauffement ou un incendie.
1. Protégez-vous, ainsi que les autres, contre les étin­celles et du métal chaud.
2. Ne soudez pas dans un endroit où des particules volantes ou des projections peuvent atteindre des matériaux inflammables.
3. Enlevez toutes matières inflammables dans un rayon de 10, 7 mètres autour de l’arc, ou couvrez-les soi­gneusement avec des bâches approuvées.
4. Méfiez-vous des projections brulantes de soudage susceptibles de pénétrer dans des aires adjacentes par de petites ouvertures ou fissures.
5. Méfiez-vous des incendies et gardez un extincteur à portée de la main.
6. N’oubliez pas qu’une soudure réalisée sur un pla­fond, un plancher, une cloison ou une paroi peut enflammer l’autre côté.
7. Ne soudez pas un récipient fermé, tel un réservoir ou un baril.
8. Connectez le câble de soudage le plus près possible de la zone de soudage pour empêcher le courant de suivre un long parcours inconnu, et prévenir ainsi les risques d’électrocution et d’incendie.
9. Ne dégelez pas les tuyaux avec un source de courant.
10. Otez l’électrode du porte-électrode ou coupez le fil au tube-contact lorsqu’inutilisé après le soudage.
11. Portez des vêtements protecteurs non huileux, tels des gants en cuir, une chemise épaisse, un pantalon revers, des bottines de sécurité et un casque.
AVERTISSEMENT
Safety Instructions
1-11
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
8. Lisez et respectez les consignes relatives aux bouteilles de gaz comprimé et aux équipements
AVERTISSEMENT
LES ETINCELLES ET LES PROJECTIONS BRULANTES PEUVENT CAUSER DES BLESSURES.
connexes, ainsi que la publication P-1 de la CGA, identifiée dans la liste de documents ci-dessous.
Le piquage et le meulage produisent des particules métalliques volantes. En refroi­dissant, la soudure peut projeter du éclats de laitier.
1. Portez un écran facial ou des lunettes protectrices approuvées. Des écrans latéraux sont recomman­dés.
2. Portez des vêtements appropriés pour protéger la peau.
AVERTISSEMENT
LES BOUTEILLES ENDOMMAGEES PEU­VENT EXPLOSER
Les bouteilles contiennent des gaz protec­teurs sous haute pression. Des bouteilles endommagées peuvent exploser. Comme les bouteilles font normalement partie du procédé de soudage, traitez-les avec soin.
1. Protégez les bouteilles de gaz comprimé contre les sources de chaleur intense, les chocs et les arcs de soudage.
2. Enchainez verticalement les bouteilles à un support ou à un cadre fixe pour les empêcher de tomber ou d’être renversées.
3. Eloignez les bouteilles de tout circuit électrique ou de tout soudage.
4. Empêchez tout contact entre une bouteille et une électrode de soudage.
5. N’utilisez que des bouteilles de gaz protecteur, des détendeurs, des boyauxs et des raccords conçus pour chaque application spécifique; ces équipe­ments et les pièces connexes doivent être maintenus en bon état.
6. Ne placez pas le visage face à l’ouverture du robinet de la bouteille lors de son ouverture.
7. Laissez en place le chapeau de bouteille sauf si en utilisation ou lorsque raccordé pour utilisation.
AVERTISSEMENT
LES MOTEURS PEUVENT ETRE DANGE­REUX
LES GAZ D’ECHAPPEMENT DES MOTEURS PEUVENT ETRE MORTELS.
Les moteurs produisent des gaz d’échappement nocifs.
1. Utilisez l’équipement à l’extérieur dans des aires ouvertes et bien ventilées.
2. Si vous utilisez ces équipements dans un endroit confiné, les fumées d’échappement doivent être envoyées à l’extérieur, loin des prises d’air du bâti­ment.
AVERTISSEMENT
LE CARBURANT PEUR CAUSER UN INCEN­DIE OU UNE EXPLOSION.
Le carburant est hautement inflammable.
1. Arrêtez le moteur avant de vérifier le niveau e car­burant ou de faire le plein.
2. Ne faites pas le plein en fumant ou proche d’une source d’étincelles ou d’une flamme nue.
3. Si c’est possible, laissez le moteur refroidir avant de faire le plein de carburant ou d’en vérifier le niveau au début du soudage.
4. Ne faites pas le plein de carburant à ras bord: pré­voyez de l’espace pour son expansion.
5. Faites attention de ne pas renverser de carburant. Nettoyez tout carburant renversé avant de faire démarrer le moteur.
AVERTISSEMENT
DES PIECES EN MOUVEMENT PEUVENT CAUSER DES BLESSURES.
Des pièces en mouvement, tels des ventila­teurs, des rotors et des courroies peuvent couper doigts et mains, ou accrocher des vêtements amples.
Manual 0-5370
1-12
Safety Instructions
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
!
1. Assurez-vous que les portes, les panneaux, les capots et les protecteurs soient bien fermés.
2. Avant d’installer ou de connecter un système, arrêtez le moteur.
3. Seules des personnes qualifiées doivent démonter des protecteurs ou des capots pour faire l’entretien ou le dépannage nécessaire.
4. Pour empêcher un démarrage accidentel pendant l’entretien, débranchez le câble d’accumulateur à la borne négative.
5. N’approchez pas les mains ou les cheveux de pièces en mouvement; elles peuvent aussi accrocher des vêtements amples et des outils.
6. Réinstallez les capots ou les protecteurs et fermez les portes après des travaux d’entretien et avant de faire démarrer le moteur.
AVERTISSEMENT
DES ETINCELLES PEUVENT FAIRE EXPLO­SER UN ACCUMULATEUR; L’ELECTROLYTE D’UN ACCUMU-LATEUR PEUT BRULER LA PEAU ET LES YEUX.
Les accumulateurs contiennent de l’élec­trolyte acide et dégagent des vapeurs explosives.
1. Portez toujours un écran facial en travaillant sur un accumu-lateur.
2. Arrêtez le moteur avant de connecter ou de décon­necter des câbles d’accumulateur.
3. N’utilisez que des outils anti-étincelles pour travailler sur un accumulateur.
4. N’utilisez pas une source de courant de soudage pour charger un accumulateur ou survolter momen­tanément un véhicule.
5. Utilisez la polarité correcte (+ et –) de l’accumulateur.
1. N’ôtez pas le bouchon de radiateur tant que le moteur n’est pas refroidi.
2. Mettez des gants et posez un torchon sur le bouchon pour l’ôter.
3. Laissez la pression s’échapper avant d’ôter complè­tement le bouchon.
1.07 INFORMATIONS GÉNÉRALES DE
SÉCURITÉ
A. Prévention D’incendie
Les opérations de soudage utilisent le feu ou la combustion comme outil de base. Ce processus est très utile quand il est cor rectement contrôlé.
1. La zone doit comporter un sol ignifugé.
2. Les établis ou tables utilisés pendant les opérations de soudage doivent avoir un revêtement ignifuge.
3. Utilisez des écrans résistants à la chaleur ou en matériau approuvé pour protéger les cloisons pro­ches ou le sol vul nérable des étincelles et du métal chaud.
4. Gardez un extincteur approuvé du bon type et de la bonne taille dans la zone de travail. Inspectez-le régulièrement pour vous assurer qu’il est en état de fonctionner. Appre­nez à vous en servir.
5. Enlevez tous les matériaux combustibles de la zone de travail. Si vous ne pouvez pas les enlever, protégez-les avec une cou vre ignifuge.
AVERTISSEMENT
N’effectuez JAMAIS d’opérations de soudage sur un récipient qui a contenu des liquides ou vapeurs toxiques, combustibles ou inflamma­bles. N’effectuez JAMAIS d’opérations de sou­dage dans une zone contenant des vapeurs combustibles, des liquides inflammables ou des poussières explosives.
AVERTISSEMENT
LA VAPEUR ET LE LIQUIDE DE REFROI­DISSEMENT BRULANT SOUS PRESSION PEUVENT BRULER LA PEAU ET LES YEUX.
Le liquide de refroidissement d’un radiateur peut être brûlant et sous pression.
Safety Instructions
1-13
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
!
!
!
!
B. Entretien des Locaux
AVERTISSEMENT
AVERTISSEMENT
Ne laissez jamais l’oxygène en contact avec la graisse, l’huile ou d’autres substances inflammables. Bien que l’oxygène elle même ne brûle pas, ces substances peuvent deve­nir extrême ment explosives. Elles peuvent prendre feu et brûler violem ment en pré­sence d’oxygène.
Gardez TOUS les appareils propres et exempts de graisse, huile ou autres substances inflammables.
C. Aération
AVERTISSEMENT
Ventilez les zones de soudage, chauffage et découpage de façon adéquate pour éviter l’accumulation de gaz explosifs ou toxiques. Certaines combinaisons de métaux, revête­ments et gaz génèrent des fumées toxiques: Utilisez un équipement de protection res­piratoire dans ces circonstances. Si vous soudez ou brasez, lisez et assimilez la fiche technique de sécurité de matériau relative à l’alliage de soudage/brasage.
Mettez en pratique les procédures de sécurité et de mode opératoire suivantes à chaque fois que vous utilisez cet appareil de régulation de pression. Si vous déviez de ces procédures, cela peut entraîner incendie, explosion, dégâts matériels et/ou blessures corporelles pour l’opérateur.
E. Bouteilles de Gaz Comprimé
Le Département des Transports américain (DOT) approuve la conception et la fabrication des bouteilles qui contiennent les gaz utilisés pour les opérations de soudage ou de découpage.
1. Placez la bouteille (Le schéma 1) là où elle sera uti­lisée. Gardez-la en position verticale. Fixez-la sur un chariot une cloison, un établi, etc.
Art # A-12127
Le schéma 1-1: Cylindres de gaz
D. Protection Personnelle
Les flammes de gaz produisent une radiation infrarouge qui peut avoir un effet néfaste sur la peau, et particu­lièrement sur les yeux. Choisissez des lunettes ou un masque avec des verres trempés assombris au niveau 4 ou plus sombre, pour protéger vos yeux des dommages et garder une bonne visibilité sur le travail.
Portez en permanence des gants de protection et des vête ments ignifuges pour la protection de la peau et des vêtements contre les étincelles et le laitier. Gardez col, manches et poches boutonnés. Il ne faut pas remonter vos manches ou les pantalons à revers.
Quand vous travaillez dans un environnement non dédié au soudage ou découpage, portez toujours une protection des yeux appropriées ou un masque facial.
AVERTISSEMENT
Les bouteilles sont sous haute pression. Manipu­lez-les avec précautions. Des accidents sérieux peuvent résulter d’une mauvaise manutention ou d’un mauvais emploi des bouteilles de gaz comprimé. NE faites PAS tomber la bouteille, ne la cognez pas, ne l’exposez pas à une chaleur excessive, aux flammes ou étincelles. NE la cognez PAS contre d’autres bouteilles. Contactez votre fournisseur de gaz ou reportez vous à la publication CGA P-1 “Manipulation sécurisée des gaz compri­més en conteneur” pour plus d’informations sur l’utilisation et la manutention des bouteilles.
Manual 0-5370
1-14
Safety Instructions
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
!
AVIS
Ce document CGA p. t peut être obtenu en écrivant à “Compressed Gas Association”, 4221 Walney Roed, 5th Floor. Chantilly, VA
20151.2923, USA.
2. Placez le bouchon de protection de vanne sur la bouteille à chaque fois que vous la déplacez ou ne l’utilisez pas. Ne faites jamais glisser ou rouler d’aucune manière les bouteilles. Utilisez un diable approprié pour les déplacer.
3. Entreposez les bouteilles vides à l’écart des bou­teilles pleines. Marquez-les “VIDE” et refermez leur vanne.
4. N’utilisez JAMAIS des bouteilles de gaz comprimé sans un régulateur de pression en série sur la vanne de bouteille.
5. Inspectez la vanne de bouteille pour y détec­ter de l’huile ou de la graisse, ou dès pièces endommagées.
AVERTISSEMENT
N’UTILISEZ PAS la bouteille si vous trou­vez de l’huile, de la graisse ou des pièces endommagées. Informez immédiate ment votre fournisseur de’ gaz de cet état.
6. Ouvrez et fermez momentanément la vanne de la bouteille, délogeant ainsi d’éventu lIes pous­sières ou saletés. qui pour raient être présentes dans la vanne.
1.08 Principales Normes De Securite
Safety in Welding and Cutting, norme ANSI Z49.1, American Welding Society, 550 N.W. LeJeune Rd., Miami, FL 33128.
Safety and Health Standards, OSHA 29 CFR 1910, Supe­rintendent of Documents, U.S. Government Printing Office, Washington, D.C. 20402.
Recommended Safe Practices for the Preparation for Welding and Cutting of Containers That Have Held Hazardous Substances, norme AWS F4.1, American Welding Society, 550 N.W. LeJeune Rd., Miami, FL
33128. National Electrical Code, norme 70 NFPA, National Fire
Protection Association, Batterymarch Park, Quincy, MA 02269.
Safe Handling of Compressed Gases in Cylinders, docu­ment P-1, Compressed Gas Association, 1235 Jefferson Davis Highway, Suite 501, Arlington, VA 22202.
Code for Safety in Welding and Cutting, norme CSA W117.2 Association canadienne de normalisation, Stan­dards Sales, 276 Rexdale Boulevard, Rexdale, Ontario, Canada M9W 1R3.
Safe Practices for Occupation and Educational Eye and Face Protection, norme ANSI Z87.1, American National Standards Institute, 1430 Broadway, New York, NY
10018. Cutting and Welding Processes, norme 51B NFPA,
National Fire Protection Association, Batterymarch Park, Quincy, MA 02269.
MISE EN GARDE
Ouvrez la vanne de bouteille légèrement. Si vous l’ouvrez trop en grand, la bouteille pourrait se renverser. Quand vous ouvrez/ fermez rapidement la vanne de bouteille, ne vous tenez pas directement devant. Opérez toujours cette opération dans une zone bien ventilée. Si une bouteille d’acétylène crache un brouillard, laissez reposer pendant 15 minutes. Essayez de nouveau la vanne. Si le problème persiste, con tactez votre four­nisseur de gaz.
Safety Instructions
1-15
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
1.09 Graphique de Symbole
Seulement certains de ces symboles apparaîtront sur votre modèle.
SousTension
Hors Tension
Tension dangereuse
Augmentez/Diminuer
Disjoncteur
Source AC Auxiliaire
Fusible
Intensité de Courant
Tension
Hertz (cycles/sec)
Fréquence
Négatif
Positif
Courant Continue (DC)
X
%
Mono Phasé
Trois Phasé
Tri-Phase Statique
Fréquence Convertisseur Transformateur-Redresseur
Distant
Facteur de Marche
Pourcentage
Panneau/Local
Soudage Arc Electrique Avec Electrode Enrobé (SMAW)
Soudage á L’arc Avec Fil Electrodes Fusible (GMAW)
Soudage á L’arc Avec Electrode Non Fusible (GTAW)
Decoupe Arc Carbone (CAC-A)
Courant Constant
Tension Constante Ou Potentiel Constant
Haute Température
Déroulement du Fil
Alimentation du Fil Vers la Pièce de Fabrication Hors Tension
Torche de Soudage
Purge Du Gaz
Mode Continu de Soudure
Soudure Par Point
Duréc du Pulse
t
t1
Appuyez pour démarrer l’alimentation du fils et la soudure, le relâcher pour arrêter.
Maintenez appuyez pour pré-dèbit, relailez pour initier l’arc. Appuyez pour arrêter l’arc, et mainteuir pour pré-dèbit.
Durée de Pré-Dèbit
Durée de Post-Dèbit
t2
Détente à 2-Temps
Détente à 4-Temps
Probléme de Terre
t
Terre de Protection
Ligne
Connexion de la Ligne
Source Auxiliaire
115V 15A
Avis : Pour les environnements avec des risques de choc électrique, le fournisseur d’énergie portant la marque conforme à EN50192 lorsqu’utilisé en conjonction avec des lampes de poche avec des conseils exposés, si équipés avec des guide à l’hauteur de buse correctement installé. Ne pas déposer avec les déchets ménagers.
Classement de Prise­Source Auxiliaire
Manual 0-5370
Indication d’erreur
Force d’Arc
Amorçage de L’arc au Contact (GTAW)
Inductance Variable
Tension
V
1-16
IPM
MPM
S
Pouces Par Minute
Mètres Par Minute
Voir Note
Voir Note
Art # A-07639F_AC
S
Safety Instructions
SAFETY INSTRUCTIONS FIREPOWER TIG 200 AC/DC
1.05 Declaration of Conformity
Declaration of Conformity
We Victor Technologies International Inc.
of 16052 Swingley Ridge Road Suite 300 Chestereld, MO 63033 U.S.A.
in accordance with the following Directive(s):
•2006/95/EC The Low Voltage Directive
•2004/108/EC The Electromagnetic Compatibility (EMC) Directive
hereby declare that:
Equipment: Welding Power Source
Model Name/Number: Firepower 200 AC/DC
Market Release Date: January 16, 2014
is in conformity with the applicable requirements of the following harmonized standards:
•EN 60974-10:2007 Arc Welding Equipment - Part 10: Electromagnetic compatibility (EMC) requirements
•EN 60974-1:2012 Arc Welding Equipment - Part 1: Welding power sources.
Classification: The equipment described in this document is Class A and intended for industrial use.
Manufacturer’s Authorized Representative
Steve Ward V.P. Europe and General Manager
Address:Victor Technologies International Inc.
Europa Building
Chorley N Industrial Park Chorley, Lancashire, England PR6 7BX
Date: November 13, 2014
Steve Ward (Full Name)
V.P. Europe and General Manager
(Position)
(Signature)
This Class A equipment is not intended for use in residential locations where the electrical power is provided by the public low-voltage supply system. There may be potential difficulties in ensuring electromagnetic compatibility in those locations, due to conducted as well as radiated disturbances.
Safety Instructions
!
WARNING
1-17
Manual 0-5370
FIREPOWER TIG 200 AC/DC SAFETY INSTRUCTIONS
Classication:TheequipmentdescribedinthismanualisClassAandintendedforindustrialuse.
!
WARNING
This Class A equipment is not intended for use in residential locations where the electrical power is provided by the public low-voltage supply system. There may be potential difcul­ties in ensuring electromagnetic compatibility in those locations, due to conducted as well as radiated disturbances.
Manual 0-5370
1-18
Safety Instructions
INTRODUCTION FIREPOWER TIG 200 AC/DC
!
SECTION 2:
INTRODUCTION
2.01 HOW TO USE THIS MANUAL
To ensure safe operation, read the entire manual, includ­ing the chapter on safety instructions and warnings.
Throughout this manual, the words WARNING, CAUTION, and NOTE may appear. Pay particular atten­tion to the information provided under these headings. These special annotations are easily recognized as follows:
WARNING
A WARNING gives information regarding possible personal injury.
CAUTION
A CAUTION refers to possible equipment damage.
NOTE
A NOTE offers helpful information concern­ing certain operating procedures.
You will also notice icons from the safety section ap­pearing throughout the manual. These are to advise you of specific types of hazards or cautions related to the portion of information that follows. Some may have multiple hazards that apply and would look something like this:
2.03 RECEIPT OF EQUIPMENT
When you receive the equipment, check it against the invoice to make sure it is complete and inspect the equipment for possible damage due to shipping. If there is any damage, notify the carrier immediately to file a claim. Furnish complete information concerning damage claims or shipping errors to the location in your area listed in the back cover of this manual.
Include all equipment identification numbers as de­scribed above along with a full description of the parts in error.
Move the equipment to the installation site before un-crating the unit. Use care to avoid damaging the equipment when using bars, hammers, etc., to un-crate the unit.
2.04 DESCRIPTION
The Firepower 200 AC/DC is a single phase constant current welding inverter capable of performing SMAW (STICK), GTAW (HF TIG) and GTAW (LIFT TIG) welding processes. The unit is equipped with digital amperage and voltage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern user. The unit is also fully compliant to Standard CSA E 60974-1-00 and UL 60974.1.
The 200 AC/DC provides excellent welding performance across a broad range of applications when used with the correct welding consumables and procedures. The fol­lowing instructions detail how to correctly and safely set up the machine and give guidelines on gaining the best efficiency and quality from the Power Source. Please read these instructions thoroughly before using the unit.
2.02 EQUIPMENT IDENTIFICATION
The unit’s identification number (specification or part number), model, and serial number usually appear on a nameplate attached to the control panel. In some cases, the nameplate may be attached to the rear panel, or bot­tom of the machine. Equipment which does not have a control panel such as gun and cable assemblies is identi­fied only by the specification or part number printed on the shipping container. Record these numbers on the bottom of page ii for future reference.
Introduction
2-1
Manual 0-5370
FIREPOWER TIG 200 AC/DC INTRODUCTION
A-12708
2.05 USER RESPONSIBILITY
This equipment will perform as per the information con­tained herein when installed, operated, maintained and repaired in accordance with the instructions provided. This equipment must be checked periodically. Defective equipment (including welding leads) should not be used. Parts that are broken, missing, plainly worn, distorted or contaminated, should be replaced immediately. Should such repairs or replacements become necessary, it is recommended that such repairs be carried out by ap­propriately qualified persons approved by Firepower. Advice in this regard can be obtained by contacting an Accredited Firepower Distributor.
This equipment or any of its parts should not be altered from standard specification without prior written ap­proval of Firepower. The user of this equipment shall have the sole responsibility for any malfunction which results from improper use or unauthorized modifica­tion from standard specification, faulty maintenance, damage or improper repair by anyone other than ap­propriately qualified persons approved by Firepower.
2.07 PACKAGED ITEMS
• 200AC/DCInverterPowerSource
• Firepower 200 AmpElectrode Holderwith 13ft
(4m) Lead
• Firepower200AmpWorkClampwith10ft(3m)
Lead
• 26 TIG Torch13ft (4m)Lead withIntegrated
Controls & Accessory
• 9ft (2.75m) PowerCordandNEMA6-50P 230V
AC Plug
• ArgonFlowGauge&12.5ft(3.8m)Hose
• 4GeneralPurposeStickElectrodes(E6013)
• ShoulderStrap
• OperatingManual&CD
• FirepowerCap
2.06 TRANSPORTING METHODS
This unit is equipped with a handle for carrying pur­poses.
WARNING
ELECTRIC SHOCK can kill. DO NOT TOUCH live electrical parts. Disconnect input power conductors from de-energized supply line before moving the welding power source.
FALLING EQUIPMENT can cause serious personal injury and equipment damage.
Lift unit with handle on top of case. Use handcart or similar device of adequate capacity. If using a fork lift vehicle, place and secure unit on a
proper skid before transporting.
WARNING

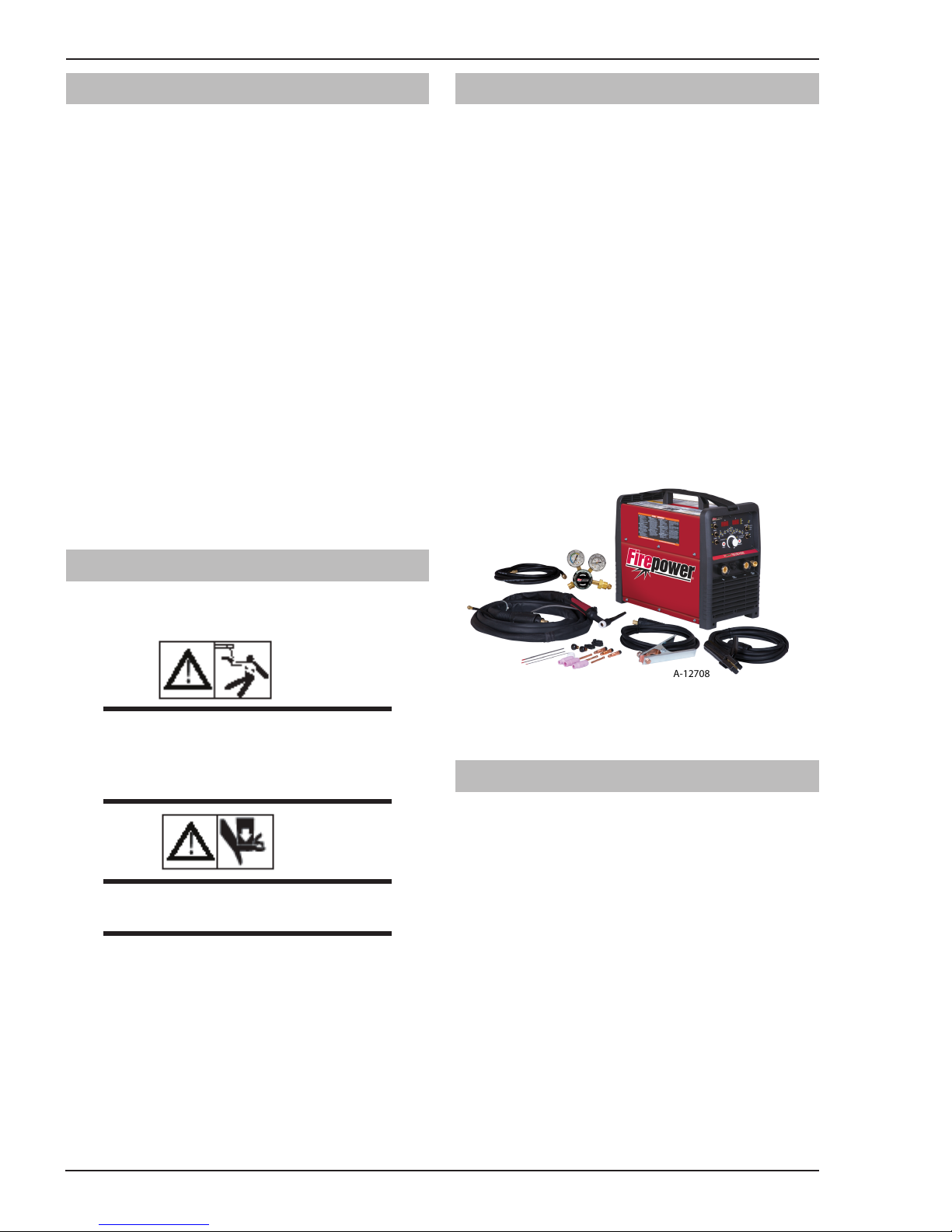

Figure 2-1: 200 AC/DC Packaged System
2.08 DUTY CYCLE
The rated duty cycle of a Welding Power Source, is a statement of the time it may be operated at its rated welding current output without exceeding the tempera­ture limits of the insulation of the component parts. To explain the 10 minute duty cycle period the following example is used. Suppose a Welding Power Source is designed to operate at a 20% duty cycle, 200 amperes at 18.0 volts. This means that it has been designed and built to provide the rated amperage (200A) for 2 minutes, i.e. arc welding time, out of every 10 minute period (20% of 10 minutes is 2 minutes). During the other 8 minutes of the 10 minute period the Welding Power Source must idle and be allowed to cool. The thermal cut out will operate if the duty cycle is exceeded.
Manual 0-5370
2-2
Introduction
INTRODUCTION FIREPOWER TIG 200 AC/DC
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220
Welding Current (AMPS)
SAFE OPERATING REGION
(TIG & STICK)
0
0
10
20
30
40
60
70
50
80
100
90
Duty Cycle (PERCENTAGE)
GTAW (TIG)
SMAW (STICK)
A-11493
186 AC/DC
Figure 2-2: 200 AC/DC Duty Cycle
2.09 SPECIFICATIONS
Part Number 1442-0033 Power Source Weight 48.4lbs (22 kg) Power Source Dimensions H15.75"xW9.45"xD18.7"
Cooling Fan Cooled (Runs Continually) Welder Type Inverter Power Source Applicable Standards / Approvals CSA E60974-1-00 / UL60974-1 / IEC 60974-1 Number of Phases 1 Nominal Supply Frequency 50/60Hz Welding Current Range (STICK Mode) 5 - 160A (DC Stick) 10-170A (AC Stick) Welding Current Range (TIG Mode) 5 - 200A (DC TIG) 30-200A (AC LIFT TIG)
Nominal Supply Voltage 208V 230V Effective Input Current (I1eff) (See Note 1) STICK TIG
Maximum Input Current (I1max) STICK TIG Single Phase Generator Requirement (See Note 2) 9.5KVA (7KW) STICK (SMAW) Welding Output, 40ºC, 10 min.
TIG (GTAW) Welding Output, 40ºC, 10 min.
Open circuit voltage 70.3 VDC / 50VAC Protection Class IP23S
Description Firepower 200 AC/DC INVERTER
(H 400mm x W 240mm x D 475mm)
10-200A (AC HF TIG)
16.4A
16.5A
35.6A
35.4A
Table 2-1: 200 AC/DC Specification
170A @ 15%, 26.8V 100A @ 60%, 24.0V 80A @ 100%, 23.2V
200A @ 20%, 18V 116A @ 60%, 14.6V 90A @ 100%, 13.6V
15.5A
14.1A
34.9A
32.4A
Introduction
2-3
Manual 0-5370
FIREPOWER TIG 200 AC/DC INTRODUCTION
e
Note 1: The Effective Input Current should be used for the determination of cable size & supply requirements. Note 2: Generator Requirements at the Maximum Output Duty Cycle.
2.10 OPTIONAL ACCESSORIES
26 Style TIG Torch with Remote Current Control ..... Part No. 1442-0050
Basic Utility Cart .......................................................... Part No. 1444-0900
Foot Control ................................................................. Part No. 1442-0025
2.11 VOLT-AMPERE CURVES
Voltage-Amperage Curves shows maximum voltage and amperage output capabilities of welding power source. Curves of other settings fall between curves shown.
100
90
80
200 AC/DC
70
60
(volts)
50
TIG
Output Voltag
40
30
20
10
STICK
0
020406080 100 120 140 160180 200 220 240
Figure 2-3: 200 AC/DC Volt-Amp Curves
Manual 0-5370
Welding Current (AMPS)
2-4
A-11583
Introduction
INSTALLATION FIREPOWER TIG 200 AC/DC
!
SECTION 3:
INSTALLATION, OPERATION AND SETUP
3.01 ENVIRONMENT
These units are designed for use in environments with increased hazard of electric shock as outlined in EN
60974.1. Additional safety precautions may be required when using unit in an environment with increased hazard of electric shock. Please refer to relevant local standards for further information prior to using in such areas.
A. Examples of environments with increased hazard of
electric shock are:
1. In locations in which freedom of movement is restricted, so that the operator is forced to perform the work in a cramped (kneeling, sitting or lying) position with physical contact with conductive parts.
2. In locations which are fully or partially limited by conductive elements, and in which there is a high risk of unavoidable or accidental contact by the operator.
G. The enclosure design of this power source meets the
requirements of IP23S as outlined in EN 60529. This provides adequate protection against solid objects (greater than 0.5" (12mm)), and direct protection from vertical drops. Under no circumstances should the unit be operated or connected in a micro environment that will exceed the stated conditions. For further information please refer to EN 60529.
H. Precautions must be taken against the power source
toppling over. The power source must be located on a suitable horizontal surface in the upright position when in use.
WARNING
This equipment should be electrically connected by a qualified electrician.
3.03 VENTILATION
3. In wet or damp hot locations where humidity or perspiration considerable reduces the skin resistance of the human body and the insulation properties of accessories.
B. Environments with increased hazard of electric shock
do not include places where electrically conductive parts in the near vicinity of the operator, which can cause increased hazard, have been insulated.
3.02 LOCATION
Be sure to locate the welder according to the following guidelines:
A. In areas, free from moisture and dust. B. Ambient temperature between 0° C to 40° C. C. In areas, free from oil, steam and corrosive gases. D. In areas, not subjected to abnormal vibration or
shock. E. In areas, not exposed to direct sunlight or rain. F. Place at a distance of 12" (300 mm) or more from
walls or similar that could restrict natural air flow
for cooling.
WARNING
Since the inhalation of welding fumes can be harmful, ensure that the welding area is effectively ventilated.
3.04 MAINS SUPPLY VOLTAGE REQUIREMENTS
The Mains supply voltage should be within ± 15% of the rated mains supply voltage. Too low a voltage may cause poor welding performance. Too high a supply voltage will cause components to overheat and possibly fail.
The Welding Power Source must be:
• Correctly installed,if necessary, by aqualied
electrician.
• Correctlyearthed(electrically)inaccordancewith
local regulations.
• Connectedtothecorrectsizepowerpointandfuse
as per the Specifications on page 3-2.
Installation
3-1
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
!
WARNING
ELECTRIC SHOCK can kill; SIGNIFICANT DC VOLTAGE is present after removal of input power. DO NOT TOUCH live electrical parts.
SHUT DOWN welding power source, disconnect input power employing lockout/tagging procedures. Lock-out/
tagging procedures consist of padlocking line disconnect switch in open position, removing fuses from fuse box, or shutting OFF and red-tagging circuit breaker or other disconnecting device.
Power Cords Included With Power Supply
Attached to the power supply is an input power cord with a 208/230Volt 50 Amp NEMA 6-50 P for plug.
WARNING
An electrical shock or fire hazard is probable if the following electrical service guide recommendations are not followed. These recommendations are for a dedicated branch circuit sized for the rated output and duty cycle of the welding Power Source.
50 / 60 Hz Single
Phase Supply
Supply Voltage 208/230V AC Input Current at Maximum Output 32 Amps Maximum Recommended Fuse* or Circuit Breaker Rating
* Time Delay Fuse, UL class RK5. Refer to UL248 Maximum Recommended Fuse^ or Circuit Breaker Rating
^Normal Operating , UL class K5. Refer to UL248 Minimum Recommended Cord Size 12 AWG Maximum Recommended Extension Cord Length 50 ft Minimum Recommended Grounding Conductor Size 12 AWG
Table 3-1: Electrical Service Guide
50 Amps
50 Amps
3.05 HIGH FREQUENCY INTRODUCTION
The importance of correct installation of high frequency welding equipment cannot be overemphasized. Interference due to high frequency initiated or stabilized arc is almost invariably traced to improper installation. The following information is intended as a guide for personnel installing high frequency welding machines.
The high frequency section of this machine has an output similar to a radio transmitter. The machine should NOT be used in the vicinity of blasting operations due to the danger of premature firing
It is also possible that operation close to computer installations may cause computer malfunction.
Manual 0-5370
WARNING EXPLOSIVES
WARNING COMPUTER
3-2
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
3.06 HIGH FREQUENCY INTERFERENCE
Interference may be transmitted by a high frequency initiated or stabilized arc welding machine in the following ways.
1. Direct Radiation: Radiation from the machine can occur if the case is metal and is not properly grounded. It can occur through apertures such as open access panels. The shielding of the high frequency unit in the Power Source will prevent direct radiation if the equipment is properly grounded.
2. Transmission via the Supply Lead: Without adequate shielding and filtering, high frequency energy may be fed to the wiring within the installation (mains) by direct coupling. The energy is then transmitted by both radiation and conduction. Adequate shielding and filtering is provided in the Power Source.
3. Radiation from Welding Leads: Radiated interference from welding leads, although pronounced in the vicinity of the leads, diminishes rapidly with distance. Keeping leads as short as possible will minimise this type of interference. Looping and suspending of leads should be avoided wherever possible.
4. Re-Radiation from Unearthed Metallic Objects: A major factor contributing to interference is re-radiation from unearthed metallic objects close to the welding leads. Effective grounding of such objects will prevent re-radiation in most cases.
3.07 ELECTROMAGNETIC COMPATIBILITY
WARNING
Extra precautions for Electromagnetic Compatibility may be required when this Welding Power Source is used in a domestic situation.
A. Installation and Use - Users Responsibility
The user is responsible for installing and using the welding equipment according to the manufacturer’s instructions. If electromagnetic disturbances are detected then it shall be the responsibility of the user of the welding equipment to resolve the situation with the technical assistance of the manufacturer. In some cases this remedial action may be as simple as earthing the welding circuit, see NOTE below. In other cases it could involve constructing an electromagnetic screen enclosing the Welding Power Source and the work, complete with associated input filters. In all cases, electromagnetic disturbances shall be reduced to the point where they are no longer Troublesome.
NOTE
The welding circuit may or may not be earthed for safety reasons. Changing the earthing arrangements should only be authorized by a person who is competent to assess whether the changes will increase the risk of injury, e.g. by allowing parallel welding current return paths which may damage the earth circuits of other equipment.
B. Assessment of Area
Before installing welding equipment, the user shall make an assessment of potential electromagnetic problems in the surrounding area. The following shall be taken into account.
1. Other supply cables, control cables, signaling and telephone cables; above, below and adjacent to the welding equipment.
2. Radio and television transmitters and receivers.
3. Computer and other control equipment.
4. Safety critical equipment, e.g. guarding of industrial equipment.
5. The health of people around, e.g. the use of pace-makers and hearing aids.
Installation
3-3
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
6. Equipment used for calibration and measurement.
7. The time of day that welding or other activities are to be carried out.
8. The immunity of other equipment in the environment: the user shall ensure that other equipment being used in the environment is compatible: this may require additional protection measures.
The size of the surrounding area to be considered will depend on the structure of the building and other activities that are taking place. The surrounding area may extend beyond the boundaries of the premises.
C. Methods of Reducing Electromagnetic Emissions
1. Electricity Supply
Welding equipment should be connected to the Electricity Supply according to the manufacturer’s
recommendations. If interference occurs, it may be necessary to take additional precautions such as filtering of the Electricity Supply. Consideration should be given to shielding the supply cable of permanently installed welding equipment in metallic conduit or equivalent. Shielding should be electrically continuous throughout its length. The shielding should be connected to the Welding Power Source so that good electrical contact is maintained between the conduit and the Welding Power Source enclosure.
2. Maintenance of Welding Equipment
The welding equipment should be routinely maintained according to the manufacturer’s recommendations. All
access and service doors and covers should be closed and properly fastened when the welding equipment is in operation. The welding equipment should not be modified in any way except for those changes and adjustments covered in the manufacturer’s instructions.
3. Welding Cables
The welding cables should be kept as short as possible and should be positioned close together but never
coiled and running at or close to the floor level.
4. Equipotential Bonding
Bonding of all metallic components in the welding installation and adjacent to it should be considered. However,
metallic components bonded to the work piece will increase the risk that the operator could receive a shock by touching the metallic components and the electrode at the same time. The operator should be insulated from all such bonded metallic components.
5. Earthing/grounding of the Work Piece
Where the work piece is not bonded to earth for electrical safety, nor connected to earth because of its size
and position, e.g. ship’s hull or building steelwork, a connection bonding the work piece to earth may reduce emissions in some, but not all instances. Care should be taken to prevent the earthing of the work piece increasing the risk of injury to users, or damage to other electrical equipment. Where necessary, the connection of the work piece to earth should be made by direct connection to the work piece, but in some countries where direct connection is not permitted, the bonding should be achieved by suitable capacitance, selected according to national regulations.
6. Screening and Shielding
Selective screening and shielding of other cables and equipment in the surrounding area may alleviate problems
of interference. Screening the entire welding installation may be considered for special applications.
Manual 0-5370
3-4
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
3.08 200 AC/DC Power Source Controls, Indicators and Features
18
17
16
15
14
13
12
19
5
6
7
8
9
10
11
20
21
1
2
Figure 3-1: Controls on Front Panel
ON
OFF
3 4
22
Installation
A-11232
Figure 3-2: Rear Panel
3-5
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
1. Positive Welding Terminal
Positive Welding Terminal (50mm) dinse. Welding current flows from the Power Source via heavy duty bayonet type terminals. It is essential, however, that the male plug is inserted fully and turned clockwise until tight to achieve a sound electrical connection.
2. 8 Pin Control Socket
The 8 pin receptacle is used to connect a trigger switch or remote control to the welding Power Source circuitry: To make connections, align keyway, insert plug, and rotate threaded collar fully clockwise. The socket information
is included in the event the supplied cable is not suitable and it is necessary to wire a plug or cable to interface with the 8 pin receptacle.
NOTE
When not using a Remote, disconnect any remote control device or it may limit the preview and actual output current range.
Socket Pin Part Number / Description
1 Not used 2 Trigger Switch Input 3
Trigger Switch Input 4 Not used 5 Remote Control 5k ohm Potentiometers Maximum 6 Remote Control 5k ohm Potentiometers Minimum 7 Remote Control 5k ohm Potentiometer Wiper 8 Not used
Table 3-2: 8 Pin Control Plug Configuration
2
1
5
4
3
8
7
6
A-11228
3. Negative Welding Terminal
Negative Welding Terminal 50 mm dinse. Welding current flows from the Power Source via heavy duty bayonet type terminals. It is essential, however, that the male plug is inserted fully and turned clockwise until tight to achieve a sound electrical connection.
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in the terminal.
4. Shielding Gas Outlet
The Shielding Gas Outlet located on the front panel is a 5/8-18 UNF female gas fitting and is utilized for the connection of a suitable TIG Torch.
5. Power ON Indicator
The POWER ON indicator illuminates when the ON/OFF switch (20) is in the ON position and the correct mains voltage is present.
6. Fault Indicator (Thermal Overload or Primary Circuit Overcurrent)
The Fault Indicator will illuminate in conjunction with an “Err 001” displayed on the ammeter and voltmeter digital displays if either of the following two conditions exists
Manual 0-5370
3-6
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
1. Thermal Overload This is due to the duty cycle of the power source being exceeded. Once the power source cools sufficiently
it will automatically reset and the Fault Indicator and Err 001 will go off and the power source is then able to continue welding. During the time of cooling the power source should remain ON such that the fan continues to operate allowing the unit to cool sufficiently. If after 30 minutes with the fan running the Fault
Indicator has not gone OFF then have an Accredited Firepower Service Provider check the power source.
2. Primary Circuit Overcurrent This is due to primary circuit component(s) malfunctioning which results in excessive primary circuit
current. Switch OFF the power source immediately to allow all components to cool down for at least 30 minutes. If after 30 minutes “Err 001” is displayed and Fault Indicator illuminates when the power source is switched back ON turn the power source OFF and have an Accredited Firepower Service Provider check the power source.
7. Process Selection Switch
The process selection control is used to select the desired welding mode. Three modes are available, GTAW (LIFT TIG), GTAW (HF TIG) and SMAW (Stick) modes.
Note that when the unit is powered off the mode selection control will automatically default to LIFT TIG mode. This is necessary so as to prevent inadvertent arcing should an electrode holder be connected to the unit and
mistakenly be in contact with the work piece during power up.
8. Trigger Mode Control Switch (HF TIG and LIFT TIG Mode only)
The trigger mode control is used to switch the functionality of the torch trigger between 2T (normal), and 4T (latch mode).
2T Normal Mode
In this mode, the torch trigger must remain depressed for the welding output to be active. Press and hold the torch trigger to activate the power source (weld). Release the torch trigger switch to cease welding.
NOTE
When operating in GTAW (HF and LIFT TIG modes), the power source will remain active until the selected down slope time has elapsed.
High
Low
Installation

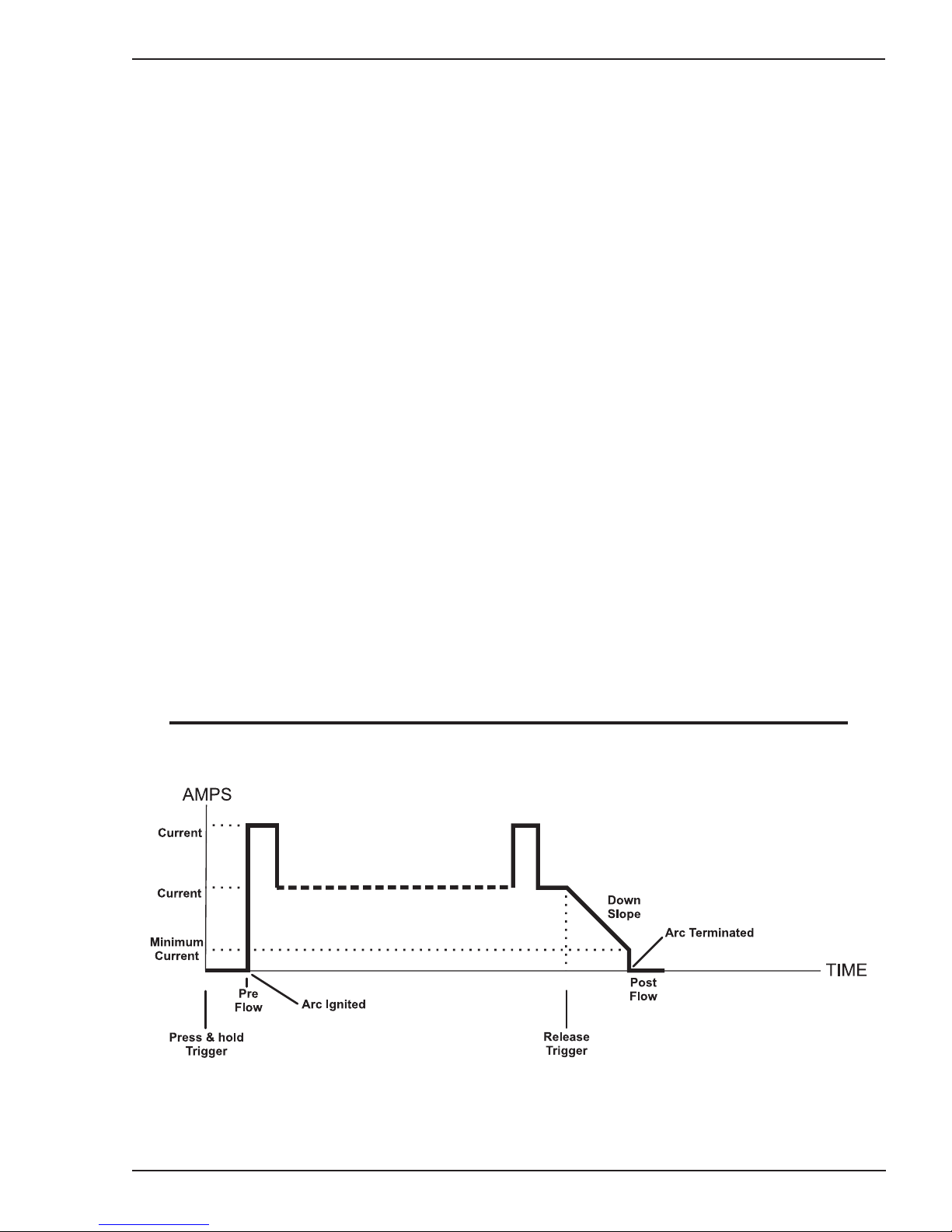

Figure 3-3
3-7
A-11409
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
AMPS
4T Latch Mode
This mode of welding is mainly used for long welding runs to reduce operator fatigue. In this mode the operator can press and release the torch trigger and the output will remain active. To deactivate the power source, the trigger switch must again be depressed and realized, thus eliminating the need for the operator to hold the torch trigger.
Note that when operating in GTAW (HF and LIFT TIG modes), the power source will remain activated until the selected down slope time has elapsed
NOTE
This Up Slope operates in (4T) TIG modes only and is used to set the time for the weld current to ramp up, after the torch trigger switch has been pressed then released, from Initial Current to High or Weld Current.
High
Current
Weld
Current
Initial
Current
Arc Ignited
Pre
Flow
Up
Slope
Crater
Current
Down Slope
Arc Terminated
TIME
Post Flow
Press & hold
Trigger
Release
Trigger
9. Wave Balance / Arc Force Indicator
This indicator light will illuminate when programming Wave Balance (AC HF TIG mode only) or Arc Force (STICK mode only).
10. Forward Programming Button
Pressing this button will advance to the next step in the programming sequence.
11. Multifunction Control
The multifunction control knob is used to adjust welding current. It is also used to adjust parameters when in programming mode.
12. Back Programming Button
Pressing this button will go back to the previous step in the programming sequence.
13. AC frequency Indicator
This indicator light will illuminate when programming AC Frequency (AC HF TIG mode only).
14. Purge Switch

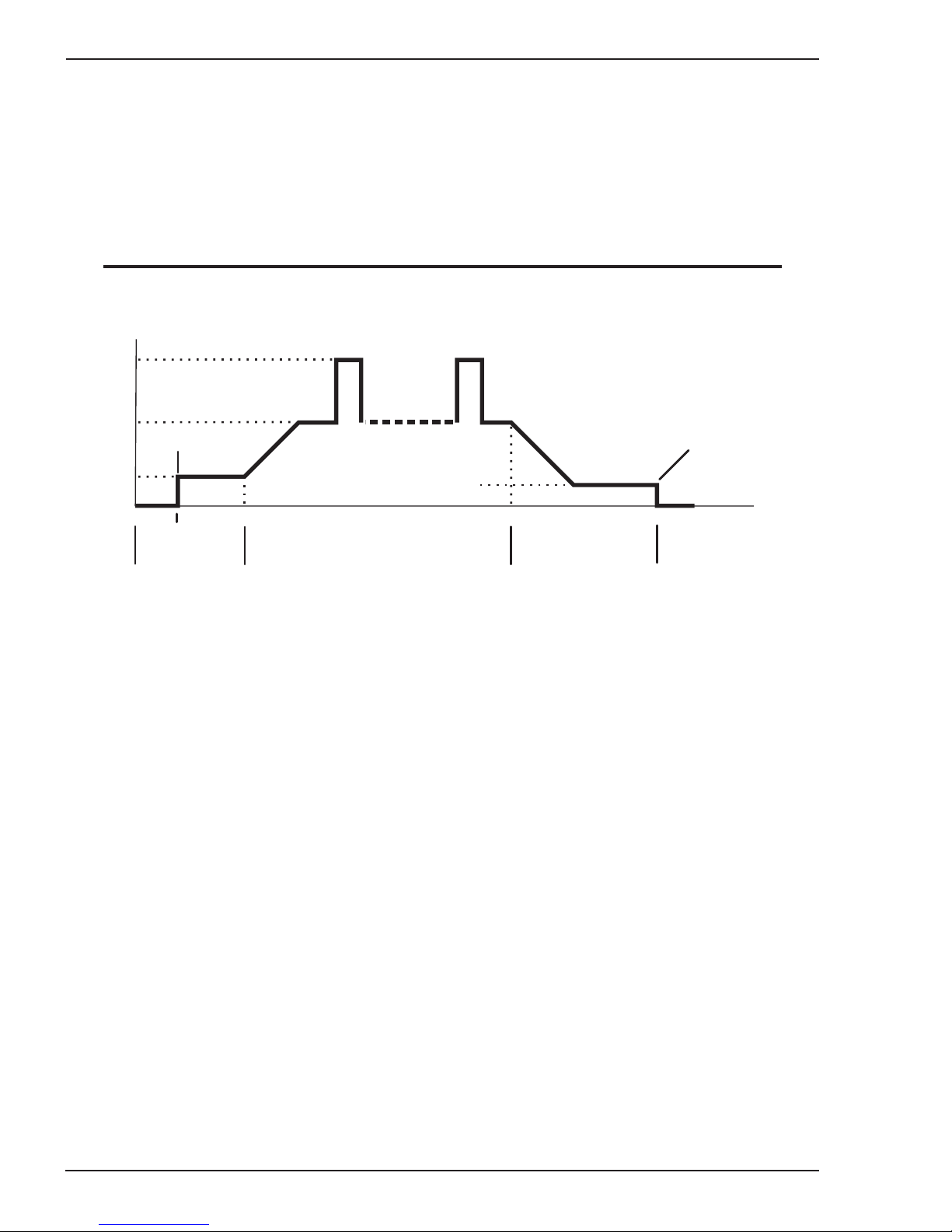

Figure 3-4
Press & hold
Trigger
Release
Trigger
A-11410_AB
Press the PURGE switch to purge the gas line in LIFT TIG and HF TIG modes. To PURGE the shielding gas line in LIFT TIG and HF TIG modes press the PURGE switch and release. The indicator will illuminate and shielding gas will purge for a preset period of 15 seconds. (This cannot be adjusted). To stop shielding gas from purging within this time press the PURGE switch and release and the purge indicator will extinguish and shielding gas will cease.
Manual 0-5370
3-8
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
15. Pulse Switch
Press the PULSE switch to toggle Pulse On and OFF in LIFT TIG and HF TIG modes
16. Programming Parameter Indicators (Front Panel Display Indicators)
The Front Panel LED indicators serve two purposes. First, they show what process and what parameter is selected and the value of that parameter. The AMP DISPLAY shows only amperage values measured in AMPS, the VOLT DISPLAY can indicate Voltage, Time, Percentage, or Frequency. The UNITES lights indicate the unit of measurement for the reading on the VOLT DISPLAY: Volts (V), Seconds (SEC), Percent (%),Hertz (HZ). Only the parameters that are applicable to a specific PROCESS, MODE, or TRIGGER SELECTION will light when using the FORWARD or BACK programming switches. Secondly, during the welding process, the following sequence indicators will light to indicate the specific phase of the weld process which is active:
TIG STICK PREFLOW WELD CURRENT HOT START INITIAL CURRENT (4T) UPSLOPE (4T) WELD CURRENT (PULSING OFF) HIGH CURRENT (PULSING ON) LOW CURRENT (PULSING ON) DOWNSLOPE CRATER CURRENT (4T)
POST FLOW
17. Mode Switch
Press the MODE switch to toggle AC and DC output in all Process modes
18. Digital Ammeter
The digital amperage meter is used to display both the pre-set current and actual output current of the power source.
At times of non-welding, the amperage meter will display a pre-set (preview) amperage value. This value can be adjusted by varying the multifunction control when the Programming Parameter Indicator light shows WELD CURRENT.
NOTE: You will not be able to view the pre-set amperage on the power source with this control, amperage will not be viewable until the arc is initiated. The all-in-one on/off with rotary current control cannot provide preview.
When welding, the amperage meter will display actual welding current. Should a remote device be connected the maximum setting of the power source will be determined by the
respective front panel control, irrespective of the remote control device setting. As an example, if the output current on the power source front panel is set to 50% and the remote control device is set to 100%, the maximum achievable output from the unit will be 50%. Should 100% output be required, the respective power source front panel control must be set to 100%, in which case the remote device will then be able to control between 0-100% output.
Installation
3-9
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
Adjust programming parameter Press to go forward / go back between
programming status LED’s
A-12716
19. Digital Voltmeter / Parameter meter
The digital volt meter is used to display the actual output voltage of the power source. It is also used to display Parameters in Programming Mode.
Depending on the Programming Parameter selected, the status indictor adjacent to the volt meter will illuminate to show the units of the programming parameter.
When welding, the volt meter will display actual welding voltage.
20. ON / OFF Switch
This Switch is located on the rear of the Power Source and turns mains power off and on.
!
WARNING
When the front digital displays are lit, the machine is connected to the Mains supply voltage and the internal electrical components are at Mains voltage potential
21. Shielding Gas Inlet
Unit has a 5/8" Inert gas fitting suitable for connection of a gas hose to a regulated Shielding Gas Supply. The Shielding Gas inlet is located on the rear of the Power Source.
22. Cooling Fan
The 200 AC/DC is fitted with a cooling fan that will operate continuously when the ON/OFF switch on the rear panel is switched to the ON position.
3.09 200 AC/DC - STICK PROGRAMMING MODE
Press the PROCESS SELECTION button to select STICK mode. Press the MODE switch to toggle between AC and DC welding output. Press FORWARD or BACK to cycle through available programming functions. Use the Multi Function Control to adjust the Parameter selected. While welding the Multi Function Control directly controls the WELD CURRENT.
Figure 3-5: Stick Programming Mode
Manual 0-5370
3-10
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
Programming Parameter Adjustment Device Display
Hot Start
This parameter operates in all weld modes except LIFT TIG mode and is used to heat up the weld zone in TIG modes or improve the start characteristics for stick electrodes the peak start current on top of the WELD current.
0 to 70A (max 170A weld current)
e.g. HOT START current = 130 amps when WELD = 100 amps & HOT START = 30 amps
Weld Current
This parameter sets the TIG WELD current when PULSE is OFF. This parameter also sets the STICK weld current.
5 to 170A (DC STICK mode)
10 to 170A (AC STICK mode)
Arc Force (STICK Mode only)
Arc Force is effective when in STICK Mode only. Arc Force control provides and adjustable amount of Arc Force (or "dig") control. This feature can be particularly beneficial in providing the operator the ability to compensate for variability in joint fit-up in certain situations with particular electrodes. In general increasing the Arc Force control toward 100% (maximum Arc Force) allows greater penetration control to be achieved.
Table 3-3
Amps
Amps
V
SEC
%
Hz
Volts
0 to 100%
3.10 200 AC/DC – LIFT TIG AND HF TIG PROGRAMMING MODE
Press the PROCESS SELECTION switch to select LIFT TIG or HF TIG mode. Press the MODE switch to toggle between AC and DC welding output. Press FORWARD or BACK to cycle through available programming functions. Use the Multi Function Control to adjust the parameter selected.
Installation
3-11
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
Adjust programming parameter using the Multi Function Control knob
Press to go forward / go back between programming status LED’s
A-12717
Figure 3-6: LIFT TIG and HF TIG Programming Mode
Programming Parameter Adjustment Device Display
Pre-Flow
This parameter operates in TIG modes only and is used to provide gas to the weld zone prior to striking the arc, once the torch trigger switch has been pressed. This control is used to dramatically reduce weld porosity at the start of a weld.
Initial Current
This parameter operates in (4T) TIG modes only and is used to set the start current for TIG. The Start Current remains on until the torch trigger switch is released after it has been depressed. Note: The maximum initial current available will be limited to the set value of the weld current.
Up Slope
This parameter operates in (4T) TIG modes only and is used to set the time for the weld current to ramp up, after the torch trigger switch has been pressed then released, from Initial Current to High or Weld current.
Manual 0-5370
5 to 200 Amps (DC TIG mode)
30 to 200 Amps (AC LIFT TIG mode)
10 to 200A (AC HF TIG mode)
0.0 to 15.0 seconds
3-12
Volts
0.0 to 1.0 second
Amps
Volts
V
SEC
%
Hz
V
SEC
%
Hz
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC

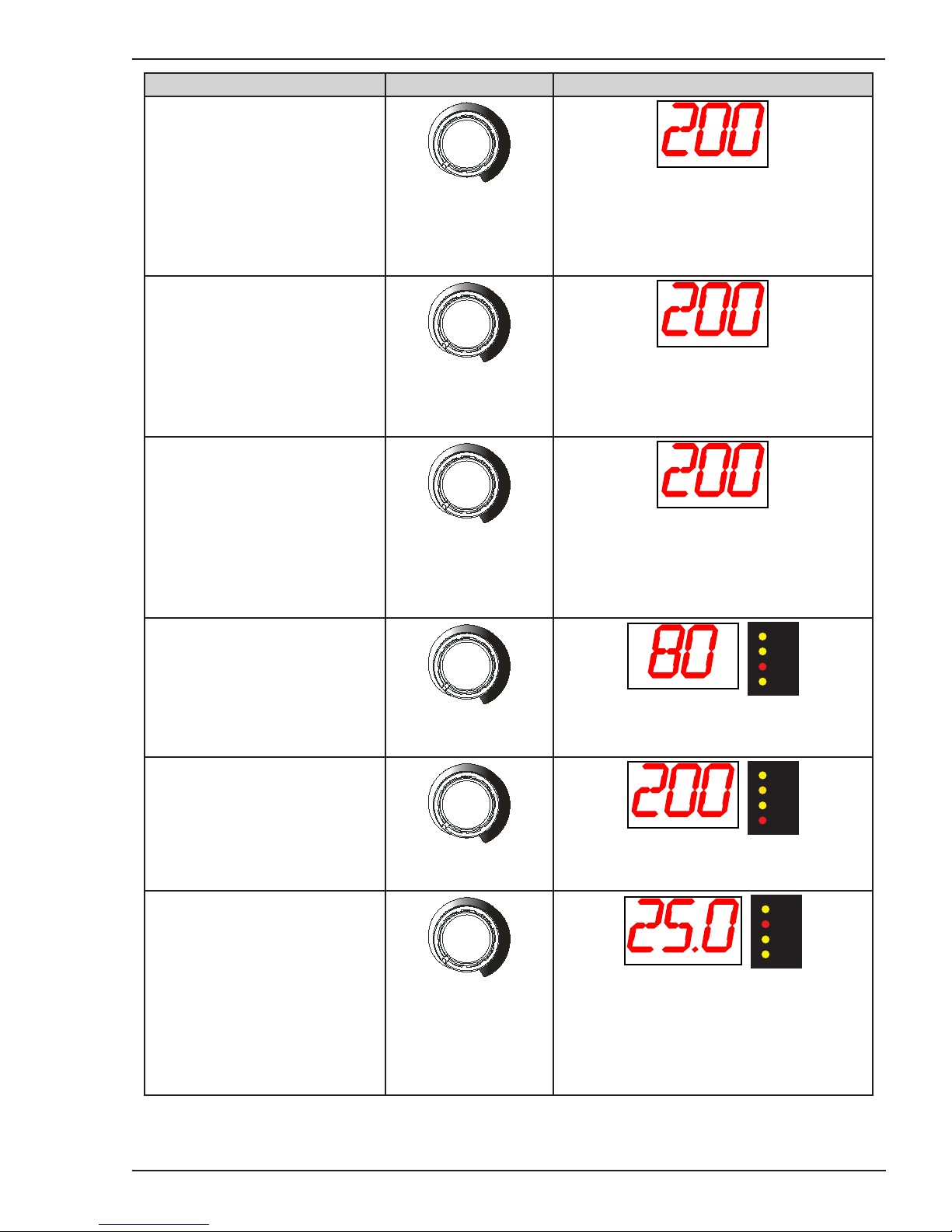

Programming Parameter Adjustment Device Display
Weld Current
This parameter sets the TIG WELD current when PULSE is OFF. This parameter also sets the STICK weld current.
5 to 200A (DC TIG mode)
30 to 200A (AC LIFT TIG mode)
10 to 200A (AC HF TIG mode)
High Current
This parameter sets the High weld current when in PULSE mode.
10 to 200A (DC TIG mode) 30 to 200A (AC TIG mode)
Low Current
The lowest point in the pulse is called the Low Current.
Amps
Amps
Pulse Width
This parameter sets the percentage on time of the PULSE FREQUENCY for High weld current when the PULSE is ON.
Pulse Frequency
This parameter sets the PULSE FREQUENCY when the PULSE is ON.
Down Slope
This parameter operates in TIG modes only and is used to set the time for the weld current to ramp down, after the torch trigger switch has been pressed, to crater current. This control is used to eliminate the crater that can form at the completion of a weld.
Amps
5 to 200A (DC HF TIG mode)
30 to 200A (AC LIFT TIG mode)
10 to 200A (AC HF TIG mode)
V
SEC
%
Hz
Volts
15 to 80%
V
SEC
%
Hz
Volts
0.5 to 200 Hz
V
SEC
%
Hz
Volts
0.0 to 25.0 seconds
Installation
3-13
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION

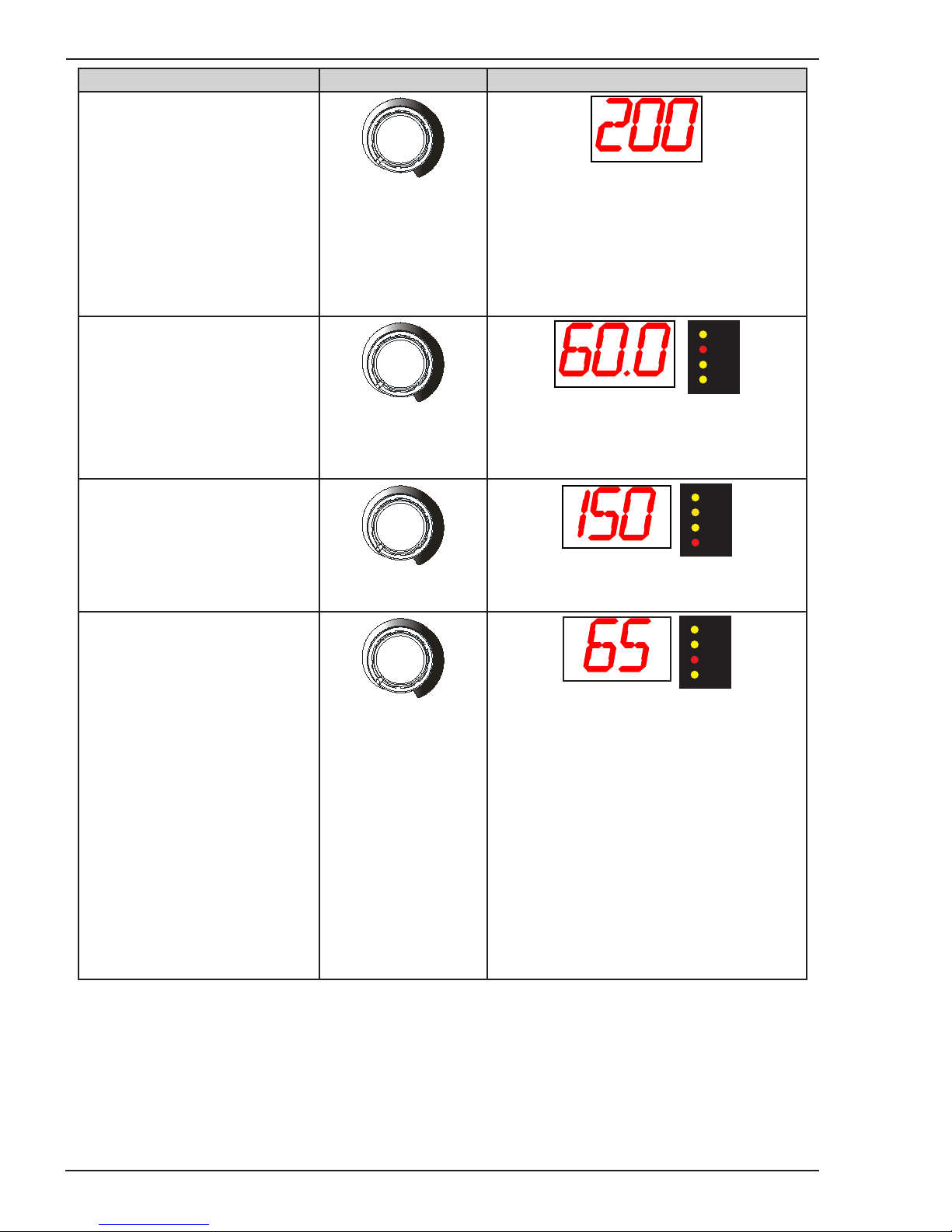

Programming Parameter Adjustment Device Display
Crater Current
This parameter operates in (4T) TIG modes only and is used to set the finish current for TIG. The CRATER Current remains ON until the torch trigger switch is released after it has been depressed. Note: The maximum crater current available will be limited to the set value of the weld current.
Post Flow
This parameter operates in TIG modes only and is used to adjust the post gas flow time once the arc has extinguished. This control is used to dramatically reduce oxidation of the tungsten electrode.
AC Frequency
This parameter operates in AC TIG mode only and is used to set the frequency for the AC weld current.
5 to 200A (DC TIG mode)
30 to 200A (AC TIG mode)
10 to 200A (AC HF TIG mode)
0.0 to 60.0 seconds
Amps
Volts
Volts
V
SEC
%
Hz
V
SEC
%
Hz
15 to 150 Hz
Wave Balance
This parameter operates in AC TIG mode and is used to set the penetration to cleaning action ratio for the AC weld current. Generally WAVE BALANCE is set to 50% from the factory for AC
Volts
10 to 65%
TIG Welding. The WAVE BALANCE control changes the ratio of penetration to cleaning action of the AC TIG welding arc. Maximum weld penetration is achieved when the WAVE BALANCE control is set to 10%. Maximum cleaning of heavily oxidized aluminium or magnesium alloys is achieved when the WAVE BALANCE control is set to 65%.
Table 3-4
WAVE BALANCE is used for aluminium welding in AC HF TIG or AC LIFT TIG mode It is used to set the ratio of penetration to cleaning action for the AC TIG welding arc.
V
SEC
%
Hz
Maximum weld penetration is achieved when the WAVE BALANCE is set to 10%. Maximum cleaning of heavily oxidized aluminium or magnesium alloys is achieved when the WAVE BALANCE is set to 65%.
Manual 0-5370
3-14
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
LOW PRESSURE GAUGE (DELIVERY)
HIGH PRESSURE GAUGE (SUPPLY)
INLET
CONNECTION
OUTLET
CONNECTION
PRESSURE
ADJUSTING
SCREW
A-12435
!
Wave Balance = 50% Wave Balance = 10% Wave Balance = 65%
10%50% 65%
(+)(+) (+)
(-)(-) (-)
90%50% 35%
Balanced with 50% penetration
and 50% cleaning
3.11 SHORT CIRCUIT PROTECTION WHILE WELDING
Maximum Penetration and
reduced cleaning
Table 3-5: AC TIG Wave Balance
Maximum Cleaning and
reduced penetration
A-11223
To prolong the useful life of a TIG tungsten electrode and eliminate tungsten contamination to welding point, the 200 AC/DC incorporates special circuitry.
In all TIG processes, after the welding arc has established, if the tungsten electrode touches the work the current defaults to 33 amps. If the short exists for more than 1-2 seconds, the output is turned off.
In STICK mode, if the electrode touches the work for more than two seconds the welding current is reduced to 0 Amps.
3.12 FIREPOWER FLOWMETER/REGULATOR
Pressure Flowmeter/Regulator (Figure 3-7) attached to the cylinder valve reduce high cylinder pressures to suitable low working pressures for welding, cutting, and other applications.
Use the Flowmeter/Regulator for the gas and pressure for which it is designed. NEVER alter a Flowmeter/ Regulator for use with any other gas.
Installation
Figure 3-7: Firepower CS Flowmeter/Regulator
WARNING
3-15
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
!
!
NOTE
Flowmeter/Regulators purchased with open 1/8", 1/4", 3/8", or 1/2" NPT ports must be assembled to their intended system.
1. Note the maximum inlet pressure stamped on the Flowmeter/Regulator. DO NOT attach the Flowmeter/ Regulator to a system that has a higher pressure than the maximum rated pressure stamped on the Flowmeter/Regulator.
2. The Flowmeter/Regulator body will be stamped “IN" or “HP" at the inlet port. Attach the inlet port to the system supply pressure connection.
3. If gauges are to be attached to the Flowmeter/Regulator and the Flowmeter/Regulator is stamped and listed by a third party (i.e. “UL" or “ETL"). The following requirements must be met:
a) Inlet gauges over 1000 PSIG (6.87 mPa) shall conform with the requirements of UL 404, “Indicating
Pressure Gauges for Compressed Gas Service."
b) Low pressure gauges must be UL recognized for the class of Flowmeter/Regulator they are being used
on according to UL252A.
DO NOT use a Flowmeter/Regulator that delivers pressure exceeding the pressure rating of the downstream equipment unless pro visions are made to prevent over-pressurization (i.e. system relief valve). Make sure the pressure rating of the down stream equipment is compatible with the maximum delivery pressure of the Flowmeter/Regulator.
4. Be sure that the Flowmeter/Regulator has the correct pressure rating and gas service for the cylinder used.
5. Carefully inspect the Flowmeter/Regulator for damaged threads, dirt, dust, grease, oil, or other flammable substances. Remove dust and dirt with a clean cloth. Be sure the inlet swivel filter is clean and in place. Attach the Flowmeter/Regulator (Figure 3-9) to the cylinder valve. Tighten securely with a wrench.
DO NOT attach or use the Flowmeter/Regulator if oil, grease, flamma ble substances or damage is present! Have a qualified repair technician clean the Flowmeter/Regulator or repair any damage.
WARNING
WARNING
Art # A-12436
Figure 3-8: Flowmeter/Regulator to Cylinder Valve
6. Before opening the cylinder valve, turn the Flowmeter/Regulator adjusting screw counterclockwise until there is no pressure on the adjusting spring and the screw turns freely.
Manual 0-5370
3-16
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
!
!
7. Relief Valve (where provided): The relief valve is designed to protect the low pressure side of the Flowmeter/ Regulator from high pres sures. Relief valves are not intended to protect down stream equipment from high pressures.
WARNING
DO NOT tamper with the relief valve or remove it from the Flowmeter/Regulator.
WARNING
Stand to the side of the cylinder opposite the Flowmeter/Regulator when opening the cylinder valve. Keep the cylinder valve between you and the Flowmeter/Regulator. For your safety, NEVER STAND IN FRONT OF OR BEHIND A Flowmeter/Regulator WHEN OPENING THE CYLINDER VALVE!
8. Slowly and carefully open the cylinder valve (Figure 3-9) until the maximum pressure shows on the high pressure gauge.
Art # A-09828
Figure 3-9: Open Cylinder Valve
9. Open the cylinder valve completely to seal the valve packing. On gaugeless Flowmeter/Regulators, the indicator will register the cylinder contents open.
CAUTION
Keep the cylinder valve wrench, if one is required, on the cylinder valve to turn off the cylinder quickly, if necessary.
10. Attach the desired downstream equipment.
3.13 SPECIFICATION FOR TIG TORCH
1. SPECIFICATION FOR TIG TORCH PART NO: W4013600 TO SUIT Firepower 200AC/DC
TIG Torch Contents include: 1 x 26 TIG Torch with Long Back Cap, 12.5 ft lead length, 10.5" gas hose length, 9.5" control lead with 8 pin
plug and Rigid Head. Remote Control Cartridge, Potentiometer with integrated on/off switch (installed).
Installation
3-17
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
A-12703
roller potentiometer and
A-12704
NOTE: The additional switches/controls below are interchangeable with the installed control in the TIG torch.
ART# A-11587
Control module with push button on/o switch only.
Control module with push button on/o switch with roller potentiometer.
Control module with
integrated on/o switch.
Additional On/Off Switch Cartridge in a Sealed Plastic Bag. Additional On/Off Switch-Remote Amperage Control Cartridge in a Sealed Plastic Bag (NOTE: You will not be
able to view the pre-set amperage on the power source with this control, amperage will not be viewable until the arc is initiated).
1 x Accessory Kit containing 1 x Short Back Cap, 1 x Collet Body 1/8" (3.2mm),
1 x Collet Body 3/32" (2.4mm), 1 x Collet Body 1/16" (1.6mm), 1 x Collet 1/8" (3.2mm), 1 x Collet 3/32" (2.4mm), 1 x Collet 1/16" (1.6mm), 1 x Nozzle Alumina No5, 1 x Nozzle Alumina No6, 1 x Nozzle Alumina No7, 1 x Tungsten Electrode 1/8" (3.2mm) Thoriated Type (red band), 1 x Tungsten Electrode 3/32" (2.4 mm) Thoriated Type (red band) and 1 x Tungsten Electrode 1/16" (1.6mm) Thoriated Type (red band).
Manual 0-5370
3-18
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
3.14 SETUP FOR TIG (GTAW) WELDING
A. Select Lift TIG or HF TIG mode with the process selection control (refer to Section 3.08.7 for further information). B. Connect the TIG Torch to the negative welding terminal (-). Welding current flows from the power source via
heavy duty bayonet type terminals. It is essential, however, that the male plug is inserted and turned securely to achieve a sound electrical connection.
C. Connect the work lead to the positive welding terminal (+). Welding current flows from the Power Source
via heavy duty bayonet type terminals. It is essential, however, that the male plug is inserted fully and turned clockwise until tight to achieve a sound electrical connection.
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in the bayonet terminal.
D. Connect the TIG torch trigger switch via the 8 pin socket located on the front of the power source as shown
below. The TIG torch will require a trigger switch to operate in Lift TIG or HF TIG Mode.
Note: See Appendix A3 for TIG torch contents and trigger switch options.
NOTE
If the TIG torch has a remote TIG torch current control fitted then it will require to be connected to the 8 pin socket. (Refer to section 3.08.2 Remote Control Socket for further information).
E. Fit the welding grade shielding gas Flowmeter/Regulator/flowmeter to the shielding gas cylinder (refer to Section
3.12) then connect the shielding gas hose from the Flowmeter/Regulator/flowmeter outlet to the gas INLET on the rear of the 200 AC/DC Power Source. Connect the gas hose from the TIG torch to the gas OUTLET on the front of the 200 AC/DC Power Source.
!
WARNING
Before connecting the work clamp to the work make sure the mains power supply is switched off. Secure the welding grade shielding gas cylinder in an upright position by chaining it to a suitable
stationary support to prevent falling or tipping.
Installation
3-19
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
Positive Welding Terminal (+)
8
Work Lead
8 Pin Control Socket
Tig Torch
A-12720
Negative Welding Terminal (-)
When the 200 AC/DC is used with a Remote Foot Control in, depress foot control to maximum to allow max current to be previewed/adjusted on the front panel. To avoid premature arcing, please ensure the
TIG Torch is located away from your work piece.
Manual 0-5370

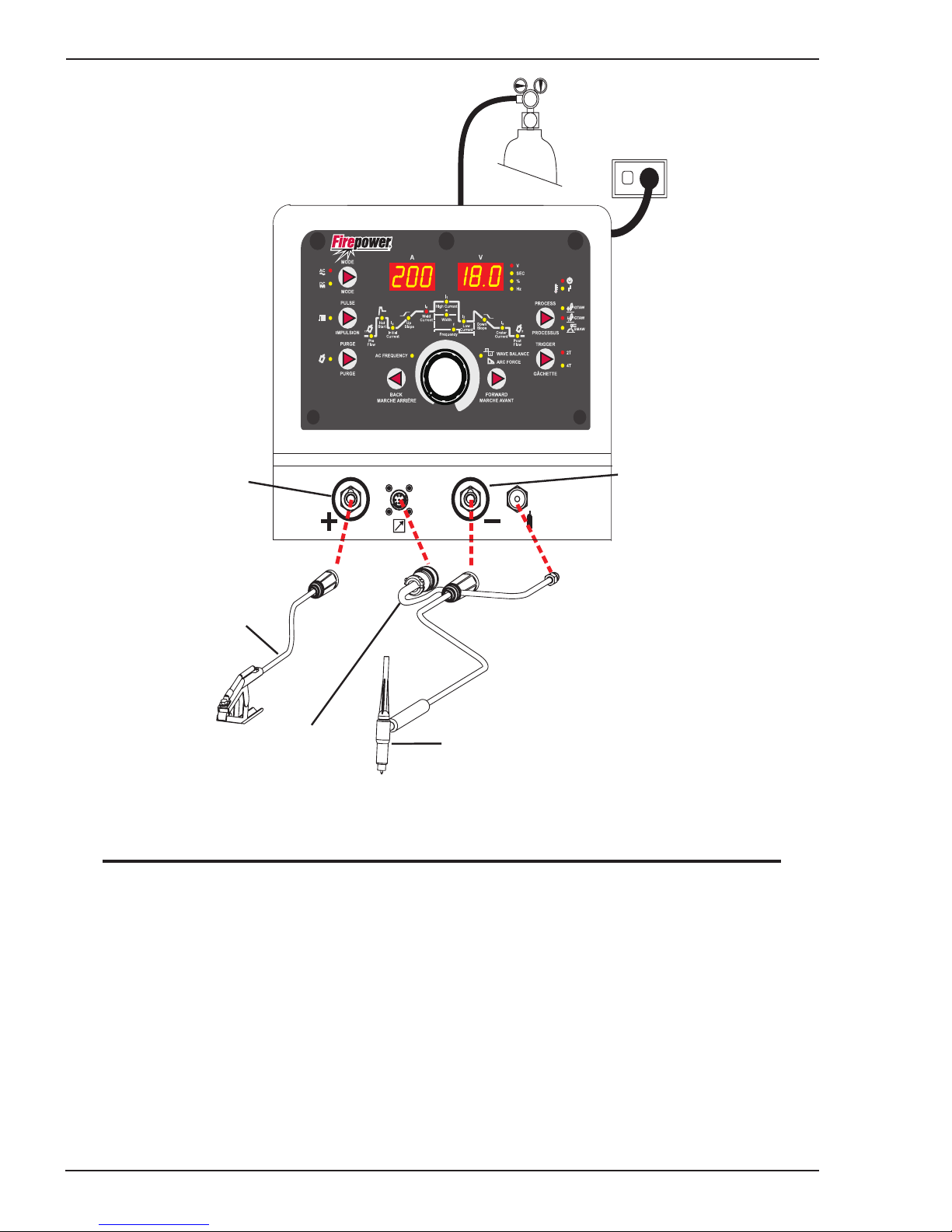

Figure 3-10: Setup for TIG Welding
NOTE
3-20
Installation
INSTALLATION FIREPOWER TIG 200 AC/DC
LIFT TIG (GTAW) Sequence of Operation
CAUTION
Before any welding is to begin, be sure to wear all appropriate and recommended safety equipment.
1. Switch the ON/OFF Switch (located on the rear panel) to OFF.
2. Connect the ground (work) clamp cable to positive output terminal. It is essential that the male plug is inserted and turned fully clockwise until connector locks in place to achieve reliable electrical connection.
3. Connect the TIG torch as follows:
a) Place the TIG torch into the negative output terminal. It is essential that the male plug is inserted and turned
fully clockwise until connector locks in place to achieve reliable electrical connection;
b) Place the 8 pin plug into the 8 pin socket. To make connections, align keyway, insert plug, and rotate
threaded collar fully clockwise.
c) Place the TIG torch gas hose to the gas outlet and tighten with a wrench. Caution: DO NOT over tighten.
4. Using a secured Argon cylinder, slowly crack open then close the cylinder valve while standing off to the side of the valve. This will remove any debris that may be around the valve & Flowmeter/Regulator seat area.
5. Install the Flowmeter/Regulator (for details of Firepower Flowmeter/Regulator, please refer to 3.18) and tighten with a wrench.
6. Connect one end of the supplied gas hose to the outlet of the Argon Flowmeter/Regulator and tighten with a wrench. Caution: DO NOT over tighten.
7. Connect the other end of the supplied gas hose to the gas inlet fitting on the rear panel of the welder and tighten with a wrench. Caution: DO NOT over tighten.
8. Open the Argon Cylinder Valve to the fully open position.
9. Connect the ground (work) clamp to your work piece.
10. Set the DOWN SLOPE control knob to the desire weld current ramp down time.
11. Set the weld current control knob to the desired amperage.
12. The tungsten must be ground to a blunt point in order to achieve optimum welding results. It is critical to grind the tungsten electrode in the direction the grinding wheel is turning.
13. Install the tungsten with approximately 1/8" (3.2mm) to ¼" (6.0mm) sticking out from the gas cup, ensuring you have correct sized collet.
14. Tighten the back cap.
15. Plug the power cable into the appropriate outlet, and turn the switch to the “ON" position. The power L.E.D. light should illuminate. Set the “Process Selection Switch" to LIFT TIG.
16. You are now ready to begin TIG Welding.
When the 200 AC/DC is used with a Remote Foot Control in, depress foot control to maximum to allow max current to be previewed/adjusted on the front panel. To avoid premature arcing, please ensure the TIG Torch is located away from your work piece.
Installation
NOTE
3-21
Manual 0-5370
FIREPOWER TIG 200 AC/DC INSTALLATION
8
Positive Welding Terminal (+)
Electrode Holder
Work Lead
A-12721
200A
Negative Welding Terminal (-)
3.15 SETUP FOR STICK (SMAW) WELDING
A. Connect the Electrode Holder lead to the positive welding terminal (+). If in doubt, consult the electrode
manufacturer. Welding current flows from the Power Source via heavy duty bayonet type terminals. It is essential, however, that the male plug is inserted fully and turned clockwise until tight to achieve a sound electrical connection.
B. Connect the work lead to the negative welding terminal (-). If in doubt, consult the electrode manufacturer.
Welding current flows from the power source via heavy duty bayonet type terminals. It is essential, however, that the male plug is inserted fully and turned clockwise until tight to achieve a sound electrical connection.
C. Select STICK mode with the process selection control (refer to Section 3.08.7 for further information)
!
WARNING
Before connecting the work clamp to the work and inserting the electrode in the electrode holder make sure the mains power supply is switched off.
CAUTION
Remove any packaging material prior to use. Do not block the air vents at the front or rear of the Welding Power Source.
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being fused in the bayonet terminal.

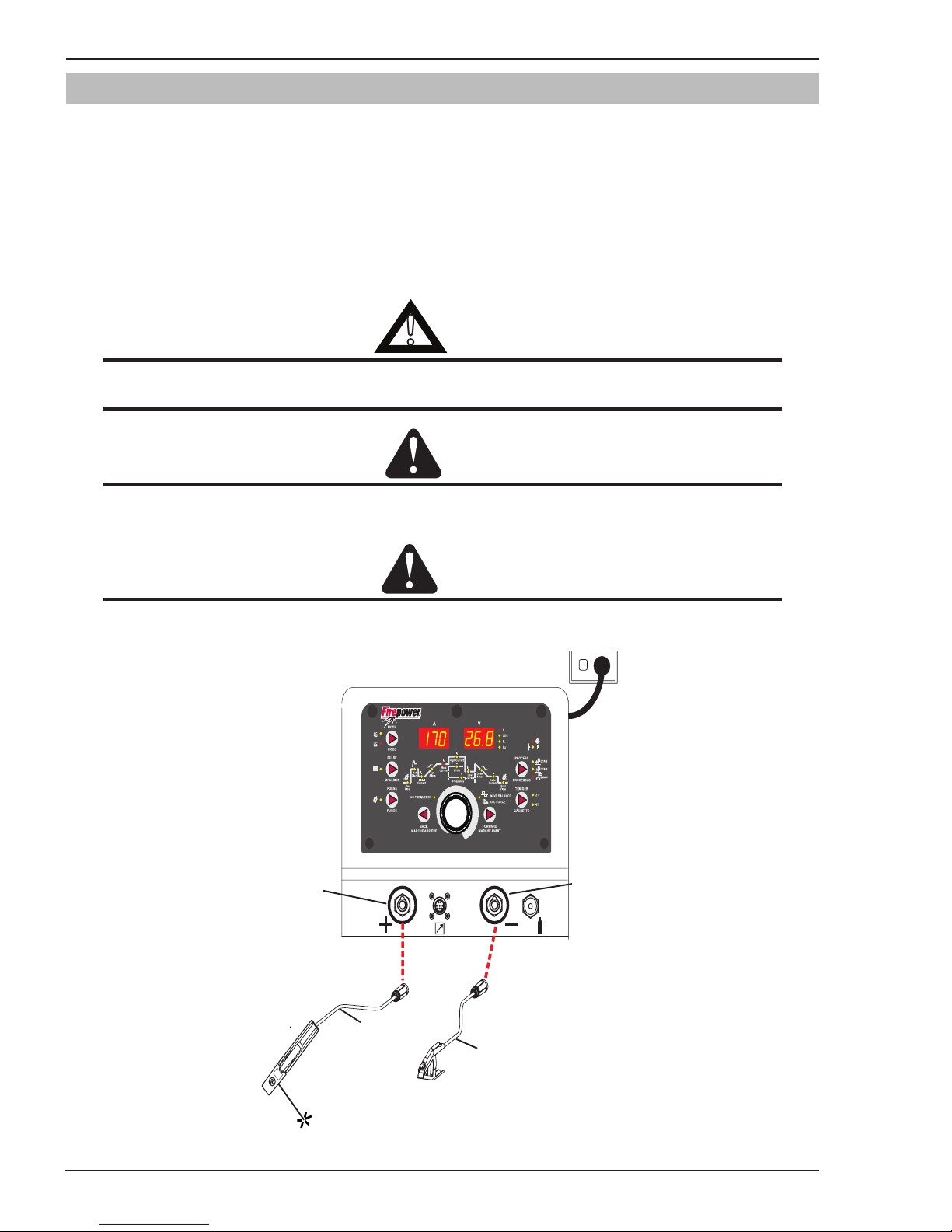

Figure 3-11: Setup for Stick Welding.
Manual 0-5370
3-22
Installation
BASIC WELDING GUIDE FIREPOWER TIG 200 AC/DC
SECTION 4:
BASIC WELDING GUIDE
4.01 STICK (SMAW) BASIC WELDING TECHNIQUE
Size of Electrode
The electrode size is determined by the thickness of metals being joined and can also be governed by the type of welding machine available. Small welding machines will only provide sufficient current (amperage) to run the smaller size electrodes.
For thin sections, it is necessary to use smaller electrodes otherwise the arc may burn holes through the job. A little practice will soon establish the most suitable electrode for a given application.
Storage of Electrodes
Always store electrodes in a dry place and in their original containers.
Electrode Polarity
Electrodes are generally connected to the ELECTRODE HOLDER with the Electrode Holder connected positive polarity. The WORK LEAD is connected negative polarity and is connected to the work piece. If in doubt consult the electrode data sheet or your nearest Accredited Firepower Distributor.
Effects of Stick Welding Various Materials A. High Tensile and Alloy Steels
The two most prominent effects of welding these steels are the formation of a hardened zone in the weld area, and, if suitable precautions are not taken, the occurrence in this zone of under-bead cracks. Hardened zone and under-bead cracks in the weld area may be reduced by using the correct electrodes, preheating, using higher current settings, using larger electrodes sizes, short runs for larger electrode deposits or tempering in a furnace.
B. Manganese Steels
The effect on manganese steel of slow cooling from high temperatures is to embrittle it. For this reason it is absolutely essential to keep manganese steel cool during welding by quenching after each weld or skip welding to distribute the heat.
C. Cast Iron
Most types of cast iron, except white iron, are weldable. White iron, because of its extreme brittleness, generally cracks when attempts are made to weld it. Trouble may also be experienced when welding white-heart malleable, due to the porosity caused by gas held in this type of iron.
D. Copper and Alloys
The most important factor is the high rate of heat conductivity of copper, making pre-heating of heavy sections necessary to give proper fusion of weld and base metal.
E. Types of Electrodes
Arc Welding electrodes are classified into a number of groups depending on their applications. There are a great number of electrodes used for specialized industrial purposes which are not of particular interest for everyday general work. These include some low hydrogen types for high tensile steel, cellulose types for welding large diameter pipes, etc The range of electrodes dealt with in this publication will cover the vast majority of applications likely to be encountered; are all easy to use.
Basic Welding Guide
4-1
Manual 0-5370
FIREPOWER TIG 200 AC/DC BASIC WELDING GUIDE
Art # A-07688
Art # A-07689
Art # A-07690
Metal Being Joined Electrode Comments
Mild Steel E6011 This electrode is used for all-position welding or for welding
on rusty, dirty, less-than-new metal. It has a deep, penetrating arc and is often the first choice for repair or maintenance work.
Mild Steel E6013 This all-position, electrode is used for welding clean, new sheet
metal. Its soft arc has minimal spatter, moderate penetration and an easy-to-clean slag.
Mild Steel E7014 All positional, ease to use electrode for use on thicker steel than
E6013. Especially suitable sheet metal lap joints and fillet welds, general purpose plate welding.
Mild Steel E7018 A low-hydrogen, all-position electrode used when quality is an
issue or for hard-to-weld metals. It has the capability of producing more uniform weld metal, which has better impact properties at low temperatures.
Cast Iron Eni-Cl Suitable for joining all cast irons except white cast iron.
Stainless Steel E318L-16 High corrosion resistances. Ideal for dairy work etc.

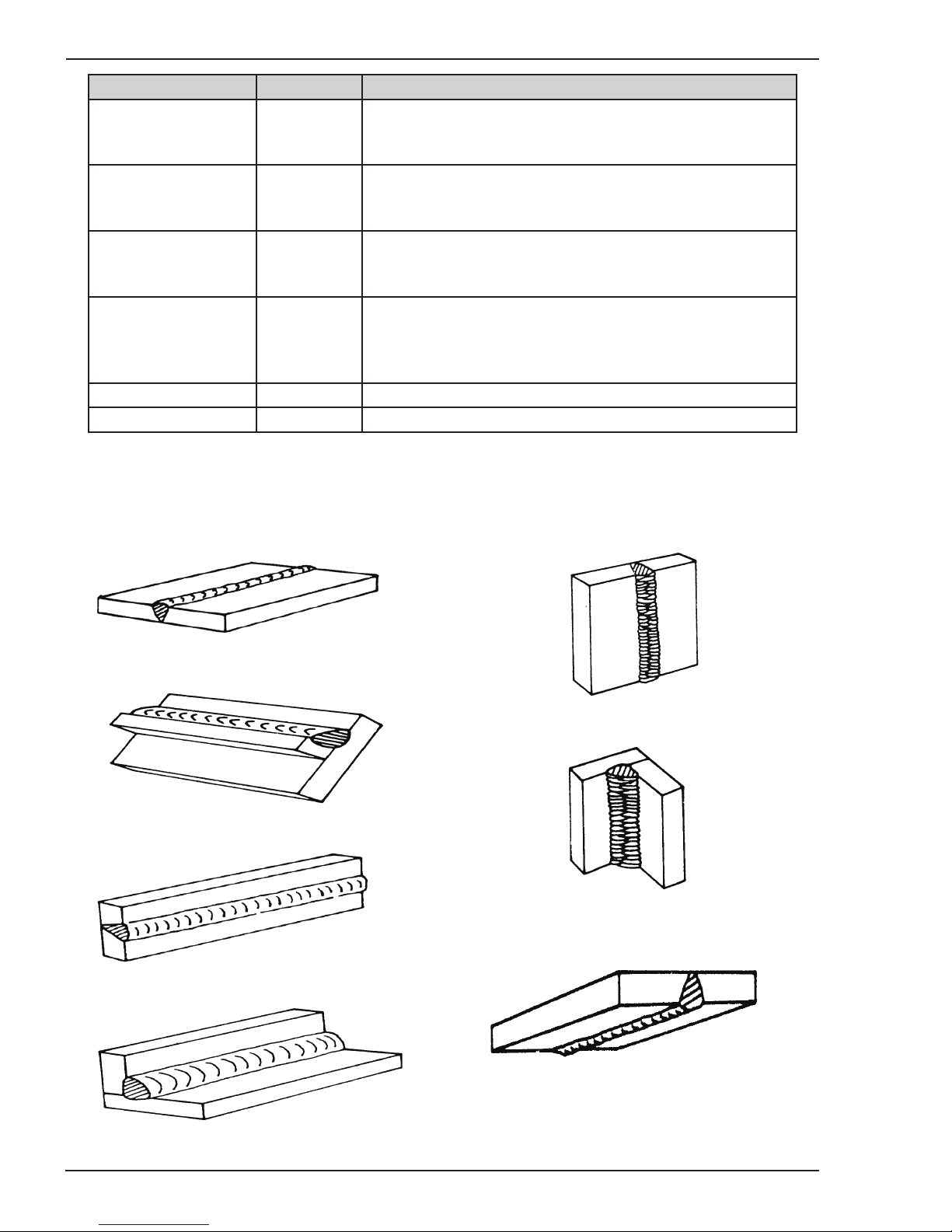

Welding Position
The electrodes dealt with in this publication can be used in most positions, i.e. they are suitable for welding in flat, horizontal, vertical and overhead positions. Numerous applications call for welds to be made in positions intermediate between these. Some of the common types of welds are shown in Figures 4-5 through 4-12.
Art # A-07687
Figure 4-1: Flat Position, Down Hand Butt Weld
Figure 4-2: Flat Position, Gravity Fillet Weld
Figure 4-3: Horizontal Position, Butt Weld
Art A-07691
Figure 4-5: Vertical Position, Butt Weld
Art # A-07692
Figure 4-6: Vertical Position, Fillet Weld
Art# A-07693
Figure 4-4: Horizontal-Vertical (HV) Position
Manual 0-5370
4-2
Figure 4-7: Overhead Position, Butt Weld
Basic Welding Guide
BASIC WELDING GUIDE FIREPOWER TIG 200 AC/DC
Gap varies from 1/16” (1.6mm) to 3/16” (4.8mm) depending on plate thickness
Joint
Open Square Butt
1/16” (1.6mm) max
1/16” (1.6mm)
Single Vee Butt Joint
Not less than
70°
Double Vee Butt Joint
1/16” (1.6mm)
Lap Joint
Tee Joints
(
Fillet both sides of the
joint)
Edge Joint
Fillet Joint
Corner Weld
Plug Weld Plug Weld
Not less than
70°
Single Vee Butt Joint
Not less than
45°
1/16” (1.6mm) max
Art # A-10672
Art # A-07694
Figure 4-8: Overhead Position, Fillet Weld
Joint Preparations
In many cases, it will be possible to weld steel sections without any special preparation. For heavier sections and for repair work on castings, etc., it will be necessary to cut or grind an angle between the pieces being joined to ensure proper penetration of the weld metal and to produce sound joints.
In general, surfaces being welded should be clean and free of rust, scale, dirt, grease, etc. Slag should be removed from oxy-cut surfaces. Typical joint designs are shown in Figure 4-9.

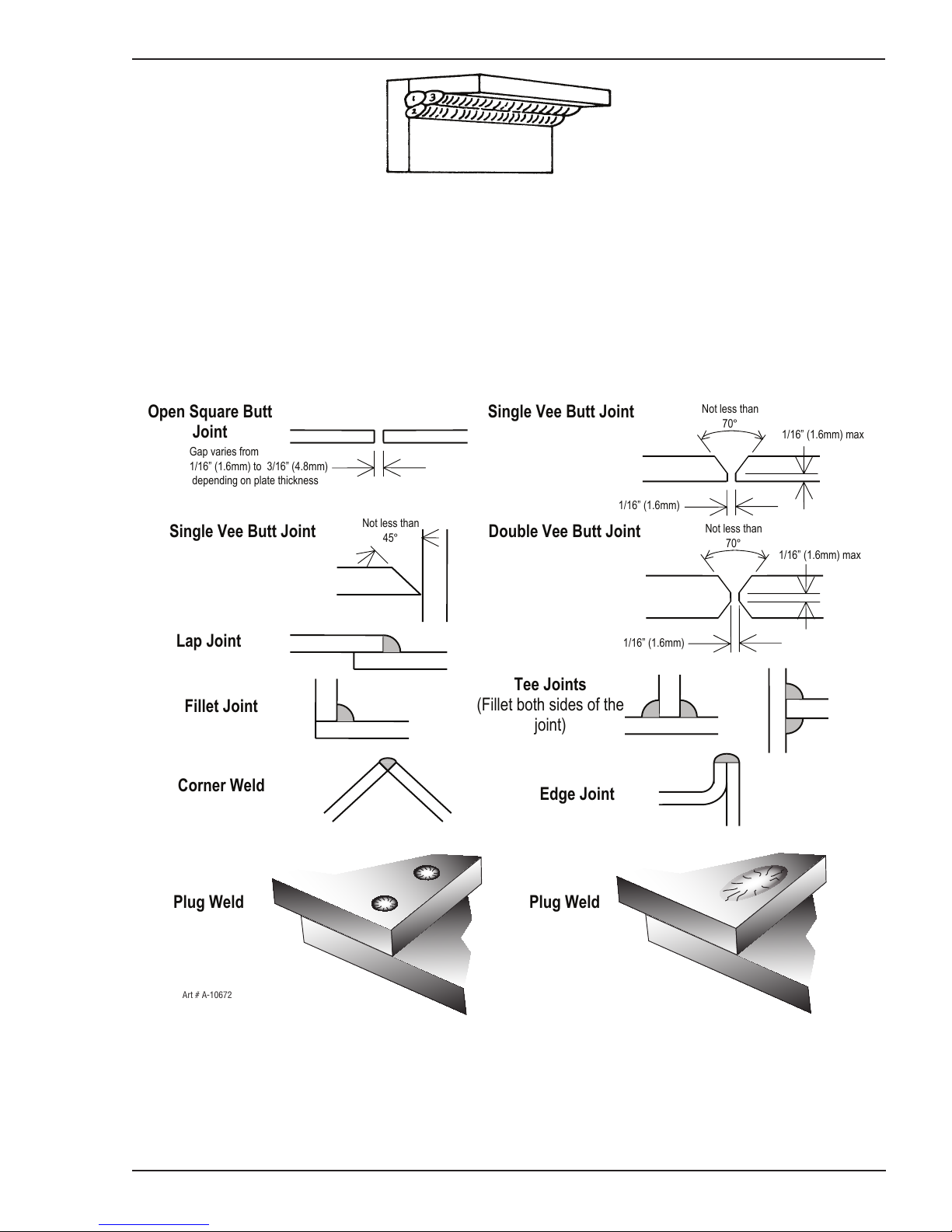

Figure 4-9: Typical Joint Designs for Arc Welding
Basic Welding Guide
4-3
Manual 0-5370
FIREPOWER TIG 200 AC/DC BASIC WELDING GUIDE
20°
Arc Welding Technique - A Word to Beginners
For those who have not yet done any welding, the simplest way to commence is to run beads on a piece of scrap plate. Use mild steel plate about 1/4" (6.0mm) thick and a 1/8" (3.2mm) electrode. Clean any paint, loose scale or grease off the plate and set it firmly on the work bench so that welding can be carried out in the downhand position. Make sure that the work clamp is making good electrical contact with the work, either directly or through the work table. For light gauge material, always clamp the work lead directly to the job, otherwise a poor circuit will probably result.
The Welder
Place yourself in a comfortable position before beginning to weld. Get a seat of suitable height and do as much work as possible sitting down.
Place the work so that the direction of welding is across, rather than to or from, your body. The electrode holder lead should be clear of any obstruction so that you can move your arm freely along as the electrode burns down. Be sure the insulation on your cable and electrode holder is not faulty, otherwise you are risking an electric shock.
Striking the Arc
Practice this on a piece of scrap plate before going on to more exacting work. You may at first experience difficulty due to the tip of the electrode "sticking" to the work piece. This is caused by making too heavy a contact with the work and failing to withdraw the electrode quickly enough. A low amperage will accentuate it. This freezing-on of the tip may be overcome by scratching the electrode along the plate surface in the same way as a match is struck. As soon as the arc is established, maintain a 1/16" (1.6mm) to 1/8" (3.2mm) gap between the burning electrode end and the parent metal. Draw the electrode slowly along as it melts down.
Another difficulty you may meet is the tendency, after the arc is struck, to withdraw the electrode so far that the arc is broken again. A little practice will soon remedy both of these faults.
Art # A-07696_AB
1.6 mm (1/16”)

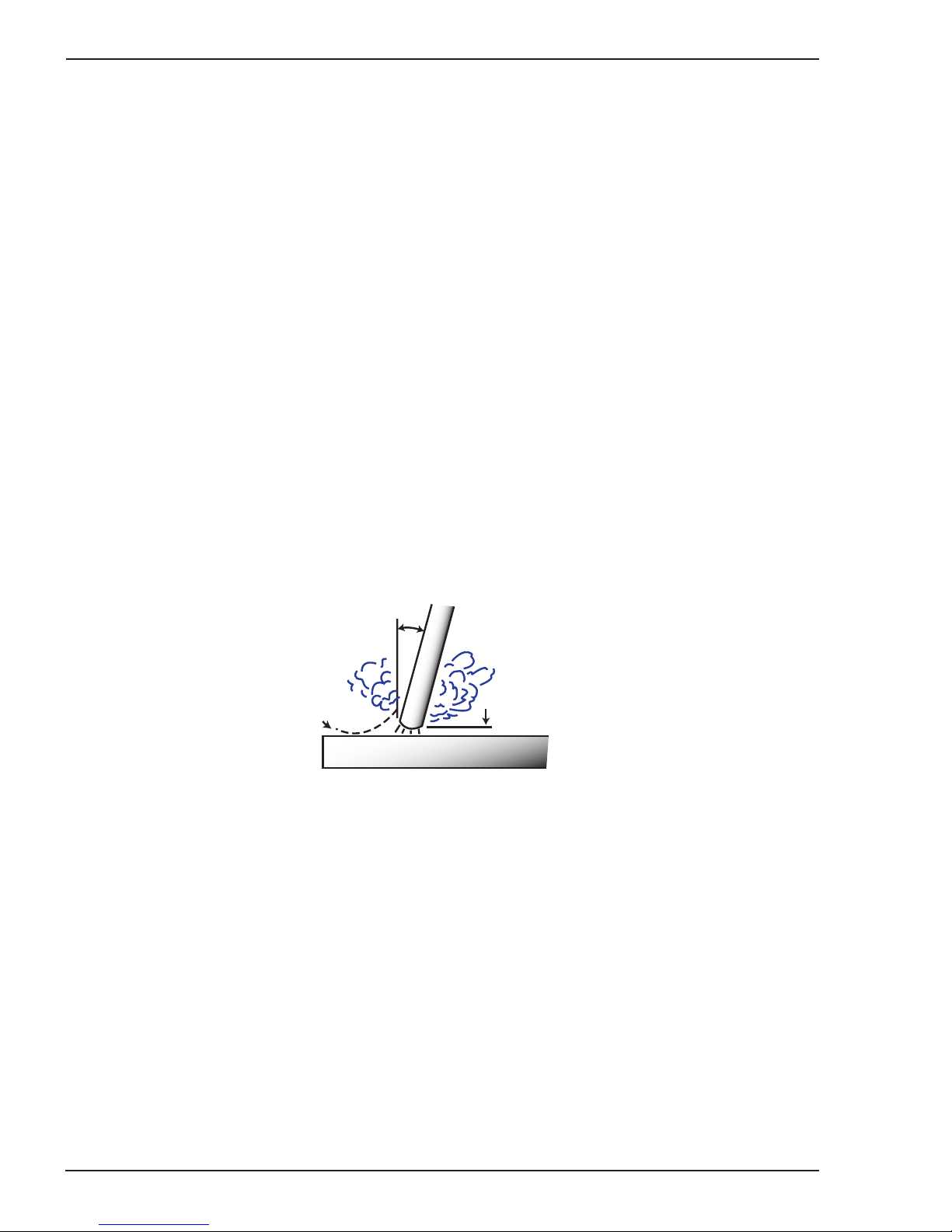

Figure 4-10: Striking an Arc
Arc Length
The securing of an arc length necessary to produce a neat weld soon becomes almost automatic. You will find that a long arc produces more heat. A very long arc produces a crackling or spluttering noise and the weld metal comes across in large, irregular blobs. The weld bead is flattened and spatter increases. A short arc is essential if a high quality weld is to be obtained although if it is too short there is the danger of it being blanketed by slag and the electrode tip being solidified in. If this should happen, give the electrode a quick twist back over the weld to detach it.
Rate of Travel
After the arc is struck, your next concern is to maintain it, and this requires moving the electrode tip towards the molten pool at the same rate as it is melting away. At the same time, the electrode has to move along the plate to form a bead. The electrode is directed at the weld pool at about 20º from the vertical. The rate of travel has to be adjusted so that a well-formed bead is produced.
If the travel is too fast, the bead will be narrow and strung out and may even be broken up into individual globules. If the travel is too slow, the weld metal piles up and the bead will be too large.
Manual 0-5370
4-4
Basic Welding Guide
BASIC WELDING GUIDE FIREPOWER TIG 200 AC/DC
20°-30°
Making Welded Joints
Having attained some skill in the handling of an electrode, you will be ready to go on to make up welded joints.
A. Butt Welds
Set up two plates with their edges parallel, as shown in Figure 4-11, allowing 1/16" (1.6mm) to 3/32" (2.4mm) gap between them and tack weld at both ends. This is to prevent contraction stresses from the cooling weld metal pulling the plates out of alignment. Plates thicker than 1/4" (6.0mm) should have their mating edges bevelled to form a 70º to 90º included angle. This allows full penetration of the weld metal to the root.
Do not weave the electrode, but maintain a steady rate of travel along the joint sufficient to produce a well­formed bead. At first you may notice a tendency for undercut to form, but keeping the arc length short, the angle of the electrode at about 20º from vertical, and the rate of travel not too fast, will help eliminate this. The electrode needs to be moved along fast enough to prevent the slag pool from getting ahead of the arc. To complete the joint in thin plate, turn the job over, clean the slag out of the back and deposit a similar weld.
Electrode
Tack Weld
Tack Weld
Art # A-07697_AB

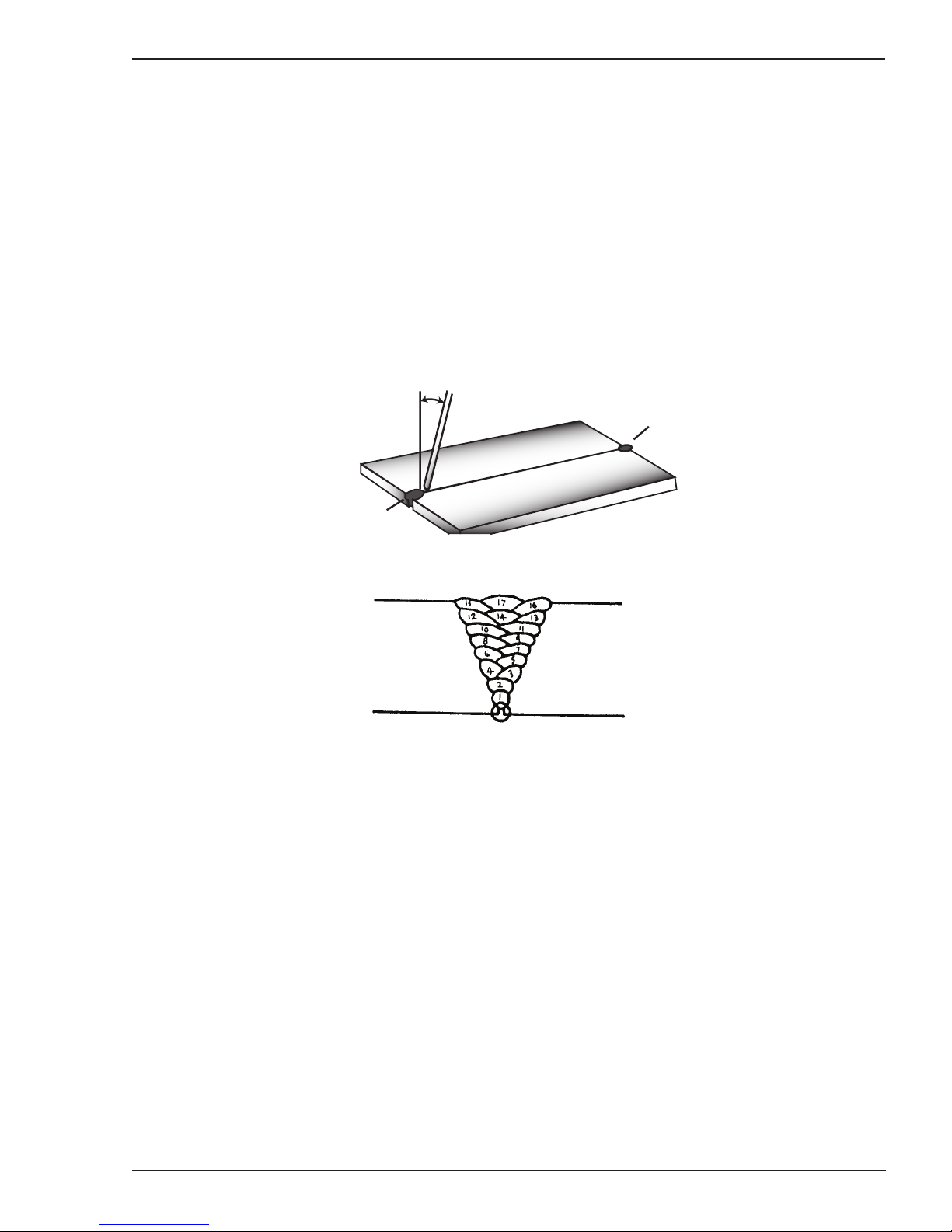

Figure 4-11: Butt Weld
Art # A-07698
Figure 4-12: Weld Build up Sequence
Heavy plate will require several runs to complete the joint. After completing the first run, chip the slag out and clean the weld with a wire brush. It is important to do this to prevent slag being trapped by the second run. Subsequent runs are then deposited using either a weave technique or single beads laid down in the sequence shown in Figure 4-12. The width of weave should not be more than three times the core wire diameter of the electrode. When the joint is completely filled, the back is either machined, ground or gouged out to remove slag which may be trapped in the root, and to prepare a suitable joint for depositing the backing run. If a backing bar is used, it is not usually necessary to remove this, since it serves a similar purpose to the backing run in securing proper fusion at the root of the weld.
Basic Welding Guide
4-5
Manual 0-5370
FIREPOWER TIG 200 AC/DC BASIC WELDING GUIDE
B. Fillet Welds
These are welds of approximately triangular cross­section made by depositing metal in the corner of two faces meeting at right angles. Refer to Figure 4-4.
A piece of angle iron is a suitable specimen with which to begin, or two lengths of strip steel may be tacked together at right angles. This is known as a horizontal-vertical (HV) fillet. Strike the arc and immediately bring the electrode to a position perpendicular to the line of the fillet and about 45º from the vertical. Some electrodes require to be sloped about 20º away from the perpendicular position to prevent slag from running ahead of the weld. Refer to Figure 4-13. Do not attempt to build up much larger than 1/4" (6.4mm) width with a 1/8" (3.2mm) electrode, otherwise the weld metal tends to sag towards the base, and undercut forms on the vertical leg. Multi-runs can be made as shown in Figure 4-14. Weaving in HV fillet welds is undesirable.
45° from vertical
C. Vertical Welds
1. Vertical Up
Tack weld a three feet length of angle iron to
your work bench in an upright position. Make yourself comfortable on a seat in front of the job and strike the arc in the corner of the fillet. The electrode needs to be about 10º from the horizontal to enable a good bead to be deposited. Refer Figure 4-15. Use a short arc, and do not attempt to weave on the first run. When the first run has been completed de-slag the weld deposit and begin the second run at the bottom. This time a slight weaving motion is necessary to cover the first run and obtain good fusion at the edges. At the completion of each side motion, pause for a moment to allow weld metal to build up at the edges, otherwise undercut will form and too much metal will accumulate in the centre of the weld. Figure 4-16 illustrates multi-run technique and Figure 4-17 shows the effects of pausing at the edge of weave and of weaving too rapidly.
Art # A-07701
60° - 70° from line of weld
Art # A-07699_AB
Figure 4-13: Electrode Position for HV Fillet Weld
Art # A-07700_AB
6
3
1
5
2
4
Figure 4-`14: Multi-runs in HV Fillet Weld
Figure 4-15: Single Run Vertical Fillet Weld
Art # A-07702
Figure 4-16: Multi Run Vertical Fillet Weld
Manual 0-5370
4-6
Basic Welding Guide
BASIC WELDING GUIDE FIREPOWER TIG 200 AC/DC
Art # A-07703
Figure 4-17: Examples of Vertical Fillet Welds
2. Vertical Down
Use a 1/8" (3.2mm) electrode at 100 amps. The tip of the electrode is held in light contact with the work
and the speed of downward travel is regulated so that the tip of the electrode just keeps ahead of the slag. The electrode should point upwards at an angle of about 45º.
3. Overhead Welds
Apart from the rather awkward position necessary, overhead welding is not much more difficult that
downhand welding. Set up a specimen for overhead welding by first tacking a length of angle iron at right angles to another piece of angle iron or a length of waste pipe. Then tack this to the work bench or hold in a vice so that the specimen is positioned in the overhead position as shown in the sketch. The electrode is held at 45º to the horizontal and tilted 10º in the line of travel (Figure 4-18). The tip of the electrode may be touched lightly on the metal, which helps to give a steady run. A weave technique is not advisable for overhead fillet welds.
Art # A-07704
Figure 4-18: Overhead Fillet Weld
Distortion
Distortion in some degree is present in all forms of welding. In many cases it is so small that it is barely perceptible, but in other cases allowance has to be made before welding commences for the distortion that will subsequently occur. The study of distortion is so complex that only a brief outline can be attempted hear.
Basic Welding Guide
4-7
Manual 0-5370
FIREPOWER TIG 200 AC/DC BASIC WELDING GUIDE
Upsetting
Weld
The Cause of Distortion
Distortion is caused by:
A. Contraction of Weld Metal:
Molten steel shrinks approximately 11 per cent in volume on cooling to room temperature. This means that a cube of molten metal would contract approximately 2.2 per cent in each of its three dimensions. In a welded joint, the metal becomes attached to the side of the joint and cannot contract freely. Therefore, cooling causes the weld metal to flow plastically, that is, the weld itself has to stretch if it is to overcome the effect of shrinking volume and still be attached to the edge of the joint. If the restraint is very great, as, for example, in a heavy section of plate, the weld metal may crack. Even in cases where the weld metal does not crack, there will still remain stresses "Locked-up" in the structure. If the joint material is relatively weak, for example, a butt joint in 5/64" (2.0mm) sheet, the contracting weld metal may cause the sheet to become distorted.
B. Expansion and Contraction of Parent Metal in the Fusion Zone:
While welding is proceeding, a relatively small volume of the adjacent plate material is heated to a very high temperature and attempts to expand in all directions. It is able to do this freely at right angles to the surface of the plate (i.e., "through the weld", but when it attempts to expand "across the weld" or "along the weld", it meets considerable resistance, and to fulfil the desire for continued expansion, it has to deform plastically, that is, the metal adjacent to the weld is at a high temperature and hence rather soft, and, by expanding, pushes against the cooler, harder metal further away, and tends to bulge (or is "upset". When the weld area begins to cool, the "upset" metal attempts to contract as much as it expanded, but, because it has been "upset" it does not resume its former shape, and the contraction of the new shape exerts a strong pull on adjacent metal. Several things can then happen.
The metal in the weld area is stretched (plastic deformation), the job may be pulled out of shape by the powerful contraction stresses (distortion), or the weld may crack, in any case, there will remain "locked-up" stresses in the job. Figures 4-19 and 4- 20 illustrate how distortion is created.
Hot
Weld
Hot
Expansion with compression
Cool
Art # A-07705_AB

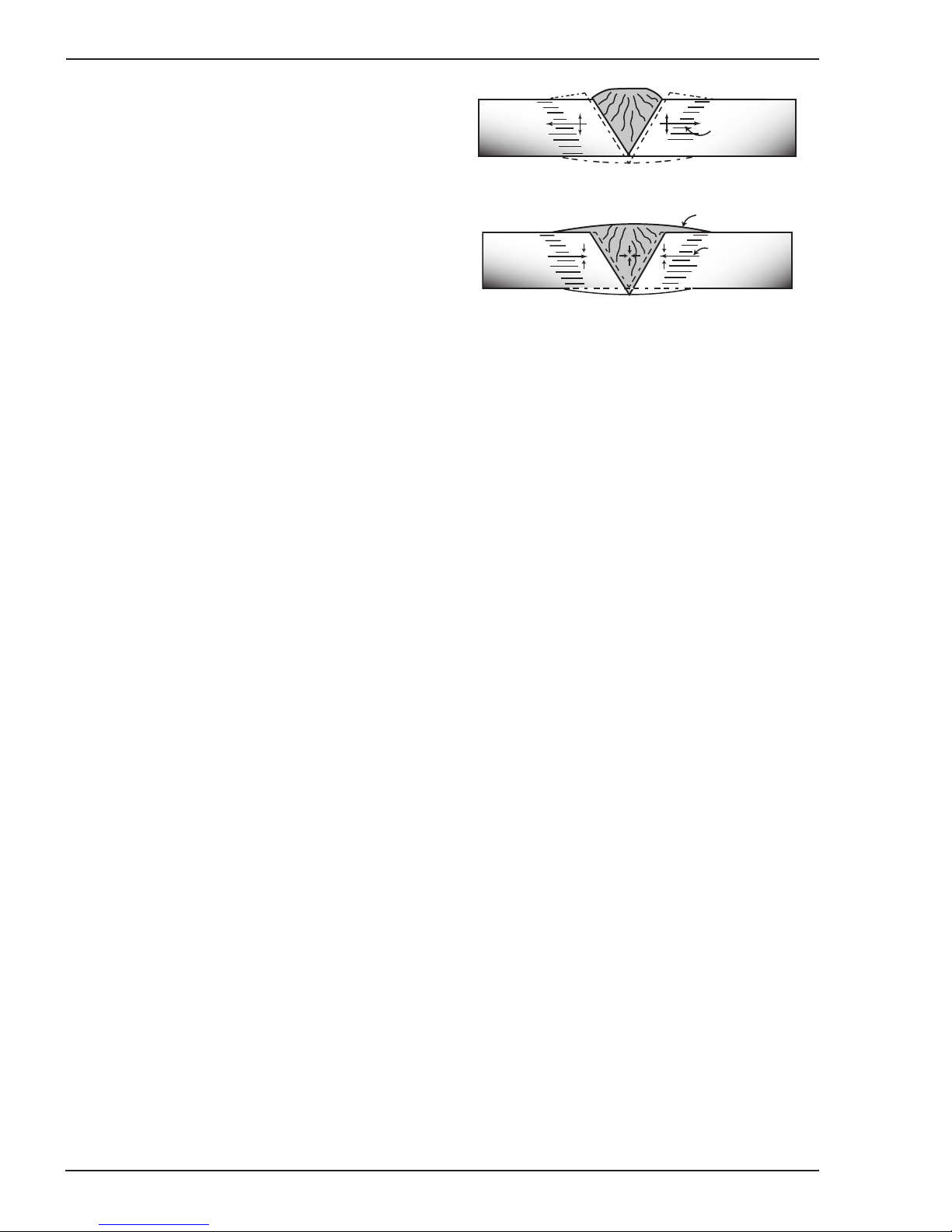

Figure 4-19: Parent Metal Expansion
Art # A-07706_AC
Permanent Upset
Contraction with tension
Figure 4-20: Parent Metal Contraction
Overcoming Distortion Effects
There are several methods of minimizing distortion effects.
A. Peening
This is done by hammering the weld while it is still hot. The weld metal is flattened slightly and because of this the tensile stresses are reduced a little. The effect of peening is relatively shallow, and is not advisable on the last layer.
B. Distribution of Stresses
Distortion may be reduced by selecting a welding sequence which will distribute the stresses suitably so that they tend to cancel each other out. See Figures 4-20 through 4-23 for various weld sequences. Choice of a suitable weld sequence is probably the most effective method of overcoming distortion, although an unsuitable sequence may exaggerate it. Simultaneous welding of both sides of a joint by two welders is often successful in eliminating distortion.
C. Restraint of Parts
Forcible restraint of the components being welded is often used to prevent distortion. Jigs, positions, and tack welds are methods employed with this in view.
D. Presetting
It is possible in some cases to tell from past experience or to find by trial and error (or less frequently, to calculate) how much distortion will take place in a given welded structure. By correct pre-setting of the components to be welded, constructional stresses can be made to pull the parts into correct alignment. A simple example is shown in Figure 4-21.
Manual 0-5370
4-8
Basic Welding Guide
BASIC WELDING GUIDE FIREPOWER TIG 200 AC/DC

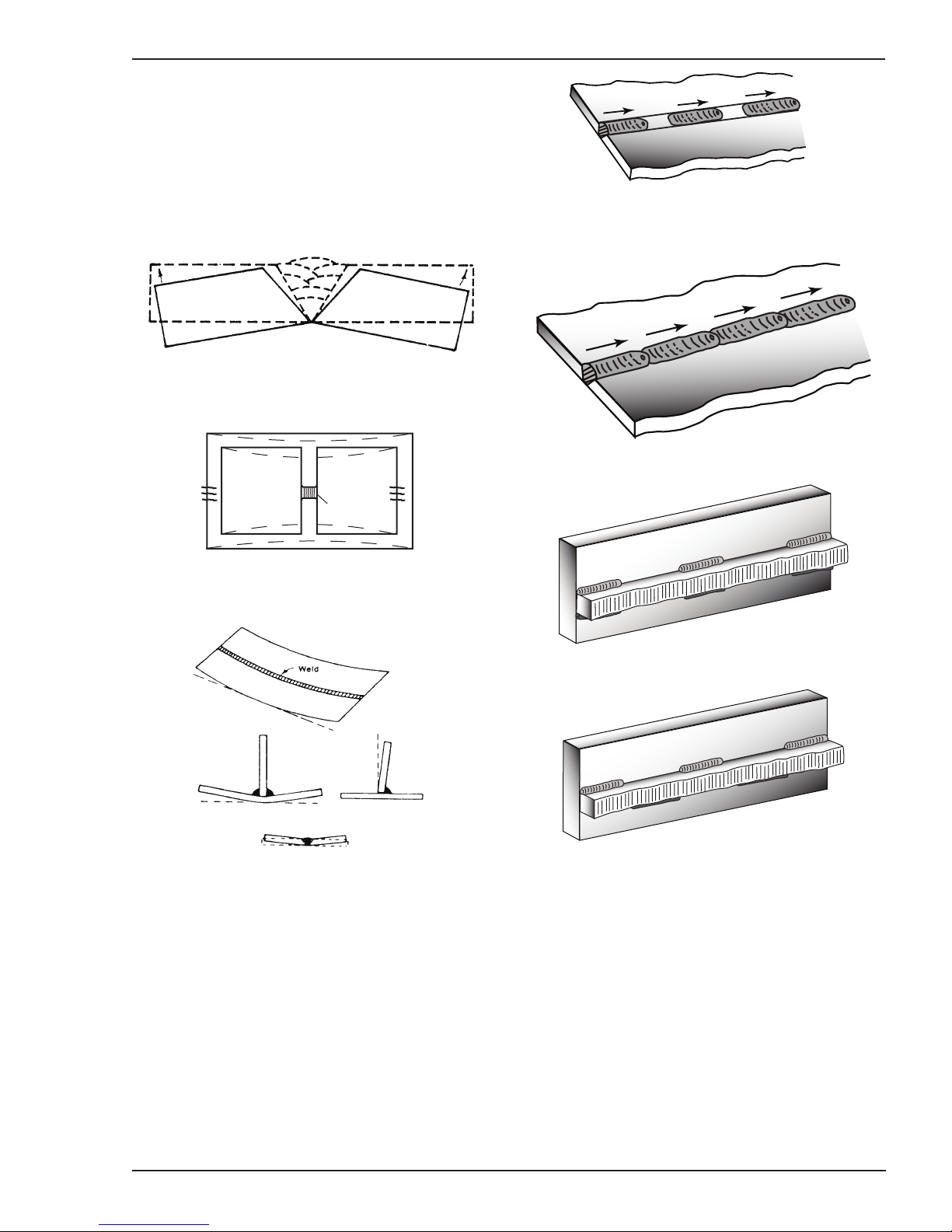

Art # A-07708
E. Preheating
Suitable preheating of parts of the structure other than the area to be welded can be sometimes used to reduce distortion. Figure 4-22 shows a simple application. By removing the heating source from b and c as soon as welding is completed, the sections b and c will contract at a similar rate, thus reducing distortion.
Art # A-07707
Figure 4-21: Principle of Presetting
B
Weld
C
PreheatPreheat
Art # A-07710_AB
4
Art # A-07711_AB
Figure 4-25: Step Back Sequence
1
2
Block Sequence. The spaces between the welds are filled in when the welds are cool.
3
Figure 4-24: Welding Sequence
1
2
3
Dotted lines show effect if no preheat is used
Figure 4-22: Reduction of Distortion by Preheating
Art # A-07709
Figure 4-23: Examples of Distortion
Art # A-07428_AB
Figure 4-26: Chain Intermittent Welding
Art # A-07713_AB
Figure 4-27: Staggered Intermittent Welding
Basic Welding Guide
4-9
Manual 0-5370
FIREPOWER TIG 200 AC/DC BASIC WELDING GUIDE
Art: A-04971
4.02 STICK (SMAW) WELDING TROUBLESHOOTING
FAULT CAUSE REMEDY
1 Welding current
varying
2 A gap is left by
failure of the weld metal to fill the root of the weld.
3 Non-metallic par-
ticles are trapped in the weld metal.
ARC FORCE control knob is set at a value that causes the welding current to vary excessively with
Reduce the ARC FORCE control knob until weld­ing current is reasonably constant while prohibit­ing the electrode from sticking to the work piece when you “dig" the electrode into the workpiece.
the arc length.
A Welding current too low A Increase welding current. B Electrode too large for
B Use smaller diameter electrode.
joint.
C Insufficient gap. C Allow wider gap.
A Non-metallic particles may
be trapped in undercut
A If a bad undercut is present clean slag bout and
cover with a run from a smaller gauge electrode.
from previous run.
B
Joint preparation too restricted.
C Irregular deposits allow
B Allow for adequate penetration and room for
cleaning out the slag.
C If very bad, chip or grind out irregularities.
slag to be trapped.
D Lack of penetration with
slag trapped beneath weld bead.
D Use smaller electrode with sufficient current to
give adequate penetration. Use suitable tools to remove all slag from comers.
E Rust or mill scale is pre-
E Clean joint before welding.
venting full fusion.
F Wrong electrode for posi-
tion in which welding is done.
F Use electrodes designed for position in which
welding is done, otherwise proper control of slag is difficult.

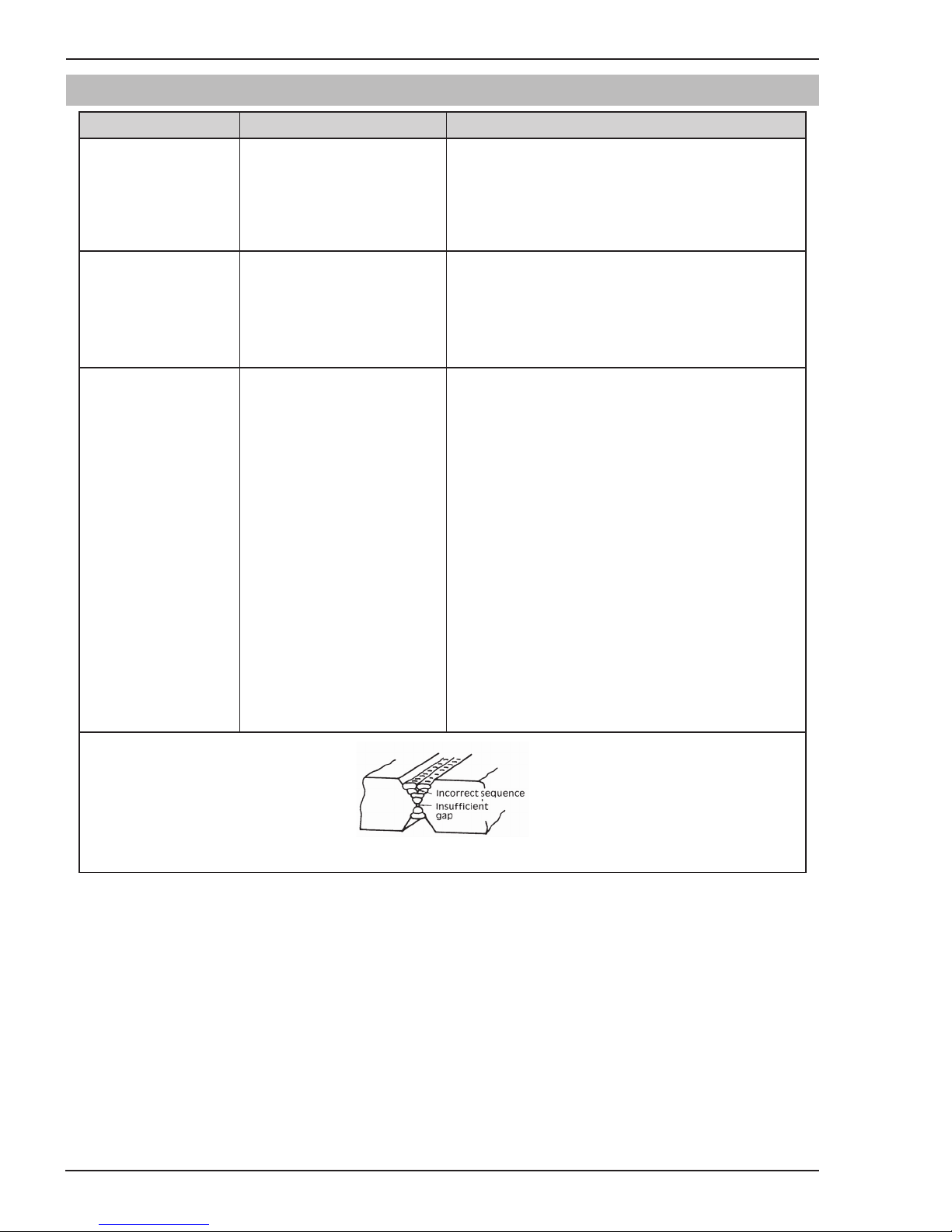

Figure 1 - Example of insufficient gap or incorrect sequence
Manual 0-5370
4-10
Basic Welding Guide
BASIC WELDING GUIDE FIREPOWER TIG 200 AC/DC
FAULT CAUSE REMEDY
4 A groove has been
formed in the base metal adjacent to the toe of a weld and has not been filled by the weld metal (undercut).
5 Portions of the
weld run do not fuse to the surface of the metal or edge of the joint.
A Welding current is too
A Reduce welding current.
high.
B Welding arc is too long. B Reduce the length of the welding arc.
C Angle of the electrode is
incorrect.
D Joint preparation does not
allow correct electrode
C Electrode should not be inclined less than 45° to
the vertical face.
D Allow more room in joint for manipulation of the
electrode.
angle.
E Electrode too large for
E Use smaller gauge electrode.
joint.
F Insufficient deposit time at
edge of weave.
A Small electrodes used on
F Pause for a moment at edge of weave to allow
weld metal buildup.
A Use larger electrodes and preheat the plate.
heavy cold plate.
B Welding current is too low. B Increase welding current. C Wrong electrode angle. C Adjust angle so the welding arc is directed more
into the base metal.
D Travel speed of electrode
D Reduce travel speed of electrode.
is too high.
6 Gas pockets or
voids in weld metal (porosity)
E Scale or dirt on joint
E Clean surface before welding.
surface.
Art: A-04972
Figure 2: Example of Lack of Fusion
A High levels of sulphur in
steel.
A Use an electrode that is designed for high sul-
phur steels. B Electrodes are damp. B Dry electrodes before use. C Welding current is too
C Reduce welding current.
high.
D Surface impurities such as
D Clean joint before welding.
oil, grease, paint, etc.
E Welding in a windy envi-
E Shield the weld area from the wind.
ronment.
F Electrode damaged i.e. flux
coating incomplete.
F Discard damaged electrodes and only use elec-
trodes with a complete flux coating.
Basic Welding Guide
4-11
Manual 0-5370
FIREPOWER TIG 200 AC/DC BASIC WELDING GUIDE
FAULT CAUSE REMEDY
7 Crack occurring in
weld metal soon after solidification commences
A Rigidity of joint. A Redesign to relieve weld joint of severe stresses
or use crack resistance electrodes.
B Insufficient throat thick-
ness.
B Travel slightly slower to allow greater build up in
throat.
C Weld current is too high. C Decrease welding current.
Art: A-04973

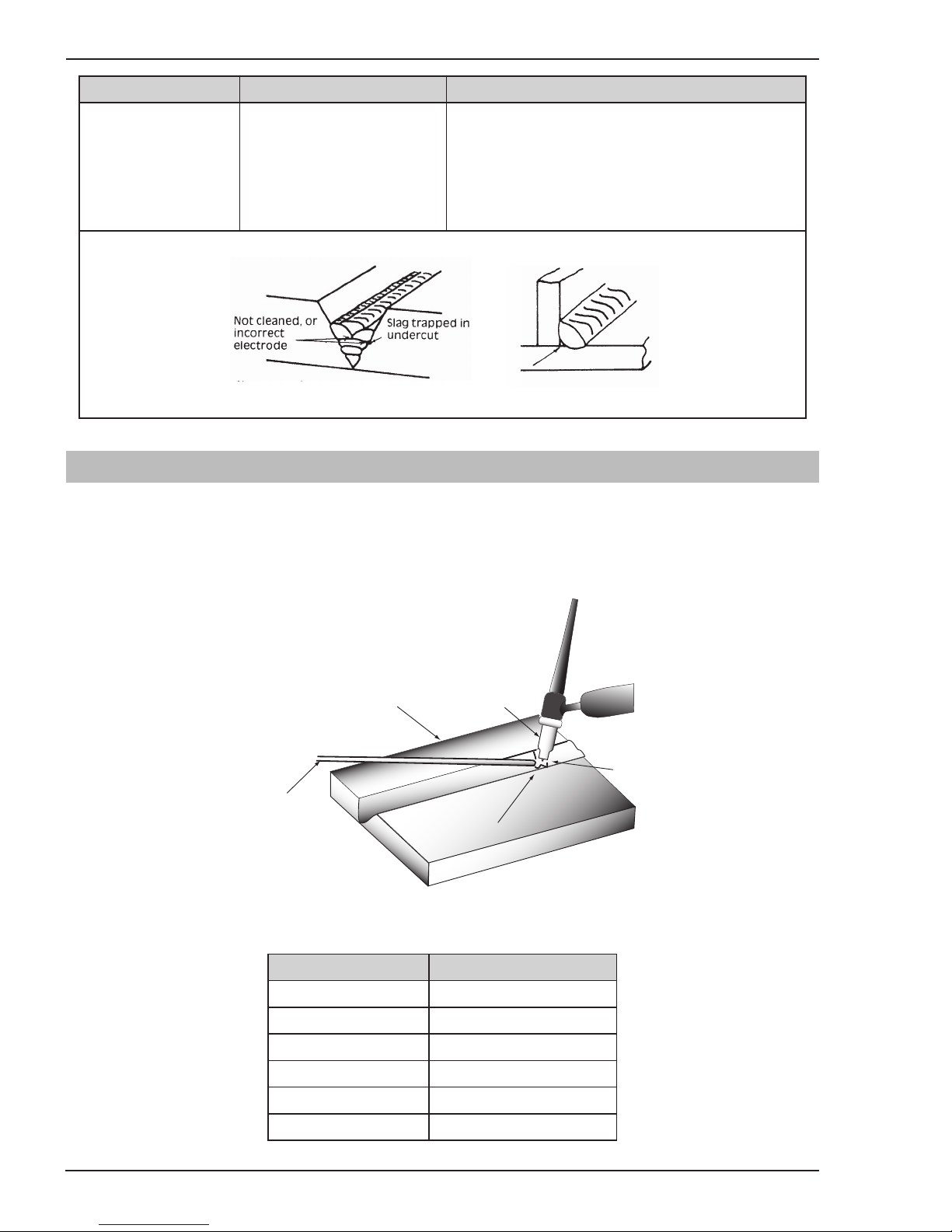

Figure 3: Example of Slag Inclusion
Table 4-2: Welding Problems SMAW (STICK)
4.03 TIG (GTAW) BASIC WELDING TECHNIQUE
Gas Tungsten Arc Welding (GTAW) or TIG (Tungsten Inert Gas) as it is commonly referred to, is a welding process in which fusion is produced by an electric arc that is established between a single tungsten (non-consumable) electrode and the work piece. Shielding is obtained from a welding grade shielding gas or welding grade shielding gas mixture which is generally Argon based. A filler metal may also be added manually in some circumstances depending on the welding application.
Art # A-09658_AC
Can Be Any Commercial
Welds Made With or Without
Addition of Filler Metal
Tungsten Electrode Current Ranges
Electrode Diameter DC Current (Amps)
0.040" (1.0mm) 30-60
Gas Cup
Either Ceramic,
Work Piece
Metal
High-lmpact or
Water Cooled
Metal
Inert Gas Shields Electrode and Weld Puddle
Figure 4-28: TIG Welding Application Shot
1/16" (1.6mm) 60-115 3/32" (2.4mm) 100-165
Tungsten Electrode
Non-Consumable
1/8" (3.2mm) 135-200 5/32" (4.0mm) 190-280 3/16" (4.8mm) 250-340
Table 4-3: Current Ranges for Various Tungsten Electrode Sizes
Manual 0-5370
4-12
Basic Welding Guide
BASIC WELDING GUIDE FIREPOWER TIG 200 AC/DC
Guide for Selecting Filler Wire Diameter
Filler Wire Diameter DC Current Range (Amps)
1/16" (1.6mm) 20-90 3/32" (2.4mm) 65-115
1/8" (3.2mm) 100-165
3/16" (4.8mm) 200-350
Table 4-4: Filler Wire Selection Guide
Tungsten Electrode Types
Electrode Type
(Ground Finish)
Thoriated 2%
Zirconated 1%
Ceriated 2%
Base Metal Thickness
1/16"
1.6mm 1/8"
3.2mm
Welding Application Features Color Code
DC welding of mild steel, stainless steel and copper
High quality AC weld­ing of aluminium, magnesium and their alloys.
AC & DC welding of mild steel, stainless steel, copper, alumin­ium, magnesium and their alloys
AC Current for Aluminium
60-80 70-90
125-145 140-160
Excellent arc starting, Long life, High current carrying capacity
Self cleaning, Long life, Maintains balled end, High current car­rying capacity.
Longer life, More stable arc, Easier starting, Wider current range, Narrower more concentrated arc.
Table 4-5 Tungsten Electrode Types
Tungsten Electrode
Filler Rod Diameter (if required)
Diameter
1/16"
1.6mm 3/32"
2.4mm
1/16"
1.6mm 1/16"-3/32"
1.6mm - 2.4mm
Argon Gas Flow Rate
15 CFM 7 LPM
17 CFM 8 LPM
Red
White
Grey
JOINT TYPE
Butt/Corner Lap/Fillet
Butt/Corner Lap/Fillet
Basic Welding Guide
Table 4-6 Aluminium Welding Material
4-13
Manual 0-5370
FIREPOWER TIG 200 AC/DC BASIC WELDING GUIDE
Base Metal
Thickness
0.040"
1.0mm
0.045"
1.2mm 1/16"
1.6mm
1/8"
3.2mm 3/16"
4.8mm
1/4"
6.4mm
DC Current
for Mild
Steel
35-45 40-50
45-55 50-60
60-70 70-90
80-100 90-115
115-135 140-165
160-175 170-200
DC Current
for Stainless
Steel
20-30 25-35
30-45 35-50
40-60 50-70
65-85
90-110
100-125 125-150
135-160 160-180
Tungsten Electrode Diameter
0.040"
1.0mm
0.040"
1.0mm 1/16"
1.6mm 1/16"
1.6mm 3/32"
2.4mm
1/8"
3.2mm
Filler Rod
Diameter (if
required)
1/16"
1.6mm 1/16"
1.6mm 1/16"
1.6mm 3/32"
2.4mm
1/8"
3.2mm 5/32"
4.0mm
Argon Gas Flow
Joint Type
Rate
10 CFH(5 LPM) Butt/Corner
Lap/Fillet
13 CFH(6 LPM) Butt/Corner
Lap/Fillet
15 CFH(7 LPM) Butt/Corner
Lap/Fillet
15 CFH(7 LPM) Butt/Corner
Lap/Fillet
21 CFH(10 LPM) Butt/Corner
Lap/Fillet
21 CFH(10 LPM) Butt/Corner
Lap/Fillet
Table 4-7: Welding Rate
TIG Welding is generally regarded as a specialised process that requires operator competency. While many of the principles outlined in the previous Arc Welding section are applicable a comprehensive outline of the TIG Welding process is outside the scope of this Operating Manual. For further information please refer to www.firewpower. com or contact Firepower.
Manual 0-5370
4-14
Basic Welding Guide
BASIC WELDING GUIDE FIREPOWER TIG 200 AC/DC
4.04 TIG (GTAW) WELDING PROBLEMS
FAULT CAUSE REMEDY
1 Excessive bead build up or
poor penetration or poor fusion at edges of weld.
2 Weld bead too wide and
flat or undercut at edges of weld or excessive burn through.
3 Weld bead too small or
insufficient penetration or ripples in bead are widely spaced apart.
4 Weld bead too wide or
excessive bead build up or excessive penetration in butt joint.
5 Uneven leg length in fillet
joint
6 Electrode melts or oxidises
when an arc is struck.
Welding current is too low
Welding current is too
Increase weld current and/or faulty joint preparation.
Decrease weld current.
high
Travel speed too fast Reduce travel speed.
Travel speed too slow Increase travel speed.
Wrong placement of
Re-position filler rod.
filler rod
A. Torch lead connected
to positive welding
A. Connect torch lead to negative welding
terminal.
terminal.
B. No gas flowing to weld-
ing region.
C. Torch is clogged with
B. Check the gas lines for kinks or breaks
and gas cylinder contents.
C. Clean torch.
dust or dirt.
D.
Gas hose is cut. D. Replace gas hose.
E. Gas passage contains
impurities.
E. Disconnect gas hose from the rear of
Power Source then raise gas pressure and blow out impurities.
F. Gas Flowmeter/Flow-
F. Turn on. meter/Regulator turned off.
G. The electrode is too
small for the welding
G. Increase electrode diameter or reduce the
welding current.
current.
H. Power source is set for
STICK welding.
H. Set Power Source to LIFT TIG or HF TIG
mode.
Basic Welding Guide
4-15
Manual 0-5370
FIREPOWER TIG 200 AC/DC BASIC WELDING GUIDE
FAULT CAUSE REMEDY
7 Dirty weld pool A. Electrode contaminated
by contact with work piece or filler rod mate­rial.
B. Work piece surface has
foreign material on it.
C. Gas contaminated with
air.
8 Poor weld finish Inadequate shielding
gas.
9 Arc start is not smooth. A. Tungsten electrode is
too large for the weld­ing current.
B. The wrong electrode
is being used for the welding job.
C. Gas flow rate is too
high.
A. Clean the electrode by grinding off the
contaminates.
B. Clean surface.
C. Check gas lines for cuts and loose fitting
or change gas cylinder.
Increase gas flow or check gas line for gas flow problems.
A. Select the right size tungsten electrode.
Refer to Table 4-3 Tungsten Electrode Selection Chart.
B. Select the right tungsten electrode type.
Refer to Table 4-5 Tungsten Electrode Selection Chart.
C. Select the right rate for the welding job.
Refer to Table 4-7.
10 Arc flutters during TIG
welding.
D. Incorrect shielding gas
is being used.
E. Poor work clamp con-
nection to work piece.
Tungsten electrode is too large for the weld­ing current.
D. Select the right shielding gas.
E. Improve connection to work piece.
Select the right size tungsten electrode. Refer to Table 4-3 Tungsten Electrode Selection Chart.
Manual 0-5370
4-16
Basic Welding Guide
SERVICE FIREPOWER TIG 200 AC/DC
SECTION 5: POWER SOURCE PROBLEMS
AND ROUTINE SERVICE REQUIREMENTS
5.01 BASIC TROUBLESHOOTING
!
WARNING
There are extremely dangerous voltage and power levels present inside this product. Do not attempt to open or repair unless you are a qualified electrical tradesperson and you have had training in power measurements and troubleshooting techniques.
If major complex subassemblies are faulty, then the Welding Power Source must be returned to an accredited Firepower Service Provider for repair. The basic level of troubleshooting is that which can be performed without special equipment or knowledge. Refer also to section 4 for solving welding problems.
5.02 POWER SOURCE PROBLEMS
FAULT CAUSE REMEDY
1. Mains supply voltage is ON, power indicator is illuminated however unit will not commence welding when the torch trigger switch is depressed.
2. Mains supply voltage is ON. Indicator light is not lit and welding arc cannot be established.
3. Fault Indicator is illuminated and unit will not commence welding when the torch trigger switch is depressed.
4. Welding output continues when torch trigger released
5. Welding output voltage is present when the torch trigger switch is depressed but arc cannot be established.
6. Welding output voltage is not present when torch trigger depressed
7. TIG electrode melts when arc is struck.
8. Arc flutters during TIG welding.
9. No HF output in HF mode HF Circuit faulty Have an Accredited Firepower
A.
Power source is not in the correct mode of operation.
B.
Faulty torch trigger.
A. B.Primary control fuse is blown.
Broken connection in primary circuit.
Duty cycle of power source has been exceeded.
A.
Trigger mode selection is in 4T (LATCH) mode
B.
Torch trigger leads shorted
Poor or no work lead contact. Clean work clamp area and ensure
Faulty trigger switch / lead Repair or replace Torch / trigger
TIG torch is connected to the (+) VE terminal. Tungsten electrode is too large for the welding current.
A.
Set the power source to the correct mode of operation with the process selection switch.
B.
Repair or replace torch trigger switch/lead.
A. B.Replace primary control fuse.
Have an Accredited Firepower Service Provider check primary circuit.
Leave the power source switched ON and allow it to cool. Note that fault indicator must be extinguished prior to commencement of welding.
A.
Change to 2T (NORMAL) mode
B.
Repair or replace Torch / trigger lead
good electrical contact.
lead
Connect the TIG torch to the (-) VE terminal. Select the correct size of tungsten electrode.
Service Provider check HF circuit.
Service
5-1
Manual 0-5370
FIREPOWER TIG 200 AC/DC SERVICE
!
FAULT CAUSE REMEDY
Error Code “Err 001” is displayed on the digital displays in conjunction with the Fault Indicator Illuminating.
A. Thermal Overload This is due to the duty cycle of
the power source being exceeded. Once the power source cools sufficiently it will automatically reset and the Fault Indicator and Err 001 will go off and the power source is then able to continue welding. During the time of cooling the power source should remain ON such that the fan continues to operate allowing the unit to cool sufficiently. If after 30 minutes with the fan running the Fault Indicator has not gone OFF then have an Accredited Firepower Service Provider check the power source.
B.
Primary Circuit Overload This is due to primary circuit
component(s) malfunctioning which results in excessive primary circuit current. Switch the power source to OFF immediately to allow all components to cool down for at least 30 minutes. If after 30 minutes “Err 001” is displayed and Fault Indicator illuminates when the power source is switched back ON turn the power source OFF and have an Accredited Firepower Service Provider check the power source.
Table 5-1: Power Source Problem
5.03 Routine Service and Calibration Requirements
There are extremely dangerous voltage and power levels present inside this Inverter Power Source. Do not attempt to open or repair unless you are an accredited Firepower Service Provider. Disconnect the Welding Power Source from the Mains Supply Voltage before disassembling.
Routine Inspection, Testing & Maintenance
The inspection and testing of the power source and associated accessories shall be carried out in accordance with Section 5 of EN 60974.1: Safety in Welding and Allied Processes-Part 2 Electrical. This includes an insulation resis­tance test and an earthing test to ensure the integrity of the unit is compliant with Firepower original specifications.
If equipment is to be used in a hazardous location or environments with a high risk of electrocution as outlined in EN 60974.1, then the above tests should be carried out prior to entering this location.
Manual 0-5370
WARNING
5-2
Service
SERVICE FIREPOWER TIG 200 AC/DC
A. Testing Schedule
1. For transportable equipment, at least once every 3 months; and
2. For fixed equipment, at least once every 12 months.
The owners of the equipment shall keep a suitable record of the periodic tests and a system of tagging, includ­ing the date of the most recent inspection.
A transportable power source is deemed to be any equipment that is not permanently connected and fixed in the position in which it is operated.
B. Insulation Resistance
Components to be Tested
Input circuit (including any connected control circuits) to welding circuit (including any connected control circuits)
All circuits to exposed conductive parts Welding circuit (including any connected control circuits) to any auxiliary
circuit which operates at a voltage exceeding extra low voltage Welding circuit (including any connected control circuits) to any auxiliary
circuit which operates at a voltage not exceeding extra low voltage Separate welding circuit to separate welding circuit
Minimum Insulation
Resistance (MΩ)
5
2.5
10
1
1
Table 5-2: Minimum Insulation Resistance Requirements: Firepower Inverter Power Sources
C. Earthing
The resistance shall not exceed 1Ω between any metal of a power source where such metal is required to be earthed, and -
1. The earth terminal of a fixed power source; or
2. The earth terminal of the associated plug of a transportable power source
Note that due to the dangers of stray output currents damaging fixed wiring, the integrity of fixed wiring sup­plying Firepower welding power sources should be inspected by a licensed electrical worker in accordance with the requirements below -
1. For outlets/wiring and associated accessories supplying transportable equipment - at least once every 3 months; and
2. For outlets/wiring and associated accessories supplying fixed equipment - at least once every 12 months.
D. General Maintenance Checks
Welding equipment should be regularly checked by an accredited Firepower Service Provider to ensure that:
1. Flexible cord is of the multi-core tough rubber or plastic sheathed type of adequate rating, correctly connected and in good condition.
2. Welding terminals are in suitable condition and are shrouded to prevent inadvertent contact or short circuit.
3. The Welding System is clean internally, especially from metal filing, slag, and loose material.
Service
5-3
Manual 0-5370
FIREPOWER TIG 200 AC/DC SERVICE
!
E. Accessories
Accessory equipment, including output leads, electrode holders, torches, wire feeders and the like shall be inspected at least monthly by a competent person to ensure that the equipment is in a safe and serviceable condition. All unsafe accessories shall not be used.
F. Repairs
If any parts are damaged for any reason, it is recommended that replacement be performed by an accredited Firepower Service Provider.
Power Source Calibration
A. Schedule
Output testing of all Firepower Inverter Power Sources and applicable accessories shall be conducted at regular intervals to ensure they fall within specified levels. Calibration intervals shall be as outlined below -
1. For transportable equipment, at least once every 3 months; and
2. For fixed equipment, at least once every 12 months.
If equipment is to be used in a hazardous location or environments with a high risk of electrocution as outlined in EN 60974.1, then the above tests should be carried out prior to entering this location.
B. Calibration Requirements
Where applicable, the tests outlined in Table 5-3 below shall be conducted by an accredited Firepower service provider.
Testing Requirements
Output current (A) to be checked to ensure it falls within applicable Firepower power source specifications Output Voltage (V) to be checked to ensure it falls within applicable Firepower power source specifications
Accuracy of digital meters to be checked to ensure it falls within applicable Firepower power source specifi­cations
Table 5-3: Calibration Parameters
Periodic calibration of other parameters such as timing functions are not required unless a specific fault has been identified.
C. Calibration Equipment
All equipment used for Power Source calibration shall be in proper working condition and be suitable for conducting the measurement in question. Only test equipment with valid calibration certificates (NATA certi­fied laboratories) shall be utilized.
5.04 Cleaning the Welding Power Source
There are dangerous voltage and power levels present inside this product. Do not attempt to open or repair unless you are a qualified electrical tradesperson. Disconnect the Welding Power Source from the Mains Supply Voltage before disassembling.
To clean the Welding Power Source, open the enclosure and use a vacuum cleaner to remove any accumulated dirt, metal filings, slag and loose material. Keep the shunt and lead screw surfaces clean as accumulated foreign material may reduce the welders output welding current.
Manual 0-5370
WARNING
5-4
Service
SPARE PARTS FIREPOWER TIG 200 AC/DC
SECTION 6:
KEY SPARE PARTS
6.01 POWER SOURCE
24
21
15
23
12
1
13
12
14
7
19
5
6
16
2
3
11
4
25
28
17
9
A-11500_AC
20
10
8
Spare Parts
Figure 6-1
6-1
18
Manual 0-5370
FIREPOWER TIG 200 AC/DC SPARE PARTS
200 AC/DC Spare Parts
Item Part Number Description
1 W7005500 PCB display 2 W7005503 PCB aux power supply 3 W7005502 PCB HF 4 W7005504 PCB 200ACDC 5 W7005505 PCB AC output drive 6 W7005506 PCB control 7 W7005507 PCB secondary rectifier
8
9 W7005509 Coil coupling HF
10 W7005520 Fan assembly
11 12 13
14 W7005514 Gas outlet, front panel 15 W7005515 Switch, On/Off
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1442-0093 Front Control, Label (now shown)
1442-0090 Side Panel
W7003033 Gas solenoid assembly W7005513 Dinse Socket 50mm² W7005568 Control socket 8 pin (including wire harness)
W7003076 CT, output W7005539 Inductor 200AC/DC 1442-0091 Base Panel W7005531 Front panel W7005516 Rear panel 1442-0092 Panel, Top Cover W7003215 Gas inlet fitting(not shown) W7005537 Control knob, (25mm
2
OD)
W7005536 Handle W7004952 CT, primary W7005501 Shroud, Knob, Front Panel (not shown) W7004930 Shielding Gas Hose Assy (not shown) W7005511 Transformer
831761 Set-Up Guide, English (not shown) 831762 Set-Up Guide, French (not shown)
Table 6-1
Manual 0-5370
6-2
Spare Parts
APPENDIX FIREPOWER TIG 200 AC/DC
APPENDIX 1 : CIRCUIT DIAGRAM
11/07/14
200 AC/DC SYSTEM SCHEMATIC
Appendix
A-1
A-12719
Manual 0-5370
FIREPOWER TIG 200 AC/DC APPENDIX
APPENDIX 2 : 200 AC/DC SETUP GUIDE
Manual 0-5370
A-2
Appendix
APPENDIX FIREPOWER TIG 200 AC/DC
A-12718
Appendix
A-3
Manual 0-5370
FIREPOWER TIG 200 AC/DC APPENDIX
This Page Blank Intentionally
Manual 0-5370
A-4
Appendix
This Page Intentionally Blank
Firepower - LIMITED WARRANTY TERMS
LIMITED WARRANTY: Firepower®, Inc, A Victor Technologies Company, warrants to customers of its authorized distributors hereafter “Purchaser” that its products will be free of defects in workmanship or material. Should any failure to conform to this warranty appear within the time period applicable to the Firepower products as stated below, Firepower shall, upon notification thereof and substantiation that the product has been stored, installed, operated, and maintained in accordance with Firepower’s specifications, instructions, recommendations and recognized standard industry practice, and not subject to misuse, repair, neglect, alteration, or accident, correct such defects by suitable repair or replacement, at Firepower’s sole option, of any components or parts of the product determined by Firepower to be defective.
Firepower MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHERS, INCLUDING, BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
LIMITATION OF LIABILITY: Firepower SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO, LOST PROFITS AND BUSINESS INTERRUPTION. The remedies of the Purchaser set forth herein are exclusive and the liability of Firepower with respect to any contract, or anything done in connection therewith such as the performance or breach thereof, or from the manufacture, sale, delivery, resale, or use of any goods covered by or furnished by Firepower whether arising out of contract, negligence, strict tort, or under any warranty, or otherwise, shall not, except as expressly provided herein, exceed the price of the goods upon which such liability is based. No employee, agent, or representative of Firepower is authorized to change this warranty in any way or grant any other warranty.
PURCHASER’S RIGHTS UNDER THIS WARRANTY ARE VOID IF REPLACEMENT PARTS OR ACCESSORIES ARE USED WHICH IN Firepower’S SOLE JUDGMENT MAY IMPAIR THE SAFETY OR PERFORMANCE OF ANY Firepower PRODUCT. PURCHASER’S RIGHTS UNDER THIS WARRANTY ARE VOID IF THE PRODUCT IS SOLD TO PURCHASER BY NON-AUTHORIZED PERSONS.
The warranty is effective for the time stated below beginning on the date that the authorized distributor delivers the products to the Purchaser. Notwithstanding the foregoing, in no event shall the warranty period extend more than the time stated plus one year from the date Firepower delivered the product to the authorized distributor.
WARRANTY SCHEDULE
2 Years Parts* and Labor
* 2 years on the Original Main Power Transformer and Inductors not mounted on PC Boards.
* 2 years on Power Supply Components
2 Years Parts / No Labor
Auto-Darkening Welding Helmet (electronic Lens), ** 1 Month Harness Assy
Firepower Flowmeter/Regulator for Firepower MST 220i (No labor)
90 days parts / No Labor
Remote Controls
MIG and TIG Torches (Supplied with power sources)
Replacement repair parts
Victor Technologies limited warranty shall not apply to:
Consumable Parts for MIG, TIG, Plasma welding, Plasma cutting and Oxy fuel torches, O-rings, fuses, filters or other parts that fail due normal wear.
* Warranty repairs or replacement claims under this limited warranty must be submitted by an authorized Victor Technologies repair facility within thirty (30) days of the repair.
* No employee, agent, or representative of Victor Technologies is authorized to change this warranty in any way or grant any other warranty, and Victor Technologies shall not be bound by any such attempt. Correction of non-conformities, in the manner and time provided herein, constitutes fulfillment of Victor Technologies’s obligations to purchaser with respect to the product.
* This warranty is void, and seller bears no liability hereunder, if purchaser used replacement parts or accessories which, in Victor Technologies's sole judgment, impaired the safety or performance of any Victor Technologies product. Purchaser’s rights under this warranty are void if the product is sold to purchaser by unauthorized persons.
THE AMERICAS
Denton, TX USA U.S. Customer Care
Ph 1-800-426-1888 (tollfree) Fax: 1-800-535-0557 (tollfree)
International Customer Care
Ph 1-940-381-1212 Fax: 1-940-483-8178
Miami, FL USA Sales Office, Latin America
Ph 1-954-727-8371 Fax: 1-954-727-8376
Oakville, Ontario, Canada Canada Customer Care
Ph 1-905-827-4515 Fax: 1-800-588-1714 (tollfree)
EUROPE
Chorley, United Kingdom Customer Care
Ph +44 1257-261755 Fax: +44 1257-224800
Milan, Italy Customer Care
Ph +39 0236546801 Fax: +39 0236546840
ASIA/PACIFIC
Cikarang, Indonesia Customer Care
Ph 6221-8990-6095 Fax: 6221-8990-6096
Rawang, Malaysia Customer Care
Ph +603 6092-2988 Fax: +603 6092-1085
Melbourne, Australia Australia Customer Care
Ph 1300-654-674 (tollfree) Ph 61-3-9474-7400 Fax: 61-3-9474-7391
International
Ph 61-3-9474-7508 Fax: 61-3-9474-7488
Shanghai, China Sales Office
Ph +86 21-64072626 Fax: +86 21-64483032
Singapore Sales Office
Ph +65 6832-8066 Fax: +65 6763-5812
U.S. Customer Care: 800-426-1888 / FAX 800-535-0557 Canada Customer Care: 905-827-4515 / FAX 800-588-1714 International Customer Care: 940-381-1212 / FAX 940-483-8178
© 2012 Victor Technologies International, Inc. www.victortechnologies.com Printed in China
INNOVATION TO SHAPE THE WORLD™
Loading...
