FIREPOWER 5208 User Manual
Section 5
Operation
To operate the SK-5208 you can use either the on-board touchpad or the Model SK-5235
Remote Annunciator.

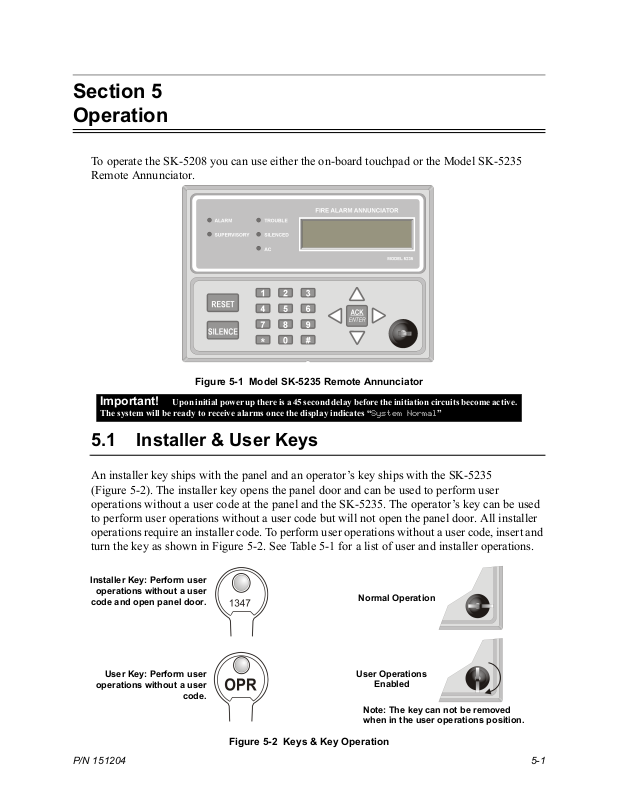

Figure 5-1 Model SK-5235 Remote Annunciator
Important! Upon initial power up there is a 45 second delay before the initiation circuits become active.
The system will be ready to receive alarms once the display indicates “System Normal”
5.1 Installer & User Keys
An installer key ships with the panel and an operator’s key ships with the SK-5235
(Figure 5-2). The installer key opens the panel door and can be used to perform user
operations without a user code at the panel and the SK-5235. The operator’s key can be used
to perform user operations without a user code but will not open the panel door. All installer
operations require an installer code. To perform user operations without a user code, insert and
turn the key as shown in Figure 5-2. See Table 5-1 for a list of user and installer operations.
Installer Key: Perform user
operations without a user
code and open panel door.
User Key: Perform user
operations without a user
code.
Normal Operation
User Operations
Enabled
Note: The key can not be removed
when in the user operations position.
Figure 5-2 Keys & Key Operation
P/N 151204 5-1
Model SK-5208 Fire Control/Communicator Installation and Operation Manual
5.2 On-board Touchpad and SK-5235 Operation
Basic operations for the on-board annunciator (touchpad) and SK-5235 are described in Table
5-1. If you are using an annunciator key or the Flex Door option, you are not required to enter
a code for operator level functions.
If no keys are pressed for 4 minutes while in program mode, the system will time out and
resume normal operation.
Table 5-1: Basic Panel Operations Using the On-Board Annunciator and the SK-5235
Do This
How To
Test the system
Reset Alarms
Clear History
Reset the Dialer
Call Computer to Up/
Download
Display History
Events
Show Status
Silence Troubles or
Alarms
Set the Date
Set the Time
Disable/Enable a
Zone
Disable/Enable NAC
Conduct a Fire Drill
Reset Detectors
Walk Test the System
Press
0
1
or
2
3
4
5
6
7
or
8
9
Zone # +
1 0
NAC #
2 0
2 1
2 2
Display
Message
System Test
Enter Code
Reset Alarm
Enter Code
Clear History
Enter Code
Reset Dialer
Enter Code
Call Computer
Enter Code
History Events
Enter Code
Show Status
Enter Code
Silence
Enter Code
Set Date
Enter Code
Set Time
Enter Code
Disable Zone
Enter Code
Disable NAC
Enter Code
Fire Drill
Enter Code
Rst Smk Pwr
Enter Code
Walk Test
Enter Code
Press*
Enter Code
Enter Code
Enter Installer
Code
Enter Code
Enter Installer
Code
Enter Code
Enter Code
Enter Code
Enter Code
Enter Code
Enter Code
Enter Code
Enter Code
Enter Code
Enter Code
Comments
System performs a display lamp test, a
communication test, and displays the firmware
number and revision. See 5.2.1 for an example.
Resets system.
Clears event history of all events.
Resets the dialer and aborts the call to central
station.
Will dial the programmed phone number for the
computer to initiate an up or download.
Displays panel history, including alarms,
supervisories, troubles, reports, time and date
changes, etc.
View existing system status. List Alarms first,
supervisories and then troubles.
Enter 8 digits for the date. For example, to set
the date 08/31/1999 enter 08311999. Press
to clear incorrect entries.
Enter the time in 24 hour increments. For
example, 1:00 pm = 13:00.
Repeat the process to enable the zone.
Repeat the process to enable the NAC.
To End the Fire Drill press then code.
Resets all smoke detector power.
To End the Walk Test press .
#
Menu of Options
Press or to
scroll through list.
To exit press or wait 15 seconds.
* Code = any valid operator or installer code.
5-2 P/N 151204
