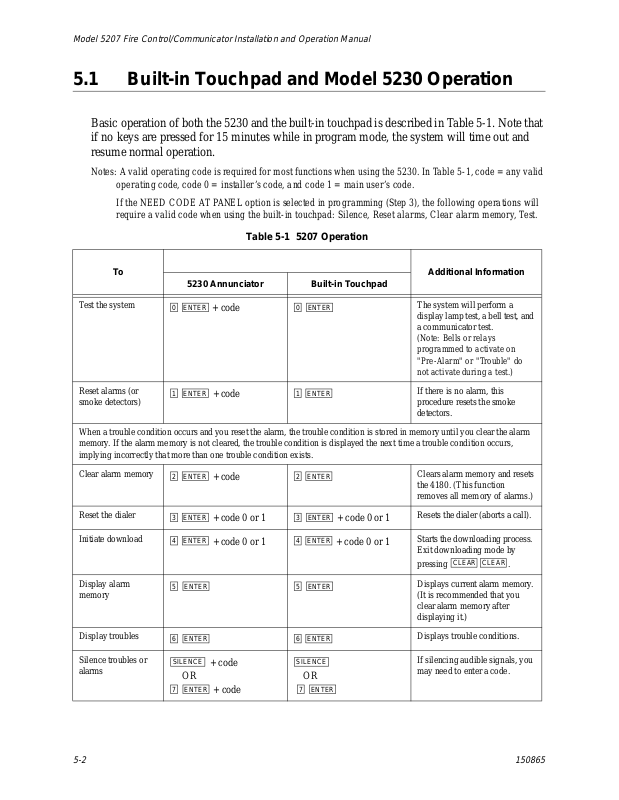

Model 5207 Fire Control/Communicator Installation and Operation Manual
5.1 Built-in Touchpad and Model 5230 Operation
Basic operation of both the 5230 and the built-in touchpad is described in Table 5-1. Note that
if no keys are pressed for 15 minutes while in program mode, the system will time out and
resume normal operation.
Notes: A valid operating code i s r eq uired for most functio ns when using the 5230. In Ta ble 5-1, code = any valid
operating code, code 0 = installer’s code, and code 1 = main user’s code.
If the NEED CODE AT PANEL option is selected in programming (Step 3), the following operations will
require a valid code when using the built-in touchpad: Silence, Reset alarms, Clear alarm memory, Test.
Table 5-1 5207 Operation
To Additional Information
5230 Annunciator Built-in Touchpad
T est the system
Reset alarms (or
smoke detectors)
When a trouble condition occurs and you reset the alarm, the trouble condition is stored in memory until you clear the alarm
memory. If the alarm memory is not cleared, the trouble condition is displayed the next time a trouble condition occurs,
implying incorrectly that more than one trouble condition exists.
Clear alarm memory
Reset the dialer
Initiate download
Display alarm
memory
0 ENTER 0 ENTER
+ code
1 ENTER 1 ENTER
2 ENTER 2 ENTER
3 ENTER 3 ENTER
4 ENTER 4 ENTER
5 ENTER 5 ENTER
+ code
+ code
+ code 0 or 1
+ code 0 or 1
+ code 0 or 1
+ code 0 or 1
The system will perform a
display lamp test, a b ell test, and
a communicator test.
(Note: Bells or relays
programmed to activate on
"Pre-Alarm" or "Trouble" do
not activate during a t e st.)
If there is no alarm, this
procedure resets the smoke
detectors.
Clears a larm memory and resets
the 4180. (This function
removes all memory of alarms.)
Resets the dialer (aborts a call).
Starts the downloading process.
Exit downloading mode by
pressing .
Displays current alarm memory.
(It is recommended that you
clear alarm memory after
displaying it.)
CLEAR CLEAR
Display troubles
Silence troubles or
alarms
5-2 150865
6 ENTER 6 ENTER
SILENCE
OR
7 ENTER
+ code
+ code
SILENCE
OR
7 ENTER
Displays trouble conditions.
If silencing audible signals, you
may need to enter a code.
