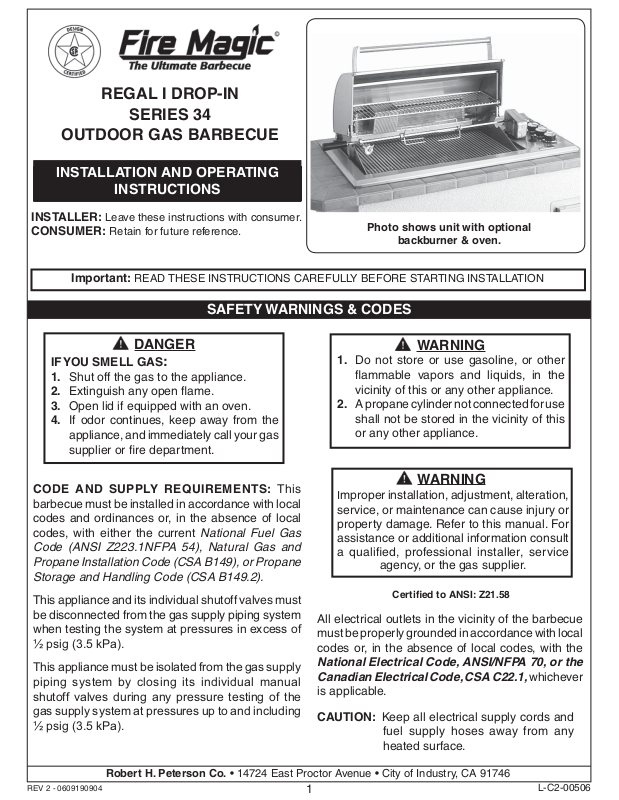

Fire Magic Regal 1 Owner's Manual

REGAL I DROP-IN

SERIES 34

OUTDOOR GAS BARBECUE

INSTALLATION AND OPERATING

INSTRUCTIONS

INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.

Important: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION

SAFETY WARNINGS & CODES

DANGER

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open fl ame.

3. Open lid if equipped with an oven.

4. If odor continues, keep away from the

appliance, and immediately call your gas
supplier or fi re department.

CODE AND SUPPLY REQUIREMENTS: This
barbecue must be installed in accordance with local
codes and ordinances or, in the absence of local
codes, with either the current National Fuel Gas

Code (ANSI Z223.1NFPA 54), Natural Gas and
Propane Installation Code (CSA B149), or Propane
Storage and Handling Code (CSA B149.2).

Photo shows unit with optional

backburner & oven.

WARNING

1. Do not store or use gasoline, or other

fl ammable vapors and liquids, in the
vicinity of this or any other appliance.

2. A propane cylinder not connected for use

shall not be stored in the vicinity of this
or any other appliance.

WARNING

Improper installation, adjustment, alteration,

service, or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information consult
a qualifi ed, professional installer, service

agency, or the gas supplier.

This appliance and its individual shutoff valves must
be disconnected from the gas supply piping system
when testing the system at pressures in excess of

½ psig (3.5 kPa).

This appliance must be isolated from the gas supply
piping system by closing its individual manual
shutoff valves during any pressure testing of the
gas supply system at pressures up to and including
½ psig (3.5 kPa).

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

REV 2 - 0609190904

Certifi ed to ANSI: Z21.58

All electrical outlets in the vicinity of the barbecue
must be properly grounded in accordance with local
codes or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.1, whichever

is applicable.

CAUTION: Keep all electrical supply cords and

fuel supply hoses away from any
heated surface.

1

L-C2-00506

BARBECUE EXTÉRIEUR De GAZ

De la SÉRIE 34 MAJESTUEUX De I

DROP-IN

INSTALLATION ET CONSIGNES

D’UTILISATION

INSTALLATEUR : Laissez ces instructions avec le

consommateur.
CONSOMMATEUR : Maintenez pour la future
référence.

Important: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L’INSTALLATION

AVERTISSEMENTS ET CODES DE SÛRETÉ

La photo montre l’unité avec le

backburner et le four facultatifs.

DANGER

SI VOUS SENTEZ LE GAZ :

1. Coupez le gaz à l’appareil.

2. Éteignez-vous n’importe quelle fl amme nue.

3. Ouvrez le couvercle si équipé d’un four.

4. Si l’odeur continue, gardez loin de l’appareil,

et appelez immédiatement votre département
de fournisseur ou de feu de gaz.

CONDITIONS DE CODE ET
D’APPROVISIONNEMENT : Ce barbecue doit être

installé selon des codes et des ordonnances locaux
ou, en l’absence des codes locaux, avec le code
national courant de gaz de carburant (norme ANSI
Z223.1NFPA 54), gaz naturel et code d’installation
de propane (CSA B149), ou stockage de propane
et le code de manipulation (CSA B149.2).

Cet appareil et ses différents robinets d’isolement
doivent être démontés du système siffl ant d’offre
de gaz en examinant le système aux pressions
au-dessus du ½ psig (kPa 3.5).

Cet appareil doit être isolé dans le système
siffl ant d’offre de gaz par fermeture ses différents
robinets d’isolement manuels pendant tous les
essais sous pression du circuit d’alimentation de
gaz aux pressions jusques et y compris le ½ psig
(kPa 3.5).

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

REV 2 - 0609190904

AVERTISSEMENT

1. Ne stockez pas ou n’employez pas

l’essence, ou d’autres vapeurs et liquides
infl ammables, à proximité de ceci ou
d’aucun autre appareil.

2. Un cylindre de propane non relié pour

l’usage ne sera pas stocké à proximité
de ceci ou d’aucun autre appareil.

AVERTISSEMENT

L’installation inexacte, l’ajustement, le changement,
le service, ou l’entretien peuvent causer des
dommages ou des dégats matériels. Référez­vous à ce manuel. Pour l’aide ou l’information
additionnelle consultez un installateur qualifi é
et professionnel, l’agence de service, ou le

fournisseur de gaz.

Certifi é à la norme ANSI : Z21.58

Toutes les sorties électriques à proximité du
barbecue doivent être correctement fondues selon
des codes locaux ou, en l’absence des codes locaux,
avec Code électrique national, ANSI/NFPA 70,
ou le code électrique canadien, CSA C22.1, celui
qui est applicable.

ATTENTION: Maintenez tous les cordes

d’alimentation électrique et tuyaux
d’approvisionnement en carburant
partis de n’importe quelle surface
de chauffage.

2

L-C2-00506

TABLE OF CONTENTS

SAFETY WARNINGS & CODES 1
TABLE OF CONTENTS 3
PRODUCT DATA TABLE 3
PARTS LIST 5
FIRE MAGIC REGAL I DROP-IN SERIES GAS BARBECUE (w/BACKBURNER) PARTS LIST 6
FIRE MAGIC REGAL I DROP-IN BACKBURNER & OVEN PARTS LIST (WHERE FITTED) 7
PLANNING FOR INSTALLATION OF YOUR REGAL I DROP-IN SERIES BARBECUE 8

WHERE TO INSTALL YOUR GAS BARBECUE 8
INSURING PROPER COMBUSTION AIR AND VENTILATION 8
EXHAUST REMOVAL 8
ELECTRICAL OUTLETS 8

SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS 9

CYLINDER AND CONNECTOR REQUIREMENTS AND SPECIFICATIONS 9

INSTALLING YOUR FIRE MAGIC REGAL I DROP-IN SERIES BARBECUE 11
CHECKING AND CONVERTING GAS TYPE 12
CHECKING AND CONVERTING THE REGULATOR 12
CHECKING/CONVERTING THE BURNER ORIFICES 13

MAIN BURNER AIR SHUTTER ADJUSTMENT 13

CHECKING/CONVERTING THE BURNER ORIFICES (Cont.) 14
AIR SHUTTER ADJUSTMENT 15

MAIN BURNER AIR SHUTTER ADJUSTMENT 15

BACKBURNER AIR SHUTTER ADJUSTMENT 15

BARBECUE SAFETY INFORMATION & MAINTENANCE 16

DRIP COLLECTION SYSTEM 16

LIGHTING (IGNITION) INSTRUCTIONS 17

MANUAL LIGHTING 17

ROTISSERIE INSTRUCTIONS 19

USING YOUR BACKBURNER AND ROTISSERIE 19

REPLACING THE IGNITOR BATTERY 20
TROUBLESHOOTING 20
ACCESSORIES 21

USING THE GRILL SCRAPER 21

USING THE COOKING GRILL LIFTER 21

WARMING RACK 21

BARBECUE CARE & CLEANING 23
BARBECUE COVER 23

FIRE MAGIC OUTDOOR GAS BARBECUES LIMITED WARRANTY 24

PRODUCT DATA TABLE

Specifi cation

Counter Opening Height*

Counter Opening Width*

41 1/2" (105.4 cm)

Counter Opening Depth*

Main Burner

BTU per burner pair
Natural Gas Orifi ce
Propane Gas Orifi ce

Tools required for installation

• #2 medium size adjustable wrenches or pliers

3

•

• Pipe joint compound resistant to all glasses
Note:

REV 2 - 0609190904

/

" (.95 cm) wrench or

8

3

/

" (.95 cm) socket if orifi ce change is required.

8

#52 (part# 3001-52)
#61 (part# 3001-61)

3

/

8

Value

20 1/2" (52.1 cm)

18" (45.7 cm)

21,300 (6.2 kw)

" (.95 cm) socket screwdriver

Table 1 - Product Data Table

Specifi cation

Backburner

BTU per burner
Natural Gas Orifi ce
Natural Air Shutter
Propane Gas Orifi ce
Propane Air Shutter

*Note: If using an insulating liner

3

Value

22,000 (6.4 kw)

#42 (part# 3001-42)

5

/8 -inch gap (.63 cm)
#54 (part# 3001-54)

7

/

-inch gap (.49 cm)

16

consult liner instructions for
counter cut-out dimensions.

L-C2-00506

AVERTISSEMENTS

Avertissements généraux :

• Ce barbecue est pour ultilisation à l’extérieur seulement. Si l’appareil est entreposé à l’intérieur,
enlever les bouteilles et les laisser à l’extérieur.

• Ne pas ranger le gril immédiatement aprés l’avoir utilisé. le laisser refroidir avant de le déplacer
ou de la ranger. Le non respect de cette mesure de sécurité pourrait entraîner un incendie
causant des dommages à la propriété, des blessures ou la mort.

• Ne pas utiliser cet appareil sous une surface combustible.

• Ne pas utiliser cet appareil sous un auvent. Le non respect de cette mesure de sécurité pourrait
entraîner un incendie ou des blessures.

• Dégagement minimal entre les parois latérales et l’arriére de l’appareil et la construction
combustible (45.7 cm à partir des parois latérales et 45.7cm à partir de l’arriére).

• Le régulareur de pression de gaz prévu avec cet appareil de cuisson à gaz pour l’extérieur
doit être utilisé. Ce régulateur est réglé pour une pression de sortie de 5 pouces de colonne
de l’eau pour le gaz naturel, et 10 pouces pour le propane.

• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ POUR LE MAXIMUM DE 1/2 (LIVRES
PAR POUCE CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS GRAND QUE (LIVRES
PAR POUCE CARRÉ), UN RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ AVANT LE
BARBECUE. VOIR LA SECTION DE CONDITIONS D’OFFRE DE GAZ POUR LA PRESSION
APPROPRIÉE D’OFFRE DE GAZ.

• Ne couvrez jamais la surface entière de cuisine ou de gril de gauffreuses ou de casseroles.
La surchauffe se produira et les brûleurs ne seront pas très performants quand la chaleur de
combustion est emprisonnée au-dessous de la surface à cuire.

• Ne pulvérisez jamais l’eau sur une unité chaude de gaz, comme ceci peut endommager des
composants de porcelaine ou de fer de fonte.

Avertissements de propane :

• Une fuite de GPL peut causer une incendie ou une explosion si enfl ammée entraînant des
blessures corporelles graves ou la mort.

• Communiquez avec le fournisseur de GPL pour les réparations ou pour disposer de qules
bouteille ou du GPL non utilisé.

REV 2 - 0609190904

4

L-C2-00506

PARTS LIST

Item Description

1. TOP PANEL, REGAL I DRP-IN ,S.S

or TOP PANEL, REGAL I DRP-IN, PORCELAIN

2. 18"X10" PORCELAINIZED CAST IRON
GRIDS W / NON-STICK MATTE FINISH

or 18"X10" STAINLESS STEEL ROD GRID

3. FLAVOR GRID 7"

4. FLAVOR GRID 10" (2)

5. BURNER SHORT 304 CST SS, L/PKG (3)

6. SPRING, AIR SHUTTER (3)

7. AIR SHUTTER, DROP-IN REGAL (3

8. ORIFICE, 11/32-32 NAT GAS (SEE PRODUCT
DATA FILE)

or ORIFICE, 11/32-32 PROPANE GAS (SEE

PRODUCT DATA FILE)

9. VALVE MANIFOLD W/VALVE & REGULATOR

10. MANIFOLD BURNER, BRASS (3)

11. ASSY, 15.5" FLEX TUBE

12. ASSY, 34" FLEX TUBE

13. ASSY, 48" FLEX TUBE

14. KNOBS, REGAL DROP-IN (3)

15. IGNITOR ASSEMBLY

16. GROUND WIRE

17. ASSY, ELECTRODE COLLECTOR

18. DRIP PAN HOLDER

19. DRIP PAN SUPPORT

20. DRIP PAN, DISPOSABLE

1

2

Replacement parts can be ordered
from your local Fire Magic dealer.

7

8

10

15

3

4

16

5

6

13

14

17

9

20

19

REV 2 - 0609190904

12

11

18

5

L-C2-00506

FIRE MAGIC REGAL I DROP-IN SERIES GAS BARBECUE (w/BACKBURNER) PARTS LIST

4

2

IMPORTANT

This Fire Magic oven
and backburner are fully
pre-assembled and tested at
the factory.

DO NOT attempt to remove
the oven and backburner
(optional) from the
barbecue prior to or during
installation or damage to
the connecting gas line and
ignitor wiring may occur.

The plastic straps that
secure the oven (optional)
to the barbecue unit must
be removed and discarded
prior to lighting.

9

11

3

20

1

18

5

19

6

13

7

17

10

12

Item Description

1. ASSY, OVEN W/BB S.S. OR PORCELAIN

2. BACKBURNER ASSEMBLY

3. TOP PANEL, REGAL I DRP-IN ,S.S.
or TOP PANEL, REGAL I DRP-IN, PORCELAIN

4. 18"x10" PORCELAINIZED CAST IRON GRIDS W / NON­STICK MATTE FINISH (3)

or 18"X10" STAINLESS STEEL ROD GRID (3)

5. FLAVOR GRID 7" (1)

6. FLAVOR GRID 10" (2)

7. BURNER SHORT 304 CST SS, L/PKG

8. SPRING, AIR SHUTTER (3)

9. AIR SHUTTER, DROP-IN REGAL (3)

10. ORIFICE, 11/32-32 NAT GAS (SEE PRODUCT DATA FILE)
or ORIFICE, 11/32-32 PROPANE GAS (SEE PRODUCT DATA

FILE)

8

Item Description

11. ORIFICE, BACKBURNER, #42 NAT GAS
or ORIFICE, BACKBURNER, #54 PROPANE

12. MANIFOLD BURNER, BRASS (3)

13. VALVE MANIFOLD W/VALVE & REGULATOR
or TOP PANEL, REGAL I DRP-IN, PORCELAIN

14. ASSY, 48" FLEX TUBE

15. ASSY, 34" FLEX TUBE

16. ASSY, 15.5" FLEX TUBE

17. ASSY, ELECTRODE COLLECTOR

18. KNOB, BACKBURNER, REGAL DROP-IN (1)

19. KNOBS, REGAL DROP-IN (3)

20. IGNITOR GENERATOR

21. DRIP PAN HOLDER

22. DRIP PAN SUPPORT

23. DRIP PAN, DISPOSABLE

16

15

14

22

23

21

REV 2 - 0609190904

6

L-C2-00506

FIRE MAGIC REGAL I DROP-IN BACKBURNER & OVEN PARTS LIST (WHERE FITTED)

e
s

Important: Your Fire Magic barbecue, oven and

backburner (where fi tted) are fully
pre-assembled and tested at the
factory.

Do not attempt to remove the oven and backburner from

the barbecue prior to or during installation. Damage to
the connecting gas line and ignitor wiring may occur.

The plastic straps that secure the oven to the barbecue
unit should be removed and discarded prior to
lighting.

PARTS INCLUDED WITH THE BACKBURNER ASSEMBLY ARE INSIDE THE BROKEN LINE

EXPLODED VIEW OF BACKBURNER ASSEMBLY

Orifice, LP

wire

or Orifice, NG

3/4” Pal nut

4732-07

Electrode

EL-34
Elbow (lid stop)

IGNITOR

Ignitor

ELECTRODE

electrode

WIRE

wire

PAL NUT

Pal nut

El-34, elbow
& orifi ce

OVEN

Oven

EL-34, ELBOW
& ORIFICE

Backburner assembly

4732-09

Woodchip smoker tray

4732-08

Mounting bracket

Screw , 10-32 x 3/8”, SS

3730-02
Oven lid stop
bumper (pair)

Item

3/4” Pal nut

Description

No.

1. Rotisserie motor with
mounting bracket attached

2. Spit prongs

3. Handle

4.

Spit rod

5

/

" hex

8

5. Counterbalance

6. Spit bracket

4199-69

Electrode double rod

w/electrode

Air shutter &

Adj. screw

Backburner cover

6

3030-01
Backburner gas lin
w/compression nut
& sleeves

3

2

4

1

5

REV 2 - 0609190904

Mounting

bracket

7

L-C2-00506

PLANNING FOR INSTALLATION OF YOUR REGAL I DROP-IN SERIES BARBECUE

WHERE TO INSTALL YOUR GAS BARBECUE

Fire Magic barbecues are designed for outdoor use
only.

WARNING

Built-in models must be installed in masonry or other
type of fi reproof enclosure, unless an insulating liner is
purchased from the manufacturor. The unit alone is not

insulated, and therefore must be installed with 18" (45.7

cm) of side, front, and back clearance from unprotected

combustible materials, such as wood, plastic, or stucco

with wood framing.

Do not install this unit under unprotected fl ammable
surfaces. Do not install or use this appliance inside a
building, garage, or any other enclosed area, including
recreational vehicles and/or boats.

In order to install the unit within combustible materials
you must purchase and utilize the Regal drop-in
insulation liner kit. See instructions received with
your liner for directions on how to install.

This is a drop-in type unit designed to fi t into countertop
enclosures. The top panel of the unit is removable for gas
hookup, servicing and burner adjustment.

Note: This unit should be installed so that it can be

removed at a later date if factory service is
required. Any protrusion into the barbecue
enclosure may obstruct the frame and prevent
the unit from dropping into place (see GAS
SUPPLY PLUMBING REQUIREMENTS).

INSURING PROPER COMBUSTION AIR AND
VENTILATION

You must maintain proper air fl ow for your Fire Magic
barbecue to perform as it was designed (as shown, below,

Fig. 8-1). If airfl ow is blocked in any way, overheating

in
and poor combustion will result. Make sure not to block
the air inlet around the inside edges of the top panel.

Vents at

Vents at

cylinder level

Cylinder Level

EXHAUST REMOVAL

If installed under a patio roof, the grill area should
be fully covered by a chimney and exhaust hood. An
exhaust fan with a rating of up to 1000 CFM (472 liters
per second) or more may be necessary to effi ciently
remove smoke and other cooking by-products from the
covered area. Installation in fully-enclosed patio areas
is not recommended.

ELECTRICAL OUTLETS

All electrical outlets in the vicinity of the barbecue must
be properly grounded.

Note: Keep electrical supply cords away from all

heated surfaces.

GAS SUPPLY PLUMBING REQUIREMENTS

When natural gas is to be used, rigid 1/2" (1.3 cm) or 3/4"
(.75 cm) black steel pipe, or local code approved pipe for
temperatures up to 800°F (427°C), is required to conduct
the gas supply into the enclosure opening for connection
to the unit.

Note: An external valve (with a removable key) in

the gas line is necessary for safety when
your barbecue is not in use. It also provides
for convenient maintenance and repair.

Apply only joint compounds that are resistant to all
gasses on all male pipe fi ttings. Make sure to tighten
every joint securely. Do not use pipe joint compound to
connect fl are fi ttings. The gas supply pipe should enter
from the fl oor, or from the back or side wall in the right
rear corner of the barbecue enclosure, behind the valve
control zone. This pipe should terminate with a 1/2" (1.3
cm) male pipe thread, situated within 12" (30.5 cm) of
the countertop and no more than 6" (15.24 cm) from
the back and side walls.

GAS SUPPLY AND MANIFOLD PRESSURES:

For natural gas - normal 7" (17.78 cm) water column
(w.c.),

For propane gas - normal 11" w.c., minimum 10" (25.4 cm),
maximum 13" (33 cm).

minimum 5" (12.7 cm), maximum 10 1/2" (26.7 cm).

STUB OUT GAS PIPE

Stub out gas pipe

ANYWHERE IN THIS

anywhere in this area

AREA

BACK

BACK

20 1/2

5"

5"

Fig. 8-1 - Ventilation Diagram

REV 2 - 0609190904

Vents at

Vents at

Floor Level

fl oor level

41 1/2"

Counter top

COUNTER TOP

REAR

FRONT

Front

Fig. 8-2 - Gas stub diagram

8

Rear

L-C2-00506
