Fire Magic E790S4LAN71, E790S4LAN62W, E790S4EAP62W, E790S4L1N71, E790S4L1N62W User Manual

...

Premium Outdoor Grills

FIRE MAGIC® BRINGS OUT THE BEST IN YOUR GRILLING

Family owned and crafted in America, Fire Magic® is the name trusted by true grilling enthusiasts for 80 years. With its diverse product line, versatile cooking options, durability and superior design innovations, Fire Magic® is the nest performing grill on the market and it's a shining centerpiece of a lifetime of special moments shared with family and friends.

BEAUTIFULLY DESIGNED. BULLET PROOF TOUGH.

Constructed entirely of the nest quality, heavy-

gauge 304 stainless steel with unsurpassed attention to the most precise detail in design and construction. Fire Magic® grills are the most elegant and durable barbecue grills available. They are engineered to perform at the highest temperature for the longest time of any outdoor barbecue grill. Our exclusive advanced heat distribution system, searing options, smoking capability, rotisserie and charcoal grilling features will keep you grilling and the neighbors talking for years to come.

BUILT WITH PASSION. OWNED WITH PRIDE.

Fire Magic® grills are made by people who demand the best, for people who demand the best. Every Fire Magic® grill is manufactured in our U.S. production facility and held to the

strictest quality standards and the highest performance metrics. Using state-of-the-art

technology guided by the watchful eye and careful hand of master craftsmen, our grills are an investment that pay dividends for years. All backed by the industry’s best warranty.

BUILT WITH PASSION. OWNED WITH PRIDE.

ROOM FOR EVERYTHING

BUT IMPROVEMENT

BETTER

EXCLUSIVE “5 WAYS TO COOK” SYSTEM THAT ALLOWS YOU TO GRILL, SEAR, SMOKE, ROTISSERIE COOK AND CHARCOAL GRILL.

HOTTER

MOST BTU’S PER SQUARE INCH FIRES UP THE HEAT FASTER AND STAYS HOT.

ROOMIER

MORE COOKING SURFACE THAN ANY OTHER GRILL.

TASTIER

STAINLESS STEEL FLAVOR GRIDS MINIMIZE FLARE UPS AND FLAVOR FOOD BY VAPORIZING JUICES.

DEEPER

12 INCH DEEP FIRE BOX OFFERS AMPLE SPACE FOR CONVECTION AND INDIRECT COOKING.

STRONGER

CAST STAINLESS STEEL BURNERS ARE GUARANTEED FOR LIFE TO DISTRIBUTE HEAT EVENLY.

Larger Cooking Surface

Diamond Sear Cooking Grids

• Trapezoid cooking grids promote more optimal heat transfer to food. With more surface area, similar to a griddle, the trapezoid shape with angled sides improves the ow of heat to the cooking surface.

• The trapezoid grid is easier to cook on as foods release from the surface more easily with less sticking.

Advanced Heat Distribution System

• Trapezoid grids have more contact surface than round grids. This provides more points of contact that help to sear your meat better and faster.

• More efcient heat transfer and quicker cooking result in less use of gas.

Flavor Grids

• Heavy gauge stainless steel avor grids minimize are ups, provide quick and even heat distribution and avor food by vaporizing juices.

• Designed to provide distributed heat to the cooking grids; they don’t retain or block heat from rising.

• Easy to clean and maintain.

• Simple to remove when rotisserie cooking

(for largest rotisserie area).

Largest Cooking Area

Fire Magic® grills provide more cooking area than other grills and more BTU’s per square inch of cooking surface.

Echelon Heat Zone Separators

Echelon grills feature heat zone separators between each burner, avor grid and cooking grid to allow cooking an assortment of foods at different temperatures simultaneously, and also provide better indirect cooking.

Cast Stainless Steel “E” Burners

• 1/4" thick cast stainless steel burners weighing

up to 12 lbs. each.

• Precision porting – cast to be evenly spaced on each burner.

• An internal bafing system, and carry over slots designed for ease of lighting, and balancing ame and heat; to provide well distributed heat, on high or low in each burner.

When only the best will do, our top of the line Fire Magic® Echelon Diamond combines the ultimate in performance, beauty and innovation. With sleek lines, a unique contoured face and state-of-the-art features such as hot surface ignition, blue back-lit knobs, and an optional Magic View Window, Echelon Diamond defines luxury in grilling.

All cut-out dimensions, images and diagrams are for reference purposes only. Fire Magic® reserves the right to change the information contained in this catalog without notice. Please refer to your instruction manual for the most up to date information specific to your product.

Diamond Sear Cooking Grids

All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.

Charcoal/Smoker Basket

Included with all Echelon Diamond grills at no additional charge. Great tool for charcoal grilling and smoking.

Cast Stainless Steel Burners

1/4” thick cast stainless steel "E" burners for consistent, even heat and a lifetime of durability.

Echelon Feature Highlights

Flavor Grids

16-gauge stainless steel, avor grids are engineered for durability, even heat distribution and reduced are-ups.

Rounded Oven Hood

Double wall, seamless oven hood with featherlight easy lift, rounded for best convection cooking.

Heat Zone Separators

Heat zone separators between each burner, avor grid and cooking grid allow cooking an assortment of foods at different temperatures simultaneously, and to provide better indirect cooking.

Contoured Face with Back-lit Knobs

Smooth, seamless lines with polished highlights that feature fully illuminated, comfort touch safety control knobs (ame turns red when on).

Hot Surface Ignition

Hot surface electronic ignition provides reliable lighting for every meal. Requires 120 Volt AC power supply.

Halogen Interior Lights

Angled interior halogen lights make evening grilling a breeze.

Quantum Backburner

Recessed Quantum backburner made of stainless steel foam uses less BTU’s to generate efcient high heat for rotisserie cooking. Polished stainless steel cover included for protection.

Digital Thermometer

Illuminated chromed digital thermometer with meat probe, timer and alarm settings for precise grilling.

Optional Magic View Window

Optional Magic View Window available on all Echelon Diamond Grills. For Echelon “A” Series Grills purchased with a Magic View Window, a Grill Top Thermometer (#3573) is provided at no extra cost.

Optional Magic View Window

Optional Magic View Window available on all Echelon Diamond Grills. For Echelon “A” Series Grills purchased with a Magic View Window, a Grill Top Thermometer (#3573) is provided at no extra cost.

Built-In Grills with Digital Thermometer

Echelon E1060i Built-In Grill

E1060i-4E1N*-W (optional Magic View Window shown)

Primary Cooking Surface 48” x 22” (1,056 sq. in.) Warming Rack Surface 48” x 8” (384 sq. in.) Main Burners 112,000 BTU’s Backburners 22,000 BTU’s (11,000 x 2) Cut-out Dimensions 50”w x 23½”d x 12”h

Echelon E790i Built-In Grill

E790i-4E1N*

Primary Cooking Surface 36” x 22” (792 sq. in.) Warming Rack Surface 36” x 8” (288 sq. in.) Main Burners 96,000 BTU’s Backburner 13,000 BTU’s Cut-out Dimensions 37”w x 23½”d x 12”h

Echelon Built-In Grills

Charcoal/Smoker Basket

New Charcoal/Smoker Basket included with all Echelon Diamond Grills at no additional charge.

Echelon E660i Built-In Grill

E660i-4E1N*

Primary Cooking Surface 30” x 22” (660 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 75,000 BTU’s Backburner 11,000 BTU’s Cut-out Dimensions 31¼”w x 23½”d x 12”h

*All models available in natural gas or propane (for propane change N to P in the model number).

Built-In Grills with Analog Thermometer

Echelon E1060i “A” Series Built-In Grill

E1060i-4EAN*

Analog Thermometer

Analog thermometer with polished stainless steel bezel in hood measures up to 1000° F.

Echelon E790i “A” Series Built-In Grill

E790i-4EAN*

Primary Cooking Surface 36” x 22” (792 sq. in.) Warming Rack Surface 36” x 8” (288 sq. in.) Main Burners 96,000 BTU’s Backburner 13,000 BTU’s Cut-out Dimensions 37”w x 23½”d x 12”h

Echelon E660i “A” Series Built-In Grill

E660i-4EAN*

Primary Cooking Surface 30” x 22” (660 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 75,000 BTU’s Backburner 11,000 BTU’s Cut-out Dimensions 31¼”w x 23½”d x 12”h

Optional Infrared Burner

Upgrade to an infrared sear burner in the left hand position at no charge on all Echelon Diamond grills.

Echelon Built-In Grills

*All models available in natural gas or propane (for propane change N to P in the model number).

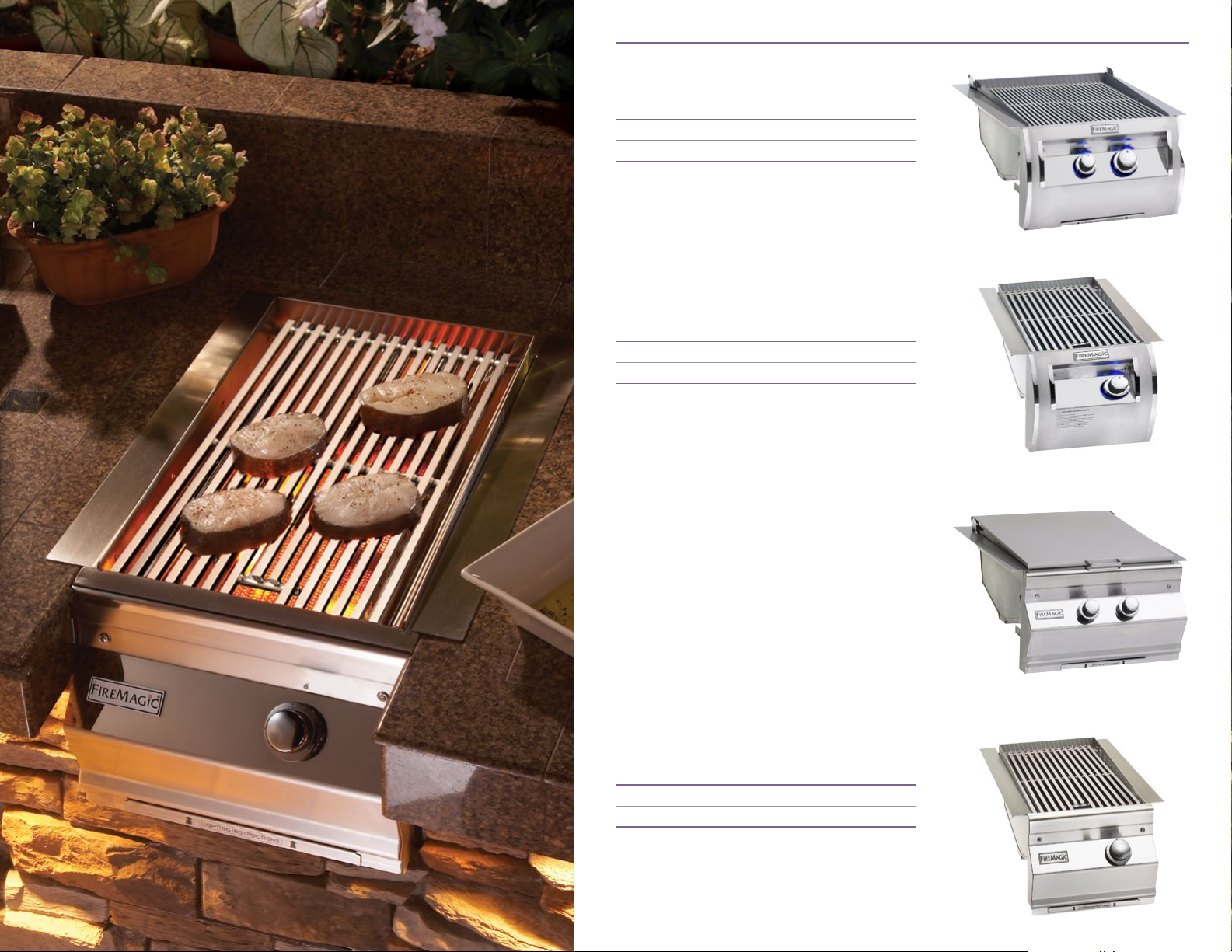

Power Burner

The Echelon Power Burner is the largest, most powerful side cooker available and provides the high heat that’s perfect for wok cooking or frying a turkey! Offering a range of 3,000 to 60,000 BTU’s. Available with porcelain cast iron or stainless steel grids. Removable stainless steel cover included.

Echelon Portable Grills

Portable Grills with Digital Thermometer

Echelon E1060s Portable Grill

E1060s-4E1N*-51-W (Power Burner & optional Window shown)

Primary Cooking Surface 48” x 22” (1,056 sq. in.) Warming Rack Surface 48” x 8” (384 sq. in.) Main Burners 112,000 BTU’s Backburners 22,000 BTU’s (11,000 x 2) Power Burner 60,000 BTU’s

• Also available with a Single Side Burner (-62).

Echelon E790s Portable Grill

E790s-4E1N*-71 (Double Side Burner shown)

Primary Cooking Surface 36” x 22” (792 sq. in.) Warming Rack Surface 36” x 8” (288 sq. in.) Main Burners 96,000 BTU’s Backburner 13,000 BTU’s Double Side Burner 30,000 BTU’s (15,000 x 2)

• Also available with a Single Side Burner (-62).

Double Side burner

The Double side burner offers

precise ame control on each

burner to prepare side dishes and sauces for your meal (Two [2] 15,000 BTU’s burners). Includes stainless steel grids as well as removable stainless steel cover.

Echelon E660s Portable Grill

E660s-4E1N*-62 (Single Side Burner shown)

Primary Cooking Surface 30” x 22” (660 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 75,000 BTU’s Backburner 11,000 BTU’s Single Side Burner 15,000 BTU’s

• Also available with a Double Side Burner (-71).

*All models available in natural gas or propane (for propane change N to P in the model number).

Portable Grills with Analog Thermometer

Echelon E1060s “A” Series Portable Grill

E1060s-4EAN*-62 (Single Side Burner shown)

Primary Cooking Surface 48” x 22” (1,056 sq. in.) Warming Rack Surface 48” x 8” (384 sq. in.) Main Burners 112,000 BTU’s Backburners 22,000 BTU’s (11,000 x 2) Single Side Burner 15,000 BTU’s

• Also available with a Power Burner (-51).

Echelon E790s “A” Series Portable Grill

E790s-4EAN*-71 (Double Side Burner shown)

Primary Cooking Surface 36” x 22” (792 sq. in.) Warming Rack Surface 36” x 8” (288 sq. in.) Main Burners 96,000 BTU’s Backburner 13,000 BTU’s Double Side Burner 30,000 BTU’s (15,000 x 2)

• Also available with a Single Side Burner (-62).

Extended Side Shelves

Capped with matching polished handles, new expansive side shelves offer the most preparation space of any portable grill. When not in use, they fold down neatly to save space.

Echelon Portable Grills

Echelon E660s “A” Series Portable Grill

E660s-4EAN*-62 (Single Side Burner shown)

Primary Cooking Surface 30” x 22” (660 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 75,000 BTU’s Backburner 11,000 BTU’s Single Side Burner 15,000 BTU’s

• Also available with a Double Side Burner (-71).

*All models available in natural gas or propane (for propane change N to P in the model number).

Single Side burner

Features of this single side burner include a 15,000 BTU’s burner, and

precise ame control valve. Includes

stainless steel grid.

Introducing the New Black Diamond Edition Grill Series showcasing a porcelain coated finish with satin stainless steel accents. Featuring our top of the line Fire Magic® Echelon Diamond, this grill creates a fusion of performance, beauty and innovation. With sleek lines, a unique contoured face and state-of-the-art features such as hot surface ignition, blue back-lit knobs and a Magic View Window, the Echelon Black Diamond Series redefines luxury in grilling.

Magic View Window

The new Black Diamond built-In grill features a Magic View Window as a standard feature.

Echelon Black Diamond Edition

Echelon H790i Black Diamond Built-In Grill

H790i-4E1N*-W

Primary Cooking Surface 36” x 22” (792 sq. in.) Warming Rack Surface 36” x 8” (288 sq. in.) Main Burners 96,000 BTU’s Backburner 13,000 BTU’s Cut-out Dimensions 37”w x 23½”d x 12”h

• Model includes Magic View Window as a standard feature.

Black Diamond Power Burner

19-HB1N*-0 (with stainless steel grids)

Burner 60,000 BTU’s Cut-out Dimensions 19”w x 18¾”d x 12”h

• Power Burner includes black protective lid.

• Available with porcelain cast iron or stainless steel grids.

Echelon Black Diamond Edition

Satin Stainless Steel Knobs

Back-lit, satin stainless steel safety

control knobs (ame turns red when

on blue when off).

Black Diamond Double Side Burner

32814H* (with stainless steel grids)

Burners 30,000 BTU’s (15,000 x 2) Cut-out Dimensions 11½”w x 22¾”d x 12”h

• Double Side Burner includes black protective lid.

• Available with porcelain cast iron or stainless steel grids.

*Models available in natural gas or propane.

Echelon Black Diamond Edition

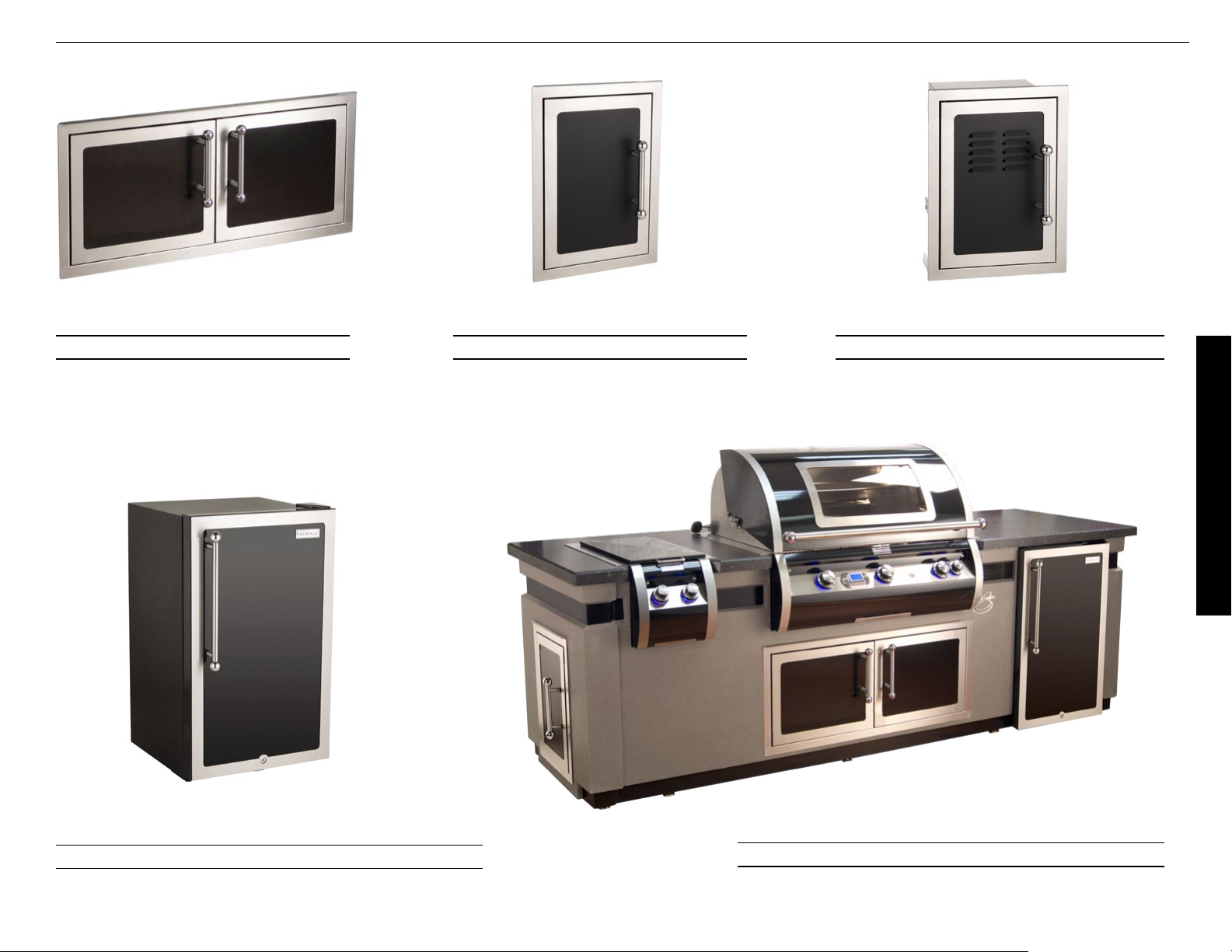

Double Access Doors

53938H

Cut-out Dimensions 16”h x 39”w

• Black Diamond Edition reduced height double doors.

Single Access Door

53920H-SL (SR)

Cut-out Dimensions 21”h x 14½”w

• Black Diamond Edition single access door.

Single Door w/Tank Tray & Louvers

53820H-TSL (TSR)

Cut-out Dimensions 21”h x 14½”w x 20½"d

• Black Diamond Edition single access door with LP tank tray and louvers.

Echelon Black Diamond Edition

Black Diamond Refrigerator

3590H-DR (-DL)

Cut-out Dimensions 20”w x 21¼”d x 34⅛”h

• Features Black Diamond Edition accents, 4.2 cubic feet of space, interior light and security lock & key. When used outdoors, it must be installed in an enclosure.

Black Diamond GFRC Island

DH790-SMR-108BA

Overall Dimensions 107½”w x 34¾”d x 36”h

• Black Diamond Edition GFRC Island with Smoke Base, Polished Black Lava Top & black trim. Black Diamond grill components sold separately.

AURORA

SERIES

Superior design and engineering power the Aurora’s unparalleled performance. With many of the same features as its sister Echelon Series, the Aurora Series grill delivers cooking versatility, durability and longevity in a beautifully crafted machine.

Aurora Feature Highlights

Diamond Sear Cooking Grids

All 304 stainless steel trapezoid cooking grids provide greater cooking surface for even heat and great searing.

Comfort Touch Knobs

Knobs are at a 40° angle to easily see how to operate; and have comfort-touch grips for safety and convenience.

Analog Thermometer

Analog thermometer with polished stainless steel bezel in hood measures up to 1000° F.

Cast Stainless Steel Burners

1/4” thick cast stainless steel "E" burners for consistent, even heat and a lifetime of durability.

Hot Surface Ignition

Hot surface electronic ignition provides reliable lighting for every meal. Requires 120 Volt AC power supply.

Halogen Interior Lights

Interior halogen lights make evening grilling a breeze.

Gourmet Face

Seamless control panel with satin finish. Optional digital thermometer available as an upgrade.

Stainless Steel Backburner

Optional stainless steel backburner and a complete rotisserie kit with a polished stainless steel cover for protection.

Optional Magic View Window

Optional Magic View Window available on Aurora A790 and A660; a Grill Top Thermometer (#3573) is provided at no extra cost.

AURO

SERIES

Magic View Window

Optional Magic View Window available on Aurora A790 and A660; a Grill Top Thermometer (#3573) is provided at no extra cost.

Aurora Built-In Grills

Built-In Grills with Analog Thermometer

Aurora A790i Built-In Grill

A790i-6EAN*-W (optional Magic View Window shown)

Primary Cooking Surface 36” x 22” (792 sq. in.) Warming Rack Surface 36” x 8” (288 sq. in.) Main Burners 90,000 BTU’s Backburner 20,000 BTU’s Cut-out Dimensions 37¾”w x 23½”d x 12”h

• For Aurora Analog grills purchased with the Magic View Window option,

a Grill Top Thermometer (Model #3573) is provided at no extra cost.

Aurora A660i Built-In Grill

A660i-6EAN* (with Analog Thermometer shown)

Primary Cooking Surface 30” x 22” (660 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 75,000 BTU’s Backburner 18,000 BTU’s Cut-out Dimensions 32”w x 23½”d x 12”h

• A660 model may be upgraded to Magic View Window (-W).

Hot Surface Ignition

All Aurora grills feature push-to-light hot surface electronic ignition system for quick, reliable starts.

Aurora A540i Built-In Grill

A540i-6EAN* (with Analog Thermometer shown)

Primary Cooking Surface 30” x 18” (540 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 63,000 BTU’s Backburner 18,000 BTU’s Cut-out Dimensions 32”w x 19½”d x 12”h

* All models available in natural gas or propane (for propane change N to P in the model number).

- All models (except A790) are also available without backburner & rotisserie; change the 6th digit to a “5”.

- For Digital Thermometer on Aurora Grills (except A830), factory installed in place of Analog Thermometer, change 8th digit to a “1”.

SERIES

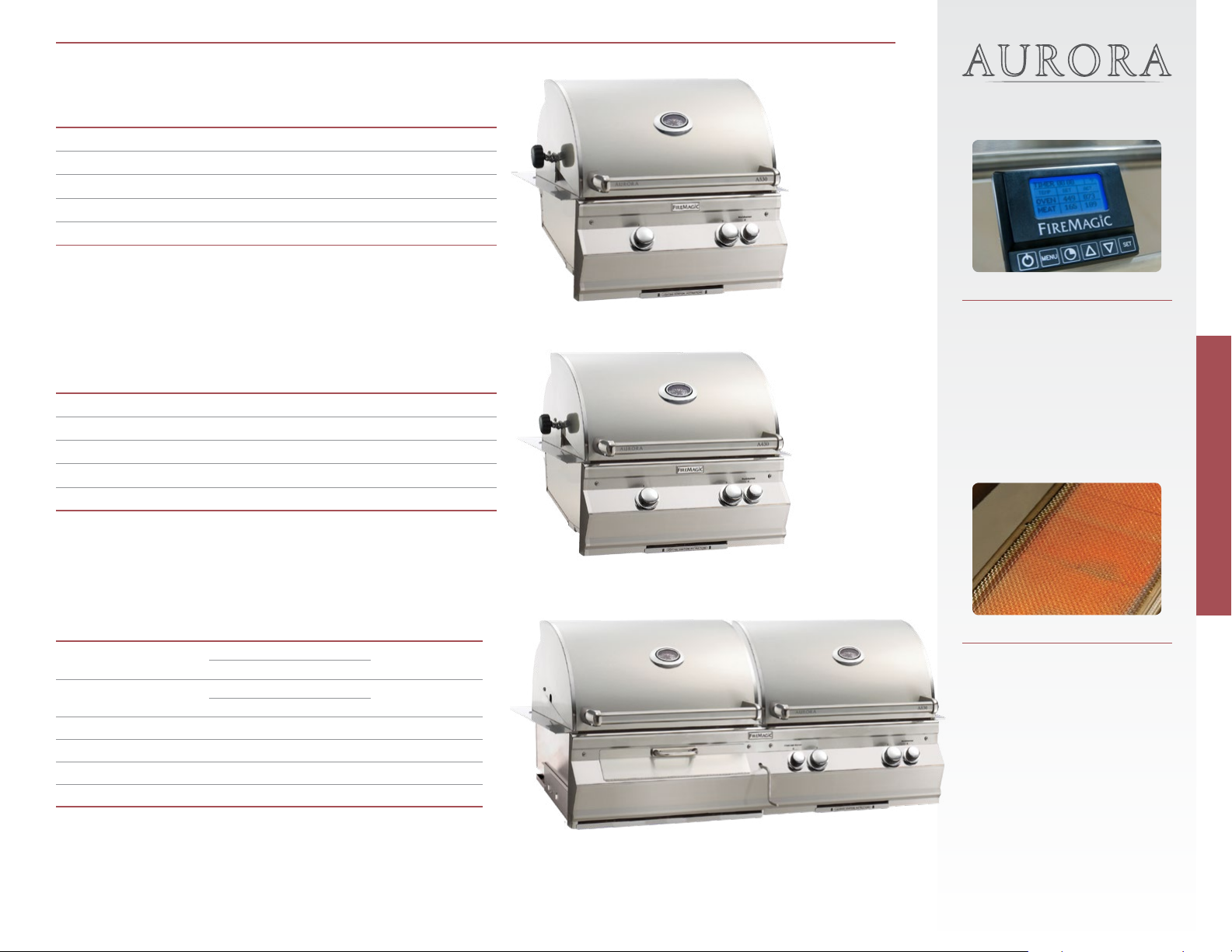

Built-In Grills with Analog Thermometer

Aurora A530i Built-In Grill

A530i-6EAN* (with Analog Thermometer shown)

Primary Cooking Surface 24” x 22” (528 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 60,000 BTU’s Backburner 13,000 BTU’s Cut-out Dimensions 25½”w x 23½”d x 12”h

Aurora A430i Built-In Grill

A430i-6EAN* (with Analog Thermometer shown)

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 50,000 BTU’s Backburner 13,000 BTU’s Cut-out Dimensions 25½”w x 19½”d x 12”h

AURO

Optional Digital Thermometer

Upgrade to a Digital Thermometer in control panel with meat probe for an additional charge. (Not available on A830 models)

Aurora Built-In Grills

Aurora A830i Gas/Charcoal Combo Built-In Grill

A830i-6EAN*-CB (with Analog Thermometer shown)

Primary Cooking Surface Warming Rack Surface

Main Burners 50,000 BTU’s Backburner 13,000 BTU’s Charcoal Igniter 26,000 BTU’s Cut-out Dimensions 50¼”w x 19½”d x 12”h

• Halogen Lights for the A830i model are located on the gas side of the grill only.

* All models available in natural gas or propane (for propane change N to P in the model number).

- All models (except A790) are also available without backburner & rotisserie; change the 6th digit to a “5”.

- For Digital Thermometer on Aurora Grills (except A830), factory installed in place of Analog Thermometer, change 8th digit to a “1”.

Gas Side 24” x 18” Charcoal Side

Gas Side 24” x 8” Charcoal Side

22” x 18”

22” x 8”

= (828 sq. in.)

= (368 sq. in.)

Optional Infrared Burner

Upgrade to an infrared sear burner in the left hand position for an additional charge.

AURO

SERIES

Single Side Burner

Flush mounted single side burner included with A660, A540 & A430 portable grills.

Portable Grills with Analog Thermometer

Aurora A660s Portable Grill w/Single Side Burner

A660s-6EAN*-62 (with Analog Thermometer shown)

Primary Cooking Surface 30” x 22” (660 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 75,000 BTU’s Backburner 18,000 BTU’s Single Side Burner 15,000 BTU’s

• A660 model may be upgraded to Magic View Window (-W).

Aurora A540s Portable Grill w/Single Side Burner

A540s-6EAN*-62 (with Analog Thermometer shown)

Primary Cooking Surface 30” x 18” (540 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 63,000 BTU’s Backburner 18,000 BTU’s Single Side Burner 15,000 BTU’s

Aurora Portable Grills

Hot Surface Ignition

All Aurora grills feature push-to-light hot surface electric ignition system for quick, reliable starts.

Optional Digital Thermometer

Upgrade to a Digital Thermometer in control panel with meat probe for an additional charge. (Not available on A830 models)

Aurora A430s Portable Grill w/Single Side Burner

A430s-6EAN*-62 (with Analog Thermometer shown)

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 50,000 BTU’s Backburner 13,000 BTU’s Single Side Burner 15,000 BTU’s

* All models available in natural gas or propane (for propane change N to P in the model number).

- All models are also available without backburner & rotisserie; change the 6th digit to a “5”.

- For Digital Thermometer on Aurora Grills (except A830), factory installed in place of Analog Thermometer, change 8th digit to a “1”.

SERIES

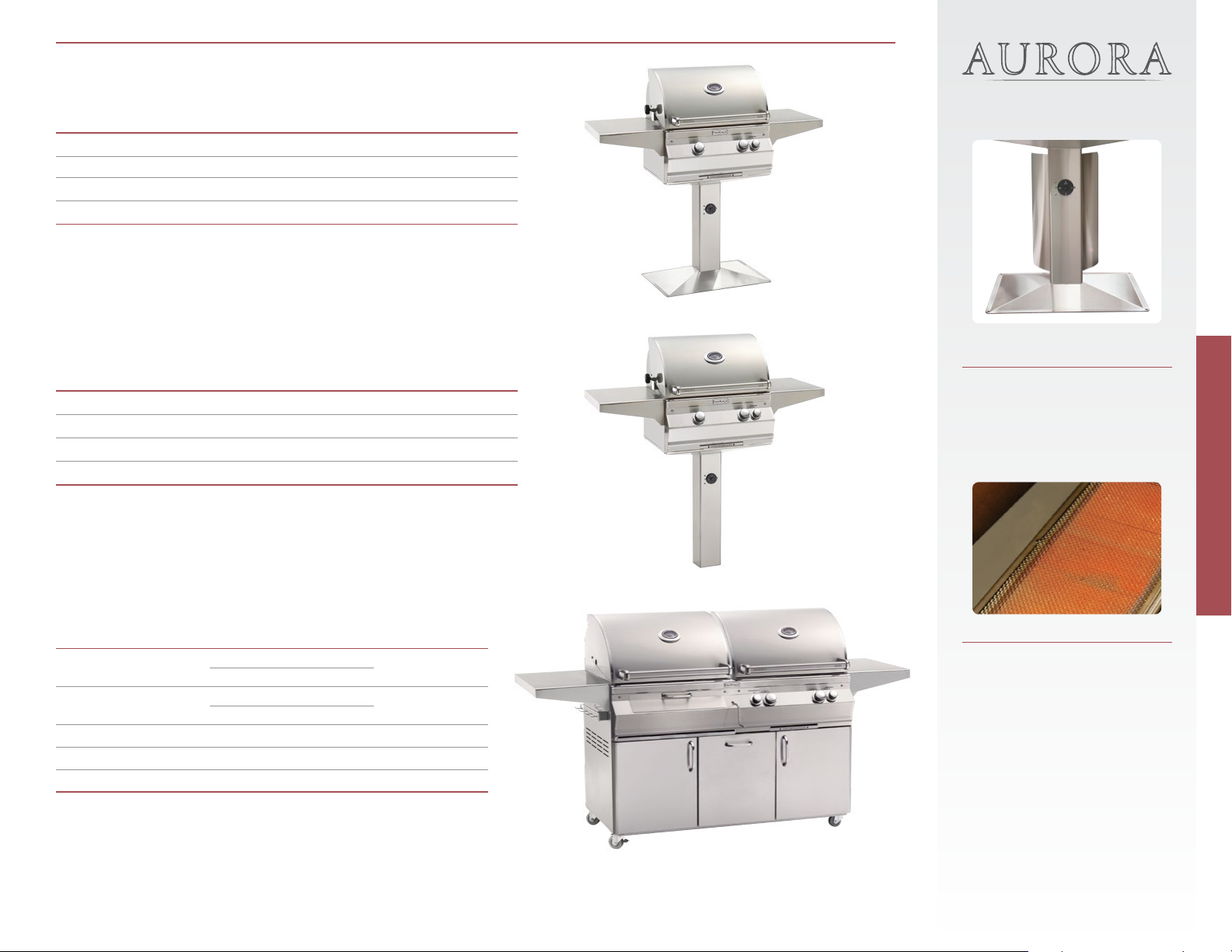

Post Mount & Portable Grills with Analog Thermometer

Aurora A430s Patio Post Mount Grill

A430s-6EAN*-P6 (with Analog Thermometer shown)

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 50,000 BTU’s Backburner 13,000 BTU’s

• Includes a one hour safety timer that automatically shuts off the gas supply.

Aurora A430s In-Ground Post Mount Grill

A430s-6EAN*-G6 (with Analog Thermometer shown)

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 50,000 BTU’s Backburner 13,000 BTU’s

• Includes a one hour safety timer that automatically shuts off the gas supply.

AURO

Optional Tank Shield

(Model: 5110-33)

Optional stainless steel LP tank shield

Aurora Portable Grills

Aurora A830s Gas/Charcoal Combo Portable Grill

A830s-6EAN*-CB (with Analog Thermometer shown)

Primary Cooking Surface Warming Rack Surface

Main Burners 50,000 BTU’s Backburner 13,000 BTU’s Charcoal Igniter 26,000 BTU’s

• Halogen Lights for the A830s model are located on the gas side of the grill only.

* Models available in natural gas or propane (for propane change N to P in the model number).

- All models are also available without backburner & rotisserie; change the 6th digit to a “5”.

- For Digital Thermometer on Aurora Grills (except A830), factory installed in place of Analog Thermometer, change 8th digit to a “1”.

Gas Side 24” x 18” Charcoal Side

Gas Side 24” x 8” Charcoal Side

22” x 18”

22” x 8”

= (828 sq. in.)

= (368 sq. in.)

Optional Infrared Burner

Upgrade to an infrared sear burner in the left hand position, change 7th digit to an “L” in the Model #.

CHOICE

SERIES

Our most affordable line, Fire Magic® Choice grills feature superior design and materials

housed in an Aurora style grill with a simple satin stainless steel façade.

Built-In Grills

Tubular Stainless Steel Burners

16-gauge stainless steel burners for durability and even heat.

Choice C540i Built-In Grill

C540i-1T1N*

Primary Cooking Surface 30” x 18” (540 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 57,000 BTU’s Cut-out Dimensions 32”w x 19½”d x 12”h

* All models available in natural gas or propane (for propane change N to P in the model number).

Choice C430i Built-In Grill

C430i-1T1N*

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 46,000 BTU’s Cut-out Dimensions 25½”w x 19½”d x 12”h

Portable & Post Mount Grills

Choice C540s Portable Grill

C540s-1T1N*-96

Primary Cooking Surface 30” x 18” (540 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 57,000 BTU’s

Choice C430s Portable Grill

C430s-1T1N*-96

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 46,000 BTU’s

CHOICE

SERIES

Rigid Side Shelves

Solid rigid side shelves provide ample food preparation space.

Choice Series Grills

Choice C430s Patio Post Mount Grill

C430s-1T1N*-P6

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 46,000 BTU’s

• Includes a one hour mechanical timer on post.

* All models available in natural gas or propane (for propane change N to P in the model number).

Choice C430s In-Ground Post Mount Grill

C430s-1T1N*-G6

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 8” (192 sq. in.) Main Burners 46,000 BTU’s

• Includes a one hour mechanical timer on post.

Optional Tank Shield

(Model: 5110-33)

Optional stainless steel LP tank shield.

ELECTRIC

GRILLS

The Fire Magic® Electric Grill provides quick, clean, and easy grilling. Great for patios with limited space, or where gas fuel is unavailable.

• All 304 stainless steel construction

• Heats up to 800º F (1800 watt grill)

• 252 sq. inches of grilling space

• Stainless steel cooking grids

• 120 volt. Just plug in and use

• Digital thermometer with thermostatic control and meat probe for precision grilling

• Double walled oven lid

• Easy to clean drip tray

• Large heating element for faster, hotter cooking

• Removable warming rack

• Optional rotisserie kit upgrade

Electric Grills

Electric Counter Top Grill

E250t-1Z1E

Cooking Surface 15½” x 16¼” (252 sq. in.) Warming Rack Surface 16" x 4" (64 sq. in.) Power Required 120 Volt

ELECTRIC

GRILLS

Electric Heating Element

Larger, thicker heating element for faster and more even heat.

Electric Grills

Electric Patio Post Mount Grill

E250s-1Z1E-P6

Cooking Surface 15½” x 16¼” (252 sq. in.)

Warming Rack Surface 16" x 4" (64 sq. in.)

Power Required 120 Volt

Digital Thermometer

Digital thermometer with meat probe for precision grilling.

LEGACY

COLLECTION

Uniquely, architecturally designed, this exclusive Drop-In style grill will make your outdoor kitchen look and feel like a unique wonder.

Regal I Drop-In Grill

34-S2S1N*-A (with Backburner Rotisserie shown)

Primary Cooking Surface 30” x 18” (540 sq. in.) Warming Rack Surface 30” x 8” (240 sq. in.) Main Burners 66,000 BTU’s Backburner 22,000 BTU’s Cut-out Dimensions 41½”w x 20½”d x 18”h

• Features the new Diamond Sear trapezoid cooking grids

• Available without rotisserie backburner (Model # 34-S1S1N-A)

* All models available in natural gas or propane (for propane change N to P in the model number).

Deluxe Grills

Deluxe Gourmet Drop-In Grill

3C-S1S1N*-A

Primary Cooking Surface 23” x 16” (368 sq. in.) Warming Rack Surface 23” x 8” (184 sq. in.) Main Burners 42,000 BTU’s Cut-out Dimensions 29½”w x 16½”d x 14”h

Deluxe Classic Drop-In Grill

31-S1S1N*-A

Primary Cooking Surface 23” x 16” (368 sq. in.) Warming Rack Surface 23” x 8” (184 sq. in.) Main Burners 42,000 BTU’s Cut-out Dimensions 24¼”w x 19¼”d x 12”h

LEGACY

COLLECTION

Drop-In Grills

The Fire Magic® Legacy Drop-In grills are an exclusively designed, space conscious unit for a unique look. Only Fire Magic® offers the Drop-In grill to enhance your outdoor kitchen.

Legacy Collection Grills

Deluxe Built-In Grill

11-S1S1N*-A

Primary Cooking Surface 23” x 16” (368 sq. in.) Burners 42,000 BTU’s Cut-out Dimensions 24¾”w x 17¾”d x 12”h

* All models available in natural gas or propane (for propane change N to P in the model number).

Cast Stainless Steel Burners

Cast stainless steel burners offer a classic durability that Fire Magic® is known for.

CHARCOAL

GRILLS

High performance charcoal grills are available in a variety of models including Built-In, Portable, Post Mount and Drop-In. Fire Magic® delivers quality and style to the charcoal grill enthusiast.

Adjustable Hood Vents

Stainless Steel Charcoal Grills feature a smoker hood with adjustable hood

vents to regulate airow.

Stainless Steel Charcoal Grills

30” Charcoal Built-In Grill (14-SC01C-A shown)

Primary Cooking Surface 30” x 18” (540 sq. in.) Warming Rack Surface 30” x 12” (360 sq. in.) Cut-out Dimensions 32¼”w x 19¾”d x 12”h

24” Charcoal Built-In Grill (12-SC01C-A)

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 12” (288 sq. in.) Cut-out Dimensions 26¼”w x 19¾”d x 12”h

30” Charcoal Portable Grill (24-SC01C-61 shown)

Primary Cooking Surface 30” x 18” (540 sq. in.) Warming Rack Surface 30” x 12” (360 sq. in.)

24” Charcoal Portable Grill (22-SC01C-61)

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 12” (288 sq. in.)

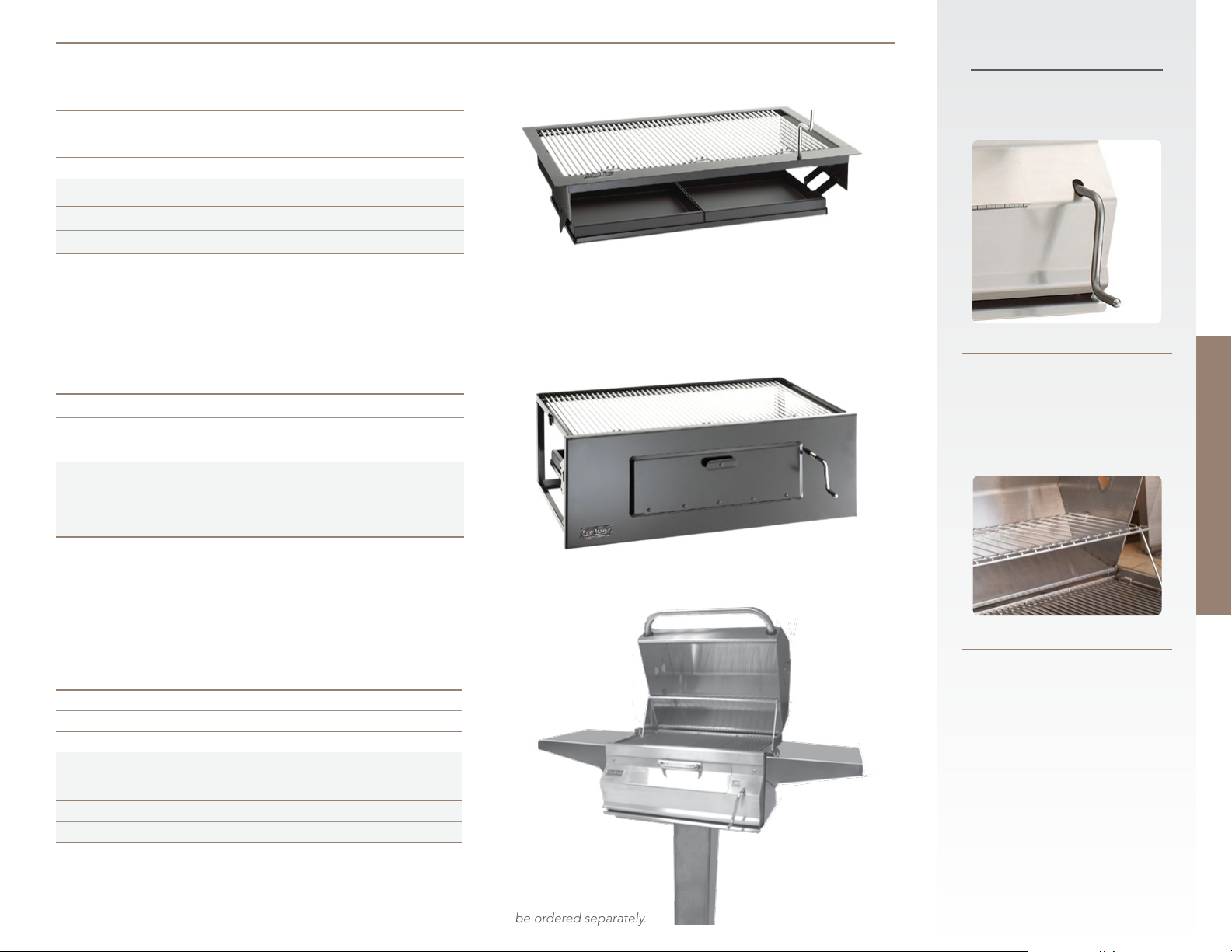

Black powder coated Charcoal Grills & Post Mount Charcoal Grills

31” Firemaster Drop-In Grill (3324* shown)

Cooking Surface 540 sq. inches [30” x 18”] Cut-out Dimensions 31¼”w x 21¼”d x 12”h

24” Firemaster Drop-In Grill (3329*)

Cooking Surface 368 sq. inches [23” x 16”] Cut-out Dimensions 24¼”w x 19¼”d x 12”h

• Designed to drop into the top of your island

• Cooking grids must be ordered separately

32” Lift-A-Fire Built-In Grill (3334* shown)

Cooking Surface 540 sq. inches [30” x 18”] Cut-out Dimensions 32¼”w x 19¾”d x 12”h

24” Lift-A-Fire Built-In Grill (3339*)

Cooking Surface 368 sq. inches [23” x 16”] Cut-out Dimensions 24¾”w x 17¾”d x 12”h

• Cooking grids must be ordered separately

CHARCOAL

GRILLS

Adjustable Charcoal Pan

All charcoal grills feature a crank handle that allows you to adjust the height of the charcoal pan.

Charcoal Grills

Charcoal In-Ground Post Mount Grill (shown)

22-SC01C-G6

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 12” (288 sq. in.)

Charcoal Patio Post Mount Grill

22-SC01C-P6

Primary Cooking Surface 24” x 18” (432 sq. in.) Warming Rack Surface 24” x 12” (288 sq. in.)

*Cooking grids and ovens (if desired) for Firemaster & Lift-A-Fire Slide-In must be ordered separately.

Integrated Warming Rack

Movable warming rack that adds a second level for optimum smoking performance. Stays horizontal for dual level smoking.

SIDE COOKERS

POWER BURNERS, SIDE BURNERS & SEARING STATIONS

Fire Magic® side burners are designed as companion side cookers. All side burners feature a matching face for either Echelon Diamond or Aurora Grills. Featuring a contoured face, back-lit control knobs, hot-surface ignition, and a power switch. All Echelon accessories plug in to the Echelon Diamond Grill transformer for power and Aurora accessories plug into the Aurora transformer.

Power Burners

Echelon Power Burner

Model #: 19-4B2N-0 (w/Porcelain Grid shown)

Burners 60,000 BTU’s Cut-out 19”w x 18¾”d x 12”h

Aurora Power Burner

Model #: 19-SLB1N-0 (w/Stainless Grid shown)

Burners 60,000 BTU’s Cut-out 19”w x 18¾”d x 12”h

The Power Burner is the largest, most powerful side cooker available. It provides a range of BTU’s from 3,000 to 60,000. Available with porcelain cast iron or stainless steel grids.

Fire Magic

Power Burners include removable stainless steel lid and are available in Natural Gas or Propane.

Side Burners

Echelon Double Side Burner

Model #: 32814

Burners 30,000 BTU’s (15,000 x 2) Cut-out 11½”w x 22¾”d x 12”h

Enjoy precise ame control on each burner to prepare

side dishes and sauces for your meal (Two [2] 15,000 BTU’s burners). Available with porcelain cast or stainless steel grids.

Echelon Single Side Burner

Model #: 32794-1

Burner 15,000 BTU’s Cut-out 11½”w x 14”d x 12”h

The Echelon Single Side Burner features a 15,000

BTU’s burner, precise ame control valve, and stainless

steel cover. Available with porcelain cast grid.

Side Burners

Aurora Double Side Burner

Model #: 3281L (with Stainless Grid shown)

Burners 30,000 BTU’s (15,000 x 2) Cut-out 11½”w x 22¾”d x 12”h

The Double side burner offers precise ame control

on each burner to prepare side dishes and sauces for your meal (Two [2] 15,000 BTU’s burners). Available with porcelain cast or stainless steel grids.

Aurora Single Side Burner

Model #: 3279L-1 (with Stainless Grid shown)

Burner 15,000 BTU’s Cut-out 11½”w x 14”d x 12”h

Features of this single side burner include a 15,000

BTU’s burner, and precise ame control valve.

Available with porcelain cast grid.

All Fire Magic® side burners include removable stainless steel lid and are available in Natural Gas or Propane.Fire Magic

Drop-In Side Burner

Model #: 3280

Burner 15,000 BTU’s Cut-out 8¾”w x 14¼”d

Drops into the top of island. Features include 15,000

BTU’s sealed burner, precise ame control valve, and

stainless steel cover.

Searing Stations

Echelon Double Searing Station

Model #: 32884-1

Burners 32,000 BTU’s Cut-out 19”w x 18¾”d x 12”h

With the Echelon Double Searing Station, prepare

restaurant-quality steaks. When steaks are ashcooked up to 1200° using infrared technology plus

Diamond Sear cooking grids, juices are locked in and meats are tender and full of flavor.

Echelon Searing Station

Model #: 32874-1

Burner 24,000 BTU’s Cut-out 14”w x 22¾”d x 12”h

Sear favorites such as ahi tuna and marbled llet

mignon to perfection with 24,000 BTU’s and up to

1000˚ of infrared heat. Perfect for an amazing seared

steak. Includes the new Diamond Sear cooking grids.

Aurora Double Searing Station

Model #: 3288L-1

Burners 32,000 BTU’s Cut-out 19”w x 18¾”d x 12”h

With the Aurora Double Searing Station steaks

are ash-cooked at 1200°, juices are locked in and

meats are tender and full of flavor. With 32,000 BTU’s of infrared heat and Diamond Sear cooking grids, the double searing station is a welcome companion to your Fire Magic® grill.

Aurora Searing Station

Model #: 3287L-1

Burner 24,000 BTU’s Cut-out 14”w x 22¾”d x 12”h

This single searing station ash cooks up to 24,000 BTU’s and up to 1000˚ of infrared heat locking in juices for tender meat and full avor upon Diamond Sear

cooking grids. Perfect for an amazing seared steak.

All Fire Magic® searing stations include stainless steel lid.

3737

REFRIGERATION

PRODUCTS

and

REFRESHMENT

CENTERS

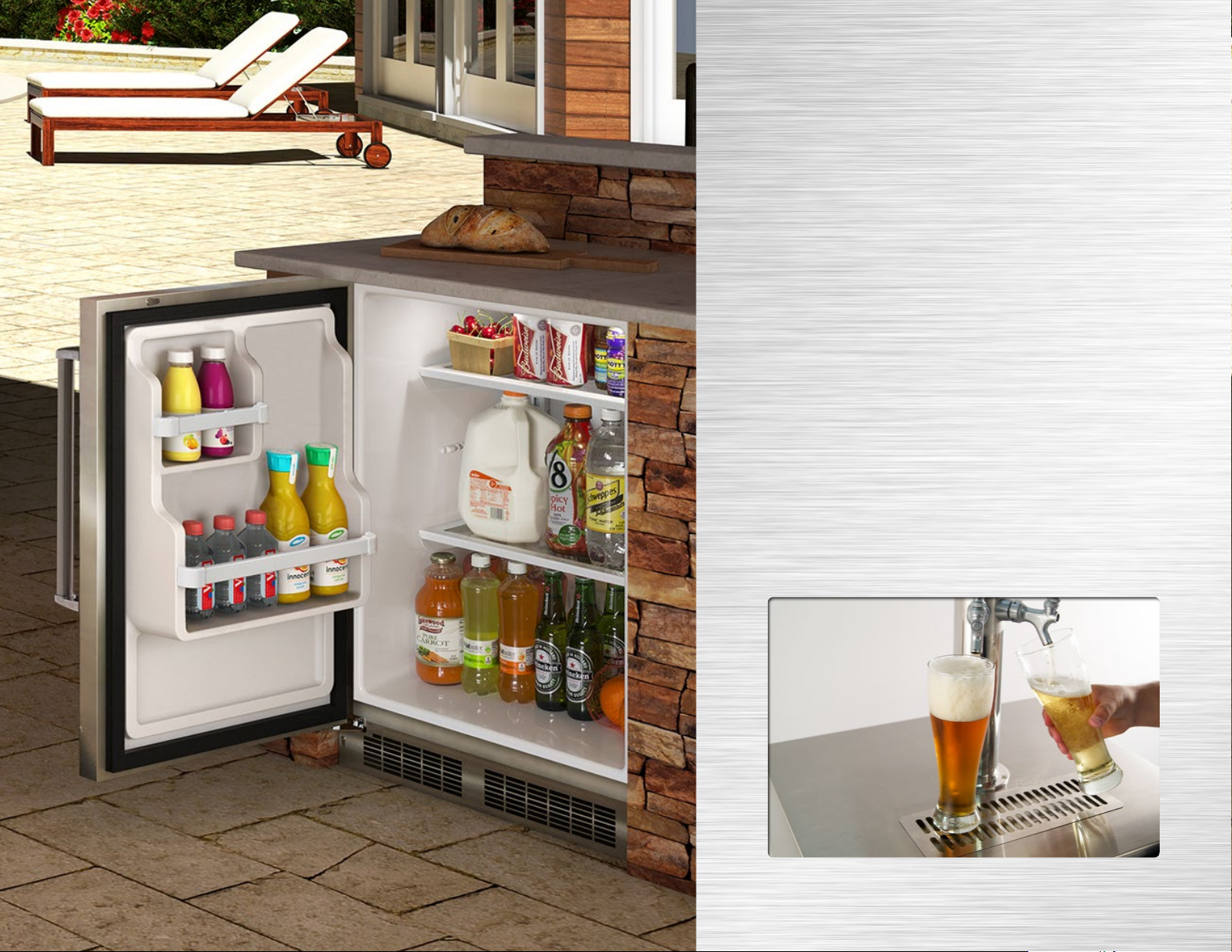

Outdoor Rated Refrigerator & Kegerator

Outdoor Rated Refrigerator

Model w/right door hinge: 3589-DR (shown) Model w/left door hinge: 3589-DL

Cut-out Dimensions 24½”w x 24½”d x 34½”h

• 5.1 cubic feet of storage

• Internal digital thermometer

• Adjustable shelves

• LED internal light

• Lock and key

• Fire Magic® style handle

• Extra storage space available in the door

• UL listed for outdoor use

REFRIGERATION

PRODUCTS

Lock and Key

Lock and key to ensure beverages will stay cold and secure.

Refrigeration Products

Digital Thermometer

Internal digital thermometer to maintain proper temperature for your beverages.

Outdoor Rated Kegerator

Model w/right door hinge: 3594-DR Model w/left door hinge: 3594-DL (shown)

Cut-out Dimensions

• Double tap kegerator

• Internal digital thermometer

• Closed door assist with lock and key system ensures your

beverages will stay cold and secure

• Can accommodate a full, half, quarter or one-sixth sized kegs

• Metal shelves included to convert to a full refrigerator

when not storing a keg

• UL listed for outdoor use

4½”w x 24½”d x 34½”h

Kegerator accommodates a full, half, quarter or one-sixth sized kegs.

REFRIGERATION

PRODUCTS

Refrigerators & Ice Maker

Premium Refrigerator

Model w/right door hinge: 3590-DR (shown) Model w/left door hinge: 3590-DL

Cut-out Dimensions 20”w x 21¾”d x 34⅛”h

4.2 cubic feet of storage space. Custom-designed door is fabricated with a heavy-duty handle and radial corners for an exclusive look. Handy lock keeps contents safe. When used outdoors, it must be installed in an enclosure.

Refrigerator

Model #: 3590A

Cut-out Dimensions 20”w x 21¾”d x 34⅛”h

Interior light and security lock and key. Reversible door hinge. When used outdoors, it must be installed in an enclosure.

Refrigeration Products

Commercial Quality Ice Maker

Model #: 3597

Cut-out Dimensions 15¼”w x 25¼”d x 34”h

Outdoor rated ice maker produces 63lbs of ice in a 24 hr. period. Capable of storing up to 27lbs of individual clear ice cubes. UL listed for outdoor use. Continuously produces ice on demand as ice used. Suitable for outdoor or indoor applications. Reversible door features horizontal handle that doubles as a Towel Bar.

Refreshment Centers & Bar Caddy

Refreshment Center

Model #: 3596A

Cut-out Dimensions 25”w x 25”d x 12”h

Insulated walls, bottom drain, in-front shelving, attached bottle opener, included drain kit, Echelon styled face and hinged removable lid.

Drop-In Refreshment Center

Model #: 33596

Cut-out Dimensions 25”w x 23⅜”d x 12¾”h

Use like an ice cooler in your grill island to keep soda, beer or other beverages cold and frosty. Includes handy drain kit and hinged removable insulated lid.

REFRESHMENT

CENTERS & BAR CADDY

Bottle Opener

Refreshment Centers

Bar Caddy

Model #: 1D-S0

Cut-out Dimensions 14¼”w x 22¾”d x 12”h

Bar Caddy comes equipped with a towel bar, bottle opener, sliding storage drawer, two stainless steel bottle sleeves and an installation hanger. Available with the optional steam warming accessory.

ACCESSORIES

Premium Accessories

Protective Grill Covers

Model #: Various “F” Styles

Custom tted to Fire Magic® grills and

accessories, these black covers are manufactured with a PVC exterior and Polyester “breathable” interior providing excellent protection to any Fire Magic® product.

Five-Piece Tool Set

Model #: 3575B

Packed in a handsome zippered nylon logo case, our 5-piece tool set includes stainless steel tongs, meat fork, silicone-tipped basting brush, slotted

at spatula with serrated edges and built-in

bottle opener and a two-sided grill brush.

Warming Rack Extender

Model #: 3682A

Dimensions: 14”w x 7”d

Add 100 square inches of indirect grilling (or warming) space to 22” deep Echelon and Aurora Grills with the new Warming Rack Extender, simply hook on the rear edge of the existing warming rack.

Stainless Steel Griddle

Model #: 3515 (Fits 18"deep Fire Magic Model #: 3516 (Fits 22"deep Fire Magic

This unique grilling accessory heats up fast and allows you to cook all your meals in your outdoor kitchen.

grills)

Cast Iron Griddle

Model #: 3511A (Fits single side burners) Model #: 3512A (Fits 18"deep Fire Magic

grills)

Model #: 3513A

(Fits 22"deep Fire Magic® grills and Dbl. Side Burners)

Griddle available for the Fire Magic® double side burner as well as the Echelon and Aurora grills. Perfect for breakfast, grilled or vegetables or fajitas.

Grilling Tray

Model #: 3567

Dimensions 13½”w x 14¾”d

Expand your cooking horizons with the Fire Magic® Grilling Tray. The durable black porcelain

nish, angled sides and easy access low prole

front makes cooking smaller food on your Fire Magic® grill a snap!

Premium Accessories

Motorized Hood Kit

Model #: 3422-E2

Motorized Hood Kit is compatible with All current Echelon Grills.

Charcoal/Smoker Basket

Model #: 3564-1 (Fits 18" deep Aurora grills) Model #: 3564-2

(Fits All Echelon grills & 22"deep Aurora grills)

Cooking with wood chunks or charcoal is easier than ever. Basket sits on top of the burner, gas burners ignite the chunks or coals. Includes smoker cover and Bottom tray that catches ashes for easy clean-up. Includes easy to use safety cover lifter.

Premium Accessories

Built-In Beverage Center

Model w/Aurora Style Face: 1D-SSA (shown) Model w/Echelon Style Face: 1D-SSD

Cut-out 36¾”w x 23½”d x 12”h

Features top storage shelf with rail, faucet with sink and drain, removable bamboo cutting board, storage drawer, wine glass holder, halogen lights, covered heavy-duty blender, insulated ice drawer, and 2 condiment holders.

Blender w/Stainless Steel Hood

Model #: 3284A

Cut-out: 8¾”w x 14¼”d

Fire Magic’s® Blender is the perfect companion for any outdoor kitchen, bar caddy or beverage center. The attractive and sturdy stainless steel cover protects the 675-watt motor from the elements.

Sink & Faucet

Model #: 3587 & 3588

Cut-out: 14”w x 14”d x 17”h

Adds convenience and functionality to your outdoor kitchen. Purchase separately or together. Sink measures 15” x 15” x 6” and requires a 17” clearance underneath.

Premium Accessories

Cut & Clean Combo

Model #: 53816

Cut-out 9½”w x 4½”d x 15”h

Allows you to slice and dice on a Fire Magic® bamboo cutting board, then sweep debris right into the Fire Magic® trash container or basic trash can via a deep stainless steel trash chute. Chute measures 14¾”. Stainless steel lid included.

Paper Towel Holder

Model #: 53812

Cut-out: 12”w x 8”d x 9¼”h

Accepts and protects regular or jumbo rolls.

Trash Container

Model #: 53825-T

Cut-out: 12¾”w x 20”d x 24”h

Constructed of stainless steel with a hands-free foot lever, the door easily slides open to reveal a 10.5 gallon trash can. Fully enclosed. Great for use under the Cut & Clean Combo.

Bamboo Cutting Board

Model #: 3582-1

Dimensions: 14”w x 12"d

This durable and functional Bamboo Cutting Board is perfect for preparing meats and vegetables for grilling.

Premium Accessories

Wok

Model #: 3572

Hard-anodized stick-resistant lined interior surface measures 14” in diameter.

Grill Light

Model #: 3574

This halogen 10 watt bulb makes evening grilling easy. When using the light on a grill without backburner, a light bracket must be ordered. Aurora Light Bracket: 3600-43, Legacy Light Bracket: 3600-18-SP.

Rotisserie Basket

Model #: 3618

A versatile, stainless steel basket for skewers, burgers, ribs or fish.

Turkey Holder

Model #: 3615E

This sturdy holder is also perfect for beef, pork and lamb roasts.

Premium Accessories

Safety Timer

Model #: 3090 (3 hr. Timer) Model #: 3092A (1 hr. Timer)

Fire Magic’s offers additional safety and automatically shuts off

gas ow at pre-set times. Easy to install. Great for

apartment and condominium use.

3 Hour, and 1 Hour, Safety Timers

Turkey Fryer Kit

Model #: 3570

You’ll be amazed at how tender a deep-fried turkey can be. Kit includes pot, inner basket with sturdy handle and thermometer probe. Great as a crab or corn pot.

Chicken Holder

Model #: 3617E

Enjoy a golden, succulent chicken the quick and easy way!

Gas Connection Box

Model #: 5520-01T

Gas connection box with quick disconnect and 1 hour timer for safety. Clean and attractive 304 stainless steel box.

Closed

Insulating Liner & Vent Hood

Insulating Liner

Vent Hood

The new insulating liner facilitates installation of built-in Fire Magic® grills into wood, composite or other combustible enclosures when used with non-combustible counter tops. Sizes are available for all Echelon, Aurora and Legacy Deluxe grills as well as Power Burners & Searing Stations.

Feature Highlights:

• Hanger for easy installation

Insulating Liner & Vent Hood

• Reduced clearance

• No additional support beneath the liner required

• 304 stainless steel construction

• Pre-assembled in box

Available Insulating Liner Models

• 3185-51

• 3186-51

• 3176-51

• 23150-51

• 23125-51

• 23130-51

• 3100-51

• 3278-51

• 3287-51

Used with Echelon E1060i Built-In Grills Used with Echelon E790i & Aurora A790i Built-In Grills Used with Echelon E660i & Aurora A660i Built-In Grills Used with Aurora A540i & Choice C540i Built-In Grills Used with Aurora A530i Built-In Grills Used with Aurora A430i & Choice C430i Built-In Grills Deluxe Built-In Grill Power Burner & Double Searing Station Searing Station

The Fire Magic® Outdoor Grill Vent Hood quickly exhausts excess smoke from covered patios. From its efficient dual fans (1200 CFM total) to the configuration of the hood itself, the Grill Vent Hood is created specifically for your outdoor grilling environment. With powerful halogen under-mount lamps, your grilling area can be illuminated for evening cooking.

Vent Hood Specifications

Electrical requirements 120 volts, 60 hertz, 20 amp; GFI outlet. Blowers (2) 1,200 CFM (600 CFM Each) Power Consumption 1,010 watts

Feature Highlights:

• Powerful dual blowers (1200 CFM total)

specically designed and engineered to

quickly extract smoke, grease, and odors from the front and rear of the hood

• High quality brushed 304 stainless steel construction with seamless polished edges

• Dual halogen under-mount lamps provide generous light for evening grilling

• Thermal safety sensor automatically activates fans when temperature reaches 140º F

• On demand control knobs offer a high and low setting for lights and fan

• Anodized aluminum lters remove easily and are dishwasher safe

• Available in 36”, 42”, 48”, and 60” widths

• All units are 30” deep

• Vent piping not included

Available Models

• 36-VH-6

• 42-VH-6

• 48-VH-6

• 60-VH-6

36” Vent Hood 42” Vent Hood 48” Vent Hood 60” Vent Hood

ISLAND SYSTEMS

GLASS FIBER REINFORCED CONCRETE ISLAND SYSTEMS

Constructed from durable Glass Fiber Reinforced Concrete (GFRC) and easily assembled on site,

these Island Systems are designed specically

for Fire Magic® equipment and make a stunning statement. Café Blanco island bases with contrasting polished GFRC Smoke counter tops provide a handsome concrete look.

DC790 GFRC Island System

Model w/Refrigerator: DC790-CBR-108SM (shown) Model w/Double Drawer: DC790-CBD-108SM

Dimensions: 107½”w x 34¾”d x 36”h

Required Components

• E790i or A790i, Built-In Grill

• 32814 or 3281L, Built-In Double Side Burner

• 3590-DR or DL, Refrigerator

• 53802 or 33802, Double Drawer

• 53938S or 33938S, Reduced Height Double Access Doors

• 53920-SR/SL or 33920-SR/SL, Single Access Door

(sold separately)

DC430 GFRC Island System

Model w/Double Drawer: DC430-CBD-75SM (shown) Model w/Refrigerator: DC430-CBR-75SM

Dimensions: 76¼”w x 34¾”d x 36”h

Required Components

• A430i, Built-In Grill

• 3590-DR or DL, Refrigerator

• 53802 or 33802, Double Drawer

• 53914-SR/SL or 33914-SR/SL, Horizontal Single Access Door

• 53920-SR/SL or 33920-SR/SL, Single Access Door

(sold separately)

Island Systems

*Refrigerator for use with DC790-CBR-108SM and DC430-CBR-75SM Island Systems.

**Double Drawer for use with DC790-CBD-108SM and DC430-CBD-75SM Island Systems.

DOORS & DRAWERS

FLUSH MOUNTED

Doors & Drawers

(5 Series)

Featuring heavy-duty handles

with cast stainless steel mounts, these 304 stainless steel doors and drawers are designed to

close ush with the frame using

a strong magnetic latch. Flush Mounted Doors and Drawers

are lled with polyurethane

foam for insulation and a solid feel. A continuous rain guard protects from water getting into your custom enclosure. Available in a variation of door

and drawer congurations and

sizes. With so many options there is a combination available to meet any outdoor kitchen storage need.

New Pantry sealed and gasketed Door/Drawer combos

feature self-closing, magnetic

seal drawers.

Flush Mounted Doors & Drawers (5 Series)

Vertical Single Access Doors

Model # Hinge Cut-out

• 53920-SR

• 53920-SL

• 53924-SR

• 53924-SL

Right

Left

Right

Left

21”h x 14½”w 21”h x 14½”w 25”h x 17½”w 25”h x 17½”w

Model Shown: 53920-SL

Horizontal Single Access Doors

Model # Hinge Cut-out

• 53914-SR

• 53914-SL

• 53917-SR

• 53917-SL

Right

Left

Right

Left

15”h x 20½”w 15”h x 20½”w 18”h x 24½”w 18”h x 24½”w

Large Pantry Door/Drawer Combo

Model #: Cut-out:

54020S 33½”h x 20”w x 26”d

Flush Mounted Doors & Drawers

Double Access Doors

Model # Cut-out

• 53934S 15”h x 30”w

• 53930S 21”h x 30”w

• 53938S 16”h x 39”w

Model Shown: 53917-SR

Model Shown: 53930S

Medium Pantry Door/Drawer Combo

Model #: Cut-out:

54018S 25”h x 17½”w x 26”d

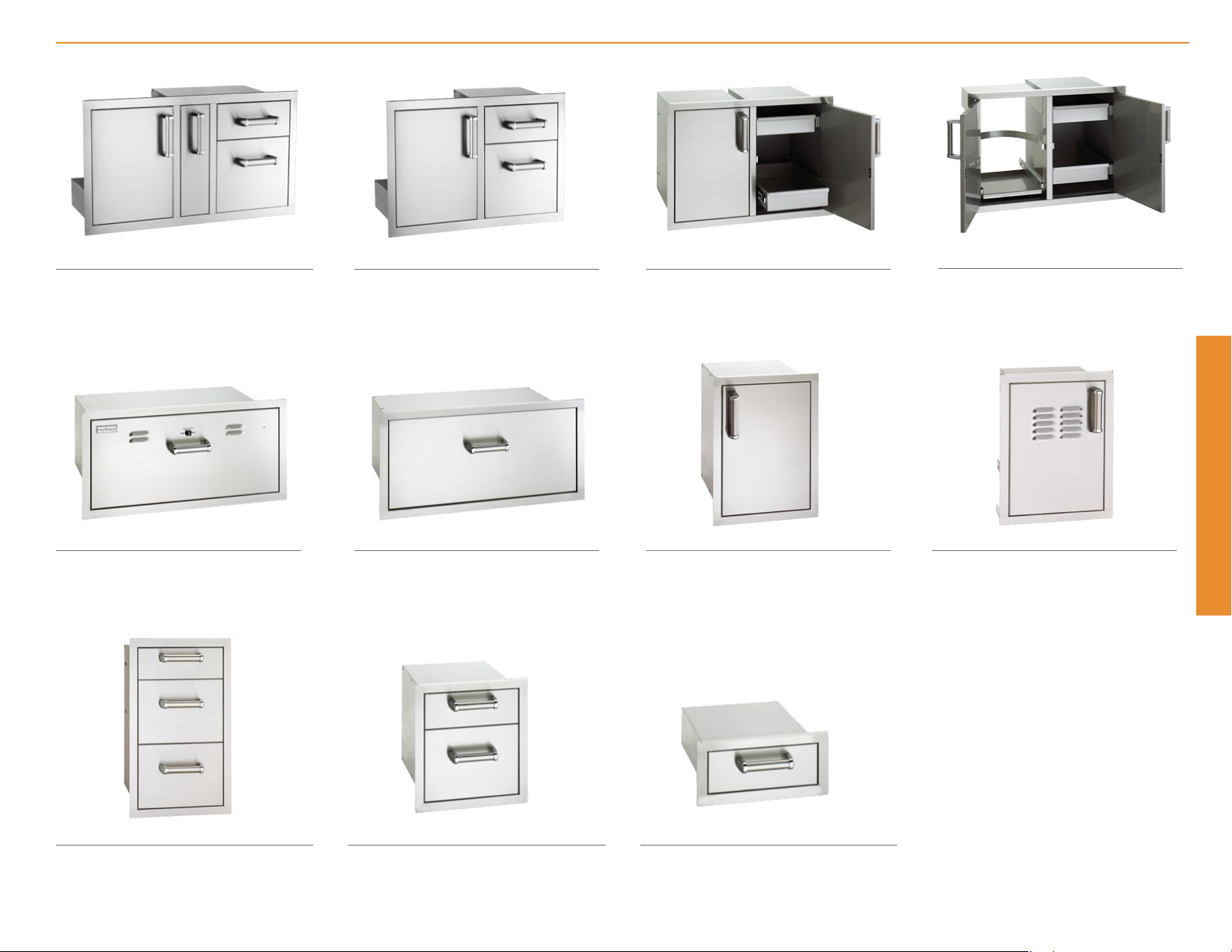

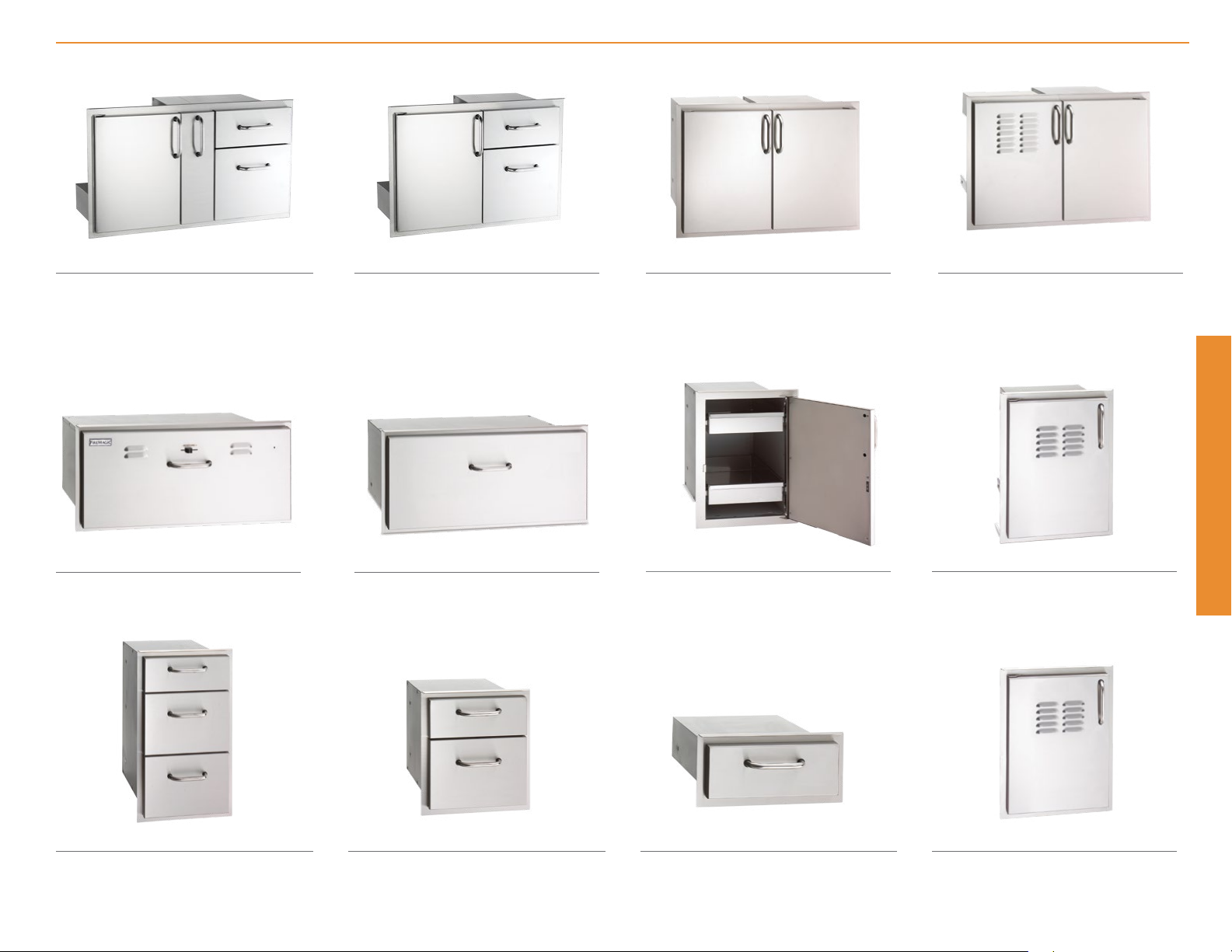

Flush Mounted Doors & Drawers (5 Series)

Door/Drawer Combo (w/platter storage)

Model #: 53816S Cut-out: 18½”h x 36½”w x 26”d

Electric Warming Drawer

Model #: 53830-SW Cut-out: 14½”h x 32¼”w x 22”d

†

Door/Drawer Combo

Model #: 53810S Cut-out: 18½”h x 30”w x 26”d

Masonry Drawer

Model #: 53830-S Cut-out: 14½”h x 32¼”w x 22”d

Double Doors w/Dual Drawers

Model #: 53930S-22 Cut-out: 21”h x 30½”w x 20½”d

Single Door w/Dual Drawers

Model #: 53820-SR or SL Cut-out: 21”h x 14½”w x 20½”d

Double Doors with Trash Tray & Dual Drawers

Model #: 53930S-12 Cut-out: 21”h x 30½”w x 20½”d

Flush Mounted Doors & Drawers

Door with Tank Tray & Louvers

Model #: 53820-TSL or TSR Cut-out: 21”h x 14½”w x 20½”d

Triple Drawer

Model #: 53803 Cut-out: 26¼”h x 14½”w x 20½”d

†

Buffet Warming Accessory available. Model No: 23830-SW-CD

Double Drawer

Model #: 53802 Cut-out: 16”h x 14½”w x 20½”d

Single Drawer

Model #: 53801 Cut-out: 5¼”h x 14½”w x 20½”d

SELECT

Doors & Drawers

(3 Series)

These 304 stainless steel doors and drawers feature outside mounting, double wall and square edge construction, a slim tubular stainless steel handle and heavy-duty magnetic latch. A continuous rain guard protects from water getting into your custom enclosure. Available in a large variety of door and drawer configurations and styles.

Select Doors & Drawers (3 Series)

Vertical Single Access Doors

Model # Hinge Cut-out

• 33920-SR

• 33920-SL

• 33924-SR

• 33924-SL

Right

Left

Right

Left

21”h x 14½”w 21”h x 14½”w 25”h x 17½”w 25”h x 17½”w

Horizontal Single Access Doors

Model # Hinge Cut-out

• 33914-SR

• 33914-SL

• 33917-SR

• 33917-SL

Right

Left

Right

Left

15”h x 20½”w 15”h x 20½”w 18”h x 24½”w 18”h x 24½”w

Model Shown: 33920-SR

Model Shown: 33924-SR

Select Doors & Drawers

Double Access Doors

Model # Cut-out

• 33930S 21”h x 30”w

• 33938S 16”h x 39”w

Model Shown: 33914-SR

Model Shown: 33930S

Model Shown: 33917-SR

Model Shown: 33938S

Select Doors & Drawers (3 Series)

Door/Drawer Combo (w/platter storage)

Model #: 33816S Cut-out: 18½”h x 36½”w x 26”d

Electric Warming Drawer

Model #: 33830-SW Cut-out: 13”h x 31”w x 20½”d

†

Door/Drawer Combo

Model #: 33810S Cut-out: 18½”h x 30”w x 26”d

Masonry Drawer

Model #: 33830-S Cut-out: 13”h x 31”w x 20½”d

Double Doors w/Dual Drawers

Model #: 33930S-22 Cut-out: 21”h x 30½”w x 20½”d

Single Door w/Dual Drawers

Model #: 33820-SR or SL Cut-out: 21”h x 14½”w x 20½”d

Double Doors with Tank Tray & Dual Drawers

Model #: 33930S-12T (w/Louvers shown) Model #: 33930S-12 (w/o Louvers) Cut-out: 21”h x 30½”w x 20½”d

Select Doors & Drawers

Door with Tank Tray & Louvers

Model #: 33820-TSL or TSR Cut-out: 21”h x 14½”w x 20½”d

Triple Drawer

Model #: 33803 Cut-out: 26¼”h x 14½”w x 20½”d

†

Buffet Warming Accessory available. Model No: 23830-SW-CD

Double Drawer

Model #: 33802 Cut-out: 16”h x 14½”w x 20½”d

Single Drawer

Model #: 33801 Cut-out: 5¼”h x 14½”w x 20½”d

Single Access Door w/Louvers

Model #: 33920-1-SL or SR Cut-out: 21”h x 14½”w

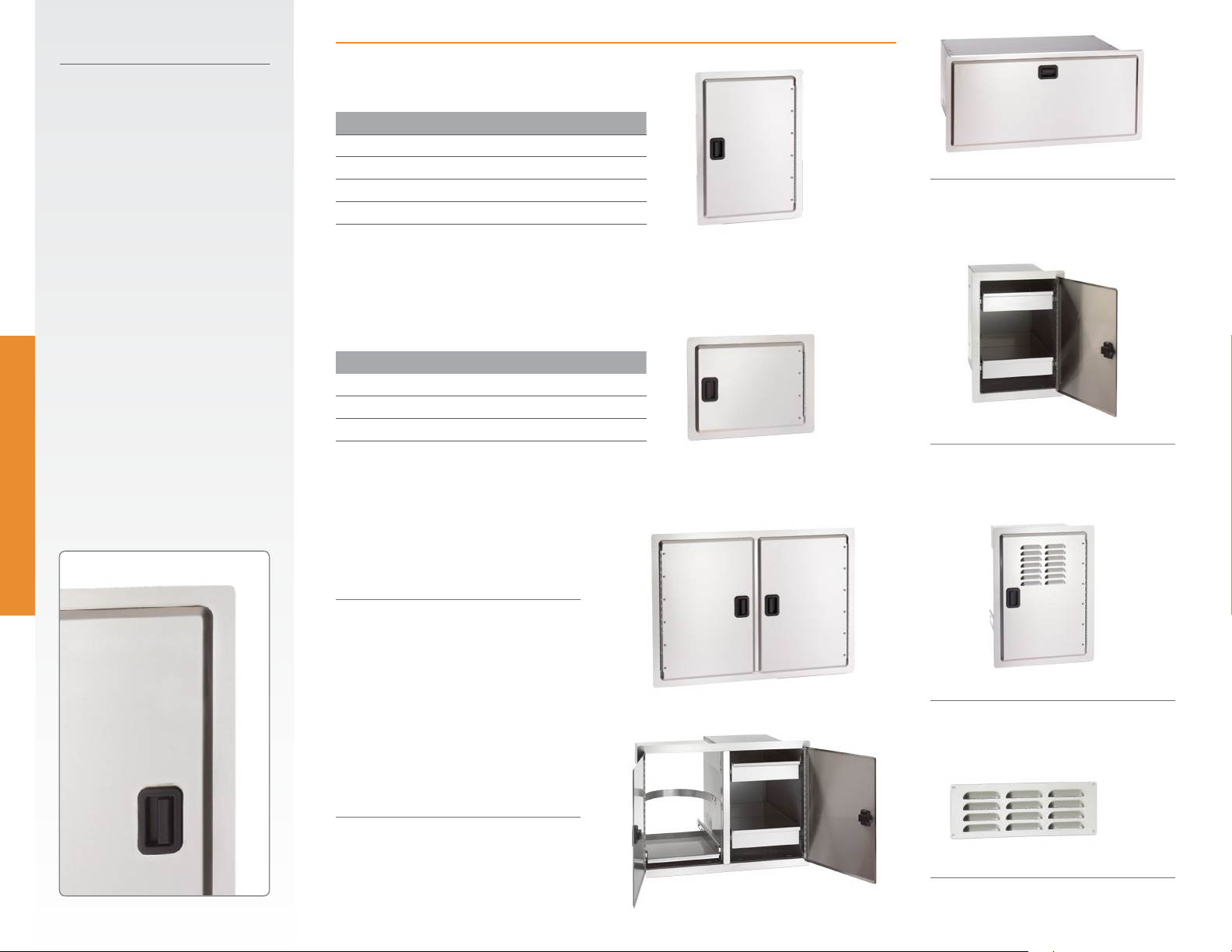

LEGACY

Doors & Drawers

(2 Series)

Outside mounted with angled edges, the Legacy Doors and Drawers are made of 304 stainless steel and feature a slam latch for secure closure.

The Legacy doors and drawers are the most economical for builders and homeowners alike.

Legacy Doors & Drawers (2 Series)

Vertical Single Access Doors

Model # Hinge Cut-out

• 23918-S

• 23920-S

• 23924-S

• 23920-1-S*

Door includes louvers

Reversible

18½”h x 12½”w 20½”h x 14½”w 24½”h x 17½”w 20½”h x 14½”w

Horizontal Single Access Doors

Model # Hinge Cut-out

• 23912-S

• 23914-S

• 23917-S

Reversible

12½”h x 18½”w 14½”h x 20½”w 17½”h x 24½”w

Model Shown: 23920-S

Model Shown: 53917-SR

Masonry Drawer

Model #: 23830-S Cut-out: 13”h x 31”w x 20½”d

Single Door w/Dual Drawers

Model #: 23820-S Cut-out: 20½”h x 14½”w x 20½”d

Legacy Doors & Drawers

Double Access Doors

Model #: 23930-S Cut-out: 20½”h x 30”w

Double Doors with Trash Tray & Dual Drawers

Model #: 23930S-12 Cut-out: 21”h x 30½”w x 20½”d

Door with Tank Tray & Louvers

Model #: 23920-1T-S Cut-out: 20½”h x 14½”w x 20½”d

Louvered Stainless Steel Venting Panel

Model #: 5510-01 Cut-out: 3¾”h x 12¾”w

FIRE MAGIC® OUTDOOR GAS GRILL AND ACCESSORY WARRANTY HIGHLIGHTS*

Crafted with pride in the USA and constructed entirely of 304 stainless steel, Fire Magic® has been manufacturing the

finest outdoor grills and accessories you can buy for over 80 years. Our warranty coverage reflects the quality materials and

craftsmanship found in all Fire Magic® grills.

When investing in a grill, consider the assurance provided by the Fire Magic® warranty:

• Fire Magic® pays for first year warranty labor allowance

• Fire Magic® pays for shipping warrantied replacement parts

• Fire Magic® pays for shipping warrantied defective parts back to the factory

• Fire Magic’s® qualified technical service representatives are available 10 hours a day, 5 days a week to assist with

questions, installation and service

You will find the Fire Magic® warranty to be the best and most comprehensive in the industry.

LIFETIME WARRANTY

Cast stainless steel burners, Diamond Sear and rod stainless steel cooking grids and stainless steel housings.

TWENTY (20) YEAR WARRANTY

Choice stainless steel tubular burners.

FIFTEEN (15) YEAR WARRANTY

Cast brass burners, brass valves, inner liners, manifold assemblies, porcelain housings (including ovens

and barbecue faces), and backburner assemblies (except ignition parts).

TEN (10) YEAR WARRANTY

Electric grills, including stainless steel cooking grids and housings.

FIVE (5) YEAR WARRANTY

Flavor grids, infrared burners in the grill, Charcoal stainless steel grills and Smokers (except for the charcoal pan,

charcoal grid, wood pellet screen, thermometer and ash tray; which are warranted for one (1) year.)

THREE (3) YEAR WARRANTY

Side burners and all other Fire Magic® grill components (except ignition and electronic parts).

ONE (1) YEAR WARRANTY

Ignition systems (except batteries), electronic components (including lights & thermometers) and grill accessories.

This warranty applies to the original purchaser with proof of purchase and to single family residential use only.

For additional information regarding this warranty, or about multi-user warranty, or to place a warranty claim

contact your authorized Fire Magic

dealer.

Warranty Information

*See full warranty for complete details.

All cut-out dimensions, images and diagrams are for reference purposes only. Fire Magic in this catalog without notice. Please refer to your instruction manual for the most up to date information specific to your product.

reserves the right to change the information contained

L-C1-00917

14724 East Proctor Ave., City of Industry, CA 91746

www.firemagicgrills.com

Fire Magic E790S4LAN71, E790S4LAN62W, E790S4EAP62W, E790S4L1N71, E790S4L1N62W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
