ELITE 50 GOURMET
UNIBODY SERIES 17
OUTDOOR GAS BARBECUE
INSTALLATION AND OPERATING
INSTRUCTIONS
c
INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.
Photo shows Elite 50 Gourmet Slide-In with Hanger
and Oven with Double Backburners.
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION
SAFETY WARNINGS & CODES
FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
1. Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
FOR YOUR SAFETY
3. Open lid.
4. If odor continues, immediately call
your gas supplier or Fire Department.
2. A Propane cylinder not connected for use
shall not be stored in the vicinity of this or
any other appliance.
AVERTISSEMENT
S’IL Y UNE ODEUR DE GAZ :
1. Coupez l’admission de gaz l’appareil.
2. Éteindre toute flamme nue.
3. Ouvrir le couvercle.
4. Si l’odeur persiste, appeler
immédiatement votre compagnie de
gaz ou votre département des
incendies.
CODE AND SUPPLY REQUIREMENTS: This
Barbecue must be installed in accordance with local codes
and ordinances, or in the absence of local codes, with the
latest National Fuel Gas Code, ANSI Z223.1. IN CANADA:
The Barbecue must include the Canadian Certification
mark and bilingual marking with bilingual instructions to
comply with the Canadian Interprovincial Gas Advisory
Council (IGAC) requirements.
This appliance and its individual shutoff valves must be
disconnected from the gas supply piping system when
testing the system at pressures in excess of ½ psig.
This appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valves
during any pressure testing of the gas supply system at
pressures up to and including ½ psig.
Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746
Rev 1 042804
1. Ne pas entreposer ni utiliser de l’essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage do
l’appareil, ni de tout autre appareil.
2. Une bouteille de propane qui n’est pas
raccordée en vue de son utilisation, ne
doit pas être entreposée dans le
voisinage de cet appareil ou de tout
autre appareil.
WARNING: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property
damage. Refer to this manual. For your safety, this
Barbecue should be installed or inspected by a qualified
installer, technician or the gas supplier.
1
AVERTISSEMENT
L-C2-07604
CONTENTS
ELITE 50 SLIDE-IN
SERIES 17-xxxxx-x
141,000 BTU's with Backburners
.
Front to Back Depth 23-3/4"
Width 51", Height 12", Open Front
ALSO AVAILABLE IN
Requires Stainless sample
NEW PHOTO REQ'D
Safety Warnings & Codes Pg. 1
Contents Pg. 2
Tools Required-Check List Pg. 3
CABINET MODELS
CONTENTS
Barbecue Parts List Pg. 3
Backburner & Oven Parts List Pg. 4
Planning for Installation of Your Barbecue Pg. 5
Gas Supply Requirements Pg. 5
Safe Use and Maintanence of Propane Gas Cylinders Pg. 6
Connecting Your Barbecue to The Gas Supply Pg. 7
Checking Your Barbecue Pg. 8
Adjusting Your Barbecue Pg. 9
Barbecue Lighting Instructions Pg. 10
Operating Your Barbecue Pg. 11
Features & Accessories Pg. 12
Barbecue Safety Information & Maintenance Pg. 13
Troubleshooting Pg. 13
Care & Cleaning Pg. 14
Cooking Times & Temps Pg. 15
Sample Recipes Pg. 15-16
Warranty Pg. 16
This manual may not be copied, photocopied, reproduced, translated, or published in any electronic or
machine-readable form in whole or in part without prior written approval of Robert H. Peterson Co.
For Technical Help call your local Fire Magic Dealer first
2
SUPPLIED ITEM CHECK LIST
•Elite 50 Barbecue:
•Outer Flavor Grids (4)
•Fire Magic Grilling Chips (1 can)
•Sample Recipe Book (1)
•Grill lifter (1)
•Match holder (1)
•Replacement Barbecue orifices (8)
•Wood chip box (1)*
•Backburner cover (2) *
•Backburner Replacement Barbecue orifices (2)*
*For Elite 50 with Backburners only:
FIRE MAGIC ELITE 50 GOURMET UNIBODY GAS BARBECUE PARTS LIST
TOOLS REQUIRED- CHECK LIST
TOOLS AND SUPPLIES REQUIRED FOR
• Two medium size adjustable wrenches
• One pair of pliers
• One flat blade screwdriver
• * 3/8" wrench or
• Pipe joint compound resistant to all gasses
• C.S.A.Approved Stainless Steel Flex Connector
( See Page 4, paragraph 4-a.)
*Note: 3/8" socket if orifice change is required.
• #2 (medium) Phillips screwdriver
Cooking Grids Part No. by Set (2 sets required)
Stainless Steel 3539-S-2 (22x12)
Cast Iron 3527-4 (22x6)
Porcelain Cast Iron 3539-2 (22x12)
200070, Flavor Grid
3199-60, Electrode Assembly w/Wiring
INST ALLATION
3/8" socket screwdriver
*3270-06, Burner Clips (8)
3199-36
Crossover Box (3)
*3041-01, Air Shutter (8)
*3048-03, Spring, Air Shutter (8)
24185-00, Elite-50
Slide-In Unibody
Burner Manifold Assembly (4)
Natural Gas 3185-10
Propane Gas 3185-10P
Burners Part No.
Stainless Steel *3041-40-2
Cast Brass *3041-25-2
Porcelain Cast Iron *3041-30-2
Cast Iron *3041-10-2
(4 sets required, -2 per set)
3030-01, Flex Tube Assembly (2)
3199-32, Ignitor
Generator Spark Kit (4)
3980-4105, Bolt
3981-0005, Washer
3990-0010, Nut
*3000-12, Fastner Set
3000-65
Bezel w/Pad (6)
(2)
4185-10
Valve Manifold Assembly
Note: Items marked * sold as two per package
Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746
24185-07, Elite-50 Face, Stainless
3
3012
Valve Knob (6)
Match Holder
3083, Drip Tray
FIRE MAGIC ELITE 50 BACKBURNER & OVEN PARTS LIST
EXPLODED VIEW OF BACKBURNER ASSEMBLY
PARTS INCLUDED WITH THE BACKBURNER ASSEMBLY ARE INSIDE THE BROKEN LINES
Woodchip Box
3001-125-1 Orifice, LP
3001-45-1 Orifice, Nat
Left Backburner Assembly
4732-09
3986-1102
Screw, 6-32 x 1/4 SS
4739-02
Air Shutter
& Adj. Screw
Right Backburner Assembly
SE
E
U
R
R
IN
E
IS
B
ER
EM
N
IG
R
L
M
UR
se.
u
KB
E
t in
AC
o
M
E
HE
W
R
R
VE
O
C
Ba
IS
hen
TH
E
r w
ve
OV
co
EM
R
lace
Rep
IG
L
B
n
N
is
er
urn
kb
c
4728-010
Backburner Cover
4728-02
Electrode Double Rod
N
RE
IO
T
EFO
N
B
U
R
E
ER
A
IO
VE
FOR
RN
T
C
U
CO
BE
IS
B
U
R
K
ER
A
TH
VE
AC
E
RN
B
C
U
CO
OV
R
IS
M
B
OU
CK
Y
TH
A
B
OVE
R
TING
H
OU
Y
TING
H
3984-4103
Screw, 10-32 x 3/8 SS
4199-69
w/Electrode Wire
B
M
B
K
E
AC
M
B
N
E
HE
rner
W
R
u
ER
V
Backb
IS CO
hen
w
E TH
V
ver
O
M
co
RE
lace
Rep
N
E
IO
FOR
T
N
BE
U
E
R
ER
A
IO
VER
N
O
FO
T
C
UR
C
BE
B
U
K
HIS
ER
A
VER
AC
RN
VE T
B
C
U
CO
O
R
E
B
U
IS
S
EM
K
U
R
R
YO
AC
G
IN
E
ER
N
UR
in
ot
n
is
B
IN
IS
OVE TH
R
U
HT
EM
R
YO
.
LIG
se
u
TING
H
LIG
3990-0025
Nut, 6-32 Hex SS
Backburner Gas Line
w/Compression Nuts
3030-01
& Sleeves
3990-0037
3/4 Pal Nut
EL-34
Elbow (Lid Stop)
IMPORT ANT
Your Fire Magic Barbecue,
Oven and Backburner are
fully Pre-assembled and
tested at the factory.
DO NOT attempt to remove
the oven and Backburner
from the Barbecue prior to
or during installation.
Damage to the connecting
gas line and ignitor wiring
may occur.
The plastic straps which
secure the oven to the
Barbecue unit should be
removed and discarded
prior to lighting.
EXPLODED VIEW OF OVEN ASSEMBLY
IGNITOR
ELECTRODE
WIRE
OVEN
LOCK
NUT
EL-34, ELBOW
& ORIFICE
(LID STOP)
Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746
4
PLANNING FOR INSTALLA TION OF YOUR ELITE 50 GOURMET BARBECUE
23 3/4"
DEPTH
CONNECT TO GAS LINE
STUB IN THIS AREA
51"
WIDTH
12"
HEIGHT
2
1
7
12
3
Fire Magic Barbecues are designed FOR OUTDOOR USE ONLY.
WARNING: Built-in models must be installed in masonry or other type of fireproof enclosure. The unit is NOT insulated
and therefore must be installed with 18" of side and back clearance from unprotected combustible materials such as
wood, plastic, or stucco with wood framing.
DO NOT install this unit under unprotected flammable surfaces. DO NOT inst all or use this appliance inside a
building, garage, or any other enclosed area including recreational vehicles or boats.
This is a SLIDE-IN TYPE unit designed to fit into open-front
enclosures. The Front Panel (Face) of the unit is removable for
gas hookup, servicing and Burner adjustment, and MUST remain
removable after you install the unit.
INSTALLER NOTE: This unit should be installed so that it can
be removed at a later date if factory service is required. Any
protrusion into the Barbecue enclosure may obstruct the frame
and prevent the unit from sliding into place (see "Gas Supply
Plumbing Requirements" below).
ENSURING PROPER COMBUSTION AIR & COOLING FLOW
Maintaining proper air flow for your Fire Magic Barbecue is
essential if it is to perform as it was designed (Fig 1). If airflow
is blocked, overheating and poor combustion will result. Make
sure not to block the 1" front air inlet along bottom of Barbecue
Face. Note: The front air space allows access to Drip Tray.
Figure 1
Ventilation Diagram
VENTILATION OF ENCLOSURES
When using Propane gas, take EXTREME CAUTION to ensure
ample ventilation of gas vapor. Propane vapor is invisible and
heavier than air. A DANGEROUS EXPLOSION could occur,
resulting in SERIOUS INJURY, OR LOSS OF LIFE if Propane
gas is allowed to accumulate and then ignite.
Only one Propane gas cylinder may be located in an
enclosure. Extra or spare cylinders must be stored outdoors
out of the reach of children and outside of any building, garage
or other enclosed area. READ AND FOLLOW ALL WARNINGS
PROVIDED WITH PROPANE GAS CYLINDERS. Never
locate a cylinder under or near Barbecue unless sufficient
ventilation and shielding is provided to prevent any heating of
cylinder, regulator and rubber hose.
PROP ANE CYLINDER ENCLOSURES
To prevent invisible combustible gas from accumulating in
your cylinder enclosure, you must provide adequate ventilation.
This is accomplished by having one side of the enclosure left
completely open to the outside
OR by providing four (4)
ventilation openings. Two openings are to be at the cylinder
valve level (Approx.16” above the floor) and on opposite walls
of the enclosure. Two more openings must be at the floor
level on opposite sides of the enclosure. The floor level
openings must start at the floor and shall extend no higher
than 5” above the floor. Each opening must have a minimum
of 10 square inches (64.5 cm
2
) of free area. To achieve the
proper ventilation, you may drill a series of holes, omit the
grout from masonry joints or replace a brick with a hardware
cloth screen. If the floor in the cabinet is raised and the
space beneath the cabinet is open to the outside, the lower
ventilation openings may be in the floor.
FOR YOUR SAFETY, you must provide these openings for
drainage, replacement air and cross ventilation of any storage
area exposed to possible leakage from gas connections, the
Barbecue or Propane Cylinder.
IMPORTANT: Additional requirements for safe use of Propane
gas and gas cylinders appear on Pg. 6 of this manual.
HOUSEHOLD PROP ANE GAS SERVICE
Consult your gas supplier for ventilation requirements when
connecting to a household Propane supply.
ELECTRICAL OUTLETS
All electrical outlets in area of Barbecue must be grounded.
Installer and User Note: Keep electrical supply cords away
from all heated surfaces.
EXHAUST REMOVAL
If installed under a patio roof, the grill area should be fully
covered by a chimney and exhaust hood. An exhaust fan with
a rating of 1000 CFM (cubic feet per minute) or more may be
necessary to efficiently remove smoke and other cooking byproducts from the covered area. Installation in fully-enclosed
patio areas is not recommended.
GAS SUPPL Y PLUMBING REQUIREMENTS
Rigid 3/4" or 1” black steel pipe, or local code approved pipe for
temperatures up to 800°F (427°C), is required to conduct gas
supply into enclosure opening for connection to the unit. Do
not use a rubber hose within enclosure for Barbecue unit.
Apply only joint compounds that are resistant to all gasses on
all male pipe fittings. Make sure to tighten every joint securely.
NOTE: Review page 7, prior to connecting unit. If 1/2” Pipe
is used, it should be no longer than five feet and only to conduct
Gas Supply into Barbecue cut out for connection to the Flex
Connector. The gas supply pipe should enter through the floor
at rear of enclosure and terminate near the left end (Figure 2).
Install gas line stub at least 2" away from the left side and back
walls, but within 9" of the back wall and 14” from the left wall,
as illustrated by the shaded area in Figure 2. No Pipe or fittings
should rise higher than 2 1/2” into the bottom of the Barbecue.
GAS SUPPLY REQUIREMENTS
Figure 2 - Gas Stub Diagram
SAFETY NOTE: An external valve (with a removable
key) in the gas line is necessary for safety when your
Barbecue is not in use. It also provides for convenient
maintenance
5
SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS
READ AND FOLLOW ALL WARNINGS PROVIDED WITH YOUR PROPANE GAS CYLINDER.
IMPORTANT FOR YOUR SAFETY
When operating this appliance with a Propane gas Cylinder these instructions and warnings MUST be observed.
FAILURE TO DO SO MA Y RESULT IN A SERIOUS FIRE OR EXPLOSION.
CYLINDER AND CONNECTOR REQUIREMENTS AND
SPECIFICA TIONS
a. Propane gas cylinders and valves must be maintained in
good condition and must be relaced if there is visible damage
to either the cylinder or valve.
b. This Barbecue, when used with a cylinder, should be
connected to a standard 5 gallon (20lb.) Propane gas cylinder
equipped with an OPD (Overfill Prevention Device). The OPD
has been required on all cylinders sold since October 1,1998
to prevent overfilling.
c. Cylinder dimensions should be approximately 12 inches in
diameter and 18 inches high. Cylinders must be constructed
and marked in accordance with the specifications for Propane
Gas Cylinders of the U.S. Department of Transportation (D.O.T)
or the National Standard of Canada,CAN/ CSA-B339, Cylinders,
Spheres and Tubes for Transportation of Dangerous Goods.
d. The cylinder must include a collar to protect the cylinder
valve and the cylinder supply system must be arranged for
vapor withdrawal.
e. The pressure regulator and hose assembly (Figure 3A,)
supplied with this outdoor cooking gas appliance must be used.
Original and replacement pressure regulator and hose
assemblies must be those specified by the Robert H. Peterson
Co. for connection with a cylinder connecting device identified
as Type I by the Harmonized Standard ANSI Z 21.58 and CGA
1.6-M95-1995 with Addenda ANSI Z 21.58a -1998 and CGA
1.6a - M98.
f. The Propane gas cylinder valve must be equipped with a
cylinder connection coupling device, described as Type I in
the Harmonized ANSI standard defined in paragraph e. above.
This device is commonly described as an Acme Thread Quick
Coupler.
g. Your Propane Gas Cylinder may be equipped with a Type II
Quick Disconnect (plug-in) Coupler (Figure 3B). An approved
regulator /hose assembly for this type of coupling is available
through your dealer from R.H. Peterson Co.
QUICK COUPLER OPERA TION
To connect the Regulator/hose assembly to the LP gas
cylinder valve fitting: Press the Hand Nut on the Regulator
over the Acme thread fitting on the cylinder valve. Turn the
Hand Nut clockwise to engage the threads and tighten until
snug. The use of pliers or wrench should not be necessary.
To disconnect:- Turn the Hand Nut counter-clockwise until
detached. (Figure 3a).
Important: Before using the Barbecue and after each time the
cylinder is removed and reattached, check all connections for
leaks. Turn off the Barbecue valves and open the main cylinder
valve, then check connections with soapy water. Repair any
leaks before lighting the Barbecue.
CAUTION: Always turn the Propane cylinder main valve off
after each use and before moving the Barbecue and cylinder or
disconnecting the coupling. This valve must remain closed
while the appliance is not in use, even though the gas flow is
stopped by a safety feature when the coupler is disconnected.
Carefully inspect the hose assembly each time before the gas
is turned on. A cracked or frayed hose should be replaced
immediately.
If the appliance is stored indoors, the cylinder must be
disconnected and removed. Cylinders must be stored out of
the reach of children and must not be stored in a building,
garage or any other enclosed area.
FOR YOUR SAFETY
a. DO NOT store a spare Propane Gas cylinder under
or near this appliance.
b. NEVER fill the cylinder beyond 80 percent full.
c. IF THE INFORMATION IN “A” AND “B” IS NOT
FOLLOWED EXACTL Y, A FIRE CAUSING DEATH OR
SERIOUS INJURY MAY OCCUR.
QCC TYPE I
CYLINDER VALVE
(QUICK DISCONNECT COUPLER)
PRESSURE
RELIEF VALVE
U
L
CYLINDER
MAIN VALVE
HANDWHEEL
BRASS COUPLING NUT
LIQUID LEVEL
INDICATOR
(OPTIONAL)
HAND NUT
WITH
ACME THREAD
Figure 3A Type I Acme Thread Quick Coupler
GAS SUPPLY AND MANIFOLD PRESSURES:
For Natural Gas -
Normal 7" Water Column (w .c),
Minimum 31/2" w.c. , Maximum 101/2" w .c.
For useful advice and help with constructing your barbecue contact your local Fire Magic dealer
REGULATOR
HOSE
CYLINDER VALVE
(QUICK DISCONNECT COUPLER)
PRESSURE
VENT
RELIEF VALVE
6
TYPE II
U
L
CYLINDER
HANDWHEEL
BRASS COUPLING SLEEVE
NIPPLE
LIQUID LEVEL
INDICATOR
(OPTIONAL)
Figure 3B Type II Quick Disconnect Coupler
For Propane Gas -
Normal 11" Water Column (w.c.)
Minimum 8" w.c., Maximum 13" w.c.
REGULATOR
VENT
HOSE
CONNECTING YOUR ELITE 50 GOURMET BARBECUE TO THE GAS SUPPLY
TO CONNECT TO THE GAS SUPPLY
The Elite Barbecue is supplied with an approved stain-
a.
less steel flex connector to bring the gas supply from the
gas line stub to the Valve Manifold. A 7/8”x 36” Connector
is provided with a 1/2" female pipe adapter on one end to
connect to your gas suply.
CAUTION: Use only stainless steel flex connectors that
are C.S.A. listed.
WARNING: A rubber or plastic connector will rupture or
leak, resulting in an explosion or serious injury if used
inside the Barbecue enclosure.
b. Make sure that your gas supply is turned off! Then con-
nect the 1/2" pipe adapter fitting supplied with the stainless steel
flex connector to the gas supply stub. Use pipe joint compound
that is resistant to all gasses on the male pipe fitting and tighten
securely. DO NOT use pipe joint compound to connect the
Flare Fittings.
c. Slide your Barbecue into place, making sure not to pinch or
kink the gas connector.
d. Bring the flex connector around the left-hand side of the
Barbecue. Use the Locator Angle Brackets on the left lowerframe to position the flex connector. Continue the flex connector
along the left side to the front of the unit and the Valve Manifold
Inlet. Be careful not to block the 1" Front Vent opening as this
will obstruct Drip Tray removal.
e. Connect the flex connector to the Flare Fitting on the Mani-
fold Inlet. Support the Manifold Inlet Fitting with a wrench to
avoid applying excessive torque to the Manifold Assembly while
tightening this connection securely. DO NOT use pipe compound on Flare Fittings.
IF THE OVEN IS FITTED CONTINUE WITH (f and g) BELOW.
IF IT IS SEPERA TED GO TO NEXT SECTION.
f. Make sure the Barbecue Burner valves are in the "OFF"
position. Turn the gas supply on. Then carefully check all gas
connections for leaks with a brush and soapy water before
lighting. NEVER USE A MATCH OR OPEN FLAME TO TEST
FOR LEAKS.
g. Refer to the "Air Shutter Adjustment Instructions" and
"Lighting instructions" in this manual before replacing Barbecue
face and knobs.
IF THE OVEN IS SEPARATED FROM THE BARBECUE, IT
WILL REQUIRE
TWO PEOPLE TO INST ALL IT.
a. Make sure the Backburner gas supply tubes are protruding
above the side panels of the barbecue frame (Figure 4). The
Backburner electrode wires should be positioned outside of the
Barbecue for the Oven to sit correctly.
b. Carefully place the oven on the frame so the Backburner
gas supply tubes fit into lid stop elbows on the oven (Figure 6).
The front lip of the oven may sit on the face of the Barbecue.
c. Hand tighten the compression nuts onto the lid stopelbows
d. Use a wrench and turn the elbow (lid stop) to push the oven
to the back of the Barbecue frame (Figure 5).
e. Tighten the compression nuts on the Backburner gas supply
tubes to the elbow lid stops. Do not use pipe joint compound
on these connections.
f. Place the right Backburner electrode wire through the oven
just in front of the elbow (lid stop). Secure with nut and screw.
Plug the electrode wire into the Backburner electrode (see Parts
List diagram on page 3). Make sure the electrode wire does not
touch the Backburner. Repeat above instructions for left
Backburner electrode wire.
g. Make sure the Barbecue Burner valves are in the "OFF"
position. Turn the gas supply ‘ON’. Carefully check all gas
connections for leaks with a brush and soapy water before
lighting. NEVER USE A MATCH OR OPEN FLAME TO TEST
FOR LEAKS.
h. Refer to the "Air Shutter Adjustment” instructions below, the
Backburner “Air Shutter Adjustment” instructions on page 9 and
"Lighting instructions" on the back page of this manual before
replacing the Barbecue face and knobs.
Figure 4
BACKBURNER
ELECTRODE
WIRE
Figure 5
7
CHECKING YOUR BARBECUE
BARBECUE FUEL ORIFICE SIZE
Elite 50 Gourmet Unibody Barbecues are equipped with fuel
orifices for Natural gas, unless otherwise indicated. To use
with Propane gas, you must install smaller orifices to avoid
hazardous overheating.
For Elite 50 Barbecues: The proper orifice size for Natural
Gas is #48 (drill size). The proper orifice size for Propane Gas
is #57 (drill size).
IF YOU ARE NOT SURE YOU HAVE THE CORRECT
BARBECUE BURNER ORIFICE SIZE
a. Remove the Cooking Grids and Flavor Grids from the
Barbecue.
b. If the gas supply has been connected, make sure the Burner
Valves are in the “Off” position. Then pull the Valve knobs from
their stems. Use a Phillips screwdriver to turn the Face Fastener
Screws counter clockwise to release the Face and remove it
from the Barbecue. Retain the screws and finish washers for
reattaching the Face.
NOTE: Carefully lift the face away from the frame. The Spark
Generator for the ignition system is attached to the inside of
the face panel. The Spark generator Knob need not be detached, but the wires must be unplugged from the generator
before the face is removed.
c. Using a flat blade screwdriver, pry the burner retaining clip
from rear wall of the barbecue frame (see Figure 6). Remove
the burner by; A) Pulling it to the front of the barbecue, B) Lift
the far end out of the notch, C) Pull the burner away from the
manifold, taking care not to lose air shutter and spring, which
may become detached when the Burner is removed.
d. Using a 3/8" socket, remove orifice from the orifice holder
on the burner manifold and check the number stamped on the
face (see "Barbecue Orifice Size" above). Repeat for each
burner as necessary.
e. If your barbecue is not orificed for the gas supply you plan
to use, replace them with the orifices supplied with the barbecue or orifices supplied by your local dealer.
f. After checking orifice drill size or replacing the orifice, install
the Air Shutter Spring and the Air Shutter over the orifice holder
fitting, between the Burner and the Burner Manifold, in the order
and position shown in Figure 6.
g. Replace the burners in the holding groove, ensuring that the
brass orifice and orifice holder fittings project deeply into the
Burners. Replace the burner retaining clips.
3. CHECK BACKBURNER FUEL ORIFICE SIZE
If your Barbecue includes a Backburner it is equipped with
a Natural Gas orifice unless otherwise indicated. To use Propane
Gas, you must use a smaller orifice. The proper orifice for
Natural Gas is #45 (drill size). The proper orifice for Propane
Gas is #125 (1.25mm).
Hazardous overheating will occur if a Natural Gas orifice is
used with Propane Gas. If you are not sure, or if an orifice
change is necessary, refer to the instructions included with the
replacement orifice which is packed with the Barbecue.
IF YOU ARE NOT SURE YOU HAVE THE CORRECT
BACKBURNER ORIFICE SIZE
1. Remove the Backburner assembly (Figure 7).
a. Remove the Backburner cover if in place.
b. Unplug the Ignitor wire from the electrode.
c. Remove the mounting screw from the mounting bracket
at the left end of the Backburner assembly. Be careful not
to lose the 3/8" spacer (if equipped) when screw is removed.
d. Carefully pull the left end of the backburner assembly
forward, keeping it against the left side of the oven, until
the right end of the burner clears the orifice.
2. Check the size stamped on the orifice.
3. If an orifice change is necessary, use a 3/8" hex nutdriver
or appropriate wrench or pliers to replace the orifice.
4. Replace the Backburner assembly, following step a. through
d. above, in reverse order.
5. Re-check the air shutter instructions.
OVEN LEFT SIDE
MOUNTING BRACKET
ELECTRODE
AIR SHUTTER
MOUNTING
SCREW
IGNITOR WIRE
Figure 7
ORIFICE
Figure 6 - Burner Orifice Diagram
BURNER
BURNER CLIP
CHECKING THE BARBECUE REGULA TOR
The Barbecue Regulator, located behind the Front Panel (Face),
must be set for the type of gas used to fuel the Barbecue. To
check the regulator setting remove the cap in the center of the
regulator (Fig 8A). Holding the cap vertical (see Fig 8B), the
letters at bottom of the plastic stalk should indicate the gas
type that the reguator is currently set up for. If regulator is not
set for your gas type, remove stalk from cap, invert and replace
into center of cap. Replace cap on regulator, screwing down
until snug.
BURNER NECK
BARBECUE REGULA TOR.
NOTE THE CAP ON TOP
Figure 8A
8
AIR SHUTTER
SPRING
BURNER MANIFOLD
WITH ORIFICE
HOLDER
ORIFICE
READ GAS
TYPE HERE
Figure 8B
ADJUSTING YOUR ELITE 50 GOURMET BARBECUE
ADJUSTING YOUR BARBECUE
IMPORTANT: This appliance may not light or heat evenly
or cook properly unless the Air Shutters are adjusted
following installation (See "Air Shutter Adjustment" below).
AIR SHUTTER ADJUSTMENT
The Air Shutters are located at the front of the Burners behind
the Face and Heat Shield (see Parts List)Burner Air Shutters
and are easily accessed by removing the Front Panel (Face)
and Heat Shield. Close the air shutters by turning the tabs to a
vertical position. (Figure 9). Light your Barbecue in accordance
with the lighting instructions (page 6) and burn for 2 minutes
with the valves on high and the oven open.
After burning for 2 minutes, open the Air Shutters until the
flames lift off, or appear not to be touching the Burners. Then
begin closing the Air Shutters until the flames appear to burn
while touching the Burner Ports (Figure 9). You may then see
short yellow tips on the flames. If flames are a lazy yellow,
open the Air Shutters until the flame is blue with yellow tipping.
NOTE: Barbecues in some installations achieve a better air/
gas mixture and will ignite more quickly if the valve is first
turned beyond High to Medium or Low for lighting.
TAB
PARTIALLY OPEN
(TURN TABS)
CLOSED
Figure 9- Air Shutter Adjustment Diagram
DIMPLE
NOTCH
FLAME OFF PORTS
FLAME ON PORTS
REA TT ACHING THE FACE & IGNITOR WIRES
Pull the Drip Tray out far enough to
support the Face in the vertical
position. Lean the Face forward and
plug the 2 wires into the terminals
on the Spark Generator (Figure 11).
The wires can be plugged into either
terminal.
IMPORTANT: Test the Electrodes
Figure 11 - Spark
Generator
for spark before securing the Face to
the frame (see Page 12 for Battery Replacement). Place the
Face on the Frame so the Front Lip of the Face covers the lip
on the frame.
ADJUSTING THE FLAME HEIGHT
The large knobs on the Face of the Barbecue control the Valves
and adjust flame height. The first position is “High,” the second
“Medium” and the final “Low.” Flame height can also be set
anywhere between the High, Medium and Low settings for all
cooking requirements and methods.
Height of the flame with the valve in low position may be
regulated by means of a small adjusting screw in the center of
the valve stem. This screw is accessible by removing the
plastic valve knob which pulls straight off the end of the valve
stem.
5. INST ALL THE FLA VOR GRIDS
Place the Flavor Grid directly on the Burners centering the
Grids over the Burners with the open side up (Fig 12). This
allows heat from the Burners to be evenly distributed throughout the cooking area. Fire Magic Flavor Grids are Stainless
Steel and will heat and cool quickly, making your Barbecue
very responsive to the changes you specify in grill temperature.
They are rust resistant and may be cleaned with standard oven
cleaners.
IMPORTANT: It is normal for the Backburner to smoke when
it is burned for the first time. Burning your Backburner on high
for approximately 15 minutes will eliminate the smoking.
BACKBURNER AIR SHUTTER ADJUSTMENT
a. The Air Shutter on your Backburner is preset at the factory.
However, due to atmospheric conditions and different gas
pressures, it may be necessary to adjust the Air Shutter to
obtain a proper burn.
b. First remove the Backburner cover, then loosen the Air
Shutter screw (See Fig. 10). It may be necessary to use
pliers to turn the Air Shutter. Light the Backburner. With the
control knob on "HIGH" adjust the Air Shutter to have a blue
flame that is not lifting off the Burner (It may also have slightly
yellow tips).
c. Tighten the Air Shutter adjustment screw.
AIR SHUTTER SCREW
FLAVOR GRID
LEG
BURNER
FLAVOR
GRIDS
Figure 12 - Flavor Grid Diagram
Figure 10
9
LIGHTING INSTRUCTIONS
Read entire instructions before lighting.
Follow the instructions each time you light your Fire Magic Barbecue or Backburner.
FOR AUTOMATIC LIGHTING:
1. Open the lid.
2. Turn all three Barbecue gas valves and the Backburner
valve to the “OFF” position.
3. Turn on the gas at the
source outside of the
Barbecue enclosure.
4. Remove the
Backburner cover if you
TO
TU
N
R
are lighting the
Backburner.
NOTE:
DO NOT turn on
more than one valve at a
time for either
automatic or manual
Figure 8 - Valve Control Knob
lighting. Adjacent
Barbecue Burners will cross-ignite.
5. Depress either the center gas valve knob or the Backburner
knob and turn to “HIGH” then immediately press the Spark
Generator button (see Figure 10). The Burners should light.
CAUTION: If the Burners do not light within 5 seconds depress
the knob and turn the valve to “OFF”. WAIT 5 MINUTES before
repeating step 5 If the Burners still do not light after several
attempts, refer to the instructions for manual lighting.
OFF MARKER
N
O
P
U
O
F
S
F
T
H
U
R
N
TO
TU
RN
O
HIGH TO
LIGHT
FF
T
O
LIGHT
HI
MED
FOR MANUAL LIGHTING:
CAUTION: Always wait 5 minutes for gas to clear after
any unsuccessful lighting attempt.
1. Follow steps 1 through 4 of "Automatic Lighting" section
2. Insert either a burning long-barrel butane lighter, a burning
long-stem match or a burning match held by the match
holder (attached to the drip tray) (Figure 9) through the
Figure 9 - Match Holder
Cooking Grids to the Burners below the Flavor Grid (Figure
10). For Backburners, hold the flame against the perforated
material near the Backburner.
3. While holding the match or lighter flame next to the Burner,
depress the appropriate Valve knob and turn it
counterclockwise to the “HIGH” position. The Burner should
light.
4. If Burner does not light, IMMEDIATELY DEPRESS the
knob and turn valve to “OFF”. WAIT 5 MINUTES before
repeating steps 2 through 4 of Manual lighting instructions.
NOTE: Barbecues in some installations achieve a better air/
gas mixture and will ignite quicker if the valve is first
turned beyond High to Medium or Low for lighting.
IF YOU SMELL GAS
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If the odor continues, immediately call your gas
supplier or fire department.
REMEMBER: FOR SAFE MANUAL LIGHTING, PLACE A
BURNING MATCH OR BUTANE LIGHTER BESIDE THE
BURNER - THEN TURN ON THE GAS (Figure 10).
Backburner Valve
Figure 10 - Knob Positions
&
Manual Lighting
Backburner Ignitor
Button
10
OPERA TNG YOUR BARBECUE
To extend the life of your Fire Magic Barbecue, follow these
steps prior to cooking:
1. Begin by heating the unit at a normal cooking temperature
for several minutes.
2. Then open the Control Valves to the “High” setting to burn
off residue remaining from prior use.
3. When the Barbecue has heated sufficiently, set heat to the
desired cooking level.
4. When using a smoke oven, closing the cover during the
preheat period will accelerate the preparation process. DO NOT
operate unattended at High Flame as cooking temperatures
will quickly be exceeded.
Using Your Optional Backburner
Rotisserie cooking with the Backburner is accomplished without
use of the main grill Burners. The cooking grids are removed
and if large cuts are to be barbecued, the Flavor grids may be
removed to allow more clearance from the spit rod to the fire
box. Aluminum Foil or a baking pan may be placed over the
main Burners to catch excess drippings from your cooking.
a. Remove the Backburner cover. (Fig.13)
b. Place your meat on the rotisserie spit rod. Make sure it is
centered on the spit. Refer to the instructions provided with
your Fire Magic Rotisserie and counter balance.
c. Follow the lighting instructions on page10
d. Allow the Backburner to preheat for approximately 10
minutes on "HIGH" setting.
e. Place the spit rod with the meat into the rotisserie and turn
on the motor.
f. Use a standard roasting guide to estimate the length of time
for your meat. A meat thermometer may also be used to tell
when your favorite cuts are cooked to your liking. When testing
temperatures with a thermometer, turn off the rotisserie motor
and turn the Backburner on "Low". This will keep the meat from
over cooking on one side
g. Operate your Backburner with the oven closed. This will
simulate an oven effect and help your meat cook faster. The
constant rotation of the spit assures even cooking and maximum
retention of juices.
h. On large cuts of meat or whole turkeys, it may be necessary
to reduce the heat from your Backburner. Cooking your food at
lower temperature for a longer period will keep the outer surface
from burning, while cooking the interior of your food thoroughly. `
Smoker Tray (Woodchip Box)
Your Backburner is supplied with a woodchip box. The
woodchip box is designed to sit on top of the Backburner
assembly over the notch in the heat deflector (See Fig. 13).
This box is designed to be used when the Backburner is in use.
To use the box, just fill it with your favorite woodchips and set
it in place. If you wish to refill the woodchip box when it is hot,
you may carefully handle it using a pair of pliers. You must be
very cautious not to get burned.
The Backburner Cover
a. The Backburner cover is installed by placing the curved part
of the cover over the top of the perforated portion of the
Backburner (See Fig. 13).
b. The cover should be kept in place on the Backburner when
it is not in use. This will keep your Backburner free from grease
splatter and debris that may hinder its performance.
WARNING: You must remove the Backburner cover before
lighting the Backburner.
FLA VOR FROM WOOD CHIPS OR CHARCOAL
Convenient Fire Magic Gourmet Grilling Chips* are sold in
several different popular wood types. These chips are premoistened and sealed in cans, a sample of which is provided
with your barbecue. To use follow the instructions on the side
of the can. After use there is no mess to clean up, just discard
the can of ashes after there is no longer any wood smoke
aroma. More Fire Magic Gourmet Grilling Chips* may be
purchased through your local dealer.
You may also add wood chips, wood chunks or the natural
wood charcoal of your choice to the Flavor Grid. We recommend
placing wood outside the direct cooking zone or wrapping it in
perforated aluminum foil. Soaking wood before use will slow
burning and increase smoke flavor. Wood and charcoal ash
will remain in the Flavor Grid after use. The Grid can be easily
removed and cleaned when unit has fully cooled.
WOODCHIP BOX
BACKBURNER COVER
BACKBURNER
AIR SHUTTER
SCREW POSITION
Figure 13
*Available from your nearest Fire Magic Dealer
11
FEATURES AND ACCESSORIES

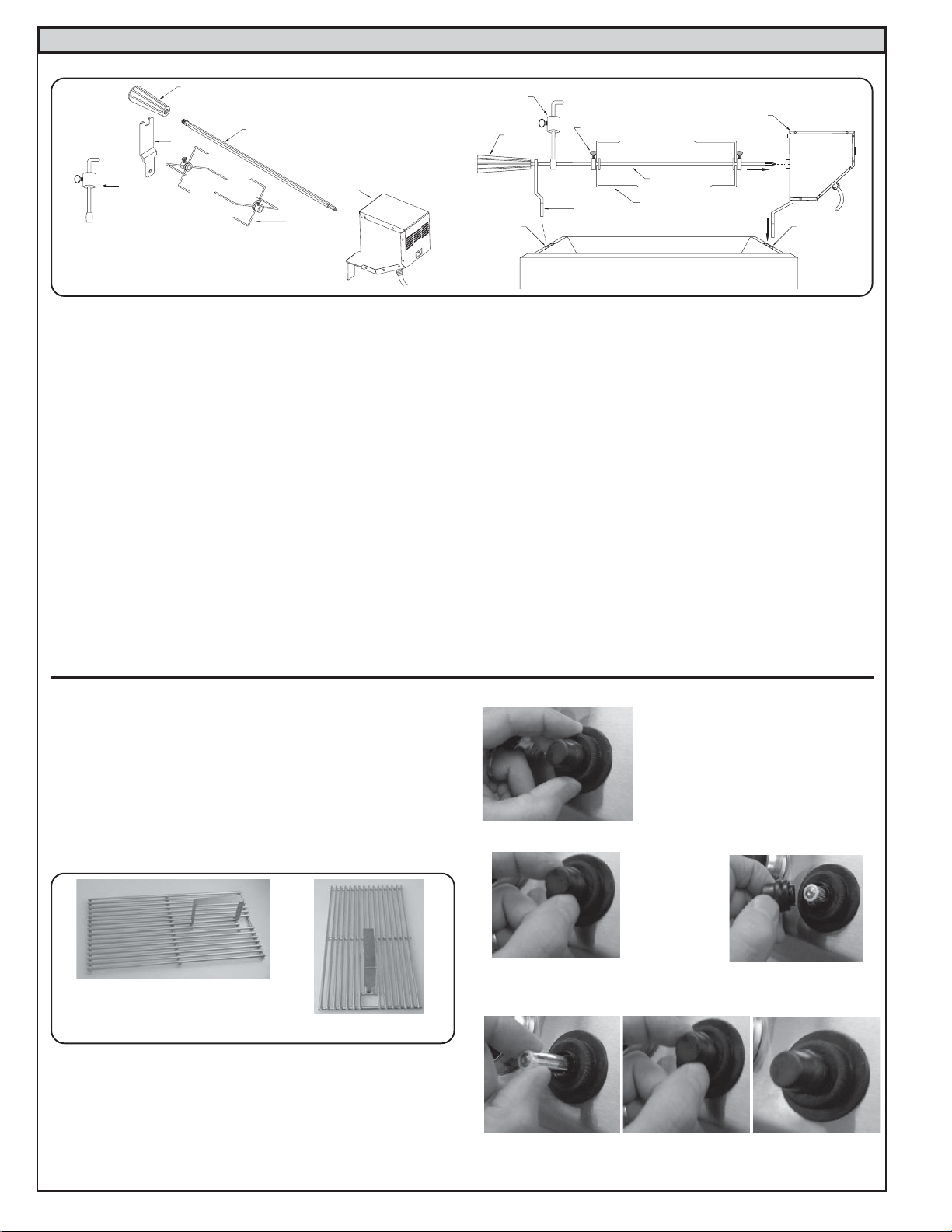

Installing and using Your Optional Rotisserie Kit
4
2
5
COUNTER
BALANCE
HANDLE
THUMB SCREW
MOTOR
6
tem No.Part No. Description
I
3
1
1. 3600-05 Elite fan cooled motor
2. 3600-18 Spit bracket with offset
3. 3613 Elite spit prongs
4. 3600-13 Handle
5. 3607-40 Spit rod 5/8" hex x 51 1/2"
6. 3620 Counter Balance
1. Remove the cooking grids from your barbecue.
2. Place the rotisserie motor with the bracket into the slot on
the right side of your barbecue, making sure the knob and
cord are facing away from the barbecue (see above).
3. Place the spit bracket into the slot on the left side of your
barbecue with the offset out.
4. Place pointed end of the spit rod into the motor. The groove
in the handle end of the spit will rest on the spit bracket .
Note: The Counter Balance, which is included with your
Rotisserie Kit, should be used to balance the load on your
rotisserie and prolong the life of your motor. Heavy unbalanced
meats can stress rotisserie motor and may cause failure.
SPIT ROD
SPIT PRONGS
BARBECUE
FRONT FACE
BARBECUE
RIGHT SLOT
BARBECUE
LEFT SLOT
SPIT BRACKET
To use the Counterbalance supplied with your Barbecue:
1. Place meat on the spit in the normal manner. Center and
balance as carefully as possible.
2. Tighten the screws on the prongs, chicken holder or turkey
holder to secure the meat.
3. Hold spit rod at each end and lift. Do not grip the rod.
Let rod rotate so heavy side of meat hangs down naturally.
4. Turn the counterbalance on the spit so the counterbalance
rod and weight point upward or opposite from the heavy side
of the meat. Tighten the counterbalance rod in the hub
against a flat surface of the spit rod to secure.
5. Loosen the thumb screw and slide the weight along the
counterbalance rod to balance the meat. Since meats are
not a uniform shape, it may not be possible to achieve a
perfect balance. Properly balanced meat should not rotate
when you hold the spit rod loosely by the ends.
6. Make sure the counterbalance does not strike the barbecue
frame when the rotisserie is started.
USING THE COOKING GRILL LIFTER
Hold the Grill Lifter by gripping the center section with the
prongs pointing down (Using oven mitt or heavy glove if the
grill is hot). Insert the notched end of the Grill Lifter into the
grill, in front of the midway point (front to back- Figure 14A)
and central (left to right-Fig 14B). Twist the grill lifter (clockwise
or counter-clockwise) so the handle is parallel to the grill rods.
This “seats” the spiked end of the Grill Lifter between two rods
enabling you to safely lift the grill out of the barbecue. Lift
slowly and adjust the Grill Lifter if necessary to balance.
Figure 14A
Placement of the Grill Lifter in Grill
Figure 14B
WARMING RACK
Your Fire Magic warming rack is packed seperately with the
barbecue. It is assembled quickly and easily following the
instructions provided. When complete, just position it as
suggested to enjoy the benefits this useful accessory affords.
REPLACING THE SPARK GENERA T OR BATTER Y
NOTE: DO NOT ATTEMPT TO
TURN THE PLASTIC BEZEL
RING. DOING THIS MAY BREAK
THE BEZEL RING AND DAMAGE
THE IGNITOR.
WRONG!
1. Remove the rubber cap by depressing and turning the cap
counterclockwise and lifting away the cap.
2. The battery is now accessible for removal and replacement.
Make sure that the battery spring is re-installed with the
new battery, and the battery is negative (-) end up.
3. Replace rubber cap by pressing in and turning it clockwise.
until it locks into place.
12
BARBECUE SAFETY INFORMATION & MAINTENANCE
Each time you use your Barbecue, make sure that:
1. The area around the Barbecue is clear of flammable
substances such as gasoline, yard debris, wood, etc.
2. There is no blockage of the air flow through the vent space
located below the Face of the unit.
3. When using Propane gas:
a. The special ventilation openings in the enclosure
are kept free and clear of debris.
b. If connected to a Propane cylinder, the rubber hose
attached to the Regulator is carefully inspected before
each use.
c. The Propane cylinder, Regulator and rubber hose
are installed in a location not subject to heating above
125° F (51° C).
4. The Burner flames burn evenly along both sides of each
Burner with a steady flame (mostly blue with yellow tipping).
See “Air Shutter Adjustment” below. If Burner flames are not
normal, check the orifice and Burner for insects or insect
nests (see Pg.4, Sect. 2, for Burner removal and replacement).
WARNING: NEVER cover the entire cooking or grill surface with griddles or pans. Overheating will occur and
Burners will not perform properly when combustion heat is trapped below the cooking surface.
CAUTION: NEVER spray water on a hot gas unit as this may damage porcelain or cast iron components.
5. The Drip Collector hole is clear and unobstructed. Excessive
grease deposits can result in a grease fire.
6. The in-line gas valve or gas cylinder valve is always shut
off when the Barbecue is not in use.
DRIP COLLECTION SYSTEM
The Drip Collector in this Fire Magic Barbecue is part of the
unit’s main frame, and is located below the Burners. The Drip
Collector has one hole which allows excess drippings to fall
through during cooking while separating the firebox from the
drip tray.
The Drip Collector allows you to brush or scrape residue from
the Barbecue inner liner into the Drip Tray. Regular cleaning of
your Barbecue interior with oven cleaner or Fire Magic
Foaming Barbecue & Grill Cleaner*, following manufacturers
instructions, will prevent grease fires.
*Available from your nearest Fire Magic Dealer
PROBLEMS & TROUBLESHOOTING
If you have trouble with your Fire Magic Barbecue, please use this list to identify the problem. By trying one or more of the
solutions to a possible cause you should be able to solve the problem. If this list does not cover your present problem or
you have other difficulties with the barbecue, please contact your local dealer or visit our website at www.rhpeterson.com
MELBORPESUACELBISSOPNOITCERROC
.tnemtsujdarettuhsriareporpmI)1
metsySnoitingI
eruliaF
ngI)2
erusserpsagwoL)3
detcennocsideriwnoiti
yrettaBdaeD)4
tnemtsujdarettuhsriareporpmI)5
tae
HtneiciffusnI
saGlarutaNrofecifiroenaporPgnisU)6
eR)2
yrettaBecalpeR)4
s(srettuhsriatsujdA)5
erusserPsaGwoL)7
eucebrabeht
)9egaPees(srettuhsriatsujdA)1
)9egaPees(rotarenegkrapSotniseriwgulp-
.oCsaGevahdna)8egaP(gnittesrotalugerkcehC)3
eucebrabehttaerusserpgnitarepokcehc
)9egaPee
)8egaPees(secifiroegnahC)6
taerusserpgnitarepoehtkcehcynapmoCsaGevaH)7
gnitaehnevenU
ysioNeiressitoRecnalabf
sirbedybdekcolbyllaitrapstroprenruB)8
renrubnistcesnirosredipsllamS)9
otuoeiressitoR)01 ecnalabretnuoceiressitoRtsujdA)01
13
es(srenrubevomeR)8
stroptuonaelC)8egaPe
sirbedrehtorosbewredipsrofsrenrubtcepsnI)9
wolfsagkcolbyamtaht
CARE OF YOUR FIRE MAGIC BARBECUE
CARE OF STAINLESS STEEL COMPONENTS
Your Barbecue may have a stainless steel oven and front
panel. The following care instructions will keep your unit
looking and working like new. Stainless steel components are
constructed of the finest prime grade type 304 stainless steel.
Meticulous attention has been given to maintain the attractive
finish throughout the manufacturing process. Like the stainless
steel used in commercial kitchens, your Barbecue requires
regular cleaning and occasional buffing to maintain its bright,
clean appearance.
WIPE WITH GRAIN
Figure 15 - Always rub with the grain
Deposits of dirt and grease can be removed easily with Fire
Magic Foaming Barbecue and Grill Cleaner*. Deposits
should be removed before they are allowed to bake onto the
finish. To remove more stubborn deposits, use a scouring pad
recommended for stainless steel. Be sure to always rub in the
direction of the polishing lines (Figure 15). Oven cleaner may
be used, according to manufacture's instructions, to remove
cooked-on food deposits. Special cleaning agents and polishing
pads recommended for stainless steel are available at your
local Barbecue dealer, hardware store or supermarket.
CAUTION: Never use ordinary steel wool or steel brushes on
stainless steel. Tiny particles left behind may rust and stain the
finish. Abrasive pads recommended for restoring the grain in
stainless steel will, over a period of time, scratch or dull the
surface of glass or porcelain-coated products.
BURNER MAINTENANCE
Fire Magic Burners are constructed of heavy-duty cast stainless
steel and have a lifetime warranty (cast brass and porcelainized
cast iron Burners are also available). Once a year inspect the
Burners to insure that the ports are clear of debris.
REPLACING THE SP ARK GENERAT OR BATTER Y
COOKING GRIDS
Fire Magic Cooking Grids come in two types: Stainless Steel
and Porcelain-Finished Cast-Iron Grids. Both are finished with
a special matte (satin) finish. This matte-finish provides a more
stick-resistant cooking surface that makes outdoor barbecuing
easy and enjoyable. The Stainless Steel Cooking Grids are
made of type 304 stainless steel, and the coating on the
Porcelain-Finished Grids provides a cooking surface that
resists corrosion and increases cooking grid durability,
providing years of cooking enjoyment. For best cooking
performance, the wide side of the grid bars should face up.
Follow the simple steps of Care and Maintenance after every
use.
CARE AND MAINTENANCE
(Stainless Steel Grids)
To maintain your Stainless Steel Cooking Grids, we recommend
lightly brushing the grids after use with a brass or stainless
steel wire brush. Before use, brush again if necessary and
spray a light coat of vegetable oil over the cooking surface.
Discoloration or stubborn food particles can be removed with a
heavy-duty abrasive or stainless steel scouring pad. Grills
can also be washed in an automatic dishwasher or cleaned
with strong cleaning solutions, including oven cleansers. We
do not recommend ordinary steel or wire brushes, which may
leave tiny metal particles on the grids which cause discoloration,
but not permanent damage.
(Porcelain Coated)
A spray coat of vegetable oil and light brushing with a brass grid
brush before and after use is all it takes to maintain cooking
readiness and ensure long life.
PROTECTING THE WHOLE BARBECUE FINISH
Barbecue covers* will protect the finish and extend the life and
appearance of Fire Magic Barbecues equipped with smoke
ovens. The covers are designed to protect the finish against
scratches, corrosion and oxidation. Each cover has been cut
and sewn by hand to fit a particular smoke oven model. Flaps
extend from the sides and back. In windy areas, place weights
on the flaps or inside the sleeve on the flaps to keep the cover
from blowing off.
1. Remove the rubber cap by depressing and turning the cap
counterclockwise.
2. The battery is now accessible for removal and replacement.
3. Make sure that the battery spring is re-installed with
the new battery.
*Available from your nearest Fire Magic Dealer
*Accessories and replacement parts may be obtained
from your nearest Fire Magic Dealer.
For assistance in locating a dealer, please contact our
factory at the address listed below.
Robert H. Peterson Co. • 14724 East Proctor Ave. •
• City of Industry, CA 91746 •
Figure 16 - Cover for Built-in Barbecue
Visit our Website at www.rhpeterson.com to view our
full range of Fire Magic and Real-Fyre products and
accessories.
14
COOKING TIMES &TEMPERATURES
Once your barbecue is installed, tested and working, the moment you have been working towards and waiting for; cooking a
gourmet meal for your family and friends on your new Fire Magic Barbecue has arrived. In order to get you off to a wonderful
start, we have included with your barbecue a few sample recipes. These mouthwatering recipes are taken from our new
barbecue cookbook, “Great Gourmet Grilling” written by Chef Steven Fohl. We heartily recommend you try these recipes and if
you enjoy them as much as we think you will, you may wish to purchase the complete book with over 60 recipes (including
salads and desserts. It also contains many useful tips and hints so you can get the best out of your Fire Magic Barbecue, while
taking a journey into a new world of taste and cooking. To order this book, just complete the Order Form at the inside the last
page of the booklet. Also, to help you get the best from your barbecue, we list below some typical cooking times and temperatures,
again taken from Chef Fohl's Recipe book.
Typical Cooking Times and Internal (Meat) Temperatures
Rare Medium Well Done
Beef
1" Steaks 5-7 min. 7-9 min. 9-11 min.
2" Steaks 16-18 min. 18-20 min. 22-24 min.
1" Burgers 12-14 min. 14-17 min. 16-20 min.
Roast* 16-20 min. 20-25 min. 25-28 min.
(Temp.) 140
0
F 1600F 1700F
Lamb
1" thick Chops 7-10 min. 10-13 min. 15-18 min.
Roast* 20-25 min. 25-30 min. 30-35 min.
(Temp.) 140
0
F 1500F 1800F
Pork
1" thick Chops 25-30 min.
Spare Ribs 45-60 min.
Fish
Fillets, Steaks 10-14 min. per pound
Whole Fish 10-12 min. per inch thick
Poultry (Temp.) 1850F
Chicken
(small pieces) 35-60 min.
(large pieces) 45-60 min.
Whole birds
Chicken 60-75 min.
Duck 16-20 min. per pound
Turkey (not stuffed) 11-13 min. per pound
(stuffed) 13-15 min. per pound
Well Done
Roast
Fresh Pork* 25-30 min.
Smoked Ham* 10-15 min.
(170
(140
0
F)
0
F)
Sausages
(fresh) 25-30 min.
(fully cooked) 12-16 min.
(*denotes per pound)
BARBECUE RECIPES
MEDITTERANEAN PORK AND SIRLOIN
BURGERS
Serves: 10
Prep time: 30 minutes
Cook time: 15 minutes
3lbs ground Sirloin
3lbs ground pork
1/2 cup chopped garlic
1/2 cup finely chopped scallions
1/4 cup parsley
1/4 cup basil
1 tablespoon cracked pepper
11/2 tablespoons oregano ~ dry
1 teaspoon chili flakes
11/2 tablespoon dry basil
1/4 cup water
2 cups Jarlsburg or quality Swiss cheese, coarsley
shredded
2 tablesppons olive oil
1 tablespoon salt
1. Mix above ingredients well.
2. Hand form oval burgers, weighing just about 8oz.
each.
3. Grill burgers slowly over medium low heat.
4. serve with thick sliced tomatoes, basil leaves,
Romaine lettuce, red onions, and splash of
balsamic vinegar
BON APPETIT!
NEW YORK CUT SIRLOIN STEAKS
Prep time: 15 minutes
Cook time: 20 minutes
10 oz. sirloin strip steaks - New York cut
Salt & pepper
Oil
1. Salt and pepper steaks evenly & completely - both sides.
2. Brush or rub lightly with oil.
3. Allow to stand 5 - 10 minutes.
4. Place on hot grill and mark 2 - 4 minutes.
5. Flip and mark 2 - 4 minutes.
6. Lightly season again and brush with oil or butter.
7. Flip and cook 3 - 4 minutes.
8. Lightly season again and brush with oil or butter.
9. Flip and cook 3 - 4 minutes.
• On third or fourth turn, you may want to mark a check or
diamond pattern.
• By searing both sides of steak, and then cooking, this
method will ensure evenly cooked meat.
• Allowing grilled meats to rest for 2 - 5 minutes after cooking
will redistribute juices creating a more tender, juicy
and evenly cooked steak.
• Never press or pierce meat during cooking - a well done
steak CAN be juicy & tender.
15
BARBECUE RECIPES (cont'd)
LEMON ZEST & PARSLEY MARINATED TURKEY
STEAKS served with Homemade Cranberry Sauce
SUMMER GRILLED MARINATED VEGETABLES
Serves: 10
Prep time: 1 hour + marinating time
Cook time: 15 minutes
Turkey Steak
6 lbs. boneless turkey breast
1 tablespoon minced garlic
1/2 cup lemon juice
2 tablespoons lemon zest
4 tablespoons parsley - freshly chopped
1/2 teaspoon thyme - fresh
1 teaspoon sugar
1/2 cup olive oil
1. Cut turkey in 8 oz. steaks cut crosswise and pound
slightly.
2. Distribute remaining ingredients over and under steaks.
3. Cover and marinate overnight.
4. Grill for approximately 5 minutes per side.
5. Serve with cranberry sauce.
CRANBERRY SAUCE
5 cups cranberries - fresh or frozen
11/2 -2 cups sugar - adjust tartness to your liking
1 cup apricot jelly
1 cup orange juice
1. Combine all ingredients in a heavy gauge sauce pot.
2. Bring to a gentle boil for 10 - 20 minutes.
3. Adjust sweetness or tartness with sugar.
4. Remove from heat. Serve warm or cold.
May store covered for up to 4 weeks in refrigerator.
Serves: 10
Prep time: 1 hour + marinating time
Cook time: 20 minutes
VEGETABLES
2-4 zucchinis ~ slice 1/2" lengthwise
2-4 crookneck squash ~ slice 1/2" lengthwise
3 red bell peppers ~ cut top & bottom ~ cut side faces
2-4 tomatoes ~ firm and meaty type, slice 1/2"
2-4 eggplants ~ slice 1/2"
1 onion or scallion
1lb greenbeans ~ whole ~ trim stem end only
Portobello mushrooms ~ whole caps
MARINADE (Evenly marinate vegetables for up to 24 hours)
1/2 cup white wine
11/2 cups lemon juice
1/4 cup minced garlic
1 cup parsley ~ freshly chopped
1/4 cup basil ~ freshly chopped
2 tablespoons oregano ~ dry
1 teaspoon chili flakes
1 tablespoon black pepper
1/4 cup salt
1/4 cup sugar
11/2 cups oil
Grill vegetables for 20 minutes on medium heat.
Chef's Note:
Other vegetable options - Carrots, Belgian endive, baby
artichokes, fennel, savoy cabbage, leeks.
FIRE MAGIC OUTDOOR GAS BARBECUES LIMITED WARRANTY
PLEASE COMPLETE AND RETURN YOUR REGISTRATION CARD WHICH IS INCLUDED WITH YOUR BARBECUE
LIFETIME WARRANTY - Fire Magic Cast Stainless Steel Burners, Stainless Steel Rod Cooking Grids and Stainless Steel Housings (including liners,
frames, ovens and barbecues faces) are warranted for as long as you own your Fire Magic Barbecue.
FIFTEEN YEAR WARRANTY - Fire Magic Cast Brass Burners, Brass Valves, Backburner Assemblies (except ignition parts), Manifold assemblies
and Porcelain Housings (including liners, frames, ovens and barbecues faces) are warranted for 15 years from the date of purchase of your Fire Magic
Barbecue.
THREE YEAR WARRANTY - Fire Magic Sideburners and all other Fire Magic Barbecue components (except ignition parts) are warranted for 3 years
from the date of purchase of your Fire Magic Barbecue.
Fire Magic ignition systems and barbecues accessories are warranted for one year from date of purchase.
PLEASE KEEP A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE
This warranty applies to the original purchaser with invoice or proof of purchase and covers Fire Magic products intended for personal, family or
household usage only. It does not apply to rust, corrosion, oxidation or discoloration, which may occur due to moisture or overheating, unless the
affected component becomes inoperable. This waranty does not cover parts becoming defective by misuse, accidental damage, improper
handling and/or installation. It does not cover labor or labor related charges. It specifically excludes liability for indirect, incidental or consequential
damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to
you. This warranty gives you specified legal rights and you may have other rights which may vary from state to state.
For additional information regarding this warranty, or infromation on how to place a warranty claim, contact your authorized Fire Magic dealer
Visit our Website at www.rhpeterson.com to view our full range of Fire Magic, Real-Fyre
and Hallmark products and accessories.
Accessories and replacement parts may be obtained from your nearest Fire Magic Dealer.
For assistance in locating a dealer, please contact our factory at the address listed below.
Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746
16
Loading...
