ECHELON STAND-ALONE

OUTDOOR GAS GRILLS

E660s, E790s, and E1060s

INSTALLATION

INSTRUCTIONS AND

OWNER’S MANUAL

INSTALLER: Leave these instructions with consumer. CONSUMER: Retain for future reference.

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.

SAFETY AND WARNING CODES

WARNINGS AND SAFETY CODES

DANGER:

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open ﬂ ame.

3. Open lid.

3. Open lid if equipped with an oven.

4. If odor continues, keep away from the

4. If odor continues, keep away from the appliance and immediately call your

appliance and immediately call your gas supplier or the ﬁ re department.

gas supplier or the ﬁ re department.

CODE AND SUPPLY REQUIREMENTS: This outdoor gas grill must be installed in accordance with local codes and ordinances, or, in the absence of local codes, with the latest National Fuel Gas

Code (ANSI Z223.1/NFPA 54), or Natural Gas and Propane Storage and Handling Installation Code (CSA-B149.1).

This appliance and its dedicated manual shutoff valve must be disconnected from the gas-supply piping system when testing the system at pressures in excess of ½ psig (3.5 kPa).

1. Do not store or use gasoline or other

2. An LP cylinder not connected for use

Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. For proper installation, refer to the installation instructions. For assistance or additional information, consult a qualiﬁ ed professional installer,

E790s with double sideburner shown

WARNING:

ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

shall not be stored in the vicinity of this or any other appliance.

WARNING:

service agency, or the gas supplier.

Certiﬁ ed to ANSI: Z21.58-2007

This appliance must be isolated from the gassupply piping system by closing its dedicated manual shutoff valve during any pressure testing of the gas-supply system at pressures up to and including ½ psig (3.5 kPa).

254-B-11-5

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

REV 1 - 0809031556

All electrical outlets in the vicinity of the grill must be properly grounded in accordance with local codes, or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, whichever

is applicable. Keep all electrical-supply cords and fuel-supply

hoses away from any heated surface.

L-C2-28708

INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE

ECHELON GRIL EXTÉRIEUR DE GAZ DU PORTATIF

IMPORTANT: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L’INSTALLATION OU L’UTILISATION

SÛRETÉ ET CODES D’AVERTISSEMENT

DANGER:

SI VOUS SENTEZ LE GAZ :

1. Coupez l’admission de gaz de I’appariel.

2. Éteindre toute ﬂ amme nue.

3. Ouvrir le couvercle.

4. Si l’odeur persiste, éloignez-vous de l’appareil et appelez immédiatement le fournisseur de gaz ou le service d’incendie.

CONDITIONS DE CODE ET D’APPROVISIONNEMENT:

Ce gril doit être installé selon des codes et des ordonnances locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre le plus défunt Code national de gaz de carburant (norme ANSI Z223.1/NFPA 54), et Stockage de gaz naturel et de propane et manipulation du code d’installation (CSA-B149.1).

Cet appareil et ses différents robinets d’isolement doivent être démontés du gaz-fournissent le système sifﬂ ant en examinant le système aux pressions au-dessus du ½ psig (kPa 3.5).

Cet appareil doit être isolé dans gaz-fournissent le système sifﬂ ant par fermeture que ses différents robinets d’isolement manuels pendant tous les essais sous pression du gazfournissent le système aux pressions jusques et y compris le ½ psig (kPa 3.5).

• Ce gril est pour ultilisation à l’extérieur seulement. Si l’appareil est entreposé à l’intérieur, enlever les bouteilles et les laisser à l’extérieur.

• Ne pas ranger le gril immédiatement aprés l’avoir utilisé. le laisser refroidir avant de le déplacer ou de la ranger. Le non respect de cette mesure de sécurité pourrait entraîner un incendie causant des dommages à la propriété, des blessures ou la mort.

• Ne pas utiliser cet appareil sous une surface combustible.

• Ne pas utiliser cet appareil sous un auvent. Le non respect de cette mesure de sécurité pourrait entraîner un incendie ou des blessures.

• Dégagement minimal entre les parois latérales et l’arriére de l’appareil et la construction combustible (45.7 cm à partir des parois latérales et 45.7cm à partir de l’arriére).

• Le régulareur de pression de gaz prévu avec cet appareil de cuisson à gaz pour l’extérieur doit être utilisé. Ce régulateur est réglé pour une pression de sortie de 5 pouces de colonne de l’eau pour le gaz naturel, et 10 pouces pour le propane.

• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS GRAND QUE (LIVRES PAR POUCE CARRÉ), UN

AVERTISSEMENT:

1. Ne stockez pas ou n’employez pas l’essence ou d’autres vapeurs et liquides inﬂ ammables à proximité de ceci ou d’aucun autre appareil.

2. Un cylindre de propane non relié pour l’usage ne sera pas stocké à proximité de ceci ou d’aucun autre appareil.

AVERTISSEMENT:

L’installation inexacte, l’ajustement, le changement, le service, ou l’entretien peuvent causer des dommages ou des dégats matériels. Référez-vous à ce manuel. Pour l’aide ou l’information additionnelle, consultez un installateur professionnel qualiﬁ é, l’agence de service,

ou le fournisseur de gaz.

Toutes les sorties électriques à proximité du gril doivent être correctement fondues selon des codes locaux, ou en l’absence de local code, avec le code électrique national, ANSI/NFPA 70, ou le code électrique canadien, CSA C22.1, celui qui est applicable.

Maintenez tout électrique-fournissent des cordes et carburantfournissent des tuyaux partis de n’importe quelle surface de chauffage.

RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ AVANT LE GRIL. VOIR LA SECTION DE CONDITIONS D’OFFRE DE GAZ POUR LA PRESSION APPROPRIÉE D’OFFRE DE GAZ.

• Ne couvrez jamais la surface entière de cuisine ou de gril de gauffreuses ou de casseroles. La surchauffe se produira et les brûleurs ne seront pas très performants quand la chaleur de combustion est emprisonnée audessous de la surface à cuire.

• Ne pulvérisez jamais l’eau sur une unité chaude de gaz, comme ceci peut endommager des composants de porcelaine ou de fer de fonte.

• Une fuite de GPL peut causer une incendie ou une explosion si enflammée entraînant des blessures corporelles graves ou la mort.

• Communiquez avec le fournisseur de GPL pour les réparations ou pour disposer de qules bouteille ou du GPL non utilisé.

Certiﬁ é à la norme ANSI : Z21.58-2007

INSTALLATEUR : Laissez ces instructions avec le consommateur.

CONSOMMATEUR : Maintenez pour la future référence.

REV 1 - 0809031556

L-C2-28708

CONTENTS

4 COMMON PARTS LIST 5 SINGLE SIDEBURNER UNIQUE PARTS LIST 6 DOUBLE SIDEBURNER UNIQUE PARTS 7 POWER BURNER UNIQUE PARTS 8 GRILL SAFETY INFORMATION 9 MODEL SPECIFICATIONS TABLE 10 INSTALLATION REQUIREMENTS 11 INSTALLING THE STAND-ALONE GRILL 12 GRILL NOTES PAGE 13 SAFE USE & MAINTENANCE OF PROPANE-GAS CYLINDERS 15 INSTALLING THE SIDEBURNER SHELF 16 IDENTIFICATION OF GRILL CONTROLS 17 OPTIONAL POWERHOOD 19 LIGHTING (IGNITION) INSTRUCTIONS 21 ECHELON DIGITAL THERMOMETER 22 ROTISSERIE INSTRUCTIONS 23 USING THE FOLDING SHELF 23 PAPER TOWEL HOLDER 24 POWER BURNER 25 OPTIONAL INFRARED BURNER OPERATION 26 ACCESSORIES 27 FIRE MAGIC 28 REPLACING HALOGEN BULBS 29 CARE & CLEANING 30 TROUBLESHOOTING 31 CONVERTING THE GAS TYPE 33 BURNER AIR SHUTTER ADJUSTMENT 36 DOUBLE SIDEBURNER 38 WARRANTY

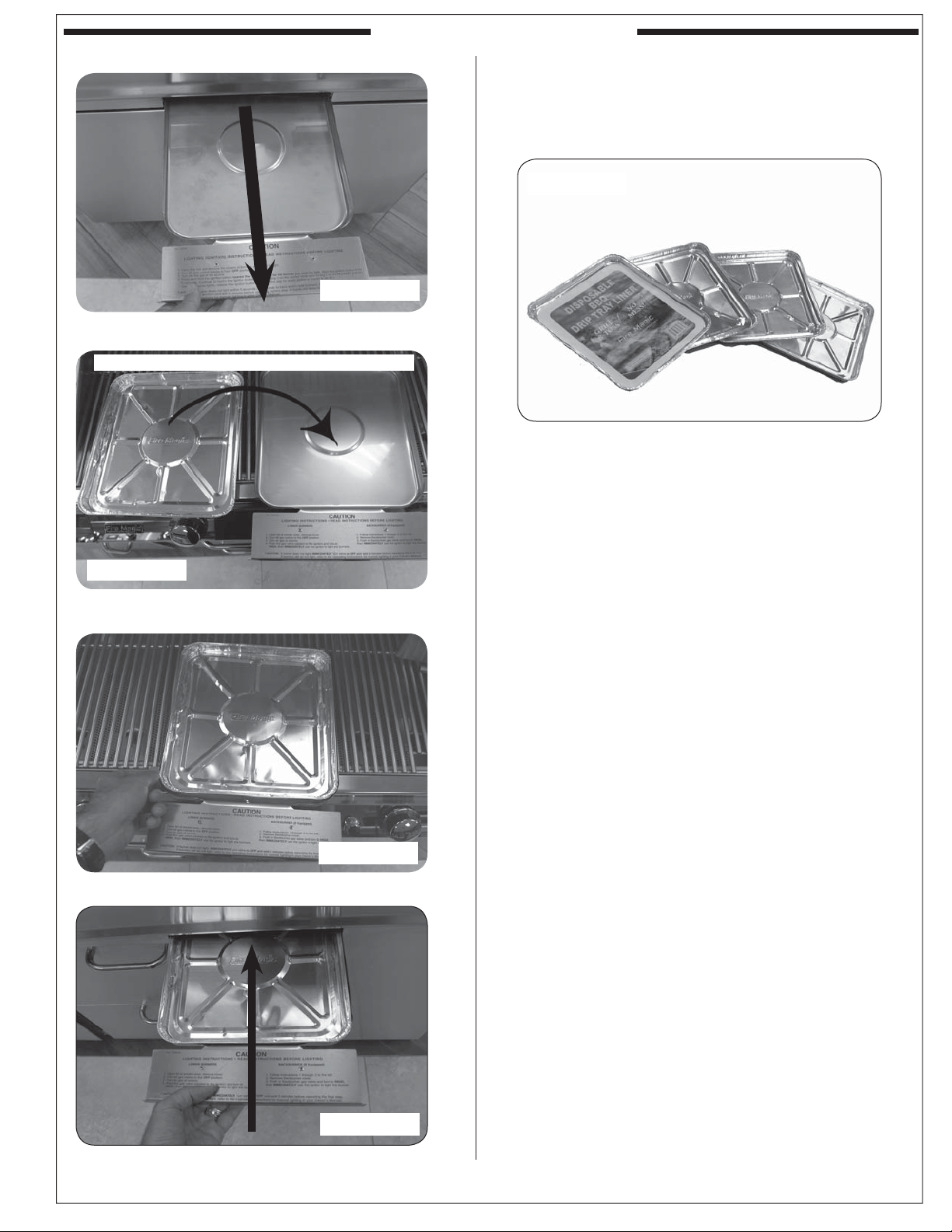

DRIP TRAY

ELECTRICAL SAFETY

To protect against electric shock, do not immerse cord or plugs in water or other liquid;

Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts;

Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance malfunctions or has been damaged in any manner. Contact the manufacturer for repair;

Do not let the cord hang over the edge of a table or touch hot surfaces;

Do not use an outdoor cooking gas appliance for purposes other than intended;

When connecting, ﬁ rst connect plug to the outdoor cooking gas appliance then plug appliance into the outlet;

Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance;

Never remove the grounding plug or use with an adapter of 2 prongs.

Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved for outdoor use with a W-A marking.

REV 1 - 0809031556

L-C2-28708

Item Description

1 Stainless cooking grid set 2 Flavor grid 3 Main burner 4 Infrared burner 5 Oven lid 6 Warming rack 7 Backburner right/main 8 Backburner left

9 Backburner cover 10 Heavy-duty motor 11 Heavy-duty rod 12 Heavy-duty rod knob 13 Meat holder 14 Counterbalance 15 Grid lifter 16 Convertible regulator

†

COMMON PARTS LIST

† E1060s grills only

Items in light gray are not available on all models.

‡ Not shown

OFF

To order replacement parts, contact your local Fire-Magic dealer.

REV 1 - 0809031556

Fig. 4-1

3424

L-C2-28708

COMMON PARTS LIST

Item Description

17 Valve manifold 18 Control panel 19 Small knob 20 Large knob 21 Digital thermometer 22 Meat probe 23 Power supply w/ outlet

Thermometer. batt. pack (3v), Wire harness,

Thermocouples

25 Drip tray 26 Drip tray liner (set of 4) 27 Wire harness assembly‡ 28 Ignitor ‡ 29 Light Lense ‡ 30 Haolgen Bulb ‡

31 Zone separator 32 Smoker drawer 33 Power Hood motor assy. 34 Power Hood switch 35 Power Hood remote and receiver 36 Light control switch 37 Light microswitch 38 Flex connector ‡ 39 Fire Magic 40 Tool holder 41 Paper towel holder 42 Propane regulator with hose 43 Quick-disconnect hose ‡

or Propane tank tray 44 Power cord ‡ 45 Folding shelf

cookbook ‡

†

REV 1 - 0809031556

SINGLE SIDEBURNER UNIQUE PARTS LIST

Item Description

46 Sideburner (burner only) ‡ 47 Sideburner shelf and Lid Assy 48 Sideburner grid 49 Sideburner cap

L-C2-28708

DOUBLE SIDEBURNER UNIQUE PARTS

Item Description

16 Convertable regulator 17 Valve manifold 18 Control panel 19 Small knob 20 Large knob

46 Double sideburner (only)‡ 47 Double sideburner grid 48 Double sideburner cap 49 Double sideburner cover

Note: See page 4-5 for common part

and number identiﬁ cation.

REV 1 - 0809031556

Fig. 6-1

L-C2-28708

POWER BURNER UNIQUE PARTS

Item Description

16 Convertable regulator 17 Valve manifold 18 Control panel 19 Small knob 20 Large knob

46 Powerburner burner (only) 47 Power burner grid 48 Powerburner colimator 49 Powerburner cover

Note: See page 4-5 for common part

and number identiﬁ cation.

REV 1 - 0809031556

Fig. 7-1

L-C2-28708

GRILL SAFETY INFORMATION

1. The outdoor grill and surrounding area MUST

remain clear of ﬂ ammable substances such as gasoline, yard debris, wood, etc.

2. The airﬂ ow through the vent space located below

the control panel must remain unobstructed.

4. The ﬂ ames on each burner burn evenly along

the entire burner with a steady ﬂ ame (mostly blue with yellow tipping). If burner ﬂ ames are not normal, check the oriﬁ ce and burner for insects or insect nests. Adjust the air shutter as needed (see AIR SHUTTER ADJUSTMENT)

3. When using propane gas:

5. The in-line gas valve or gas cylinder valve must

a. The required ventilation openings in the

always be shut OFF when the grill is not in use.

enclosure must be clear of debris.

6. The drip collector holes must be clear and

b. The propane cylinder, regulator, and rubber

hose must be in a location not subject to

unobstructed. Excessive grease deposits can result in a grease ﬁ re.

temperature above 125° F (51° C).

7. The backburner, sideburner, or IR burner cover

must be removed before using the burner.

WARNING: NEVER cover the entire cooking or grill surface with griddles or pans. Overheating will occur, and

burners will not perform properly when combustion heat is trapped below the cooking surface.

CAUTION: NEVER spray water on a hot gas unit.

Important: When reviewing this units wiring connections; please refer to the wiring diagram

label afﬁ xed to the inside of the control panel.

ELECTRICAL CONNECTIONS

OVEN LIGHTS

To turn on the oven lights, open the oven, then push

This grill requires 110 volt AC power to opperate.

the button on the far right of the grill control panel (see SUPPLIED ITEMS list) until it clicks.

Use a grounded electrical extension cord rated for outdoor use to connect the grill to line power.

The lights will automatically turn off when the oven door is closed and then turn on again when it is reopened (much like the light in your refrigerator.) If the lights do not come on, check your electrical

WARNING

connection.

Electrical Grounding Instructions For your protection against shock hazard, this outdoor-cooking gas-appliance is equipped with a three-pronged (grounding) electrical connector. This appliance should be connected to a properly grounded three-prong receptacle using a grounding extension cord rated for outdoor use. Do not cut or

remove the grounding prong from the connector.

REV 1 - 0809031556

L-C2-28708

MODEL SPECIFICATIONS TABLE

Fire-Magic® Model Speciﬁ cations Table

Table 1 E660s E790s E1060s

Main burner BTU

N/P oriﬁ ce drill size

Backburner BTU

N/P oriﬁ ce drill size

Sideburner BTU

N/P oriﬁ ce drill size

Smoker drawer burner BTU

N/P oriﬁ ce drill size

Infrared searing burner BTU

N/P oriﬁ ce drill size

Power burner BTU

Left N/P oriﬁ ce drill size

Right N/P oriﬁ ce drill size

25,000

#42/#54

19,000

#49/#57

10,000

#53/#63

2,500

#68/#77

24,000

#45/#55

60,000

#34/#50

#50/#1.25

32,000

#38/#53

23,000

#44/#56

10,000

#53/#63

2,500

#68/#77

24,000

#45/#55

60,000

#34/#50

#50/#1.25

28,000

#40/#53

15,000

#51/#58

10,000

#53/#63

2,500

#68/#77

24,000

#45/#55

60,000

#34/#50

#50/#1.25

INSTALL ZONE DIVIDERS

Place the zone dividers as shown (Fig. 9-1) into the grooves in the inner ﬁ rewall of the grill to allow for maximum heat control and thermometer accuracy in each zone. Remove and store during rotisserie use.

Groove

Fig. 9-1

Zone divider

Groove

Front

REV 1 - 0809031556

L-C2-28708

INSTALLATION REQUIREMENTS

This grill is designed for outdoor use only. DO NOT use this grill under unprotected ﬂ ammable

surfaces. DO NOT use this grill inside a building, garage, enclosed area, or an unprotected covered

area (see EXHAUST REMOVAL below). DO NOT use this grill in or on a recreational vehicle or boat.

IMPORTANT: This grill is NOT insulated, and therefore the unit, when in operation, must be located with

a minimum of 20" (50.7 cm) of side and back clearance from unprotected combustible materials such as wood, plastic, or stucco with wood framing.

The control panel MUST remain removable for servicing and air shutter adjustment (see PARTS LIST).

ENSURING PROPER COMBUSTION AIR AND COOLING AIRFLOW

Proper airﬂ ow (Fig. 10-1) MUST be maintained for the grill to perform as it was designed. If airﬂ ow is blocked, overheating and poor combustion will result. Do not block the 1" (2.5 cm) front air inlet along the bottom of the control panel or more than 75% of the cooking grid surface with pans or griddles.

YOU MUST PROTECT REAR OVEN

INCORRECT

Rear oven lid vent

VENT FROM PREVAILING WIND

Fig. 10-2

Note: The 1" (2.5 cm) front air space also allows

access to the drip tray.

Fig. 10-1 - Ventilation

EXHAUST REMOVAL

If installed or used under a patio roof, the cooking grid area must be fully covered by an exhaust hood with a chimney. An exhaust fan with a rating of 1,000 CFM (cubic feet per minute) (472 liters per second) or more may be necessary to effectively remove smoke and other cooking by-products from the area under the hood. This outdoor grill must not be used under unprotected overhead combustible construction. THIS UNIT MUST NOT BE LOCATED

IN A FULLY ENCLOSED AREA OF ANY KIND.

GAS SUPPLY AND MANIFOLD PRESSURES:

For natural gas - normal 7" (17.78 cm) water column (w.c.), minimum 5" (12.7 cm), maximum 10 1/2" (26.7 cm). For propane gas - normal 11" w.c., minimum 10" (25.4 cm), maximum 13" (33 cm).

CORRECT

PLACE GRILL SO PREVAILING WIND

BLOWS TOWARD FRONT OF GRILL

Fig. 10-3

CAUTION: Wind blowing into or across the rear

oven lid vent (Fig. 10-2) can cause poor performance and/or dangerous overheating. Orient the grill so that the prevailing wind blows toward the front of the grill (Fig. 10-3).

CAUTION: To prevent dangerous overheating, the

rear of the unit must have a minimum clearance of 8" (20.3 cm) from any backsplash/wall.

REV 1 - 0809031556

L-C2-28708

INSTALLING THE STAND-ALONE UNIT

LOCATION PREPARATION

Prepare a ﬂ at, level surface capable of supporting the weight of the stand-alone grill and convenient to the gas supply if connecting to a gas line.

WHEELS AND CASTERS

To lock a caster press down on the side of the lever with the word "OFF" stamped on it until it stops and the caster will not turn. To unlock, press down on the side stamped "ON."

INSTALL THE TOOL HOLDER AND PAPERTOWEL HOLDER

The rectangular mounting bracket for the tool holder and the paper towel holder come preattached to the sides of the cart.

Unpack the holder portion, squeeze the open ends together slightly, and install them into the mounting bracket (see Fig. 11-2). Next, release the hanger so that the ends extend out through the holes in the top and bottom of the mounting bracket (Fig. 11-3, 11-4).

Caster in locked position

Fig. 11-1

CONNECTING THE GAS SUPPLY

For connecting a propane unit to a portable propane tank, read the safety warnings and follow the instructions in the section SAFE USE AND MAINTENANCE OF PROPANE GAS CYLINDERS.

When not in use, the racks may be folded back against the wall of the grill (Fig. 11-3, 11-4).

Fig. 11-2

For household propane or natural gas units:

a. Turn OFF the gas supply at the source. The

quick disconnect hose is pre-installed on the valve manifold at the manufacturer. Run the hose through the hole in the bottom rear of the stand-alone unit, to the gas supply. Connect

/2" NPT socket at the end of the hose to

the the gas supply. Use pipe joint compound that is resistant to all gasses on the male pipe ﬁ tting and tighten securely. DO NOT use pipe joint

compound to connect the ﬂ are ﬁ ttings.

c. Turn all burner valves to the OFF position. Turn

the gas supply on. Then carefully check all gas connections for leaks with a brush and soapy water before lighting. NEVER USE A MATCH OR OPEN FLAME TO TEST FOR LEAKS.

REV 1 - 0809031556

Fig. 11-3

Fig. 11-4

L-C2-28708

GRILL NOTES PAGE

Please use this page to record any information about your grill that you may want to have at hand.

SAFE USE & MAINTENANCE OF PROPANE-GAS CYLINDERS

IMPORTANT FOR YOUR SAFETY

READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.

When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.

FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.

CYLINDER/CONNECTOR REQUIREMENTS

a. Propane-gas cylinders, valves, and hoses must be

maintained in good condition and must be replaced if there is visible damage to either the cylinder or valve. If the hose is cut or shows excessive abrasion or wear, it must be replaced before using the gas appliance (see e.).

b. This unit, when used with a cylinder, should be connected

to a standard 5-gallon (20 lb.) propane-gas cylinder equipped with an OPD (Overﬁ ll Prevention Device). The OPD has been required on all cylinders sold since October 1,1998, to prevent overﬁ lling.

c. Cylinder dimensions should be approximately 12" (30.5

cm) in diameter and 18" (45.7 cm) high. Cylinders must be constructed and marked in accordance with the

Speciﬁ cations for Propane Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes for Transportation of Dangerous Goods.

d. The cylinder must include a collar to protect the cylinder

valve, and the cylinder supply system must be arranged for vapor withdrawal.

e. The pressure regulator and hose assembly (Fig. 13-1)

supplied with this outdoor-cooking gas appliance must be used. Original and replacement pressure regulator and hose assemblies must be those speciﬁ ed by the manufacturer for connection with a cylinder connecting device identiﬁ ed as Type I by the ANSI Z 21.58-2005/CGA

1.6-2005 (see PARTS LIST for ordering information).

f. The propane-gas cylinder valve must be equipped with a

cylinder connection coupling device, described as Type I in the standard deﬁ ned in paragraph e. above. This device is commonly described as an Acme thread quick coupler.

g. If the propane-gas cylinder comes with a dust plug, place

the dust cap on the cylinder valve outlet whenever the cylinder is not in use.

QUICK COUPLER OPERATION

To connect the regulator/hose assembly to the propanegas cylinder valve ﬁ tting: Press the hand nut on the regulator

over the Acme thread ﬁ tting on the cylinder valve. Turn the hand nut clockwise to engage the threads and tighten until snug.

SECURING THE PROPANE-GAS CYLINDER

The use of pliers or a wrench should not be necessary. Only cylinders marked “propane” may be used.

To disconnect: Turn the hand nut counterclockwise until detached (Fig. 13-1).

Important: Before using the unit, and after each time the

cylinder is removed and reattached, check the hose for wear (see a.) and check all connections for leaks. Turn off the unit valves and open the main cylinder valve, then check connections with soapy water. Repair any leaks before lighting the unit.

CAUTION: Always turn the propane cylinder main valve

off after each use, and before moving the unit and cylinder or disconnecting the coupling. This valve must remain closed and the cylinder disconnected while the appliance is not in use, even though the gas ﬂ ow is stopped by a safety feature when the coupler is disconnected.

Carefully inspect the hose assembly each time before the gas is turned on. A cracked or frayed hose should be replaced immediately.

If the appliance is stored indoors, the cylinder must be disconnected and removed.

Cylinders must be stored out of

doors, out of the reach of children, and must not be stored

in a building, garage, or any other enclosed area.

FOR YOUR SAFETY

a. DO NOT store a spare propane-gas cylinder under or

near this appliance.

b. NEVER ﬁ ll the cylinder beyond 80-percent full. c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED

EXACTLY, A FIRE CAUSING DEATH OR SERIOUS INJURY MAY OCCUR.

Fig. 13-1 Type I Acme thread quick coupler

QCC Type 1 valve

Pressure relief valve

Hand wheel

Brass Acme thread ﬁ tting

Liquid level indicator (optional)

Hand nut with Acme thread

Regulator

Vent

Hose

Fig. 13-2

1. Lift latch handle to unlock

tray and pull outward.

Collar Opening

Fig. 13-3

2. Set propane-gas cylinder into the sleeve of the extended tray with

base inserted into center hole and collar opening to back. Follow instructions above to connect supply.

Fig. 13-4

Fig. 13-5

3. With gas cylinder in place and connected, slide

tray back into cart and lock latch handle by

pushing ﬁ rmly downward.

UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ

IMPORTANT POUR VOTRE SÛRETÉ

LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.

En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.

LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.

CYLINDRE ET CONDITIONS ET CARACTÉRISTIQUES DE CONNECTEUR

a. Des cylindres et les valves de gaz de propane doivent être

maintenus en bon état et doivent être remplacés s’il y a des dommages évidents au cylindre ou à la valve.

b. Ce gril, une fois utilisé avec un cylindre, devrait être relié à

un gallon de la norme 5 (20lb.) cylindre de gaz de propane équipé d’un OPD (remplissez au-dessus du niveau le dispositif d’empêchement). L’OPD a été exigé sur tous les cylindres vendus depuis octobre 1.1998 pour empêcher le remplissage excessif.

c. Les dimensions de cylindre devraient être approximativement

12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des cylindres doivent être construits et marqués selon les caractéristiques pour des cylindres de gaz de propane du département des ETATS-UNIS du transport (D.O.T.) ou le niveau national du Canada, du CAN/CSA-B339, des cylindres, des sphères et des tubes pour le transport des marchandises dangereuses.

d. Le cylindre doit inclure un collier pour protéger la valve

de cylindre et le circuit d’alimentation de cylindre doit être assuré le retrait de vapeur.

e. Le régulateur de pression et l’ensemble de tuyau (

) fourni avec cet appareil à cuire extérieur de gaz doivent

ﬁ g. 14-

être utilisés. Les régulateurs d’original et de pression de remplacement et les ensembles de tuyau doivent être ceux indiqués par le fabricant pour le raccordement avec un dispositif se reliant de cylindre identiﬁ é comme type I par la norme ANSI Z 21.58-2007/CGA 1.6-2007 avec la norme ANSI Z 21.58a -1998 d’addenda et CGA 1.6a - M98.

f. La valve de cylindre de gaz de propane doit être équipée

d’un dispositif d’accouplement de raccordement de cylindre, décrit comme type I dans la norme déﬁ nie dans le e. de paragraphe ci-dessus. Ce dispositif est généralement décrit comme coupleur rapide de ﬁ l de point culminant.

g. Si votre cylindre de gaz de propane vient avec une prise

de la poussière, placez le bouchon anti-poussière sur la sortie de valve de cylindre toutes les fois que le cylindre n’est pas en service.

OPÉRATION DE COUPLEUR RAPIDE

Pour relier le regulator/hose à l’ajustage de précision de valve de cylindre de gaz de propane: Serrez l’écrou de main

sur le régulateur au-dessus de l’ajustage de précision de ﬁ l de point culminant sur la valve de cylindre. Tournez l’écrou de

FIXATION DU CYLINDRE DE GAZ DE PROPANE

main dans le sens des aiguilles d’une montre pour engager les ﬁ ls et pour serrer jusqu’à ce que douillettement. L’utilisation des pinces ou de la clé ne devrait pas être nécessaire. Seulement le propane marqué par cylindres doit être employé.

Pour débrancher: Tournez l’écrou de main dans le sens contraire des aiguilles d’une montre jusqu’à isolé (ﬁ g. 14-1).

Important: Avant d’employer le gril, et ensuite chaque

fois que le cylindre est enlevé et rattaché, examinez tous les raccordements pour déceler les fuites. Arrêtez les valves de gril et ouvrez la valve principale de cylindre, puis vériﬁ ez les raccordements avec de l’eau savonneux. Réparez toutes les fuites avant d’allumer le gril.

ATTENTION: Tournez toujours la valve principale de cylindre

de propane au loin après chaque utilisation, et avant de déplacer le gril et le cylindre, ou débrancher l’accouplement. Cette valve doit rester fermée et le cylindre a débranché alors que l’appareil n’est pas en service, quoique l’écoulement de gaz soit arrêté par un dispositif de sûreté quand le coupleur est débranché.

Inspectez soigneusement l’ensemble de tuyau chaque fois avant que le gaz soit allumé. Un tuyau criqué ou frangé devrait être remplacé immédiatement.

Si l’appareil est stocké à l’intérieur, le cylindre doit être débranché et enlevé. Des cylindres doivent être stockés hors des portes, hors de l’extension des enfants, et ne doivent pas être stockés dans un

bâtiment, le garage, ou n’importe quel autre secteur inclus.

POUR VOTRE SÛRETÉ

a. Ne stockez pas un cylindre de gaz disponible de propane

dessous ou ne vous approchez pas de cet appareil.

b. Ne remplissez jamais cylindre au delà de 80 pour cent de

plein.

c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE

EXACTEMENT, UN FEU CAUSANT LA MORT OU DES DOMMAGES SÉRIEUX PEUT SE PRODUIRE.

Fig. 14-1 type coupleur rapide de ﬁ l de point culminant d’I

Volant de commande

QCC Type 1

Valve

Valve de décompression

Ajustage de précision en laiton de ﬁ l de point culminant

Indicateur de niveau de liquide (facultatif)

Écrou de main avec le ﬁ l de point culminant.

Régulateur

Passage

Tuy au

Fig. 14-2

1. Soulevez la poignée de

verrouillage pour ouvrir le plateau et pour tirer à l’extérieur.

Ouverture de Collier

Fig. 14-3

2. Placez le cylindre de gaz de propane gainent fermement sur

le plateau avec la base insérée dans le trou central et le collier s’ouvrant au dos. Suivez les instructions de relier ci-dessus l’approvisionnement.

Fig. 14-4

Fig. 14-5

3. Avec le cylindre de gaz en place et relié,

glissez le plateau de nouveau dans la poignée de verrouillage de chariot et de serrure en poussant fermement en bas.

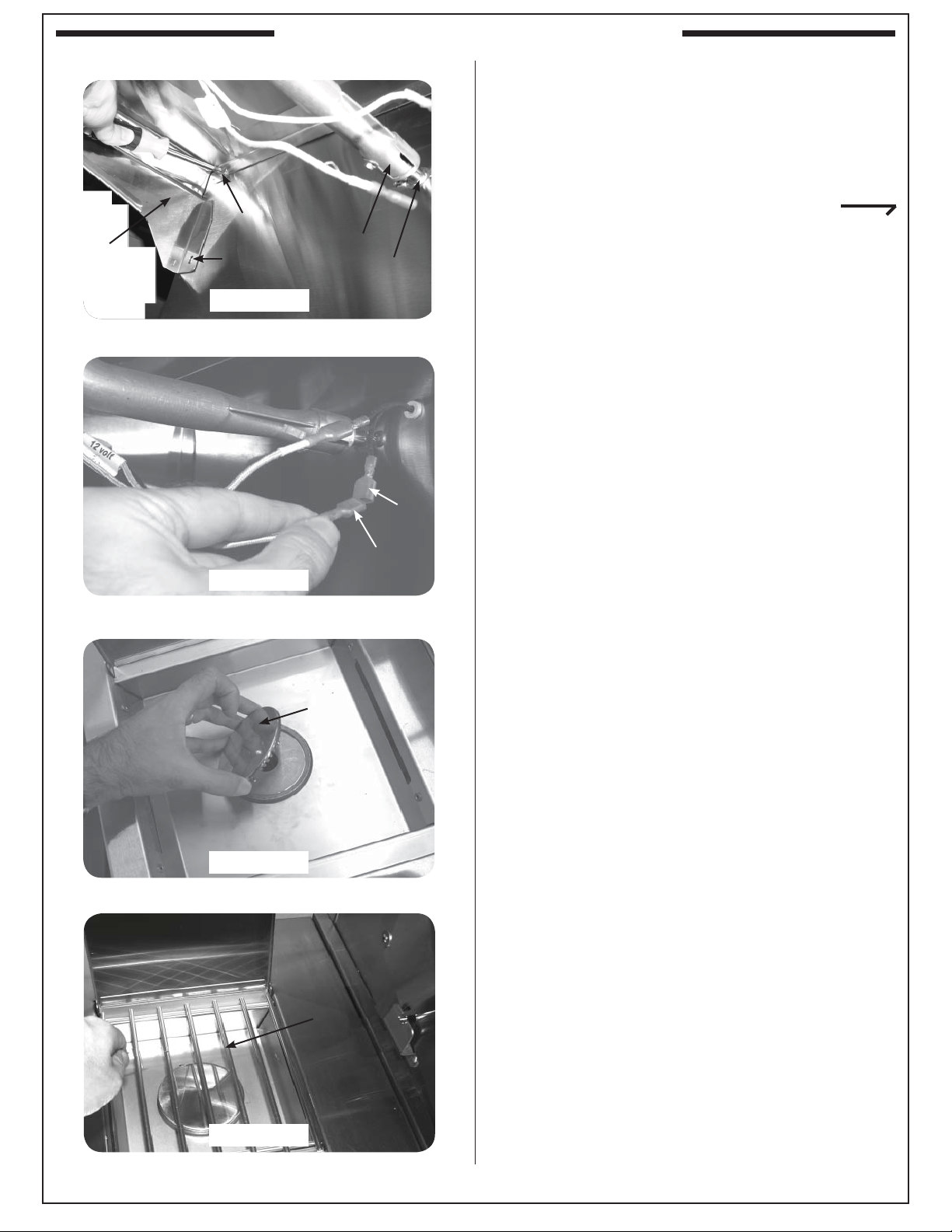

INSTALLING THE SIDEBURNER SHELF

This shelf comes separate from the grill for convenience in shipping. The sideburner shelf must be installed using the following instructions before hooking up the grill to a gas source.

Shelf

Screw

Air shutter

Hole

Fig. 15-1

Air-shutter oriﬁ ce placement - under shelf

Female

Fig. 15-2

Connecting the ignitor wires

Brass oriﬁ ce

Male

INSTALLING THE SIDEBURNER SHELF

1. Remove the protective plastic from the grill,

sideburner, and sideburner lids by carefully peeling it off with your fingers. Do not use tools.

2. Hold the sideburner shelf up against the left side wall of the grill so that the holes in the shelf line up with the four (4) threaded screw holes in the side wall and the air-shutter end of the sideburner venturi tube ﬁ ts around the brass oriﬁ ce protruding from the side of the cart.

WARNING: It is critical for safety and for the

proper function of the sideburner that the sideburner venturi tube with air shutter be centered around and completely cover the gas oriﬁ ce.

3. Insert and start screws with ﬁ ngers and then tighten using a nut driver, wrench, or ratchet.

Fig. 15-3

Placing the burner cap

Lid

Cap

Grate

Note: Upon completion, the air shutter must still

ﬁ t around the brass oriﬁ ce.

4. Connect the female connectors on the ends of the hot surface ignitor wires to the male connectors coming from inside the grill.

5. Place the burner cap on top of the burner, as shown in Fig. 15-3.

6. Place the grid so that it rests on the front and back lips of the sideburner opening (Fig. 15-4).

7. Proceed to the section on AIR SHUTTER ADJUSTMENT and complete the installation by adjusting the air shutter. This will also test the sideburner installation.

Fig. 15-4

Final look

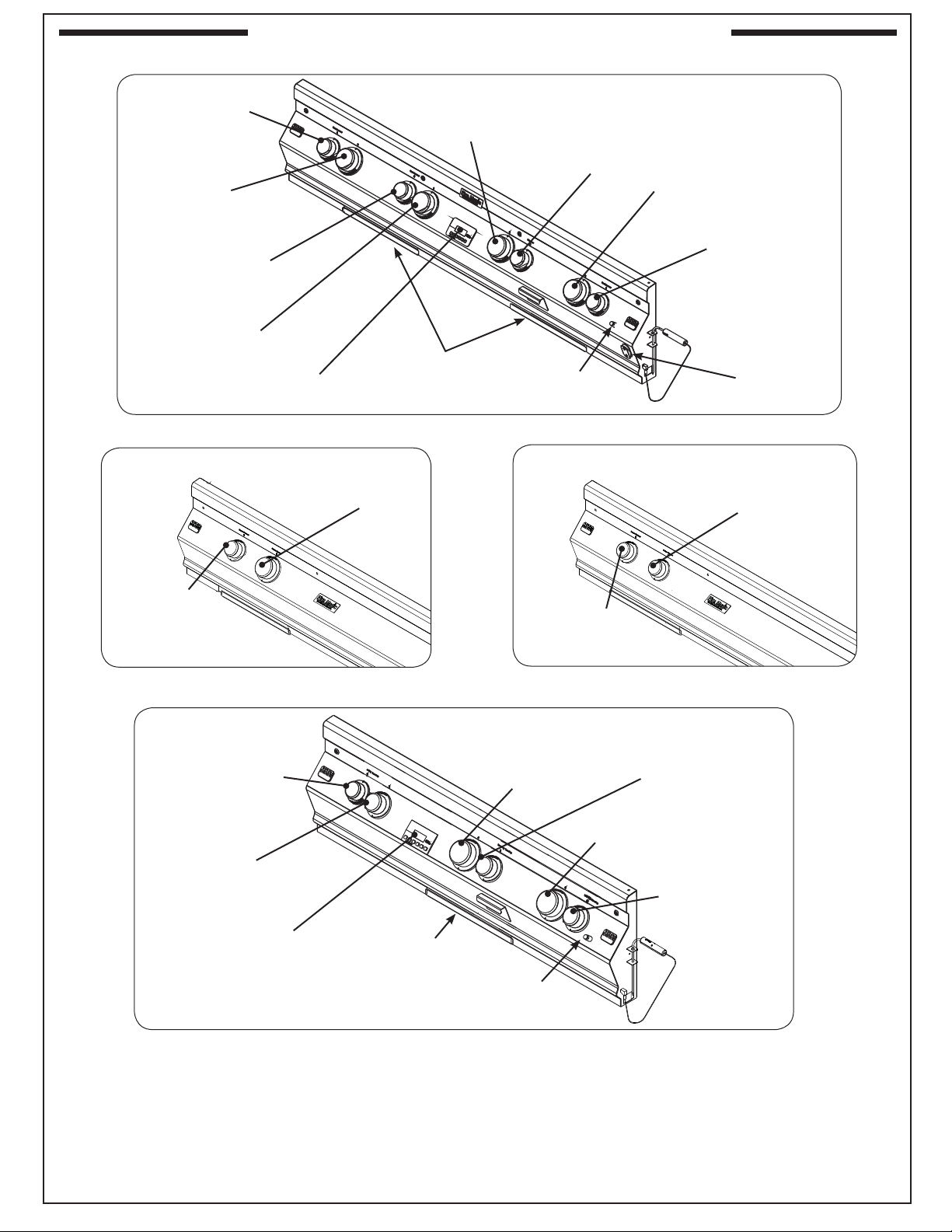

IDENTIFICATION OF GRILL CONTROLS

E1060s control locations

Left backburner

control knob

Left

main burner

control knob

Sideburner

control knob

Center left main

burner

control knob

Digital

Fig. 16-1

thermometer

Powerburner control locations

Fig. 16-2

Outer powerburner

control knob

Center right main

burner

control knob

Drip

trays

Smoker

drawer burner

control knob

Right

main burner

control knob

Right backburner

control knob

Power hood

Light

button

control

(if equipped)

Double sideburner control locations

Fig. 16-3

Front

sideburner

control knob

Inner

powerburner

control knob

Sideburner

control

knob

Left

main burner

control knob

Digital

thermometer

To remove the control panel:

Rear

sideburner

control knob

E660s and E790s control locations

Center main burner control knob

drawer burner

control knob

Drip

tray

Light

button

Smoker

Right main burner control knob

Backburner

control knob

Fig. 16-4

Turn off the gas shutoff valve.

•

• Pull off the control knobs. Remove the woodchip box. Unscrew and remove the control panel screws and washers.

• Lift the control panel up and outward, allowing it to rest on the internal chain(s).

Important: When re-installing the control panel, set it back over the front lip of the grill so that the lid-closed-

sensor plunger protrudes through the hole on the upper right of the control panel. Prior to opening the gas shutoff valve, be sure the control knobs are in the OFF position.

OPTIONAL POWERHOOD

The Fire Magic an Echelon E1060 factory shipped option. Read the following before using the grill.

Important: Grill must be connected to electrical

OPENING AND CLOSING THE LID BY REMOTE OR CONTROL PANEL ROCKER SWITCH

Note: See below for manual operation procedure.

While set up for motorized opening and closing, the lid may be controlled either by the black rocker switch on the right side of the control panel or by the remote control included with units conﬁ gured with the motorized lid option.

The rocker switch will lock in any one of three positions: up–commanding the lid to open, down –commanding the lid to close, and center–allowing the lid to hold its current position and respond to remote control.

For safety reasons, the rocker switch on the control panel will always override the remote control.

To enable remote control of the lid, set the rocker switch to center.

To open the lid, press and hold the open button on the remote until the lid reaches the desired location. Then release the remote buttons, and the lid will stay in place.

To close the lid, press and hold the close button on the remote until the lid reaches the desired location. Then release the remote buttons, and the lid will stay in place.

If the rocker switch is left in the down position, remote up commands will affect the lid only as long as the remote button is held. When released, the motor will move the lid back to the closed state. With the rocker switch in the up position, the remote has no effect.

Power Hood is available only as

power to open and close lid by motor.

CONFIGURING THE LID FOR MANUAL OPENING AND CLOSING

WARNING If the grill has been on recently, all Power Hood components are potentially hot. Wait for grill to

cool before beginning this procedure or wear

heat-resistant gloves.

CAUTION: Do not push or pull on the lid or

its handle while it is configured for automatic operation. This could result in damage to the grill.

To conﬁ gure the lid for manual opening and closing, simply remove the locking bolt using the following procedure. This procedure requires the use of the Allen wrench supplied with this option.

1. Open the lid completely, then set the rocker switch

to the center position and disconnect electrical power to the unit.

2. Use a Phillips screwdriver to remove the stainless-

steel motor assembly housing screw. Pull the top of the housing ﬁ rst up and then outward away from the lid until the top of the shroud clears the lip of the motor mount beneath, then remove the housing completely and set it aside (Fig. 17-3).

3. Use the Allen wrench to loosen and remove the

lid motor assembly locking bolt and washer (see next page).

Important: Keep this bolt and washer for later use

in converting the unit back to automatic lid operation.

4. Replace the motor assembly housing and

refasten.

Fig. 17-3

Gear cover plate

Fig. 17-1

DOWN

Fig. 17-2

Motor assembly housing

PULL

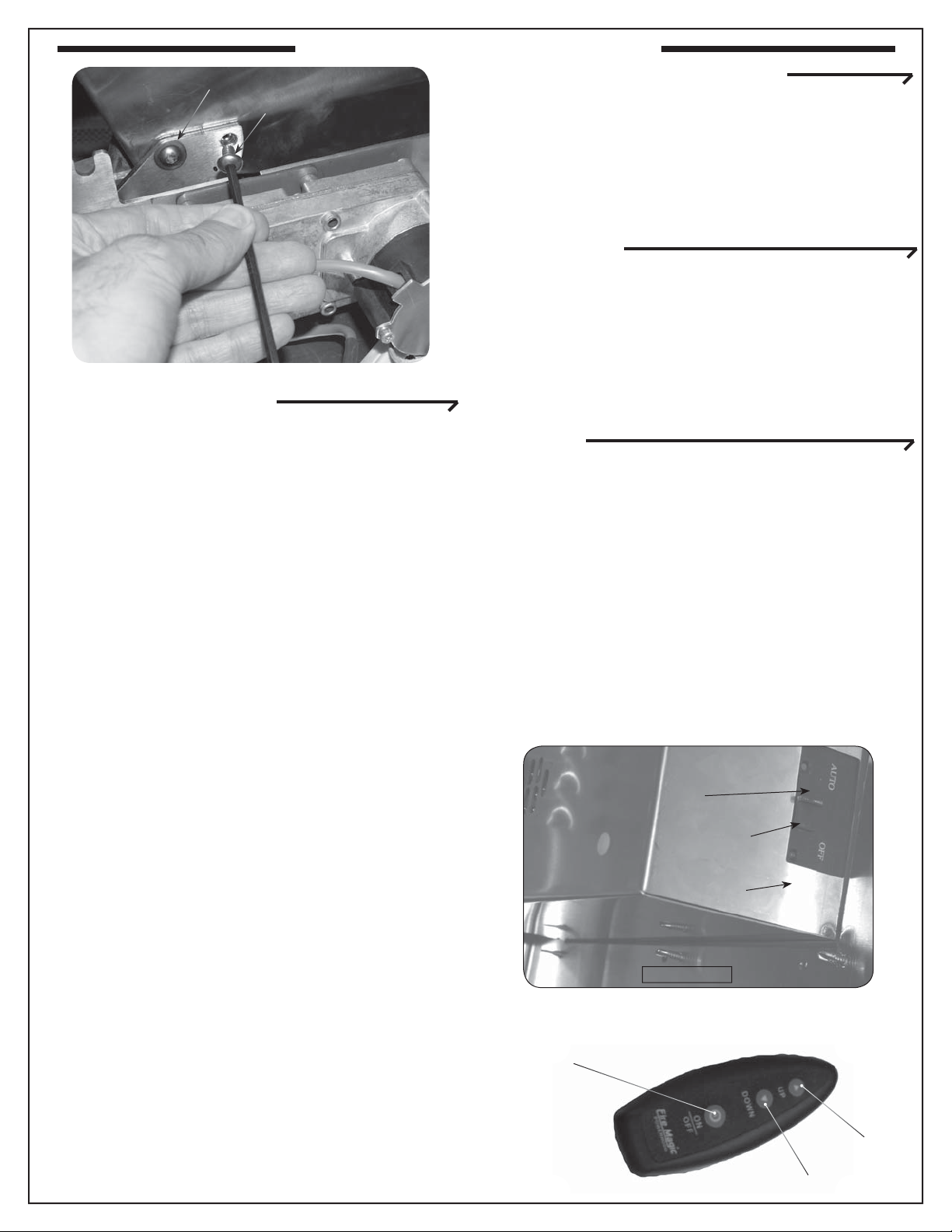

OPTIONAL POWERHOOD

Fig. 18-1

Hinge bolt

Locking bolt

CONFIGURING THE LID FOR AUTOMATIC OPENING AND CLOSING

The unit is shipped in this conﬁ guration, but if you have conﬁ gured it for manual operation and wish to use the automatic open/close function again, follow this procedure to conﬁ gure for automatic operation:

1. Follow steps 1-4 on the previous page except screw in the locking bolt in step 3.

2. Switch the receiver to the AUTO position (see SYNCHRONIZING TRANSMITTER AND RECEIVER instructions below.

TURNING ON THE TRANSMITTER

The transmitter has a AUTO/OFF switch, a sync. switch and an indicator LED on it. The AUTO/OFF switch must be in the Auto position for the remote transmitter to control the motorized oven lid.

INSTALLING/CHANGING THE BATTERIES IN THE TRANSMITTER

Slide open the battery access door on the back of the Power Hood remote. Remove the 12-volt camera battery and replace it. Close the access door and follow the instructions on synchronizing the remote below.

SYNCHRONIZING TRANSMITTER AND RECEIVER

The ﬁ rst time you turn on the transmitter or after changing batteries in the transmitter, it is necessary to synchronize the transmitter with the receiver.

To do this, use a pen to press in the synch button on the receiver (Fig. 18-2). The green LED will begin to ﬂ ash. While the LED is ﬂ ashing, press either the up or down button on the remote transmitter. The LED will go out. Then press the On/Off button on the transmitter.

The units are now synchronized. Test this by commanding the lid up or down as appropriate.

The units may be synchronized at any time.

Sync. button

AUTO/OFF

switch

Green LED

Fig. 18-2

ON/OFF

Fig. 18-3

DOWN

LIGHTING (IGNITION) INSTRUCTIONS

Read all instructions before lighting, and follow these instructions each time you light the grill.

ELECTRONIC LIGHTING

Note: Grill must be connected to 110VAC power for

Note: Electronic lighting requires an installed 9-volt

electronic lighting.

battery with a good charge.

1. Open lid(s) or remove cover(s) from burner(s) to be lit.

2. Turn all gas control knob(s) to their OFF position(s).

3. Turn on the gas at its source.

Read setting here

Read setting

(OFF position shown)

here

TURN OFF

To Turn OFF

Press knob in to turn

Fig. 19-1 - Valve control knob

OFF

LOW

To Turn ON

TO TURN ON

LIGHT

HIGH to

Use

LIGHT

HI (high) to light

4. Depress the desired control knob, and while pressing turn it counterclockwise to the HI LIGHT position. Once the burner lights, release the control knob.

Note: DO NOT turn on more than one valve at a time for either electronic or manual lighting.

MANUAL LIGHTING

CAUTION: Always wait ﬁ ve (5) minutes for gas to

clear after any unsuccessful lighting attempt.

1. Follow steps 1 through 3 (left).

2. Insert either a burning long-barrel butane lighter or

a burning long-stem match through the cooking grid opening to the top of the lighting tube. (Fig. 19-2). For backburners, hold the flame against the perforated material of the backburner. For sideburners, hold the ﬂ ame against the burner.

3. While holding the match or lighter ﬂ ame at the top

of the lighting tube or next to the burner (sideburner and backburner only), depress the desired control knob and while pressing turn it counterclockwise to the HI LIGHT position. Remove the lighter or match when the burner lights, and release the control knob.

4. If the burner does not light, immediately depress the knob and turn the valve to OFF. WAIT FIVE

(5) MINUTES before repeating steps 2 through 4 of the MANUAL LIGHTING instructions.

CAUTION: If a burner does not light within ﬁ ve (5)

seconds of turning on the control knob, depress the knob and turn it to the OFF

position. WAIT FIVE (5) MINUTES before repeating step 4. If you smell gas, follow the instructions on the cover of this manual. If the burners still do not light after several attempts, refer to the

instructions for manual lighting.

5. Repeat step 4 for each additional burner to be lit.

Important: When lighting the burner under the

ﬂ avor/smoker drawer, ﬁ rst remove the drawer so that the burner can be easily seen. Then replace the drawer after the burner is lit.

WHEN USING A PORTABLE PROPANE TANK

Propane tanks are equipped with a safety shutdown device that may cause low or no gas pressure/ﬂ ame at the burners if operating and lighting instructions are not followed exactly (See important note in the TROUBLESHOOTING section for more details.)

Lighting

tube

Lighter

Fig. 19-2 - Manual lighting

SHUTTING OFF THE GRILL

To shut off the grill, depress each valve control knob and, and while pressing turn it clockwise to the OFF position.

Always close the valve from the gas supply after each use of the grill.

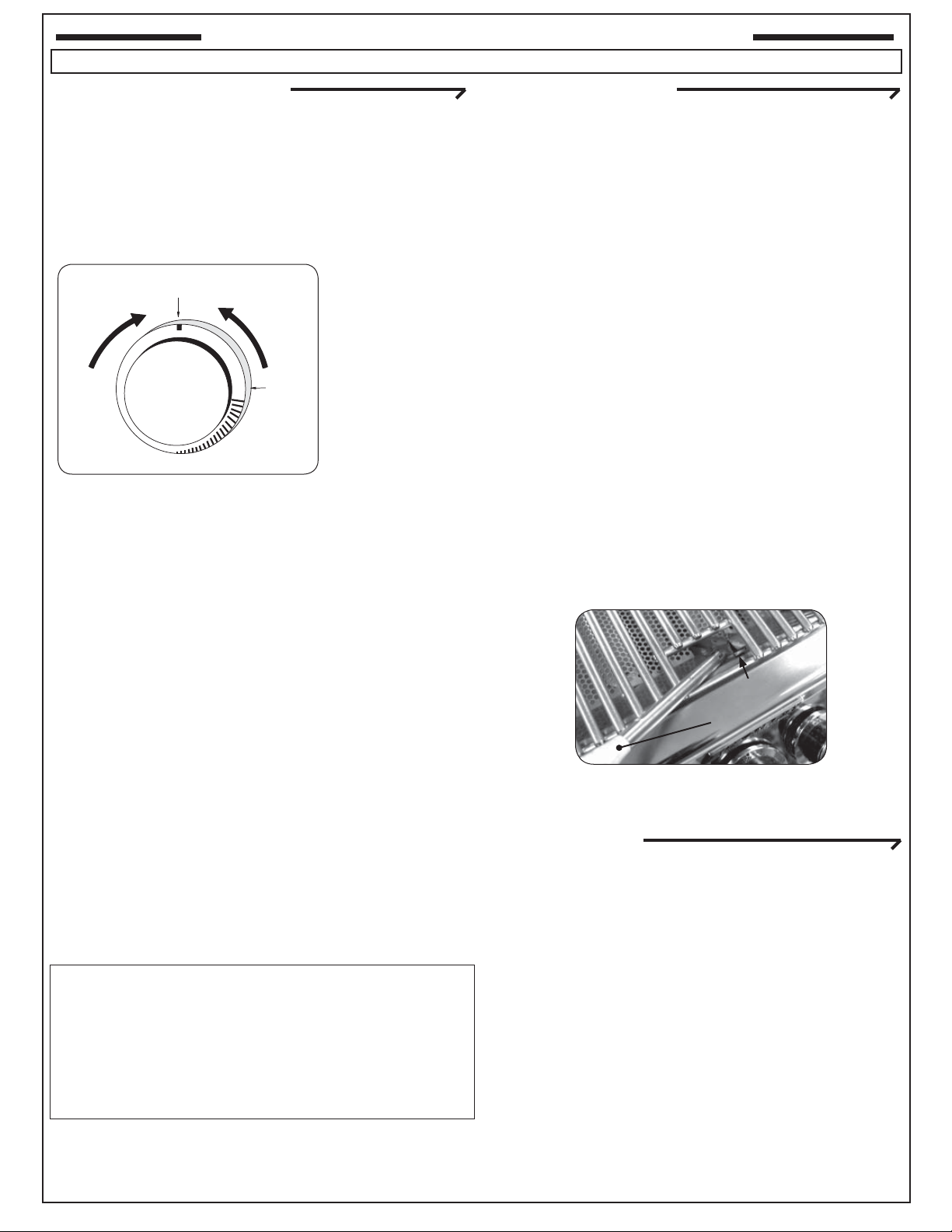

ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)

Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le gril.

ÉCLAIRAGE ÉLECTRONIQUE

Note: Le gril doit être relié à la puissance 110VAC pour

Note: L’éclairage électronique exige une batterie installée

l’éclairage électronique.

de 9 volts avec une bonne charge.

1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs

pour être Lit.

2. Tournez tous les boutons de commande de gaz à leurs

positions de repos.

3. Allumez le gaz à sa source.

Lisez l’établissement ici

Read setting

(OUTRE de montrer)

here

TURN OFF

OUTRE DE

Enfoncez le bouton pour tourner

Fig. 20-1 - bouton de commande

OFF

LOW

TO TURN ON

LIGHT

SUR

HIGH to

Utilisation

LIGHT

SALUT (haute) à la lumière

4. Diminuez le bouton de commande désiré, et tout en

pressant le tour il dans le sens contraire des aiguilles d’une montre dans la position LÉGÈRE de HI. Une fois que le brûleur s’allume, libérez le bouton de commande.

Note: N’ouvrez pas plus d’une valve à la fois pour l’éclairage électronique ou manuel.

ÉCLAIRAGE MANUEL

ATTENTION: Attendez toujours cinq (5) minutes le gaz

pour se dégager après que n’importe quelle tentative non réussie d’éclairage.

1. Suivez les étapes 1 à 3 (à gauche).

2. Passez un allumeur brûlant de butane de long-baril ou

une allumette brûlante de long-tige dans la grille à cuire s’ouvrant au dessus du tube d’éclairage. (Fig. 20-2). Pour des backburners, tenez la ﬂ amme contre le matériel perforé du backburner. Pour des sideburners, tenez la ﬂ amme contre le brûleur.

3. Tout en tenant l’allumette ou la flamme plus légère au dessus du tube d’éclairage ou à côté du brûleur (sideburner et backburner seulement), diminuez le bouton et tout en pressant le tour de commande désirés il dans le sens contraire des aiguilles d’une montre dans la position LÉGÈRE de HI. Enlevez l’allumeur ou assortissez quand le brûleur s’allume, et libérez le bouton de commande.

4. Si le brûleur ne s’allume pas, enfoncez immédiatement le bouton et tournez la valve à AU LOIN. ATTENDEZ CINQ (5) MINUTES avant de répéter les étapes 2 à 4 des instructions manuelles d’éclairage.

ATTENTION : Si un brûleur ne s’allume pas dans cinq

(5) secondes d’allumer le bouton de commande, enfoncez le bouton et tournezle à la position de repos. ATTENDEZ CINQ (5) MINUTES avant de répéter l’étape 4. Si vous sentez le gaz, suivez les instructions sur la couverture de ce manuel. Si les brûleurs ne s’allument toujours pas après que plusieurs tentatives, se rapportent aux instructions pour l’éclairage manuel.

5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.

Important: En allumant le brûleur sous le tiroir de

saveur/fumeur, enlevez d’abord le tiroir de sorte que le brûleur puisse être facilement vu. Remplacez alors le tiroir après que le brûleur soit Lit.

EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF

Des réservoirs de propane sont équipés d’un dispositif d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes pression de gaz/ﬂ amme aux brûleurs si le fonctionnement et l’allumage des instructions ne sont pas suivis exactement (voir la note importante dans la section de dépannage pour plus de détails.)

Tube

d’éclairage

Plus léger

Fig. 20-2 - Éclairage manuel

ARRÊT DU GRIL

Pour couper le gril, diminuez chaque bouton de commande de valve et, et tout en pressant tour il dans le sens des aiguilles d’une montre à la position de repos.

Fermez toujours la valve de la fourniture de gaz après chaque utilisation du gril.

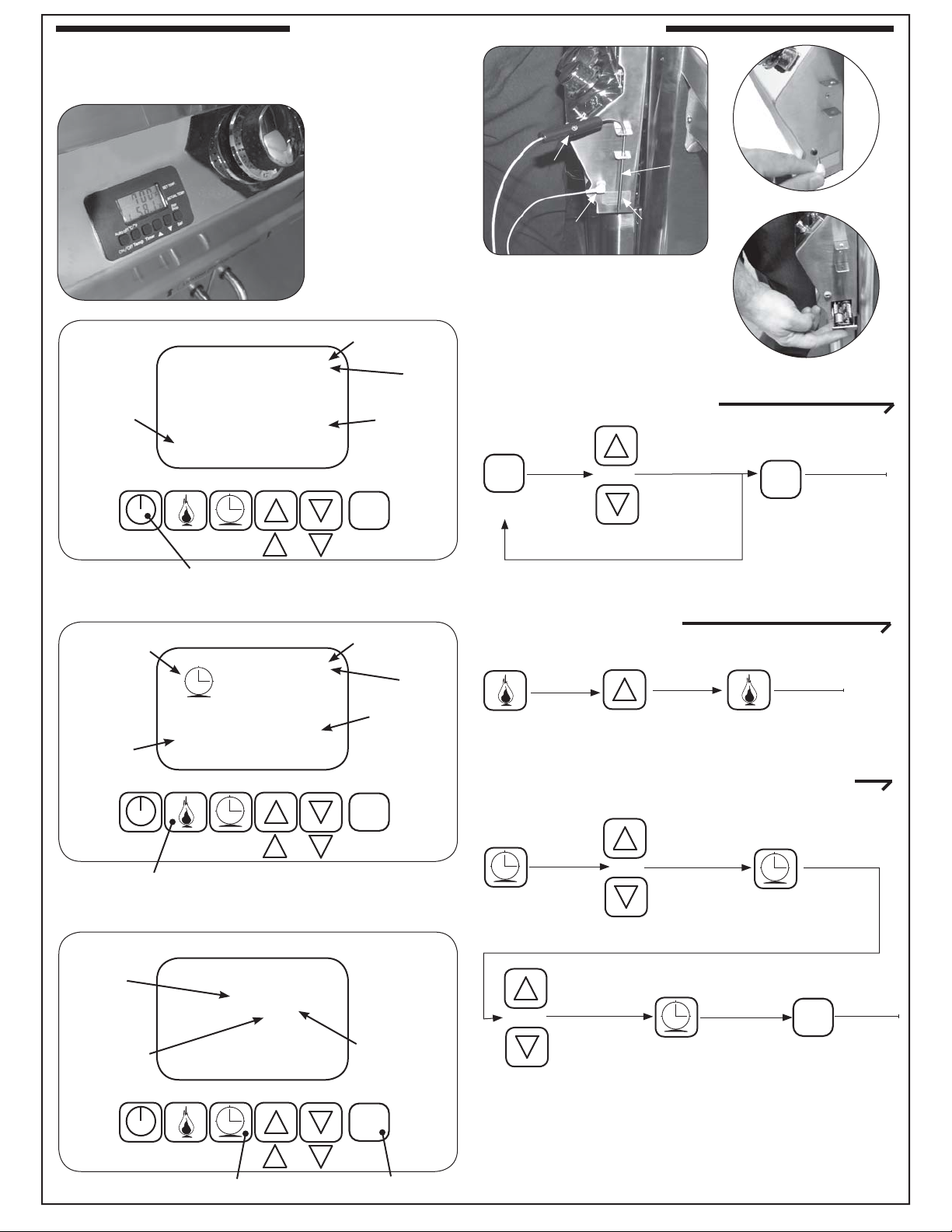

ECHELON DIGITAL THERMOMETER

Your Echelon outdoor gas grill comes with a digital thermometer with built-in timer.

The thermometer

Fig. 21-1

Fig. 21-2

212˚F

“P” indicates meat probe reading

P 142.4˚F

Auto Off ˚C/˚F

ON/OFF Temp Timer

is located on the control panel between the control knobs.

Plug in meat probe as shown in Fig. 21-6.

Thermometer 2 ‘AA’ battery access (Fig 21-7).

Max. displayable

meat probe temp

shown.

Alarm set temp.

Actual temp.

(dashes when

out of range)

Start /Stop

Set

Meat probe

handle

Meat probe

plug

Fig. 21-5

Meat

probe

Battery tray

door

For best performance and temperature readings center zone separators properly between each burner (see parts list).

Setting temperature alarm

Start /Stop

Set

Press

Digit

blinks

Press

repeatedly

Until

desired

digit

displayed

Fig. 21-6

Fig. 21-7

Start /Stop

Set

Press

Return

to temp.

mode

Press and hold to turn thermometer on or off.

Press any button to turn backlight on for 5 seconds

Displayed when

timer running

Fig. 21-3

932˚F

“1” indicates one of the 3 burner zones

Auto Off ˚C/˚F

ON/OFF Temp Timer

Press once to start/stop temp. alternation

between probe and oven or return to temp.

display mode from another mode.

1 358.2˚F

Fig. 21-4

Hours

0:14

Timer is counting down when colon is blinking

Auto Off ˚C/˚F

ON/OFF Temp Timer

Max. displayable

oven temp. shown

Alarm set temp.

Actual temp.

(dashes when

out of range)

Start /Stop

Set

Timer Mode

Cout down time.

Minutes

Start /Stop

Set

Changing temperature units (Celcius/Farenheit)

Temp

hold 3 sec.

Display shows C or F

press

Unit changes

Temp

press

Back to temp. display

Setting and starting the count-down timer

hold 3 sec.

Timer

Displays

time minutes ﬂ ashing

Press

repeatedly

Until

desired

numbers

displayed

Note: Press any key to silence alarm when beeping.

Alarm will not sound if timer is turned off.

Press

repeatedly

Until

desired

numbers

displayed

Press

Numbers

Timer

frashing

stop

Timer

Press

Displays

time

hours

ﬂ ashing

Press

Set

Colon

blinks

countdown

to alarm

starts

Press once to enter timer mode.

Press to enter/exit set time mode.

ROTISSERIE INSTRUCTIONS

Rotisserie rod bracket

Fig. 22-1

Fig. 22-3

Backburner (unlit)

Drip Tray

Backburner

(lit)

1. Remove warming

Backburner cover

Warming rack

Rotisserie

motor

bracket

Rotisserie rod

bracket

Rotisserie

rod

and

knob

rack, backburner cover, cooking grids, flavor grids, and zone separators.

2. Slide rotisserie

motor fully onto motor bracket (right side, Fig. 22-2).

3. Remove rotisserie

rod from rear bracket

Rod drive socket

Heavy-duty Rotisserie motor

Rocker switch

(Fig. 22-1) attach knob if necessary.

4. Slide left meat

Rotisserie motor slots (4)

Fig. 22-2

holder onto rod as

Meat

holders

Counterbalance

Rotisserie motor

shown in Fig. 22-3 and tighten screw.

5. Slide meat onto rod and into holder (Fig. 22-3).

6. Slide right meat holder onto rod and into meat (Fig.

22-3). Tighten screw.

7. Support both ends of the

rod so it spins freely (do not grip tightly). Allow the rod to rotate until the heavy side of the meat points downward.

8. The counterbalance may

then be attached to even

loosen/ tighten

Fig. 22-4

Arm

slide

weight distribution. Slide

Thumb screw

Weight

counterbalance onto rod next to the meat holder. Loosen the arm and point it upward opposite the heavy side of the meat. Tighten the arm.

9. Slide the counterbalance

weight up or down the arm until the rod rotates most evenly then tighten thumb screw (Fig. 22-5).

10. Insert the pointed end of the rod into the motor drive

Fig. 22-5

socket and the groove next to the knob into the left support bracket.

11. To keep drippings off the burners and simplify cleanup,

place Fire Magic

drip tray liners under the meat, if

desired.

12. Plug-in the rotisserie motor and press the rocker switch

to start (Fig. 22-6).

13. Light backburner per lighting instructions in this manual

or on drip tray handle and close oven lid.

Left support bracket

Important: Turn the backburner to low or off

when stopping the rotisserie, to prevent overcooking meat.

DROP-SHELF OPERATION

USING THE FOLDING SHELF

A. To lower the shelf, grasp the middle of the shelf

on both sides and lift upward so that the inner

CAUTION: Do NOT place ﬁ ngers near hinge when

closing.

lip of the shelf, along the side of the barbecue, lifts out of the locking slot. Then use the handle to allow the end of the shelf to slowly rotate down as pictured to the right.

B. To raise the shelf, perform the opposite of

A. above. Grab the shelf by the handle and raise to the horizontal position. Lift slightly upward from the center of the shelf on both sides, allowing the inner lip to drop down into the locking slot and lock the shelf safely into

Shelf

up & locked

position.

PAPER TOWEL HOLDER

This Fire Magic® barbecue comes with a fold-away paper towel holder. To use the paper towel holder:

1. Make sure the collapsible barbecue shelf is extended and locked.

Being lowered or raised

Shelf down

2. Grasp the rounded end of the paper towel holder ﬁ rmly (without

compressing it) and pull it away from the side of the barbecue so that it rotates toward the front of the barbecue and locks into the extended position.

3. Slide a roll of paper towels over the rounded end of the paper towel

holder until the entire roll is on the holder and past the retaining lip.

When not in use, the rack may be folded back out of the way by ﬁ rmly grasping the rounded end of the holder and rotating it back into position against the wall of the barbecue.

WARNING

Remove paper towels or anything ﬂ ammable from the holder before

folding it back against a hot barbecue. Placing ﬂ ammable objects too

close to a heat source may cause ﬁ re, property damage, or injury.

Rounded end

Paper towel holder

(folded back)

Paper towel holder

(folded back)

Fig. 23-2

Paper towel holder (extended & locked)

Fig. 23-3

Drop shelf

Collapsible

(up & locked)

shelf

(up & locked)

Retaining lip

CAUTION: The paper towel holder must be folded back against the

barbecue before lowering the collapsible shelf (see above). Failure to do so could result in damage to the barbecue.

Flame

Collimator

Ignitor support

POWER BURNER

POWER-BURNER INSTALLATION

1. Place the ﬂ ame collimator over the burner

with the tabs and cutouts resting on the inner shell, as shown in Fig. 24-1. Flex the front of the collimator towards the burner until the cutouts ﬁ t down around the collimator support. This will lock your collimator into place. The ﬂ ame collimator acts as a barrier for windy conditions and creates higher BTU concentration to the support grid.

2. Place the cooking grid and the cover over the power burner.

POWER-BURNER SAFETY

The left knob controls the inner burner and the right knob controls the outer burner

CAUTION: THE POWER BURNER IS HOT. DO

NOT TOUCH WITH BARE SKIN.

Be sure the power burner has good ventilation and is free of debris and away from ﬂ ammable substances before lighting.

4. Consult Table 1 at the beginning of this document

to determine the proper oriﬁ ce size for each of the inner (right) and outer (left) burners based on the type of gas being used.

WARNING

YOU MUST USE THE SPECIFIED ORIFICE (SEE

TABLE 1) FOR THE GRILL TO OPERATE SAFELY

AND EFFECTIVELY.

Tabs

Collimator support

Properly burning ﬂ ames are mostly blue with yellow tipping and are steady and spread evenly around the burner.

STAINLESS STEEL POWER-BURNER COVER

Note: The cover is free-standing and is not

hinged in the back.

Use the built-in handle to remove the cover.

ORIFICE INSPECTION, AND REPLACEMENT

1. Remove the cover, cooking grid, and flame

collimator. Compress the collimator front to back to release the front lock then rotate up as shown in Fig. 24-1.

2. Lift the back of the power burner up out of the

locator hole while moving the two necks of the burner toward the back of the grill, away from their respective gas oriﬁ ces.

CAUTION: THE POWER BURNER IS HEAVY.

3. Use a

/8" socket driver to reach into the empty burner space from the top and remove each of the two gas oriﬁ ces protruding from the front ﬁ re-wall of the grill in turn. Take care that the springs near the oriﬁ ce remain attached.

Fig. 24-1 Placing the ﬂ ame collimator

WOK COOKING

When using a wok for stir fry or other cooking, remove the cooking grid and place the wok directly on top of the collimator.

CAUTION: A wok has a rounded bottom and may slide on the collimator, causing hot liquid to spill out of it.

Fig. 24-2

LIGHT

LOW

OFF

LIGHT

OPTIONAL INFRARED BURNER OPERATION

The Fire Magic cooks with a powerful radiant heat.

infrared (IR) searing burner (optional)

Cover

WARNING Only handle the infrared burner cover when the grill is cold or with a well-insulated long-handled

tool or heat resistant gloves.

Cut-out for Flash tube

Flash tube

Fig. 25-1

Ignitor

electrode

Light the infrared burner following the LIGHTING INSTRUCTIONS in this manual or printed on the drip tray. Follow these guidelines when operating the Infrared burner:

• DO NOT place food on the cooking grid until the IR burner glows orange (Fig. 25-3). Drippings are heated and evaporate instead of sticking to and impairing burner function.

SIDE VIEW (with cover on)

Ignitor

Cover

Food particles or debris

electrode

Flash

tube

Fig. 25-2

NO foreign

objects

Airborne

dust or grease

Drippings and other

liquids

Burner ceramic must be protected with cover when burner is not in use.

• When not in use, always cover the infrared burner

with the stainless-steel cover. This protects the burner from drippings (from other cooking), airborne particles, and foreign objects (Fig. 25-2).

• Do not strike or scratch the burner ceramic as it may chip, crack, or break (Fig. 25-2).

Note: Digital thermometer does not give accurate

readings for infrared burners.

Important: When grilling with the infrared burner,

always place a cooking grid above it. The cooking grid must be removed for rotisserie cooking.

CAUTION: Never attempt to operate the IR burner

with the protective cover in place.

SIDE VIEW (burner on HI LIGHT and glowing orange)

Ignitor

electrode

Flash

tube

Fig. 25-3

Drips and particles evaporate before hitting infrared burner when cooking at the maximum setting.

ACCESSORIES

THE GRILL BRUSH (OPTIONAL)

Purchase a Fire Magic® stainless-steel grill brush (sold separately) to keep your grill cleaner. It comes with scraper for large particles and a replaceable head with brass bristles for overall cleaning.

Fig. 26-1

Grill brush with replacement head

THE COOKING GRID LIFTER

Hold the grid lifter by gripping the center section with the prongs pointing down (use an oven mitt or heavy glove if the grill is hot). Insert the notched end of the grid lifter into the cooking grid, in front of the midway point (front to back; Fig. 26-3), and central (left to right; Fig. 26-4). Twist the grill lifter (clockwise or counterclockwise) so the handle is parallel to the grill rods. This “seats” the spiked end of the grid lifter between two rods, enabling you to safely lift out the grid. Lift slowly and adjust the grid lifter, if necessary, for balance.

THE DRIP PAN

THE WARMING RACK

The warming rack (Fig. 26-2) is packed separately.

To install the warming rack, lift the front of the rack up slightly and insert the rack hangers into the two holes in the back of the inner oven hood just above the backburner. Then lower the front of the rack into a level position to lock the rack in place.

To remove the warming rack, lift up on the front of the rack until the rack hangers pull free from their supporting holes.

Note: Removing the warming rack before using the

rotisserie will leave more clearance for the meat being cooked.

Fig. 26-2 Warming rack in place inside oven

The drip collection system allows you to brush or scrape excess dried residue from the grilling area directly into the drip pan (see PARTS LIST for drip pan location). To simplify cleanup when using the rotisserie, you may place a baking pan or foil under the rotisserie on top of the burners to collect the drippings. Clean the drip pan after each use.

THE FLAVOR GRID(S)

Place each ﬂ avor grid directly over a burner or burner pair. Center each grid over the burner, oriented as shown in Fig. 26-5.

Note: This allows heat from the burners to be evenly

in Fig. 26-6.

distributed throughout the cooking area. The ﬂ avor grids heat and cool quickly, making the grill very responsive to changes in heat from the burners.

Fig. 26-3

Placement of the grid lifter in cooking grid

Fig. 26-4

FLAVOR FROM WOOD CHIPS OR CHARCOAL

You can add wood chips, wood chunks, or the natural wood charcoal of your choice to the ﬂ avor drawer (Fig. 26-5) or the ﬂ avor grid (Fig. 26-6). Heat wood chips in the ﬂ avor drawer by lighting the smoker burner using the smoker control and zone 2 ignitor. When using the ﬂ avor grid, we recommend placing wood outside the direct cooking zone or wrapping it in perforated aluminum foil. Soaking wood before use will slow burning and increase smoke ﬂ avor. Wood and charcoal ash will remain in the ﬂ avor grid and drawer after use. Either can be easily removed and cleaned when unit has fully cooled. The ﬂ avor drawer is water-tight, allowing liquid ﬂ avorings to be added as well.

Fig. 26-5

Wood chip smoker drawer

Fig. 26-6

Fig. 26-5

Edges angle upward

Pull out the drip tray

FIRE MAGIC® DRIP TRAY

Drippings from grilling flow through specially designed channels and collect in the drip tray. Check the drip tray regularly and empty when required.

Fig. 27-1

Fig. 27-2

Fig. 27-3

Remove a drip tray liner from the package

Place the drip tray liner

Fig. 27-4

Your grill includes a pack of four (4) Fire Magic

drip tray liners (Fig. 27-1). For your convenience in cleanup, place a liner into the drip tray before grilling.

To ﬁ t a liner into the drip tray, pull out the tray (Fig. 27-2) and set it on a ﬂ at, level surface (Fig. 27-3). Place the liner in the drip tray as shown in Fig. 27-4 and carefully insert the tray back under the control panel (Fig. 27-5).

After each use, wait for the grill to cool and carefully pull out the drip tray to check it. When a liner is nearing full, carefully lift it out of the drip tray, lifting with both hands to keep the tray level until it is safely discarded. Then insert a new drip tray liner.

Order more drip tray liners through your local Fire Magic® dealer.

Note: The foil tray liner is also useful for setting

on burners to cover them and catch drippings directly during rotisserie only cooking.

Fig. 27-5

Carefully slide the tray with liner back into the opening

Note: There are easy to follow lighting

Note: For models with match holders attached

instructions etched onto the top of the

inside the drip tray, place the match

drip tray handle.

holder off to one edge of the pan (Fig. 27-3). If necessary, mold the foil liner around them and the other features of the tray to create enough clearance space to open and close the tray without catching the liner.

REPLACING HALOGEN BULBS

Fire Magic® Echelon grills are all engineered with the conveniences of electrical power for illuminating and igniting the grill.

To replace any Echelon oven light, follow the instructions below.

WARNING

To protect from potentially sharp sheet metal and

glass, wear gloves and safety glasses during this

procedur

1. Turn all burner control knobs to the OFF position

and shut off the gas supply to the grill at the source (tank valve for propane units or gas line shut-off valve for natural gas units.)

2. Disconnect supply of external electrical power to

the grill.

CAUTION: Wait for the grill, oven, lens, light bulb,

and ﬁ xture to cool before proceeding to the next step.

5. Wearing a pair of gloves, reach into the ﬁ xture,

gently grab the bulb, and pull it straight out of the ﬁ xture so that the two pins at the base of the bulb come all the way out.

Fig. 28-2

Fixture

Curved cut-out top of lens

Bulb

Socket

Important: Bulb is halogen. DO NOT TOUCH with

bare hands. Oils from hands drastically reduce bulb life.

Note: It may be helpful to rock the bulb gently

backward and forward while pulling it out.

3. Open the oven lid.

Important: Place one hand directly below the glass

lens and prepare to catch it when it is detached.

4. Carefully insert a standard ﬂ at head screwdriver

or thin plastic spatula between the glass lens and the stainless steel on which the light is mounted

Fig. 28-1

Lens

and gently pry the glass lens out in such a way that the stainless steel is not scratched (twisting the screwdriver handle, for instance). Catch the lens and set it safely aside.

Note: You may wish to take this opportunity to clean

the lens with a standard household window cleaner and then dry it completely.

Fig. 28-3

Socket

Holes

Prongs

Bulb

6. Inspect the old bulb for broken glass or ﬁ lament.

Note: It may be beneﬁ cial to test a suspect bulb

in one of the other light ﬁ xtures known to be working and turn the power back on to be certain the bulb is actually not working.

7. Insert the new bulb into the socket so that both pins

slide all the way into the two holes in the bottom of the socket.

8. Place the lens back into the ﬁ xture opening with

the curved cut-out on the bottom and snap it back into place.

CARE & CLEANING

CARE AND CLEANING

Your new Fire Magic® unit represents the latest and most advanced technology available. In order to continue to enjoy the beneﬁ ts of your unit and to protect your investment, we recommend the following:

Cover your unit with a Fire Magic

cover when not

in use (see section below). Clean it with Fire Magic® stainless-steel grill cleaner

at least once a month (see Fig. 29-1).

Note: Due to the nature of stainless steel,

surface iron oxide deposits may appear. Do not be alarmed – these deposits are removable with stainless-steel cleaner through periodic maintenance.

BE SURE THE UNIT IS OFF AND COOL BEFORE CLEANING.

OPTIONAL COVER

Check and clean the burner ports and carry-over slits for blockage at least annually by removing the burner (see oriﬁ ce changing instructions) and visually inspecting the burner inlet for insects and nests. A clogged burner can lead to a ﬁ re beneath the unit.

The inside of the unit may be cleaned periodically with oven cleaner if desired. Follow the oven cleaner instructions for proper use.

By following these recommendations, you will enjoy the

Wipe with grain

beauty and power of your unit for many years to come.

Fig. 29-1 - Wipe with grain

PROTECTING YOUR UNIT

An optional heavy-duty cover will protect your unit’s ﬁ nish and preserve your investment. The waterrepellent material will protect your unit from the weather.

Make sure to give the model number of your unit when ordering a cover.

Important: Allow your unit to cool before

covering.

Important: Always close the gas-supply

shutoff valve to the unit. If storing the unit for a long period of time, disconnect the unit from the gas supply completely.

Always check the burners before using the unit if it has been unused over a long period. Look for obstructions that may hamper performance and safe operation of your unit.

Fig. 29-2

TROUBLESHOOTING

If you have trouble with this Fire Magic® barbecue, please use this list to identify the problem. By trying one or more of the solutions to the possible cause, you should be able to solve the problem. If this list does not cover your present problem, or if you have other technical difﬁ culties with the barbecue, please contact your local Fire Magic® dealer or visit our web site at

www.rhpeterson.com.

PROBLEM POSSIBLE CAUSE CORRECTION

Ignition system

failure

Insufﬁ cient heat

Uneven heating

Thermometer

malfunction

Rotisserie noisy

Rotisserie doesn’t

turn but lights work

Fig. 30-1

1. Power source not hooked to power supply

2. Improper air shutter adjustment

3. Ignition wire disconnected

4. Low gas pressure

5. Front carry-over port

6. Improper air shutter adjustment

7. Using propane oriﬁ ce for natural gas

8. Low gas pressure/flame (propane)

9. Low gas pressure/ﬂ ame (natural)

10. Burner ports partially blocked by debris

11. Small spiders or insects in burner

12. Improper air shutter adjustment

13. Battery charge low

14. Rotisserie out of balance 14. Adjust rotisserie counterbalance.

15. Elec. socket circuit breaker is tripped 15. Reset circuit breaker (See Fig. 30-1).

1. Hook external power to barbecue.

2. Adjust air shutters.

3. Plug wires back into ignition switches.

4. Have the gas co. check pressure at barbecue.

5. Clean burner ports.

6. Adjust air shutters.

7. Check/change oriﬁ ces.

8. Shut off all valves, including propane tank, and follow lighting instructions exactly. (See important note* below.)

9. Have the gas co. check pressure at barbecue.

10. Remove burners and clean out ports.

11. Inspect burners and oriﬁ ces for spider webs or other debris that may block ﬂ ow.

12. Adjust air shutter.

13. Replace batteries. Check connections to batteries.

Table 2

To reset the cart electrical outlets press in hard on the reset (upper) button until you hear an audible click.

Note: The main power feed to the cart must be

on for the reset switch to function. Open the barbecue oven lid and turn on the lights to verify that the barbecue has electrical power before resetting the breaker.

Important: Propane tanks are equipped with

a safety shutdown device that may cause low or no gas/ﬂ ame at the burners if operating and lighting instructions are not followed exactly. If you suspect the propane tank safety shutoff is in effect, shut off all burner control valves and the propane tank valve. Then read and follow the LIGHTING INSTRUCTIONS exactly. Lighting instructions are located in your owner’s manual and printed on the barbecue’s metal drip tray. If the problem persists, continue troubleshooting, or contact your local dealer or R. H. Peterson for assistance.

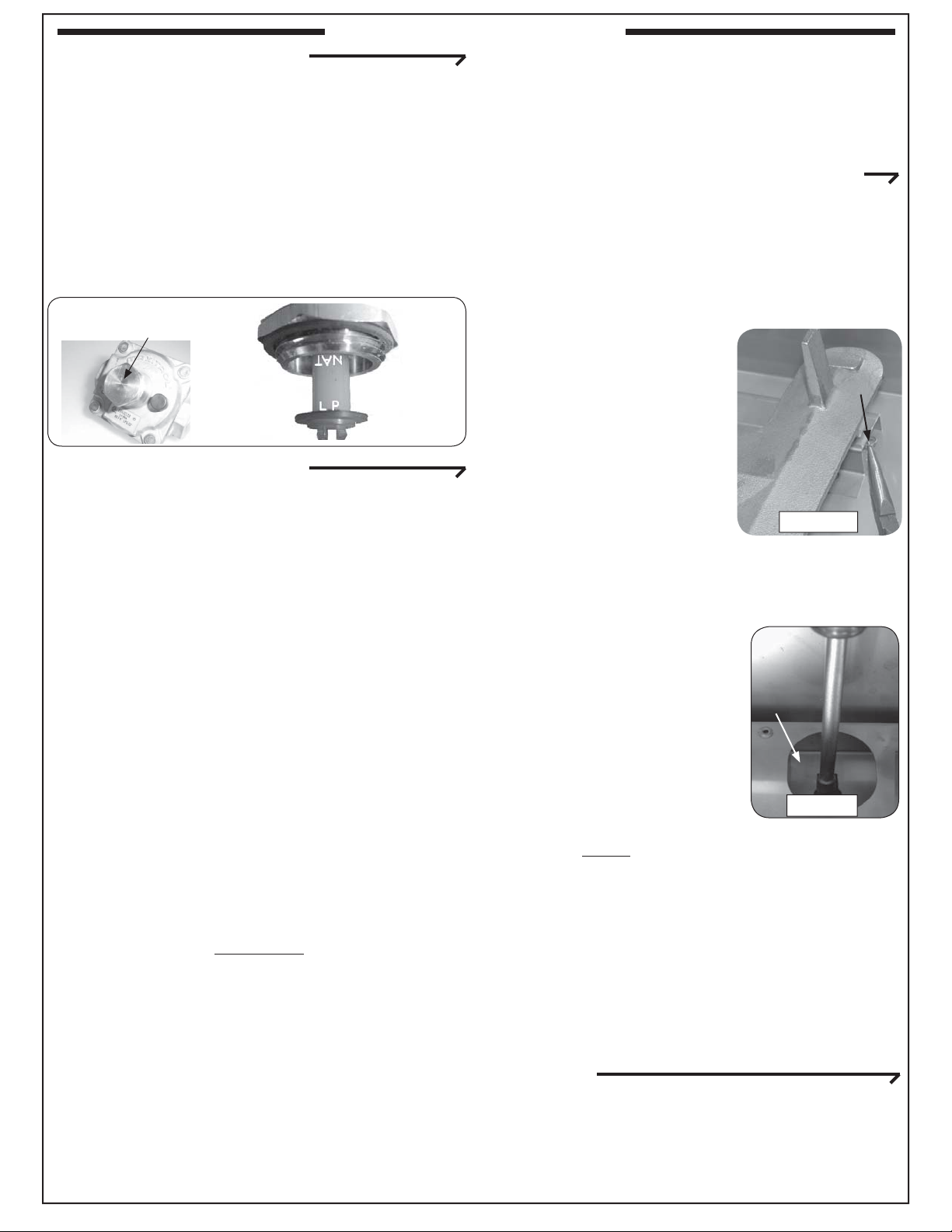

CONVERTING THE GAS TYPE

REGULATOR CONVERSION

The gas regulator, located behind the control panel, must be set for the type of gas used to fuel the grill. To check the regulator setting, remove the cap in the center of the regulator (Fig. 31-1). Holding the cap vertical (see Fig. 31-2), the letters at the bottom of the plastic stalk indicate the gas type for which the regulator is currently conﬁ gured. If the bottom of the regulator stalk does not indicate the gas connected to the grill, remove the stalk from the cap, invert, and replace into center of cap. Replace cap on the regulator, screwing down until snug.

Gas regulator Note the cap on top.

Read gas type here. (LP shown)

Fig. 31-1

GAS ORIFICE CONVERSION

This Fire Magic® grill comes from the factory conﬁ gured for one type of gas as marked on the label behind the control panel. When the grill is converted, this label must be replaced or updated to identify the new gas.

Each burner has a brass oriﬁ ce, which can be replaced and must match the gas being used. When converting the grill to a different gas, each burner’s oriﬁ ce must be replaced with the corresponding oriﬁ ce for the new gas.

Natural-gas to propane-gas conversions using a tank internal to a portable grill require installation of a propane tank holder (not included) for safety and compliance with the ANSI standards referenced on the cover of this document. This tank holder must be purchased separately from the manufacturer.

Consult Table 1 at the beginning of this document to determine the proper oriﬁ ce sizes for each burner.

It is critical to the operation of each burner that its oriﬁ ce be fully inserted into the center of its oriﬁ ce opening.

WARNING

Hazardous overheating will occur if a natural-gas

oriﬁ ce is used with propane gas.

CAUTION: Make sure the grill is at a safe

temperature and isolated from gas and electrical supplies before beginning.

For your safety, exercise caution, and make sure you have adequate hand protection, such as gloves, when handling metal parts.

Fig. 31-2

Required tools:

• Phillips-head screwdriver (#2 medium)

• Needle-nose pliers

• 3/8" hex nut driver (deep socket)

• 5/16" hex nut driver

CHANGING THE MAIN BURNER ORIFICES

1. Remove the cooking grid from above the burner you

are working on by lifting it ﬁ rst from the front and set it aside.

2. Remove the ﬂ avor grid from above the burner you

are working on and set it aside.

3. Remove the cotter pin from the left or right rear

burner anchoring peg by pulling it straight out of the cotter pin hole using ﬁ ngers or needle-nose pliers (Fig. 31-3).

CAUTION: The burner is

heavy.

4. Lift the back end of the burner

out of the anchor peg holes, then move the burner toward the back of the grill to clear the gas inlet and set it aside.

5. Use a

oriﬁ ce (Fig. 31-4) and replace it with the correct oriﬁ ce for the new gas. (See Table 1 at the beginning of this document for oriﬁ ce sizes.)

6. Replace the burner by first

sliding the open cylindrical end of the burner around the oriﬁ ce, enveloping it and centering on it, then lower the back end anchor pegs into the anchor peg holes.

Note: It is critical to the continued safe functioning

7. Reinsert the cotter pin into the right rear burner

anchor peg using ﬁ ngers or needle-nose pliers.

8. Replace the ﬂ avor grid and then the cooking grid so

that the cutout section of the cooking grid is lined up with the lighting tube.

Repeat these steps for each main burner.

/8" hex nut driver to remove the exposed

of the burner that the oriﬁ ce is centered and completely inside the burner gas conduit.

Main burner

Oriﬁ ce

Cotter pin

Fig. 31-3

Fig. 31-4

CHANGING THE BACKBURNER ORIFICE (IF EQUIPPED)

Remove the warming rack if installed and set it aside.

2. Remove the backburner cover.

3. Unscrew all backburner access plate screws using

a Phillips-head screwdriver and set them aside.

CONVERTING THE GAS TYPE

4. Remove the back panel by pulling the bottom toward

the front of the grill and rotating it upward and outward until the two top tabs attached to back wall of the oven can be removed from the slots in the top of the plate.

5. Remove the backburner

assembly retaining screw on the lower left of the backburner using a Phillips-head screwdriver and set it aside.

6. Pull the wire from the ignitor

6. Pull the backburner assembly

electrode (Fig. 32-2), then remove

to the left, clear of the oriﬁ ce,

the backburner retaining screw

and then rotate the top forward

on the left of the backburner

and downward and lay it face

(Fig. 32-1) using a Phillips

down across the cooking grids

screwdriver.

or main burners.

Retaining screw

Fig. 32-1

CHANGING THE SIDEBURNER ORIFICE

1. Lift the sideburner lid. Then remove the grill and

sideburner cap and set them aside.

2. Locate and remove the cotter pin from the

sideburner assembly underneath the sideburner shelf using needle-nose pliers. Set it aside.

3. From the top of the sideburner shelf, lift the

sideburner upward while rotating the attached tubing underneath away from the oriﬁ ce near the cart wall. Set it aside.

4. Use the nut driver to remove the exposed oriﬁ ce

and replace it with the correct oriﬁ ce for the gas being converted to. (See Table 1 for correct oriﬁ ce sizes based on burner type and gas type.)

CAUTION: Be careful not

to damage the wires connected to the backburner

Fig. 32-2

Backburner

air shutter

Electrode wire

(disconnected)

assembly.

7. Use a

/8" hex nut driver

Backburner

electrode

to remove the exposed oriﬁ ce and replace it with the correct oriﬁ ce for the gas being converted to

Backburner

oriﬁ ce

(See Table 1 for size).

8. Replace the backburner assembly and reinsert the

retaining screw. Center the backburner assembly so that the backburner plate will ﬁ t over it. Tighten the retaining screw using a Phillips-head screwdriver.

9. Replace the back panel by ﬁ rst inserting the tabs

above into the slots in the top of the plate and then rotating the bottom downward and inward.

10. Replace all the backburner plate screws using a

Phillips-head screwdriver.

CHANGING AN INFRARED BURNER ORIFICE (IF EQUIPPED)

Note: To protect the manifold threads when placing

the new oriﬁ ce, start the threading manually, and then tighten with the nut driver.

5. Rotate the burner assembly back into place over

the oriﬁ ce and ﬁ rmly seated in the shelf.

6. Reinsert the cotter pin underneath the sideburner

assembly using needle-nose pliers. It may be necessary to push downward on the burner assembly from above to fully expose the cotter pin hole. Rotate the inserted cotter pin so that it is ﬂ ush with the underside of the shelf.

7. Replace the burner cap by centering it on the

sideburner assembly and making sure it drops in place.

8. Replace the grill with the grating running front to

back so that it drops fully down onto the shelf, allowing the lid to close completely over it.

Fig. 32-3

Cotter

1. Remove the cooking grid from above the burner on

which you are working by lifting it ﬁ rst from the front and set it aside.

2. Unscrew both lighting tube hex head screws with a

/8" hex nut driver.

3. Remove the infrared burner by lifting the back of the

burner up so that both tabs are freed from their slots, then lift the burner toward the back of the ﬁ re box and upward. Set the burner aside.

4. Use a

/8" hex nut driver to remove the exposed oriﬁ ce

and replace it with the proper oriﬁ ce for the new gas (see Table 1 for sizing).

5. Replace the infrared burner by ﬁ rst sliding it over the

oriﬁ ce, then lowering the two tabs under the back of the burner into the slots in the back burner rest.

6. Reattach the lighting tube and replace the grid so

that the cut-out section is in front.

BURNER AIR SHUTTER ADJUSTMENT

AIR SHUTTER ADJUSTMENT

Important: Air shutters are preset at the

factory based on the gas the grill is built to burn. However, altitude or other local conditions may require air shutter adjustment for proper combustion.

MAIN BURNER

Flames from a properly adjusted main burner with no wind or breeze present will appear fairly steady, consistent, and almost entirely blue. The extreme tips of the ﬂ ames may be light yellow. If the tip of a ﬂ ame were to turn orange, it should only do so brieﬂ y and then become blue or light yellow again. The ﬂ ames will appear to burn while touching the burner ports (see Figure 33-1).

If the ﬂ ames have orange in them and appear to undulate slowly from side to side, or if some of them appear to lift off the burner instead of touching it, then adjust the air shutter, as instructed below.

Carry-over

slits (on

each lobe)

Bridge

between

burner

lobes

Fig. 33-1

1. Follow the safety precautions and steps for

main burner removal in the CHANGING THE MAIN BURNER ORIFICES section (steps 1-4).

Adjustment

screw

Adj. slot

Fig. 33-2

2. Adjust the air shutter

opening by loosening the adjustment screw

Open

with a screwdriver, then sliding the air shutter backward or forward to open or close the air shutter opening (see Fig. 33-2).

Shutter Setting Flame Condition

Open too far

Flames shorten and lift off the burner

Blue ﬂ ames just

Ideal setting

touching burner (may have light-yellow tips)

Closed too far

“Lazy” ﬂ ames with orange in them

Too large an air shutter opening will allow too much air into the burner, which will cause the ﬂ ames ﬁ rst to shorten and then to appear to lift up off the ports. For the bottom of the ﬂ ames to move closer to the ports, close the air shutter more.

Ignitor

box

Blue ﬂ ames on

burner ports

Lighting

tube

CAUTION: Turn all burner control knobs to the

OFF position and turn off the gas

supply at the source before removing or adjusting a burner.

WARNING

Wait for the burner to be cool or use heavily insulated

heat-resistant gloves when handling the burner.

If the air shutter opening is too small or closed, the ﬂ ames will present consistently orange tips and become “lazy,” slowly undulating back and forth.

For propane gas, ideal settings tend to be just slightly open. For natural gas, which generally requires less primary air than propane, the main burner air shutter may be nearly closed.

3. Adjust the air shutter opening and then replace

the burner (steps 6-8 in the CHANGING THE MAIN BURNER ORIFICES section)

4. Follow the lighting instructions in this manual to

light the burner.

5. Repeat steps 1-4 until the ﬂ ames appear to

touch the burner ports, burning fairly steadily and almost entirely blue with occasional lightyellow tips (see Fig. 33-1).

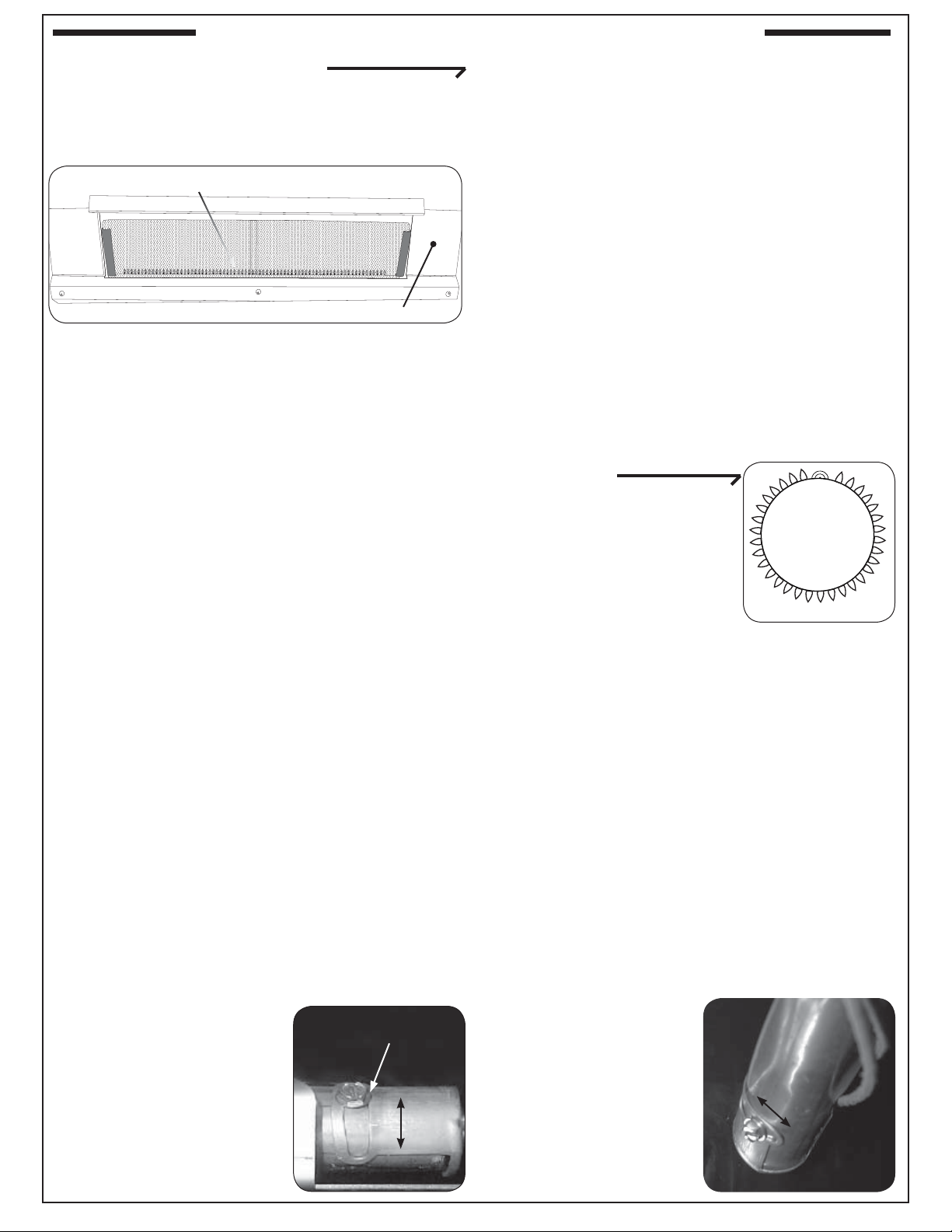

BURNER AIR SHUTTER ADJUSTMENT (Continued)

BACKBURNER (IF EQUIPPED)

The backburner is set at the factory and will not require adjustment unless this unit is converted or used at an elevation above 2,000 ft.

Blue ﬂ ames behind burner screen

Fig. 34-1

Back panel

Flames from a properly adjusted backburner will appear as a horizontal line of even blue ﬂ ames along the bottom of and behind the backburner grating. The grating itself will glow red after it heats up.

Note: It is normal for the backburner to smoke

when it is ﬁ rst used. Burning the backburner on HI LIGHT for approximately 15 minutes will eliminate the smoking.

If, instead of being blue and even, the backburner ﬂ ames appear to have orange in them and waver slowly left and right, or if the ﬂ ames appear to lift off the burner, adjust the backburner air shutter by following the steps below.

The backburner air shutter adjustment is located behind the right side of the access panel in the back of the oven, above the cooking grid.

Note: It is only necessary to remove the backburner

back panel, not the backburner, when adjusting the backburner air shutter.

1. Follow the safety precautions and steps for

backburner back panel removal (steps 1-4) in the CHANGING THE BACKBURNER ORIFICE section.

CAUTION: The backburner air shutter can be

safely adjusted with the backburner lit if it is adjusted using a long-handled screwdriver or well-insulated ﬁ re and heat-resistant gloves.

2. Adjust the air-shutter opening by loosening the

adjustment screw with a screwdriver, then sliding

Backburner air shutter adjustment screw

the air shutter backward or forward to open or close the air shutter opening (see Fig 34-2). Watch the backburner flames while adjusting the air shutter.

Fig. 34-2

Open

If the air shutter opening is too small or closed, the ﬂ ames will present consistently orange tips and become “lazy,” slowly wavering left and right.

3. Continue adjustment until the ﬂ ames appear to

touch the burner ports, burning fairly steadily, consistently, and almost entirely blue with some light-yellow tips (see Fig. 34-1), then retighten the backburner air shutter adjustment screw.

4. Replace the burner access plate (step 8 in the

CHANGING THE BACKBURNER ORIFICE section).

SIDEBURNER

The sideburner is set at the factory and will not require adjustment unless this unit is converted or used at an elevation above 2,000 ft.

The flames from a properly

Fig. 34-3

adjusted sideburner will touch the burner ports and appear mostly blue with light-yellow tips.

If they are orange, “lazy,” or lift off the burner ports, then adjust the sideburner air shutter using the following steps.

The sideburner air shutter is located underneath the sideburner shelf on the left side of the unit, near the wall of the cart. It can safely and easily be adjusted while the sideburner is lit.

CAUTION: Do not touch the sideburner or the

shelf around it. They will be hot while adjusting the sideburner air shutter.

1. Light the sideburner following the lighting

instructions in this manual.

2. Loosen the sideburner air shutter adjustment

screw, then use the tip of the screwdriver to open or close the air shutter until the flames appear blue and touch the burner ports.

Open

3. Retighten the

adjustment screw.

Fig. 34-4

POWER BURNER

BURNER AIR SHUTTER ADJUSTMENT (Continued)

Power burner air shutter adjustment is located on dual necks of the power burner where they connect with the gas manifold and oriﬁ ces, as show in Fig. 35-1.

CAUTION: NEVER handle a hot burner. To adjust the air shutters:

1. Remove the cooking grid and collimator.

2. Lift the back of the burner upward so that the

pin in the bottom back clears the hole in the burner rest.

3. Move the burner back away from the front of the grill while continuing to lift the back upward so that it clears the rear ﬁ re wall.

4. Turn the shutter to the desired opening size and replace the burner to test the effect on the ﬂ ame.

Burner ﬂ ames should be blue with yellow tips.

Air shutters

Inner burner

Outer burner

Fig. 35-1

ADJUSTING THE LOW FLAME SETTING

After changing gas orifices and adjusting the regulator to burn a new gas, adjust the height of the ﬂ ame with a valve in LOW position so that is is low without going out. Use the small adjusting screw in the center of the valve stem. This screw is accessible by removing the valve knob, which pulls straight off the end of the valve stem.

DOUBLE SIDEBURNER

SAFETY

The right knob controls the front burner and the left knob controls the back burner.

CAUTION: THE SIDEBURNER MUST COOL

DOWN BEFORE HANDLING OR ADJUSTMENT.

Do not operate the sideburner with the cover closed.

Be sure the sideburner has good ventilation, is free of debris, and is away from ﬂ ammable substances before lighting.

Properly burning ﬂ ames are mostly blue with yellow tipping and are steady and spread evenly around the burner.

STAINLESS STEEL SIDEBURNER COVER

Note: The cover is free-standing and is not

hinged in the back.

To remove the cover, carefully lift off using the built in handle.

To replace the cover, put the back of the cover into position against the back inner lip of the sideburner grill rest and then lower the front into position so that it covers the side burner opening entirely.

ORIFICE CHECKING

1. Remove the cover and then the grid. Set them

aside.

2. Lift the brass burner

caps off of both

Fig. 36-1

front and back sideburners and set them aside.

3. Look down into the

hole at the center of the burner, using a flashlight if necessary, and read the number stamped on the top of the brass gas oriﬁ ce (see Fig. 36-1).

4. Compare the number with the orifice size

information for your gas type in the MODEL SPECIFICATIONS TABLE under the gas type

of this grill. Each sideburner must have the correct gas oriﬁ ce for the grill to operate safely and effectively as it was designed.

5. Replace the burner

caps so that they are centered over their respective burners with the slightly rounded part of the burner cap pointing upward. The notches in the burner cap must ﬁ t over the studs protruding from the burner base for

Fig. 36-2 Positioning

the Burner Cap

the cap to be properly seated.

6. Replace the grid and the cover as

appropriate.

ORIFICE CONVERSION

1. Follow steps 1. and 2. under ORIFICE

CHECKING.

2. Pull the metal tube up out of the center of each

burner, taking note of the upper end that has the lip on it. Set it aside.

3. Use a 15/16" wrench to carefully loosen and

then remove the brass nut holding each burner in place and set it aside.

4. Remove the burner control knobs from the face

plate by pulling them gently away from the face plate. Set them aside.

5. Pull the wood-chip drawer completely out from

the front of the grill and set it aside.

6. Remove the faceplate from the front of the grill

by unscrewing the screws on the left and right sides using the Phillips-head screwdriver and then lifting the faceplate ﬁ rst upward so that it clears the “lid closed” switch on the left side and then shift it to the right until it is free of the grill. Gently lower the top of the faceplate until it rests securely by the internal chain with it’s base resting against the grill.

7. Reach into the space underneath the double

side burner and pull out each brass burner in turn carefully bending the ﬂ exible metal tubing still attached.

DOUBLE SIDEBURNER

8. Replace the oriﬁ ce using a

/8" hex nut driver.

Note: It will help to start the brass oriﬁ ce with

your ﬁ ngers to avoid cross threading it.

9. Replace each brass burner by bending the

connected metal tubing back into place so that the threaded top of the burner sticks through from underneath the burner hole and screw it in using the brass nut and the

/16" wrench.

Important: Do not over tighten.

10. Follow steps 5 and 6 under ORIFICE

CHECKING.

ADJUSTING THE FLAME

Height of the ﬂ ame with a valve in low position may be further regulated by means of a small adjusting screw in the center of the valve stem. This screw is accessible by removing the valve knob which pulls straight off the end of the valve stem.

Turn the screw to the right to reduce the ﬂ ame height at the low setting and to the left to increase it.

Note: The double sideburner has no air-shutter

adjustment.

WARRANTY

PLEASE COMPLETE AND RETURN YOUR REGISTRATION CARD, WHICH IS INCLUDED WITH YOUR FIRE MAGIC® GRILL

LIFETIME WARRANTY - Fire Magic® cast stainless-steel burners, stainless-steel rod cooking grids, and stainless-steel housings are

warranted for as long as you own your Fire Magic® grill. FIFTEEN-YEAR WARRANTY - Fire Magic® cast brass burners, brass valves, backburner assemblies (except ignition parts), and

manifold assemblies are warranted for 15 years from the date of purchase of your Fire Magic THREE-YEAR WARRANTY - Fire Magic® sideburners and all other Fire Magic® grill components (except ignition and electronic

parts) are warranted for three (3) years from the date of purchase of your Fire Magic® grill. Fire Magic® ignition systems (excluding batteries), electronic components (including lights and thermometers), and accessories are

warranted for one (1) year from date of purchase.

PLEASE KEEP A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE

This warranty applies to the original purchaser and to single family residential use only. It commences from date of purchase, and is valid only with proof of purchase.

This warranty does not cover parts becoming defective through misuse, accidental damage, electrical damage, improper handling, storage, and/or installation. Product must be installed (and gas must be connected) as speciﬁ ed in the instructions or operator’s manual, by a qualiﬁ ed professional installer. Accessories, parts, valves, remotes, etc., when used must be Peterson Co. product.

This warranty does not apply to rust, corrosion, oxidation, or discoloration, unless the affected component becomes inoperable. It does not cover labor or labor-related charges.

This warranty speciﬁ cally excludes liability for indirect, incidental, or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you speciﬁ ed legal rights, and you may have other rights that may vary from state to state.

For additional information regarding this warranty, or to place a warranty claim, contact the R.H. Peterson dealer where the product was purchased.

grill.

ROBERT H. PETERSON CO.

Quality Check Date:___________

Oriﬁ ce # (Main):__________ Oriﬁ ce # (Other):__________ Model #: ___________ Leak Test: ___________ Serial #: ___________ Burn Test: ___________ Air Shutter: ___________ Gas Type: NAT. / PROPANE Inspector: ___________

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

Fire Magic E660, E1060, E790 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
