Fire Magic Deluxe Countertop User Manual

DELUXE COUNTERTOP SERIES

OUTDOOR GAS BARBECUE

Unit before installation, with

INSTALLATION AND OPERATING

INSTRUCTIONS

INSTALLER: Leave these instructions with consumer.
CONSUMER:

Retain for future reference.

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.

SAFETY WARNINGS & CODES

right grill absent to show

fl avor grid in place below.

Oven/hood not shown.

INSET

Unit installed, with optional

Oven/hood & warming rack.

DANGER:

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open fl ame.

3. Open lid if equipped with an oven.

4. If odor continues, keep away from the
appliance, and immediately call the gas
supplier or fi re department.

CODE AND SUPPLY REQUIREMENTS: This
barbecue must be installed in accordance with
local codes and ordinances, or, in the absence
of local codes, with either the latest National

Fuel Gas Code (ANSI Z223.1/NFPA 54), and
Natural Gas and Propane Storage and Handling
Installation Code (CSA-B149.1).

This appliance and its individual shutoff valves
must be disconnected from the gas supply piping
system when testing the system at pressures in

excess of ½ psig (3.5 kPa).
This appliance must be isolated from the gas

supply piping system by closing its individual
manual shutoff valves during any pressure
testing of the gas supply system at pressures
up to and including ½ psig (3.5 kPa).

WARNING:

1. Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.

2. A propane cylinder, not connected for
use, shall not be stored in the vicinity of
this or any other appliance.

WARNING

Improper installation, adjustment,
alteration, service, or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information, consult a qualifi ed professional
installer, service agency, or the gas

supplier.

All electrical outlets in the vicinity of the barbecue
must be properly grounded in accordance with
local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA
70, or the Canadian Electrical Code, CSA C22.1,
whichever is applicable.

Keep all electrical supply cords and fuel supply
hoses away from any heated surface.

REV 3 - 1504231325

Certifi ed to ANSI: Z21.58-2005 /

CSA 1.6-2005

Robert H. Peterson Co. • 14724 East Proctor Avenue, • City of Industry, CA 91746

1

L-C2-150

BARBECUE EXTÉRIEUR DE

AVERTISSEMENTS ET CODES DE SÛRETÉ

INSTALLATION ET CONSIGNES

D’UTILISATION

GAZ DE SÉRIE DELUXE DE

Unité avant installation,

COUNTERTOP

INSTALLATION ET CONSIGNES

D’UTILISATION

INSTALLATEUR : Laissez ces instructions avec le

consommateur.
CONSOMMATEUR : Maintenez pour la future
référence.

IMPORTANT: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L’INSTALLATION

S’il y a une odeur de gaz:

1. Coupez l’admission de gaz de l’appareil.

2. Éteindre toute fl amme nue.

3. Ouvrir le couvercle.

4. Si l’odeur persiste, gardez loin de l’appareil,
et appelez immédiatement le fournisseur de
gazou le service d’incendie.

CONDITIONS DE CODE ET D’APPROVISIONNEMENT:

Ce barbecue doit être installé selon des codes et
des ordonnances locaux, ou, en l’absence des
codes locaux, avec l’un ou l’autre le plus défunt

code national de gaz de carburant (norme ANSI
Z223.1/NFPA 54), et stockage de gaz naturel et
de propane et manipulation du code d’installation
(CSA-B149.1).

Cet appareil et ses différents robinets d’isolement
doivent être démontés du système siffl ant d’offre
de gaz en examinant le système aux pressions au­dessus du ½ psig (kPa 3.5).

Cet appareil doit être isolé dans le système siffl ant d’offre
de gaz par fermeture ses différents robinets d’isolement
manuels pendant tous les essais sous pression du circuit
d’alimentation de gaz aux pressions jusques et y compris
le ½ psig (kPa 3.5).

AVERTISSEMENTS ET CODES DE SÛRETÉ

DANGER

Certifi é à la norme ANSI: Z21.58-2005 /

CSA 1.6-2005

avec le gril droit absent

pour montrer la grille

de saveur en place ci-

dessous. Oven/Hood non

montré

ENCART Unité installée,

avec Oven/Hood facultatif et

support de chauffage

AVERTISSEMENT

1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides infl ammables
dans le voisinage de l’appareil, ni de
proximité de tout autre appareil.

2. Une bouteille de propane qui nest pas
raccordée en vue de son utilisation, ne doit
pas être entreposée dans le voisinage de

cet appareil ou de tout autre appareil.

AVERTISSEMENT

L’installation inexacte, l’ajustement, le
changement, le service ou l’entretien
peuvent causer des dommages ou des
dégats matériels. Référez-vous à ce
manuel. Pour l’aide ou l’information
additionnelle consultez un installateur
qualifié et professionnel, l’agence de

service, ou le fournisseur de gaz.

Toutes les sorties électriques à proximité du barbecue
doivent être correctement fondues selon des codes
locaux ou, en l’absence des codes locaux, avec le code

électrique national, ANSI/NFPA 70, ou le code électrique
canadien, CSA C22.1, qui est jamais applicable.

Gardez tout cordon d’alimentation électrique et tuyau
d’alimentation en combustible a l’écart des surfaces
chauffées.

REV 3 - 1504231325

Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746, USA

2

L-C2-150

TABLE OF CONTENTS

1 SAFETY WARNINGS & CODES
3 PR

ODUCT DATA TABLE
5 PARTS LIST
7 SAFE USE & MAINTENANCE OF PROPANE-GAS CYLINDERS
8 PLANNING FOR INSTALLATION
8 INSTALLATION
10 CHECKING AND CONVERTING GAS TYPE
10 CHECKING AND CONVERTING THE REGULATOR
11 AIR SHUTTER ADJUSTMENT

11 MAIN BURNER AIR SHUTTER ADJUSTMENT

12 BARBECUE SAFETY INFORMATION & MAINTENANCE

12 DRIP COLLECTION SYSTEM

13 LIGHTING (IGNITION) INSTRUCTIONS
15

TROUBLESHOOTING
15 REPLACING THE IGNITOR BATTERY
16 ACCESSORIES
17 CARE & CLEANING
17 COVER
18 WARRANTY

PRODUCT DATA TABLE

Specifi cation Value

Counter opening height*

Counter opening width*

Counter opening depth*

Main Burner

BTU per burner
Natural gas orifi ce
Propane gas orifi ce

Infrared Burner (if equipped)

BTU per burner
Natural gas orifi ce
Propane gas orifi ce

14" (35.6 cm)
29
16

21,000 (6.2 kw) x 2

#44
#55 (1.321 mm)

28,000 (8.2 kw)

#53
#58

1

/2" (74.9 cm)

1

/2" (41.9 cm)

(2.184 mm)

(1.511 mm)
(1.067 mm)

REV 3 - 1504231325

Table 1 - Product data table

*Note: If using an insulating liner,

consult liner instructions for
counter cut-out dimensions.

3

L-C2-150

AVERTISSEMENTS

Avertissements généraux :

• Ce barbecue est pour ultilisation à l’extérieur seulement. Si l’appareil est entreposé à l’intérieur,
enlever les bouteilles et les laisser à l’extérieur.

• Ne pas ranger le gril immédiatement aprés l’avoir utilisé. le laisser refroidir avant de le déplacer
ou de la ranger. Le non respect de cette mesure de sécurité pourrait entraîner un incendie
causant des dommages à la propriété, des blessures ou la mort.

• Ne pas utiliser cet appareil sous une surface combustible.

• Ne pas utiliser cet appareil sous un auvent. Le non respect de cette mesure de sécurité pourrait
entraîner un incendie ou des blessures.

• Dégagement minimal entre les parois latérales et l’arriére de l’appareil et la construction
combustible (45.7 cm à partir des parois latérales et 45.7cm à partir de l’arriére).

• Le régulareur de pression de gaz prévu avec cet appareil de cuisson à gaz pour l’extérieur
doit être utilisé. Ce régulateur est réglé pour une pression de sortie de 5 pouces de colonne
de l’eau pour le gaz naturel, et 10 pouces pour le propane.

1

• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ POUR LE MAXIMUM DE
PAR POUCE CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS GRAND QUE (LIVRES
PAR POUCE CARRÉ), UN RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ AVANT LE
BARBECUE. VOIR LA SECTION DE CONDITIONS D’OFFRE DE GAZ POUR LA PRESSION
APPROPRIÉE D’OFFRE DE GAZ.

/2 (LIVRES

• Ne couvrez jamais la surface entière de cuisine ou de gril de gauffreuses ou de casseroles.
La surchauffe se produira et les brûleurs ne seront pas très performants quand la chaleur de
combustion est emprisonnée au-dessous de la surface à cuire.

• Ne pulvérisez jamais l’eau sur une unité chaude de gaz, comme ceci peut endommager des
composants de porcelaine ou de fer de fonte.

Avertissements de propane :

• Une fuite de GPL peut causer une incendie ou une explosion si enfl ammée entraînant des
blessures corporelles graves ou la mort.

• Communiquez avec le fournisseur de GPL pour les réparations ou pour disposer de qules
bouteille ou du GPL non utilisé.

REV 3 - 1504231325

4

L-C2-150

PARTS LIST

Item Description Part No. Qty.

1.

Stainless steel cooking grid

or

Porcelain steel rod 16" x 11

or

Porcelain cast iron 16" x 11

2. Flavor grid 10" X 17" 3053S 1

3. Burner 3041-40-2 2

4. Top control panel 3220-09 1

5. Valve manifold assembly 3220-13 2

6. Burner clip 3270-06-2 2

7. Electrode assembly w/ wiring 3199-61 1

8. Air shutter 3201-04 2

9. Air shutter spring 3048-03-2 2

10. Ignitor assembly 3199-47 1

11. Control knob 3018 2

12.orOrifi ce, propane gas
Orifi ce, natural gas

13. Oven assembly 3731 1

1
1

3537-S-2
/2"
/2"

3001-55-2
3001-47-222

3537-2
3528-2

1
1
1

13

1

3

6

8

Replacement parts can be ordered
from your local Fire Magic dealer.

2

7

4

10

11

9

12

REV 3 - 1504231325

Fig. 5-1

Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746

5

5

L-C2-150

U

L

UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE

IMPORTANT POUR VOTRE SÛRETÉ

LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.

En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.

LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.

CYLINDRE ET CONDITIONS ET
CARACTÉRISTIQUES DE CONNECTEUR

a. Des cylindres et les valves de gaz de propane doivent être

maintenus en bon état et doivent être remplacés s’il y a
des dommages évidents au cylindre ou à la valve.

b. Ce gril, une fois utilisé avec un cylindre, devrait être relié à

un gallon de la norme 5 (20lb.) cylindre de gaz de propane
équipé d’un OPD (remplissez au-dessus du niveau le
dispositif d’empêchement). L’OPD a été exigé sur tous les
cylindres vendus depuis octobre 1.1998 pour empêcher le
remplissage excessif.

c. Les dimensions de cylindre devraient être approximativement

12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des
cylindres doivent être construits et marqués selon les
caractéristiques pour des cylindres de gaz de propane du
département des ETATS-UNIS du transport (D.O.T.) ou
le niveau national du Canada, du CAN/CSA-B339, des
cylindres, des sphères et des tubes pour le transport des
marchandises dangereuses.

d. Le cylindre doit inclure un collier pour protéger la valve

de cylindre et le circuit d’alimentation de cylindre doit être
assuré le retrait de vapeur.

e. Le montage du régulateur de pression et le fl exible (Fig. 6-1)

e. L'ensemble régulateur et le tuyau de pression (Fig. 6-1) fourni

e. Le régulateur de pression et l’ensemble de tuyau utilisé

fourni avec cet appareil au gaz en plein air (modèles au

avec cet appareil de gaz à l'extérieur (certains modèles

doivent assortir les spécifi cations pour le type I par ANSI

propane seulement) doit être utilisé. Assemblées d'origine et

LP seulement) doit être utilisé. Assemblages originaux

Z 21.58-2005/CGA 1.6-2005 (voir la fi gue. 6-1).

régulateur de pression et le tuyau de remplacement doivent

et régulateur de pression de remplacement et le tuyau
être ceux spécifi és par le fabricant pour le raccordement d'un

doivent être celles qui sont spécifi ées par le fabricant pour la
dispositif de cylindre de liaison identifi ée comme de type I par

connexion avec un dispositif de connexion cylindre identifi ée
le 21.58-2005/CGA ANSI Z 1.6 à 2005 (voir liste des pièces

comme de type I par l'ANSI Z 21.58-2005/CGA 1,6 à 2005
pour les informations de commande).

(voir liste des pièces de commande).

f. La valve de cylindre de gaz de propane doit être équipée

d’un dispositif d’accouplement de raccordement de
cylindre, décrit comme type I dans la norme défi nie dans le
e. de paragraphe ci-dessus. Ce dispositif est généralement
décrit comme coupleur rapide de fi l de point culminant.

g. Si votre cylindre de gaz de propane vient avec une prise

de la poussière, placez le bouchon anti-poussière sur la
sortie de valve de cylindre toutes les fois que le cylindre
n’est pas en service.

OPÉRATION DE COUPLEUR RAPIDE

Pour relier le regulator/hose à l’ajustage de précision de
valve de cylindre de gaz de propane: Serrez l’écrou de main

sur le régulateur au-dessus de l’ajustage de précision de fi l
de point culminant sur la valve de cylindre. Tournez l’écrou de

CONDITIONS DE CLÔTURE

POUR VOTRE SÉCURITÉ, vous devez fournir les ouvertures énumérées ci-dessous pour le drainage, l'air de
remplacement, et une ventilation transversale d'une zone de stockage exposés à une fuite possible des raccordements
de gaz, l'unité, ou de bouteilles de propane.

Un côté de l'enceinte peut être complètement ouvert sur l'extérieur, ou 4 ouvertures de ventilation doivent être créés:
Deux des ouvertures doivent être au niveau robinet de la bouteille (environ 16 "au-dessus du sol) et sur des parois

opposées de l'enceinte. 2 ouvertures plus doit être au niveau du sol (env. 5 "au-dessus du sol) et sur les côtés opposés
de l'enceinte. Chaque ouverture doit avoir un minimum de 10 pouces carrés de surface libre. Pour parvenir à la bonne
ventilation, vous pouvez percer une série de trous, omettez le coulis de joints de maçonnerie, ou de remplacer une
brique avec un écran de toile métallique. Si le plancher de l'armoire est soulevée et l'espace situé sous le caisson est
ouvert vers l'extérieur, les ouvertures d'aération inférieures peuvent être dans le sol.

Consultez votre fournisseur de gaz pour les besoins de ventilation et de régulateur lors de la connexion à une
alimentation en propane des ménages.

main dans le sens des aiguilles d’une montre pour engager les
fi ls et pour serrer jusqu’à ce que douillettement. L’utilisation des
pinces ou de la clé ne devrait pas être nécessaire. Seulement
le propane marqué par cylindres doit être employé.

Pour débrancher: Tournez l’écrou de main dans le sens
contraire des aiguilles d’une montre jusqu’à isolé (fi g. 6-1).

Important: Avant d’employer le gril, et ensuite chaque

fois que le cylindre est enlevé et rattaché,
examinez tous les raccordements pour déceler
les fuites. Arrêtez les valves de gril et ouvrez
la valve principale de cylindre, puis vérifi ez
les raccordements avec de l’eau savonneux.
Réparez toutes les fuites avant d’allumer le gril.

ATTENTION: Tournez toujours la valve principale de cylindre

de propane au loin après chaque utilisation,
et avant de déplacer le gril et le cylindre, ou
débrancher l’accouplement. Cette valve doit
rester fermée et le cylindre a débranché alors
que l’appareil n’est pas en service, quoique
l’écoulement de gaz soit arrêté par un dispositif
de sûreté quand le coupleur est débranché.

Inspectez soigneusement l’ensemble de tuyau chaque fois
avant que le gaz soit allumé. Un tuyau fi ssuré ou effi loché doit
être immédiatement remplacé.

Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected
et a enlevé. Des cylindres Disconnected doivent être stockés
dehors, hors de la portée des enfants, avec les prises de valve
fi letées étroitement installées, et ne doivent pas être stockés dans

un bâtiment, le garage, ou n'importe quel autre secteur inclus.

POUR VOTRE SÛRETÉ

a. Ne stockez pas un cylindre de gaz disponible de propane

dessous ou ne vous approchez pas de cet appareil.

b. Ne remplissez jamais cylindre au delà de 80 pour cent de

plein.

c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE

EXACTEMENT, UN FEU CAUSANT LA MORT OU DES
DOMMAGES SÉRIEUX PEUT SE PRODUIRE.

Fig. 6-1 type coupleur rapide de fi l de point culminant d’I

Volant de commande

QCC
Type 1

Valve

Valve
de
décompression

1

Ajustage de précision
en laiton de fi l de
point culminant

4

Indicateur
de niveau
de liquide
(facultatif)

3

2

Écrou de main avec le
fi l de point culminant.

Régulateur

Passage

Tuy au

6

U

L

SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS

IMPORTANT FOR YOUR SAFETY

READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.

When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.

FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.

CYLINDER/CONNECTOR REQUIREMENTS

a. Propane-gas cylinders, valves, and hoses must be

maintained in good condition and must be replaced if
there is visible damage to either the cylinder or valve. If the
hose is cut or shows excessive abrasion or wear, it must
be replaced before using the gas appliance (see e.).

b. This unit, when used with a cylinder, should be connected

to a standard 5-gallon (20 lb.) propane-gas cylinder
equipped with an OPD (Overfi ll Prevention Device).
The OPD has been required on all cylinders sold since
October 1,1998, to prevent overfi lling.

c. Cylinder dimensions should be approximately 12" (30.5

cm) in diameter and 18" (45.7 cm) high. Cylinders must
be constructed and marked in accordance with the

Specifi cations for Propane Gas Cylinders of the U.S.
Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods.

d. The cylinder used must include a collar to protect the

cylinder valve, and the cylinder supply system must be
arranged for vapor withdrawal.

e. The pressure regulator and hose assembly used must

e. The pressure regulator and hose assembly (Fig. 7-1)

e. The pressure regulator and hose assembly (Fig. 7-1)

match the specifi cation for Type I by ANSI Z 21.58-2005/

supplied with this outdoor gas appliance (select L.P.

supplied with this outdoor gas appliance (L.P. models

CGA 1.6-2005 (see Fig. 7-1).

models only) must be used. Original and replacement

only) must be used. Original and replacement pressure

pressure regulator and hose assemblies must be those

regulator and hose assemblies must be those specifi ed

specified by the manufacturer for connection with a

by the manufacturer for connection with a cylinder

cylinder connecting device identifi ed as Type I by the

connecting device identifi ed as Type I by the ANSI Z

ANSI Z 21.58-2005/CGA 1.6-2005 (see PARTS LIST for

21.58-2005/CGA 1.6-2005 (see PARTS LIST for ordering

ordering information).

information).

f. The propane-gas cylinder valve must be equipped with a

cylinder connection coupling device, described as Type I
in the standard defi ned in paragraph e. above. This device
is commonly described as an Acme thread quick coupler.

g. If the propane-gas cylinder comes with a dust plug, place

the dust cap on the cylinder valve outlet whenever the
cylinder is not in use.

QUICK COUPLER OPERATION

To connect the regulator/hose assembly to the propane­gas cylinder valve fi tting: Press the hand nut on the regulator

over the Acme thread fi tting on the cylinder valve. Turn the hand
nut clockwise to engage the threads and tighten until snug.

ENCLOSURE REQUIREMENTS

The use of pliers or a wrench should not be necessary. Only
cylinders marked “propane” may be used.

To disconnect: Turn the hand nut counterclockwise until
detached (Fig. 7-1).

Important: Before using the unit, and after each time the

cylinder is removed and reattached, check
the hose for wear (see a.) and check all
connections for leaks. Turn off the unit valves
and open the main cylinder valve, then check
connections with soapy water. Repair any
leaks before lighting the unit.

CAUTION: Always turn the propane cylinder main valve

off after each use, and before moving the unit
and cylinder or disconnecting the coupling.
This valve must remain closed and the
cylinder disconnected while the appliance
is not in use, even though the gas fl ow is
stopped by a safety feature when the coupler
is disconnected.

Carefully inspect the hose assembly each time before the
gas is turned on. A cracked or frayed hose must be replaced
immediately.

If the appliance is stored indoors, the cylinder must be
disconnected and removed. Disconnected

cylinders must be

stored outdoors, out of the reach of children, with threaded
valve plugs tightly installed, and must not be stored in a

building, garage, or any other enclosed area.

FOR YOUR SAFETY

a. DO NOT store a spare propane-gas cylinder under or

near this appliance.

b. NEVER fi ll the cylinder beyond 80-percent full.
c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED

EXACTLY, A FIRE CAUSING DEATH OR SERIOUS
INJURY MAY OCCUR.

Fig. 7-1 Type I Acme thread quick coupler

QCC
Type 1
valve

Pressure
relief
valve

Hand wheel

Brass Acme
thread fi tting

Liquid level
indicator
(optional)

Hand nut with Acme
thread

Regulator

Vent

Hose

FOR YOUR SAFETY, you must provide the openings listed below for drainage, replacement air, and cross-ventilation
of any storage area exposed to possible leakage from gas connections, the unit, or propane cylinders.

One side of the enclosure can be left completely open to the outside, OR 4 ventilation openings must be created:
Two of the openings are to be at the cylinder valve level (approx. 16” above the fl oor) and on opposite walls of the

enclosure. 2 more openings must be at the fl oor level (approx. 5” above the fl oor) and on opposite sides of the
enclosure. Each opening must have a minimum of 10 sq. in. of free area. To achieve the proper ventilation, you
may drill a series of holes, omit the grout from masonry joints, or replace a brick with a hardware cloth screen. If
the fl oor in the cabinet is raised and the space beneath the cabinet is open to the outside, the lower ventilation
openings may be in the fl oor.

Consult your gas supplier for ventilation and regulator requirements when connecting to a household propane supply.

7

BACK OF ENCLOSURE

FRONT OF ENCLOSURE

STUB OUT
GAS PIPE

ANYWHERE IN

THIS AREA

FOOTPRINT OF DROP-IN TOP

ENCLOSURE OPENING

BBQ DROPS IN HERE

16 1/2"

29 1/2"

TOP SURFACE OF ENCLOSURE

PLANNING FOR INSTALLATION

This barbecue is designed for outdoor use only.
DO NOT use this unit under unprotected fl ammable

surfaces. DO NOT use this appliance inside a building,
garage, or any other covered area (see EXHAUST
REMOVAL). DO NOT use this barbecue in or on a
recreational vehicle or boat.

WARNING

Built-in models must be installed in masonry or other type of
fi reproof enclosure, unless an insulating liner is purchased
from the manufacturer. The unit alone is not insulated, and
therefore must be installed with 18" (45.7 cm) of side, front,
and back clearance from unprotected combustible materials,

such as wood, plastic, or stucco with wood framing.

This barbecue must be installed so that it can be removed in
the event service should be necessary. Any protrusion into the
barbecue enclosure from either side, which is less than 14"
from the countertop, may obstruct the frame and prevent the
unit from dropping into place (see GAS SUPPLY PLUMBING
REQUIREMENTS)

EXHAUST REMOVAL

If installed under a patio roof, the cooking grid area should
be fully covered by a chimney and exhaust hood. An exhaust
fan with a rating of at least 1,000 CFM (472 liters per second)
is necessary to effi ciently remove smoke and other cooking
by-products from the covered area. This barbecue shall not be
used under unprotected overhead combustible construction.
Do not install in a fully enclosed area of any kind.

GAS SUPPLY PLUMBING REQUIREMENTS

1

Rigid

/2" (1.3 cm) black steel pipe is required to conduct the
gas supply into the barbecue enclosure for connection to
the unit. Where required, use pipe joint compound which is
resistant to all gases should be applied to all male fi ttings and
all joints tightened securely. Do not use pipe joint compound
to connect fl are fi ttings.

The pipe should terminate near the right rear of the enclosure,
no more than 10" (25.4 cm) from the counter top. Installation
will be simplifi ed if the pipe enters the enclosure vertically
from the bottom and no more than 6" (15.2 cm) from the right
side or rear wall (Fig. 8-1).

If the pipe does not come up against the right wall, it can
easily be run along the enclosure fl oor and turned up to rise
within 10" (25.4 cm) of the counter top, against right wall
(leaving space only to connect fi ttings,

Fig. 8-2).

CAUTION: An external valve in the gas line is

necessary for safety when the barbecue is
not in use. It also provides for convenient
maintenance and repair. A removable key
is recommended.

GAS SUPPLY AND MANIFOLD PRESSURE
Natural Gas - Normal 7" (17.8 cm) Water Column, Minimum

5" (12.7 cm), Maximum 10

1

/2" (26.7 cm).

Propane Gas - Normal 11" (27.9 cm)Water Column, Minimum
8" (20.3 cm), Maximum 13" (33 cm).

Fig. 8-1

Top View

COUNTER TOP

10" MAX.

14" MIN.

Fig. 8-2

View from

Front

RIGHT

CAUTION: Wind blowing into or across the rear oven lid vent

can cause poor performance and/or dangerous
overheating. Orient the grill so that the prevailing
wind blows toward the front of the grill (Fig. 8-3).

CAUTION: To prevent dangerous

CORRECT

overheating, the rear
of the unit must have a
minimum clearance of
8” from any backsplash/
wall.

Place grill so prevailing wind

blows toward front of grill

Fig. 8-3

Perform the following checks before installing the
barbecue:

1. CHECK FUEL ORIFICES FOR PROPER SIZE
Fire Magic barbecues are equipped with orifi ces for

natural gas unless otherwise indicated. For use with
propane gas, smaller orifi ces must be installed to
avoid hazardous overheating.

2. IF YOU ARE NOT SURE YOU HAVE THE CORRECT
BARBECUE BURNER ORIFICE SIZE

a. Remove the cooking grids and fl avor grid from the

barbecue, and where fi tted, the oven/hood.

INSTALLATION

b. If the gas supply has been connected, make sure the

burner valve is in the OFF position. Then pull the knobs
from their stems. Lift the drop-in top and remove it from
the barbecue. You will need to pull up on the corners to
release the top from spring clips.

c. Check the orifi ce size by removing the burner clips

and pulling the burner away from the orifi ce. The drill
size is stamped on the face of each orifi ce. Be sure
not to lose the air shutter or air shutter spring, which
may become detached when the burner is removed.
(Refer to Table 1 for correct orifi ce size).

8

INSTALLATION (cont.)

d. Change all orifi ces if necessary, following instructions

provided with the replacement orifi ces (furnished with
all Fire Magic gas barbecues).

e. After checking orifi ce drill size, carefully replace the

burners on the pegs so the brass orifi ce and orifi ce
holder fi ttings project well into the burners. The air
shutter springs and air shutters should be installed over
the orifi ce holder fi tting, between the burner and the
pipe manifold, in the order and in the position pictured
below (

3. CONNECT THE GAS SUPPLY TO BARBECUE
a. A C.S.A. approved stainless steel fl ex connector will

be needed to bring the gas supply from the gas line
stub to the valve manifold. A 1/2" (1.3 cm) x 24" (61
cm) fl ex stainless steel connector is suitable for most
installations. A 1/2" (1.3 cm) female fl are fi tting is required
to connect to the unit. ONLY LISTED STAINLESS
STEEL CONNECTORS should be used to connect the
barbecue to the gas line inside the enclosure.

CAUTION: Use only stainless steel fl ex connectors that

WARNING: A rubber or plastic connector will rupture or leak,

b. Verify that the gas supply is turned off. Then connect

the 1/2" (1.27 cm) pipe adapter fi tting supplied with the
stainless steel fl ex connector to the gas supply stub.
Use pipe joint compound that is resistant to all gasses
on the male pipe fi tting and tighten securely. Do not
use pipe joint compound to connect the fl are fi ttings.

c. Lower the barbecue into place, making sure not to

pinch or kink the gas connector. The unit will rest on
the counter (Fig. 9-2).

d. Connect the fl ex connector to the fl are fi tting on the

manifold inlet. Support the manifold inlet fi tting with
a wrench to avoid applying excessive torque to the
manifold assembly while tightening this connection
securely. Do not use pipe compound on fl are fi ttings.

Fig. 9-1).

Burner

BURNER

manifold with

Burner

BURNER CLIP

Burner clip

BURNER

Fig. 9-1

Burner neck

BURNER NECK

Air shutter

AIR SHUTTER

Spring

SPRING

Orifi ce

ORIFICE

MANIFOLD WITH

ORIFICE HOLDER

orifi ce holder

are C.S.A. listed.

resulting in an explosion or serious injury if used
inside the barbecue enclosure.

Fig. 9-2

Fig. 9-3

e. Starting with the barbecue burner valve in the OFF

position, turn the gas supply on. Carefully, check all
gas connections for leaks with a brush and soapy
water before lighting.

NEVER USE A MATCH OR OPEN FLAME TO TEST FOR
LEAKS.

f. Refer to the AIR SHUTTER ADJUSTMENT section

before replacing barbecue control panel and knobs.

4. INSTALL THE FLAVOR GRID
a. Place the fl avor grid directly on the burners. Make

sure the legs (on the underside) of the grid rests on
the burners (Fig. 9-3), centering the grid over the
burners with the open side up. This allows heat from
the burners to be evenly distributed throughout the
cooking area. The fl avor grid heats and cools quickly,
making the Fire Magic barbecue very responsive to
the changes you specify in grill temperature.

The fl avor grid is made of stainless steel and is rust resistant.
It may be cleaned with standard oven cleaners.

DRIP COLLECTOR INSTALLATION

The drip collector is located below the manifold
(see Parts List). To gain access to this area in
order to empty or change the drip receptacle,
a small access door in the barbecue island or
enclosure is required.

To install the drip collector, place the hooks of the
collector tray into the slots (located at the bottom
of the barbecue, below the manifold). Press down
to fasten securely. Place the drip receptacle on
the tray below the drip chute (Fig. 9-4).

Hook the drip

HOOK DRIP
COLLECTOR TRAY

collector tray into

INTO SLOTS

the slots and push

AND PUSH DOWN.
PLACE DRIP

down. Place the drip

RECEPTACLE ON

receptacle on tray.

TRAY

Fig. 9-4

Important: Check and clean the drip

tray after each use.

9

CHECKING AND CONVERTING GAS TYPE

This unit comes from the factory confi gured for one type
of gas, as marked on the label located behind the control
panel, or on the interior of the unit’s enclosure.

Converting this unit to burn a different type of gas
requires a conversion kit (contact your dealer for
details). The professional installer who converts this
unit to burn a different gas must perform the following
functions:

1. Change brass gas orifi ces (included at original shipping)

on each burner to match the new gas type (see
PRODUCT DATA TABLE, Table 1).

2. Switch the convertible gas regulator (if equipped) to
match the new gas type (see section below).

3. Plumb the unit as appropriate for the new gas supply.

4. Apply the label for the new gas (included at original

shipping) over the old gas information found on your
unit.

WARNING
HAZARDOUS OVERHEATING WILL OCCUR IF A
NATURAL-GAS ORIFICE IS USED WITH PROPANE
GAS. IF YOU ARE NOT SURE IF THE CORRECT
ORIFICES ARE INSTALLED, OR IF AN ORIFICE
CHANGE IS NECESSARY, REFER TO THE FOLLOWING
INSTRUCTIONS.

CAUTION: Make sure the unit is at a safe temperature

and isolated from gas and electrical
supplies before beginning the tasks
outlined below.

Note: The cooler the unit, the greater the tolerances

between the stainless-steel parts, and therefore
the easier to disassemble and reassemble
parts of the unit.

CAUTION: For your safety, exercise caution and

use adequate hand protection (such as
gloves) when handling potentially sharp
sheet-metal parts.

CHECKING AND CONVERTING THE REGULATOR

Regulator: note cap on top

STEP 1:

Unscrew and remove the cap from the
regulator, extracting the converter.

Note: Each end of the plastic converter is engraved with either the letters “NAT”

or “L.P.” (propane) for the respective gasses. When the converter is in the
cap and the cap is held uppermost, the letters seen indicate the gas that
the regulator is set up for.

To convert the regulator from one gas to another, follow steps 1-4.

STEP 3:

Turn the converter around and
replace it carefully, into the
center of the cap (it will snap

Read gas
type here

STEP 2:

Remove the converter (the
plastic stalk) by carefully
pulling it away from the center
of the cap (it will snap out of
its seating).

into place). Check that you can
read the type of gas the unit is
set for.

STEP 4:

Replace the unit into the
regulator and screw down
until snug.

WARNING

1

THIS APPLIANCE REGULATOR IS RATED FOR
GREATER THAN 1/2 PSI, AN ADDITIONAL REGULATOR MUST BE INSTALLED TO REDUCE
THE INPUT PRESSURE TO THE UNIT to 1/2 PSI OR LESS. SEE GAS-SUPPLY REQUIREMENTS
SECTION FOR PROPER GAS-SUPPLY PRESSURE.

/2 PSI MAXIMUM. IF YOUR GAS SUPPLY IS

10

AIR SHUTTER ADJUSTMENT

Notch

Air Shutter

Manifold

Burner

MAIN BURNER AIR SHUTTER ADJUSTMENT

Important: The air shutters must be adjusted

after installation. If not, this appliance
may not light, heat evenly, or cook
properly.

Main burner air shutters are easily accessed by removing

Main burner air shutters are easily accessed by
(when cool) the valve control knobs, and the counter

removing the front panel (face). The air shutters are
top cover. Carefully disconnect the spark ignitor wiring

located at the front of the burners behind the face
when removing the cover (see PARTS LIST). The air

(see PARTS LIST). The air shutter has a small dimple
shutter has a small dimple (see Fig.

(see Fig.
it to lock into notches in the burner face. This prevents

the burner face. This prevents the air shutter from
the air shutter from moving.

moving.

11-1) that allows it to lock into notches in

11-1) that allows

WARNING

USE PROPERLY INSULATED TOOLS TO MAKE
THESE ADJUSTMENTS. NEVER TOUCH A
HOT BARBECUE DIRECTLY TO MAKE

ADJUSTMENTS.

1. Using the tip of a long screwdriver, close the air

shutters by turning the tabs to a vertical position
(Fig.

11-2).

Partially open

Fig. 11-1

(Turn tabs)

Closed

Fig. 11-2

Fig. 11-1 & Fig. 11-2 - Air shutter adjustment diagram

Manifold

Ta b
Dimple

Flame off ports

Flame on ports

Burner

Air shutter

2. Light the barbecue in accordance with the

LIGHTING INSTRUCTIONS and burn for two
minutes with the knobs on HI LIGHT and the
oven open.

3. After burning for two minutes, open the air
shutters, using the tip of a screwdriver, until
the fl ames lift off, or appear not to be touching
the burners (Fig.

11-1).

4. Begin closing the air shutters, with the tip of a
screwdriver, until the fl ames appear to burn while

touching the burner ports (Fig.

11-2).

Note: You may then see short yellow tips on the

fl ames. If fl ames are a lazy yellow, open the
air shutters until the fl ame is blue with yellow
tipping.

Note: Barbecues, in some installations, achieve a

better air/gas mixture and will ignite more
quickly if the valve is fi rst turned beyond HI

LIGHT to LOW for lighting.

Fig. 11-3

11

BARBECUE SAFETY INFORMATION & MAINTENANCE

Each time you use the barbecue, make sure that:

1. The area around the barbecue is clear of fl ammable

vapors, liquids, and substances such as gasoline,
yard debris, wood, etc.

2. There is no blockage of the airfl ow through the vent

space located below the face of the unit.

3. When using propane gas:
a. The special ventilation openings in the enclosure

should be kept free and clear of debris
(see PLANNING THE LOCATION OF THE
BARBECUE).

b. If connected to a propane cylinder, the rubber

hose attached to the regulator should be carefully
inspected before each use.

c. The propane cylinder, regulator, and rubber hose should

be installed in a location not subject to heating above
125° F (51° C).

4. The burner fl ames burn evenly along both sides

of each burner with a steady flame, which is
mostly blue. (Refer to section on AIR SHUTTER
ADJUSTMENT.) A proper fl ame pattern will ensure
safe operation and optimal performance. Adjust
the air shutter as needed. If burner fl ames are not
normal, check the orifi ce and burner for insects or
insect nests.

DRIP COLLECTION SYSTEM

The drip collector in this barbecue is part of the unit’s
main frame and is located below the burners. The drip
collector has slots that will allow excess drippings to
fall through during cooking, while separating the fi rebox
from the drip tray. Clean the drip tray after each use.

The drip collector allows you to brush or scrape residue
from the barbecue’s inner liner into the drip tray.
Following the manufacturers instructions and regular
cleaning of the barbecue’s interior with oven cleaner,
will help to prevent grease fi res.

Periodically check the burners to make sure they are
clear of debris. Properly adjusted burner fl ames burn
evenly along both sides of each burner with a steady
fl ame (mostly blue). If burner fl ames are not normal,
check the orifi ce and burner for insects or insect nests.
(See section on CHECKING/CONVERTING THE
BURNER ORIFICES for instructions on burner removal
and replacement.)

Check the burner ports at least annually for blockage by
removing the burner (see orifi ce changing instructions)
and visually inspect the gas intake tube for insects
and nests. A clogged tube can lead to a fi re beneath
the grill.

5. The inline gas valve or gas cylinder valve is always

shut OFF when the barbecue is not in use.

6. The drip collector hole is clear and unobstructed.

Excessive grease deposits can result in a grease
fi re.

7. The barbecue is free and clear from combustible

materials, gasoline, and other fl ammable vapors
and liquids.

WARNING

NEVER cover the entire cooking or grill surface with griddles or pans. Overheating will occur and

burners will not perform properly when combustion heat is trapped below the cooking surface.

CAUTION: NEVER spray water on a hot gas unit.

The grill serial identifi cation number is located on the underside of the drip tray handle. It

is recommended that the drip tray fi rst be removed and cleaned / emptied of its contents,

then turned over to view.

12

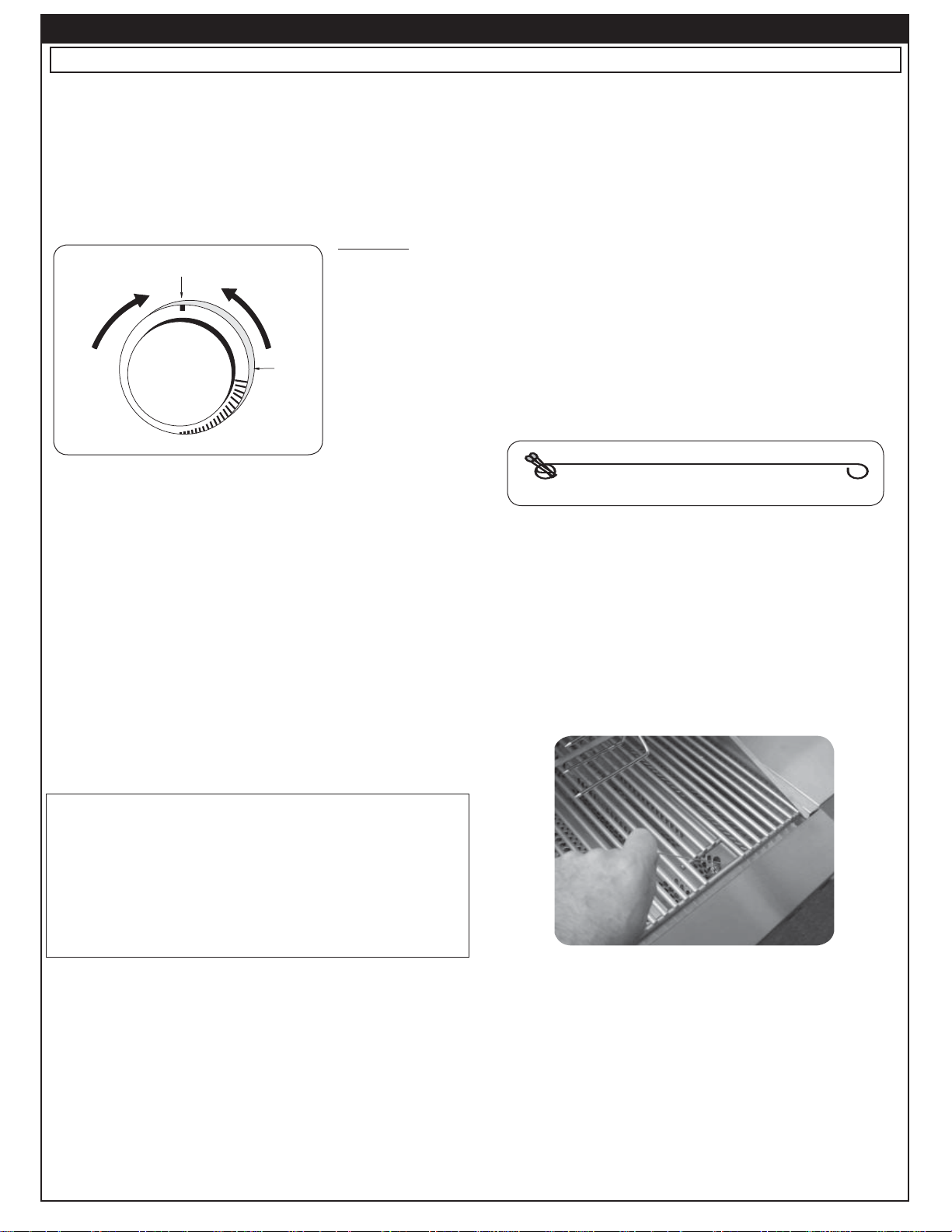

LIGHTING (IGNITION) INSTRUCTIONS

Read entire instructions before lighting, and follow these instructions each time you light the grill.

ELECTRONIC LIGHTING

1. Open all lids and remove all covers from the burners

you wish to light.

2. Turn all gas control knobs to their OFF positions.

3. Turn on the gas at its source.
Note: No matter which lighting method you use,

Read setting

Read setting

here

here

TURN OFF

TO

TO TURN OFF

Fig. 13-1 - Valve control knob

OFF

LOW

TO TURN ON

TO TURN ON

LIGHT

HI

High to

HIGH to

light

LIGHT

CAUTION: If the burners do not light within five

seconds, depress the control knob
and turn the knob to OFF. WAIT FIVE
MINUTES before repeating step 4. If you

smell gas, follow the instructions on the
cover of this manual. If the burners still do
not light after several attempts, refer to the
instructions for MANUAL LIGHTING.

4. Depress the control knob for the burner to be lit
and turn it to the HI LIGHT position, then press the
ignition button. Once the burner lights, release the
ignition button.

DO NOT turn
on the gas
to more than
one burner
at a time.
Adjacent grill
burners will
cross-ignite,
and gas
flow may be

restricted.

MANUAL LIGHTING

CAUTION: Always wait fi ve minutes for gas to clear

after any unsuccessful lighting attempt.

1. Follow steps 1 through 4 (left).

2. Insert either a burning long-barrel butane lighter,

a burning long-stem match, or a burning match
held by a wire extension holder (Fig.
the cooking grids to the burner (Fig. 13-3).
For backburners, hold the flame against the
perforated material of the backburner.
For sideburners, hold the fl ame against the burner.

3. While holding the match or lighter fl ame next to the

burner, depress the appropriate burner control knob
and turn it counterclockwise to the HI LIGHT position.
When the burner lights, remove the lighter or match.

Fig. 13-2 - Match holder

4. If the burner does not light, IMMEDIATELY depress the

knob and turn the burner control knob to OFF. WAIT
FIVE MINUTES before repeating steps 2 through 4
of the MANUAL LIGHTING INSTRUCTIONS.

Note: Some installations achieve a better air/gas

mixture and may ignite quicker if the burner
control knob is fi rst turned beyond HI LIGHT
to LOW for lighting.

13-2) through

5. Repeat step 4 for each additional burner to be lit.

FOR PROPANE ONLY

Propane tanks are equipped with a safety shutdown
device that may cause low or no gas pressure/fl ame
at the burners if operating and lighting instructions
are not followed exactly (See important note in the
TROUBLESHOOTING section for more details.)

Fig. 13-3 - Manual lighting

REMEMBER: FOR SAFE MANUAL LIGHTING, PLACE A

BURNING MATCH OR BUTANE LIGHTER BESIDE THE
BURNER - THEN TURN ON THE GAS (see Fig. 13-3).

SHUTTING OFF THE GRILL

To shut off the grill, push in each valve control knob and
turn it clockwise to the OFF position.

Always close the valve to the gas supply after each use
of the grill.

13

ALLUMER DES INSTRUCTIONS (D’ALLUMAGE)

Lisez l’instruction entière avant que s’allumant et suivez ces instructions chaque fois vous lumière le barbecue.

ÉCLAIRAGE ÉLECTRONIQUE

1. Ouvrez tous les couvercles et enlevez toutes les couvertures

des brûleurs que vous souhaitez vous allumer.

2. Arrêtez tous les boutons de commande de gaz à leurs

positions.

3. Allumez le gaz à sa source.

Note: Les barbecues dans quelques installations réalisent

un meilleur mélange d’air/gas et mettront à feu plus
rapidement si le bouton de commande de brûleur
est d’abord tourné au delà de la LUMIÈRE de HI

au BAS pour l’éclairage.

ÉCLAIRAGE MANUEL

Note: Aucune matière que la méthode d’éclairage

vous emploient,
n’allument pas
le gaz à plus
d’un brûleur à la
fois. Les brûleurs
adjacents de
barbecue croix-

TURN OFF

TO

TO TURN OFF

Read setting

Read setting

here

here

OFF

TO TURN ON

TO TURN ON

LIGHT

HI

High to

HIGH to

light

LIGHT

mettront à feu
et l’écoulement

LOW

Fig. 14-1 - Valve control knob

de gaz peut être

restreint.

ATTENTION: Si les brûleurs ne s’allument pas dans 5

secondes, enfoncez le bouton de commande
et tournez le bouton à AU LOIN. ATTENDEZ
5 MINUTES avant de répéter l’étape 5. Si
vous sentez le gaz suivez les instructions
sur la couverture de ce manuel. Si les
brûleurs ne s’allument toujours pas après
que plusieurs tentatives, se rapportent aux
instructions pour l’ÉCLAIRAGE MANUEL.

4. Enfoncez le bouton de commande pour que le brûleur

soit allumé et tournez-le dans la position LÉGÈRE de
HI, puis appuyez sur le bouton d’allumage. Une fois que
le brûleur s’allume, libérez le bouton d’allumage.

5. Répétez l’étape 4 pour que chaque brûleur additionnel soit

s’est allumé.

ATTENTION: Attendez toujours 5 minutes le gaz à l’espace

libre après que n’importe quelle tentative non
réussie d’éclairage.

1. Suivez les étapes 1 à 4 (à gauche).

2. Insérez un allumeur brûlant de butane de long-baril, une

allumette brûlante de long-tige, ou une allumette brûlante
tenue par un support de prolongation de fi l (Fig. 14-2)
par les grilles à cuire au brûleur (Fig. 14-3). Pour des
backburners, tenez la fl amme contre le matériel perforé
du brûleur arrière. Pour des sideburners, tenez la fl amme
contre le brûleur.

3. Tout en tenant l’allumette ou la fl amme plus légère à côté

du brûleur, enfoncez le bouton de commande approprié
de brûleur et tournez-le dans le sens contraire des
aiguilles d’une montre dans la position LÉGÈRE de HI.
Quand les lumières de brûleur, enlèvent l’allumeur ou
s’assortissent.

Fig. 14-2 - Support d’allumette

4. Si le brûleur ne s’allume pas, enfoncez immédiatement

le bouton et tournez le bouton de commande de brûleur
à AU LOIN. ATTENDEZ 5 MINUTES avant de répéter
les étapes 2 à 4 des INSTRUCTIONS MANUELLES

d’ÉCLAIRAGE.

POUR LE PROPANE SEULEMENT

Les réservoirs de propane sont équipés d’un dispositif
d’arrêt de sûreté qui peut ne pas causer le bas ou aucun gaz
pressure/fl ame aux brûleurs si le fonctionnement et allumer
des instructions ne sont pas suivis exactement (voir la note
importante dans la section de dépannage pour plus de détails.)

Fig. 14-3 - Éclairage manuel

RAPPELEZ-VOUS: POUR L’ÉCLAIRAGE MANUEL SÛR, PLACEZ

Un ALLUMEUR BRÛLANT D’ALLUMETTE OU De BUTANE PRÈS
Du BRÛLEUR - ALLUMEZ ALORS Le GAZ

(voyez Fig. 14-3).

COUPER LE GRIL

Pour couper le gril, enfoncez chaque bouton de commande
de valve et tournez-le dans le sens des aiguilles d’une montre
à la position de repos.

Fermez toujours la valve à l’offre de gaz après chaque
utilisation du barbecue.

14

TROUBLESHOOTING

If you have trouble with the unit, please use this list to identify the problem. By trying one or more of the
solutions to the possible cause, you should be able to solve the problem. If this list does not cover your
present problem, or if you have other technical diffi culties with the unit, please contact your local dealer.

PROBLEM POSSIBLE CAUSE CORRECTION

1) Improper air shutter adjustment 1) Adjust air shutters.

Ignition system

failure

Insuffi cient heat

Uneven heating

Burner goes out on

LOW

Rotisserie noisy

2) Ignition wire disconnected 2) Replug wires into generator.

3) Low gas pressure 3) Have gas company check the
operating pressure at the unit.

4) Dead battery 4) Replace battery.

1) Improper air shutter adjustment 1) Adjust air shutters.

2) Using propane orifi ce for natural gas 2) Change orifi ces.

3) Low gas pressure/fl ame (natural) 3) Have gas company check the
operating pressure at the unit.

4) Low gas pressure/fl ame (propane) 4) Refill propane tank, or reset

propane tank safety*: Shut off all
valves (including propane tank) and
follow lighting instructions exactly.

1) Burner ports partially blocked by debris 1) Remove burners and clean out ports.

2) Small spiders or insects in burner 2) Inspect burners for spider webs or
other debris that may block gas fl ow.

1) Valve “Low” setting needs

adjustment

1) Light burner on HIGH, immediately
turn to LOW setting. Remove
knob from valve and using a small
flat screwdriver, slowly turn the
adjustment screw in the stem,
a little at a time (30° to 45°), in
either direction, until the fl ame is
approximately

1

/4” in height from

burner ports.

1) Rotisserie out of balance 1) Adjust counterbalance.

Note: *Propane tanks are equipped with a safety shutdown device that may cause low or no gas/fl ame at the

burners if operating and lighting instructions are not followed exactly. If you suspect the propane tank
safety shutoff is in effect, shut off all burner control valves and the propane tank valve. Then read and
follow the LIGHTING INSTRUCTIONS exactly. Lighting instructions are located in the owner’s manual. If
the problem persists, continue troubleshooting, or contact your local dealer or distributor for assistance.

REPLACING THE IGNITOR BATTERY

1. Remove the ignitor cover by turning it counterclockwise.

Important: Do not

attempt to pull or
turn the rubber cap.

WRONG!!

2. Remove battery for

replacement. The battery
is reinstalled with the
negative (-) end out.

3. After properly inserting the
battery, replace the ignitor cover
by turning the cap clockwise.

Note: If you have accidentally removed the rubber cap,

follow the instructions below to replace it.

1. Pull the rubber
cap and the inner
plastic sleeve
apart.

2. Carefully insert
the rubber cap into
the ignitor cover so
it sits behind inner
lip.

3. Turn the cap
over and slide the
inner plastic sleeve
into the cap.

15

ACCESSORIES

GRILL BRUSH (optional)

Purchase a Fire Magic® stainless-steel grill brush (sold
separately) to keep your grill cleaner. It comes with
scraper for large particles and a replaceable head with
brass bristles for overall cleaning.

Fig. 16-1

Grill brush with replacement head

THE COOKING GRID LIFTER

Hold the grid lifter by gripping the center section with the
prongs pointing down (use an oven mitt or heavy glove
if the grill is hot). Insert the notched end of the grid lifter
into the cooking grid, in front of the midway point (front
to back; Fig. 16-3), and central (left to right; Fig. 16-4).
Twist the grill lifter (clockwise or counterclockwise) so
the handle is parallel to the grill rods. This “seats” the
spiked end of the grid lifter between two rods, enabling
you to safely lift out the grid. Lift slowly and adjust the
grid lifter, if necessary, for balance.

WARMING RACK (if equipped)

The warming rack (Fig. 16-2) is packed separately.

To install the warming rack, lift the front of the rack up
slightly and insert the rack hangers into the two holes
in the back of the inner oven hood. Then lower the front
of the rack into a level position to lock the rack in place.

To remove the warming rack, lift up on the front of the
rack until the rack hangers pull free from their supporting
holes.

Note: Removing the warming rack before using the

rotisserie will leave more clearance for the
meat being cooked. (if applicable)

Fig. 16-2 Warming rack in place inside oven

THE DRIP TRAY

The drip collection system allows you to brush or scrape
excess dried residue from the grilling area directly into
the drip tray (see PARTS LIST for drip tray location).

THE FLAVOR GRID(S)

Place each fl avor grid directly over a burner or burner
pair. Center each grid over the burner, oriented as
shown in Fig. 16-5.

Note: This allows heat from the burners to be evenly

distributed throughout the cooking area. The
fl avor grids heat and cool quickly, making the
grill very responsive to changes in heat from
the burners.

Fig. 16-3

Placement of the grid lifter in cooking grid

Fig. 16-4

Fig. 16-5

16

CARE & CLEANING

APPLIANCE MUST BE COMPLETELY COOL WHEN
CLEANING. DO NOT SPRAY ANY CLEANER OR
LIQUIDS ON THE APPLIANCE WHEN HOT.

The appliance must be cleaned as often as once a month
(depending on use) to prevent grease build-up and other
food deposits.

INTERIOR

THE BURNER PORTS MUST BE KEPT CLEAN TO
ENSURE PROPER IGNITION AND OPERATION.

Wipe with grain

Remove the burner (see orifi ce changing instructions)
and clean the ports and slots as required. Also inspect
and clean the burner inlet for insects and nests. A clogged
burner can lead to a fi re in the bottom of the appliance.

The inside of the appliance may be cleaned periodically
with oven cleaner if desired. Follow the oven cleaner
instructions for proper use.

Be careful not to get oven cleaner on the outside surface
of the appliance as it can permanently damage the fi nish.

EXTERIOR

Stainless steel surfaces when exposed to temperatures
produced by the grilling process will change color. The
stainless steel will change color from silver to brown
and blue. This can be removed by using stainless steel
cleaner.

Clean your appliance by fi rst using grill cleaner to remove
grease and dirt. Always wipe with the grain (See Fig.
17-1). Next, use stainless steel cleaner to restore the
stainless steel color (Note: not for mirror fi nish). Finish
by wiping your appliance down using polish wipes. To

clean any mirror fi nish (if applicable), use a quality
brand glass cleaner only, not any of the cleaners
mentioned above.

If your appliance is installed in a seaside (salt air) or
poolside (chlorine) location, it will be more susceptible
to corrosion and must be maintained/cleaned more
frequently. Do not store chemicals (such as chlorine or
fertilizer) near your stainless steel appliance.

Fig. 17-1 - Wipe with grain

PROTECTING YOUR APPLIANCE FROM THE
WEATHER

An optional cover will protect your appliance when not
in use. (Allow to cool before covering.)

Please specify the model number and serial number
of your appliance when ordering a cover.

IMPORTANT

IN THE EVENT OF A GREASE FIRE, IMMEDIATELY
SHUT OFF THE MAIN GAS VALVE TO THE GRILL.
KEEP THE LID OPEN AND ALLOW THE FIRE TO
EXTINGUISH ITSELF. A THOROUGH INSPECTION
BY A TRAINED SERVICE TECHNICIAN SHOULD
BE CONDUCTED BEFORE FUTURE USE OF YOUR
GRILL. THE SERVICE TECHNICIAN WILL CHECK
THE SYSTEM FOR GAS LEAKS AND WILL CHECK
ALL ELECTRICAL WIRING FOR DAMAGE. ALL GAS
LEAKS AND WIRING MUST BE REPAIRED PRIOR
TO FUTURE USE.

Due to the nature of stainless steel, surface iron oxide
deposits may appear. Do not be alarmed – these deposits
are removable with stainless steel cleaner through prompt
and periodic maintenance. If not attended to promptly,
permanent pitting may occur.

By following these recommendations, you will enjoy the
beauty and convenience of your appliance for many years
to come.

17

WARRANTY

PETERSON FIRE MAGIC GRILLS AND ACCESSORIES

LIMITED WARRANTY

Robert H. Peterson Co. ("RHP") warrants your Fire Magic® grill to be free from defects in material and workmanship.
Fire Magic

your Fire Magic® grill -- LIFETIME. (Except as noted below.)
Fire Magic Choice stainless steel tubular burners are warranted for TWENTY (20) YEARS.
Fire Magic

warranted for FIFTEEN (15) YEARS.
Fire Magic
Fire Magic

charcoal pan, charcoal grid, wood pellet screen, thermometer, and ash tray; which are warranted for ONE (1) YEAR.
Fire Magic

YEARS.
Fire Magic

warranted for ONE (1) YEAR.

This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained
as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall
terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.

This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,
use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,
lack of required routine maintenance (as specifi ed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure to
protect against combustibles. Product must be installed (and gas must be connected) as specifi ed in the Owner’s Manual/Installation Instructions by
a qualifi ed professional installer. Modifi cations to products which are not specifi cally authorized will void this warranty. Accessories, parts, valves,
remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.
This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.

This warranty does not cover labor or labor related charges, except as provided by separate specifi c written programs from the Peterson Co. All repair
work must be performed by a qualifi ed professional service person and requires prior approval of Peterson.

Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if
the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer
if the damage is determined to have occurred during that shipment.

This warranty specifi cally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specifi ed legal rights, and
you may have other rights that vary from state to state or province.

For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.

®

cast stainless-steel burners, stainless-steel rod cooking grids, and stainless-steel housings are warranted for as long as you own

®

cast brass burners, brass valves, inner liners, manifold assemblies, and backburner assemblies (except ignition parts) are

®

Electric Grills, including stainless steel grid, and housings are warranted for TEN (10) YEARS.

®

Infra-red burners, fl avor grids, Charcoal stainless steel grills, and Smokers are warranted for FIVE (5) YEARS; except for the

®

sideburners and all other Fire Magic® grill components (except ignition and electronic parts) are warranted for THREE (3)

®

ignition systems (excluding batteries), electronic components (including lights and thermometers), and grill accessories are

A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED

TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,

AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.

Quality Check Date:_________________

Burner Orifi ces Nat. L.P. Leak Test: ___________ Model#: ___________________
Main: ____ ____ Burn Test: ___________ Serial#: ___________________
Other: ____ ____ Gas Type:

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

Nat. / L.P. Air Shutter: ___________________

Inspector: ___________________

18
