DELUXE CLASSIC SERIES

OUTDOOR GAS BARBECUE

42,000 BTU

For Natural and Propane Gas

INSTALLATION AND OPERATING

INSTRUCTIONS

INSTALLER: Leave these instructions with consumer. CONSUMER: Retain for future reference.

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.

FOR FIRE MAGIC BARBECUES: SERIES 61

Brick Opening: Depth 17-3/4", Width 24-3/4" Height 12", open front

SAFETY WARNINGS & CODES

FOR YOUR SAFETY

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open ﬂ ame.

3. Open lid.

4. If odor continues, immediately call your gas supplier or ﬁ re department.

FOR YOUR SAFETY

1. Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

2. A propane cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

CODE AND SUPPLY REQUIREMENTS: This barbecue must be installed in accordance with local codes and ordinances, or in the absence of local codes, with the latest National

Fuel Gas Code, ANSI Z223.1, or CAN/ CGA-B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code..

This appliance and its individual shutoff valves must be disconnected from the gas supply piping system when testing the system at pressures in excess of ½ psig.

This appliance must be isolated from gas supply piping system by closing its individual manual shutoff valves during any pressure testing of gas supply system at pressures up to and including ½ psig.

WARNING: Improper installation, adjustment,

alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult qualiﬁ ed, professional installer, service agency or the gas supplier.

REV 2 - 1406201000

Robert H. Peterson Co. • 14724 East Proctor Avenue, • City of Industry, CA 91746

L-C2-017

Item Description

10.

11.

12.

13.

14.

15.

16.

Cooking grids (2)

Flavor grid

Main burner (2)

Ignitor assy

Liner assy

Air shutter (2)

Air shutter spring (2)

Oriﬁ ce (2)

Burner manifold assy

Valve manifold

Face

Spark generator

Valve

Control knob

Spark generator knob

Drip tray

PARTS LIST

TOOLS REQUIRED FOR INSTALLATION

#2 (medium) Phillips screwdriver Two medium size adjustable wrenches or pliers *3/8" wrench or 3/8" socket screwdriver Pipe joint compound resistant to all gasses

*Note: 3/8" socket if oriﬁ ce change is required.

Replacement parts can be ordered from your local American Outdoor Grill dealer.

REV 2 - 1406201000

L-C2-017

PLANNING FOR INSTALLATION

WHERE TO INSTALL YOUR BARBECUE

Fire Magic Barbecues are for outdoor use only.

WARNING: Built-in models must be installed in masonry or other type of ﬁ reproof enclosure. The unit is not insulated and therefore must be installed with 18" of side and back clearance from unprotected combustible materials such as wood, plastic or stucco with wood framing.

With our insulating liner (Part #3100-50) you can safely install your Fire Magic Barbecue in wood cabinetry or other combustible enclosure.

For easy installation of your Fire Magic Barbecue a masonry installation hanger (Part #3100-70 for black ﬁ nish & 3100-80 for Stainless Steel) is available. It eliminates the requirement for any type of support structure under the barbecue.

Do not install this unit under unprotected ﬂ ammable surfaces. Do not install or use this appliance inside a building, garage, or any other enclosed area including recreational vehicles or boats.

This is a slide-in type unit designed to ﬁ t into open-front enclosures. The front panel (face) of the unit is removable for gas hookup, servicing and burner adjustment. The face must therefore be removable after you install the unit.

INSTALLER NOTE: This unit should be installed so that it can be removed at a later date if factory service is required. Any protrusion into the barbecue enclosure may obstruct the frame and prevent the unit from sliding into place (see "Gas Supply Plumbing Requirements", on page 4).

INSURING PROPER COMBUSTION AIR AND COOLING AIR FLOW

You must maintain proper air ﬂ ow for your Fire Magic Barbecue to perform as it was designed (Figure 1). If airﬂ ow is blocked, overheating and poor combustion will result. Make sure not to block the 1" front air inlet along the bottom of the barbecue face or the air vent openings along the outside-left and right edges of the frame. Note: The 1" front air space allows access to the drip tray.

VENTILATION OF ENCLOSURES

When using propane gas, take EXTREME CAUTION to ensure ample ventilation of gas vapor. Propane vapor is invisible and heavier than air. A DANGEROUS EXPLOSION could occur, resulting in SERIOUS INJURY, if propane gas is allowed to accumulate and is then ignited.

Only one cylinder may be stored in an enclosure. Extra or spare cylinders must be stored elsewhere. Read and follow all warnings provided with propane gas cylinders. Never locate a propane cylinder below or adjacent to the barbecue unit unless sufﬁ cient ventilation and shielding is provided to prevent any heating of the cylinder, regulator, and rubber hose.

REV 2 - 1406201000

Figure 1 - Ventilation Diagram

Propane Cylinder Enclosures

To prevent invisible combustible gas from accumulating in your cylinder enclosure, you must provide ventilation. This is accomplished by EITHER one side of the gas cylinder enclosure left completely open to the outside OR by providing four (4) ventilation openings. Two openings are to be at the cylinder valve level (Approx. 16” above the ﬂ oor) and at opposite walls of the enclosure. Two more openings must be at the ﬂ oor level at opposite sides of the enclosure. The floor level openings must start at the floor and shall extend no higher than 5” above the ﬂ oor. Each opening must have a minimum of 10 square inches (64.5 cm

) of free area. To achieve the proper ventilation, you may drill a series of holes, omit the grout from masonry joints or replace a brick with a hardware cloth screen. If the ﬂ oor in the cabinet is raised and the space beneath the cabinet is open to the outside, the lower ventilation openings may be in the ﬂ oor.

FOR YOUR SAFETY, you must provide these openings for drainage, replacement air and cross ventilation of any storage area exposed to possible leakage from gas connections, the barbecue or propane cylinder.

HOUSEHOLD PROPANE GAS SERVICE

Consult your gas supplier for ventilation and regulator requirements when connecting to a HOUSEHOLD

propane supply.

Note: Only Fire Magic Barbecue models with the sufﬁ x

-PA- in the model number are approved by C.S.A. for self contained propane cylinders. Supplemental instructions are supplied with each self contained unit.

Installer and User Note: Keep electrical supply cords away from all heated surfaces.

EXHAUST REMOVAL

If installed under a patio roof, the grill area should be fully covered by a chimney and exhaust hood. An exhaust fan with a rating of 1000 CFM or more may be necessary to efﬁ ciently remove smoke and other cooking by-products from the covered area. Installation in fully-enclosed patio areas is not recommended.

L-C2-017

PLANNING FOR INSTALLATION (cont.)

GAS SUPPLY PLUMBING REQUIREMENTS

Rigid 1/2" or

" black steel pipe, or local code approved

pipe for temperatures up to 800°F (427°C), is required to conduct the gas supply into the enclosure opening for connection to the unit. Do not use a rubber hose

within the enclosure for the barbecue unit.

Apply only joint compounds that are resistant to all gasses on all male pipe ﬁ ttings. Make sure to tighten every joint securely. Do not use pipe joint compound to connect ﬂ are ﬁ ttings. The gas supply pipe should enter from the rear wall of

Figure 2 - Gas Stub Diagram

INSTALLATION

Perform the following checks before installing your Fire Magic Deluxe Classic Barbecue:

1. CHECK FUEL ORIFICES FOR PROPER SIZE a. Your Fire Magic Deluxe Classic Barbecue is equipped

with fuel orifices for natural gas, unless otherwise indicated. To use with propane gas, you must install smaller oriﬁ ces to avoid hazardous overheating. The proper oriﬁ ce size for Natural Gas is #47 (drill size). The proper oriﬁ ce size for Propane Gas is #55 (drill size). The size is stamped on the face of the oriﬁ ce.

b. Remove the cooking grills, smoke oven and ﬂ avor grid from your barbecue.

c. If the gas supply has been connected, make sure the burner valve is in the “OFF” position. Then carefully pull the valve knob and rotary ignition knob from their stems. Use a Phillips screwdriver to turn the face fastener screws counterclockwise to release the face and remove it from the barbecue. Make sure to retain the screws and ﬁ nish washers until you are ready to reattach the face.

d. Using a flat blade screwdriver, pry the burner retaining clip from rear wall of the barbecue frame (see Figure 4). Remove the burner by; A) Pulling it to the front of the barbecue, B) Lift the far end out of the notch, C) Pull the burner away from the manifold, taking care not to lose air shutter and spring, which may become detached when the burner is removed.

2. POSITION THE BURNERS FOR OPERATION a. After checking oriﬁ ce drill size install the air shutter

Figure 3 - Burner Oriﬁ ce Diagram

BURNER

the enclosure behind the barbecue unit, at least 2" from either side, and between 2" and 8" above the ﬂ oor as illustrated by the shaded area in Figure 2. If it is not possible to stub the gas line in from the back of the enclosure, the connection may be made through the ﬂ oor at the rear of the enclosure. Install the gas line stub at least 2" away from the side and back walls, but within 6" of the back wall as illustrated by the shaded area in Figure 2.

SAFETY NOTE: An external valve (with a removable key) in the gas line is necessary for safety when your barbecue is not in use. It also provides for convenient maintenance and repair.

GAS SUPPLY AND MANIFOLD PRESSURES:

For Natural Gas - normal 7" water column, minimum 3 1/2", maximum 10-1/2". For Propane Gas - normal 11" water column, minimum 8", maximum 13".

spring and the air shutter over the oriﬁ ce holder ﬁ tting, between the burner and the pipe manifold, in the order and position shown in Figure 3.

b. Replace the burners in the holding groove, ensuring that the brass oriﬁ ce and oriﬁ ce holder ﬁ ttings project deeply into the burners. Replace the burner retaining clips.

3. CONNECT THE GAS SUPPLY a. You will need an CSA approved stainless steel ﬂ ex

connector to bring the gas supply from the gas line stub to the valve manifold. A 1/2" x 36" or 48" ﬂ ex connector with 1/2" ﬂ are to 1/2" pipe adapter on one end, and a 1/2" ﬂ are female ﬁ tting on the other end is suitable for most installations.

CAUTION: Use only stainless steel ﬂ ex connectors that are C.S.A. listed. A rubber or plastic connector will rupture or leak, resulting in an explosion or serious injury if used inside the barbecue enclosure.

b. Make sure that your gas supply is turned 'OFF'. Then

connect the 1/2" pipe adapter ﬁ tting supplied with the stainless steel ﬂ ex connector to the gas supply stub. Use pipe joint compound that is resistant to all gasses on the male pipe ﬁ tting and tighten securely. Do not use pipe joint compound to connect the ﬂ are ﬁ ttings.

BURNER

MANIFOLD WITH

BURNER NECK

SPRING

ORIFICE HOLDER

REV 2 - 1406201000

BURNER CLIP

AIR SHUTTER

ORIFICE

L-C2-017

INSTALLATION (cont.)

CONNECTING THE GAS SUPPLY (Cont.) c. Slide your barbecue into place, making sure not to

pinch or kink the gas connector.

d. Bring the ﬂ ex connector around the left-hand side of the barbecue. Use the locator angle brackets on the left lower-frame to position the ﬂ ex connector. Continue the ﬂ ex connector around the front of the unit to the valve inlet ﬂ are ﬁ tting. Be careful not to block the 1" front vent opening as this will obstruct drip tray removal.

e. Connect the ﬂ ex connector to the ﬂ are ﬁ tting on the valve. Support the valve inlet ﬁ tting with a wrench to avoid applying excessive torque to the valve body while tightening this connection securely. Do not use pipe compound on ﬂ are ﬁ ttings.

f. Make sure the barbecue burner valve is in the 'OFF' position. Turn the gas supply on. Then carefully check all gas connections for leaks with a brush and soapy water before lighting. NEVER USE A MATCH OR OPEN FLAME TO TEST FOR LEAKS.

g. Refer to the 'Air Shutter Adjustment' and 'Lighting Instructions' on pages 7 and 8 of this manual before replacing barbecue face and knobs.

4. INSTALL THE FLAVOR GRID a. Place the ﬂ avor grids directly on the burners,

centering the grids over the burners with the open side up (Figure 4).This allows heat from the burners to be evenly distributed throughout the cooking area. The ﬂ avor grid heats and cools quickly, making your

FLAVOR GRID

LEGS

BURNER

Figure 4 - Flavor Grid Diagram

Fire Magic Barbecue very responsive to the changes you specify in grill temperature.

The ﬂ avor grid is made of 304 stainless steel. It is rust resistant and may be cleaned with standard oven cleaners.

5. DRIP COLLECTION SYSTEM

The drip collector in this Fire Magic Barbecue is part of the unit’s main frame, and is located below the burners. The drip collector has holes which allow excess drippings to fall through during cooking. The drip collector is also useful as it allows you to brush or scrape off excess dried residue inside the barbecue directly into the drip tray.

USE AND CARE

SAFETY INFORMATION

Every time you use your barbecue, make sure that:

1. The area around the barbecue is clear of ﬂ ammable substances such as gasoline, yard debris, wood, etc.

2. There is no blockage of the air ﬂ ow through the vent space located below the face of the unit.

3. When using propane gas, the special ventilation openings in the enclosure must be kept free and clear of debris.

4. The burner ﬂ ames burn evenly along both sides of each burner with a steady ﬂ ame (mostly blue with yellow tipping). See the 'Lighting Instructions' on page 8 of this manual for more information.

5. The drip collector holes are clear and unobstructed. Failure to remove excessive grease deposits accumulated in either the drip collector or the drip tray below can result in a grease ﬁ re.

6. The in-line gas valve or tank (cylinder) valve is always shut-off when the barbecue is not in use.

REV 2 - 1406201000

PREPARING THE BARBECUE FOR COOKING

To extend the life of your Fire Magic Barbecue, follow these steps prior to cooking:

1. Begin by heating the unit at a normal cooking temperature for several minutes.

2. Then open the control valve to the 'HIGH' setting to burn off residue remaining from prior use.

3. When the barbecue has heated sufﬁ ciently, set heat to the desired cooking level.

4. When using a smoke oven, closing the cover during the preheat period will accelerate the preparation process. Do not operate unattended at high ﬂ ame as cooking temperatures will quickly be exceeded.

WARNING:

Never cover the entire cooking or grill surface with griddles or pans. Overheating will occur and burners will not perform properly when combustion heat is trapped below the cooking surface.

L-C2-017

USE AND CARE (cont.)

FLAVOR FROM WOOD CHIPS OR CHARCOAL

Convenient Fire Magic Gourmet Grilling Chips are sold in several different popular wood types. These chips are pre-moistened and sealed in cans which can be opened, by lifting the tabbed lid, before placing the entire can on the ﬂ avor grid to add natural wood smoke ﬂ avor to the food you grill. There is no mess to clean up. Just discard the can of ashes after there is no longer any wood smoke aroma.

You may also add wood chips, wood chunks or the natural wood charcoal of your choice to the ﬂ avor grid. We recommend placing wood outside the direct cooking zone or wrapping it in perforated aluminum foil. Soaking wood before use will slow burning and increase smoke ﬂ avor. Wood and charcoal ash will remain in the ﬂ avor grid after use. The grid can be easily removed and cleaned when the unit has fully cooled.

CARE OF STAINLESS STEEL COMPONENTS

If your barbecue has a stainless steel oven or front panel, the following care instructions will keep your unit looking and working like new. Stainless steel components are constructed of the ﬁ nest prime grade type 304 stainless steel. Meticulous attention has been given to maintaining the attractive ﬁ nish throughout the manufacturing process. Like the stainless steel used in commercial kitchens, your barbecue requires regular cleaning and occasional bufﬁ ng to maintain its bright, clean appearance.

Oven cleaner may be used, according to manufacturer’s instructions, to remove cooked-on food deposits. Special cleaning agents and polishing pads recommended for stainless steel are available at your local barbecue dealer, hardware store or supermarket.

CAUTION: Never use ordinary steel wool or steel brushes on stainless steel. Tiny particles left behind may rust and stain the ﬁ nish. Abrasive pads recommended for restoring the grain in stainless steel will, over a period of time, scratch or dull the surface of glass or porcelaincoated products.

CLEANING YOUR BARBECUE The frame liner and many front panels (faces) of Fire Magic Barbecues are porcelainized to provide many years of trouble-free service. These surfaces may be cleaned with Fire Magic Foaming Barbecue and Grill Cleaner or with oven cleaner, following manufacturer’s instructions.

CARE OF COOKING GRIDS If your Fire Magic Barbecue has porcelain-coated or stainless steel cooking grids, the following care instructions will keep them looking and performing like new.

Stainless steel rod grids, high temperature porcelainized rod or our special high temperature porcelainized matte (satin) ﬁ nished cast iron cooking grids, will give you years of corrosion-free service.

Deposits of dirt and grease can be removed easily with Fire Magic Foaming Barbecue and Grill Cleaner. Deposits should be removed before they are allowed to bake onto the ﬁ nish.To remove more stubborn deposits, use a scouring pad recommended for stainless steel. Be sure to always rub in the direction of the polishing lines (Figure 5).

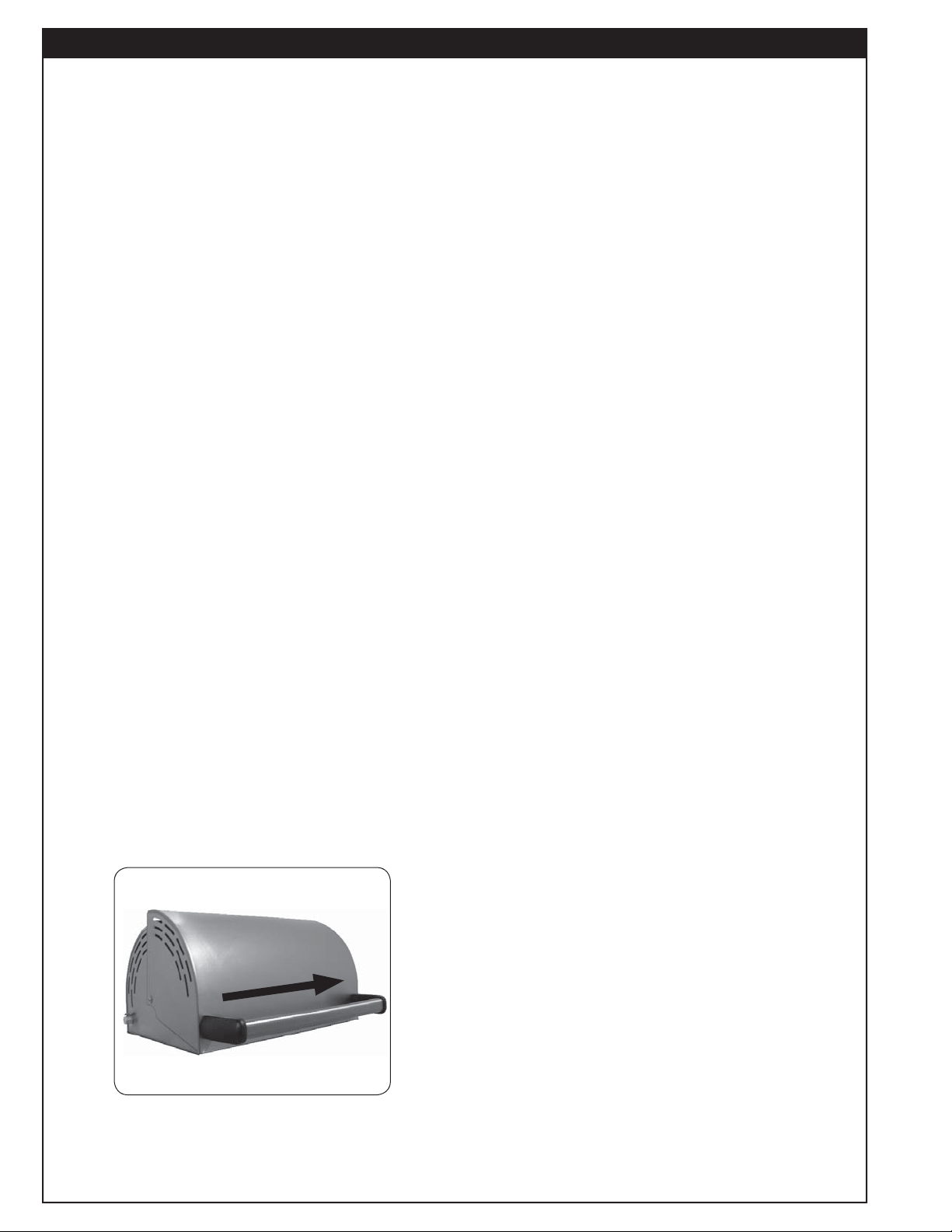

Wipe with grain

Figure 5 - Always rub with the grain

We recommend that you spray a light coat of vegetable oil on your cooking grids and then brush them lightly with a cleaning pad or a brass wire grill brush before and after use to insure maximum life and insure their cooking readiness.

CAUTION: Never use acid chemicals to clean porcelain surfaces.

CARE OF UNCOATED CAST IRON COOKING GRIDS

All uncoated cast iron will rust if not properly seasoned. Please read and follow the seasoning instructions below to ensure long life and proper performance.

The special qualities of properly seasoned cast iron cooking grids (quick, even heating, sustained heat retention, nonstick cooking and excellent searing capabilities) make them the preferred choice of master chefs. Only an uncoated cast iron cooking surface that’s been properly treated and maintained can offer these qualities.

Your Fire Magic Cast-Iron Cooking Grids are heavier with the bars closer spaced than most other grids, retaining maximum temperatures even when suddenly covered with cold meat. Because of this, they sear in the natural juices so you can enjoy the full ﬂ avor of your favorite cuts.

REV 2 - 1406201000

L-C2-017

USE AND CARE (cont.)

SEASONING YOUR CAST IRON GRIDS

Initial Seasoning: Wash the cooking grids thoroughly with a mild detergent and scrub brush, rinse and dry. Saturate the cast iron surfaces with a high-quality vegetable cooking oil. The grids can be immersed, or the oil thoroughly worked into the cast iron by brushing and/or swabbing. Allow the oil to run off or drain, then bake the grids in the barbecue oven at a low (275° to 325°) temperature for two to three hours. Re-oil and wipe off the excess with a clean rag or paper towel. Your cast iron grids are now ready for use.

USE AND MAINTENANCE

For best cooking performance, the wide side of the cooking grid bars should be face up. After each use, brush off any residue, preferably while the grids are still warm. A brass wire brush is ideal. Apply vegetable oil with a clean cloth or spray can. Brush in and wipe clean with a rag or clean paper towel. Your cast iron grids are now ready for their next nonstick cooking performance.

temperatures for extended periods, may dry out the cast iron and make it more susceptible to rusting. If grids do become overheated and dry out, repeat the initial seasoning procedure. Rust can be prevented by keeping your grids properly seasoned. Wrap the grids in newspaper or paper towels and store them in a dry place if you are not planning to use them for several weeks.

BURNER MAINTENANCE

Fire Magic Burners are constructed of heavy-duty, high-quality porcelain coated cast iron, cast stainless steel or cast brass and will withstand many years of outdoor use, if the following ordinary precautions are taken: Once or twice a year inspect the burners and determine if scale is building up excessively. Burners can be removed and scraped to remove debris or scale from the ports. Spray burners with vegetable oil occasionally to inhibit oxidation. Replace burners immediately if they show any signs of weak or thin walls. Refer to page 4 for reinstalling burners.

Occasionally turn grids over and brush off accumulated residue that could ignite during high temperature cooking. Cooking food particles off the grids at high

CAUTION: Never spray water on a hot gas unit as this may damage porcelain or cast iron components.

The grill serial identiﬁ cation number is located on the underside of the drip tray handle. It is recommended that the drip tray ﬁ rst be removed and cleaned / emptied of its contents,

then turned over to view.

REV 2 - 1406201000

L-C2-017

BURNER ADJUSTMENT

IMPORTANT: This barbecue will not light and will not heat evenly or cook properly unless the air shutters are adjusted following installation (reference "Air Shutter Adjustment", below).

Burner air shutters are accessed by removing the front panel (face). The air shutters are located at the end of the burners on the right side of the unit (see page 2). The air shutter has a small dimple (see Figure 6A), which allows it to lock into notches in the burner face. This prevents the air shutter from moving. Close the air shutters by turning the tabs to a vertical position (Figure 6B). The air shutters on Deluxe Barbecues can be adjusted by using the match holder (provided with each unit - Figure 8, page

8). Place the ring over the air shutter tab and push or pull to adjust the opening. Close the air shutters with the tabs pointing up and down (Figure 6B). Light your barbecue in accordance with the manual lighting instructions found on page 8 and burn for 5 minutes with the burners on 'HIGH' and the oven open.

AIR SHUTTER ADJUSTMENT

After burning for 5 minutes, open the air shutters until the ﬂ ames lift off, or appear not to be touching the burners. Then begin closing the air shutters until the ﬂ ames appear to burn while touching the burner ports (Figure 6B). You may then see short yellow tips

PARTIALLY OPEN

FIGURE 6A

CLOSED

FIGURE 6B

Figure 6A & 6B - Air Shutter Adjustment Diagram

on the ﬂ ames. If ﬂ ames are a lazy yellow, open the air shutters until the ﬂ ame is blue with yellow tipping.

ADJUSTING THE FLAME HEIGHT

The large knob on the face of the barbecue controls the valve and adjusts ﬂ ame height. The ﬁ rst position is 'HIGH', the second 'MEDIUM' and the ﬁ nal 'LOW'. ﬂ ame height can also be set anywhere between the High, Medium, and Low settings for all cooking requirements and tastes.

Height of the ﬂ ame with the valve in low position may be regulated by means of a small adjusting screw in the center of the valve stem. This screw is accessible by removing the plastic valve knob which pulls straight off the end of the valve stem.

REV 2 - 1406201000

L-C2-017

LIGHTING INSTRUCTIONS

TO TURN ON

TO TURN OFF

OFF MARKER

HIGH TO LIGHT

OFF

PUSH TO

TURN

LIGHT

MED

Follow these instructions each time you light your Fire Magic® barbecue.

FOR AUTOMATIC LIGHTING

1. Read these instructions before lighting.

2. Open the lid of the smoke oven.

3. Turn both barbecue gas valves to the OFF

position.

4. Turn on the gas at the source outside of the barbecue enclosure.

Note: DO NOT turn on more than one valve

at a time for either automatic or manual lighting. Adjacent barbecue burners will cross-ignite.

5. Depress the desired gas valve and turn to HIGH, then immediately turn the light knob

several times in the direction of the arrows.

7. If the burner does not light, IMMEDIATELY turn the valve to OFF and WAIT 5 MINUTES before repeating steps 5 through 7 of the MANUAL LIGHTING INSTRUCTIONS.

Replacement parts may be obtained from your nearest Fire Magic® dealer. For assistance in locating a dealer, please contact our factory at the address listed on the cover.

CAUTION: If the burners do not light,

IMMEDIATELY turn the valve to OFF and WAIT 5 MINUTES before repeating step 5. If the burners still do not light, refer to the instructions below for manual lighting.

Note: Barbecues in some installations achieve

a better air/gas mixture and will ignite more quickly if the valve is ﬁ rst turned beyond HIGH to MEDIUM or LOW for lighting.

FOR MANUAL LIGHTING

CAUTION: Always wait 5 minutes for gas

to clear after any unsuccessful lighting attempt.

Follow steps 1 through 4 above.

5. Insert either a burning long-barrel butane lighter, a burning long-stem match, or a burning match held by a wire extension holder through the cooking grids to the burners below the ﬂ avor grid.

6. While holding the match or lighter ﬂ ame next to the burner, depress the appropriate valve knob and turn it counter-clockwise to the HIGH position. Adjacent burners will crossignite.

Fig. 9-1 - Valve control knob

Fig. 9-2 - Match holder

REMEMBER: For safe manual lighting, place a

burning match or butane lighter beside the burner

- Then turn on the gas (Fig. 9-3).

Fig. 9-3 - Manual lighting

WARRANTY

PETERSON FIRE MAGIC GRILLS AND ACCESSORIES

LIMITED WARRANTY

Robert H. Peterson Co. ("RHP") warrants your Fire Magic® grill to be free from defects in material and workmanship. Fire Magic

your Fire Magic® grill -- LIFETIME. (Except as noted below.) Fire Magic Choice stainless steel tubular burners are warranted for TWENTY (20) YEARS. Fire Magic

warranted for FIFTEEN (15) YEARS. Fire Magic Fire Magic

charcoal pan, charcoal grid, wood pellet screen, thermometer, and ash tray; which are warranted for ONE (1) YEAR. Fire Magic

YEARS. Fire Magic

warranted for ONE (1) YEAR.

This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.

This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse, use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation, lack of required routine maintenance (as speciﬁ ed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure to protect against combustibles. Product must be installed (and gas must be connected) as speciﬁ ed in the Owner’s Manual/Installation Instructions by a qualiﬁ ed professional installer. Modiﬁ cations to products which are not speciﬁ cally authorized will void this warranty. Accessories, parts, valves, remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion. This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.

This warranty does not cover labor or labor related charges, except as provided by separate speciﬁ c written programs from the Peterson Co. All repair work must be performed by a qualiﬁ ed professional service person and requires prior approval of Peterson.

Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer if the damage is determined to have occurred during that shipment.

This warranty speciﬁ cally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you speciﬁ ed legal rights, and you may have other rights that vary from state to state or province.

For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.

cast stainless-steel burners, stainless-steel rod cooking grids, and stainless-steel housings are warranted for as long as you own

cast brass burners, brass valves, inner liners, manifold assemblies, and backburner assemblies (except ignition parts) are

Electric Grills, including stainless steel grid, and housings are warranted for TEN (10) YEARS.

Infra-red burners, ﬂ avor grids, Charcoal stainless steel grills, and Smokers are warranted for FIVE (5) YEARS; except for the

sideburners and all other Fire Magic® grill components (except ignition and electronic parts) are warranted for THREE (3)

ignition systems (excluding batteries), electronic components (including lights and thermometers), and grill accessories are

A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED

TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,

AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.

Quality Check Date:_________________

Burner Oriﬁ ces Nat. L.P. Leak Test: ___________ Model#: ___________________

Main: ____ ____ Burn Test: ___________ Serial#: ___________________

Other: ____ ____ Gas Type:

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

Nat. / L.P. Air Shutter: ___________________

Inspector: ___________________

Fire Magic Deluxe Classic User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
