Fire Magic C430S1T1P96 User Manual

STAND-ALONE OUTDOOR

GAS GRILLS

C430s & C540s

INSTALLATION

INSTRUCTIONS AND

OWNER’S MANUAL

INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.

C430s shown

SAFETY AND WARNING CODES

DANGER:

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open fl ame.

3. Open lid.

4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or the fi re department.

1. Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.

2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.

WARNING:

WARNING:

CODE AND SUPPLY REQUIREMENTS: This grill

must be installed in accordance with local codes
and ordinances, or, in the absence of local codes,
with either the latest National Fuel Gas Code

(ANSI Z223.1/NFPA 54), and Natural Gas and
Propane Storage and Handling Installation Code
(CSA-B149.1).

Improper installation, adjustment, alteration,
service, or maintenance can cause injury
or property damage. For proper installation,
refer to the installation instructions. For
assistance or additional information, consult
a qualifi ed professional installer, service

agency, or the gas supplier.

This appliance and its dedicated manual shutoff
valve must be disconnected from the gas-supply
piping system when testing the system at pressures
in excess of ½ psig (3.5 kPa).

This appliance must be isolated from the gas-supply
piping system by closing its dedicated manual
shutoff valve during any pressure testing of the gas­supply system at pressures up to and including ½
psig (3.5 kPa).

Proper operation of your grill
requires prompt and periodic
maintenance. See the CARE &
CLEANING section for details.

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

REV 0 - 1510190840

All electrical outlets in the vicinity of the grill must
be properly grounded in accordance with local
codes, or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.1, whichever

is applicable.
Keep all electrical-supply cords and fuel-supply

hoses away from any heated surface.

Certifi ed to: ANSI Z21.58b-2012

11-093

1

CSA 1.6b-2012

L-C2-428

INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE

GRIL EXTÉRIEUR DE GAZ DU PORTATIF

IMPORTANT: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L’INSTALLATION OU L’UTILISATION

SÛRETÉ ET CODES D’AVERTISSEMENT

DANGER:

SI VOUS SENTEZ LE GAZ :

1. Coupez le gaz à l’appareil.

2. Éteignez-vous n’importe quelle fl amme nue.

3. Ouvrez le couvercle si équipé d’un four.

4. Si l’odeur continue, gardez loin de
l’appareil et appelez immédiatement
votre département de fournisseur ou de
feu de gaz.

CONDITIONS DE CODE ET D’APPROVISIONNEMENT:

Ce gril doit être installé selon des codes et des ordonnances
locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre
le plus défunt Code national de gaz de carburant (norme ANSI
Z223.1/NFPA 54), et Stockage de gaz naturel et de propane
et manipulation du code d’installation (CSA-B149.1).

Cet appareil et ses différents robinets d’isolement doivent être
démontés du gaz-fournissent le système siffl ant en examinant
le système aux pressions au-dessus du ½ psig (kPa 3.5).

Cet appareil doit être isolé dans gaz-fournissent le système
siffl ant par fermeture que ses différents robinets d’isolement
manuels pendant tous les essais sous pression du gaz­fournissent le système aux pressions jusques et y compris
le ½ psig (kPa 3.5).

• Ce gril est pour ultilisation à l’extérieur seulement.
Si l’appareil est entreposé à l’intérieur, enlever les
bouteilles et les laisser à l’extérieur.

• Ne pas ranger le gril immédiatement aprés l’avoir utilisé.
le laisser refroidir avant de le déplacer ou de la ranger.
Le non respect de cette mesure de sécurité pourrait
entraîner un incendie causant des dommages à la
propriété, des blessures ou la mort.

• Ne pas utiliser cet appareil sous une surface combustible.

• Ne pas utiliser cet appareil sous un auvent. Le non
respect de cette mesure de sécurité pourrait entraîner
un incendie ou des blessures.

• Dégagement minimal entre les parois latérales et l’arriére
de l’appareil et la construction combustible (45.7 cm à
partir des parois latérales et 45.7cm à partir de l’arriére).

• Le régulareur de pression de gaz prévu avec cet appareil
de cuisson à gaz pour l’extérieur doit être utilisé. Ce
régulateur est réglé pour une pression de sortie de 5
pouces de colonne de l’eau pour le gaz naturel, et 10
pouces pour le propane.

• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ
POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE
CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS
GRAND QUE (LIVRES PAR POUCE CARRÉ), UN
RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ
AVANT LE GRIL. VOIR LA SECTION DE CONDITIONS

AVERTISSEMENT:

1. Ne stockez pas ou n’employez pas
l’essence ou d’autres vapeurs et liquides
infl ammables à proximité de ceci ou
d’aucun autre appareil.

2. Un cylindre de propane non relié pour
l’usage ne sera pas stocké à proximité
de ceci ou d’aucun autre appareil.

AVERTISSEMENT:

L’installation inexacte, l’ajustement, le
changement, le service, ou l’entretien
peuvent causer des dommages ou des
dégats matériels. Référez-vous à ce
manuel. Pour l’aide ou l’information
additionnelle, consultez un installateur
professionnel qualifi é, l’agence de service,

ou le fournisseur de gaz.

Toutes les sorties électriques à proximité du gril doivent être
correctement fondues selon des codes locaux, ou en l’absence
de local code, avec le code électrique national, ANSI/NFPA
70, ou le code électrique canadien, CSA C22.1, celui qui est
applicable.

Maintenez tout électrique-fournissent des cordes et carburant­fournissent des tuyaux partis de n’importe quelle surface de
chauffage.

D’OFFRE DE GAZ POUR LA PRESSION APPROPRIÉE
D’OFFRE DE GAZ.

• Ne couvrez jamais la surface entière de cuisine ou de
gril de gauffreuses ou de casseroles. La surchauffe se
produira et les brûleurs ne seront pas très performants
quand la chaleur de combustion est emprisonnée au­dessous de la surface à cuire.

• Ne pulvérisez jamais l’eau sur une unité chaude de gaz,
comme ceci peut endommager des composants de
porcelaine ou de fer de fonte.

• Une fuite de GPL peut causer une incendie ou une
explosion si enflammée entraînant des blessures
corporelles graves ou la mort.

• Communiquez avec le fournisseur de GPL pour les
réparations ou pour disposer de qules bouteille ou du
GPL non utilisé.

Certifi é à la norme: ANSI Z21.58b-2012 / CSA 1.6b-2012

INSTALLATEUR : Laissez ces instructions avec le consommateur.

CONSOMMATEUR : Maintenez pour la future référence.

REV 0 - 1510190840

2

L-C2-428

GETTING STARTED

GETTING STARTED

REPLACEMENT PARTS LIST .................................................................................................................................4

GRILL NOTES PAGE ...............................................................................................................................................6

GRILL MAINTENANCE AND SAFETY INFORMATION .........................................................................................7

MODEL SPECIFICATIONS ......................................................................................................................................8

STAND-ALONE GRILL DIMENSIONS TABLE ..........................................................................................................8

INSTALLATION REQUIREMENTS .......................................................................................................................10

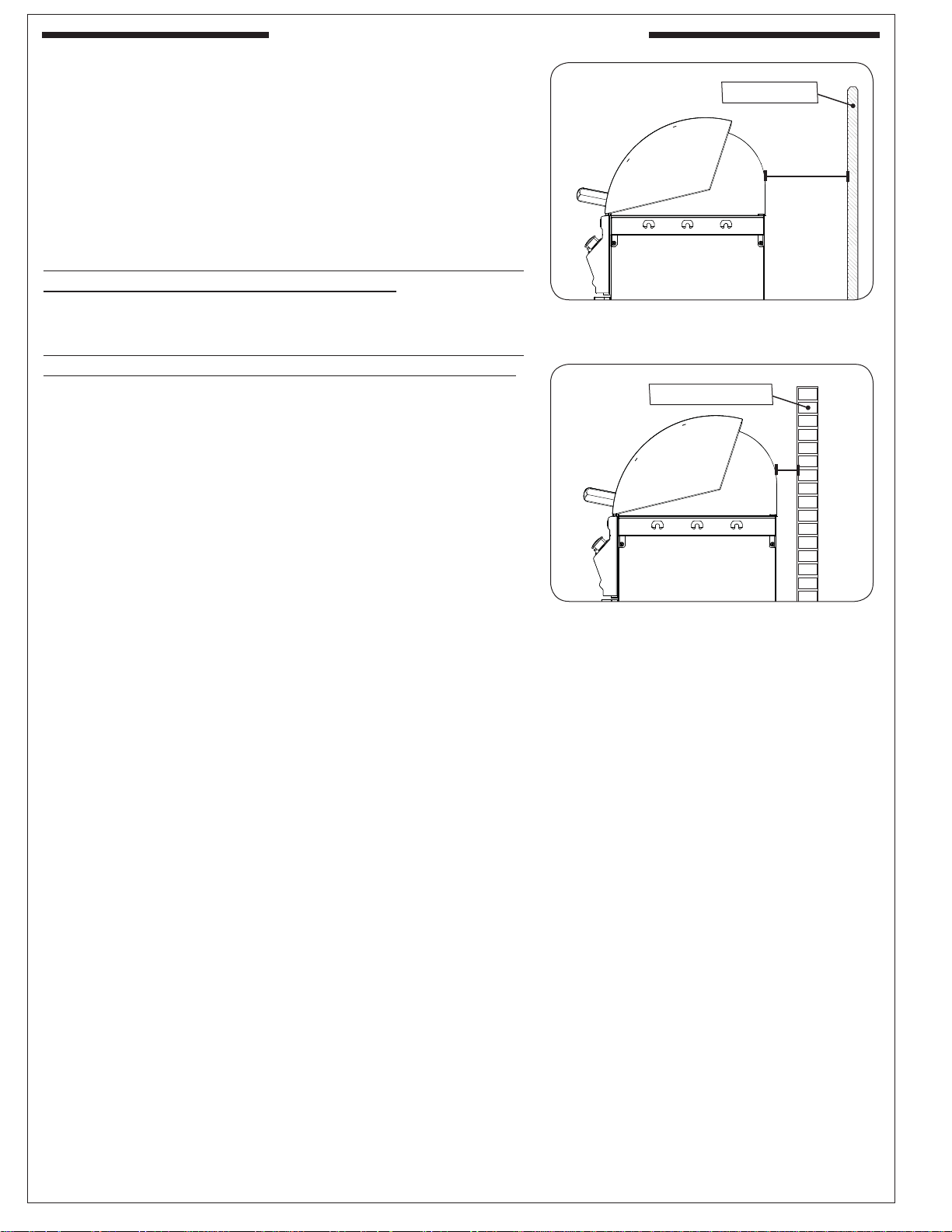

SIDE AND REAR WALL CLEARANCES .................................................................................................................10

ENSURE PROPER COMBUSTION AIR AND COOLING AIRFLOW ............................................................................11

PROPANE SAFETY INFORMATION .....................................................................................................................12

WARNING .......................................................................................................................................................12

INSTALLATION SAFETY GUIDELINES.................................................................................................................12

OPERATING THE UNIT SAFELY AND CORRECTLY ...........................................................................................12

SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS ..........................................................................13

INSTALLATION

INSTALLATION ....................................................................................................................................................15

LOCATION PREPARATION ................................................................................................................................15

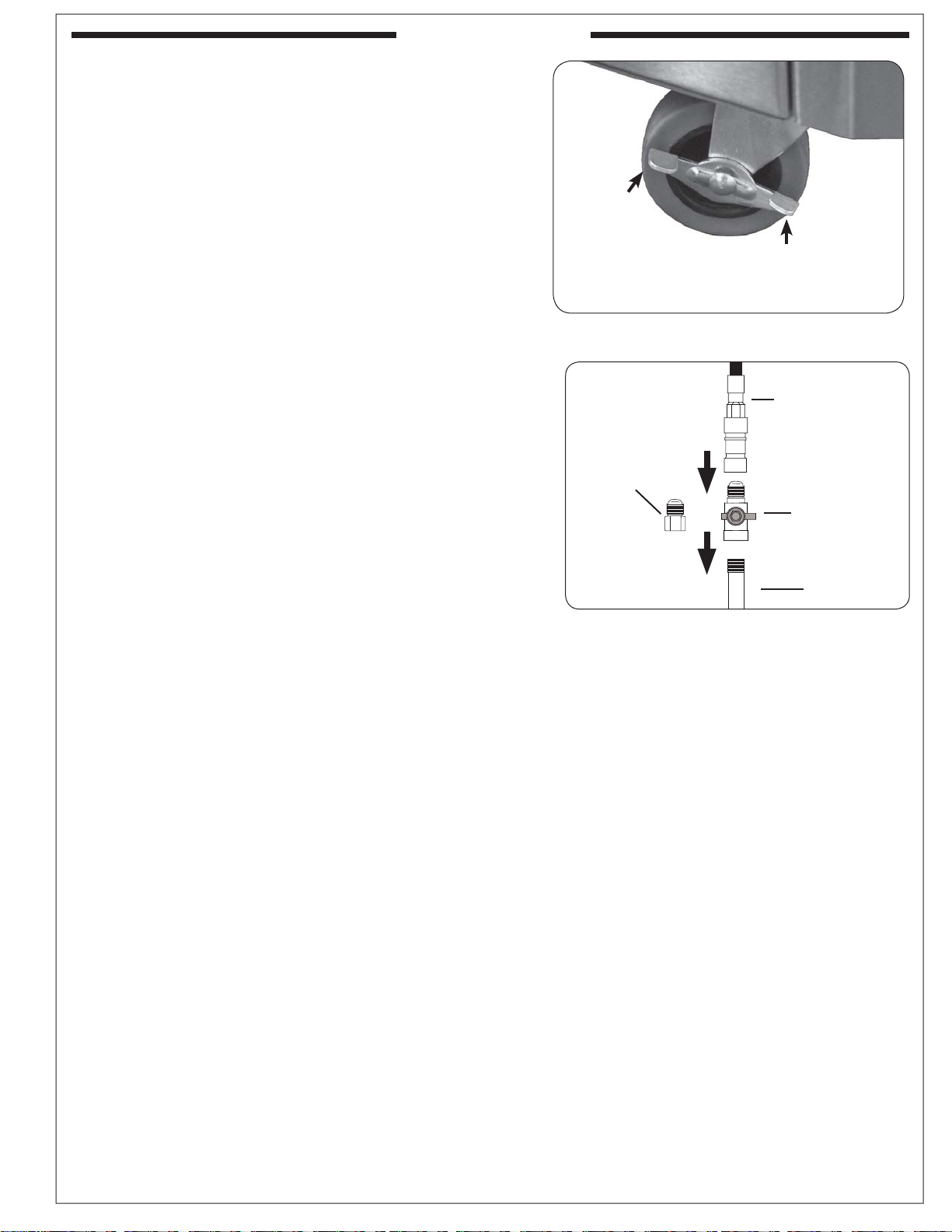

WHEELS AND CASTERS ....................................................................................................................................15

CONNECT THE GAS SUPPLY .............................................................................................................................15

INSTALL THE FLAVOR GRIDS ............................................................................................................................16

RIGID SHELF INSTALLATION .............................................................................................................................17

IDENTIFICATION OF GRILL CONTROLS ............................................................................................................18

CONTENTS

USE, CARE, & SERVICE

LIGHTING (IGNITION) INSTRUCTIONS ..............................................................................................................19

ELECTRONIC LIGHTING ..................................................................................................................................19

MANUAL LIGHTING .........................................................................................................................................19

SHUTTING OFF THE UNIT ................................................................................................................................19

ACCESSORIES ......................................................................................................................................................21

FIRE MAGIC® DRIP TRAY ...................................................................................................................................22

CARE & CLEANING .............................................................................................................................................23

CONVERTING THE GAS TYPE .............................................................................................................................24

BURNER AIR SHUTTER ADJUSTMENT ..............................................................................................................25

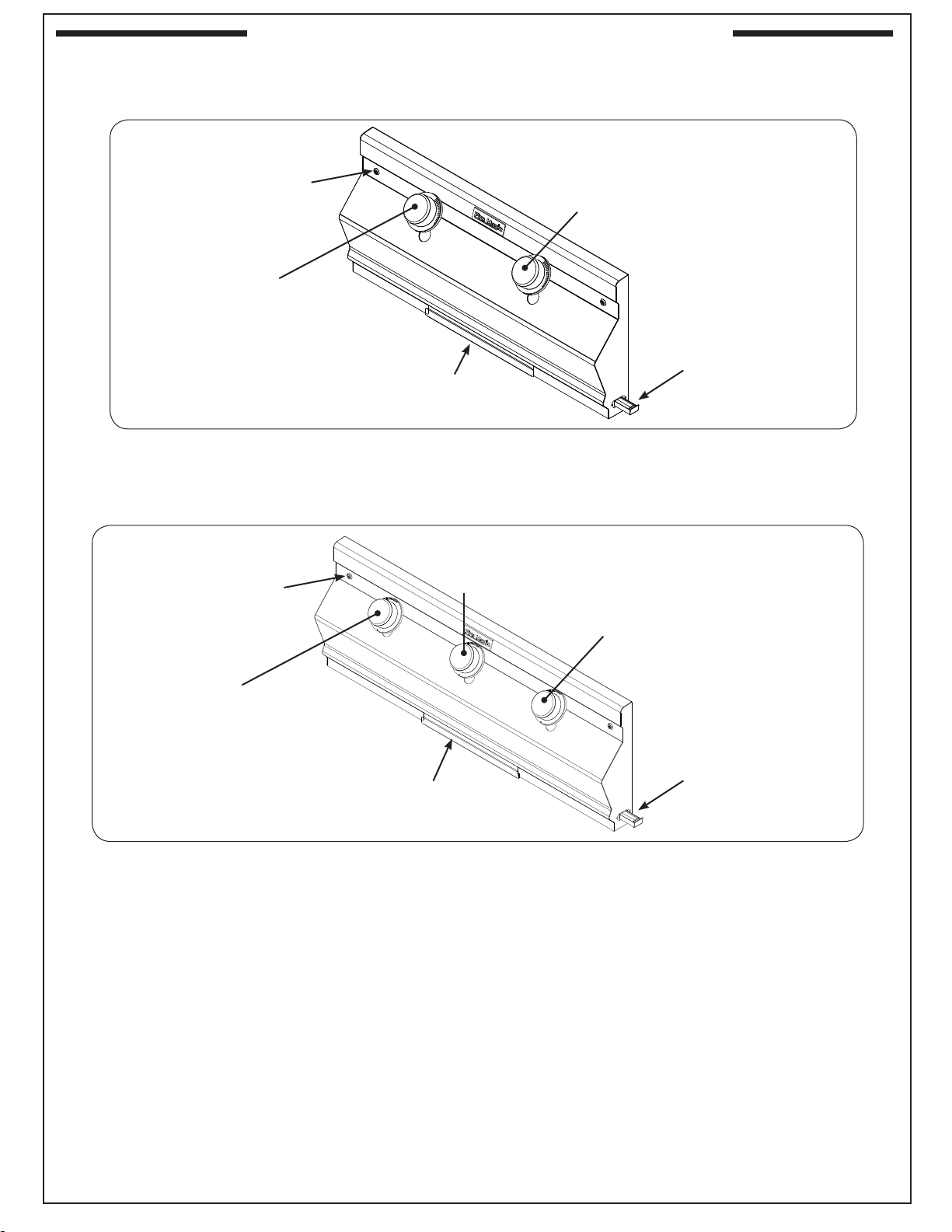

CONTROL PANEL REMOVAL ..............................................................................................................................26

TROUBLESHOOTING ...........................................................................................................................................27

WARRANTY .........................................................................................................................................................28

REV 0 - 1510190840

3

L-C2-428

REPLACEMENT PARTS LIST

1

2

3

9

13

15

5

6

4

10

7

15

16

20

8

17

REV 0 - 1510190840

14

12

18

To order replacement
parts, contact your
local Fire Magic®
dealer.

4

L-C2-428

REPLACEMENT PARTS LIST (cont.)

C430s C540s

Item Description Part No. Qty. Part No. Qty.

Stainless cooking grid (set of 2 or 3) 23542-S-2 1 23543-S-3 1

1.

Flavor grid (set of 2 or 3) 3063-S-2 1 3064-S-3 1

2.

Main burner 3042-60 2 3042-60 3

3.

Oven lid 23729-54 1 23733-54 1

4.

Warming rack* 3672S-M 1 3673S-M 1

5.

Grid lifter 3519 1 3519 1

6.

Convertible regulator PR-4 1 PR-4 1

7.

Valve manifold 24130-28 1 24170-28 1

8.

Control panel assembly 24130-36 1 24170-36 1

9.

Control knob 3015 2 3015 3

10.

Thermometer † 23305 1 23305 1

11.

Ignitor battery holder assy (9v) 24180-38 1 24180-38 1

12.

Drip tray 3089 1 3089 1

13.

Drip tray liner (set of 4) 3557 1 3557 1

14.

Rigid shelf 24-C-01 2 24-C-01 2

15.

Door (left) 24330-29L 1 24370-29L 1

16.

Door (right) 24330-29R 1 24370-29R 1

17.

Caster kit (set of 4) 24-C-35 1 24-C-35 1

18.

Electrode & collector box assy † 3199-45 2 3199-45 3

19.

Ignitor module 3199-51 1 3199-44 1

20.

Natural gas orifi ce(s) † 3001-43-2 1 3001-45-3 1

21.

Propane gas orifi ce(s) † 3001-54-2 1 3001-55-3 1

22.

Propane regulator / hose assy † 5110-07 1 5110-07 1

23.

Natural Gas QD hose † 5110-03 1 5110-03 1

or

Fire Magic® cookbook † 3595 1 3595 1

24.

* If equipped
† Not shown

REV 0 - 1510190840

5

L-C2-428

GRILL NOTES PAGE

Please use this page to record any information about your grill that you may want to have at hand.

REV 0 - 1510190840

6

L-C2-428

GRILL MAINTENANCE AND SAFETY INFORMATION

1. The outdoor grill and surrounding area MUST

remain clear of fl ammable substances such as
gasoline, yard debris, wood, etc.

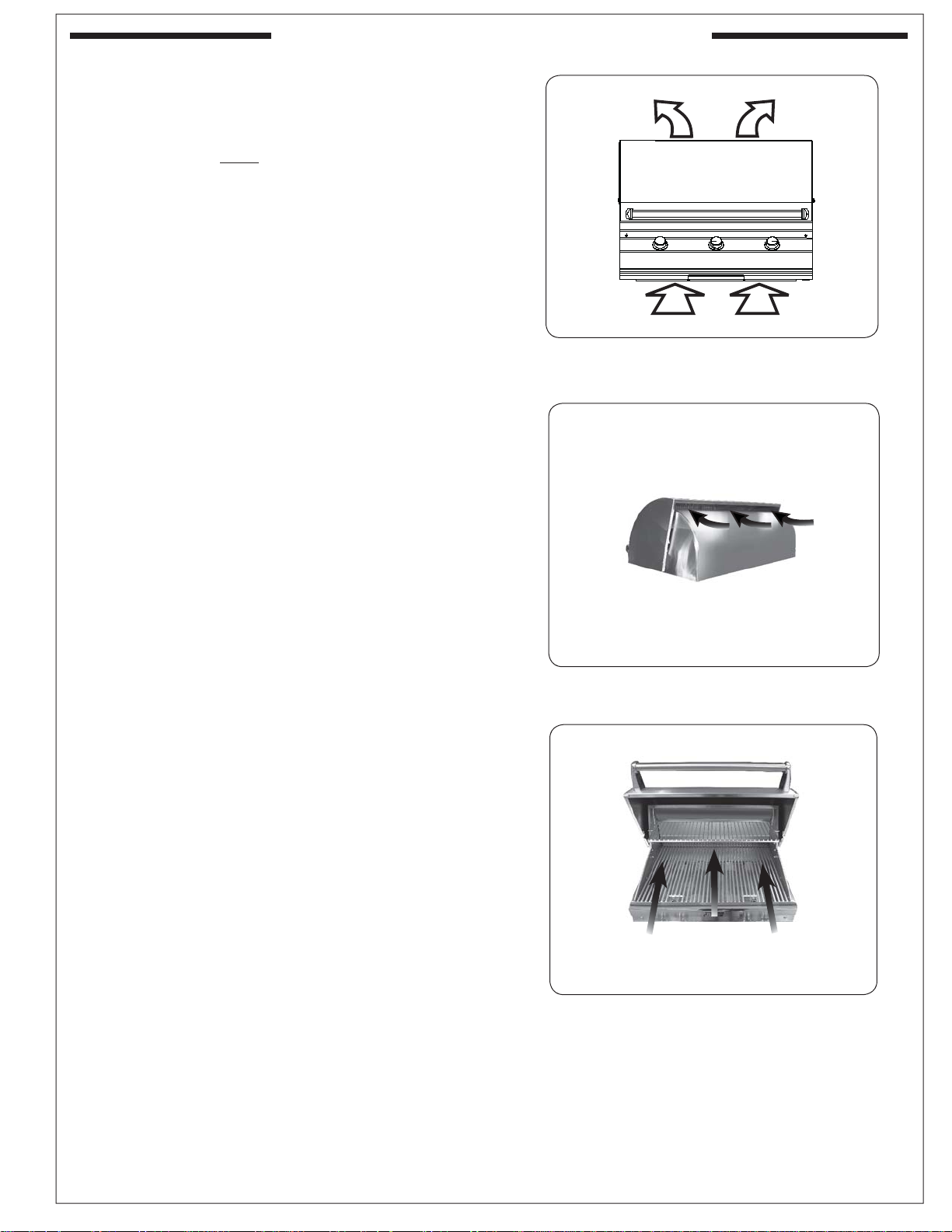

2. The airfl ow through the vent space located below

the control panel must remain unobstructed.

3. When using propane gas:

insects and insect nests. A clogged tube can
lead to a fi re beneath the grill. A proper fl ame
pattern will ensure safe operation and optimal
performance. Adjust the air shutter as needed
(see AIR SHUTTER ADJUSTMENT).

5. The in-line gas valve or gas cylinder valve must

always be shut OFF when the grill is not in

a. The required ventilation openings in the

use.

enclosure must be clear of debris. See the
PROPANE SAFETY INFORMATION section.

6. The drip collector holes must be clear and

unobstructed. Excessive grease deposits can

b. The propane cylinder, regulator, and rubber

result in a grease fi re.

hose must be in a location not subject to
temperature above 125° F (51° C).

4. The fl ames on each burner burn evenly along

the entire burner with a steady fl ame (mostly
blue). If burner fl ames are not normal, check
and clean the orifi ce and burner/venturi tubes for

WARNING: NEVER cover the entire cooking or grill surface with griddles or pans. Overheating will occur, and

burners will not perform properly when combustion heat is trapped below the cooking surface.

CAUTION: NEVER spray water on a hot gas unit.

The grill serial identifi cation number is located on the underside of the drip tray handle. It

is recommended that the drip tray fi rst be removed and cleaned / emptied of its contents,

then turned over to view. The unit rating label is located on the inside of the control panel.

REV 0 - 1510190840

7

L-C2-428

Model

C430s
C540s

MODEL SPECIFICATIONS

STAND-ALONE GRILL DIMENSIONS TABLE

Height Width Depth

Floor to top

(with oven)

Open (A)

57" 50" 36
57" 50" 36 1/2" 33" 58" 22" 24 3/4"

Closed

(B)

Floor to top

of shelf

(C)

Cart base

1

/2" 26 1/2" 51 1/2" 22" 24 3/4"

E

Left to right Front to back

(D)

Shelf to shelf

(E)

Cart base

(F)

Maximum

G

outer

(G)

A

B

C

D

F

REV 0 - 1510190840

8

L-C2-428

MODEL SPECIFICATIONS (cont.)

MODEL SPECIFICATIONS TABLE

Table 1 C430s C540s

Main burner quantity
N/P orifi ce drill size

Battery quantity
Battery type

2

#43 / #54

3

#45 / #55

1

9-volt

REV 0 - 1510190840

9

L-C2-428

INSTALLATION REQUIREMENTS

Installation must be performed by a qualifi ed professional
service technician.

This grill is designed for outdoor use only. DO NOT use this grill
inside a building, garage, enclosed area, or under any overhead
construction.

DO NOT use this grill in or on a recreational vehicle or boat.
Important: The grill is not insulated. Refer to the information

below to ensure all required clearances are met.

The grill must have a minimum clearance of 18" from
combustible materials/items AT ALL TIMES.

Combustible

Min.

18"

(Clearance required for

right, left, and rear)

SIDE AND REAR WALL CLEARANCES

For the minimum clearances between the grill and any side or rear
walls, your setup must fall within one (or more) of the following:

A. Clearance between grill and combustible wall

• The grill must have a minimum of 18" right, left, and rear
clearance from any combustible wall (see Fig. 10-1).

B. Clearance between grill and strictly non-combustible wall

(i.e. brick wall, see Fig. 10-2)

• The grill must have a minimum of 4" right, left, and rear
clearance from any non-combustible wall.
(To allow for proper ventilation and prevent dangerous
overheating.)

Fig. 10-1 Clearance 'A' Diagram

Non-combustible

Min.

4"

(Clearance required for

right, left, and rear)

Fig. 10-2 Clearance 'B' Diagram

REV 0 - 1510190840

10

L-C2-428

INSTALLATION REQUIREMENTS (cont.)

The control panel MUST remain removable for
servicing and air shutter adjustment (see PARTS
LIST).

THIS UNIT MUST NOT BE LOCATED IN A FULLY
ENCLOSED AREA OF ANY KIND.

ENSURE PROPER COMBUSTION AIR AND
COOLING AIRFLOW

Proper airfl ow (Fig. 11-1) MUST be maintained for
the grill to perform as it was designed. If airfl ow
is blocked, overheating and poor combustion will
result. Do not block the 1" (2.5 cm) front air inlet
along the bottom of the control panel or more
than 75% of the cooking grid surface with pans
or griddles.

Fig. 11-1 Ventilation

Note: The 1" (2.5 cm) front air space also allows

access to the drip tray.

CAUTION: Wind blowing into or across the rear

oven lid vent (Fig. 11-2) can cause
poor performance and/or dangerous
overheating. Orient the grill so that the
prevailing wind blows toward the front
of the grill (Fig. 11-3).

Important: A shut-off valve (not included) in

the gas line is required. It provides

for safety when the unit is not in use
and for convenient maintenance
and repair. It must be installed within
6 feet of the unit. Use a pipe joint
compound resistant to all gasses on
all male fi ttings except fl are fi ttings.

GAS SUPPLY AND MANIFOLD PRESSURES:

For natural gas - normal 7" (17.78 cm) water column
(w.c.), minimum 5" (12.7 cm), maximum 10 1/2" (26.7
cm). For propane gas - normal 11" w.c., minimum 10"
(25.4 cm), maximum 13" (33 cm).

INCORRECT

Rear oven lid vent

YOU MUST PROTECT

REAR OVEN VENT FROM

PREVAILING WIND

Fig. 11-2 Airfl ow direction - INCORRECT

CORRECT

PLACE GRILL SO PREVAILING
WIND BLOWS TOWARD FRONT

OF GRILL

REV 0 - 1510190840

11

Fig. 11-3 Airfl ow direction - CORRECT

L-C2-428

PROPANE SAFETY INFORMATION

WHEN OPERATING THIS APPLIANCE WITH PROPANE, ALL INSTRUCTIONS AND
WARNINGS MUST BE OBSERVED. FAILURE TO DO SO MAY RESULT IN A FIRE OR
EXPLOSION CAUSING SERIOUS INJURY OR DEATH.

WARNING

THIS APPLIANCE MUST BE INSTALLED AND OPERATED ACCORDING TO THE INFORMATION BELOW.
FAILURE TO PROPERLY VENT THE CABINET MAY RESULT IN A FIRE OR EXPLOSION CAUSING

SERIOUS INJURY OR DEATH.
When using propane gas:

• Propane gas (also known as L.P. gas) is heavier than air and will accumulate or pool in an inadequately

vented enclosure or recessed area.

• A leaking gas connection or valve unintentionally left open will create a hazard.

• If a pool of propane gas is ignited, an explosion will occur. Adequate venting at the fl oor level of the

cabinet eliminates this danger.

• DO NOT store a spare propane-gas cylinder in or near the unit.

INSTALLATION SAFETY GUIDELINES

THIS UNIT MUST BE INSTALLED IN SUCH A MANNER THAT ALL VENT OPENINGS ON THE CABINET
REMAIN CLEAR AND FREE OF ALL OBSTRUCTIONS AT ALL TIMES AND DURING ALL WEATHER
CONDITIONS.

The gas cylinder, regulator, and rubber hose must be in a location not subject to temps. above 125° F
(51° C).

WHEN A PROPANE CYLINDER IS INSTALLED INSIDE OF THE CABINET, THE GUIDELINES FOUND IN
THE SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS SECTION MUST BE FOLLOWED.

OPERATING THE UNIT SAFELY AND CORRECTLY

Every time you use the unit, make sure that:

1. The area around the unit is clear and free from combustible materials, gasoline and fl ammable vapors/liquids.

2. There is no blockage of the airfl ow through the vent openings located on the cabinet.

3. The hose is inspected (if applicable). See SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS section.

DO NOT store any combustible materials, gasoline, and any other fl ammable vapors/liquids in the vicinity of the

unit. Provide adequate clearance for servicing and operation.

REV 0 - 1510190840

12

L-C2-428

U

L

SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS

IMPORTANT FOR YOUR SAFETY

READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.

When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.

FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.

CYLINDER/CONNECTOR REQUIREMENTS

a. Propane-gas cylinders, valves, and hoses must be

maintained in good condition and must be replaced if
there is visible damage to either the cylinder or valve. If the
hose is cut or shows excessive abrasion or wear, it must
be replaced before using the gas appliance (see e.).

b. This unit, when used with a cylinder, should be connected

to a standard 5-gallon (20 lb.) propane-gas cylinder
equipped with an OPD (Overfi ll Prevention Device).
The OPD has been required on all cylinders sold since
October 1,1998, to prevent overfi lling.

c. Cylinder dimensions should be approximately 12" (30.5

cm) in diameter and 18" (45.7 cm) high. Cylinders must
be constructed and marked in accordance with the

Specifi cations for Propane Gas Cylinders of the U.S.
Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods.

d. The cylinder used must include a collar to protect the

cylinder valve, and the cylinder supply system must be
arranged for vapor withdrawal.

e. The pressure regulator and hose assembly (Fig. 13-1)

supplied with this outdoor gas appliance (L.P. models
only) must be used. Original and replacement pressure
regulator and hose assemblies must be those specifi ed
by the manufacturer for connection with a cylinder
connecting device identifi ed as Type I by the ANSI Z

21.58-2005/CGA 1.6-2005 (see PARTS LIST for ordering
information).

f. The propane-gas cylinder valve must be equipped with a

cylinder connection coupling device, described as Type I
in the standard defi ned in paragraph e. above. This device
is commonly described as an Acme thread quick coupler.

g. If the propane-gas cylinder comes with a dust plug, place

the dust cap on the cylinder valve outlet whenever the
cylinder is not in use.

QUICK COUPLER OPERATION

To connect the regulator/hose assembly to the propane­gas cylinder valve fi tting: Press the hand nut on the regulator

over the Acme thread fi tting on the cylinder valve. Turn the hand
nut clockwise to engage the threads and tighten until snug.

SECURING THE PROPANE-GAS CYLINDER

The use of pliers or a wrench should not be necessary. Only
cylinders marked “propane” may be used.

To disconnect: Turn the hand nut counterclockwise until
detached (Fig. 13-1).

Important: Before using the unit, and after each time the

cylinder is removed and reattached, check
the hose for wear (see a.) and check all
connections for leaks. Turn off the unit valves
and open the main cylinder valve, then check
connections with soapy water. Repair any
leaks before lighting the unit.

CAUTION: Always turn the propane cylinder main valve

off after each use, and before moving the unit
and cylinder or disconnecting the coupling.
This valve must remain closed and the
cylinder disconnected while the appliance
is not in use, even though the gas fl ow is
stopped by a safety feature when the coupler
is disconnected.

Carefully inspect the hose assembly each time before the
gas is turned on. A cracked or frayed hose must be replaced
immediately.

If the appliance is stored indoors, the cylinder must be
disconnected and removed. Disconnected

cylinders must be

stored outdoors, out of the reach of children, with threaded
valve plugs tightly installed, and must not be stored in a

building, garage, or any other enclosed area.

FOR YOUR SAFETY

a. DO NOT store a spare propane-gas cylinder under or

near this appliance.

b. NEVER fi ll the cylinder beyond 80-percent full.
c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED

EXACTLY, A FIRE CAUSING DEATH OR SERIOUS
INJURY MAY OCCUR.

Fig. 13-1 Type I Acme thread quick coupler

QCC
Type 1
valve

Pressure
relief
valve

Hand wheel

Brass Acme
thread fi tting

Liquid level
indicator
(optional)

Hand nut with Acme
thread

Regulator

Vent

Hose

Tighten

Connect
to supply

Fig. 13-2

1. Set the propane-gas

cylinder into the support
sleeve.

2. Follow the instructions

Fig. 13-3 Fig. 13-4

above to connect supply.

3. Tighten the thumb screws to secure

the cylinder.

13

U

L

UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE

IMPORTANT POUR VOTRE SÛRETÉ

LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.

En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.

LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.

CYLINDRE ET CONDITIONS ET
CARACTÉRISTIQUES DE CONNECTEUR

a. Des cylindres et les valves de gaz de propane doivent être

maintenus en bon état et doivent être remplacés s’il y a
des dommages évidents au cylindre ou à la valve.

b. Ce gril, une fois utilisé avec un cylindre, devrait être relié à

un gallon de la norme 5 (20lb.) cylindre de gaz de propane
équipé d’un OPD (remplissez au-dessus du niveau le
dispositif d’empêchement). L’OPD a été exigé sur tous les
cylindres vendus depuis octobre 1.1998 pour empêcher le
remplissage excessif.

c. Les dimensions de cylindre devraient être approximativement

12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des
cylindres doivent être construits et marqués selon les
caractéristiques pour des cylindres de gaz de propane du
département des ETATS-UNIS du transport (D.O.T.) ou
le niveau national du Canada, du CAN/CSA-B339, des
cylindres, des sphères et des tubes pour le transport des
marchandises dangereuses.

d. Le cylindre doit inclure un collier pour protéger la valve

de cylindre et le circuit d’alimentation de cylindre doit être
assuré le retrait de vapeur.

e. Le montage du régulateur de pression et le fl exible (Fig. 14-1)

fourni avec cet appareil au gaz en plein air (modèles au
propane seulement) doit être utilisé. Assemblées d'origine et
régulateur de pression et le tuyau de remplacement doivent
être ceux spécifi és par le fabricant pour le raccordement d'un
dispositif de cylindre de liaison identifi ée comme de type I par
le 21.58-2005/CGA ANSI Z 1.6 à 2005 (voir liste des pièces
pour les informations de commande).

f. La valve de cylindre de gaz de propane doit être équipée

d’un dispositif d’accouplement de raccordement de
cylindre, décrit comme type I dans la norme défi nie dans le
e. de paragraphe ci-dessus. Ce dispositif est généralement
décrit comme coupleur rapide de fi l de point culminant.

g. Si votre cylindre de gaz de propane vient avec une prise

de la poussière, placez le bouchon anti-poussière sur la
sortie de valve de cylindre toutes les fois que le cylindre
n’est pas en service.

OPÉRATION DE COUPLEUR RAPIDE

Pour relier le regulator/hose à l’ajustage de précision de
valve de cylindre de gaz de propane: Serrez l’écrou de main

sur le régulateur au-dessus de l’ajustage de précision de fi l
de point culminant sur la valve de cylindre. Tournez l’écrou de

main dans le sens des aiguilles d’une montre pour engager les
fi ls et pour serrer jusqu’à ce que douillettement. L’utilisation des
pinces ou de la clé ne devrait pas être nécessaire. Seulement
le propane marqué par cylindres doit être employé.

Pour débrancher: Tournez l’écrou de main dans le sens
contraire des aiguilles d’une montre jusqu’à isolé (fi g. 14-1).

Important: Avant d’employer le gril, et ensuite chaque

fois que le cylindre est enlevé et rattaché,
examinez tous les raccordements pour déceler
les fuites. Arrêtez les valves de gril et ouvrez
la valve principale de cylindre, puis vérifi ez
les raccordements avec de l’eau savonneux.
Réparez toutes les fuites avant d’allumer le gril.

ATTENTION: Tournez toujours la valve principale de cylindre

de propane au loin après chaque utilisation,
et avant de déplacer le gril et le cylindre, ou
débrancher l’accouplement. Cette valve doit
rester fermée et le cylindre a débranché alors
que l’appareil n’est pas en service, quoique
l’écoulement de gaz soit arrêté par un dispositif
de sûreté quand le coupleur est débranché.

Inspectez soigneusement l’ensemble de tuyau chaque fois
avant que le gaz soit allumé. Un tuyau fi ssuré ou effi loché doit
être immédiatement remplacé.

Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected
et a enlevé. Des cylindres Disconnected doivent être stockés
dehors, hors de la portée des enfants, avec les prises de valve
fi letées étroitement installées, et ne doivent pas être stockés dans

un bâtiment, le garage, ou n'importe quel autre secteur inclus.

POUR VOTRE SÛRETÉ

a. Ne stockez pas un cylindre de gaz disponible de propane

dessous ou ne vous approchez pas de cet appareil.

b. Ne remplissez jamais cylindre au delà de 80 pour cent de

plein.

c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE

EXACTEMENT, UN FEU CAUSANT LA MORT OU DES
DOMMAGES SÉRIEUX PEUT SE PRODUIRE.

Fig. 14-1 type coupleur rapide de fi l de point culminant d’I

Volant de commande

QCC
Type 1

Valve

Valve
de
décompression

1

Ajustage de précision
en laiton de fi l de
point culminant

4

Indicateur
de niveau
de liquide
(facultatif)

3

2

Écrou de main avec le
fi l de point culminant.

Régulateur

Passage

Tuy au

FIXATION DU CYLINDRE DE GAZ DE PROPANE

Renforcer

Connectez-vous

à fournir

Fig. 14-2

1. Ensemble cylindre-

propane gaz dans le
manchon de support.

2. Suivez les instructions

Fig. 14-3 Fig. 14-4

ci-dessus pour connecter
l’alimentation.

3. Serrer les vis de serrage pour fi xer

le cylindre.

14

INSTALLATION

LOCATION PREPARATION

Prepare a fl at, level surface capable of supporting the
weight of the stand-alone grill and convenient to the gas
supply if connecting to a gas line.

WHEELS AND CASTERS

INSTALLATION

To lock a caster press down on the left lever until it stops
and the caster will not turn. To unlock, press down on the
right lever.

CONNECT THE GAS SUPPLY

For connecting a propane unit to a portable propane tank,
read the safety warnings and follow the instructions in the
section SAFE USE AND MAINTENANCE OF PROPANE
GAS CYLINDERS.

For household propane or natural gas units:

1. Turn OFF the gas supply at the source. The quick

disconnect hose is pre-installed on the valve manifold
at the manufacturer. Run the hose through the hole
in the bottom rear of the stand-alone unit, to the gas
supply.

2. A shut-off valve is required within 6 feet of the unit.
If shut-off valve is connected to end of gas supply

stub:

• Connect the quick disconnect hose to the shut-off
valve (see Fig. 15- 2). Tighten securely.

LOCK

UNLOCK

Fig. 15-1 Lock/unlock wheels

Flare adaptor

(use on gas

supply stub only

if shut-off valve

installed in-line)

(coming from unit)

Fig. 15-2 Connecting to a gas line

Quick

disconnect hose

Shut-off valve

(required, not

included, must be

installed within 6

feet of the unit)

Gas supply

If shut-off valve is installed in-line:

• Install the supplied fl are adapter to the gas supply
using a pipe joint compound resistant to all gasses
(see Fig. 15- 2). Tighten securely.

• Connect the quick disconnect hose to the fl are
adapter (see Fig. 15- 2). Tighten securely.

3. Turn all burner valves to the OFF position. Turn the gas

supply on. Then carefully check all gas connections
for leaks with a brush and soapy water before lighting.
NEVER USE A MATCH OR OPEN FLAME TO TEST
FOR LEAKS.

15

INSTALLATION (cont.)

INSTALL THE FLAVOR GRIDS

Place the fl avor grids directly onto the studs on the burners.
See Fig. 16-1. The fl avor grids allow heat from the burners
to be evenly distributed throughout the cooking area. They
are stainless steel and will heat and cool quickly, making
your grill very responsive to the changes you specify in grill
temperature. They are rust resistant and may be cleaned
with standard oven cleaners. Some discoloring will be seen
with use. This is normal for stainless steel and does not
affect the function.

Place onto studs

Fig. 16-1 Install fl avor grids

16

RIGID SHELF INSTALLATION

This barbecue comes with one rigid shelf that must

This barbecue comes with two rigid shelves that must be

This barbecue comes with two (2) rigid shelves that
be attached. It can be attached using the four support

attached. These can be attached using the four support

must be attached. These can be attached using the
screws provided and a Phillips-head screwdriver.

screws provided and a Phillips-head screwdriver.

four support screws provided and a Phillips-head
screw driver.

Important: Take caution to not cross-thread
Important:

1. Insert the top two screws into the side of the

barbecue and screw them in about half way.

1. Hold the shelf inverted so that one of the corner

holes in the shelf lines up with the appropriate

2. Line up the larger, bottom portion of the two

upper screw hole in the barbecue.

keyhole openings with the two top screws and fi t

2. Insert the screw, but do not tighten all the way so

the two keyhole openings over the two screws.

that the shelf can be easily rotated around the fi rst

With the shelf pushed all the way against the

screw.

side of the barbecue, lower the shelf so that the
screws lock into the narrower, upper portions of

3. Line up the second corner hole in the shelf with

the keyholes.

the remaining upper screw hole in the barbecue.
Insert a screw and tighten.

Note: The shelf will now stay in place on it’s

Note: You may lift the edge of the shelf upward

3. Insert the bottom two screws into their holes and

tighten them all the way.

4. Finally, insert the bottom screws on the left and right

4. Finally, tighten the upper two screws,

side of the shelf and securely tighten all screws.

completely.
To detach, reverse the process above.
To detach, reverse the process above.

when tightening the screws.

Take caution to not cross-thread

when tightening the screws.

own.

to gain better access during much of the
tightening of this screw.

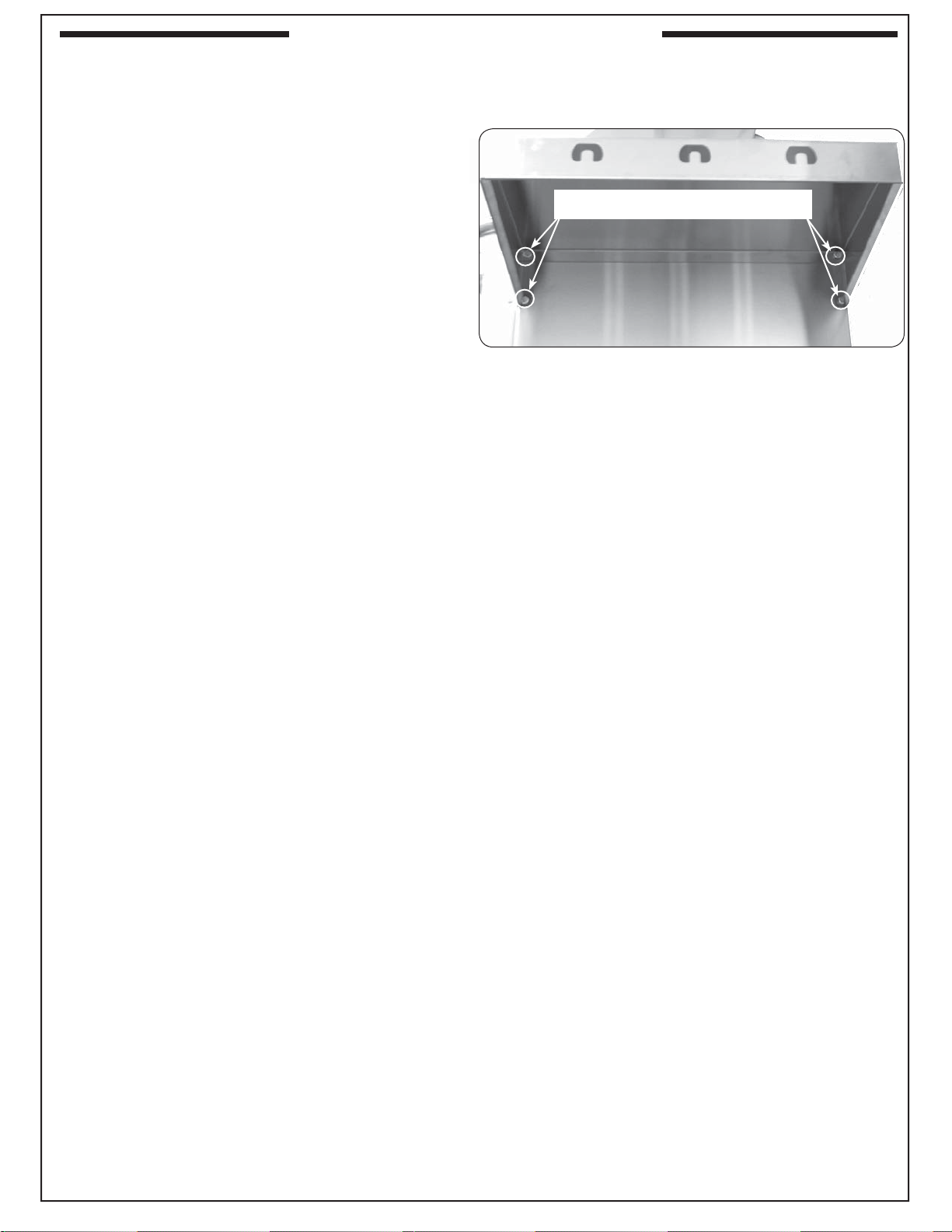

Shelf support screws

View from under right shelf

17

IDENTIFICATION OF GRILL CONTROLS

Control panel

screw(s)

Left
main burner
control knob

Control panel

screw(s)

Right

main burner

control knob

Battery box

Drip tray

Fig. 18-1

C430 controls

Center main burner

control knob

Right
main burner
control knob

Left
main burner
control knob

Battery box

Drip tray

Fig. 18-2

C540 controls

18

USE, CARE, & SERVICE

Read all instructions before lighting, and follow these instructions each time you light the unit.

LIGHTING (IGNITION) INSTRUCTIONS

ELECTRONIC LIGHTING

Note: Electronic lighting requires an installed 9-volt

battery with a good charge.

1. Open lid(s) or remove cover(s) from burner(s) to be lit.

2. Turn all gas control knob(s) to their OFF position(s).

3. Turn on the gas at its source.
Note: DO NOT

Read setting here

Read setting

(OFF position shown)

TURN OFF

To Turn OFF

TO

Press
knob in
to turn

Fig. 19-1 - Control knob

here

OFF

LOW

To Turn ON

TO TURN ON

LIGHT

HI

HIGH to

Use

LIGHT

HI (high)
to light

4. Depress the desired control knob for 5 seconds,

then, while pressing turn it counterclockwise to the
HI LIGHT position. Once the burner lights, release
the knob.

turn on more
than one valve at
a time for either
electronic or
manual lighting.

MANUAL LIGHTING

CAUTION: Always wait fi ve (5) minutes for gas to

clear after any unsuccessful lighting
attempt.

1. Follow steps 1 through 3 (left).

2. Insert either a burning long-barrel butane lighter or

2. Insert either a burning long-barrel butane lighter, a

a burning long-stem match through the cooking grid

burning long-stem match, or a burning match held
opening to the top of the lighting tube. (Fig. 19-2).

by a wire extension holder through the cooking grid
For backburners, hold the flame

opening to the top of the burner (Fig. 19-2).
against the surface of the backburner.

3. While holding the match or lighter fl ame at the top

For sideburners, hold the fl ame against the burner.
of the burner, depress the control knob and while

3. Hold the match / lighter fl ame at the top of the lighting

pressing turn it counterclockwise to the HI LIGHT
tube for 5 seconds, or, next to the sideburner /

position. Remove the lighter or match when the
backburner. Then depress the appropriate control

burner lights, and release the control knob.
knob and while pressing turn it counterclockwise to

4. If the burner does not light within fi ve (5) seconds
the HI LIGHT position. Remove the lighter or match

of turning the control knob, immediately depress
when the burner lights, and release the control knob.

the knob and turn the valve to OFF. WAIT FIVE

4. If the burner does not light within fi ve (5) seconds

(5) MINUTES before repeating steps 2 through 4 of
of turning the control knob, immediately depress

the MANUAL LIGHTING instructions.
the knob and turn the valve to OFF. WAIT FIVE

(5) MINUTES before repeating steps 2 through 4 of
the MANUAL LIGHTING instructions.

CAUTION: If a burner does not light within fi ve (5)

seconds of turning on the control knob,
depress the knob and turn it to the OFF

position. WAIT FIVE (5) MINUTES
before repeating step 4. If you smell
gas, follow the instructions on the cover
of this manual. If the burners still do not
light after several attempts, refer to the

instructions for manual lighting.

5. Repeat step 4 for each additional burner to be lit.

REPLACING IGNITOR BATTERIES

To replace the 9V battery powering the ignitors, pull out
the battery holder located on the outside of the control
panel. Remove the old battery and replace it connecting
the new battery. Replace the drawer (see Fig. 19-3).

WHEN USING A PORTABLE PROPANE TANK

Propane tanks are equipped with a safety shutdown
device that may cause low or no gas pressure/fl ame
at the burners if operating and lighting instructions
are not followed exactly (See important note in the
TROUBLESHOOTING section for more details.)

Lighting

tube

Lighter

Fig. 19-2 - Manual lighting

SHUTTING OFF THE UNIT

To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.

Always close the valve from the gas supply after each
use of the unit.

19

Fig. 19-3

ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)

Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le unité.

ÉCLAIRAGE ÉLECTRONIQUE

Note: L’éclairage électronique exige une batterie installée

de 9 volts avec une bonne charge.

1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs

pour être Lit.

2. Tournez tous les boutons de commande de gaz à leurs

positions de repos.

3. Allumez le gaz à sa source.

Lisez l’établissement ici

Read setting

(OUTRE de montrer)

here

TURN OFF

OUTRE DE

TO

Enfoncez
le bouton
pour
tourner

Fig. 20-1 - bouton de commande

OFF

LOW

TO TURN ON

LIGHT

HI

SUR

HIGH to

Utilisation

LIGHT

SALUT
(haute)
à la lu­mière

4. Diminuez le bouton de commande désiré pendant 5

secondes, puis, et tout en pressant le tour il dans le sens
contraire des aiguilles d’une montre dans la position
LÉGÈRE de HI. Une fois que le brûleur s’allume, libérez
le bouton.

Note: N’ouvrez
pas plus d’une
valve à la fois
pour l’éclairage
électronique ou
manuel.

ÉCLAIRAGE MANUEL

ATTENTION: Attendez toujours cinq (5) minutes le gaz

pour se dégager après que n’importe quelle
tentative non réussie d’éclairage.

1. Suivez les étapes 1 à 3 (à gauche).

2. Insérez un allumeur brûlant de butane de long-baril, une

2. Passez un allumeur brûlant de butane de long-baril ou

allumette brûlante de long-tige, ou une allumette brûlante

une allumette brûlante de long-tige dans la grille à cuire
s’ouvrant au dessus du tube d’éclairage. (Fig. 20-2). Pour

tenue par un support de prolongation de fi l par la grille à
des backburners, tenez la fl amme contre le surface du

cuire s’ouvrant au dessus du brûleur (fi g. 20-2).
backburner. Pour des sideburners, tenez la fl amme contre

3. Tout en maintenant le match ou fl amme du briquet au
le brûleur.

dessus du brûleur, appuyez sur le bouton de commande

3. Vieux match / fl amme d’un briquet à la partie supérieure

et en appuyant son tour dans le sens antihoraire à la
du tube d’éclairage pendant 5 secondes, ou, à côté de la

position HI LIGHT. Enlevez l’allumeur ou assortissez
brûleur latéral / veilleuse. Puis appuyer sur le bouton de

quand le brûleur s’allume, et libérez le bouton de
contrôle approprié et en appuyant tourner dans le sens
commande.
antihoraire à la position HI LIGHT. Retirez le briquet ou

des allumettes quand le brûleur s’allume, puis relâchez

4. Si le brûleur ne se allume pas dans les cinq (5)
le bouton de commande.

secondes de tourner le bouton de commande, enfoncez
immédiatement le bouton et tournez la valve à AU LOIN.

4. Si le brûleur ne se allume pas dans les cinq (5)
ATTENDEZ CINQ (5) MINUTES avant de répéter les

secondes de tourner le bouton de commande, enfoncez
étapes 2 à 4 des instructions manuelles d’éclairage.

immédiatement le bouton et tournez la valve à AU LOIN.
ATTENDEZ CINQ (5) MINUTES avant de répéter les
étapes 2 à 4 des instructions manuelles d’éclairage.

ATTENTION : Si un brûleur ne s’allume pas dans cinq

(5) secondes d’allumer le bouton de
commande, enfoncez le bouton et tournez­le à la position de repos. ATTENDEZ CINQ
(5) MINUTES avant de répéter l’étape 4. Si
vous sentez le gaz, suivez les instructions
sur la couverture de ce manuel. Si les
brûleurs ne s’allument toujours pas après
que plusieurs tentatives, se rapportent aux
instructions pour l’éclairage manuel.

5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.

REMPLACEMENT DES BATTERIES D’ALLUMEUR

Pour remplacer la pile 9V alimenter les allumeurs, retirez le
support de la pile situé à l’extérieur du panneau de commande.
Retirez la pile usagée et remplacez-la connecter la nouvelle pile.
Remplacez le tiroir (voir la fi g. le 20- 3).

EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF

Des réservoirs de propane sont équipés d’un dispositif
d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes
pression de gaz/fl amme aux brûleurs si le fonctionnement
et l’allumage des instructions ne sont pas suivis exactement
(voir la note importante dans la section de dépannage pour
plus de détails.)

Tube

d’éclairage

Plus léger

Fig. 20-2 - Éclairage manuel

ARRÊT DU UNITÉ

Pour couper le unité, diminuez chaque bouton de commande
de valve et tout en pressant tour il dans le sens des aiguilles
d’une montre à la position de repos.

Fermez toujours la valve de la fourniture de gaz après chaque
utilisation du unité.

20

Fig. 20-3

ACCESSORIES

GRILL BRUSH (optional)

Purchase a Fire Magic® stainless-steel grill brush (sold
separately) to keep your grill cleaner. It comes with
scraper for large particles and a replaceable head with
brass bristles for overall cleaning.

Fig. 21-1

Grill brush with replacement head

THE COOKING GRID LIFTER

Hold the grid lifter by gripping the center section with the
prongs pointing down (use an oven mitt or heavy glove
if the grill is hot). Insert the notched end of the grid lifter
into the cooking grid, in front of the midway point (front
to back; Fig. 21-3), and central (left to right; Fig. 21-4).
Twist the grill lifter (clockwise or counterclockwise) so
the handle is parallel to the grill rods. This “seats” the
spiked end of the grid lifter between two rods, enabling
you to safely lift out the grid. Lift slowly and adjust the
grid lifter, if necessary, for balance.

WARMING RACK (if equipped)

The warming rack (Fig. 21-2) is packed separately.

To install the warming rack, lift the front of the rack up
slightly and insert the rack hangers into the two holes
in the back of the inner oven hood. Then lower the front
of the rack into a level position to lock the rack in place.

To remove the warming rack, lift up on the front of the
rack until the rack hangers pull free from their supporting
holes.

Note: Removing the warming rack before using the

rotisserie will leave more clearance for the
meat being cooked. (if applicable)

Fig. 21-2 Warming rack in place inside oven

THE DRIP TRAY

The drip collection system allows you to brush or scrape
excess dried residue from the grilling area directly into
the drip tray (see the DRIP TRAY section for more
information).

THE FLAVOR GRID(S)

Place each fl avor grid directly over a burner. The solid
areas of the grid should rest over the tabs found on the
burner. See Fig. 21-5. The slightly larger grids are

designed to be placed over the outside burners,
and the slightly smaller grid(s) are designed to be
placed over the interior burner(s).

Note: This allows heat from the burners to be evenly

distributed throughout the cooking area. The
fl avor grids heat and cool quickly, making the
grill very responsive to changes in heat from
the burners.

Fig. 21-3

Placement of the grid lifter in cooking grid

Fig. 21-4

Fig. 21-5

Flavor grid

21

Fig. 22-2

Pull out the drip tray and place liner

FIRE MAGIC® DRIP TRAY

The drip collector allows you to brush or scrape
residue from the grill's inner liner into the drip
tray . Following the manufacturers instructions
and regular cleaning of the grill's interior with
oven cleaner, will help to prevent grease fi res.

Fig. 22-1

Fig. 22-3

Be sure liner fi ts under lighting instruction plate

Your grill includes a pack of four (4) Fire Magic

®

drip tray liners (Fig. 22-1). For your convenience
in cleanup, place a liner into the drip tray before
grilling.

To fi t a liner into the drip tray, pull out the tray and
set it on a fl at, level surface. Place the liner in the
drip tray as shown in Fig. 22-2 and carefully insert
the tray back under the control panel.

Note: Be sure that the liner is properly placed into

the drip tray. The front of the liner must fi t
under the drip tray's lighting instruction plate
(see 22-3 detail).

After each use, wait for the grill to cool and carefully
pull out the drip tray to check it. When a liner is
nearing full, carefully lift it out of the drip tray, lifting
with both hands to keep the tray level until it is safely
discarded. Then insert a new drip tray liner.

Order more drip tray liners through your local Fire
Magic® dealer.

Note: There are easy to follow lighting instructions

Note: The foil tray liner is also useful for setting on

etched onto the top of the drip tray handle.

burners to cover them and catch drippings
directly during rotisserie only cooking.

Note: For models with match holders attached

inside the drip tray, place the match holder
off to one edge of the pan (Fig. 22-3). If
necessary, mold the foil liner around them
and the other features of the tray to create
enough clearance space to open and close
the tray without catching the liner.

22

CARE & CLEANING

APPLIANCE MUST BE COMPLETELY COOL WHEN
CLEANING. DO NOT SPRAY ANY CLEANER OR
LIQUIDS ON THE APPLIANCE WHEN HOT.

The appliance must be cleaned as often as once a month
(depending on use) to prevent grease build-up and other
food deposits.

INTERIOR

THE BURNER PORTS MUST BE KEPT CLEAN TO
ENSURE PROPER IGNITION AND OPERATION.

Remove the burner (see orifi ce changing instructions)
and clean the ports and slots as required. (For Fire Magic
grills use Maintenance Kit part #MK-1.) Also inspect and
clean the burner inlet for insects and nests. A clogged
burner can lead to a fi re in the bottom of the appliance.

The inside of the appliance may be cleaned periodically
with oven cleaner if desired. Follow the oven cleaner
instructions for proper use.

Be careful not to get oven cleaner on the outside surface
of the appliance as it can permanently damage the fi nish.

EXTERIOR

Stainless steel surfaces when exposed to temperatures
produced by the grilling process will change color. The
stainless steel will change color from silver to brown
and blue. This can be removed by using stainless steel
cleaner.

Clean your appliance by fi rst using grill cleaner to remove
grease and dirt. Always wipe with the grain (See Fig.
23-1). Next, use stainless steel cleaner to restore the
stainless steel color (Note: not for mirror fi nish). Finish
by wiping your appliance down using polish wipes. To

clean any mirror fi nish (if applicable), use a quality
brand glass cleaner only, not any of the cleaners
mentioned above.

If your appliance is installed in a seaside (salt air) or
poolside (chlorine) location, it will be more susceptible
to corrosion and must be maintained/cleaned more
frequently. Do not store chemicals (such as chlorine or
fertilizer) near your stainless steel appliance.

Wipe with grain

Fig. 23-1 - Wipe with grain

PROTECTING YOUR APPLIANCE FROM THE
WEATHER

An optional cover will protect your appliance when not
in use. (Allow to cool before covering.)

Please specify the model number and serial number
of your appliance when ordering a cover.

IMPORTANT

IN THE EVENT OF A GREASE FIRE, IMMEDIATELY
SHUT OFF THE MAIN GAS VALVE TO THE UNIT.
KEEP THE LID OPEN AND ALLOW THE FIRE TO
EXTINGUISH ITSELF. A THOROUGH INSPECTION
BY A TRAINED SERVICE TECHNICIAN SHOULD
BE CONDUCTED BEFORE FUTURE USE OF YOUR
UNIT. THE SERVICE TECHNICIAN WILL CHECK THE
SYSTEM FOR GAS LEAKS AND WILL CHECK ALL
ELECTRICAL WIRING FOR DAMAGE. ALL GAS
LEAKS AND WIRING MUST BE REPAIRED PRIOR
TO FUTURE USE.

Due to the nature of stainless steel, surface iron oxide
deposits may appear. Do not be alarmed – these deposits
are removable with stainless steel cleaner through prompt
and periodic maintenance. If not attended to promptly,
permanent pitting may occur.

By following these recommendations, you will enjoy the
beauty and convenience of your appliance for many years
to come.

23

CONVERTING THE GAS TYPE

CAUTION: Make sure the grill is at a safe temperature

and isolated from gas and electrical
supplies before beginning.

For your safety, exercise caution, and make sure you
have adequate hand protection, such as gloves, when
handling metal parts.

CONVERT LABEL

This grill comes from the factory confi gured for one type
of gas as marked on the label behind the control panel.

When the grill is converted, the label for the new gas
(included at original shipping) MUST be applied over
the old label mentioned above.

CONVERT REGULATOR

The gas regulator, located behind the control panel, must
be set for the type of gas used to fuel the grill. To check
the regulator setting, remove the cap in the center of the
regulator (Fig. 24-1, A). Holding the cap vertical (see
Fig. 24-1, B), the letters at the bottom of the plastic stalk
indicate the gas type for which the regulator is currently
confi gured.

If the text on the bottom of the regulator stalk does not
match the gas type connected to the grill, remove the
stalk from the cap, invert, and replace into center of cap.
Replace cap on the regulator, screwing down until snug.

A B

Natural-gas to propane-gas conversions using a
tank internal to a portable grill require installation
of a propane tank holder (not included). This tank
holder must be purchased separately from the
manufacturer.

CONVERT/CHECK MAIN BURNER ORIFICES

1. Remove the cooking grid and fl avor grid from

above the burner you are working and set them
aside.

2. Locate the burner. Slightly pinch and remove the

burner clip (located over the rear center of the
burner) from the burner support and set aside.

3. Carefully lift the burner from the burner support

and out from the hole in the forward fi re wall (see

24-2).

Fig.

3

4. Use a

orifi ce (Fig. 24-3). Check orifi ce. If needed, replace
it with the correct orifi ce for the new gas.

5. Replace the burner by first sliding the open

cylindrical end of the burner around the orifi ce,
enveloping it and centering on it, then lower the
back end anchor pegs into the anchor peg holes.

Note: It is critical to the continued safe functioning

6. Re-install the burner clip around the burner and

into the holes in the burner support.

/8" hex nut driver to remove the exposed

of the burner that the orifi ce is centered and
completely inside the burner gas inlet.

Read gas
type here

(LP shown)

Gas regulator cap

Invert if
needed

Fig. 24-1

CONVERT GAS ORIFICES

When converting the grill to a different gas type, each
burner’s orifi ce must be replaced with the corresponding
orifi ce for the new gas.

MODEL SPECIFICATIONS TABLE, Table 1 at the

See
beginning of this document to determine the proper
orifi ce sizes for each burner.

See the following section for details on orifi ce
conversion.

Important: It is critical to the operation of each

burner that its orifi ce be fully inserted
into the center of its orifi ce opening.

WARNING
HAZARDOUS OVERHEATING WILL OCCUR
IF A NATURAL-GAS ORIFICE IS USED WITH

PROPANE GAS.

7. Replace the fl avor grid and then the cooking grid

so that the cut-out section is in front.

8. Repeat these steps for each main burner.

Orifi ce

Fig. 24-2

Fig. 24-3

CONNECT TO NEW GAS SUPPLY

Plumb the unit as appropriate for the new gas supply.
(Additional components may be needed for your specifi c
setup.) Be sure to leak test at all connections.

24

BURNER AIR SHUTTER ADJUSTMENT

AIR SHUTTER ADJUSTMENT

Important: Air shutters are preset at the

factory based on the gas the grill is
built to burn. However, altitude or
other local conditions may require
air shutter adjustment for proper
combustion.

MAIN BURNER

Flames from a properly adjusted main burner with
no wind or breeze present will appear fairly steady,
consistent, and mostly blue. If the tip of a fl ame were
to turn orange, it should only do so briefl y and then
become blue again. The fl ames will appear to burn
while touching the burner ports (see Figure 25-1).

If the fl ames have orange in them and appear to
undulate slowly from side to side, or if some of them
appear to lift off the burner instead of touching it,
then adjust the air shutter, as instructed below.

Flame off ports

Flame on ports

1. Follow the safety precautions and steps for

main burner removal
in the CHANGING
THE MAIN BURNER
ORIFICES section
(steps 1-2).

Air shutter

2. Adjust the air shutter

opening by loosening
the adjustment screw
with a screwdriver,

Fig. 25-2

Locking

screw

then turn the air
shutter to open or close it (see Fig. 25-2).

Shutter Setting Flame Condition

Open too far

Ideal setting

Closed too far

Flames shorten and
lift off the burner

Blue fl ames just
touching burner

“Lazy” fl ames with
orange in them

Fig. 25-1 - Flame appearance diagram

CAUTION: Turn all burner control knobs to the

OFF position and turn off the gas

supply at the source before removing
or adjusting a burner.

WARNING

Wait for the burner to be cool or use heavily insulated

heat-resistant gloves when handling the burner.

Too large an air shutter opening will allow too much
air into the burner, which will cause the fl ames fi rst
to shorten and then to appear to lift up off the ports.
For the bottom of the fl ames to move closer to the
ports, close the air shutter more.

If the air shutter opening is too small or closed, the
fl ames will present consistently orange tips and
become “lazy,” slowly undulating back and forth.

For propane gas, ideal settings tend to be just
slightly open. For natural gas, which generally
requires less primary air than propane, the main
burner air shutter may be nearly closed.

3. Adjust the air shutter opening and then replace

the burner.

4. Follow the lighting instructions in this manual to

light the burner.

5. Repeat steps 1-4 until the fl ames appear to

touch the burner ports, burning fairly steadily
and mostly blue (see Fig. 25-1).

6. Replace the burner, burner clip, fl avor grid,

and cooking grid (see CHANGNG THE MAIN
BURNER ORIFICE section, steps 4-5).

Repeat these steps for each main burner.

25

CONTROL PANEL REMOVAL

To remove the control panel:

1. Turn the control knobs to the OFF position and turn off the gas supply to the unit.

2. Remove the drip tray .

3. Pull the control knobs from the stems and set aside .

4. Using a Phillips screwdriver, unscrew and remove the control panel fastener screws and washers

(located on the left and right front face of the control panel). Retain the screws for later re-installation .

5. Carefully open the control panel by lifting and pulling the control panel from the frame , allowing it to

rest on the internal chain(s).

Important: During reinstallation; prior to opening the gas shutoff valve , be sure the control knobs are

in the OFF position.

26

TROUBLESHOOTING

If you have trouble with this Fire Magic® unit, please use this list to identify the problem. By trying one or more of the
solutions to the possible cause, you should be able to solve the problem. If this list does not cover your present problem,
or if you have other technical diffi culties with the unit, please contact your local Fire Magic® dealer or visit our web site at

www.rhpeterson.com.

PROBLEM POSSIBLE CAUSE CORRECTION

Ignition system

failure

Insuffi cient heat /

low fl ame

Uneven heating

Burner goes out on

LOW

1. Low battery.

2. Improper air shutter adjustment

3. Ignition wire disconnected

4. Low gas pressure

5. Ignitor malfunction

6. Ignitor switch malfunction on valve

1. Improper air-shutter adjustment

2. Using propane orifi ce for natural gas

3. Low gas pressure/flame (propane)

4. Low gas pressure/fl ame (natural)

5. L.P. regulator hose cracked due to age

1. Burner ports partially blocked by debris

2. Small spiders or insects in burner

3. Improper air shutter adjustment

1. Valve “Low” setting needs adjustment

1. Replace ignitor battery.

2. Adjust air shutters.

3. Plug wires back into ignition switches.

4. Have the gas co. check supply pressure.

5. Contact dealer for replacement.

6. Contact dealer for replacement.

1. Adjust air shutters.

2. Check/change orifi ces.

3. Shut off all valves, including propane tank,
and follow lighting instructions exactly.
(See important note* below.)

4. Have the gas co. check pressure at unit.

5. Replace L.P. regulator hose.

1. Remove burners and clean out ports.

2. Inspect burners and orifi ces for spider webs
or other debris that may block fl ow.

3. Adjust air shutter.

1. Light burner on HIGH, immediately turn to
LOW setting. Remove knob from valve and
using a small fl at screwdriver, slowly turn
the adjustment screw in the stem, a little at
a time (30° to 45°), in either direction, until
the fl ame is approximately

1

/4” in height

from burner ports.

Table 2

* Important: Propane tanks are equipped with a safety shutdown device that may cause low or no gas/fl ame

at the burners if operating and lighting instructions are not followed exactly. If you suspect the
propane tank safety shutoff is in effect, shut off all burner control valves and the propane tank
valve. Then read and follow the LIGHTING INSTRUCTIONS exactly. Lighting instructions are
located in your owner’s manual and printed on the unit’s metal drip tray. If the problem persists,
continue troubleshooting, or contact your local dealer or R. H. Peterson for assistance.

27

WARRANTY

PETERSON FIRE MAGIC GRILLS AND ACCESSORIES

LIMITED WARRANTY

Robert H. Peterson Co. ("RHP") warrants your Fire Magic® grill to be free from defects in material and workmanship.
Fire Magic

your Fire Magic® grill -- LIFETIME. (Except as noted below.)
Fire Magic Choice stainless steel tubular burners are warranted for TWENTY (20) YEARS.
Fire Magic

warranted for FIFTEEN (15) YEARS.
Fire Magic
Fire Magic

charcoal pan, charcoal grid, wood pellet screen, thermometer, and ash tray; which are warranted for ONE (1) YEAR.
Fire Magic

YEARS.
Fire Magic

warranted for ONE (1) YEAR.

This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained
as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall
terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.

This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,
use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,
lack of required routine maintenance (as specifi ed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure to
protect against combustibles. Product must be installed (and gas must be connected) as specifi ed in the Owner’s Manual/Installation Instructions by
a qualifi ed professional installer. Modifi cations to products which are not specifi cally authorized will void this warranty. Accessories, parts, valves,
remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.
This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.

This warranty does not cover labor or labor related charges, except as provided by separate specifi c written programs from the Peterson Co. All repair
work must be performed by a qualifi ed professional service person and requires prior approval of Peterson.

Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if
the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer
if the damage is determined to have occurred during that shipment.

This warranty specifi cally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specifi ed legal rights, and
you may have other rights that vary from state to state or province.

For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.

®

cast stainless-steel burners, stainless-steel rod cooking grids, and stainless-steel housings are warranted for as long as you own

®

cast brass burners, brass valves, inner liners, manifold assemblies, and backburner assemblies (except ignition parts) are

®

Electric Grills, including stainless steel grid, and housings are warranted for TEN (10) YEARS.

®

Infra-red burners, fl avor grids, Charcoal stainless steel grills, and Smokers are warranted for FIVE (5) YEARS; except for the

®

sideburners and all other Fire Magic® grill components (except ignition and electronic parts) are warranted for THREE (3)

®

ignition systems (excluding batteries), electronic components (including lights and thermometers), and grill accessories are

A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED

TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,

AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.

Quality Check Date:_________________

Burner Orifi ces Nat. L.P. Leak Test: ___________ Model#: ___________________
Main: ____ ____ Burn Test: ___________ Serial#: ___________________
Other: ____ ____ Gas Type:

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

Nat. / L.P. Air Shutter: ___________________

Inspector: ___________________

28
