Fire Magic 32884-1P User Manual

DOUBLE SEARING STATION

diamond series

32884-1(P)

INSTALLATION AND OPERATING

INSTRUCTIONS

INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.

Important: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION

WARNINGS AND SAFETY CODES

DANGER:

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open fl ame.

3. Open lid.

4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or the fi re department.

CODE AND SUPPLY REQUIREMENTS: This appliance
must be installed in accordance with local codes and
ordinances, or, in the absence of local codes, with the
latest National Fuel Gas Code (ANSI Z223.1/NFPA

54), or Natural Gas and Propane Storage and Handling
Installation Code (CSA-B149.1).

This appliance and its dedicated manual shutoff valve
must be disconnected from the gas-supply piping

system when testing the syst

excess of ½ psig (3.5 kPa).
This appliance must be isolated from the gas-

supply piping system by closing its dedicated
manual shutoff valve during any pressure testing
of the gas-supply system at pressures up to and
including ½ psig (3.5 kPa).

em at pressures in

Proper operation of your appliance

WARNING:

1. Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.

2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.

WARNING:

Improper installation, adjustment, alteration,
service, or maintenance can cause injury or
property damage. For proper installation, refer
to the installation instructions. For assistance
or additional information, consult a qualifi ed
professional installer, service agency, or the

gas supplier.

All electrical outlets in the vicinity of the appliance
must be properly grounded in accordance with local
codes, or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.1, whichever

is applicable.
Keep all electrical-supply cords and fuel-supply

hoses away from any heated surface.

requires prompt and periodic
maintenance. See the CARE &
CLEANING section for details.

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746 Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

REV 2 - 1502100955

Certifi ed to: ANSI Z21.58b-2012
CSA 1.6b-2012

09-41

1

L-C2-379

SÛRETÉ ET CODES D’AVERTISSEMENT

INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE

DANS LE CONTRE- DOUBLE SEARING STATION

DANGER:

SI VOUS SENTEZ LE GAZ :

1. Coupez le gaz à l’appareil.

2. Éteignez-vous n’importe quelle fl amme nue.

3. Ouvrez le couvercle si équipé d’un four.

4. Si l’odeur continue, gardez loin de
l’appareil et appelez immédiatement
votre département de fournisseur ou de
feu de gaz.

CONDITIONS DE CODE ET D’APPROVISIONNEMENT:

Ce gril doit être installé selon des codes et des ordonnances
locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre
le plus défunt Code national de gaz de carburant (norme ANSI
Z223.1/NFPA 54), et Stockage de gaz naturel et de propane
et manipulation du code d’installation (CSA-B149.1).

Cet appareil et ses différents robinets d’isolement doivent être
démontés du gaz-fournissent le système siffl ant en examinant
le système aux pressions au-dessus du ½ psig (kPa 3.5).

Cet appareil doit être isolé dans gaz-fournissent le système
siffl ant par fermeture que ses différents robinets d’isolement
manuels pendant tous les essais sous pression du gaz­fournissent le système aux pressions jusques et y compris
le ½ psig (kPa 3.5).

• Ce gril est pour ultilisation à l’extérieur seulement. Si
l’appareil est entreposé à l’intérieur, enlever les bouteilles et
les laisser à l’extérieur.

• Ne pas ranger le gril immédiatement aprés l’avoir utilisé.
le laisser refroidir avant de le déplacer ou de la ranger. Le
non respect de cette mesure de sécurité pourrait entraîner un
incendie causant des dommages à la propriété, des blessures
ou la mort.

• Ne pas utiliser cet appareil sous une surface combustible.

• Ne pas utiliser cet appareil sous un auvent. Le non respect
de cette mesure de sécurité pourrait entraîner un incendie ou
des blessures.

• Dégagement minimal entre les parois latérales et l’arriére
de l’appareil et la construction combustible (45.7 cm à partir
des parois latérales et 45.7cm à partir de l’arriére).

• Le régulareur de pression de gaz prévu avec cet appareil
de cuisson à gaz pour l’extérieur doit être utilisé. Ce régulateur
est réglé pour une pression de sortie de 5 pouces de colonne
de l’eau pour le gaz naturel, et 10 pouces pour le propane.

• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ
POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE CARRÉ).
SI VOTRE OFFRE DE GAZ EST 1/2 PLUS GRAND QUE
(LIVRES PAR POUCE CARRÉ), UN RÉGULATEUR
ADDITIONNEL DOIT ÊTRE INSTALLÉ AVANT LE GRIL. VOIR
LA SECTION DE CONDITIONS D’OFFRE DE GAZ POUR
LA PRESSION APPROPRIÉE D’OFFRE DE GAZ.

AVERTISSEMENT:

1. Ne stockez pas ou n’employez pas
l’essence ou d’autres vapeurs et liquides
infl ammables à proximité de ceci ou
d’aucun autre appareil.

2. Un cylindre de propane non relié pour
l’usage ne sera pas stocké à proximité
de ceci ou d’aucun autre appareil.

AVERTISSEMENT:

L’installation inexacte, l’ajustement,
le changement, le service, ou l’entretien
peuvent causer des dommages ou des dégats
matériels. Référez-vous à ce manuel. Pour
l’aide ou l’information additionnelle, consultez
un installateur professionnel qualifi é, l’agence

de service, ou le fournisseur de gaz.

Toutes les sorties électriques à proximité du gril doivent être
correctement fondues selon des codes locaux, ou en l’absence
de local code, avec le code électrique national, ANSI/NFPA
70, ou le code électrique canadien, CSA C22.1, celui qui est
applicable.

Maintenez tout électrique-fournissent des cordes et carburant­fournissent des tuyaux partis de n’importe quelle surface de
chauffage.

• Ne couvrez jamais la surface entière de cuisine ou de gril
de gauffreuses ou de casseroles. La surchauffe se produira et
les brûleurs ne seront pas très performants quand la chaleur
de combustion est emprisonnée au-dessous de la surface à
cuire.

• Ne pulvérisez jamais l’eau sur une unité chaude de gaz,
comme ceci peut endommager des composants de porcelaine
ou de fer de fonte.

• Une fuite de GPL peut causer une incendie ou une
explosion si enfl ammée entraînant des blessures corporelles
graves ou la mort.

• Communiquez avec le fournisseur de GPL pour les
réparations ou pour disposer de qules bouteille ou du GPL
non utilisé.

Certifi é à la norme: ANSI Z21.58b-2012
CSA 1.6b-2012

INSTALLATEUR : Laissez ces instructions avec le consommateur.

CONSOMMATEUR : Maintenez pour la future référence.

REV 2 - 1502100955

2

L-C2-379

CONTENTS

1 WARNINGS AND SAFETY CODES
3 CAUTION
4 DOUBLE SEARING STATION PARTS LIST
5 COUNTERTOP OVERHANG
5 MODEL SPECIFICATIONS
6 SUBSTRATE
6 DOUBLE SEARING STATION DIMENSIONS TABLE
7 DOUBLE SEARING STATION WIRING DIAGRAM
8 DOUBLE SEARING STATION FLAME PATTERN
8 ELECTRICAL CONNECTIONS
8 LIGHT SWITCH
8 MAINTENANCE AND SAFETY INFORMATION
9 INSTALLATION REQUIREMENTS
10 EXHAUST REMOVAL
10 ENSURE PROPER COMBUSTION AIR AND COOLING AIRFLOW
10 GAS-SUPPLY PLUMBING REQUIREMENTS
11 NATURAL GAS INSTALLS
11 PROPANE GAS INSTALLS (HOUSEHOLD & CYLINDER)
11 WHEN A PROPANE CYLINDER IS USED
11 ENCLOSURE REQUIREMENTS
12 COUNTER PREPARATION
12 CONNECT THE GAS SUPPLY
12 INSTALLATION
13 CONNECT TO A POWER SOURCE
14 POWER SUPPLY (MULTIPLE ACCESSORY UNITS)
15 SLIDE UNIT INTO ENCLOSURE
15 ELECTRICAL SAFETY
16 CONVERTING THE GAS TYPE
17 SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS
19 LIGHTING (IGNITION) INSTRUCTIONS
21 INFRARED BURNER OPERATION
22 CARE & CLEANING
23 CHECKING AND CONVERTING THE REGULATOR
23 CHECKING AND CONVERTING GAS TYPE
24 CONTROL PANEL REMOVAL
25 TROUBLESHOOTING
26 WARRANTY

CAUTION

Do not strike or scrape the ceramic portion of the burners with hard tools, as the material may crack,
chip, or break. Prevent any grease, water, or other foreign material from getting into the ceramic portion
of the burners, especially when cold. Always wait for the burners to heat up to a well-distributed red glow
before placing food on the cooking grid. When a burner is hot, it will vaporize small amounts of grease
that drip on it. Always cover the burners when not in use. Keeping the ceramic portion of the burners free
of foreign substances will allow the gas to circulate and burn over the entire heating surface, allowing for
powerful and even cooking over the life of the burners.

REV 2 - 1502100955

3

L-C2-379

DOUBLE SEARING STATION PARTS LIST

Description Part No. Qty.

1. Double searing station lid 3288-07 1

2. Stainless-steel grid 3554-S 1

3. Burner assembly with ignitor 3051 2

4. Control panel 23288-09 1

5. Valve manifold assembly 3288-22 1

6. Control knob 24182-42 2

7. Lighted bezel assembly 24182-44 2

8. Drip tray assembly with match holder 3089 1

9. Convertible regulator PR-4 1

10. Light switch 24182-46 1

11. Ignitor assembly 3199-72 2

12. Wire harness assembly

13. Wire harness extension ‡ 23278-12 1

14. Flex connector w/ fi ttings ‡ 3036 1

15. Natural gas orifi ce ‡ 3001-49-1 2
or Propane gas orifi ce ‡ 3001-56-1 2

16. Power supply w/ connector

Optional / purchased separately

*

‡ Not shown

‡ 24182-52 1

‡ 24187-18 1

*

2

1

12

3

5

4

7

6

9

8

REV 2 - 1502100955

10

4

L-C2-379

MODEL SPECIFICATIONS

MODEL SPECIFICATIONS TABLE

Table 1

Main burner N/P orifi ce drill size #49 / #56
Fire Magic insulating liner model # (not included)* 3278-51
Input electrical requirements

A Countertop to unit bottom cut-out* 12"
B Side to side cut-out* 19"
C Front to back cut-out*† 18-
D Control panel width cut-out‡ 20-1/4"

Note: If installing this unit in a combustible enclosure, the correct insulating liner must be used. Consult liner

*

†

Includes any substrate at front wall of enclosure (in the area the rear of the control panel is to sit fl ush against). See

SUBSTRATE section on next page.

‡

Only applicable for non-combustible enclosures that have countertops with an overhang (see illustration and section

below).

instructions for counter cut-out dimensions and installation.

120VAC / 15 AMP minimum / 60 Hz / GFCI outlet

3

/4"

Control

panel

TOP VIEW

ENCLOSURE

CUT-OUT

DIMENSIONS

C

Lower support

FRONT VIEW

A

B

D

See next page

for substrate

considerations

(Countertop)

Countertop

overhang

Countertop

overhang

(Control

panel)

Control

panel

TOP VIEW

(Countertop)

X

Y

1

/4"

Clearance

SIDE VIEW

Countertop

overhang

X= 5/8"
Y= Total
Countertop
Overhang

(Overhang)

Check
clearance for
control panel

removal

Fig. 5-1

COUNTERTOP OVERHANG

The control panel is designed to sit fl ush against the enclosure front wall. If the non-combustible enclosure countertop extends beyond
the front wall, creating a countertop overhang, it must be cut fl ush with the front wall for the width of the control panel or a gap will be
created exposing the forward portions of the left and right side fi re walls of the unit. See illustrations above.

Important: FOR YOUR SAFETY, you must provide openings in the island enclosure for drainage, replacement air, and cross-

ventilation of any storage area exposed to possible leakage from gas connections, the unit, or propane tanks. See the
ENCLOSURE REQUIREMENTS section for details.

REV 2 - 1502100955

5

L-C2-379

MODEL SPECIFICATIONS (cont.)

SUBSTRATE

When adding any substrate to the enclosure front wall (including tiles, stone, etc.), consider the following:

Substrate Behind Control Panel

Substrate + countertop "front to back" cutout
must equate to Dim. C (see previous page)
when the substrate sits fl ush behind the
control panel.

TOP VIEW TOP VIEW

(Countertop)

Substrate

Double

searing

station

liner

Flush

(Control panel)

Fig. 6-2 Fig. 6-3

(includes tiles,

etc. at front of

enclosure)

C

1

/4"

Clearance

Countertop

overhang

(if applicable)

Substrate Alongside Control Panel

Any additional substrate alongside the control panel
does not need to be considered in Dim. C (see previous
page), however a 1/4" clearance on each side (same as
overhang) and below is required.

(Countertop)

Substrate

Double

searing

station

liner

Flush

(Control panel)

(includes tiles,

etc. at front of

C

1

/4"

Clearance

enclosure)

Countertop

overhang

(if applicable)

DOUBLE SEARING STATION DIMENSIONS TABLE

Height Width Depth

(Top to bottom) (Left to right) (Front to back)

Top of hanger to

bottom of unit

(E)

12" 23" 23 3/4" 19 3/4" 24 3/4"

Top of hanger to

top of open lid

(F)

G

Hanger to hanger

(G)

Control panel

width

(H)

Maximum depth

(I)

F

I

E

REV 2 - 1502100955

H

Fig. 6-1

6

L-C2-379

Burner igniters

MODEL SPECIFICATIONS (cont.)

DOUBLE SEARING STATION WIRING DIAGRAM

Wire harness

extension

Wire harness

assembly

Burner

manifold

Ground wire

Lighted bezels

Light switch

harness

Light switch

Note: In addition, a wire diagram for this unit can also be found affi xed to

the inside of the control panel.

REV 2 - 1502100955

7

L-C2-379

MAINTENANCE AND SAFETY INFORMATION

1. The searing station and surrounding area MUST remain

clear of fl ammable substances such as gasoline, yard
debris, wood, etc.

2. The airfl ow through the vent space located below the

control panel must remain unobstructed.

blue). See FLAME PATTERN section below. If burner
fl ames are not normal, check and clean the orifi ce

and burner tube

s for insects and insect nests. A

clogged tube can lead to a fi re beneath the unit. A
proper fl ame pattern will ensure safe operation and
optimal performance.

3. When using propane gas:

5. The in-line gas valve or gas cylinder valve must always

a. The required ventilation openings in the

be shut OFF when the unit is not in use.

enclosure must be clear of debris.

6. Do not operate the burner with the lid

closed.

b. The propane cylinder, regulator, and rubber

hose must be in a location not subject to
temperature above 125° F (51° C).

7. Whenever reconnecting any wires, apply a small

amount of dielectric grease to the male connector,
then make the connection.

4. The fl ames on

each burner burn evenly along the

ceramic grid surface with a steady fl ame (mostly

WARNING: NEVER cover more than 75% of the cooking surface with griddles or pans. Overheating will occur, and

burners will not perform properly when combustion heat is trapped below the cooking surface.

CAUTION: NEVER spray water on a hot gas unit.

The unit serial identifi cation number is located on the underside of the drip tray handle. It

is recommended that the drip tray fi rst be removed and cleaned / emptied of its contents,

then turned over to view. The unit rating label is located on the inside of the control panel.

DOUBLE SEARING STATION FLAME PATTERN

A layer of fl ame may just be visible above the ceramic grid
of the searing station burner(s) especially around the edges.
The fl ame will initially appear mostly blue with perhaps a few
yellow fl ashes. Soon the red glow of the ceramic will be the
primarily visible color of the burner top. Though there may
be small areas of lesser or greater intensity, the overall red
color will become fairly even after about three to fi ve minutes.

ELECTRICAL CONNECTIONS

A 120VAC (15 AMP minimum) Ground Fault Circuit
Interrupter (GFCI) GROUNDED 3-wire receptacle (not

included) is required within the vicinity of the grill to provide
power to the unit.

• Observe all local codes.

• Verify proper polarity of the receptacle.

• If an extension cord is used, ensure it is a 3-wire
GROUNDED cord that is rated for the power of the
equipment, and is approved for outdoor use with a
W-A marking. DO NOT use 2-prong adapters.

• DO NOT TAMPER WITH THE EXTENSION CORD OR
THE UNIT POWER-SUPPLY CORD.

Fig. 8-1

LIGHT SWITCH

The light switch is push button operated, and is located on
the right side of the control panel (see Fig. 8-2). It controls the
power to the lighted knobs and igniters. It allows the power
to be turned on or off for safety and convenience. The switch
will need to be turned on prior to each use, and turned off
after each use.

REV 2 - 1502100955

8

Light

switch

Fig. 8-2

L-C2-379

INSTALLATION REQUIREMENTS

Installation must be performed by a qualifi ed professional service
technician.

This unit is designed for outdoor use only. DO NOT use this unit inside
a building, garage, enclosed area, or under an unprotected overhead
combustible construction.

See below and the EXHAUST REMOVAL section on the following
page for details on installing under overhead construction.

DO NOT use this unit in or on a recreational vehicle or boat.
Important: If installing this unit in a combustible surround, the correct

RHP insulating liner must be used.

Important: Refer to the information below to ensure all required

clearances are met.

The grill must have a minimum clearance of 18" from combustible
materials/items AT ALL TIMES.

Overhead Construction Requirements (if applicable)

Non-combustible overhead construction: A 6 foot clearance is required
between the countertop and the construction above (Fig. 9-1).

Combustible overhead construction: A 6 foot clearance is required
between the countertop and the construction above. A vent hood
(see EXHAUST REMOVAL section) or an RHP combustible overhead
protection kit is required directly above the unit. See Fig. 9-1. RHP vent

hoods and protection kits are available, contact your local dealer.

Combustible construction:

Requires vent hood or protection kit

Min.

Non-combustible construction:

6'

Okay as-is

Fig. 9-1 Overhead requirements

Non-combustible

Min.

4"

(Clearance required for

right, left, and rear)

Fig. 9-2 Clearance 'A' Diagram

Non-combustible

substrate

Non-combustible 4"

Side and Rear Wall Clearances

For the minimum clearances between the unit and any side or rear
walls, your setup must fall within one (or more) of the following:

A. Clearance between unit and strictly non-combustible wall

(i.e. brick wall, see Fig. 9-2)

• The unit must have a minimum of 4" right, left, and rear
clearance from any non-combustible wall.
(To allow for proper ventilation and prevent dangerous
overheating.)

B. Clearance between unit and a protected combustible wall

(i.e. a non-combustible wall in front of a combustible wall to serve
as a barrier. This can be accomplished by brick, or a metal stud
fi nished with non-combustible substrate, see Fig. 9-3)

• The unit must have a minimum of 14" right, left, and rear
clearance from the protected combustible wall.
(The 4" non-combustible material plus an additional 10"
clearance between the unit and protected wall.)

C. Clearance between unit and combustible wall

• The unit must have a minimum of 18" right, left, and rear
clearance from any combustible wall (see Fig. 9-4).

Min.

14"

(Clearance required for

right, left, and rear)

Fig. 9-3 Clearance 'B' Diagram

Combustible

Min.

18"

(Clearance required for

right, left, and rear)

Fig. 9-4 Clearance 'C' Diagram

Non-combustible

Backsplash

Com-

bustible

Backsplash Clearance (if applicable)

If a non-combustible backsplash exists, it must have a minimum of a
4" clearance from the rear of the unit (to allow for proper ventilation
and prevent dangerous overheating). See Fig. 9-5.

Important: This 4" backsplash clearance must fi rst be met prior to

any non-combustible walls beginning behind it.

REV 2 - 1502100955

9

Min.

4"

Fig. 9-5 Backsplash clearance

L-C2-379

INSTALLATION REQUIREMENTS (cont.)

The control panel MUST remain removable for servicing
(see PARTS LIST).

EXHAUST REMOVAL

If the unit is installed under an overhead structure that is
constructed of non-combustible material: an exhaust hood
is recommended. See below.

If the unit is installed under an overhead structure that is
constructed of combustible material: an exhaust hood is
required. See below.

Note: An alternative to an exhaust removing vent

hood is an RHP combustible overhead
protection kit. See previous page.

When using an exhaust hood:

The cooking grid area must be covered by an exhaust
hood (with a vent) larger than the cooking surface. Refer
to manufacturer specifi cations. An exhaust fan with a
rating of 1,000 CFM (cubic feet per minute) (472 liters
per second) or more may be necessary to effectively
remove smoke and other cooking by-products from the
area under the hood. RHP Vent Hoods are available,

contact your local dealer.
THIS UNIT MUST NOT BE LOCATED IN A FULLY

ENCLOSED AREA OF ANY KIND.

ENSURE PROPER COMBUSTION AIR AND
COOLING AIRFLOW

Fig. 10-1 Ventilation Diagram

GAS SUPPLY AND MANIFOLD PRESSURES:

For natural gas - normal 7" (17.78 cm) water column
(w.c.), minimum 5" (12.7 cm), maximum 10

1

/2" (26.7

cm). For propane gas - normal 11" w.c., minimum 10"
(25.4 cm), maximum 13" (33 cm).

Proper airfl ow (Fig. 10-1) MUST be maintained for the
searing station to perform as it was designed. If airfl ow
is blocked, overheating and poor combustion will result.
Do not block the 1" front air inlet along the bottom of
the control panel or more than 75% of the cooking grid
surface with pans or griddles.

GAS-SUPPLY PLUMBING REQUIREMENTS

For natural gas or a household propane system, rigid

1

/2" or 3/4" black steel pipe or local code-approved
pipe is required to conduct the gas supply to the unit.
Contact your local gas supplier. Connect this pipe to a
required C.S.A.-approved stainless-steel fl ex connector
(attached). An NPT adapter has been provided for 1/2"
pipe. DO NOT use a rubber hose within the unit
enclosure. Apply only joint compounds that are resistant
to all gasses to all male pipe fi ttings except fl are fi ttings.
Make sure to tighten every joint securely.

Note: If

1

/2" pipe is used with natural gas, it should

be no longer than 20'.

Important: An external valve (with a removable

key) in the gas line is necessary for
safety when the unit is not in use. It also
provides for convenient maintenance.

REV 2 - 1502100955

10

L-C2-379

ENCLOSURE REQUIREMENTS

FOR YOUR SAFETY, you must provide the openings listed
below for drainage, replacement air, and cross-ventilation
of any storage area exposed to possible leakage from gas
connections, the unit, or propane cylinders.

One side of the enclosure can be left completely open to
the outside, OR 4 ventilation openings must be created:

NATURAL GAS INSTALLS

Two of the openings are to be at the top level (approx.
4" below the countertop) and on opposite walls of the
enclosure. 2 more openings must be at the fl oor level (no
more than 5" above the fl oor) and on opposite sides of the
enclosure. Each opening must have a minimum of 10 sq.
in. of free area. To achieve the proper ventilation, you may
drill a series of holes, omit the grout from masonry joints,
or replace a brick with a hardware cloth screen. If the fl oor
in the cabinet is raised and the space beneath the cabinet
is open to the outside, the lower ventilation openings may
be in the fl oor. Reference Fig. 11-1.

PROPANE GAS INSTALLS
(HOUSEHOLD & CYLINDER)

Two of the openings are to be at the cylinder valve level
(approx. 16" above the fl oor) and on opposite walls of the
enclosure. 2 more openings must be at the fl oor level (no
more than 5" above the fl oor) and on opposite sides of the
enclosure. Each opening must have a minimum of 10 sq.
in. of free area. To achieve the proper ventilation, you may
drill a series of holes, omit the grout from masonry joints,
or replace a brick with a hardware cloth screen. If the fl oor
in the cabinet is raised and the space beneath the cabinet
is open to the outside, the lower ventilation openings may
be in the fl oor. Reference Fig. 11-1.

Nat. gas

installs

(repeat for

opposite

side)

L.P. gas

installs

(repeat for

opposite

side)

Fig. 11-1 Ventilation detail

Searing station

Heatshield

C.S.A.

listed
stainless
steel fl ex

connector

Adapter

L.P.

cylinder

Regulator/

assembly

Fig. 11-2 Propane cylinder orientation

Cylinder & regulator/

hose assembly

protected by heatshield

hose

WHEN A PROPANE CYLINDER IS USED

When a propane cylinder is installed inside of the enclosure,
the guidelines below MUST be followed. FAILURE TO
DO SO MAY CAUSE DAMAGE TO YOUR UNIT AND/OR
PERSONAL INJURY. Reference Fig. 11-2 for an example.

• Only a C.S.A. listed stainless steel connector can be
connected to the unit.

• The regulator/hose assembly coming from the propane
cylinder can only be connected to the above mentioned
fl ex connector. DO NOT connect the regulator/hose
assembly directly to the unit. An adapter will be
required.

• A heatshield must be installed to protect the regulator/
hose assembly and propane cylinder valve.

• RHP offers a propane cylinder door with tank tray
to meet the cylinder install requirements. See Fig.
11-3.

REV 2 - 1502100955

11

Equipped with

adapter for hose

assembly and

fl ex connector

Fig. 11-3 Optional RHP door w/tank tray

L-C2-379

INSTALLATION

COUNTER PREPARATION

Consult Table 1 for non-combustible enclosure cut-out dimensions. An RHP insulating liner must be used if any
supporting construction is combustible. Consult the instructions that come with the liner for dimensions and
additional installation information before beginning the installation.

This searing station must be supported by the stainless-steel hanger extending from the upper portion of the
frame. The hanger rests on the left, right, and back of the countertop.

The control panel is designed to sit fl ush against the enclosure front wall (see Fig. 12-2). If the non-combustible
enclosure countertop extends beyond the front wall, creating a countertop overhang (see Fig. 12-1), it must be
cut fl ush with the front wall for the width of the control panel or a gap will be created exposing the forward portions
of the left and right side fi re walls of the unit. See the MODEL SPECIFICATIONS section.

Note: It is not necessary to remove the control panel or knobs to install this unit.

CONNECT THE GAS SUPPLY

For propane cylinders:

For connecting a propane unit to a portable propane tank,
read the safety warnings and follow the instructions in the
section SAFE USE AND MAINTENANCE OF PROPANE
GAS CYLINDERS.

Note: When a propane cylinder is installed inside

of the enclosure, the guidelines found in the
ENCLOSURE REQUIREMENTS section

MUST be followed.

For household propane or natural gas units:
CAUTION: Use only C.S.A. listed stainless-steel fl ex

connectors within the enclosure.

WARNING
A rubber or plastic connector will rupture or leak,
resulting in an explosion or serious injury if used

inside the appliance enclosure.

1. Locate the attached fl ex connector (found underneath
the unit) and route it to the gas-supply stub.

2. Turn OFF the gas supply at the source. Remove

1

the

/2" adapter that is loosely connected to the fl ex
connector. Attach the adapter to the gas-supply stub
using a pipe joint compound that is resistant to all
gasses. Tighten securely. Then attach the open end
of the fl ex connector to the adapter. Tighten securely.

Control panel

stops here

Overhang

(Countertop)

Proposed cut­out in overhang

GAP CREATED

Fig. 12-1 Fig. 12-2

To gas
system

Countertop

Flex

connector

OFF

Cut-out

Dedicated manual
shut-off valve

Gas inlet pipe

(Countertop)

IDEAL

Flush-mounted

control panel

Pipe adapter

fi tting

Hanger

3. Turn the burner control knobs to the OFF position.

Turn the gas supply on. Then carefully check all gas
connections for leaks with a brush and half-soap/
half-water solution before lighting. NEVER USE A
MATCH OR OPEN FLAME TO TEST FOR LEAKS.

4. Close the dedicated gas-supply shut-off valve.

REV 2 - 1502100955

12

Fig. 12-3 Gas connection diagram

L-C2-379

INSTALLATION (cont.)

CONNECT TO A POWER SOURCE

CAUTION: Improperly connected wires will cause damage to

the unit and may result in property damage and/
or personal injury.

The unit comes with a 6' wire extension to retrieve power from a
separately purchased Echelon Diamond grill. Echelon Diamond
grills are equipped with power supply boxes, which can supply
power to the searing station. Alternatively; an optional power
supply box may be ordered and installed to individually power
this unit. Contact your dealer for ordering information.

To install using the wire extension:

1. Locate the power supply box inside of the island enclosure
and disconnect the power cord (See Fig. 13-2, A).

2. Disconnect the grill wire harness extension connectors
from the power supply connectors. See Fig. 13-2, (B)

Receptacle

Fig. 13-1 Connection detail

Plug

Grill wire

harness

extension

3. Locate the end of the searing station wire extension that

has two molex and ground connections. Connect the
extension (plug) molex connection to the power supply
(receptacle) molex connection and ground wires (See Fig.
13-3, C).

4. Connect the extension (receptacle) molex to the grill (plug)
molex connection and ground wires (See Fig. 13-3, D).

5. Connect the opposite end of the extension to the searing
station as shown in Fig. 13-3, E (molex and ground wire
connections).

6. Reconnect the power cord (see Fig. 13-3, F).

Proceed to the SLIDE UNIT INTO ENCLOSURE section.

To install using a power supply box (not included):

1. Install the power supply box at least 12 inches below the

bottom of the searing station.

2. Fasten the power supply box to the inside of the enclosure.

3. Connect the power supply box connectors to the searing

station wire harness extension, as shown in Fig. 13-4, A
(molex and ground wire connections).

Power supply

box

B

A

Fig. 13-2 Disconnect grill connections

Double searing

station

D

F

C

E

Searing station

wire harness extension

4. Connect the searing station wire harness extension to

the searing station, as shown in Fig. 13-4, B (molex and
ground wire connections).

5. Connect the cord coming from the power supply
box to a 120VAC (15 AMP minimum) GFCI

GROUNDED 3-wire receptacle. See Fig. 13-4,
C.

WARNING: Electrical Grounding Instructions - The

power supply box is equipped with a three­pronged (grounding) plug for your protection
against shock hazard and should be plugged
directly into a properly grounded three­prong receptacle. Do not cut or remove the
grounding prong from this plug.

REV 2 - 1502100955

13

Fig. 13-3 Connect searing station to grill setup

Double searing

station

Power supply

box

C

A

B

Searing station

wire harness extension

Fig. 13-4 Connect searing station to power supply

L-C2-379

INSTALLATION (cont.)

POWER SUPPLY (MULTIPLE ACCESSORY UNITS)

The previous section covers in detail how to individually connect this accessory unit to an Echelon grill power
supply box. If multiple accessory units are to be installed, the following diagrams will assist in their installation.

Grill Left Install

Grill wire harness

extension

Power supply box

Each accessory unit equipped with one wire extension

Grill Center Install

Grill wire harness

extension

Each accessory unit equipped with one wire extension

REV 2 - 1502100955

14

Power supply box

L-C2-379

INSTALLATION (cont.)

SLIDE UNIT INTO ENCLOSURE

Slide the unit into place. Do not to pinch, kink, or damage
the gas connector line.

Note: Each side of the unit has a tab just behind the

control panel. These tabs prevent the control
panel from moving inward. If the tabs interfere
with the unit sliding in (see Fig. 15-1), use
pliers to bend them inward so that they clear
the enclosure sides. Leave the tabs slightly
out to ensure they still keep the control panel
from moving inward (see Fig. 15-2).

ELECTRICAL SAFETY

To protect against electric shock, do not immerse cord or
plugs (if equipped) in water or other liquid.

Unplug from the outlet (if applicable) when not in use and
before cleaning. Allow to cool before putting on or taking
off parts.

Do not operate any outdoor cooking gas appliance with a
damaged cord, plug, or after the appliance malfunctions or
has been damaged in any manner. Contact the manufacturer
for repair.

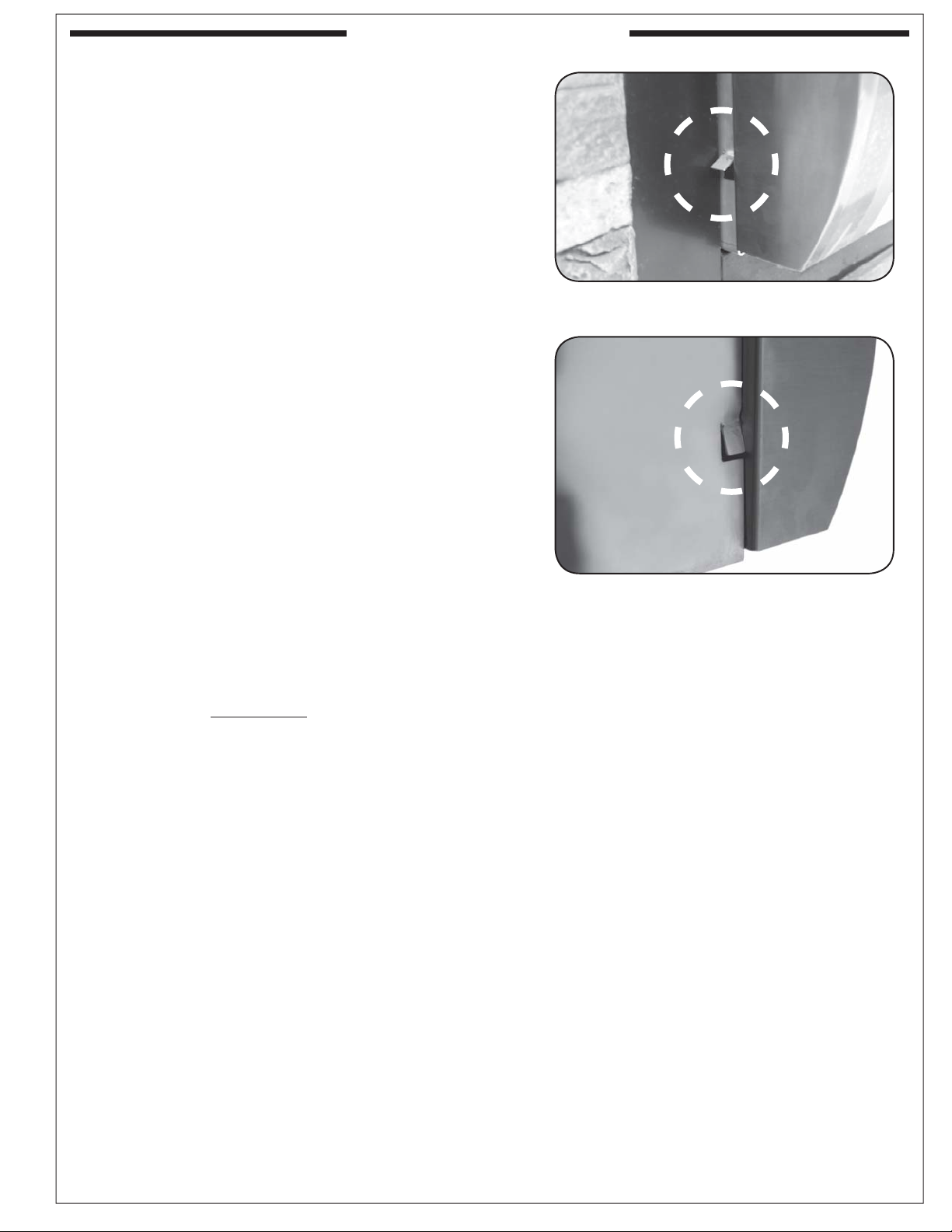

Fig. 15-1 Tab may interfere when sliding in unit

Do not let the cord hang over the edge of a table or touch
hot surfaces.

Do not use an outdoor cooking gas appliance for purposes
other than intended.

When connecting, fi rst connect plug to the outdoor cooking gas
appliance then plug appliance into the outlet.

Use only a properly wired and inspected 120VAC (15 AMP
minimum) GFCI GROUNDED 3-wire receptacle with this
outdoor cooking gas appliance.

Never remove the grounding plug or use with an adapter
of 2 prongs.

Use only extension cords with a 3 prong grounding plug,
rated for the power of the equipment, and approved for
outdoor use with a W-A marking.

Fig. 15-2 Tab slightly bent in for clearance

REV 2 - 1502100955

15

L-C2-379

CONVERTING THE GAS TYPE

Fire Magic units are equipped with orifi ces for natural gas, unless
otherwise indicated. For use with propane gas, smaller orifi ces must
be installed to avoid hazardous overheating. Please refer to Table
1 for the correct orifi ce size. Check the orifi ce size by following the
instructions below. The drill size is stamped on the orifi ce. If the
number is not visible you may have to remove the orifi ce (as detailed
below) to read the number stamped on the side of the orifi ce.

If you are not sure you have the correct orifi ce size (or
wish to change the orifi ce), follow the steps below.

CAUTION: If the burner has been in use, wait until the

burner and its components are cool to the
touch.

IMPORTANT: When converting orifi ces for different gas type, the

regulator must also be converted for the new gas
type. Reference the CHECKING AND CONVERTING
THE REGULATOR section.

1. Remove the Searing Station lid and lift off the cooking grid.

2. Remove the control panel.

See the CONTROL PANEL

REMOVAL section for details.

3. Carefully lift the burner up, allowing the tabs to clear the slots

in the rear burner rest. Slowly pull the gas-supply tube away
from the orifi ce located inside the circular opening in the front
fi rewall of the unit. (See Fig. 16-1 and Fig. 16-2.)

Fig. 16-1

Fig. 16-2

Orifi ce

(View from inside of unit)

Fig. 16-3

Note: The igniter wire length provides for the burner to be

removed allowing access to the orifi ce. Should the burner
need to be completely removed; the igniter must be
unscrewed.

4. Using a

3

/

" socket, remove the orifi ce from the orifi ce holder

8

(see Fig. 16-3) and check the number stamped on the face.

5. If an orifi ce change is necessary, replace the orifi ce with the

correct-size.

6. Replace the gas-supply tube over the orifi ce, aligning the

burner into the rear burner rest. Re attach the electrode wire.

7. Repeat for the other burner.

8. Replace the control panel. Replace the bezels, control knobs,

cooking grid, and lid.

Remove orifi ce

REV 2 - 1502100955

16

L-C2-379

U

L

SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS

IMPORTANT FOR YOUR SAFETY

READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.

When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.

FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.

CYLINDER/CONNECTOR REQUIREMENTS

a. Propane-gas cylinders, valves, and hoses must be

maintained in good condition and must be replaced if
there is visible damage to either the cylinder or valve. If the
hose is cut or shows excessive abrasion or wear, it must
be replaced before using the gas appliance (see e.).

b. This unit, when used with a cylinder, should be connected

to a standard 5-gallon (20 lb.) propane-gas cylinder
equipped with an OPD (Overfi ll Prevention Device).
The OPD has been required on all cylinders sold since
October 1,1998, to prevent overfi lling.

c. Cylinder dimensions should be approximately 12" (30.5

cm) in diameter and 18" (45.7 cm) high. Cylinders must
be constructed and marked in accordance with the

Specifi cations for Propane Gas Cylinders of the U.S.
Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods.

d. The cylinder used must include a collar to protect the

cylinder valve, and the cylinder supply system must be
arranged for vapor withdrawal.

e. The pressure regulator and hose assembly used must

e. The pressure regulator and hose assembly (Fig. 17-1)

match the specifi cation for Type I by ANSI Z 21.58-2005/

supplied with this outdoor gas appliance (L.P. models

CGA 1.6-2005 (see Fig. 17-1).

only) must be used. Original and replacement pressure
regulator and hose assemblies must be those specifi ed
by the manufacturer for connection with a cylinder
connecting device identifi ed as Type I by the ANSI Z

21.58-2005/CGA 1.6-2005 (see PARTS LIST for ordering
information).

f. The propane-gas cylinder valve must be equipped with a

cylinder connection coupling device, described as Type I
in the standard defi ned in paragraph e. above. This device
is commonly described as an Acme thread quick coupler.

g. If the propane-gas cylinder comes with a dust plug, place

the dust cap on the cylinder valve outlet whenever the
cylinder is not in use.

QUICK COUPLER OPERATION

To connect the regulator/hose assembly to the propane­gas cylinder valve fi tting: Press the hand nut on the regulator

over the Acme thread fi tting on the cylinder valve. Turn the hand
nut clockwise to engage the threads and tighten until snug.

The use of pliers or a wrench should not be necessary. Only
cylinders marked “propane” may be used.

To disconnect: Turn the hand nut counterclockwise until
detached (Fig. 17-1).

Important: Before using the unit, and after each time the

cylinder is removed and reattached, check
the hose for wear (see a.) and check all
connections for leaks. Turn off the unit valves
and open the main cylinder valve, then check
connections with soapy water. Repair any
leaks before lighting the unit.

CAUTION: Always turn the propane cylinder main valve

off after each use, and before moving the unit
and cylinder or disconnecting the coupling.
This valve must remain closed and the
cylinder disconnected while the appliance
is not in use, even though the gas fl ow is
stopped by a safety feature when the coupler
is disconnected.

Carefully inspect the hose assembly each time before the
gas is turned on. A cracked or frayed hose must be replaced
immediately.

If the appliance is stored indoors, the cylinder must be
disconnected and removed. Disconnected

cylinders must be

stored outdoors, out of the reach of children, with threaded
valve plugs tightly installed, and must not be stored in a

building, garage, or any other enclosed area.

FOR YOUR SAFETY

a. DO NOT store a spare propane-gas cylinder under or

near this appliance.

b. NEVER fi ll the cylinder beyond 80-percent full.
c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED

EXACTLY, A FIRE CAUSING DEATH OR SERIOUS
INJURY MAY OCCUR.

Fig. 17-1 Type I Acme thread quick coupler

QCC
Type 1
valve

Pressure
relief
valve

Hand wheel

Brass Acme
thread fi tting

Liquid level
indicator
(optional)

Hand nut with Acme
thread

Regulator

Vent

Hose

For propane ventilation requirements, see the ENCLOSURE REQUIREMENTS section.

17

U

L

UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE

IMPORTANT POUR VOTRE SÛRETÉ

LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.

En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.

LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.

CYLINDRE ET CONDITIONS ET
CARACTÉRISTIQUES DE CONNECTEUR

a. Des cylindres et les valves de gaz de propane doivent être

maintenus en bon état et doivent être remplacés s’il y a
des dommages évidents au cylindre ou à la valve.

b. Ce gril, une fois utilisé avec un cylindre, devrait être relié à

un gallon de la norme 5 (20lb.) cylindre de gaz de propane
équipé d’un OPD (remplissez au-dessus du niveau le
dispositif d’empêchement). L’OPD a été exigé sur tous les
cylindres vendus depuis octobre 1.1998 pour empêcher le
remplissage excessif.

c. Les dimensions de cylindre devraient être approximativement

12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des
cylindres doivent être construits et marqués selon les
caractéristiques pour des cylindres de gaz de propane du
département des ETATS-UNIS du transport (D.O.T.) ou
le niveau national du Canada, du CAN/CSA-B339, des
cylindres, des sphères et des tubes pour le transport des
marchandises dangereuses.

d. Le cylindre doit inclure un collier pour protéger la valve

de cylindre et le circuit d’alimentation de cylindre doit être
assuré le retrait de vapeur.

e. Le montage du régulateur de pression et le fl exible (Fig. 18-1)

e. Le régulateur de pression et l’ensemble de tuyau utilisé

fourni avec cet appareil au gaz en plein air (modèles au

doivent assortir les spécifi cations pour le type I par ANSI

propane seulement) doit être utilisé. Assemblées d'origine et

Z 21.58-2005/CGA 1.6-2005 (voir la fi gue. 18-1).

régulateur de pression et le tuyau de remplacement doivent
être ceux spécifi és par le fabricant pour le raccordement d'un
dispositif de cylindre de liaison identifi ée comme de type I par
le 21.58-2005/CGA ANSI Z 1.6 à 2005 (voir liste des pièces
pour les informations de commande).

f. La valve de cylindre de gaz de propane doit être équipée

d’un dispositif d’accouplement de raccordement de
cylindre, décrit comme type I dans la norme défi nie dans le
e. de paragraphe ci-dessus. Ce dispositif est généralement
décrit comme coupleur rapide de fi l de point culminant.

g. Si votre cylindre de gaz de propane vient avec une prise

de la poussière, placez le bouchon anti-poussière sur la
sortie de valve de cylindre toutes les fois que le cylindre
n’est pas en service.

OPÉRATION DE COUPLEUR RAPIDE

Pour relier le regulator/hose à l’ajustage de précision de
valve de cylindre de gaz de propane: Serrez l’écrou de main

sur le régulateur au-dessus de l’ajustage de précision de fi l
de point culminant sur la valve de cylindre. Tournez l’écrou de

main dans le sens des aiguilles d’une montre pour engager les
fi ls et pour serrer jusqu’à ce que douillettement. L’utilisation des
pinces ou de la clé ne devrait pas être nécessaire. Seulement
le propane marqué par cylindres doit être employé.

Pour débrancher: Tournez l’écrou de main dans le sens
contraire des aiguilles d’une montre jusqu’à isolé (fi g. 18-1).

Important: Avant d’employer le gril, et ensuite chaque

fois que le cylindre est enlevé et rattaché,
examinez tous les raccordements pour déceler
les fuites. Arrêtez les valves de gril et ouvrez
la valve principale de cylindre, puis vérifi ez
les raccordements avec de l’eau savonneux.
Réparez toutes les fuites avant d’allumer le gril.

ATTENTION: Tournez toujours la valve principale de cylindre

de propane au loin après chaque utilisation,
et avant de déplacer le gril et le cylindre, ou
débrancher l’accouplement. Cette valve doit
rester fermée et le cylindre a débranché alors
que l’appareil n’est pas en service, quoique
l’écoulement de gaz soit arrêté par un dispositif
de sûreté quand le coupleur est débranché.

Inspectez soigneusement l’ensemble de tuyau chaque fois
avant que le gaz soit allumé. Un tuyau fi ssuré ou effi loché doit
être immédiatement remplacé.

Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected
et a enlevé. Des cylindres Disconnected doivent être stockés
dehors, hors de la portée des enfants, avec les prises de valve
fi letées étroitement installées, et ne doivent pas être stockés dans

un bâtiment, le garage, ou n'importe quel autre secteur inclus.

POUR VOTRE SÛRETÉ

a. Ne stockez pas un cylindre de gaz disponible de propane

dessous ou ne vous approchez pas de cet appareil.

b. Ne remplissez jamais cylindre au delà de 80 pour cent de

plein.

c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE

EXACTEMENT, UN FEU CAUSANT LA MORT OU DES
DOMMAGES SÉRIEUX PEUT SE PRODUIRE.

Fig. 18-1 type coupleur rapide de fi l de point culminant d’I

Volant de commande

QCC
Type 1

Valve

Valve
de
décompression

1

Ajustage de précision
en laiton de fi l de
point culminant

4

Indicateur
de niveau
de liquide
(facultatif)

3

2

Écrou de main avec le
fi l de point culminant.

Régulateur

Passage

Tuy au

Pour la ventilation de propane, voir la section sur les exigences de boîtier.

18

LIGHTING (IGNITION) INSTRUCTIONS

Read all instructions before lighting, and follow these instructions each time you light the unit.

ELECTRONIC LIGHTING

Note: This unit must be connected to 120VAC power

Note: Electronic lighting requires an installed 9-volt

for electronic lighting.

battery with a good charge.

1. Open lid(s) or remove cover(s) from burner(s) to be lit.

2. Turn all gas control knob(s) to their OFF position(s).

3. Turn on the gas at its source.

Read setting here

Read setting

(OFF position shown)

TURN OFF

To Turn OFF

TO

Gas Flow

Press
knob in
to turn

Indicator

Fig. 19-1 - Control knob

here

OFF

LOW

To Turn ON

TO TURN ON

LIGHT

HI

HIGH to

Use

LIGHT

HI (high)
to light

4. Depress the desired control knob for 5 seconds,

then, while pressing turn it counterclockwise to the
HI LIGHT position. Once the burner lights, release
the knob.

Note: DO NOT
turn on more
than one valve at
a time for either
electronic or
manual lighting.

MANUAL LIGHTING

CAUTION: Always wait fi ve (5) minutes for gas to

clear after any unsuccessful lighting
attempt.

1. Follow steps 1 through 3 (left).

2. Insert either a burning long-barrel butane lighter or

2. Insert either a burning long-barrel butane lighter, a

a burning long-stem match through the cooking grid

burning long-stem match, or a burning match held

opening to the top of the lighting tube. (Fig. 19-2).

by a wire extension holder through the cooking grid

For backburners, hold the flame

opening to the top of the burner (Fig. 19-2).

against the surface of the backburner.

3. While holding the match or lighter fl ame at the top

For sideburners, hold the fl ame against the burner.

of the burner, depress the control knob and while

3. Hold the match / lighter fl ame at the top of the lighting

pressing turn it counterclockwise to the HI LIGHT

tube for 5 seconds, or, next to the sideburner /

position. Remove the lighter or match when the

backburner. Then depress the appropriate control

burner lights, and release the control knob.

knob and while pressing turn it counterclockwise to

4. If the burner does not light, immediately depress
the HI LIGHT position. Remove the lighter or match

the knob and turn the valve to OFF. WAIT FIVE

when the burner lights, and release the control knob.

(5) MINUTES before repeating steps 2 through 4 of

4. If the burner does not light, immediately depress

the MANUAL LIGHTING instructions.

the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4
of the MANUAL LIGHTING instructions.

CAUTION: If a burner does not light within fi ve (5)

seconds of turning on the control knob,
depress the knob and turn it to the OFF

position. WAIT FIVE (5) MINUTES
before repeating step 4. If you smell
gas, follow the instructions on the cover
of this manual. If the burners still do not
light after several attempts, refer to the

instructions for manual lighting.

5. Repeat step 4 for each additional burner to be lit.

WHEN USING A PORTABLE PROPANE TANK

Propane tanks are equipped with a safety shutdown
device that may cause low or no gas pressure/fl ame
at the burners if operating and lighting instructions
are not followed exactly (See important note in the
TROUBLESHOOTING section for more details.)

Lighting

tube

Lighter

Fig. 19-2 - Manual lighting

Fig. 19-2 - Manual lighting

SHUTTING OFF THE UNIT

To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.

Always close the valve from the gas supply after each
use of the unit.

Fig. 19-3

For your convenience and safety; when the
control knob is in the on position, the gas fl ow
indicator will change from blue to red. (Red
indicates gas fl ow.) See Fig. 19-1.

19

ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)

Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le unité.

ÉCLAIRAGE ÉLECTRONIQUE

Note: Le unité doit être relié à la puissance 120VAC pour

Note: L’éclairage électronique exige une batterie installée

l’éclairage électronique.

de 9 volts avec une bonne charge.

1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs

pour être Lit.

2. Tournez tous les boutons de commande de gaz à leurs

positions de repos.

3. Allumez le gaz à sa source.

Lisez l’établissement ici

Read setting

(OUTRE de montrer)

here

TURN OFF

OUTRE DE

TO

Enfoncez
le bouton
pour
tourner

Fig. 20-1 - bouton de commande

OFF

Indicateur

d’écoulement

de gaz

LOW

TO TURN ON

LIGHT

HI

SUR

HIGH to

Utilisation

LIGHT

SALUT
(haute)
à la lu­mière

4. Diminuez le bouton de commande désiré pendant 5

secondes, puis, et tout en pressant le tour il dans le sens
contraire des aiguilles d’une montre dans la position
LÉGÈRE de HI. Une fois que le brûleur s’allume, libérez
le bouton.

Note: N’ouvrez
pas plus d’une
valve à la fois
pour l’éclairage
électronique ou
manuel.

ÉCLAIRAGE MANUEL

ATTENTION: Attendez toujours cinq (5) minutes le gaz

pour se dégager après que n’importe quelle
tentative non réussie d’éclairage.

1. Suivez les étapes 1 à 3 (à gauche).

2. Insérez un allumeur brûlant de butane de long-baril, une

2. Passez un allumeur brûlant de butane de long-baril ou

allumette brûlante de long-tige, ou une allumette brûlante

une allumette brûlante de long-tige dans la grille à cuire
s’ouvrant au dessus du tube d’éclairage. (Fig. 20-2). Pour

tenue par un support de prolongation de fi l par la grille à

des backburners, tenez la fl amme contre le surface du

cuire s’ouvrant au dessus du brûleur (fi g. 20-2).

backburner. Pour des sideburners, tenez la fl amme contre

3. Tout en tenant l’allumette ou la fl amme plus légère au
le brûleur.

dessus du brûleur, diminuez le bouton de commande

3. Vieux match / fl amme d’un briquet à la partie supérieure

et tout en pressant le tour il dans le sens contraire des

du tube d’éclairage pendant 5 secondes, ou, à côté de la

aiguilles d’une montre dans la position LÉGÈRE de

brûleur latéral / veilleuse. Puis appuyer sur le bouton de

HI. Enlevez l’allumeur ou assortissez quand le brûleur

contrôle approprié et en appuyant tourner dans le sens

s’allume, et libérez le bouton de commande.

antihoraire à la position HI LIGHT. Retirez le briquet ou
des allumettes quand le brûleur s’allume, puis relâchez

4. Si le brûleur ne s’allume pas, enfoncez immédiatement
le bouton de commande.

le bouton et tournez la valve à AU LOIN. ATTENDEZ
CINQ (5) MINUTES avant de répéter les étapes 2 à 4

4. Si le brûleur ne s’allume pas, enfoncez immédiatement

des instructions manuelles d’éclairage.

le bouton et tournez la valve à AU LOIN. ATTENDEZ
CINQ (5) MINUTES avant de répéter les étapes 2 à 4
des instructions manuelles d’éclairage.

ATTENTION : Si un brûleur ne s’allume pas dans cinq

(5) secondes d’allumer le bouton de
commande, enfoncez le bouton et tournez­le à la position de repos. ATTENDEZ CINQ
(5) MINUTES avant de répéter l’étape 4. Si
vous sentez le gaz, suivez les instructions
sur la couverture de ce manuel. Si les
brûleurs ne s’allument toujours pas après
que plusieurs tentatives, se rapportent aux
instructions pour l’éclairage manuel.

5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.

EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF

Des réservoirs de propane sont équipés d’un dispositif
d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes
pression de gaz/fl amme aux brûleurs si le fonctionnement
et l’allumage des instructions ne sont pas suivis exactement
(voir la note importante dans la section de dépannage pour
plus de détails.)

Tube

d’éclairage

Plus léger

Fig. 20-2 - Éclairage manuel

Fig. 20-2 - Éclairage manuel

ARRÊT DU UNITÉ

Pour couper le unité, diminuez chaque bouton de commande
de valve et tout en pressant tour il dans le sens des aiguilles
d’une montre à la position de repos.

Fermez toujours la valve de la fourniture de gaz après chaque
utilisation du unité.

Fig. 20-3

Pour votre convenance et sûreté ; quand le
bouton de commande est dans la position de
fonctionnement, l’indicateur d’écoulement de
gaz changera de bleu en le rouge. (Le rouge
indique l’écoulement de gaz.) Voir la Fig. 20-1.

20

OFF

HI

LIGHT

LO
W

OFF

HI

LIGHT

LOW

INFRARED BURNER OPERATION

The infrared (IR) searing burner (optional) cooks with

The infrared (IR) searing burner cooks with a powerful
a powerful radiant heat.

radiant heat.
Light the infrared burner following the LIGHTING

Light the infrared burner following the LIGHTING
INSTRUCTIONS in this manual or printed on the

INSTRUCTIONS in this manual or printed on the
drip tray. Follow these guidelines when operating the

drip tray. Follow these guidelines when operating the
Infrared burner:

Infrared burner:

• DO NOT place food on the cooking grid until

• DO NOT place food on the cooking grid until

the IR burner glows orange (Fig. 21-2). Drippings

the IR burner glows orange (Fig. 21-3). Drippings

are heated and evaporate instead of sticking to and

are heated and evaporate instead of sticking to and
impairing burner function.

impairing burner function.

• For cleaning purposes; always leave your burner

• For cleaning purposes; always leave your burner

on (after cooking) for an additional 5 minutes, to

on (after cooking) for an additional 5 minutes, to
allow for a burnoff period. This is important to

allow for a burnoff period. This is important to
keep your burner clean and operating properly.

keep your burner clean and operating properly.

As the burner is self cleaning (at full temperature);

As the burner is self cleaning (at full temperature);

avoid the use of cleaners or abrasives.

avoid the use of cleaners or abrasives.

• When not in use, always cover the infrared burner

• When not in use, always cover the infrared burner

with the stainless-steel lid. This protects the burner

with the stainless-steel cover. This protects the
from drippings (from other cooking), airborne

burner from drippings (from other cooking), airborne
particles, and foreign objects (Fig. 21-1).

particles, and foreign objects (Fig. 21-2).

• Do not strike or scratch the burner ceramic as it

• Do not strike or scratch the burner ceramic as it
may chip, crack, or break (Fig. 21-1).

may chip, crack, or break (Fig. 21-2).

SIDE VIEW (with lid closed)

(Lid)

Drippings
and other

liquids

Food

particles

or debris

Ignitor

electrode

Fig. 21-1

NO foreign

objects

Airborne

dust or

grease

SIDE VIEW
(burner on HI LIGHT

Burner ceramic must be protected with cover when

and glowing orange)

burner is not in use.

Ignitor

electrode

Important: When grilling with the infrared burner,

Note: Digital thermometer does not give accurate

always place a cooking grid above it.

readings for infrared burners.

CAUTION: Never attempt to operate the IR burner

Important: When grilling with the infrared burner,

with the lid closed.

always place a cooking grid above it.
The cooking grid must be removed for
rotisserie cooking.

WARNING

Only handle the infrared burner cover when the
CAUTION: DO NOT operate your IR burner with the

unit is cold or with a well-insulated long-handled

oven hood closed.

tool or heat resistant gloves.

CAUTION: Never attempt to operate the IR burner

Burner ceramic must be protected with cover when

with the protective cover in place.

burner is not in use.
Drips and particles evaporate before hitting infrared
burner when cooking at the maximum setting.

Only handle the infrared burner cover when the
unit is cold or with a well-insulated long-handled

To ensure proper operation, infrared burners must
be operated on the HI setting for a minimum of 10

tool or heat resistant gloves.

WARNING

minutes. Thereafter, the fl ame may be lowered as
desired.

CAUTION: Always monitor the infrared burner fl ame

when operated on low, as it may blow
out in high-wind conditions.

Fig. 21-2

Drips and particles evaporate before hitting infrared
burner when cooking at the maximum setting.

Note: Flavor grids are not to be used with infrared

burners.

To ensure proper operation, all infrared burners
(back and main) must be operated on the HI setting
for a minimum of 10 minutes. Thereafter, the fl ame
may be lowered as desired.

CAUTION: Always monitor the infrared burner fl ame

21

when operated on low, as it may blow
out in high-wind conditions.

CARE & CLEANING

APPLIANCE MUST BE COMPLETELY COOL WHEN
CLEANING. DO NOT SPRAY ANY CLEANER OR
LIQUIDS ON THE APPLIANCE WHEN HOT.

The appliance must be cleaned as often as once a month
(depending on use) to prevent grease build-up and other
food deposits.

INTERIOR

THE BURNER SURFACE MUST BE KEPT CLEAN TO
ENSURE PROPER IGNITION AND OPERATION.

Wipe with grain

Remove the burner (see orifi ce changing instructions)
and inspect and clean the burner inlet for insects and
nests. A clogged burner can lead to a fi re in the bottom
of the appliance.

The inside of the appliance may be cleaned periodically
with oven cleaner if desired. Follow the oven cleaner
instructions for proper use.

Be careful not to get oven cleaner on the outside surface
of the appliance as it can permanently damage the fi nish.

EXTERIOR

Stainless steel surfaces when exposed to temperatures
produced by the grilling process will change color. The
stainless steel will change color from silver to brown
and blue. This can be removed by using stainless steel
cleaner.

Clean your appliance by fi rst using grill cleaner to remove
grease and dirt. Always wipe with the grain (See Fig.
22-1). Next, use stainless steel cleaner to restore the
stainless steel color (Note: not for mirror fi nish). Finish
by wiping your appliance down using polish wipes. To

clean any mirror fi nish (if applicable), use a quality
brand glass cleaner only, not any of the cleaners
mentioned above.

If your appliance is installed in a seaside (salt air) or
poolside (chlorine) location, it will be more susceptible
to corrosion and must be maintained/cleaned more
frequently. Do not store chemicals (such as chlorine or
fertilizer) near your stainless steel appliance.

Fig. 22-1 - Wipe with grain

PROTECTING YOUR APPLIANCE FROM THE
WEATHER

An optional cover will protect your appliance when not
in use. (Allow to cool before covering.)

Please specify the model number and serial number
of your appliance when ordering a cover.

IMPORTANT

IN THE EVENT OF A GREASE FIRE, IMMEDIATELY
SHUT OFF THE MAIN GAS VALVE TO THE UNIT.
KEEP THE LID OPEN AND ALLOW THE FIRE TO
EXTINGUISH ITSELF. A THOROUGH INSPECTION
BY A TRAINED SERVICE TECHNICIAN SHOULD
BE CONDUCTED BEFORE FUTURE USE OF YOUR
UNIT. THE SERVICE TECHNICIAN WILL CHECK THE
SYSTEM FOR GAS LEAKS AND WILL CHECK ALL
ELECTRICAL WIRING FOR DAMAGE. ALL GAS
LEAKS AND WIRING MUST BE REPAIRED PRIOR
TO FUTURE USE.

Due to the nature of stainless steel, surface iron oxide
deposits may appear. Do not be alarmed – these deposits
are removable with stainless steel cleaner through prompt
and periodic maintenance. If not attended to promptly,
permanent pitting may occur.

By following these recommendations, you will enjoy the
beauty and convenience of your appliance for many years
to come.

22

CHECKING AND CONVERTING GAS TYPE

This unit comes from the factory confi gured for one type of
gas, as marked on the label located behind the control panel,
or on the interior of the unit’s enclosure.

A certified kit is available from the manufacturer to
convert your appliance from natural gas to L.P. or vice
versa. Contact your dealer for ordering information. The
professional installer must reference the steps below
for conversion information. If the conversion kit ordered
includes instructions, follow those instructions.

1. Change brass gas orifi ces (included at original shipping)

on each burner to match the new gas type (see MODEL
SPECIFICATIONS TABLE, Table 1).

2. Switch the convertible gas regulator to match the new

gas type (see section below).

3. Plumb the unit as appropriate for the new gas supply.

4. Apply the label for the new gas (included at original shipping)

over the old gas information found on your unit.

WARNING
HAZARDOUS OVERHEATING WILL OCCUR
IF A NATURAL-GAS ORIFICE IS USED WITH
PROPANE GAS. IF YOU ARE NOT SURE IF THE
CORRECT ORIFICES ARE INSTALLED, OR IF AN
ORIFICE CHANGE IS NECESSARY, REFER TO
THE FOLLOWING INSTRUCTIONS.

CAUTION: Make sure the unit is at a safe

temperature and isolated from
gas and electrical supplies before
beginning the tasks outlined below.

Note: The cooler the unit, the greater the

tolerances between the stainless­steel parts, and therefore the easier to
disassemble and reassemble parts of the
unit.

CAUTION: For your safety, exercise caution and

use adequate hand protection (such
as gloves) when handling potentially
sharp sheet-metal parts.

CHECKING AND CONVERTING THE REGULATOR

Regulator: note cap on top

STEP 1:

Unscrew and remove the cap from the
regulator, extracting the converter.

THIS APPLIANCE REGULATOR IS RATED FOR
PSI, AN ADDITIONAL REGULATOR MUST BE INSTALLED TO REDUCE THE INPUT PRESSURE TO THE UNIT to

PSI OR LESS. SEE GAS-SUPPLY REQUIREMENTS SECTION FOR PROPER GAS-SUPPLY PRESSURE.

Note: Each end of the plastic converter is engraved with either the letters “NAT”

or “L.P.” (propane) for the respective gasses. When the converter is in the
cap and the cap is held uppermost, the letters seen indicate the gas that

the regulator is set up for.

To convert the regulator from one gas to another, follow steps 1-4.

STEP 3:

Turn the converter around and
replace it carefully, into the
center of the cap (it will snap

Read gas
type here

into place). Check that you can
read the type of gas the unit is
set for.

STEP 2:

Remove the converter (the
plastic stalk) by carefully
pulling it away from the center
of the cap (it will snap out of

STEP 4:

Replace the unit into the
regulator and screw down
until snug.

its seating).

WARNING

1

/

PSI MAXIMUM. IF YOUR GAS SUPPLY IS GREATER THAN

2

23

1

/2

1

/2

CONTROL PANEL REMOVAL

To remove the control panel:

1. Turn the control knobs to the OFF position and turn off the gas supply to the unit.

2. Remove the drip tray.

3. Turn off the light switch and disconnect the power supply from the power source.

4. Pull the control knobs from the stems and set aside .

5. Slowly lift away the lighted bezels to clear the valve stems, and carefully disconnect the wires found

on the back of the bezels (use your fi ngernail). See Fig. 24-1.

6. Using a Phillips screwdriver, unscrew and remove the control panel fastener screws and washers

(located on the left and right front face of the control panel). Retain the screws for later re-installation .

7. Carefully open the control panel by lifting and pulling the control panel from the frame .
Important: When opening, take caution to not damage any wiring.

8. If wire disconnections are required, reference the wire diagram in the MODEL SPECIFICATIONS section

in this instruction manual or the wire diagram label affi xed to the inside of the control panel.

Note: Secure any disconnected wires (coming from the inside of the unit) to prevent them from falling in.
Note: Whenever reconnecting any wires, apply a small amount of dielectric grease to the male connector,

then make the connection.

Important: Dur

in the OFF position.

ing reinstallation; prior to opening the gas shutoff valve, be sure the control knobs are

24

TROUBLESHOOTING

If you have trouble with this Fire Magic® unit, please use this list to identify the problem. By trying one or more of the solutions
to the possible cause, you should be able to solve the problem. If this list does not cover your present problem, or if you have
other technical diffi culties with the unit, please contact your local Fire Magic® dealer or visit our web site at www.rhpeterson.com.

PROBLEM POSSIBLE CAUSE CORRECTION

No power to unit

Ignition system

failure

Insuffi cient heat /

low fl ame

Uneven heating

1. Power source not hooked to power supply

2. Light switch is off

3. Input power source failure

4. Power supply failure

1. Power source not hooked to power supply

2. Ignition wire disconnected

3. Low gas pressure

4. Blown fuse in power supply box

5. Igniter malfunction

6. Igniter switch malfunction on valve

7. Improper air shutter adjustment

1. Using propane orifi ce for natural gas

2. Low gas pressure/flame (propane)

3. Low gas pressure/fl ame (natural)

4. L.P. regulator hose cracked due to age

5. Improper air shutter adjustment

1. Burner surface partially blocked by debris

1. Burner ports partially blocked by debris

2. Small spiders or insects in burner

3. Improper air shutter adjustment

1. Hook external power to unit.

2. Turn light switch on.

3. Check GFCI / circuit breaker.

4. Contact dealer for replacement.

1. Hook external power to unit.

2. Plug wires back into wire harness.

3. Have the gas co. check pressure at unit.

4. Replace the fuse. Reference the POWER SUPPLY
FUSE REPLACEMENT section.

5. Contact dealer for replacement.

6. Contact dealer for replacement.

7. Adjust air shutters.

1. Check/change orifi ces.

2. Shut off all valves, including propane tank, and follow
lighting instructions exactly. (See important note*
below.)

3. Have the gas co. check pressure at unit.

4. Replace L.P. regulator hose.

5. Adjust air shutters.

1. Remove burners and clean out ports.

1. Clean (burn-off) or replace burner.

2. Inspect burners and orifi ces for spider webs or other debris
that may block fl ow.

3. Adjust air shutter.

Knob light(s) not

operating

Burner goes out on

LOW

1. Light switch off

2. Knob light(s) burned out

1. Valve "Low" setting needs adjustment

1. Turn light switch on.

2. Contact dealer for replacement.

1. Light burner on HIGH, immediately turn to LOW
setting. Remove knob from valve and using a small fl at
screwdriver, slowly turn the adjustment screw in the
stem, a little at a time (30° to 45°), in either direction,
until the fl ame is approximately
burner ports.

* Important: Propane tanks are equipped with a safety shutdown

device that may cause low or no gas/fl ame at the
burners if operating and lighting instructions are not
followed exactly. If you suspect the propane tank
safety shutoff is in effect, shut off all burner control
valves and the propane tank valve . Then read and
follow the LIGHTING INSTRUCTIONS exactly.
Lighting instructions are located in your owner’s
manual and printed on the unit’s metal drip tray. If the
problem persists, continue troubleshooting, or contact
your local dealer or R. H. Peterson for assistance.

1

/4" in height from

25

WARRANTY

PETERSON FIRE MAGIC GRILLS AND ACCESSORIES

LIMITED WARRANTY

Robert H. Peterson Co. ("RHP") warrants your Fire Magic® grill to be free from defects in material and workmanship.
Fire Magic

your Fire Magic® grill -- LIFETIME. (Except as noted below.)
Fire Magic Choice stainless steel tubular burners are warranted for TWENTY (20) YEARS.
Fire Magic

warranted for FIFTEEN (15) YEARS.
Fire Magic
Fire Magic

charcoal pan, charcoal grid, wood pellet screen, thermometer, and ash tray; which are warranted for ONE (1) YEAR.
Fire Magic

YEARS.
Fire Magic

warranted for ONE (1) YEAR.

This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained
as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall
terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.

This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,
use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,
lack of required routine maintenance (as specifi ed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure to
protect against combustibles. Product must be installed (and gas must be connected) as specifi ed in the Owner’s Manual/Installation Instructions by
a qualifi ed professional installer. Modifi cations to products which are not specifi cally authorized will void this warranty. Accessories, parts, valves,
remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.
This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.

This warranty does not cover labor or labor related charges, except as provided by separate specifi c written programs from the Peterson Co. All repair
work must be performed by a qualifi ed professional service person and requires prior approval of Peterson.

Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if
the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer
if the damage is determined to have occurred during that shipment.

This warranty specifi cally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specifi ed legal rights, and
you may have other rights that vary from state to state or province.

For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.

®

cast stainless-steel burners, stainless-steel rod cooking grids, and stainless-steel housings are warranted for as long as you own

®

cast brass burners, brass valves, inner liners, manifold assemblies, and backburner assemblies (except ignition parts) are

®

Electric Grills, including stainless steel grid, and housings are warranted for TEN (10) YEARS.

®

Infra-red burners, fl avor grids, Charcoal stainless steel grills, and Smokers are warranted for FIVE (5) YEARS; except for the

®

sideburners and all other Fire Magic® grill components (except ignition and electronic parts) are warranted for THREE (3)

®

ignition systems (excluding batteries), electronic components (including lights and thermometers), and grill accessories are

A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED

TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,

AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.

Quality Check Date:_________________

Burner Orifi ces Nat. L.P. Leak Test: ___________ Model#: ___________________
Main: ____ ____ Burn Test: ___________ Serial#: ___________________
Other: ____ ____ Gas Type:

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

Nat. / L.P. Air Shutter: ___________________

Inspector: ___________________

26
