Fire Magic 32812 Installation

DOUBLE SIDEBURNER

3281(P)L Series

INSTALLATION AND OPERATING

INSTRUCTIONS

INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.

Important: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION

WARNINGS AND SAFETY CODES

DANGER:

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open fl ame.

3. Open lid.

4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or the fi re department.

CODE AND SUPPLY REQUIREMENTS: This appliance
must be installed in accordance with local codes and
ordinances, or, in the absence of local codes, with the
latest National Fuel Gas Code (ANSI Z223.1/NFPA

54), or Natural Gas and Propane Storage and Handling
Installation Code (CSA-B149.1).

This appliance and its dedicated manual shutoff valve
must be disconnected from the gas-supply piping

system when testing the syst

em at pressures in

excess of ½ psig (3.5 kPa).

This appliance must be isolated from the gas­supply piping system by closing its dedicated
manual shutoff valve during any pressure testing
of the gas-supply system at pressures up to and
including ½ psig (3.5 kPa).

Proper operation of your appliance

WARNING:

1. Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.

2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.

WARNING:

Improper installation, adjustment, alteration,
service, or maintenance can cause injury or
property damage. For proper installation, refer
to the installation instructions. For assistance
or additional information, consult a qualifi ed
professional installer, service agency, or the

gas supplier.

All electrical outlets in the vicinity of the appliance
must be properly grounded in accordance with local
codes, or, in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.1, whichever

is applicable.
Keep all electrical-supply cords and fuel-supply

hoses away from any heated surface.

requires prompt and periodic
maintenance. See the CARE &
CLEANING section for details.

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746 Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

REV 0 - 1412031025

Certifi ed to: ANSI Z21.58b-2012
CSA 1.6b-2012

09-41

1

L-C2-448

SÛRETÉ ET CODES D’AVERTISSEMENT

INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE

DANS LE CONTRE- DOUBLE SIDEBURNER

DANGER:

SI VOUS SENTEZ LE GAZ :

1. Coupez le gaz à l’appareil.

2. Éteignez-vous n’importe quelle fl amme nue.

3. Ouvrez le couvercle si équipé d’un four.

4. Si l’odeur continue, gardez loin de
l’appareil et appelez immédiatement
votre département de fournisseur ou de
feu de gaz.

CONDITIONS DE CODE ET D’APPROVISIONNEMENT:

Ce gril doit être installé selon des codes et des ordonnances
locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre
le plus défunt Code national de gaz de carburant (norme ANSI
Z223.1/NFPA 54), et Stockage de gaz naturel et de propane
et manipulation du code d’installation (CSA-B149.1).

Cet appareil et ses différents robinets d’isolement doivent être
démontés du gaz-fournissent le système siffl ant en examinant
le système aux pressions au-dessus du ½ psig (kPa 3.5).

Cet appareil doit être isolé dans gaz-fournissent le système
siffl ant par fermeture que ses différents robinets d’isolement
manuels pendant tous les essais sous pression du gaz­fournissent le système aux pressions jusques et y compris
le ½ psig (kPa 3.5).

• Ce gril est pour ultilisation à l’extérieur seulement. Si
l’appareil est entreposé à l’intérieur, enlever les bouteilles et
les laisser à l’extérieur.

• Ne pas ranger le gril immédiatement aprés l’avoir utilisé.
le laisser refroidir avant de le déplacer ou de la ranger. Le
non respect de cette mesure de sécurité pourrait entraîner un
incendie causant des dommages à la propriété, des blessures
ou la mort.

• Ne pas utiliser cet appareil sous une surface combustible.

• Ne pas utiliser cet appareil sous un auvent. Le non respect
de cette mesure de sécurité pourrait entraîner un incendie ou
des blessures.

• Dégagement minimal entre les parois latérales et l’arriére
de l’appareil et la construction combustible (45.7 cm à partir
des parois latérales et 45.7cm à partir de l’arriére).

• Le régulareur de pression de gaz prévu avec cet appareil
de cuisson à gaz pour l’extérieur doit être utilisé. Ce régulateur
est réglé pour une pression de sortie de 5 pouces de colonne
de l’eau pour le gaz naturel, et 10 pouces pour le propane.

• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ
POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE CARRÉ).
SI VOTRE OFFRE DE GAZ EST 1/2 PLUS GRAND QUE
(LIVRES PAR POUCE CARRÉ), UN RÉGULATEUR
ADDITIONNEL DOIT ÊTRE INSTALLÉ AVANT LE GRIL. VOIR
LA SECTION DE CONDITIONS D’OFFRE DE GAZ POUR
LA PRESSION APPROPRIÉE D’OFFRE DE GAZ.

AVERTISSEMENT:

1. Ne stockez pas ou n’employez pas
l’essence ou d’autres vapeurs et liquides
infl ammables à proximité de ceci ou
d’aucun autre appareil.

2. Un cylindre de propane non relié pour
l’usage ne sera pas stocké à proximité
de ceci ou d’aucun autre appareil.

AVERTISSEMENT:

L’installation inexacte, l’ajustement,
le changement, le service, ou l’entretien
peuvent causer des dommages ou des dégats
matériels. Référez-vous à ce manuel. Pour
l’aide ou l’information additionnelle, consultez
un installateur professionnel qualifi é, l’agence

de service, ou le fournisseur de gaz.

Toutes les sorties électriques à proximité du gril doivent être
correctement fondues selon des codes locaux, ou en l’absence
de local code, avec le code électrique national, ANSI/NFPA
70, ou le code électrique canadien, CSA C22.1, celui qui est
applicable.

Maintenez tout électrique-fournissent des cordes et carburant­fournissent des tuyaux partis de n’importe quelle surface de
chauffage.

• Ne couvrez jamais la surface entière de cuisine ou de gril
de gauffreuses ou de casseroles. La surchauffe se produira et
les brûleurs ne seront pas très performants quand la chaleur
de combustion est emprisonnée au-dessous de la surface à
cuire.

• Ne pulvérisez jamais l’eau sur une unité chaude de gaz,
comme ceci peut endommager des composants de porcelaine
ou de fer de fonte.

• Une fuite de GPL peut causer une incendie ou une
explosion si enfl ammée entraînant des blessures corporelles
graves ou la mort.

• Communiquez avec le fournisseur de GPL pour les
réparations ou pour disposer de qules bouteille ou du GPL
non utilisé.

Certifi é à la norme: ANSI Z21.58b-2012
CSA 1.6b-2012

INSTALLATEUR : Laissez ces instructions avec le consommateur.

CONSOMMATEUR : Maintenez pour la future référence.

REV 0 - 1412031025

2

L-C2-448

CONTENTS

1 WARNINGS AND SAFETY CODES
4 DOUBLE SIDEBURNER PARTS LIST
5 COUNTERTOP OVERHANG
5 MODEL SPECIFICATIONS
6 COMBUSTIBLE ENCLOSURE CUT-OUT
6 SUBSTRATE
7 DOUBLE SIDEBURNER DIMENSIONS TABLE
7 DOUBLE SIDEBURNER WIRING DIAGRAM
8 ELECTRICAL CONNECTIONS
8 MAINTENANCE AND SAFETY INFORMATION
9 INSTALLATION REQUIREMENTS
10 ENSURE PROPER COMBUSTION AIR AND COOLING AIRFLOW
10 GAS-SUPPLY PLUMBING REQUIREMENTS
11 NATURAL GAS INSTALLS
11 PROPANE GAS INSTALLS (HOUSEHOLD & CYLINDER)
11 WHEN A PROPANE CYLINDER IS USED
11 ENCLOSURE REQUIREMENTS
12 COUNTER PREPARATION
12 CONNECT THE GAS SUPPLY
12 INSTALLATION
13 CONNECT TO A POWER SOURCE
14 POWER SUPPLY (MULTIPLE ACCESSORY UNITS)
15 SLIDE UNIT INTO ENCLOSURE
15 POSITION THE BURNER CAPS
15 ELECTRICAL SAFETY
16 CONVERTING THE GAS TYPE
17 AIR SHUTTER ADJUSTMENT
19 SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS
21 LIGHTING (IGNITION) INSTRUCTIONS
21 SHUTTING OFF THE UNIT
22 CARE & CLEANING
23 CHECKING AND CONVERTING THE REGULATOR
23 CHECKING AND CONVERTING GAS TYPE
24 CONTROL PANEL REMOVAL
25 TROUBLESHOOTING
26 WARRANTY

REV 0 - 1412031025

3

L-C2-448

DOUBLE SIDEBURNER PARTS LIST

Item Description Part No. Qty.

Double sideburner cover 3281-07 1

1.

Porcelain cast iron cooking grid 3529 1

2.

Stainless steel cooking grid 3529-S 1

or

Burner assembly (w/ burner pipe) 3279-32 2

3.

Control panel 3281-07 1

4.

Valve manifold assembly 3281-22 1

5.

Burner ignitor 3199-44 2

6.

Control knob 3016 2

7.

Convertible Regulator PR-4 1

8.

Wire harness assembly

9.

Wire harness extension

10.

Flex connector w/ fi ttings

11.

Power supply w/ connector *

12.

‡

Not shown

Optional / purchased separately

*

‡

‡

‡

‡

3281-24 1

24182-55 1

3031 1

24177-12 1

1

3

7

3

2

5

4

6

8

REV 0 - 1412031025

4

L-C2-448

MODEL SPECIFICATIONS

MODEL SPECIFICATIONS TABLE

Table 1

Main burner quantity
N/P orifi ce drill size

Input electrical requirements

2

#51 / #58

120VAC / 0.6A / 60 Hz

Non-combustible

enclosures

Combustible

enclosures
A Countertop to unit bottom cut-out 12" 12"
B Side to side cut-out 11-

1

/2" 12"

C Front to back cut-out† 22-3/4" 23-1/4"
D Control panel width cut-out‡ 12-5/8" 12-5/8"

▲

The increased dimensions for combustible enclosures allow for a required air gap along
the sides and rear of the unit. See the COMBUSTIBLE ENCLOSURE CUT-OUT section
on the next page for details.

†

Includes any substrate at front wall of enclosure (in the area the rear of the control panel

is to sit fl ush against). See SUBSTRATE section on next page.

‡

Only applicable for enclosures that have countertops with an overhang (see illustration
and section below).

TOP VIEW

TOP VIEW

B

ENCLOSURE

CUT-OUT

(Countertop)

(Countertop)

X

DIMENSIONS

Control

panel

C

Lower support

(Control

Countertop

overhang

panel)

Clearance

D

1

/4"

(Overhang)

Y

FRONT VIEW

▲

▲

X= D-B÷2
Y= Total
Countertop
Overhang

Check
clearance for
control panel

removal

SIDE VIEW

A

See next page

for substrate

considerations

Countertop

overhang

Fig. 5-1

Control

panel

Countertop

overhang

COUNTERTOP OVERHANG

The control panel is designed to sit fl ush against the enclosure front wall. If the enclosure countertop extends beyond the front wall,
creating a countertop overhang, it must be cut fl ush with the front wall for the width of the control panel or a gap will be created exposing
the forward portions of the left and right side fi re walls of the unit. See illustrations above.

Important: FOR YOUR SAFETY, you must provide openings in the island enclosure for drainage, replacement air, and cross-

ventilation of any storage area exposed to possible leakage from gas connections, the unit, or propane tanks. See the
ENCLOSURE REQUIREMENTS section for details.

REV 0 - 1412031025

5

L-C2-448

MODEL SPECIFICATIONS (cont.)

COMBUSTIBLE ENCLOSURE CUT-OUT

This unit may be installed into combustible framing (wood, for instance) provided there is a minimum of a

1

/2" airspace between ALL sides of the unit and any combustible material.

Countertop

1

/2" min.

air gap to all

combustible

material

TOP VIEW

1

/2"

AIR GAP

(Sideburner)

Stainless

steel

hanger

Edge of
counter

cut-out

FRONT VIEW

(Sideburner)

1

/2"

AIR GAP

Maintain air gap all the way down

Stainless

steel

hanger

CountertopCountertop

(sides and rear) below countertop

Fig. 6-1

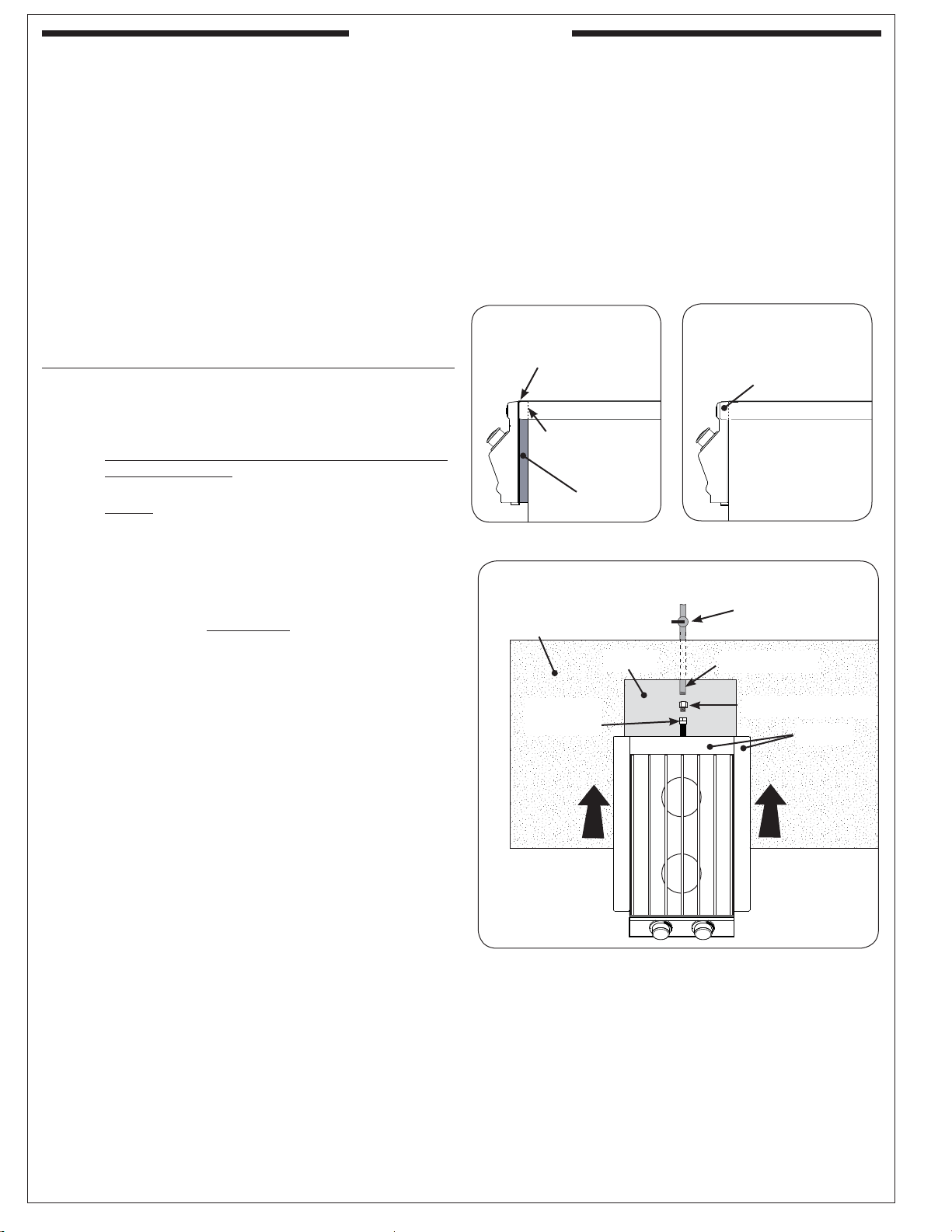

SUBSTRATE

When adding any substrate to the enclosure front wall (including tiles, stone, etc.), consider the following:

Substrate Behind Control Panel

Substrate Alongside Control Panel

Substrate + countertop "front to back" cutout
must equate to Dim. C (see previous page)
when the substrate sits fl ush behind the
control panel.

TOP VIEW TOP VIEW

(Countertop)

Substrate

(includes tiles,

Double

sideburner

liner

Flush

(Control panel)

Fig. 6-2 Fig. 6-3

etc. at front of

C

1

/4"

Clearance

enclosure)

Countertop

overhang

(if applicable)

Any additional substrate alongside the control panel
does not need to be considered in Dim. C (see previous
page), however a 1/4" clearance on each side (same as
overhang) and below is required.

(Countertop)

Substrate

Double

sideburner

liner

Flush

(Control panel)

(includes tiles,

etc. at front of

C

1

/4"

Clearance

enclosure)

Countertop

overhang

(if applicable)

REV 0 - 1412031025

6

L-C2-448

Model

MODEL SPECIFICATIONS (cont.)

DOUBLE SIDEBURNER DIMENSIONS TABLE

Height Width Depth

(Top to bottom) (Left to right) (Front to back)

Top of hanger to

bottom of unit

(E)

Hanger to hanger

(F)

Control panel

width

(G)

Maximum depth

(H)

3281

Burner igniter

12" 15 1/2" 12 1/8" 29"

F

G

DOUBLE SIDEBURNER WIRING DIAGRAM

Burner igniter

H

E

Fig. 7-1

Wire harness

assembly

REV 0 - 1412031025

Wire harness

extension

Burner

manifold

Ground wire

Note: In addition, a wire diagram for this unit can also be found affi xed to

the inside of the control panel.

7

L-C2-448

MAINTENANCE AND SAFETY INFORMATION

1. The sideburner and surrounding area MUST

remain clear of fl ammable substances such as
gasoline, yard debris, wood, etc.

2. The airfl ow through the vent space located below

the control panel must remain unobstructed.

3. When using propane gas:
a. The required ventilation openings in the

enclosure must be clear of debris.

b. The propane cylinder, regulator, and rubber

hose must be in a location not subject to
temperature above 125° F (51° C).

lead to a fi re beneath the unit. A proper fl ame
pattern will ensure safe operation and optimal
performance. Adjust the air shutter as needed
(see AIR SHUTTER ADJUSTMENT).

5. The in-line gas valve or gas cylinder valve must

always be shut OFF when the unit is not in use.

6. Do not operate the burner with the cover in
place.

7. Whenever reconnecting any wires, apply a

small amount of dielectric grease to the male
connector, then make the connection.

4. The fl ames on each burner burn evenly along

the burner caps with a steady fl ame (mostly
blue). If burner fl ames are not normal, check
and clean the orifi ce and burner/venturi tubes
for insects and insect nests. A clogged tube can

WARNING: NEVER cover more than 75% of the cooking surface with griddles or pans. Overheating will occur, and

burners will not perform properly when combustion heat is trapped below the cooking surface.

CAUTION: NEVER spray water on a hot gas unit.

The unit serial identifi cation number and rating label are located on the inside of the

control panel. The unit must be completely cool before opening.

ELECTRICAL CONNECTIONS

This unit requires 120VAC power to operate.

Plug the power supply cord into a properly wired and inspected GFCI electrical

receptacle (15 AMP minimum). Use a heavy-duty grounded extension cord if necessary.

WARNING

Electrical Grounding Instructions
For your protection against shock hazard, this outdoor-cooking gas-appliance is equipped with a three-pronged
(grounding) electrical connector. This appliance should be connected to a properly grounded three-prong receptacle
using a grounding extension cord rated for outdoor use. Do not cut or remove the grounding prong from the connector.

REV 0 - 1412031025

8

L-C2-448

INSTALLATION REQUIREMENTS

Installation must be performed by a qualifi ed professional
service technician.

This unit is designed for outdoor use only. DO NOT use this unit
inside a building, garage, or enclosed area.

See below for details on installing under overhead
construction.

DO NOT use this unit in or on a recreational vehicle or boat.
Important: If installing this unit in a combustible enclosure, the

correct air gap requirement must be met.

Important: Refer to the information below to ensure all

required clearances are met.

The unit must have a minimum clearance of 18" from
combustible materials/items AT ALL TIMES.

Overhead Construction Requirements (if applicable)

Overhead construction

Min.

6'

Fig. 9-1 Overhead requirements

Non-combustible

Min.

4"

A 6 foot clearance is required between the countertop and the
construction above (Fig. 9-1).

Side and Rear Wall Clearances

For the minimum clearances between the sideburner and any
side or rear walls, your setup must fall within one (or more) of
the following:

A. Clearance between sideburner and strictly non-

combustible wall

(i.e. brick wall, see Fig. 9-2)

• The unit must have a minimum of 4" right, left, and rear
clearance from any non-combustible wall.
(To allow for proper ventilation and prevent dangerous
overheating.)

B. Clearance between sideburner and a protected

combustible wall

(i.e. a non-combustible wall in front of a combustible wall to
serve as a barrier. This can be accomplished by brick, or
a metal stud fi nished with non-combustible substrate, see
Fig. 9-3)

• The unit must have a minimum of 14" right, left, and rear
clearance from the protected combustible wall.
(The 4" non-combustible material plus an additional 10"
clearance between the sideburner and protected wall.)

C. Clearance between sideburner and combustible wall

(Clearance required for

right, left, and rear)

Fig. 9-2 Clearance 'A' Diagram

Non-combustible

substrate

(Clearance required for

right, left, and rear)

Non-combustible 4"

Min.

14"

Fig. 9-3 Clearance 'B' Diagram

Combustible

Min.

18"

(Clearance required for

right, left, and rear)

Fig. 9-4 Clearance 'C' Diagram

Com-

bustible

• The unit must have a minimum of 18" right, left, and rear
clearance from any combustible wall (see Fig. 9-4).

Backsplash (if applicable)

If a non-combustible backsplash exists, it must have a minimum
of a 4" clearance from the rear of the unit (to allow for proper
ventilation and prevent dangerous overheating). See Fig. 9-5.

Important: This 4" backsplash clearance must fi rst be met prior

to any non-combustible walls beginning behind it.

REV 0 - 1412031025

9

Non-combustible

Backsplash

Min.

4"

Fig. 9-5 Backsplash clearance

L-C2-448

INSTALLATION REQUIREMENTS (cont.)

The control panel MUST remain removable for servicing
(see PARTS LIST).

THIS UNIT MUST NOT BE LOCATED IN A FULLY
ENCLOSED AREA OF ANY KIND.

ENSURE PROPER COMBUSTION AIR AND
COOLING AIRFLOW

Proper airfl ow (Fig. 10-1) MUST be maintained for the
sideburner to perform as it was designed. If airfl ow is
blocked, overheating and poor combustion will result.
Do not block the 1" front air inlet along the bottom of
the control panel or more than 75% of the cooking grid
surface with pans or griddles.

GAS-SUPPLY PLUMBING REQUIREMENTS

For natural gas or a household propane system, rigid

1

/2" or 3/4" black steel pipe or local code-approved
pipe is required to conduct the gas supply to the unit.
Contact your local gas supplier. Connect this pipe to a
required C.S.A.-approved stainless-steel fl ex connector
(attached). An NPT adapter has been provided for 1/2"
pipe. DO NOT use a rubber hose within the unit
enclosure. Apply only joint compounds that are resistant
to all gasses to all male pipe fi ttings except fl are fi ttings.
Make sure to tighten every joint securely.

Note: If

1

/2" pipe is used with natural gas, it should

be no longer than 20'.

DO NOT BLOCK

MORE THAN 75% OF

COOKING AREA

Fig. 10-1 Ventilation Diagram

Important: An external valve (with a removable

key) in the gas line is necessary for
safety when the unit is not in use. It also
provides for convenient maintenance.

GAS SUPPLY AND MANIFOLD PRESSURES:

For natural gas - normal 7" (17.78 cm) water column
(w.c.), minimum 5" (12.7 cm), maximum 10

1

/2" (26.7

cm). For propane gas - normal 11" w.c., minimum 10"
(25.4 cm), maximum 13" (33 cm).

REV 0 - 1412031025

10

L-C2-448

ENCLOSURE REQUIREMENTS

FOR YOUR SAFETY, you must provide the openings listed
below for drainage, replacement air, and cross-ventilation
of any storage area exposed to possible leakage from gas
connections, the unit, or propane cylinders.

One side of the enclosure can be left completely open to
the outside, OR 4 ventilation openings must be created:

NATURAL GAS INSTALLS

Two of the openings are to be at the top level (approx.
4" below the countertop) and on opposite walls of the
enclosure. 2 more openings must be at the fl oor level (no
more than 5" above the fl oor) and on opposite sides of the
enclosure. Each opening must have a minimum of 10 sq.
in. of free area. To achieve the proper ventilation, you may
drill a series of holes, omit the grout from masonry joints,
or replace a brick with a hardware cloth screen. If the fl oor
in the cabinet is raised and the space beneath the cabinet
is open to the outside, the lower ventilation openings may
be in the fl oor. Reference Fig. 11-1.

PROPANE GAS INSTALLS
(HOUSEHOLD & CYLINDER)

Two of the openings are to be at the cylinder valve level
(approx. 16" above the fl oor) and on opposite walls of the
enclosure. 2 more openings must be at the fl oor level (no
more than 5" above the fl oor) and on opposite sides of the
enclosure. Each opening must have a minimum of 10 sq.
in. of free area. To achieve the proper ventilation, you may
drill a series of holes, omit the grout from masonry joints,
or replace a brick with a hardware cloth screen. If the fl oor
in the cabinet is raised and the space beneath the cabinet
is open to the outside, the lower ventilation openings may
be in the fl oor. Reference Fig. 11-1.

Nat. gas

installs

(repeat for

opposite

side)

L.P. gas

installs

(repeat for

opposite

side)

Fig. 11-1 Ventilation detail

Sideburner

Heatshield

C.S.A.

listed
stainless
steel fl ex

connector

Adapter

L.P.

cylinder

Regulator/

assembly

Fig. 11-2 Propane cylinder orientation

Cylinder & regulator/

hose assembly

protected by heatshield

hose

WHEN A PROPANE CYLINDER IS USED

When a propane cylinder is installed inside of the enclosure,
the guidelines below MUST be followed. FAILURE TO
DO SO MAY CAUSE DAMAGE TO YOUR UNIT AND/OR
PERSONAL INJURY. Reference Fig. 11-2 for an example.

• Only a C.S.A. listed stainless steel connector can be
connected to the unit.

• The regulator/hose assembly coming from the propane
cylinder can only be connected to the above mentioned
fl ex connector. DO NOT connect the regulator/hose
assembly directly to the unit. An adapter will be
required.

• A heatshield must be installed to protect the regulator/
hose assembly and propane cylinder valve.

• Fire Magic offers a propane cylinder door with tank
tray to meet the cylinder install requirements. See
Fig. 11-3.

REV 0 - 1412031025

11

Equipped with

adapter for hose

assembly and

fl ex connector

Fig. 11-3 Optional Fire Magic door w/tank tray

L-C2-448

INSTALLATION

COUNTER PREPARATION

Consult Table 1 for enclosure cut-out dimensions. If the counter or any supporting construction is combustible,
the COMBUSTIBLE ENCLOSURE CUT-OUT section must be followed before beginning the installation.

This sideburner must supported by the stainless-steel hanger extending from the upper portion of the frame. The
hanger rests on the left, right, and back of the countertop.

The control panel is designed to sit fl ush against the enclosure front wall (see Fig. 12-2). If the enclosure countertop
extends beyond the front wall, creating a countertop overhang (see Fig. 12-1), it must be cut fl ush with the front
wall for the width of the control panel or a gap will be created exposing the forward portions of the left and right
side fi re walls of the unit. See the MODEL SPECIFICATIONS section.

Note: It is not necessary to remove the control panel or knobs to install this unit.

CONNECT THE GAS SUPPLY

For propane cylinders:

For connecting a propane unit to a portable propane tank,
read the safety warnings and follow the instructions in the
section SAFE USE AND MAINTENANCE OF PROPANE
GAS CYLINDERS.

Note: When a propane cylinder is installed inside

of the enclosure, the guidelines found in the
ENCLOSURE REQUIREMENTS section

MUST be followed.

For household propane or natural gas units:
CAUTION: Use only C.S.A. listed stainless-steel fl ex

connectors within the enclosure.

WARNING
A rubber or plastic connector will rupture or leak,
resulting in an explosion or serious injury if used

inside the appliance enclosure.

1. Locate the attached fl ex connector (found underneath
the unit) and route it to the gas-supply stub.

2. Turn OFF the gas supply at the source. Remove

1

the

/2" adapter that is loosely connected to the fl ex
connector. Attach the adapter to the gas-supply stub
using a pipe joint compound that is resistant to all
gasses. Tighten securely. Then attach the open end
of the fl ex connector to the adapter. Tighten securely.

Control panel

stops here

Overhang

(Countertop) (Countertop)

Proposed cut­out in overhang

GAP CREATED

Fig. 12-1 Fig. 12-2

To gas

Countertop

Flex

connector

system

OFF

Cut-out

Dedicated manual
shut-off valve

Gas inlet pipe

IDEAL

Flush-mounted

control panel

Pipe adapter fi tting

Hanger

3. Tu r n all burner control knobs to the OFF position.

Turn the gas supply on. Then carefully check all gas
connections for leaks with a brush and half-soap/
half-water solution before lighting. NEVER USE A
MATCH OR OPEN FLAME TO TEST FOR LEAKS.

4. Close the dedicated gas-supply shut-off valve.

REV 0 - 1412031025

12

Fig. 12-3 Gas connection diagram

L-C2-448

INSTALLATION (cont.)

CONNECT TO A POWER SOURCE

CAUTION: Improperly connected wires will cause damage to

the unit and may result in property damage and/
or personal injury.

The unit comes with a 6' wire extension to retrieve power from
a separately purchased Aurora grill. Select Aurora grills are
equipped with power supply boxes, which can supply power
to the sideburner. Alternatively; an optional power supply box
may be ordered and installed to individually power this unit.
Contact your dealer for ordering information.

To install using the wire extension:

1. Locate the power supply box inside of the island enclosure
and disconnect the power cord (See Fig. 13-2, A).

2. Disconnect the grill wire harness extension connectors
from the power supply connectors. See Fig. 13-2, (B)

3. Locate the end of the sideburner wire extension that has

two molex and ground connections. Connect the extension
(plug) molex connection to the power supply (receptacle)
molex connection and ground wires (See Fig. 13-3, C).

Receptacle

Fig. 13-1 Connection detail

A

Power supply

box

B

Plug

Grill wire

harness

extension

4. Connect the extension (receptacle) molex to the grill (plug)
molex connection and ground wires (See Fig. 13-3, D).

5. Connect the opposite end of the extension to the

sideburner as shown in Fig. 13-3, E (molex and ground
wire connections).

6. Reconnect the power cord (see Fig. 13-3, F).

Proceed to the SLIDE UNIT INTO ENCLOSURE section.

To install using a power supply box (not included):

1. Install the power supply box at least 12 inches below the

bottom of the sideburner.

2. Fasten the power supply box to the inside of the enclosure.

3. Connect the power supply box connectors to the sideburner

wire harness extension, as shown in Fig. 13-4, A (molex
and ground wire connections).

4. Connect the sideburner wire harness extension to the
sideburner, as shown in Fig. 13-4, B (molex and ground
wire connections).

5. Plug the power cord into a properly wired and inspected GFCI
receptacle, 15 AMP minimum (not included). See Fig. 13-4,

C.

Note: Use a heavy duty grounded extension cord if

necessary.

Fig. 13-2 Disconnect grill connections

Sideburner

D

F

Fig. 13-3 Connect sideburner to grill setup

C

E

Sideburner

wire harness extension

Sideburner

REV 0 - 1412031025

13

Power supply

box

C

A

B

Sideburner

wire harness extension

Fig. 13-4 Connect sideburner to power supply

L-C2-448

INSTALLATION (cont.)

POWER SUPPLY (MULTIPLE ACCESSORY UNITS)

The previous section covers in detail how to individually connect this accessory unit to an Aurora grill power
supply box. If multiple accessory units are to be installed, the following diagrams will assist in their installation.

Grill Left Install

Grill wire harness

extension

Power supply box

Each accessory unit equipped with one wire extension

Grill Center Install

Grill wire harness

extension

Each accessory unit equipped with one wire extension

REV 0 - 1412031025

14

Power supply box

L-C2-448

INSTALLATION (cont.)

SLIDE UNIT INTO ENCLOSURE

Slide the unit into place. Do not to pinch, kink, or damage
the gas connector line.

Note: Each side of the unit has a tab just behind the

control panel. These tabs prevent the control
panel from moving inward. If the tabs interfere
with the unit sliding in (see Fig. 15-1), use
pliers to bend them inward so that they clear
the enclosure sides. Leave the tabs slightly
out to ensure they still keep the control panel
from moving inward (see Fig. 15-2).

POSITION THE BURNER CAPS

Place the burner caps so they are centered over each
burner. Ensure that they rest securely in place.

ELECTRICAL SAFETY

To protect against electric shock, do not immerse cord or
plugs (if equipped) in water or other liquid;

Unplug from the outlet (if applicable) when not in use and
before cleaning. Allow to cool before putting on or taking
off parts;

Fig. 15-1 Tab may interfere when sliding in unit

Do not operate any outdoor cooking gas appliance with a
damaged cord, plug, or after the appliance malfunctions or
has been damaged in any manner. Contact the manufacturer
for repair;

Do not let the cord hang over the edge of a table or touch
hot surfaces;

Do not use an outdoor cooking gas appliance for purposes
other than intended;

When connecting, fi rst connect plug to the outdoor cooking gas
appliance then plug appliance into the outlet;

Use only a Ground Fault Circuit Interrupter (GFCI)
protected receptacle with this outdoor cooking gas
appliance;

Never remove the grounding plug or use with an adapter
of 2 prongs.

Use only extension cords with a 3 prong grounding plug,
rated for the power of the equipment, and approved for
outdoor use with a W-A marking.

Fig. 15-2 Tab slightly bent in for clearance

REV 0 - 1412031025

15

L-C2-448

CONVERTING THE GAS TYPE

Fire Magic units are equipped with orifi ces for natural gas,
unless otherwise indicated. For use with propane gas, smaller
orifi ces must be installed to avoid hazardous overheating.
Please refer to Table 1 for the correct orifi ce size. Check
the orifi ce size by following the instructions below. The drill
size is stamped on the orifi ce. If the number is not visible
you may have to remove the orifi ce (as detailed below) to
read the number stamped on the side of the orifi ce.

If you are not sure you have the correct sideburner
orifi ce size (or wish to change the orifi ce), follow the
steps below.

CAUTION: If the burner has been in use, wait until

the burner and its components are cool
to the touch.

IMPORTANT: When converting orifi ces for different gas

type, the regulator must also be converted
for the new gas type. Reference the
CHECKING AND CONVERTING THE
REGULATOR section.

1. Turn off the gas shutoff valve. Remove sideburner

cover and lift off cooking grid.

Fig. 16-1 Remove burner clip

2. Remove the control panel. See the CONTROL PANEL

REMO

3. Reach up under the b

VAL section for details.

urner support and remove the
burner retaining clip (see Fig. 16-1), located at the
rear of the burner pipe.

4. Remove the burner cap and carefully lift the burner

up and out, clearing the ceramic electrode (see Fig.
16-2), and pulling the burner tube away from the
orifi ce, located on the end of the orifi ce holder on
the left side of the unit (see Fig. 16-3).

Note: You do not have to lift the burner completely out

of the unit to access the orifi ce.

5. Using a

3

/

" socket, remove orifi ce from the orifi ce

8

holder (see Fig. 16-3) and check the number
stamped on the orifi ce face.

6. If an orifi ce change is necessary, replace the orifi ce

with the correct size.

7. Replace the sideburner tube over the orifice,

aligning the burner over the electrode, taking care
not to detach it from the wire.

Fig. 16-2 Remove burner

Orifi ce

located at

end of orifi ce

holder

Orifi ce
holder

Fig. 16-3 Orifi ce location

8. Replace the burner retaining clip (underneath

burner), and burner cap.

9. Repeat steps 3. through 8. for the second burner.

10. Replace the control panel. Replace the control

knobs.

11. Replace the grid and cover.

REV 0 - 1412031025

16

L-C2-448

AIR SHUTTER ADJUSTMENT

Air shutters are preset at the factory based on the
gas the sideburner is built to burn. However, altitude
or other local conditions may require air shutter
adjustment for proper combustion.

The fl ames from a properly adjusted sideburner will
touch the burner ports and appear mostly blue.

If they are orange, “lazy,” or lift off the burner ports,
then adjust the sideburner air shutter using the
following steps.

The air shutters are located at the end of the burner
assemblies, behind the control panel. They can safely
and easily be adjusted while the unit is lit.

CAUTION: Do not touch the sideburner surrounding

top area, as it will be hot while adjusting
the air shutter.

1. Remove the control panel. See the CONTROL

ANEL REMOVAL section for details.

P

Fig. 17-1 Flame pattern

2. Replace the control knobs back on to the valve

stems.

3. Light the sideburner following the LIGHTING

INSTRUCTIONS section.

4. Loosen the front burner air shutter adjustment

screw, then use the tip of a screwdriver to open
or close the air shutter until the fl ames appear
blue and touch the burner ports.

5. Retighten the adjustment screw.

6. Repeat for rear burner air shutter.
Should you have diffi culty accessing the

rear burner air shutter, you may shut down,
remove the rear burner (when cool), then
adjust the air shutter to the same opening
as the already adjusted front burner. (See
CONVERTING THE GAS TYPE section to
remove rear burner.) Be sure to properly
reinstall rear burner when complete.

7. Once all adjustments are complete; be sure the

unit is off and remove the knobs, then replace
the control panel and knobs.

Close

Open

Fig. 17-2 Adjust air shutter

REV 0 - 1412031025

17

L-C2-448

U

L

UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE

IMPORTANT POUR VOTRE SÛRETÉ

LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.

En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.

LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.

CYLINDRE ET CONDITIONS ET
CARACTÉRISTIQUES DE CONNECTEUR

a. Des cylindres et les valves de gaz de propane doivent être

maintenus en bon état et doivent être remplacés s’il y a
des dommages évidents au cylindre ou à la valve.

b. Ce gril, une fois utilisé avec un cylindre, devrait être relié à

un gallon de la norme 5 (20lb.) cylindre de gaz de propane
équipé d’un OPD (remplissez au-dessus du niveau le
dispositif d’empêchement). L’OPD a été exigé sur tous les
cylindres vendus depuis octobre 1.1998 pour empêcher le
remplissage excessif.

c. Les dimensions de cylindre devraient être approximativement

12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des
cylindres doivent être construits et marqués selon les
caractéristiques pour des cylindres de gaz de propane du
département des ETATS-UNIS du transport (D.O.T.) ou
le niveau national du Canada, du CAN/CSA-B339, des
cylindres, des sphères et des tubes pour le transport des
marchandises dangereuses.

d. Le cylindre doit inclure un collier pour protéger la valve

de cylindre et le circuit d’alimentation de cylindre doit être
assuré le retrait de vapeur.

e. Le montage du régulateur de pression et le fl exible (Fig. 18-1)

e. Le régulateur de pression et l’ensemble de tuyau utilisé

fourni avec cet appareil au gaz en plein air (modèles au

doivent assortir les spécifi cations pour le type I par ANSI

propane seulement) doit être utilisé. Assemblées d'origine et

Z 21.58-2005/CGA 1.6-2005 (voir la fi gue. 18-1).

régulateur de pression et le tuyau de remplacement doivent
être ceux spécifi és par le fabricant pour le raccordement d'un
dispositif de cylindre de liaison identifi ée comme de type I par
le 21.58-2005/CGA ANSI Z 1.6 à 2005 (voir liste des pièces
pour les informations de commande).

f. La valve de cylindre de gaz de propane doit être équipée

d’un dispositif d’accouplement de raccordement de
cylindre, décrit comme type I dans la norme défi nie dans le
e. de paragraphe ci-dessus. Ce dispositif est généralement
décrit comme coupleur rapide de fi l de point culminant.

g. Si votre cylindre de gaz de propane vient avec une prise

de la poussière, placez le bouchon anti-poussière sur la
sortie de valve de cylindre toutes les fois que le cylindre
n’est pas en service.

OPÉRATION DE COUPLEUR RAPIDE

Pour relier le regulator/hose à l’ajustage de précision de
valve de cylindre de gaz de propane: Serrez l’écrou de main

sur le régulateur au-dessus de l’ajustage de précision de fi l
de point culminant sur la valve de cylindre. Tournez l’écrou de

main dans le sens des aiguilles d’une montre pour engager les
fi ls et pour serrer jusqu’à ce que douillettement. L’utilisation des
pinces ou de la clé ne devrait pas être nécessaire. Seulement
le propane marqué par cylindres doit être employé.

Pour débrancher: Tournez l’écrou de main dans le sens
contraire des aiguilles d’une montre jusqu’à isolé (fi g. 18-1).

Important: Avant d’employer le gril, et ensuite chaque

fois que le cylindre est enlevé et rattaché,
examinez tous les raccordements pour déceler
les fuites. Arrêtez les valves de gril et ouvrez
la valve principale de cylindre, puis vérifi ez
les raccordements avec de l’eau savonneux.
Réparez toutes les fuites avant d’allumer le gril.

ATTENTION: Tournez toujours la valve principale de cylindre

de propane au loin après chaque utilisation,
et avant de déplacer le gril et le cylindre, ou
débrancher l’accouplement. Cette valve doit
rester fermée et le cylindre a débranché alors
que l’appareil n’est pas en service, quoique
l’écoulement de gaz soit arrêté par un dispositif
de sûreté quand le coupleur est débranché.

Inspectez soigneusement l’ensemble de tuyau chaque fois
avant que le gaz soit allumé. Un tuyau fi ssuré ou effi loché doit
être immédiatement remplacé.

Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected
et a enlevé. Des cylindres Disconnected doivent être stockés
dehors, hors de la portée des enfants, avec les prises de valve
fi letées étroitement installées, et ne doivent pas être stockés dans

un bâtiment, le garage, ou n'importe quel autre secteur inclus.

POUR VOTRE SÛRETÉ

a. Ne stockez pas un cylindre de gaz disponible de propane

dessous ou ne vous approchez pas de cet appareil.

b. Ne remplissez jamais cylindre au delà de 80 pour cent de

plein.

c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE

EXACTEMENT, UN FEU CAUSANT LA MORT OU DES
DOMMAGES SÉRIEUX PEUT SE PRODUIRE.

Fig. 18-1 type coupleur rapide de fi l de point culminant d’I

Volant de commande

QCC
Type 1

Valve

Valve
de
décompression

1

Ajustage de précision
en laiton de fi l de
point culminant

4

Indicateur
de niveau
de liquide
(facultatif)

3

2

Écrou de main avec le
fi l de point culminant.

Régulateur

Passage

Tuy au

Pour la ventilation de propane, voir la section sur les exigences de boîtier.

18

U

L

SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS

IMPORTANT FOR YOUR SAFETY

READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.

When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.

FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.

CYLINDER/CONNECTOR REQUIREMENTS

a. Propane-gas cylinders, valves, and hoses must be

maintained in good condition and must be replaced if
there is visible damage to either the cylinder or valve. If the
hose is cut or shows excessive abrasion or wear, it must
be replaced before using the gas appliance (see e.).

b. This unit, when used with a cylinder, should be connected

to a standard 5-gallon (20 lb.) propane-gas cylinder
equipped with an OPD (Overfi ll Prevention Device).
The OPD has been required on all cylinders sold since
October 1,1998, to prevent overfi lling.

c. Cylinder dimensions should be approximately 12" (30.5

cm) in diameter and 18" (45.7 cm) high. Cylinders must
be constructed and marked in accordance with the

Specifi cations for Propane Gas Cylinders of the U.S.
Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods.

d. The cylinder used must include a collar to protect the

cylinder valve, and the cylinder supply system must be
arranged for vapor withdrawal.

e. The pressure regulator and hose assembly used must

e. The pressure regulator and hose assembly (Fig. 19-1)

match the specifi cation for Type I by ANSI Z 21.58-2005/

supplied with this outdoor gas appliance (L.P. models

CGA 1.6-2005 (see Fig. 19-1).

only) must be used. Original and replacement pressure
regulator and hose assemblies must be those specifi ed
by the manufacturer for connection with a cylinder
connecting device identifi ed as Type I by the ANSI Z

21.58-2005/CGA 1.6-2005 (see PARTS LIST for ordering
information).

f. The propane-gas cylinder valve must be equipped with a

cylinder connection coupling device, described as Type I
in the standard defi ned in paragraph e. above. This device
is commonly described as an Acme thread quick coupler.

g. If the propane-gas cylinder comes with a dust plug, place

the dust cap on the cylinder valve outlet whenever the
cylinder is not in use.

QUICK COUPLER OPERATION

To connect the regulator/hose assembly to the propane­gas cylinder valve fi tting: Press the hand nut on the regulator

over the Acme thread fi tting on the cylinder valve. Turn the hand
nut clockwise to engage the threads and tighten until snug.

The use of pliers or a wrench should not be necessary. Only
cylinders marked “propane” may be used.

To disconnect: Turn the hand nut counterclockwise until
detached (Fig. 19-1).

Important: Before using the unit, and after each time the

cylinder is removed and reattached, check
the hose for wear (see a.) and check all
connections for leaks. Turn off the unit valves
and open the main cylinder valve, then check
connections with soapy water. Repair any
leaks before lighting the unit.

CAUTION: Always turn the propane cylinder main valve

off after each use, and before moving the unit
and cylinder or disconnecting the coupling.
This valve must remain closed and the
cylinder disconnected while the appliance
is not in use, even though the gas fl ow is
stopped by a safety feature when the coupler
is disconnected.

Carefully inspect the hose assembly each time before the
gas is turned on. A cracked or frayed hose must be replaced
immediately.

If the appliance is stored indoors, the cylinder must be
disconnected and removed. Disconnected

cylinders must be

stored outdoors, out of the reach of children, with threaded
valve plugs tightly installed, and must not be stored in a

building, garage, or any other enclosed area.

FOR YOUR SAFETY

a. DO NOT store a spare propane-gas cylinder under or

near this appliance.

b. NEVER fi ll the cylinder beyond 80-percent full.
c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED

EXACTLY, A FIRE CAUSING DEATH OR SERIOUS
INJURY MAY OCCUR.

Fig. 19-1 Type I Acme thread quick coupler

QCC
Type 1
valve

Pressure
relief
valve

Hand wheel

Brass Acme
thread fi tting

Liquid level
indicator
(optional)

Hand nut with Acme
thread

Regulator

Vent

Hose

For propane ventilation requirements, see the ENCLOSURE REQUIREMENTS section.

19

ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)

Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le unité.

ÉCLAIRAGE ÉLECTRONIQUE

Note: Le unité doit être relié à la puissance 120VAC pour

Note: L’éclairage électronique exige une batterie installée

l’éclairage électronique.

de 9 volts avec une bonne charge.

1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs

pour être Lit.

2. Tournez tous les boutons de commande de gaz à leurs

positions de repos.

3. Allumez le gaz à sa source.

Lisez l’établissement ici

Read setting

(OUTRE de montrer)

here

TURN OFF

OUTRE DE

TO

Enfoncez
le bouton
pour
tourner

Fig. 20-1 - bouton de commande

OFF

LOW

TO TURN ON

LIGHT

HI

SUR

HIGH to

Utilisation

LIGHT

SALUT
(haute)
à la lu­mière

4. Diminuez le bouton de commande désiré pendant 5

secondes, puis, et tout en pressant le tour il dans le sens
contraire des aiguilles d’une montre dans la position
LÉGÈRE de HI. Une fois que le brûleur s’allume, libérez
le bouton.

Note: N’ouvrez
pas plus d’une
valve à la fois
pour l’éclairage
électronique ou
manuel.

ÉCLAIRAGE MANUEL

ATTENTION: Attendez toujours cinq (5) minutes le gaz

pour se dégager après que n’importe quelle
tentative non réussie d’éclairage.

1. Suivez les étapes 1 à 3 (à gauche).

2. Insérez un allumeur brûlant de butane de long-baril, une

2. Passez un allumeur brûlant de butane de long-baril ou

allumette brûlante de long-tige, ou une allumette brûlante

une allumette brûlante de long-tige dans la grille à cuire

tenue par un support de prolongation de fi l par la grille

s’ouvrant au dessus du tube d’éclairage. (Fig. 20-2). Pour

à cuire s’ouvrant au brûleur (fi g. 20-2). Tenez la fl amme

des backburners, tenez la fl amme contre le surface du

contre le bord du brûleur.

backburner. Pour des sideburners, tenez la fl amme contre
le brûleur.

3. Tout en tenant l’allumette ou la fl amme plus légère à côté

du brûleur, diminuez le bouton de commande et tout en

3. Vieux match / fl amme d’un briquet à la partie supérieure

3. Maintenez le match / fl amme d’un briquet à la partie

pressant le tour il dans le sens contraire des aiguilles

du tube d’éclairage pendant 5 secondes, ou, à côté de la

supérieure du tube d’éclairage pendant 5 secondes, ou,
d’une montre dans la position LÉGÈRE de HI. Enlevez

brûleur latéral / veilleuse. Puis appuyer sur le bouton de

à côté de la veilleuse. Puis appuyer sur le bouton de
l’allumeur ou assortissez quand le brûleur s’allume, et

contrôle approprié et en appuyant tourner dans le sens

contrôle approprié et en appuyant tourner dans le sens
libérez le bouton de commande.

antihoraire à la position HI LIGHT. Retirez le briquet ou

antihoraire à la position HI LIGHT. Retirez le briquet ou

des allumettes quand le brûleur s’allume, puis relâchez

des allumettes quand le brûleur s’allume, puis relâchez

4. Si le brûleur ne s’allume pas, enfoncez immédiatement

le bouton de commande.

le bouton de commande.
le bouton et tournez la valve à AU LOIN. ATTENDEZ

CINQ (5) MINUTES avant de répéter les étapes 2 à 4

4. Si le brûleur ne s’allume pas, enfoncez immédiatement

des instructions manuelles d’éclairage.

le bouton et tournez la valve à AU LOIN. ATTENDEZ
CINQ (5) MINUTES avant de répéter les étapes 2 à 4
des instructions manuelles d’éclairage.

ATTENTION : Si un brûleur ne s’allume pas dans cinq

(5) secondes d’allumer le bouton de
commande, enfoncez le bouton et tournez­le à la position de repos. ATTENDEZ CINQ
(5) MINUTES avant de répéter l’étape 4. Si
vous sentez le gaz, suivez les instructions
sur la couverture de ce manuel. Si les
brûleurs ne s’allument toujours pas après
que plusieurs tentatives, se rapportent aux
instructions pour l’éclairage manuel.

5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.

EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF

Des réservoirs de propane sont équipés d’un dispositif
d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes
pression de gaz/fl amme aux brûleurs si le fonctionnement
et l’allumage des instructions ne sont pas suivis exactement
(voir la note importante dans la section de dépannage pour
plus de détails.)

Tube

d’éclairage

Plus léger

Fig. 20-2 - Éclairage manuel

Fig. 20-2 - Éclairage manuel

ARRÊT DU UNITÉ

Pour couper le unité, diminuez chaque bouton de commande
de valve et tout en pressant tour il dans le sens des aiguilles
d’une montre à la position de repos.

Fermez toujours la valve de la fourniture de gaz après chaque
utilisation du unité.

20

LIGHTING (IGNITION) INSTRUCTIONS

Read all instructions before lighting, and follow these instructions each time you light the unit.

ELECTRONIC LIGHTING

Note: This unit must be connected to 120VAC power

Note: Electronic lighting requires an installed 9-volt

for electronic lighting.

battery with a good charge.

1. Open lid(s) or remove cover(s) from burner(s) to be lit.

2. Turn all gas control knob(s) to their OFF position(s).

3. Turn on the gas at its source.

Read setting here

Read setting

(OFF position shown)

TURN OFF

To Turn OFF

TO

Press
knob in
to turn

Fig. 21-1 - Control knob

here

OFF

LOW

To Turn ON

TO TURN ON

LIGHT

HI

HIGH to

Use

LIGHT

HI (high)
to light

4. Depress the desired control knob for 5 seconds,

then, while pressing turn it counterclockwise to the
HI LIGHT position. Once the burner lights, release
the knob.

Note: DO NOT
turn on more
than one valve at
a time for either
electronic or
manual lighting.

MANUAL LIGHTING

CAUTION: Always wait fi ve (5) minutes for gas to

clear after any unsuccessful lighting
attempt.

1. Follow steps 1 through 3 (left).

2. Insert either a burning long-barrel butane lighter or

2. Insert either a burning long-barrel butane lighter, a

a burning long-stem match through the cooking grid

burning long-stem match, or a burning match held

opening to the top of the lighting tube. (Fig. 21-2).

by a wire extension holder through the cooking grid

For backburners, hold the flame

opening to the burner (Fig. 21-2). Hold the fl ame

against the surface of the backburner.

against the edge of the burner.

For sideburners, hold the fl ame against the burner.

3. While holding the match or lighter fl ame next to the

3. Hold the match / lighter fl ame at the top of the lighting

3. Hold the match / lighter fl ame at the top of the lighting

burner, depress the control knob and while pressing
tube for 5 seconds, or, next to the backburner. Then

tube for 5 seconds, or, next to the sideburner /

turn it counterclockwise to the HI LIGHT position.
depress the appropriate control knob and while

backburner. Then depress the appropriate control

Remove the lighter or match when the burner lights,
pressing turn it counterclockwise to the HI LIGHT

knob and while pressing turn it counterclockwise to

and release the control knob.
position. Remove the lighter or match when the

the HI LIGHT position. Remove the lighter or match

4. If the burner does not light, immediately depress

burner lights, and release the control knob.

when the burner lights, and release the control knob.

the knob and turn the valve to OFF. WAIT FIVE

4. If the burner does not light, immediately depress

(5) MINUTES before repeating steps 2 through 4

the knob and turn the valve to OFF. WAIT FIVE

of the MANUAL LIGHTING instructions.
(5) MINUTES before repeating steps 2 through 4
of the MANUAL LIGHTING instructions.

CAUTION: If a burner does not light within fi ve (5)

seconds of turning on the control knob,
depress the knob and turn it to the OFF

position. WAIT FIVE (5) MINUTES
before repeating step 4. If you smell
gas, follow the instructions on the cover
of this manual. If the burners still do not
light after several attempts, refer to the

instructions for manual lighting.

5. Repeat step 4 for each additional burner to be lit.

WHEN USING A PORTABLE PROPANE TANK

Propane tanks are equipped with a safety shutdown
device that may cause low or no gas pressure/fl ame
at the burners if operating and lighting instructions
are not followed exactly (See important note in the
TROUBLESHOOTING section for more details.)

Lighting

tube

Lighter

Fig. 21-2 - Manual lighting

Fig. 21-2 - Manual lighting

SHUTTING OFF THE UNIT

To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.

Always close the valve from the gas supply after each
use of the unit.

21

CARE & CLEANING

APPLIANCE MUST BE COMPLETELY COOL WHEN
CLEANING. DO NOT SPRAY ANY CLEANER OR
LIQUIDS ON THE APPLIANCE WHEN HOT.

The appliance must be cleaned as often as once a month
(depending on use) to prevent grease build-up and other
food deposits.

INTERIOR

THE BURNER PORTS MUST BE KEPT CLEAN TO
ENSURE PROPER IGNITION AND OPERATION.

Wipe with grain

Remove the burner (see orifi ce changing instructions)
and clean the ports and slots as required. Also inspect
and clean the burner inlet for insects and nests. A clogged
burner can lead to a fi re in the bottom of the appliance.

The inside of the appliance may be cleaned periodically
with oven cleaner if desired. Follow the oven cleaner
instructions for proper use.

Be careful not to get oven cleaner on the outside surface
of the appliance as it can permanently damage the fi nish.

EXTERIOR

Stainless steel surfaces when exposed to temperatures
produced by the grilling process will change color. The
stainless steel will change color from silver to brown
and blue. This can be removed by using stainless steel
cleaner.

Clean your appliance by fi rst using grill cleaner to remove
grease and dirt. Always wipe with the grain (See Fig.
22-1). Next, use stainless steel cleaner to restore the
stainless steel color (Note: not for mirror fi nish). Finish
by wiping your appliance down using polish wipes. To

clean any mirror fi nish (if applicable), use a quality
brand glass cleaner only, not any of the cleaners
mentioned above.

If your appliance is installed in a seaside (salt air) or
poolside (chlorine) location, it will be more susceptible
to corrosion and must be maintained/cleaned more
frequently. Do not store chemicals (such as chlorine or
fertilizer) near your stainless steel appliance.

Fig. 22-1 - Wipe with grain

PROTECTING YOUR APPLIANCE FROM THE
WEATHER

An optional cover will protect your appliance when not
in use. (Allow to cool before covering.)

Please specify the model number and serial number
of your appliance when ordering a cover.

IMPORTANT

IN THE EVENT OF A GREASE FIRE, IMMEDIATELY
SHUT OFF THE MAIN GAS VALVE TO THE UNIT.
KEEP THE LID OPEN AND ALLOW THE FIRE TO
EXTINGUISH ITSELF. A THOROUGH INSPECTION
BY A TRAINED SERVICE TECHNICIAN SHOULD
BE CONDUCTED BEFORE FUTURE USE OF YOUR
UNIT. THE SERVICE TECHNICIAN WILL CHECK THE
SYSTEM FOR GAS LEAKS AND WILL CHECK ALL
ELECTRICAL WIRING FOR DAMAGE. ALL GAS
LEAKS AND WIRING MUST BE REPAIRED PRIOR
TO FUTURE USE.

Due to the nature of stainless steel, surface iron oxide
deposits may appear. Do not be alarmed – these deposits
are removable with stainless steel cleaner through prompt
and periodic maintenance. If not attended to promptly,
permanent pitting may occur.

By following these recommendations, you will enjoy the
beauty and convenience of your appliance for many years
to come.

22

CHECKING AND CONVERTING GAS TYPE

This unit comes from the factory confi gured for one type of
gas, as marked on the label located behind the control panel,
or on the interior of the unit’s enclosure.

A certified kit is available from the manufacturer to
convert your appliance from natural gas to L.P. or vice
versa. Contact your dealer for ordering information. The
professional installer must reference the steps below
for conversion information. If the conversion kit ordered
includes instructions, follow those instructions.

1. Change brass gas orifi ces (included at original shipping)

on each burner to match the new gas type (see MODEL
SPECIFICATIONS TABLE, Table 1).

2. Switch the convertible gas regulator to match the new
gas type (see section below).

3. Plumb the unit as appropriate for the new gas supply.

4. Apply the label for the new gas (included at original shipping)

over the old gas information found on your unit.

WARNING
HAZARDOUS OVERHEATING WILL OCCUR
IF A NATURAL-GAS ORIFICE IS USED WITH
PROPANE GAS. IF YOU ARE NOT SURE IF THE
CORRECT ORIFICES ARE INSTALLED, OR IF AN
ORIFICE CHANGE IS NECESSARY, REFER TO
THE FOLLOWING INSTRUCTIONS.

CAUTION: Make sure the unit is at a safe

temperature and isolated from
gas and electrical supplies before
beginning the tasks outlined below.

Note: The cooler the unit, the greater the

tolerances between the stainless­steel parts, and therefore the easier to
disassemble and reassemble parts of the
unit.

CAUTION: For your safety, exercise caution and

use adequate hand protection (such
as gloves) when handling potentially
sharp sheet-metal parts.

CHECKING AND CONVERTING THE REGULATOR

Regulator: note cap on top

STEP 1:

Unscrew and remove the cap from the
regulator, extracting the converter.

THIS APPLIANCE REGULATOR IS RATED FOR
PSI, AN ADDITIONAL REGULATOR MUST BE INSTALLED TO REDUCE THE INPUT PRESSURE TO THE UNIT to

PSI OR LESS. SEE GAS-SUPPLY REQUIREMENTS SECTION FOR PROPER GAS-SUPPLY PRESSURE.

Note: Each end of the plastic converter is engraved with either the letters “NAT”

or “L.P.” (propane) for the respective gasses. When the converter is in the
cap and the cap is held uppermost, the letters seen indicate the gas that

the regulator is set up for.

To convert the regulator from one gas to another, follow steps 1-4.

STEP 3:

Turn the converter around and
replace it carefully, into the
center of the cap (it will snap

Read gas
type here

into place). Check that you can
read the type of gas the unit is
set for.

STEP 2:

Remove the converter (the
plastic stalk) by carefully
pulling it away from the center
of the cap (it will snap out of

STEP 4:

Replace the unit into the
regulator and screw down
until snug.

its seating).

WARNING

1

/

PSI MAXIMUM. IF YOUR GAS SUPPLY IS GREATER THAN

2

23

1

/2

1

/2

CONTROL PANEL REMOVAL

To remove the control panel:

1. Turn the control knobs to the OFF position.

2. Pull the control knobs from the stems and set aside.

3. Using a Phillips screwdriver, unscrew and remove the control panel fastener screws and washers

(located on the left and right front face of the control panel). Retain the screws for later re-installation.

4. Carefully open the control panel by lifting and pulling the control panel from the frame .
Important: When opening, take caution to not damage any wiring.

5. If wire disconnections are required, reference the wire diagram in the MODEL SPECIFICATIONS

section in this instruction manual or the wire diagram label affi xed to the inside of the control panel.

Note: Secure any disconnected wires (coming from the inside of the unit) to prevent them from falling in.
Note: Whenever reconnecting any wires, apply a small amount of dielectric grease to the male connector,

then make the connection.

Important: During reinstallation; prior to opening the gas shutoff valve, be sure the control knobs are

in the OFF position.

24

TROUBLESHOOTING

If you have trouble with the unit, please use this list to identify the problem. By trying one or more of the solutions
to the possible cause, you should be able to solve the problem. If this list does not cover your present problem, or
if you have other technical diffi culties with the unit, please contact your local dealer.

PROBLEM POSSIBLE CAUSE CORRECTION

Ignition system

failure

Insuffi cient heat /

low fl ame

Uneven heating

1.

Power supply failure

1a. System reset: Disconnect (wait 10 minutes

minimum) and reconnect power to unit. With lights
OFF (if applicable), test ignition.

1b. Replace power supply.

2. Improper air shutter adjustment 2. Adjust air shutters.

3. Ignition wire disconnected 3. Reconnect wires into ignitor module.

wire harness.

4. Low gas pressure 4. Have the gas co. check supply pressure.

5. Igniter switch malfunction 5. Contact dealer for replacement.

on valve

6. Igniter malfunction 6. Contact dealer for replacement.

Improper air-shutter adjustment 1. Adjust air shutters.

1.

2. Using propane orifi ce for natural gas 2. Check/change orifi ces.

3. Low gas pressure/fl ame (propane) 3. Refill propane tank, or reset propane tank

safety*: Shut off all valves (including propane
tank) and follow lighting instructions exactly.

4. Low gas pressure/fl ame (natural) 4. Have the gas co. check pressure at unit.

5. L.P. regulator hose cracked due to age 5. Replace L.P. regulator hose.

1.

Burner ports partially blocked by
debris

1. Remove burners and clean out ports.

2. Small spiders or insects in burner 2. Inspect burners and orifi ces for spider webs or

other debris that may block fl ow.

3. Improper air shutter adjustment 3. Adjust air shutter.

1.

Valve “Low” setting needs adjustment 1. Light burner on HIGH, immediately turn to

LOW setting. Remove knob from valve and

Burner goes out on

LOW

No power to unit

Input power source failure 1. Check GFCI / circuit breaker.

1.

2. Power supply failure 2. See 1a of Ignition system failure section above

using a small fl at screwdriver, slowly turn the
adjustment screw in the stem, a little at a time
(30° to 45°), in either direction, until the fl ame is
approximately 1/4” in height from burner ports.

and/or replace power supply.

Table 2

Note: *Propane tanks are equipped with a safety shutdown device that may cause low or no gas/fl ame at the

burners if operating and lighting instructions are not followed exactly. If you suspect the propane tank
safety shutoff is in effect, shut off all burner control valves and the propane tank valve. Then read and
follow the LIGHTING INSTRUCTIONS exactly. Lighting instructions are located in the owner’s manual. If
the problem persists, continue troubleshooting, or contact your local dealer or distributor for assistance.

25

WARRANTY

PETERSON FIRE MAGIC GRILLS AND ACCESSORIES

LIMITED WARRANTY

Robert H. Peterson Co. ("RHP") warrants your Fire Magic® grill to be free from defects in material and workmanship.
Fire Magic

your Fire Magic® grill -- LIFETIME. (Except as noted below.)
Fire Magic Choice stainless steel tubular burners are warranted for TWENTY (20) YEARS.
Fire Magic

warranted for FIFTEEN (15) YEARS.
Fire Magic
Fire Magic

charcoal pan, charcoal grid, wood pellet screen, thermometer, and ash tray; which are warranted for ONE (1) YEAR.
Fire Magic

YEARS.
Fire Magic

warranted for ONE (1) YEAR.

This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained
as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall
terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.

This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,
use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,
lack of required routine maintenance (as specifi ed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure to
protect against combustibles. Product must be installed (and gas must be connected) as specifi ed in the Owner’s Manual/Installation Instructions by
a qualifi ed professional installer. Modifi cations to products which are not specifi cally authorized will void this warranty. Accessories, parts, valves,
remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.
This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.

This warranty does not cover labor or labor related charges, except as provided by separate specifi c written programs from the Peterson Co. All repair
work must be performed by a qualifi ed professional service person and requires prior approval of Peterson.

Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if
the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer
if the damage is determined to have occurred during that shipment.

This warranty specifi cally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specifi ed legal rights, and
you may have other rights that vary from state to state or province.

For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.

®

cast stainless-steel burners, stainless-steel rod cooking grids, and stainless-steel housings are warranted for as long as you own

®

cast brass burners, brass valves, inner liners, manifold assemblies, and backburner assemblies (except ignition parts) are

®

Electric Grills, including stainless steel grid, and housings are warranted for TEN (10) YEARS.

®

Infra-red burners, fl avor grids, Charcoal stainless steel grills, and Smokers are warranted for FIVE (5) YEARS; except for the

®

sideburners and all other Fire Magic® grill components (except ignition and electronic parts) are warranted for THREE (3)

®

ignition systems (excluding batteries), electronic components (including lights and thermometers), and grill accessories are

A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED

TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,

AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.

Quality Check Date:_________________

Burner Orifi ces Nat. L.P. Leak Test: ___________ Model#: ___________________
Main: ____ ____ Burn Test: ___________ Serial#: ___________________
Other: ____ ____ Gas Type:

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

Nat. / L.P. Air Shutter: ___________________

Inspector: ___________________

26
