Fire Magic 318551 Installation

ECHELON INSULATING

LINER INSTRUCTIONS

INSTALLER: Leave these instructions with consumer.

CONSUMER: Retain for future reference.

IMPORTANT INFORMATION & TECHNICAL DATA

Read these instructions and the safety and installation portions of the grill instructions before liner installation.

The insulating liner kit includes the pre-assembled liner, two support hangers, and a heat shield. Liner

1

cutout dimensions are given in Table 1. A nominal
recommended for ease of installation. A minimum of 5" from combustible material is required directly
below the top of the support hangers/Stud A, to allow for clearance of the heat shield (See Fig. 2-2). If
a complete combustible shelf is installed beneath the heatshield, it must contain two ventilation cutouts.
The cutouts must be located directly below the right hand and left hand ends of the heatshield. Reference
Table 2 for dimensions. If the countertop thickness exceeds 2", new screw holes must be made in the
support hangers.

Countertops and cabinet faces made of combustible material, such as wood, Formica, and Corian, can
extend up against the outside walls of the insulating liner and be joined by a bead of silicone sealer rated
for 400° or higher, as shown in Fig. 3-1. Never build over the insulating liner with combustible materials, as
this will interfere with the grill hanger.

/16" gap around the back and sides of the liner is

The cabinet base must include 100 sq. in. of ventilation within 12" of the fl oor. Refer to the grill safety
precautions and installation instructions for additional propane gas venting requirements (if applicable).

Replacement parts may be obtained from your nearest Robert H. Peterson Co. dealer. For assistance in
locating a dealer, you may contact the factory at the address listed below.

Grill

series

E660i 3176-50 12" 36

E790i 3186-50 12" 42

E1060i 3185-50 12" 55" 26"

Table 1 - Enclosure cutout dimensions (for liner)

Grill series Width Depth

Table 2 - Combustible shelf cutout dimensions

Liner

Model

E660i 4

E790i 4

E1060i 4

Height Width Depth

3

/8" 26"

1

/8" 26"

1

/4" 16 3/4"

1

/4" 16 3/4"

1

/4" 16 3/4"

REV 8 - 1302051115

ROBERT H. PETERSON CO. • 14724 East Proctor Avenue, City of Industry, CA 91746

1

L-C2-240

IMPORTANT INFORMATION & TECHNICAL DATA (cont.)

Model Front (X)

†

Rear (Y)

†

E660i 6 1/4" 12 1/4"

E790i 6

E1060i 6

†

See Fig. 2-1 for hanger setback detail

1

/4" 12 1/4"

1

/4" 12 1/4"

Table 3 - Hanger setback dimensions

INSTALLATION

Note: Additional framing may be necessary to

properly anchor the support hangers.

1. On the inside of the grill opening, pencil in a vertical
line X" from the front of the enclosure. Then, pencil
in a second line, Y" (back) from the fi rst line. (See
Table 1 and Fig. 2-1 for dimensions). Do the
same on the opposite side as well.

Note: The distance between lines 1 and 2 must be Y"

to allow for proper alignment and installation
of the heat shield with the support hangers
(see Fig. 2-1 & Fig. 2-2).

Countertop

Front

12"

Stud

A

X

Y

Penciled

lines

Support hangers are to sit level
with the top of stud A

Support

hanger (2)

Fig. 2-1 Interior Side View

Note: Drawings not to scale. Reference Table 1

and Table 3 for dimensions.

Fig. 2-2

Installation

Support hangers

(must sit level, and fl ush

with the top of stud

A)

2. Align the top of the support hangers level and fl ush
with the opening 12" down from the countertop
(i.e., the top of stud A). Line up hanger holes with
your penciled lines (see Fig. 2-1 & Fig. 2-2) and
screw into position.

3. Bend the 4 heatshield tabs upward, slightly less
than a right angle, approximately 85°. Insert the
tabs into the slots located at the bottom of the two
support hangers. Once inserted they will slightly
flex outward and lock in position. (See Fig. 2-3.)

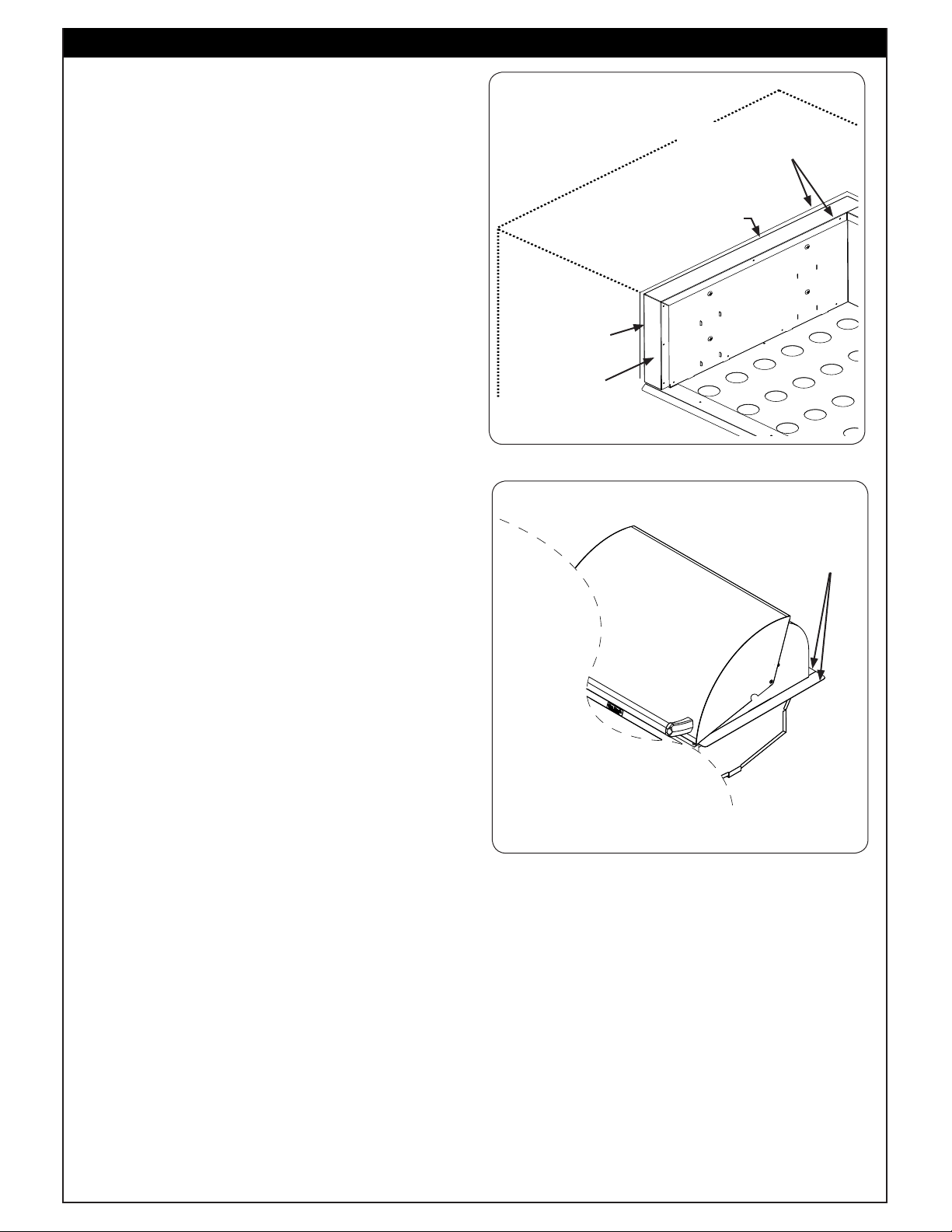

4. Install the insulating liner as shown in Fig. 3-1. Top
of liner must be fl ush with countertop.

Y

X

Width

Note: Distance from top of

countertop to top of the
support hangers/Stud A must
be 12

". Distance from Stud A
to any combustible material
below must be 5" (to allow for
heat shield clearance).

Heat shield

Stud A

Support hanger

37"

Height

Countertop

Stud A

Combustible
material

Front view

(Nominal

frame height)

Depth

12"

5"

REV 8 - 1302051115

85°

Heatshield

85°

Fig. 2-3 Front view

2

L-C2-240
