Fire Magic 2433033 User Manual

STAND-ALONE POST OUTDOOR

US

®

C

GAS GRILLS

A430s (IN-GROUND AND PATIO MOUNT)

INSTALLATION AND

OWNER’S MANUAL

INSTALLER: Leave these instructions with consumer. CONSUMER: Retain for future reference.

IMPORTANT:

IF YOU SMELL GAS:

1. Shut off the gas to the appliance.

2. Extinguish any open ﬂame.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or the ﬁre department.

CODE AND SUPPLY REQUIREMENTS: This grill must be installed in accordance with local codes and ordinances, or, in the absence of local codes, with either the latest National Fuel Gas Code

(ANSI Z223.1/NFPA 54), and Natural Gas and Propane Storage and Handling Installation Code (CSA-B149.1).

This appliance and its dedicated manual shutoff valve must be disconnected from the gas-supply piping system when testing the system at pressures in excess of ½ psig (3.5 kPa).

This appliance must be isolated from the gas-supply piping system by closing its dedicated manual shutoff valve during any pressure testing of the gassupply system at pressures up to and including ½ psig (3.5 kPa).

READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.

SAFETY AND WARNING CODES

DANGER:

A430s Patio

mount w/ analog

thermometer

shown

WARNING:

1. Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

WARNING:

Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. For proper installation, refer to the installation instructions. For assistance or additional information, consult a qualiﬁed professional service technician, service agency, or the

gas supplier.

All electrical outlets in the vicinity of the grill must be properly grounded in accordance with local codes, or, in the absence of local codes, with the National

Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, whichever is applicable.

Keep all electrical-supply cords and fuel-supply hoses away from any heated surface.

Proper operation of your grill requires prompt and periodic maintenance. See the SERVICING AND CLEANING

Certiﬁed to: ANSI Z21.58 CSA 1.6

section for details.

REV 3 - 1811160850

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

1

L-C2-436

INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE

GRIL EXTÉRIEUR DE GAZ

IMPORTANT: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L’INSTALLATION OU L’UTILISATION

SÛRETÉ ET CODES D’AVERTISSEMENT

DANGER:

SI VOUS SENTEZ LE GAZ :

1. Coupez le gaz à l’appareil.

2. Éteignez-vous n’importe quelle ﬂamme nue.

3. Ouvrez le couvercle si équipé d’un four.

4. Si l’odeur continue, gardez loin de l’appareil et appelez immédiatement votre département de fournisseur ou de feu de gaz.

CONDITIONS DE CODE ET D’APPROVISIONNEMENT:

Ce gril doit être installé selon des codes et des ordonnances locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre le plus défunt Code national de gaz de carburant (norme ANSI Z223.1/NFPA 54), et Stockage de gaz naturel et de propane et manipulation du code d’installation (CSA-B149.1).

Cet appareil et ses différents robinets d’isolement doivent être démontés du gaz-fournissent le système sifﬂant en examinant le système aux pressions au-dessus du ½ psig (kPa 3.5).

Cet appareil doit être isolé dans gaz-fournissent le système sifﬂant par fermeture que ses différents robinets d’isolement manuels pendant tous les essais sous pression du gazfournissent le système aux pressions jusques et y compris le ½ psig (kPa 3.5).

• Ce gril est pour ultilisation à l’extérieur seulement. Si l’appareil est entreposé à l’intérieur, enlever les bouteilles et les laisser à l’extérieur.

• Ne pas ranger le gril immédiatement aprés l’avoir utilisé. le laisser refroidir avant de le déplacer ou de la ranger. Le non respect de cette mesure de sécurité pourrait entraîner un incendie causant des dommages à la propriété, des blessures ou la mort.

• Ne pas utiliser cet appareil sous une surface combustible.

• Ne pas utiliser cet appareil sous un auvent. Le non respect de cette mesure de sécurité pourrait entraîner un incendie ou des blessures.

• Dégagement minimal entre les parois latérales et l’arriére de l’appareil et la construction combustible (45.7 cm à partir des parois latérales et 45.7cm à partir de l’arriére).

• Le régulareur de pression de gaz prévu avec cet appareil de cuisson à gaz pour l’extérieur doit être utilisé. Ce régulateur est réglé pour une pression de sortie de 5 pouces de colonne de l’eau pour le gaz naturel, et 10 pouces pour le propane.

• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS GRAND QUE (LIVRES PAR POUCE CARRÉ), UN RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ AVANT LE GRIL. VOIR LA SECTION DE CONDITIONS

AVERTISSEMENT:

1. Ne stockez pas ou n’employez pas l’essence ou d’autres vapeurs et liquides inﬂammables à proximité de ceci ou d’aucun autre appareil.

2. Un cylindre de propane non relié pour l’usage ne sera pas stocké à proximité de ceci ou d’aucun autre appareil.

AVERTISSEMENT:

L’installation inexacte, l’ajustement, le changement, le service, ou l’entretien peuvent causer des dommages ou des dégats matériels. Référez-vous à ce manuel. Pour de l'aide ou des renseignements supplémentaires, consulter un technicien professionnel qualifié de service, une agence de service ou le fournisseur de gaz.

Toutes les sorties électriques à proximité du gril doivent être correctement fondues selon des codes locaux, ou en l’absence de local code, avec le code électrique national, ANSI/NFPA 70, ou le code électrique canadien, CSA C22.1, celui qui est applicable.

Maintenez tout électrique-fournissent des cordes et carburantfournissent des tuyaux partis de n’importe quelle surface de chauffage.

D’OFFRE DE GAZ POUR LA PRESSION APPROPRIÉE D’OFFRE DE GAZ.

• Ne couvrez jamais la surface entière de cuisine ou de gril de gauffreuses ou de casseroles. La surchauffe se produira et les brûleurs ne seront pas très performants quand la chaleur de combustion est emprisonnée audessous de la surface à cuire.

• Ne pulvérisez jamais l’eau sur une unité chaude de gaz, comme ceci peut endommager des composants de porcelaine ou de fer de fonte.

• Une fuite de GPL peut causer une incendie ou une explosion si enflammée entraînant des blessures corporelles graves ou la mort.

• Communiquez avec le fournisseur de GPL pour les réparations ou pour disposer de qules bouteille ou du GPL non utilisé.

Certiﬁé à la norme: ANSI Z21.58 / CSA 1.6

INSTALLATEUR : Laissez ces instructions avec le consommateur.

CONSOMMATEUR : Maintenez pour la future référence.

REV 3 - 1811160850

2

L-C2-436

GETTING STARTED

INSTALLATION, OPERATION, AND SAFETY INFORMATION �� 4

ELECTRICAL CONNECTIONS �� 4

GAS SAFETY INFORMATION �� 5

WARNING �� 5 WHEN USING PROPANE GAS �� 5 WHEN USING NATURAL GAS �� 5 INSTALLATION SAFETY GUIDELINES�� 5

OPERATING THE UNIT SAFELY AND CORRECTLY �� 5 SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS �� 7 INSTALLATION REQUIREMENTS �� 8

OVERHEAD CONSTRUCTION AND EXHAUST HOOD REQUIREMENTS �� 8 SIDE AND REAR WALL CLEARANCES �� 9 COMBUSTION AIR AND COOLING AIRFLOW �� 10 GAS-SUPPLY PLUMBING REQUIREMENTS �� 10

ELECTRICAL SAFETY �� 11 MODEL SPECIFICATIONS �� 12

POST GRILL WIRING DIAGRAM �� 12

AURORA GRILL REPLACEMENT PARTS LIST �� 15

CONTENTS

INSTALLATION

PATIO MOUNT INSTALLATION �� 17 IN-GROUND POST INSTALLATION �� 19

INSTALL THE FLAVOR GRIDS �� 22 INSTALL THE COOKING GRIDS �� 22 INSTALL THE DRIP TRAY �� 22 INSTALL THE RIGID SHELVES �� 23

USE, CARE, & SERVICE

IDENTIFICATION OF GRILL CONTROLS �� 24 USING THE GRILL �� 25 LIGHTING (IGNITION) INSTRUCTIONS �� 27

ELECTRONIC LIGHTING �� 27 MANUAL LIGHTING �� 27 SETTING THE TIMER �� 27 SHUTTING OFF THE UNIT �� 27

OPTIONAL DIGITAL THERMOMETER �� 28 OPTIONAL ROTISSERIE �� 31 OPTIONAL INFRARED BURNER OPERATION �� 32 SERVICING AND CLEANING �� 33

CLEANING YOUR GRILL �� 33 REPLACING HALOGEN BULBS �� 35 CONVERT GAS TYPE / CHECK BURNER ORIFICES �� 36 AIR SHUTTER ADJUSTMENT �� 38 CONTROL PANEL REMOVAL �� 40 SYSTEM RESET �� 41 BURNER(S) REMOVAL �� 41

NOTES PAGE �� 42 TROUBLESHOOTING �� 43 WARRANTY �� 44

REV 3 - 1811160850

3

L-C2-436

INSTALLATION, OPERATION, AND SAFETY INFORMATION

1. The outdoor appliance and surrounding area MUST

remain clear of ﬂammable substances such as gasoline, yard debris, wood, etc. Maintain a minimum horizontal clearance of 18" (in all directions) from combustible materials/items.

2. Do not block the 1" front air inlet along the bottom of

the control panel. See the COMBUSTION AIR AND COOLING AIRFLOW section under INSTALLATION REQUIREMENTS for details.

3. This unit must be installed so that the vent openings and surrounding area of the grill remain clear and free at all times. See the GAS SAFETY INFORMATION section.

4. When using propane gas: the propane cylinder, regulator, and rubber hose must be in a location not subject to temperatures above 125° F (51° C).

5. The back burner cover or IR burner cover (if equipped)

must be removed before using the burner.

6. The ﬂames on each burner burn evenly along the entire burner with a steady ﬂame (mostly blue). If

burner ﬂames are not normal, check and clean the oriﬁce and burner/venturi tubes for insects and insect nests. A clogged tube can lead to a ﬁre beneath the unit. A proper ﬂame pattern will ensure safe operation and optimal performance. Adjust the air shutter as needed (see AIR SHUTTER ADJUSTMENT section).

7. The in-line gas valve or gas cylinder valve must always

be shut OFF when the unit is not in use.

8. The drip collector holes must be clear and unobstructed.

Excessive grease deposits can result in a grease ﬁre.

9. Whenever reconnecting any wires, apply a small

amount of dielectric grease to the male connector, then make the connection. This will ensure conductivity and prevent moisture from affecting the contact.

10. Wear gloves and use extreme caution whenever

installing and handling this product and its accessories as certain components have sharp edges that can cause personal injury.

IMPORTANT

IN THE EVENT OF A GREASE FIRE, IMMEDIATELY SHUT OFF THE MAIN GAS VALVE TO THE UNIT. KEEP THE LID OPEN AND ALLOW THE FIRE TO EXTINGUISH ITSELF. KEEP AT A SAFE DISTANCE. A THOROUGH INSPECTION BY A QUALIFIED PROFESSIONAL SERVICE TECHNICIAN SHOULD BE CONDUCTED BEFORE FUTURE USE OF YOUR UNIT. THE SERVICE TECHNICIAN WILL CHECK THE SYSTEM FOR GAS LEAKS AND WILL CHECK ALL ELECTRICAL WIRING FOR DAMAGE. ALL GAS LEAKS AND WIRING MUST BE REPAIRED PRIOR TO FUTURE USE.

WARNING: NEVER cover more than 75% of the cooking or grill surface with griddles or pans. Overheating will occur,

and burners will not perform properly when combustion heat is trapped below the cooking surface.

The unit serial number tag can be found afﬁxed to the grill body behind the control panel (on an

aluminum tag) and on the underside of the drip tray handle (on a thermal label). It is recommended

that the drip tray ﬁrst be removed and cleaned / emptied of its contents, then turned over to view.

The unit rating label is located inside of the control panel.

ELECTRICAL CONNECTIONS

A 120VAC (15 AMP minimum) GFCI GROUNDED 3-wire receptacle (not included) is required within the vicinity of the unit to provide power to it. The GFCI receptacle must be a WEATHER-PROOF IN-USE COVERED RECEPTACLE.

• Observe the National Electric Code and all local codes.

• Verify proper polarity of the receptacle.

• If an extension cord is used, ensure it is a 3-wire GROUNDED cord that is rated for the power of the equipment, and is approved for outdoor use with a W-A marking. DO NOT use 2-prong adapters.

• DO NOT TAMPER WITH THE EXTENSION CORD OR THE UNIT POWER-SUPPLY CORD.

Important: ONLY REPLACE THE INTERIOR OVEN LIGHTS WITH 12V / 10 WATT HALOGEN BULB(S).

4

GAS SAFETY INFORMATION

WHEN OPERATING THIS GAS APPLIANCE, ALL INSTRUCTIONS AND WARNINGS MUST BE OBSERVED. FAILURE TO DO SO MAY RESULT IN A FIRE OR EXPLOSION CAUSING PROPERTY DAMAGE, BODILY INJURY, OR DEATH.

WARNING

This appliance MUST be installed and operated according to the information below.

FAILURE TO PROPERLY VENT THE PROPANE TANK MAY RESULT IN A FIRE OR EXPLOSION CAUSING PROPERTY DAMAGE, BODILY INJURY, OR DEATH.

A leaking gas connection or valve unintentionally left open will create a hazard.

WHEN USING PROPANE GAS

• Propane gas (also known as L.P. gas) is heavier than air and will accumulate or pool in an inadequately

vented area or recessed area.

• If a pool of propane gas is ignited, an explosion will occur. Adequate venting at the ﬂoor level of the propane

tank eliminates this danger.

• DO NOT store a spare propane-gas cylinder near the unit.

WHEN USING NATURAL GAS

• Natural gas is lighter than air and will accumulate at the top of an inadequately vented area.

• If an accumulation of natural gas is ignited, an explosion will occur. Adequate venting will eliminate this danger.

INSTALLATION SAFETY GUIDELINES

THIS UNIT MUST BE INSTALLED SO THAT THE AREA AROUND THE UNIT AND PROPANE TANK REMAIN CLEAR AND FREE AT ALL TIMES.

The gas cylinder, regulator, and rubber hose must be in a location not subject to temperatures above 125° F (51° C).

IF A PROPANE CYLINDER IS INSTALLED, THE GUIDELINES FOUND IN THE SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS SECTION MUST BE FOLLOWED.

OPERATING THE UNIT SAFELY AND CORRECTLY

Every time you use the unit, make sure that:

1. The area around the unit is clear and free from combustible materials, gasoline and ﬂammable vapors/liquids.

2. There is no blockage of the airﬂow around the unit and propane tank.

3. The hose is inspected (if applicable). See SAFE USE & MAINTENANCE OF PROPANE-GAS CYLINDERS section.

DO NOT store any combustible materials, gasoline, and any other ﬂammable vapors/liquids in the vicinity of the

unit. Provide adequate clearance for servicing and operation.

5

U

L

UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE

IMPORTANT POUR VOTRE SÛRETÉ

LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.

En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.

LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.

CYLINDRE ET CONDITIONS ET CARACTÉRISTIQUES DE CONNECTEUR

a. Des cylindres et les valves de gaz de propane doivent être

maintenus en bon état et doivent être remplacés s’il y a des dommages évidents au cylindre ou à la valve.

b. Ce unité, une fois utilisé avec un cylindre, devrait être relié à

un gallon de la norme 5 (20lb.) cylindre de gaz de propane équipé d’un OPD (remplissez au-dessus du niveau le dispositif d’empêchement). L’OPD a été exigé sur tous les cylindres vendus depuis octobre 1.1998 pour empêcher le remplissage excessif.

c. Les dimensions de cylindre devraient être approximativement

12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des cylindres doivent être construits et marqués selon les caractéristiques pour des cylindres de gaz de propane du département des ETATS-UNIS du transport (D.O.T.) ou le niveau national du Canada, du CAN/CSA-B339, des cylindres, des sphères et des tubes pour le transport des marchandises dangereuses.

d. Le cylindre doit inclure un collier pour protéger la valve

de cylindre et le circuit d’alimentation de cylindre doit être assuré le retrait de vapeur.

e. Le montage du régulateur de pression et le ﬂexible (Fig. 6-1)

e. Le régulateur de pression et l’ensemble de tuyau utilisé

fourni avec cet appareil au gaz en plein air (modèles au

doivent assortir les spéciﬁcations pour le type I par ANSI

propane seulement) doit être utilisé. Assemblées d'origine et

Z 21.58/CGA 1.6 (voir la ﬁgue. 6-1).

régulateur de pression et le tuyau de remplacement doivent être ceux spéciﬁés par le fabricant pour le raccordement d'un dispositif de cylindre de liaison identiﬁée comme de type I par le ANSI Z 21.58/CGA 1.6 (voir liste des pièces pour les informations de commande).

f. La valve de cylindre de gaz de propane doit être équipée

d’un dispositif d’accouplement de raccordement de cylindre, décrit comme type I dans la norme déﬁnie dans le e. de paragraphe ci-dessus. Ce dispositif est généralement décrit comme coupleur rapide de ﬁl de point culminant.

g. Si votre cylindre de gaz de propane vient avec une prise

de la poussière, placez le bouchon anti-poussière sur la sortie de valve de cylindre toutes les fois que le cylindre n’est pas en service.

OPÉRATION DE COUPLEUR RAPIDE

Pour relier le regulator/hose à l’ajustage de précision de valve de cylindre de gaz de propane: Serrez l’écrou de main

sur le régulateur au-dessus de l’ajustage de précision de ﬁl de point culminant sur la valve de cylindre. Tournez l’écrou de

main dans le sens des aiguilles d’une montre pour engager les ﬁls et pour serrer jusqu’à ce que douillettement. L’utilisation des pinces ou de la clé ne devrait pas être nécessaire. Seulement le propane marqué par cylindres doit être employé.

Pour débrancher: Tournez l’écrou de main dans le sens contraire des aiguilles d’une montre jusqu’à isolé (ﬁg. 6-1).

Important: Avant d’employer le unité, et ensuite chaque

fois que le cylindre est enlevé et rattaché, examinez tous les raccordements pour déceler les fuites. Arrêtez les valves de unité et ouvrez la valve principale de cylindre, puis vériﬁez les raccordements avec de l’eau savonneux. Réparez toutes les fuites avant d’allumer le unité.

ATTENTION: Tournez toujours la valve principale de cylindre

de propane au loin après chaque utilisation, et avant de déplacer le unité et le cylindre, ou débrancher l’accouplement. Cette valve doit rester fermée et le cylindre a débranché alors que l’appareil n’est pas en service, quoique l’écoulement de gaz soit arrêté par un dispositif de sûreté quand le coupleur est débranché.

Inspectez soigneusement l’ensemble de tuyau chaque fois avant que le gaz soit allumé. Un tuyau ﬁssuré ou efﬁloché doit être immédiatement remplacé.

Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected et a enlevé. Des cylindres Disconnected doivent être stockés dehors, hors de la portée des enfants, avec les prises de valve ﬁletées étroitement installées, et ne doivent pas être stockés dans

un bâtiment, le garage, ou n'importe quel autre secteur inclus.

POUR VOTRE SÛRETÉ

a. Ne stockez pas un cylindre de gaz disponible de propane

dessous ou ne vous approchez pas de cet appareil.

b. Ne remplissez jamais cylindre au delà de 80 pour cent de

plein.

c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE

EXACTEMENT, UN FEU CAUSANT LA MORT OU DES DOMMAGES SÉRIEUX PEUT SE PRODUIRE.

Fig. 6-1 type coupleur rapide de ﬁl de point culminant d’I

Volant de commande

QCC Type 1

Valve

Valve de décompression

1

Ajustage de précision en laiton de ﬁl de point culminant

4

Indicateur de niveau de liquide (facultatif)

3

2

Écrou de main avec le ﬁl de point culminant.

Régulateur

Passage

Tuyau

6

U

L

SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS

IMPORTANT FOR YOUR SAFETY

READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.

When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.

FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.

CYLINDER/CONNECTOR REQUIREMENTS

a. Propane-gas cylinders, valves, and hoses must be

maintained in good condition and must be replaced if there is visible damage to either the cylinder or valve. If the hose is cut or shows excessive abrasion or wear, it must be replaced before using the gas appliance (see e.).

b. This unit, when used with a cylinder, should be connected

to a standard 5-gallon (20 lb.) propane-gas cylinder equipped with an OPD (Overﬁll Prevention Device). The OPD has been required on all cylinders sold since October 1,1998, to prevent overﬁlling.

c. Cylinder dimensions should be approximately 12" (30.5

cm) in diameter and 18" (45.7 cm) high. Cylinders must be constructed and marked in accordance with the

Speciﬁcations for Propane Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes for Transportation of Dangerous Goods.

d. The cylinder used must include a collar to protect the

cylinder valve, and the cylinder supply system must be arranged for vapor withdrawal.

e. The pressure regulator and hose assembly used must

e. The pressure regulator and hose assembly (Fig. 7-1)

match the speciﬁcation for Type I by ANSI Z 21.58/CGA

supplied with this outdoor gas appliance (L.P. models

1.6 (see Fig. 7-1).

only) must be used. Original and replacement pressure regulator and hose assemblies must be those speciﬁed by the manufacturer for connection with a cylinder connecting device identiﬁed as Type I by the ANSI Z 21.58/CGA 1.6 (see PARTS LIST for ordering information).

f. The propane-gas cylinder valve must be equipped with a

cylinder connection coupling device, described as Type I in the standard deﬁned in paragraph e. above. This device is commonly described as an Acme thread quick coupler.

g. If the propane-gas cylinder comes with a dust plug, place

the dust cap on the cylinder valve outlet whenever the cylinder is not in use.

QUICK COUPLER OPERATION

To connect the regulator/hose assembly to the propanegas cylinder valve ﬁtting: Press the hand nut on the regulator

over the Acme thread ﬁtting on the cylinder valve. Turn the hand nut clockwise to engage the threads and tighten until snug.

The use of pliers or a wrench should not be necessary. Only cylinders marked “propane” may be used.

To disconnect: Turn the hand nut counterclockwise until detached (Fig. 7-1).

Important: Before using the unit, and after each time

the cylinder is removed and reattached, check the hose for wear (see a.) and check all connections for leaks. Turn off the unit valves and open the main cylinder valve, then check connections with soapy water. Repair any leaks before lighting the unit.

CAUTION: Always turn the propane cylinder main valve

off after each use, and before moving the unit and cylinder or disconnecting the coupling. This valve must remain closed and the cylinder disconnected while the appliance is not in use, even though the gas ﬂow is stopped by a safety feature when the coupler is disconnected.

Carefully inspect the hose assembly each time before the gas is turned on. A cracked or frayed hose must be replaced immediately.

If the appliance is stored indoors, the cylinder must be disconnected and removed. Disconnected cylinders must be stored outdoors, out of the reach of children, with threaded valve plugs tightly installed, and must not be stored in a

building, garage, or any other enclosed area.

FOR YOUR SAFETY

a. DO NOT store a spare propane-gas cylinder under or

near this appliance.

b. NEVER ﬁll the cylinder beyond 80-percent full. c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED

EXACTLY, A FIRE CAUSING DEATH OR SERIOUS INJURY MAY OCCUR.

Fig. 7-1 Type I Acme thread quick coupler

QCC Type 1 valve

Pressure relief valve

Hand wheel

Brass Acme thread ﬁtting

Liquid level indicator (optional)

Hand nut with Acme thread

Regulator

Vent

Hose

7

INSTALLATION REQUIREMENTS

Installation must be performed by a qualiﬁed professional service technician.

This unit is designed for outdoor use only. DO NOT use this unit inside a building, garage, or enclosed area. DO NOT use this unit in or on a recreational vehicle or boat.

OVERHEAD CONSTRUCTION AND EXHAUST HOOD REQUIREMENTS

A minimum 5 foot clearance is required between the cooking surface and the overhead construction.

When installed under combustible overhead construction, the area above the cooking surface of the unit must be covered with an exhaust hood. The exhaust hood provides the protection for the combustible overhead construction. See exhaust hood information below and Fig. 8-1.

Important: DO NOT use this appliance under unprotected

combustible overhead construction.

When installed under overhead non-combustible construction, an exhaust hood is highly recommended; see exhaust hood information below and Fig. 8-1.

Exhaust Hood

When using an exhaust hood, the area above the cooking surface of the grill must be covered with a hood larger than the cooking area of the grill, and with a minimum of 1200 CFM (cubic feet per minute) for proper outdoor application.

W

Combustible overhead

construction:

Exhaust hood required

Non-combustible

overhead construction:

Exhaust hood highly recommended

OVERHEAD CONSTRUCTION

N O N

C O M B U S

T

I

B

L E

A

L

EXHAUST

HOOD

Min.

5'

Fig. 8-1 Overhead requirements

8

INSTALLATION REQUIREMENTS (Cont.)

SIDE AND REAR WALL CLEARANCES

For the minimum clearances between the unit and any side or rear walls, your setup must fall within one (or more) of the following:

A. Clearance between unit and strictly non-combustible

wall

(i.e. brick wall, see Fig. 9-1)

• The unit must have a minimum of 4" right, left, and rear clearance from any non-combustible wall.

(To allow for proper ventilation and prevent dangerous overheating.)

B. Clearance between unit and a protected combustible

wall

(i.e. a non-combustible wall in front of a combustible wall to serve as a barrier. This can be accomplished by brick, or a metal stud ﬁnished with non-combustible substrate, see Fig. 9-2)

• The unit must have a minimum of 14" right, left, and rear clearance from the protected combustible wall.

(The 4" non-combustible material plus an additional 10" clearance between the unit and protected wall.)

Non-combustible

Min.

4"

(Clearance required for

right, left, and rear)

Fig. 9-1 Clearance 'A' Diagram

Non-combustible

substrate

Non-combustible 4"

Min.

14"

C. Clearance between unit and combustible wall

• The unit must have a minimum of 18" right, left, and rear clearance from any combustible wall (see Fig. 9-3).

Com-

bustible

(Clearance required for

right, left, and rear)

Fig. 9-2 Clearance 'B' Diagram

Combustible

Min.

18"

(Clearance required for

right, left, and rear)

Fig. 9-3 Clearance 'B' Diagram

9

INSTALLATION REQUIREMENTS (Cont.)

The control panel MUST remain removable for servicing (see CONTROL PANEL REMOVAL section).

COMBUSTION AIR AND COOLING AIRFLOW

Proper airﬂow (front-to-back, Fig. 10-1) MUST be maintained for the unit to perform as it was designed. If airﬂow is blocked, overheating and poor combustion will result. Do not block the 1" front air inlet along the bottom of the control panel.

CAUTION: Wind blowing into or across the rear oven lid

vent (Fig. 10-3) can cause poor performance and/or dangerous overheating. Install the grill so that the prevailing wind blows toward the front of the grill (Fig. 10-2).

GAS-SUPPLY PLUMBING REQUIREMENTS

For natural gas or a household propane system, rigid

3

/4" black steel pipe or local code-approved pipe is required to conduct the gas supply to the unit. Contact your local gas supplier. Connect this pipe to the C.S.A.-approved quick connect hose (attached). Apply only joint compounds that are resistant to all gasses to all male pipe ﬁttings except ﬂare ﬁttings. Make sure to tighten every joint securely.

Note: If

1

/2" pipe is used with natural gas, it should be

no longer than 20'.

1

/2" or

(1" front air inlet)

Fig. 10-1 Airﬂow diagram

CORRECT

PLACE GRILL SO PREVAILING WIND BLOWS TOWARD FRONT

OF GRILL

Fig. 10-2 Airﬂow direction - CORRECT

Important: A shut-off valve (not included) in the gas

line is required. It provides for safety when

the unit is not in use and for convenient maintenance and repair. It must be installed within 6 feet of the unit. Use a pipe joint compound resistant to all gasses on all male ﬁttings except ﬂare ﬁttings.

GAS SUPPLY AND MANIFOLD PRESSURES:

For natural gas - normal 7" water column (w.c.), minimum 5", maximum 10

1

/2". For propane gas - normal 11" w.c.,

minimum 10", maximum 13".

INCORRECT

Rear oven lid vent

YOU MUST PROTECT

REAR OVEN VENT FROM

PREVAILING WIND

Fig. 10-3 Airﬂow direction - INCORRECT

10

ELECTRICAL SAFETY

• To protect against electric shock, do not immerse cord or plugs in water or other liquid.

• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

• Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance malfunctions or has been damaged in any manner. Contact the manufacturer for repair.

• Do not let the cord hang over the edge of a table or touch hot surfaces.

• Do not use an outdoor cooking gas appliance for purposes other than intended.

• When connecting, ﬁrst connect plug to the outdoor cooking gas appliance then plug appliance into the outlet.

• Use only a properly wired and inspected 120VAC (15 AMP minimum) Ground Fault Circuit Interrupter (GFCI) GROUNDED 3-wire receptacle with this outdoor cooking gas appliance.

• The GFCI receptacle must be a WEATHER-PROOF IN-USE COVERED RECEPTACLE.

• Never remove the grounding plug or use with an adapter of 2 prongs.

• Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved for outdoor use with a W-A marking.

• The provisions of the National Electric Code as well as any local codes must be observed when installing the product.

11

MODEL SPECIFICATIONS

A430s

Main burner quantity

N/P oriﬁce drill size

Backburner (if equipped)

N/P oriﬁce drill size

Infrared searing burner (if equipped)

N/P oriﬁce drill size

Burner maintenance kit model # (not included) MK-1

Grill complete maintenance kit model # (not included) MCK-1

Wind deﬂector model # (not included) 23728-18

Input electrical requirements

Electrical output

120VAC / 15 AMP minimum / 60 Hz / GFCI outlet

12 VAC / 36 Watts

12 VDC / 36 Watts

Oven lights rating 12V / 10 watt halogen bulb

Table 1 - Product Speciﬁcations

2

#42 / #54

#52 / #59

#49 / #56

Interior Oven light

Backburner igniter (if equipped)

Main burner igniters

Meat probe

(if equipped)

POST GRILL WIRING DIAGRAM

Interior Oven light

Wire harness

assembly

Light

switch

*

Power supply

Wire harness

extension

Valve

manifold

Main

burner 2

Digital thermometer

(if equipped)

Note: In addition, a wire diagram speciﬁc to your unit can

Ground

wire

LED disk

(large)

Main

burner 1

Model wire diagrams may vary.

*

Back burner

(if equipped)

LED disk

(large)

be found afﬁxed to the inside of the control panel.

12

Thermocouple

(if equipped)

MODEL SPECIFICATIONS (cont.)

Height Width Depth

Floor to top

(with oven)

Open (A) Closed (B)

57" 50" 37" 26" 55

Floor to top

of shelf

(C)

Table 2 - Post Patio Mount Grill Dimensions

E

Left to right Front to back

Post base

(D)

Shelves

(E)

3

Post base

(F)

/4" 20 1/4" 25 3/4"

Maximum

outer

(G)

G

A

B

C

D

F

Fig. 13-1

13

MODEL SPECIFICATIONS (cont.)

Height* Width Depth

Floor to top

(with oven)

Open

(H)

57" 50” 37” 18” 5

*Note: Height dimensions are approximate from ground level once installed.

Closed

(I)

Floor to

top of

shelf

(J)

Floor to

bottom of

extension

below

ground

(K)

Table 3 - In-Ground Post Grill Dimensions

M

Left to right Front to back

Post

(L)

1

/2” 55 3/4" 5 1/2” 25 3/4"

Shelves

(M)

Post

(N)

Maximum

outer

(O)

O

H

I

J

L

Ground level

N

K

Fig. 14-1

14

AURORA GRILL REPLACEMENT PARTS LIST

IMPORTANT

Remove all packing

material and discard prior

to lighting.

9

10

To order replacement parts, contact your local Fire Magic® dealer.

1

17

2

3

8

51

14

16

15

4

5

42

13

29

12

7

23

20

27

25

22

28

18

19

21

24

47

Some items shown are optional, or are not available for certain models. Your model may vary, refer to parts table.

26

43

30

11

32

31

15

AURORA GRILL REPLACEMENT PARTS LIST (cont.)

A430s

Item Description Part No. Qty.

Stainless cooking grid (set of 2) 3542-DS-2 1

1.

Flavor grid (set of 2) 3063-S-2 1

2.

Main burner 3042-50 2

3.

Flame arrester kit 24177-05 2

4.

Silicone gasket 24177-06 2

5.

Infrared burner *‡ 3060 1

6.

Oven lid 23729-53 1

7.

or Oven lid w/ oven thermometer 23729-55 1

Warming rack* 3672S-M 1

8.

Back burner* 24130-11H 1

9.

Back burner cover* 24148-010 1

10.

Patio base w/ hardware *

11.

In-ground base w/ hardware *

or

Rotisserie motor* 3600-02 1

12.

Rotisserie rod* 3603-30 1

13.

Rotisserie knob* 24187-16 1

14.

Meat holder (pair)* 3613 1

15.

Counterbalance* 3620E 1

16.

Grid lifter 3519 1

17.

Convertible regulator PR-4 1

18.

Valve manifold w/ back burner 24130-22 1

19.

Valve manifold w/o back burner 24130-28 1

or

Control panel w/ back burner, w/

20.

digital thermometer Control panel w/ back burner, w/o

or

digital thermometer Control panel w/o back burner, w/

or

digital thermometer Control panel w/o back burner, w/o

or

digital thermometer Small knob * 24182-42 1

21.

Large knob 24182-41 2

22.

LED disk (small)* 24182-64 1

23.

LED disk (large) 24182-63 2

24.

†

24330-31 1 24330-32 1

24130-45 1

24130-47 1

24130-46 1

24130-48 1

A430s

Item Description Part No. Qty.

Digital thermometer 24180-12H 1

25.

Oven hood thermometer ‡ 23305 1

or

Meat probe * 24187-14S 1

26.

Drip tray 3084 1

27.

Drip tray liner (set of 4) 3557 1

28.

Rigid shelf (left) 24330-017L 1

29.

Rigid shelf (right) 24330-017R 1

30.

Patio mount hardware kit

31.

(if applicable) Timer valve (1 hour) 3092A 1

32.

Propane regulator / hose assy. *‡ 5110-07 1

33.

Natural Gas QD hose *‡ 5110-03 1

or

Wire harness assembly‡ 24177-29 1

34.

Back burner electrode*‡ 4199-52 1

35.

Main burner electrode‡ 3199-72 2

36.

Natural gas oriﬁce(s)‡ 3001-42-2 1

37.

Natural back burner gas oriﬁce(s)‡ 3001-52-1 1

38.

Propane gas oriﬁce(s)‡ 3001-54-2 1

39.

Propane back burner gas oriﬁce(s)‡ 3001-59-1 1

40.

Thermometer wire harness *‡ 24177-25 1

41.

Wire harness extension 24182-53 1

42.

Power supply box w/ connector 24177-12 1

43.

12V / 10 watt halogen light bulb ‡ 24187-15 2

44.

Light lens ‡ 24187-26 2

45.

Lamp assembly ‡ 24187-28 2

46.

Light switch 24182-46 1

47.

Backburner ﬂex connector *‡ 3030-01 1

48.

Lighting tube (left) ‡ 24187-29 1

49.

Lighting tube (right) ‡ 24187-35 1

50.

Air bafﬂe

51.

* If equipped †

For replacement only (not conversion)

‡ Not shown

24330-25 1

24194-40

1

16

INSTALLATION

It is not required to remove the control panel or knobs to install this unit.

DO NOT lift the unit from the control panel when installing.

PREPARE FOR INSTALLATION

Consult a qualiﬁed professional installer.

PATIO MOUNT INSTALLATION

Wire

Connections

Access

plate

The ﬂex connector can be routed out the back of the post, under the post base, or inside the post. The power supply cord is to be routed out the back.

To gain access to the inside of the post, unscrew and carefully open the access plate on the rear of the post using a medium Phillips-head screwdriver. Retain the screws.

A power supply is pre-mounted to the access plate. For ease of installation, disconnect the power supply from the wire harness extension. Locate the wires coming from the inside of the post to the power supply and carefully disconnect (see Fig. 17-1 and 17-2).

Important: Pull from the connectors (not the wires).

ROUTE POWER SUPPLY CORD

The power cord will need to be routed through the access plate for later connection to a 120VAC (15 AMP minimum) GFCI GROUNDED 3-wire receptacle. The GFCI receptacle must be a WEATHER-PROOF IN-USE COVERED RECEPTACLE.

1. Remove the knock-out disc at the bottom left of the

access plate with a large ﬂathead screwdriver. (Insert the screwdriver into the notch provided in the center of the knock-out.)

Gas supply

knock-out

Power

supply

Power cord

knock-out

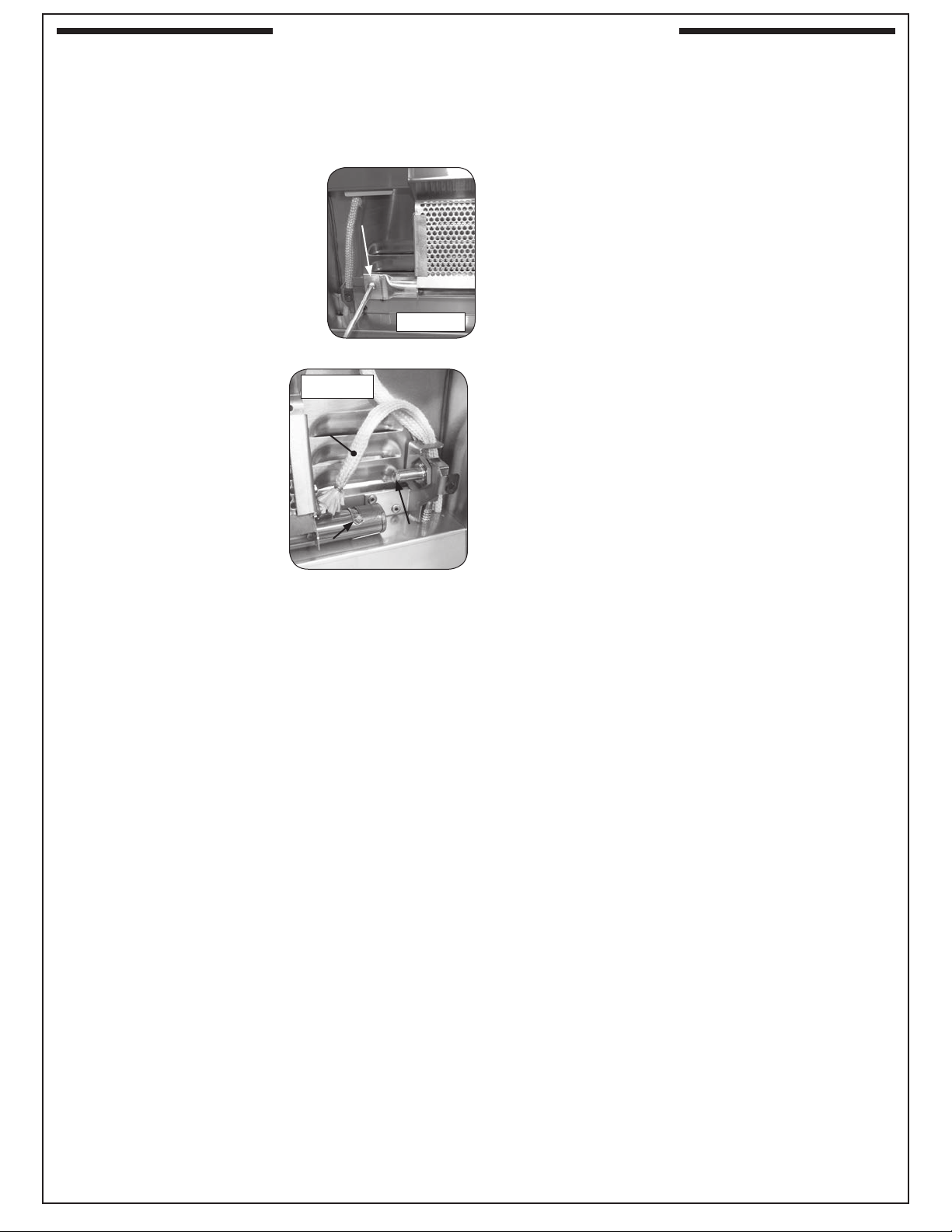

Fig. 17-1 Access plate view & install orientation

Wire

harness

extension

(optional)

Flex connector

(w/ adapter)

Back of

timer valve

2. Remove the plastic power cord bushing attached to the

power cord.

3. Feed the power cord through the newly created hole.

4. Install the bushing onto the power cord and slide the

bushing up against the access plate knock-out hole and snap into place. See Fig. 17-1.

ROUTE FLEX CONNECTOR

The gas supply line will need to be run to the post install location as appropriate for the desired setup.

To route ﬂex connector through rear of post:

1. Remove the knock-out disk at the bottom right of the

access plate with a large ﬂathead screwdriver. (Insert the screwdriver into the notch provided in the center of the knock-out.)

2. Remove the plastic grommet (attached to the ﬂex

connector) and insert it into the newly created opening. Then route the ﬂex connector through the opening. See Fig. 17-1 and 17-2.

To route ﬂex connector beneath post base:

Regulator

Flex

connector

(w/ adapter)

Fig. 17-2 Post interior detail

Route the ﬂex connector through the hole found beneath the center of the post base (see Fig. 17-3).

17

Fig. 17-3 Post base option

PATIO MOUNT INSTALLATION (cont.)

CONNECT THE GAS SUPPLY

For household propane or natural gas units:

1. Route the ﬂex connector to the gas stub.

2. Turn OFF the gas supply at the source.

3. A shut-off valve is required within 6 feet of the unit. If shut-off valve is connected to end of gas supply stub:

• Connect the ﬂex connector to the shut-off valve (see Fig. 18-2). Tighten securely.

If shut-off valve is installed in-line:

• Install the supplied ﬂare adapter to the gas supply using a pipe joint compound resistant to all gasses (see Fig. 18-2). Tighten securely.

• Connect the ﬂex connector to the ﬂare adapter (see Fig. 18-2). Tighten securely.

For propane cylinders:

For connecting a propane unit to a portable propane tank, read the safety warnings and follow the instructions in the section SAFE USE AND MAINTENANCE OF PROPANE GAS CYLINDERS. Important: An appropriate adapter will be required to connect

the existing ﬂex connector to an L.P. regulator/ hose assembly.

LEAK TEST

Turn all burner control knobs to the OFF position. Turn the gas supply on. Then carefully check all gas connections for leaks with a brush and half-soap/half-water solution before lighting. NEVER USE A MATCH OR OPEN FLAME TO TEST FOR LEAKS.

RECONNECT POWER SUPPLY WIRES

To gas supply

(as applicable,

ﬂex location

may vary)

Wire

Connections

connector

AdapterFlex

To 120VAC

(15 AMP min.)

GFCI

GROUNDED

3-wire

receptacle

Fig. 18-1 Connect: Gas, Wires, Plate, Power

Flex connector

(coming from unit)

Shut-off valve

(required, not

Flare adaptor

(use on gas

supply stub only

if shut-off valve

installed in-line)

included, must be

installed within 6

feet of the unit)

Gas supply

Fig. 18-2 Connecting to a gas line

CAUTION: IMPROPERLY CONNECTED WIRES WILL

CAUSE DAMAGE TO THE GRILL AND MAY RESULT IN PROPERTY DAMAGE AND/OR PERSONAL INJURY.

To connect the power supply box, connect the wires coming from the power supply to the wire harness extension as shown in Fig. 18-1. Important: Apply dielectric grease to the male connectors prior

to making any wire connections.

RE-SECURE ACCESS PLATE

Carefully replace the access plate using the four screws, ensuring all interior components are properly oriented inside of the grill. Ensure the power supply cord (and ﬂex connector if applicable) coming out of the rear of the post are properly situated and the plastic bushing/grommet pieces are secure in place.

CONNECT POWER CORD

Connect the cord coming from the rear access plate to a

120VAC (15 AMP minimum) GFCI GROUNDED 3-wire receptacle. The GFCI receptacle must be a WEATHER-

PROOF IN-USE COVERED RECEPTACLE.

18

WARNING

Electrical Grounding Instructions:

This appliance is equipped with a threepronged (grounding) plug for your protection against shock hazard and should be plugged

directly into a properly grounded three-

prong receptacle. Do not cut or remove the

grounding prong from this plug.

SECURING THE PATIO MOUNT GRILL

Important: BEFORE USE, the patio mount base

must be securely fastened to a stable, level surface to ensure the grill remains ﬁxed and upright at all times.

Locate the patio mount base in the planned grill location and mark the 4 holes. Drill the marked holes

1

/2" diameter x 1 1/2" depth. Insert the lag shields

to a (see PARTS LIST) into the holes, being sure that they are ﬂush with the ground.

Align the holes on the patio mount base over the lag shields in the ground. Secure the base with the lag

7

screws (see PARTS LIST) using a

/16" nut driver.

IN-GROUND POST INSTALLATION

It is not required to remove the control panel or knobs to install this unit. DO NOT lift the unit from the control panel when installing.

PREPARE FOR INSTALLATION

Consult a qualiﬁed professional installer / licensed contractor. The in-ground post is designed primarily for installation with a

permanent underground gas supply. The power supply cord is to be routed out the back.

Wire

Connections

Access

plate

To gain access to the inside of the post, unscrew and carefully open the access plate on the rear of the post using a medium Phillips-head screwdriver. Retain the screws.

A power supply is pre-mounted to the access plate. For ease of installation, disconnect the power supply from the wire harness extension. Locate the wires coming from the inside of the post to the power supply and carefully disconnect (see Fig. 19-1 and 19-2).

Important: Pull from the connectors (not the wires).

ROUTE POWER SUPPLY CORD

The power cord will need to be routed through the access plate for later connection to a 120VAC (15 AMP minimum) GFCI GROUNDED 3-wire receptacle. The GFCI receptacle must be a WEATHER-PROOF IN-USE COVERED RECEPTACLE.

1. Remove the knock-out disc at the bottom left of the access plate

with a large ﬂathead screwdriver. (Insert the screwdriver into the notch provided in the center of the knock-out.)

2. Remove the plastic power cord bushing attached to the power

cord.

3. Feed the power cord through the newly created hole.

4. Install the bushing onto the power cord and slide the bushing

up against the access plate knock-out hole and snap into place. See Fig. 19-1.

ROUTE GAS SUPPLY (UNDERGROUND METHOD)

Power

supply

Power cord

knock-out

Fig. 19-1 Access plate view & orientation

Post

Wire

harness

extension

18"

(approx.)

Back of timer valve

Regulator

Flex connector

(w/ adapter)

4" (approx.)

Concrete level

Ground level

3-5"

Note: This section addresses an underground gas supply setup.

To connect through the rear of the post, reference the ROUTE FLEX CONNECTOR section of PATIO-MOUNT INSTALLATION, and do not perform the steps until after: attaching the extension post, and installing the post / pouring the concrete.

1. After running the underground gas supply line to the planned

grill location, dig a hole for the post and extension approximately 18" deep and 10-12" in diameter.

Note: Run the gas supply line up from the bottom of the hole (a

little off center) so that it reaches to approximately 4" above ground level.

Note: The actual depth of the hole should be such that the top of

the shelf is approximately 37" above ground level.

2. Verify that the gas supply line ﬁts through the gas line clearance

hole in the bottom of the post (see Fig. 19-3). The clearance hole is the larger of the two holes in the bottom of the post and is off center.

3. Verify that the ﬂex connector coming from the inside of the post

will connect properly with the gas supply line.

19

Gas supply

route

Fig. 19-2 In-ground install orientation

Flex connector

(w/ adapter)

Supply line

Fig. 19-3 Post interior detail

IN-GROUND POST INSTALLATION (cont.)

ATTACH POST EXTENSION

1. Attach the extension to the bottom of the grill post so

that the open portion is toward the back of the grill and the ﬁve holes in the extension line up with the ﬁve (5) weld-nuts in the post (see Fig. 20-1).

2. From outside the joined post and extension, insert

1

one of the

/4 X 20"-5/ the ﬁve (5) bolt holes and tighten each using a socket driver or wrench (see Fig. 20-2).

Note: There is one hole on each side of the post,

except the back which has two holes located on either side of the extension opening.

PLACE POST IN-GROUND & POUR CONCRETE

1. Prepare the concrete to be used for the install.

2. Carefully orient the post over the gas supply line and

into the installation hole.

Important: Verify that the gas supply line is running up

through the post hole, just off center. It must extend high enough to reach the grill gas connection and remain safely above the level of the concrete when poured.

bolts (supplied) into each of

8

7

/

16

Install

provided bolts

Post

into 5 holes around post

"

Extension

(position

open side

toward back)

Fig. 20-1 Install extension to post

To grill

Bolts

Weld-nut

3. Remove the post, then cover the end of the gas supply

line with a plastic bag and/or masking tape to avoid getting concrete or other debris in the supply line.

4. Pour the concrete into the hole 3-5" below ground

level taking care to protect the gas supply line.

5. While the concrete is still wet, carefully lower the

extended grill post into the hole so that the gas supply line slides through the clearance hole in the bottom of the post.

6. Orient the grill per plan, then level the grill and suppor t

it so that it remains in position while the concrete drys.

ROUTE FLEX CONNECTOR (ABOVE GROUND METHOD ONLY)

Note: This section addresses an above ground gas

supply setup. If connecting underground, skip this section and continue with installation.

The gas supply line will need to be run to the post install location as appropriate for the desired setup.

To route ﬂex connector through rear of post:

1. Remove the knock-out disk at the bottom of the access

plate with a large ﬂathead screwdriver. (Insert the screwdriver into the notch provided in the center of the knock-out.)

2. Remove the plastic grommet (attached to the ﬂex

connector) and insert it into the newly created opening. Then route the ﬂex connector through the opening. See Fig. 20-4.

20

Fig. 20-2 Fasten extension to post

Post

Fig. 20-3 Pour concrete & install post

Access

plate

Fig. 20-4 Access plate view & install orientation

Flex connector

(w/ adapter)

Gas supply line

(cover to protect)

Ground level

3-5"

Concrete level

Gas supply route

Gas supply knock-out

(grommet installed)

Flex connector

(w/ adapter)

IN-GROUND POST INSTALLATION (cont.)

CONNECT THE GAS SUPPLY

For household propane or natural gas units:

1. Route the ﬂex connector to the gas stub.

2. Turn OFF the gas supply at the source.

3. A shut-off valve is required within 6 feet of the unit. If shut-off valve is connected to end of gas supply stub:

• Connect the ﬂex connector to the shut-off valve (see Fig. 21-1). Tighten securely.

If shut-off valve is installed in-line:

• Install the supplied ﬂare adapter to the gas supply using a pipe joint compound resistant to all gasses (see Fig. 21-1). Tighten securely.

• Connect the ﬂex connector to the ﬂare adapter (see Fig. 21-1). Tighten securely.

For propane cylinders:

For connecting a propane unit to a portable propane tank, read the safety warnings and follow the instructions in the section SAFE USE AND MAINTENANCE OF PROPANE GAS CYLINDERS.

(coming from unit)

Flare adaptor

(use on gas

supply stub only

if shut-off valve

installed in-line)

Fig. 21-1 Connecting to a gas line

Wire

Connections

GFCI GROUNDED

3-wire receptacle

Flex connector

Shut-off valve

(required, not

included, must be

installed within 6

feet of the unit)

Gas supply

To 120VAC

(15 AMP min.)

Important: An appropriate adapter will be required to connect

the existing ﬂex connector to an L.P. regulator/hose assembly.

LEAK TEST

Turn all burner control knobs to the OFF position. Turn the gas supply on. Then carefully check all gas connections for leaks with a brush and half-soap/half-water solution before lighting. NEVER USE A MATCH OR OPEN FLAME TO TEST FOR LEAKS.

RECONNECT POWER SUPPLY WIRES

CAUTION: IMPROPERLY CONNECTED WIRES WILL CAUSE

DAMAGE TO THE GRILL AND MAY RESULT IN PROPERTY DAMAGE AND/OR PERSONAL INJURY.

To connect the power supply box, connect the wires coming from the power supply to the wire harness extension as shown in Fig. 21-2.

Important: Apply dielectric grease to the male connectors prior to

making any wire connections.

RE-SECURE ACCESS PLATE

Carefully replace the access plate using the four screws, ensuring all interior components are properly oriented inside of the grill. Ensure the power supply cord (and ﬂex connector if applicable) coming out of the rear of the post are properly situated and the plastic bushing/grommet pieces are secure in place.

Fig. 21-2 Connect: Wires, Plate, Power

WARNING

Electrical Grounding Instructions:

This appliance is equipped with a

three-pronged (grounding) plug for

your protection against shock hazard

and should be plugged directly into

a properly grounded three-prong

receptacle. Do not cut or remove the

grounding prong from this plug.

CONNECT POWER CORD

Connect the cord coming from the rear access plate to a 120VAC (15 AMP minimum) GFCI GROUNDED 3-wire receptacle.

The GFCI receptacle must be a WEATHER-PROOF IN-USE COVERED RECEPTACLE.

21

COMMON INSTALLATION

INSTALL THE FLAVOR GRIDS

Place the ﬂavor grids directly onto the studs on the burners. See Fig. 22-1. The ﬂavor grids allow heat from the burners to be evenly distributed throughout the cooking area.

INSTALL THE COOKING GRIDS

Note: Wear heat-resistant gloves if necessary. Note: Do not leave the lifter on any hot surfaces.

1. With the prongs facing downward, insert the notched-

end of the lifter between two grid rods, then rotate, as shown in Fig. 22-2, A & B.

Note: To balance, insert the notched-end of the lifter in

the middle front half of the cooking grid.

2. Insert the rear pointed-end of the lifter between the

same two rods (Fig. 22-2, B) and carefully lift the cooking grid and place onto the front and rear grid rests of the grill (see Fig. 22-3). Repeat for all other cooking grids.

INSTALL THE DRIP TRAY

Your grill includes a pack of four drip tray liners. Place a liner into the drip tray as shown in Fig. 22-4, and fully insert the drip tray into the bottom front of the control panel.

Note: The liner must ﬁt under the rear lip and two front

tabs found on the drip tray.

Place onto studs

Fig. 22-1 Install ﬂavor grids

A

B

Fig. 22-2 Install cooking grids

22

Fig. 22-3 Install cooking grids

Liner

Fig. 22-4 Install drip tray

COMMON INSTALLATION (cont.)

INSTALL THE WARMING RACK

The warming rack (Fig. 23-1) is packed separately. To install the warming rack, carefully insert the rack hangers into the two holes in the back of the inner oven hood, then lower the front of the rack to a level position.

Note: Removing the warming rack before using the rotisserie

will leave more clearance for the meat being cooked (if applicable).

Warming rack

INSTALL THE RIGID SHELVES

This grill comes with two (2) rigid shelves that must be attached. These can be attached using the four support screws provided and a Phillips-head screw driver.

Important: Take caution to not cross-thread when tightening

the screws.

1. Hold the shelf inverted so that one of the corner holes

in the shelf lines up with the appropriate upper screw hole in the grill.

2. Insert the screw, but do not tighten all the way so that

the shelf can be easily rotated around the ﬁrst screw.

3. Line up the second corner hole in the shelf with the

remaining upper screw hole in the grill. Insert a screw and tighten.

Note: You may lift the edge of the shelf upward to gain

better access during much of the tightening of this screw.

4. Finally, insert the bottom screws on the left and right side

of the shelf and securely tighten all screws.

Fig. 23-2 Install warming rack

Fig. 23-1 Install warming rack

Shelf support screws

Fig. 23-2 View from under right shelf

To detach, reverse the process above.

23

USE, CARE, & SERVICE

IDENTIFICATION OF GRILL CONTROLS

Control panel

screw(s)

Left

main burner

control knob

Digital

thermometer

Drip tray

(if equipped)

*

The light switch is push button operated, and is located on the right side of the control panel. It controls the power to all lights.

Fig. 24-1 A430s controls

main burner control knob

Light switch*

Right

Backburner

control knob

(if equipped)

Meat probe

(if equipped)

24

USING THE GRILL

BEFORE INITIAL USE

Ensure that:

• the unit has been properly installed and leak tested by a qualiﬁed professional service technician and as instructed in this manual.

• you have read and understand all of the information in this manual.

BEFORE EACH USE

Ensure that:

• you smell around the appliance area for gas. If you smell gas (and all control knobs are in the OFF position), immediately shut off the gas supply and contact a qualiﬁed professional service technician or the gas supplier for inspection.

• the vent openings and surrounding area of the unit are clear and free at all times.

• the cooking area and drip tray are clean, and the drip tray is properly installed.

• you inspect all piping and hoses for damage, cuts, wear, and tear. Replace any damaged components prior to use.

OPERATION

• The unit becomes HOT during use. NEVER touch any part of the cooking area or surrounding hot surfaces with bare hands. Use long-handled insulated BBQ tools and wear an insulated glove / oven mitt.

• Always keep your face and body as far from the unit as possible during use. Avoid wearing loose-ﬁtting clothing as they could ignite.

• NEVER use charcoal or any other solid-fuel in the unit.

• NEVER leave the unit unattended during use.

• NEVER cover more than 75% of the cooking or grill surface with griddles or pans to prevent overheating.

After reading and understanding all bullets above, follow these steps to light and use your grill:

1. Light the grill per the LIGHTING INSTRUCTIONS section.

2. Turn the control knobs to the HI-LIGHT position, close the hood, and allow the grill to preheat for 15 minutes or

until desired cooking temperature is reached.

3. Place the food on the grill and cook as desired. Monitor the ﬂames and the temperature, and adjust the heat setting

if necessary. Ensure the timer on the unit remains on during cooking - see LIGHTING INSTRUCTIONS section.

4. See the sections below and the following pages for all other information regarding use.

WIND CONSIDERATIONS

Proper airﬂow (front-to-back, Fig. 25-1) MUST be maintained for the unit to perform as it was designed. See the INSTALLATION REQUIREMENTS section for details.

When using the unit in windy conditions, the wind can disrupt the airﬂow and cause overheating. To prevent overheating during windy conditions, do not leave the hood closed with the burners on high for more than 15 minutes.

AFTER EACH USE

1. Brush the cooking grids to remove all residue.

2. Operate on high with hood closed for 10-15 minutes to burn off all grease.

3. Cover the grill once it has completely cooled. Note: For additional cleaning information, refer to the SERVICING AND CLEANING section.

Fig. 25-1 Airﬂow diagram

25

OFF

HI

LIGHT

LOW

TO

TURN OFF

TO TURN ON

Read setting

here

HIGH to LIGHT

ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)

Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le unité.

ÉCLAIRAGE ÉLECTRONIQUE

Note: Le unité doit être relié à la puissance 120VAC pour

Note: L’éclairage électronique exige une batterie installée

l’éclairage électronique.

de 9 volts avec une bonne charge.

1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs

pour être Lit.

2. Tournez tous les boutons de commande de gaz à leurs

positions de repos.

3. Allumez le gaz à sa source.

Lisez l’établissement ici

(OUTRE de montrer)

SUR

OUTRE DE

Indicateur

d’écoulement Enfoncez le bouton pour tourner

Fig. 26-1 - bouton de commande

4. Placez le bouton de commande de temporisateur au

4. Diminuez le bouton de commande désiré pendant 5

temps de cuisson. secondes, puis, et tout en pressant le tour il dans le sens

5. Diminuez le bouton de commande désiré pendant 5 secondes,

contraire des aiguilles d’une montre dans la position puis, et tout en pressant le tour il dans le sens contraire des

LÉGÈRE de HI. Une fois que le brûleur s’allume, libérez aiguilles d’une montre dans la position LÉGÈRE de HI. Une fois

le bouton. que le brûleur s’allume, libérez le bouton.

de gaz

Utilisation SALUT (haute) à la lumière

ATTENTION : Si un brûleur ne s’allume pas dans cinq

(5) secondes d’allumer le bouton de commande, enfoncez le bouton et tournezle à la position de repos. ATTENDEZ CINQ (5) MINUTES avant de répéter l’étape 4. Si vous sentez le gaz, suivez les instructions sur la couverture de ce manuel. Si les brûleurs ne s’allument toujours pas après que plusieurs tentatives, se rapportent aux instructions pour l’éclairage manuel.

6. Répétez l’étape 5 pour que chaque brûleur additionnel soit Lit.

5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.

Note: N’ouvrez

pas plus d’une valve à la fois pour l’éclairage électronique ou manuel.

ÉCLAIRAGE MANUEL

ATTENTION: Attendez toujours cinq (5) minutes le gaz

pour se dégager après que n’importe quelle tentative non réussie d’éclairage.

Plus

léger

4

Tube

d’éclairage

1. Suivez les étapes 1 à 3 (à gauche).

2. Passez un allumeur brûlant de butane de long-baril ou

une allumette brûlante de long-tige dans la grille à cuire s’ouvrant au dessus du tube d’éclairage. (Fig. 26-2). Pour des backburners, tenez la ﬂamme contre le surface du backburner. Pour des sideburners, tenez la ﬂamme contre le brûleur.

3. Vieux match / ﬂamme d’un briquet à la partie supérieure

3. Maintenez le match / ﬂamme d’un briquet à la partie

du tube d’éclairage pendant 5 secondes, ou, à côté de la

supérieure du tube d’éclairage pendant 5 secondes, ou, brûleur latéral / veilleuse. Puis appuyer sur le bouton de

à côté de la veilleuse. Puis appuyer sur le bouton de contrôle approprié et en appuyant tourner dans le sens

contrôle approprié et en appuyant tourner dans le sens antihoraire à la position HI LIGHT. Retirez le briquet ou

antihoraire à la position HI LIGHT. Retirez le briquet ou des allumettes quand le brûleur s’allume, puis relâchez

des allumettes quand le brûleur s’allume, puis relâchez le bouton de commande.

le bouton de commande.

4. Si le brûleur ne se allume pas dans les cinq (5)

secondes de tourner le bouton de commande, enfoncez immédiatement le bouton et tournez la valve à AU LOIN. ATTENDEZ CINQ (5) MINUTES avant de répéter les étapes 2 à 4 des instructions manuelles d’éclairage.

Fig. 26-2 - Éclairage manuel

ÉTABLISSEMENT DU TEMPORISATEUR

Pour l’utiliser, placez le sélecteur (tourner dans le sens horaire) à l’heure souhaitée pour couper. Le cadran est marqué en 3 tranches d’une minute vingt (Toute position entre les deux

EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF

est une estimation du fait que le temps). Le cadran de la

Des réservoirs de propane sont équipés d’un dispositif

minuterie rotation automatique (sens anti-horaire) et coupera

d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes

l’alimentation en gaz lorsque la molette atteint OFF (le temps

pression de gaz/ﬂamme aux brûleurs si le fonctionnement

est terminé).

et l’allumage des instructions ne sont pas suivis exactement

Important: Lorsque vous utilisez la minuterie pour des

(voir la note importante dans la section de dépannage pour plus de détails.)

périodes de moins de vingt minutes, vous devez d’abord régler le cadran à vingt minutes (pour activer), puis retour (sens anti-horaire) à la quantité désirée de temps. Cela permettra d’assurer le bon fonctionnement de la minuterie. Voir Fig. 26- 4.

ARRÊT DU UNITÉ

Pour couper le unité, diminuez chaque bouton de commande de valve et tout en pressant tour il dans le sens des aiguilles d’une montre à la position de repos.

Fermez toujours la valve de la fourniture de gaz après chaque utilisation du unité.

Fig. 26-4

Pour votre convenance et sûreté ; quand le

Lu ici

bouton de commande

Pour votre convenance et sûreté ; quand le

est tourné a la position

bouton de commande est tourné a la position

de fonctionnement,

de fonctionnement, l’indicateur d’écoulement

l’indicateur d’écoulement

de gaz changera de bleu en le rouge. (Le rouge

indique l’écoulement de gaz.) Voir la Fig. 26-1.

Bouton de temporisateur AU LOIN

(temporisateur de 3 heures montré)

26

OFF

HI

LIGHT

LOW

TO

TURN OFF

TO TURN ON

Read setting

here

HIGH to LIGHT

LIGHTING (IGNITION) INSTRUCTIONS

Read all instructions before lighting, and follow these instructions each time you light the unit.

ELECTRONIC LIGHTING

Note: Electronic lighting requires an installed 9-volt

Note: This unit must be connected to 120VAC power

battery with a good charge.

for electronic lighting.

1. Open lid(s) or remove cover(s) from burner(s) to be lit.

2. Turn all gas control knob(s) to their OFF position(s).

3. Turn on the gas at its source. Note: DO NOT

Read setting here

(OFF position shown)

To Turn OFF

Gas Flow

Press knob in to turn

4. Set timer control knob to the desired cooking time.

4. Depress the desired control knob for 5 seconds,

then, while pressing turn it counterclockwise to the

5. Depress the desired control knob for 5 seconds,

then, while pressing turn it counterclockwise to the

HI LIGHT position. Once the burner lights, release HI LIGHT position. Once the burner lights, release

the knob.

Indicator

Fig. 27-1 Control knob

To Turn ON

Use HI (high) to light

the knob.

CAUTION: If a burner does not light within ﬁve (5)

seconds of turning on the control knob, depress the knob and turn it to the OFF

position. WAIT FIVE (5) MINUTES before repeating step 4. If you smell gas, follow the instructions on the cover of this manual. If the burners still do not light after several attempts, refer to the

instructions for manual lighting.

5. Repeat step 4 for each additional burner to be lit.

6. Repeat step 5 for each additional burner to be lit.

turn on more than one valve at a time for either electronic or manual lighting.

MANUAL LIGHTING

CAUTION: Always wait ﬁve (5) minutes for gas to

clear after any unsuccessful lighting attempt.

1. Follow steps 1 through 3 (left).

2. Insert either a burning long-barrel butane lighter or

a burning long-stem match through the cooking grid opening to the top of the lighting tube (Fig. 27-2). For backburners, hold the ﬂame against the surface of the backburner.

For sideburners, hold the ﬂame against the burner.

3. Hold the match / lighter ﬂame at the top of the lighting

tube for 5 seconds, or, next to the backburner. Then tube for 5 seconds, or, next to the sideburner /

depress the appropriate control knob and while backburner. Then depress the appropriate control

pressing turn it counterclockwise to the HI LIGHT knob and while pressing turn it counterclockwise to

position. Remove the lighter or match when the the HI LIGHT position. Remove the lighter or match

burner lights, and release the control knob. when the burner lights, and release the control knob.

4. If the burner does not light within ﬁve (5) seconds of turning the control knob, immediately depress the knob and turn the valve to OFF. WAIT FIVE (5) MINUTES before repeating steps 2 through 4 of the MANUAL LIGHTING instructions.

Lighter

Fig. 27-2 - Manual lighting

4

Lighting

tube

SETTING THE TIMER

To use, set the dial (turn clockwise) to the desired time to shut off. The dial is marked in 3 twenty minute increments

WHEN USING A PORTABLE PROPANE TANK

(any position in between is an estimate of that set time).

Propane tanks are equipped with a safety shutdown

The timer dial will auto rotate (counter-clockwise) and will

device that may cause low or no gas pressure/ﬂame

shut off the gas supply when the dial reaches OFF (i.e. the

at the burners if operating and lighting instructions

time is completed). Important: When using the timer for periods of less than

are not followed exactly (See important note in the TROUBLESHOOTING section for more details.)

twenty minutes, you must ﬁrst set the dial to twenty minutes (to activate), then return (counter-clockwise) to the desired amount of time. This will ensure proper timer operation. See Fig. 27-4.

SHUTTING OFF THE UNIT

To shut off the unit, depress each valve control knob and while pressing turn it clockwise to the OFF position.

Always close the valve from the gas supply after each use of the unit.

Fig. 27-4

For your convenience and

For your convenience and safety; when the

safety; when the control

control knob is turned to the on position, the gas

knob is turned to the on position, the gas flow

ﬂow indicator will change from blue to red. (Red

indicator will change from

indicates gas ﬂow.) See Fig. 27-1.

Read Here

blue to red. (Red indicates gas ﬂow.) See Fig. 27-1.

Timer knob in OFF position

27

OPTIONAL DIGITAL THERMOMETER

The optional digital thermometer is for oven and meat probe temperature monitoring, and timed cooking. Pressing the power button will turn on the thermometer. The thermometer will automatically shut off after 5 minutes if no temperature change is detected.

The thermometer is located on the control panel between the control knobs.

Meat probe

handle

Plug in the meat probe on the right side of the control panel as shown in Fig. 28-1.

FOR BEST PERFORMANCE, GENTLY PRESS THE BUTTONS. When turned on, accurate temperature readings

will begin after the thermometer has initialized. When turned off, allow 5 seconds prior to turning back on.

Read the following sections completely regarding thermometer operation. Refer to Fig. 28-2 for thermometer orientation and button locations.

Default Screen

Press the power button to turn the thermometer ON. The

default screen will be displayed. Temperatures for the oven and meat probe will be shown (see Fig. 28-3).

Menu Screen

Press the power button to turn the thermometer ON. The

default screen will be displayed. Press the MENU button to display its screen. Press the up/down arrow to scroll through the options (see Fig. 28-4).

Note: The menu screen will return to the default screen

after approximately 30 seconds of no activity. Press the MENU button to manually return to the default screen.

Timer button

Menu

button

Power

button

Time set via Timer

Oven temp.

info

Meat probe

temp. info

Meat probe

plug

Fig. 28-1 Meat probe detail

Display screen

®

MENU

SET

Fig. 28-2 Orientation

°F

078 080170

®

MENU

TIMER

TEMP

OVEN

MEAT

00:00

SET ACT

350

MEAT

PROBE

Arrows for

adjusting digits

SET button

for selecting &

conﬁrming

SET

28

Fig. 28-3 Default screen detail

SETUP

GRILL GUIDE ALARM BACKLIGHT

®

MENU

SET

Fig. 28-4 Menu screen

MENU

SET

®

OVEN

ACTUAL: 078

SET TEMP: 350

OPTIONAL DIGITAL THERMOMETER (cont.)

Setting Oven and/or Meat Probe Temperature

1. From the default screen, press the down arrow to the desired oven / meat probe area (ﬂashing). Press SET.

2. The selected location’s temperature screen will be displayed.

Use the arrows to set the desired temp. The actual temp. will also be shown (see Fig. 29-1).

Note: PRESSING the arrows will adjust the desired temp.

by increments of one degree. HOLDING them down (for several seconds) will adjust the temp. rapidly.

3. Press SET to return to the default screen. Repeat as

necessary for other area.

The display will ﬂash red and the alarm will sound (if set to do so) when the oven / meat probe reaches its set temperature. Press any button to silence.

Grill Guide and Meat Probe

The grill guide displays recommended ready temperatures for various meats (see Fig. 29-2).

1. Under the menu screen select GRILL GUIDE. Press SET.

2. Press the up/down arrow to view the desired meat.

3. Note the temp. and press SET. This will take you to the

meat probe temperature screen.

Current location

Use arrows

to set

Set this temp. as desired

Fig. 29-1 Area temp. screen (oven shown)

MED RARE

150

N/A

150

WELL DONE

MEDRARE

170

160

170

N/A

180

160

®

SET

Use arrows

to view

desired

meat

MENU

PROBE TEMP

BEEF

PORK

LAMB

140

N/A

140

Fig. 29-2 Grill Guide screen

4. Use the arrows to set the noted temp.

5. Press SET to return to the default screen.

Inserting the meat probe into the cooking meat will give an actual temp. reading. The display will ﬂash red and the alarm will sound (if set to do so) when the actual temp. reaches the set temp. Press any button to silence.

Do not leave the meat probe in the meat for a prolonged period of time, or with the hood closed.The meat probe is calibrated speciﬁcally for use at temperatures between

130°F and 180°F.

Setting the Timer

1. Press the timer button. Use the arrows to set the desired

amount of time (see Fig. 29-4).

2. Press SET to return to the default screen.

The time remaining will be shown on the default screen. Once the time reaches zero; the display will ﬂash red and the alarm will sound. Press any button to silence.

Meat probe

DO NOT USE MEAT

PROBE WITH HOOD

Fig. 29-3 Meat probe

Set time as desired

MENU

CLOSED

TIMER

05:00

Only check food

temperature with

hood open

®

Use arrows

to set

SET

Timer button

Fig. 29-4 Timer screen

29

MENU

SET

®

OFF ON

OVEN

PROBE

MENU

SET

®

OFF OFF ON

BACKLIGHT

RED GREEN

BLUE

MENU

SET

®

TEMPERATURE

F

C

OPTIONAL DIGITAL THERMOMETER (cont.)

Setting the Alarm (Oven Temp. or Meat Probe)

The alarm can be individually set (ON or OFF) for the meat probe and oven temp. The default setting has the alarm OFF for the meat probe and oven temp. The alarm always alerts for the TIMER.

1. Under the menu screen select ALARM. Press SET.

Use arrows

to select

desired

alarm

2. Use the up/down arrow to select the desired alarm,

and press the power button to turn the alarm ON/OFF.

3. Press SET to return to the menu screen.

4. Press MENU to return to default screen.

Setting the Thermometer Backlight

The default color for the thermometer backlight is blue. The color may be changed as desired by turning the three base colors ON/OFF. Various combinations will result in different colors.

1. Under the menu screen select BACKLIGHT. Press SET.

2. Use the up/down arrow to select the desired color, and

press the power button to turn the color ON/OFF.

3. Press SET to return to the menu screen. The new color

will now show.

4. Press MENU to return to default screen. Note: Turning all colors OFF will result in no backlight. Important: Turn on no more than 2 colors at a time.

Changing Temperature Scale (°C/°F)

Press power button to turn colors ON/OFF

Fig. 30-1 Alarm screen

Use arrows

to select

desired

color

Press power button to turn ON/OFF

Fig. 30-2 Backlight screen

Select as

desired

1. Under the menu screen select SETUP. Press SET.

2. Press SET to select SETUP FC.

3. Select as desired and press SET to return to the menu

screen.

4. Press MENU to return to the default screen.

Fig. 30-3 Temperature scale screen

30

OPTIONAL ROTISSERIE

FIREMAGIC

Rotisserie rod bracket

B

1

Fig. 31-1

Heavy-duty Rotisserie motor

2

Rotisserie motor slots (4)

Fig. 31-4

Backburner (unlit)

Drip tray liner

A

Rod drive socket

1

Rocker switch

Fig. 31-2

loosen/ tighten

Backburner cover

Rotisserie

motor

bracket

Meat

holders

Rotisserie motor bracket

Warming rack

Counterbalance

Rotisserie motor

Fig. 31-5

Arm

slide

Rotisserie rod

rear bracket

Rotisserie

rod

and

knob

Rotisserie

motor

Rod drive socket

Fig. 31-3

CAUTION: WHEN USING THE BACKBURNER; KEEP

THE OVEN LID CLOSED TO PREVENT HEAT LOSS, PROVIDE PROPER CONVECTION, AND PROVIDE PROPER VENTING. THIS WILL ENSURE EVEN COOKING TEMPERATURES.

DO NOT KEEP YOUR OVEN LID OPEN DURING

ROTISSING, AS THIS MAY CAUSE PERSONAL INJURY, OR IN SOME CASES, IN WINDY CONDITIONS, DAMAGE TO THE GRILL.

DO NOT USE THE ROTISSERIE MOTOR IN THE RAIN. DO NOT LEAVE THE MOTOR ON THE GRILL WHEN NOT IN USE.

1. Remove warming rack, backburner cover, and cooking grids.

Leave the ﬂavor grids on if possible.

2. Slide rotisserie motor fully onto motor bracket (right side,

Fig. 31-1, Fig. 31-2 and Fig. 31-3).

3. Remove rotisserie rod from rear bracket (Fig. 31-1) and

attach knob if necessary.

4. Slide the left meat holder onto the rod (and tighten), the

meat onto the rod and into the holder, followed by the right meat holder onto the rod and into the meat as shown in Fig. 31-4. Tighten the right meat holder. Be sure the meat is centered and balanced as well as possible.

5. Hold both ends of the rod so it settles freely (do not grip

tightly). Allow the rod to rotate until the heavy side of the meat rests downward.

6. The counterbalance may then be attached to even weight

distribution. Slide counterbalance onto rod next to the meat holder. Loosen the arm and point it upward opposite the heavy side of the meat. Tighten the arm.

7. Slide the counterbalance weight up or down the arm until

the rod rotates most evenly then tighten thumb screw (Fig. 31-5 and Fig. 31-6).

8. Insert the pointed end of the rod into the motor drive socket

and the groove next to the knob into the left support bracket.

9. To keep drippings off the burners and simplify cleanup,

place Fire Magic® drip tray liners under the meat, if desired (Fig. 31-4).

10. Plug-in the rotisserie motor and press the rocker switch to

start.

11. Light backburner per lighting instructions in this manual (or

on drip tray handle) and close oven lid.

Important: Turn the backburner to low or off when stopping

the rotisserie to prevent overcooking.

Fig. 31-6

Backburner

(lit)

Thumb screw

Weight

Left support bracket

31

OFF

HI

LIGHT

LOW

OFF

HI

LIGHT

LOW

OPTIONAL INFRARED BURNER OPERATION

The infrared (IR) searing burner (optional) cooks with a powerful radiant heat.

Cover

Cut-out for

lighting tube

Igniter

Lighting tube

Fig. 32-1

electrode

Light the infrared burner following the LIGHTING INSTRUCTIONS in this manual or printed on the drip tray. Follow these guidelines when operating the Infrared burner:

• DO NOT place food on the cooking grid until the IR burner glows orange (Fig. 32-3). Drippings are heated and evaporate instead of sticking to and impairing burner function.

WARNING Only handle the infrared burner cover when the unit is cold or with a well-insulated long-handled

tool or heat resistant gloves.

SIDE VIEW (with cover on)

Igniter

Cover

Food

particles

or debris

electrode

Lighting

tube

Fig. 32-2

NO foreign

objects

Airborne

dust or

grease

Drippings and other

liquids

Burner ceramic must be protected with cover when burner is not in use.

• For cleaning purposes; always leave your burner

on (after cooking) for an additional 5 minutes, to allow for a burnoff period. This is important to keep your burner clean and operating properly.

As the burner is self cleaning (at full temperature);

avoid the use of cleaners or abrasives.

• When not in use, always cover the infrared burner

with the stainless-steel cover. This protects the burner from drippings (from other cooking), water, airborne particles, and foreign objects (Fig. 32-2).

Important: Clean burners allow the gas to circulate

and burn over the entire heating surface for powerful and even cooking.

• Do not strike or scrape the ceramic portion of the burner as it may chip, crack, or break (Fig. 32-2).

Note: Digital thermometer (if equipped) does not

give accurate readings for infrared burners.

Important: When grilling with the infrared burner,

always place a cooking grid above it. The cooking grid must be removed for rotisserie cooking.

CAUTION: DO NOT operate your IR burner with the

oven hood closed.

CAUTION: Never attempt to operate the IR burner

with the protective cover in place.

SIDE VIEW (burner on HI LIGHT and glowing orange)

Igniter

electrode

Lighting

tube

Fig. 32-3

Drips and particles evaporate before hitting infrared burner when cooking at the maximum setting.

Note: Flavor grids are not to be used with infrared

burners.

To ensure proper operation, all infrared burners (back and main) must be operated on the HI setting for a minimum of 10 minutes. Thereafter, the ﬂame may be lowered as desired.

CAUTION: Always monitor the infrared burner ﬂame

when operated on low, as it may blow out in high-wind conditions.

32

SERVICING AND CLEANING

Your grill requires regular cleaning and maintenance. Refer to these instructions for details. Performing these procedures

will ensure proper operation, appearance, and safety.

WARNINGS

• Prior to servicing or cleaning make sure the unit is completely cool, the control knobs are turned to the OFF position, the gas supply is shut off, the light switch is off, and the power supply is disconnected (as applicable and unless otherwise stated).

• Wear appropriate gloves and safety glasses during any servicing or cleaning.

• DO NOT spray any cleaner or liquids on the grill when hot.

• The grill MUST be cleaned regularly to prevent grease build-up and other food deposits. A clean and well maintained grill prevents the risk of grease build-up and grease ﬁres.

• Verify proper operation after servicing or deep cleaning.

• See INSTALLATION, OPERATION, AND SAFETY INFORMATION section for additional related information.

CLEANING YOUR GRILL

Before Each Use

1. Inspect and clean the exterior surfaces of the unit: With a cool grill, clean any dust, grease, splatter, or spills as

needed with a damp clean cloth.

After Each Use

1. Perform a burn-off and clean the cooking grids: Operate the grill on high with the hood closed for 15 minutes to

burn-off food and grease and allow for an easier cooking grid clean. Then turn OFF the grill and use a grill brush to clean the cooking grids of all residue. Wear protective gloves and use caution around hot surfaces.

2. Check and clean your drip tray: When the grill is cool, carefully remove the drip tray and dispose of contents

appropriately. If tray is equipped with a liner, dispose of the liner. Clean tray in a soapy water solution if needed. For tough deposits, a copper pad can be used. Rinse and dry completely. Replace a new liner and insert the tray back into the grill. Order more drip tray liners through your local dealer.

3. Cover your grill: Once the grill is dry and cool, cover your grill with a vinyl cover.

Twice A Year (or as needed) - Deep Clean

1. Interior of grill: In addition to cleaning the cooking grids and drip tray, a deep clean of the interior of

the grill, burners, and all components MUST be performed twice year (or as needed depending on use). Refer to the CARE, CLEANING, & MAINTENANCE GUIDE manual provided with your grill, or simply scan the QR code on the right.

Important: The burner ports and carry-over ports/slots MUST be kept clean to ensure proper ignition

and operation. The guide provides all details on cleaning.

2. Exterior of grill: With a cool grill, use a grill cleaner (or a soapy water solution)

and a clean cloth to remove grease and dirt from the outside of the grill. For tough deposits, a copper pad can be used. Always wipe with the grain. Rinse and dry completely. Then follow up with a stainless steel cleaner and a clean cloth. To clean the magic view window (if equipped), use a quality brand glass cleaner. DO NOT

use other cleaners or chemicals. If this routine cleaning is not performed, the stainless steel may become dull and

develop surface rust (due to use and atmospheric conditions). If left uncleaned, signiﬁcant damage and pitting may occur.

Important: DO NOT use steel wool, any other metal tools, or any other cleaners/chemicals to clean the exterior other

than recommended above. Such items promote rust.

Note: Due to the nature of stainless steel, temperatures produced by the grilling process will cause discoloration. This can be

reduced by routine cleaning.

Fig. 33-1 Wipe with grain

Wipe with grain

33

SERVICING AND CLEANING (cont.)

For Environments High In Salt, Chloride, Or Other Corrosive Chemicals

When this grill is installed in a corrosive environment such as near the ocean (salt air), poolside (chlorine and/or pool chemicals) or any other location with exposure to high salt/chloride content or corrosive chemicals/solutions, it will be more susceptible to corrosion and MUST be maintained/cleaned more frequently.

• DO NOT store any corrosive chemicals (chlorine, hydrochloric acid, fertilizer, etc.) near your stainless steel grill.

• DO NOT allow any corrosive materials (masonry dust, debris, etc.) to settle on your stainless steel grill.

• These environments, chemicals, and materials may cause the 304 stainless steel to develop surface rust and consequently pitting. Under these conditions the grill exterior MUST be cleaned at least monthly. Inspect your grill often and clean accordingly.

Protecting Your Grill

An optional vinyl cover will protect your grill when not in use. Install the cover on a cool and dry grill. DO NOT cover a damp grill. During high humidity or after rainy conditions, remove the cover to dry trapped moisture if present. (If the cover is installed over a damp grill it can cause surface rust.)

Ensure that the INSIDE of the cover is DRY before putting it back on the grill.

34

SERVICING AND CLEANING (Cont.)

REPLACING HALOGEN BULBS

Your grill is engineered with the conveniences of electrical power for illuminating and igniting the grill.

To replace any interior oven light, follow the instructions below.

Important: ONLY REPLACE WITH 12V / 10 WATT

HALOGEN BULB(S).

WARNING

To protect from potentially sharp sheet metal and glass, wear gloves and safety glasses during this

procedure.

1. Turn all burner control knobs to the OFF position

and shut off the gas supply to the grill at the source (tank valve for propane units or gas line shut-off valve for natural gas units.)

2. Disconnect supply of external electrical power to

the grill.

5. Wearing a pair of gloves, reach into the ﬁxture,

gently grab the bulb, and pull it straight out of the ﬁxture so that the two pins at the base of the bulb come all the way out.

Important: Bulb is halogen. DO NOT TOUCH with

bare hands. Oils from hands drastically reduce bulb life.

Note: It may be helpful to rock the bulb gently

backward and forward while pulling it out.

Fig. 35-2

Fixture

Curved cut-out top of lens

Bulb

Socket

CAUTION: Wait for the grill, oven, lens, light bulb,

and ﬁxture to cool before proceeding to the next step.

3. Open the oven lid.

Important: Place one hand directly below the glass

lens and prepare to catch it when it is detached.

4. Carefully insert a standard ﬂat head screwdriver

or thin plastic spatula between the glass lens and the stainless steel on which the light is mounted and gently pry the glass lens out in such a way that the stainless steel is not scratched (twisting the screwdriver handle, for instance). Catch the lens and set it safely aside.

Note: You may wish to take this opportunity to clean

the lens with a standard household window cleaner and then dry it completely.

Fig. 35-1

6. Inspect the old bulb for broken glass or ﬁlament.

Note: It may be beneﬁcial to test a suspect bulb

in one of the other light ﬁxtures known to be working and turn the power back on to be certain the bulb is actually not working.

Fig. 35-3

Socket

Holes

Prongs

Bulb

7. Insert the new 12V / 10 watt halogen bulb into the

socket so that both pins slide all the way into the two holes in the bottom of the socket.

Lens

8. Place the lens back into the ﬁxture opening with

the curved cut-out on the bottom and snap it back into place.

35

SERVICING AND CLEANING (Cont.)

CONVERT GAS TYPE / CHECK BURNER ORIFICES

CAUTION: Make sure the grill is at a safe temperature

and isolated from gas and electrical supplies before beginning.

For your safety, exercise caution, and make sure you have adequate hand protection, such as gloves, when handling metal parts.

Apply Conversion Label

This grill comes from the factory conﬁgured for one type of gas as marked on the label behind the control panel.

When the grill is converted, the label for the new gas (included at original shipping) MUST be ﬁlled out and applied next to the existing label mentioned above.

Convert Regulator

The gas regulator, located behind the control panel, must be set for the type of gas used to fuel the grill. To check the regulator setting, remove the cap in the center of the regulator (Fig. 36-1, A). Holding the cap vertical (see Fig. 36-1, B), the letters at the bottom of the plastic stalk indicate the gas type for which the regulator is currently conﬁgured.

If the text on the bottom of the regulator stalk does not match the gas type connected to the grill, remove the stalk from the cap, invert, and replace into center of cap. Replace cap on the regulator, screwing down until snug.

Connect To New Gas Supply

Plumb the unit as appropriate for the new gas supply. (Additional components may be needed for your speciﬁc setup.) Be sure to leak test at all connections.

Convert/Check Main Burner Oriﬁces

1. Remove the cooking grids and ﬂavor grids and set

them aside.

2. Remove the burners (see the BURNER REMOVAL

section for step-by-step instructions).

3. Use a

oriﬁces (Fig. 36-3). Check oriﬁces. If needed, replace them with the correct oriﬁces for the new gas.

4. Replace the burners (see the BURNER REMOVAL

section).

Note: It is critical to the continued safe functioning of

5. Replace the ﬂavor grids and the cooking grids.

3

/8" hex nut driver to remove the exposed

the burners that the oriﬁces are centered and completely inside the burner gas inlets.

A B

Read gas type here

(LP shown)

Gas regulator cap

Invert if needed

Fig. 36-1

Convert Gas Oriﬁces

When converting the grill to a different gas type, each burner’s oriﬁce must be replaced with the corresponding oriﬁce for the new gas.

See

Table 1 to determine the proper oriﬁce sizes for

each burner.

See the following sections for details on oriﬁce conversion.

Important: It is critical to the operation of each

burner that its oriﬁce be fully inserted into the center of its oriﬁce opening.

WARNING HAZARDOUS OVERHEATING WILL OCCUR IF A NATURAL-GAS ORIFICE IS USED WITH

PROPANE GAS.

Forward ﬁrewall

(view from within grill)

Oriﬁce

Fig. 36-2

Convert/check Backburner Oriﬁce (if equipped)

1.

Remove the warming rack if installed and set it aside.

2. Remove the backburner cover.

3. Unscrew all backburner access plate screws using

a Phillips-head screwdriver and set them aside.

36

SERVICING AND CLEANING (Cont.)

4. Remove the access plate by pulling the bottom

toward the front of the grill and rotating it upward and outward until the two top tabs attached to back wall of the oven can be removed from the slots in the top of the plate.

5. Remove the backburner

assembly retaining screw on the lower left of the backburner using a Phillips-head screwdriver and set it aside.

6. Pull out the wire from the

igniter electrode (Fig. 37-2), then carefully remove the backburner by slightly sliding it to the left.

CAUTION: Be careful not

to damage the wires connected to the backburner assembly.

7. Use a

3

/8" hex nut driver

to remove the exposed orifice. Check orifice. If needed, replace it with the correct oriﬁce for the new gas.

8. Replace the backburner assembly and reinsert the

retaining screw. Center the backburner assembly so that the backburner plate will ﬁt over it. Tighten the retaining screw using a Phillips-head screwdriver.

9. Replace the access plate by ﬁrst inserting the tabs

above into the slots in the top of the plate and then rotating the bottom downward and inward.

10. Replace all the access plate screws using a Phillips-

head screwdriver.

Retaining screw

Fig. 37-2

Electrode

wire

Backburner

air shutter

Fig. 37-1

Backburner

orice

Convert/Check Infrared Burner Orifice (if equipped)

1. Remove the cooking grid from above the burner.

2. Unscrew both lighting tube hex head screws with a

3

/8" hex nut driver.

3. Remove the infrared burner by lifting the back of the

burner up so that both tabs are freed from their slots, then lift the burner toward the back of the ﬁre box and upward. Set the burner aside.

4. Use a

oriﬁce. Check oriﬁce. If needed, replace it with the correct oriﬁce for the new gas.

5. Replace the infrared burner by ﬁrst sliding it over the

oriﬁce, then lowering the two tabs under the back of the burner into the slots in the back burner rest.

6. Reattach the lighting tube and replace the grid so

that the cut-out section is in front.

3

/8" hex nut driver to remove the exposed

37

SERVICING AND CLEANING (Cont.)

AIR SHUTTER ADJUSTMENT

Important: Air shutters are preset at the

factory based on the gas the unit is built to burn. However, altitude or other local conditions may require air shutter adjustment for proper combustion.

Main Burner(s)

Flames from a properly adjusted main burner with no wind or breeze present will appear fairly steady, consistent, and mostly blue. If the tip of a ﬂame were to turn orange, it should only do so brieﬂy and then become blue again. The ﬂames will appear to burn while touching the burner ports (see Figure 38-1).

If the ﬂames have orange in them and appear to undulate slowly from side to side, or if some of them appear to lift off the burner instead of touching it, then adjust the air shutter, as instructed in this section.

Carry-over

slots (on

each lobe)

Bridge

between

burner

lobes

Fig. 38-1

1. Remove the cooking

grid and ﬂavor grid that rests over the burner that is to be adjusted.

2. Remove the burner

Adjustment

screw

Adj. slot

Fig. 38-2

(see the BURNER REMOVAL section).

3. Adjust the air shutter

opening by loosening

Close

Open

the adjustment screw with a screwdriver, then sliding the air shutter backward or forward to open or close the air shutter opening (see Fig. 38-2).

Shutter Setting Flame Condition

Open too far

Ideal setting

Closed too far

Flames shorten and lift off the burner

Blue ﬂames just touching burner

“Lazy” ﬂames with orange in them

Too large an air shutter opening will allow too much air into the burner, which will cause the ﬂames ﬁrst to shorten and then to appear to lift up off the ports. For the bottom of the ﬂames to move closer to the ports, close the air shutter more.

Blue ﬂames on

burner ports

Lighting

tube

CAUTION: Turn all burner control knobs to the

OFF position and turn off the gas

supply at the source before removing or adjusting a burner.

WARNING

Wait for the burner to be cool or use heavily insulated

heat-resistant gloves when handling the burner.

If the air shutter opening is too small or closed, the ﬂames will present consistently orange tips and become “lazy,” slowly undulating back and forth.

For propane gas, ideal settings tend to be just slightly open. For natural gas, which generally requires less primary air than propane, the main burner air shutter may be nearly closed.

4. Once the air shutter has been adjusted, replace

the burner (see BURNER REMOVAL section).

5. Follow the lighting instructions in this manual to

light the burner.

6. Repeat steps 1-4 until the ﬂames appear to

touch the burner ports, burning fairly steadily and mostly blue (see Fig. 38-1).

7. Repeat this procedure for the other main

burner(s), if needed.

38

SERVICING AND CLEANING (Cont.)

Backburner (if equipped)

The air shutter is set at the factory. However, altitude or other local conditions may require air shutter adjustment for proper combustion.

Blue ﬂames behind burner screen

Fig. 39-1

Back panel

Flames from a properly adjusted backburner will appear as a horizontal line of even blue ﬂames along the bottom of and behind the backburner grating. The grating itself will glow red after it heats up.

Note: It is normal for the backburner to smoke

when it is ﬁrst used. Burning the backburner on HI LIGHT for approximately 15 minutes will eliminate the smoking.

Too large an air shutter opening will allow too much air into the burner, which will cause the ﬂames ﬁrst to shorten and then to appear to lift up off the ports. For the bottom of the ﬂames to move closer to the ports, close the air shutter more.

If the air shutter opening is too small or closed, the ﬂames will present consistently orange tips and become “lazy,” slowly wavering left and right.

3. Continue adjustment until the ﬂames appear to

touch the burner ports, burning fairly steadily, consistently, and mostly blue (see Fig. 39-1), then retighten the backburner air shutter adjustment screw.

4. Replace the burner access plate (step 8 in the

CHANGING THE BACKBURNER ORIFICE section).

If, instead of being blue and even, the backburner ﬂames appear to have orange in them and waver slowly left and right, or if the ﬂames appear to lift off the burner, adjust the backburner air shutter by following the steps below.

The backburner air shutter adjustment is located behind the right side of the access panel in the back of the oven, above the cooking grid.

Note: It is only necessary to remove the

backburner back panel, not the backburner, when adjusting the backburner air shutter.

1. Follow the safety precautions and steps for

backburner back panel removal (steps 1-4) in the CHANGING THE BACKBURNER ORIFICE section.

CAUTION: The backburner air shutter can be

safely adjusted with the backburner lit if it is adjusted using a long-handled screwdriver or well-insulated ﬁre and heat-resistant gloves.

2. Adjust the air-shutter opening by loosening the

adjustment screw with a screwdriver, then sliding

Backburner air shutter adjustment screw

the air shutter backward or forward to open or close the air shutter opening (see Fig 39-2).

Open

Watch the backburner flames while adjusting the air shutter.

Fig. 39-2

Close

39

SERVICING AND CLEANING (Cont.)

CONTROL PANEL REMOVAL

1. Turn the control knob(s) to the OFF position and turn off the gas supply to the unit.

Bezel

removed

Fig. 40-1

2. Turn off the light switch and disconnect the power supply from the

power source.

3. Pull the control knob(s) from the stems and set aside.

4. Slowly lift away the lighted bezels to clear the valve stems, and

carefully disconnect the wires found on the back of the bezels (use your ﬁngernail). See Fig. 40-1.

Carefully

disconnect

Bezel

installed

5. Remove the drip tray.

6. Using a Phillips screwdriver, unscrew and remove the control panel fastener screws and washers

(located on the left and right front face of the control panel). Retain the screws for later re-installation.

7. Carefully open the control panel by lifting and pulling the control panel from the frame, allowing it to rest on the internal chain(s).

Important: When opening, take caution to not damage any wiring.

8. If wire disconnections are required, reference the wire diagram in the MODEL SPECIFICATIONS

section in this instruction manual or the wire diagram label afﬁxed to the inside of the control panel.

Note: Secure any disconnected wires (coming from the inside of the unit) to prevent them from falling in. Note: Whenever reconnecting any wires, apply a small amount of dielectric grease to the male connector,

then make the connection. This will ensure conductivity and prevent moisture from affecting the contact.

Important: During reinstallation; prior to opening the gas shut-off valve, be sure the control knob(s)

are in the OFF position.

40

SERVICING AND CLEANING (Cont.)

SYSTEM RESET

If the unit is connected to the power supply but the ignition system and grill components are not functioning, a system reset may be required.

1. Ensure the knobs are in the OFF position, the gas supply is turned off, and the light switch is off.

2. Disconnect the power supply cord from line power.

3. Wait 10 minutes then reconnect to line power.

4. With the light switch and gas remaining OFF, test

the ignition (inspect hot glow from each igniter) and digital thermometer. Then test the lights.

Note: Before testing, reset the GFCI receptacle if

needed.

DISCONNECT

(Wait 10 minutes

before reconnecting)

Fig. 41-1 Disconnect from line power

Note: If the unit powers up but some or all

components are not responding, reference the TROUBLESHOOTING section.

BURNER(S) REMOVAL

1. Remove the cooking grid and ﬂavor grid from above the

burner that is to be removed and set them aside.

2. Locate and remove the cotter pin from the left or right rear burner anchoring peg by pulling it straight out of the cotter pin hole using ﬁngers or needle-nose pliers. See Fig. 41-2.

3. Carefully lift the burner from the burner support and out from the hole in the forward ﬁre wall. See Fig. 41-3.

4. To replace the burner, slide the open cylindrical end of the burner around the oriﬁce, enveloping it and centering on it. Then lower the back end anchor pegs into the burner support anchor peg holes.

Note: It is critical to the continued safe functioning of

the burners that the oriﬁces are centered and completely inside the burner gas inlets.

Main

burner

Fig. 41-2 Main burner removal

Burner

support

Hole with

oriﬁce

Fig. 41-3 Remove burners

Remove

cotter pin

Forward

ﬁrewall

5. Re-install the cotter pin into the rear burner anchor peg

using ﬁngers or needle-nose pliers.

6. Replace the ﬂavor grid and cooking grid.

7. Repeat these steps for the other burner(s), if needed.

41

NOTES PAGE

Please use this page to record any information about your unit that you may want to have at hand.

42

TROUBLESHOOTING

If you have trouble with the unit, please use this list to identify the problem. By trying one or more of the solutions to the possible cause, you should be able to solve the problem. If this list does not cover your present problem, or if you have other technical difﬁculties with the unit, please contact your local dealer.

PROBLEM POSSIBLE CAUSE CORRECTION

Ignition system

failure

Insufﬁcient heat /

low ﬂame

Uneven heating

Thermometer not

operating

Rotisserie noisy

1. Power supply failure

2. Improper air shutter adjustment

3. Ignition wire disconnected

4. Low gas pressure

5. Front carry-over port

6. Igniter switch malfunction on valve

7. Igniter malfunction

1. Burner ports clogged

2. Improper air-shutter adjustment

3. Using propane oriﬁce for natural gas

4. Low gas pressure/ﬂame (propane)

5. Low gas pressure/ﬂame (natural)

6. L.P. regulator hose cracked due to age

1. Burner ports partially blocked by debris

2. Small spiders or insects in burner

3. Improper air shutter adjustment

1. Power supply failure

2. Thermometer failure

1. Rotisserie out of balance 1. Adjust rotisserie counterbalance.

1a. System reset: Disconnect (wait 10 minutes minimum)

and reconnect power to unit. With lights OFF, test ignition.

1b. Replace power supply.

2. Adjust air shutters.

3. Reconnect wires into wire harness.

4. Have the gas co. check supply pressure.

5. Clean burner ports.

6. Contact dealer for replacement.

7. Contact dealer for replacement.

1. Clean burner ports. Burner maintenance kit available, see Table 1.

2. Adjust air shutters.

3. Check/change oriﬁces.

4. Shut off all valves, including propane tank, and follow lighting instructions exactly. (See important note* below.)

5. Have a qualiﬁed professional service technician check for proper gas supply, setup, and pressure.

6. Replace L.P. regulator hose.

1. Remove burners and clean out ports.

2. Inspect burners and oriﬁces for spider webs or other debris that may block ﬂow.

3. Adjust air shutter.

1. See 1a of Ignition system failure section above and/ or replace power supply.

2. Check and/or replace thermometer.

1. Light burner on HIGH, immediately turn to LOW setting. Remove knob from valve and using a small

Burner goes out on

LOW

Interior oven lights

and knob lights not

operating

No power to grill

1. Valve “Low” setting needs adjustment

1. Light switch not functioning

2. Interior or knob lights burned out

3. Power supply failure

1. Input power source failure

2. Power supply failure

ﬂat screwdriver, slowly turn the adjustment screw in the stem, a little at a time (30° to 45°), in either direction, until the ﬂame is approximately 1/4” in height from burner ports.

1. Re-connect external power to grill or contact dealer for replacement.

2. Contact dealer for replacement.

3 . See 1a of Ignition system failure section above and/

or replace power supply.

1. Check GFCI / circuit breaker.

2. See 1a of Ignition system failure section above and/ or replace power supply.

Note: *Propane tanks are equipped with a safety shutdown device that may cause low or no gas/ﬂame at the

burners if operating and lighting instructions are not followed exactly. If you suspect the propane tank safety shutoff is in effect: 1) Shut off all grill valves. 2) Shut off tank valve. 3) Open and close a main burner valve. 4) Open tank valve. 5) Follow the LIGHTING INSTRUCTIONS. Lighting instructions are located in the owner’s manual and printed on the unit's metal drip tray. If the problem persists, continue troubleshooting, or contact your local dealer or distributor for assistance.

43

WARRANTY

PETERSON FIRE MAGIC GRILLS AND ACCESSORIES

LIMITED WARRANTY

Robert H. Peterson Co. ("RHP") warrants your Fire Magic® grill to be free from defects in material and workmanship. Fire Magic

warranted for as long as you own your Fire Magic® grill -- LIFETIME. (Except as noted below.) Fire Magic

(except ignition parts) are warranted for FIFTEEN (15) YEARS. Fire Magic Fire Magic Fire Magic

pan, charcoal grid, wood pellet screen, thermometer, and ash tray; which are warranted for ONE (1) YEAR. Fire Magic Fire Magic

accessories are warranted for ONE (1) YEAR.

This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.

This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse, use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation, lack of required routine maintenance (as speciﬁed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure to protect against combustibles. Product must be installed (and gas must be connected) as speciﬁed in the Owner’s Manual/Installation Instructions by a qualiﬁed professional installer. Modiﬁcations to products which are not speciﬁcally authorized will void this warranty. Accessories, parts, valves, remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion. This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.

This warranty does not cover labor or labor related charges, except as provided by separate speciﬁc written programs from the Peterson Co. All repair work must be performed by a qualiﬁed professional service person and requires prior approval of Peterson.

Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer if the damage is determined to have occurred during that shipment.

This warranty speciﬁcally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you speciﬁed legal rights, and you may have other rights that vary from state to state or province.

For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased. When contacting your Peterson dealer or the R. H. Peterson Co., please provide the following information:

- Your name, address, telephone number, e-mail

- Sales receipt showing where purchased and date purchased

- Model number, serial number of product, date code

- Relevant information: installer, additions, repairs, when defect was ﬁrst noted

®

cast stainless-steel burners, Choice stainless steel tubular burners, stainless-steel cooking grids, and stainless-steel housings are

®

brass valves, inner liners, manifold assemblies, porcelain housings (including ovens and barbecue faces), and backburner assemblies

®

built-in griddles (except ignition parts) are warranted for TEN (10) YEARS.

®

Electric Grills, including stainless steel grid, and housings are warranted for TEN (10) YEARS.

®

Infra-red burners, ﬂavor grids, Charcoal stainless steel grills, and Smokers are warranted for FIVE (5) YEARS; except for the charcoal

®

sideburners and all other Fire Magic® grill components (except ignition and electronic parts) are warranted for THREE (3) YEARS.

®

grill and griddle ignition systems (excluding batteries), electronic components (including lights and thermometers), and grill

A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED

TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,

AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.

Quality Check Date:_________________

Burner Oriﬁces Nat. L.P. Leak Test: ___________ Model#: ___________________ Main: ____ ____ Burn Test: ___________ Serial#: ___________________ Back: ____ ____ Gas Type: Side/Power: ____ ____ Inspector: ___________________ Infrared: ____ ____ Other: ____ ____

Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746

Nat. / L.P. Air Shutter: ___________________

44

Fire Magic 2433033 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
