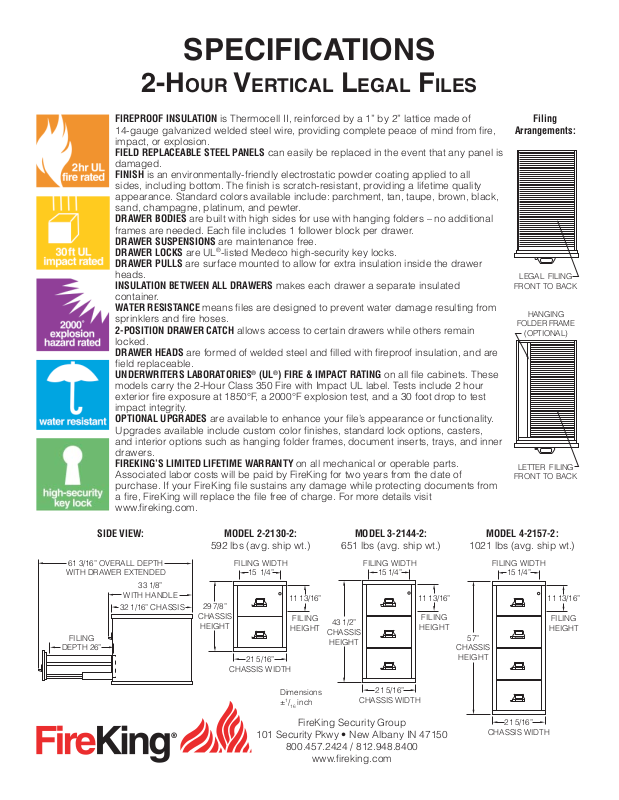

SPECIFICATIONS
2-HOUR VERTICAL LEGAL FILES
FIREPROOF INSULATION is Thermocell II, reinforced by a 1” by 2” lattice made of
14-gauge galvanized welded steel wire, providing complete peace of mind from fi re,
impact, or explosion.
FIELD REPLACEABLE STEEL PANELS can easily be replaced in the event that any panel is
damaged.
FINISH is an environmentally-friendly electrostatic powder coating applied to all
sides, including bottom. The fi nish is scratch-resistant, providing a lifetime quality
appearance. Standard colors available include: parchment, tan, taupe, brown, black,
sand, champagne, platinum, and pewter.
DRAWER BODIES are built with high sides for use with hanging folders – no additional
frames are needed. Each fi le includes 1 follower block per drawer.
DRAWER SUSPENSIONS are maintenance free.
DRAWER LOCKS are UL®-listed Medeco high-security key locks.
DRAWER PULLS are surface mounted to allow for extra insulation inside the drawer
heads.
INSULATION BETWEEN ALL DRAWERS makes each drawer a separate insulated
container.
WATER RESISTANCE means fi les are designed to prevent water damage resulting from
sprinklers and fi re hoses.
2-POSITION DRAWER CATCH allows access to certain drawers while others remain
locked.
DRAWER HEADS are formed of welded steel and fi lled with fi reproof insulation, and are
fi eld replaceable.
UNDERWRITERS LABORATORIES® (UL®) FIRE & IMPACT RATING on all fi le cabinets. These
models carry the 2-Hour Class 350 Fire with Impact UL label. Tests include 2 hour
exterior fi re exposure at 1850°F, a 2000°F explosion test, and a 30 foot drop to test
impact integrity.
OPTIONAL UPGRADES are available to enhance your fi le’s appearance or functionality.
Upgrades available include custom color fi nishes, standard lock options, casters,
and interior options such as hanging folder frames, document inserts, trays, and inner
drawers.
FIREKING’S LIMITED LIFETIME WARRANTY on all mechanical or operable parts.
Associated labor costs will be paid by FireKing for two years from the date of
purchase. If your FireKing fi le sustains any damage while protecting documents from
a fi re, FireKing will replace the fi le free of charge. For more details visit
www.fi reking.com.
Filing
Arrangements:
LEGAL FILING
FRONT TO BACK
HANGING
FOLDER FRAME
(OPTIONAL)
LETTER FILING
FRONT TO BACK
SIDE VIEW:
61 3/16” OVERALL DEPTH
WITH DRAWER EXTENDED
33 1/8”
WITH HANDLE
32 1/16” CHASSIS
FILING
DEPTH 26”
MODEL 2-2130-2:
592 lbs (avg. ship wt.)
FILING WIDTH
15 1/4”
29 7/8”
CHASSIS
HEIGHT
21 5/16”
CHASSIS WIDTH
101 Security Pkwy • New Albany IN 47150
MODEL 3-2144-2:
651 lbs (avg. ship wt.)
FILING WIDTH
15 1/4”
11 13/16”
FILING
HEIGHT
Dimensions
±1/16 inch
43 1/2”
CHASSIS
HEIGHT
21 5/16”
CHASSIS WIDTH
FireKing Security Group
800.457.2424 / 812.948.8400
www.fi reking.com
11 13/16”
FILING
HEIGHT
MODEL 4-2157-2:
1021 lbs (avg. ship wt.)
FILING WIDTH
15 1/4”
11 13/16”
FILING
HEIGHT
57”
CHASSIS
HEIGHT
21 5/16”
CHASSIS WIDTH
