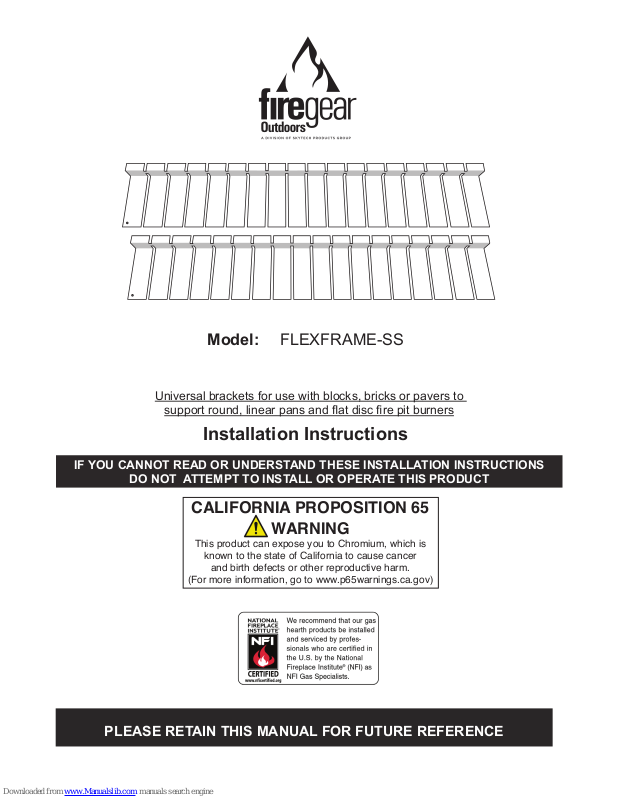

Firegear FLEXFRAME-SS Installation Instructions Manual

Model: FLEXFRAME-SS
Universal brackets for use with blocks, bricks or pavers to
support round, linear pans and fl at disc  re pit burners
Installation Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS PRODUCT
CALIFORNIA PROPOSITION 65
This product can expose you to Chromium, which is
known to the state of California to cause cancer
and birth defects or other reproductive harm.
(For more information, go to www.p65warnings.ca.gov)
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
TWO AVAILABLE MODELS
6 ¼”
1 ⁄”
⁄”
5 ⁄”
Flexframe
Correct
Installation
FLEXFRAME-SS: Constructed of 16 guage 304 stainless steel. Engineered to protect against the outdoor elements including salt water environment.
DESCRIPTION: Flexframe kit comes shipped in two pieces, 44-inches long. Each piece can be bent or cut to  t any shape (square, linear or round). It provides the means to support a  re pit inside of an enclosure which enables a service technician the ability to remove the media and easily lift the  re pit out for service.
SPECIFICATIONS
Fig. 1 End view
INSTALLATION
READ THESE INSTRUCTIONS COMPLETELY THROUGH BEFORE PROCEEDING WITH INSTALLATION
STEP 1: Determine if the Flexframe will work for your application. Measure the outer dimension of the  re pit and
compare it to the inner dimension of the enclosure. The Flexframe protrudes outward approximately the enclosure to provide a lip to sit the  re pit in place. NOTE: If an optional log set is purchased, additional support (i.e. blocks stacked underneath the center of the  re pit) may be required to support the extra weight.
STEP: 2 Refer to the installation manual of the  re pit you are installing to ensure you maintain proper clerarances to the ground. Lay the pavers or blocks to build your enclosure. When you have reached the minimum height (per  re pit
manual) inside the enclosure install the Flexframe as shown in Fig. 2 or Fig 3. Ensure the Flexframe slides in as far as
possible until it stops at the  rst bend.
⅞” on the inside of
Flexframe
Correct
Installation
Fig. 2 Correct Flexframe orientation
Flexframe
Fig. 3 Correct Flexframe orientation
REV. 8-24-18 Page 2
If you are building a round paver enclosure the fl exframe will easily bend by hand in virtually any shape you perfer (Fig. 4).
CAUTION: Wear gloves when forming the fl exframe by hand. The fl ex frame could “spring” back and pinch  ngers.
In addition it is a good idea not to form the fl exframe until you are ready to lay it into place. This will allow your block or pavers to hold it into place as you are completing the top row. Note: If you feel the need for additional strengthening then add block adhesive to the same layer with the Flexframe for extra support.
Fig. 4 Bend the Flexframe by hand
STEP 3: Form or lay the Flexframe inside the entire enclosure area. It is permissible to cut the Flexframe to  t your
enclosure, however, it is not permissible to only use “just enough” pieces to support a pan (See Fig. 5 andf Fig. 6 for
examples).
NOTE: Firegear Outdoors will not be liable for Flexframe installations not installed correctly. Once the Flexframe is in place the installation is complete. Proceed to Step 4 for  re pit installation.
Correct
Installation
Wrong
Installation
Flexframe
Fig. 5 Flexframe round installation
REV. 8-24-18 Page 3
Correct
Wrong
Installation
Fig. 6 Flexframe square/rectangle installation
STEP 4:
Double check the minimum height above ground level before installing the re pit. Complete the installation by installing a re pit, pan or disc on the lip area of the Flexframe (See Fig. 7 and Fig. 8). After test re is complete cover the burner with media as described in the re pit installation manual.
Installation
Fig. 7 Flexframe complete Fig. 8 Flexframe shown with re pit installed
FOR TECHNICAL SERVICE, CALL:
Flexframe
(855) 498-8324
Firegear Outdoors
9230 Conservation Way
Fort Wayne, IN 46809
Sales: (888) 672-8929
WEB SITE:
www.firegearoutdoors.com
REV. 8-24-18 Page 4
