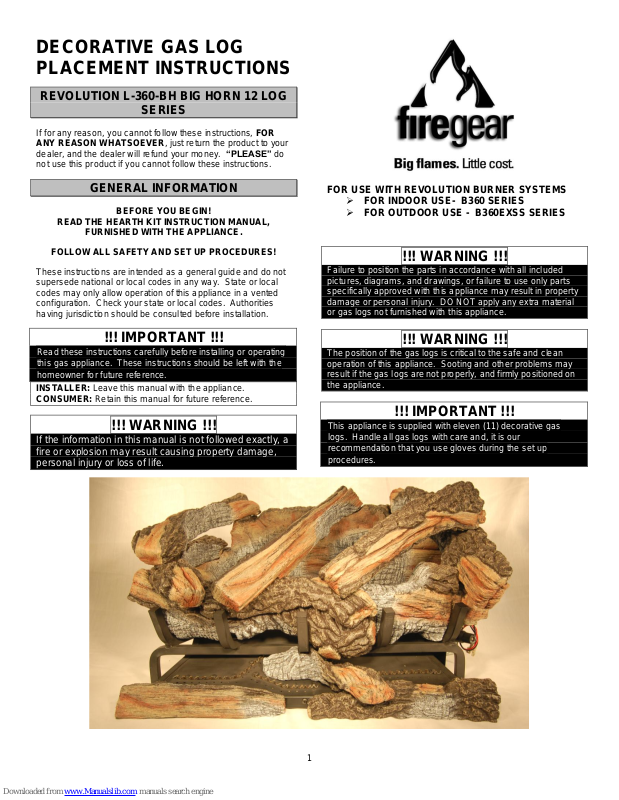

DECORATIVE GAS LOG
PLACEMENT INSTRUCTIONS
REVOLUTION L-360-BH BIG HORN 12 LOG
SERIES
If for any reason, you cannot follow these instructions, FOR
ANY REASON WHATSOEVER, just return the product to your
dealer, and the dealer will refund your money. “PLEASE” do
not use this product if you cannot follow these instructions.
GENERAL INFORMATION
BEFORE YOU BEGIN!
READ THE HEARTH KIT INSTRUCTION MANUAL,
FURNISHED WITH THE APPLIANCE.
FOLLOW ALL SAFETY AND SET UP PROCEDURES!
These instructions are intended as a general guide and do not
supersede national or local codes in any way. State or local
codes may only allow operation of this appliance in a vented
configuration. Check your state or local codes. Authorities
having jurisdiction should be consulted before installation.
!!! IMPORTANT !!!
Read these instructions carefully before installing or operating
this gas appliance. These instructions should be left with the
homeowner for future reference.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
!!! WARNING !!!
If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage,
personal injury or loss of life.
FOR USE WITH REVOLUTION BURNER SYSTEMS
FOR INDOOR USE- B360 SERIES
FOR OUTDOOR USE - B360EXSS SERIES
!!! WARNING !!!
Failure to position the parts in accordance with all included
pictures, diagrams, and drawings, or failure to use only parts
specifically approved with this appliance may result in property
damage or personal injury. DO NOT apply any extra material
or gas logs not furnished with this appliance.
!!! WARNING !!!
The position of the gas logs is critical to the safe and clean
operation of this appliance. Sooting and other problems may
result if the gas logs are not properly, and firmly positioned on
the appliance.
!!! IMPORTANT !!!
This appliance is supplied with eleven (11) decorative gas
logs. Handle all gas logs with care and, it is our
recommendation that you use gloves during the set up
procedures.
2
L-360-BH DECORATIVE GAS LOG SERIES
INDIVIDUAL LOGS
L-360-BH DECORATIVE GAS LOG SERIES
INDIVIDUAL LOGS continued
LOG # REV-2409/BH
LOG # REV-2410/BH
LOG # REV-2401/BH
LOG # REV-2411/BH
L-360-BH DECORATIVE GAS LOG SERIES
ACCESSORY ADD LOGS
LOG # REV-2402/BH
LOG # REV-2403/BH
LOG # REV-2404/BH
LOG # REV-2405/BH
LOG # REV-2406/BH
FG-HAK ACCESSORY ADD LOGS
FG-LAK ACCESSORY ADD LOGS
LOG # REV-2407/BH
!!!WARNING!!!
FG-LAK & FG-HAK add logs, may be placed anywhere
within the fireplace enclosure,
EXCEPT DIRECTLY IN THE FIRE.
LOG # REV-2408/BH
DO NOT PLACE THE ADD LOGS DIRECTLY IN THE
FIRE!
3
PROPER INSTALLATION SEQUENCE: L-360-BH
1- Place Log # REV-2401/BH on the rear of the grate/burner assembly, making sure to index the bottom of the log, on the grate
tines.
FRONT ANGLE VIEW
OVERHEAD VIEW
4
PROPER INSTALLATION SEQUENCE: L-360-BH continued
2- Place Log # REV-2402/BH on the front left side of the grate/burner assembly, making sure to index the front, left three
(3) grate tines. NOTE: Be sure the rear of the log is perpendicular to the grate, and DOES NOT tip into the flame profile.
FRONT ANGLE VIEW
OVERHEAD VIEW
5
PROPER INSTALLATION SEQUENCE: L-360-BH continued
3- Place Log # REV-2403/BH on the front right side of the grate/burner assembly, making sure to index the front, right two
(2) grate tines. NOTE: Be sure the rear of the log is perpendicular to the grate, and DOES NOT tip into the flame profile.
FRONT ANGLE VIEW
OVERHEAD VIEW
6
PROPER INSTALLATION SEQUENCE: L-360-BH continued
4- Place Log # REV-2404/BH on the top, left side of Log # REV-2401/BH, and Log #REV-2402/BH, making sure to index the
locators on the two (2) base logs. NOTE: Be sure the rear of Log # REV-2402/BH is perpendicular to the grate, and DOES
NOT tip into the flame profile.
FRONT ANGLE VIEW
OVERHEAD VIEW
7
PROPER INSTALLATION SEQUENCE: L-360-BH continued
5- Place Log # REV-2405/BH on the top, right side of Log # REV-2401/BH, and Log # REV-2403/BH, making sure to index the
locators, on the two (2) base logs. NOTE: Be sure the rear of Log # REV-2403/BH is perpendicular to the grate, and DOES
NOT tip into the flame profile.
FRONT ANGLE VIEW
OVERHEAD VIEW
8
PROPER INSTALLATION SEQUENCE: L-360-BH continued
6- Place Log # REV-2406/BH on the top, left side of Log # REV-2401/BH, and Log # REV-2404/BH, making sure to index the
locators on the two (2) base logs.
FRONT ANGLE VIEW
OVERHEAD VIEW
9
PROPER INSTALLATION SEQUENCE: L-360-BH continued
7- Place Log # REV-2407/BH on the top, center of Log # REV-2401/BH, and Log # REV-2402/BH, making sure to index the
locators on the two (2) base logs.
FRONT ANGLE VIEW
OVERHEAD VIEW
10
PROPER INSTALLATION SEQUENCE: L-360-BH continued
8- Place Log # REV-2408/BH on the top, center of Log # REV-2405/BH, and the top, right side of Log # REV-2402/BH, making
sure to index the locators on the two (2) base logs.
FRONT ANGLE VIEW
OVERHEAD VIEW
11
PROPER INSTALLATION SEQUENCE: L-360-BH continued
9- Place Log # REV-2409/BH on the bottom, front left corner of the grate/burner assembly.
FRONT ANGLE VIEW
OVERHEAD VIEW
12
PROPER INSTALLATION SEQUENCE: L-360-BH continued
10- Place Log # REV-2410/BH on the bottom, front right corner of the grate/burner assembly.
FRONT ANGLE VIEW
OVERHEAD VIEW
13
PROPER INSTALLATION SEQUENCE: L-360-BH continued
11- Place Log # REV-2411/BH on the bottom, center of the grate/burner assembly, making sure to index the grate tine, and the
locator on the bottom of the log, to the metal tab, mounted to the bottom, front lip of the grate/burner assembly, behind Log #
REV-2410/BH.
FRONT ANGLE VIEW
OVERHEAD VIEW
14
FIREGEAR L-360- BH SERIES PARTS LIST
firegear LLC
Attention: Customer Service Department
P.O. BOX 871250
Canton, MI 48187
Telephone: 888-220-4333
Fax: 888-431-0585
Attention: When ordering Parts, it is important that you have the correct part number and description.
COMMON PART PART NUMBER
L-360-BH - Bottom Rear Log REV-2401/BH
L-360-BH - Bottom Front Left Log REV-2402/BH
L-360-BH - Bottom Front Right Log REV-2403/BH
L-360-BH - Top Left Cross Log REV-2404/BH
L-360-BH - Top Right Cross Log REV-2405/BH
L-360-BH - Top Left Log REV-2406/BH
L-360-BH - Top Center Cross Log REV-2407/BH
L-360-BH - Top Right Front Log REV-2408/BH
L-360-BH - Bottom Left Ember Log REV-2409/BH
L-360-BH - Bottom Right Ember Log REV-2410/BH
L-360-BH - Bottom Center Ember Log REV-2411/BH
FG-LAK - ADD LOGS
FG-LAK - Log One LAK-01
FG-LAK - Log Two LAK-02
FG-LAK - Log Three LAK-03
FG-LAK - Log Four LAK-04
FG-HAK - ADD LOGS
FG-HAK - Log One HAK-01
FG-HAK - Log Two HAK-02
FG-HAK - Log Three HAK-03
FG-HAK - Log Four HAK-04
HOW TO ORDER REPAIR PARTS
Parts may be ordered only, through your service person or dealer. For the best results, the service person or dealer should order parts through the
distributor. Parts may be shipped directly to the service person/dealer. All parts listed in the PARTS LIST have individual PART NUMBERS and
descriptions. When ordering parts, first obtain the Model Number from the name plate on your equipment; then determine the PART NUMBER (not the
Index Number) and the part description of each part from the parts list. Be sure to include all of this information.
Appliance/Heater Model Number
Type of Gas: NG ______ LP ______
Appliance/Heater Serial Number
Part Description
Part Number
DO NOT order bolts, screws, washers or nuts. These are standard hardware items that may be purchased at any local hardware store. Shipments are
contingent upon strikes, fires, and any circumstance, beyond the control of firegear.
15
www.firegearusa.com
LIMITED WARRANTY
firegear hereby warrants to the ORIGINAL PURCHASER of this
firegear Decorative Gas Log Set, that it will be free from defects in
material and workmanship from the date of purchase as follows:
Refractory Gas Logs Limited Lifetime
firegear may require reasonable proof of your date of purchase. YOU
SHOULD RETAIN YOUR SALES SLIP OR INVOICE AND RETURN
THE WARRANTY REGISTRATION CARD WITHIN 10 DAYS OF
PURCHASE.
This Limited Warranty shall be valid and limited to, the original
purchaser only, within the confines of the original site
installation.
WARNING: Any modification to this heater or its controls will void the
warranty!
The item listed above (gas logs) are warranted as follows for the period
of time specified.
This Limited Warranty does not cover any failures or operating
difficulties due to accident, abuse, misuse, alteration, misapplication,
vandalism, improper installation or improper maintenance or service, or
failure to perform normal and routine maintenance.
Deterioration, discoloration due to heat, or damage due to severe
weather conditions such as hail, hurricanes, earthquakes, tornadoes,
discoloration due to exposure to chemicals ( including salt ), either
directly or in the atmosphere, or very high humidity, is not covered by
this Limited Warranty.
Before returning any parts, contact firegear Customer Service Center.
If firegear confirms the defect and approves the claim, firegear will
replace such parts without charge. If you are required to return
defective parts, transportation charges must be prepaid. Firegear will
require form of payment for the return of the product.
There are no other express warranties except as set forth herein and
any applicable implied warranties of merchantability and fitness are
limited in duration to the period of coverage of this express written
Limited Warranty. Some states do not allow limitation on how long an
implied warranty lasts, so this limitation may not apply to you.
firegear is not liable for any special, indirect or consequential
damages. firegear’s liability is limited to the purchase price of this
firegear Decorative Gas Log Set. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
firegear does not authorize any person or company to assume for it
any other obligation or liability in connection with the sale, installation,
use, removal, return, or replacement of its equipment; and no such
representations are binding on firegear.
This Warranty applies only to products sold at retail and manufactured
by:
firegear, LLC
P.O. Box 871250
Canton, MI 48187
888-220-4333
888-431-0585 fax
website – www.firegearusa.com
16
www.firegearusa.com
L360BH – 4.0
