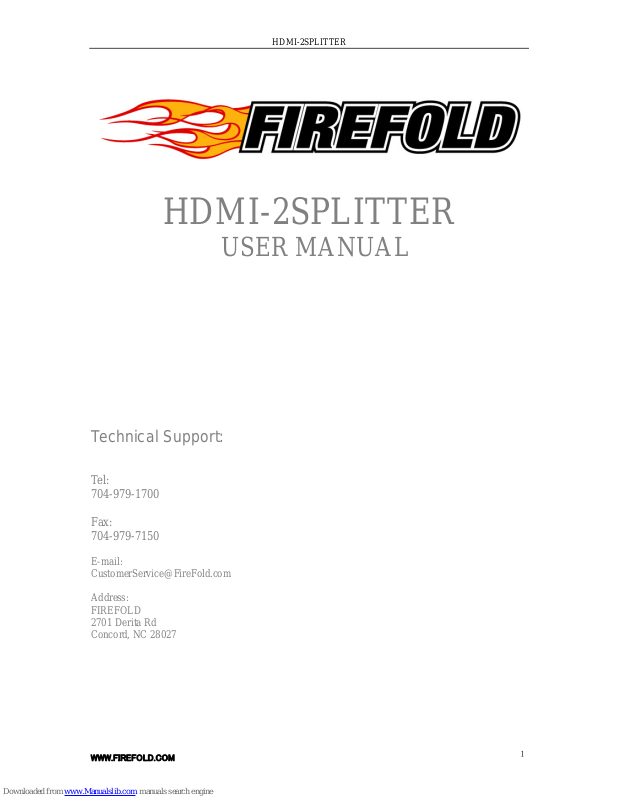

Page 1
HDMI-2SPLITTER
HDMI-2SPLITTER
USER MANUAL
Technical Support:
Tel:
704-979-1700
Fax:
704-979-7150
E-mail:
[email protected]
Address:
FIREFOLD
2701 Derita Rd
Concord, NC 28027
WWW.FIREFOLD.COM
１
Page 2
HDMI-2SPLITTER
Table Of Contents
1.0 Introduction………………………………...…………...……....3
2.0 Specifications…………………………………….………..……4
3.0 Package Contents………………………………………….…..5
4.0 Panel Descriptions…………………………………….…….…5
5.0 Connect and Operate...........................................................5
6.0 Troubleshooting……………………………………….…….…6
7.0 Limited Warranty…………………………………………….....7
WWW.FIREFOLD.COM
２
Page 3
HDMI-2SPLITTER
HDMI AMPLIFIER SPLITTER
Model No: HDMI-2SPLITTER
Dear Customer
Thank you for purchasing this product from FireFold. For optimum performance
and safety, please read these instructions carefully before connecting, operating
or adjusting this product. Please keep this manual for future reference.
1.0 INTRODUCTION
The HDMI Amplifier Splitter is an HDMI splitter with some outputs. It distributes
the input of the HDMI signal into the several identical outputs simultaneously. The
series of this product has the ability of buffering and amplifying. Each amplifier
splitter’s output can achieve long distance transmission of HDMI signal of more
than 15 meters. When two or more products are cascaded, they can create a
larger distribution and longer in length.
The HDMI Amplifier Splitter offers solutions for HDTV retail and show site, HDTV,
STB, DVD and Projector factory, noise, space and security concerns, data center
control, information distribution, conference room presentation, school and
corporate training environments.
1.1 LIABILITY STATEMENT
Every effort has been made to ensure that this product is free of defects.
FireFold cannot be held liable for the use of this hardware or any direct or indirect
consequential damages arising from its use. It is the responsibility of the user of
the hardware to check that it is suitable for his/her requirements and that it is
installed correctly. All rights reserved. No parts of this manual may be reproduced
or transmitted by any form or means electronic or mechanical, including
photocopying, recording or by any information storage or retrieval system without
the written consent of the publisher.
FireFold reserves the right to revise any of its hardware and software following its
policy to modify and/or improve its products where necessary or desirable. This
statement does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognized. The FIREFOLD logo is
the registered trademarks of FireFold.
1.2 FEATURES
The series of the HDMI Amplifier Splitter have many features that enable them to
perform in a superior manner. Among those features you will find:
z Easy to Use: Install in seconds, no need of setting.
z Supports the Video Amplifier Bandwidth up to 1.65Gpbs/165MHz
z Cascaded: Large distribution achieved by cascading the HDMI Amplifier
Splitter.
z Supports HDCP
z FCC CE Certified
WWW.FIREFOLD.COM
３
Page 4
HDMI-2SPLITTER
2.0 SPECIFICATIONS
Signal Inputs/Output
Input Video Signal 0.5 -1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Maximum Single Link Range 1920X1200, 1080P
Output Video HDMI 1.2a+ HDCP1.0/1.1
Video format supported
VGA 640x480,800x600,1024x768,1920x1200
DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
Digital Signal I/O
HDMI Compliance HDMI 1.3
Operating Frequency
Frequency Up to165MHz
Resolutions(HDTV)
Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p
Mechanical
Size(H-W-D) Different models have different sizes
Weight(Net) Different models have different weight
Warranty
Limited Warranty 1 Year Parts and Labor
Environmental
Operating Temperature
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply 5V DC@2A,except 1*4(2.5A)1*8(3A)
Regulatory Approvals
Converter Unit FCC,CE,UL
Power Supply UL,CE,FCC
Accessories Adapter
AC Power Adapter US standard
User Manual English
Note: Specifications are subject to change without notice.
0℃ to +70℃
-10℃ to +80℃
WWW.FIREFOLD.COM
４
Page 5
HDMI-2SPLITTER
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1) Main unit (different models have different P/N).
2) 5V DC Power Supply.
3) User’s Manual.
Note: Please retain the original packing material in the case of needing to
return the unit. If you find any items are missing, contact FireFold
immediately. Please have the model number, serial number and invoice
available for reference when you call.

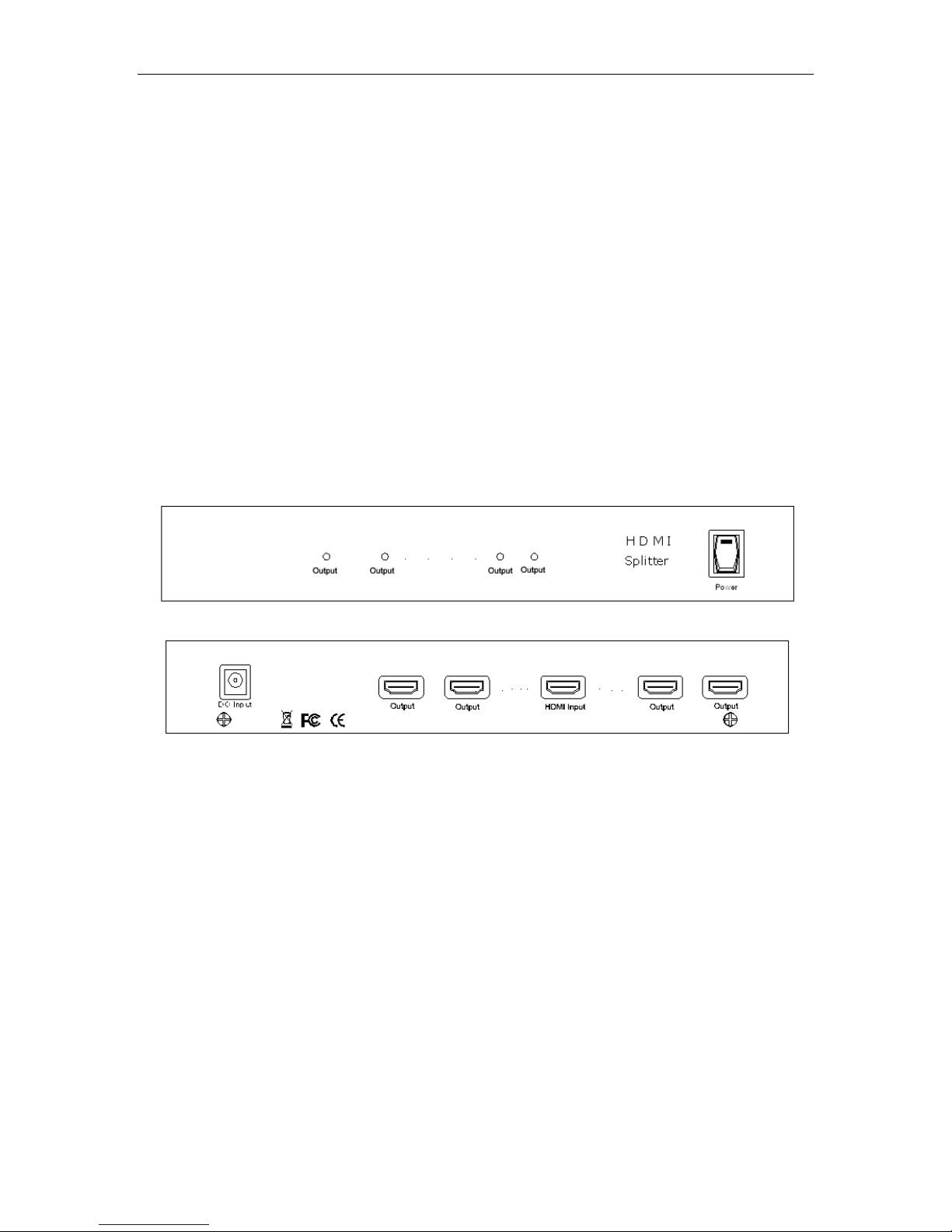

4.0 PANEL DESCRIPTIONS
5.0 CONNECT AND OPERATE
1) Connect the HDMI input source and output devices into the HDMI Amplifier
Splitter. (HDMI cables are optional)
*please refer to the connection diagram section.
2) Insert the DC side of 5v power supply into it and then connect the AC side of
the power supply into the wall outlet.
3) Turn on the power.
Attention: Insert / Extract cable gently.
WWW.FIREFOLD.COM
５
Page 6
HDMI-2SPLITTER

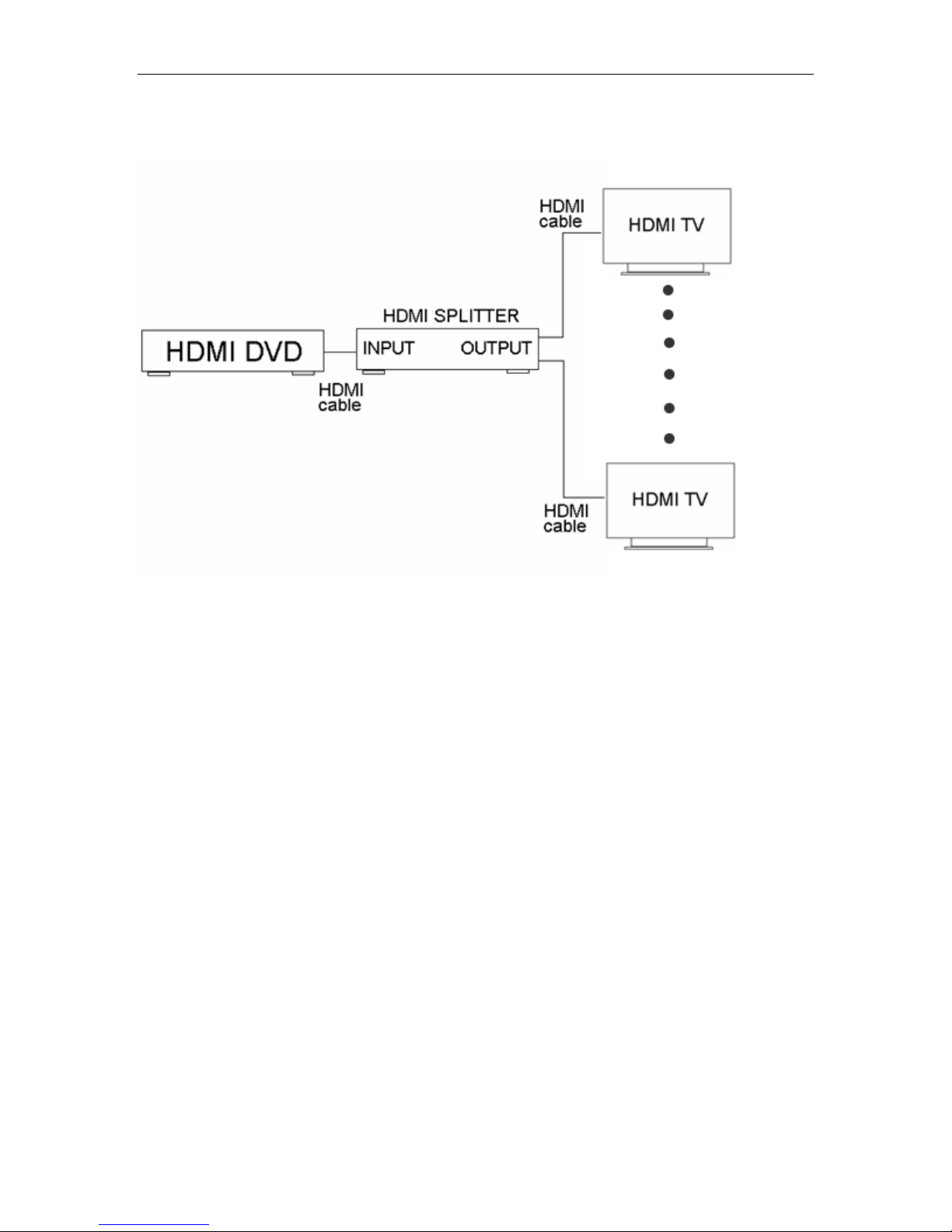

5.1 CONNECTION DIAGRAM
6.0 TROUBLESHOOTING
If the product doesn’t appear to be functioning,make certain that the source and
the destination device connected to the unit are functioning correctly by
connecting each device using a cable with a length 3 meters or less. (In other
words, make certain that the problem is not caused by long cables ). If the signal
is present under those conditions, make certain that the power is present to the
product. If it is, measure the cable length you are attempting to use between the
sources to the splitter and the splitter to the monitor. The input cables should be
15 meters or less in length and the output cables must be less than 15 meters
long and all cables should be premium quality. Lastly, inspect the cables and
connectors for damage.
6.1 Non-HDCP Compliant Devices
If a DVI device does not appear to work, make certain that the device is HDCP
compliant. A non-HDCP compliant DVI device will not work with a signal that has
HDCP encoding present
6.2 Cable Length
If you need to span a longer distance to reach the amplifier splitter, purchase
FIREFOLD’s HDMI Splitter/Extender which will allow you to extend a cable run up
100FT.
WWW.FIREFOLD.COM
６
Page 7
HDMI-2SPLITTER
7.0 LIMITED WARRANTY
Should any consumer product from FireFold fail due to defects in materials or
workmanship within one year from the date of the original sale to the end-user,
FireFold guarantees that we will replace the defective product at no cost. Freight
charges for the replacement unit will be paid by the customers. A copy of the
invoice showing the item number and date of purchase (proof-of-purchase) must
be submitted with the defective unit to constitute a valid in-warranty claim.
This is a limited warranty and is not applicable for products which,in our opinion,
have been damaged, altered, abused, misused, or improperly installed. FireFold
makes no other warranties either expressed or implied, including limitation
warranties as to merchantability or fitness for a particular purpose. Additionally,
there are no allowances or credits available for service work or installation
performed in the field by the end user.
Notice
FireFold reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice. Different products have
different outlooks.
WWW.FIREFOLD.COM
７
