1
FIREFLY 8SE
Ambarella A12S75
2-inch IPS touch screen
Gyro2.0 Image Stabilization
WiFi + BT 3.0 Remote control
SONY IMX117 12 Mega WDR CMOS Sensor
High End Action camera with touch screen
www.CNfpv.com
Ver 2.1
www.CNfpv.com
2
Contents
Safety Guidelines：......................................................................................................... 3
Features：.......................................................................................................................4
.............................................................................................................................................4
Performance and Specifications:................................................................................... 5
Button Functions...............................................................................................................6
Video settings:...................................................................................................................7
Photo settings:.................................................................................................................. 9
System Setup settings:..................................................................................................10
BT Pair..............................................................................................................................11
How to update firmware:............................................................................................... 12
Wi-Fi :............................................................................................................................... 13
Battery Charging:............................................................................................................13
Transferring Files:...........................................................................................................13
External Microphone:.....................................................................................................13
Instruction for accessories：........................................................................................ 14
Accessories installation instructions(Not in stander package):...............................15
www.CNfpv.com
3
1.It’s a high-precision product, do not drop or crash it.
2.Do not expose the camera to strong magnetic objects, sch as magnets or electrical
3.Never leave the products exposed to high temperatures and direct sunlight.
4.Please choose branded microSD that suggested at this manual, to make sure the
5.In case of overheating, smoke,or unpleasan smell in the process of charging,
6.While charging , keep the product out of children’s reach. Power cable may casuse
7.Use orignal Firfly 8SE’s batteries, to make sure the camera work/charge properly.
8.Keep the device in cool, dry and dust-free places.
9.Please do not throw the product or it’s battery to the garbage, find a specific
Safety Guidelines
：
Please read the instruction manual carefully before using the camera for the first time.
motors. Avoid exposing the product to strong radio waves. Strong magnetic fields may
cause the products breakdown or image/audio damage.
camera work properly.
unplug your device immediately to prevent fire hazard.
children accidental suffocation or electric shock.
recycling poit for it.
4
Features ：
1.UP button.
2.DOWN button.
3.OK button
4.Photo(Green)/Video(Blue) LED.
5.HD output
6.Mini USB.
7.Battery door.
8.Power button/Mode button.
9.Selfie Mirror.
10.MicroSD card slot.
11.Playback button.
1 2 3 4 5 6
7 8 9
10 11 12
www.CNfpv.com
5
Performance and Specifications:
Photo resolution
16M/14M/12M/8.3M/5M/3M
AV output format
USB Port
PAL/NTSC
HD Output
YES
Kind of MicroSD card
supported
U3(Note:Low speed sd
card will cause unstable)
Maximum size of
MicroSD card supported
128G
Wi-Fi +BT 3.0 remote
control
YES
LCD screen size
2 inch IPS 320*240 with TP
Specifications
Camera size
59×41×21 MM
Weight
70g
Battery Capacity (Battery
is detachable )
1200mAH，3.85V
Battery life
About 1.33 hours（25℃
enviroment)
Time to complete
charging
About 3 hours (5V 1A power
supply, and power off while
charging)
Compressed format
H.264
Video/photo format
*.MP4 / *.JPG
Optical Parameter-
Wide angle version
Diaphragm
F/2.8 ，6 glasses
Angle
Diagonal 170 degrees
Optical Parameter -
distortionless version
Diaphragm
F/2.8 ，11 glasses
Angle
90 degrees
Electric Parameter
Working Voltage
5V
Power supply
1A
www.CNfpv.com
6
Button Functions
Name
Functions
Descriptions
Power/Mode
Button
Turn on/off
camera; select
modes
Press once, camera ON; press for 3
seconds, camera OFF; press to switch
photo /video mode.
OK Button
start/stop
recording
Press 2 seconds in playback mode to delete
current file
Press 2 seconds to unlock.
UP Button
move upwards
move upwards /Shortcut key for screen
save
DOWN
Button/Menu
Button
Move downwards
Enter menu setting/move downwards
Press for 3 sec, WIFI ON/OFF
Playback
Button
Playback / Switch
between System
/Normal settings
Press to exit file transfer mode on WiFi
www.CNfpv.com
7
Video settings:
Settings
Playback
Touch to:
Quick function menu
Touch to Quick mode switch
Slide(L/R) to switch
：
Video/Photo mode
Slide（left and right）to switch
：
Video/Photo mode
In video preview mode, touch “setting icon” will enter menu:
www.CNfpv.com
www.CNfpv.com
8
Settings: Touch to enter setting menu.
Record: Touch to enter normal video mode.
Video-lapse: Touch to enter time-laps mode. To adjust time-lapse please refer to
“Timelapse Video“ menu.
Playback: Touch to enter Playback mode.
Car Mode: Touch to enter Car mode. In Car mode, Auto DVR and Loop recording
will be turned ON.
Slow Motion:Touch to enter Slow motion mode. In this mode, it will record videos in
slow motion.
Capture: Touch to enter normal photo mode.
Photo Busrt: Touch to enter Burst photo mode. To adjust it, please refer to “Photo
Burst”
Photo-lapse: Touch to enter photo lapse mode. To adjust time-lapse please refer to
“Timelapse Photo“ menu.
Long exposure: Touch to enter Long exposure mode. To adjust Long exposure
please refer to “Long exposure” menu.（Use this mode at night).
Resolution: select from4K 30fps(16:9),4K 25fps Super-view, 2160P 30fps(4:3), 2.7K
30fps(4:3),2.7K 30fps Super-view, 2.7K 30fps(16:9),2.5K 60fps(16:9), 2.5K
30fps(16:9), 1440P 60fps(4:3),1440P 30fps(4:3),1080P 120fps(16:9),1080P
60fps(16:9),1080P 30fps(16:9), 1080P 60fps Super-view, 1080P 30fps
Super-view,960P 120fps(4:3),960P 60fps(4:3), 960P 30fps(4:3), 720P
240fps(16:9),720P 120fps(16:9),720P 60fps(16:9),720P 30fps(16:9),720P 120fps
Super-view, 720P 30fps Super-View ect.
Video Quality: Super.Fine, Fine, Normal.
FOV: Wide/Medium/Narrow,view angle. Not available on 1080P and sView mode.
Auto Low light: Off,On. When turn this function On, camera will drop the frame rates
to increase the video’s brightness.When this function turn ON, will save power
consumption.
Gyro Sensor: Off,On. Available in 1080P 60fps and 1080P 30fps.
Motion detect:Off ,Low,Medium,High. When turn this function ON and press OK
button, it will record video when motion detected.
Dual files: off,on. When turn on, it will save a low resolution file when recording. Small
file is easy to share via WiFi. We suggest to turn this function on while using APP
www.CNfpv.com
9
to download/playback videos.
Video stamp: Off,Date,Time,Date/Time. this option allows you to stamp the date/time
on the video.
Logo Watermark: Off,On. this option allows you to stamp the cool logo mark on the
video.
Video Lapse : to start/stop time-lapse video at 1 / 3 / 5 /10 / 30 /60sec intervals.
Note: this function will make videos look like fast forward.
Loop record: off,1min,2min,3min,5min. If cycle recording mode is selected, the video
will be cut into setting-minute segments. The earliest files will be covered when the TF
card is full. (This mode is suggested to be used in vehicle monitoring.)
Microphone Volume:off, 50%,60%,70%,80%,90%,100%.
Sharpness : Strong, Normal and Soft.
AWB:Auto White Balance.
Auto,Incandescent,D4000,D5000,Daylight,Couldy,D9000,D10000,Flash,Fluoresc
ent,Water,Outdoor.
EV Value: -2.0,-1.7,-1.3,-1.0,-0.7,-0.3,0.0,+0.3,+0.7,+1.0,+1.3,+1.7,+2.0.
Metering: Center,Multi,Sopt. Note: different meter ways will make the footage
brightness different.
Photo settings:
Image size:16M,14M,12M,8.3M,5M,3M（1M=1Mega pixels）.
Photo Quality: Super.Fine,Fine,Normal.
Raw photo: Off / On,when turn on, it will save a raw photo. Please refer to
www.cnfpv.com to learn to operate raw photo.
Long exposure: 1/30 second, 1 second,2 seconds,5 seconds, 10
seconds,30seconds, 60 seconds. Note:If you use long exposure mode at day time,
www.CNfpv.com
10
photo will be over exposure.
Photo Stamp: Off, Date, Time, Date/Time. When turn this function ON, you could
stamp the date time on videos.
Logo Watermark: Off,On. this option allows you to stamp the cool logo mark on the
photo.
Self Timer: Off, 2S,3S,5S,10S,30S,60S.
Photo Burst: 3 Pcs/Second, 5Pcs/Second, 10Pcs/Second.
Photo Lapse: 3S,5S,10S,30S,60S.
Sharpness: Strong, Normal,Soft.
AWB(Auto White
Balance) :Auto,Incandescent,D4000,D5000,Daylight,Couldy,D9000,D10000,Flash,Fl
uorescent,Water,Outdoor.
EV Value: -2.0,-1.7,-1.3,-1.0,-0.7,-0.3,0.0,+0.3,+0.7,+1.0,+1.3,+1.7,+2.0.
ISO: Auto,100,20,400,800,1600.
Metering: Center,Multi,Spot.Note: different meter ways will make the footage
brightness different.
System Setup settings:
Quick Capture: Off , On. ON: It will capture videos when power on.
Delay Off: off,5S,10S,20S,30S,60. (available When Auto record turn ON).
TV Mode: NTSC,PAL. PAL, frame rate will be 25/50/100/200; NTSC, frame rate will
be 30/60/120/240.
Light Frequency: Auto, 50HZ, 60HZ.
LCD Brightness: Low, Medium, High. Set LCD brightness, when set it low, the
www.CNfpv.com
11
power consumption will be saved.
Image Rotate: On/Off, image will rate 180 degrees（Only available on some
resolutions）.
Distortion Correction: On/Off, image distortion will be corrected.（Only available on
some resolutions）.(Note: Only turn it on for 170 degrees version)
Auto shutdown: Off, 2Min,3Min,5Min,10Min. When there’s no operations, the
machine will auto shutdown.
Screen Off: Off,30S,1Min,3Min,5Min. When there’s no operations,will power off the
screen.
Status LED: Off, 1,2,3. Set the action LED light on the machine.
Beep: Off,On. Turn ON/OFF beep voice on the machine.
Time Setup:Set the date time of the machine, or you could update date time with
the APP thought WiFi.
Date Format:Y/M/D,D/M/Y,M/D/Y.
Language: English, Chinese,Russian.
BT Pair.
How to pair BT remote controller: Set this menu ON, the machine will keep
searching BT remote controller. Press any key of the remote controller, and the
controller’s light will turn on. Keep pressing any key of the remote controller
until searching function finished and they will paired. Note: When Camera
power ON , it will keep searching BT remote controller for 20 seconds(If BT auto
start is turned ON), if you keep pressing controller’s key (about 5 times), they
will be pared automaticly. Bluetooth remote controller is not in stander
package.
Bluetooth auto-start: ON/OFF. When turn off, boot up will be faster. Its suggested to
turn it off to make boot up faster.
WiFi: ON,OFF. Turn Wifi ON/OFF, or you press and hold “Down key” for 2 seconds.
www.CNfpv.com
12
A. Use Firefly APP to update firmware. Please visit Our Youtube channel:
a.Delete all the files in MicroSD card , and then copy update file to MicroSD
b.Put MicroSD card into camera and power on.
c.Switch to system menu: Version.
d.Press OK button to check the update firmware, if detected firmware is right,
e.Once confirmed, camera will update automaticly.
f.It will take 1-2 minutes to update. When update finish, it will power on, and then
g.Delete firmware update files.
Turn Off WiFi, the power consumption will be saved.
WiFi SSID. You can change WiFi name.
WiFi Password. You could change WiFi passwords here.
Format. Format the MicroSD card.
Default Setting. Set to default settings. Note: if the camera has any problems, you
could use this function.
Version. Check version number here and could update firmware here.
How to update firmware:
1.
Hawkeye Firefly Action Camera
2.
card( “FIREFLY_FWUPDATES.bin” , you could download it on our website
www.CNfpv.com).
select “yes” to update.
will reboot..
www.CNfpv.com
13
1. Download and install app from the app store on your smart phone/tablet, or
2. Turn camera’s Wi-Fi on.
3. In your smart phone’s or tablet’s Wi-Fi network settings, connect to the
4. Open the FIREFLY app on your smart phone/tablet. You will now be able to
Wi-Fi :
Please check our website(www.CNfpv.com) or the QR code(below) to find our
APP.
Please search:
Apple Store: Firefly Cam
Google Play: Hawkeye Firefly
You can use a Smart phone/tablet to view or take photos and videos via Wi-Fi
connection.
scan the QR code behind.
camera’s Wi-Fi network named “FIREFLY_xxxx”, enter the password. Default
password is “12345678”.
control the camera with your smart phone/tablet plus view, playback and
share selected content.
Battery Charging:
Connect the camera to a computer or phone charger using the included USB
cable. Use 1A charger, and turn off the camera when charging will increase the
charging rate(Press and hold Mode key for 3 seconds could shutdown the
camera). The Charging Status Light it will turn OFF when the battery is fully charged.
Transferring Files:
1. Connect the camera to a computer via the included USB cable, and then turn on
the camera.
2. Double click “My Computer” and locate “Removable Disk”. Enter “Removable Disk”
and you will find all photo and video files in AMBA folder.
External Microphone:
Please buy our external microphone for FIREFLY 8S. When plug in the
microphone, the camera will Beep and the microphone works.
www.CNfpv.com
14

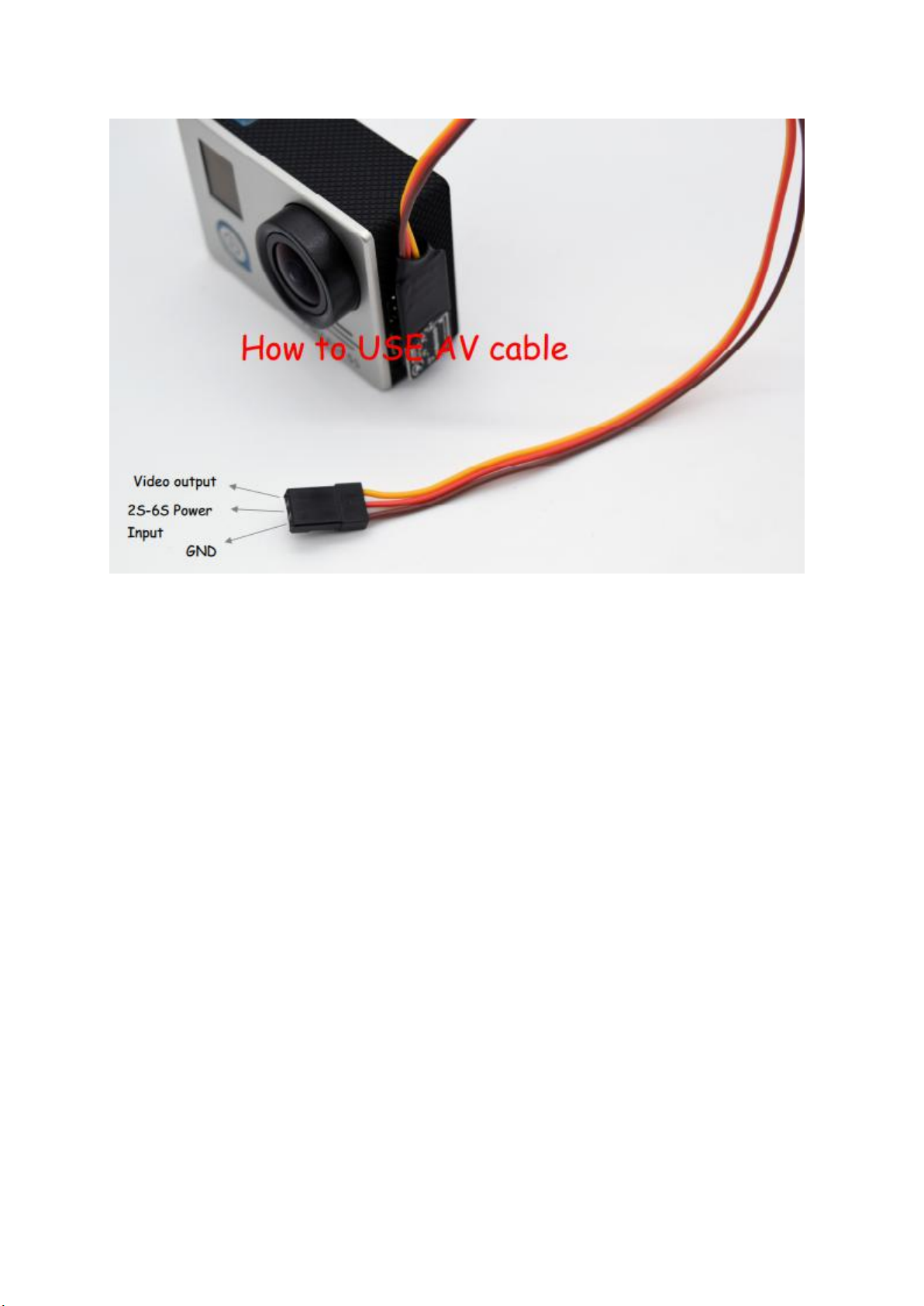

Instruction for accessories
：
www.CNfpv.com
15
Accessories installation instructions(Not in stander package):
www.CNfpv.com
16
17
Bluetooth remote controller:
Selfie stick:
www.CNfpv.com
External Microphone:
www.CNfpv.com
18
2.Videos are not smooth:（refer to :System Setup settings )
a.Set the video resolution to :1080P 60FPS b.Set Gyro :ON
3.Battery endurance time is not enough: a.set LCD Brightness to Low; b.turn off the
4.Charging time too long: when charging, press and hold Mode key for 3 seconds to
5.Video and sounds are no sync: A.copy the video to computer. B. Change a
6.Can't record/Camera unstable/record and then stop: A.Make sure card speed is U3.
7.Machine is heat. a. Set to Photo Mode when standby. b.take it out of the waterproof
8.Camera no response. Take battery off and assemble again.
9.For more information please visit our website: www.CNfpv.com/
10.How to use BT remote controller: please refer to Bluetooth pair. Note: When
Trouble shooting:
1.First of all if the camera has any problems: set it to default
settings first（refer to :System Setup settings ).
1.if the video quality is not satisfied or if the camra have any problems: try to set it to
default
settings first（refer to :System Setup settings ).
c.Change a player(Quicktime player).
camera when charging(Press and hold Mode key for 3 seconds could shutdown
the camera)c.Set to Photo mode when standby.d.Auto low light set ON. d.Turn WiFi
OFF.
turn the machine power off.
player(Quicktime).
B. Format MiroSD card(One FIREFLY) once. Suggest MicroSD cards: Sandisk
Extreme U3，Sandisk Extreme Pro U3,Sandisk Extreme PLUS U3,Lexar 1000x
U3，SONY SR-64X U3
case. c.Not Use it in a sealed environment
www.HawkeyeFirefly.com
www.CNfpv.com
19
11.WiFi playback speed is slow. When you want to use WiFi to playback videos, we
Camera power ON , it will keep searching BT remote controller for 20 seconds(If
bluetooth auto start is turn ON), if you keep pressing controller’s key (about 5
times), they will be pared automaticly.
suggest to turn “Dual Files” ON. When this function is turned ON, it will save a low
resolution file. The files named “xxxxB”, we call it B file. When playback via WiFi, play
the B file will be much faster.
12.Photos over exposure: Change Metering: Center,Multi,Sopt.
FCC STATEMENT
：
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Please refer to our website for manual updates: www.CNfpv.com
www.hawkeyefirefly.com
20
Please download APP from:
Apple Store: Firefly Cam
Google Play: Hawkeye Firefly
iOS: Android:
www.CNfpv.com
www.CNfpv.com
21
（Dear Sir， please fill and print this paper if you want to send back to us
your hawkeye product.）
Name:
Product Name:
Email address:
Detail address:
Phone number:
What’s the problem:
Hawkeye address:
Name: Victor.Koon
Company:HAWK-EYE Aerial Photography Tech Company Limited
Tel: (86)134-243-36270
Addr:Room 15B,15 floor,Nanyuan Fengye Building, No. 1088
Nanshan Road,Nanshan district ,Shenzhen,China.
地址：广东省深圳市南山区南山大道 1088 号南园枫叶大厦 15B
www.CNfpv.com
22
Loading...
