AR MULTI-TOOL
FF72000
USER MANUAL
Page 2
www.re-eld.com
The Fireeld™ brand has recently launched with products designed to
maximize every intense moment. Originally designed for consumers who
need products to hold up to heart pounding, fast- paced combat in the
eld with Xtreme shooting sports, Fireeld™ has crossed over to service
customers with hunting and tactical needs as well.
Fireeld™ offers quality products with the outdoor enthusiast and shooting
fanatic in mind that are affordable to the masses. Prepare for victory with
the latest Fireeld™ products! The Fireeld™ brand consists of riescopes,
laser sights, boresights, tactical ashlights, reex sights, AK and Quad Rail
mounts, binoculars and other shooting accessories. Fireeld™ products are
compatible with paintball, airsoft, AR15, shotguns and pistols.
Fireeld™ concentrates on providing the consumer with products for
fast-paced situations while being durable, yet affordable. Fireeld™ works
diligently creating products to serve the next generation of fast- paced gun
enthusiasts. Transform fears into glory and excitement with Fireeld™!
*www.re-eld.com*
© Sellmark Corporation, all rights reserved
9
FIREFIELD WARRANTY
Please visit www.re-eld.com for warranty details and information.
Page 3
8
NOTES
1
ABOUT
• 15 tools in 1
• Can be used to adjust/mount most optics
• Can be used to x basic issues on AR ries
• Can perform basic cleaning of AR ries
• Durable metal construction
You don’t need an entire box of tools to perform simple maintenance on your
AR15, just one AR Multi-Tool from Fireeld will do the trick! This versatile,
15-in-1 multi-tool is able to help perform gun cleaning, gun maintenance and
optic/accessory mounting tasks on any AR platform rearm. The AR MultiTool can help with basic bolt cleaning, can adjust the windage and elevation
on most optics, and is able to tighten mounts on almost all optics and
accessories. Constructed of durable metal, the pliers are spring-loaded so
they can be used with one hand. The tools also lock to ensure they stay in
the open position while being used. The tools include pliers, wire cutters,
hammer surface, bolt scraper, bit driver with 4 bits, large at head, hex
wrench, bottle opener, at knife, metal pick and more!
Page 4
Technical Specications FF35004
Length 4.2” / 107mm
Width 1” / 26mm
Height 1.8” / 46mm
Weight tool only (oz.) 12.4
Weight tool with pouch and accessories (oz.) 14.1
Material Metal
TECHNICAL SPECIFICATIONS
2
7
METAL PICK
This can be used to scrape hard to reach parts of the gun like the bolt
carrier.
Page 5
6
USING THE COTTER PIN PULLER
This is used to remove the cotter pin on the bolt carrier group for
bolt disassembly.
1. Insert cotter pin puller through hole in cotter pin
2. Pull out to remove pin
3
DIAGRAM
1. Pliers
2. Wire cutter
3. Hammer surface
4. Bolt scraper
5. Bit driver
6. Bits
3. Hammer surface
4. Bolt scraper
5. Bit driver
6. Bit
7. Large at head
8. Hex wrench
9. Bottle opener
10. Flat knife
11. Small at knife
12. Cotter pin pull
13. Metal pick
14. Carring pouch
2
1
3
4
11
8
5
14
6
9
7
13
12
10
(3mm at head, 3mm Hex, T10 Star, T15 Star)
(For optic mount nut)
(For scraping surfaces)
(For scraping surfaces)
Page 6
4
USING THE BOLT SCRAPER
This can be used to clean inside the bolt carrier, under the bolt.
To use it:
1.Remove the cotter pin holding the assembly together using the cotter
pin puller
2.Remove the ring pin out the back
3.Remove the gas cam pin
4.Pull the bolt out of the carrier

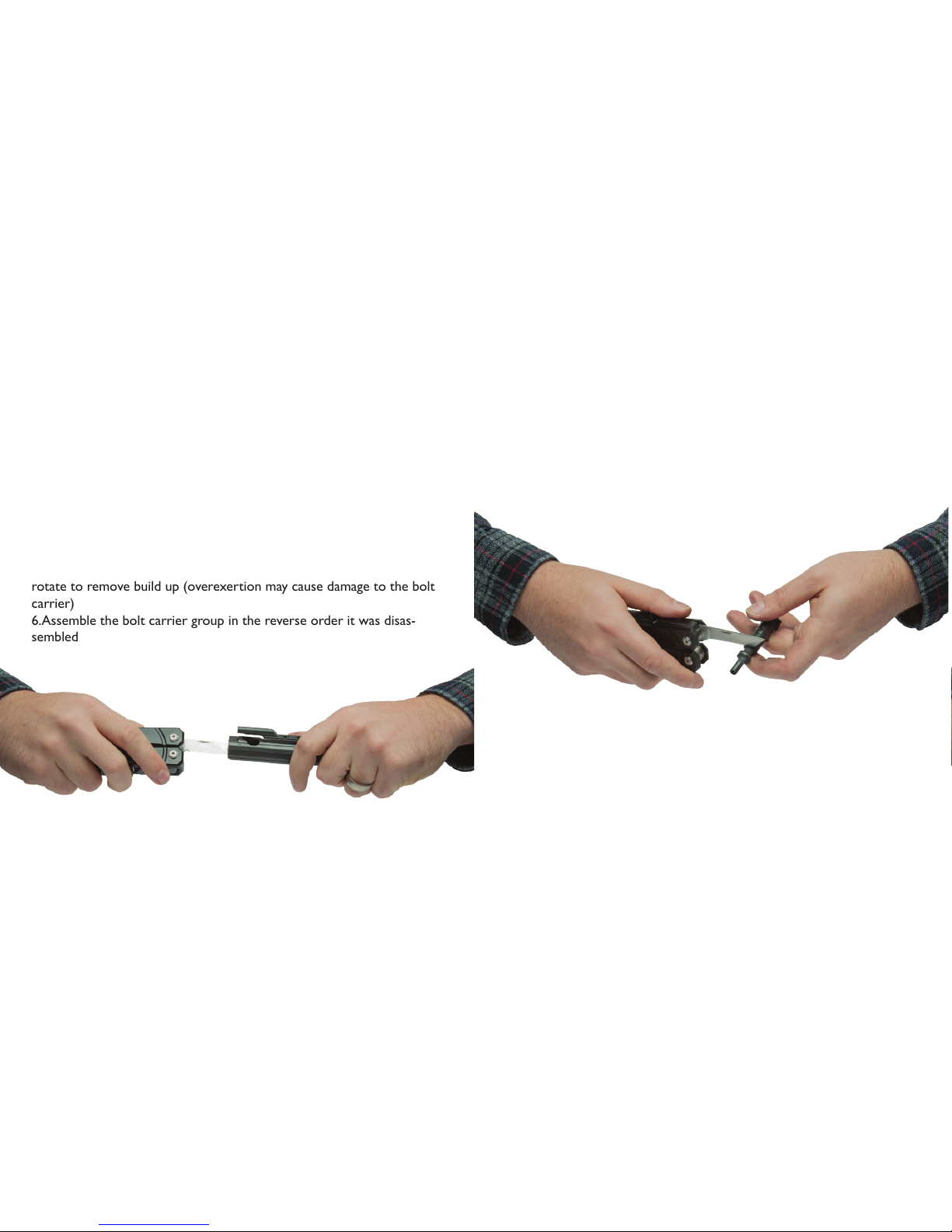

5.Insert the bolt scraper in to the hole the bolt came out of and gently
rotate to remove build up (overexertion may cause damage to the bolt
carrier)
6.Assemble the bolt carrier group in the reverse order it was disas-
sembled
5
FLAT KNIVES
This is used to remove build up on the bolt and other surfaces.
Depending on the surface either knife can be used to remove excessive build up.
Loading...
